SHOW ALL PRODUCTS Clear
    Go to product search and filters

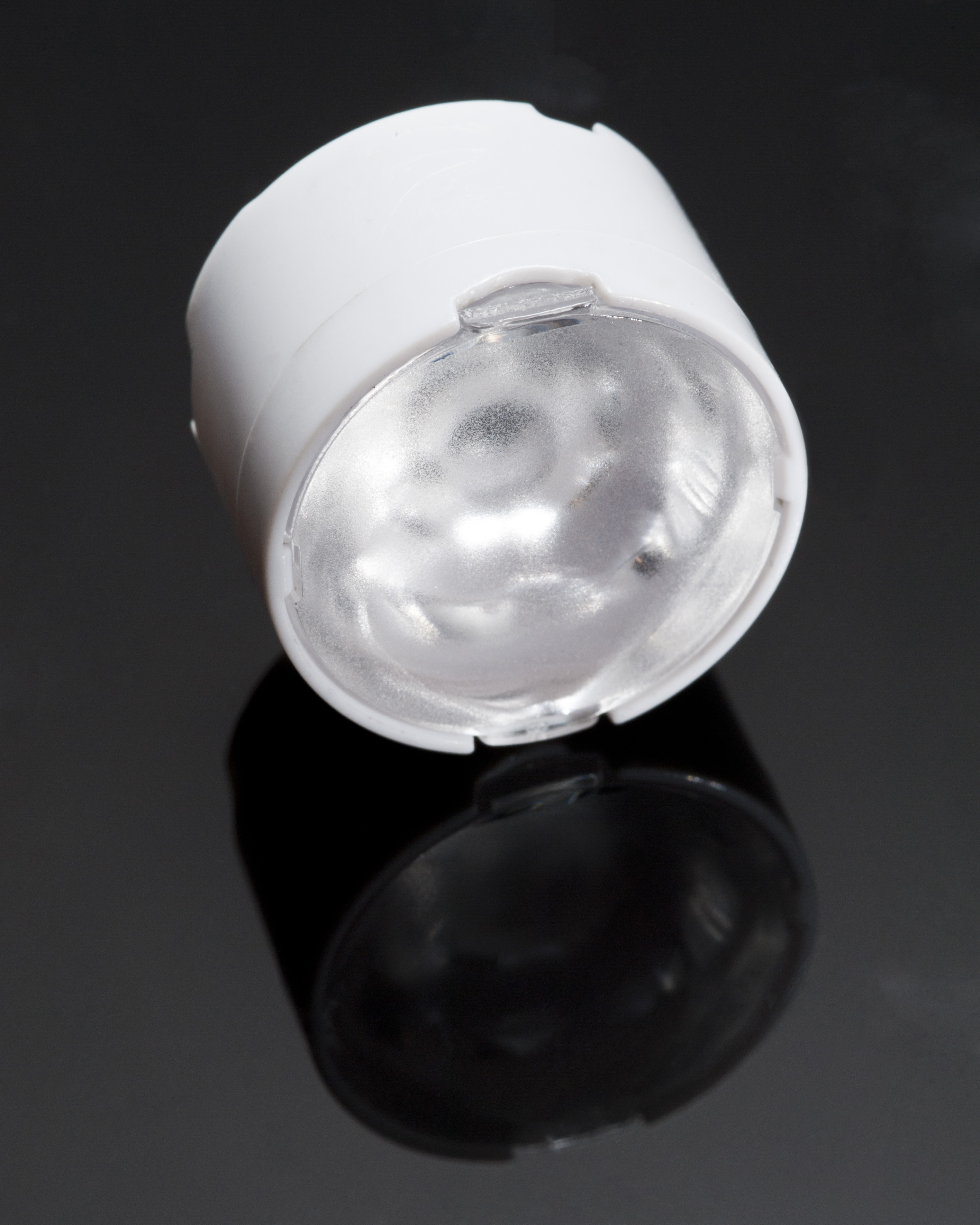

    CP13072_IRENE-IR-16

    Print

    ~15° + 15° rectangular beam

    Specification
    • Dimensions:
      22 mm
    • Height:
      14.28 mm
    • Fastening:
      pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1792 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      10.1 kg
    • MPQ:
      112 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP13072_IRENE-IR-16
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    Seeing further with LEDiL´s IR optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Seeing further with LEDiL’s IR optics

    Application area

    Outdoor Special Applications

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Optical results

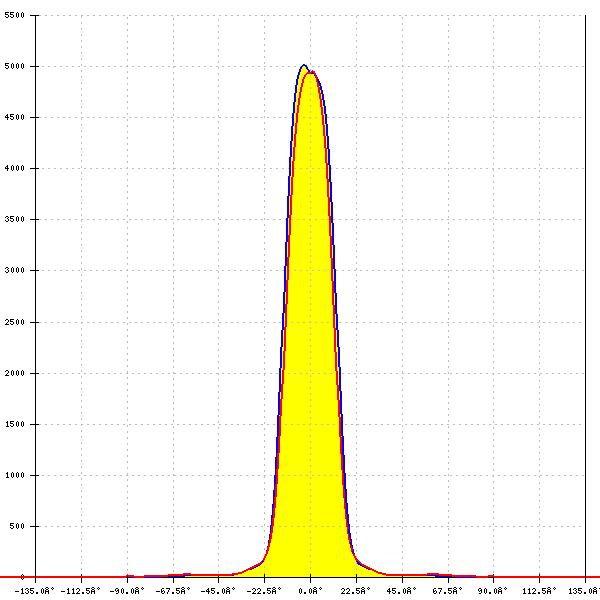

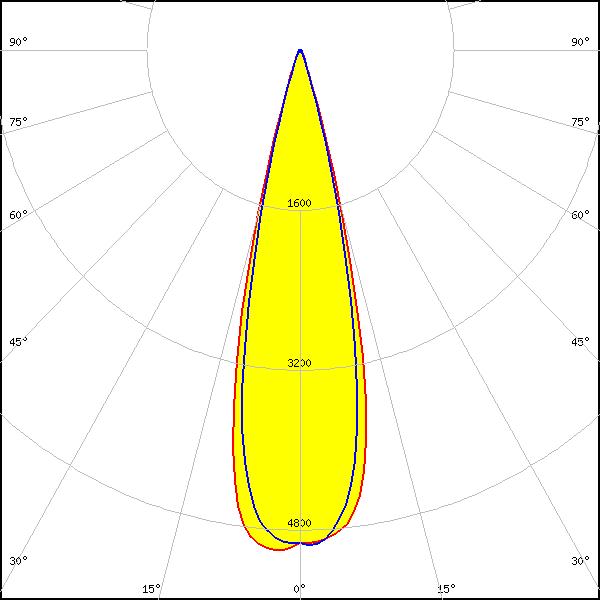

    LED: XP-G4 HI
    FWHM: 25°
    FWTM: 37°
    Peak intensity: 5.010 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON IR 2720
    FWHM: 22° + 20°
    FWTM: 32° + 32°
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: LUXEON IR Compact
    FWHM: 24° + 22°
    FWTM: 32° + 30°
    Peak intensity: 0.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

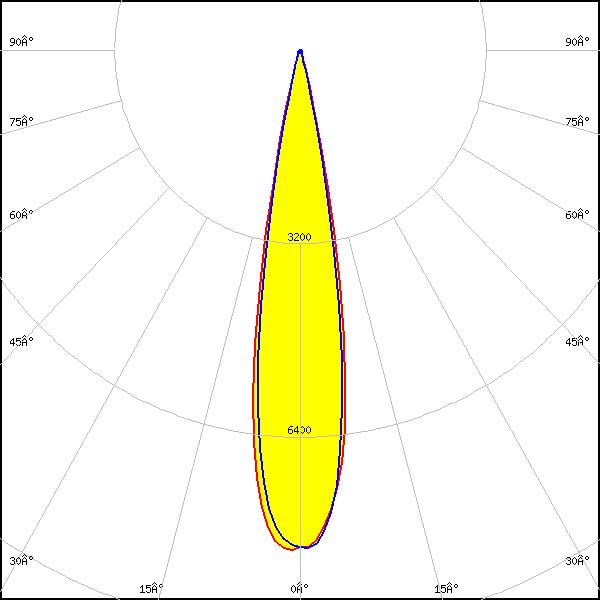

    LED: SFH 4715S
    FWHM: 20° + 19°
    FWTM: 26° + 25°
    Peak intensity: 0.830 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4725S
    FWHM: 17°
    FWTM: 36°
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4770S
    FWHM: 16°
    FWTM: 27°
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

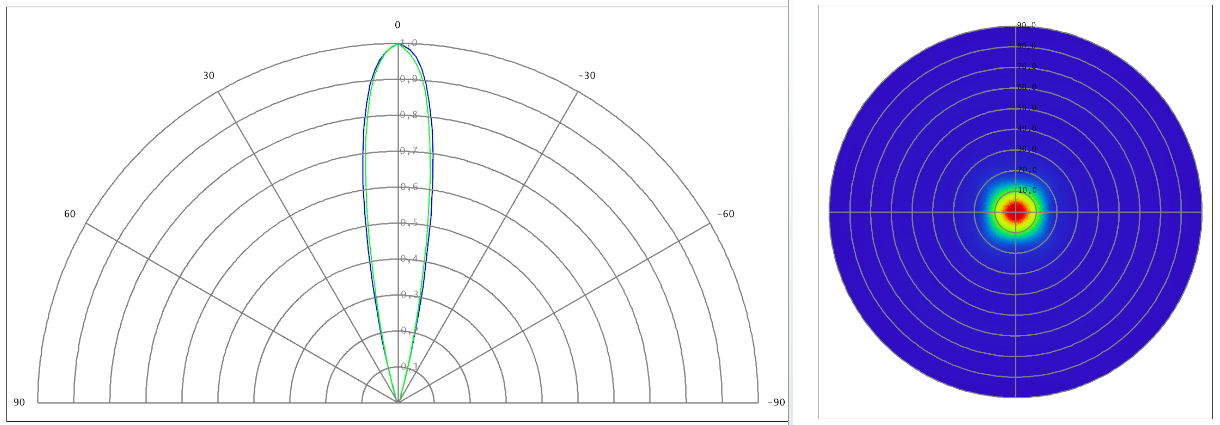

    LED: FWR1107MS
    FWHM: 21° + 19°
    FWTM: 31° + 31°
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: IR

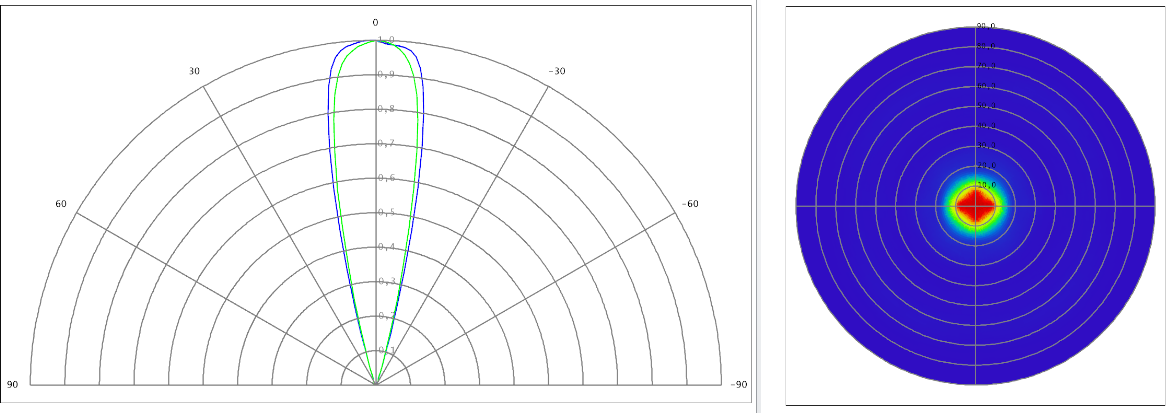

    LED: FWR1108MS
    FWHM: 25° + 23°
    FWTM: 34° + 33°
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: MFN1107MS
    FWHM: 24°
    FWTM: 31°
    Peak intensity: 6.469 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: MFN1108MS
    FWHM: 27°
    FWTM: 35°
    Peak intensity: 6.007 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: MGN1107MS
    FWHM: 24°
    FWTM: 31°
    Peak intensity: 6.453 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: MGN1108MS
    FWHM: 28°
    FWTM: 35°
    Peak intensity: 6.009 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: IR

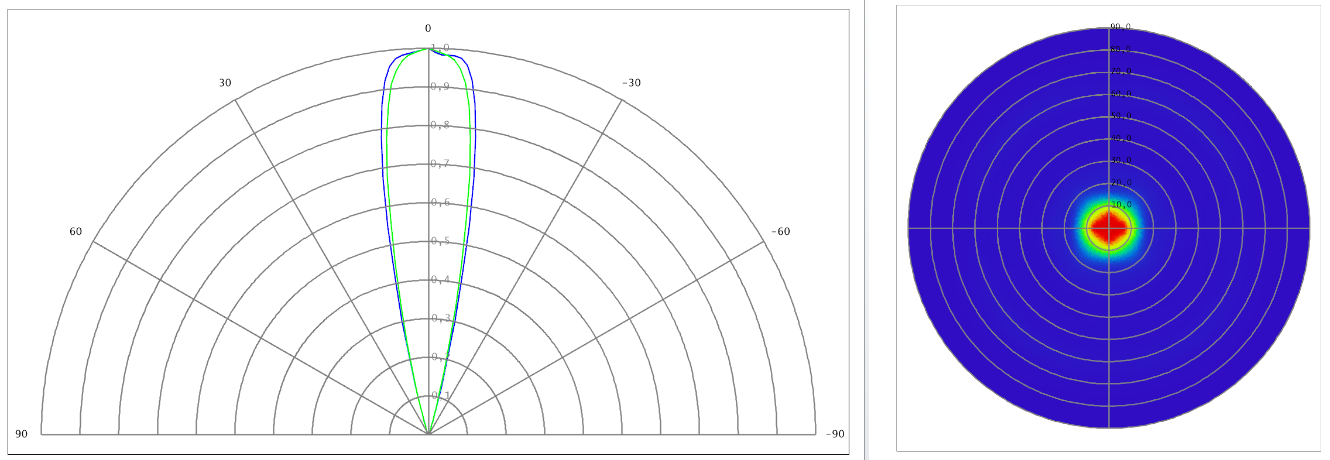

    LED: MJN1107MS
    FWHM: 23° + 21°
    FWTM: 31° + 30°
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: IR

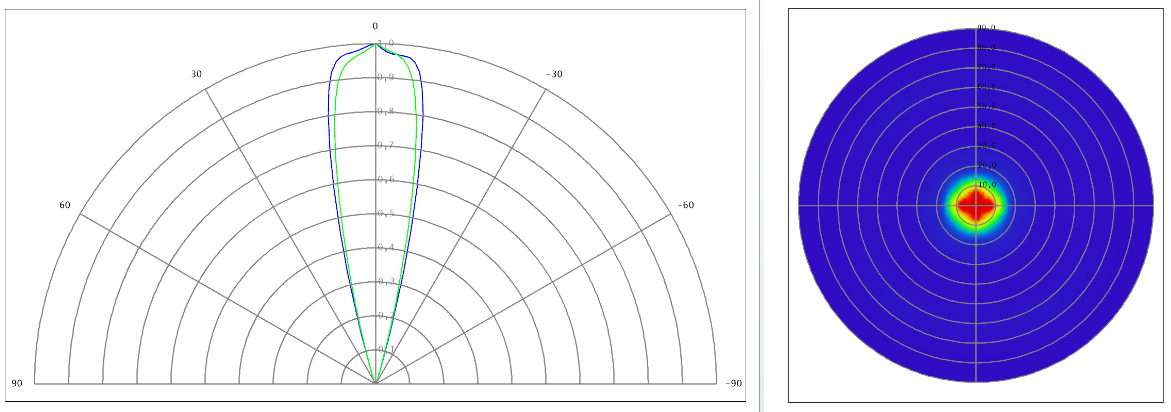

    LED: MJN1108MS
    FWHM: 25° + 23°
    FWTM: 34° + 32°
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: IR
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
