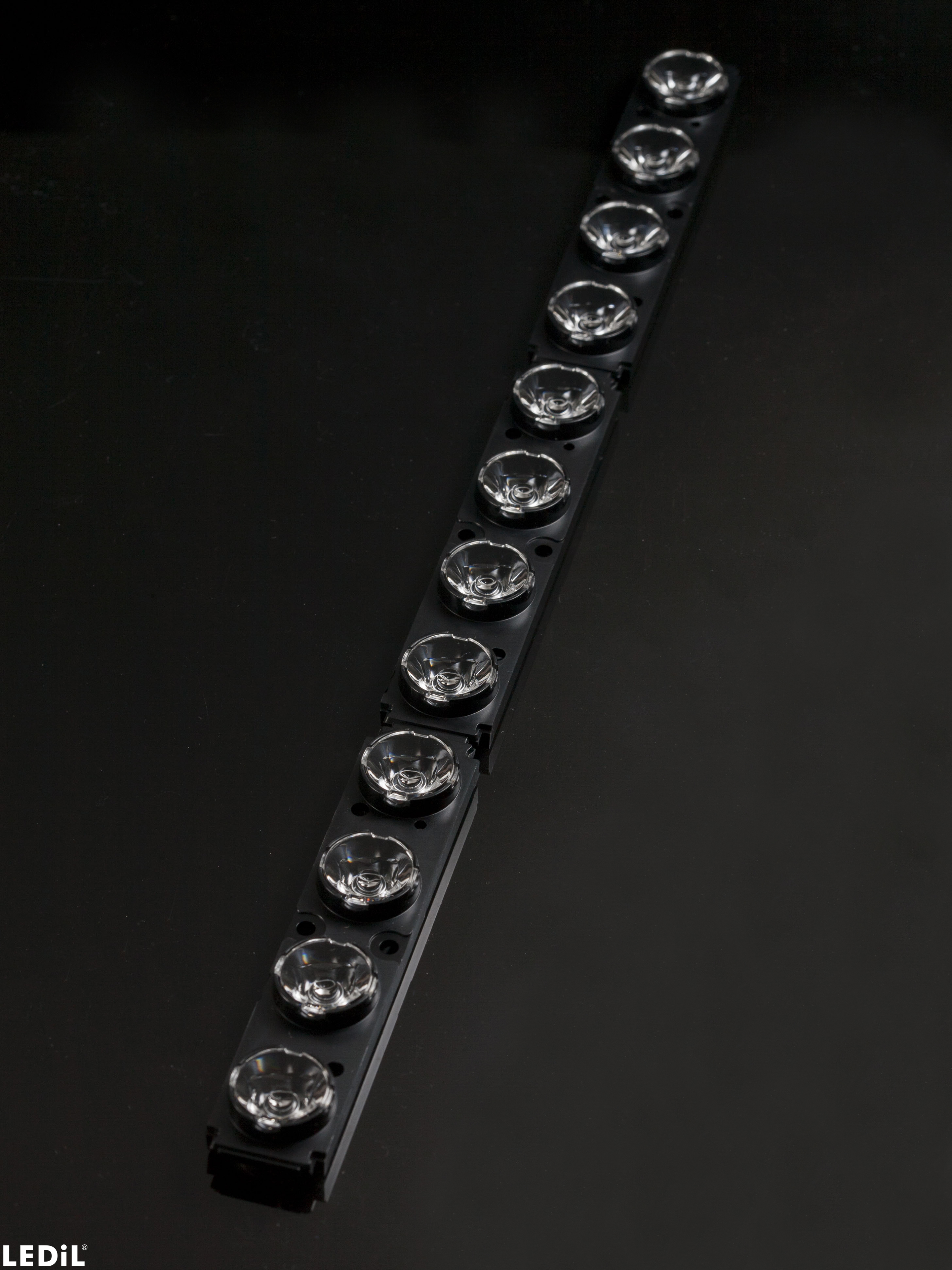

CP14866_FLORENTINA-HLD-RS

Print

~10° real spot beam

Specification
  • Dimensions:
    286 x  20 mm
  • Height:
    9.5 mm
  • Fastening:
    clips
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials
  • TINA2-RS, Single lens, PMMA
  • FLORENTINA-HLD, Holder, PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    160 pcs
  • Box size:
    398 x 298 x 140 mm
  • Box weight:
    5.2 kg
  • MPQ:
    16 pcs
  • MOQ:
    32 pcs
  • MOQ size:
    400 x 300 x 50 mm
  • MOQ weight:
    1.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP14866_FLORENTINA-HLD-RS

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

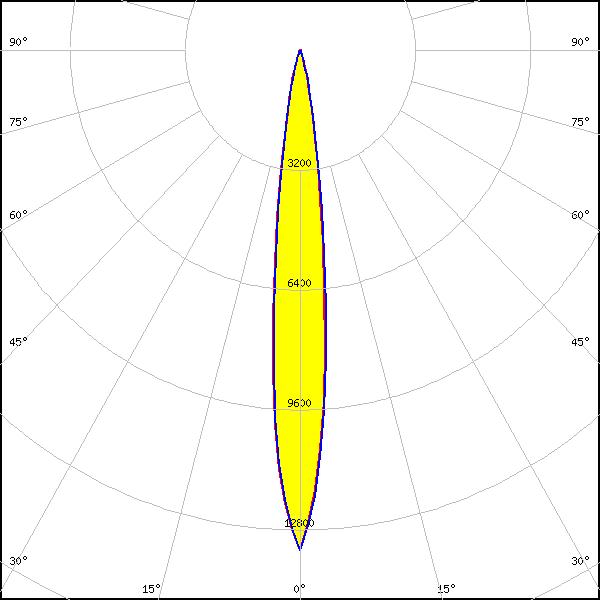

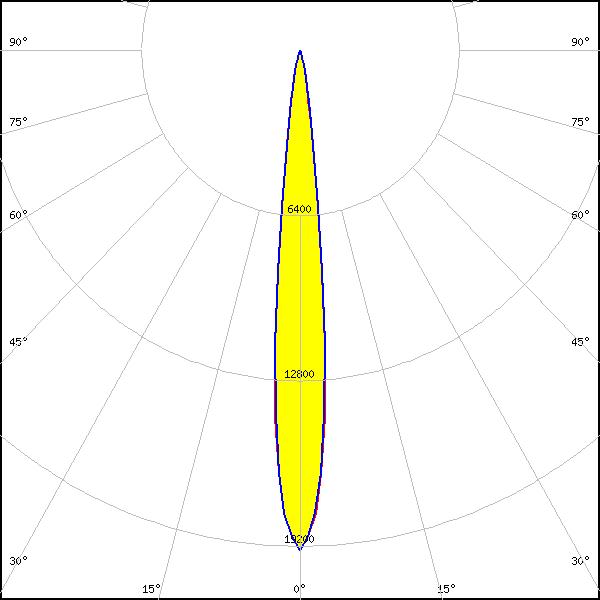

Optical results

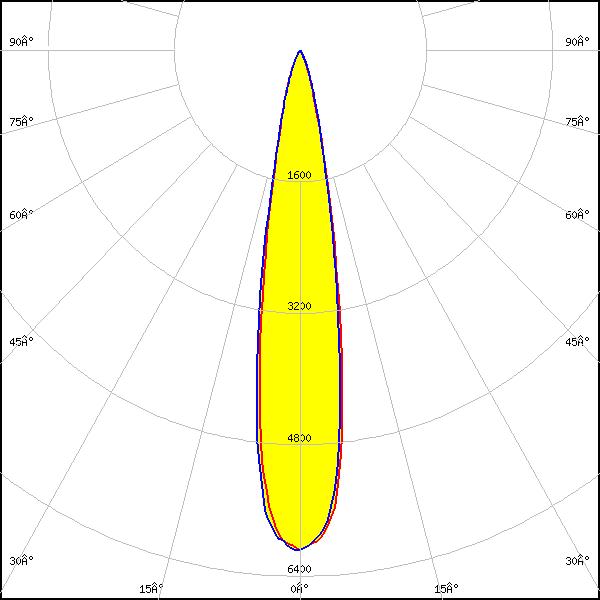

LED: QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM: 18°
FWTM: 35°
Peak intensity: 6.1 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

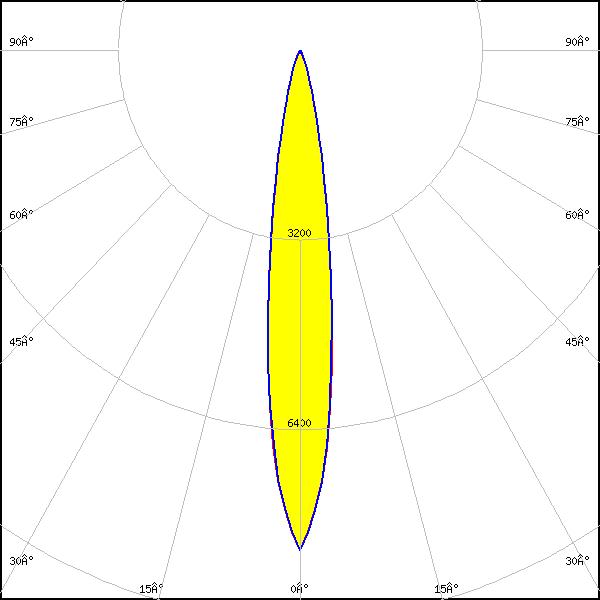

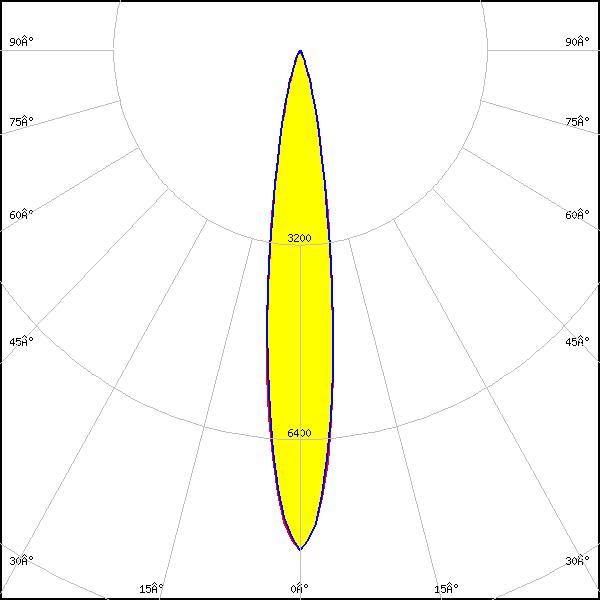

LED: J Series 3030
FWHM: 16°
FWTM: 32°
Peak intensity: 8.2 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: J Series 3030
Required components:
FWHM: 16°
FWTM: 32°
Peak intensity: 8.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

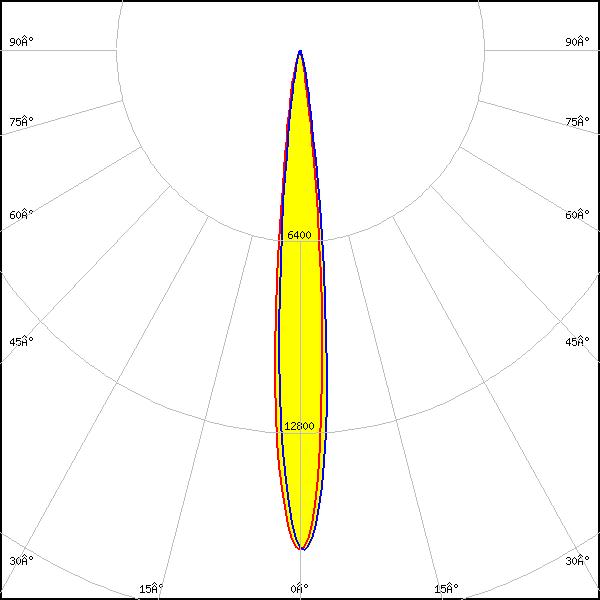

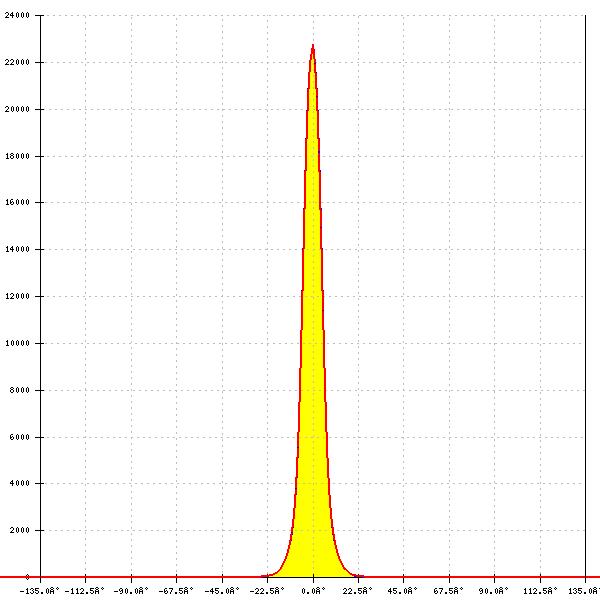

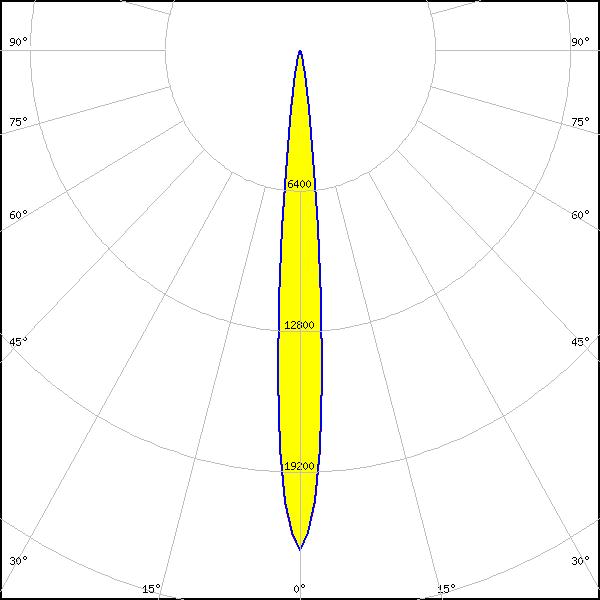

LED: XP-E2
Required components:
FWHM: 11°
FWTM: 21°
Peak intensity: 16.7 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: XP-G
LEDs/each optic: 1
Light colour: White

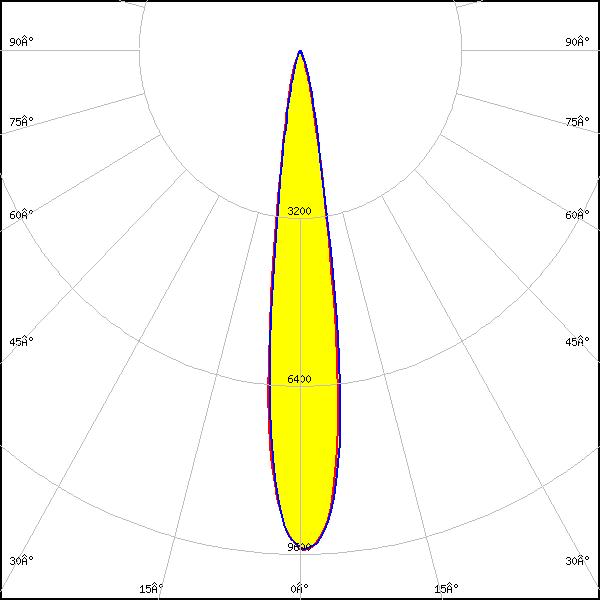

LED: XP-G2
Required components:
FWHM: 15°
FWTM: 28°
Peak intensity: 9.5 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
Required components:
FWHM: 18°
FWTM: 35°
Peak intensity: 6.4 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

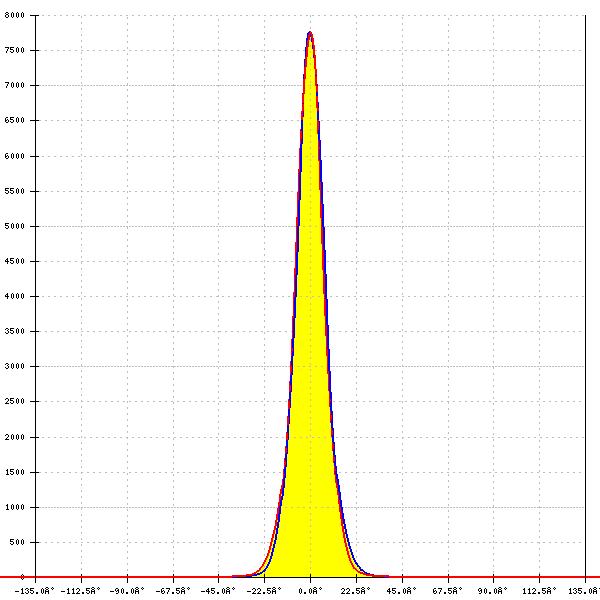

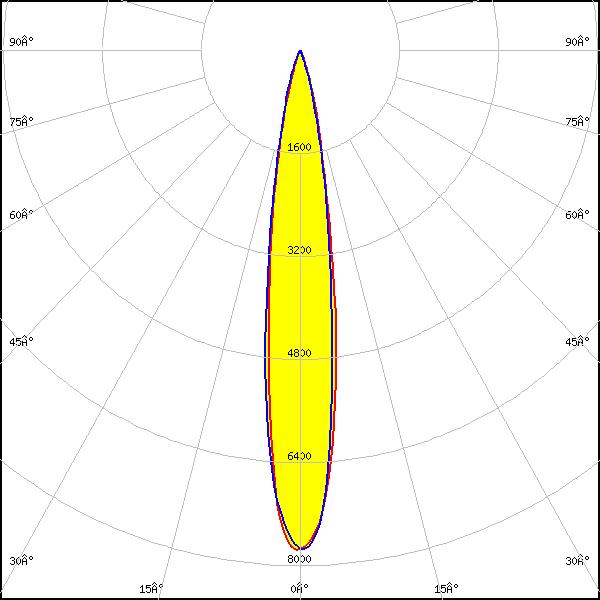

LED: LUXEON Rebel ES
Required components:
FWHM: 16°
FWTM: 32°
Peak intensity: 7.8 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

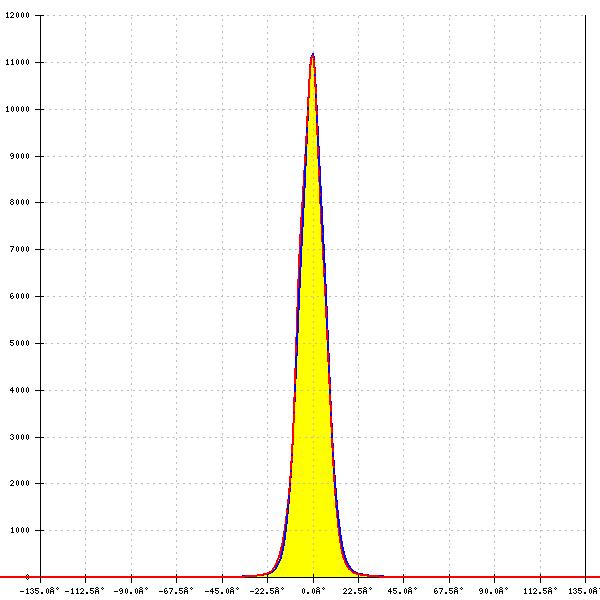

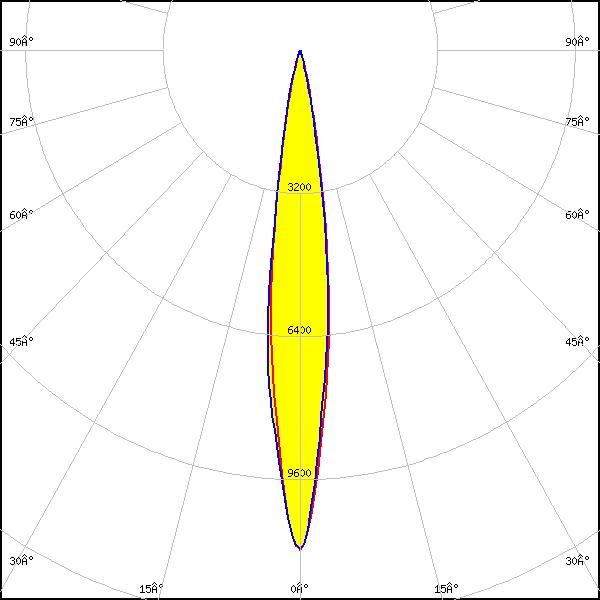

LED: LUXEON Rebel Plus
Required components:
FWHM: 14°
FWTM: 26°
Peak intensity: 11.2 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

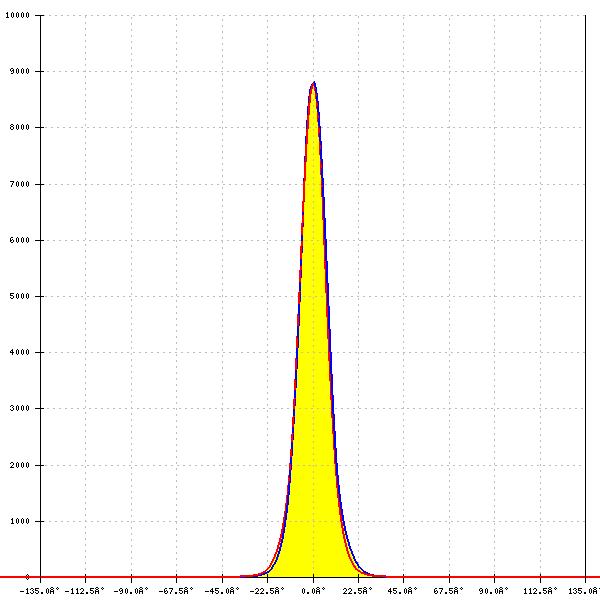

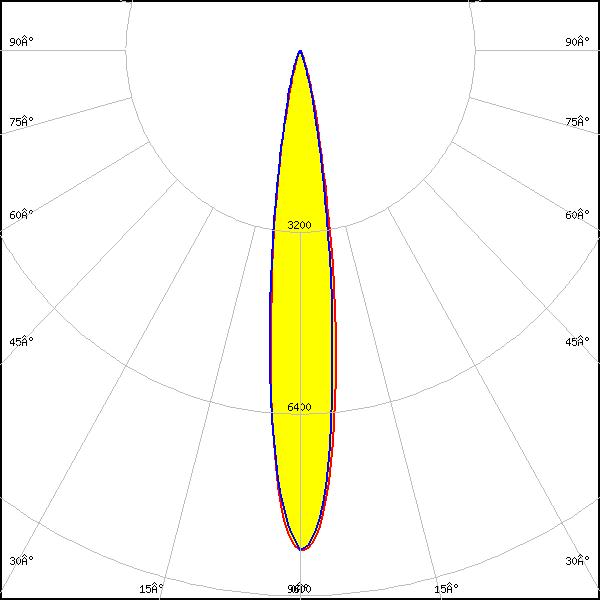

LED: LUXEON TX
Required components:
FWHM: 15°
FWTM: 30°
Peak intensity: 8.8 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

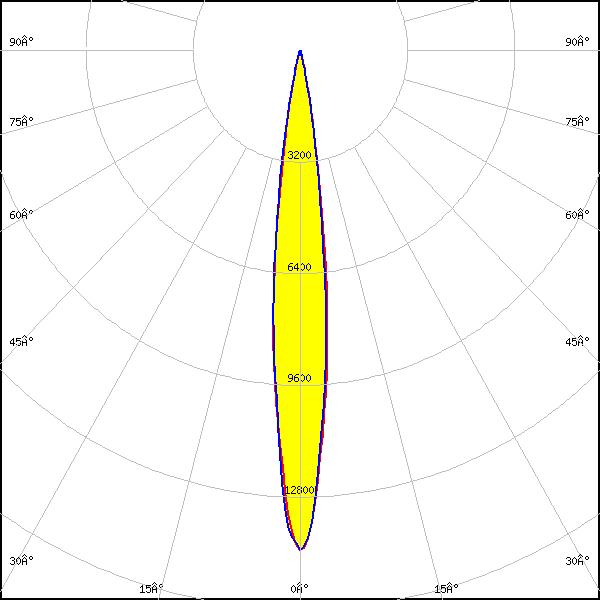

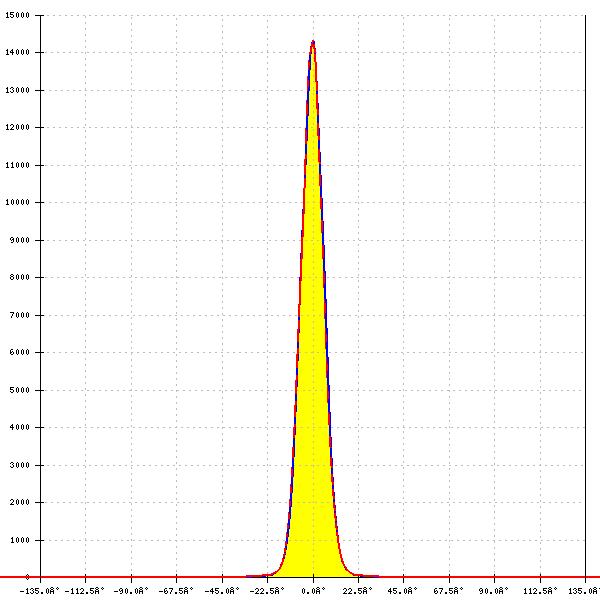

LED: LUXEON Z ES
Required components:
FWHM: 13°
FWTM: 24°
Peak intensity: 14.3 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: NCSxE17A
Required components:
FWHM: 11°
FWTM: 22°
Peak intensity: 22.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

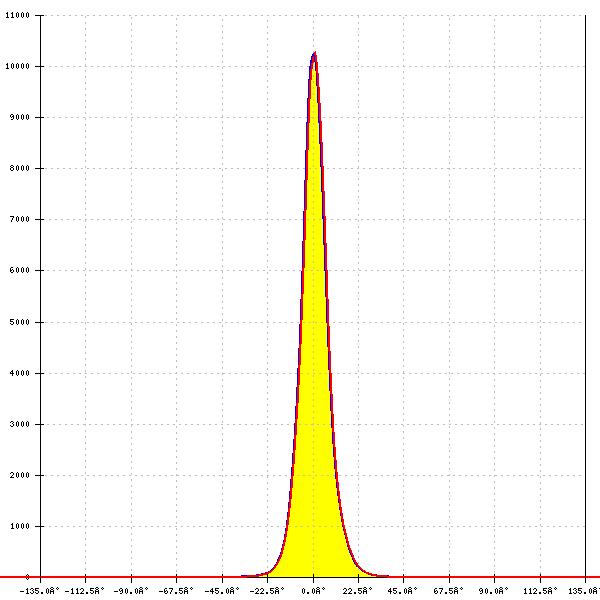

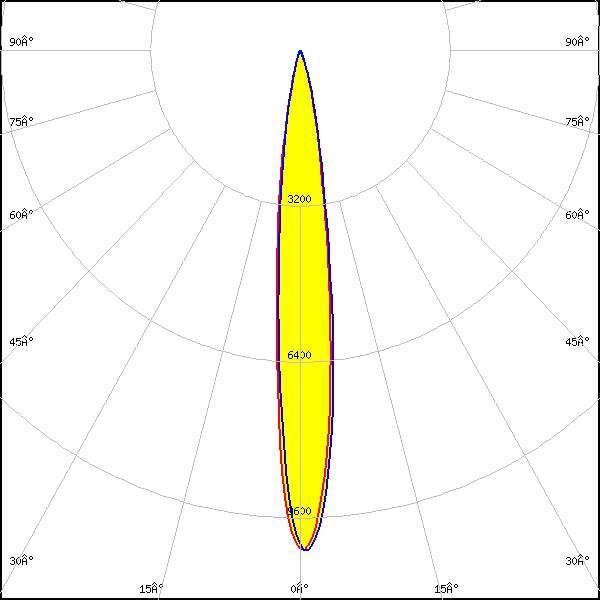

LED: NCSxx19B
Required components:
FWHM: 13°
FWTM: 28°
Peak intensity: 10.3 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White
LED: NVSU119C
FWHM: 16°
FWTM: 30°
Efficiency: 92 %
LEDs/each optic: 1
Light colour: UV-A

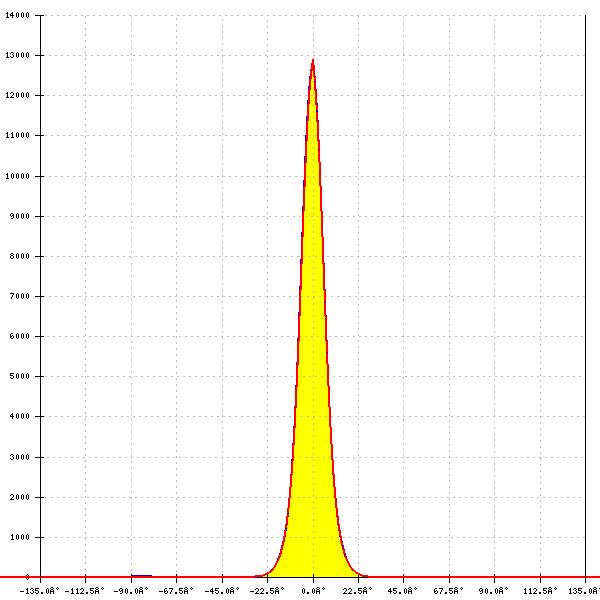

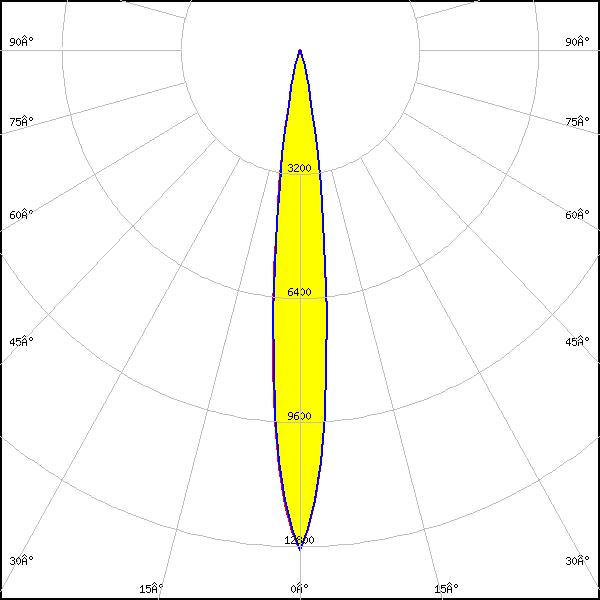

LED: NVSxE21A
Required components:
FWHM: 13°
FWTM: 26°
Peak intensity: 14.7 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

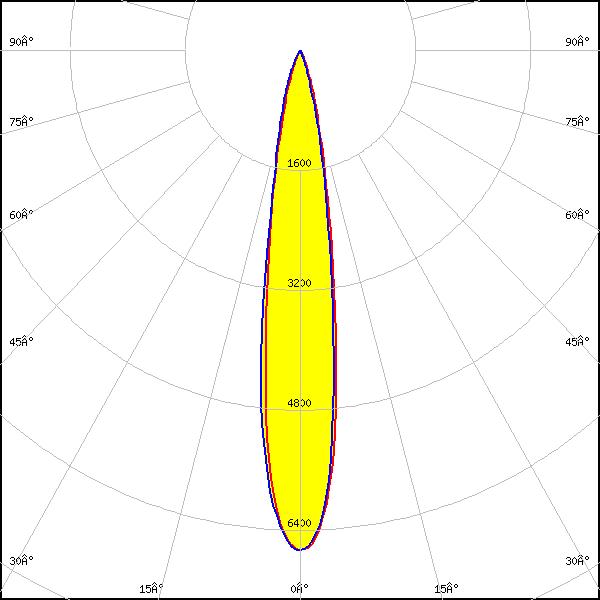

LED: NVSxx19B/NVSxx19C
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 6.7 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

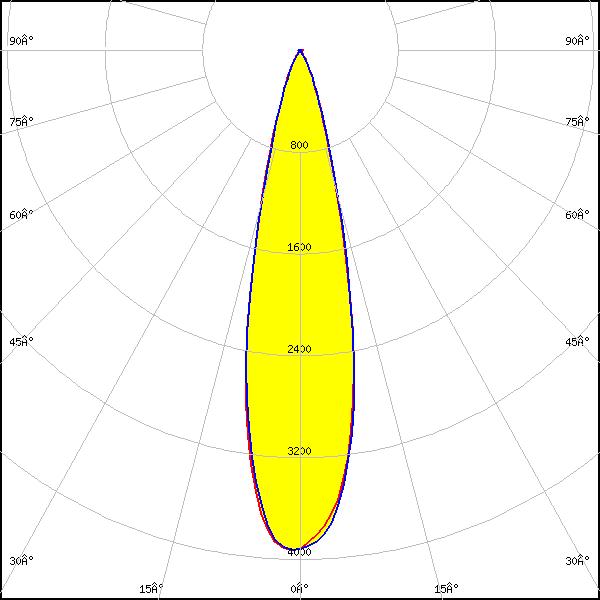

LED: NWSx229A
Required components:
FWHM: 24°
FWTM: 44°
Peak intensity: 4.0 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

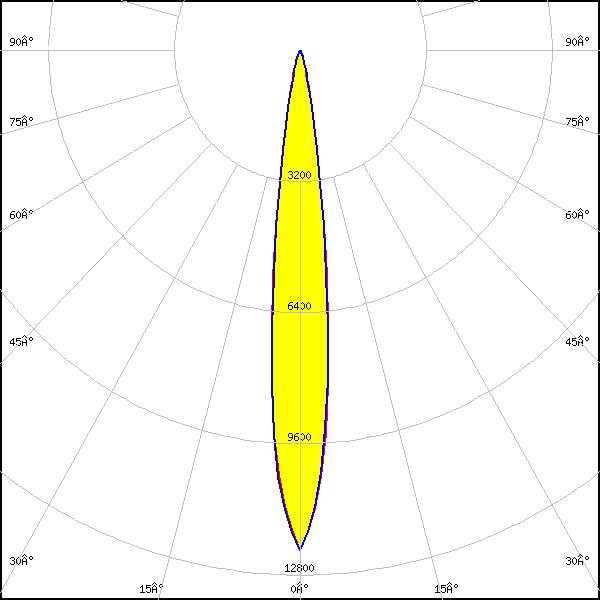

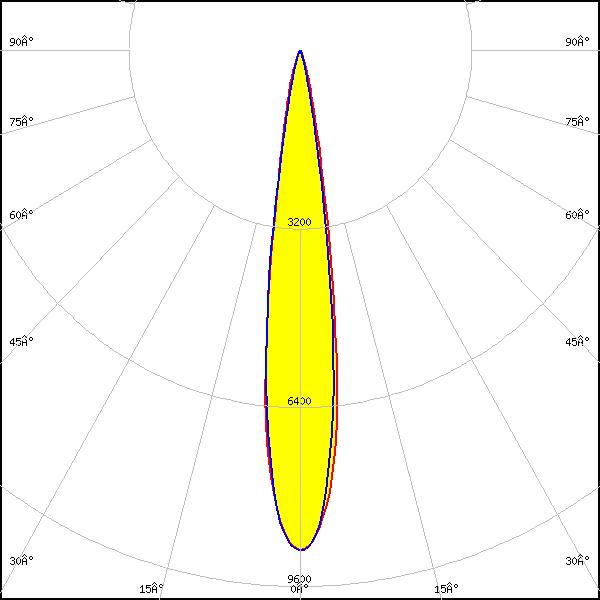

LED: OSLON Square EC
Required components:
FWHM: 15°
FWTM: 28°
Peak intensity: 9.0 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square EC
Required components:
FWHM: 15°
FWTM: 28°
Peak intensity: 9.0 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

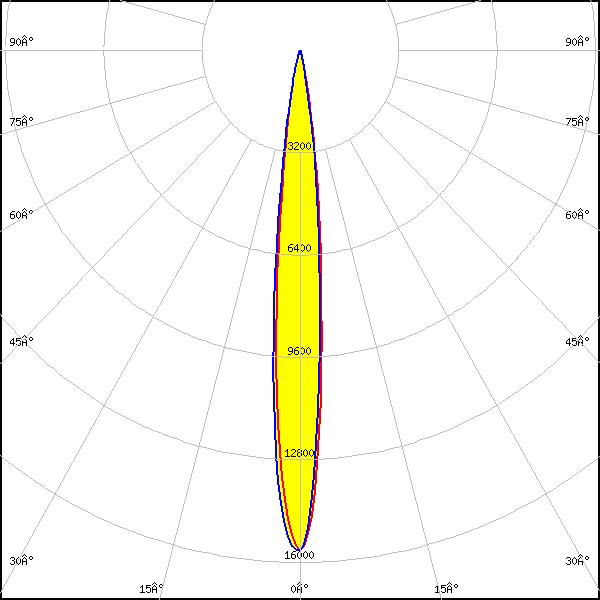

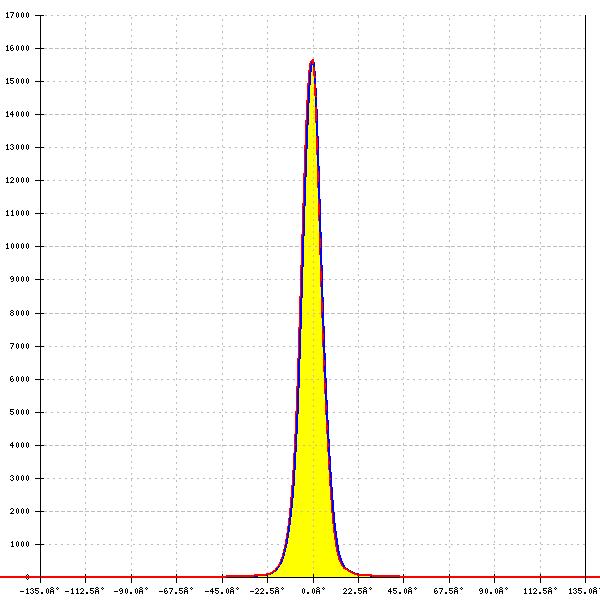

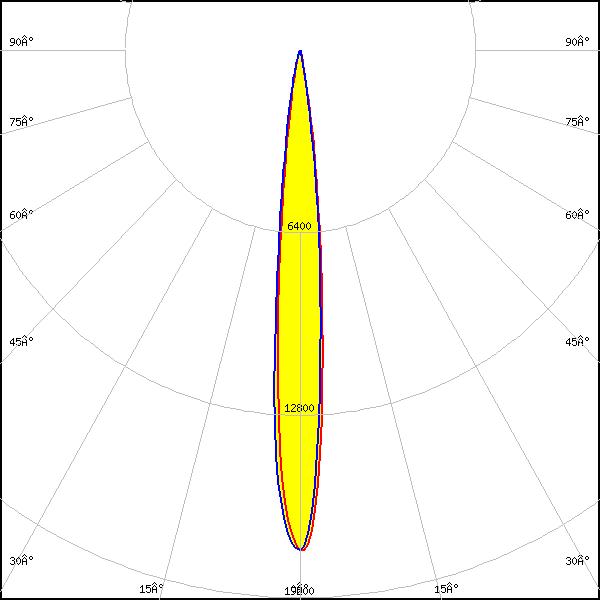

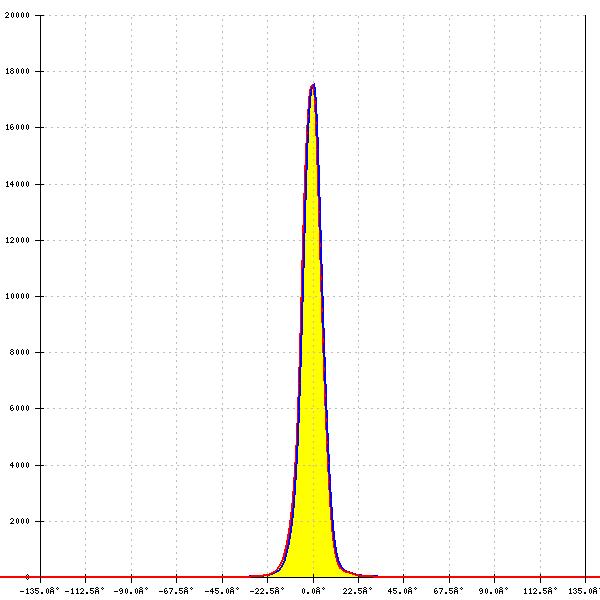

LED: OSLON SSL 150
Required components:
FWHM: 11°
FWTM: 21°
Peak intensity: 17.6 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: OSLON SSL 150
FWHM: 11°
FWTM: 22°
Peak intensity: 15.6 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

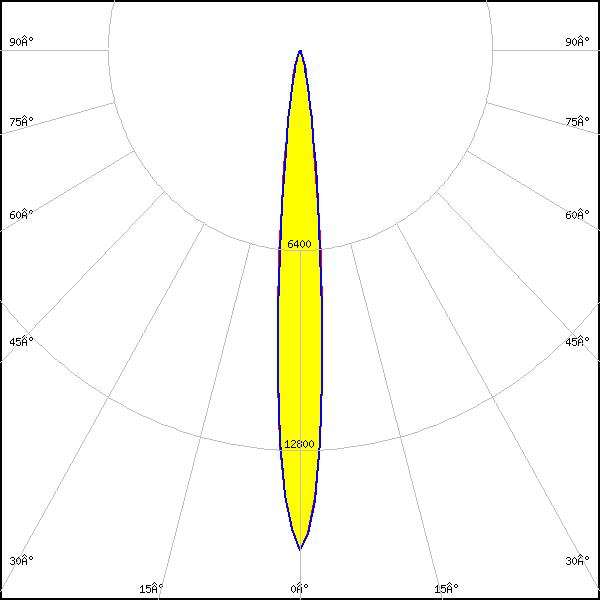

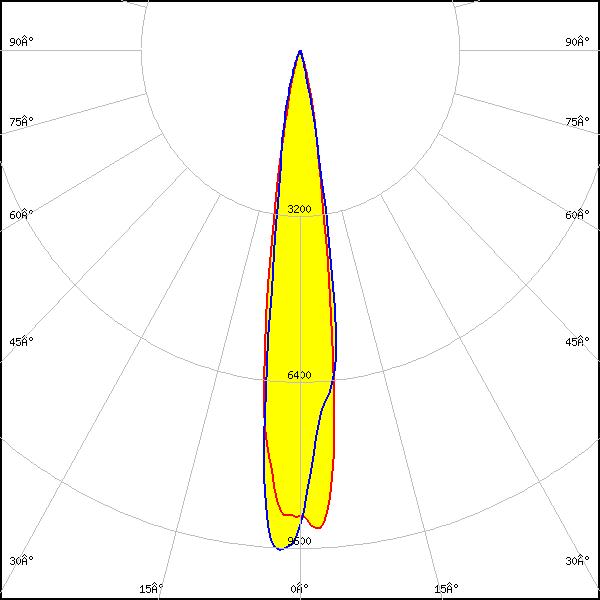

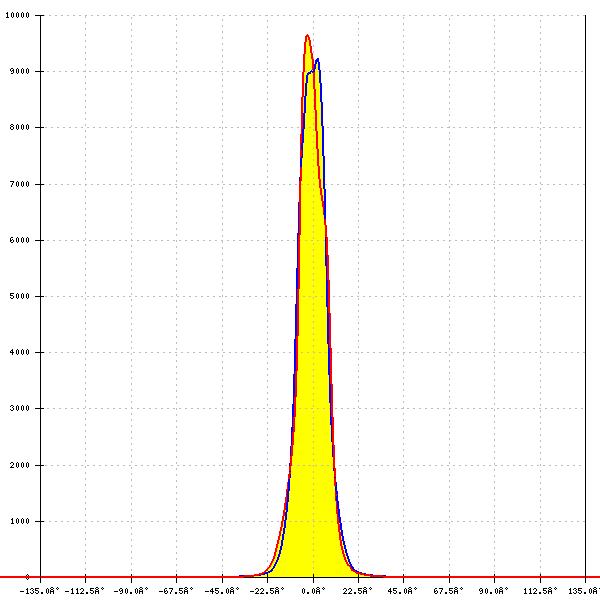

LED: OSLON SSL 80
Required components:
FWHM: 15°
FWTM: 28°
Peak intensity: 9.8 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

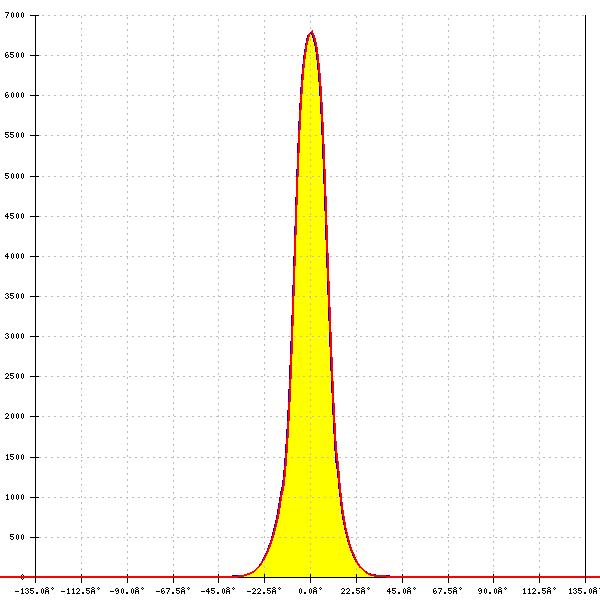

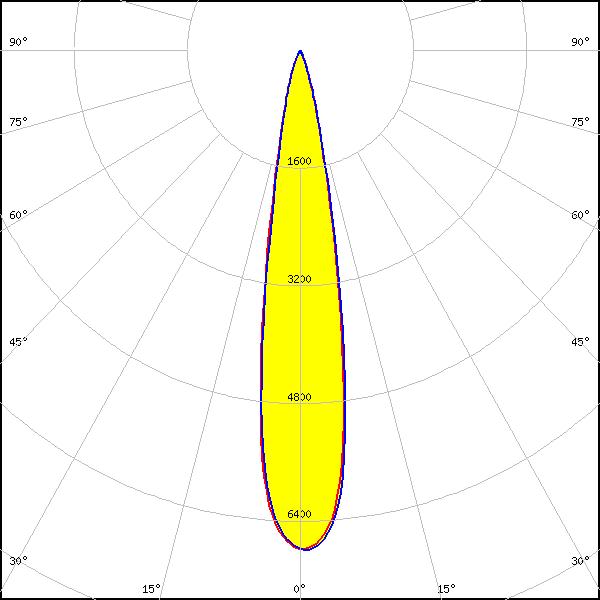

LED: LH351B
Required components:
FWHM: 18°
FWTM: 33°
Peak intensity: 6.8 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

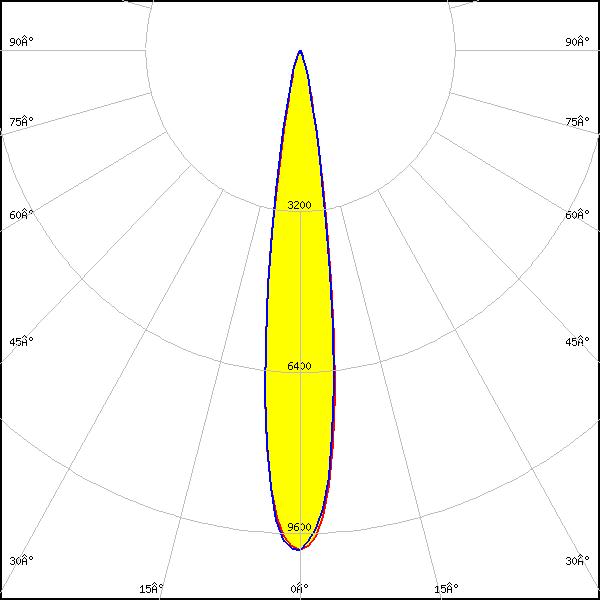

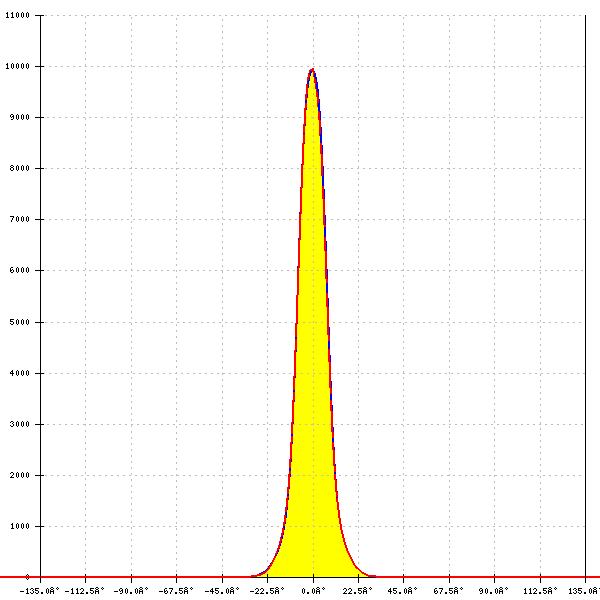

LED: Z5M1/Z5M2
FWHM: 16°
FWTM: 28°
Peak intensity: 9.9 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

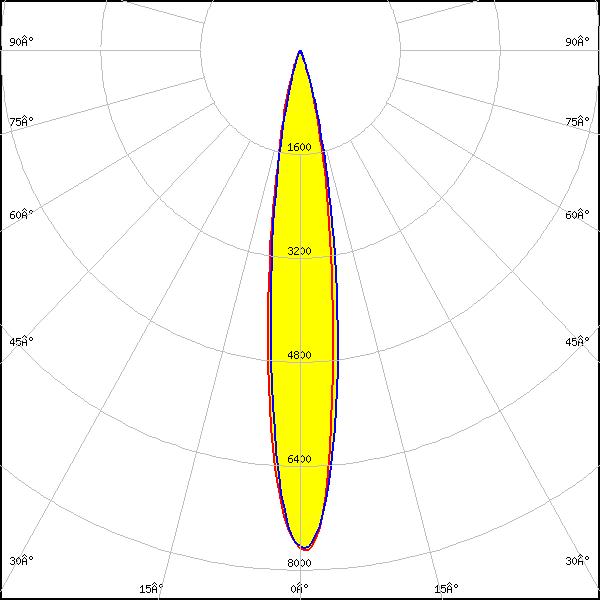

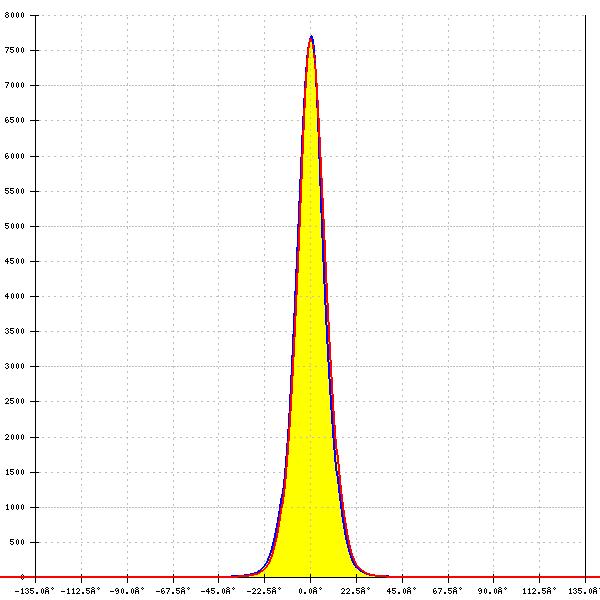

LED: TL1L4
Required components:
FWHM: 16°
FWTM: 33°
Peak intensity: 7.7 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
