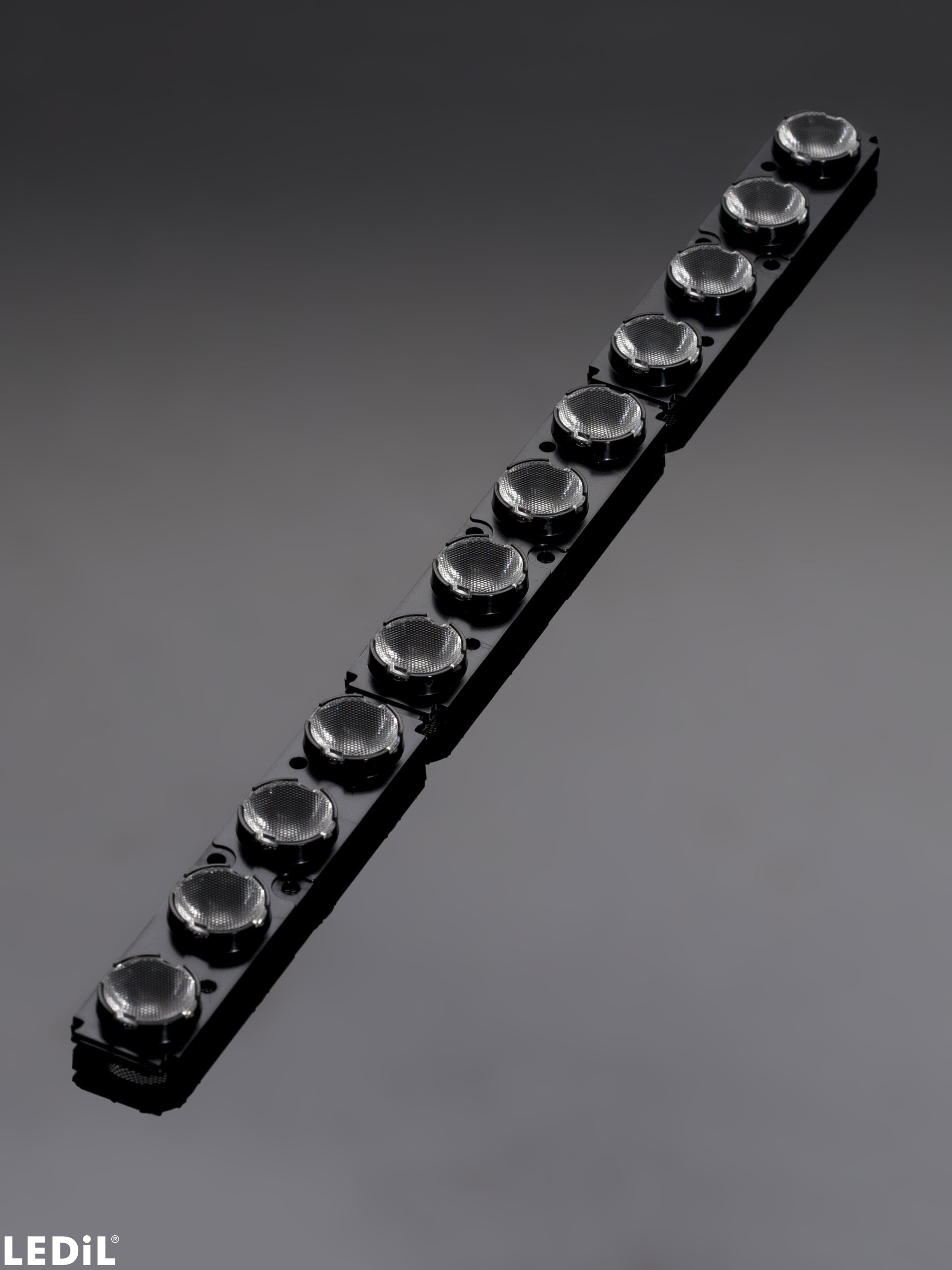

CP14994_FLORENTINA-HLD-M

Print

~30° medium beam

Specification
  • Dimensions:
    286 x  20 mm
  • Height:
    9.46 mm
  • Fastening:
    screw
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    160 pcs
  • Box size:
    398 x 298 x 140 mm
  • Box weight:
    5.2 kg
  • MPQ:
    16 pcs
  • MOQ:
    32 pcs
  • MOQ size:
    400 x 300 x 50 mm
  • MOQ weight:
    1.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP14994_FLORENTINA-HLD-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

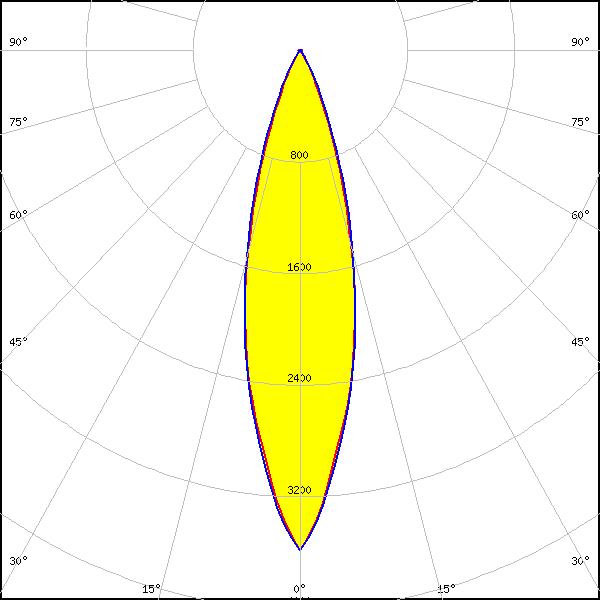

Optical results

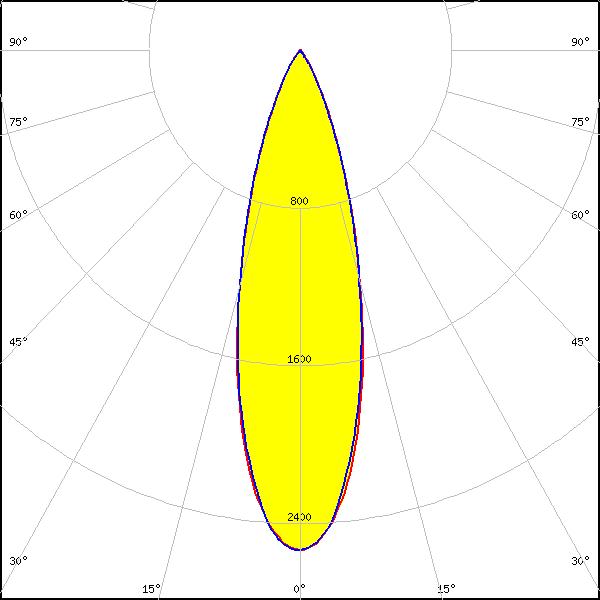

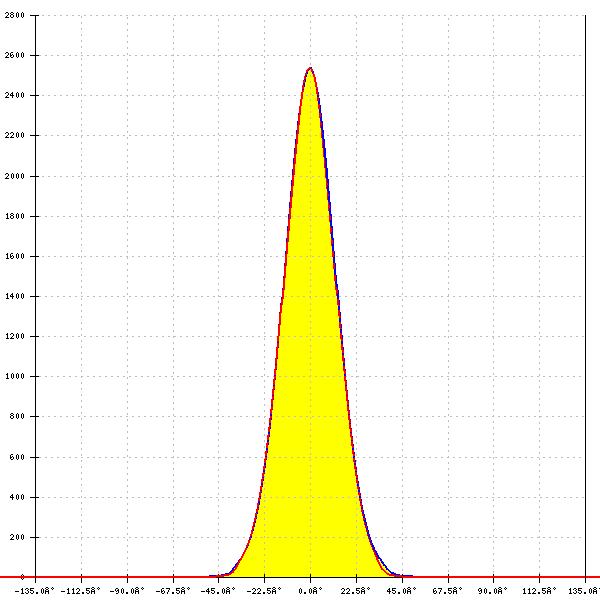

LED: QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM: 29°
FWTM: 55°
Peak intensity: 2.500 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

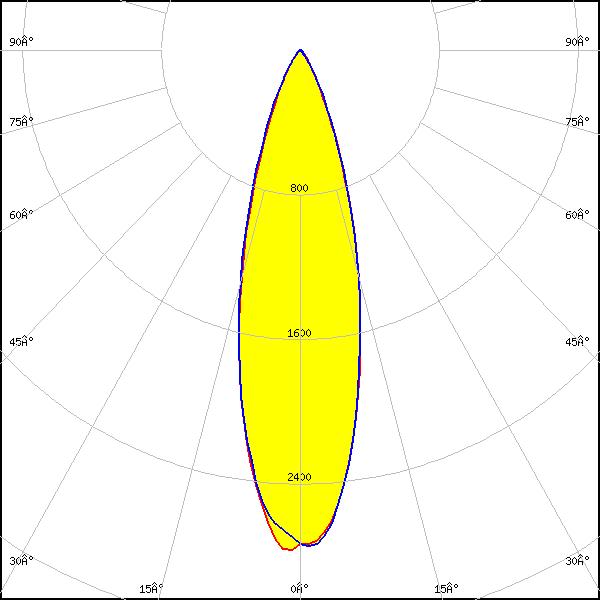

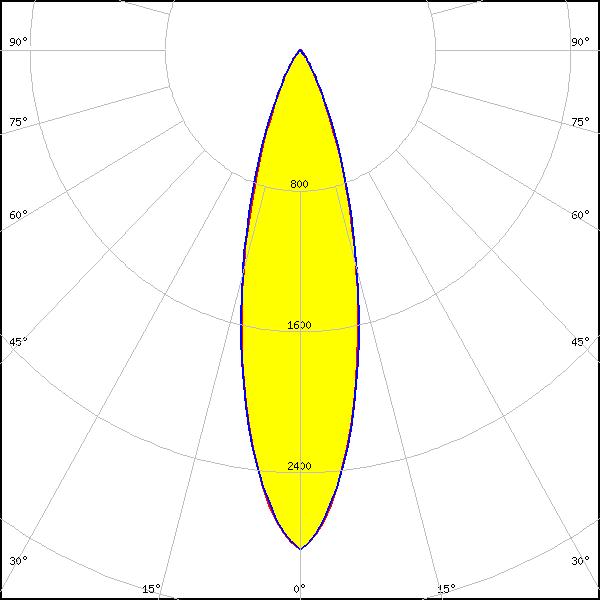

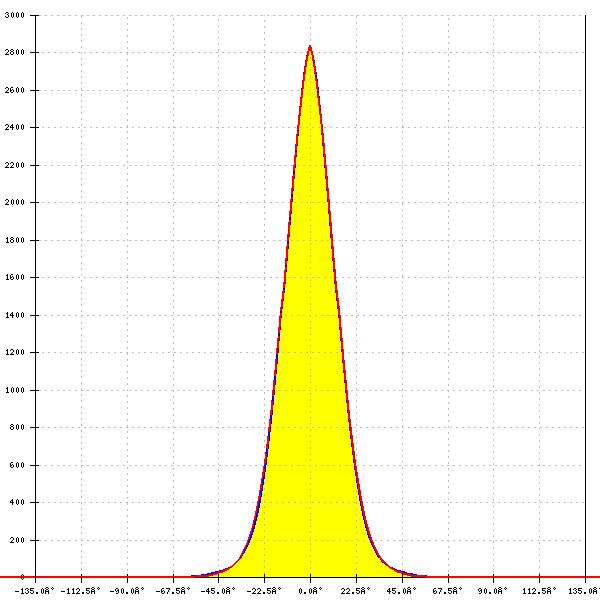

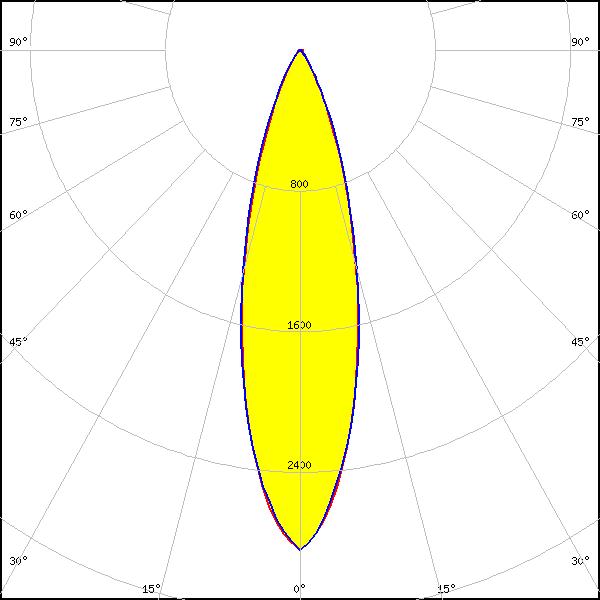

LED: J Series 3030
FWHM: 29°
FWTM: 56°
Peak intensity: 2.823 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

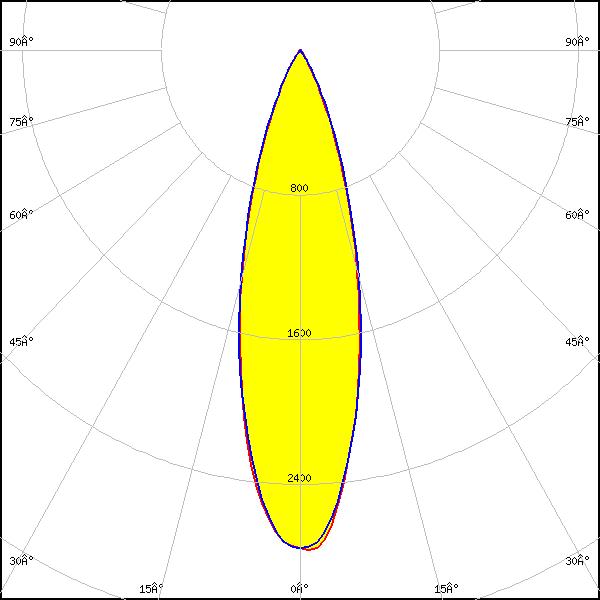

LED: J Series 3030
Required components:
FWHM: 28°
FWTM: 54°
Peak intensity: 2.776 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

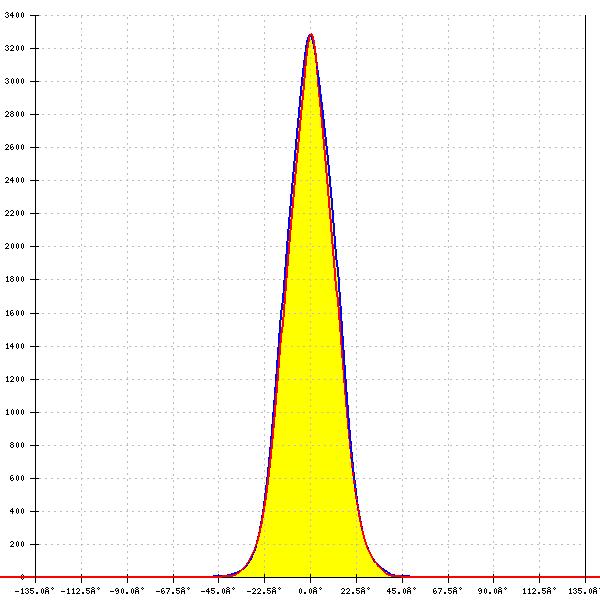

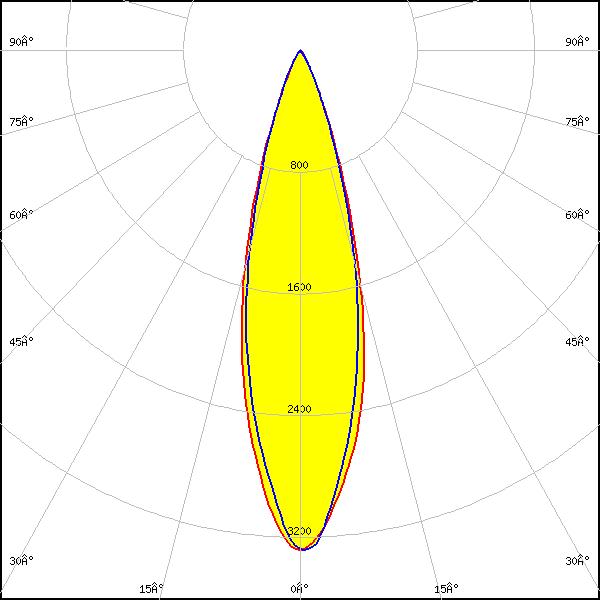

LED: XP-E2
Required components:
FWHM: 29°
FWTM: 49°
Peak intensity: 3.280 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G
LEDs/each optic: 1
Light colour/type: White

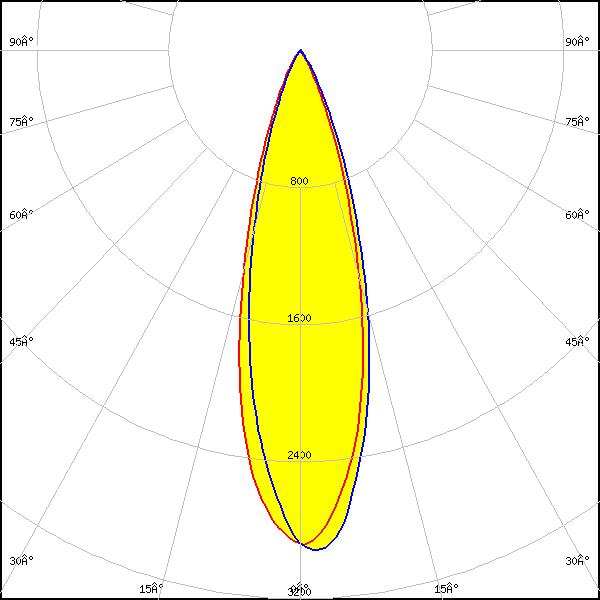

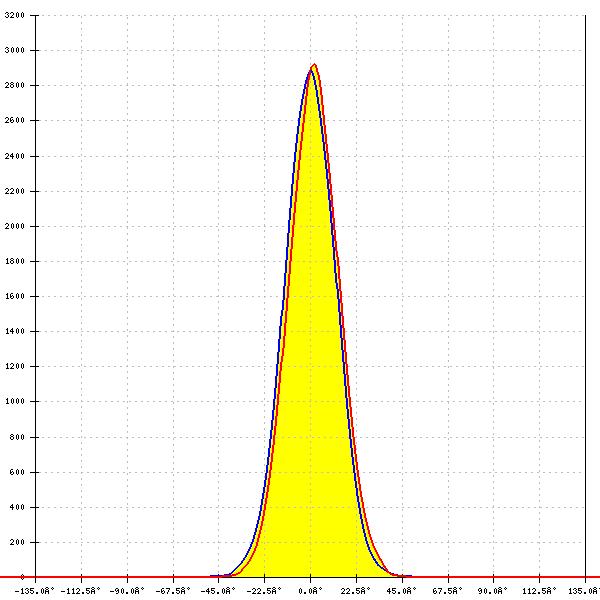

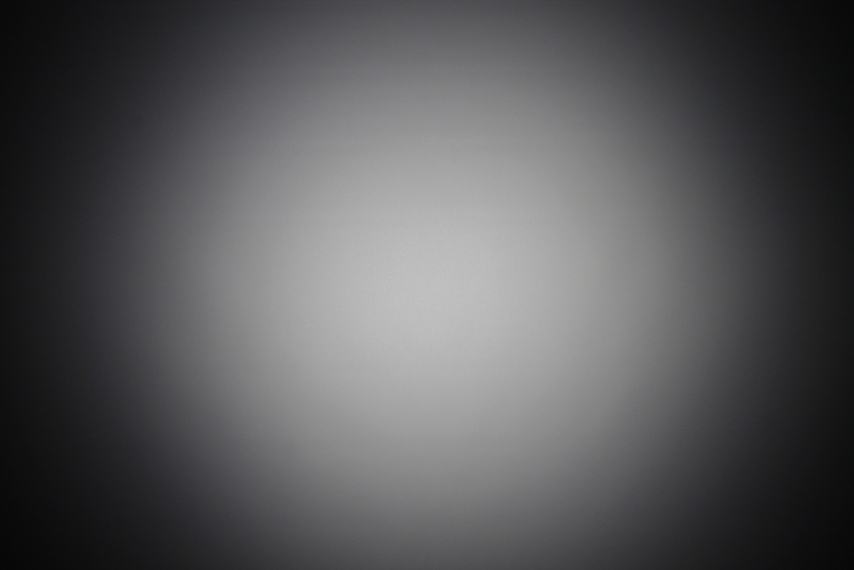

LED: XP-G2
Required components:
FWHM: 29°
FWTM: 52°
Peak intensity: 2.900 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

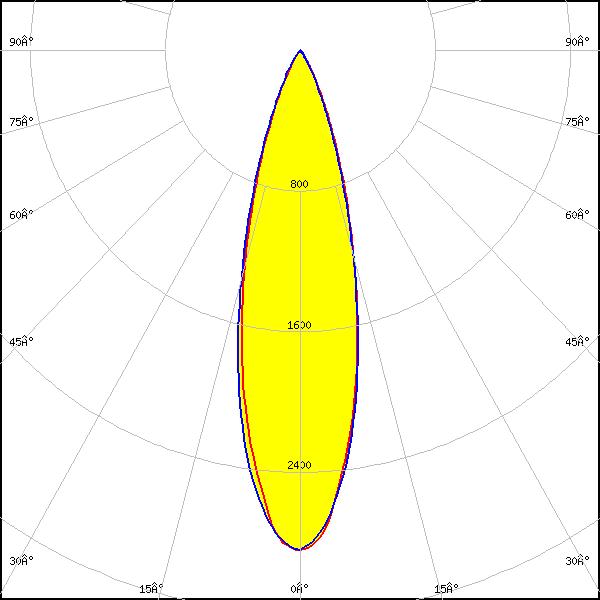

LED: LUXEON Rebel ES
Required components:
FWHM: 28°
FWTM: 52°
Peak intensity: 2.800 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

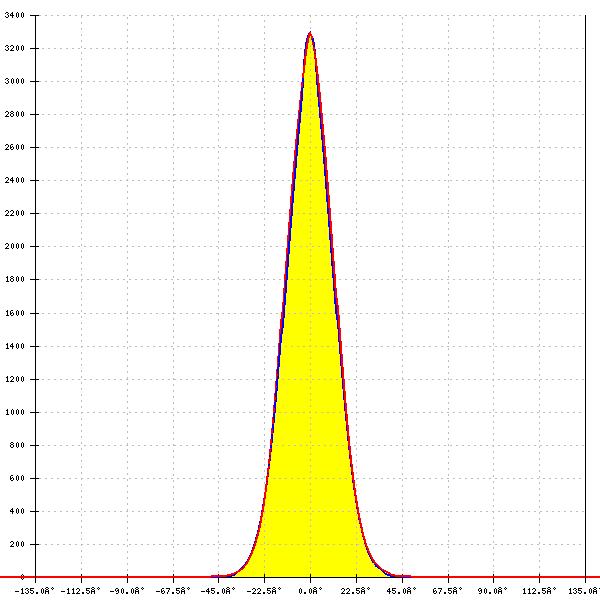

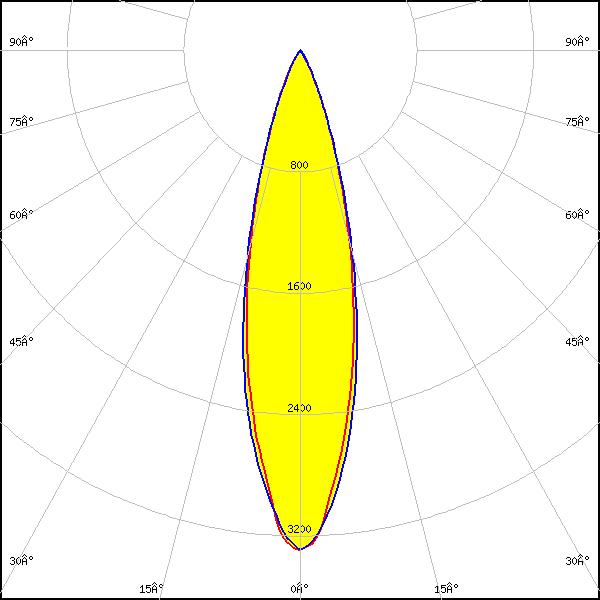

LED: LUXEON Rebel Plus
Required components:
FWHM: 26°
FWTM: 49°
Peak intensity: 3.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

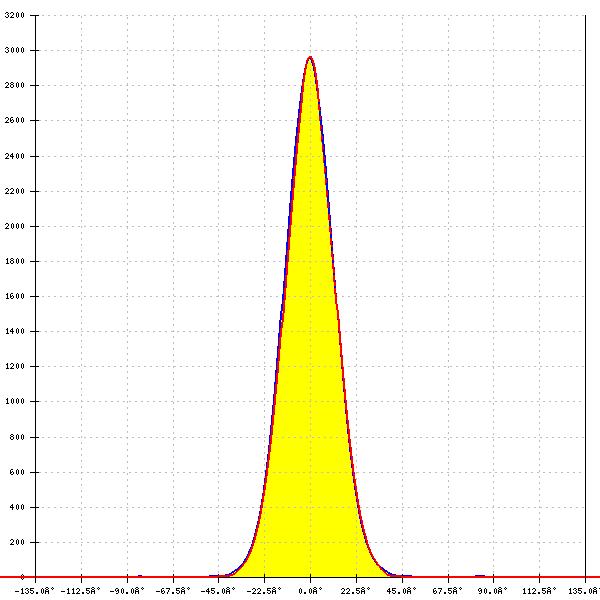

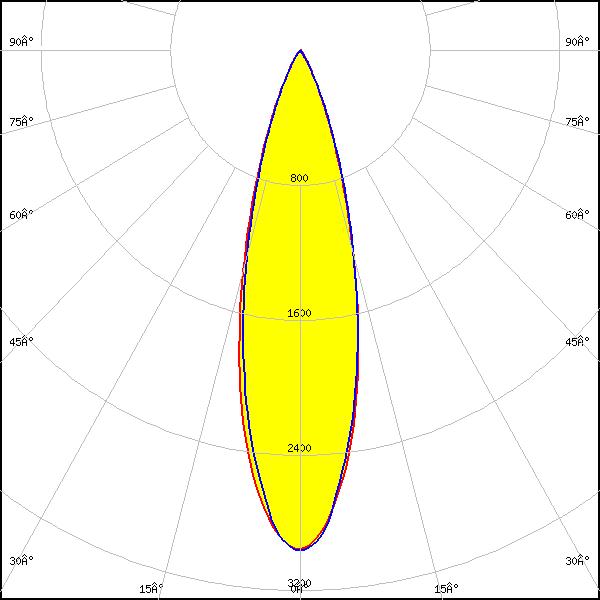

LED: LUXEON TX
Required components:
FWHM: 28°
FWTM: 51°
Peak intensity: 3.000 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

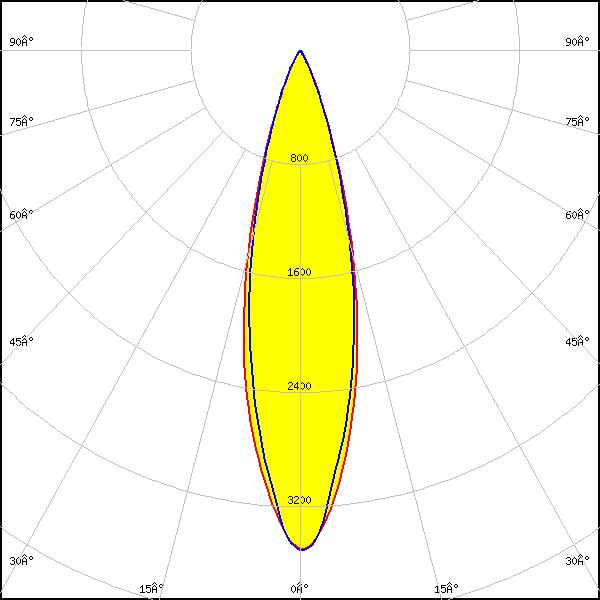

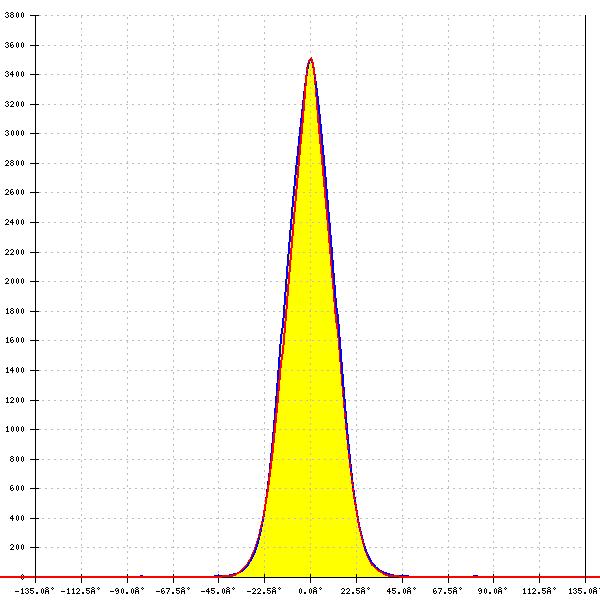

LED: LUXEON Z ES
Required components:
FWHM: 26°
FWTM: 48°
Peak intensity: 3.500 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

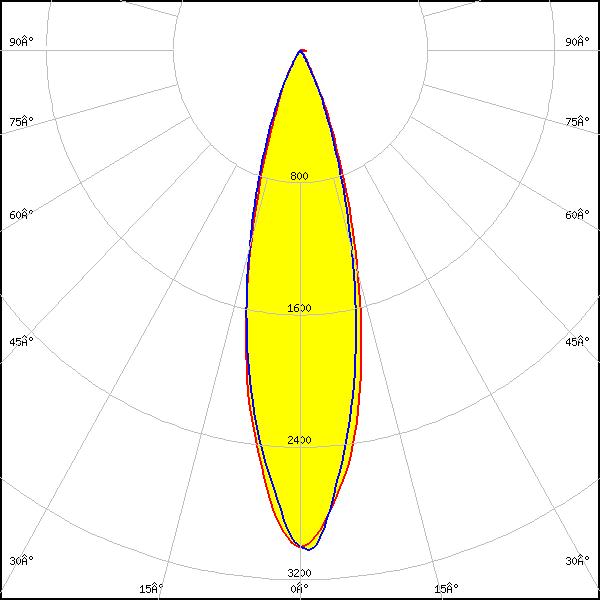

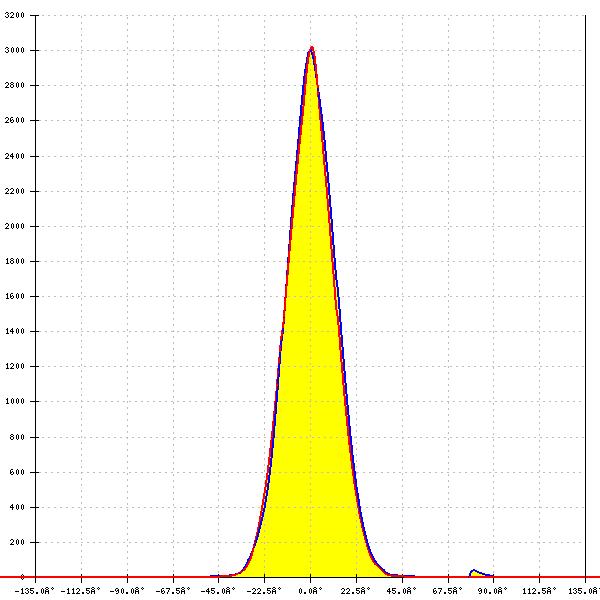

LED: NCSxE17A
Required components:
FWHM: 27°
FWTM: 50°
Peak intensity: 3.000 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

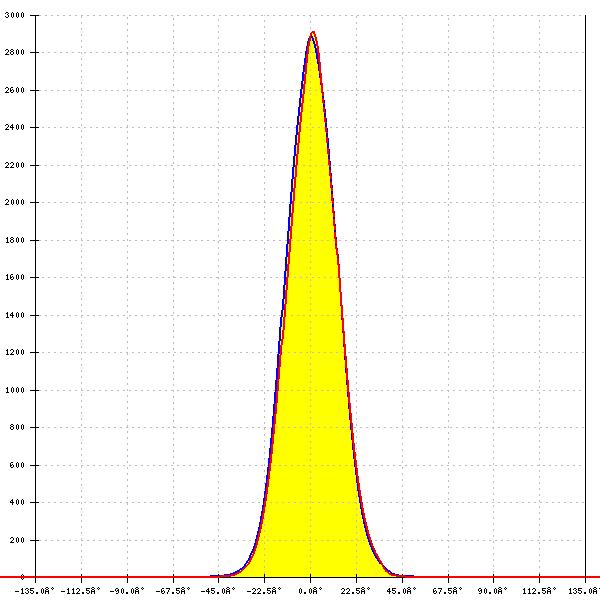

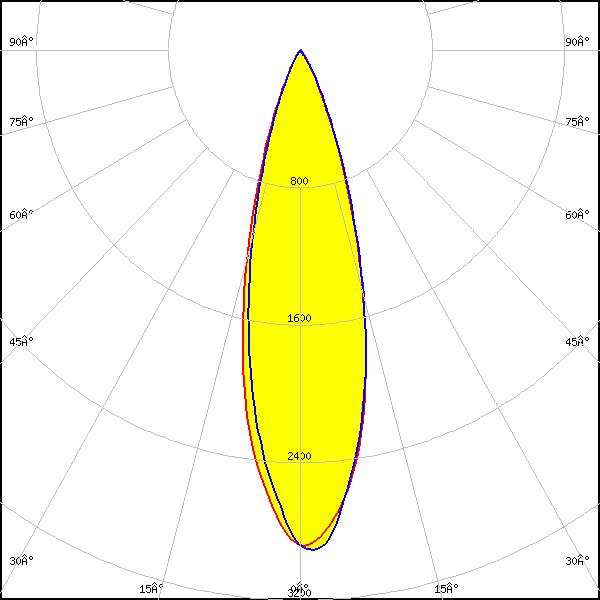

LED: NCSxx19B
Required components:
FWHM: 28°
FWTM: 51°
Peak intensity: 2.900 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

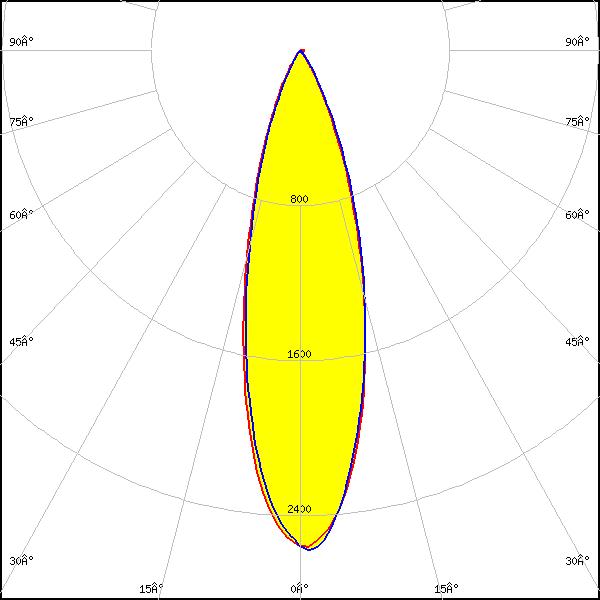

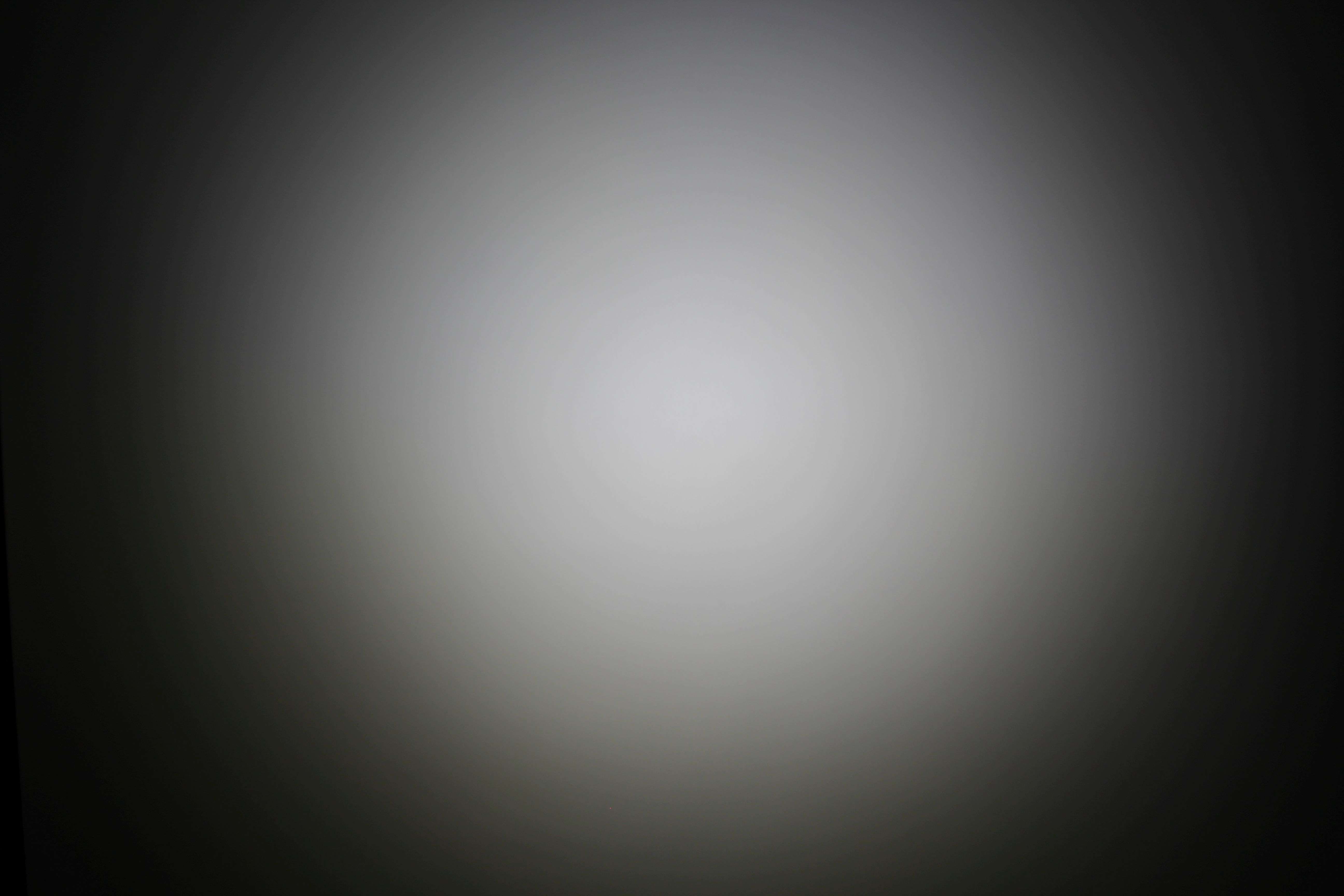

LED: NF2x757G
Required components:
FWHM: 29°
FWTM: 54°
Peak intensity: 2.600 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

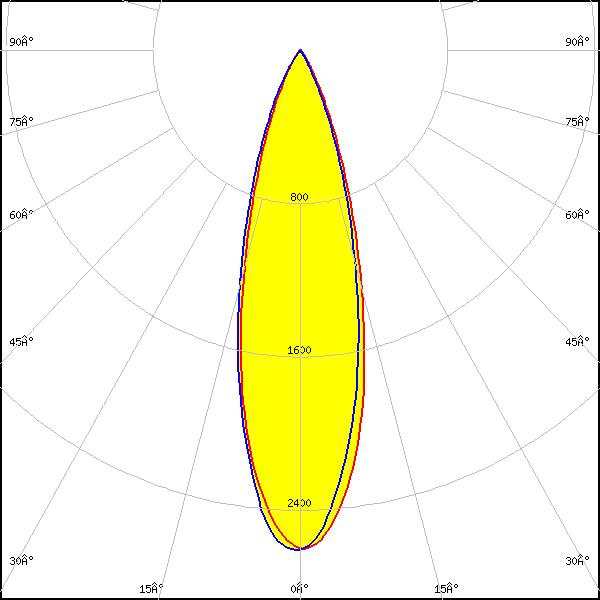

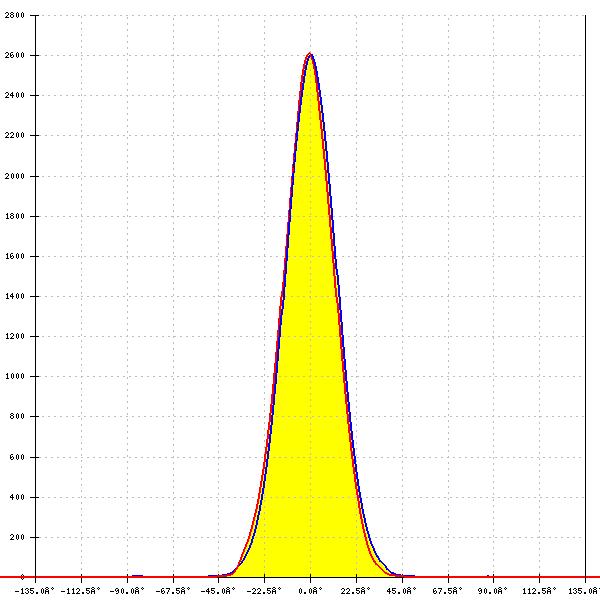

LED: NVSxx19B/NVSxx19C
Required components:
FWHM: 29°
FWTM: 54°
Peak intensity: 2.600 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

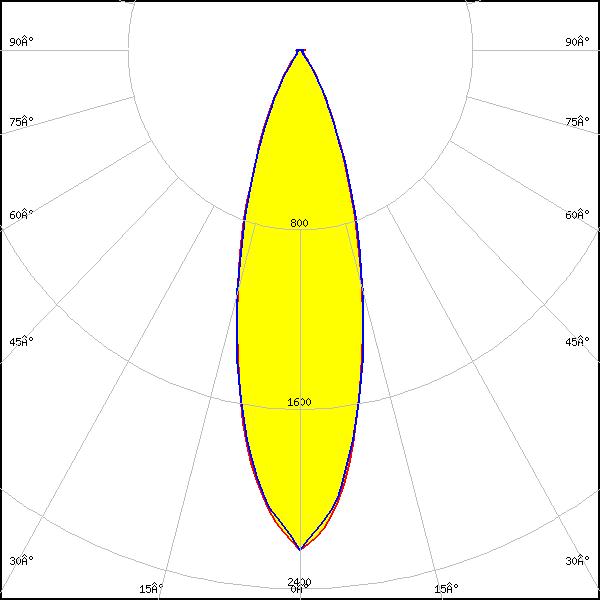

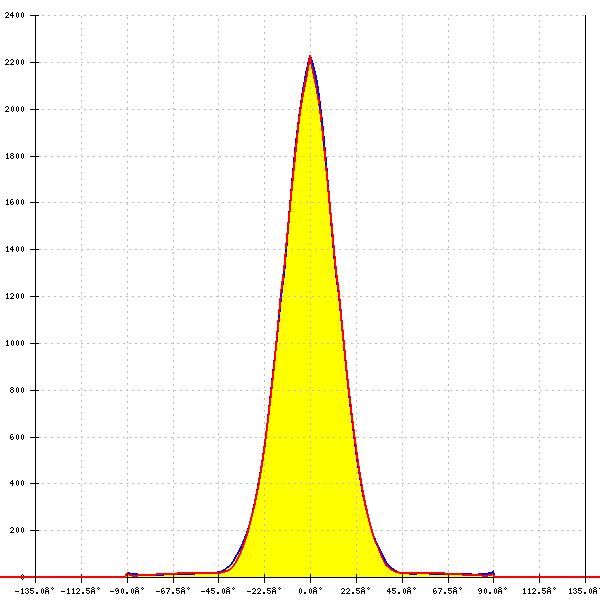

LED: NWSx229A
Required components:
FWHM: 30°
FWTM: 60°
Peak intensity: 2.290 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

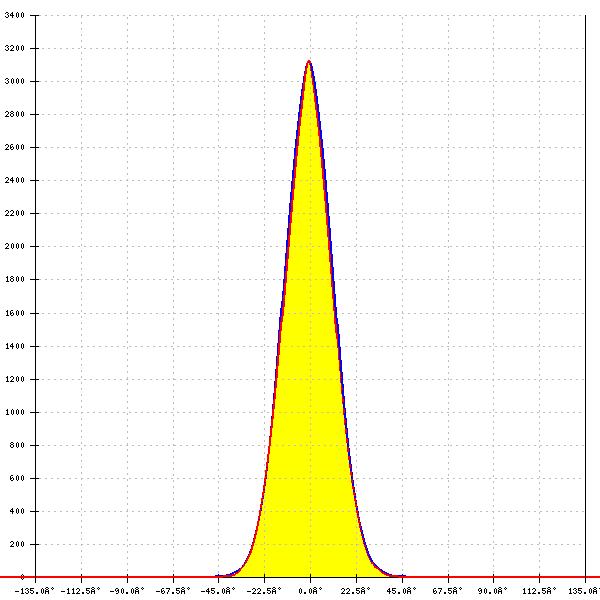

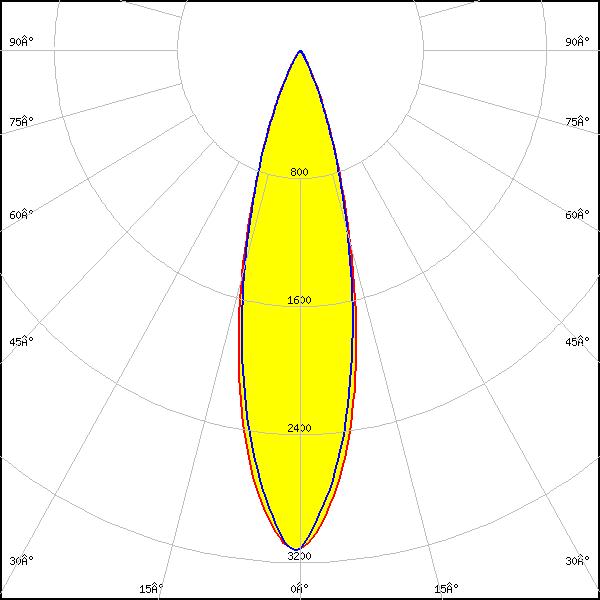

LED: Duris S5 (Single chip)
Required components:
FWHM: 27°
FWTM: 50°
Peak intensity: 3.100 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

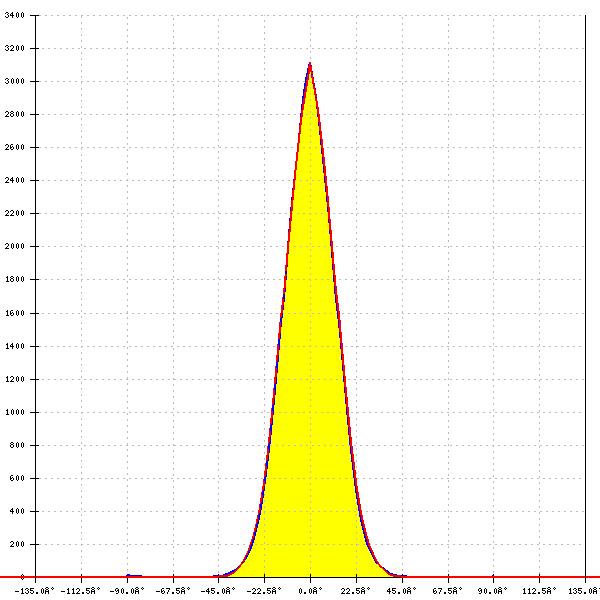

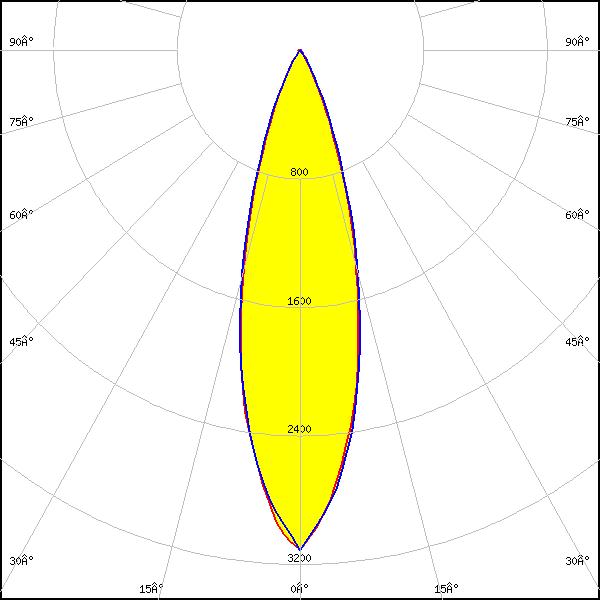

LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: 28°
FWTM: 52°
Peak intensity: 3.113 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

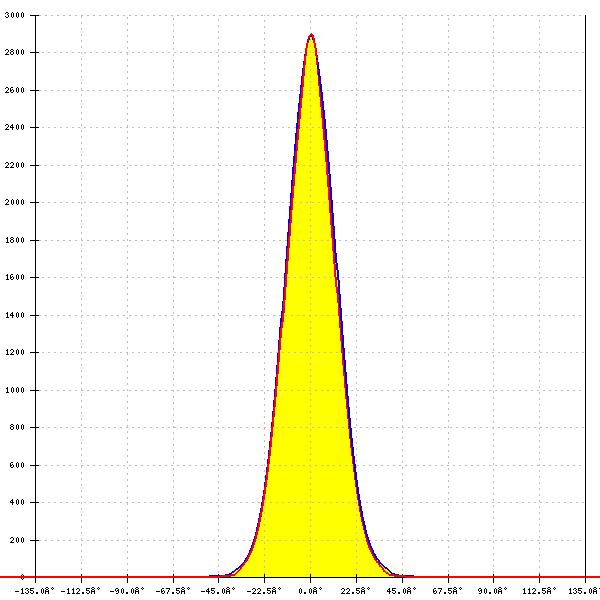

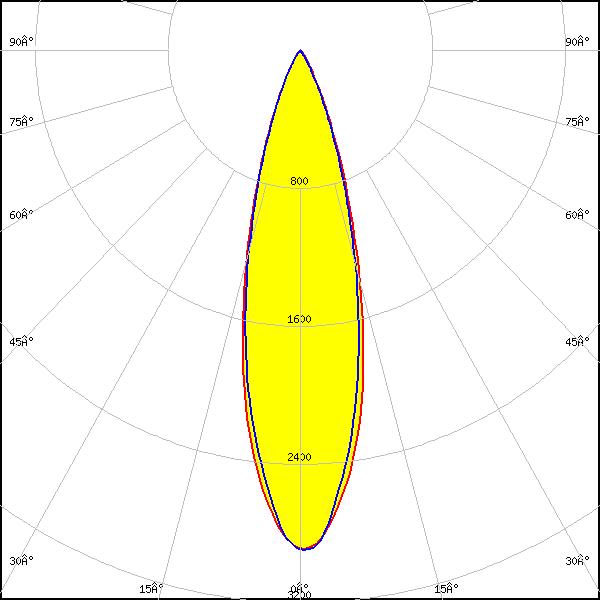

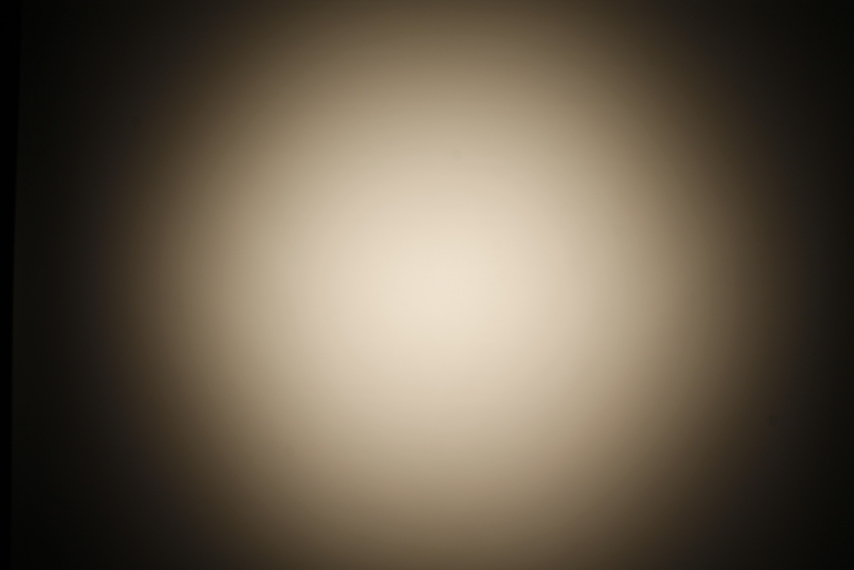

LED: OSLON Square EC
Required components:
FWHM: 28°
FWTM: 51°
Peak intensity: 2.900 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

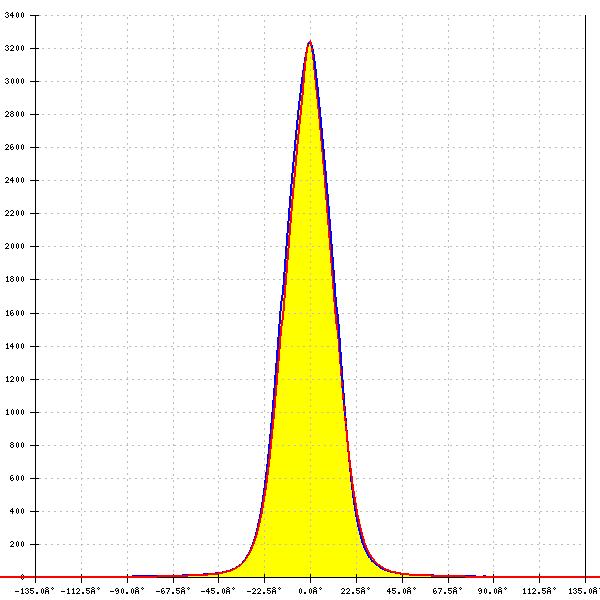

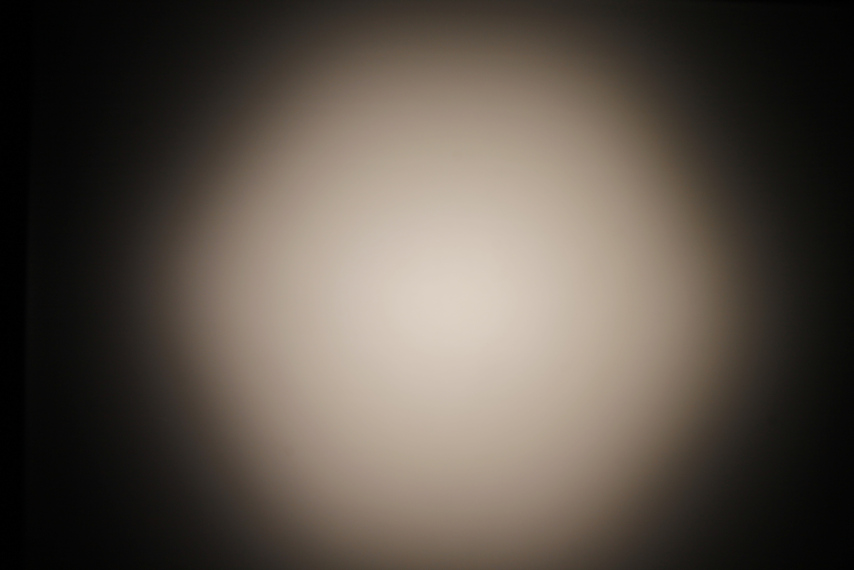

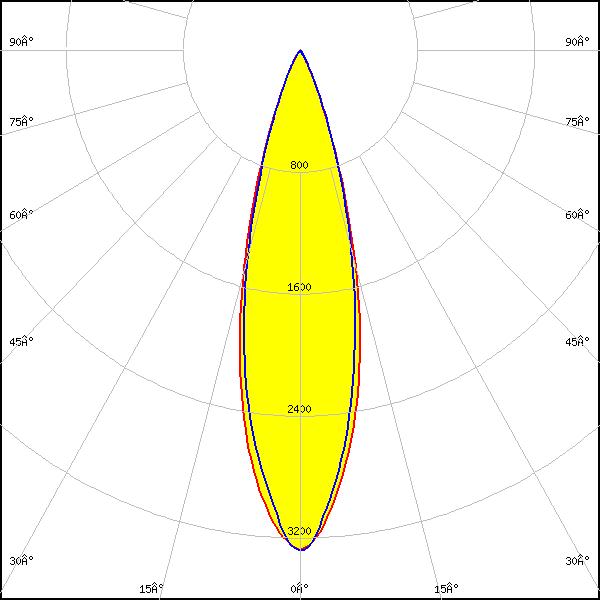

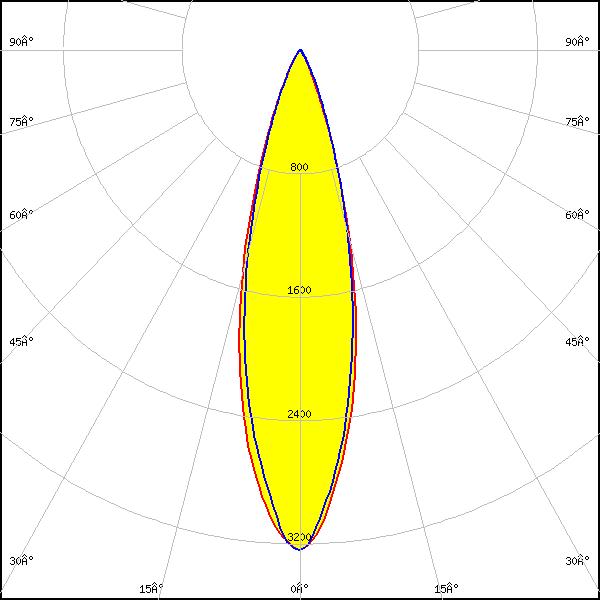

LED: OSLON SSL 150
Required components:
FWHM: 28°
FWTM: 48°
Peak intensity: 3.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON SSL 150
FWHM: 27°
FWTM: 49°
Peak intensity: 3.200 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

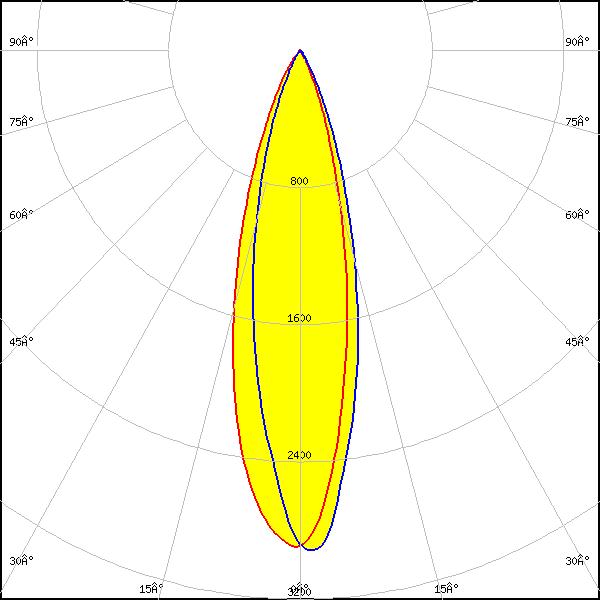

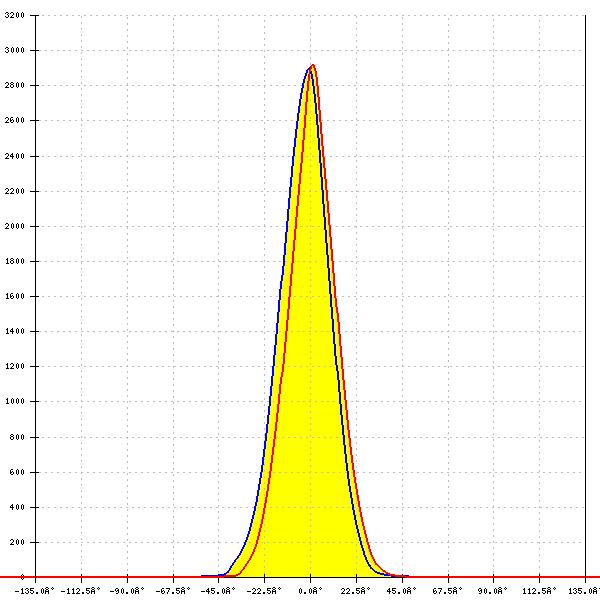

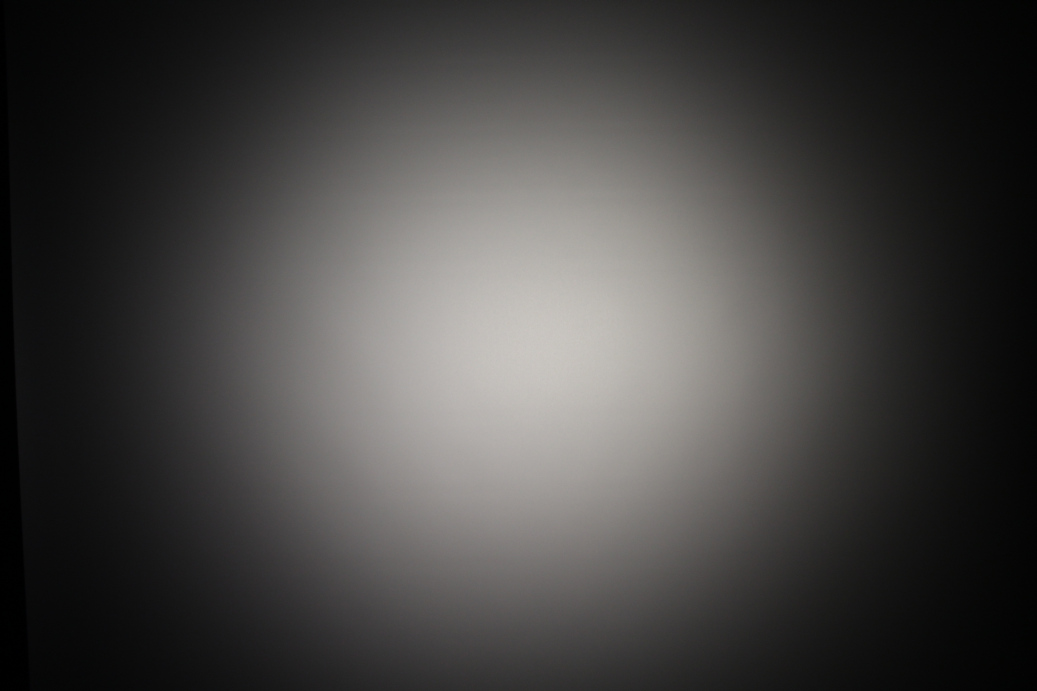

LED: OSLON SSL 80
Required components:
FWHM: 26°
FWTM: 51°
Peak intensity: 2.930 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

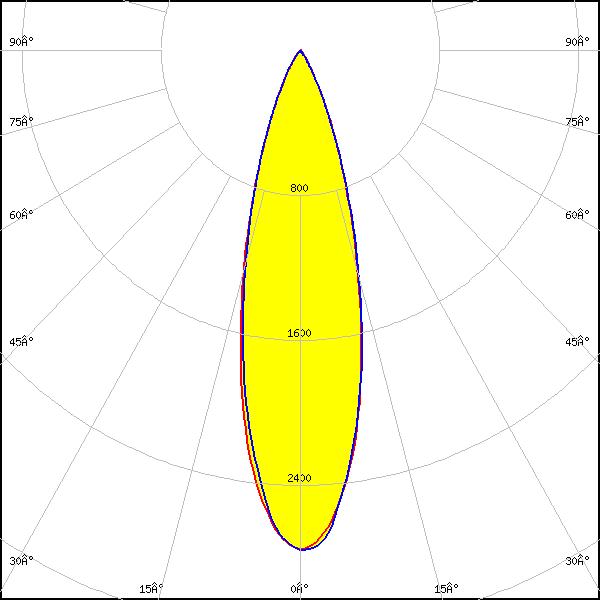

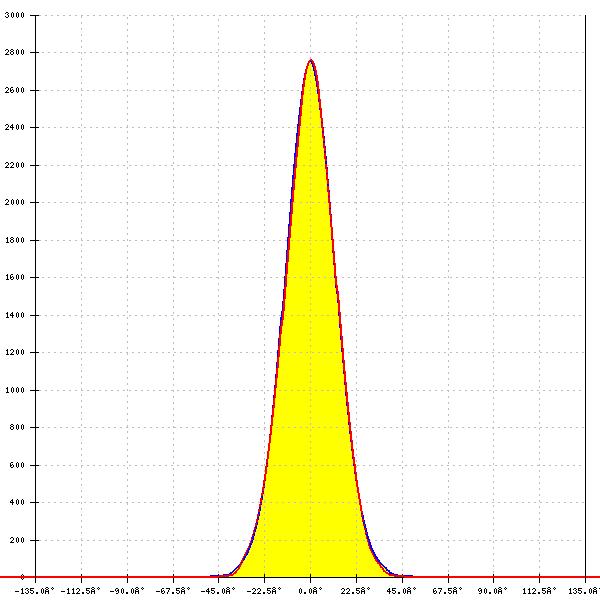

LED: LH351B
Required components:
FWHM: 28°
FWTM: 53°
Peak intensity: 2.770 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

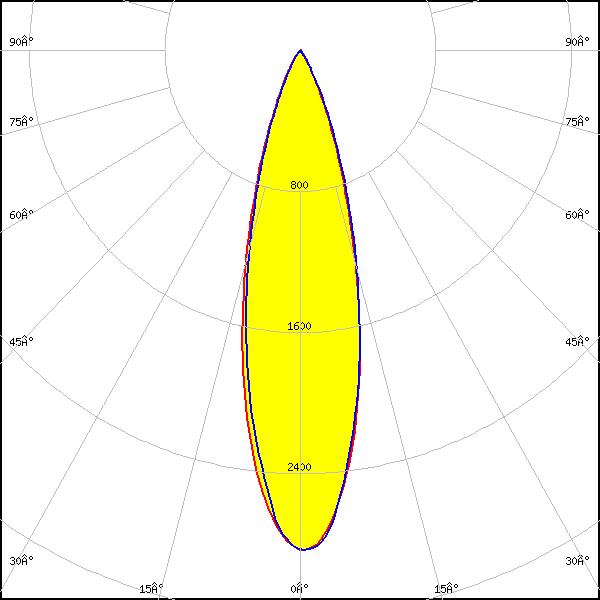

LED: TL1L4
Required components:
FWHM: 27°
FWTM: 52°
Peak intensity: 2.840 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
