CP15774_CARMEN-S-C

Print

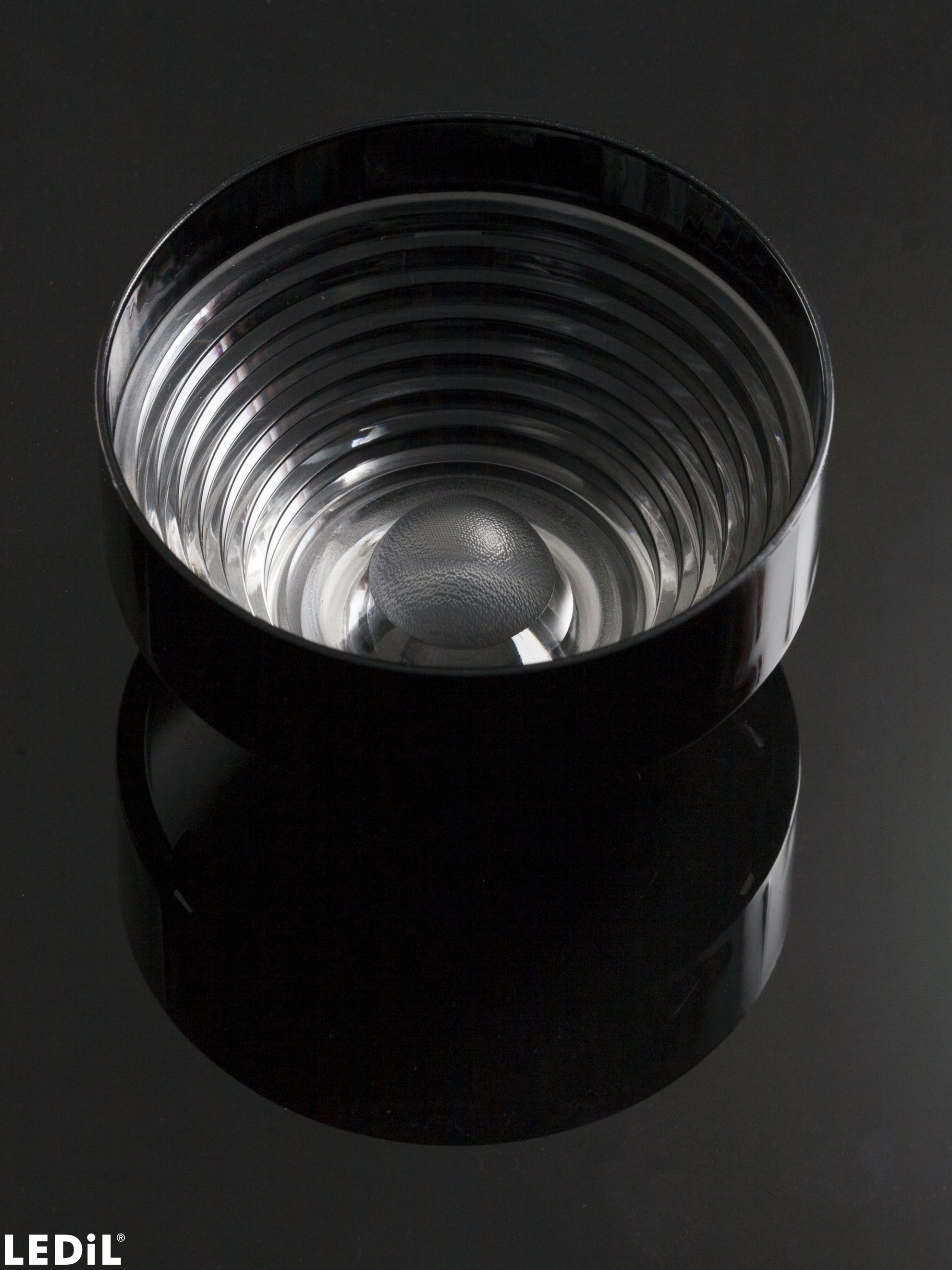

~14° spot beam. Assembly with holder C compatible with LEDiL HEKLA.

Specification
  • Dimensions:
    70 mm
  • Height:
    41.50 mm
  • Fastening:
    socket
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    4.5 kg
  • MPQ:
    15 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    4.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP15774_CARMEN-S-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

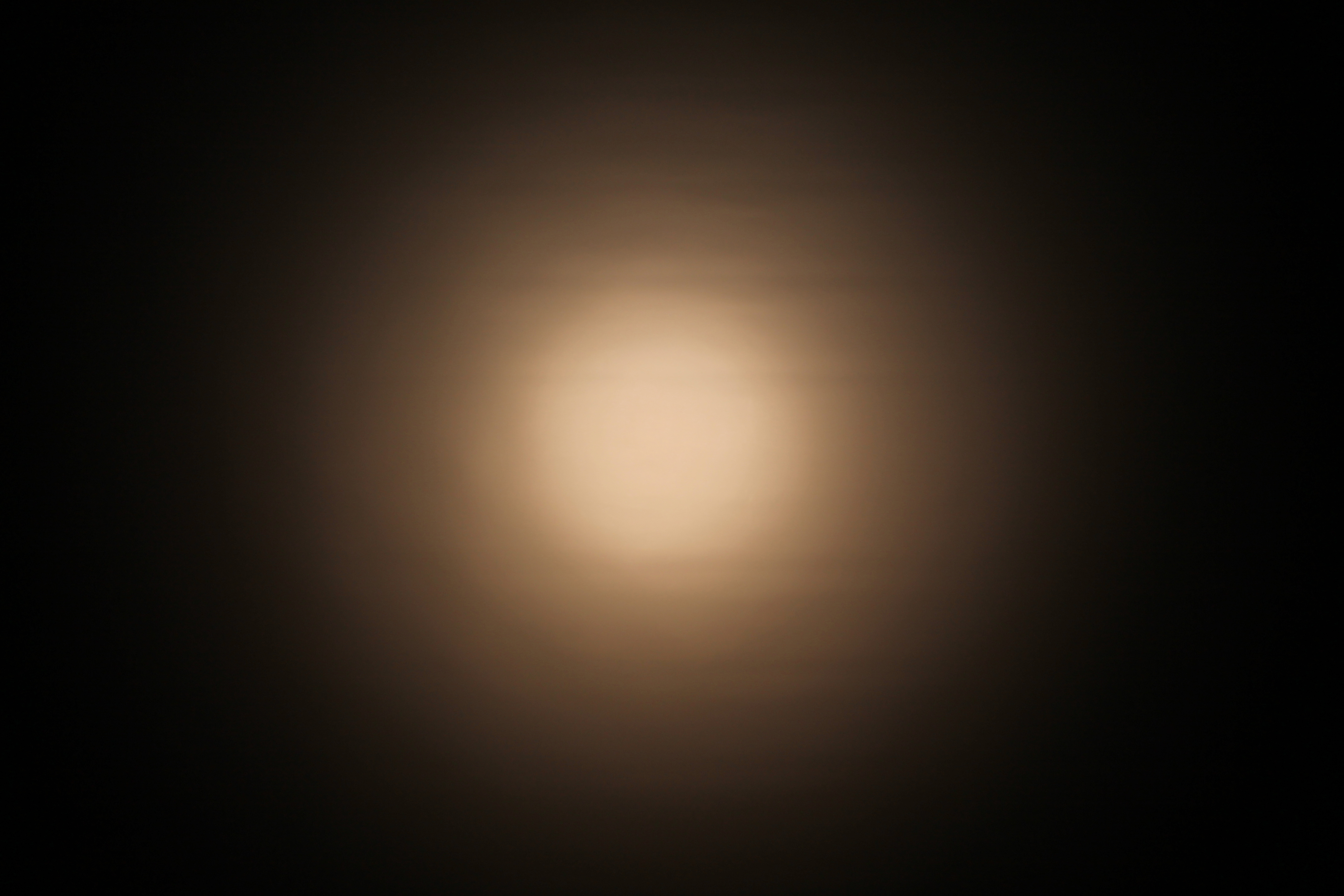

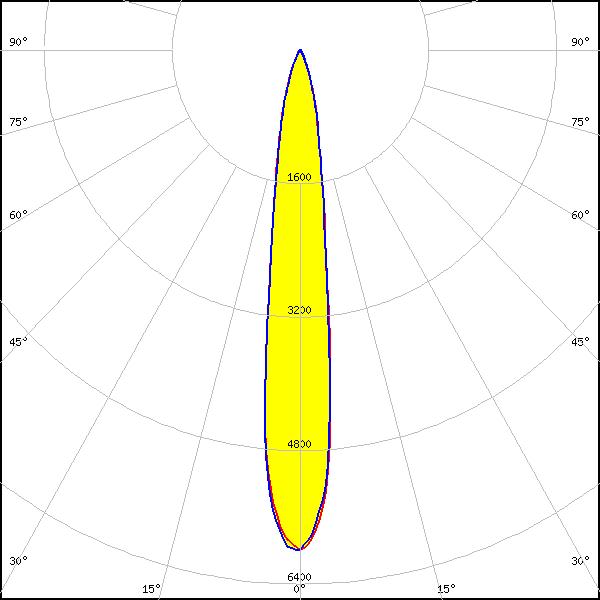

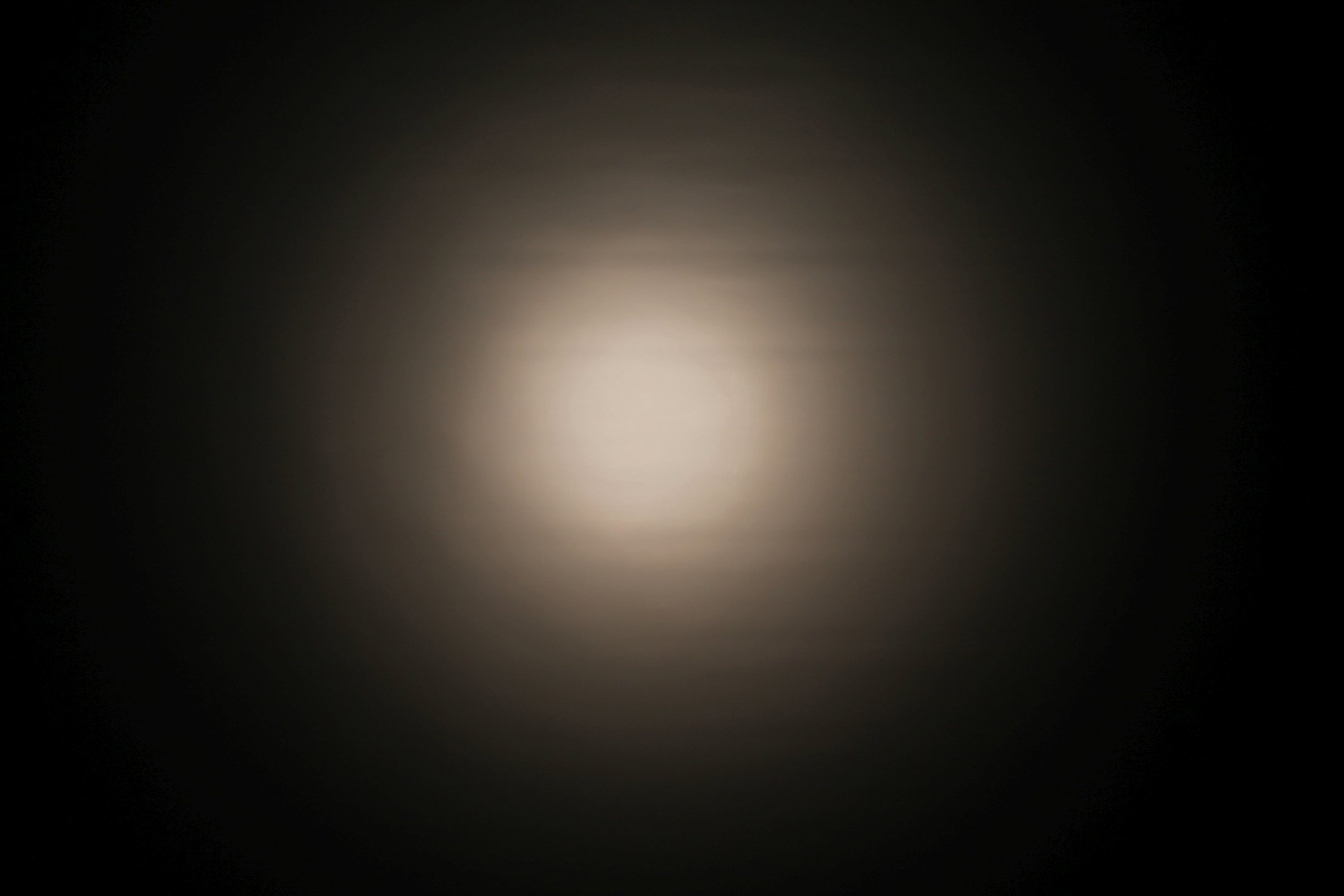

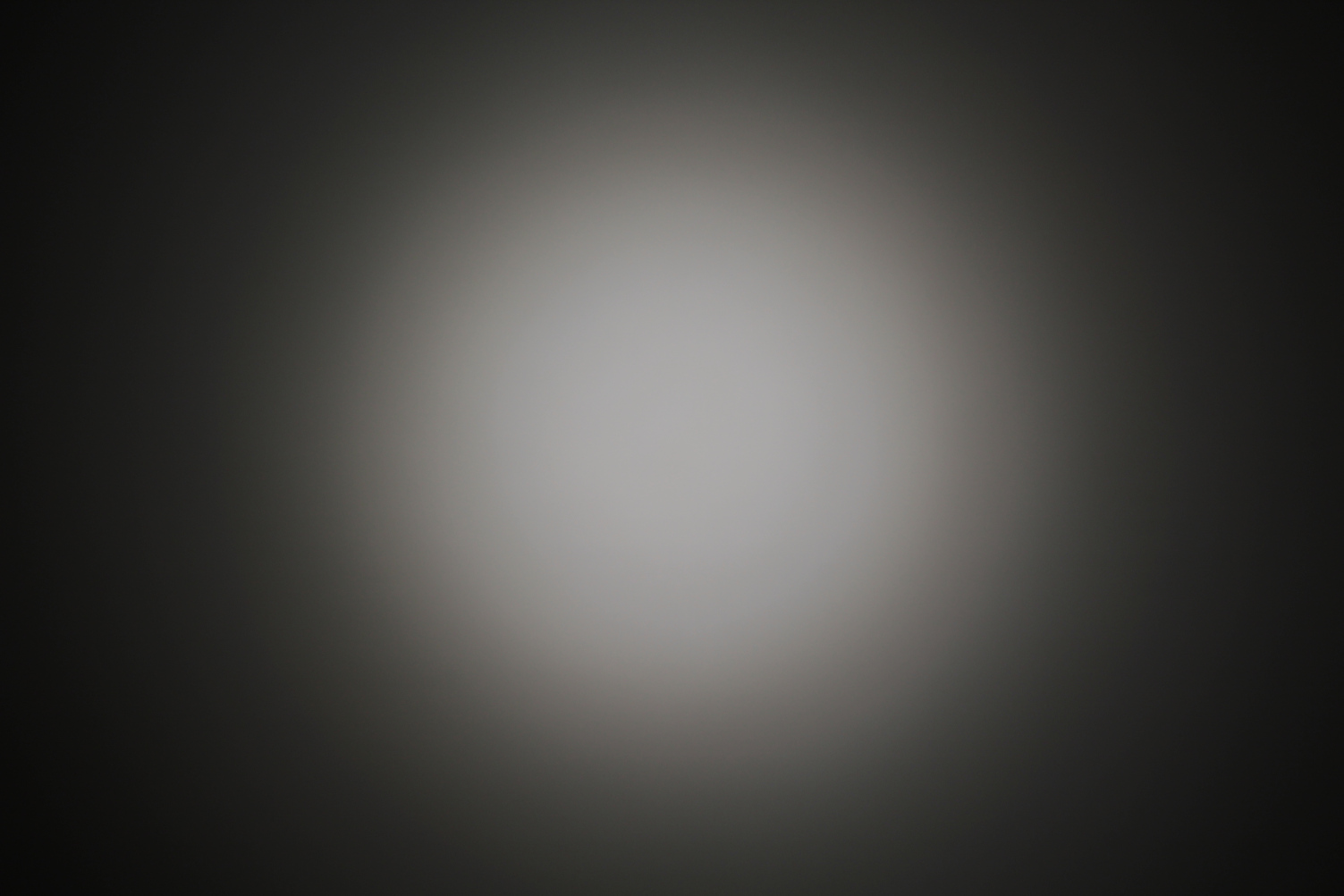

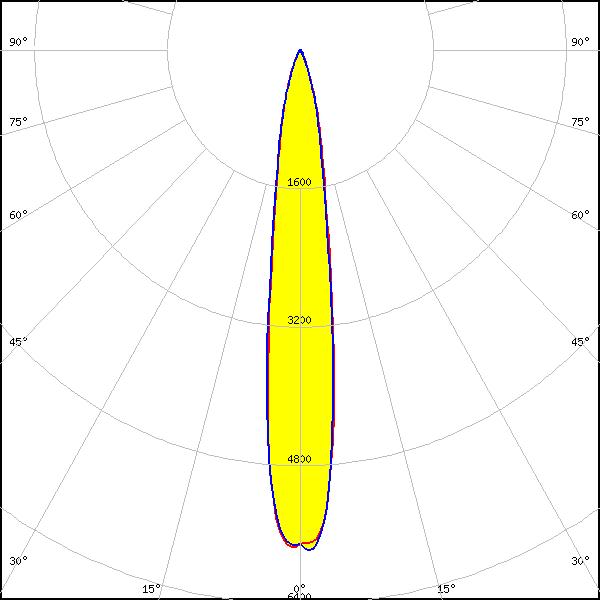

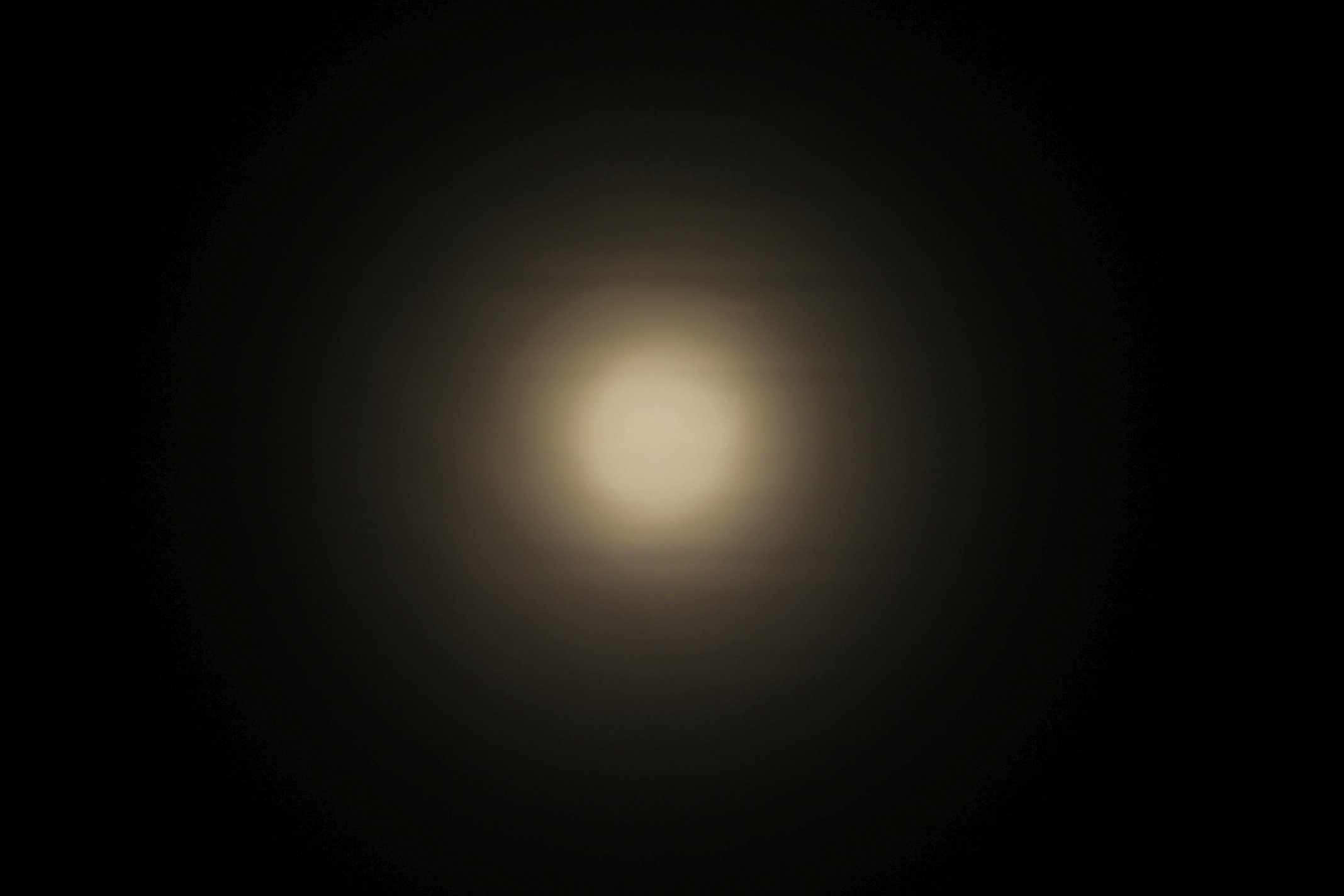

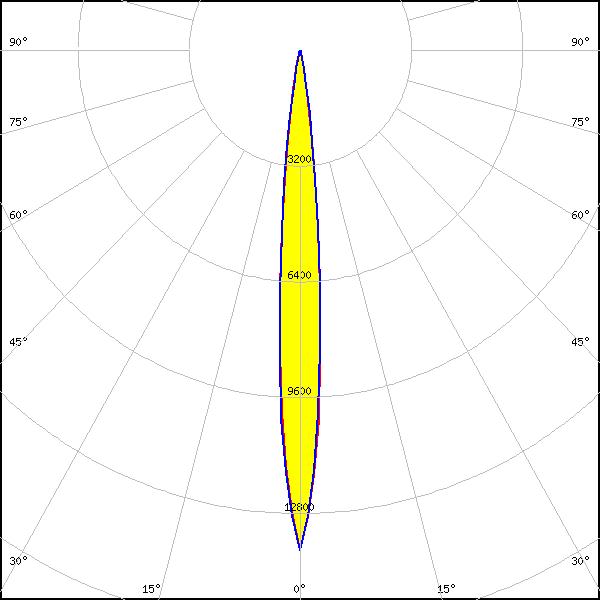

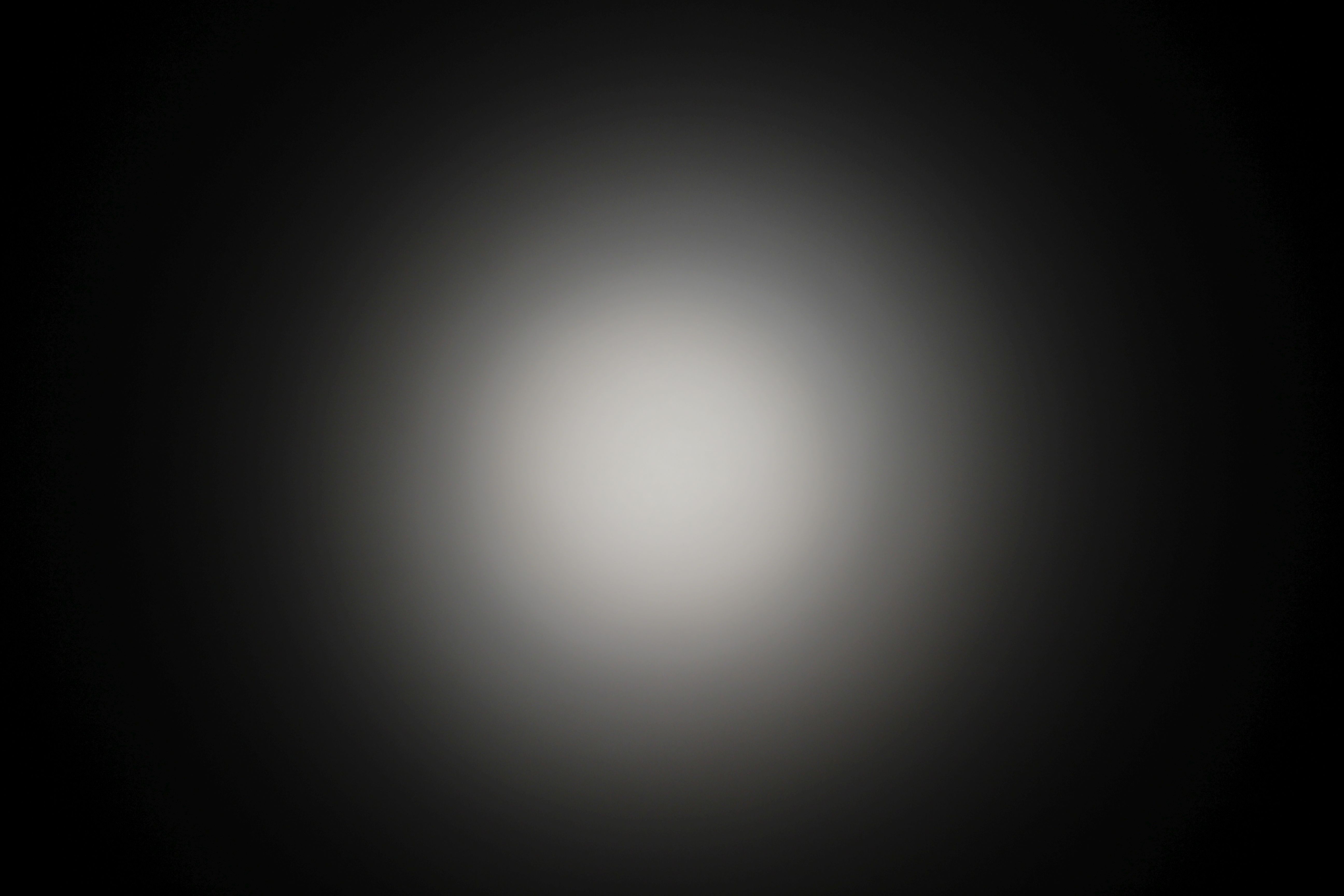

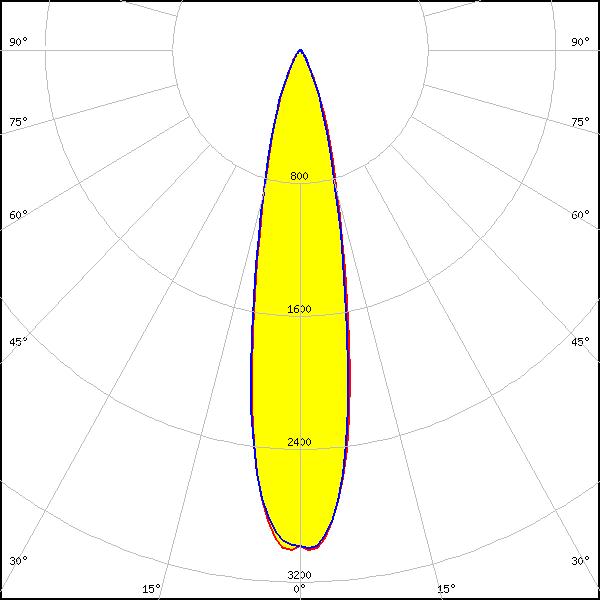

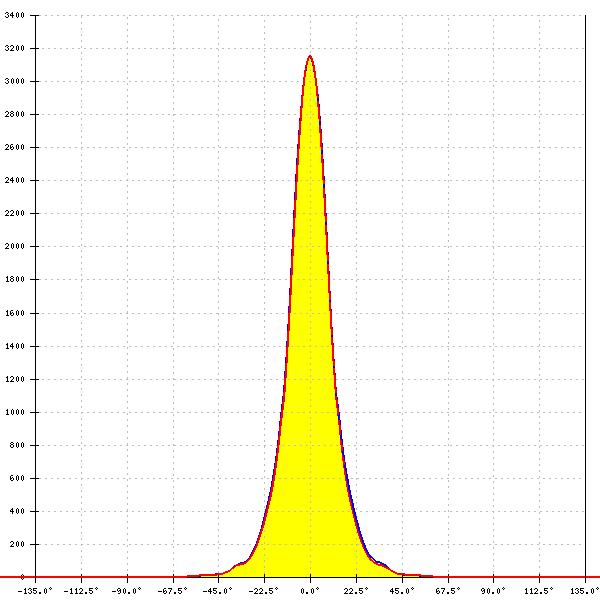

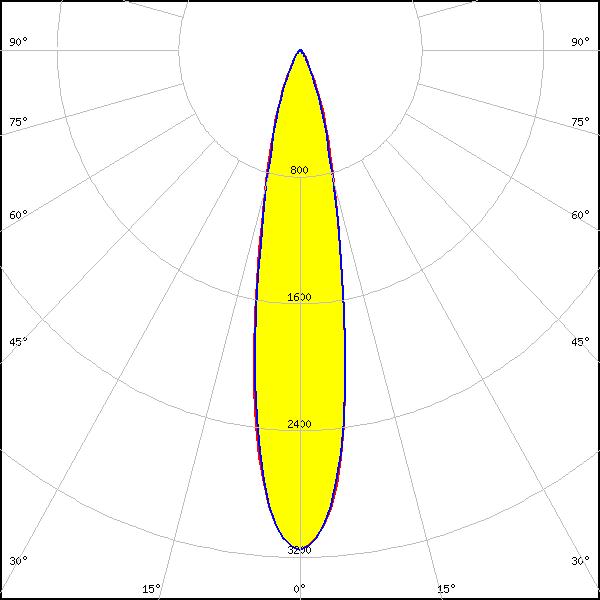

Optical results

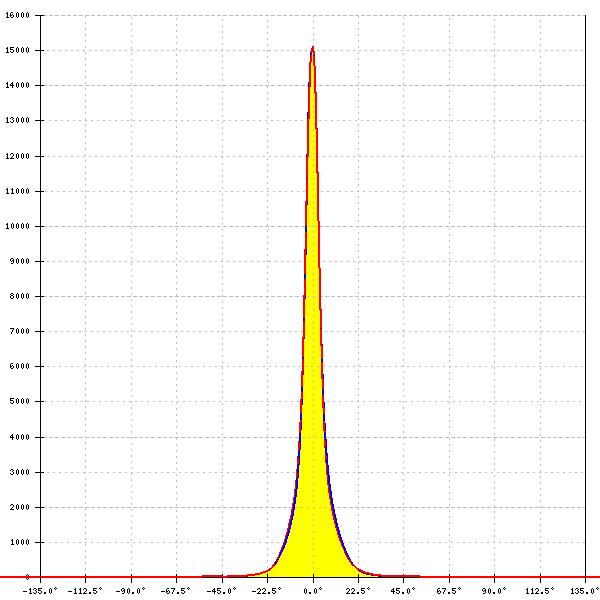

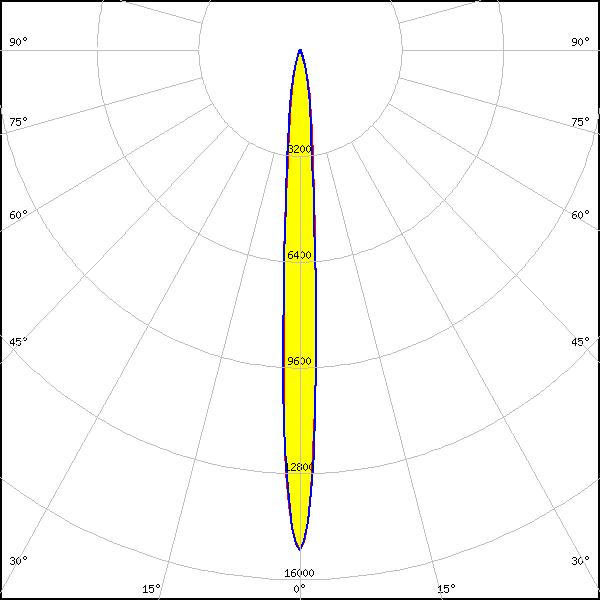

LED: V4 HD Gen 7
Required components:
FWHM: 8°
FWTM: 23°
Peak intensity: 15.000 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

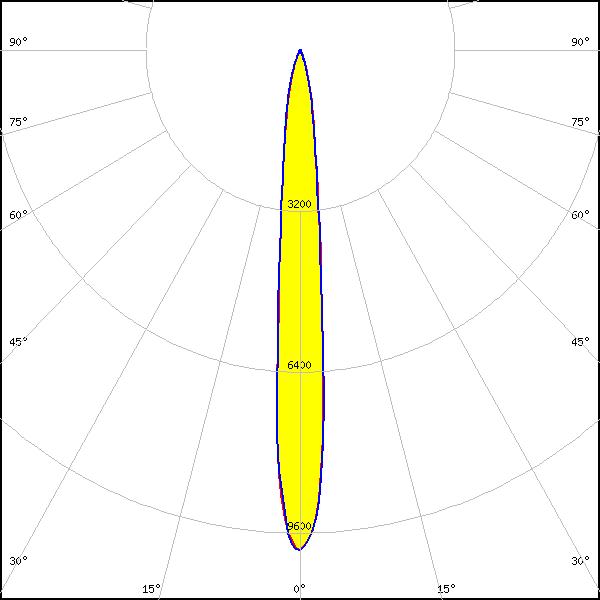

LED: V6 HD Gen 7
Required components:
FWHM: 10°
FWTM: 28°
Peak intensity: 9.900 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

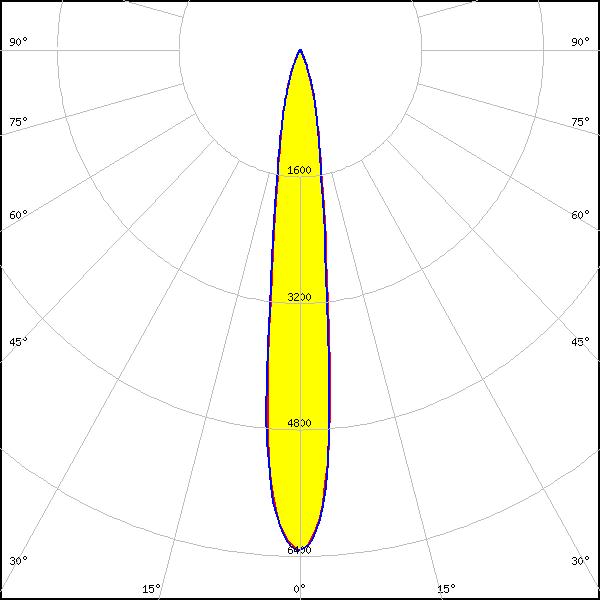

LED: V9 HD Gen7
Required components:
FWHM: 14°
FWTM: 34°
Peak intensity: 6.300 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

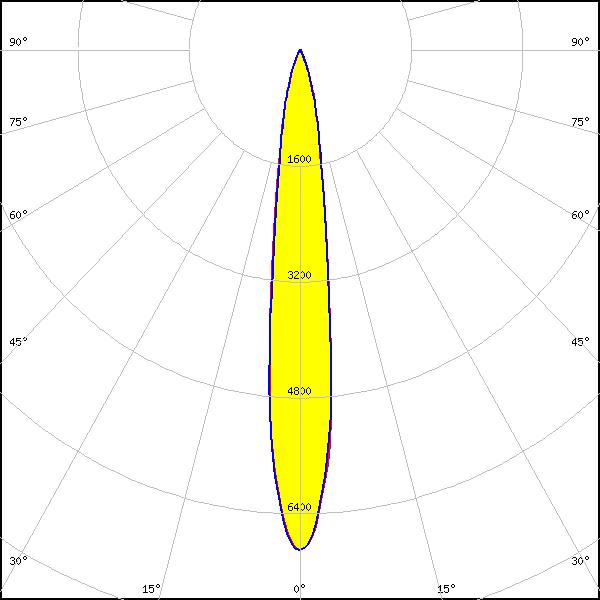

LED: VERO10
Required components:
FWHM: 14°
FWTM: 34°
Peak intensity: 6.900 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

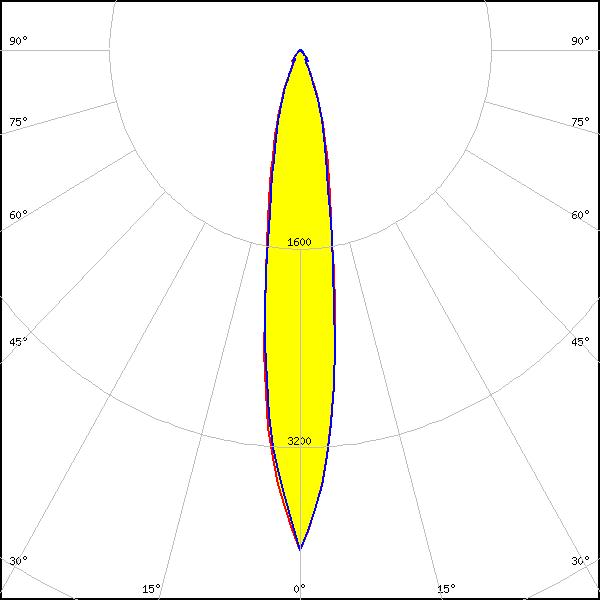

LED: VERO13
Required components:
FWHM: 16°
FWTM: 42°
Peak intensity: 4.026 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White

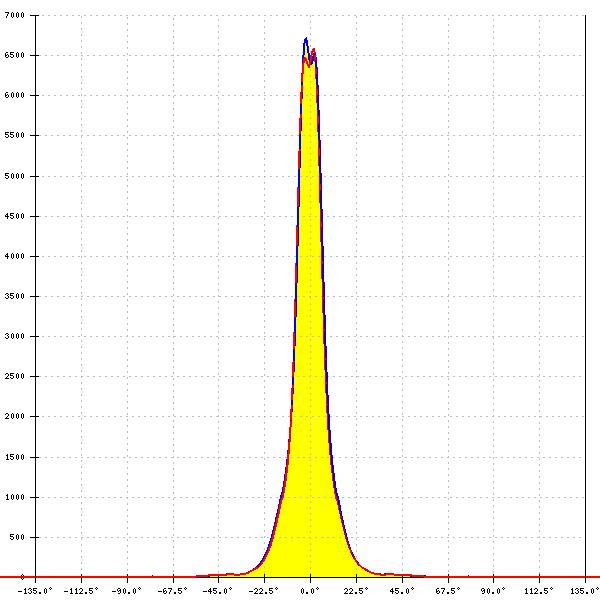

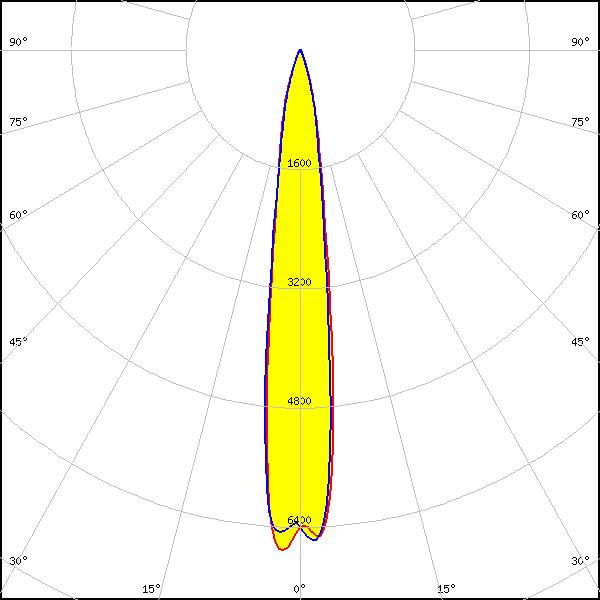

LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 14°
FWTM: 33°
Peak intensity: 6.800 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 11°
FWTM: 27°
Peak intensity: 10.549 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 9mm (9W) DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 15°
FWTM: 36°
Peak intensity: 5.715 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

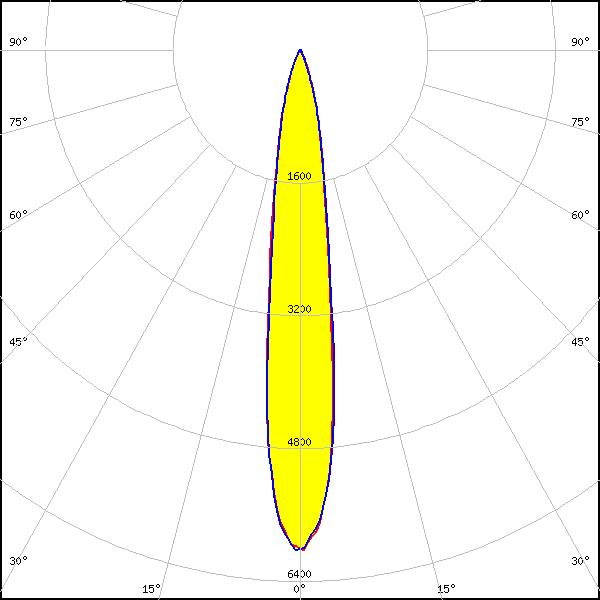

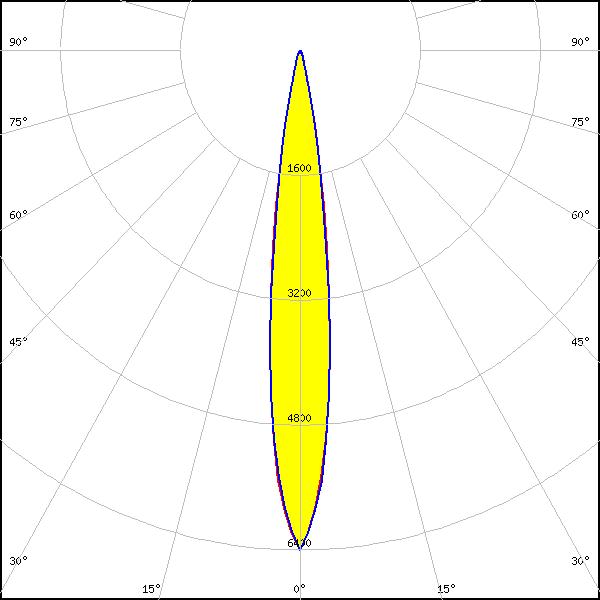

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 14°
FWTM: 26°
Peak intensity: 6.407 cd/lm
Efficiency: 50 %
LEDs/each optic: 1
Light colour: White
LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 15°
FWTM: 36°
Peak intensity: 6.000 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

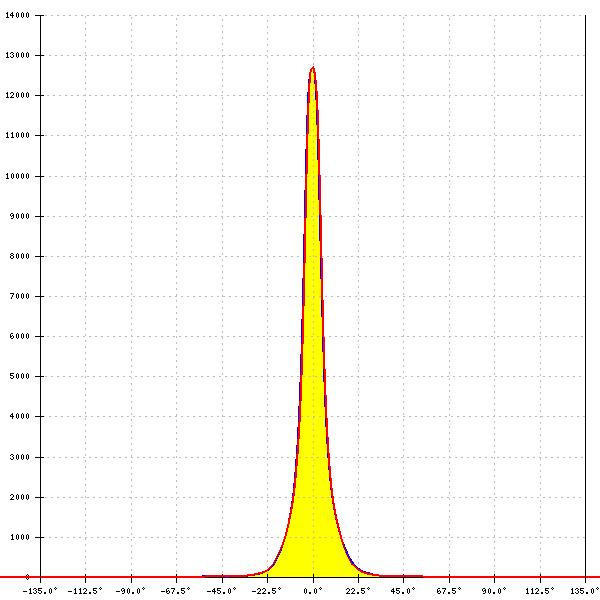

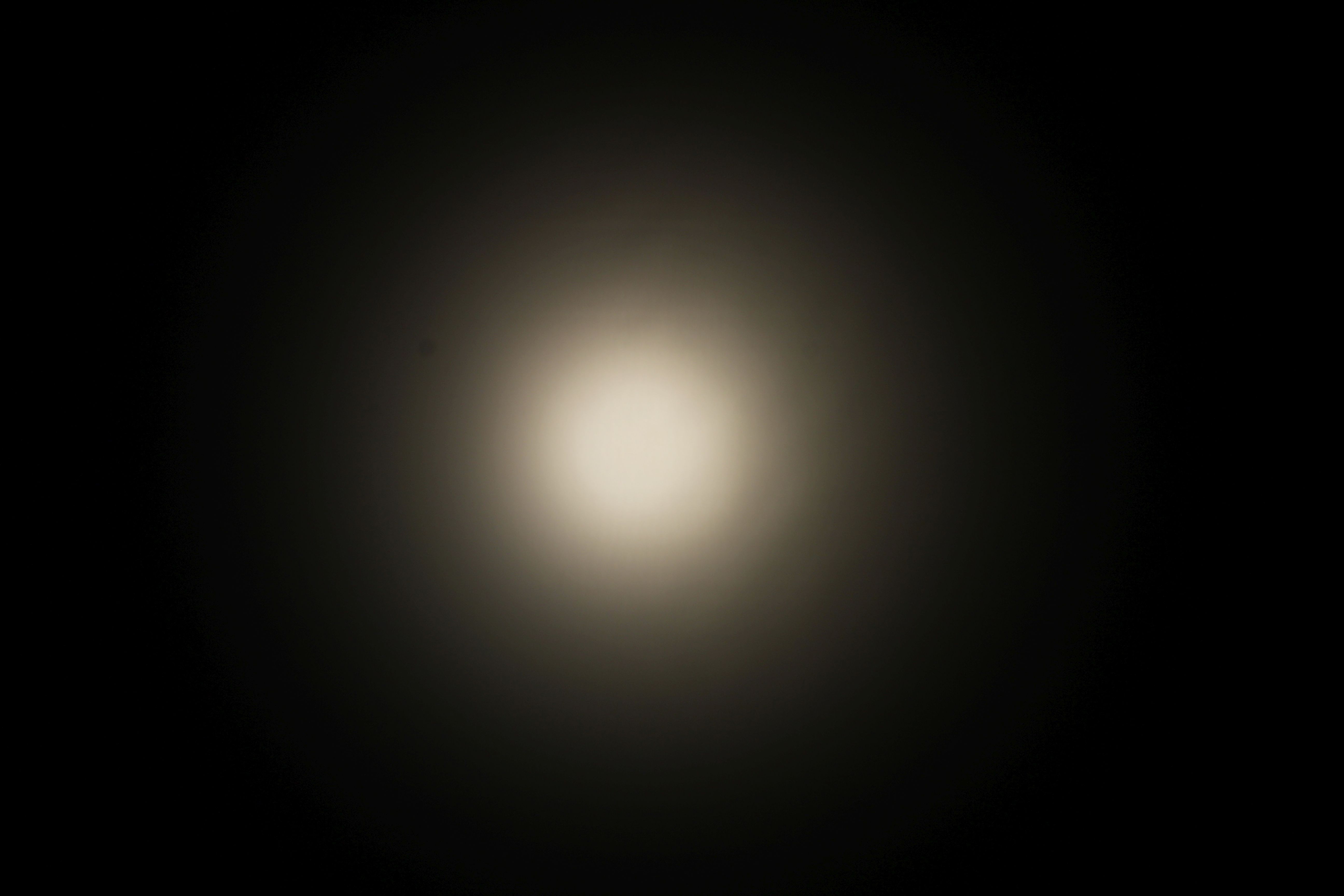

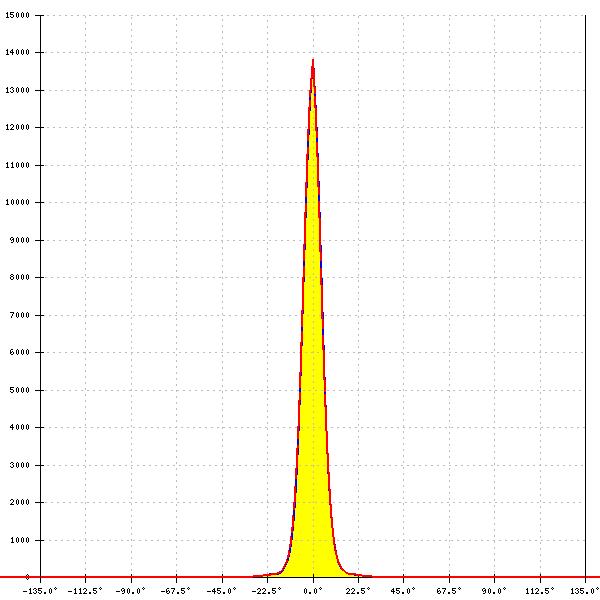

LED: CLU700/701/702
Required components:
FWHM: 10°
FWTM: 19°
Peak intensity: 13.820 cd/lm
Efficiency: 54 %
LEDs/each optic: 1
Light colour: White

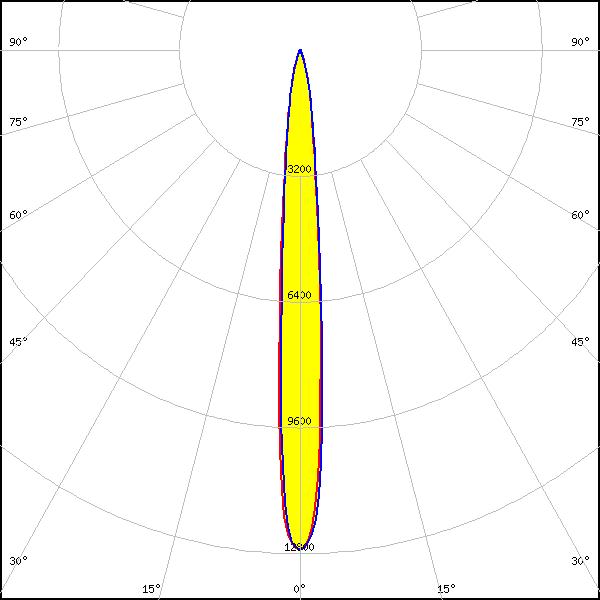

LED: CLU700/701/702
Required components:
FWHM: 10°
FWTM: 25°
Peak intensity: 12.700 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

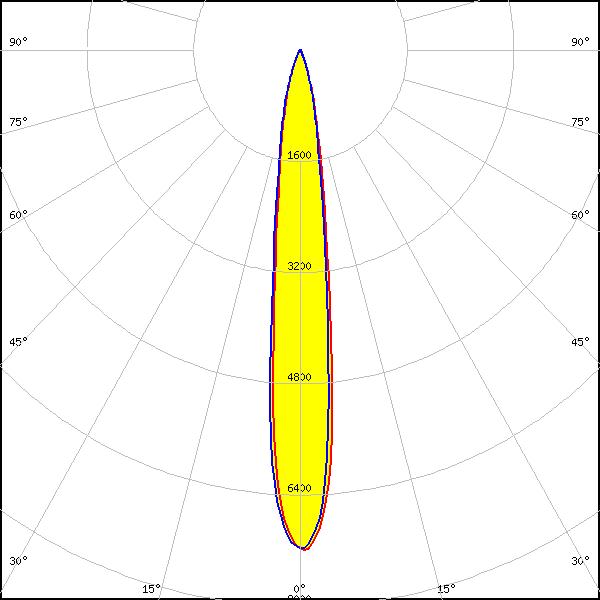

LED: CLU710/711
Required components:
FWHM: 13°
FWTM: 33°
Peak intensity: 7.198 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

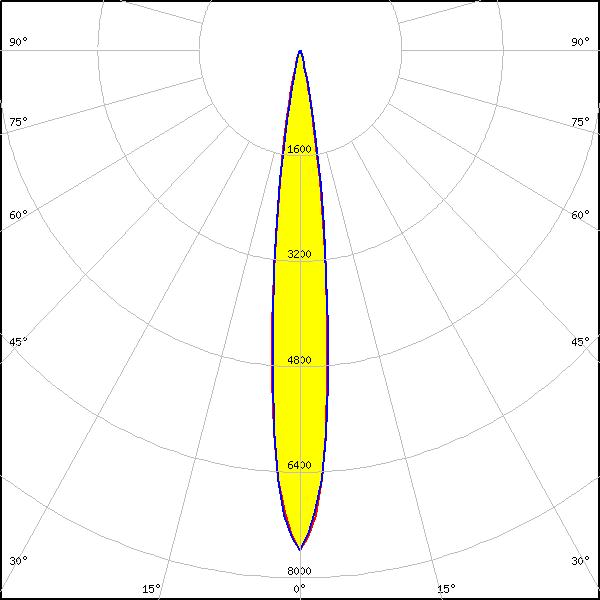

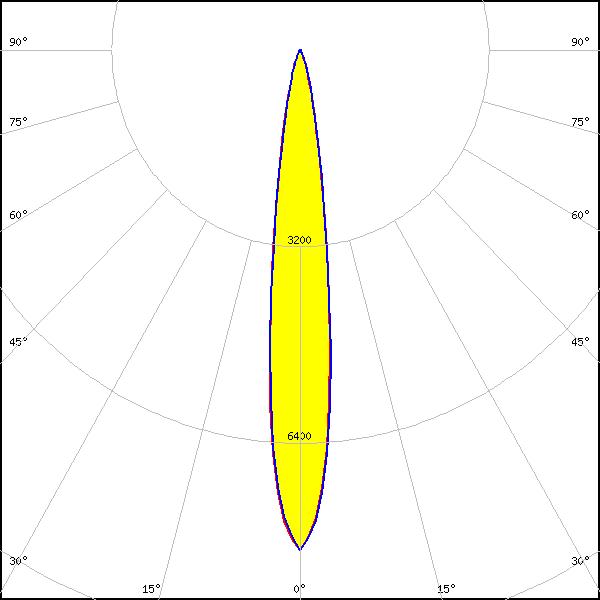

LED: CLU712
Required components:
FWHM: 14°
FWTM: 30°
Peak intensity: 8.146 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

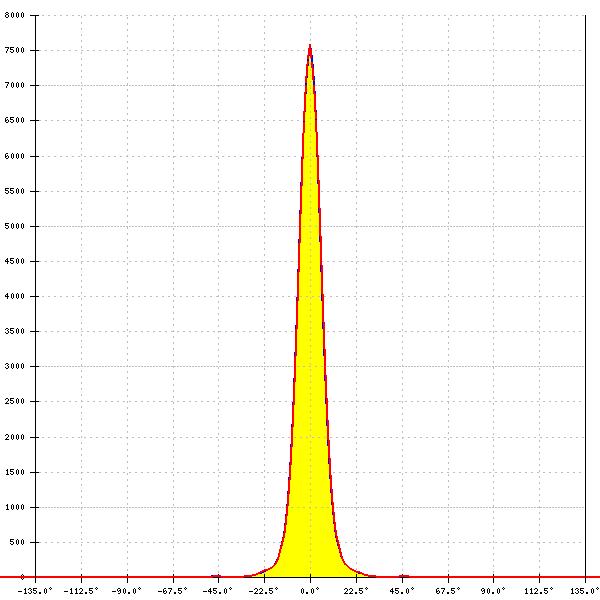

LED: CLU712
Required components:
FWHM: 12°
FWTM: 24°
Peak intensity: 7.583 cd/lm
Efficiency: 51 %
LEDs/each optic: 1
Light colour: White

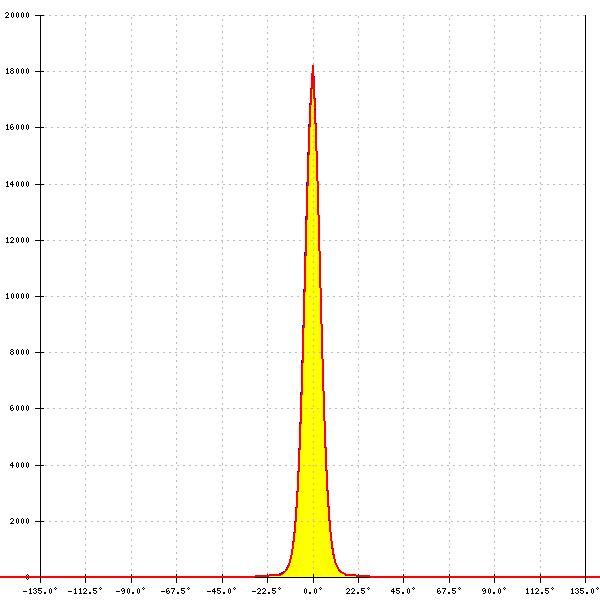

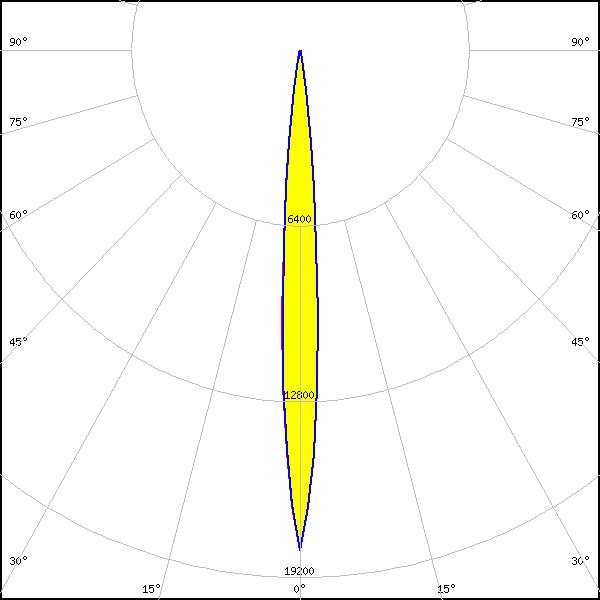

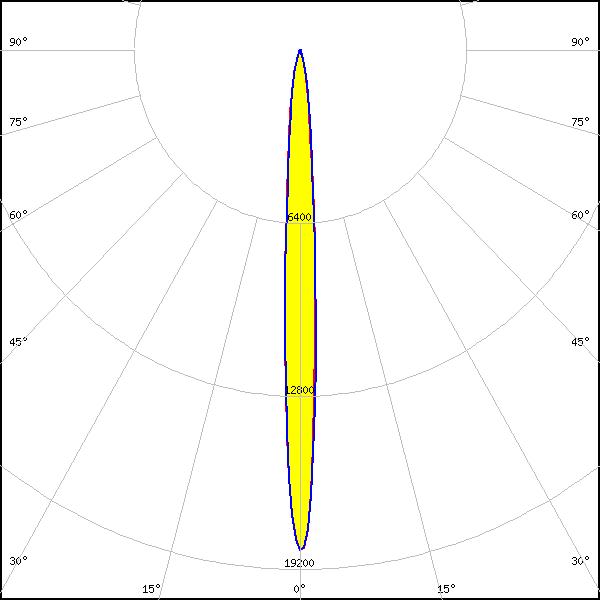

LED: CLU7A2 (LES 4.2mm)
Required components:
FWHM: 8°
FWTM: 16°
Peak intensity: 18.211 cd/lm
Efficiency: 55 %
LEDs/each optic: 1
Light colour: White

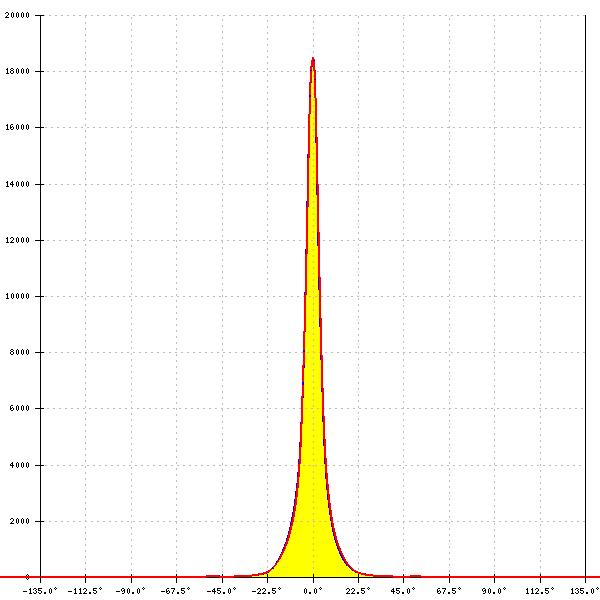

LED: CLU7A2 (LES 4.2mm)
Required components:
FWHM: 7°
FWTM: 20°
Peak intensity: 18.500 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

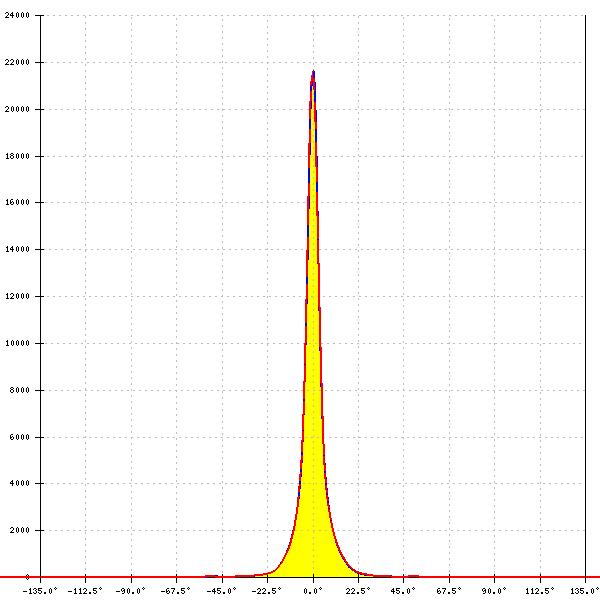

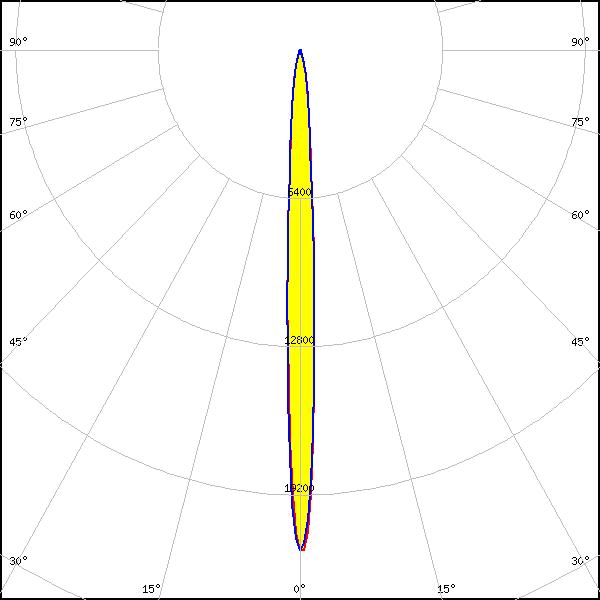

LED: CLU7B2
Required components:
FWHM: 6°
FWTM: 19°
Peak intensity: 21.669 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

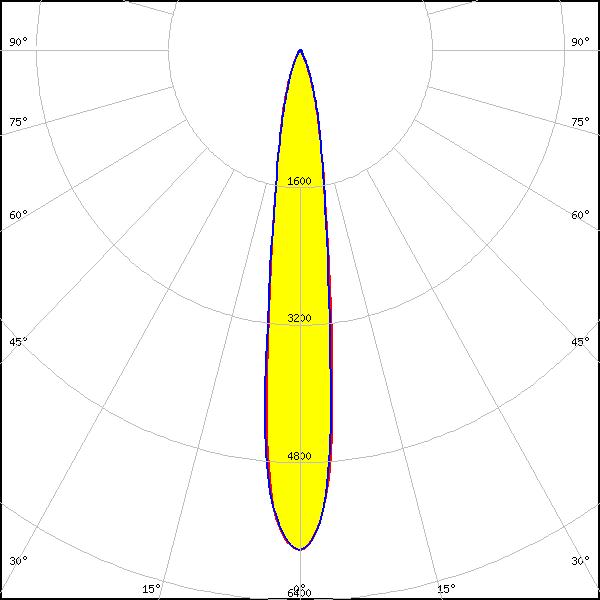

LED: CMA1516
Required components:
FWHM: 14°
FWTM: 36°
Peak intensity: 5.800 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

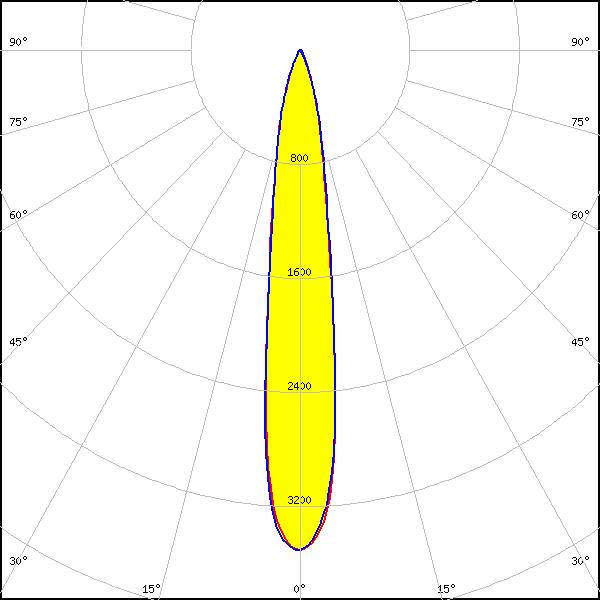

LED: CMT14xx
Required components:
FWHM: 15°
FWTM: 37°
Peak intensity: 3.500 cd/lm
Efficiency: 48 %
LEDs/each optic: 1
Light colour: White

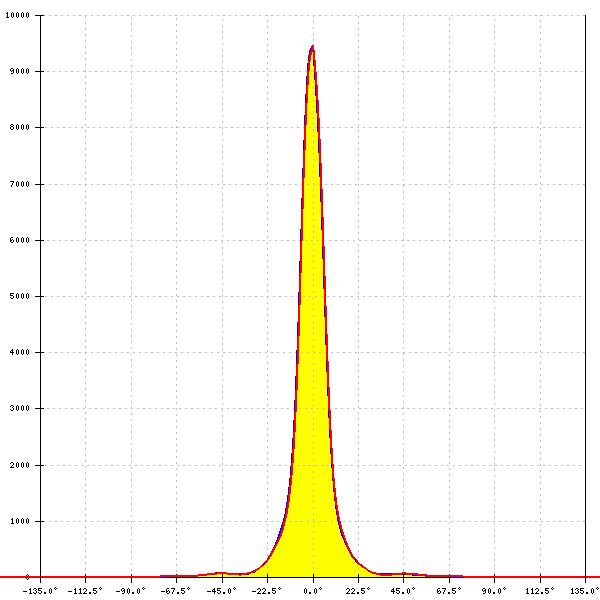

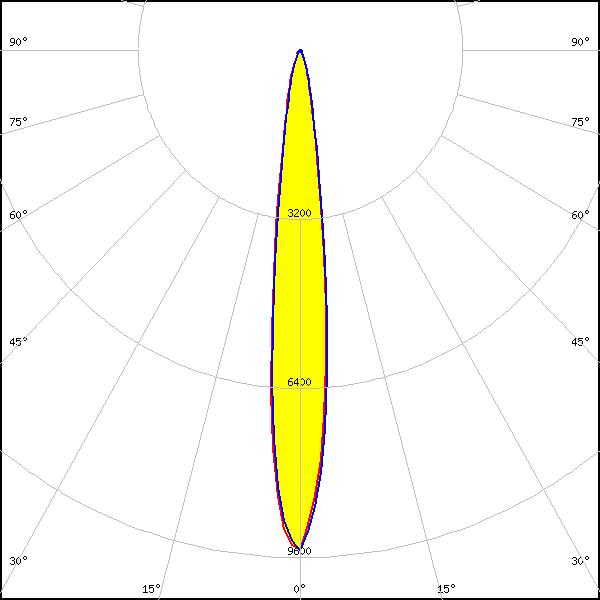

LED: CXA/B 15xx
Required components:
FWHM: 13°
FWTM: 28°
Peak intensity: 9.460 cd/lm
LEDs/each optic: 1
Light colour: White

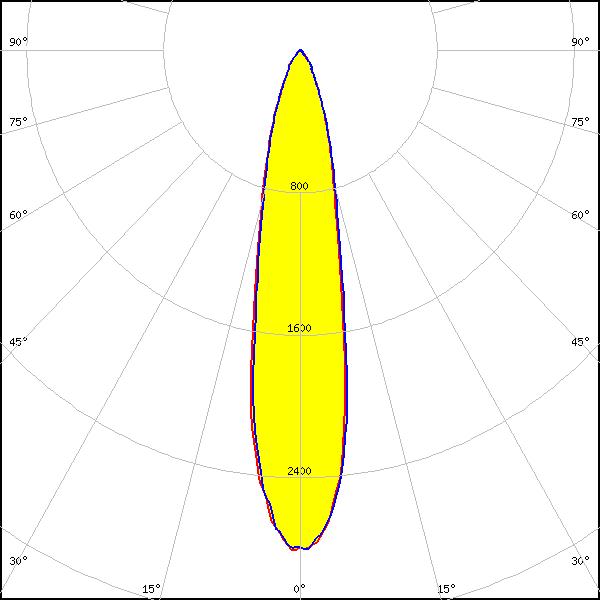

LED: LUXEON CX Plus CoB L08 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 21°
FWTM: 50°
Peak intensity: 2.808 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour: White

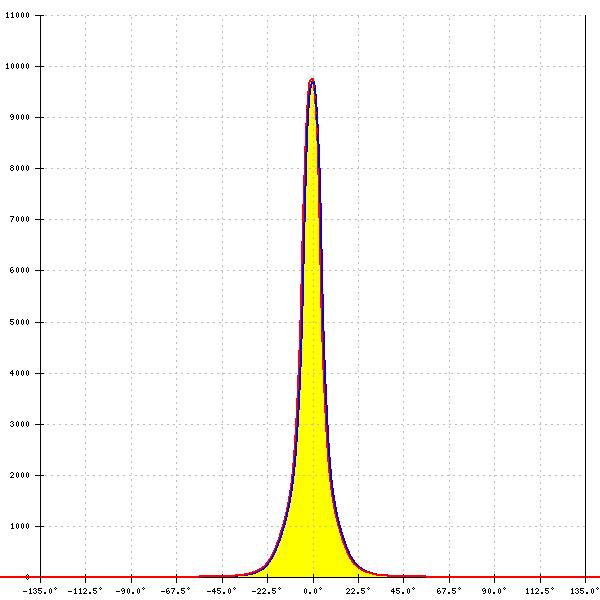

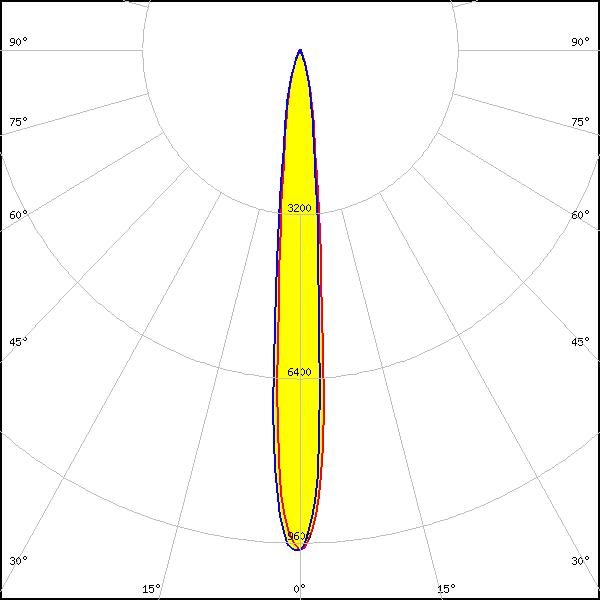

LED: LUXEON CoB 1202HD
Required components:
FWHM: 10°
FWTM: 28°
Peak intensity: 9.800 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1204HD
Required components:
FWHM: 14°
FWTM: 35°
Peak intensity: 6.000 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

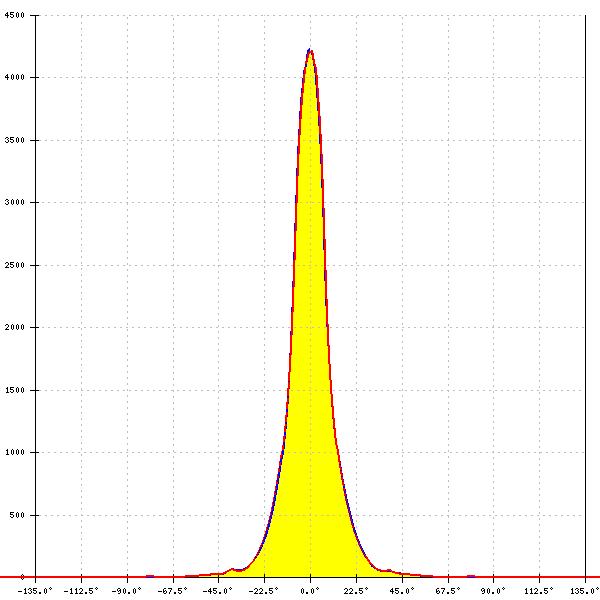

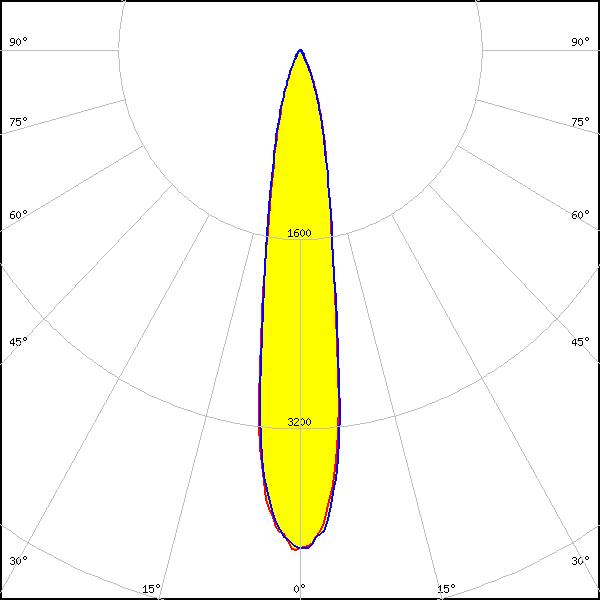

LED: LUXEON CoB 1205HD
Required components:
FWHM: 17°
FWTM: 41°
Peak intensity: 4.200 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White

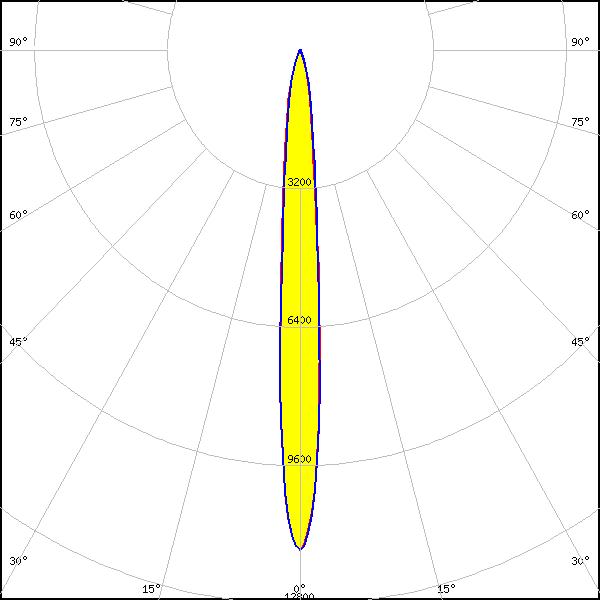

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 9°
FWTM: 26°
Peak intensity: 11.555 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

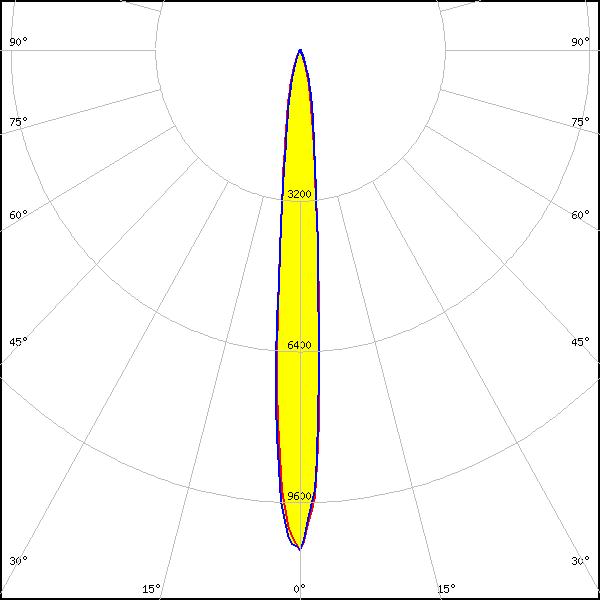

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 10°
FWTM: 26°
Peak intensity: 10.613 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

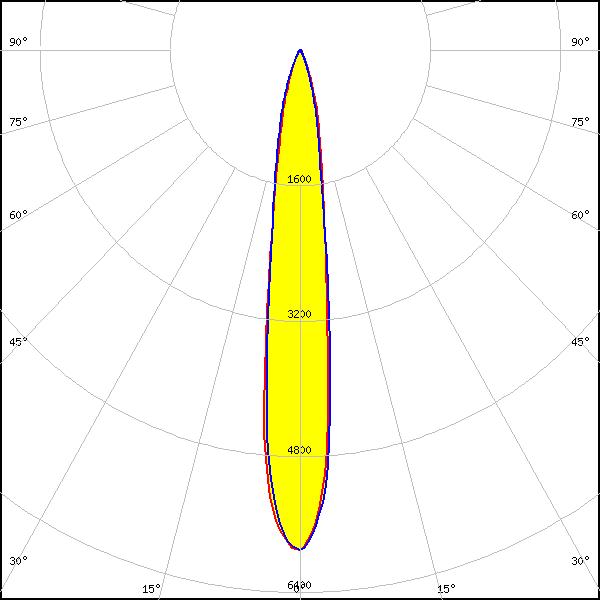

LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 14°
FWTM: 36°
Peak intensity: 5.904 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 18°
FWTM: 42°
Peak intensity: 4.103 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White

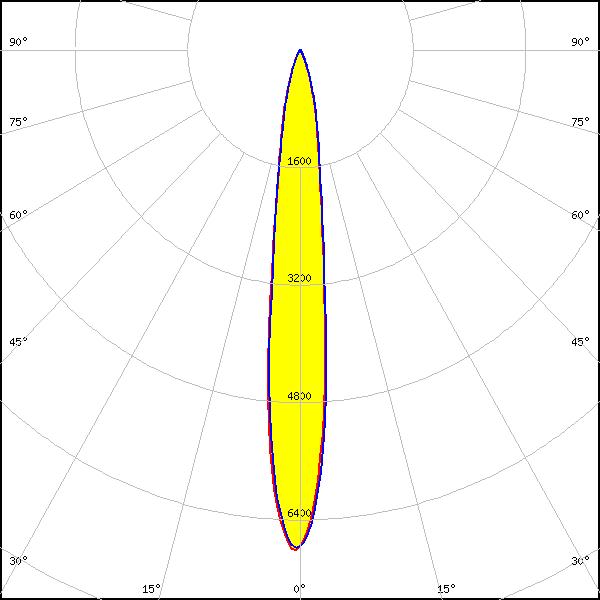

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 13°
FWTM: 33°
Peak intensity: 6.819 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

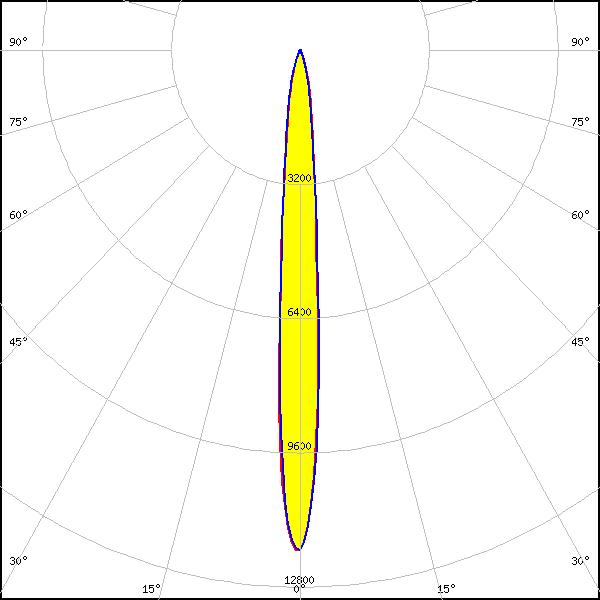

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 9°
FWTM: 25°
Peak intensity: 11.927 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

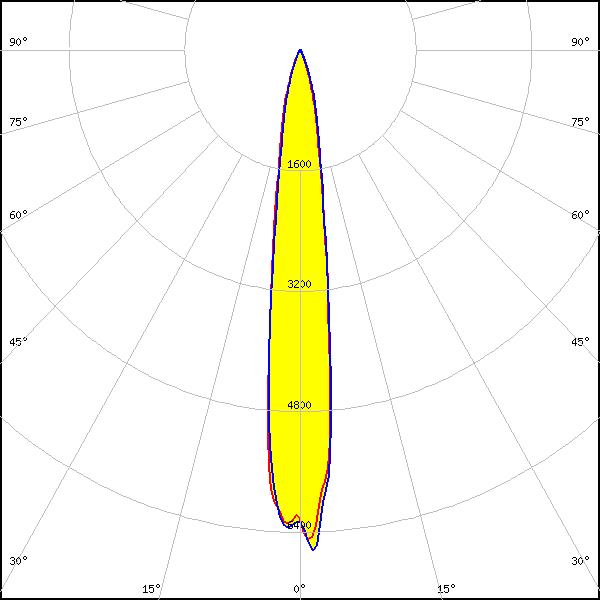

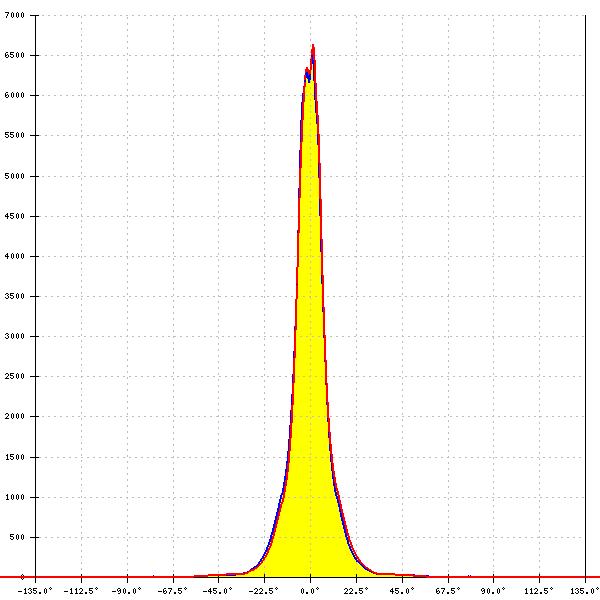

LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 14°
FWTM: 33°
Peak intensity: 6.700 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

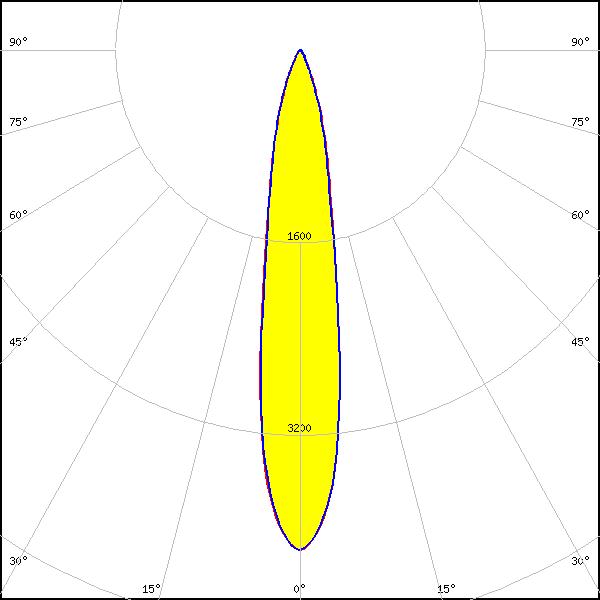

LED: CxM-11 (19x19)
Required components:
FWHM: 18°
FWTM: 42°
Peak intensity: 4.161 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: White

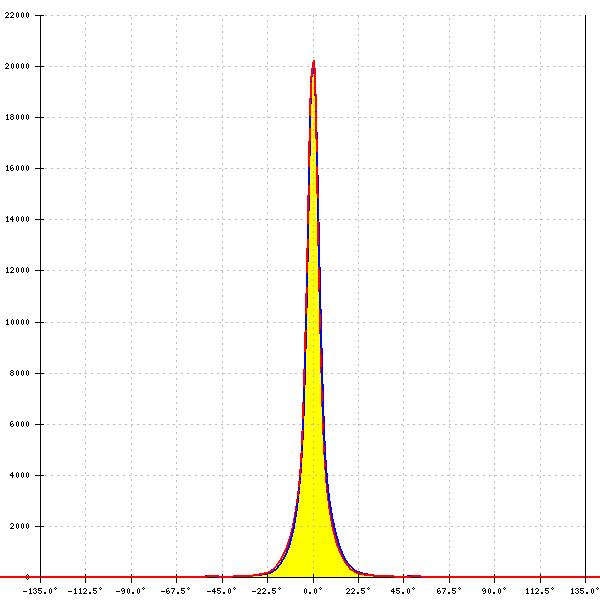

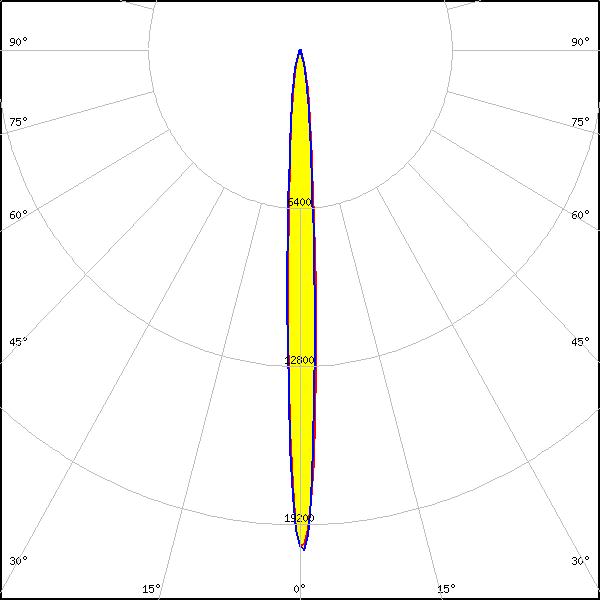

LED: CXM-3
Required components:
FWHM: 7°
FWTM: 19°
Peak intensity: 20.239 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

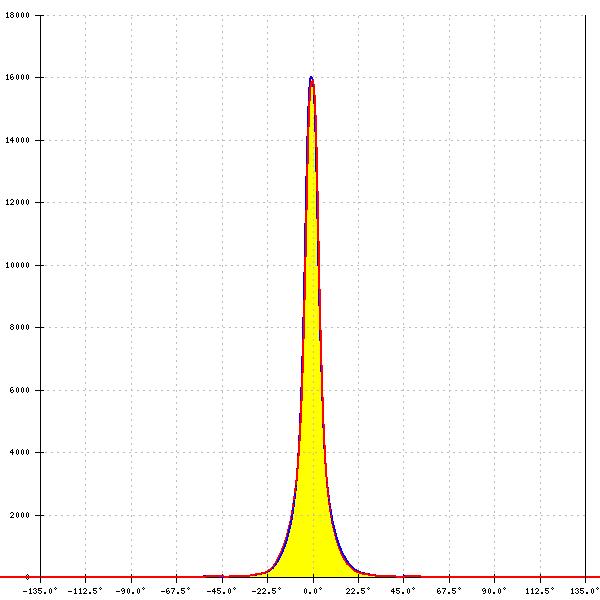

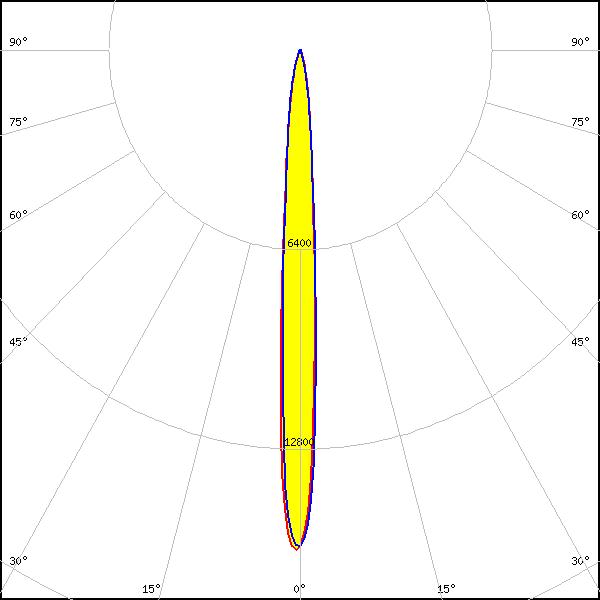

LED: CXM-4
Required components:
FWHM: 8°
FWTM: 22°
Peak intensity: 16.046 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

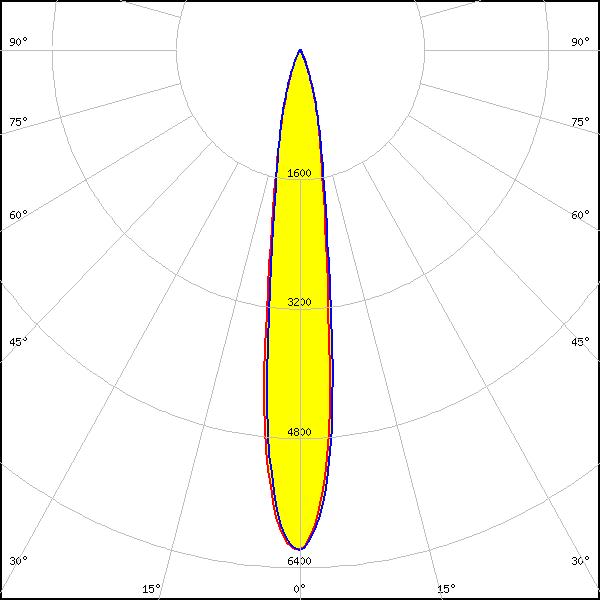

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 15°
FWTM: 35°
Peak intensity: 6.200 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

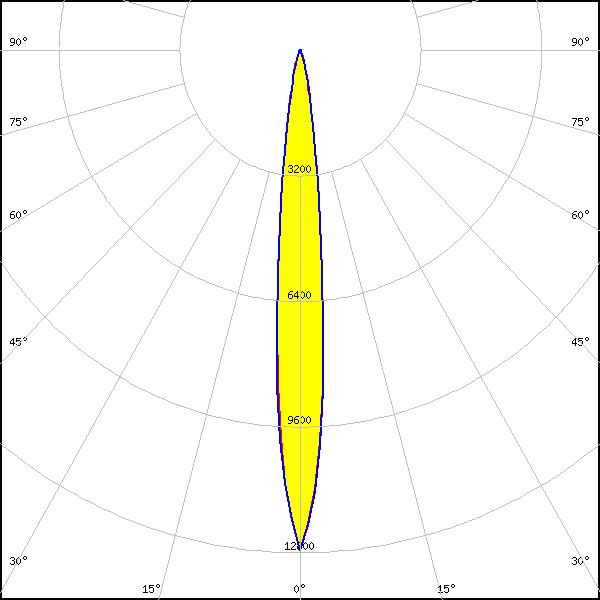

LED: COB T-Type
Required components:
FWHM: 11°
FWTM: 24°
Peak intensity: 12.740 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

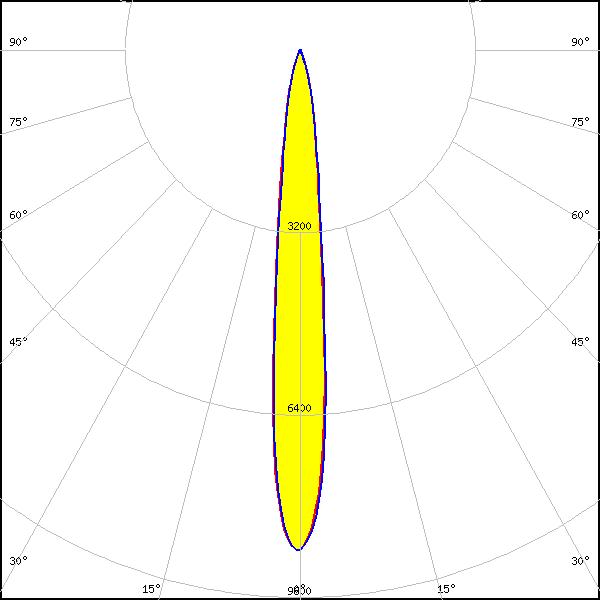

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 12°
FWTM: 29°
Peak intensity: 8.800 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

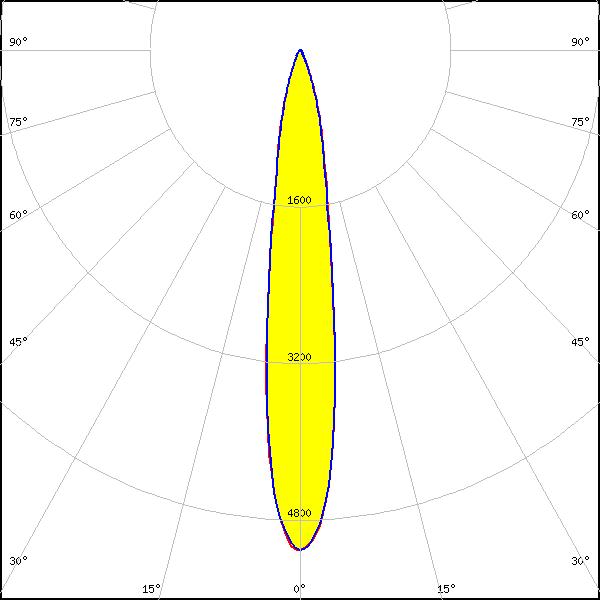

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: 16°
FWTM: 37°
Peak intensity: 5.100 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White

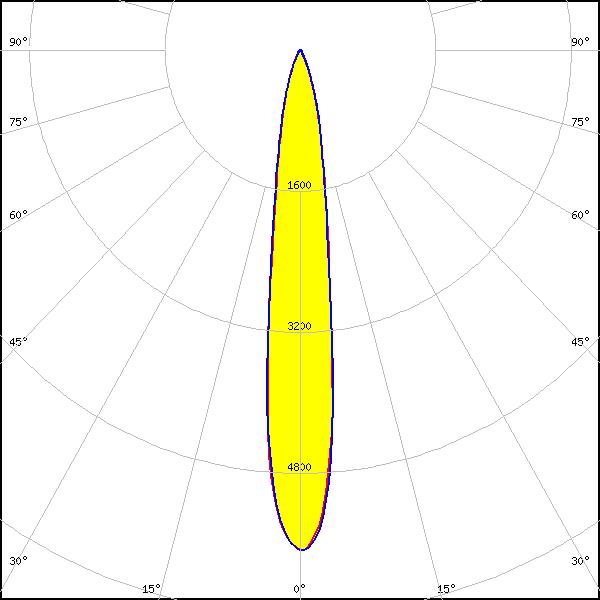

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 15°
FWTM: 36°
Peak intensity: 5.700 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

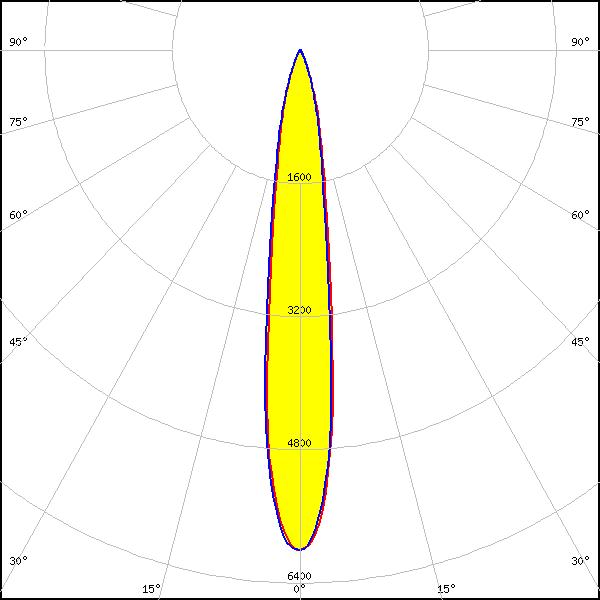

LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 15°
FWTM: 36°
Peak intensity: 6.000 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

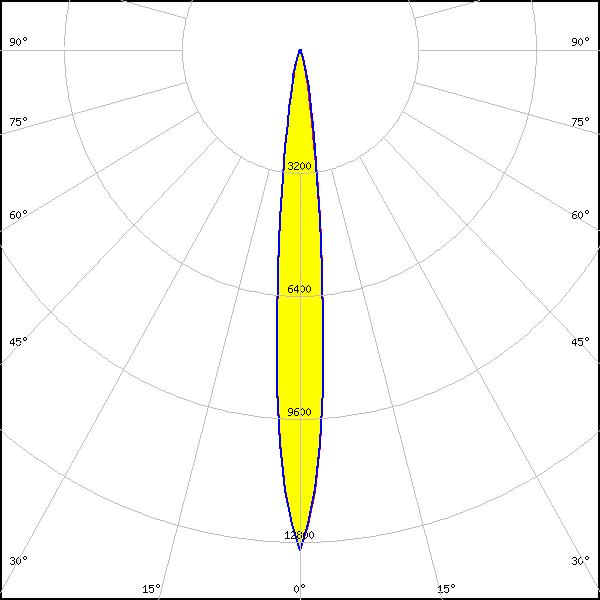

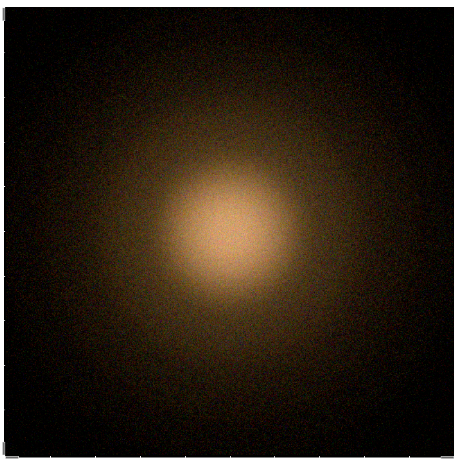

LED: LC010C
Required components:
FWHM: 11°
FWTM: 24°
Peak intensity: 13.013 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

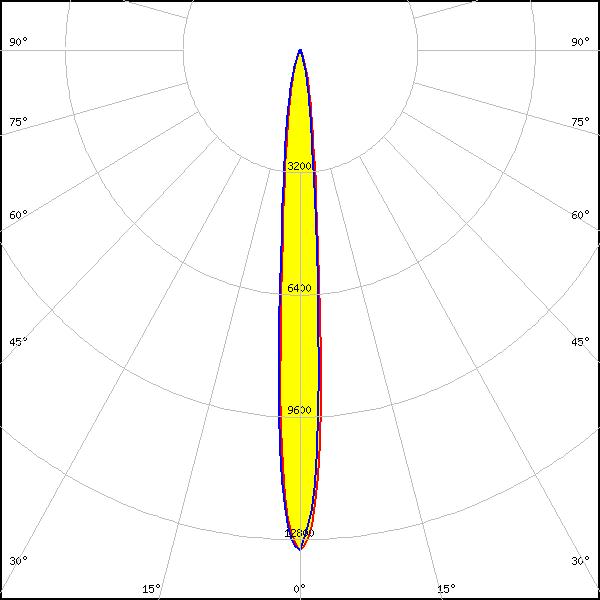

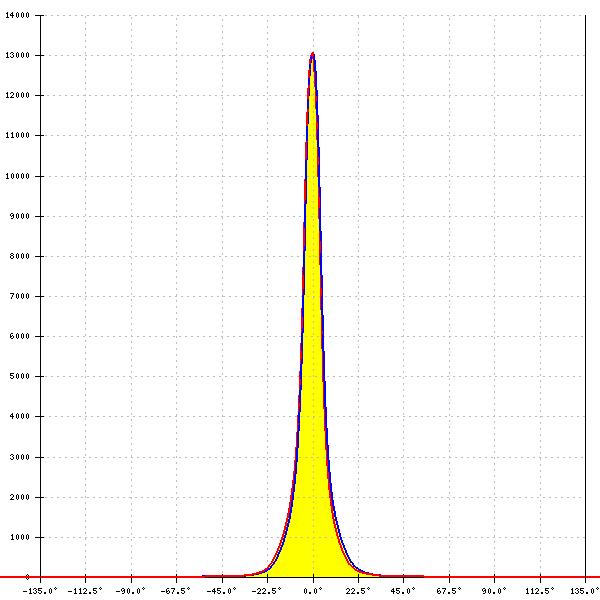

LED: LC010C G2
Required components:
FWHM: 9°
FWTM: 24°
Peak intensity: 13.100 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

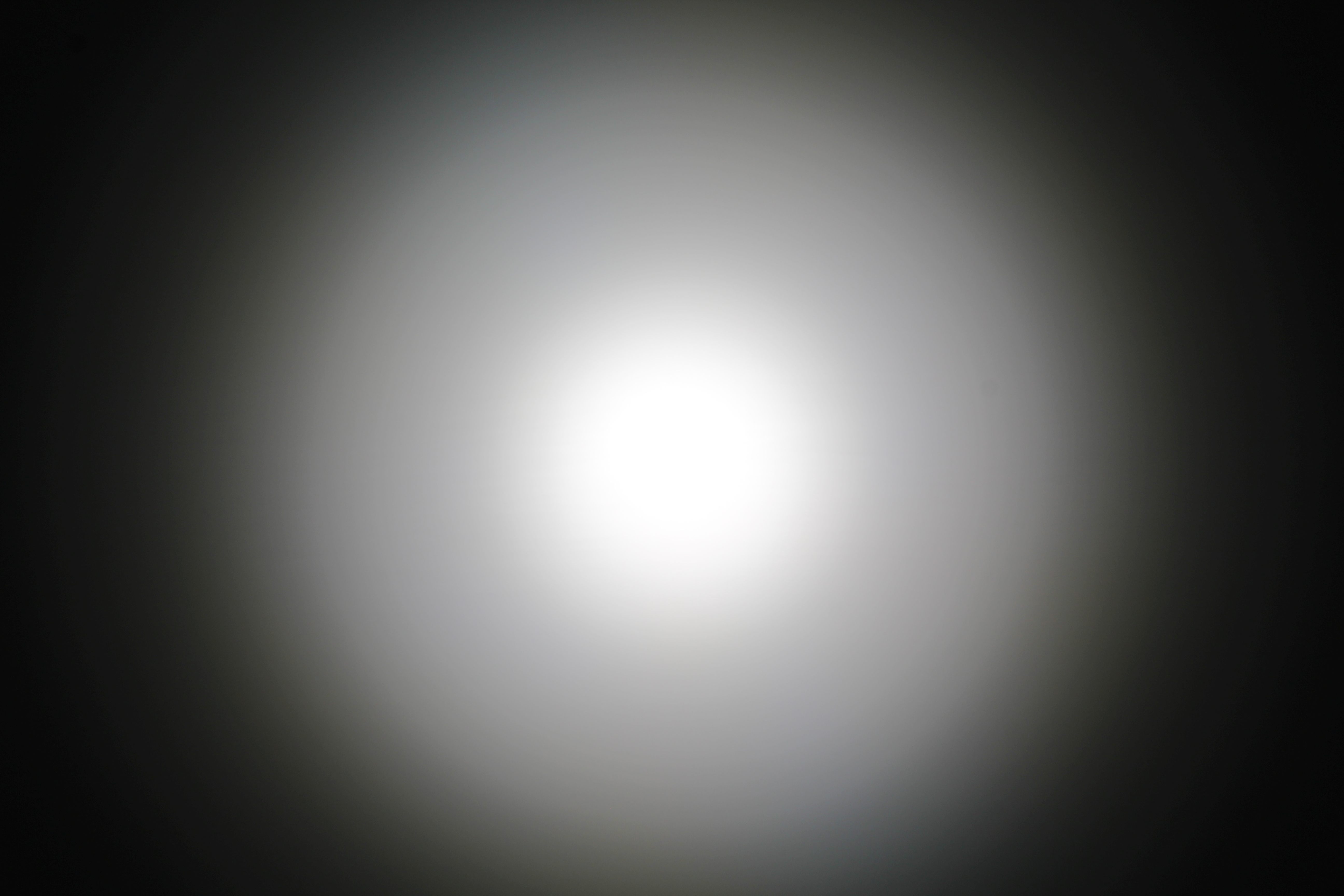

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 15°
FWTM: 35°
Peak intensity: 5.794 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: Tunable White

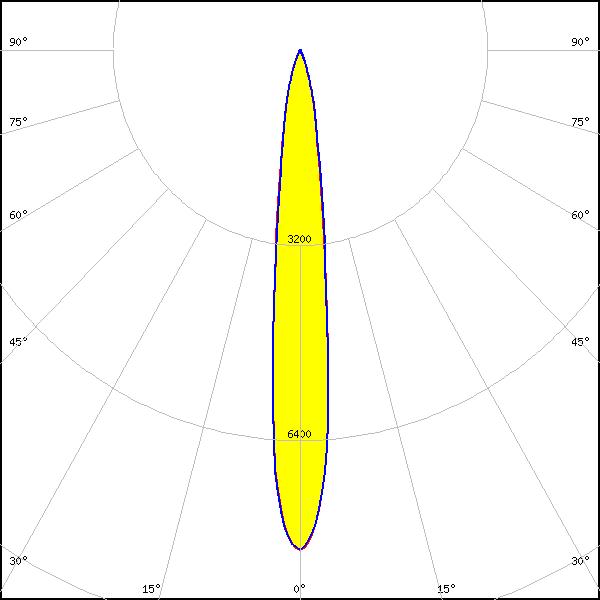

LED: LC020C
Required components:
FWHM: 12°
FWTM: 31°
Peak intensity: 8.200 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

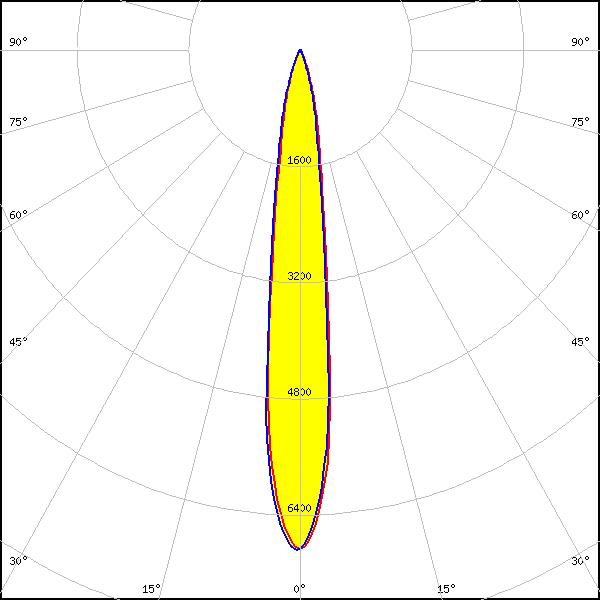

LED: LC020C G2
Required components:
FWHM: 14°
FWTM: 33°
Peak intensity: 6.900 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

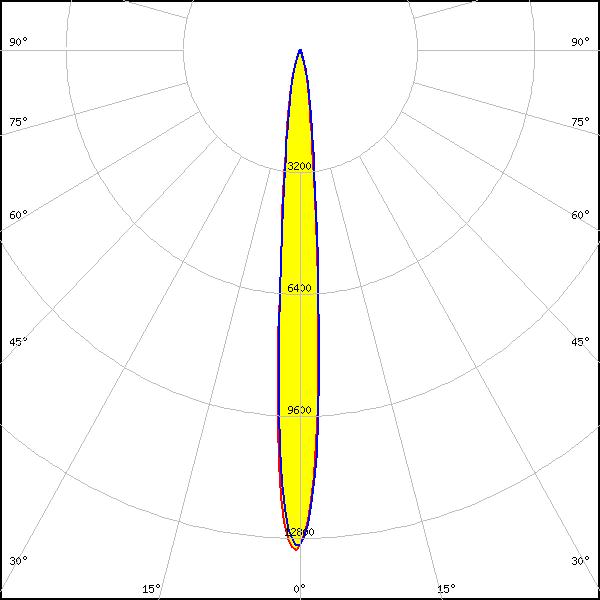

LED: MJT COB LES 6
Required components:
FWHM: 9°
FWTM: 23°
Peak intensity: 13.100 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

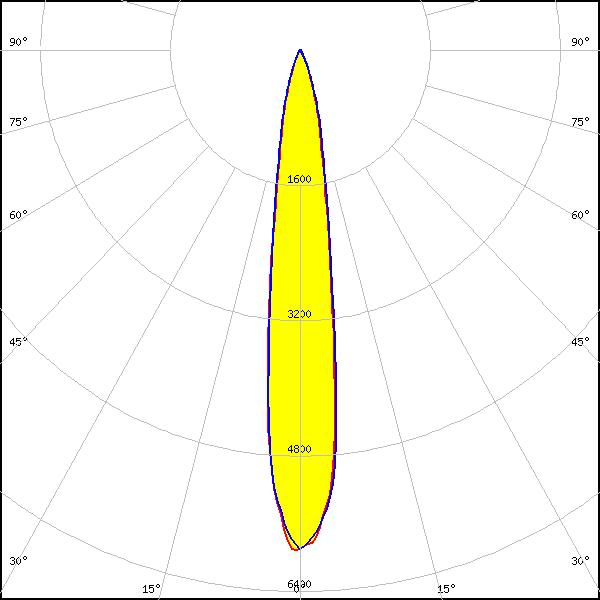

LED: MJT COB LES 9.8
Required components:
FWHM: 15°
FWTM: 35°
Peak intensity: 5.900 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

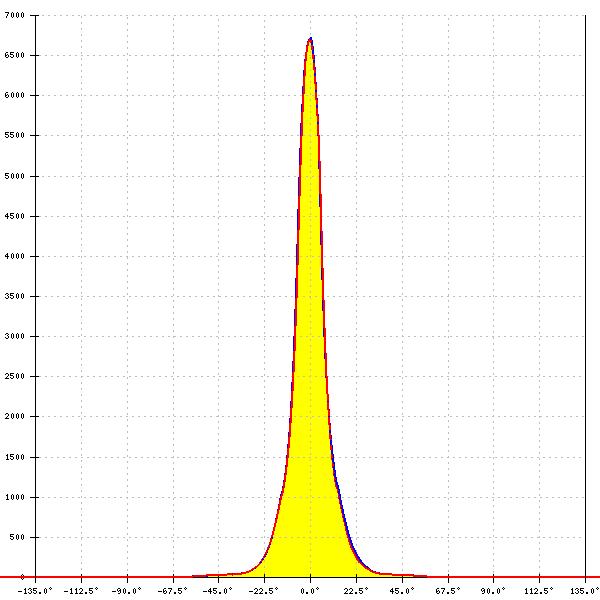

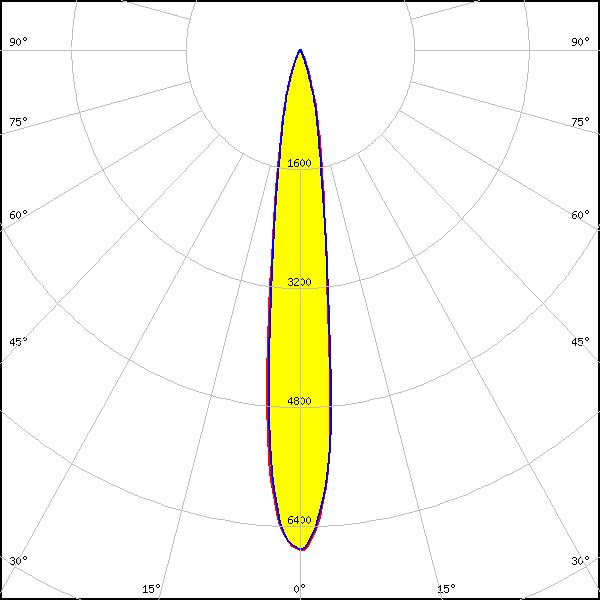

LED: SLE G7 LES09
Required components:
FWHM: 14°
FWTM: 34°
Peak intensity: 6.700 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

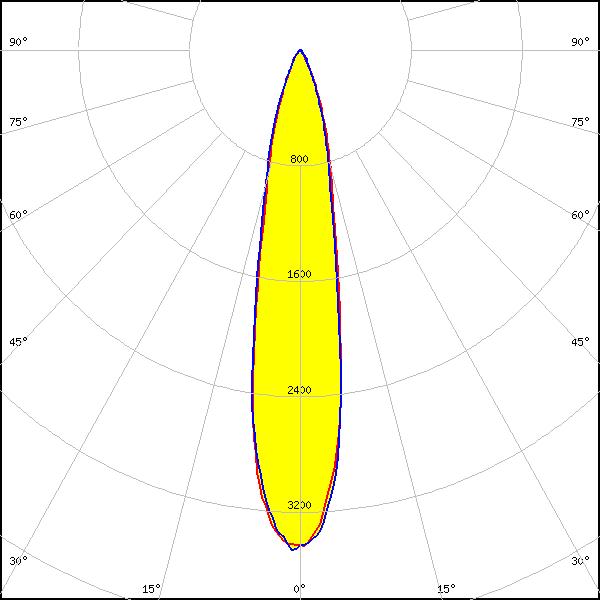

LED: SLE G7 LES13
Required components:
FWHM: 20°
FWTM: 45°
Peak intensity: 3.500 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour: White

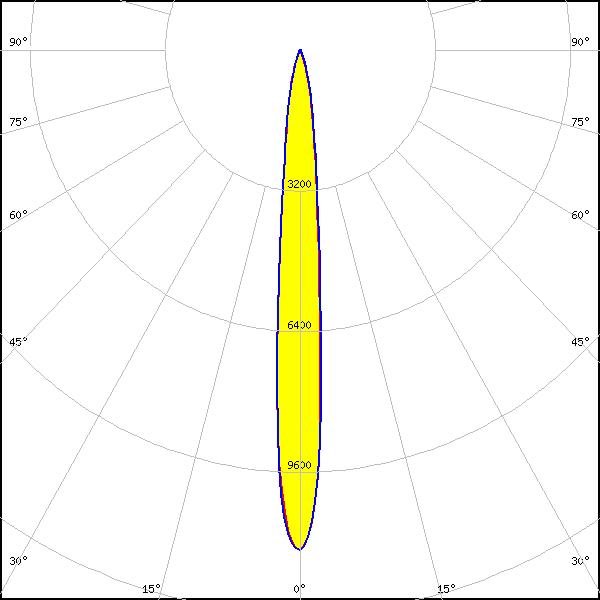

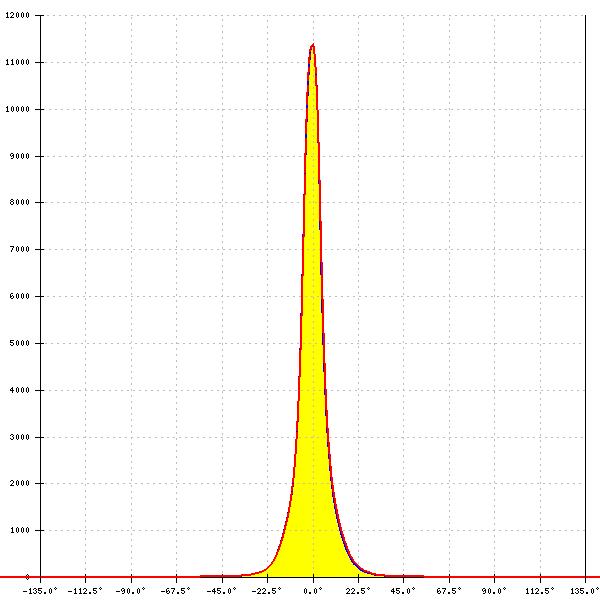

LED: XOB 6 mm
Required components:
FWHM: 10°
FWTM: 26°
Peak intensity: 11.379 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

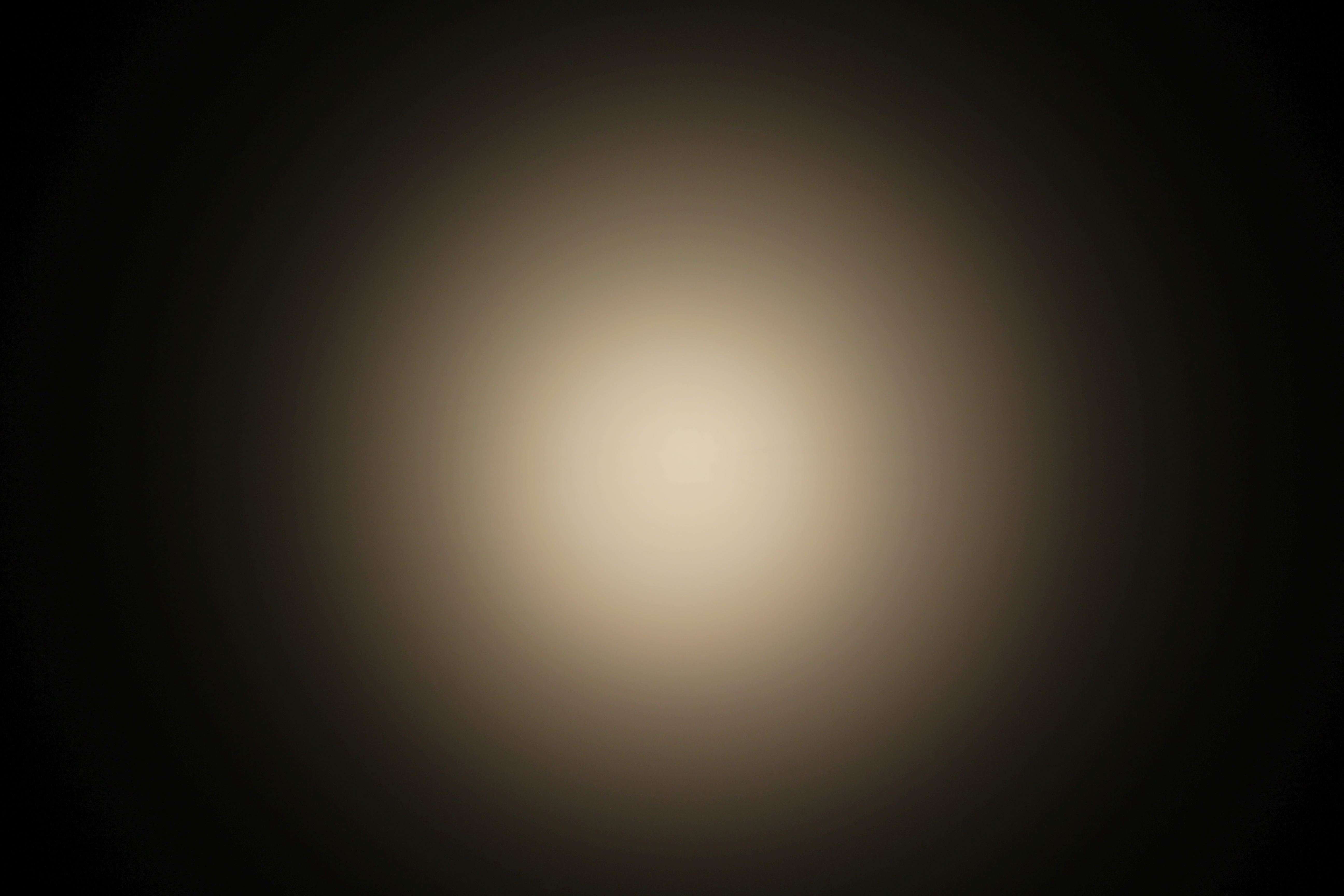

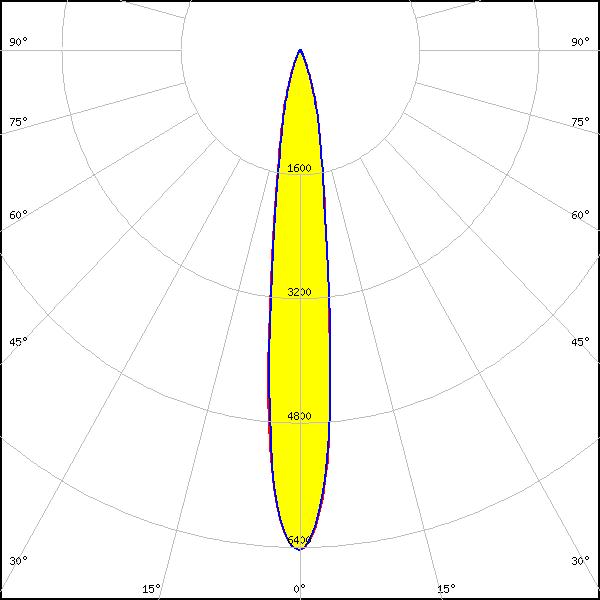

LED: XOB 9.8 mm
Required components:
FWHM: 14°
FWTM: 35°
Peak intensity: 6.440 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

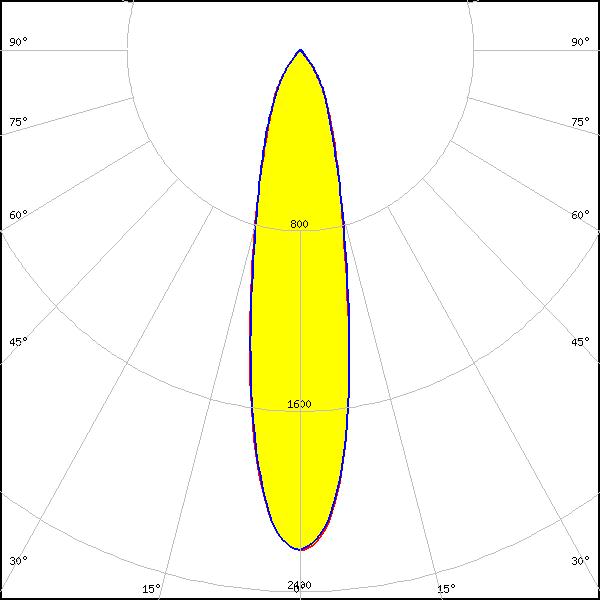

LED: XTM - 19mm LES
Required components:
FWHM: 23°
FWTM: 60°
Peak intensity: 2.200 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour: White
