CP15775_CARMEN-M-C

Print

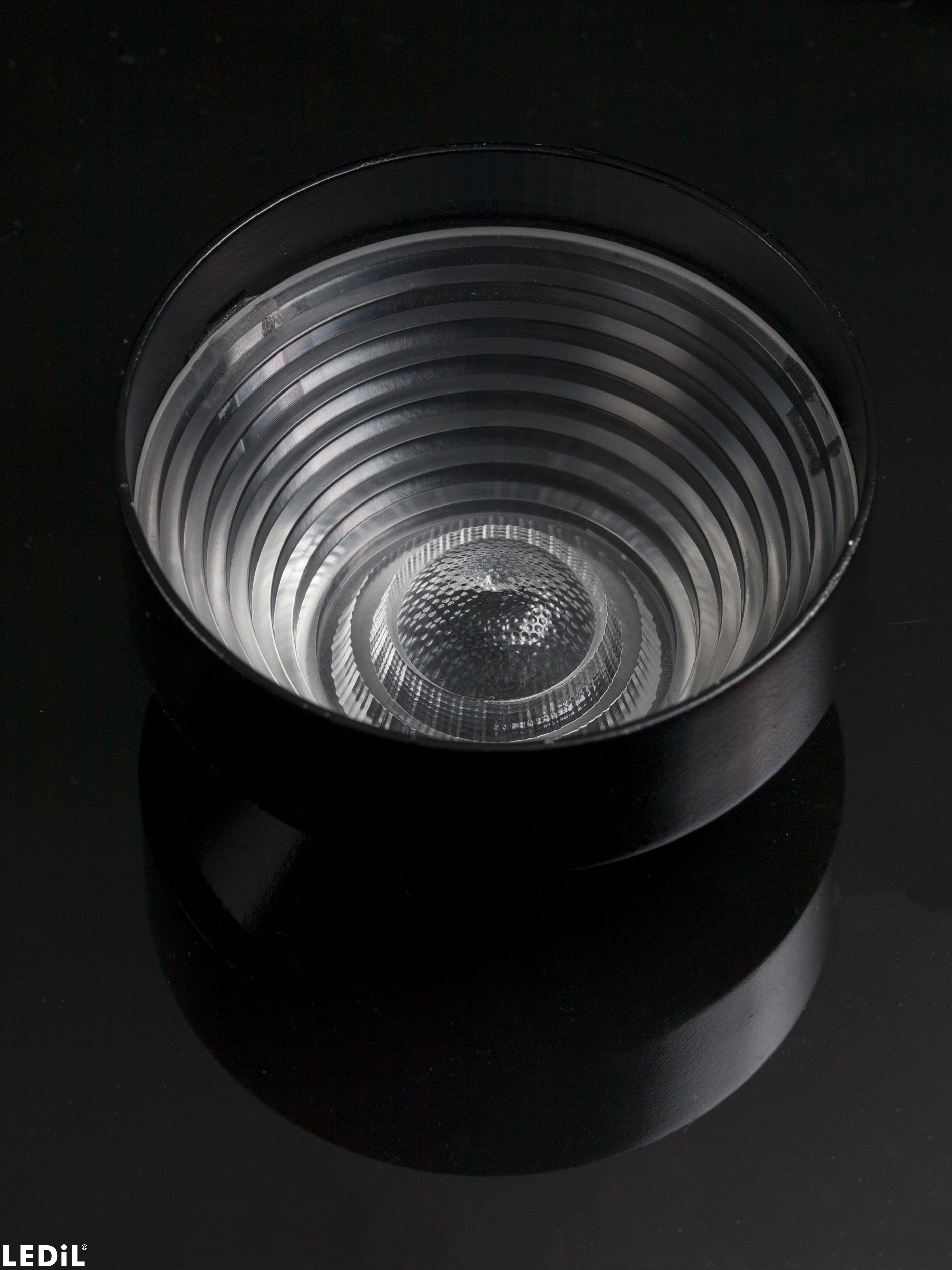

~35° medium beam. Assembly with holder C compatible with LEDiL HEKLA.

Specification
  • Dimensions:
    70 mm
  • Height:
    41.50 mm
  • Fastening:
    socket
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    4.6 kg
  • MPQ:
    15 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    4.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP15775_CARMEN-M-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

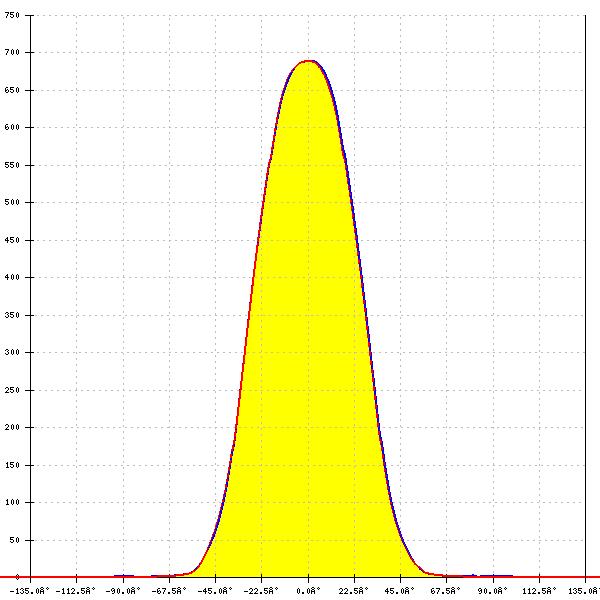

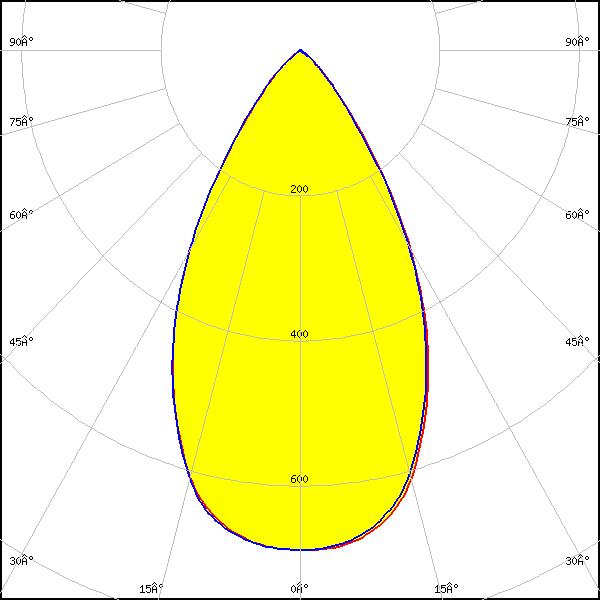

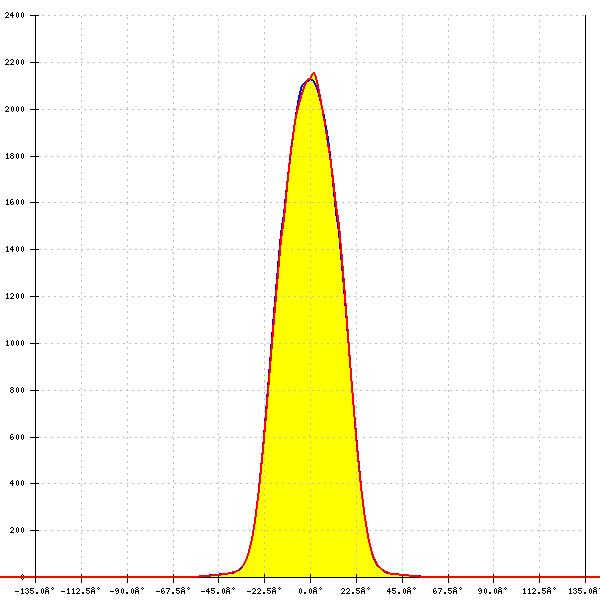

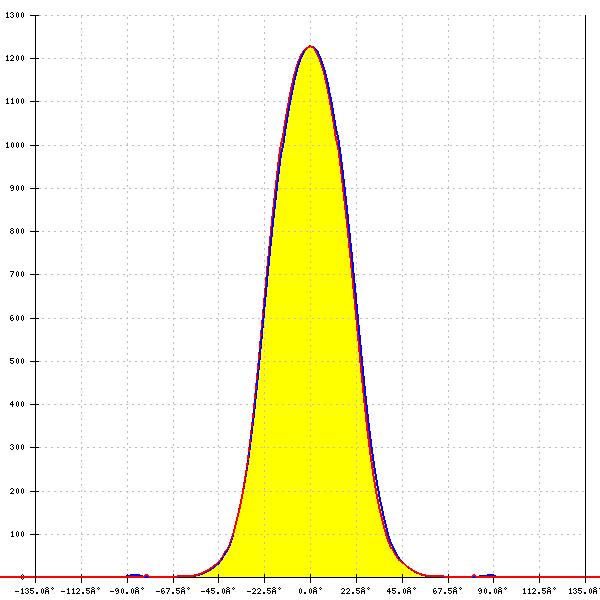

Optical results

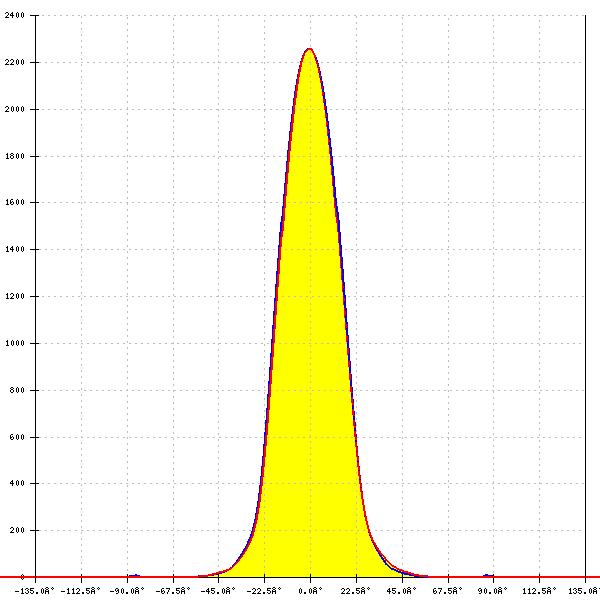

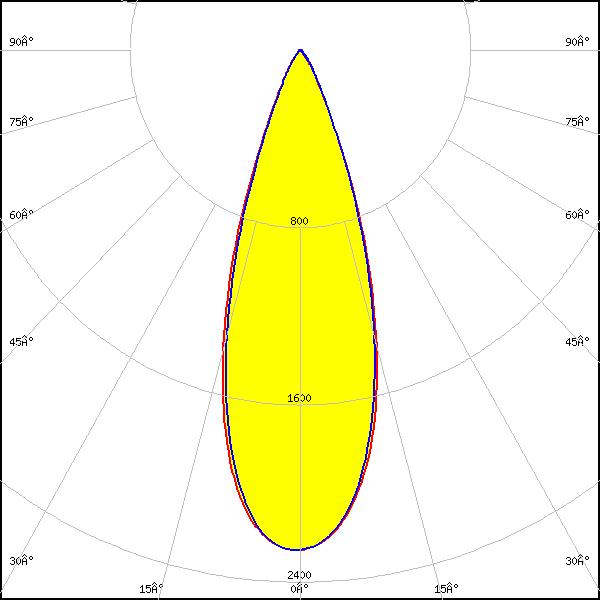

LED: V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM: 34°
FWTM: 55°
Peak intensity: 2.300 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

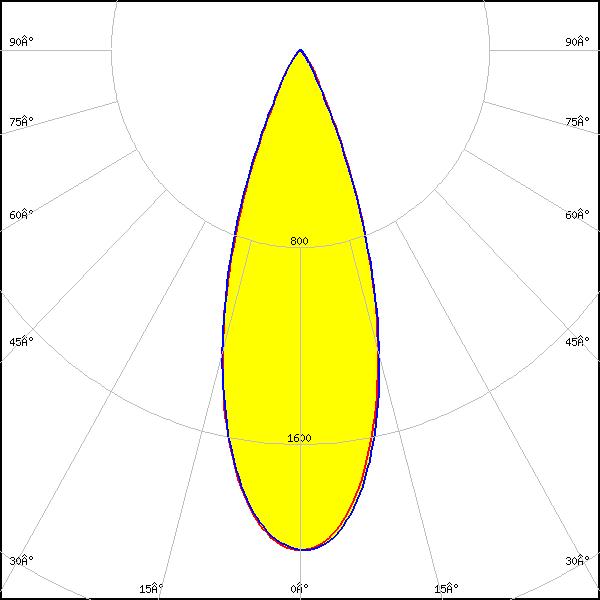

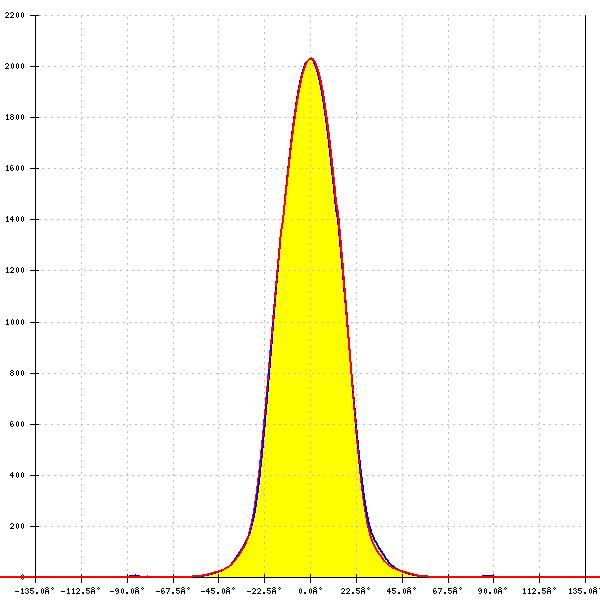

LED: V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM: 36°
FWTM: 58°
Peak intensity: 2.000 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

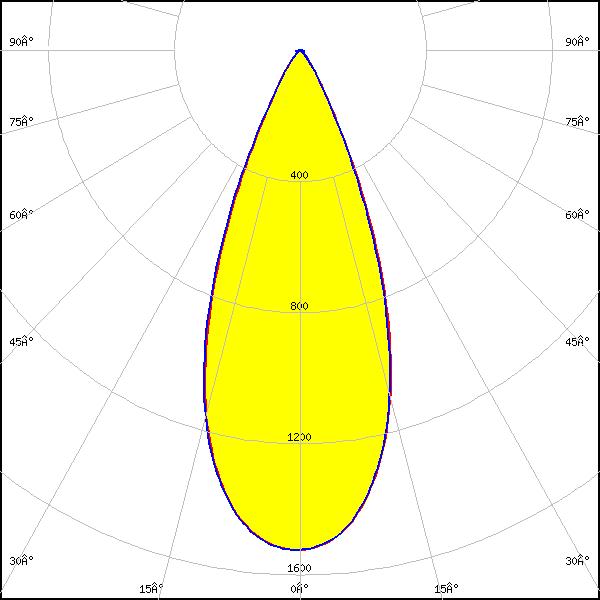

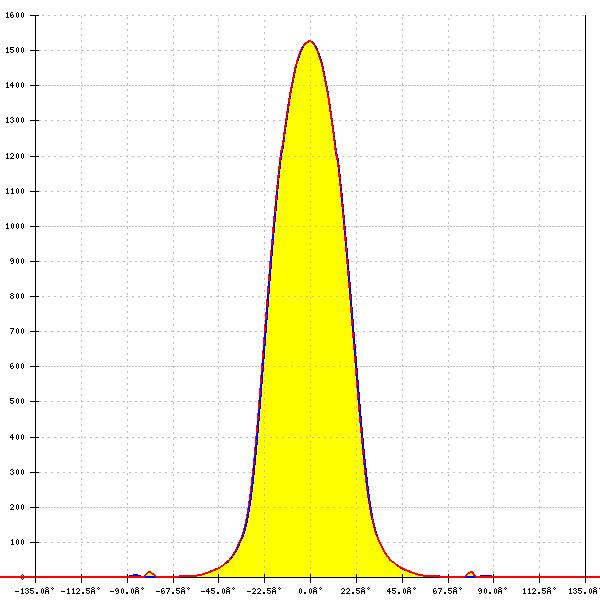

LED: V9 HD Gen7
LES size: 9.2 mm
Required components:
FWHM: 41°
FWTM: 63°
Peak intensity: 1.500 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

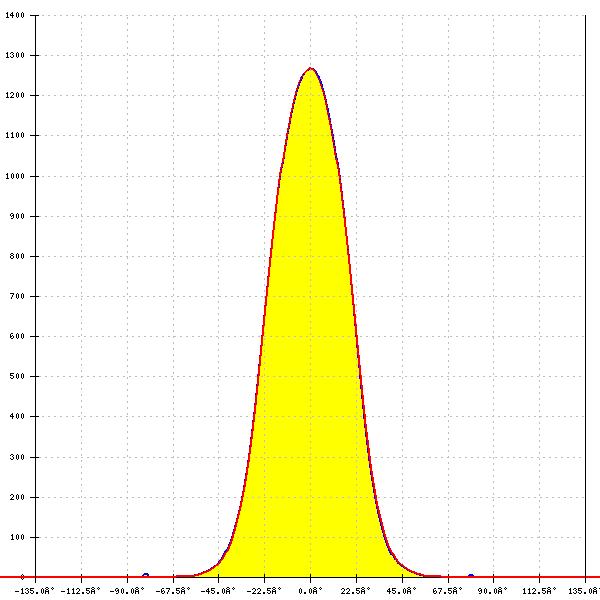

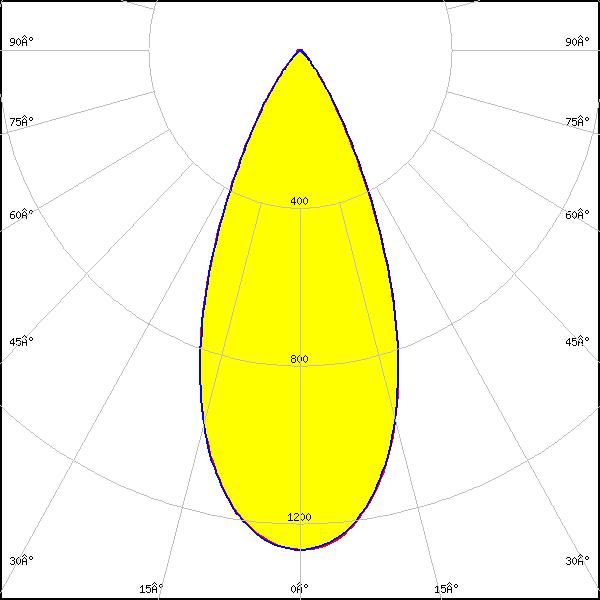

LED: VERO10
LES size: 9.9 mm
Required components:
FWHM: 45°
FWTM: 72°
Peak intensity: 1.200 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 45°
FWTM: 73°
Peak intensity: 1.009 cd/lm
Efficiency: 63 %
LEDs/each optic: 1
Light colour/type: White

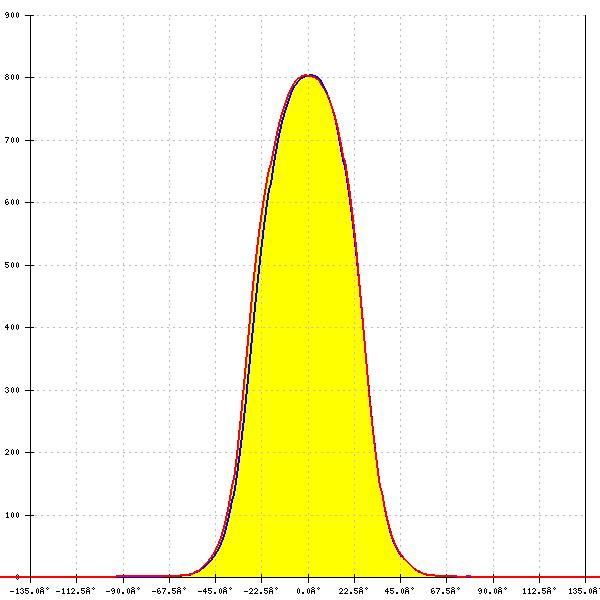

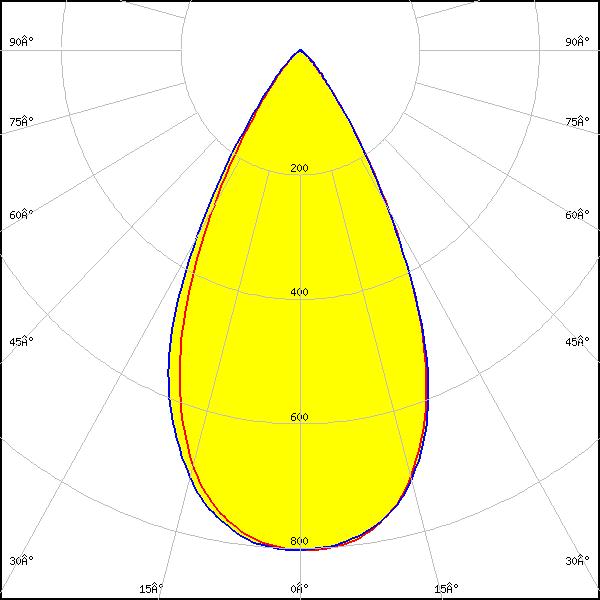

LED: Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 55°
FWTM: 80°
Peak intensity: 0.803 cd/lm
Efficiency: 64 %
LEDs/each optic: 1
Light colour/type: Tunable White

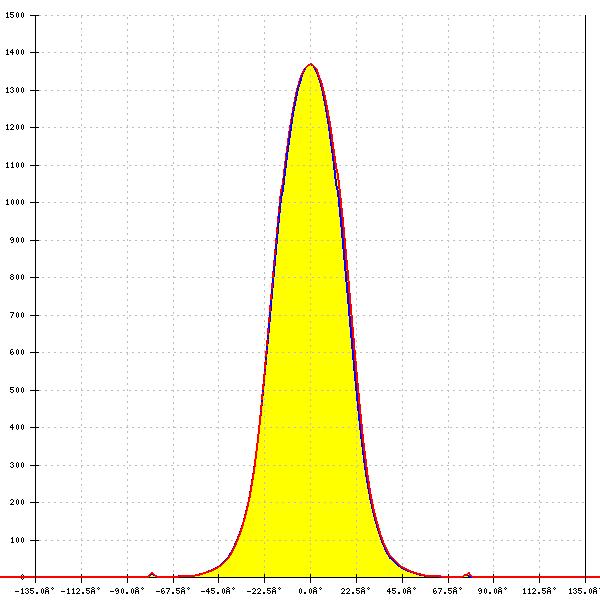

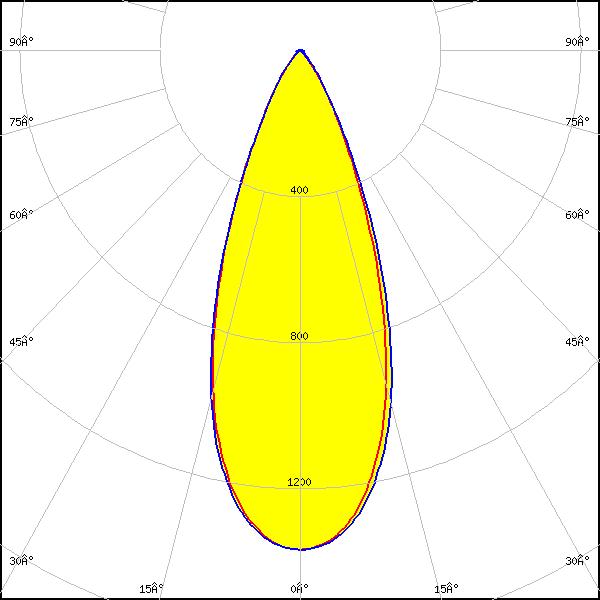

LED: Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 40°
FWTM: 67°
Peak intensity: 1.400 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 37°
FWTM: 63°
Peak intensity: 1.683 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

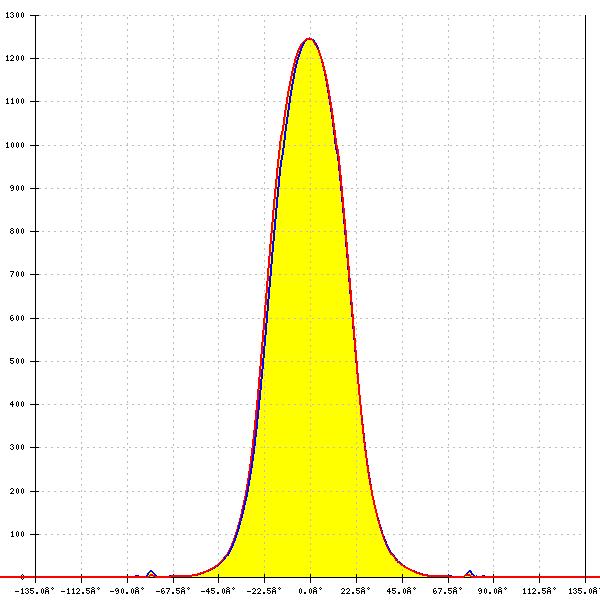

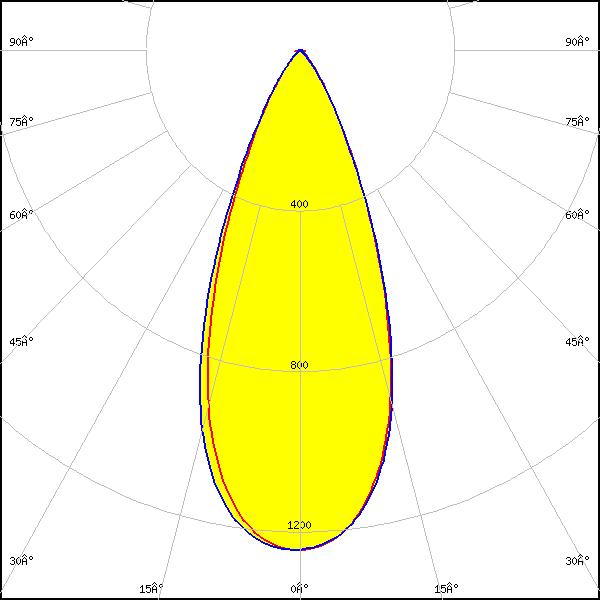

LED: Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM: 42°
FWTM: 69°
Peak intensity: 1.200 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 9mm (9W) DP
LES size: 10.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 43°
FWTM: 69°
Peak intensity: 1.247 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White

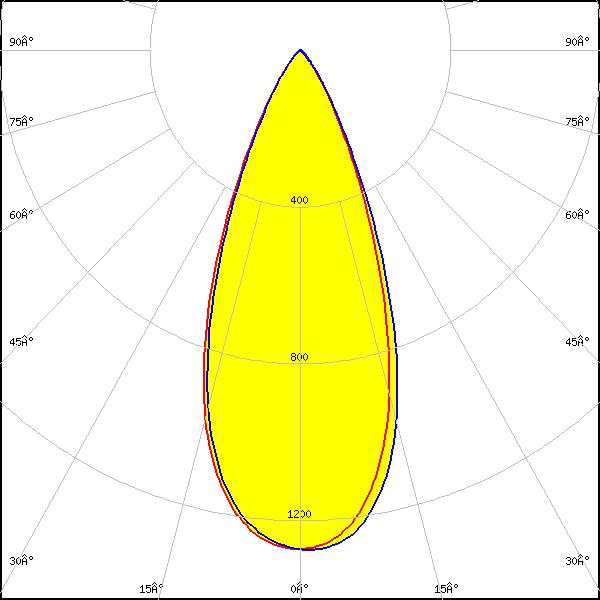

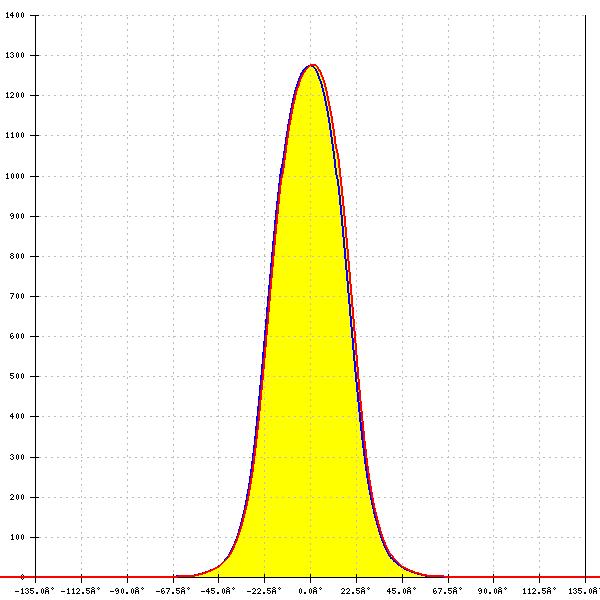

LED: CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM: 42°
FWTM: 68°
Peak intensity: 1.300 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White

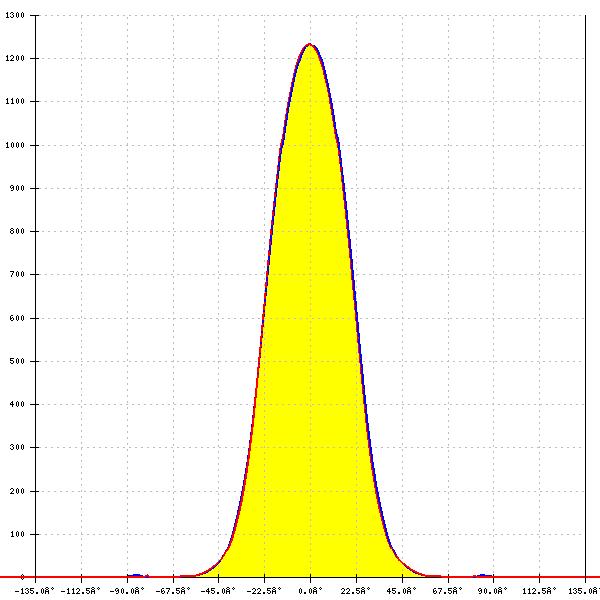

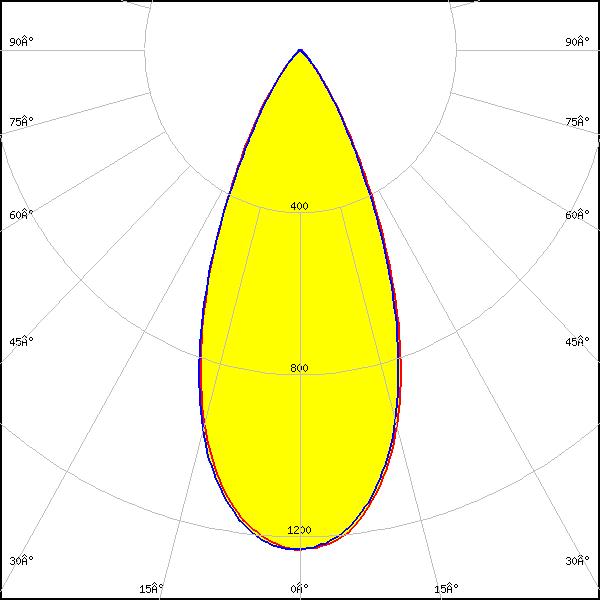

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 45°
FWTM: 73°
Peak intensity: 1.200 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

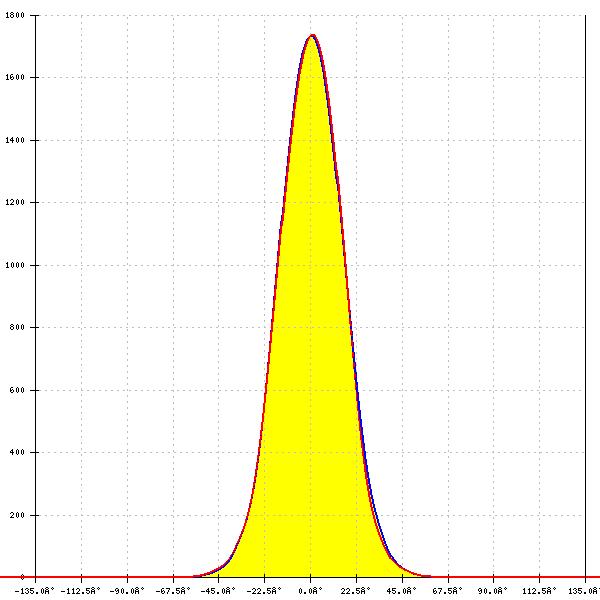

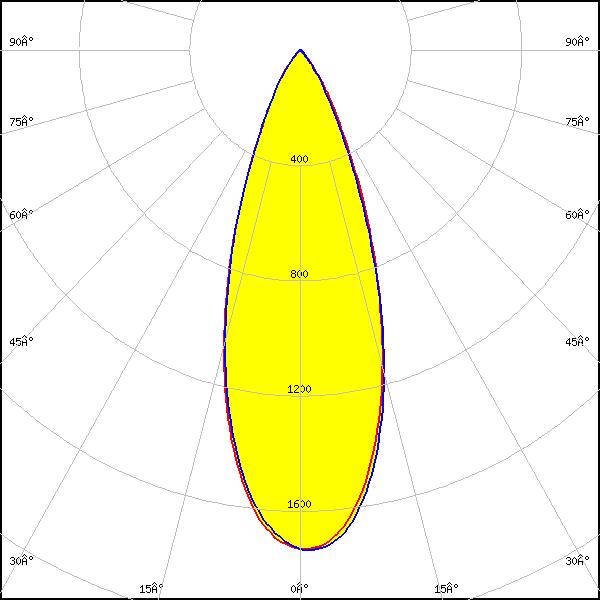

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 37°
FWTM: 66°
Peak intensity: 1.700 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

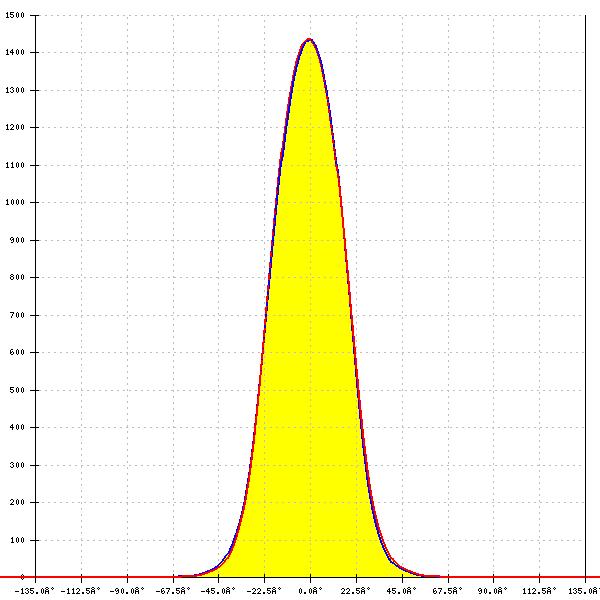

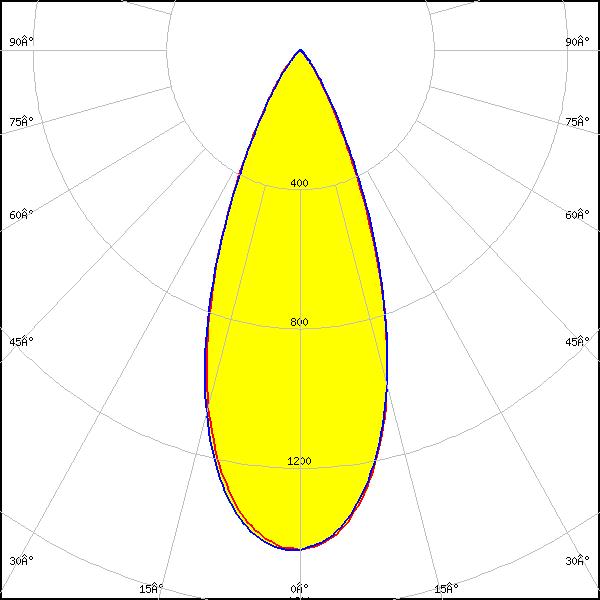

LED: CLU710/711
LES size: 8.5 mm
Required components:
FWHM: 41°
FWTM: 68°
Peak intensity: 1.436 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

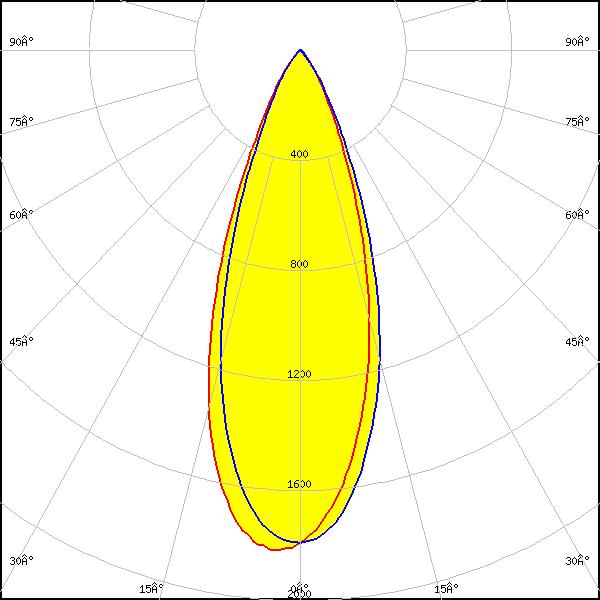

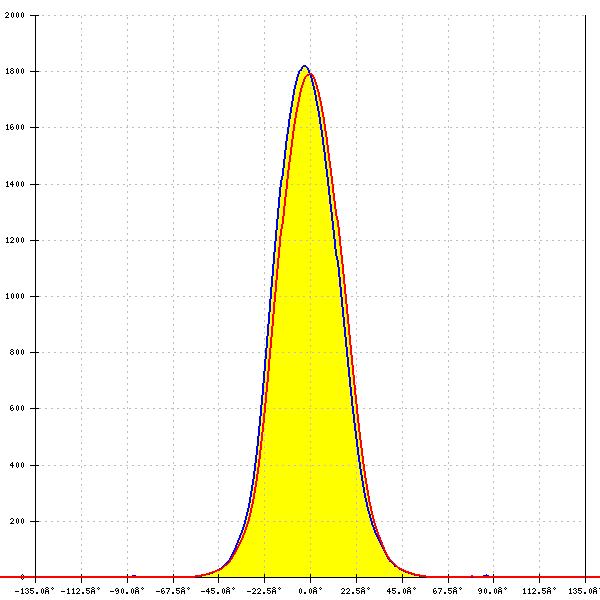

LED: CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM: 37°
FWTM: 64°
Peak intensity: 1.800 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

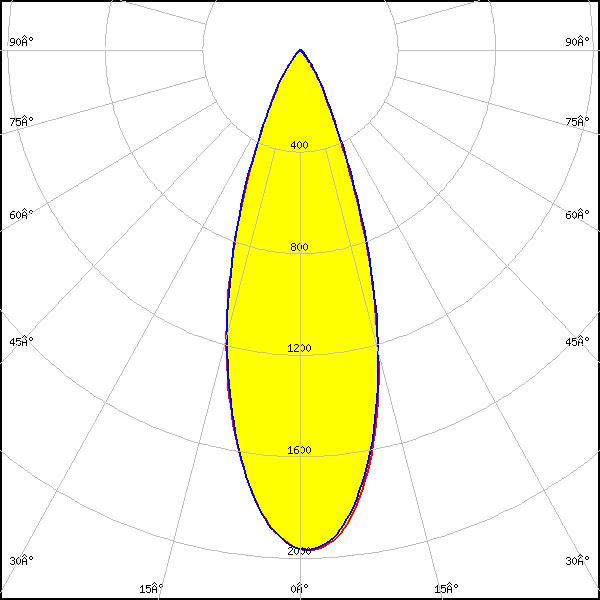

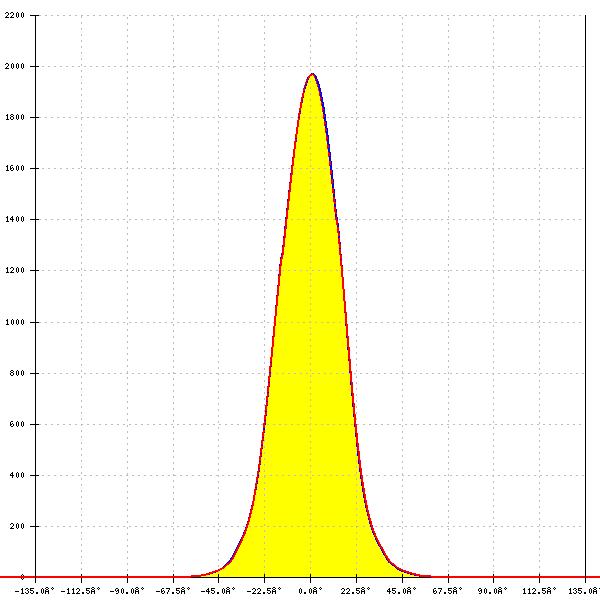

LED: CLU7B2
LES size: 3.3 mm
Required components:
FWHM: 35°
FWTM: 62°
Peak intensity: 1.971 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

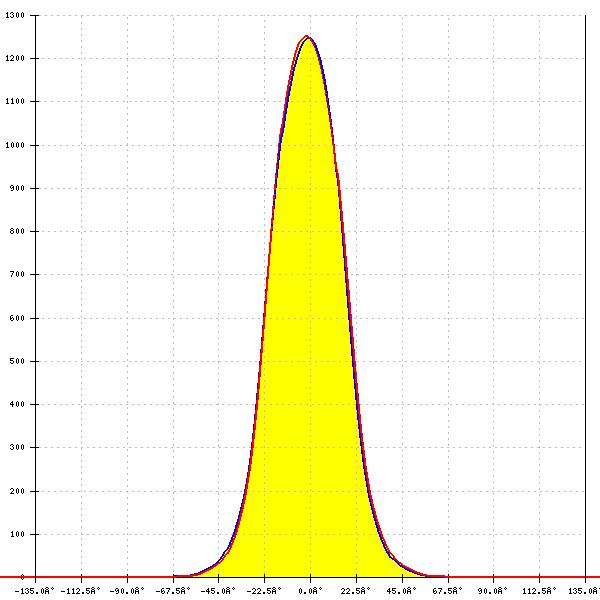

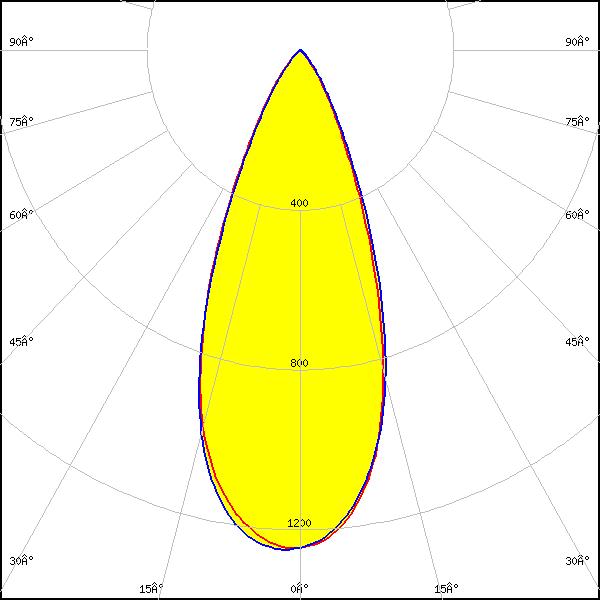

LED: LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
FWHM: 41°
FWTM: 69°
Peak intensity: 1.300 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White

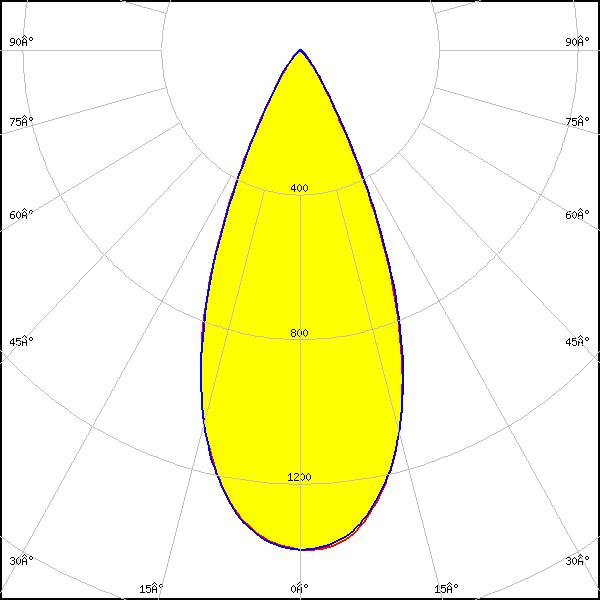

LED: CMA1516
LES size: 9.0 mm
Required components:
FWHM: 45°
FWTM: 68°
Peak intensity: 1.400 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

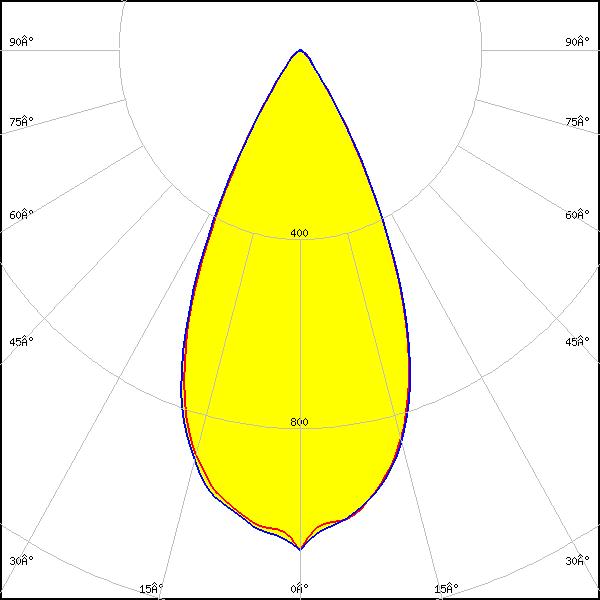

LED: CMA1825
LES size: 12.0 mm
FWHM: 49°
FWTM: 72°
Peak intensity: 1.058 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White

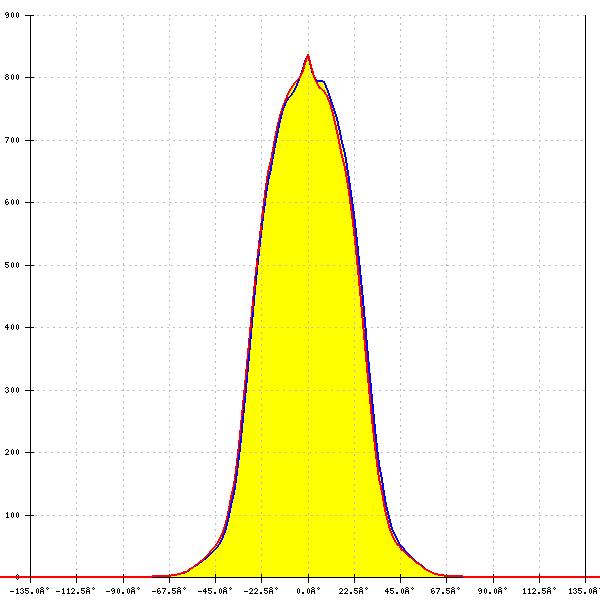

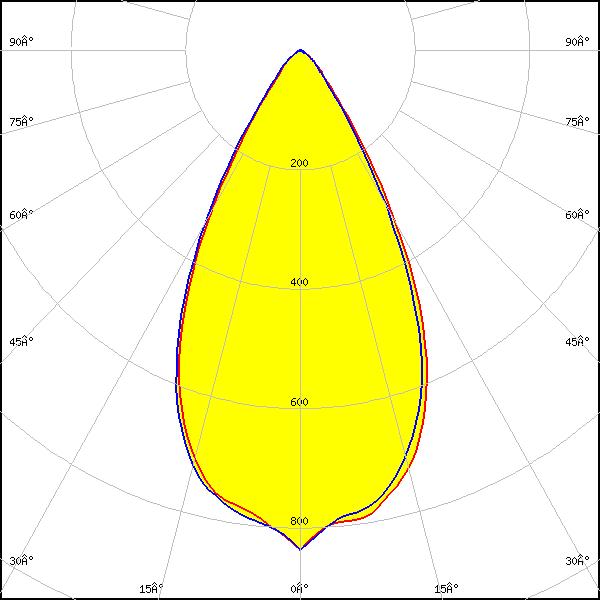

LED: CMA1840
LES size: 14.0 mm
FWHM: 55°
FWTM: 79°
Peak intensity: 0.838 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White

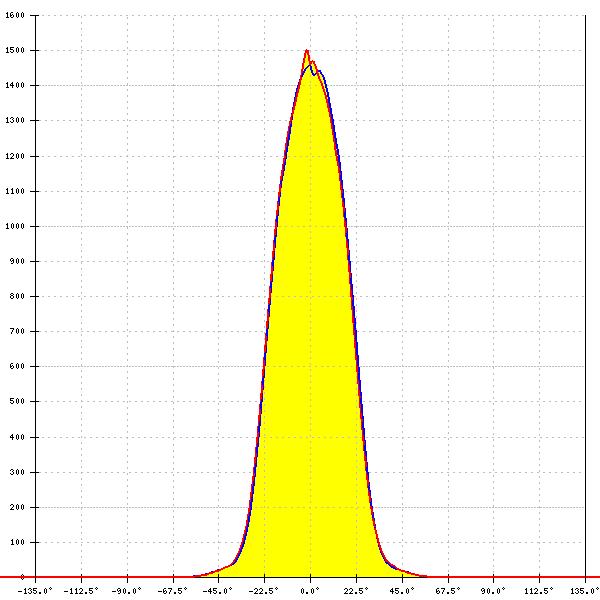

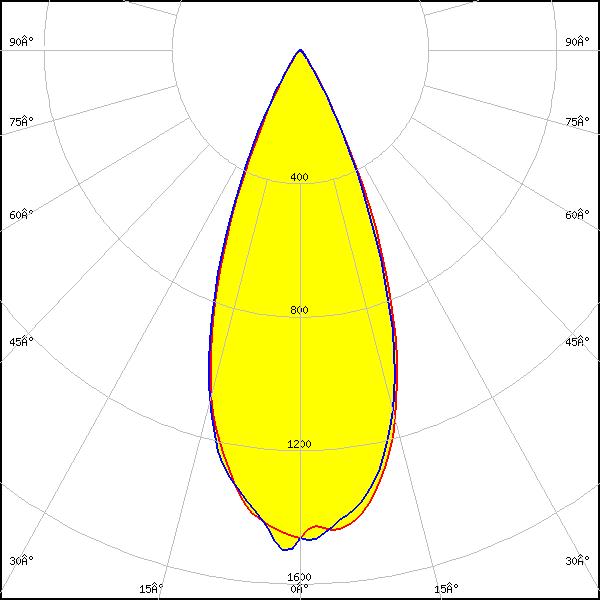

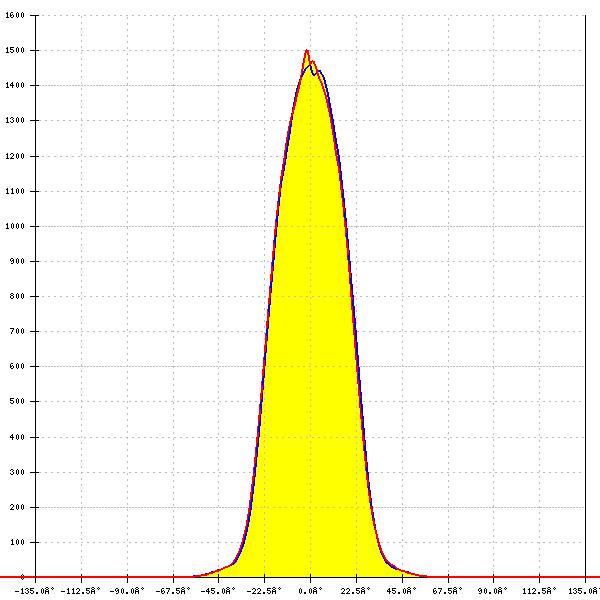

LED: CMT14xx
LES size: 9.8 mm
Required components:
FWHM: 41°
FWTM: 63°
Peak intensity: 1.500 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

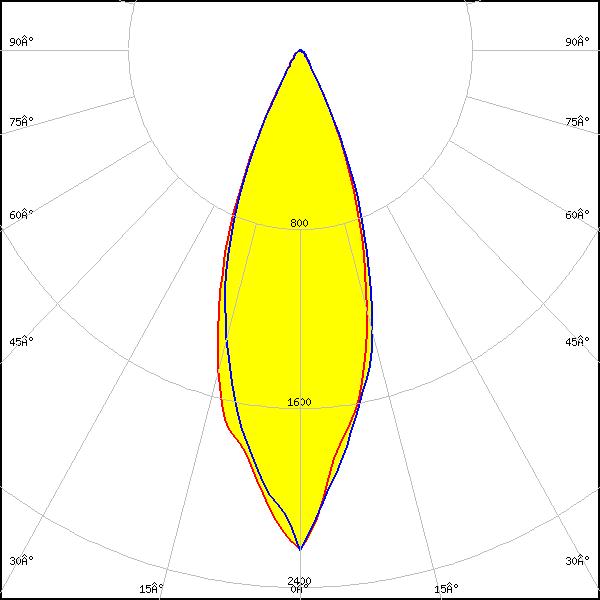

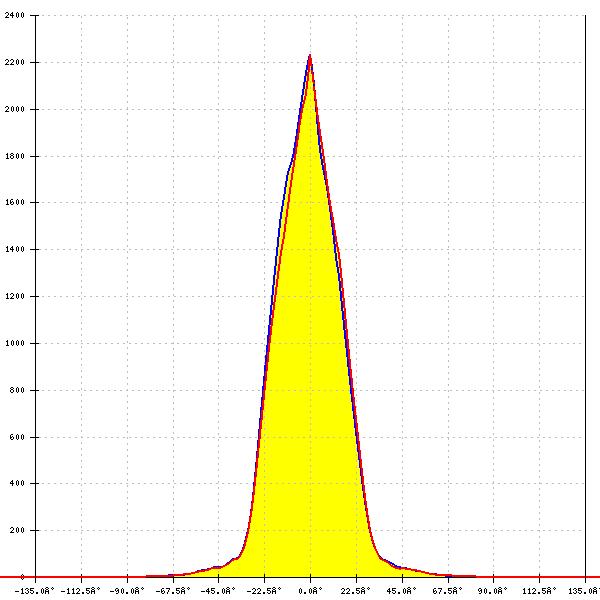

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 36°
FWTM: 60°
Peak intensity: 2.260 cd/lm
LEDs/each optic: 1
Light colour/type: White

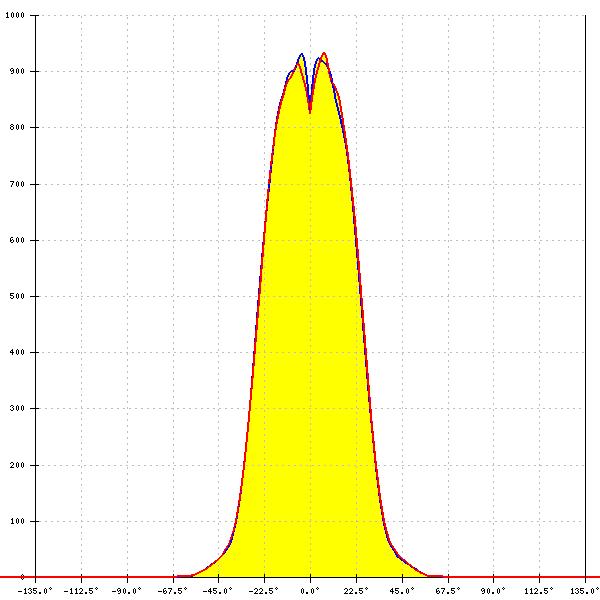

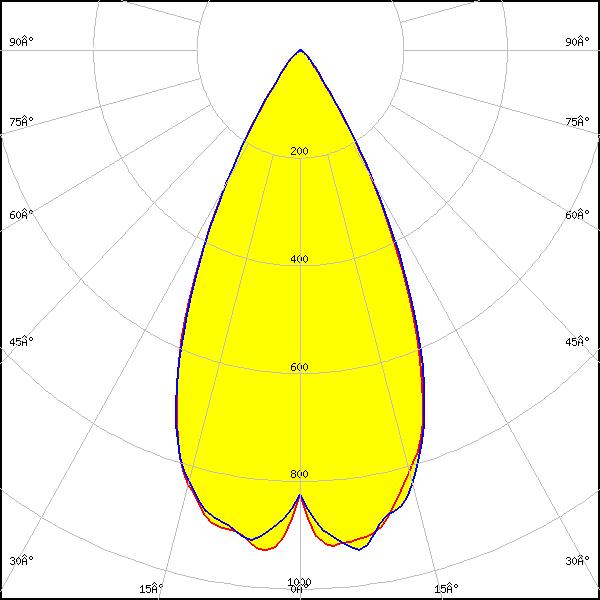

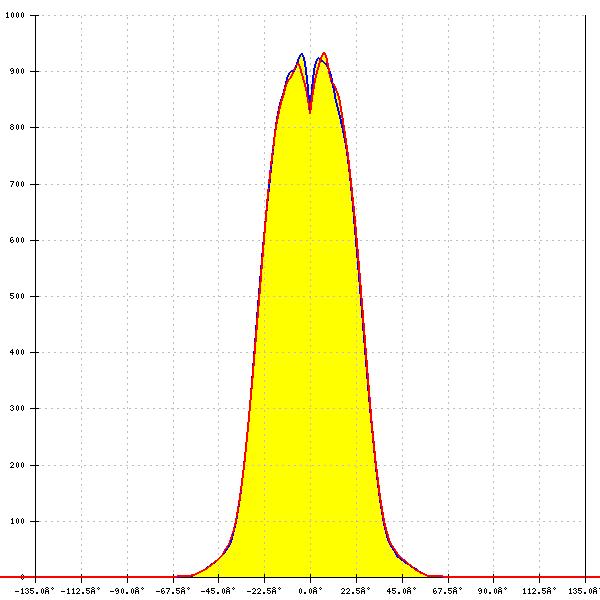

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: 52°
FWTM: 74°
Peak intensity: 0.952 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White

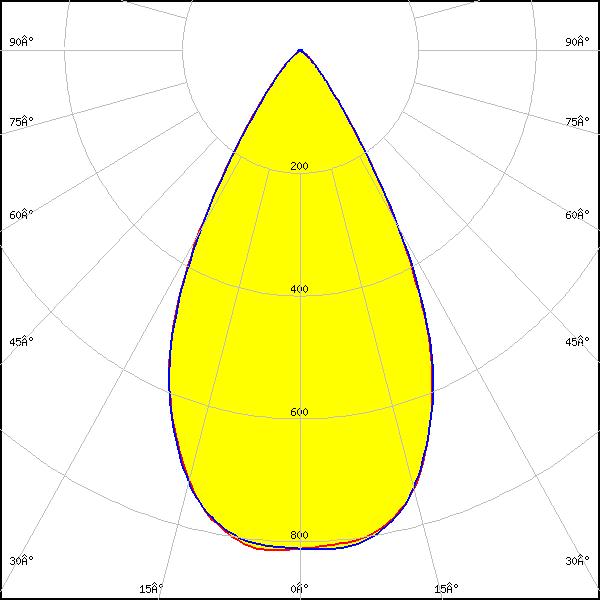

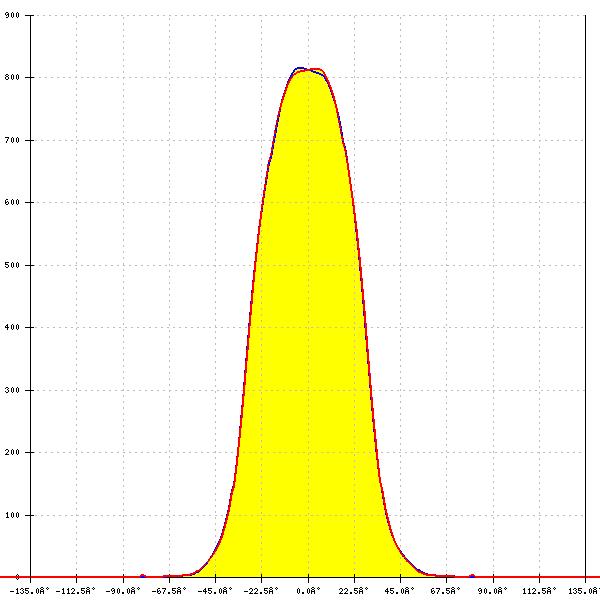

LED: LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 56°
FWTM: 80°
Peak intensity: 0.816 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White

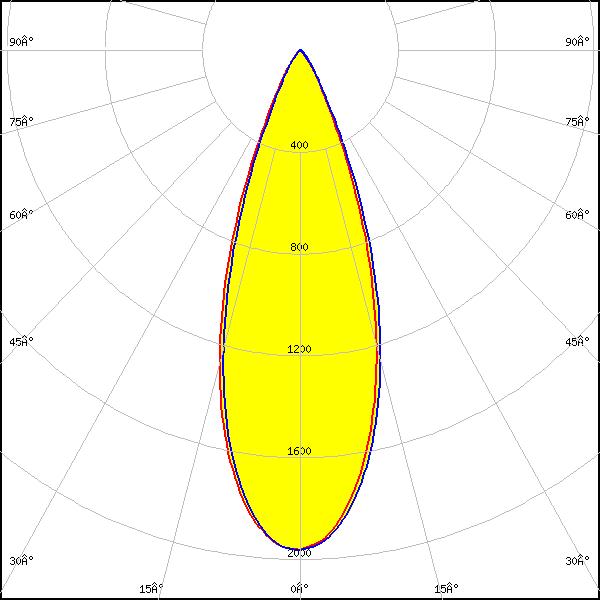

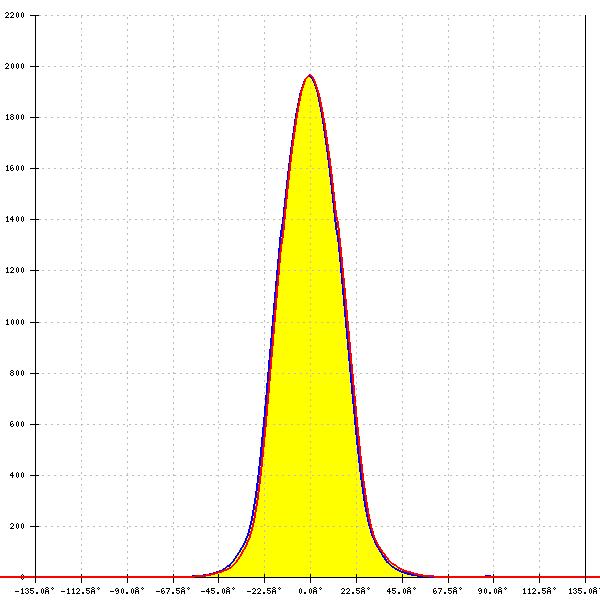

LED: LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM: 36°
FWTM: 59°
Peak intensity: 1.970 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

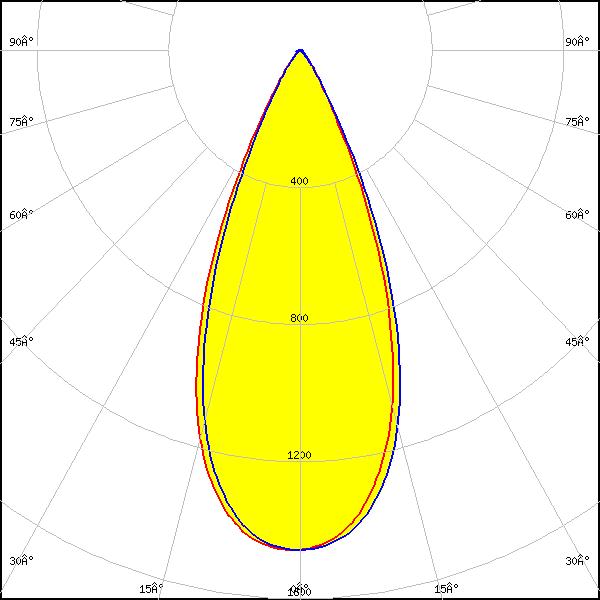

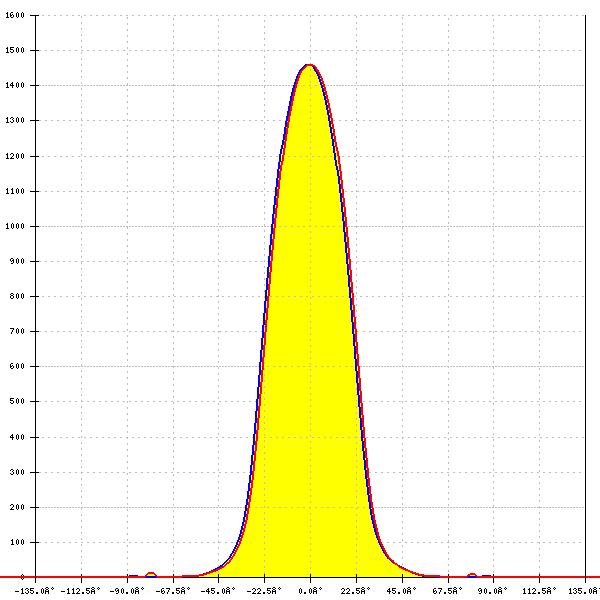

LED: LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM: 43°
FWTM: 64°
Peak intensity: 1.460 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

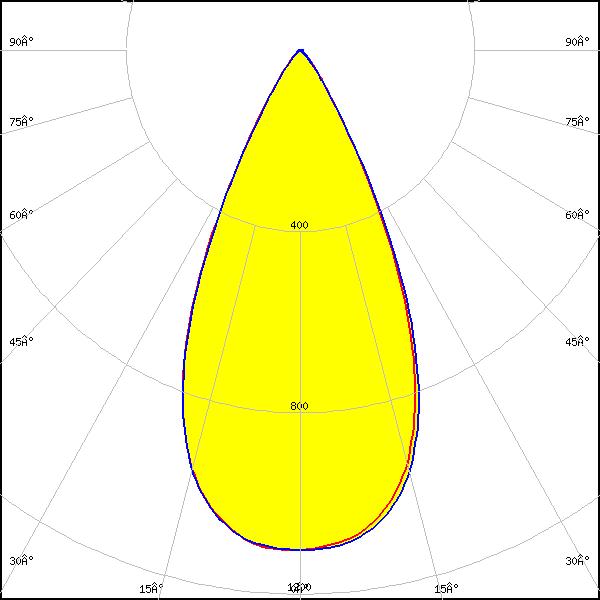

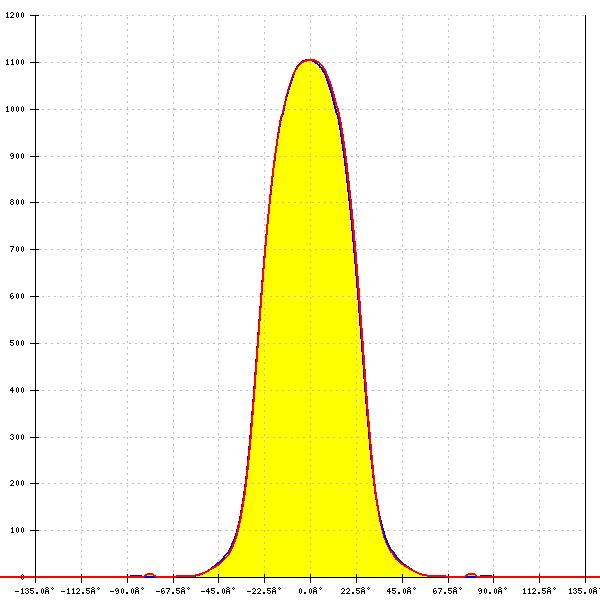

LED: LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM: 49°
FWTM: 70°
Peak intensity: 1.100 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

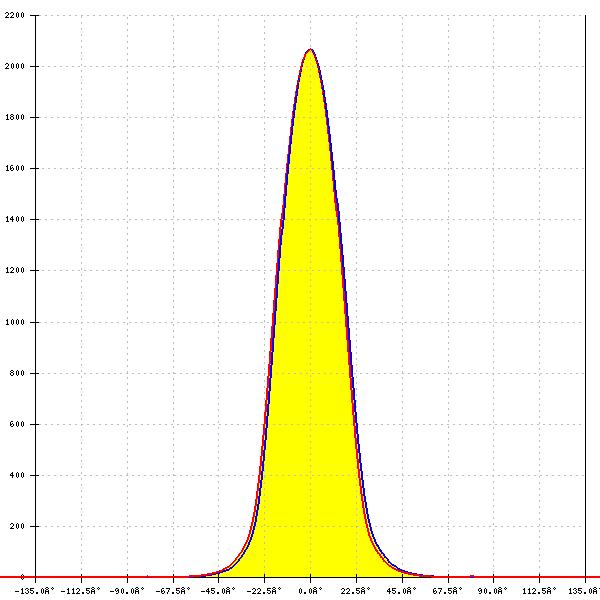

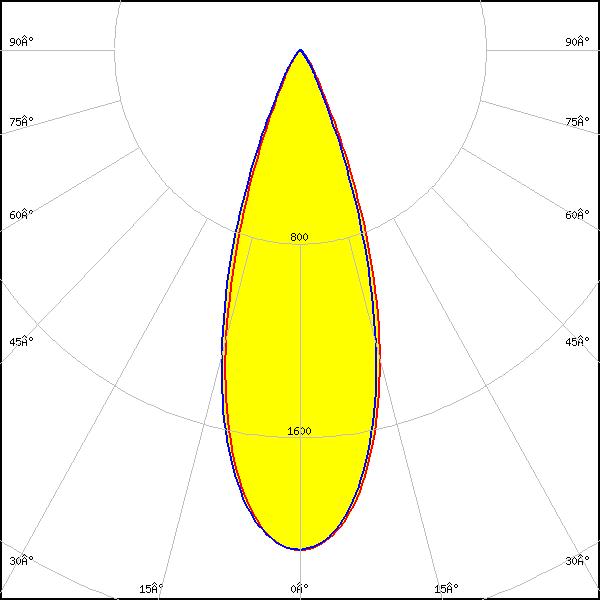

LED: LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 36°
FWTM: 57°
Peak intensity: 2.066 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

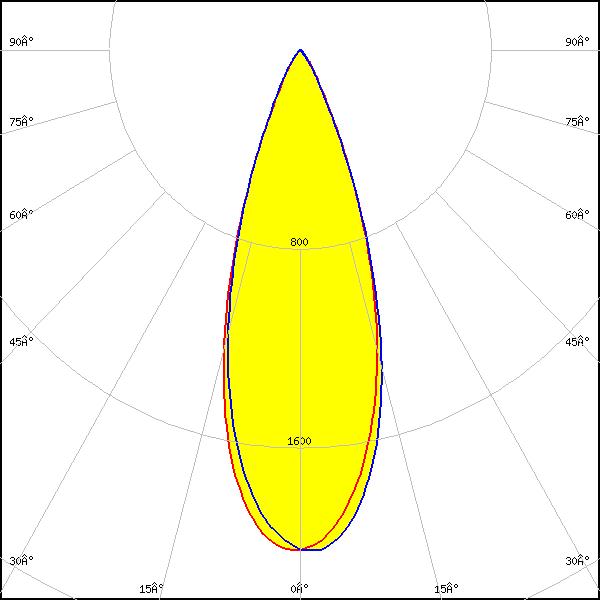

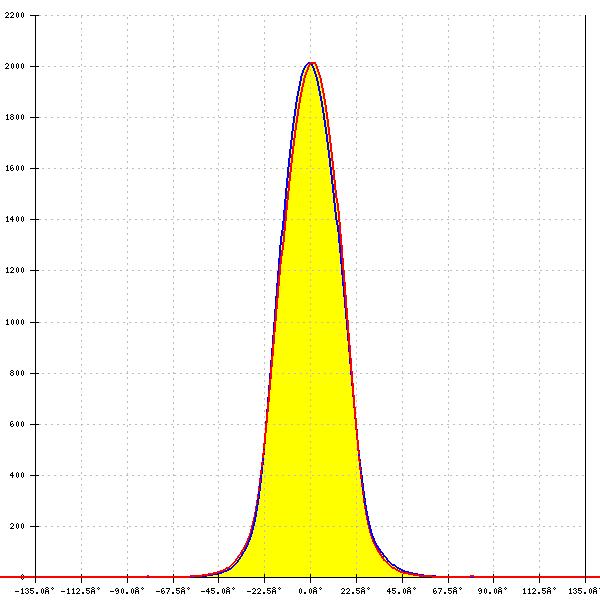

LED: LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 35°
FWTM: 57°
Peak intensity: 2.014 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

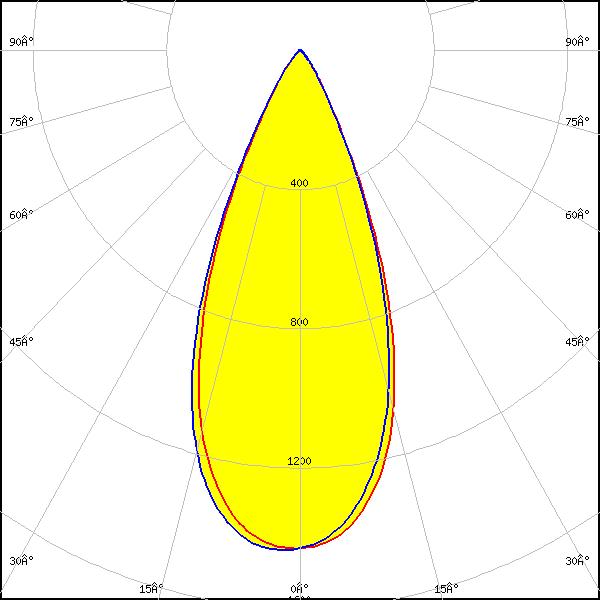

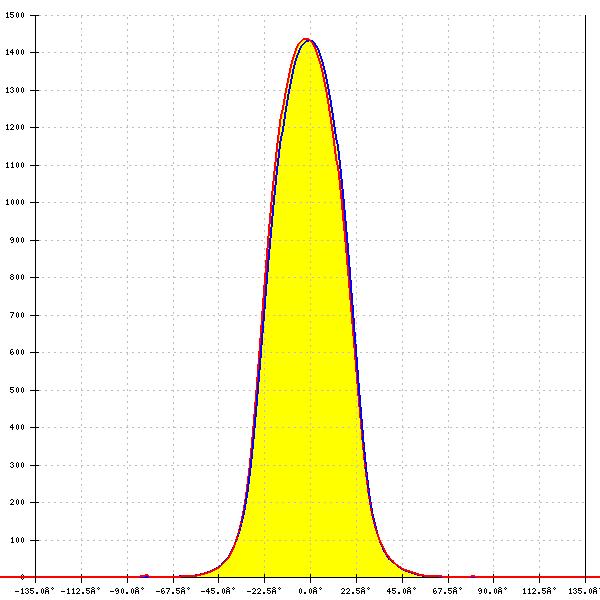

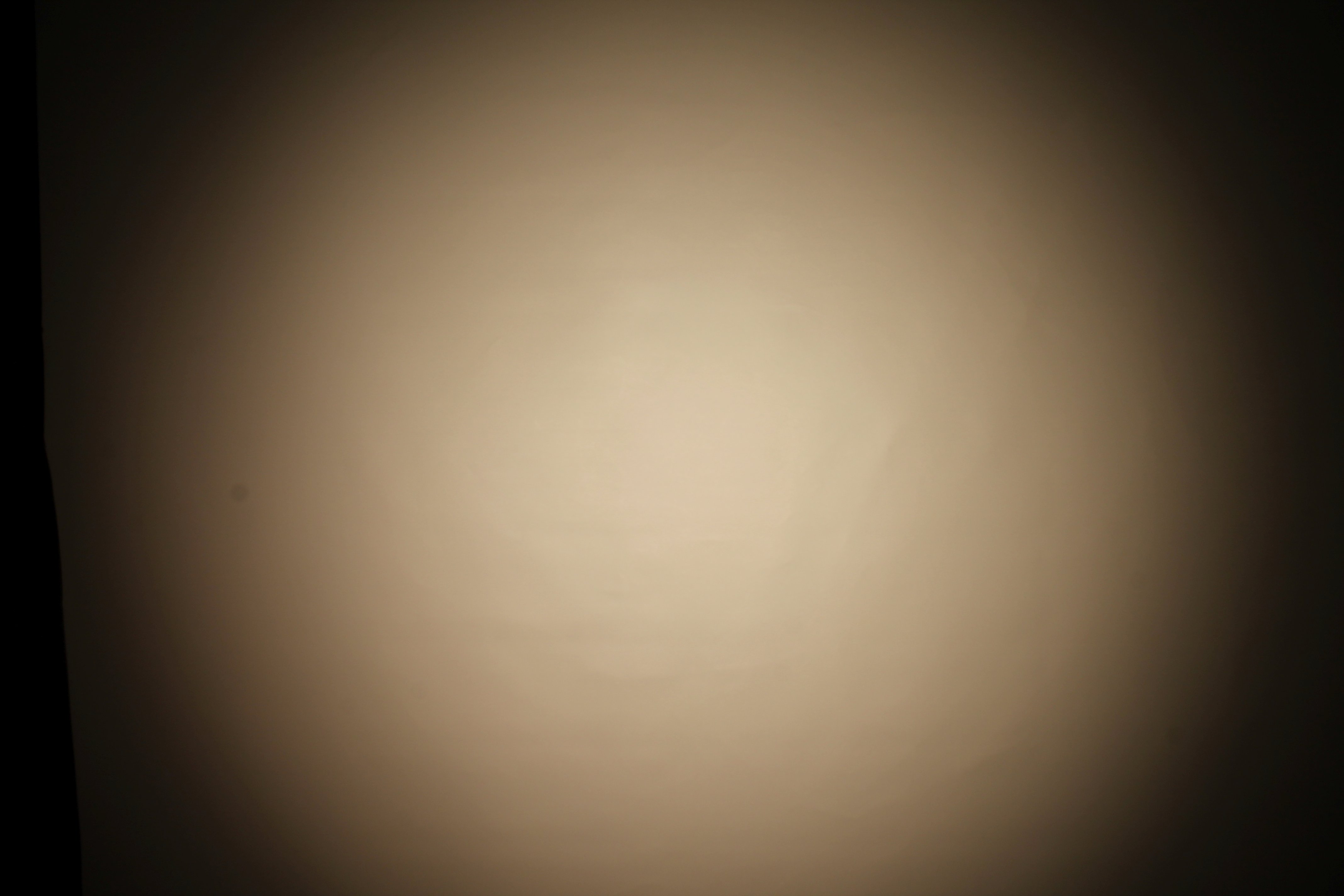

LED: LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 43°
FWTM: 66°
Peak intensity: 1.438 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 49°
FWTM: 72°
Peak intensity: 1.086 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

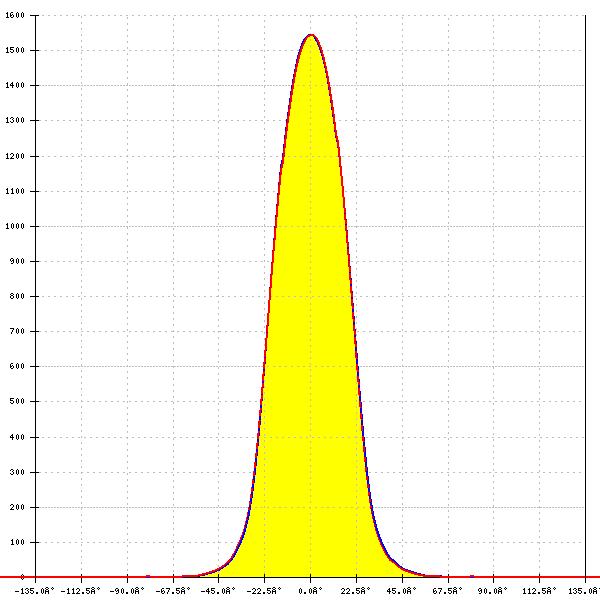

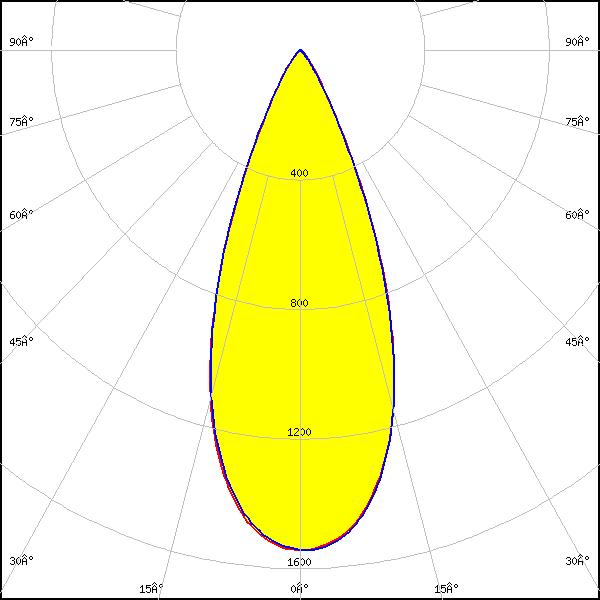

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM: 41°
FWTM: 63°
Peak intensity: 1.544 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

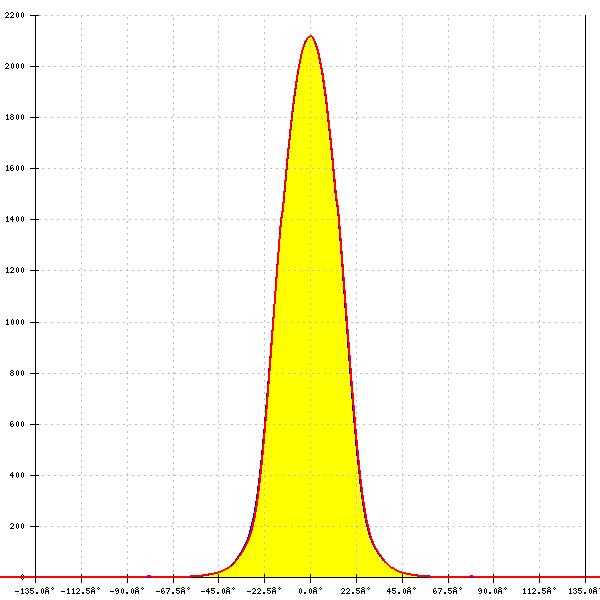

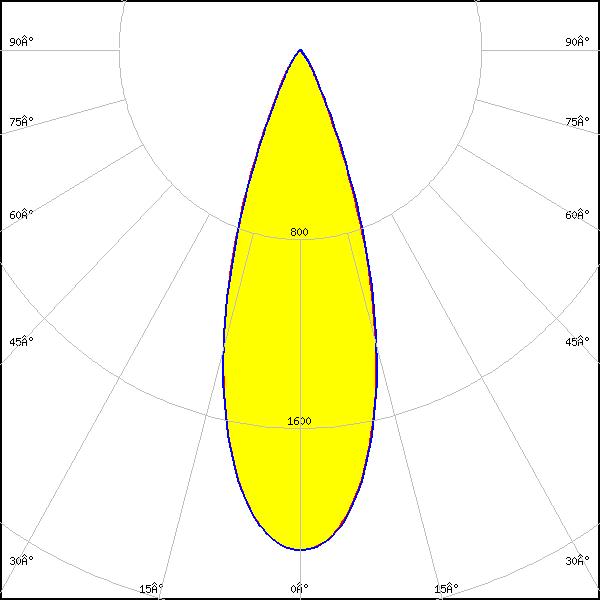

LED: LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 35°
FWTM: 56°
Peak intensity: 2.117 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

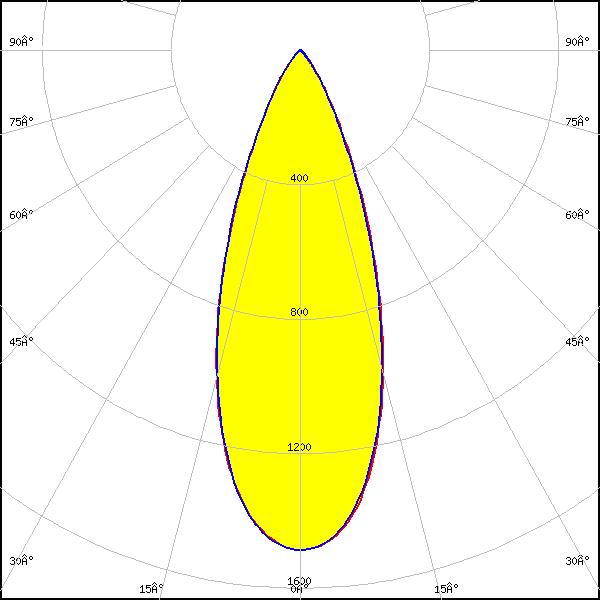

LED: CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 38°
FWTM: 66°
Peak intensity: 1.500 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White

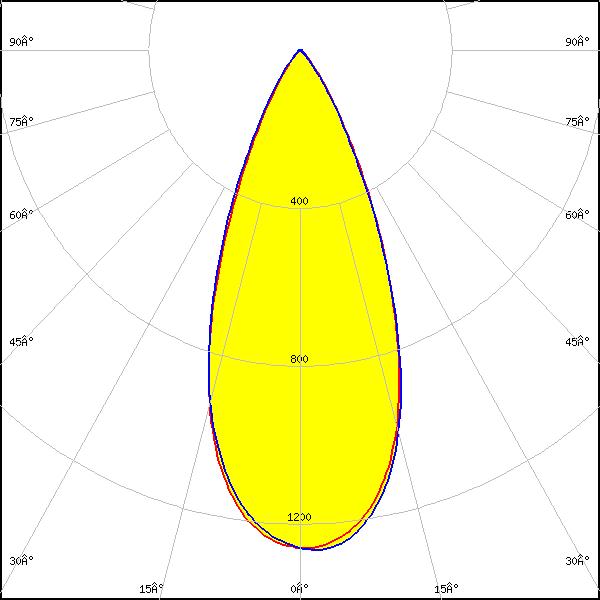

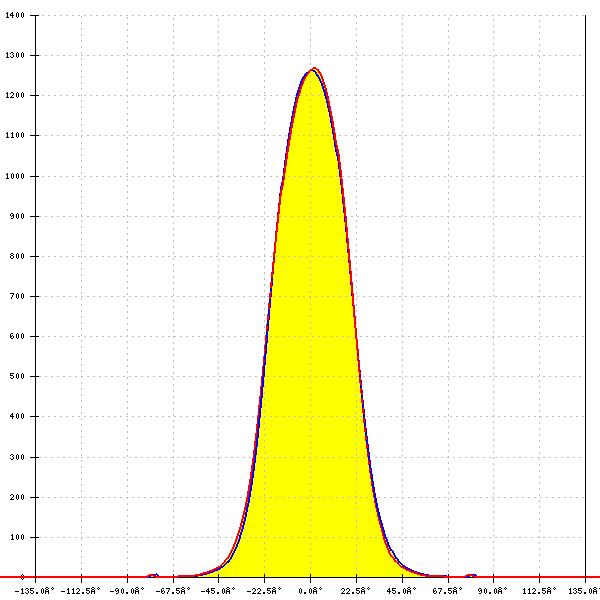

LED: CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 43°
FWTM: 69°
Peak intensity: 1.300 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White

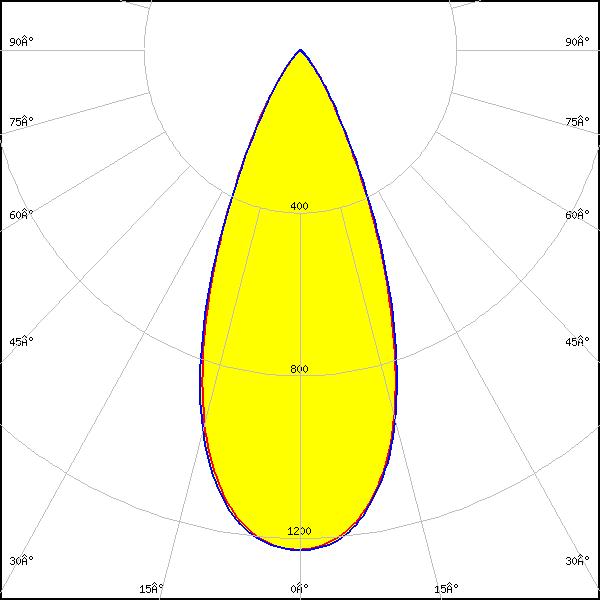

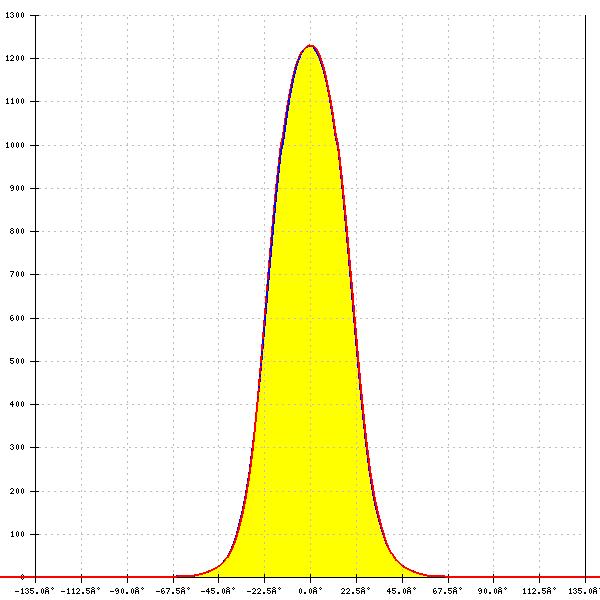

LED: CTM-9 (Tunable White)
LES size: 9.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 43°
FWTM: 69°
Peak intensity: 1.200 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White

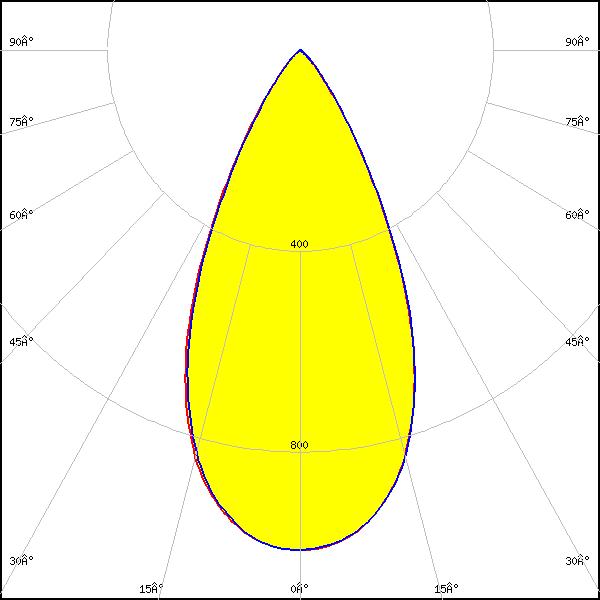

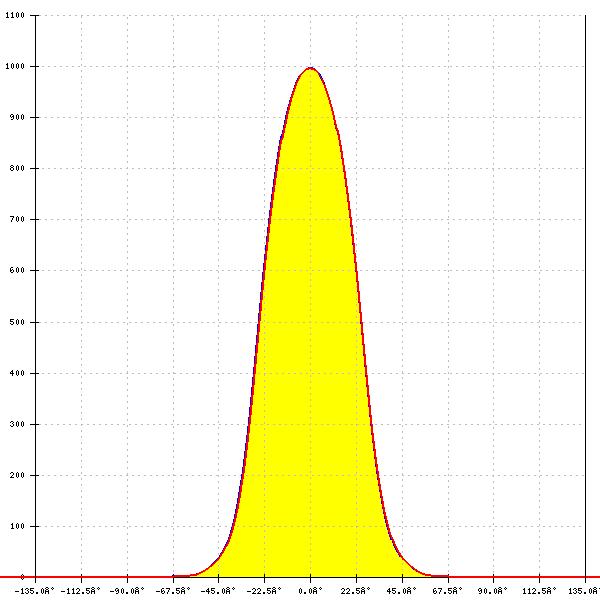

LED: CxM-11 (19x19)
LES size: 11.7 mm
Required components:
FWHM: 51°
FWTM: 77°
Peak intensity: 0.996 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White

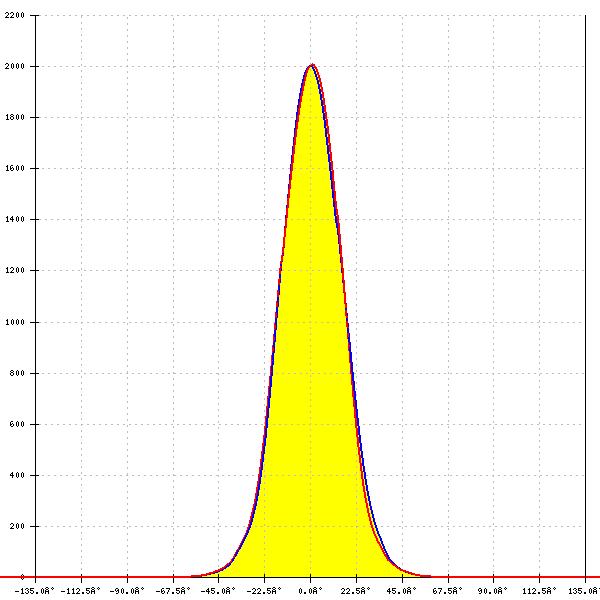

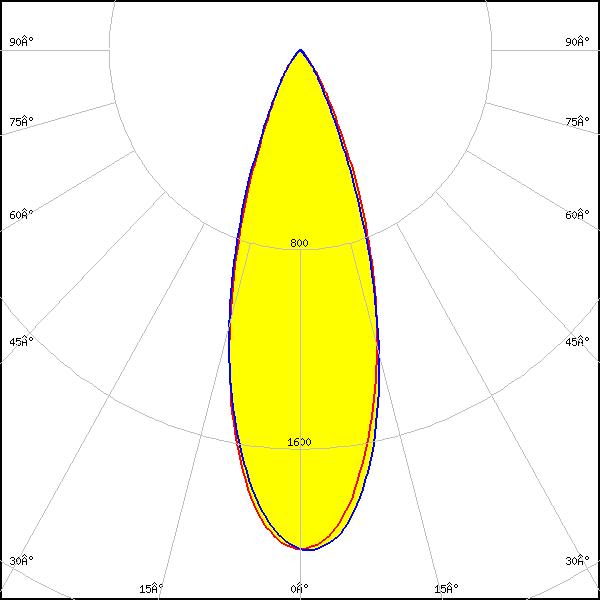

LED: CXM-3
LES size: 3.5 mm
Required components:
FWHM: 35°
FWTM: 61°
Peak intensity: 2.007 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

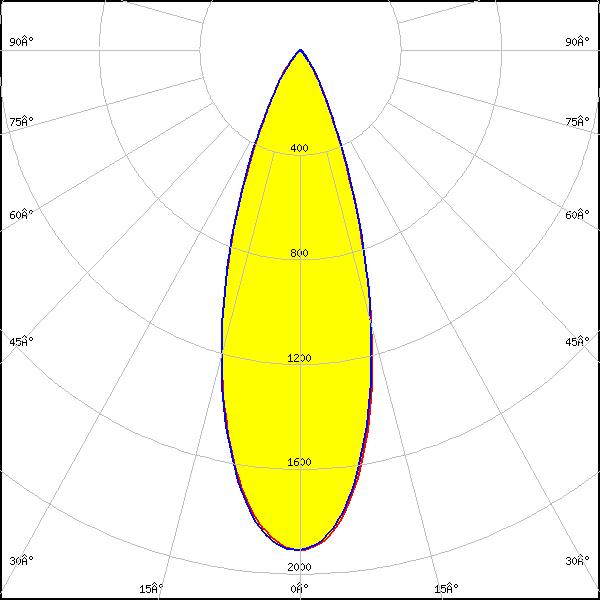

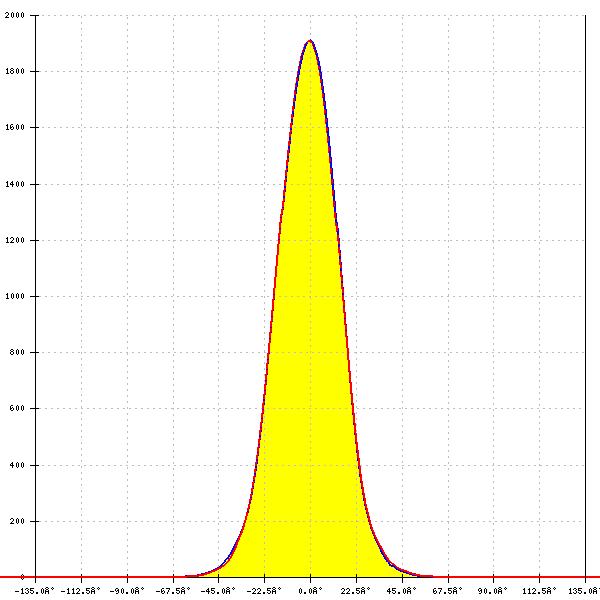

LED: CXM-4
LES size: 4.5 mm
Required components:
FWHM: 35°
FWTM: 62°
Peak intensity: 1.910 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

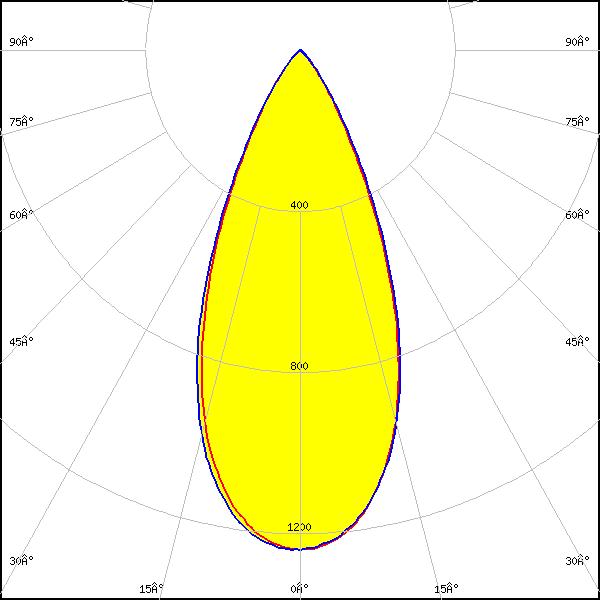

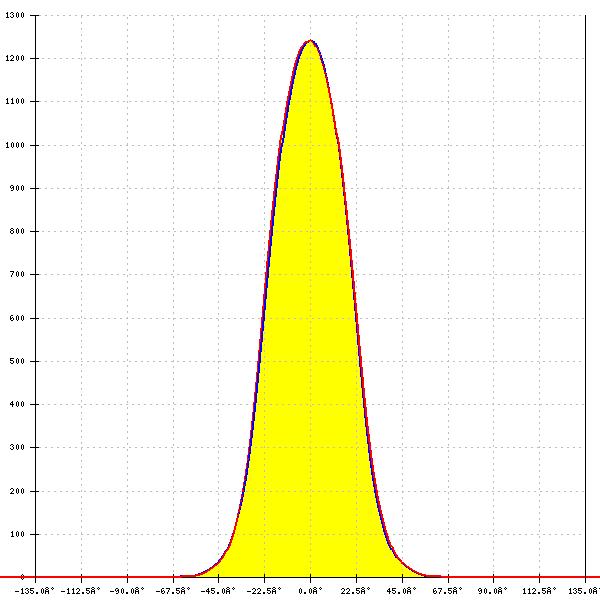

LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 44°
FWTM: 72°
Peak intensity: 1.200 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

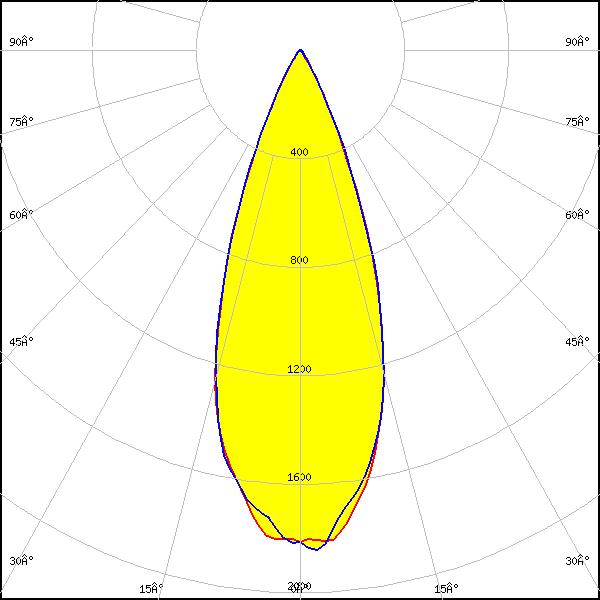

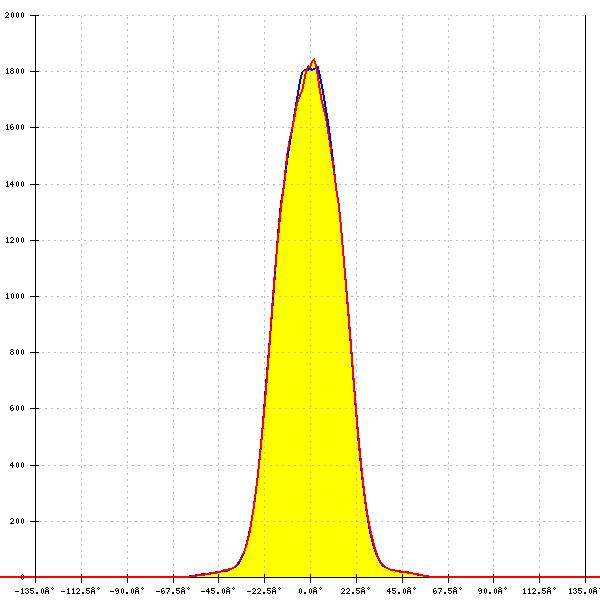

LED: COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM: 38°
FWTM: 58°
Peak intensity: 1.864 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
LES size: 5.9 mm
Required components:
FWHM: 36°
FWTM: 55°
Peak intensity: 2.180 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

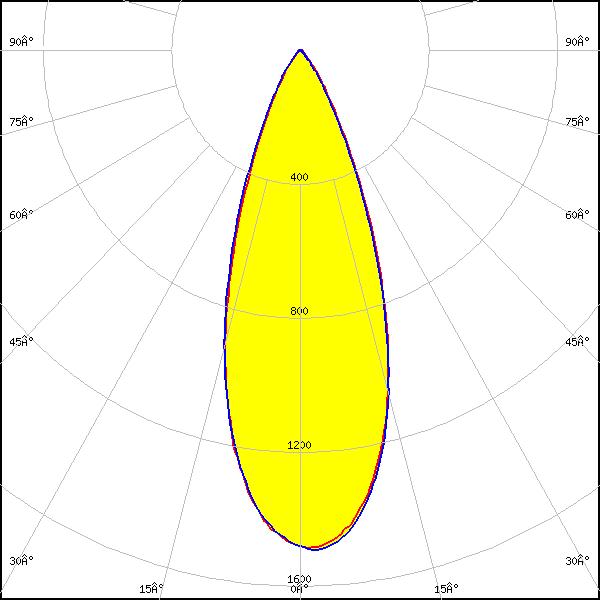

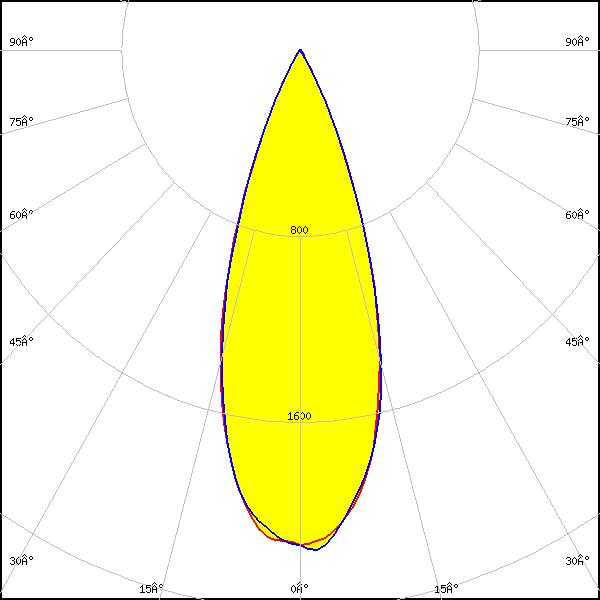

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 37°
FWTM: 64°
Peak intensity: 1.500 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White

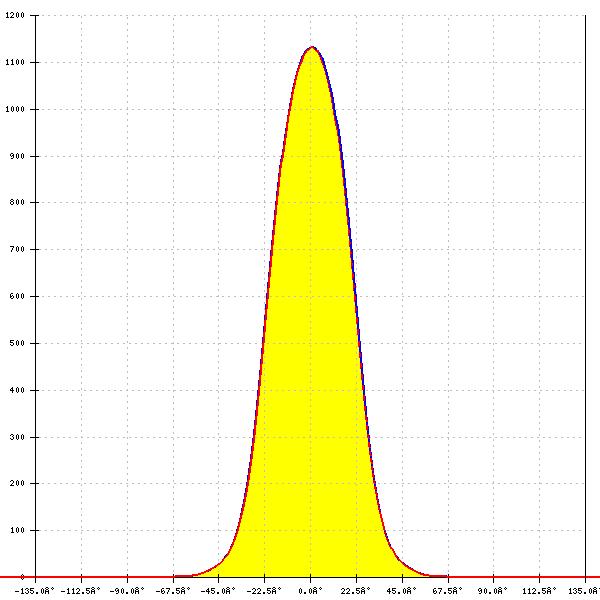

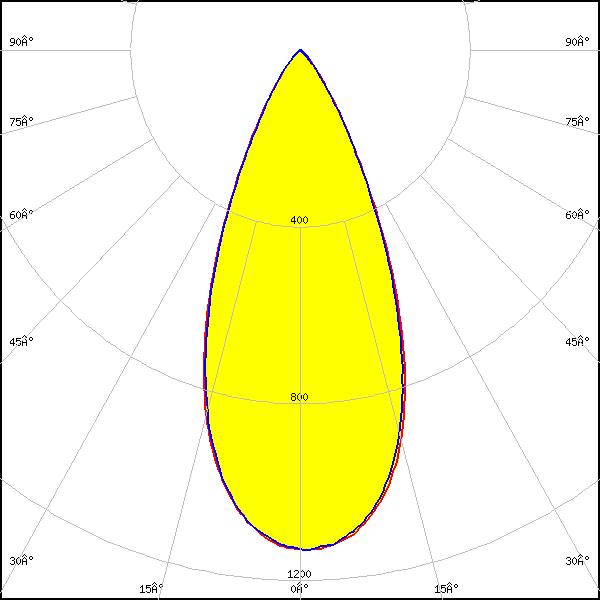

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: 44°
FWTM: 71°
Peak intensity: 1.100 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White

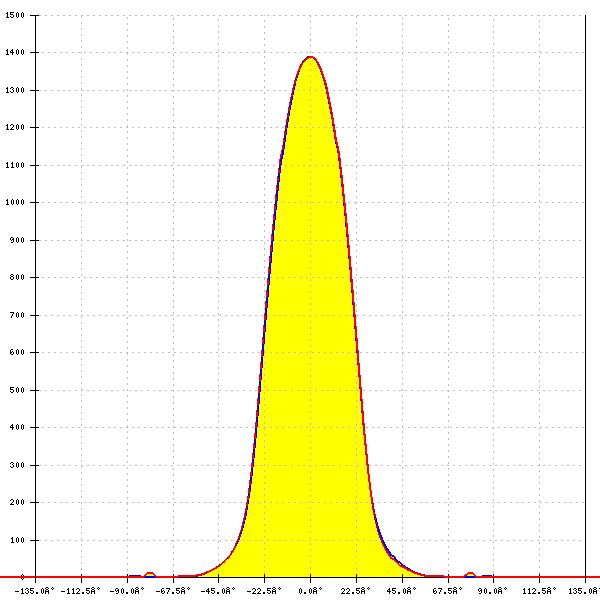

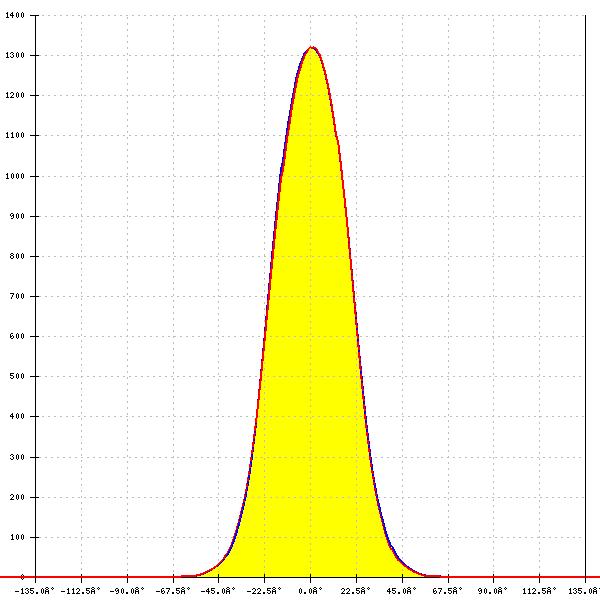

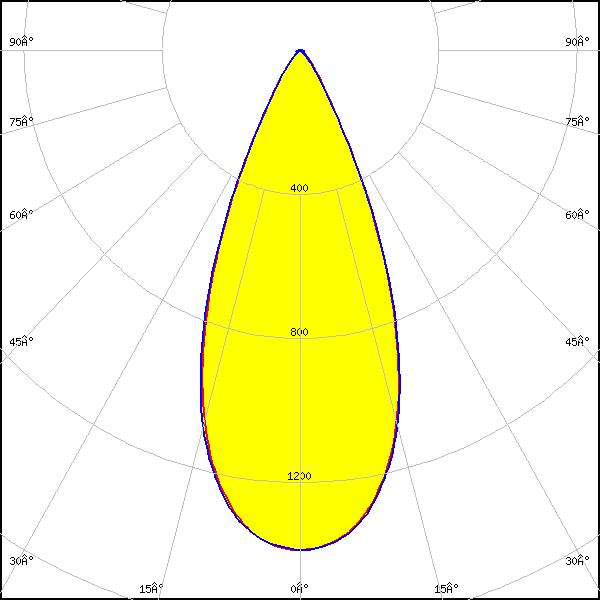

LED: Fortimo SLM L09 CoB
LES size: 9.0 mm
Required components:
FWHM: 44°
FWTM: 66°
Peak intensity: 1.400 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

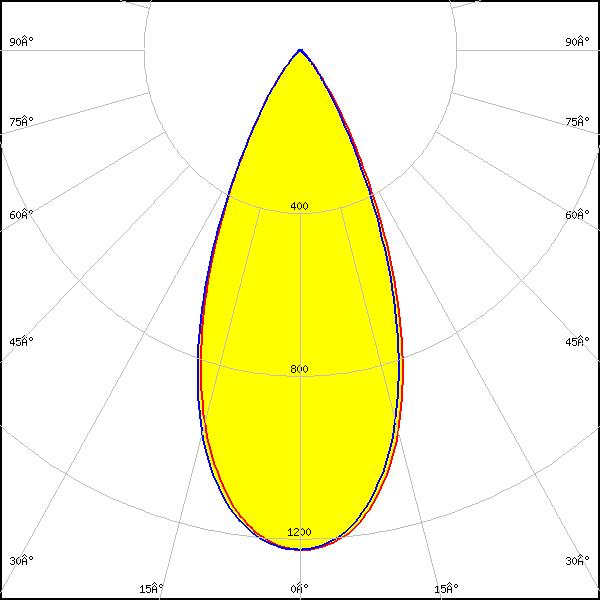

LED: LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM: 45°
FWTM: 73°
Peak intensity: 1.200 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

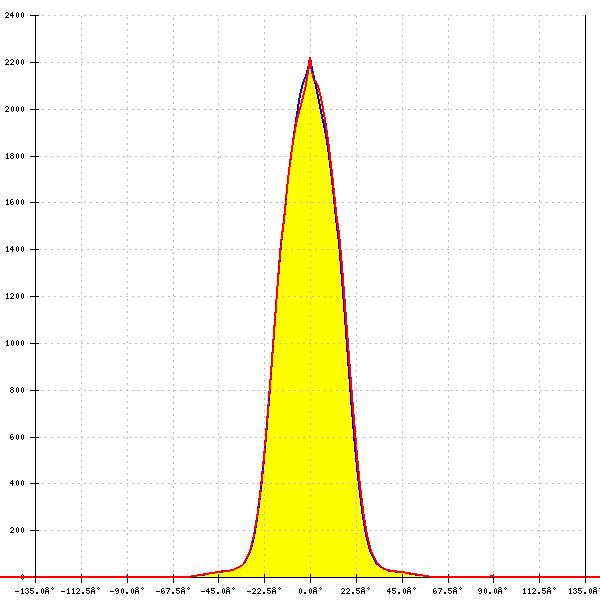

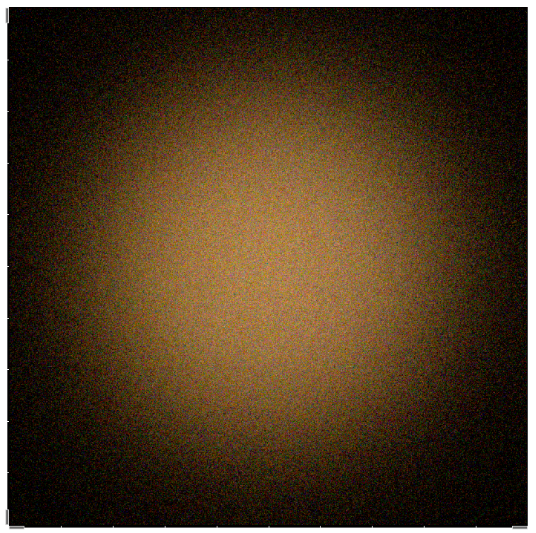

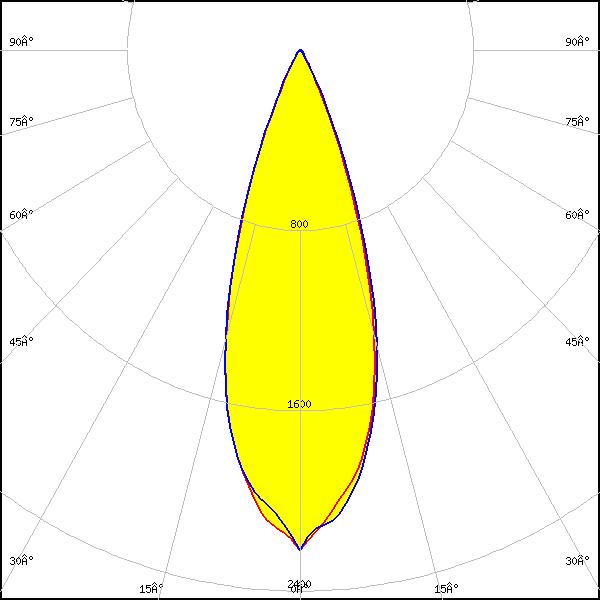

LED: LC010C
LES size: 6.0 mm
Required components:
FWHM: 34°
FWTM: 54°
Peak intensity: 2.219 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

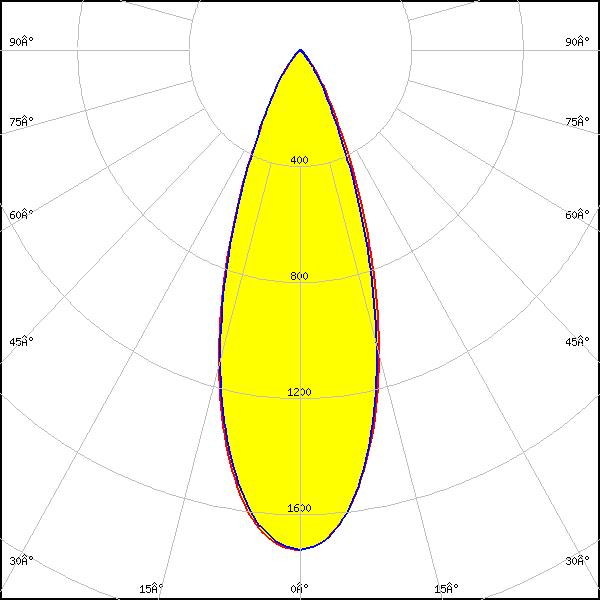

LED: LC010C G2
LES size: 6.0 mm
Required components:
FWHM: 37°
FWTM: 65°
Peak intensity: 1.700 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

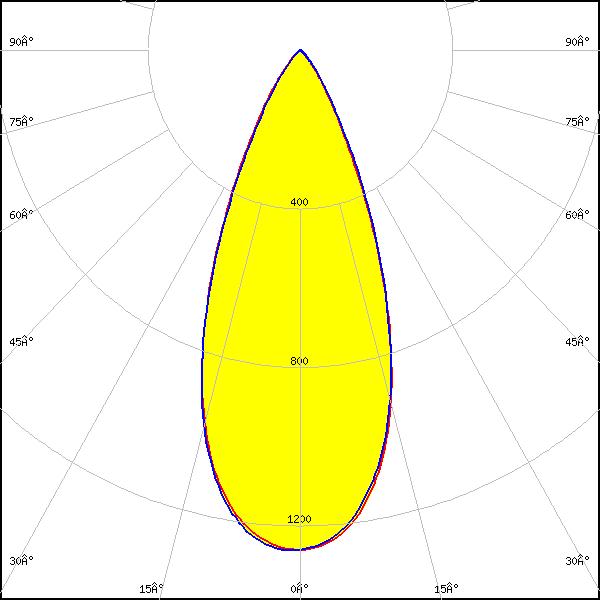

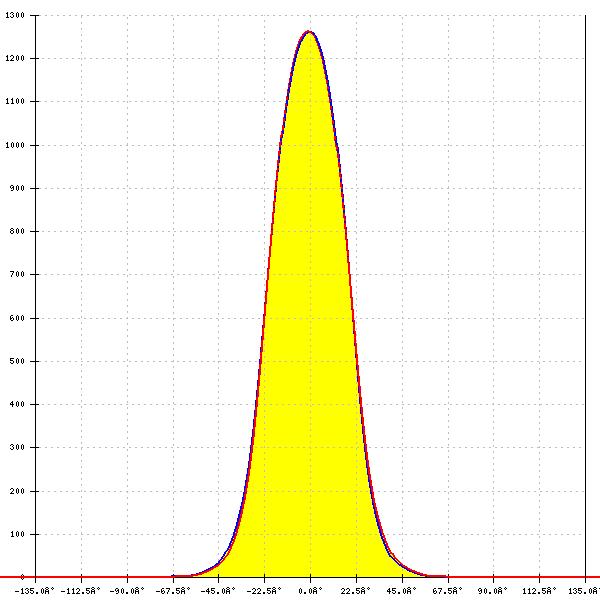

LED: LC010T (Tunable White)
LES size: 9.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 42°
FWTM: 70°
Peak intensity: 1.263 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: Tunable White

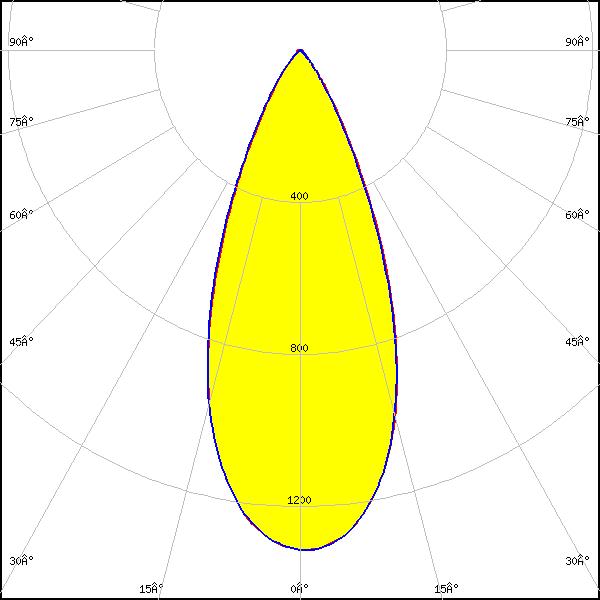

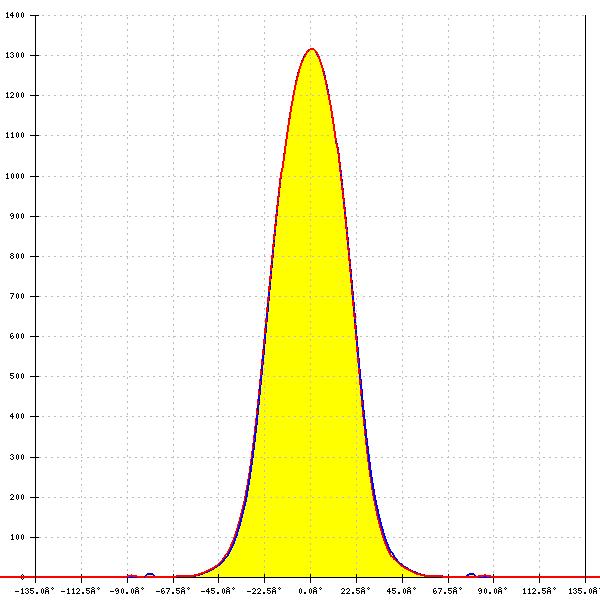

LED: LC020C G2
LES size: 8.5 mm
Required components:
FWHM: 43°
FWTM: 70°
Peak intensity: 1.300 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

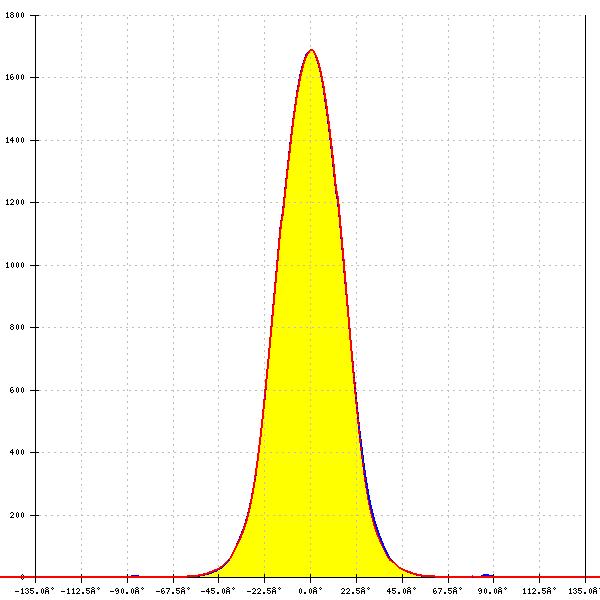

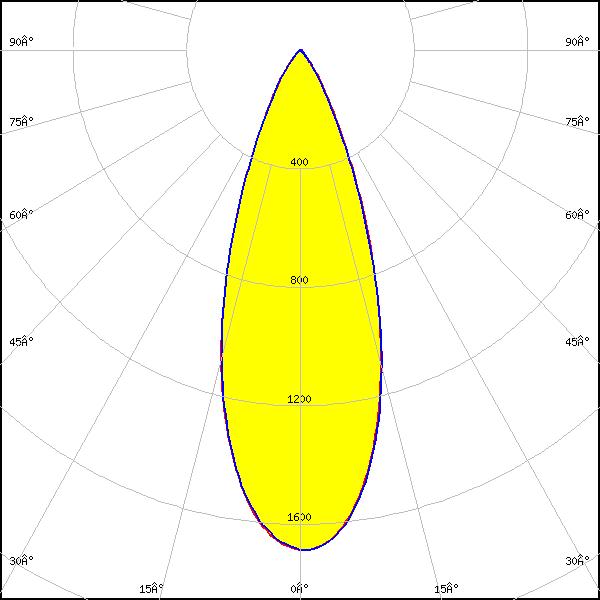

LED: MJT COB LES 6
LES size: 6.0 mm
Required components:
FWHM: 37°
FWTM: 64°
Peak intensity: 1.700 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

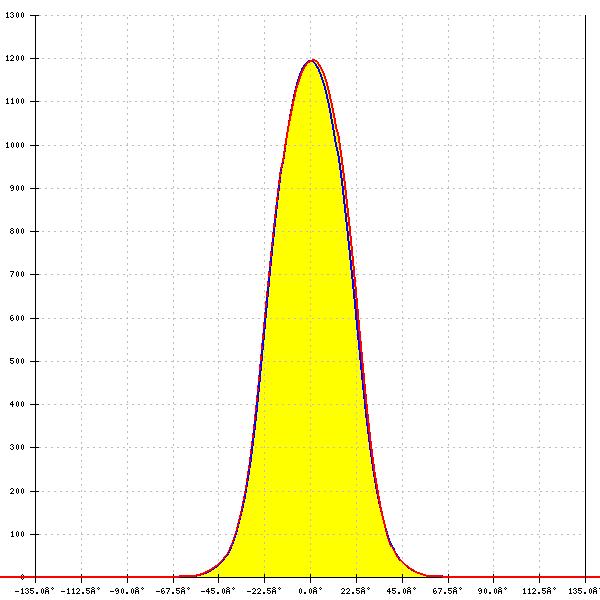

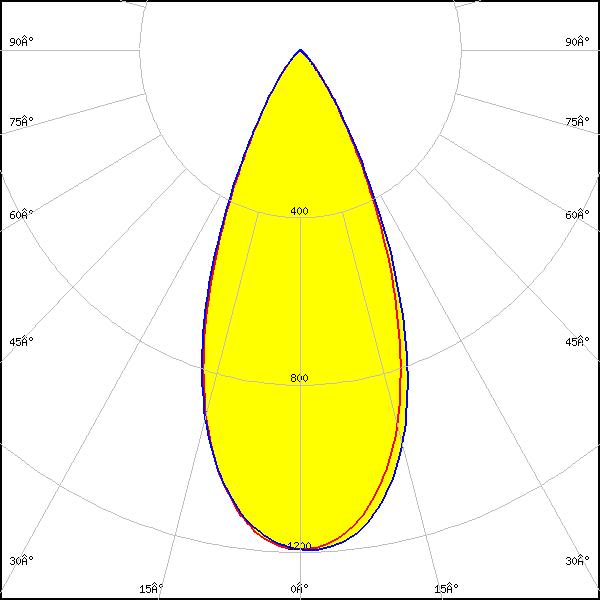

LED: MJT COB LES 9.8
LES size: 9.8 mm
Required components:
FWHM: 45°
FWTM: 72°
Peak intensity: 1.200 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

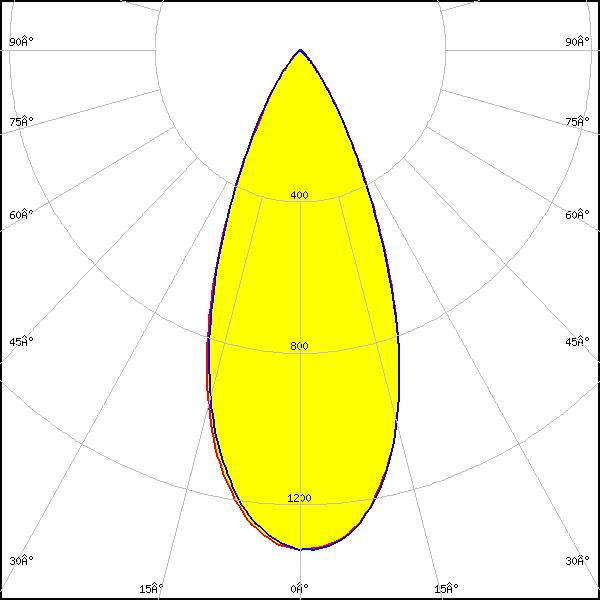

LED: SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM: 43°
FWTM: 71°
Peak intensity: 1.300 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

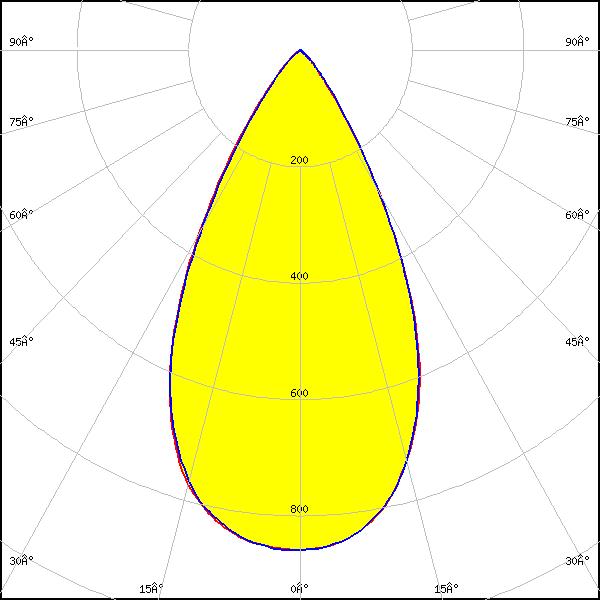

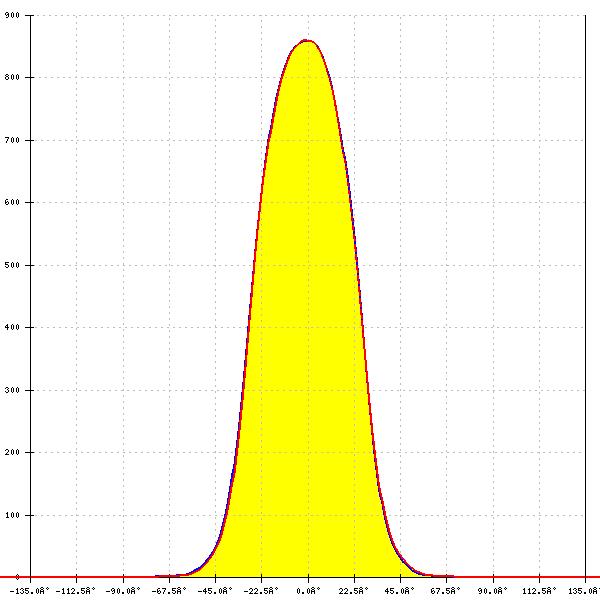

LED: SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM: 54°
FWTM: 79°
Peak intensity: 0.860 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White

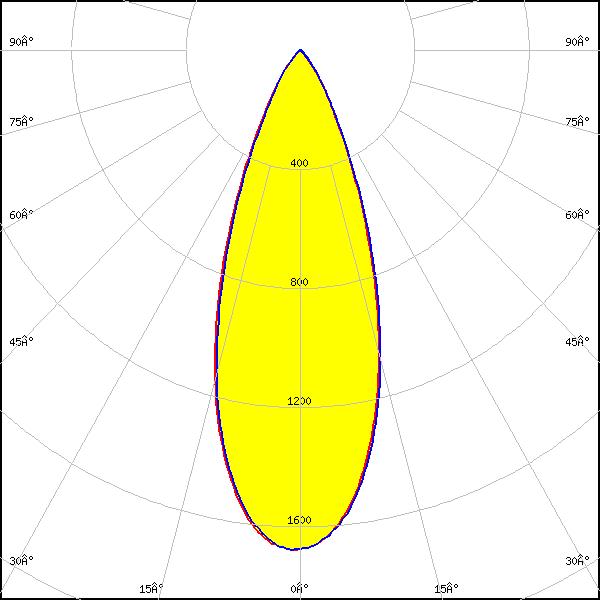

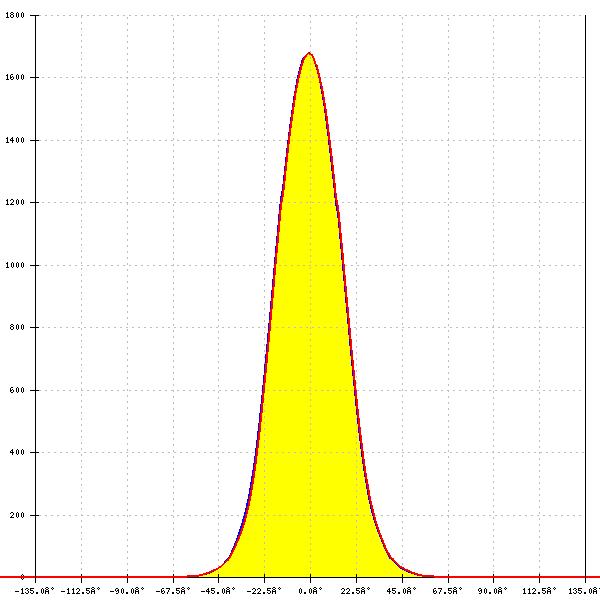

LED: XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM: 38°
FWTM: 66°
Peak intensity: 1.679 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

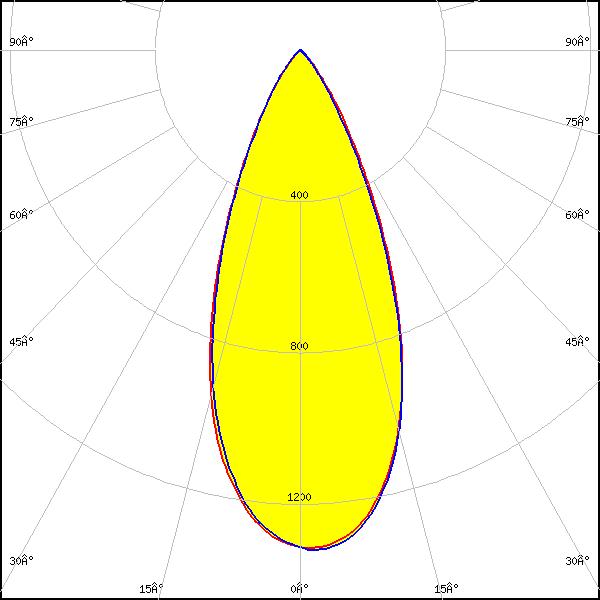

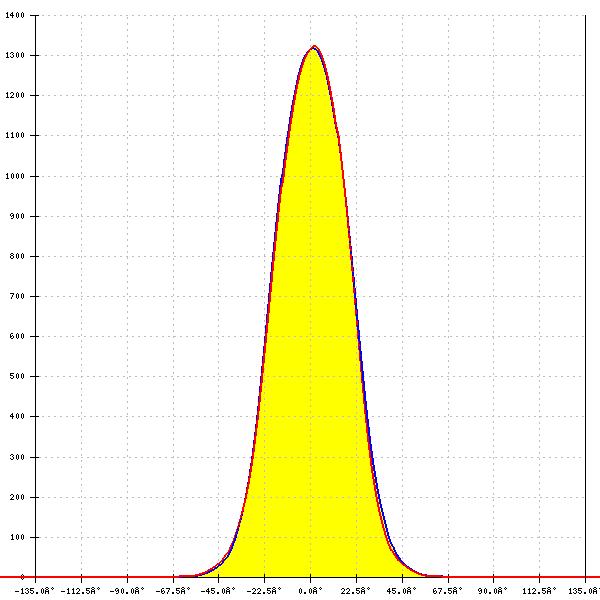

LED: XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM: 43°
FWTM: 72°
Peak intensity: 1.324 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM: 58°
FWTM: 88°
Peak intensity: 0.690 cd/lm
Efficiency: 61 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
