CP15776_CARMEN-W-C

Print

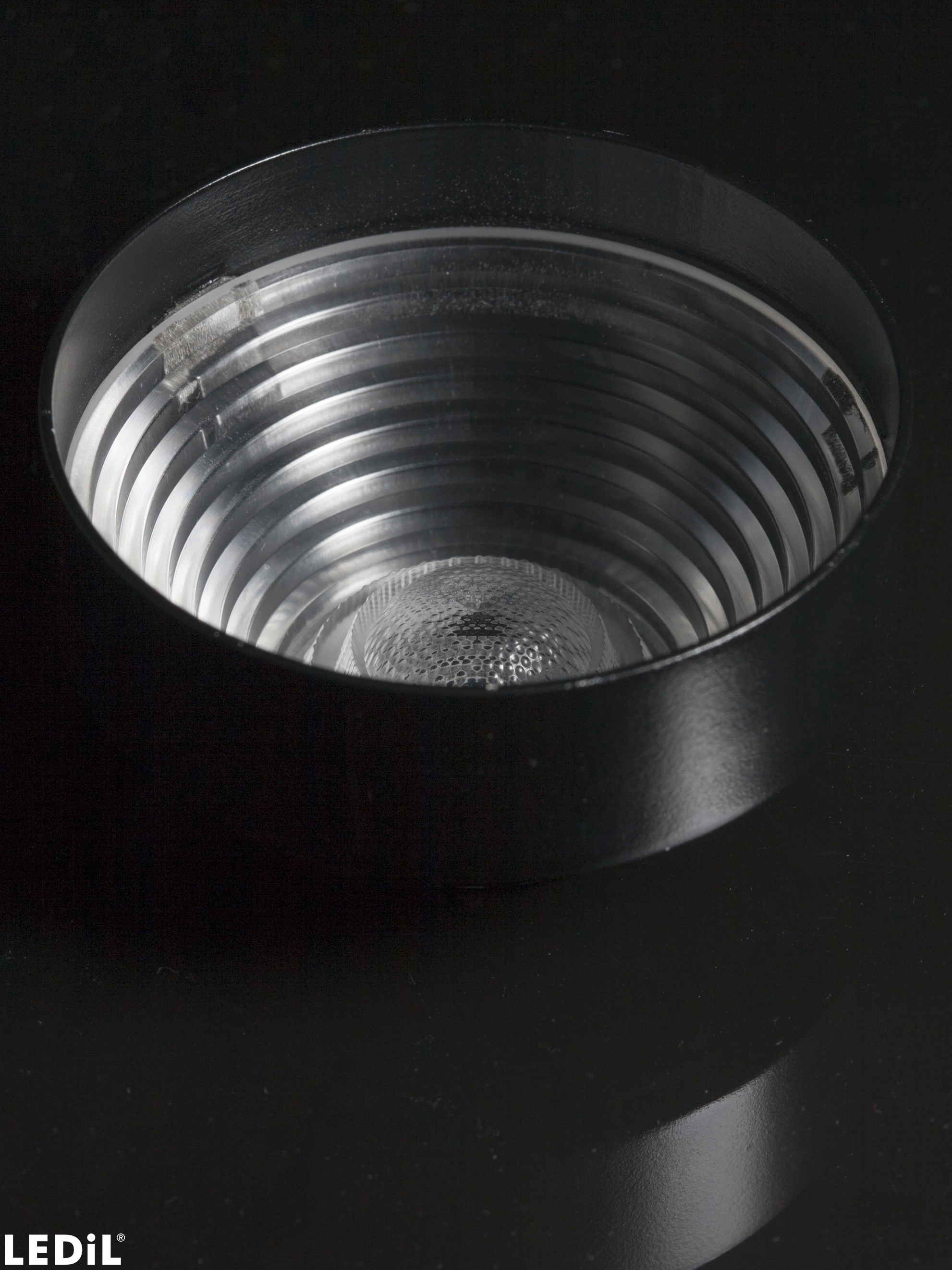

~55° wide beam. Assembly with holder C compatible with LEDiL HEKLA.

Specification
  • Dimensions:
    70 mm
  • Height:
    41.50 mm
  • Fastening:
    socket
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    4.5 kg
  • MPQ:
    15 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    4.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP15776_CARMEN-W-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

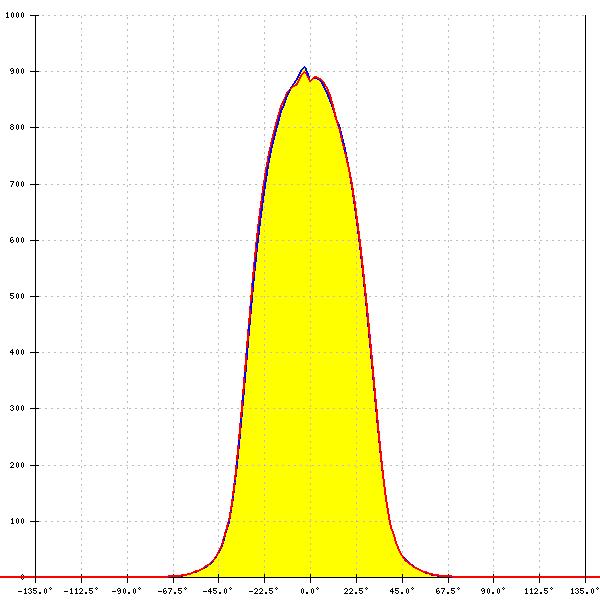

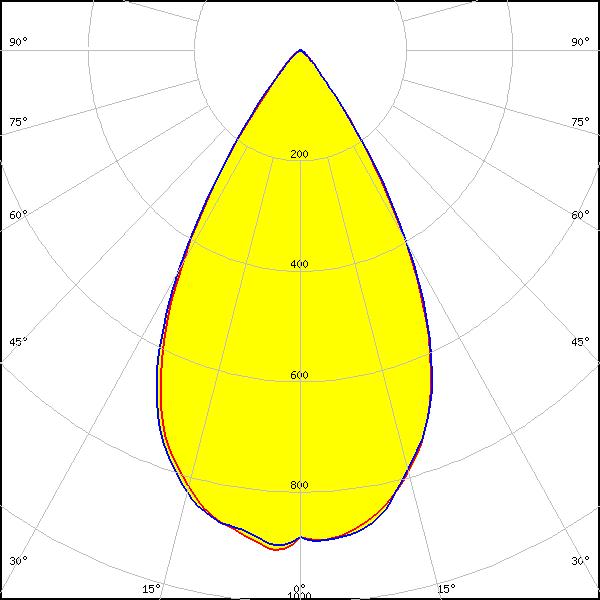

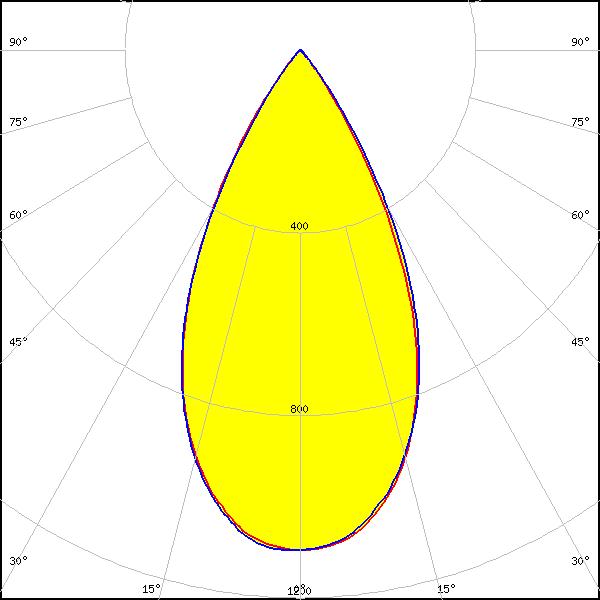

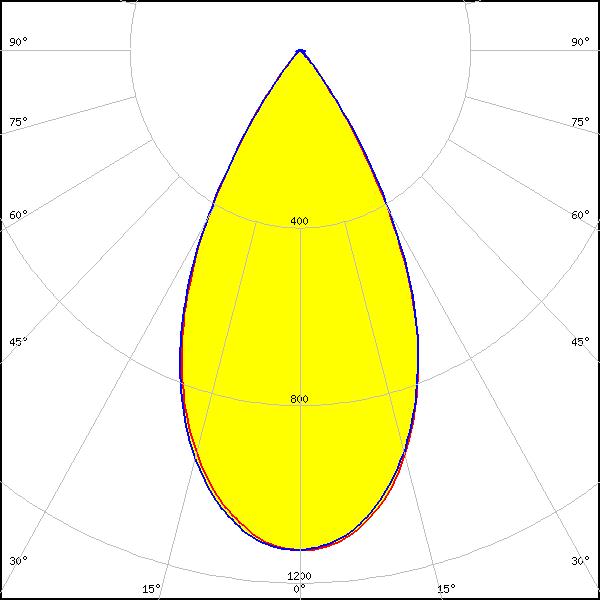

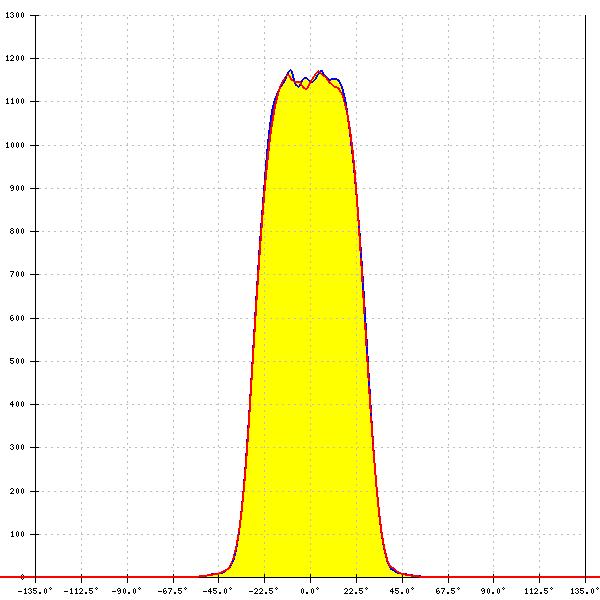

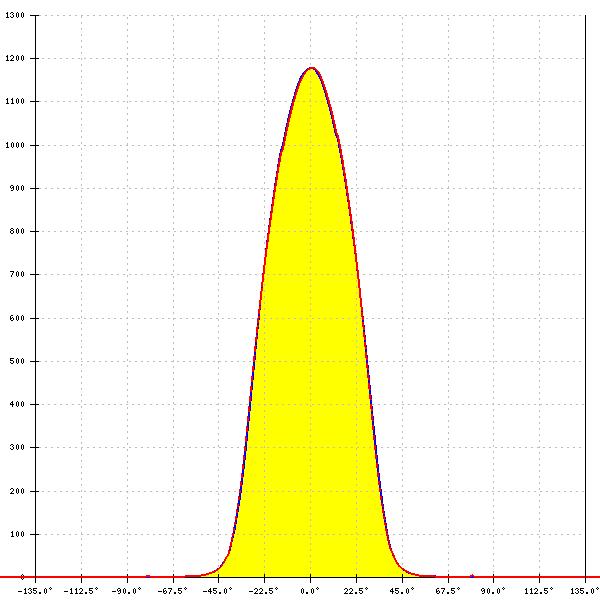

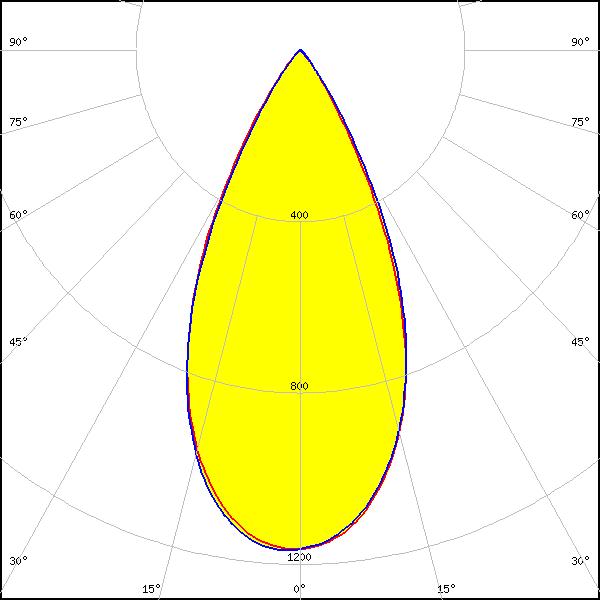

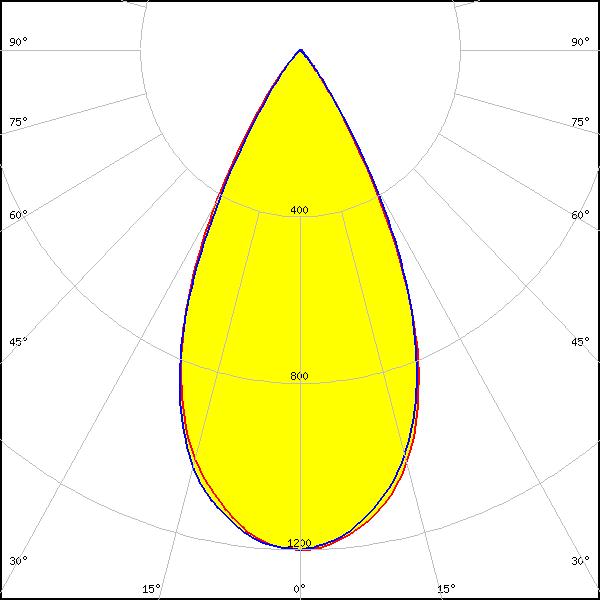

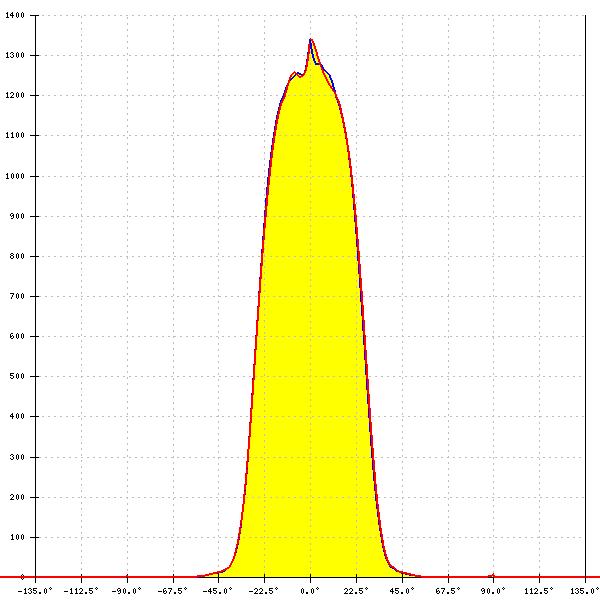

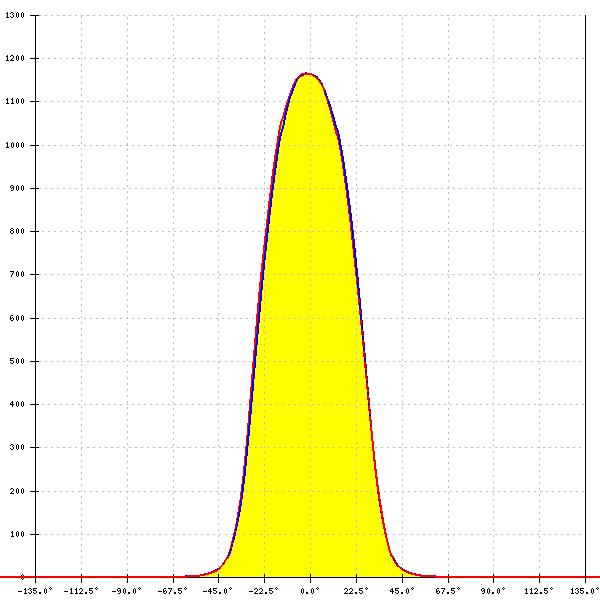

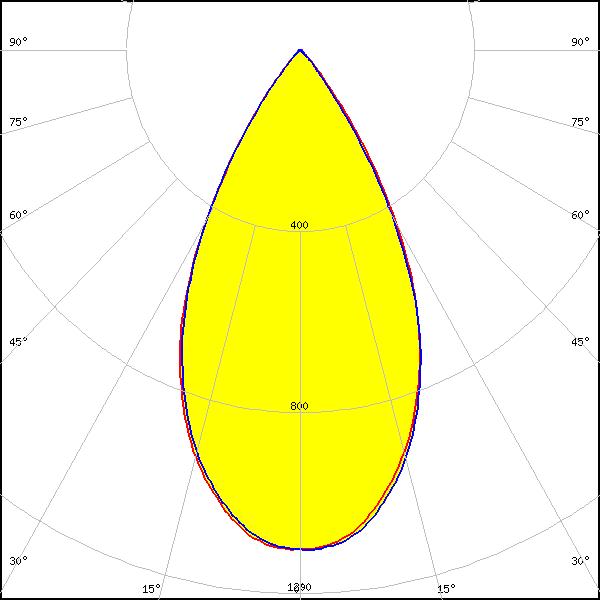

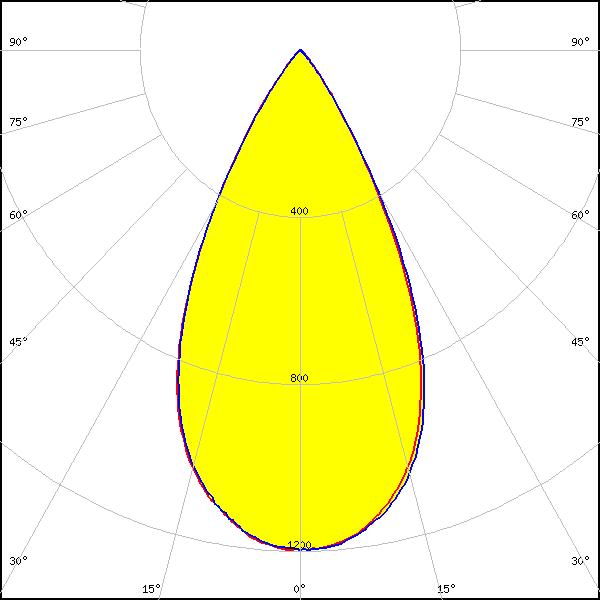

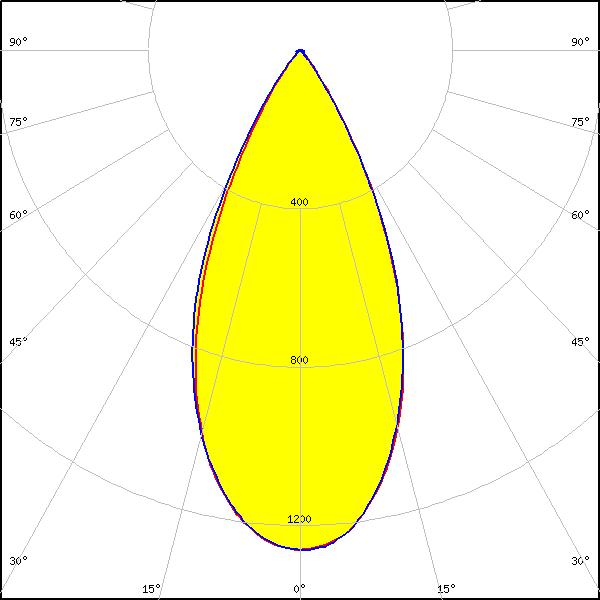

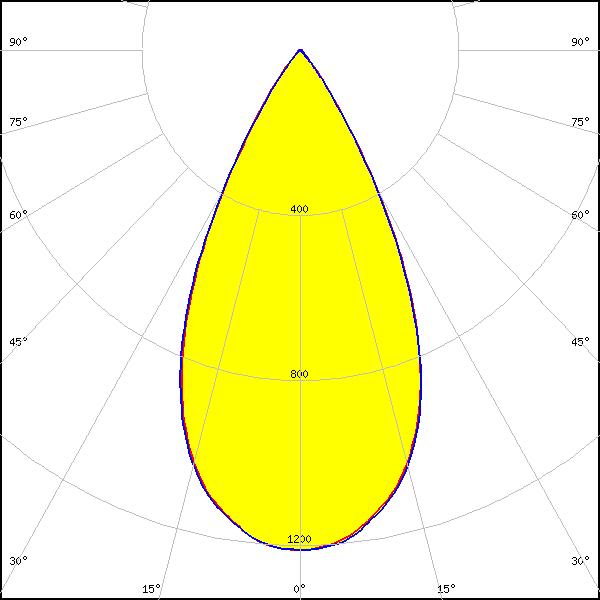

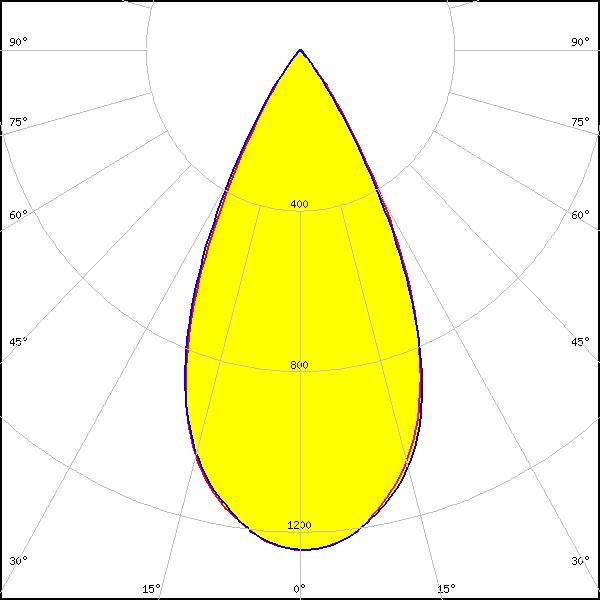

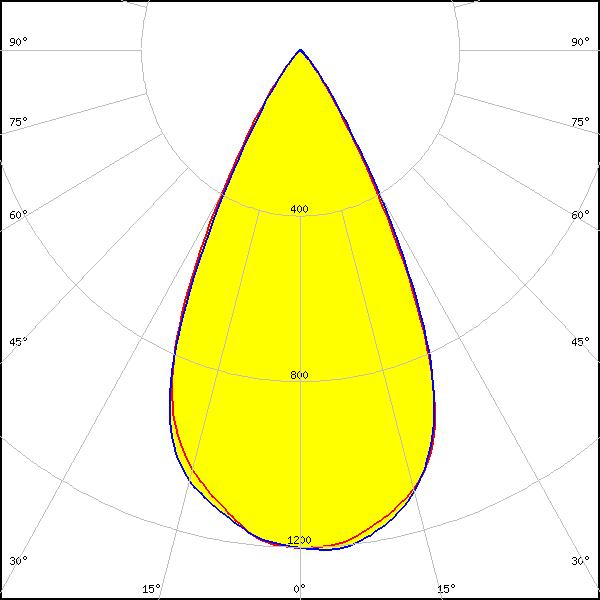

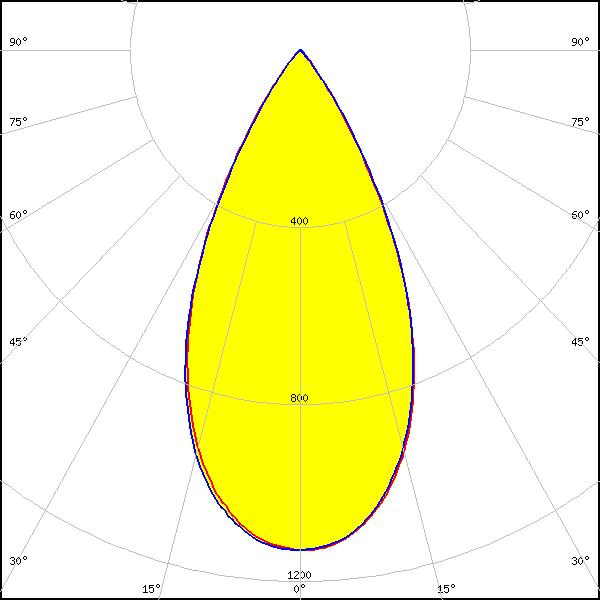

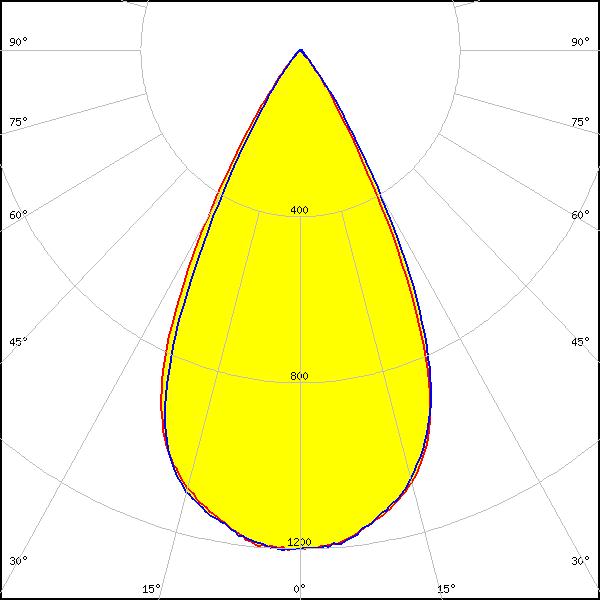

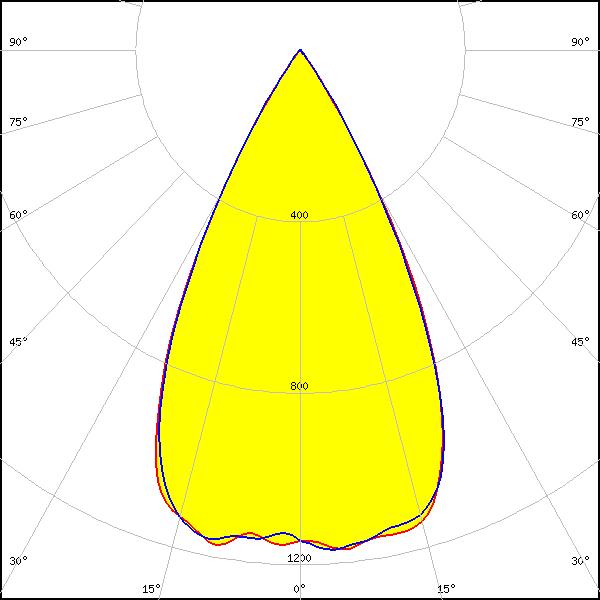

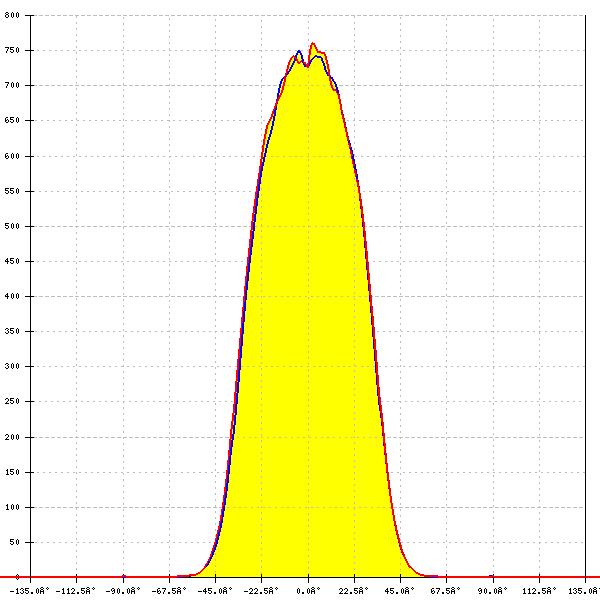

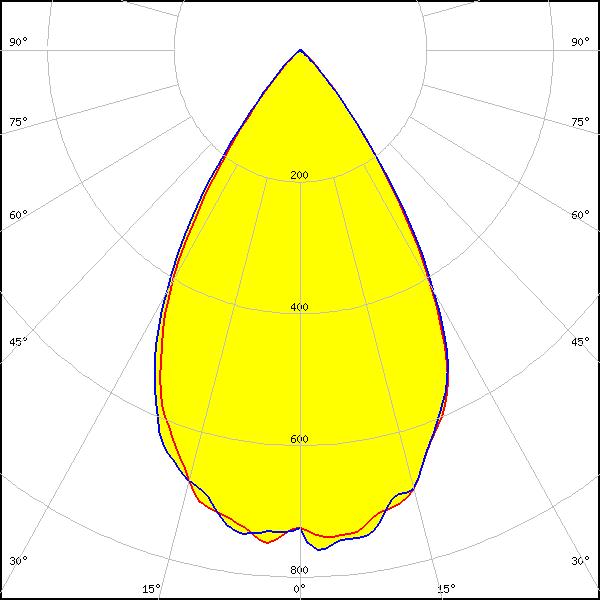

Optical results

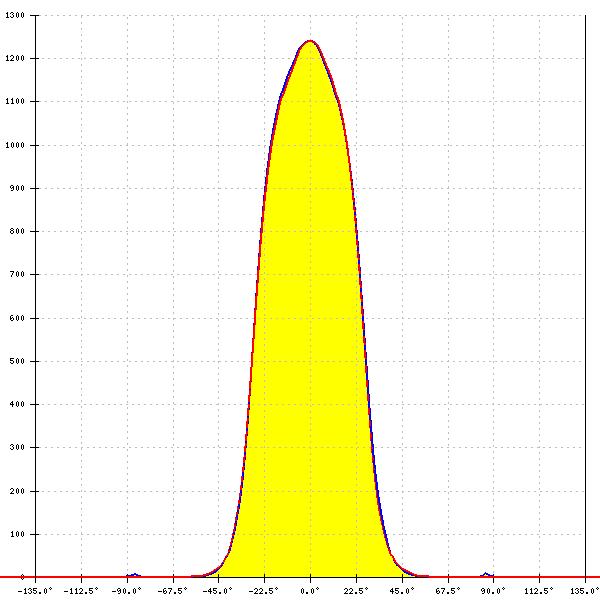

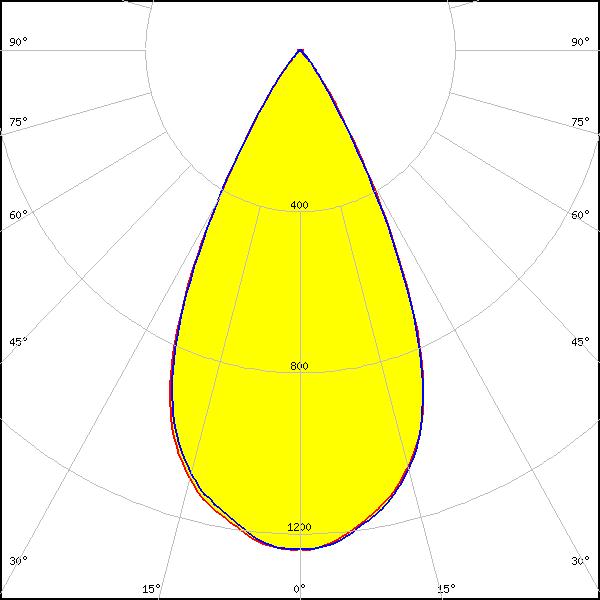

LED: V4 HD Gen 7
Required components:
FWHM: 52°
FWTM: 72°
Peak intensity: 1.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

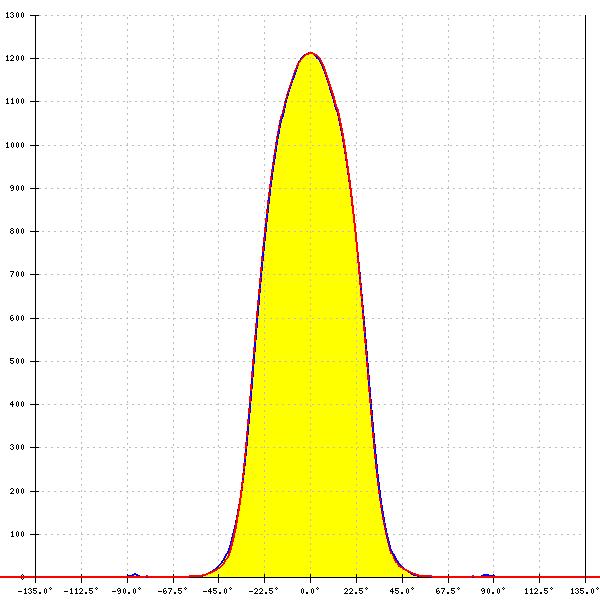

LED: V6 HD Gen 7
Required components:
FWHM: 52°
FWTM: 73°
Peak intensity: 1.200 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

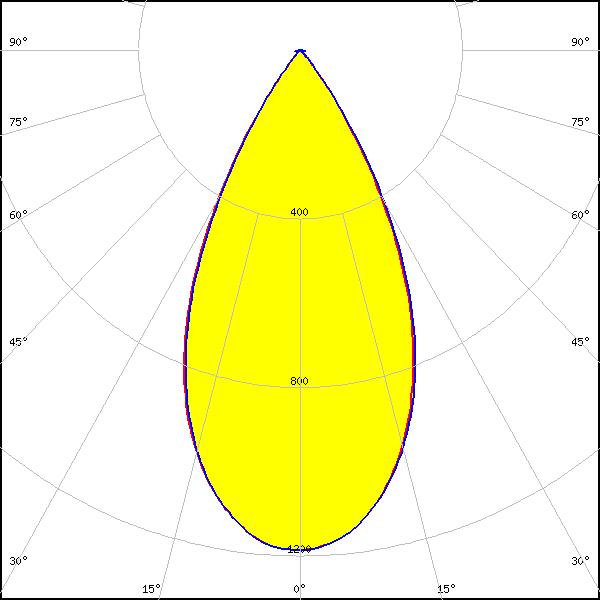

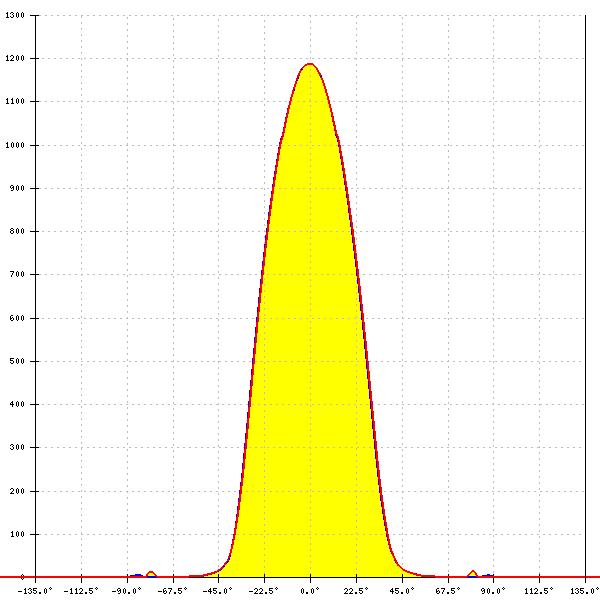

LED: V9 HD Gen7
Required components:
FWHM: 52°
FWTM: 74°
Peak intensity: 1.190 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

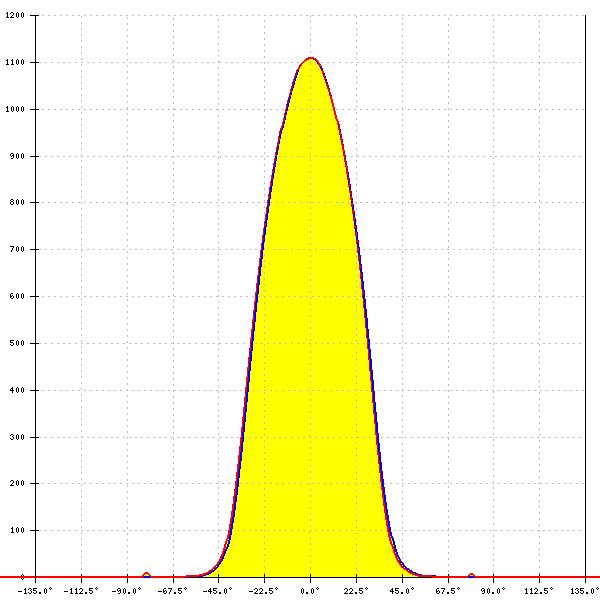

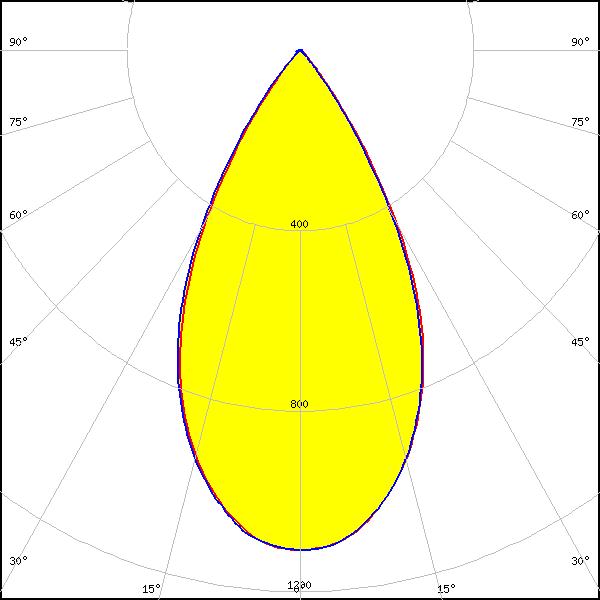

LED: VERO10
FWHM: 55°
FWTM: 78°
Peak intensity: 6.900 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

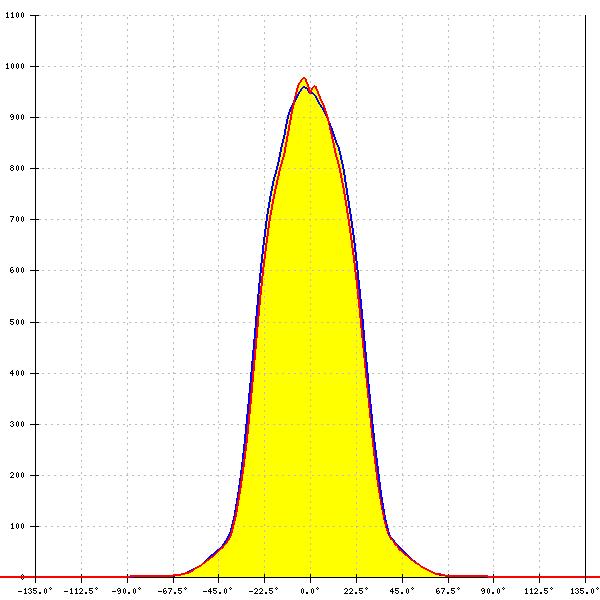

LED: VERO13
Required components:
FWHM: 52°
FWTM: 76°
Peak intensity: 0.976 cd/lm
Efficiency: 72 %
LEDs/each optic: 1

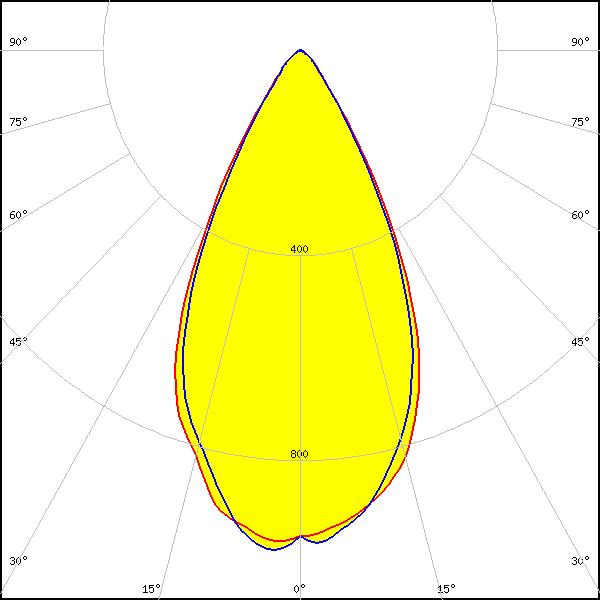

Light colour: White

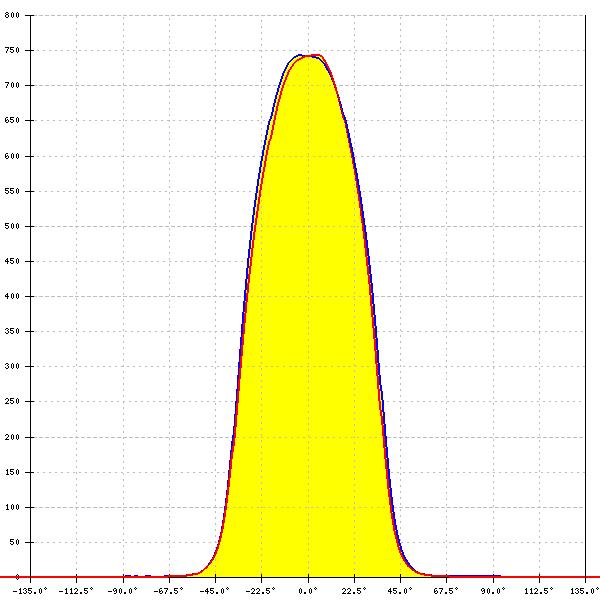

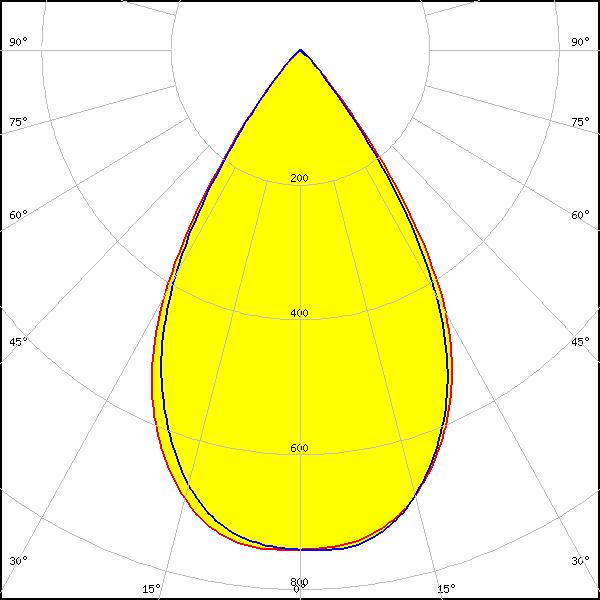

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 64°
FWTM: 84°
Peak intensity: 0.745 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour: Tunable White
LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 48°
FWTM: 71°
Peak intensity: 1.300 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 50°
FWTM: 72°
Peak intensity: 1.269 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

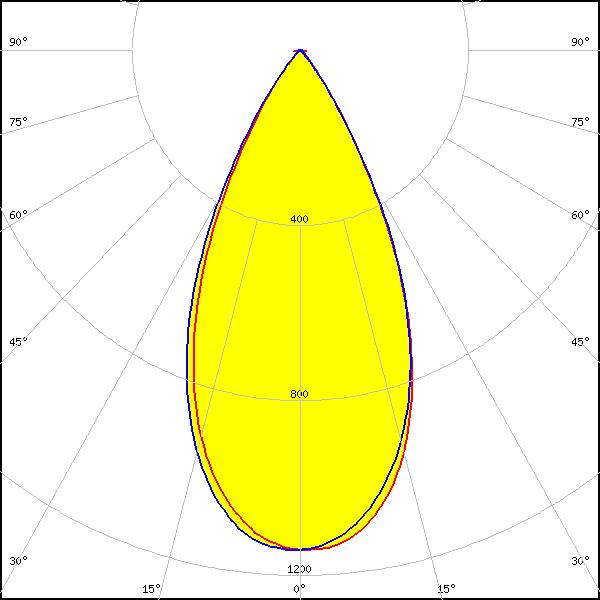

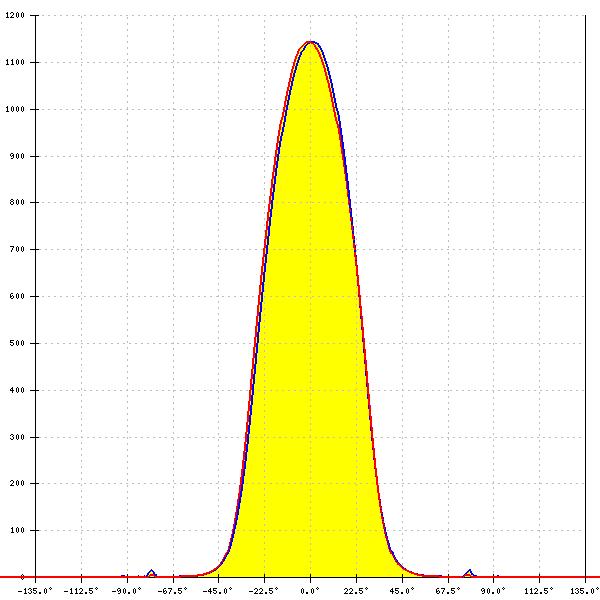

LED: Vesta TW 9mm (12W) CSP
Required components:
FWHM: 50°
FWTM: 73°
Peak intensity: 1.100 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 9mm (9W) DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 489 Typ L8
FWHM: 52°
FWTM: 75°
Peak intensity: 1.115 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

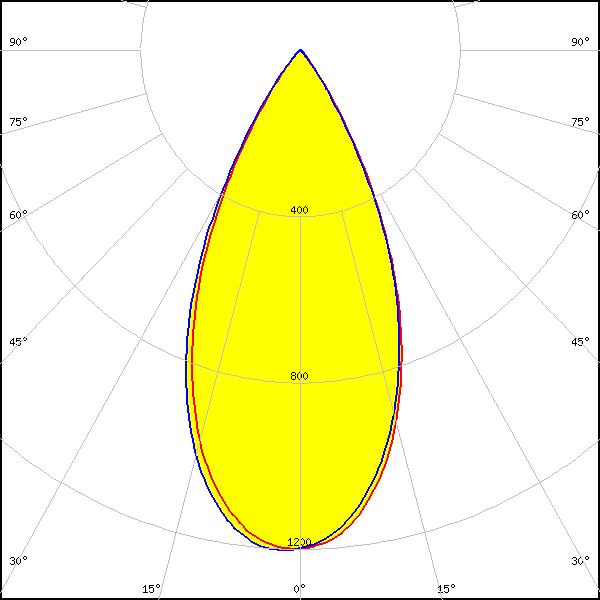

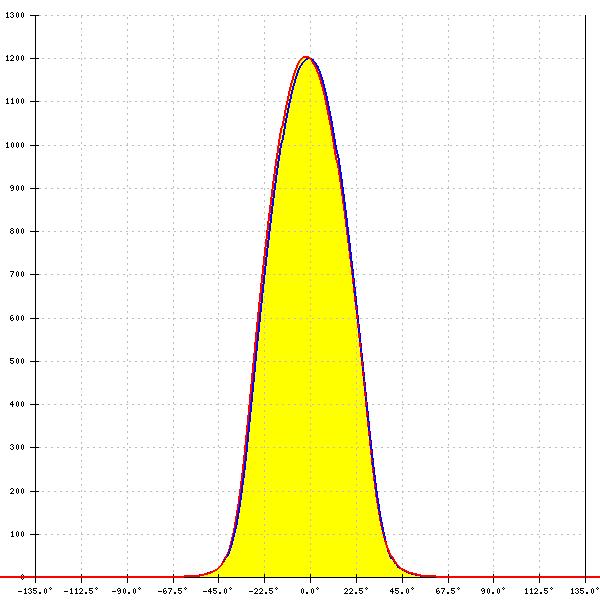

LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: 48°
FWTM: 72°
Peak intensity: 1.200 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour: White

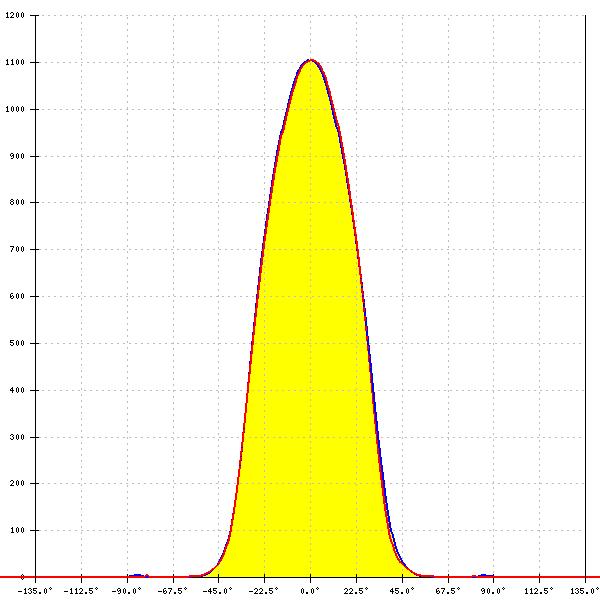

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 54°
FWTM: 78°
Peak intensity: 1.100 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

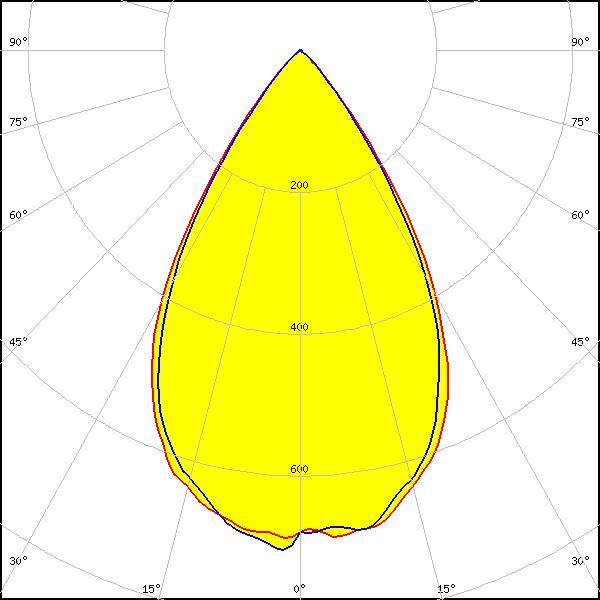

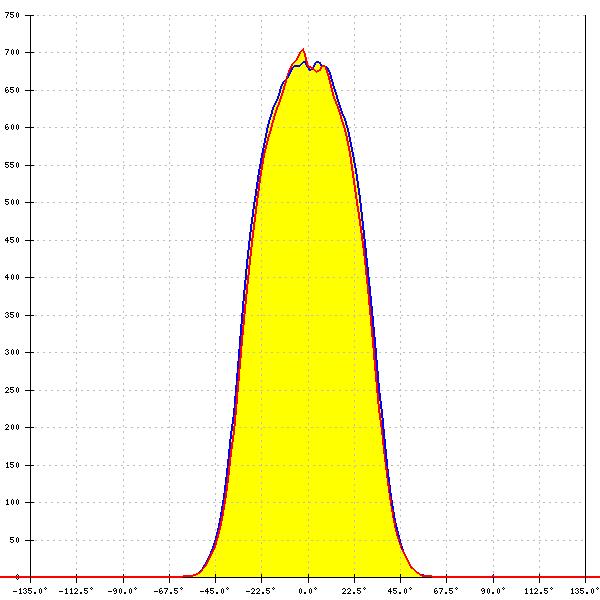

LED: CLL03x/CLU03x
Required components:
FWHM: 63°
FWTM: 85°
Peak intensity: 0.712 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour: White

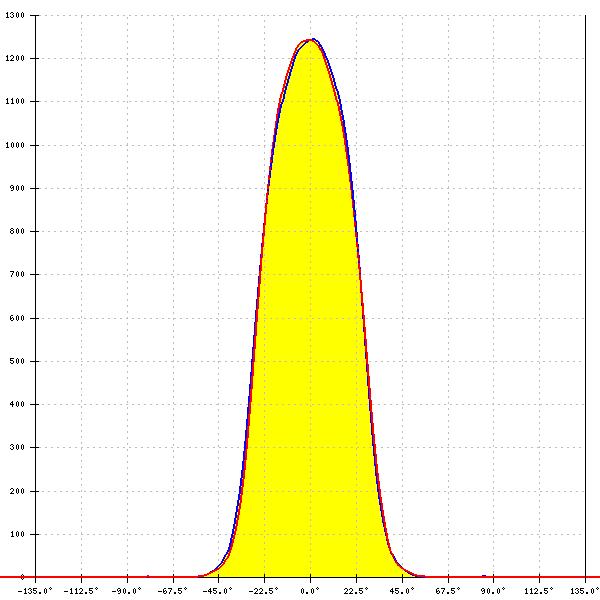

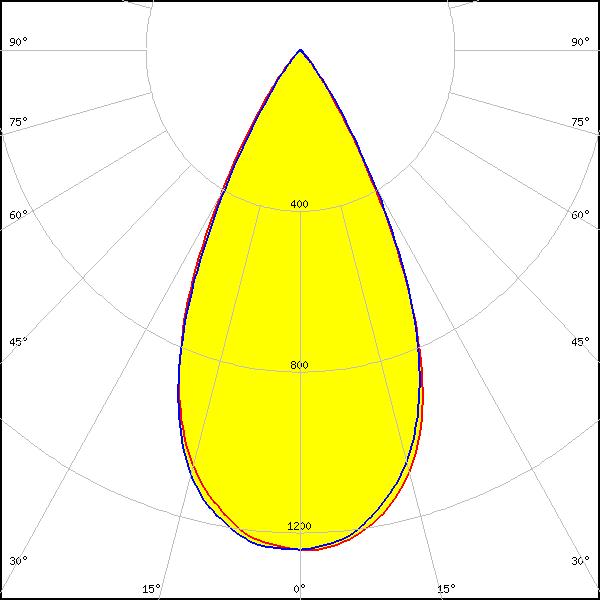

LED: CLU700/701/702
Required components:
FWHM: 52°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

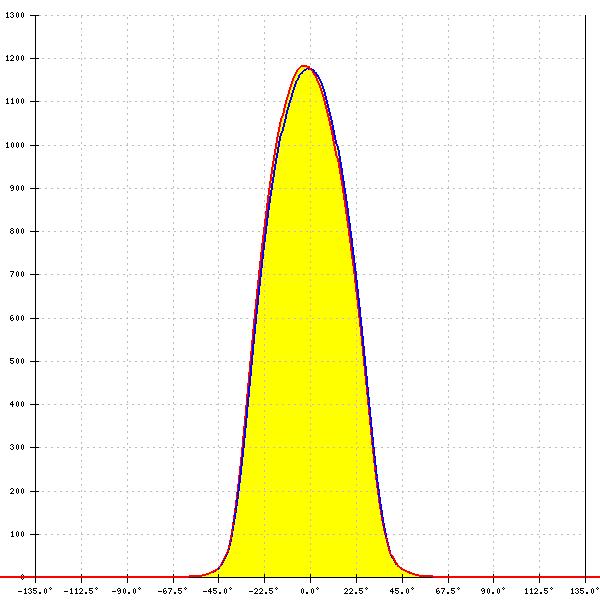

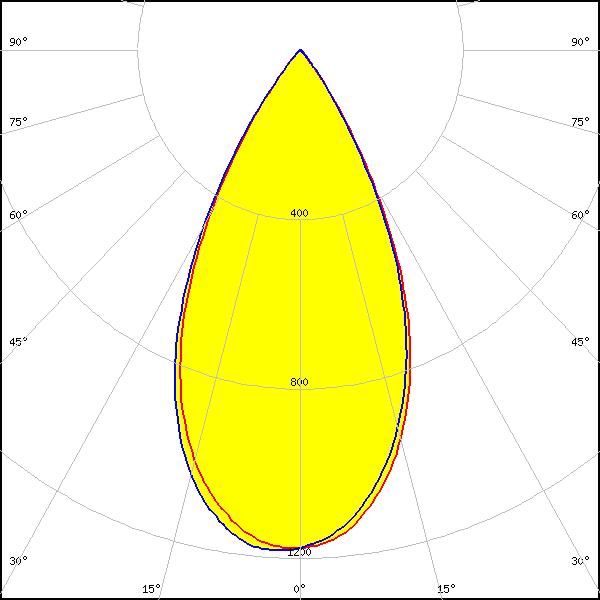

LED: CLU710/711
Required components:
FWHM: 52°
FWTM: 75°
Peak intensity: 1.183 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

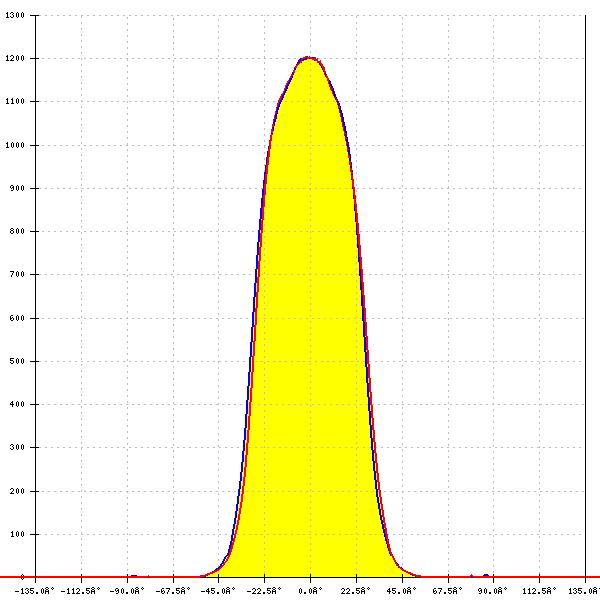

LED: CLU7A2 (LES 4.2mm)
Required components:
FWHM: 54°
FWTM: 73°
Peak intensity: 1.200 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

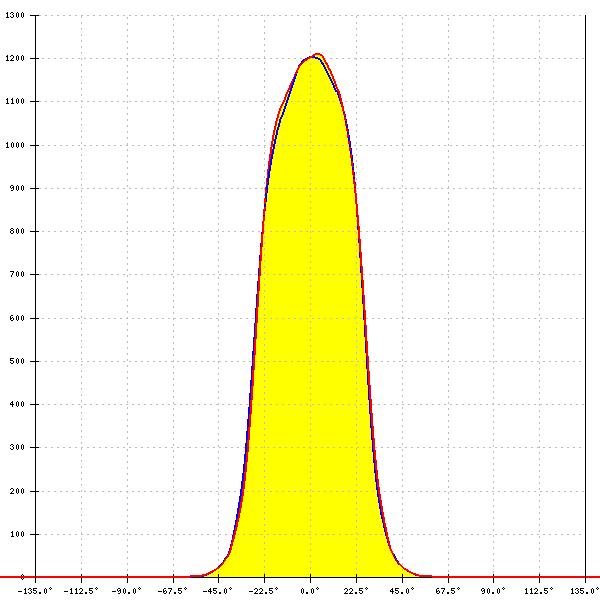

LED: CLU7B2
FWHM: 53°
FWTM: 73°
Peak intensity: 1.210 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

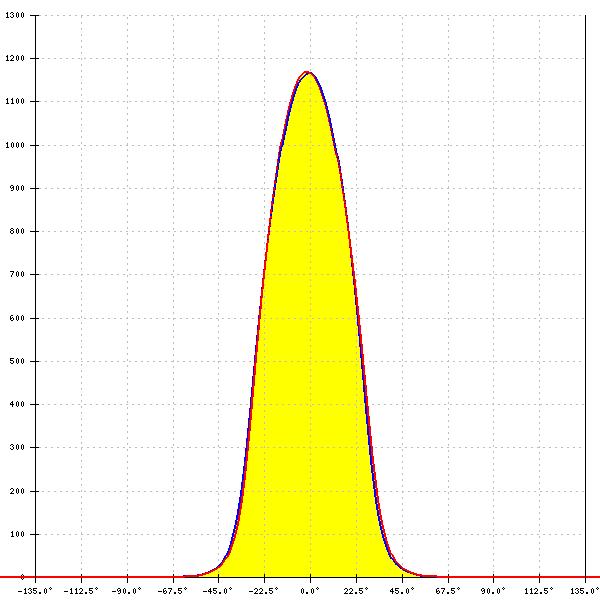

LED: LCN-C01B (Tunable White)
Required components:
FWHM: 49°
FWTM: 72°
Peak intensity: 1.200 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

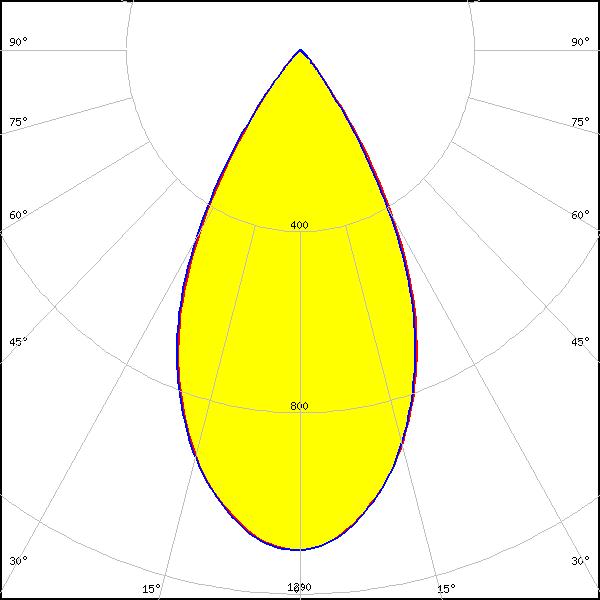

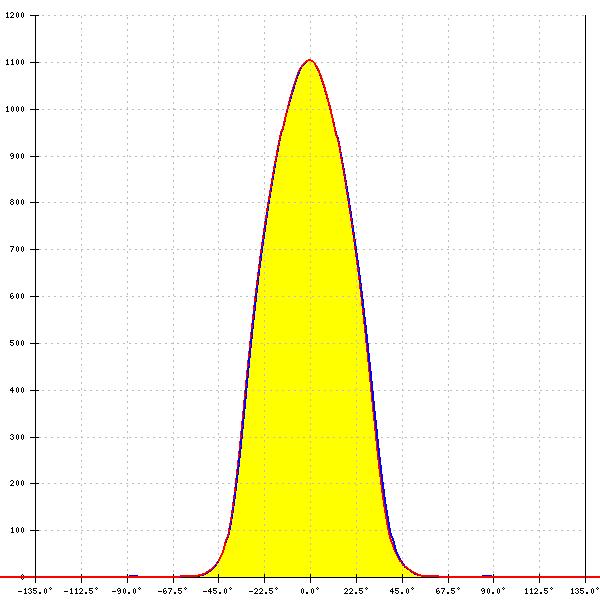

LED: CMA1516
Required components:
FWHM: 55°
FWTM: 78°
Peak intensity: 1.100 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: CMA1825
FWHM: 59°
FWTM: 80°
Peak intensity: 0.916 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

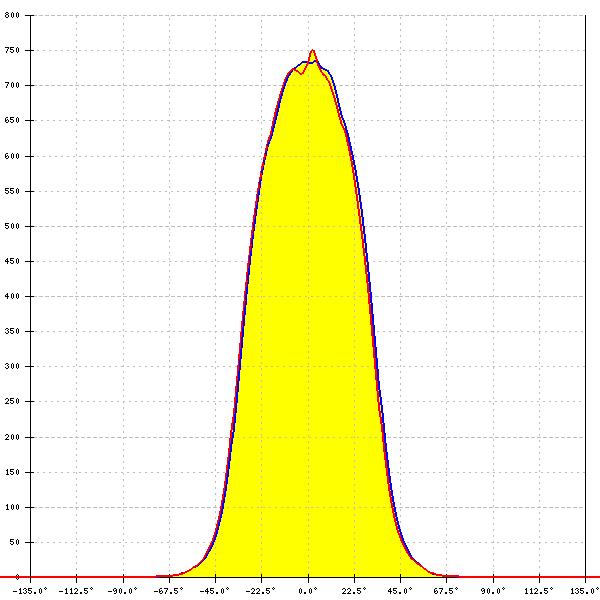

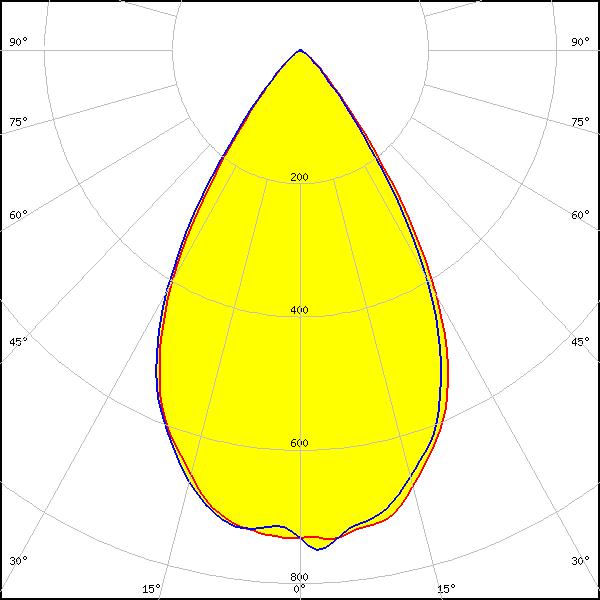

LED: CMA1840
FWHM: 62°
FWTM: 87°
Peak intensity: 0.754 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour: White

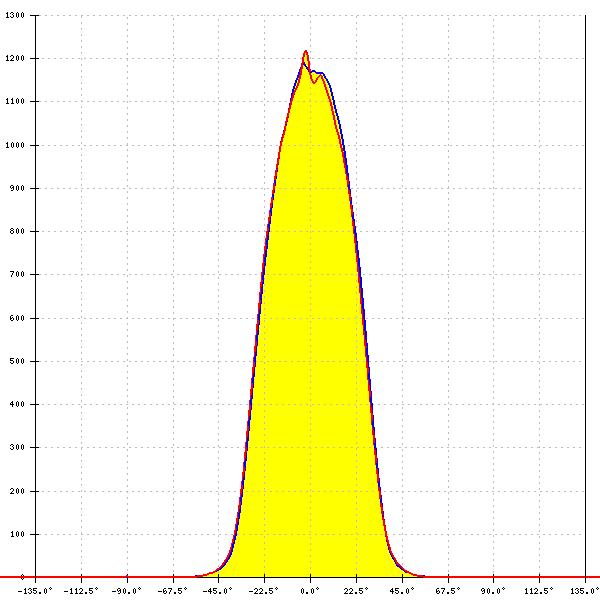

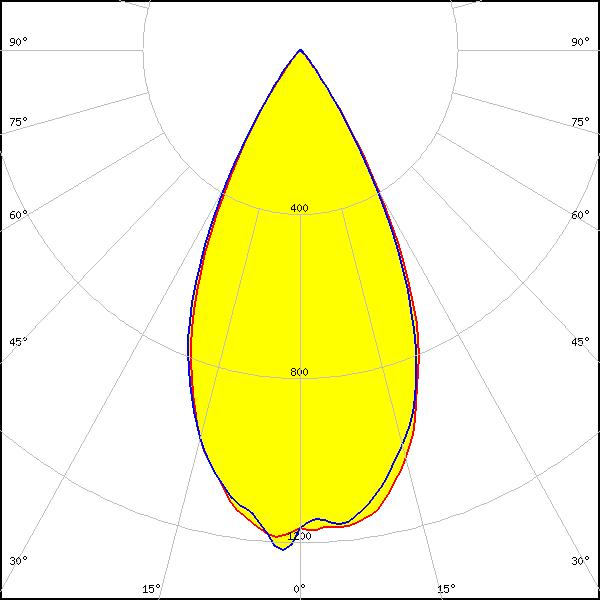

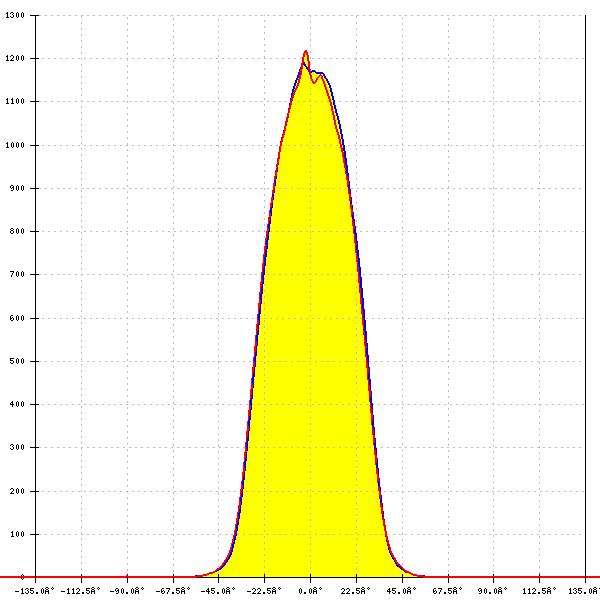

LED: CMT14xx
Required components:
FWHM: 52°
FWTM: 73°
Peak intensity: 1.220 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

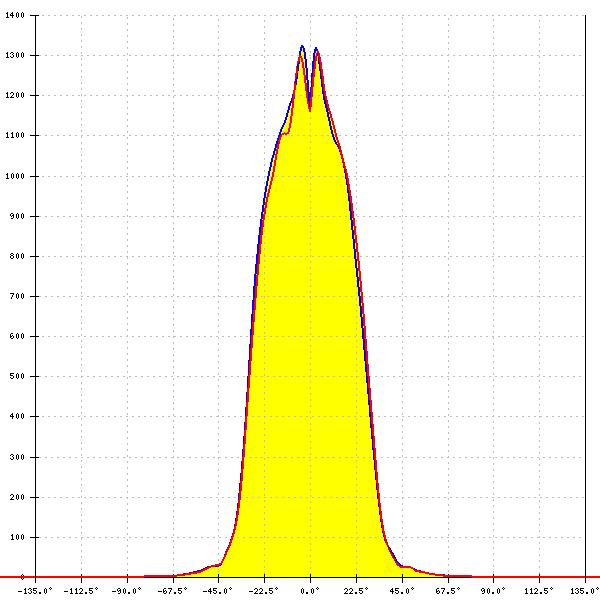

LED: CXA/B 15xx
Required components:
FWHM: 54°
FWTM: 73°
Peak intensity: 1.365 cd/lm
LEDs/each optic: 1
Light colour: White

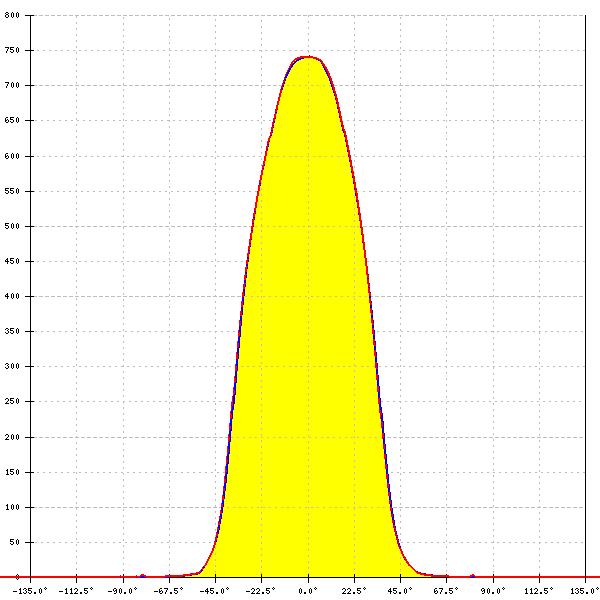

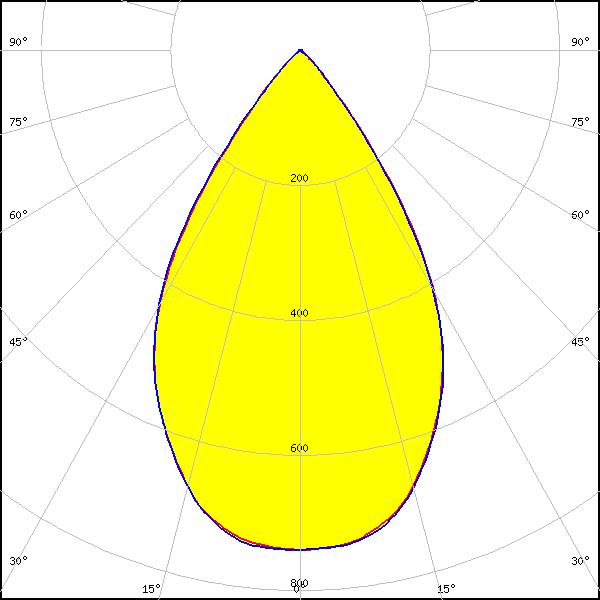

LED: LUXEON CX Plus CoB L08 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 64°
FWTM: 85°
Peak intensity: 0.741 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

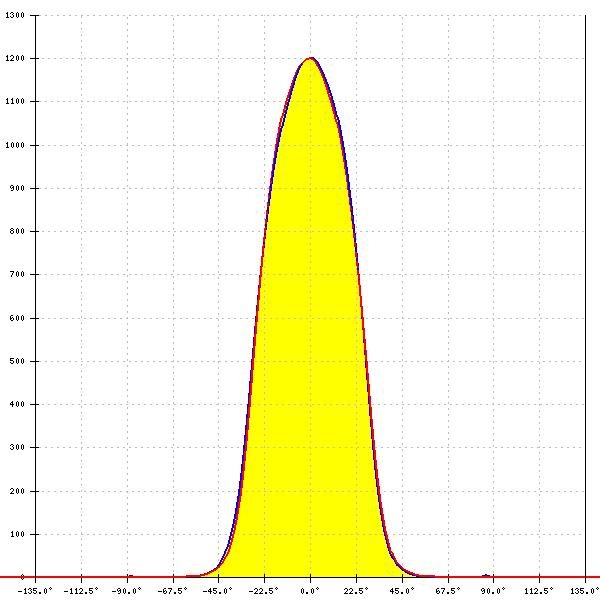

LED: LUXEON CoB 1202HD
Required components:
FWHM: 52°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

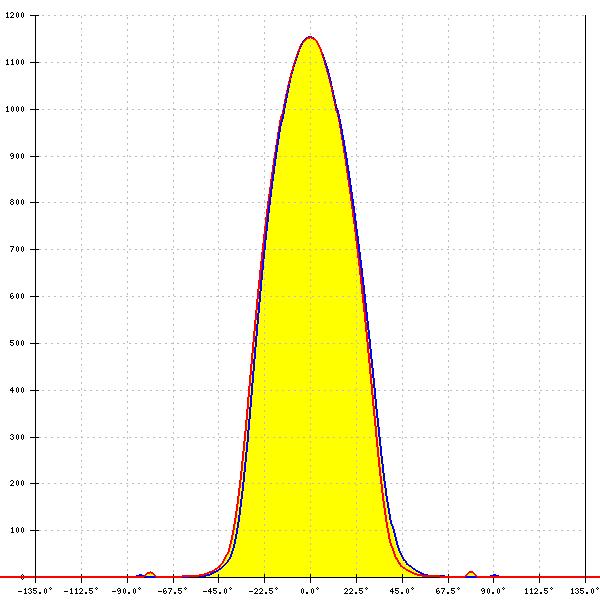

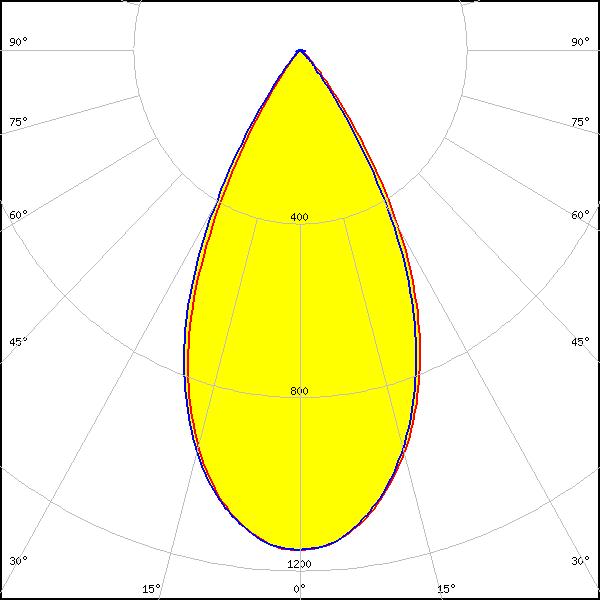

LED: LUXEON CoB 1204HD
Required components:
FWHM: 53°
FWTM: 75°
Peak intensity: 1.150 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

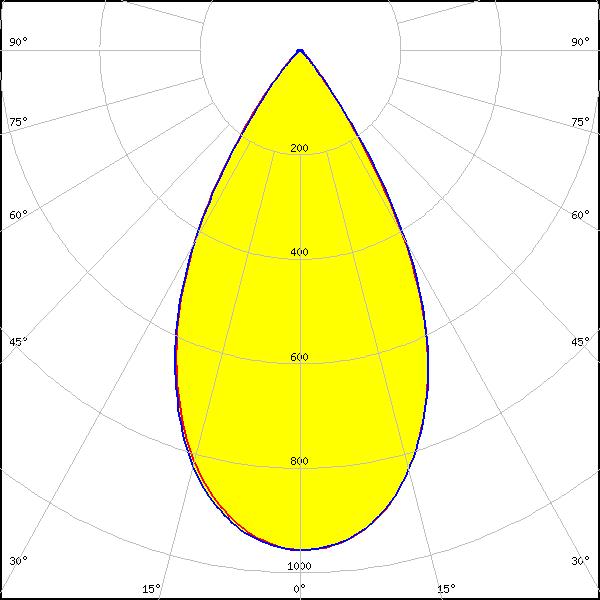

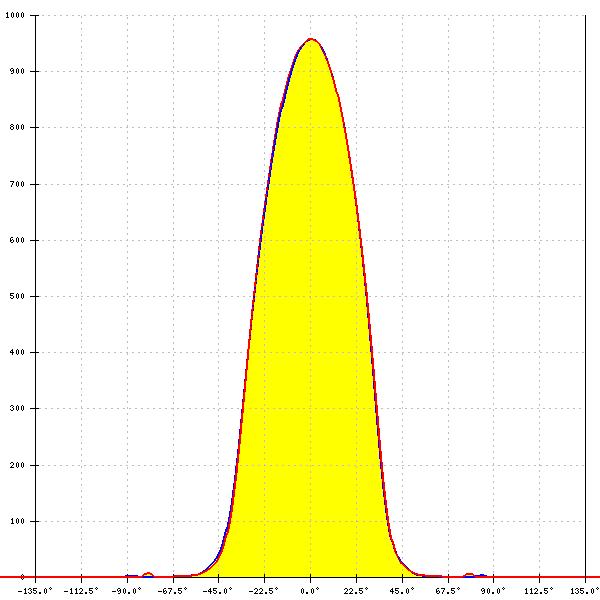

LED: LUXEON CoB 1205HD
Required components:
FWHM: 56°
FWTM: 79°
Peak intensity: 1.000 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 51°
FWTM: 73°
Peak intensity: 1.246 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

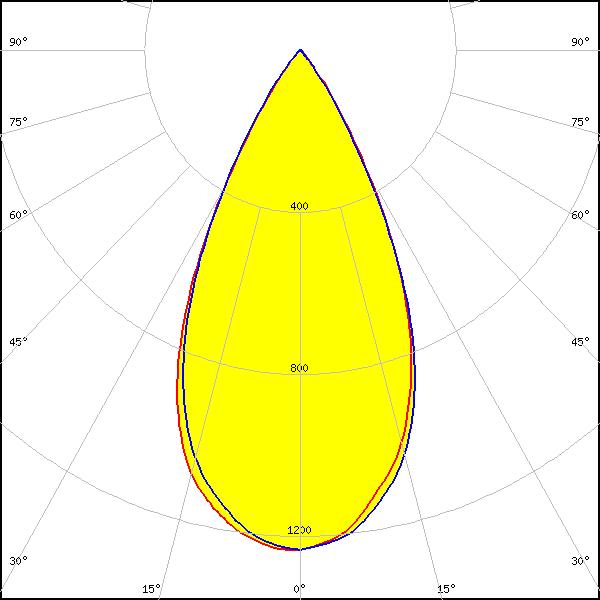

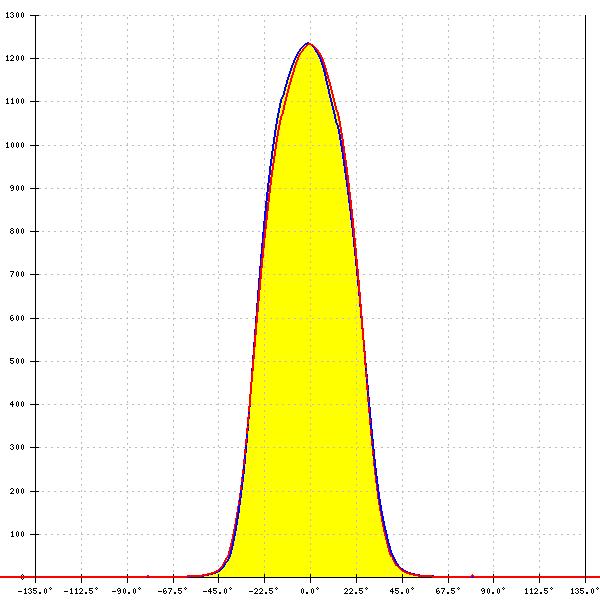

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 51°
FWTM: 73°
Peak intensity: 1.235 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

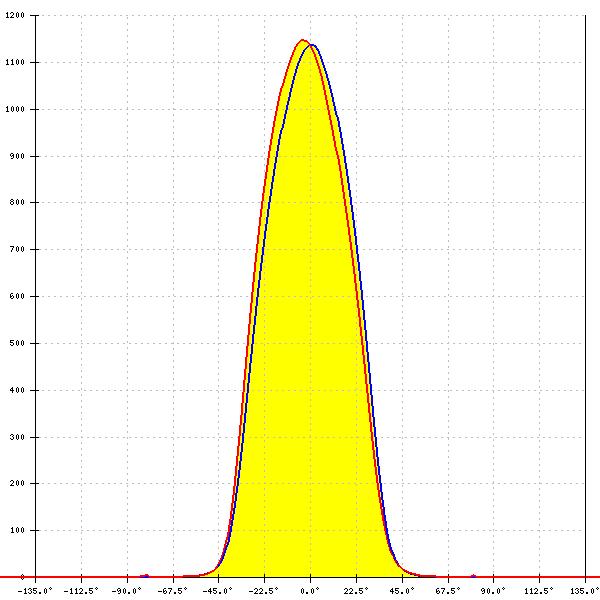

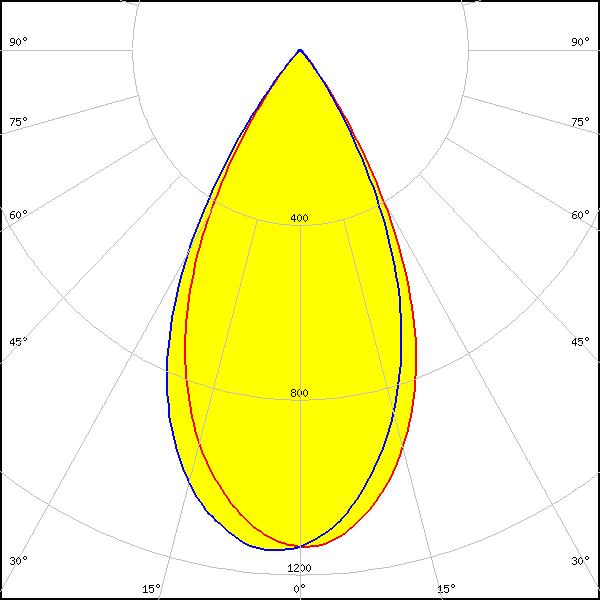

LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 53°
FWTM: 76°
Peak intensity: 1.146 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 57°
FWTM: 80°
Peak intensity: 0.946 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

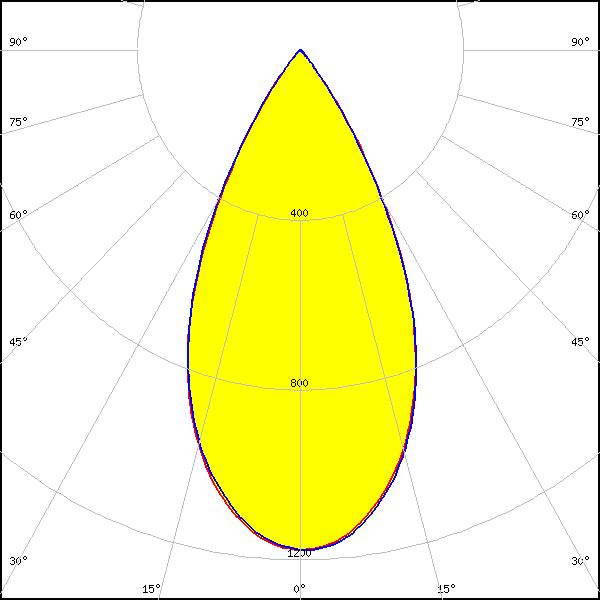

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 52°
FWTM: 75°
Peak intensity: 1.178 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

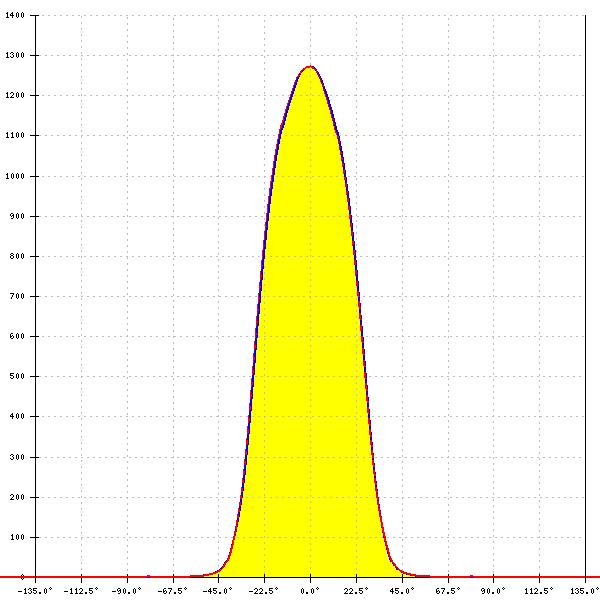

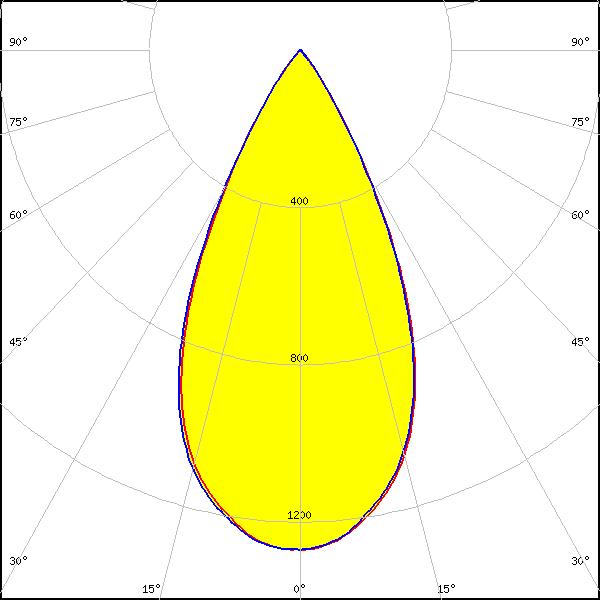

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 51°
FWTM: 72°
Peak intensity: 1.272 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

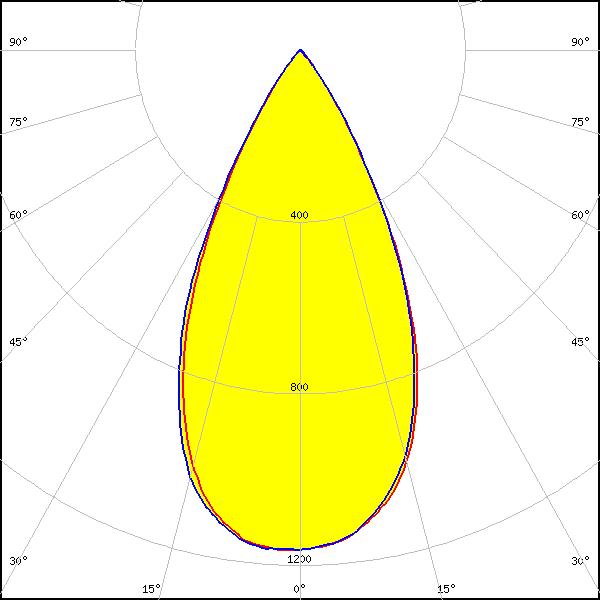

LED: CDM-6 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 51°
FWTM: 73°
Peak intensity: 1.200 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

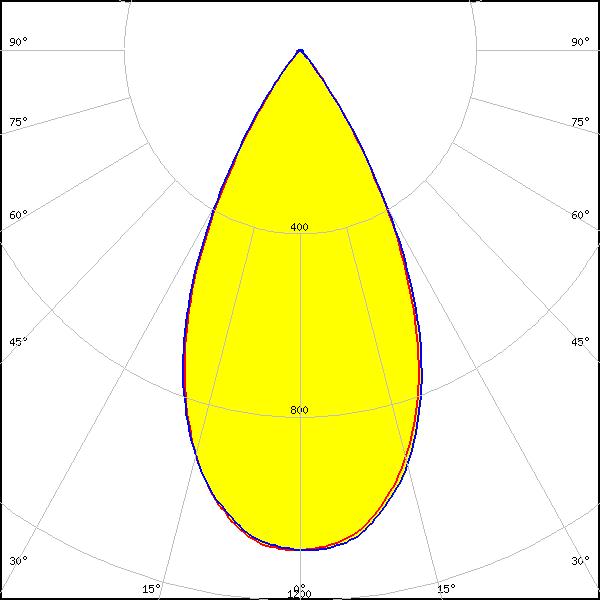

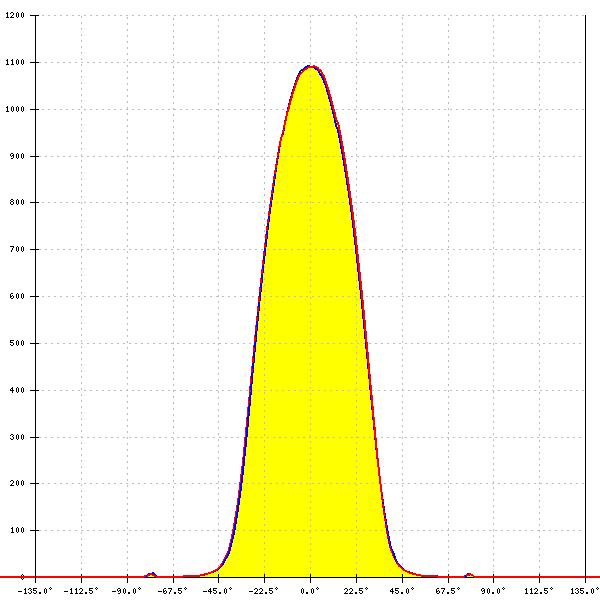

LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 53°
FWTM: 75°
Peak intensity: 1.100 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

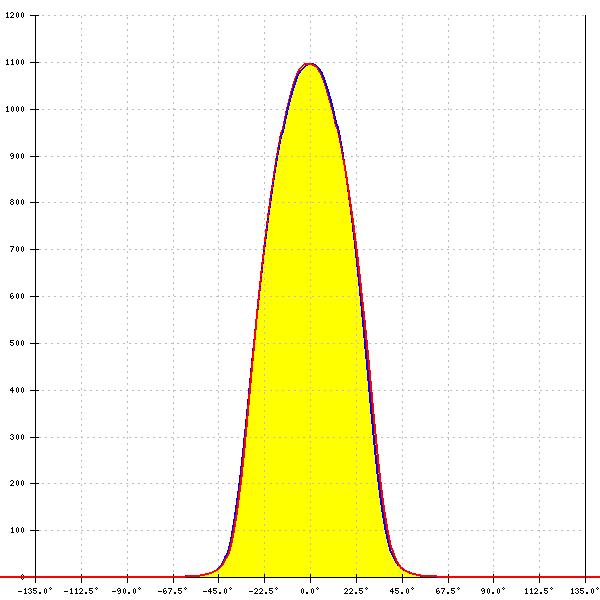

LED: CTM-9 (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 53°
FWTM: 75°
Peak intensity: 1.100 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

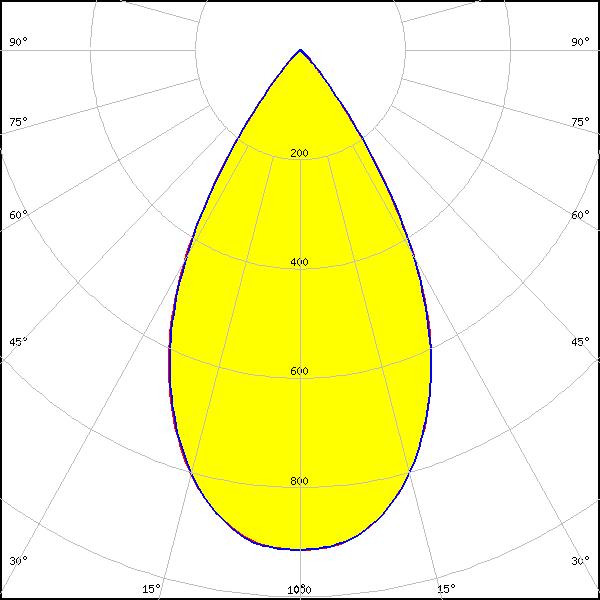

LED: CxM-11 (19x19)
Required components:
FWHM: 58°
FWTM: 81°
Peak intensity: 0.915 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

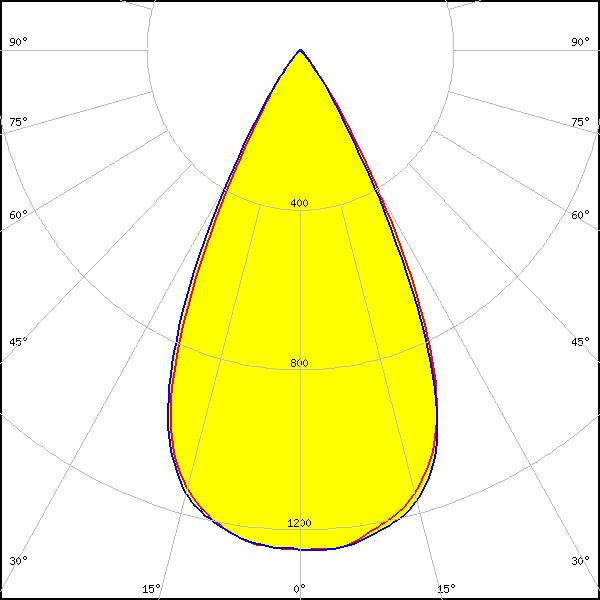

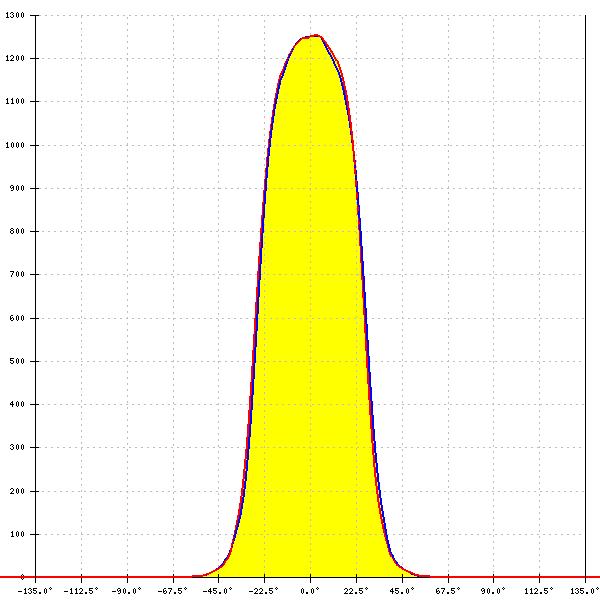

LED: CXM-3
Required components:
FWHM: 53°
FWTM: 72°
Peak intensity: 1.254 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

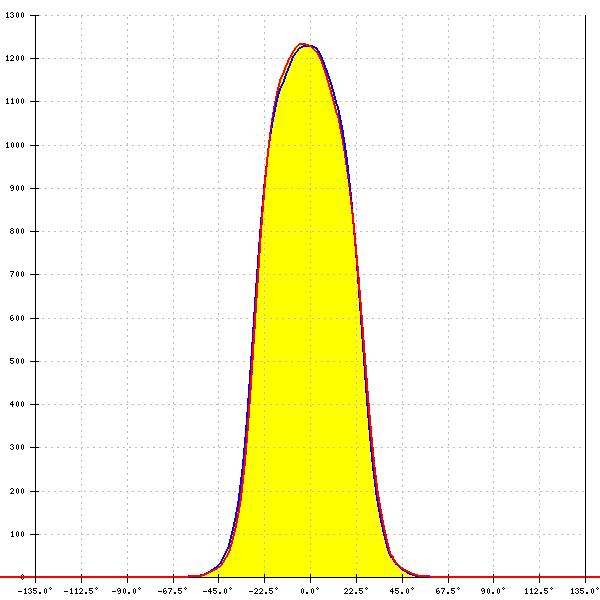

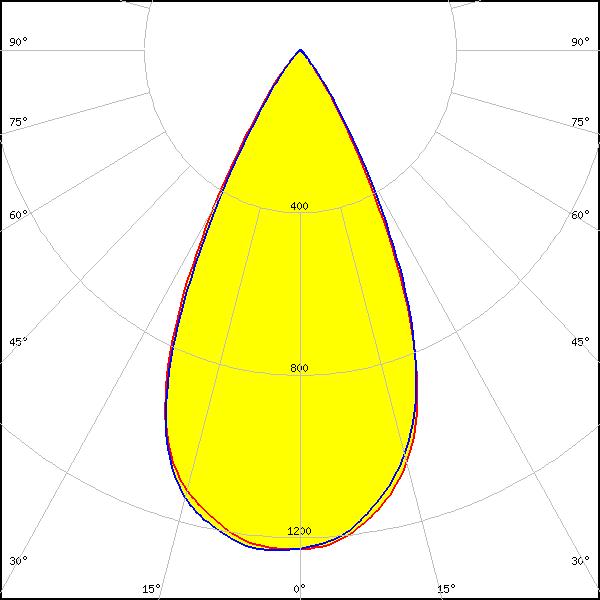

LED: CXM-4
Required components:
FWHM: 52°
FWTM: 73°
Peak intensity: 1.235 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

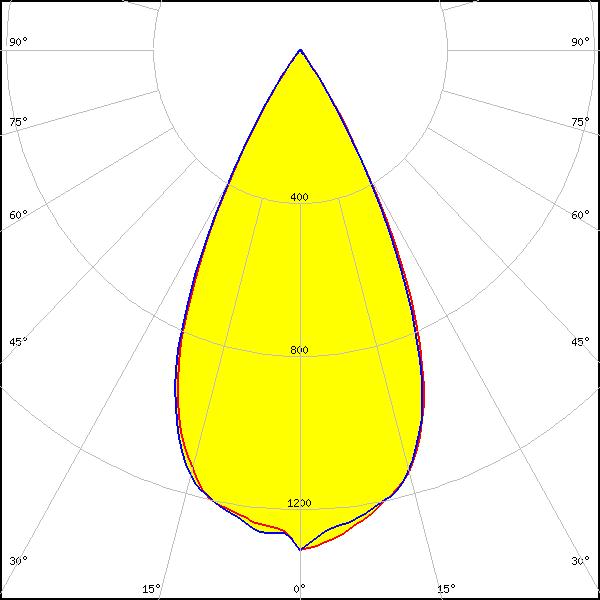

LED: CxM-6 (13.5x13.5)
Required components:
FWHM: 52°
FWTM: 69°
Peak intensity: 1.309 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

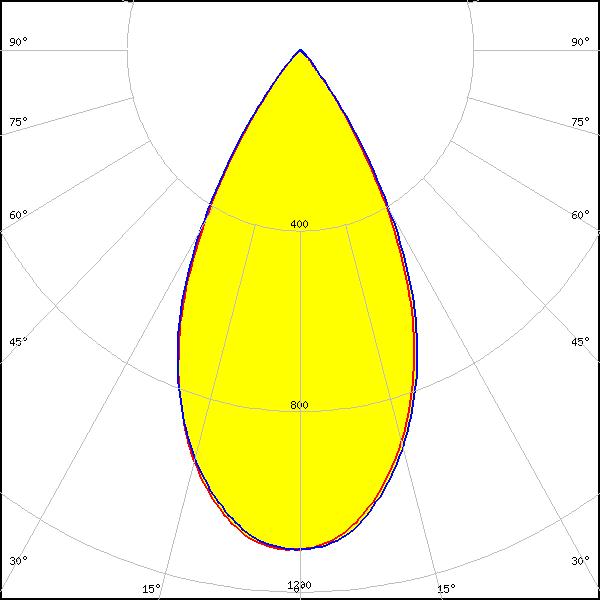

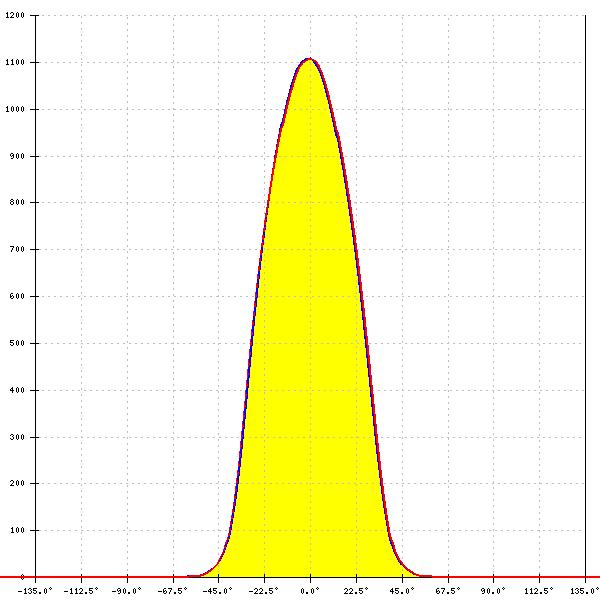

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 53°
FWTM: 77°
Peak intensity: 1.100 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White
LED: COB T-Type
Required components:
FWHM: 54°
FWTM: 69°
Peak intensity: 1.200 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

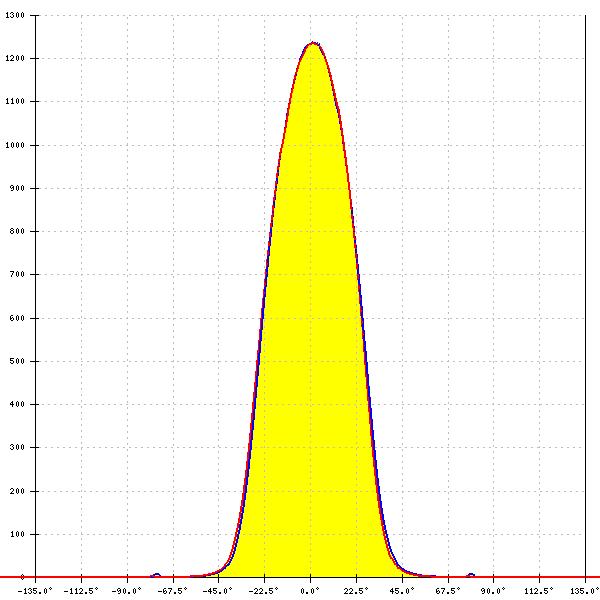

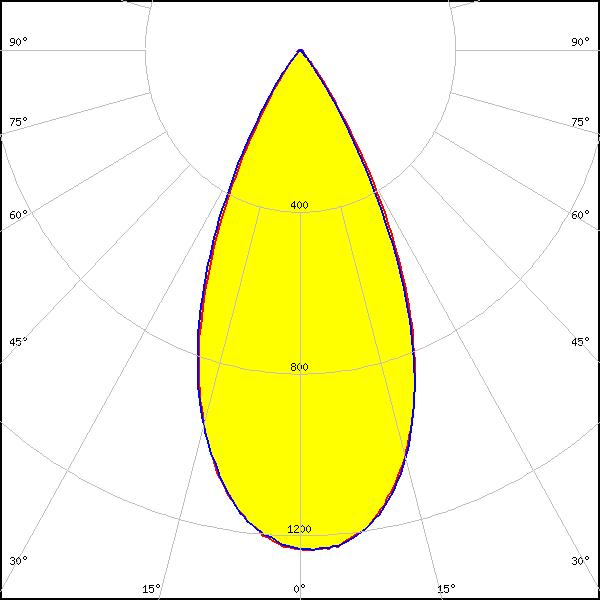

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 48°
FWTM: 71°
Peak intensity: 1.240 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: White

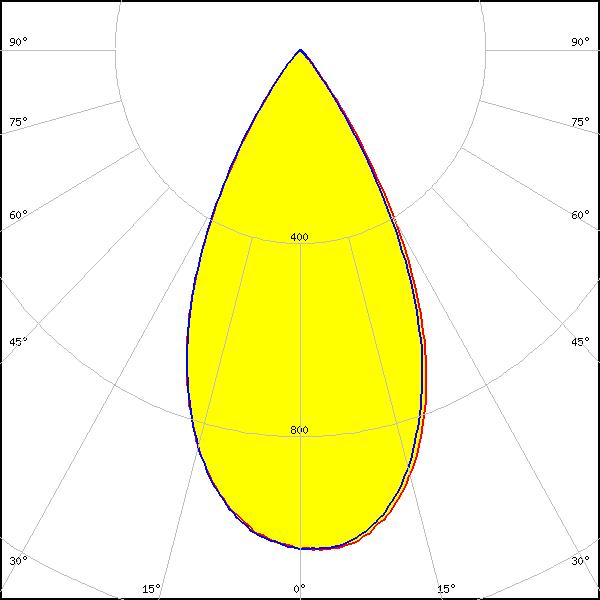

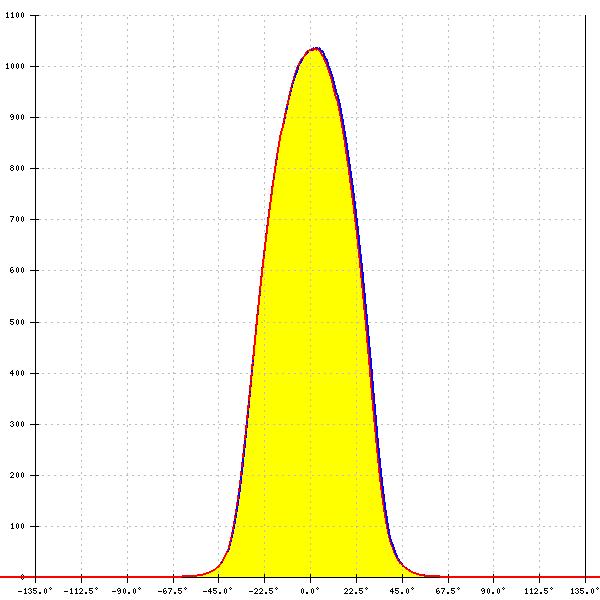

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: 53°
FWTM: 76°
Peak intensity: 1.000 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

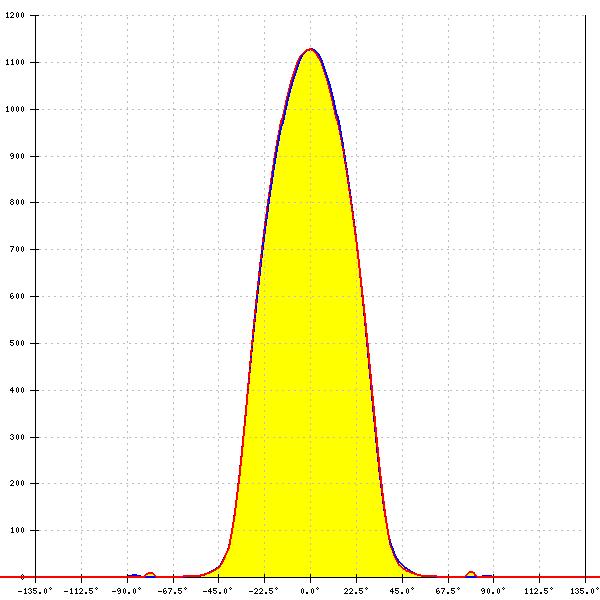

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 54°
FWTM: 76°
Peak intensity: 1.130 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

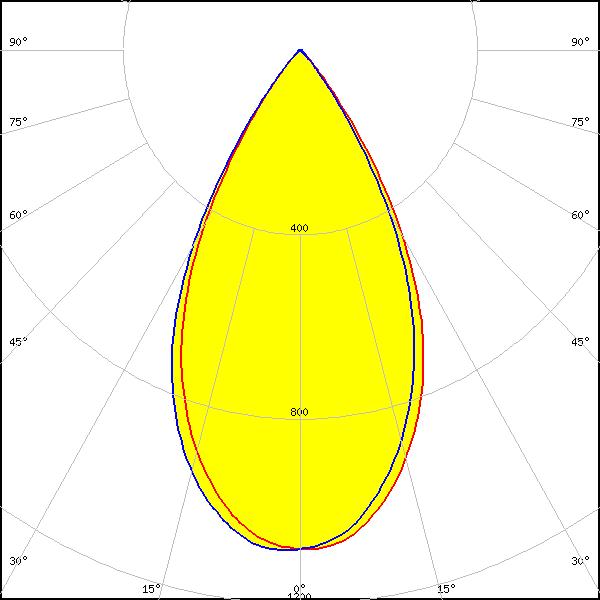

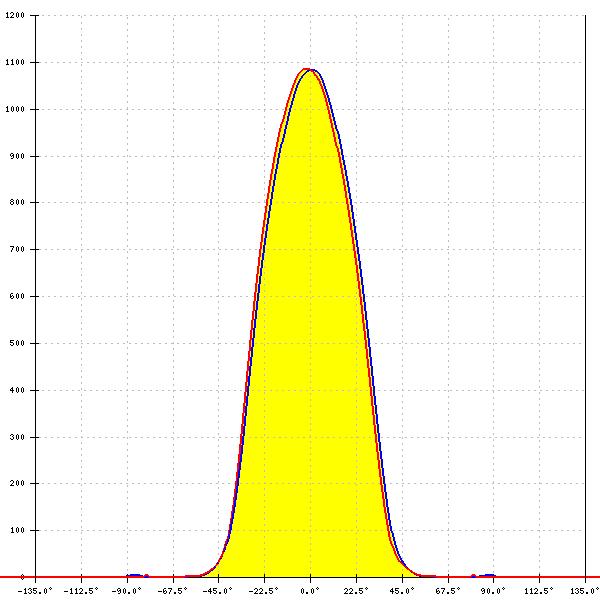

LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 55°
FWTM: 78°
Peak intensity: 1.100 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

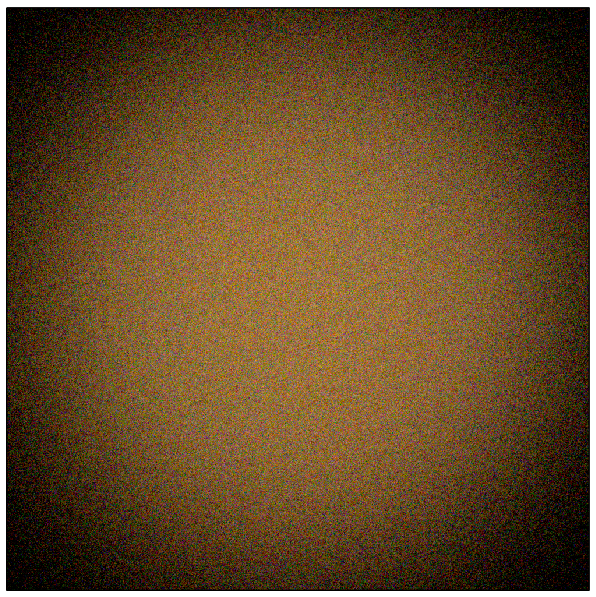

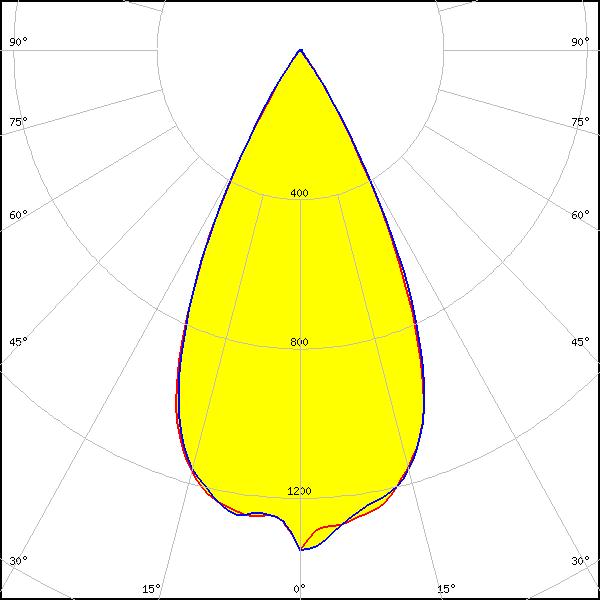

LED: LC010C
Required components:
FWHM: 51°
FWTM: 68°
Peak intensity: 1.342 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

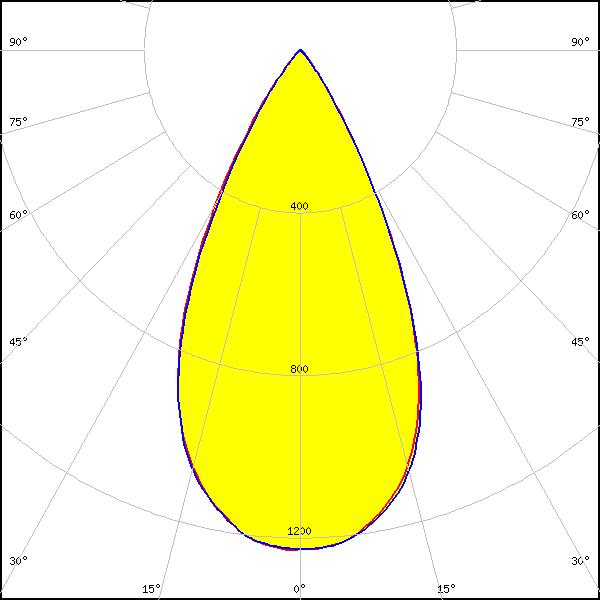

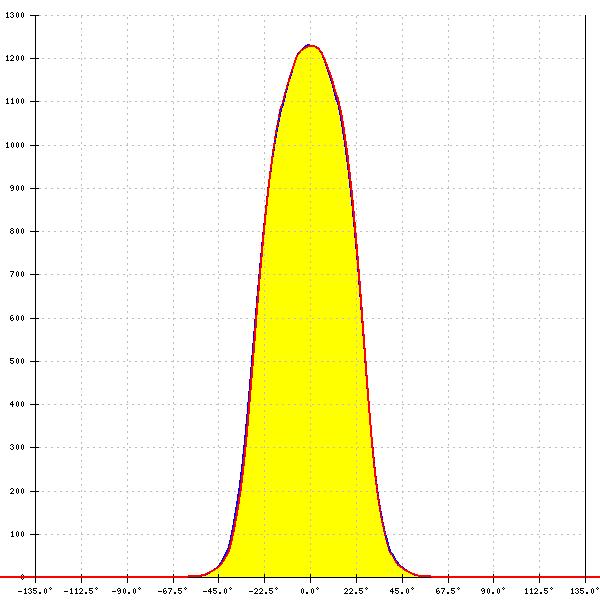

LED: LC010C G2
Required components:
FWHM: 52°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

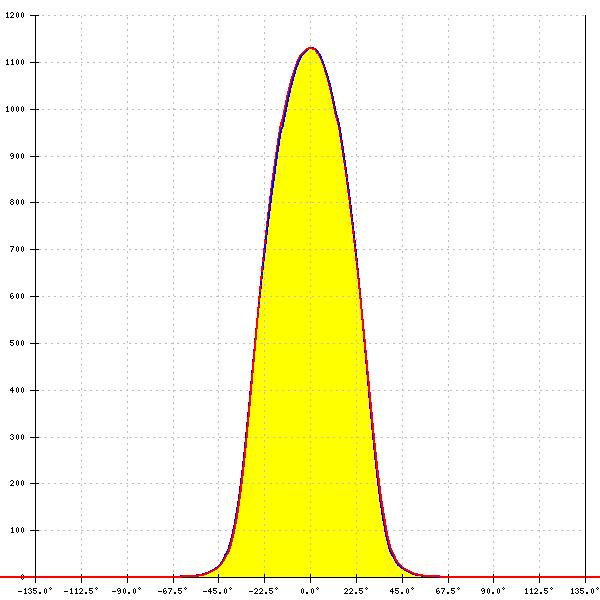

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 51°
FWTM: 74°
Peak intensity: 1.130 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour: Tunable White

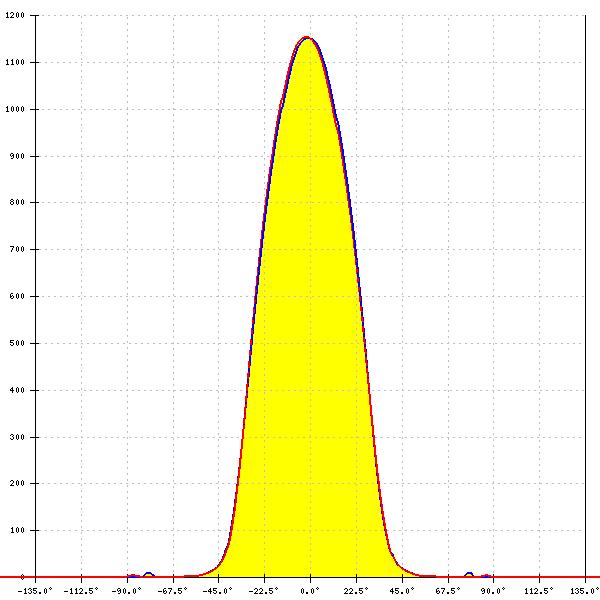

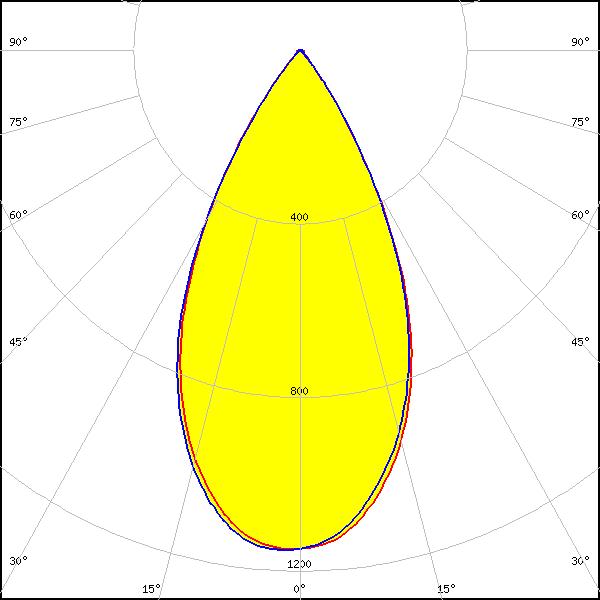

LED: LC020C G2
Required components:
FWHM: 52°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

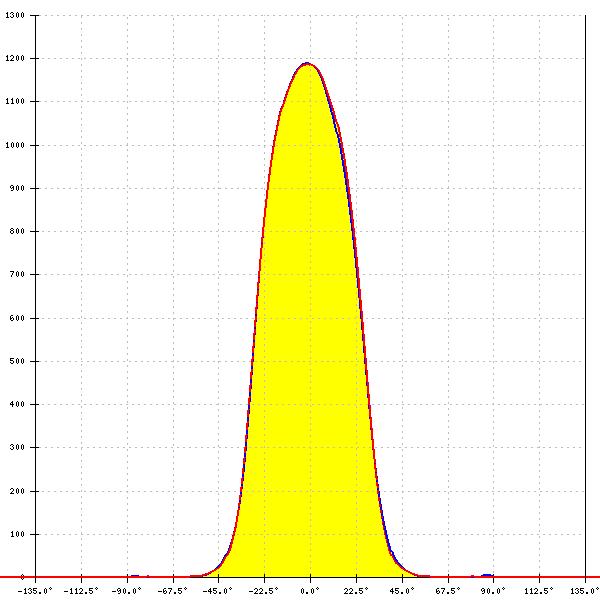

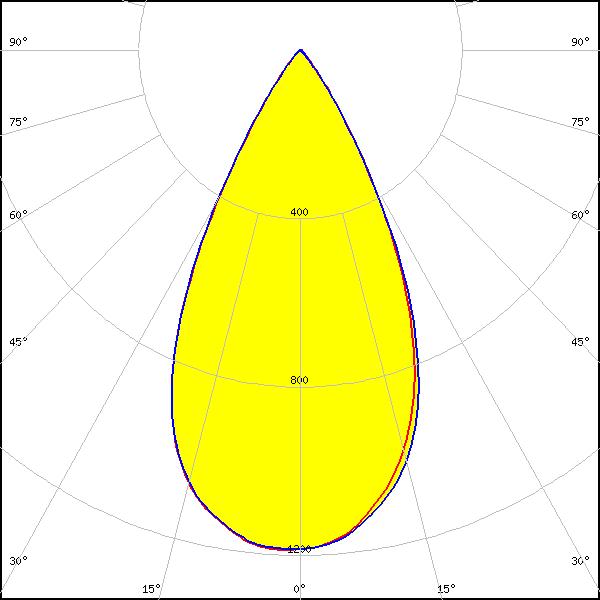

LED: MJT COB LES 6
Required components:
FWHM: 52°
FWTM: 73°
Peak intensity: 1.200 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

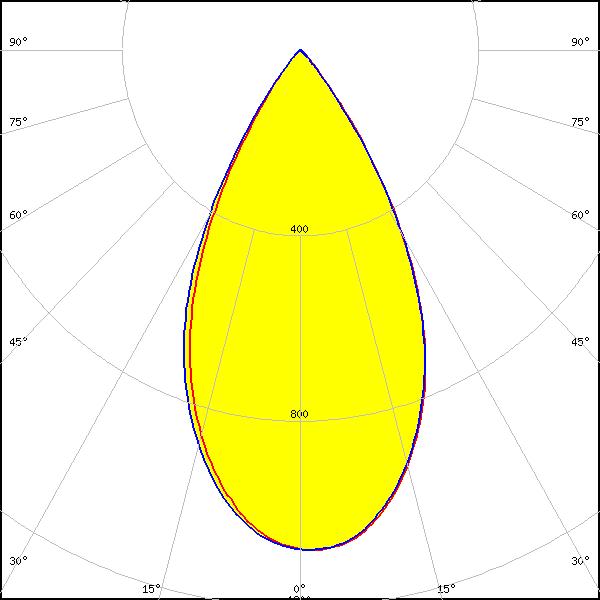

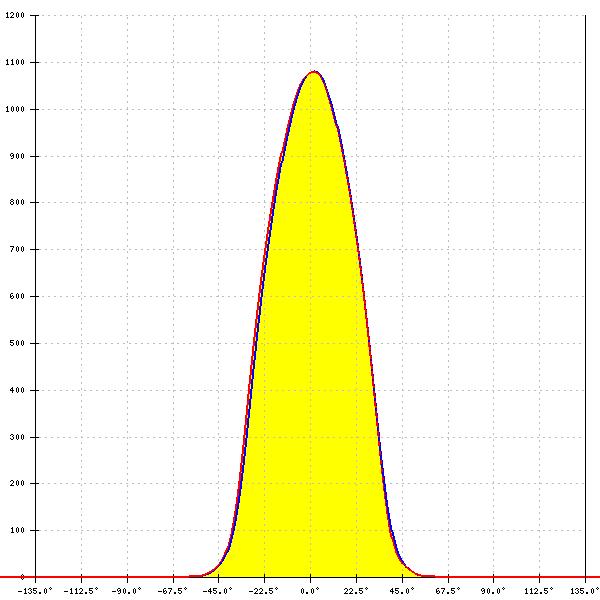

LED: MJT COB LES 9.8
Required components:
FWHM: 54°
FWTM: 77°
Peak intensity: 1.100 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

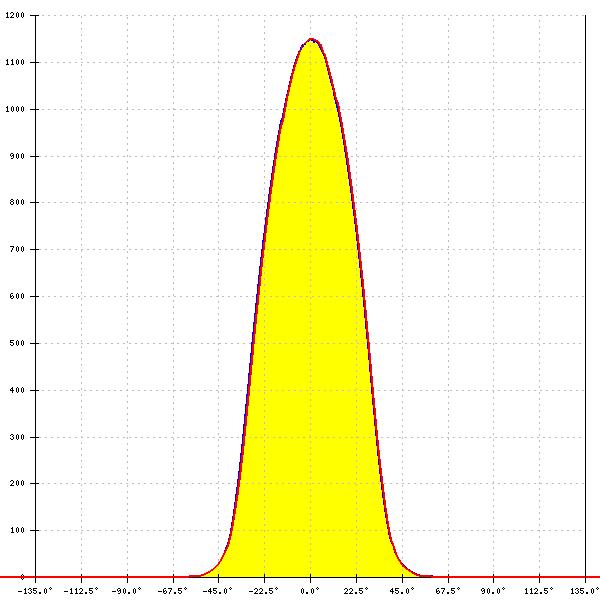

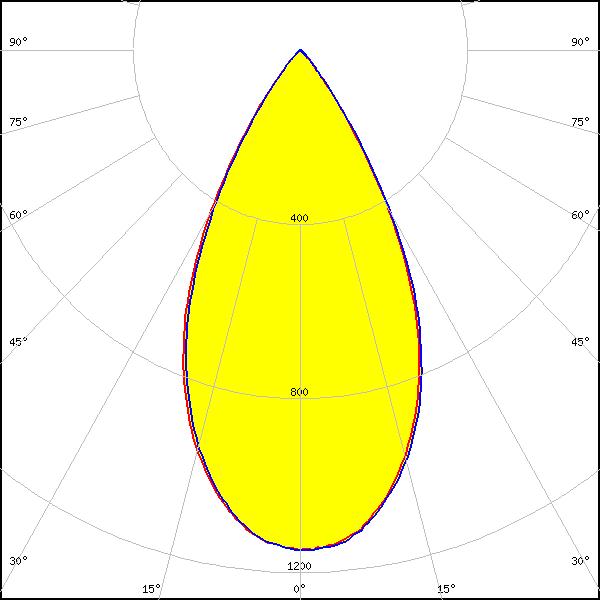

LED: SLE G7 LES09
Required components:
FWHM: 53°
FWTM: 77°
Peak intensity: 1.100 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

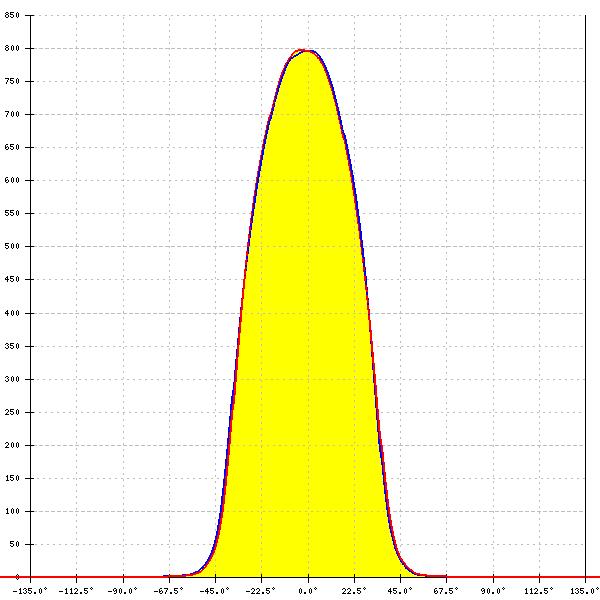

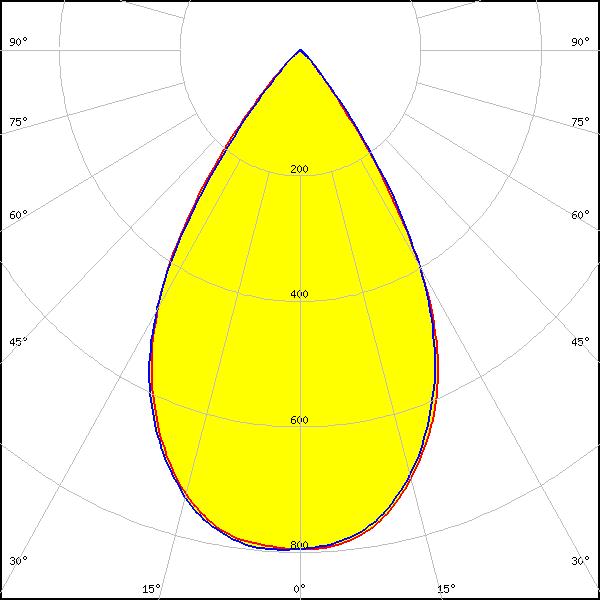

LED: SLE G7 LES13
Required components:
FWHM: 63°
FWTM: 83°
Peak intensity: 0.800 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

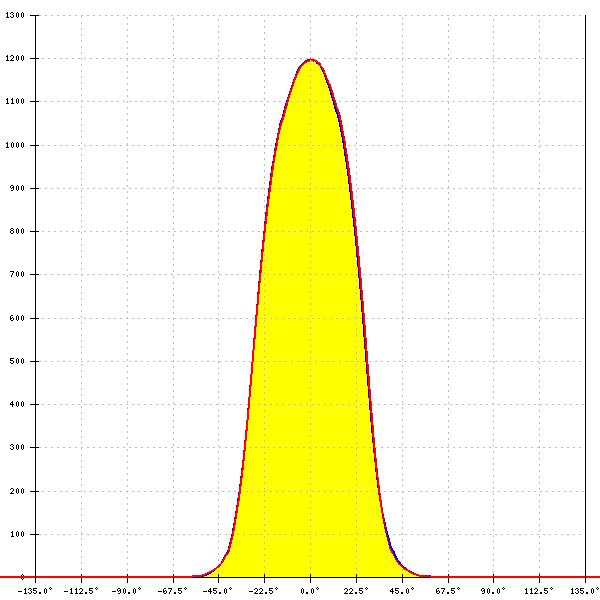

LED: XOB 6 mm
Required components:
FWHM: 53°
FWTM: 74°
Peak intensity: 1.197 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

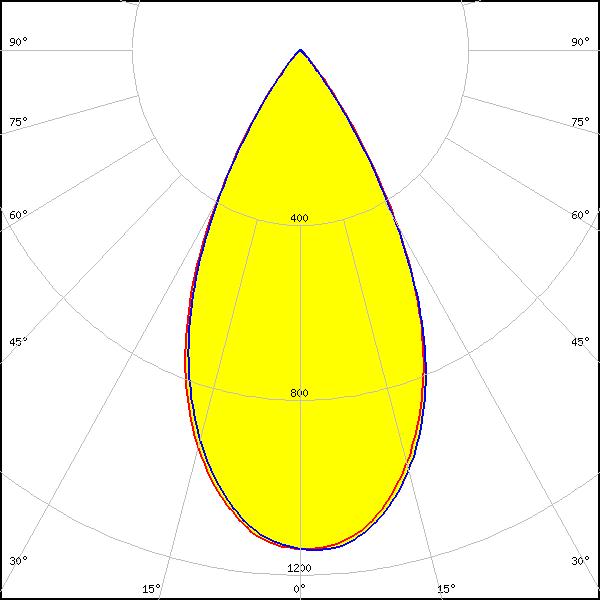

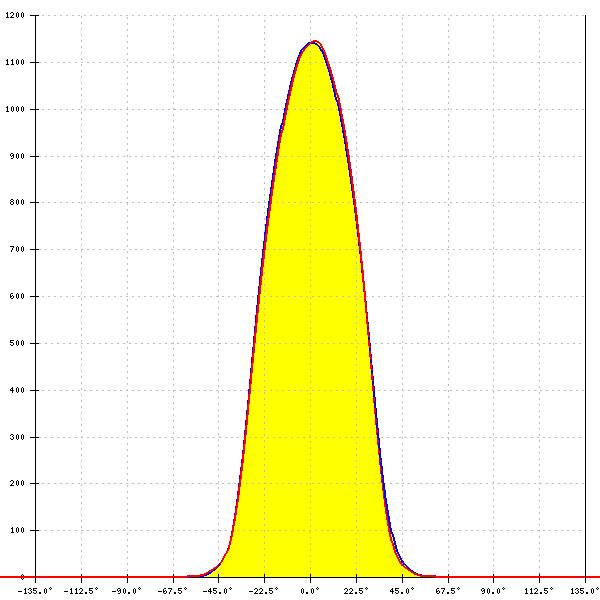

LED: XOB 9.8 mm
Required components:
FWHM: 53°
FWTM: 77°
Peak intensity: 1.144 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

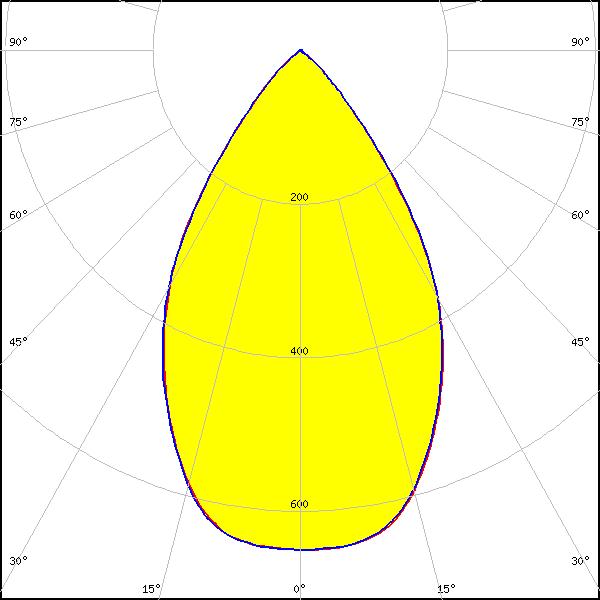

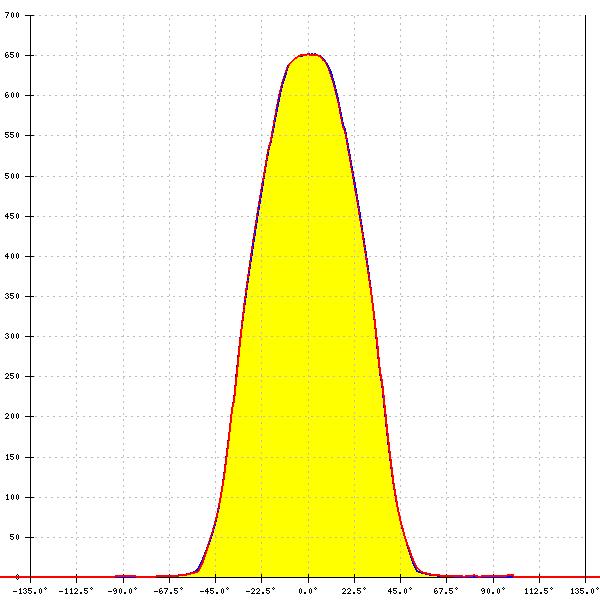

LED: XTM - 19mm LES
Required components:
FWHM: 64°
FWTM: 91°
Peak intensity: 0.650 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
