CP16107_CARMEN-50-S-C

Print

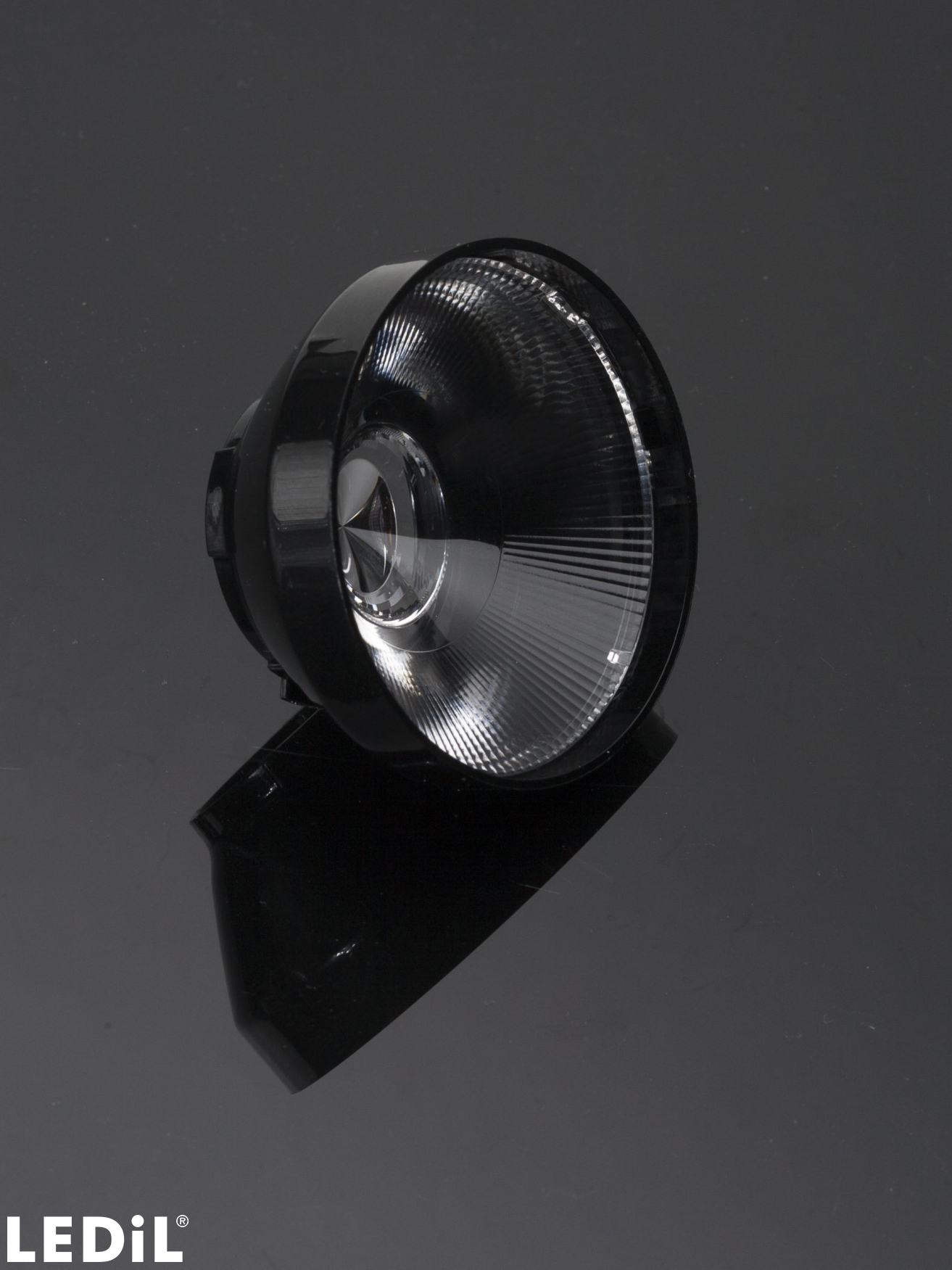

~24° spot beam. Assembly with holder C compatible with LEDiL HEKLA.

Specification
  • Dimensions:
    50 mm
  • Height:
    25.5 mm
  • Fastening:
    socket
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Materials
  • CARMEN-50-S, Single lens, PMMA
  • CARMEN-50-HLD-C, Holder, PC
Packing information
  • Quantity in box:
    308 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    6.9 kg
  • MPQ:
    28 pcs
  • MOQ:
    112 pcs
  • MOQ size:
    480 x 280 x 120 mm
  • MOQ weight:
    2.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

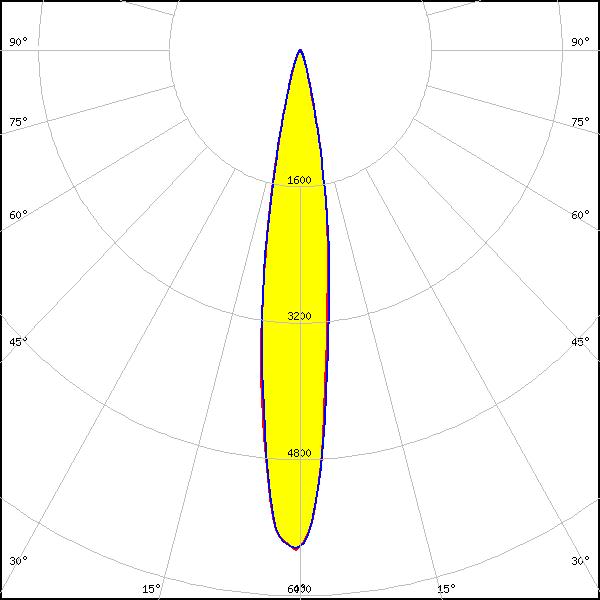

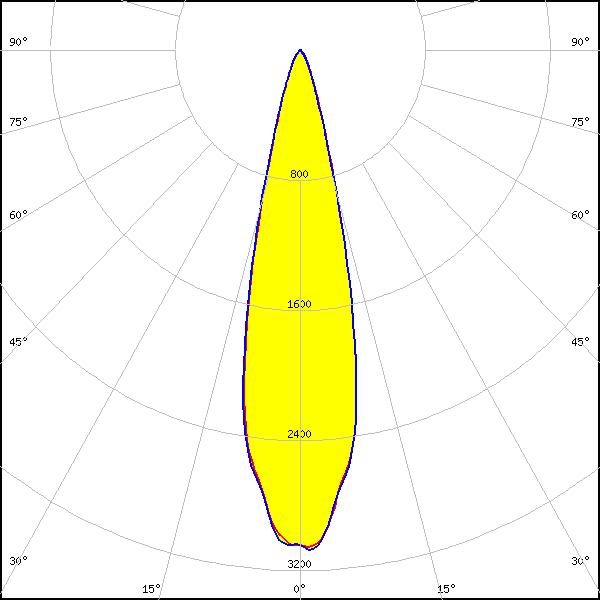

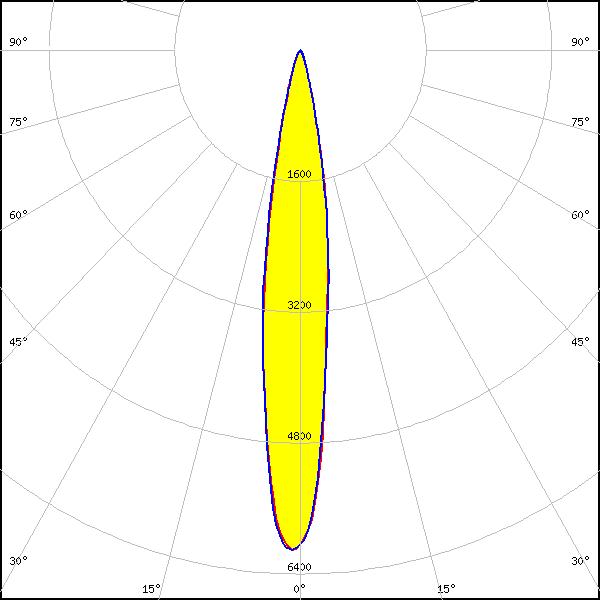

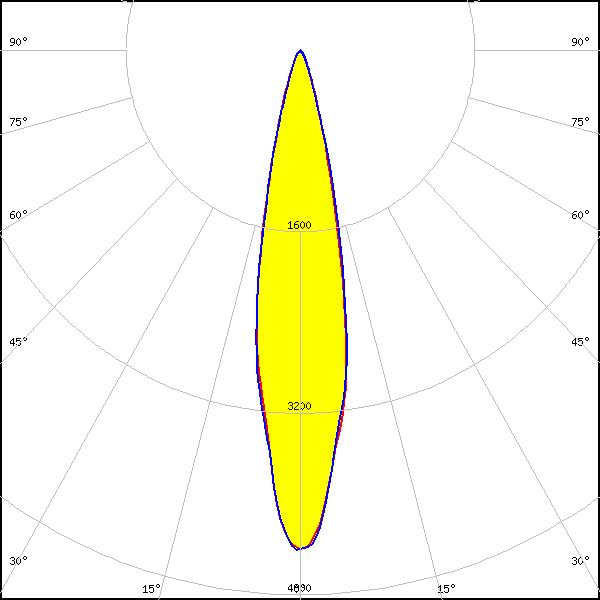

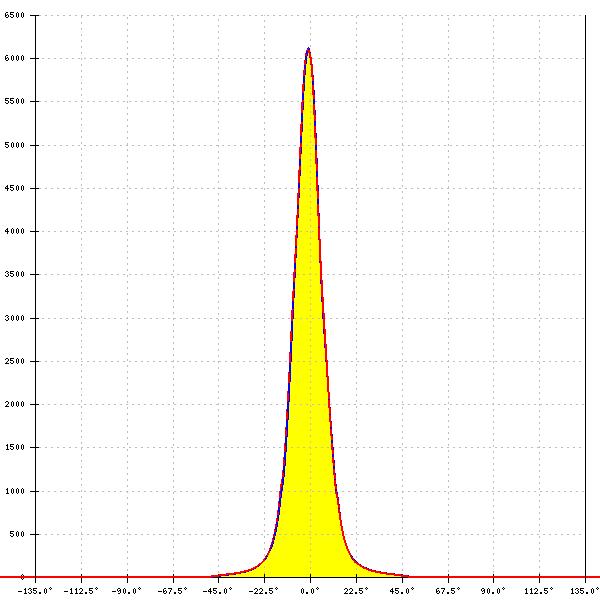

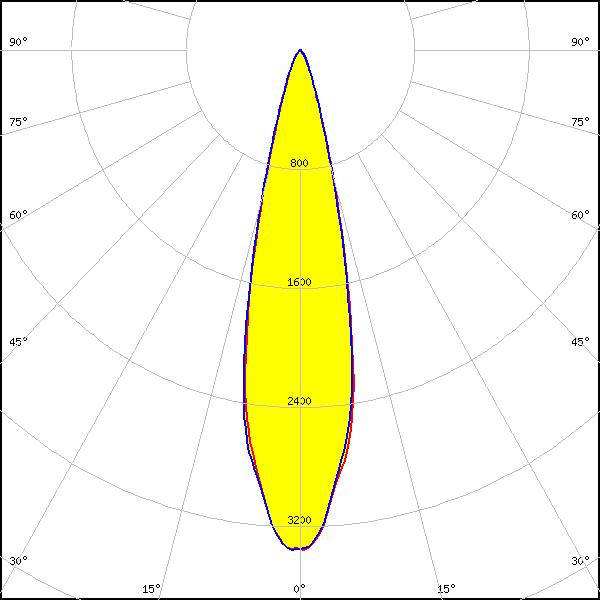

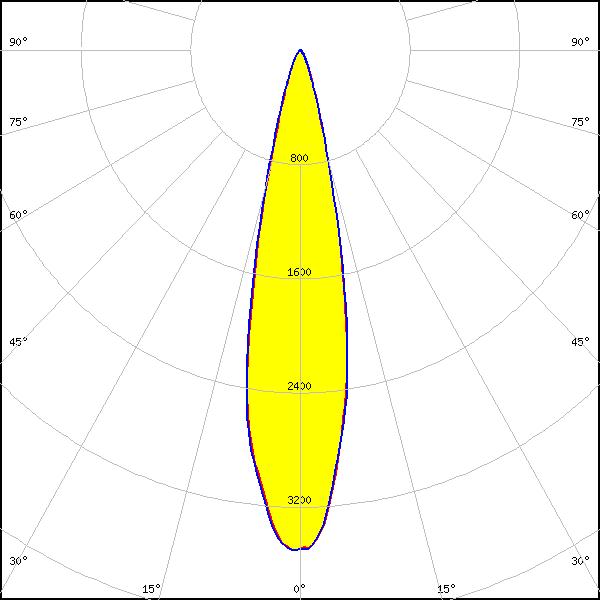

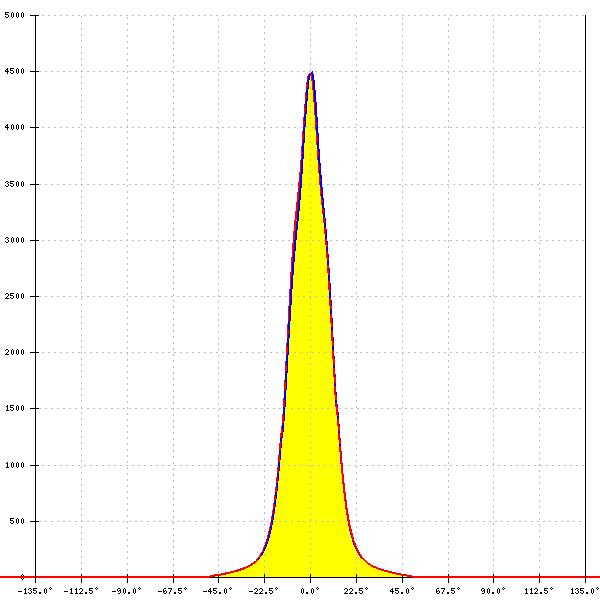

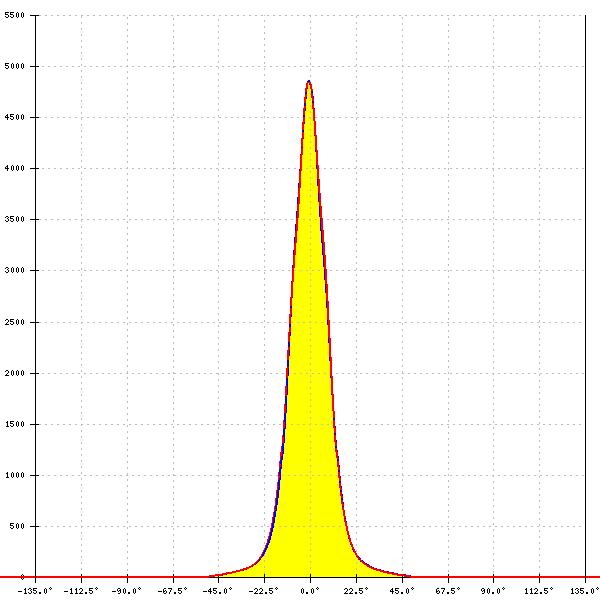

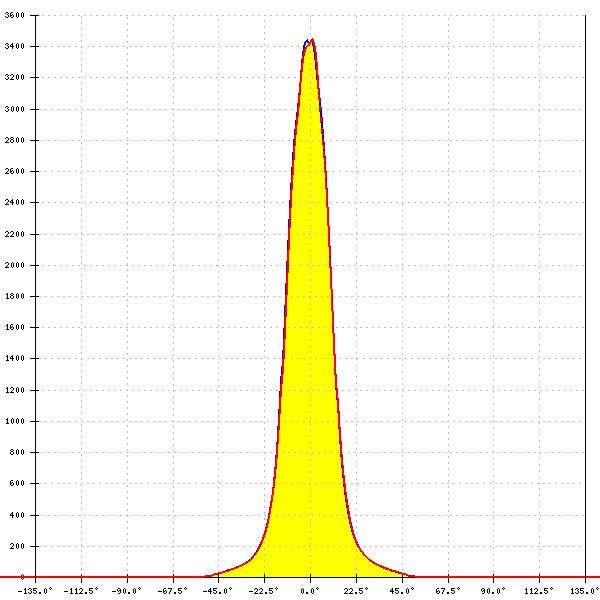

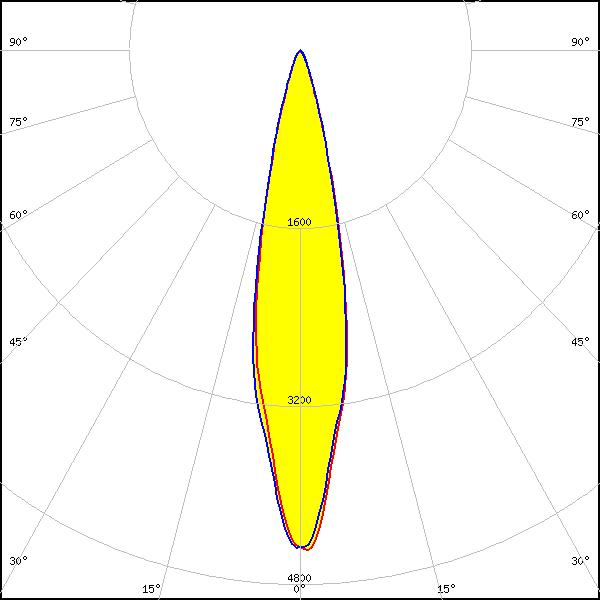

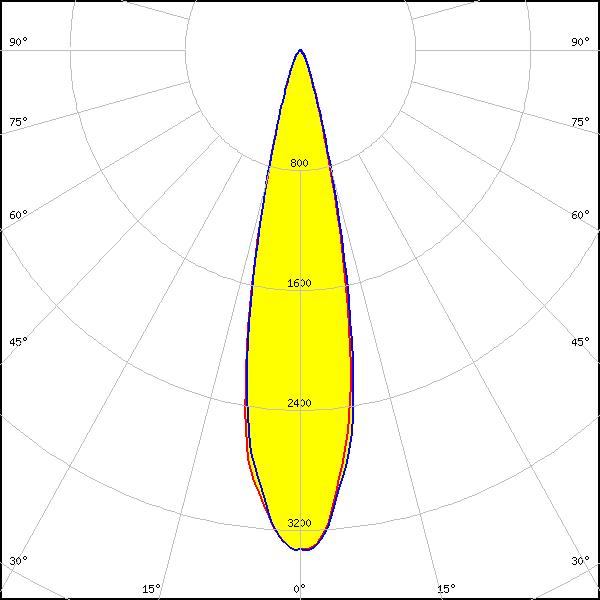

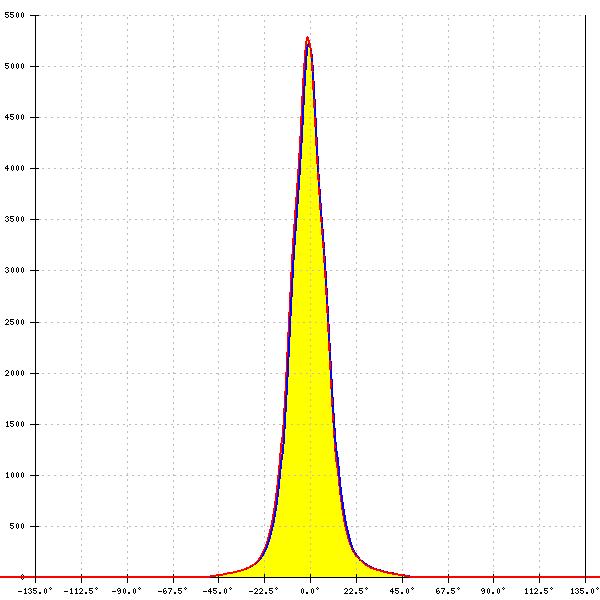

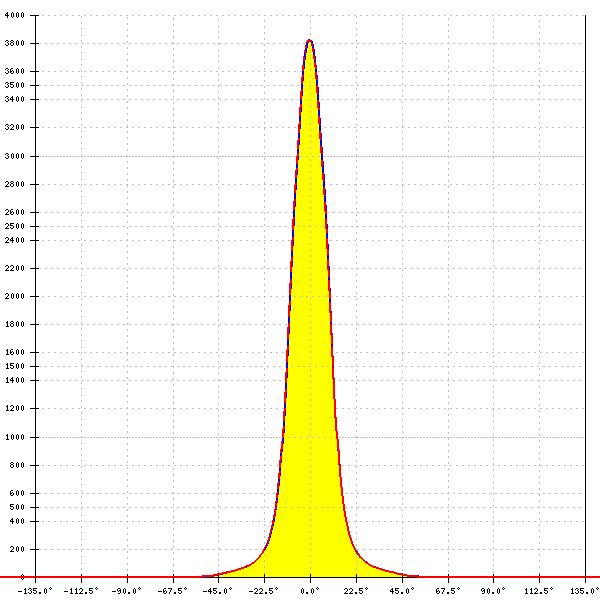

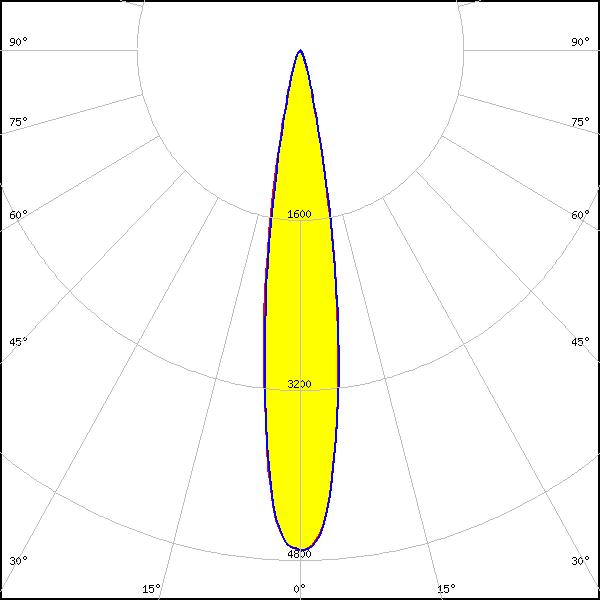

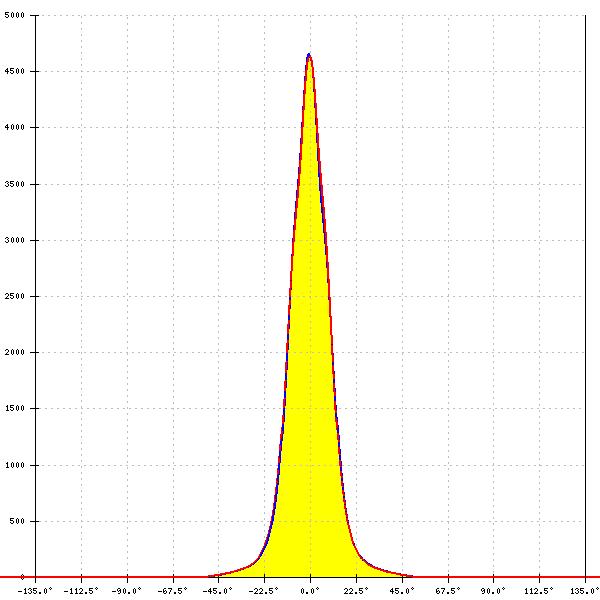

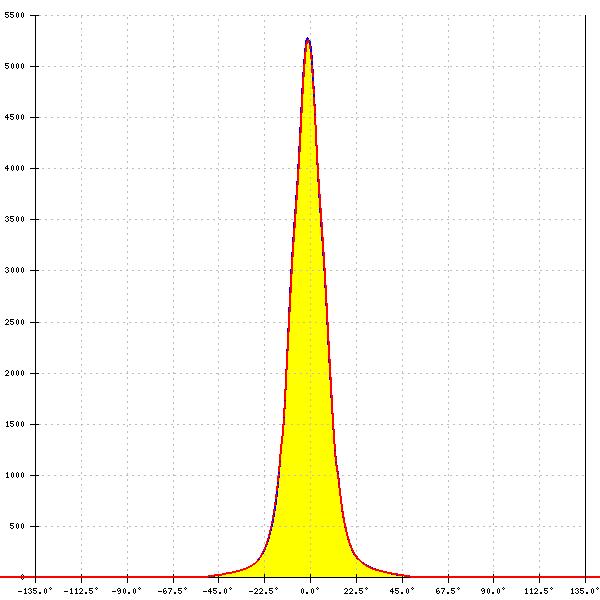

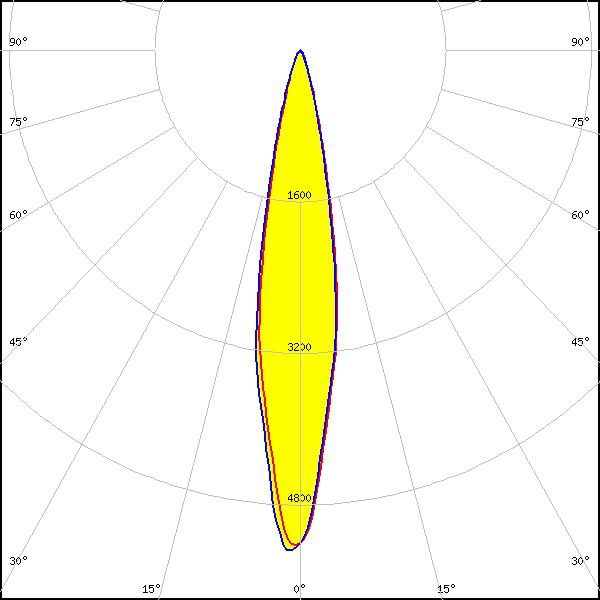

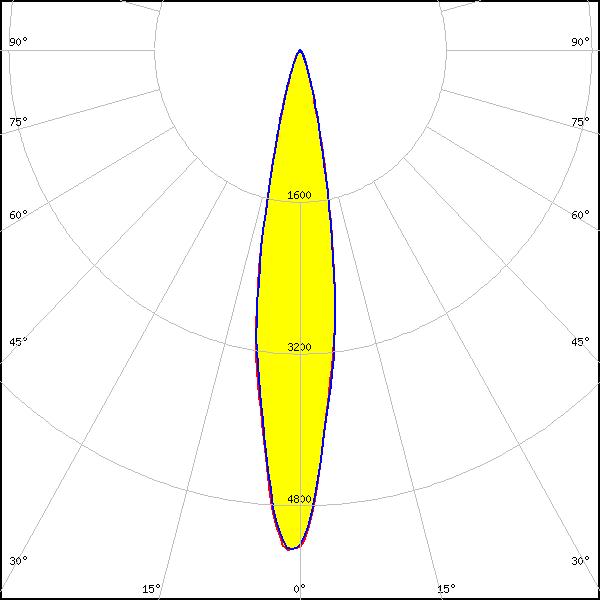

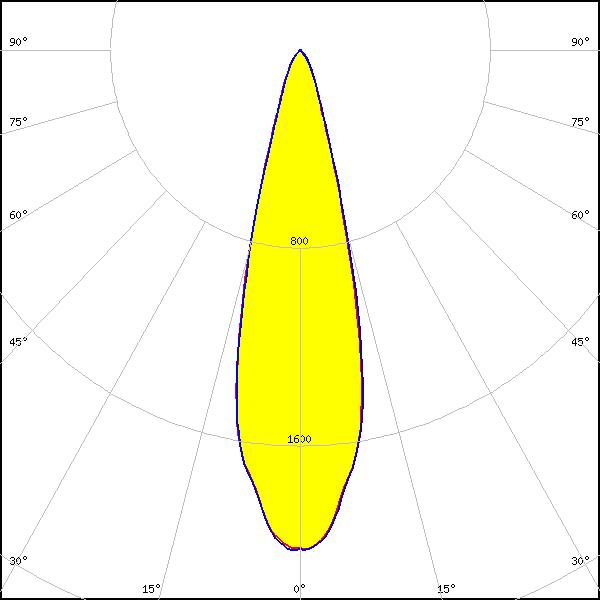

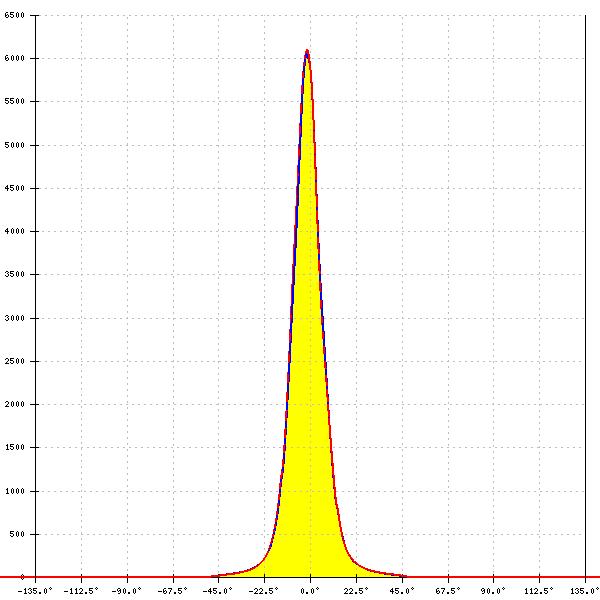

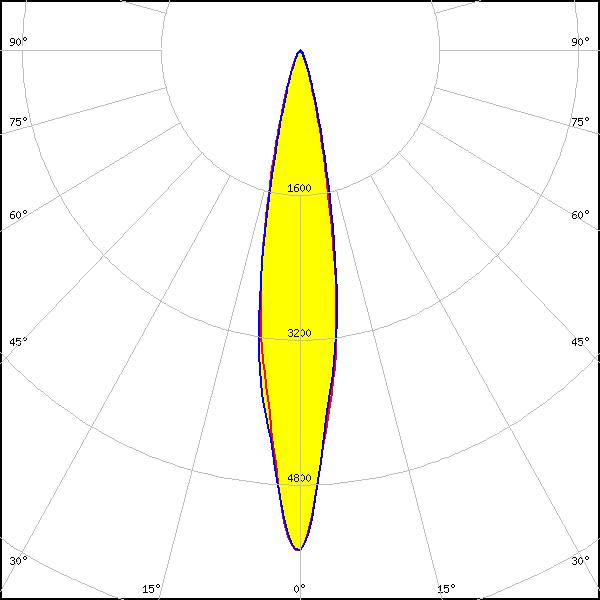

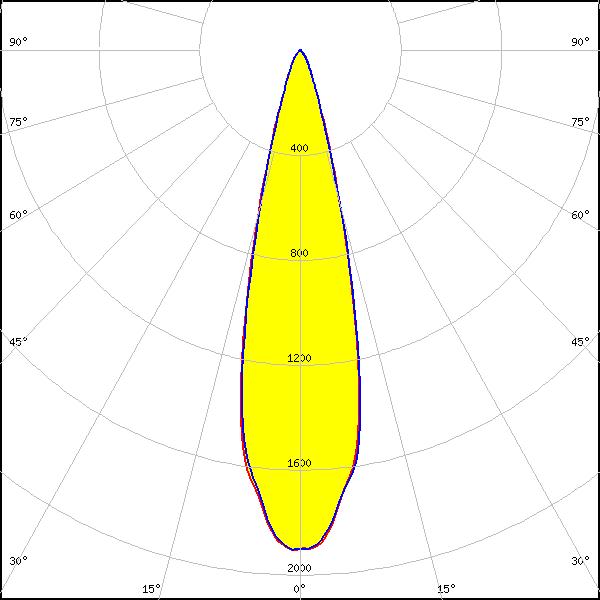

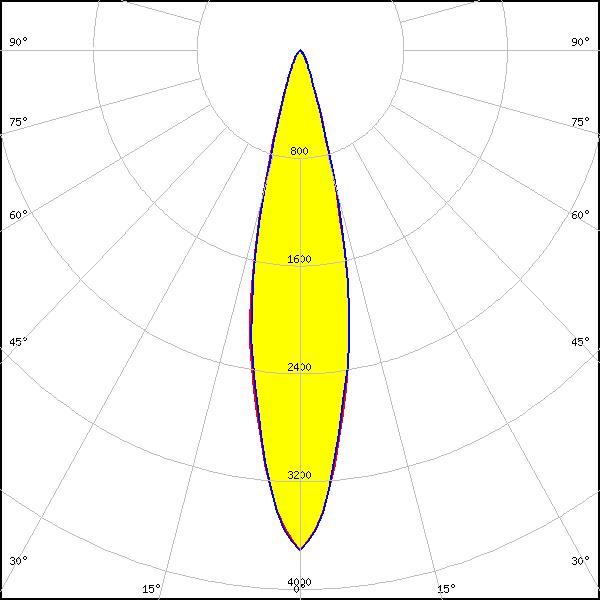

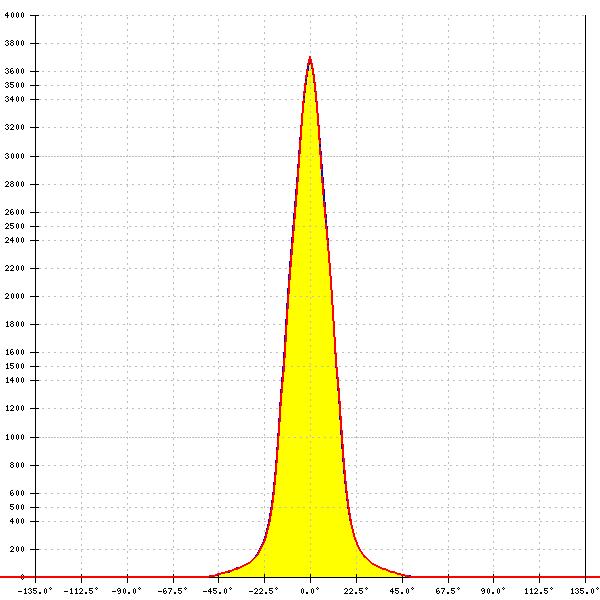

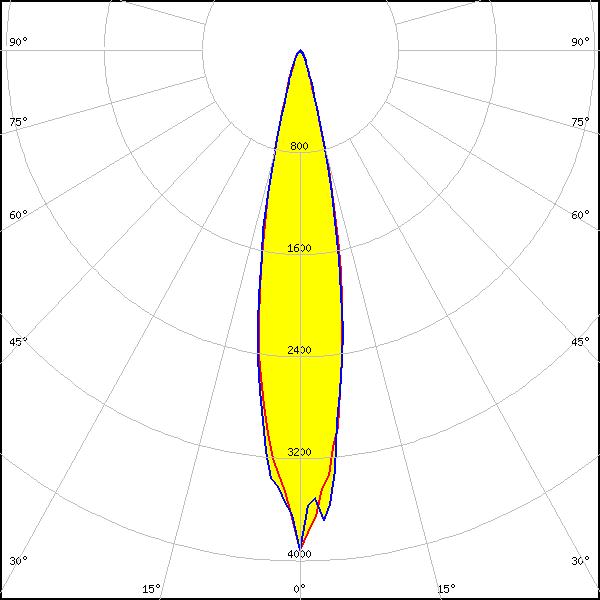

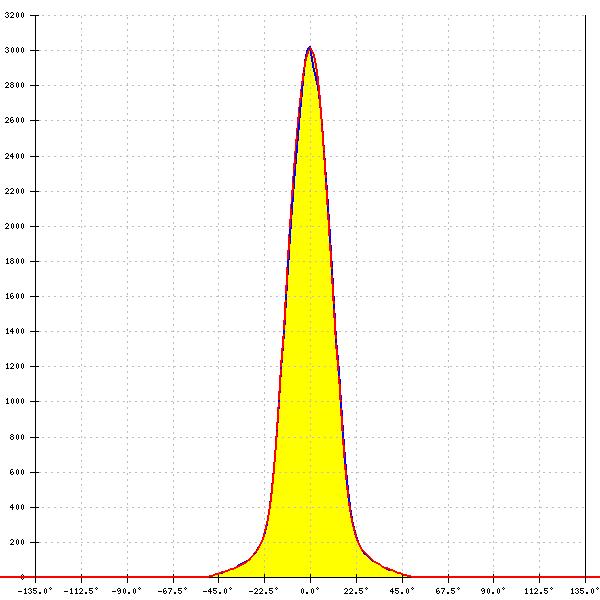

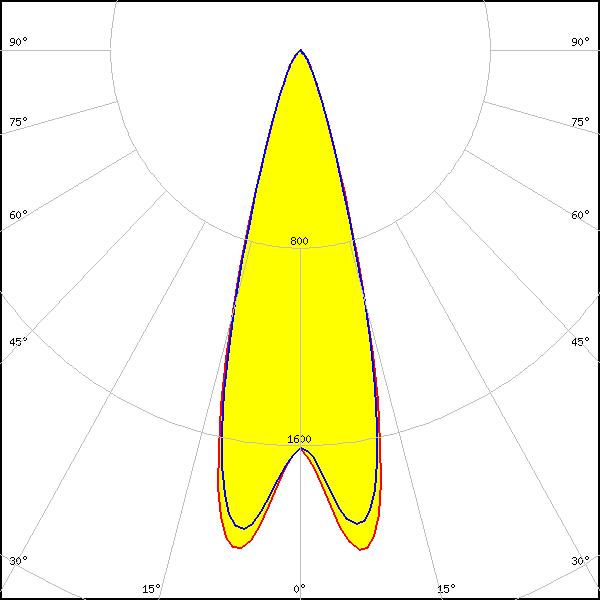

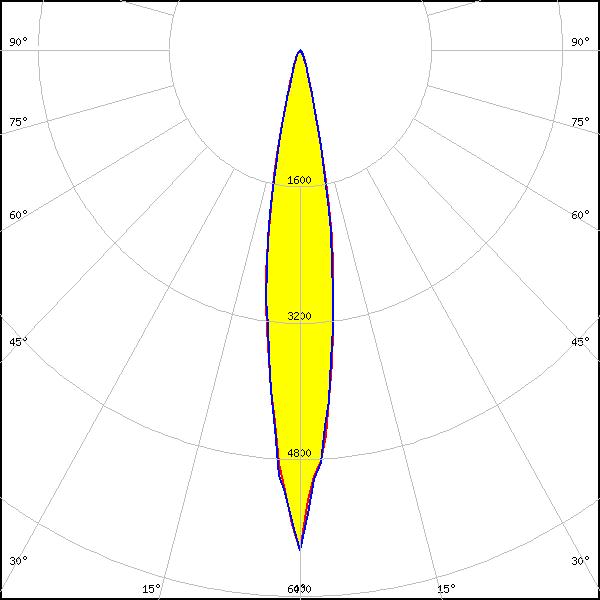

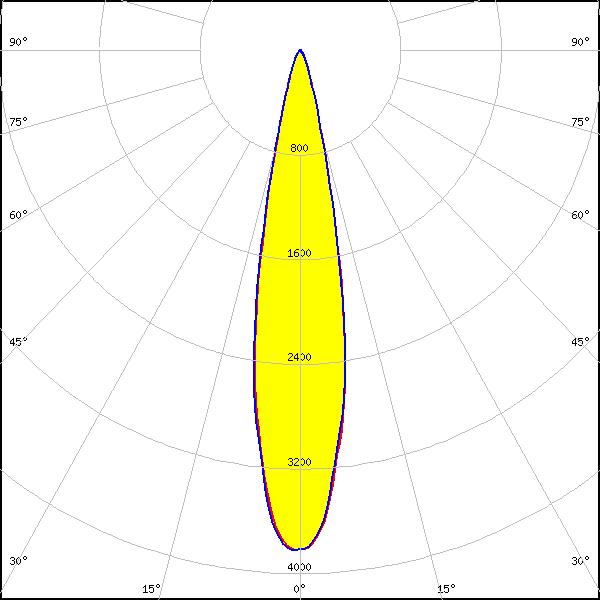

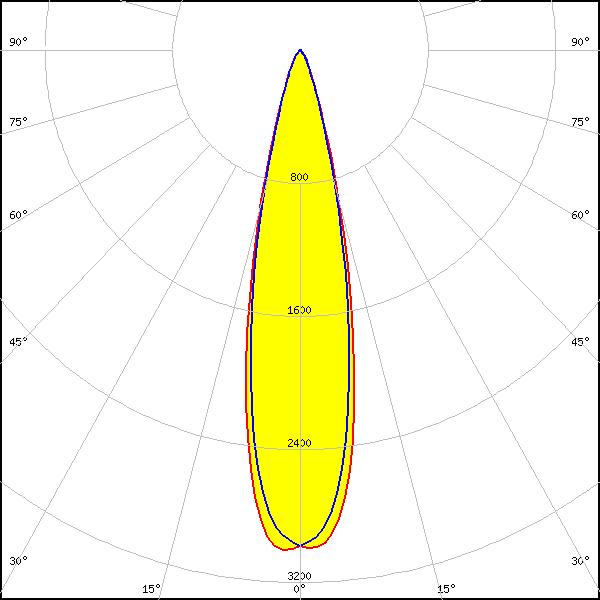

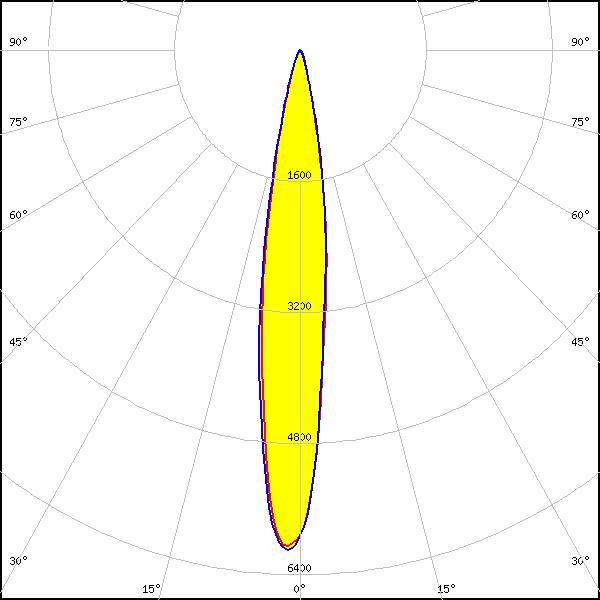

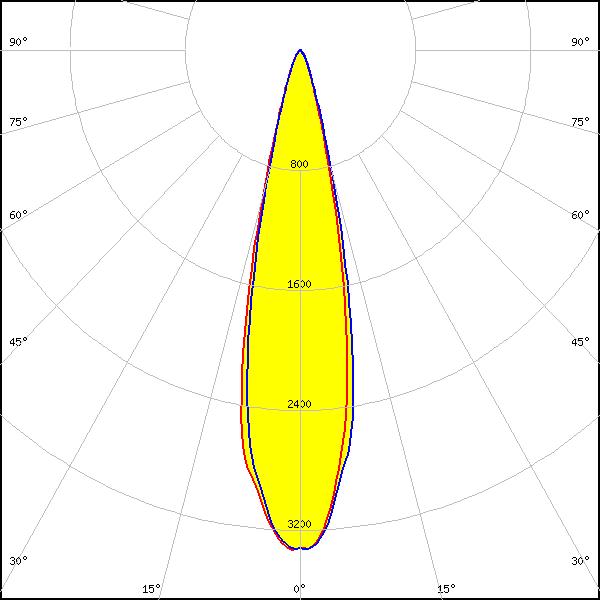

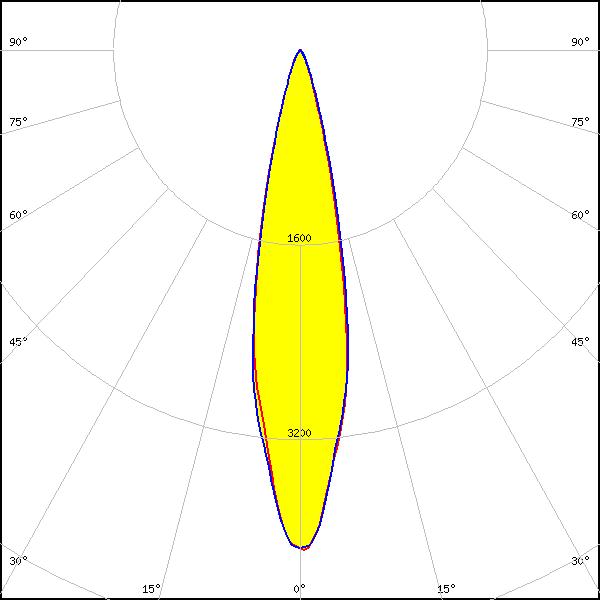

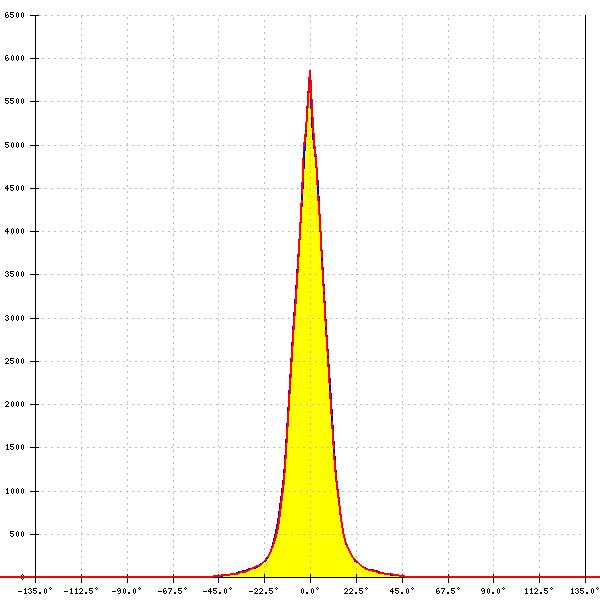

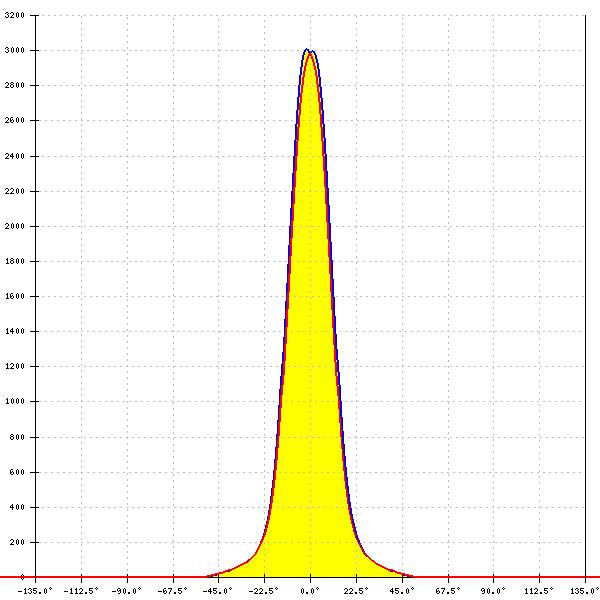

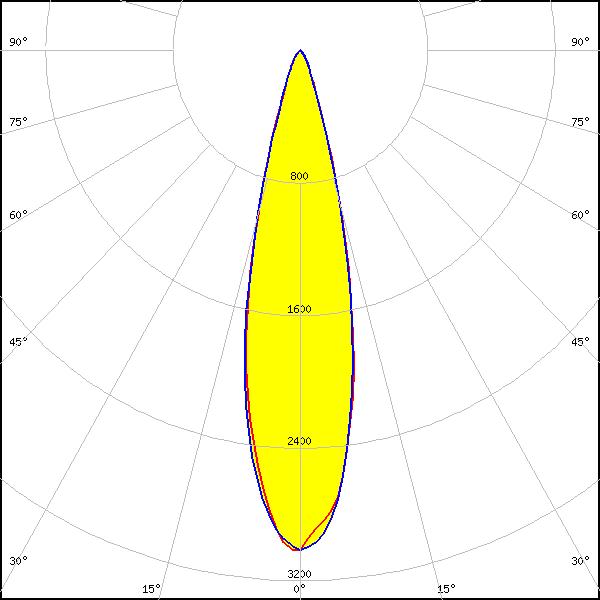

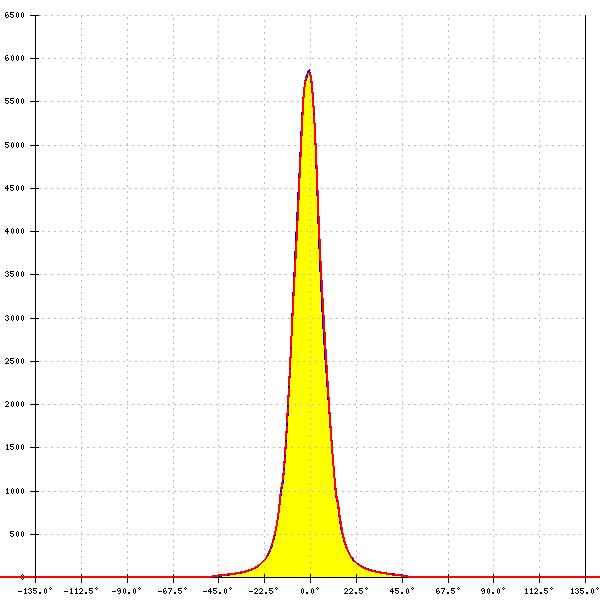

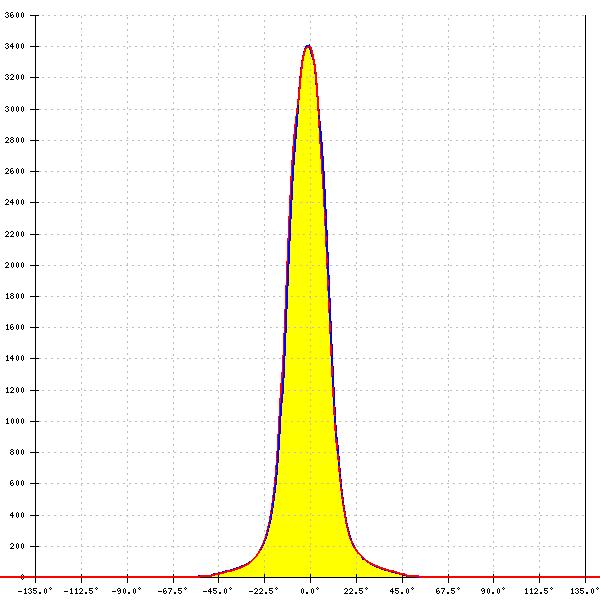

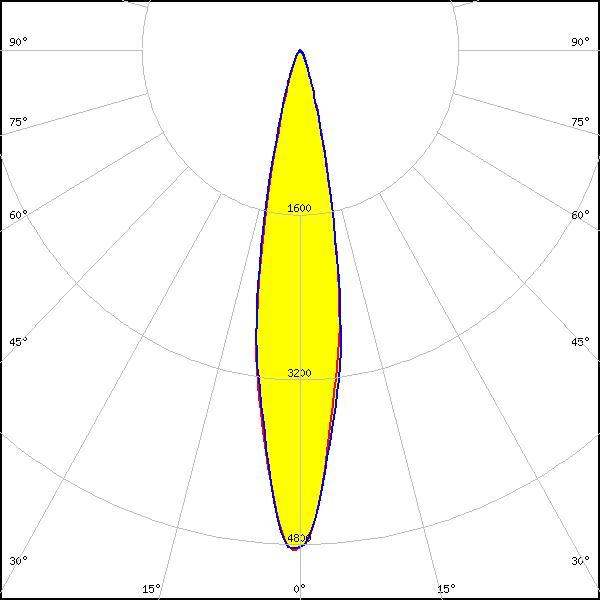

Optical results

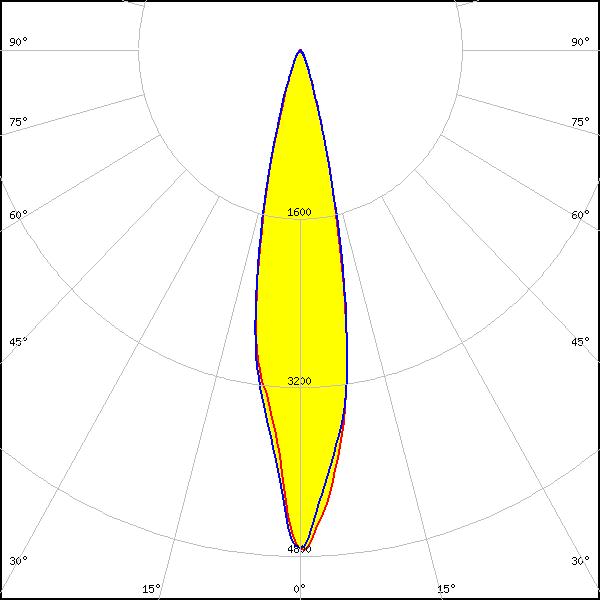

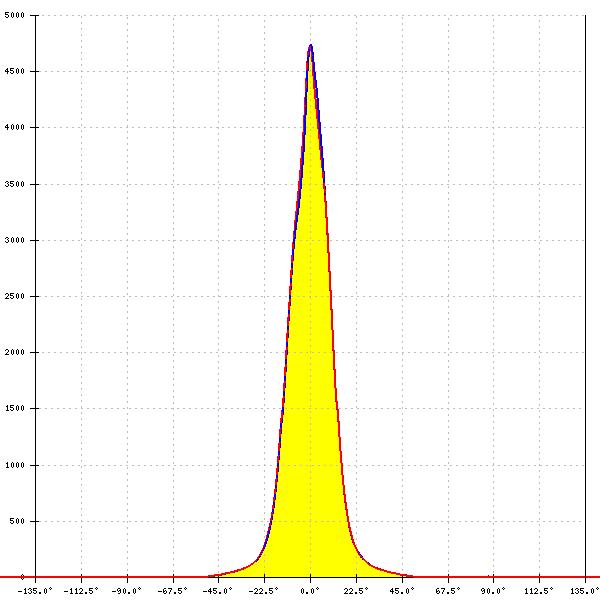

LED: V4 HD
Required components:
FWHM: 21°
Peak intensity: 4.7 cd/lm
Efficiency: 79 %

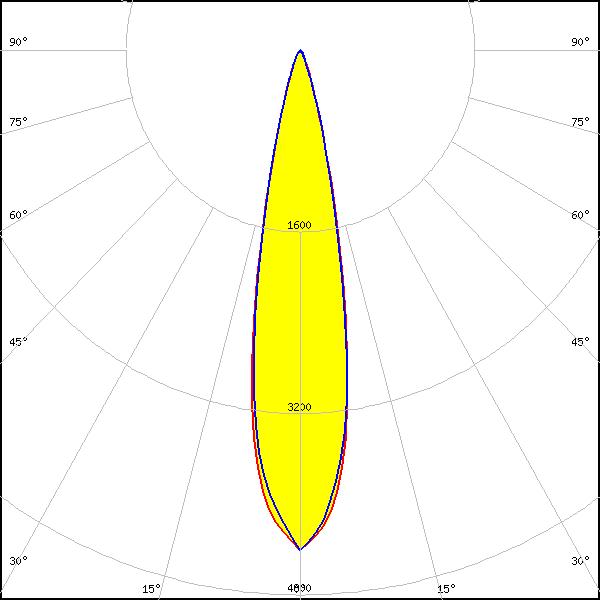

LED: V6 Gen6
Required components:
FWHM: 21°
Peak intensity: 4.4 cd/lm
Efficiency: 71 %

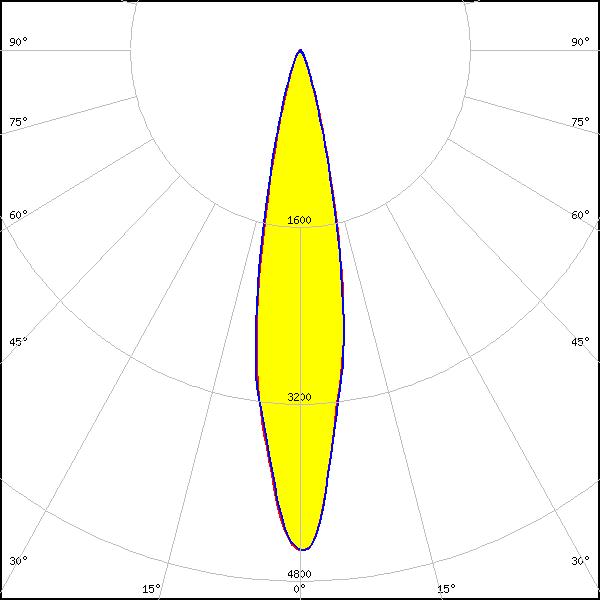

LED: V6 HD
Required components:
FWHM: 20°
Peak intensity: 4.5 cd/lm
Efficiency: 73 %

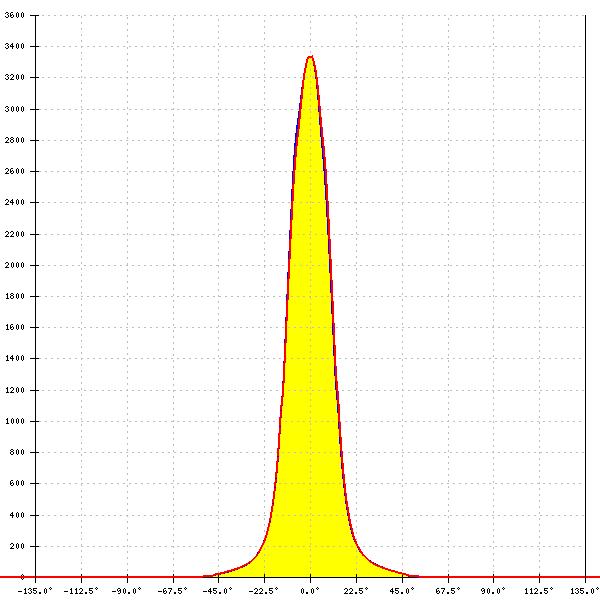

LED: V9 HD
Required components:
FWHM: 23°
Peak intensity: 3.3 cd/lm
Efficiency: 65 %

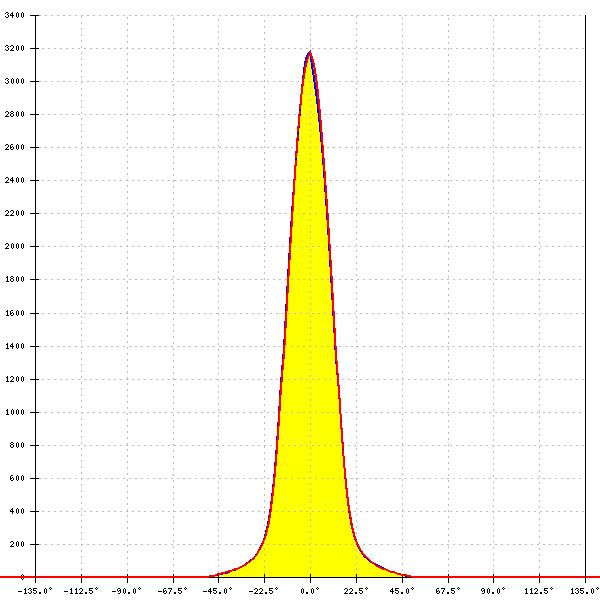

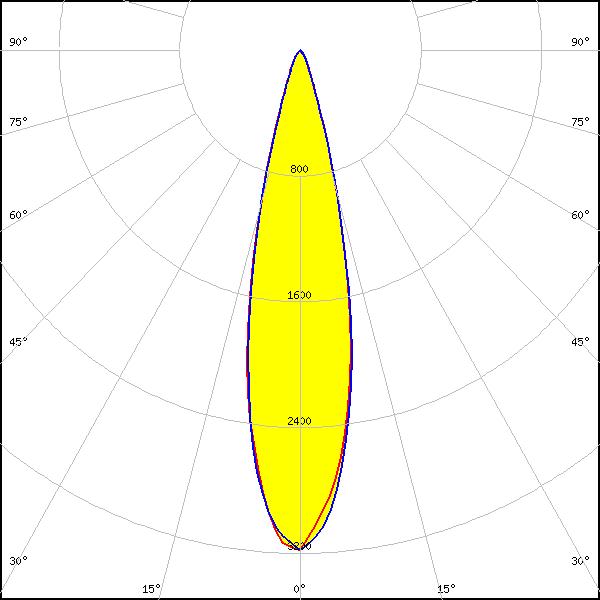

LED: VERO10
Required components:
FWHM: 24°
Peak intensity: 3.2 cd/lm
Efficiency: 64 %
LED: VERO13
Required components:
FWHM: 27°
Peak intensity: 2.5 cd/lm
Efficiency: 66 %

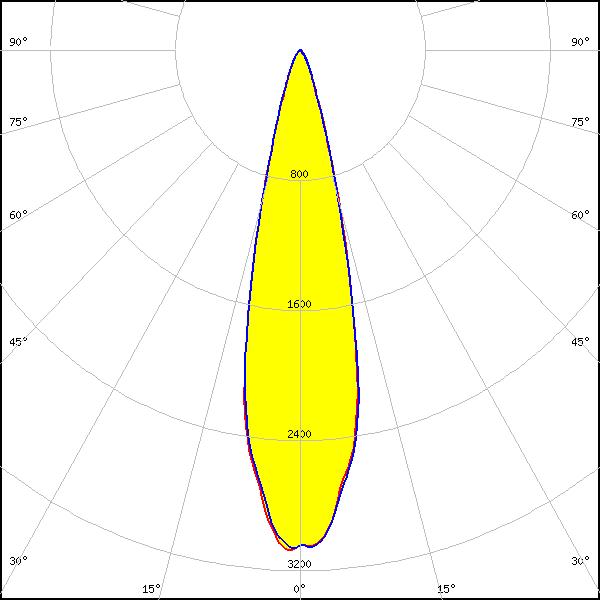

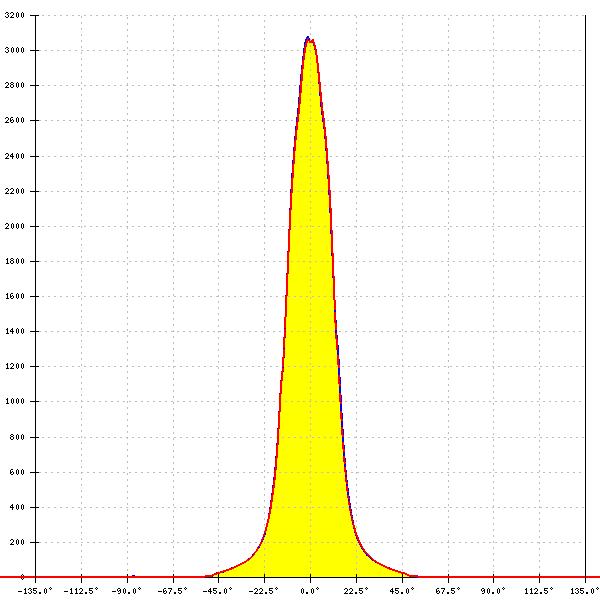

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 24°
Peak intensity: 3.1 cd/lm
Efficiency: 66 %

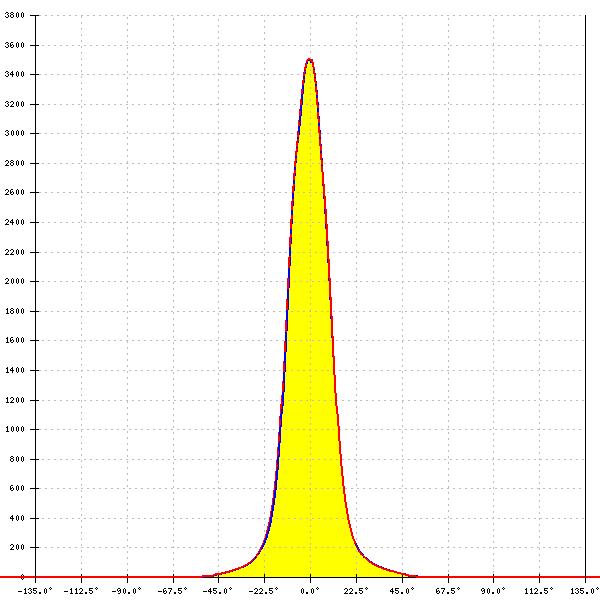

LED: CLU700/701
Required components:
FWHM: 19°
Peak intensity: 5.3 cd/lm
Efficiency: 73 %

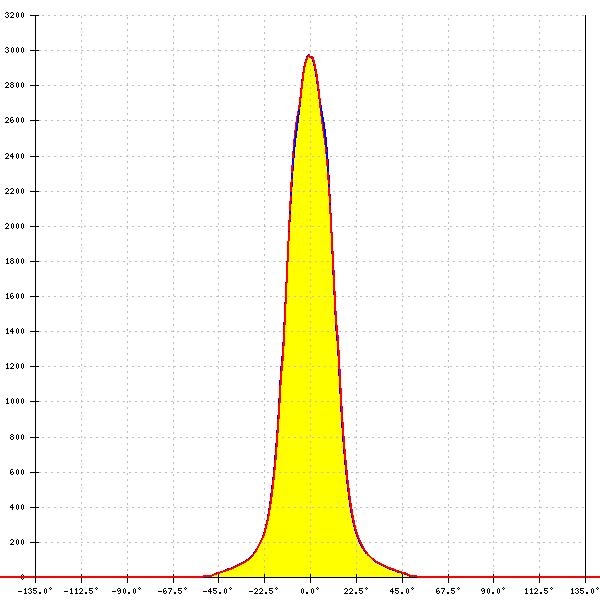

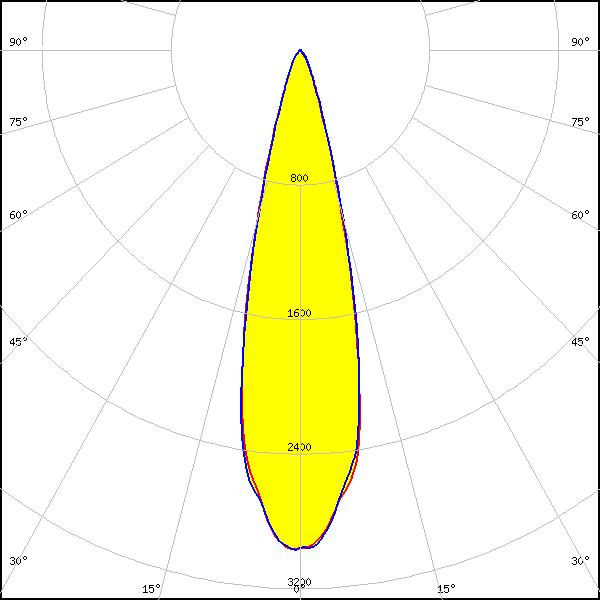

LED: CMA1516
Required components:
FWHM: 25°
Peak intensity: 3.0 cd/lm
Efficiency: 68 %

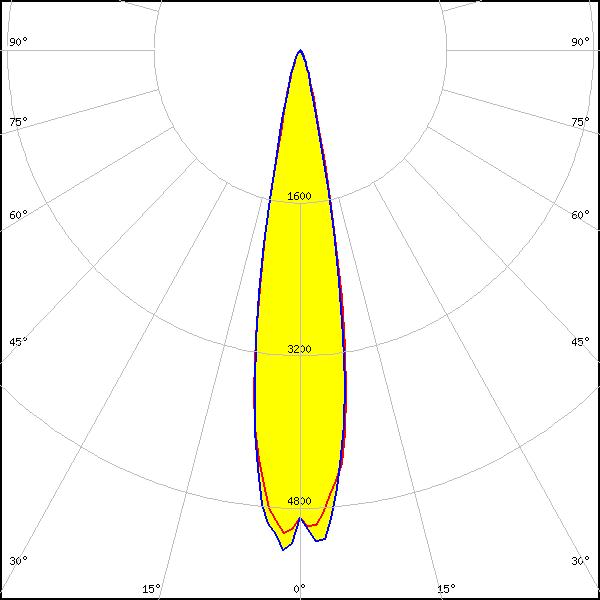

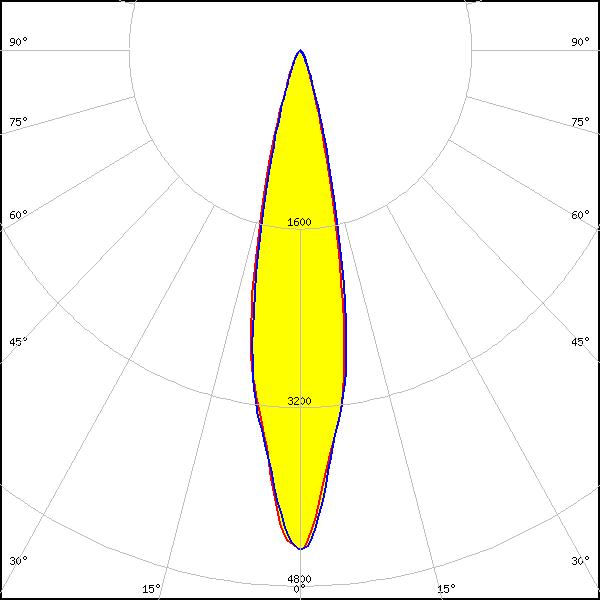

LED: CXA/B 13xx
Required components:
FWHM: 22°
Peak intensity: 4.5 cd/lm
Efficiency: 77 %
LED: CXA/B 13xx
Required components:
FWHM: 21°
Peak intensity: 4.5 cd/lm
Efficiency: 76 %

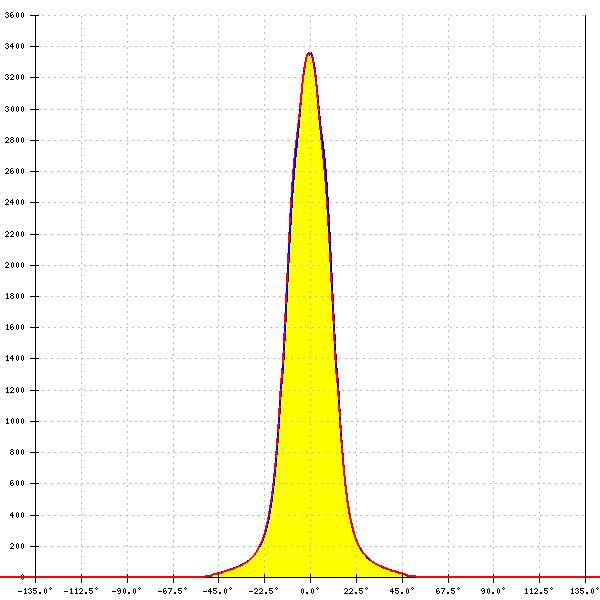

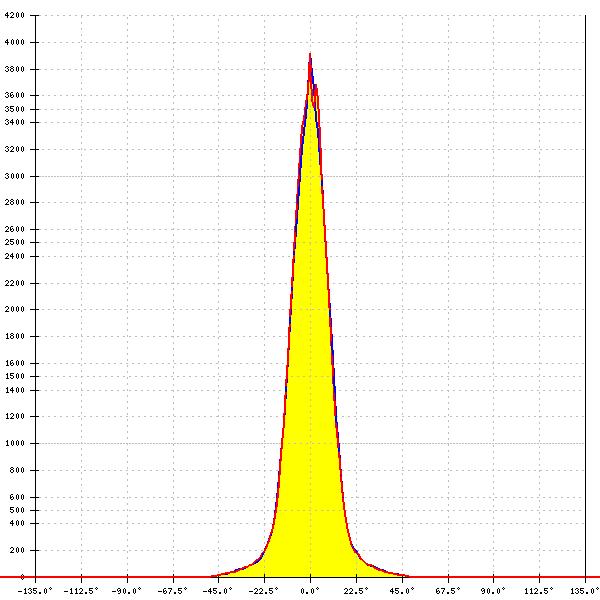

LED: CXA/B 15xx
Required components:
FWHM: 24°
Peak intensity: 3.4 cd/lm
Efficiency: 69 %

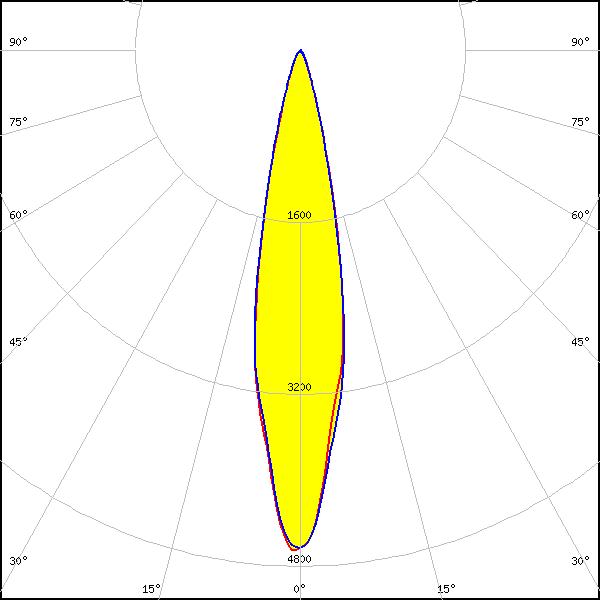

LED: LUXEON CoB 1202s
Required components:
FWHM: 21°
Peak intensity: 4.7 cd/lm
Efficiency: 75 %
LED: LUXEON CoB Dimtone 15x12
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 17°
Peak intensity: 5.1 cd/lm
Efficiency: 62 %

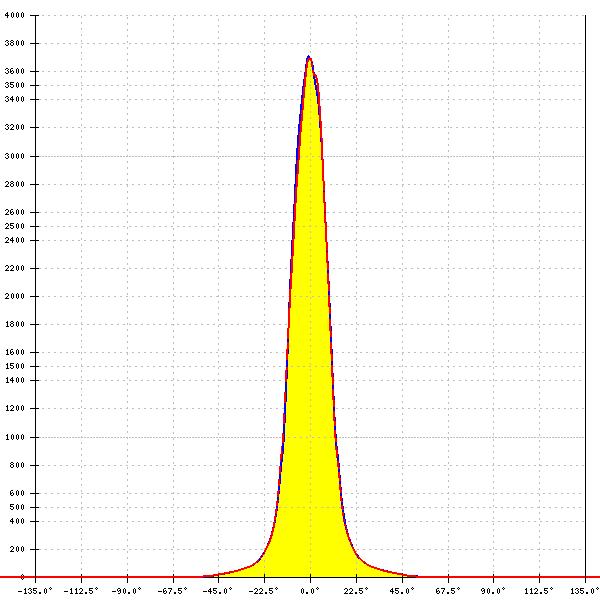

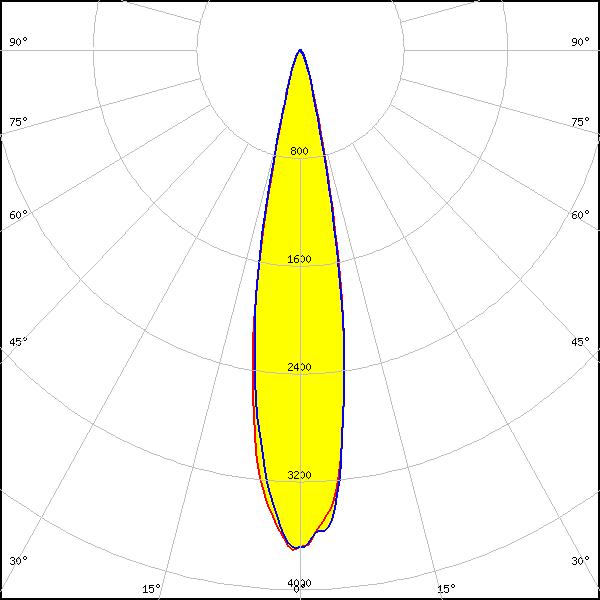

LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 21°
Peak intensity: 3.7 cd/lm
Efficiency: 57 %

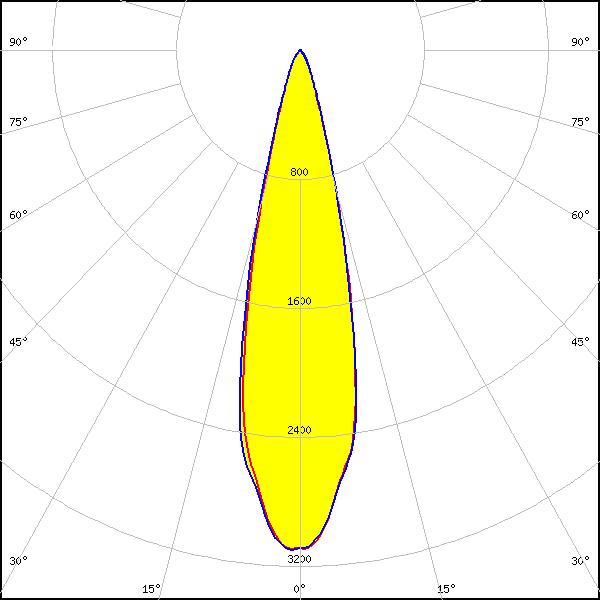

LED: CXM-9
Required components:
FWHM: 24°
Peak intensity: 3.1 cd/lm
Efficiency: 67 %

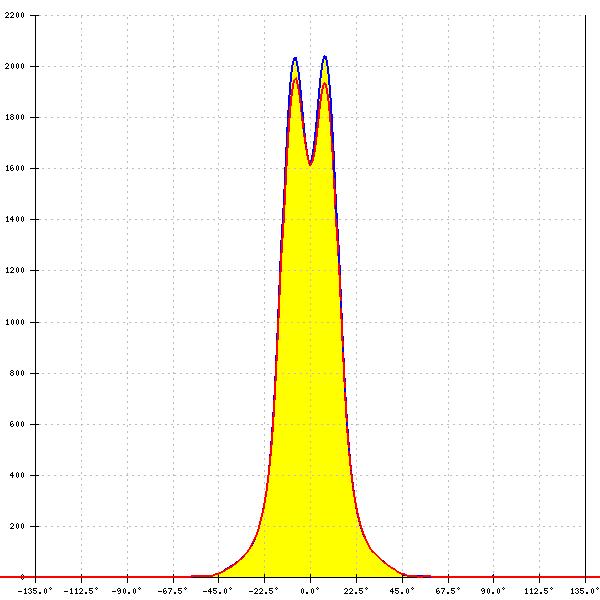

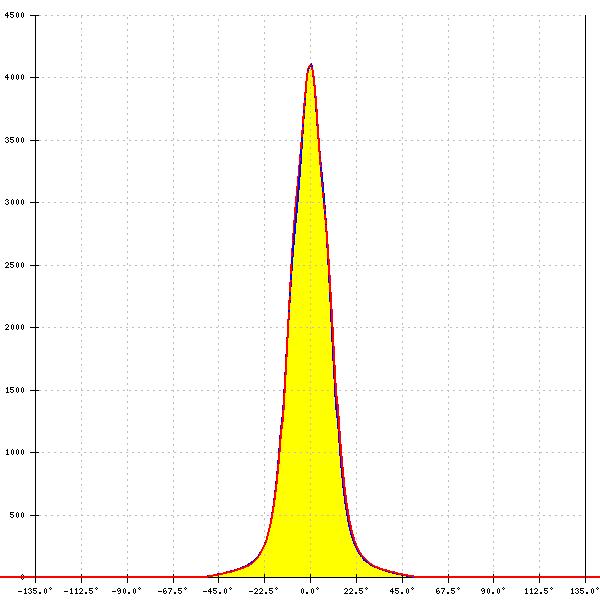

LED: COB S-Type (LES 7)
Required components:
FWHM: 22°
Peak intensity: 4.1 cd/lm
Efficiency: 73 %
LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 17°
Peak intensity: 4.7 cd/lm
Efficiency: 56 %
LED: Fortimo SLM L09 CoB
Required components:
FWHM: 24°
Peak intensity: 3.1 cd/lm
Efficiency: 65 %

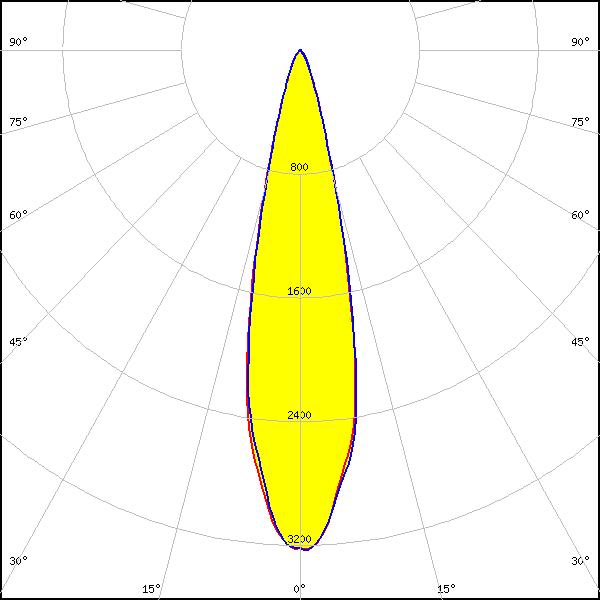

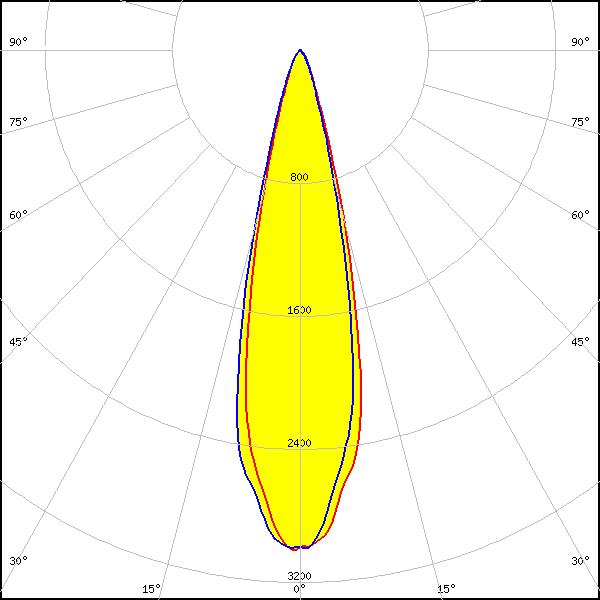

LED: COB D Series LES 9.8 mm
Required components:
FWHM: 25°
Peak intensity: 3.0 cd/lm
Efficiency: 67 %
LED: LC010C G2
Required components:
FWHM: 19°
Peak intensity: 5.3 cd/lm
Efficiency: 74 %
LED: SLE G5 LES11
Required components:
FWHM: 24°
Peak intensity: 3.0 cd/lm
Efficiency: 63 %

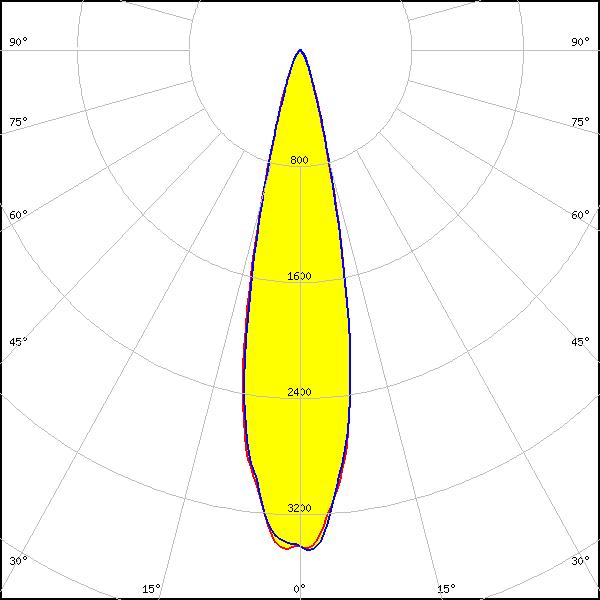

LED: SLE G7 LES09
Required components:
FWHM: 23°
Peak intensity: 3.5 cd/lm
Efficiency: 69 %

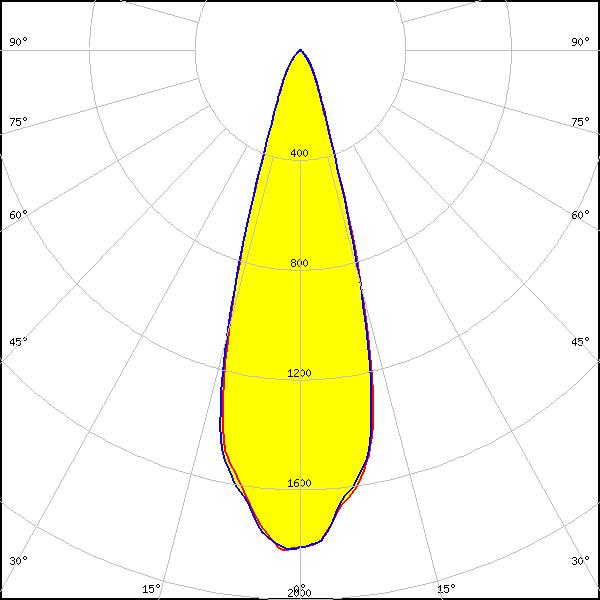

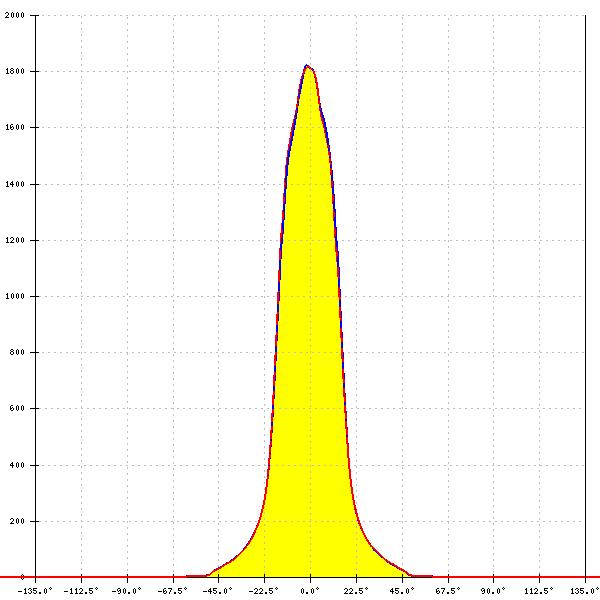

LED: SLE G7 LES13
Required components:
FWHM: 31°
Peak intensity: 1.8 cd/lm
Efficiency: 58 %

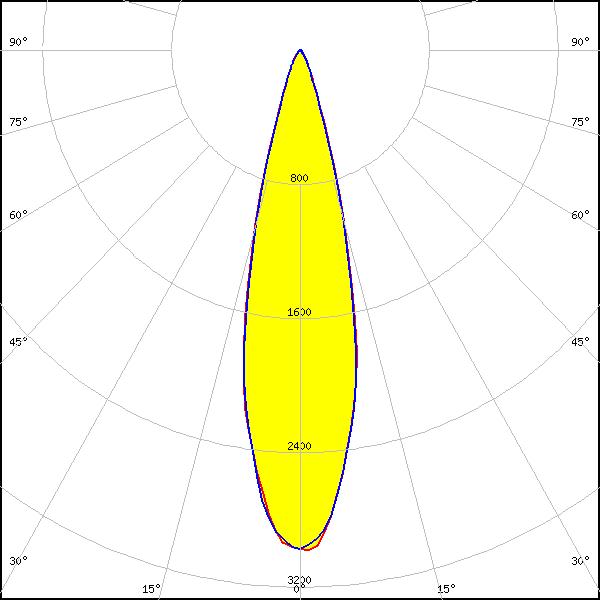

LED: XTM - 9mm LES
Required components:
FWHM: 25°
Peak intensity: 3.0 cd/lm
Efficiency: 67 %
