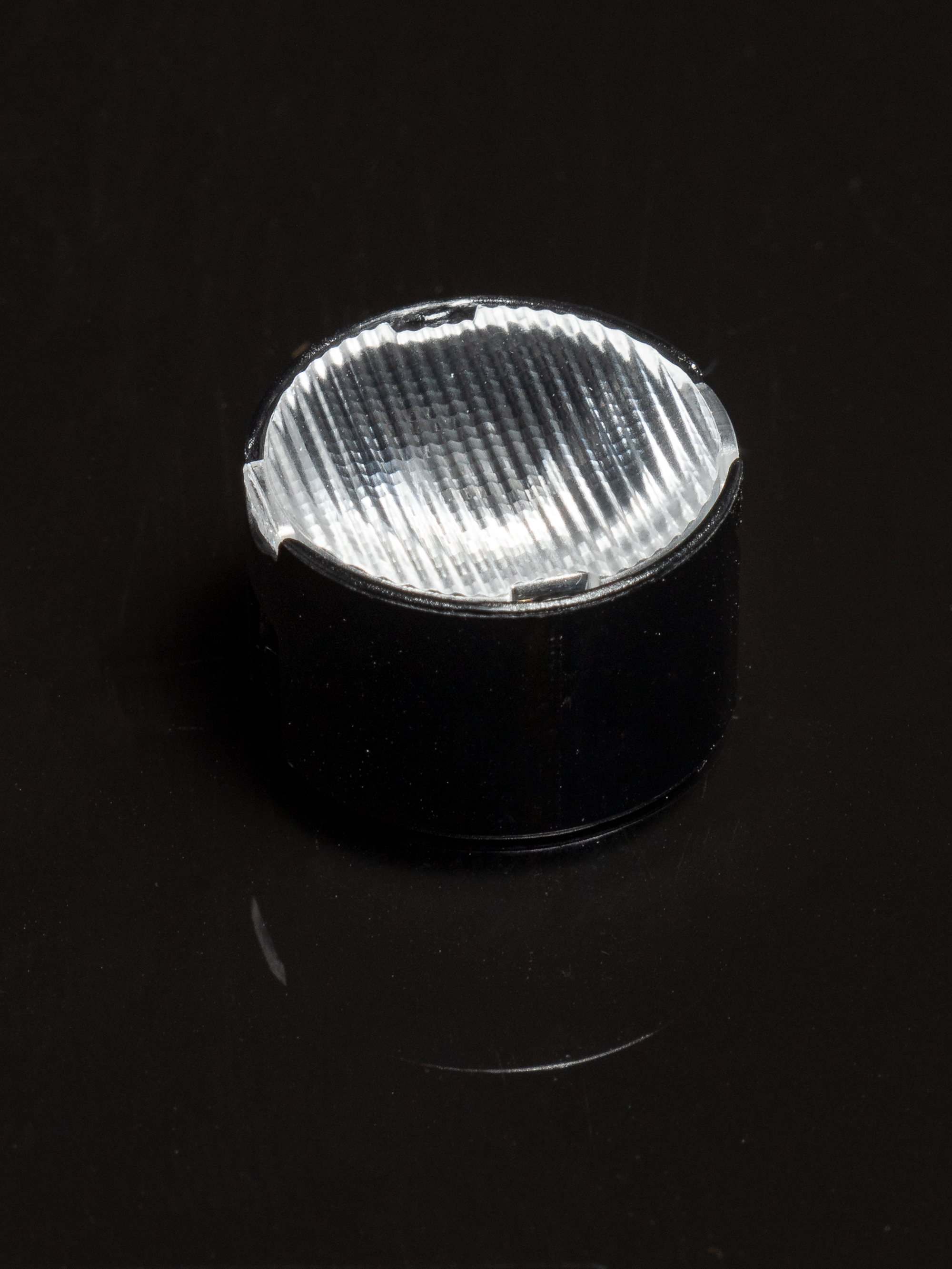

CP17596_TINA-SC-O

Print

~35° + 15° oval beam

Specification
  • Dimensions:
    16 mm
  • Height:
    10.10 mm
  • Fastening:
    clips
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    2400 pcs
  • Box size:
    300 x 250 x 250 mm
  • Box weight:
    5.2 kg
  • MPQ:
    240 pcs
  • MOQ:
    240 pcs
  • MOQ size:
    300 x 260 x 40 mm
  • MOQ weight:
    0.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CP17596_TINA-SC-O

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

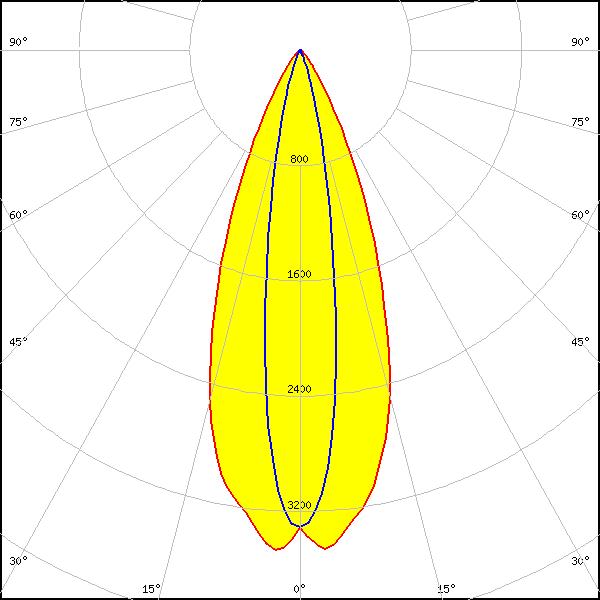

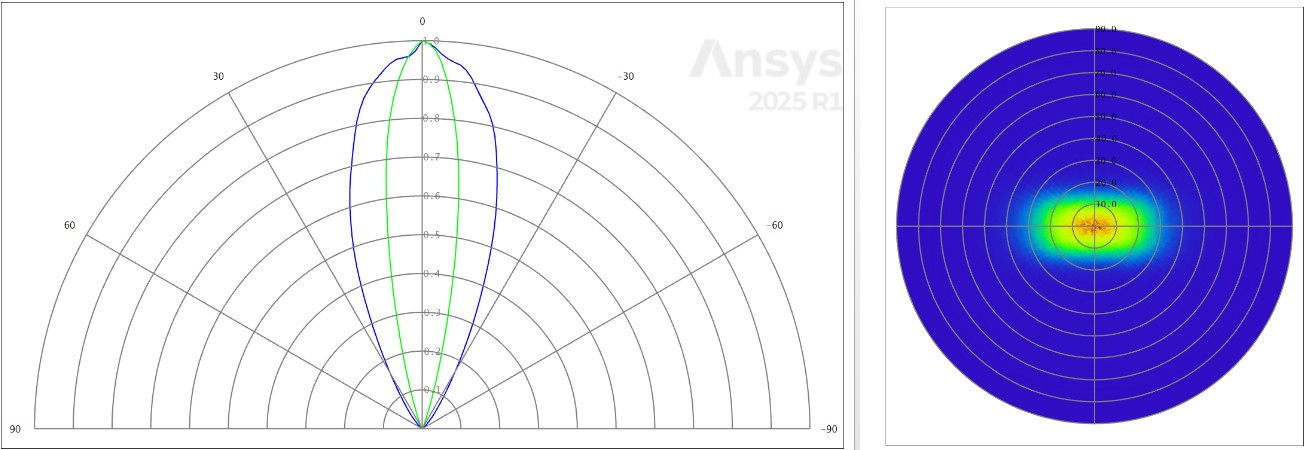

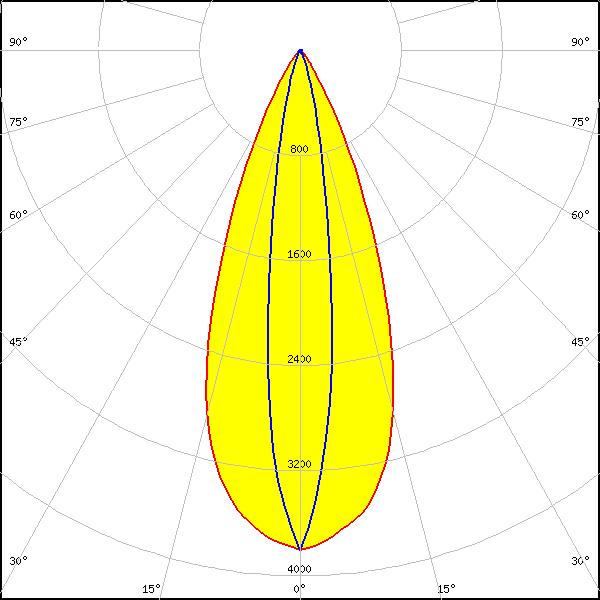

Optical results

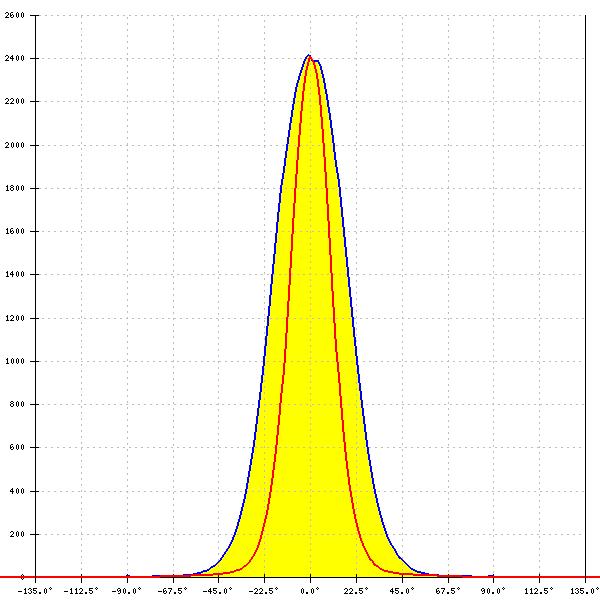

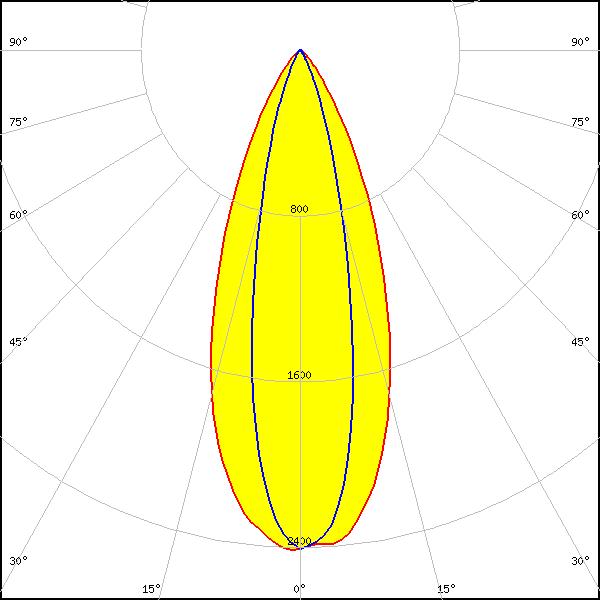

LED: CLR6A-TKW
FWHM: 41° + 23°
FWTM: 72° + 45°
Peak intensity: 2.419 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: RGBW

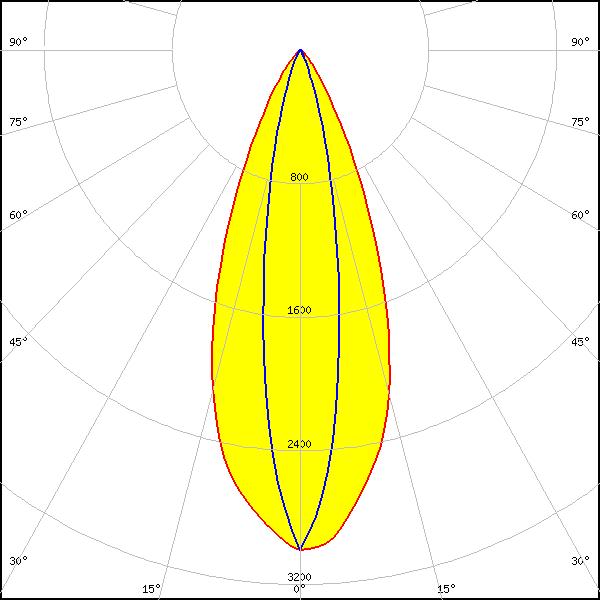

LED: J Series 2835
FWHM: 40° + 18°
FWTM: 68° + 39°
Peak intensity: 2.997 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HI
FWHM: 40° + 16°
FWTM: 64° + 32°
Peak intensity: 3.806 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

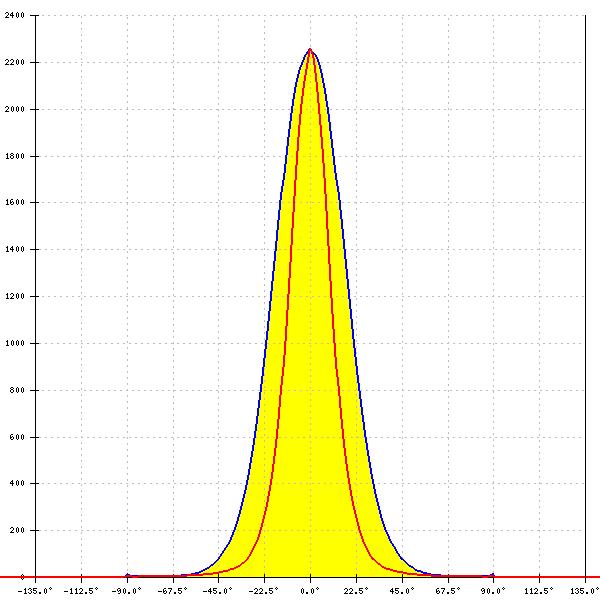

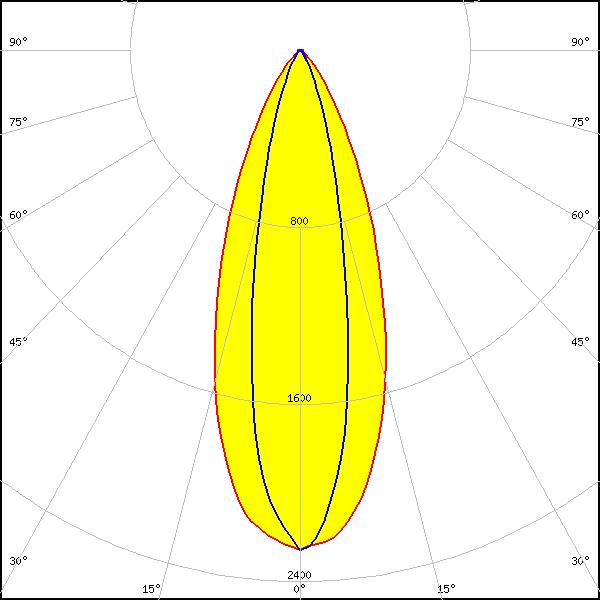

LED: XP-L2
FWHM: 40° + 22°
FWTM: 72° + 47°
Peak intensity: 2.274 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

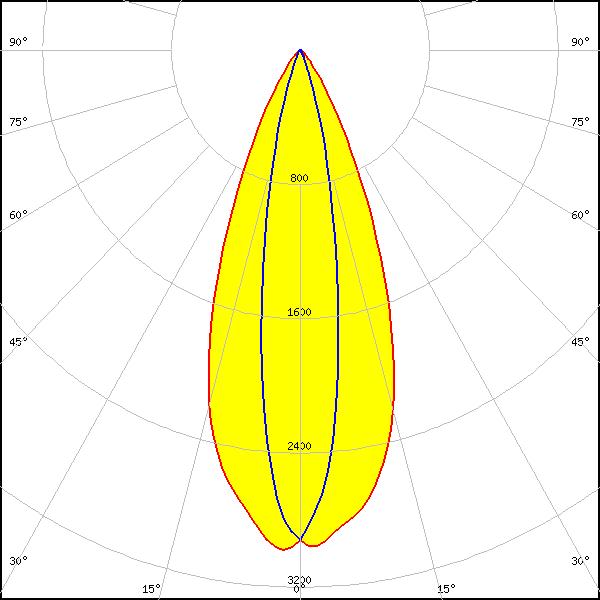

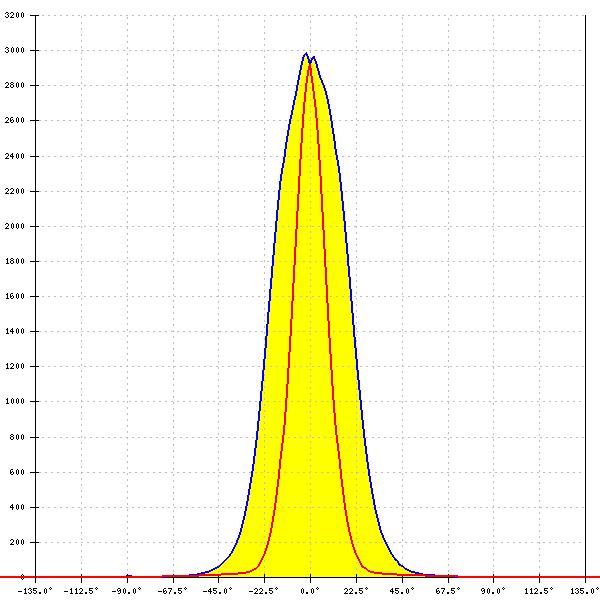

LED: LM302D
FWHM: 41° + 18°
FWTM: 67° + 38°
Peak intensity: 2.997 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
