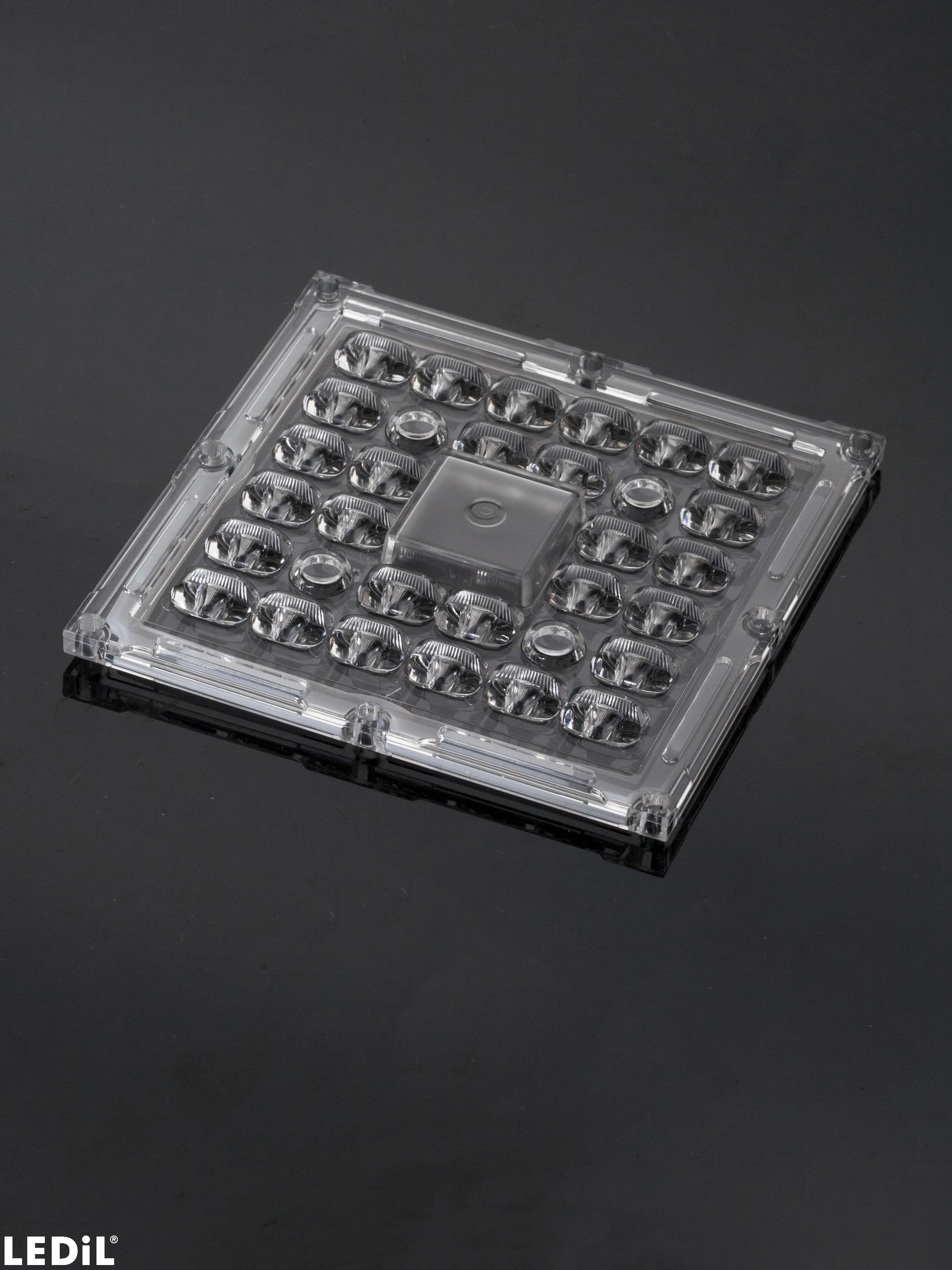

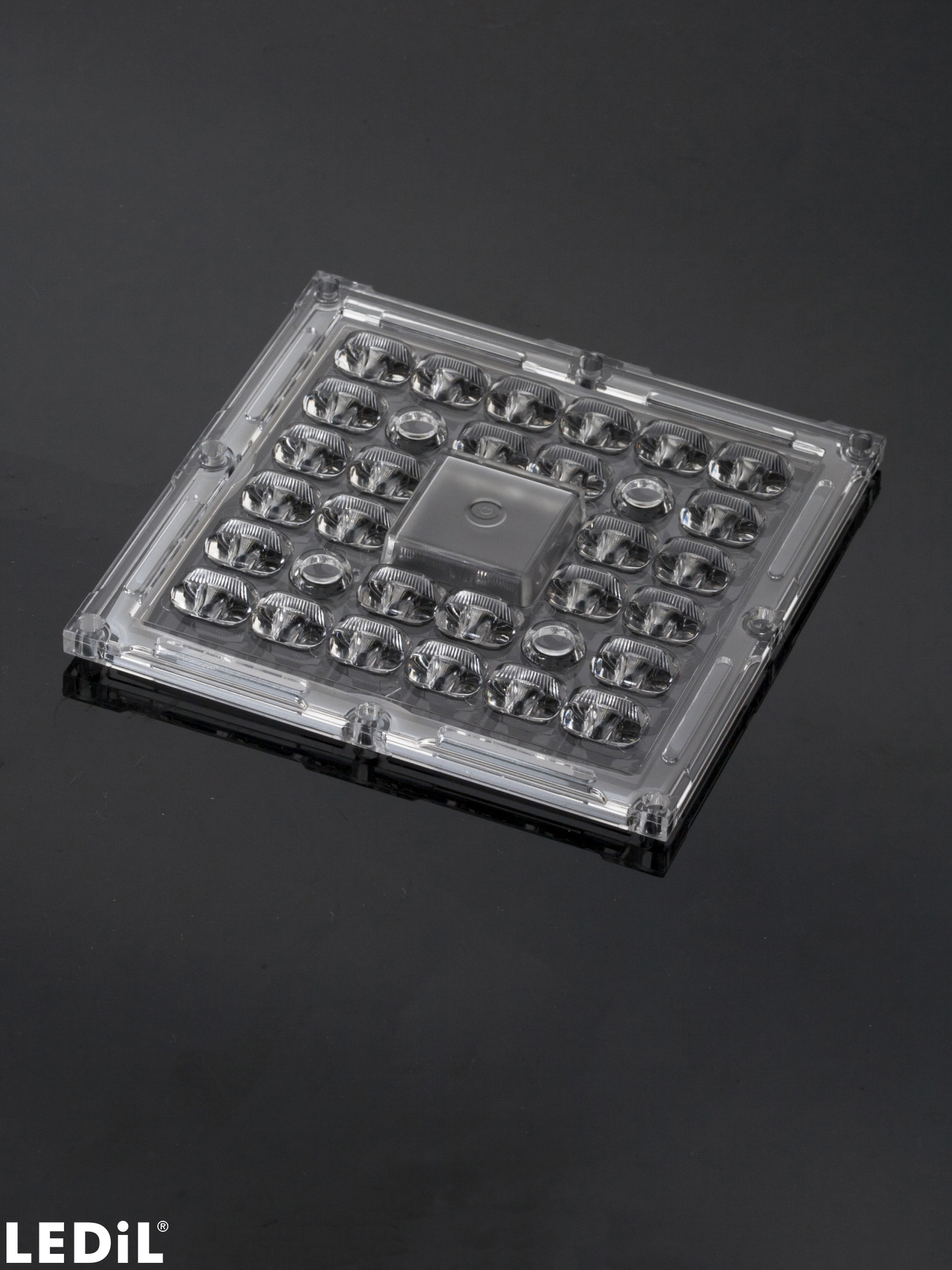

CS15911_STRADELLA-IP-28-T2-PC

Print

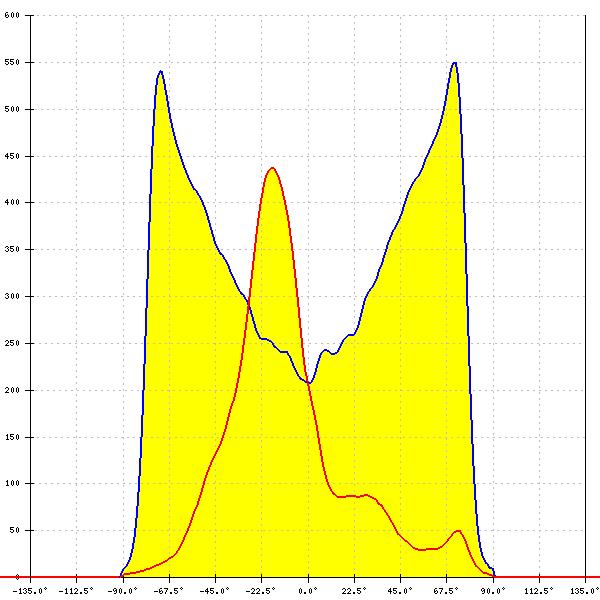

IESNA Type II (medium) beam, applicable for European P-class standard pedestrian lighting and M-class roads. Variant made from PC.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.20 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    6.1 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS15911_STRADELLA-IP-28-T2-PC
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

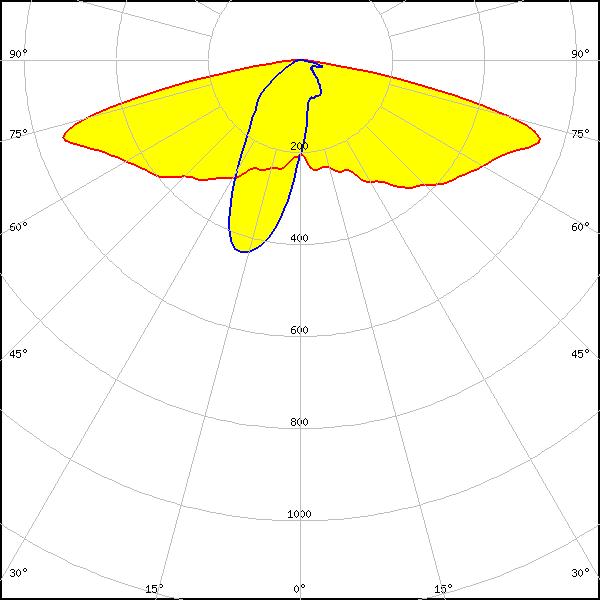

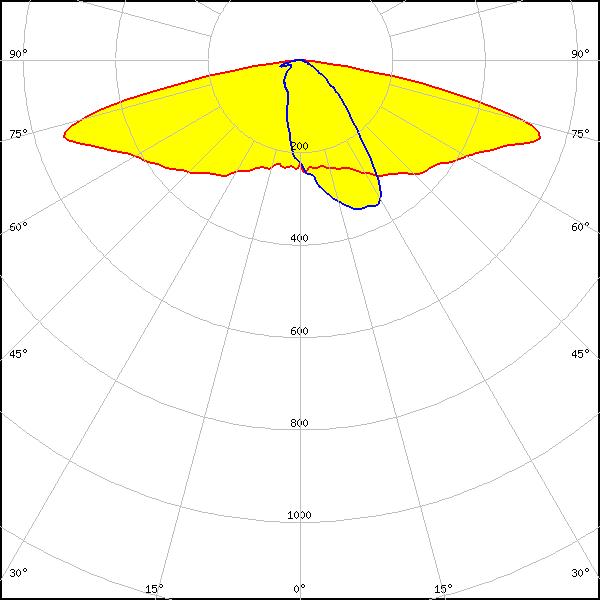

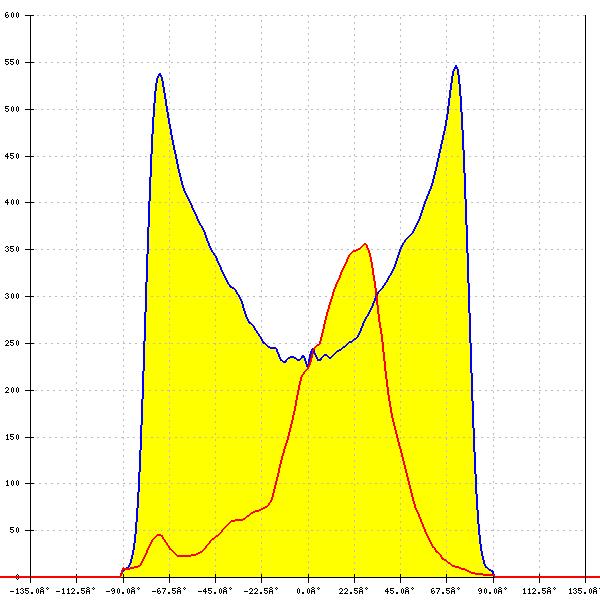

Optical results

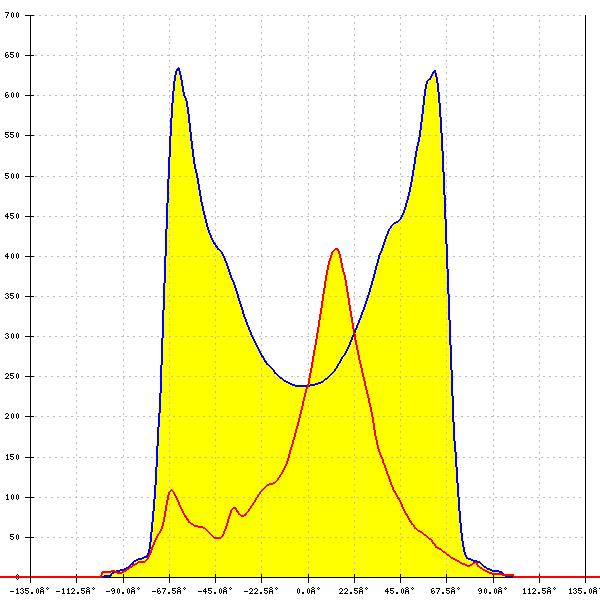

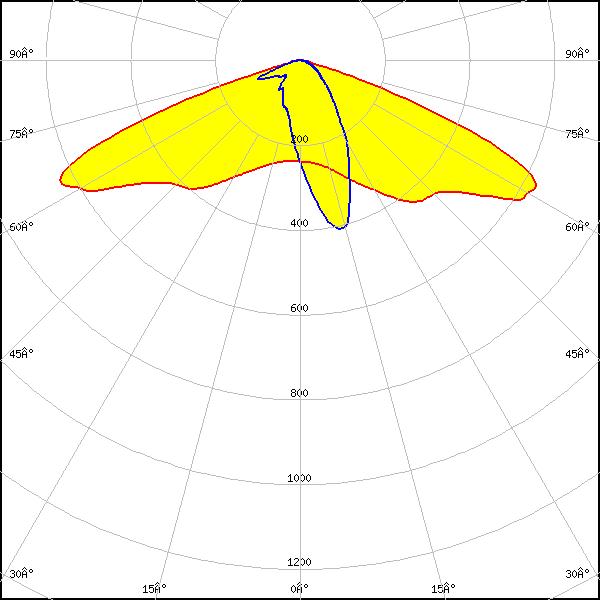

LED: HiQLED STR28 CR JE2835 4x7 xxx
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

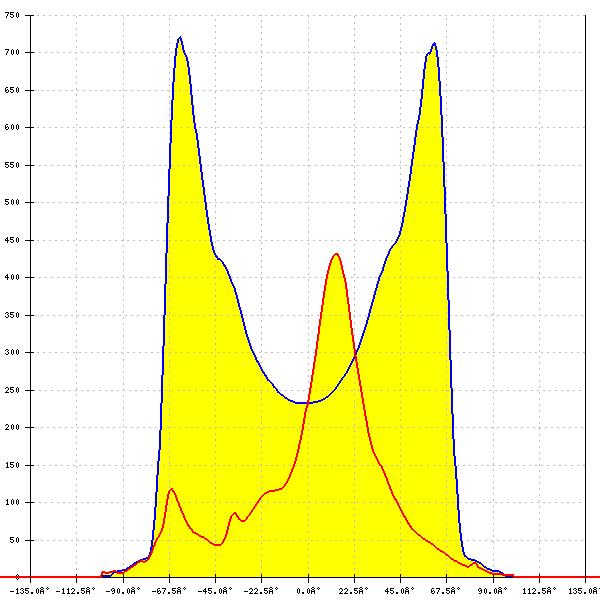

LED: HiQLED STR28 CR JK3030 4x7 xxx
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX STR28 XD2x14 xxx G8
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

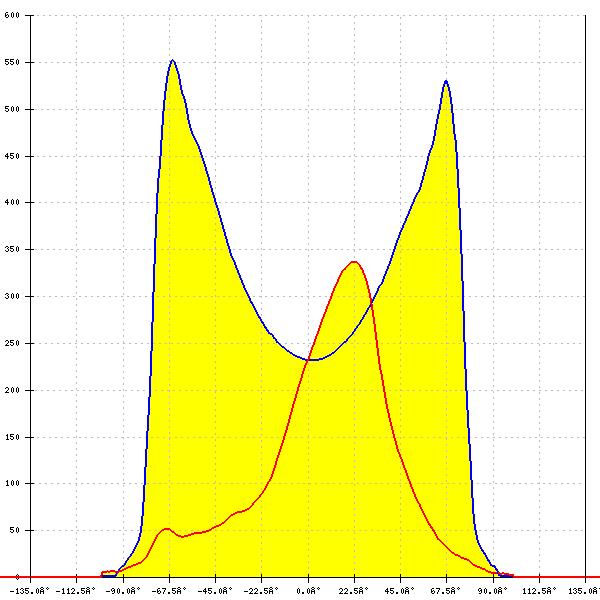

LED: QUICK FLUX STR28 XP2x14 xxx G7
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

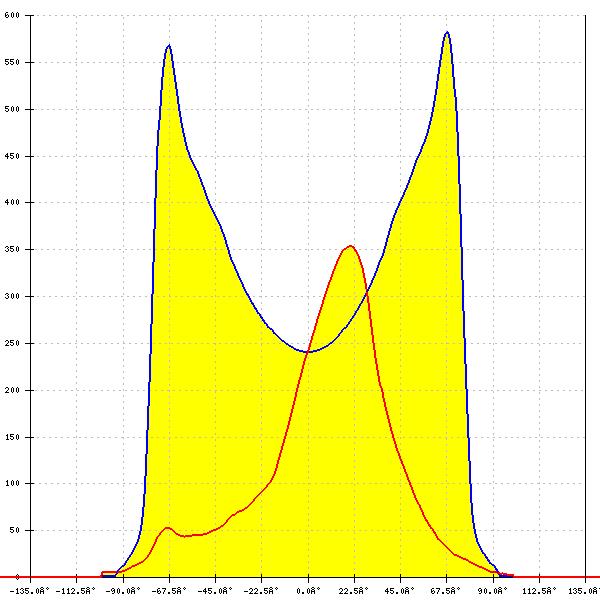

LED: QUICK FLUX STR28 XT2x14 xxx G5
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 2835
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

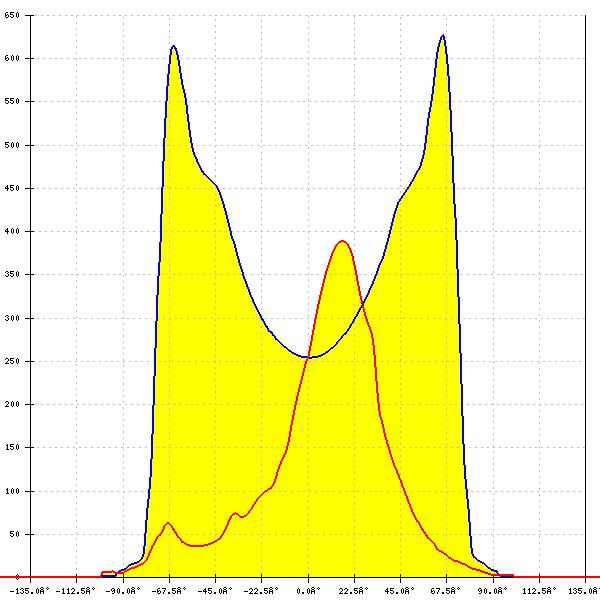

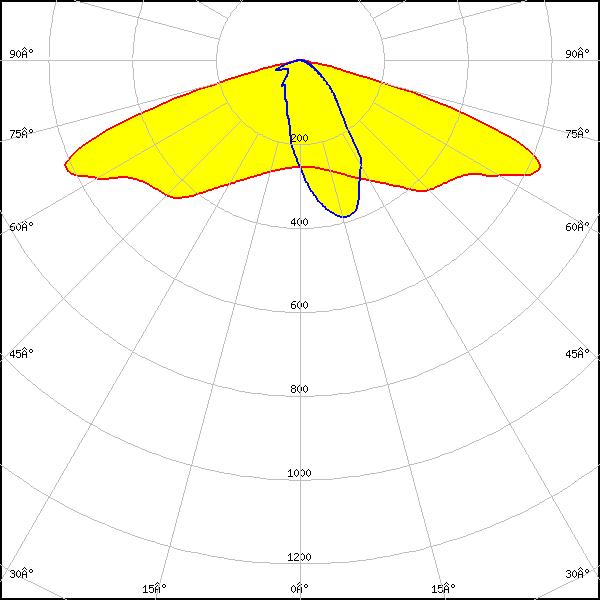

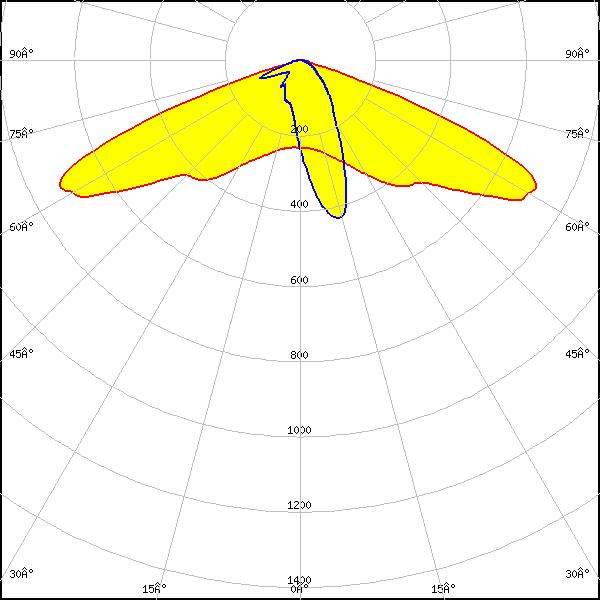

LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.764 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 3030
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

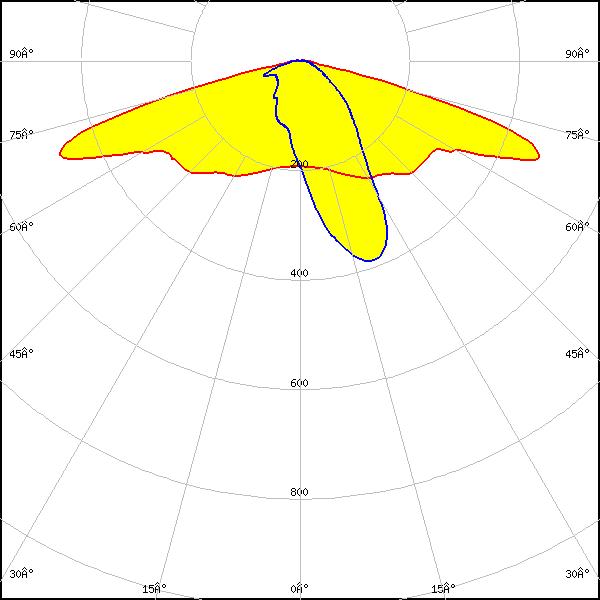

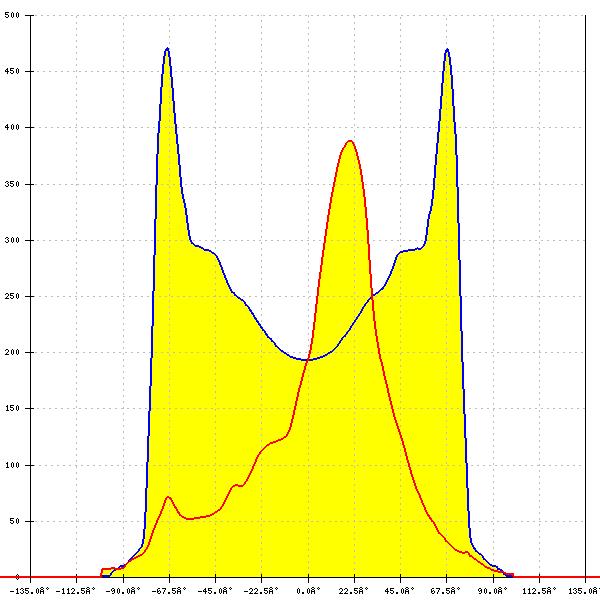

LED: XD16
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

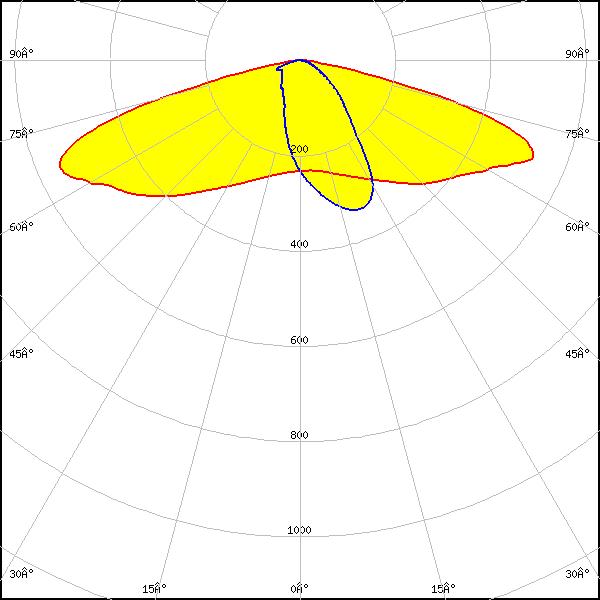

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E
FWHM: asymmetric
Peak intensity: 0.630 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

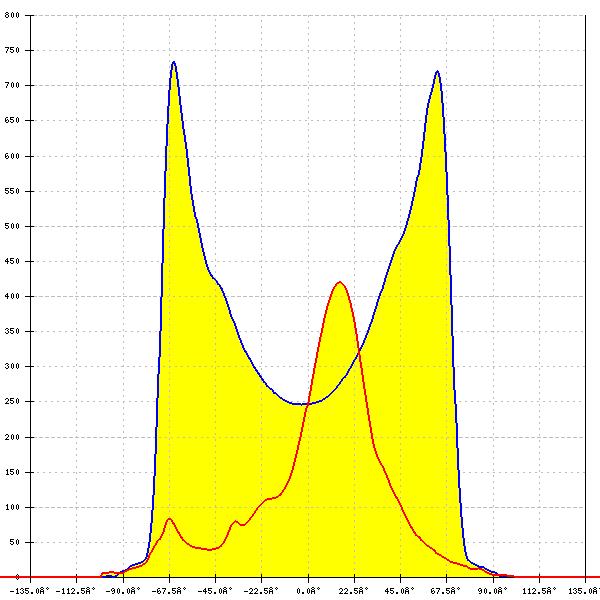

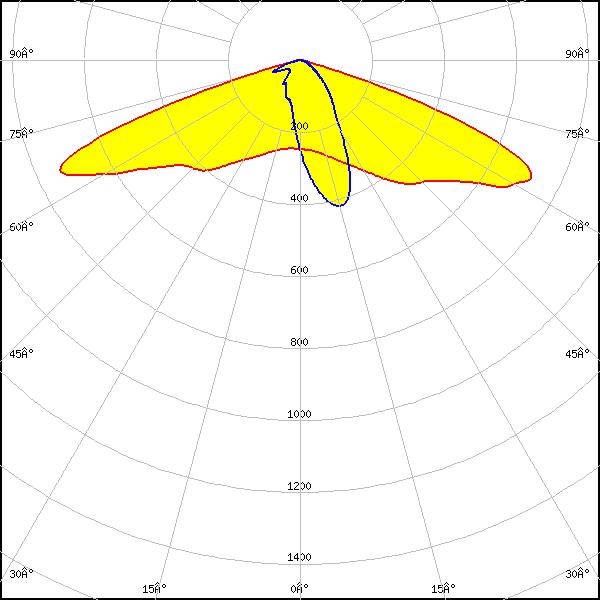

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.930 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

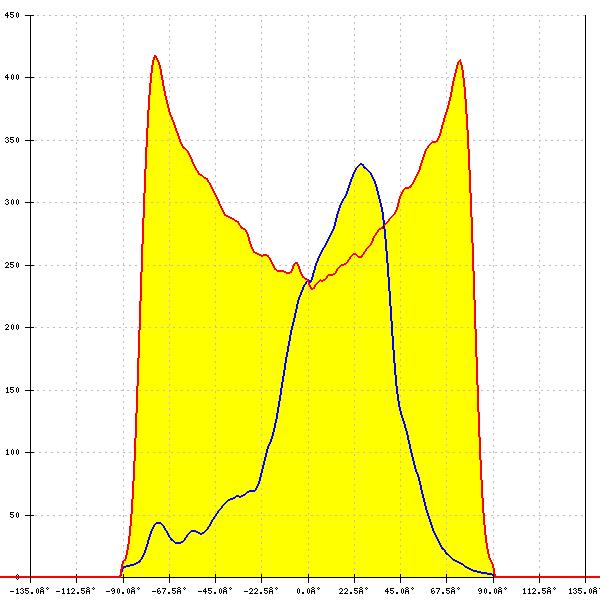

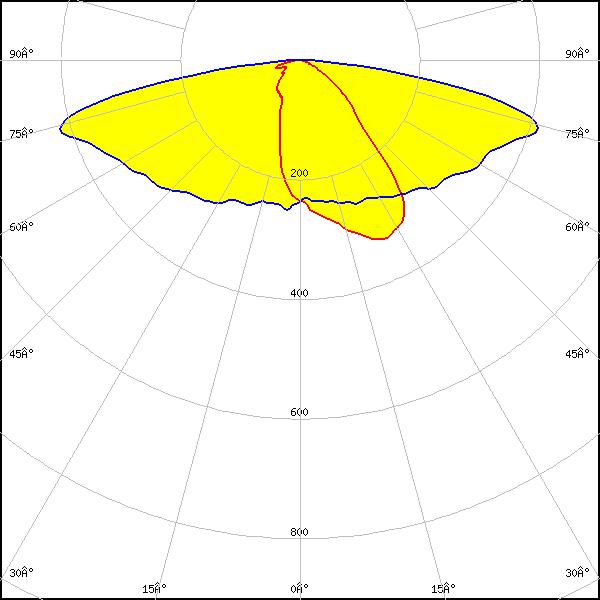

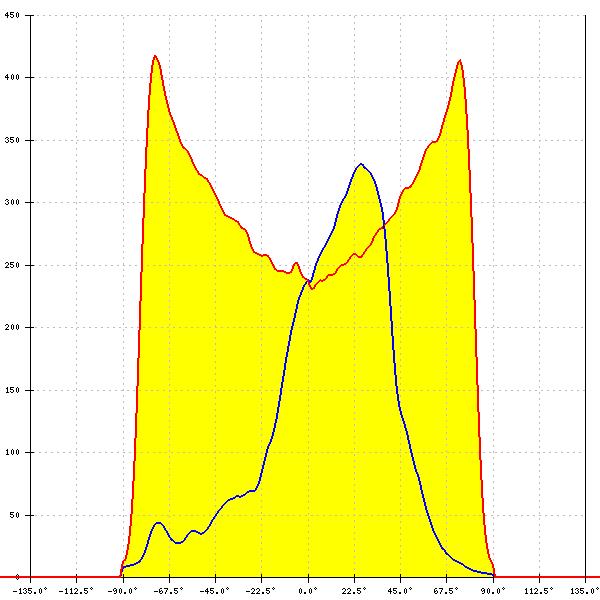

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.459 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

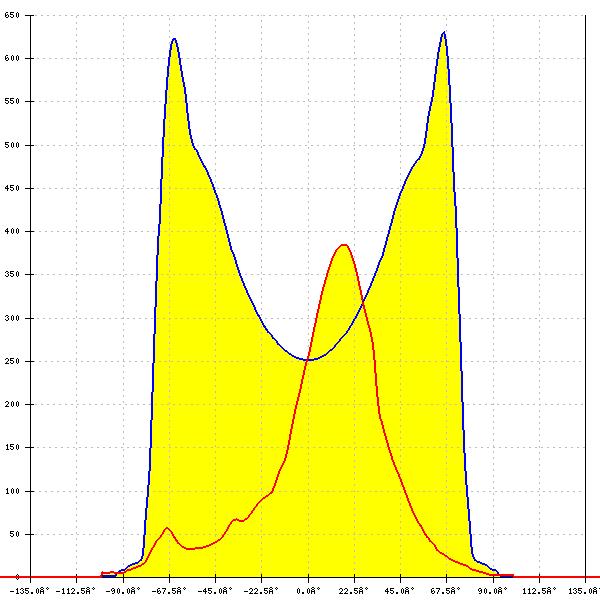

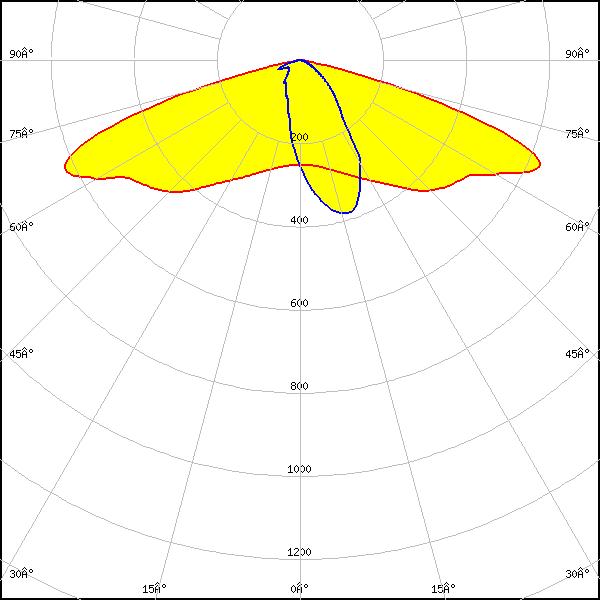

LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

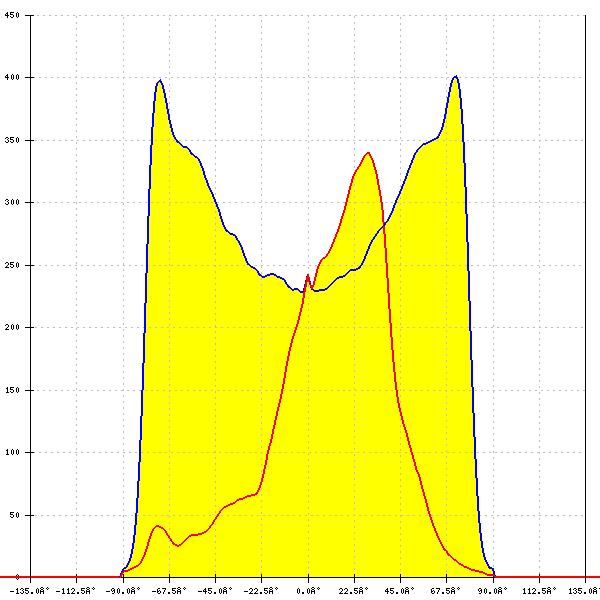

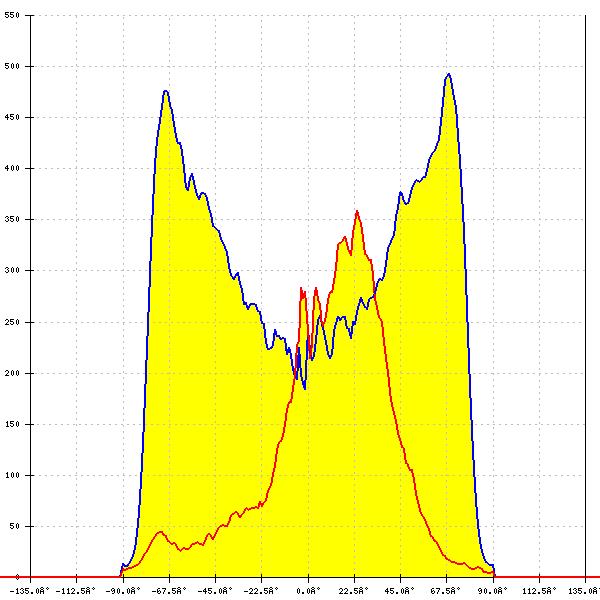

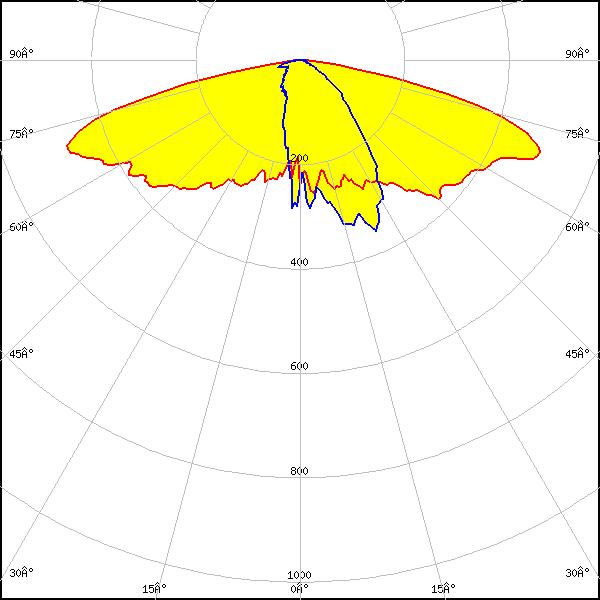

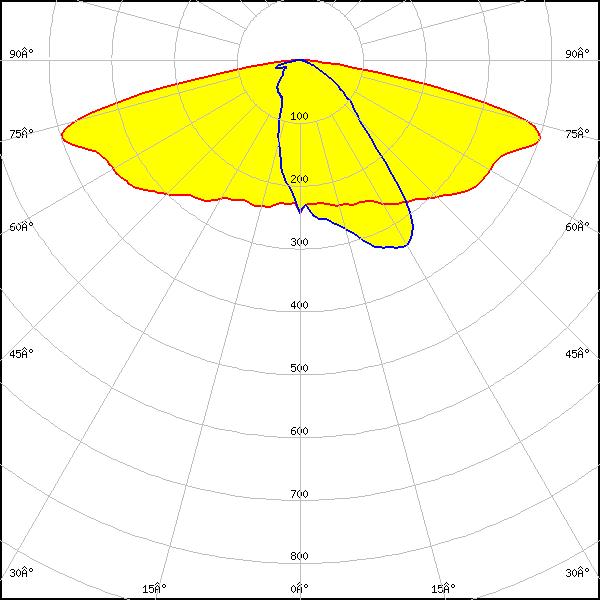

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.455 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

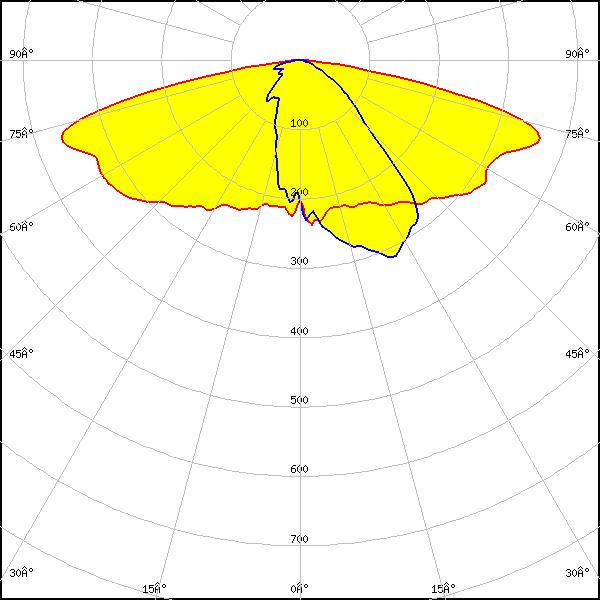

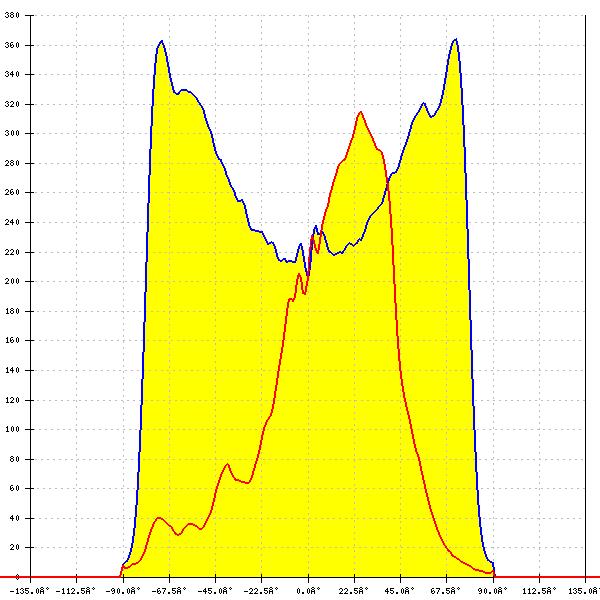

LED: NVSW319B
FWHM: asymmetric
Peak intensity: 0.408 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.546 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

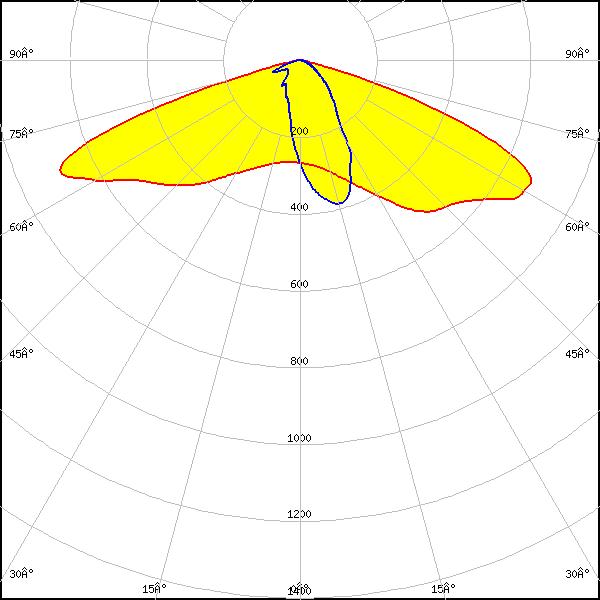

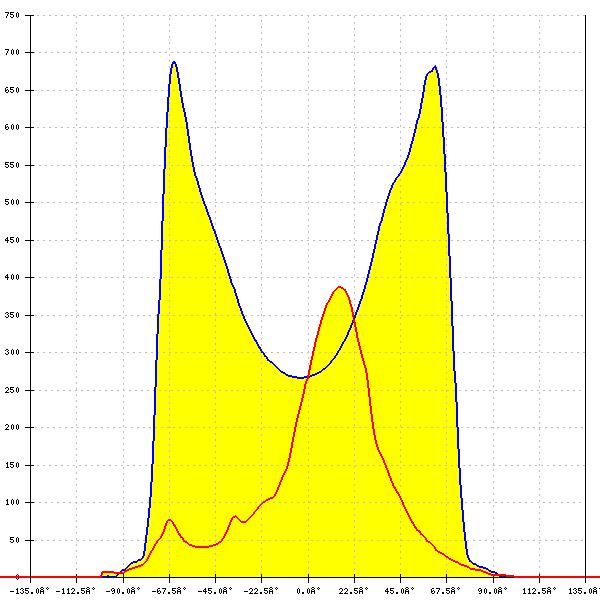

LED: Duris S5 (2 chip)
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

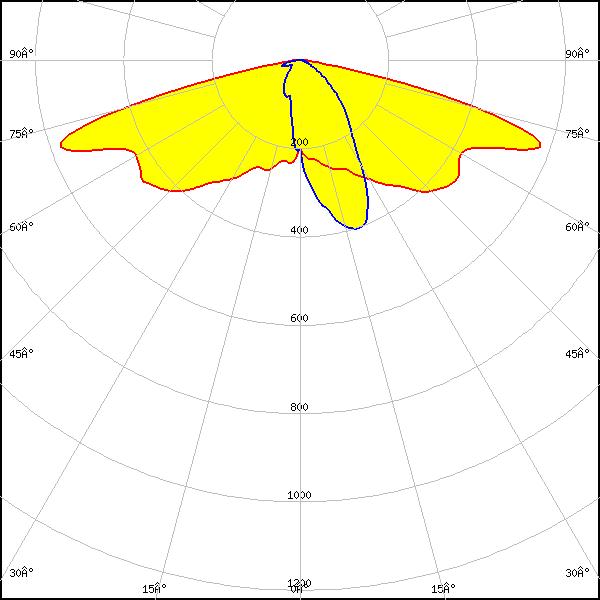

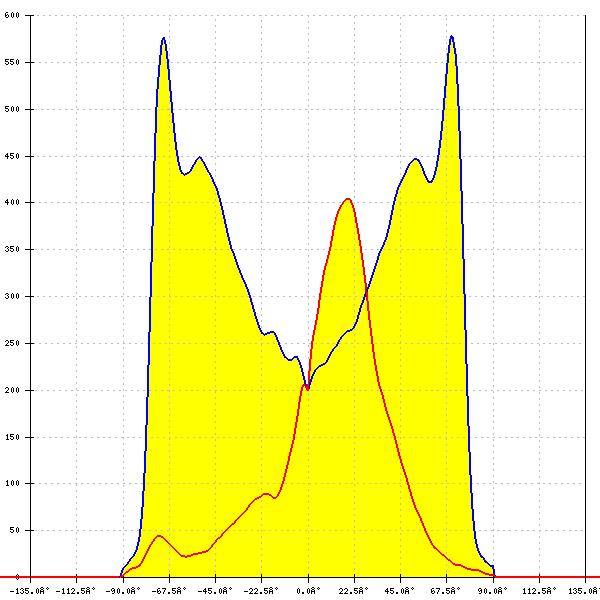

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.674 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

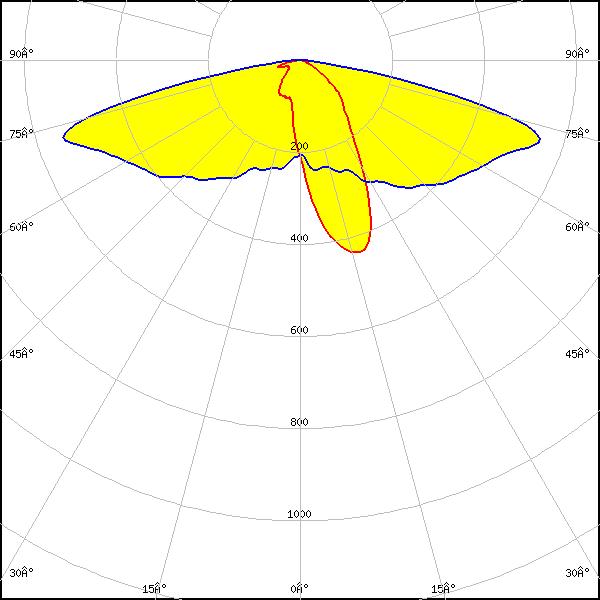

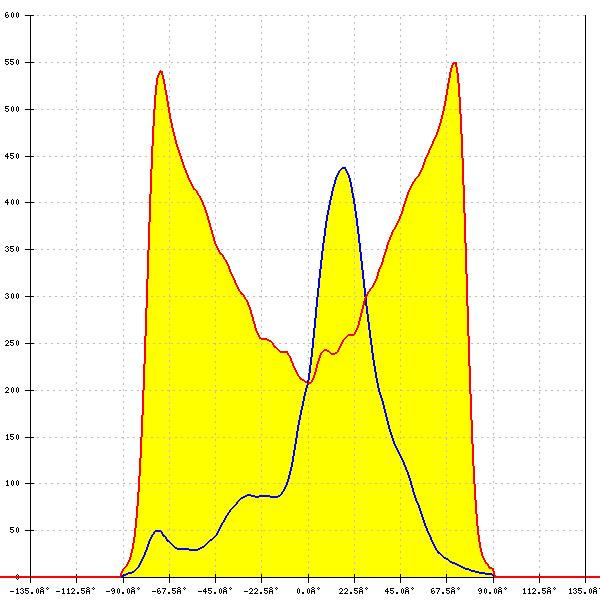

LED: OSCONIQ P 3030
FWHM: asymmetric
Peak intensity: 0.653 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

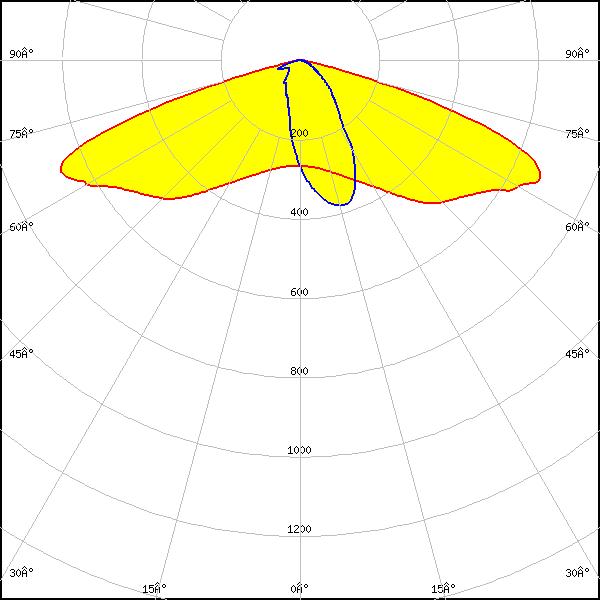

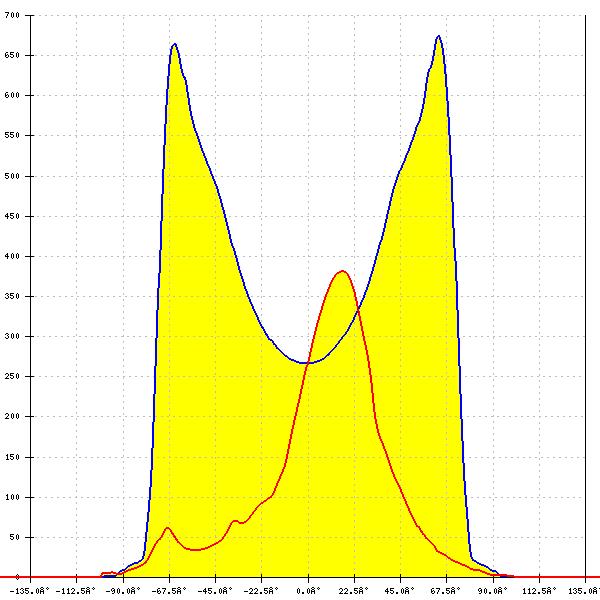

LED: OSCONIQ S 3030 (QSLR31)
FWHM: asymmetric
Peak intensity: 0.725 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

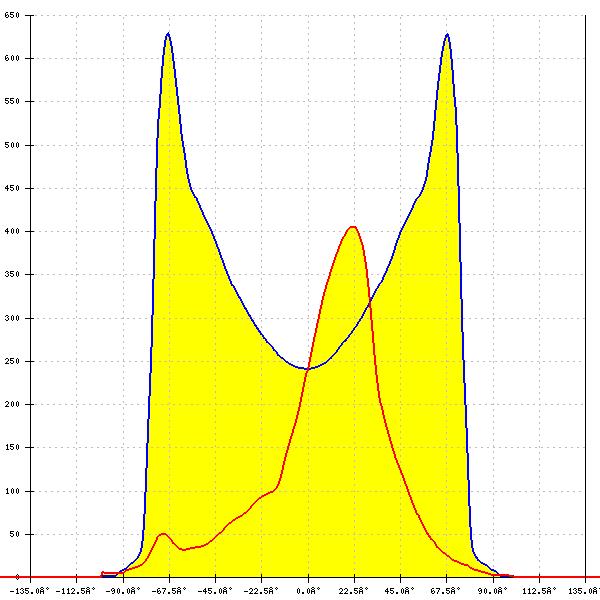

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.753 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

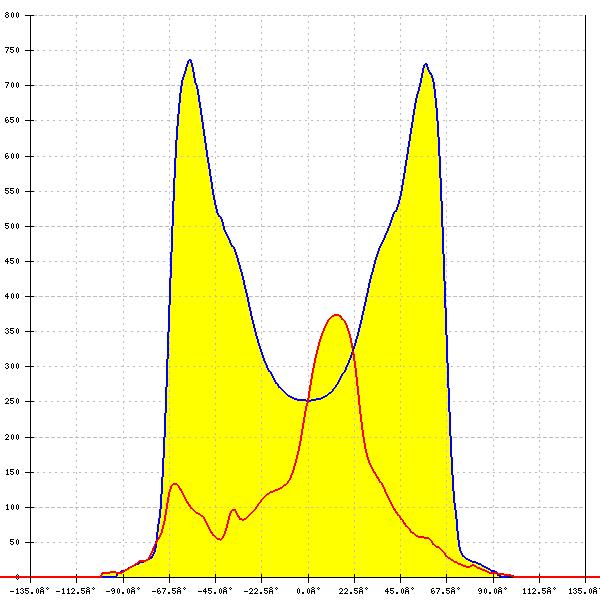

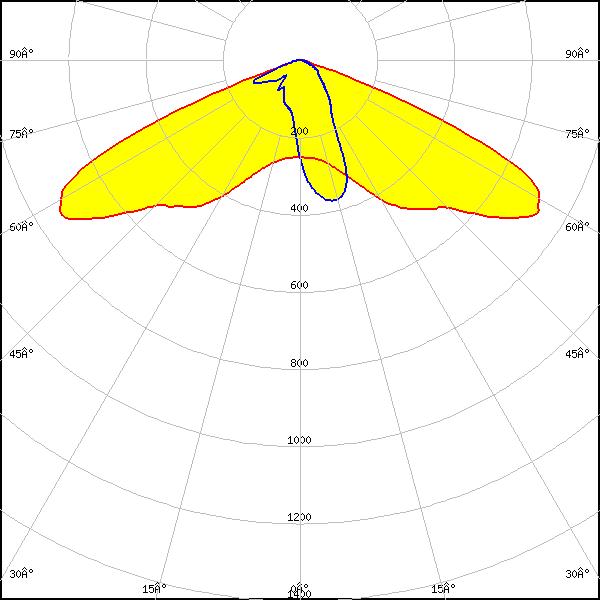

LED: HiLOM SC28 (LH181B)
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

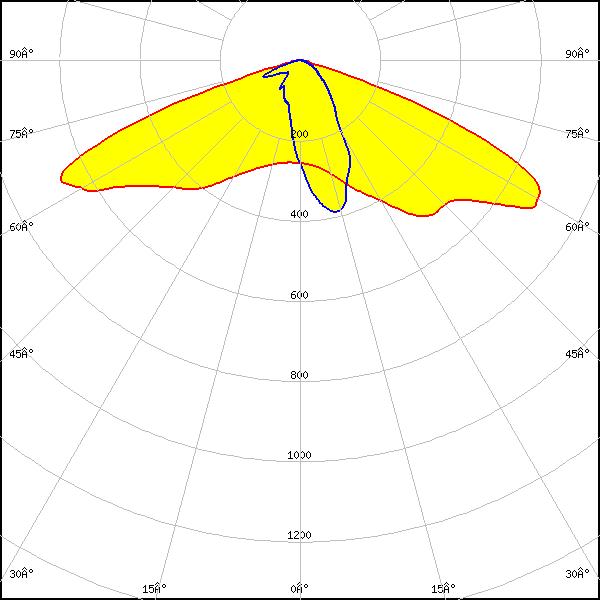

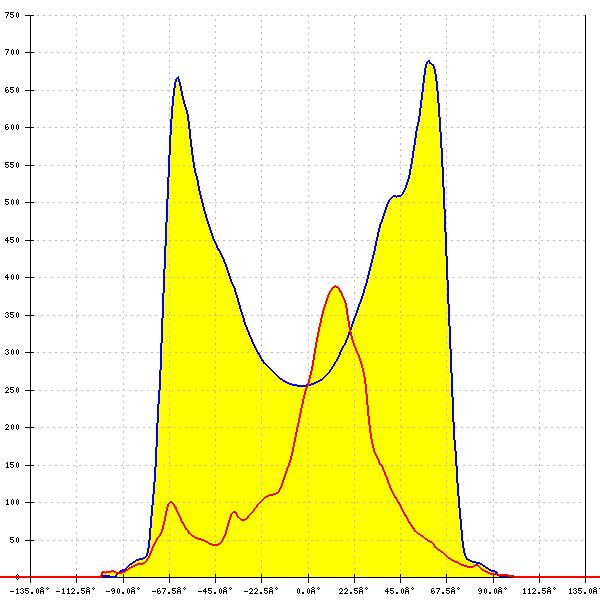

LED: HiLOM SM28 (LM301B)
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

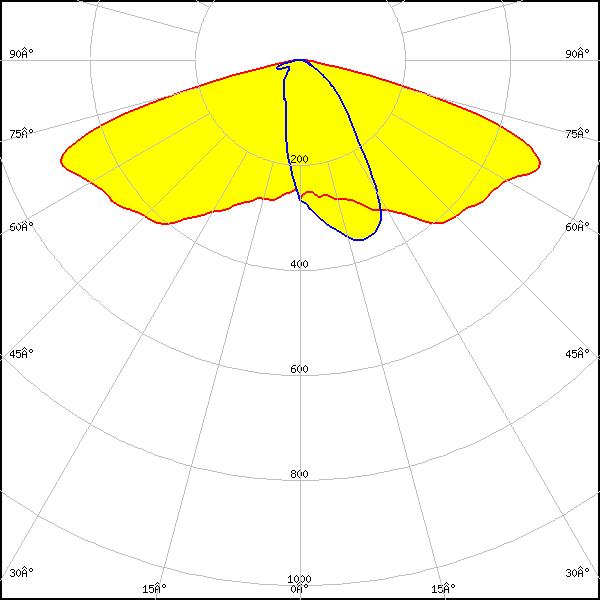

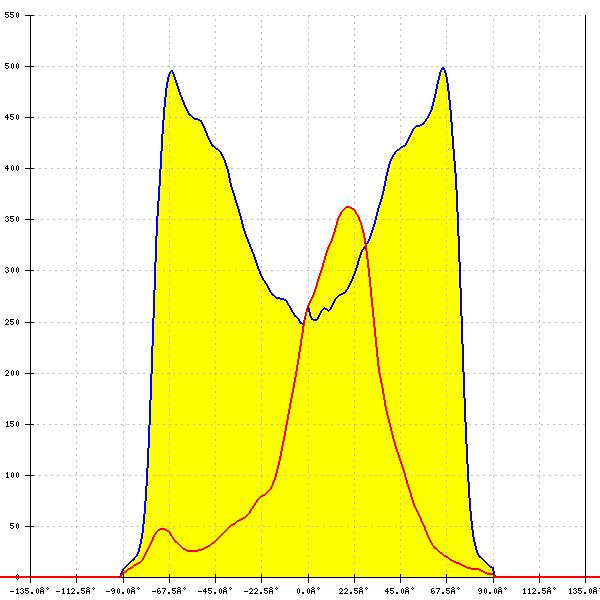

LED: LH231B
FWHM: asymmetric
Peak intensity: 0.553 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

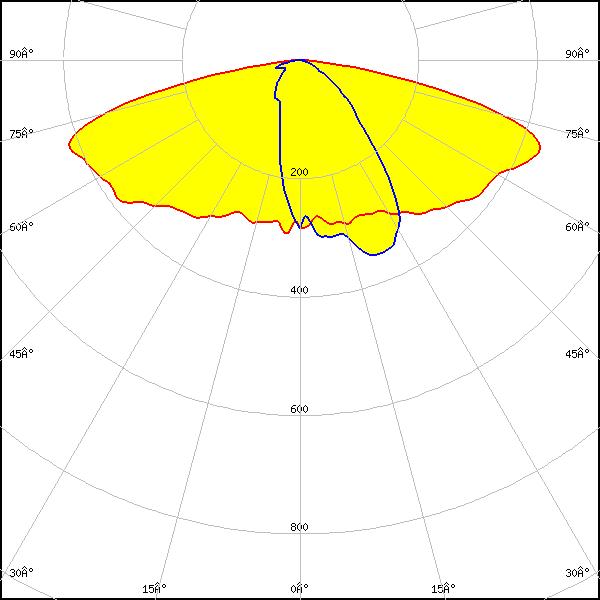

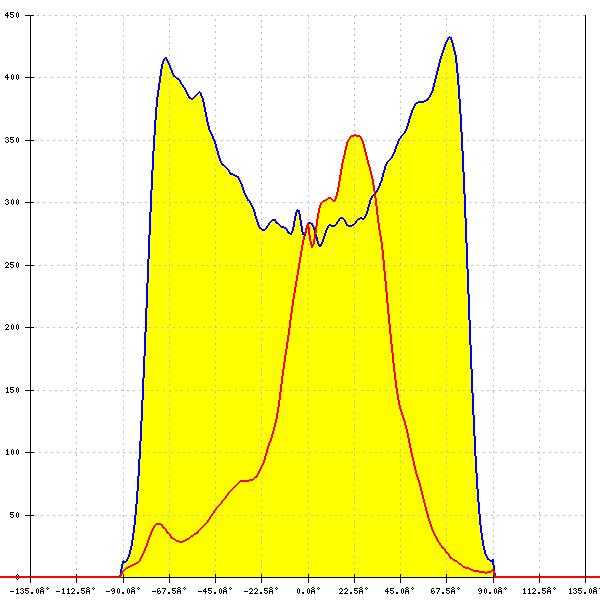

LED: LH351B
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3030
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

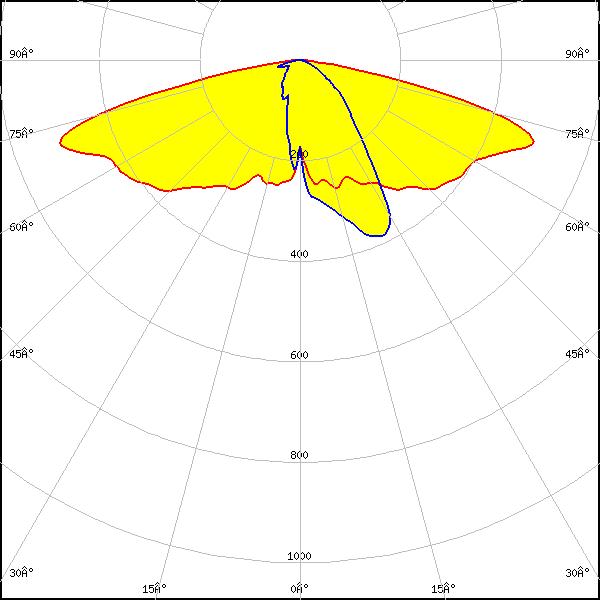

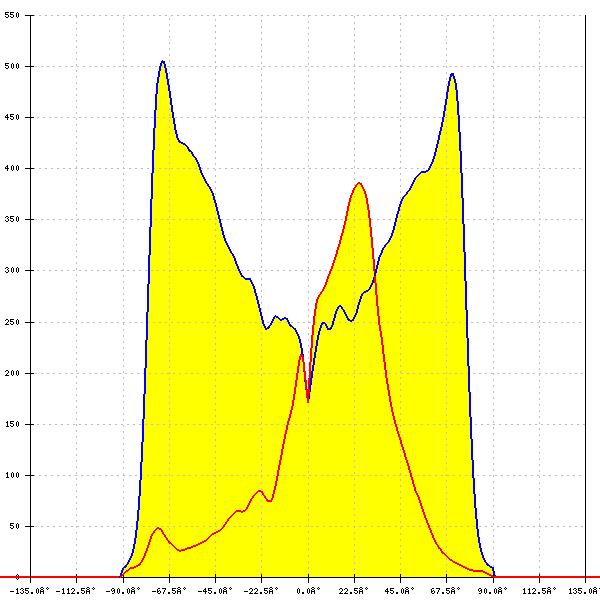

LED: Z5M1/Z5M2
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

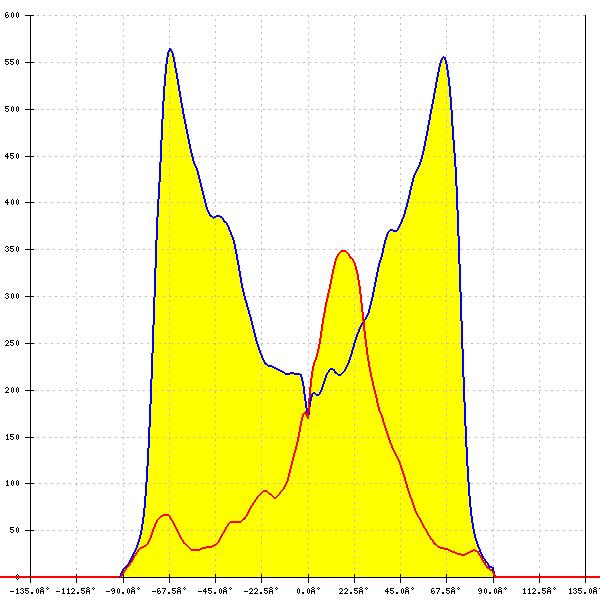

LED: Z8Y19
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

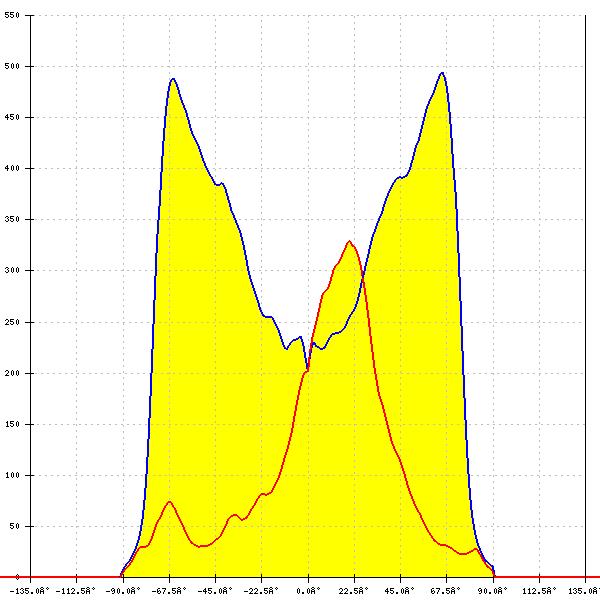

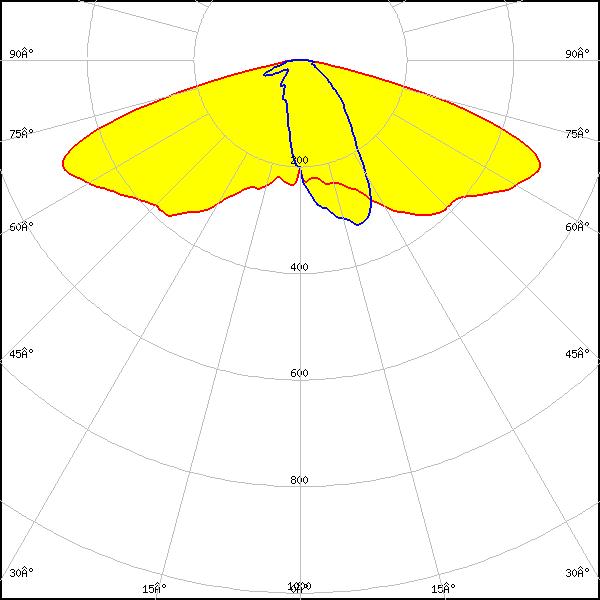

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.558 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
