CS16034_STRADELLA-IP-28-T2

Print

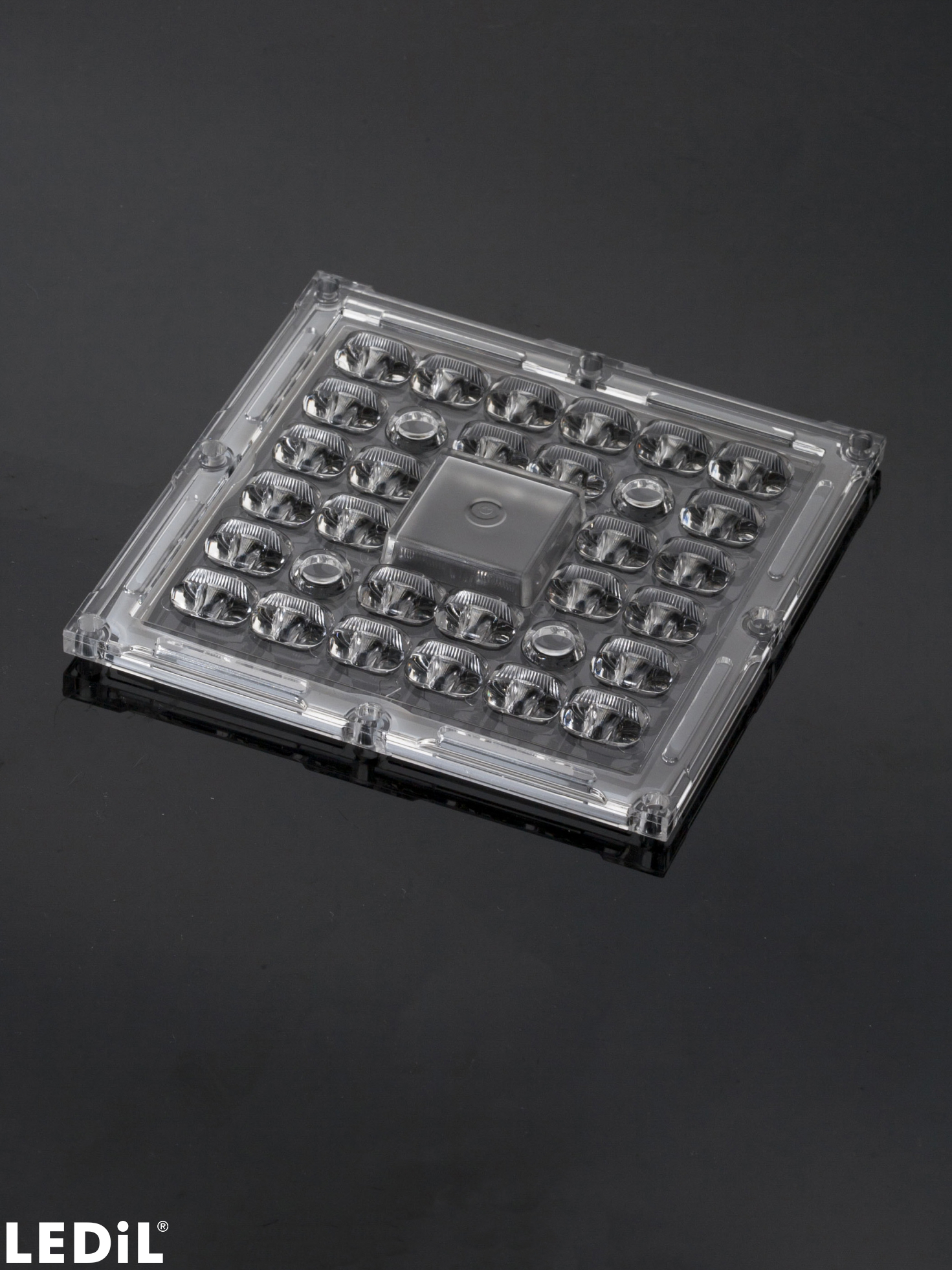

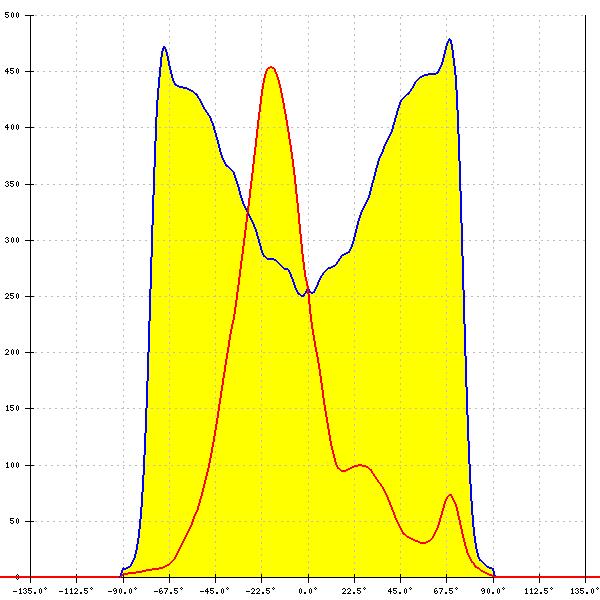

IESNA Type II (medium) beam, applicable for European P-class standard pedestrian lighting and M-class roads. Variant made from PMMA.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.20 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    6.2 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS16034_STRADELLA-IP-28-T2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

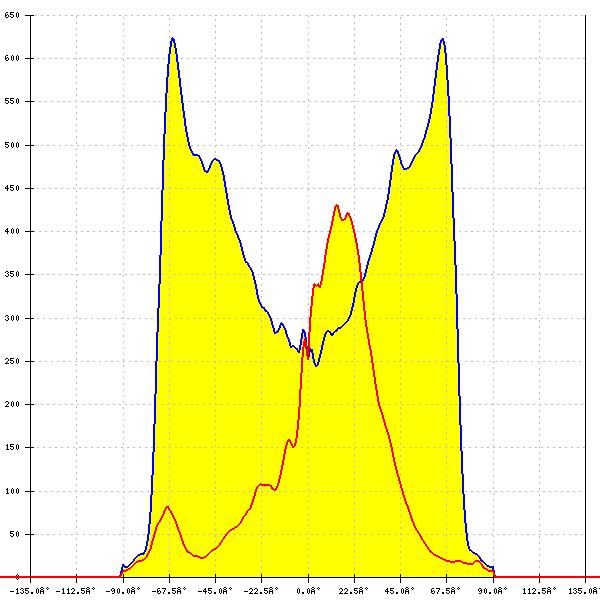

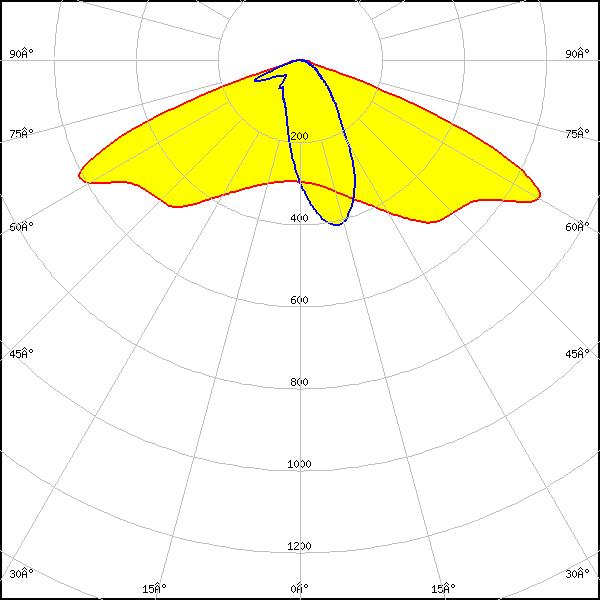

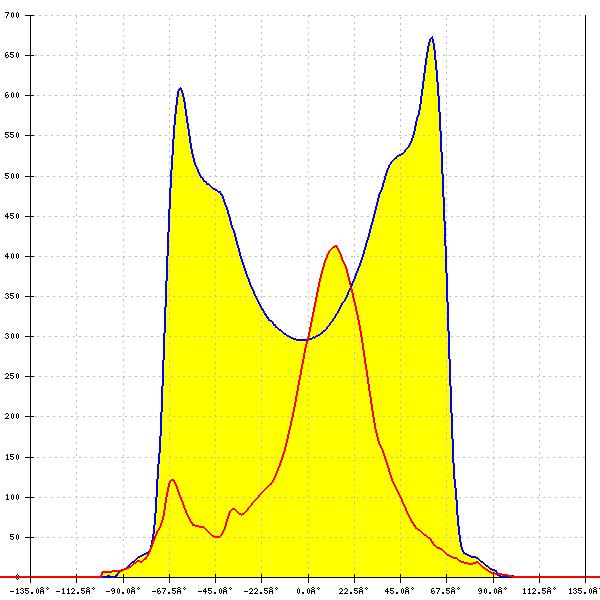

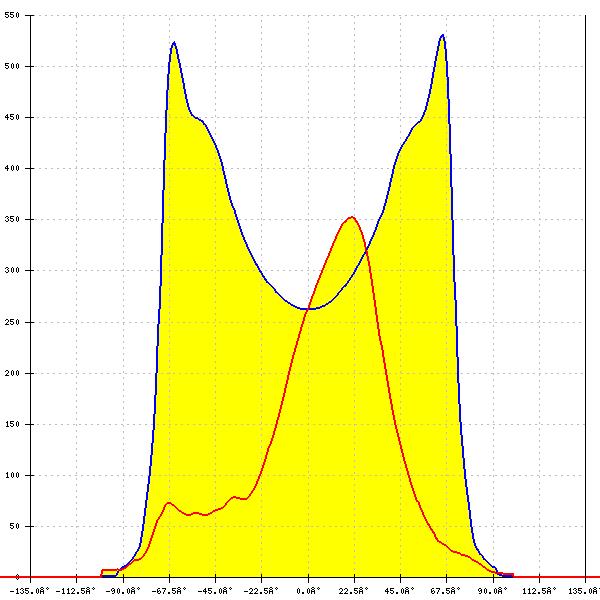

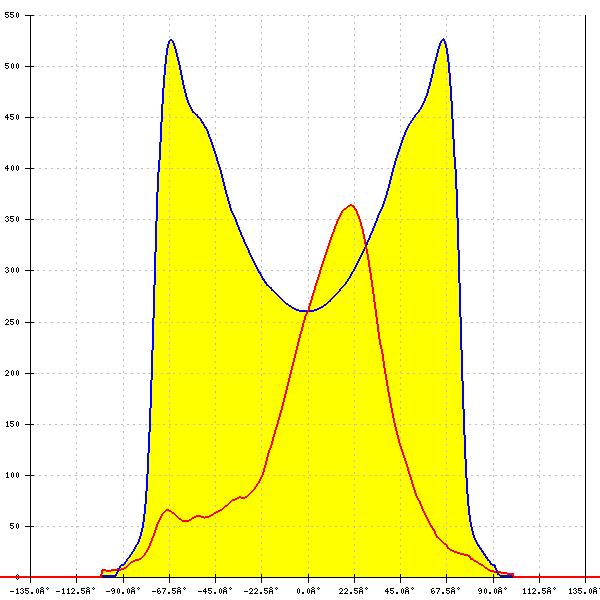

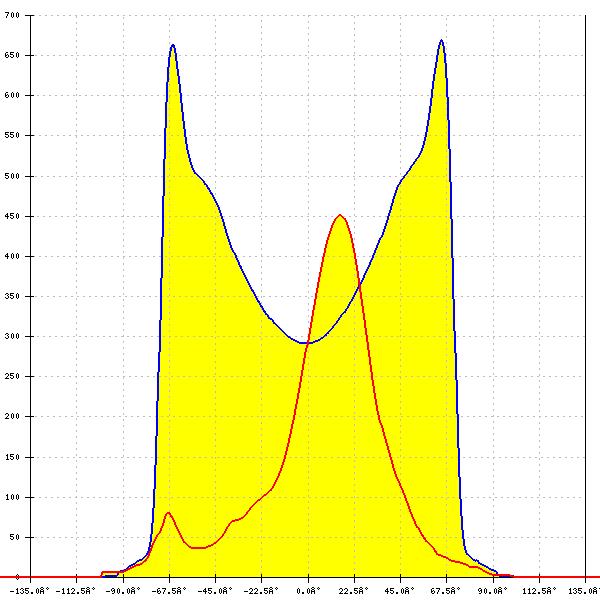

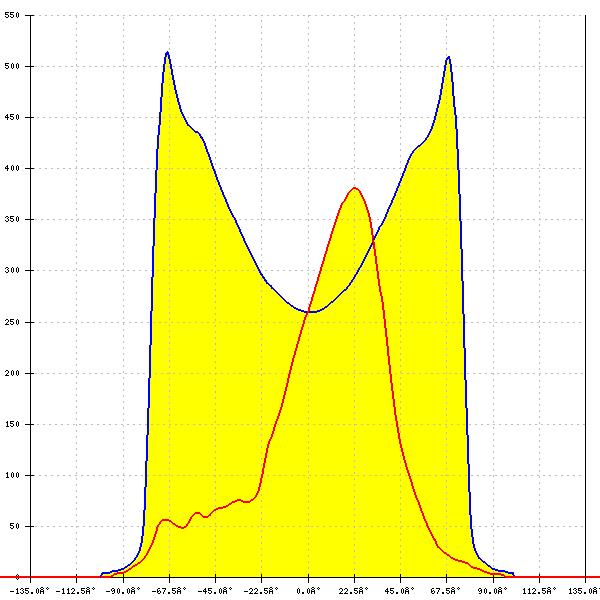

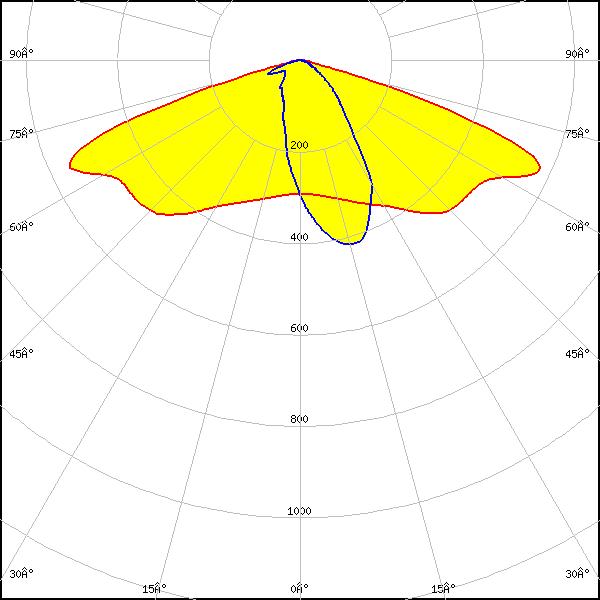

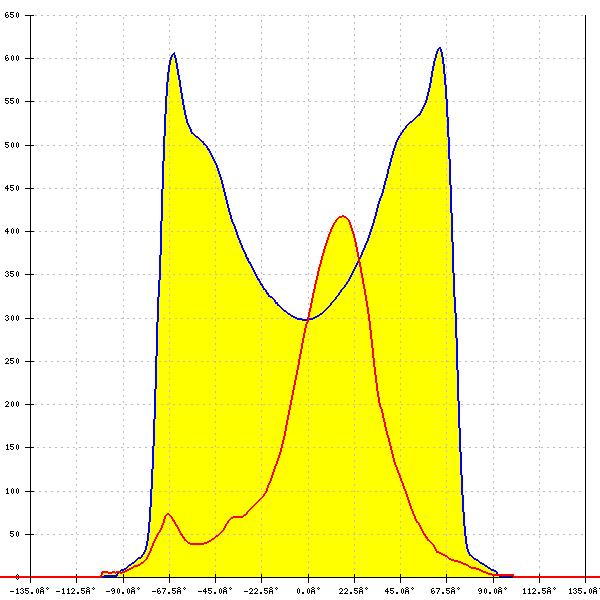

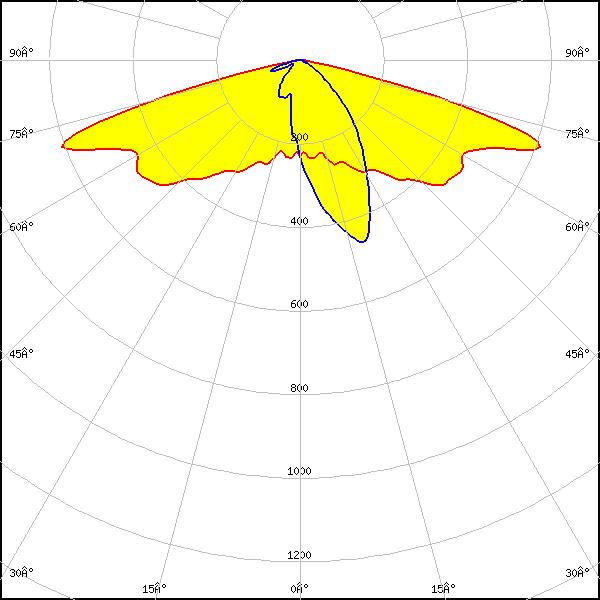

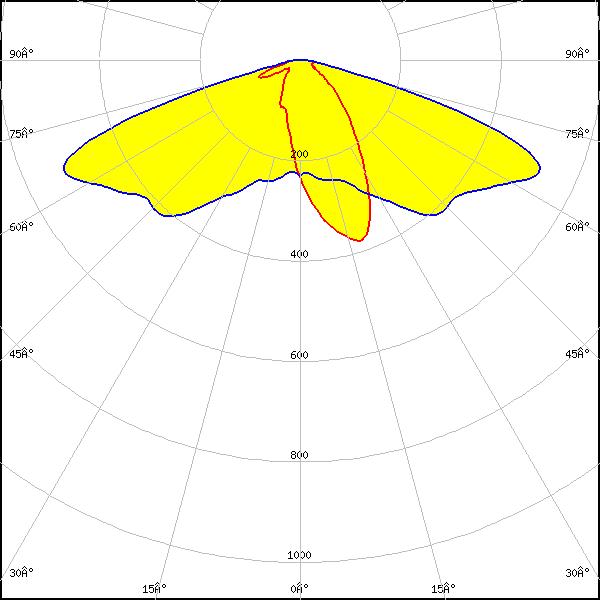

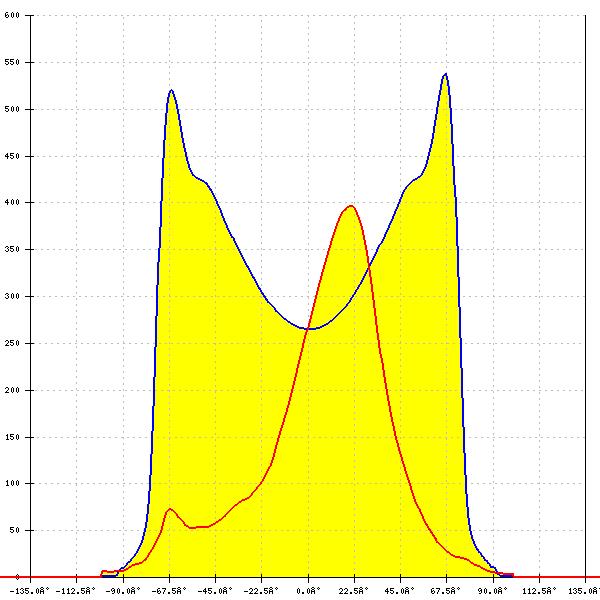

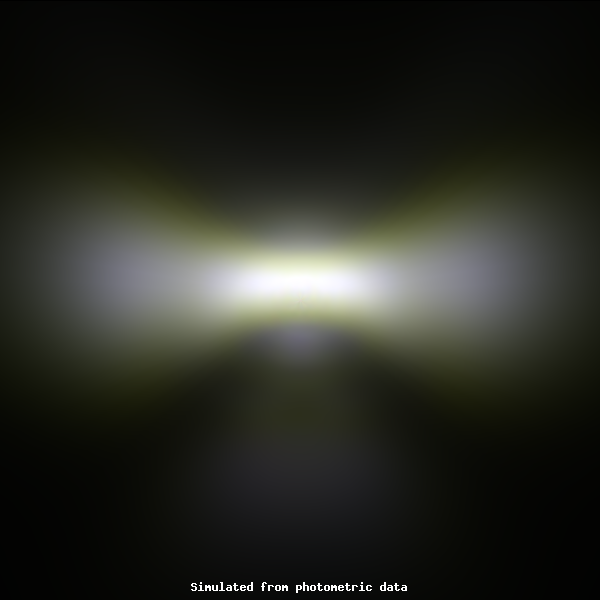

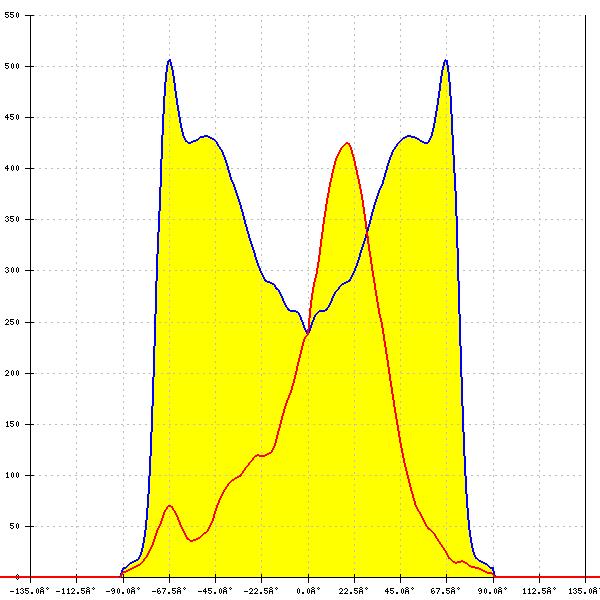

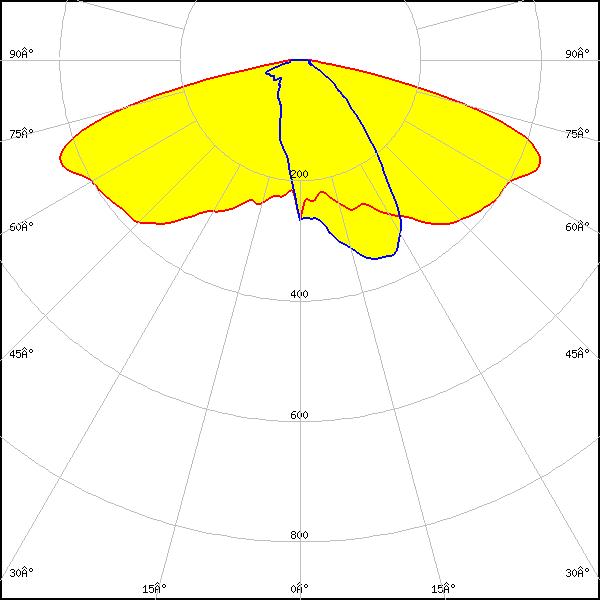

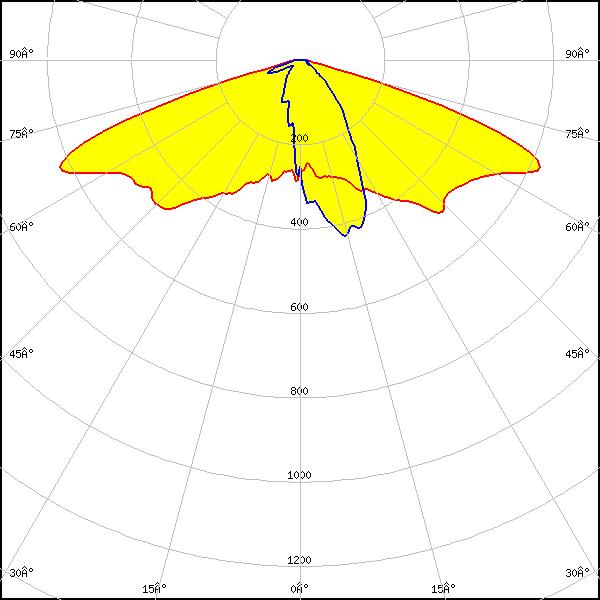

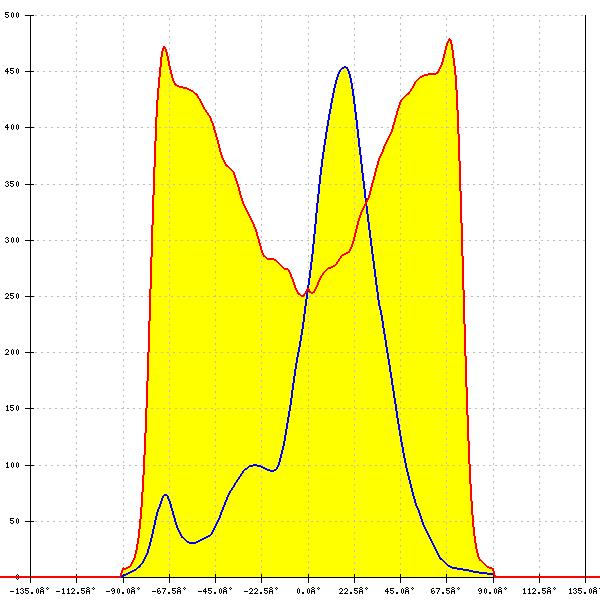

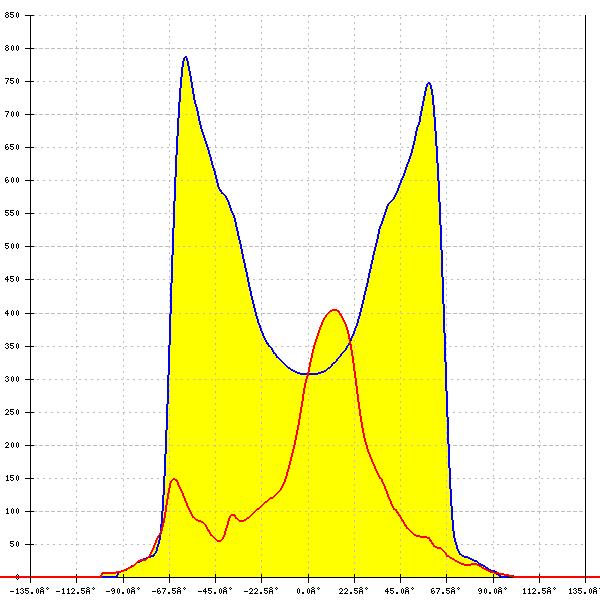

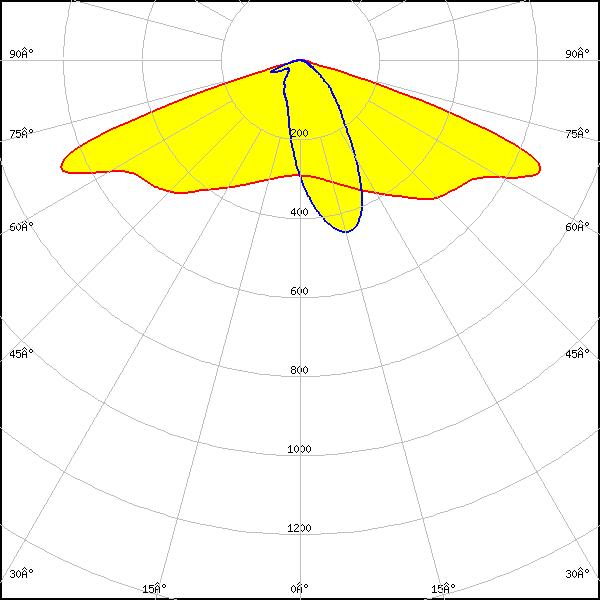

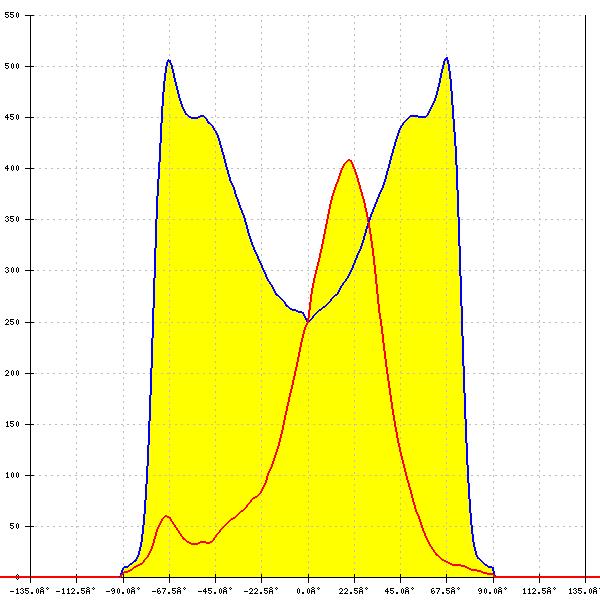

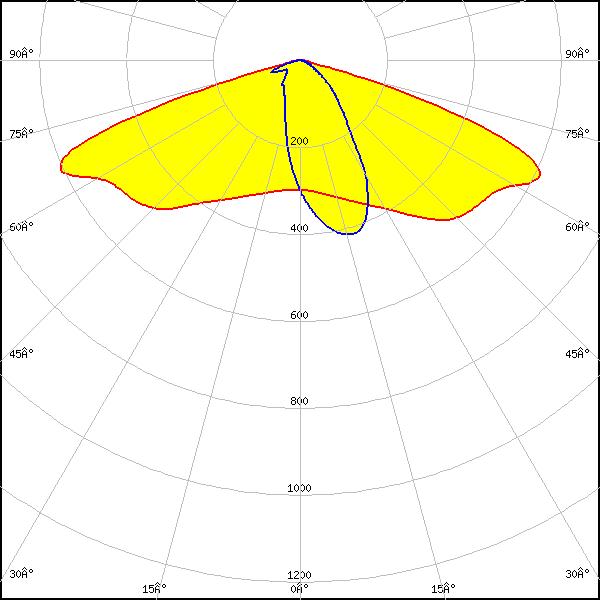

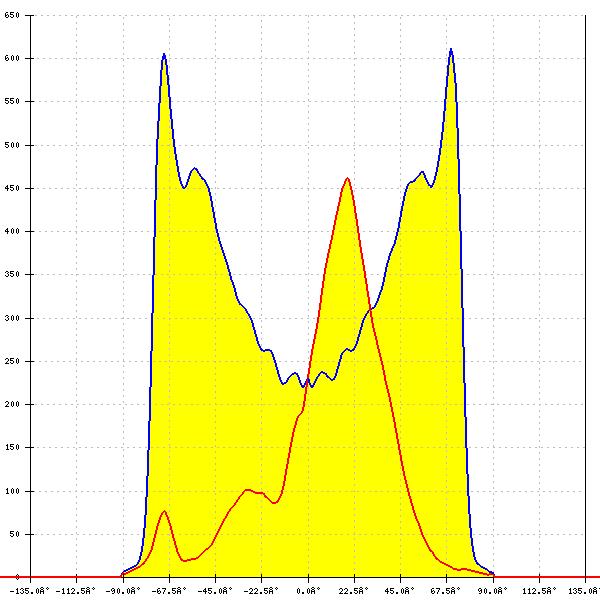

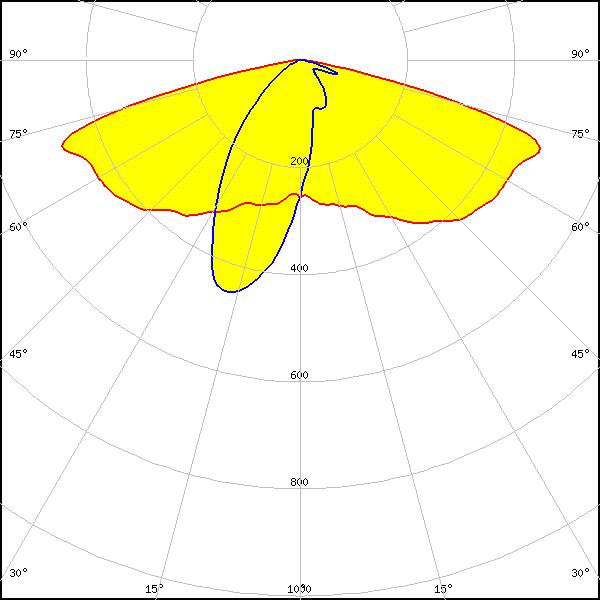

Optical results

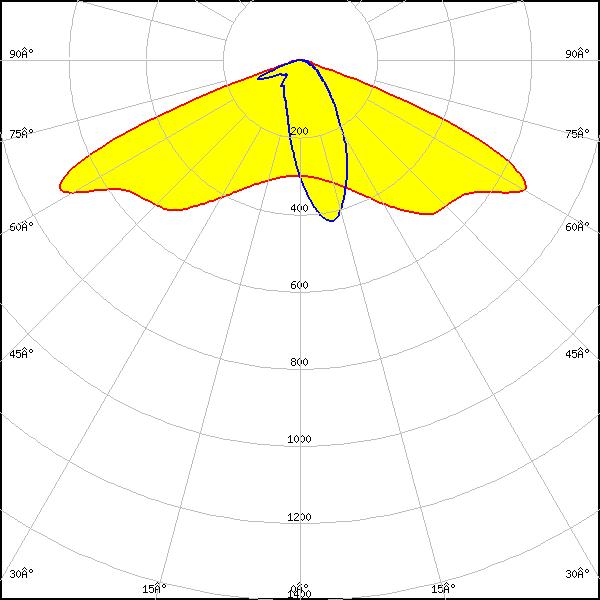

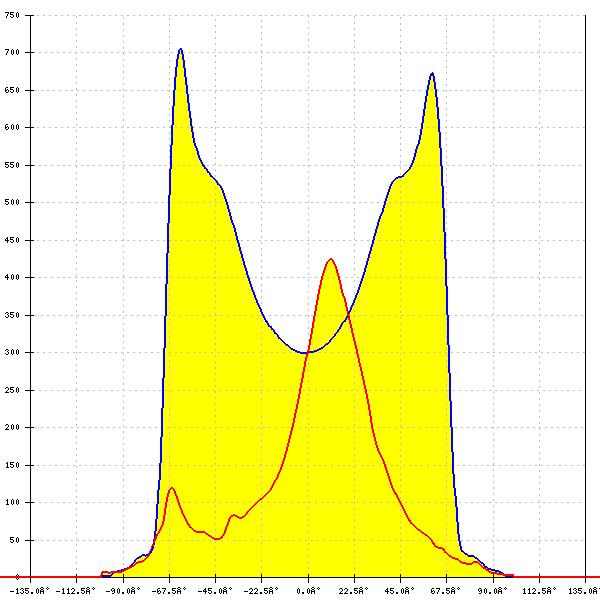

LED: HiQLED STR28 CR JE2835 4x7 xxx
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

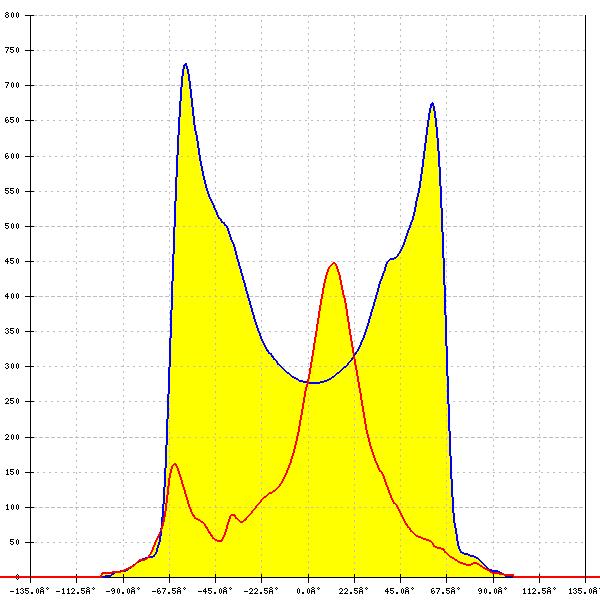

LED: HiQLED STR28 CR JK3030 4x7 xxx
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

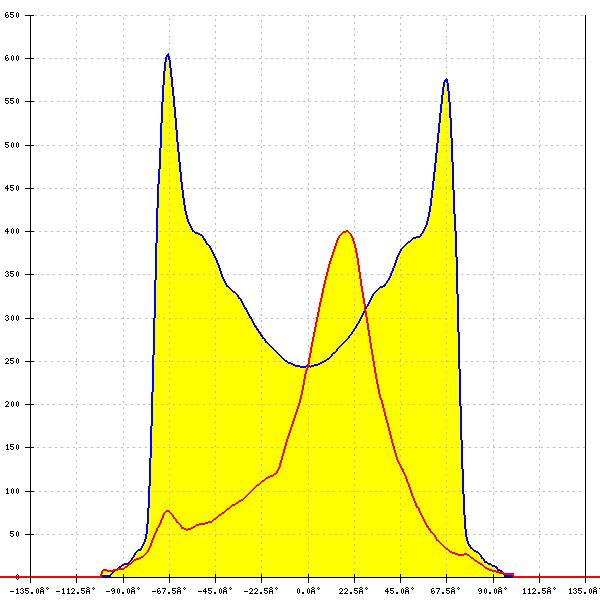

LED: QUICK FLUX STR28 XD2x14 xxx G8
FWHM: asymmetric
Peak intensity: 0.790 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX STR28 XP2x14 xxx G7
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX STR28 XT2x14 xxx G5
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: J Series 2835
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

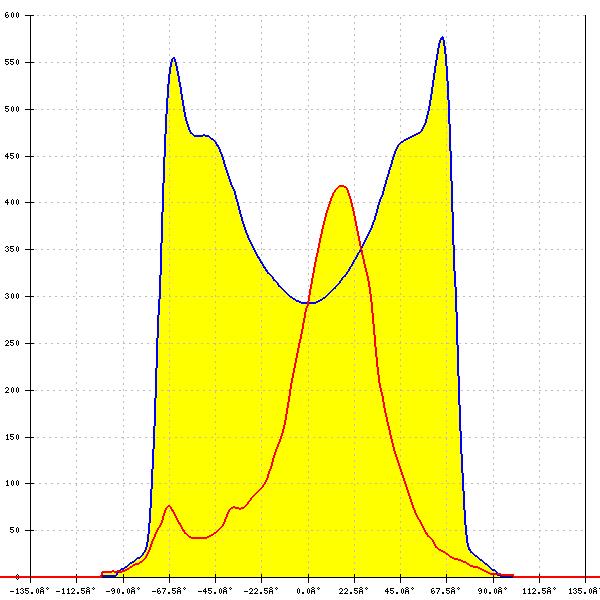

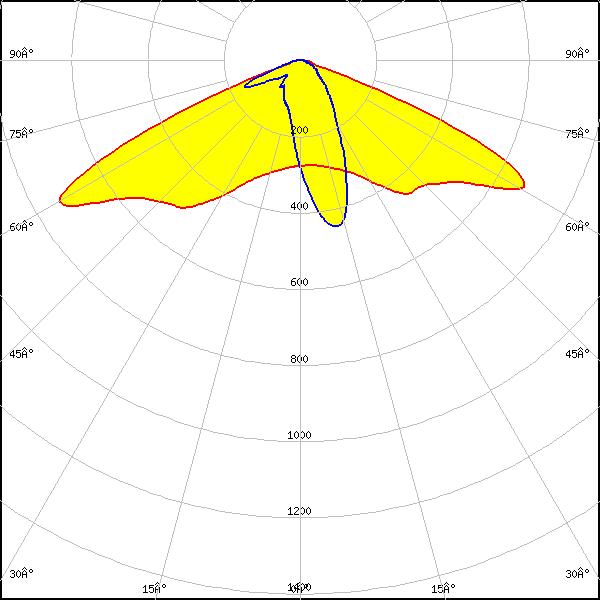

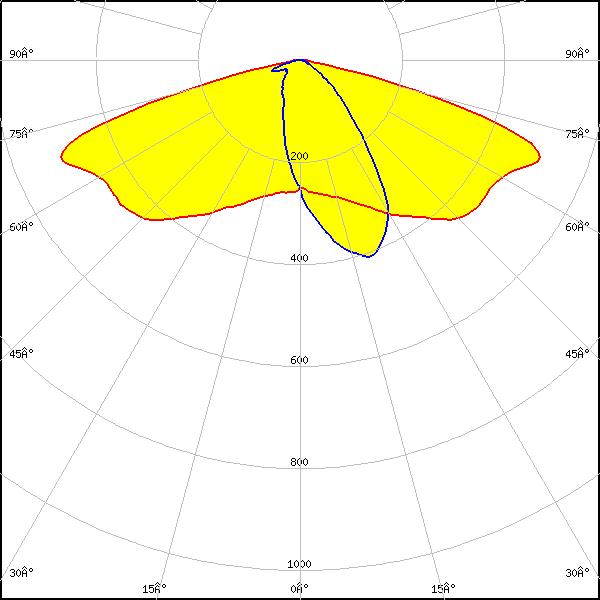

LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.701 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: J Series 3030
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

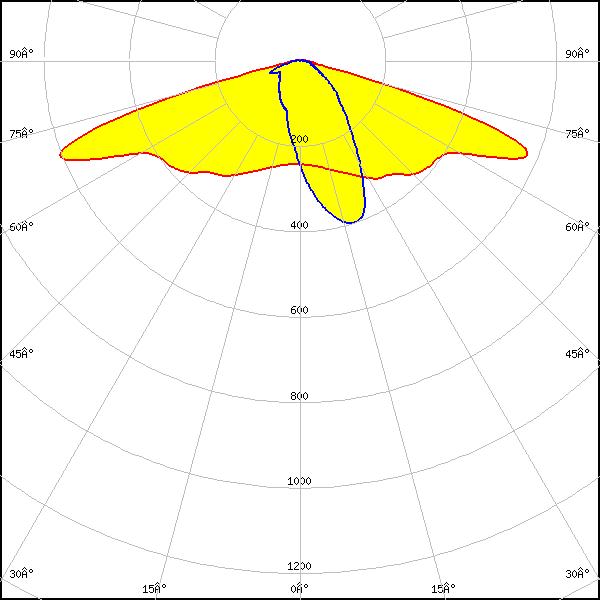

LED: XD16
FWHM: asymmetric
Peak intensity: 0.790 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

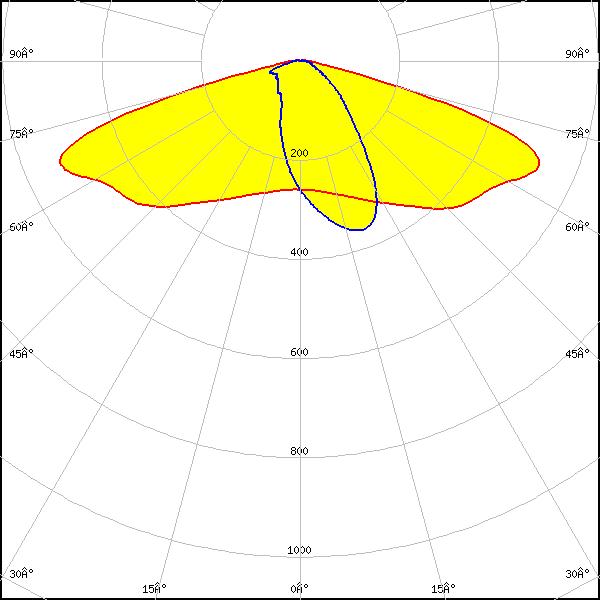

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

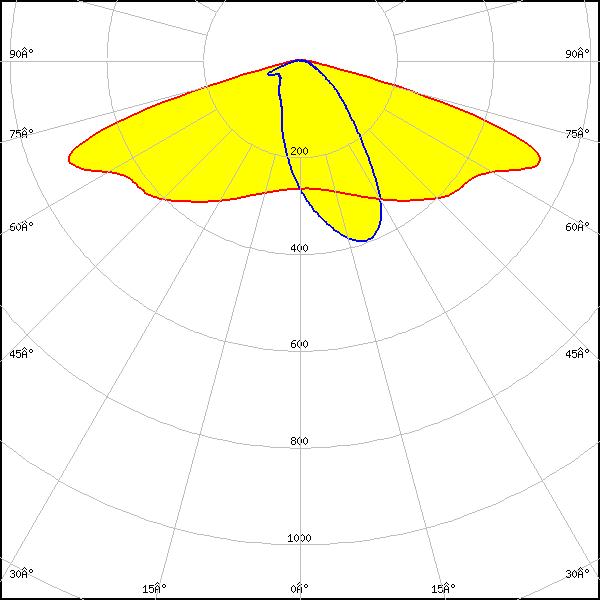

LED: XT-E
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.840 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NF2W585AR
FWHM: asymmetric
Peak intensity: 0.542 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NF2W585AR
FWHM: asymmetric
Peak intensity: 0.541 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

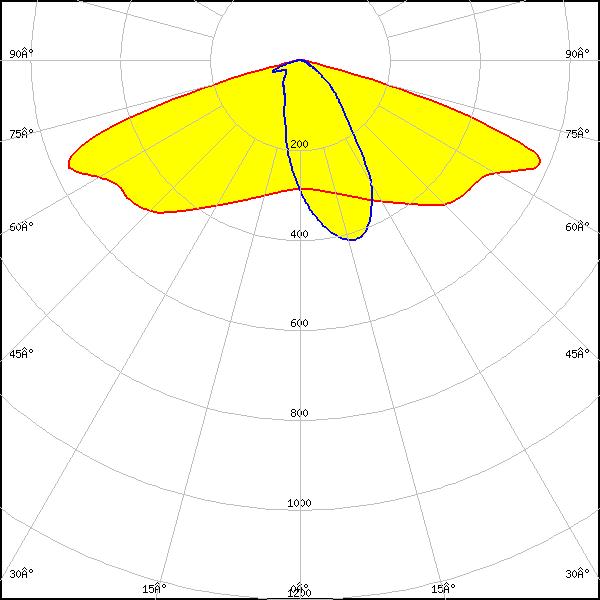

LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

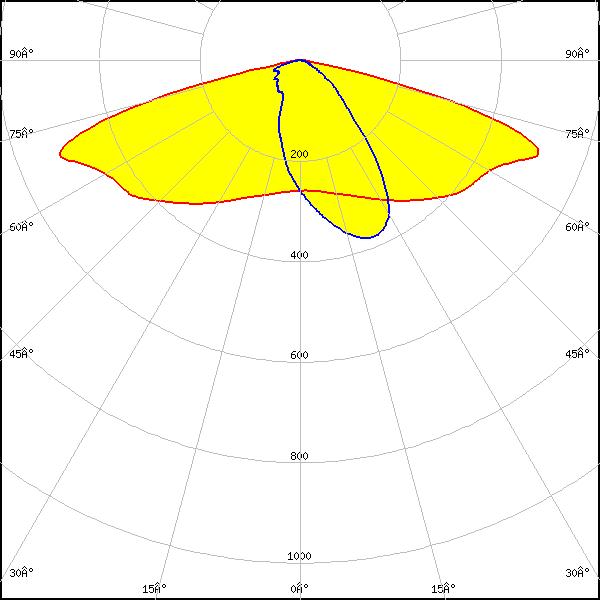

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.540 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

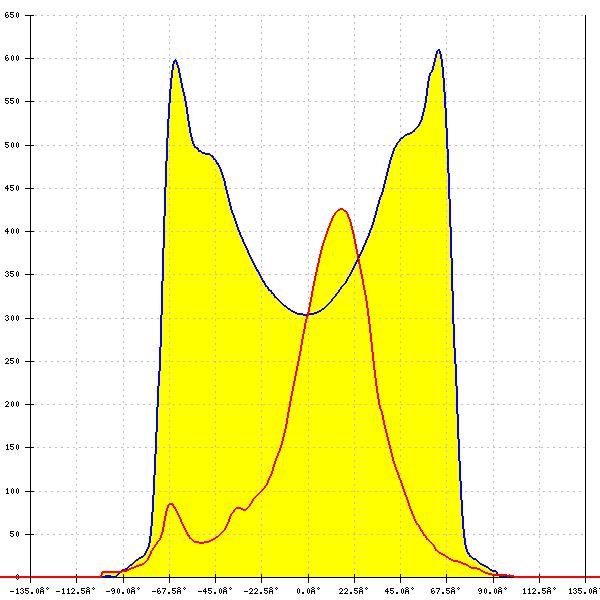

LED: Duris S5 (2 chip)
FWHM: asymmetric
Peak intensity: 0.710 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

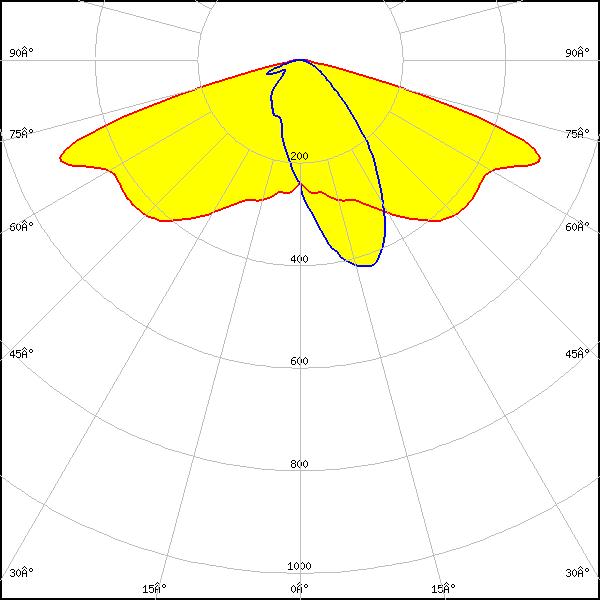

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.619 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

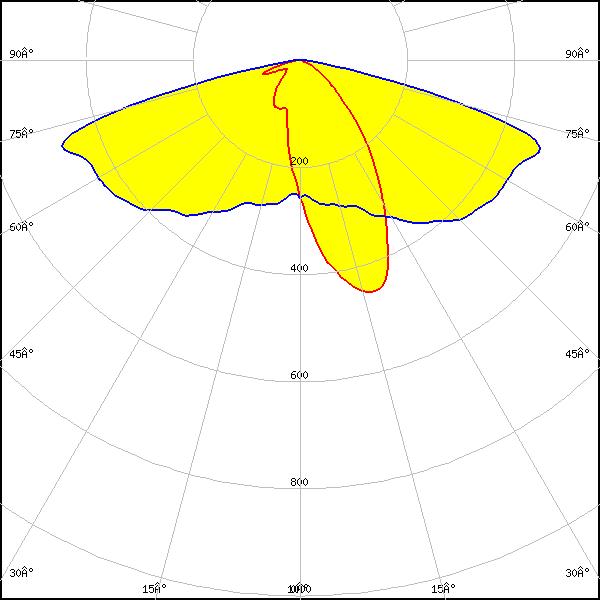

LED: OSCONIQ P 3030
FWHM: asymmetric
Peak intensity: 0.617 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ S 3030
FWHM: asymmetric
Peak intensity: 0.675 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

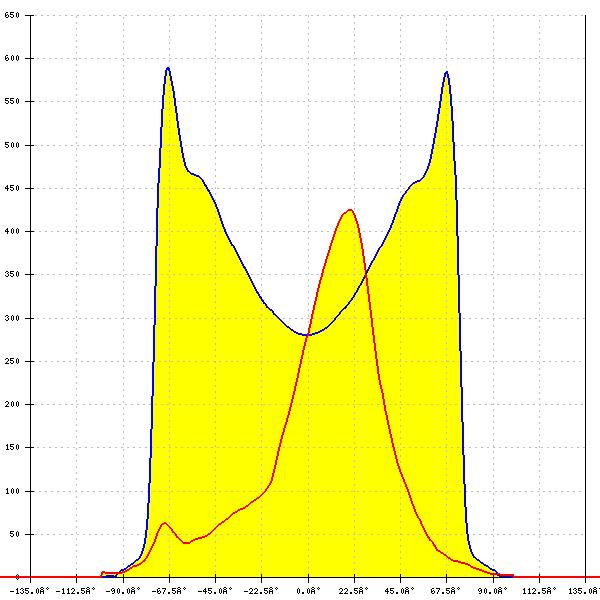

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

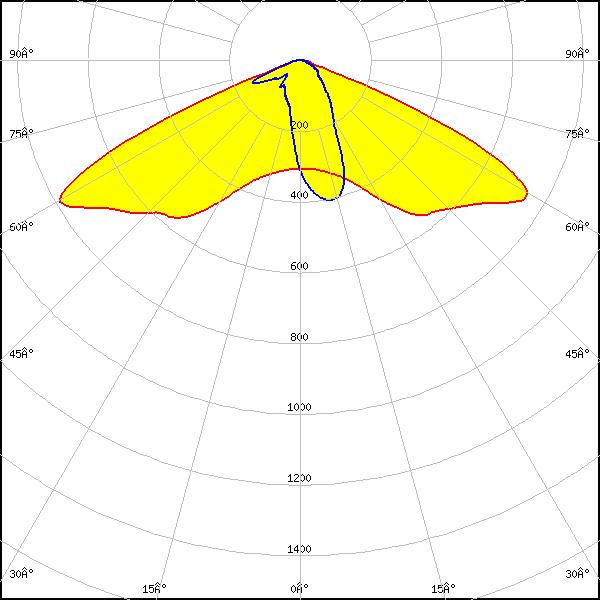

LED: HiLOM SC28 (LH181B)
FWHM: asymmetric
Peak intensity: 0.850 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM SM28 (LM301B)
FWHM: asymmetric
Peak intensity: 0.790 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

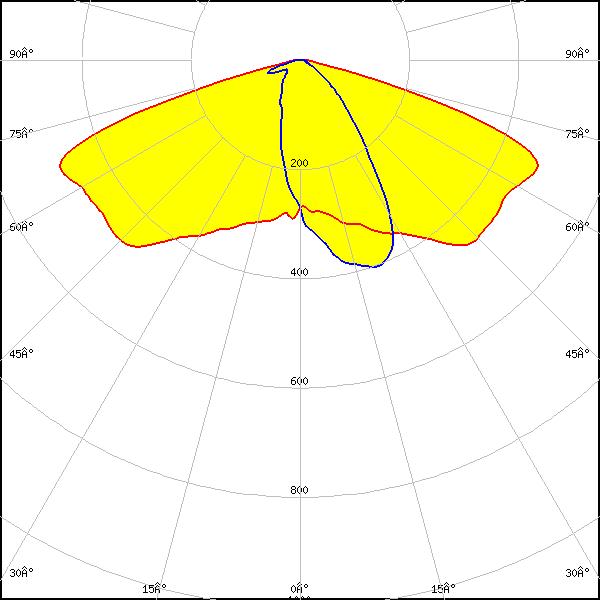

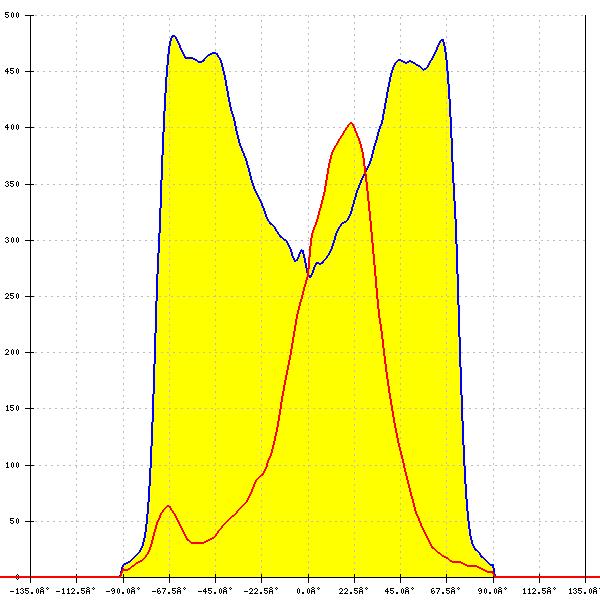

LED: LH231B
FWHM: asymmetric
Peak intensity: 0.539 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

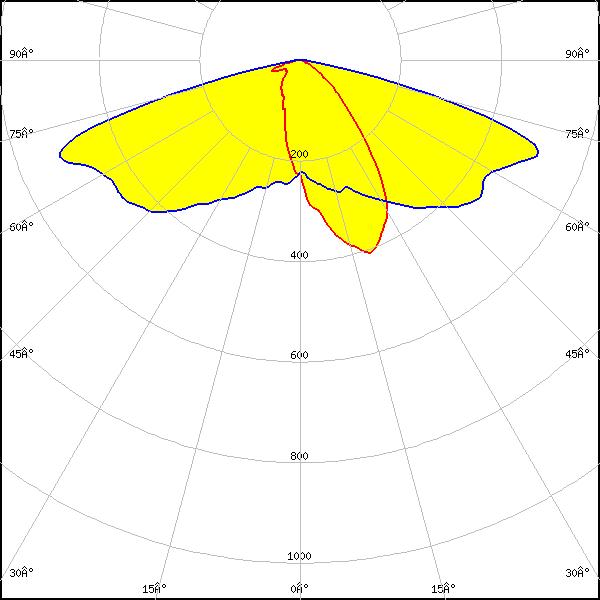

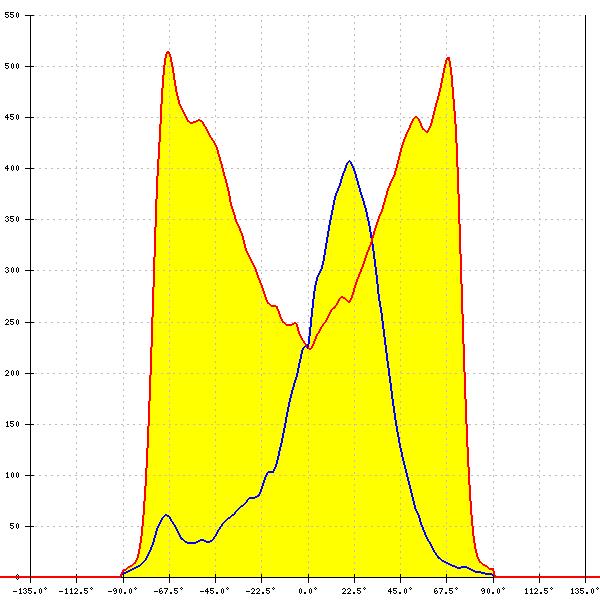

LED: SEOUL DC 3030C
FWHM: asymmetric
Peak intensity: 0.613 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

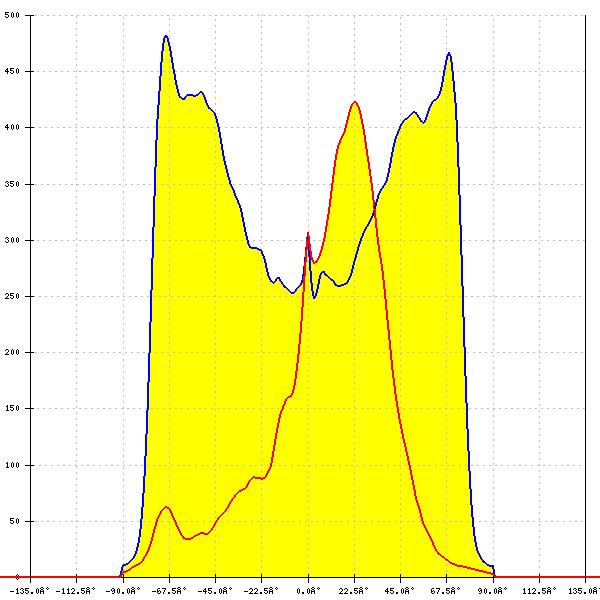

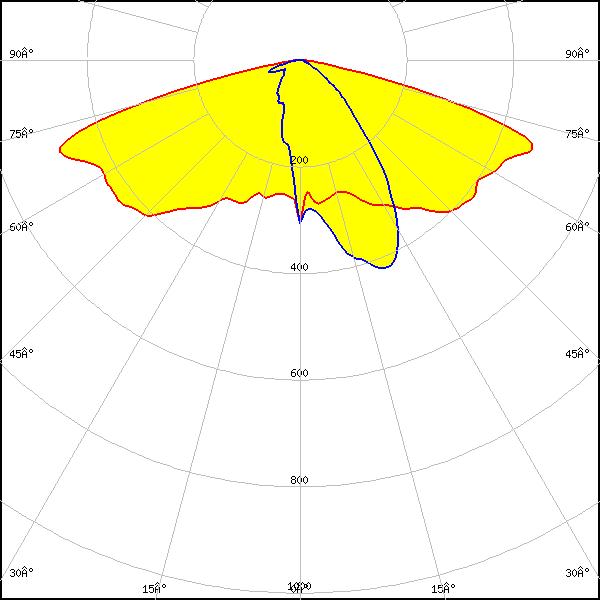

LED: Z5M1/Z5M2
FWHM: asymmetric
Peak intensity: 0.560 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

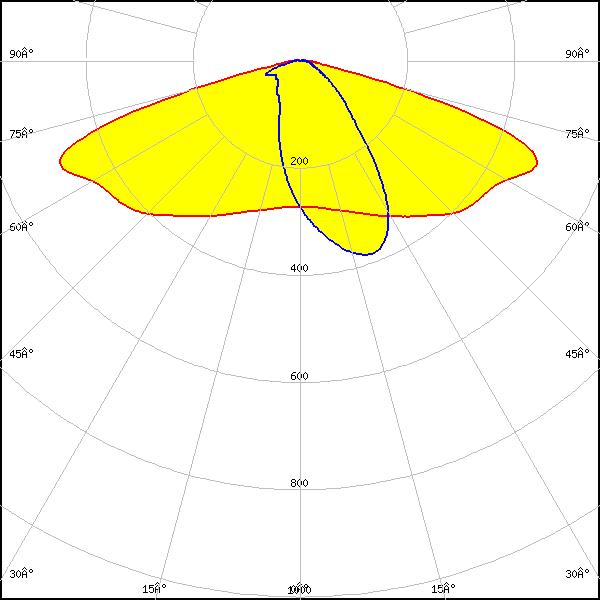

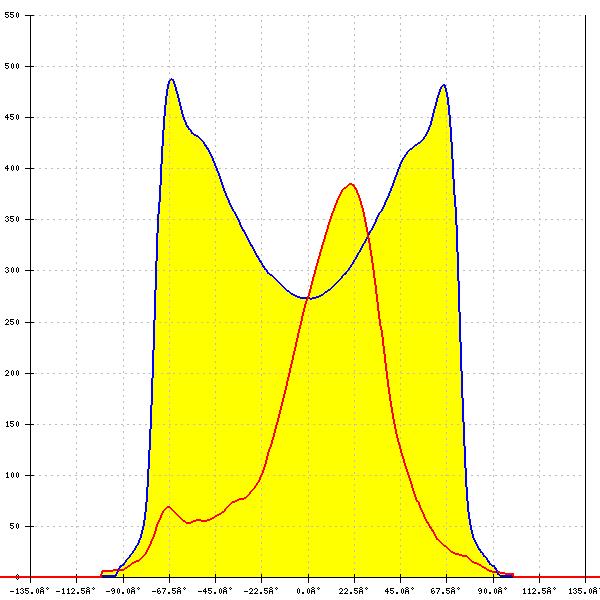

LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y19
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

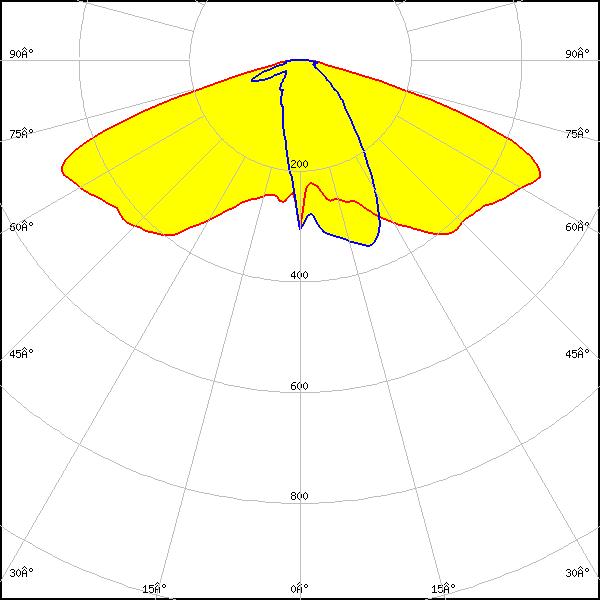

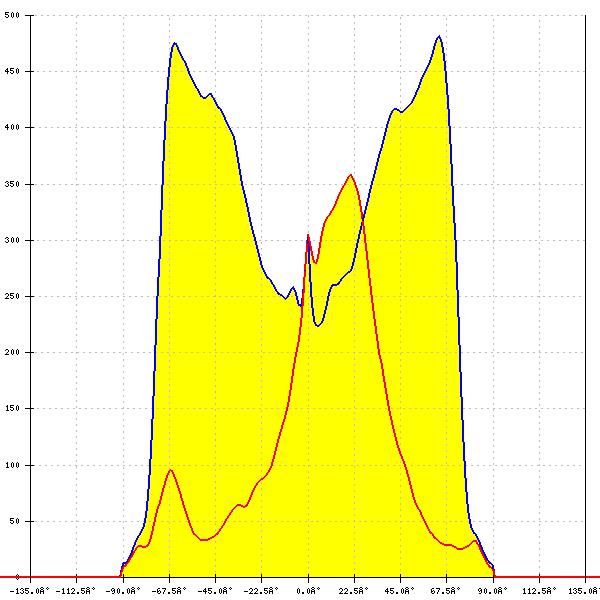

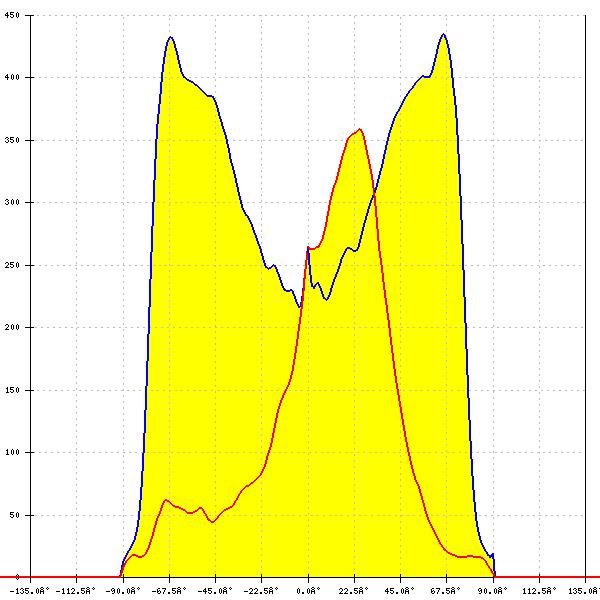

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.540 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
