CS16102_STRADELLA-IP-28-T3

Print

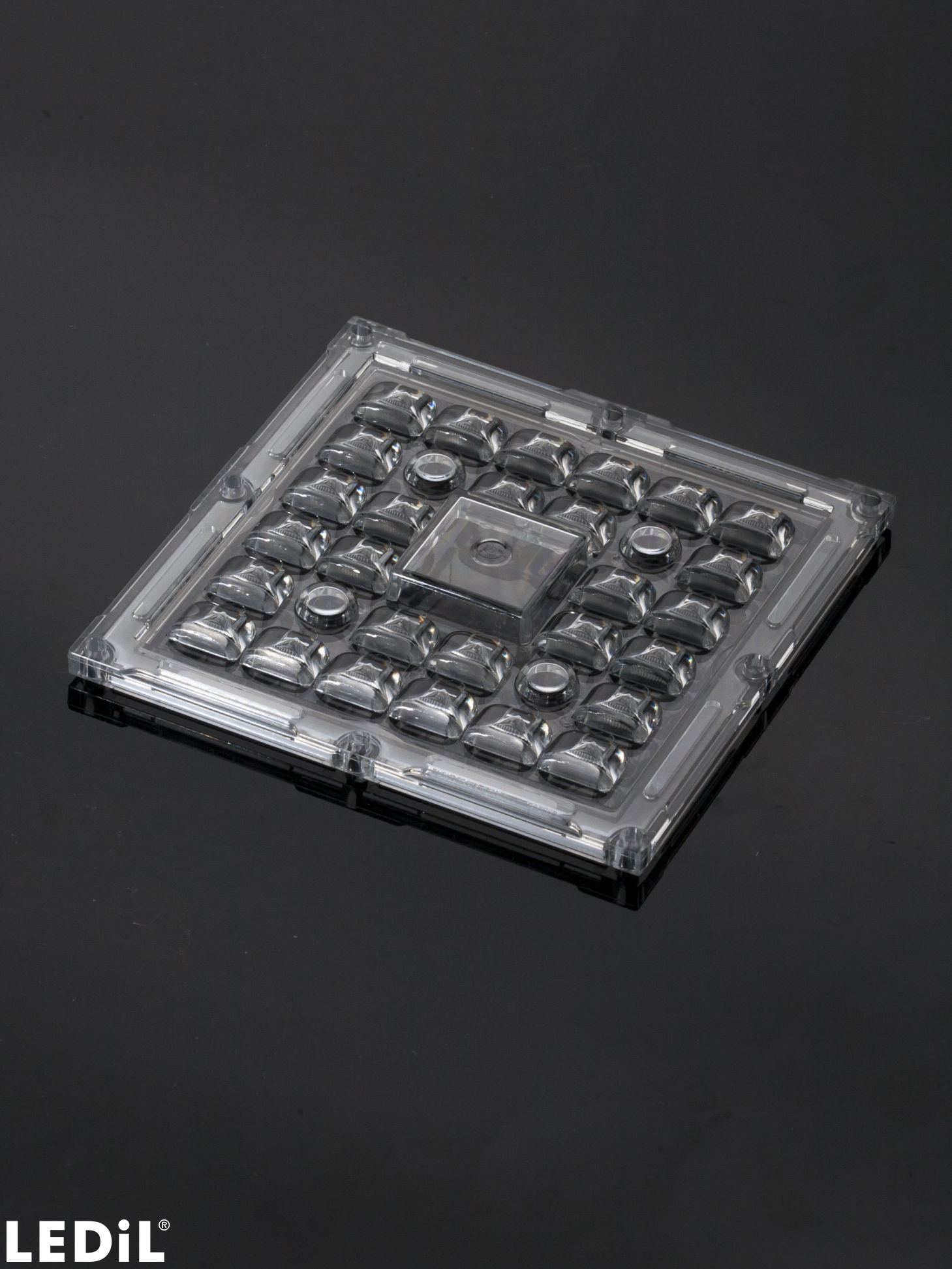

IESNA Type III (medium) beam for roads that are equal to or wider than mounting height. Variant made from PMMA.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.2 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • STRADELLA-IP-28-T3, Multi-lens, PMMA
  • STRADELLA-28-SEAL, Seal, Silicone

WARNING: Cancer – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    6.3 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

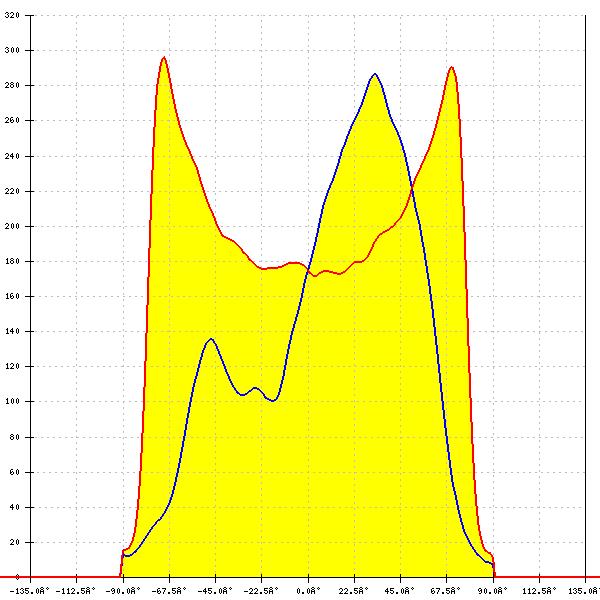

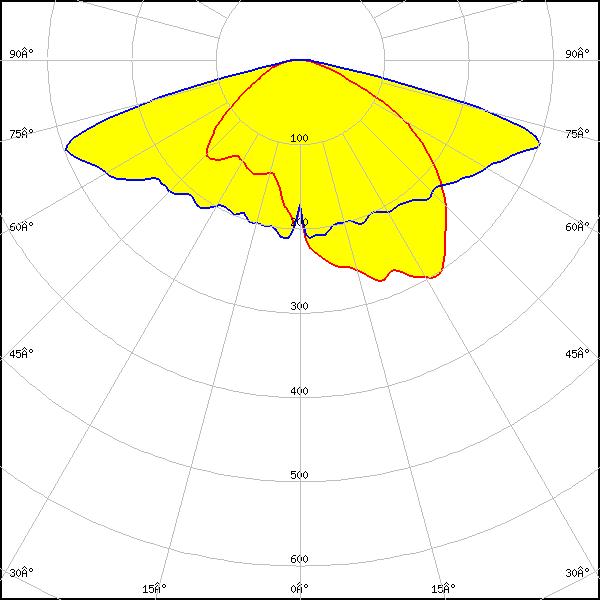

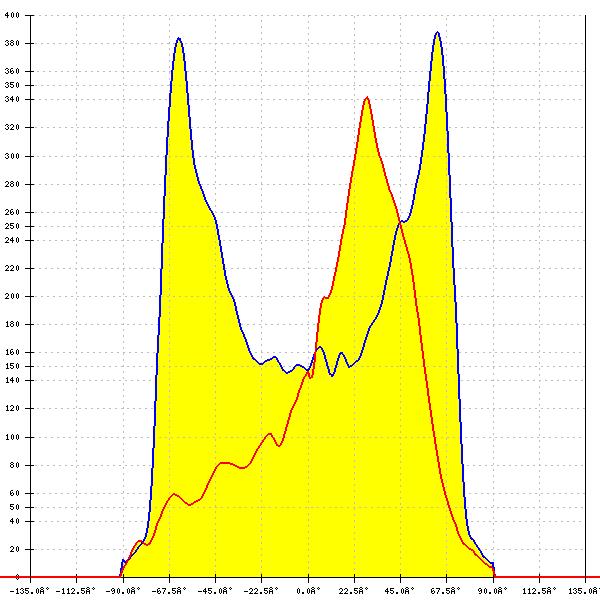

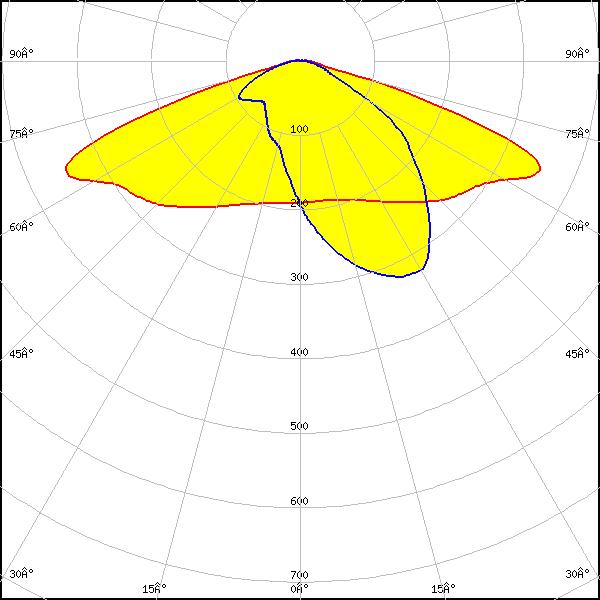

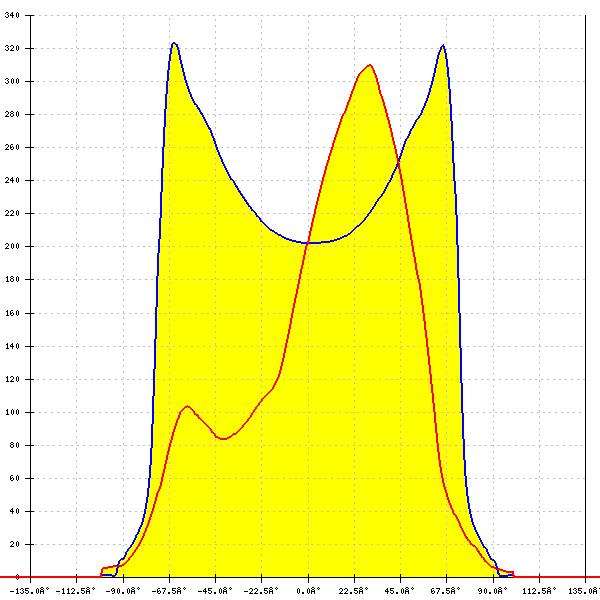

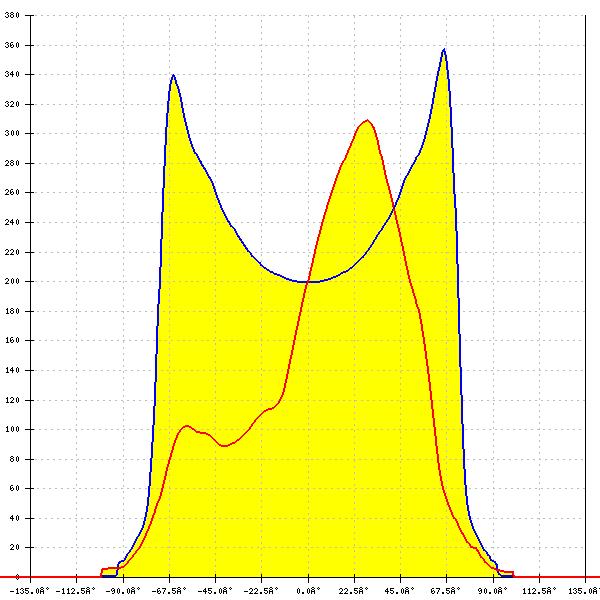

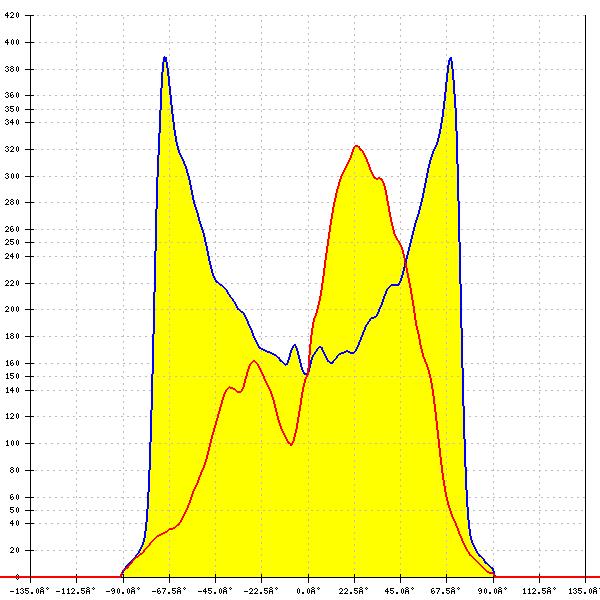

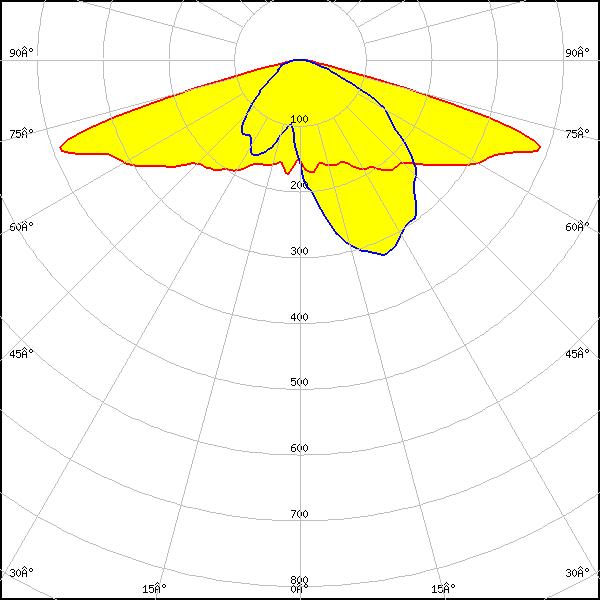

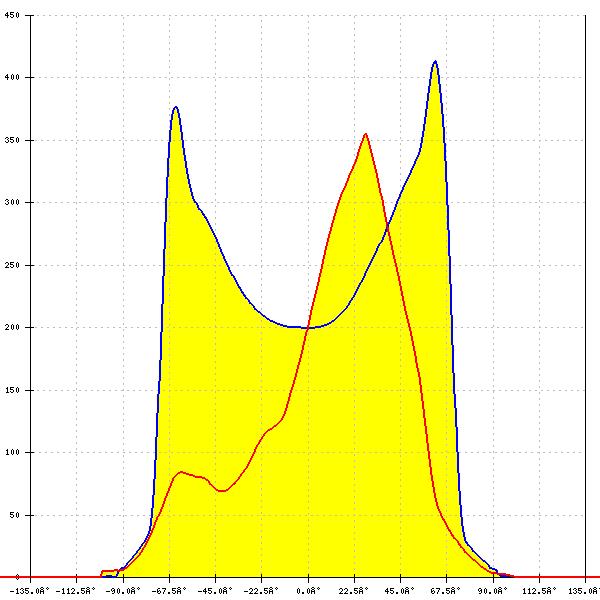

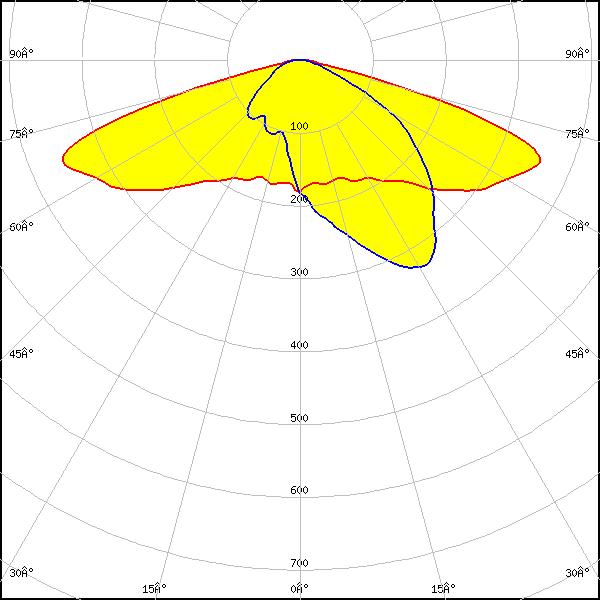

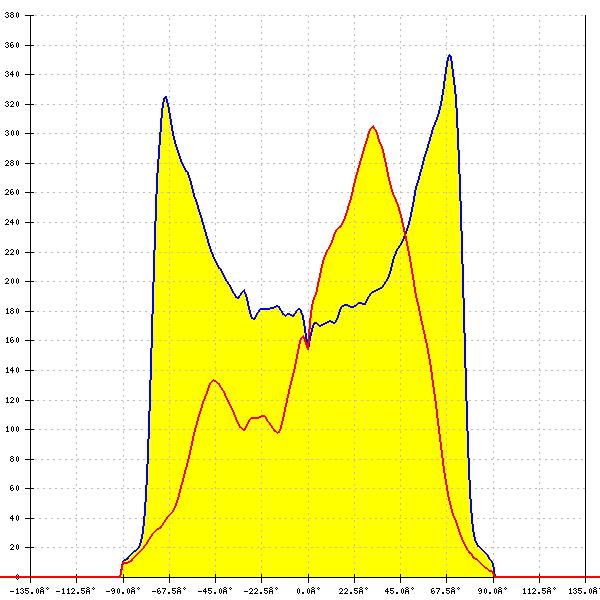

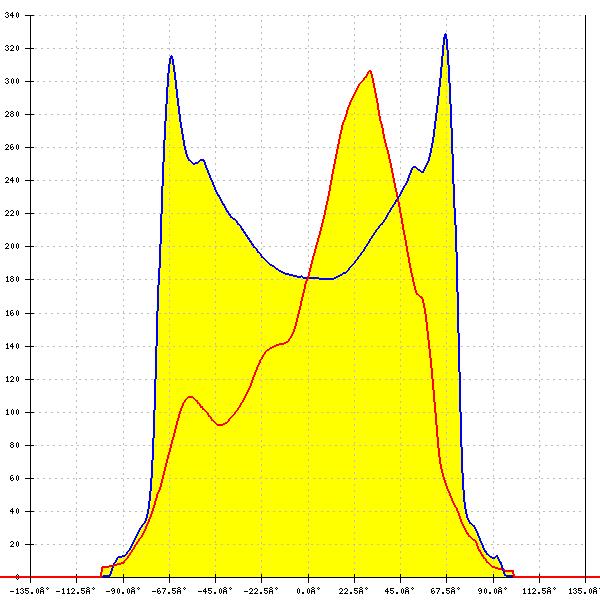

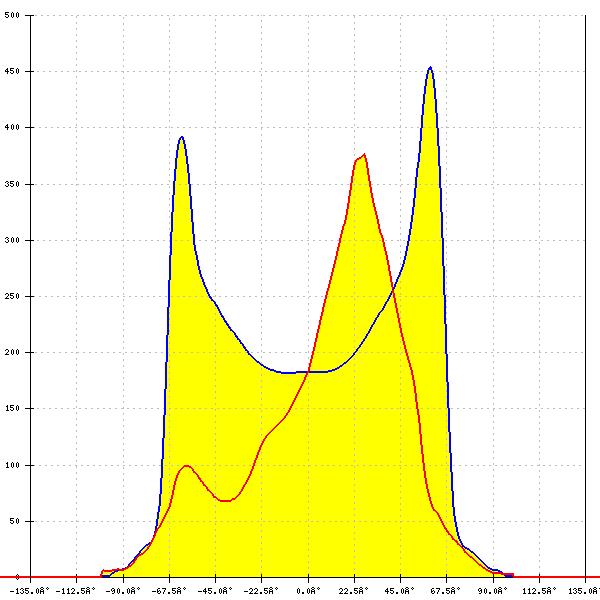

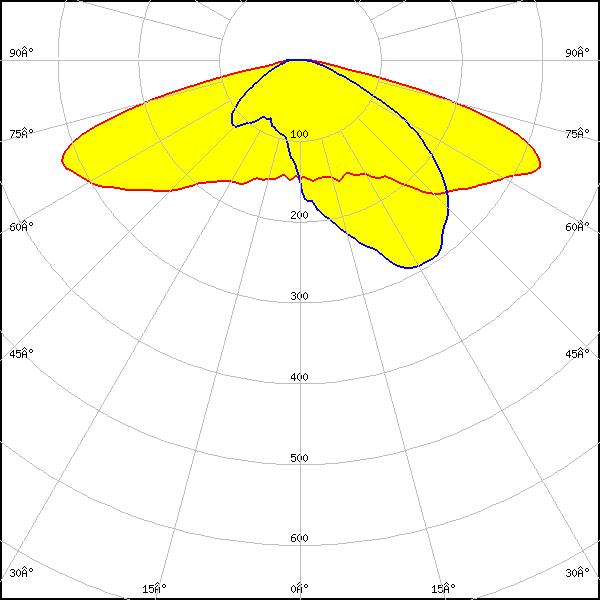

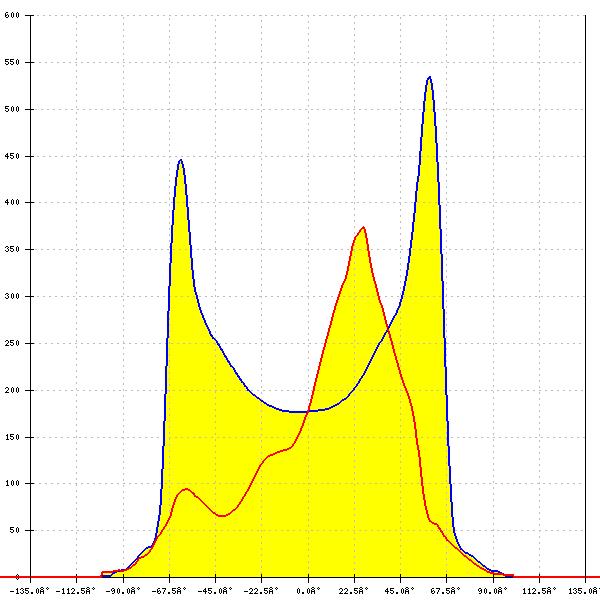

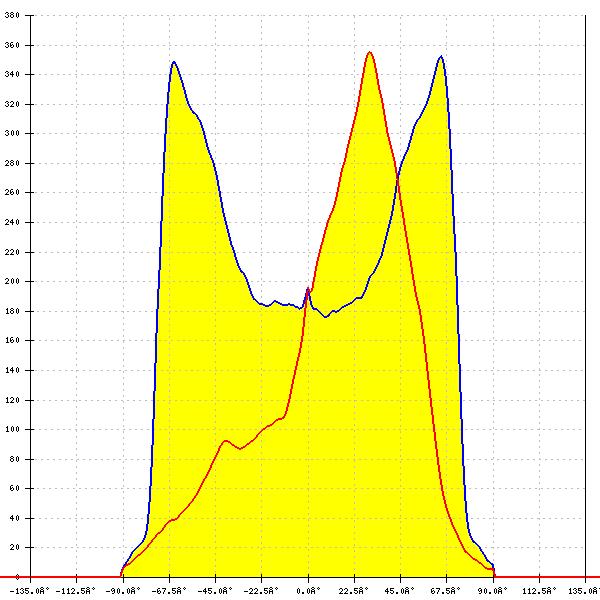

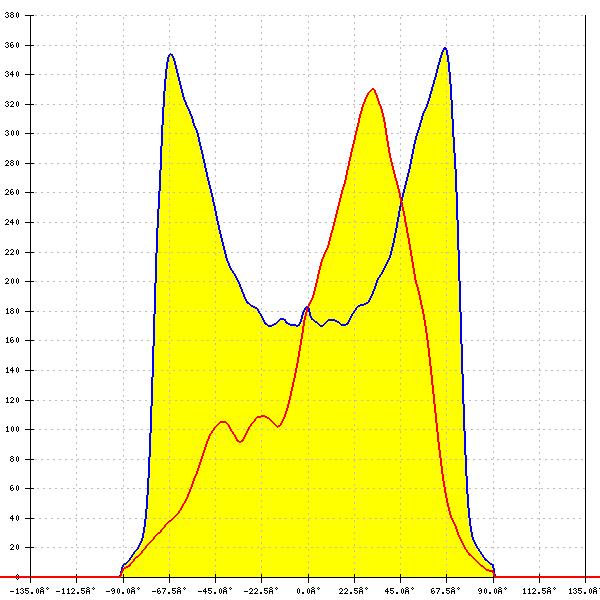

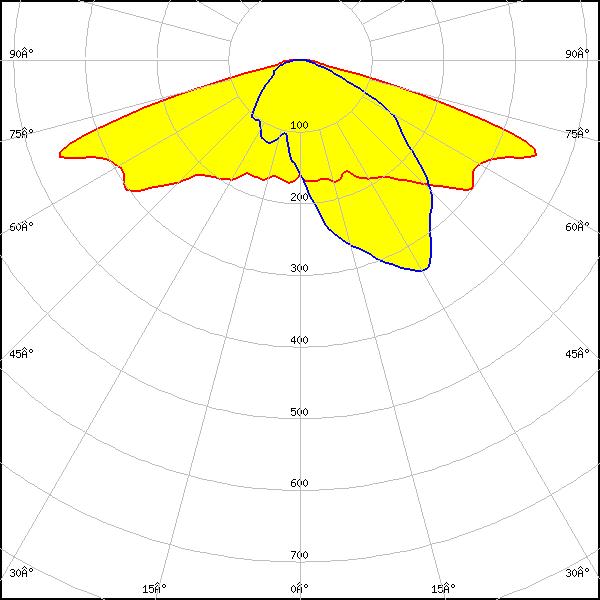

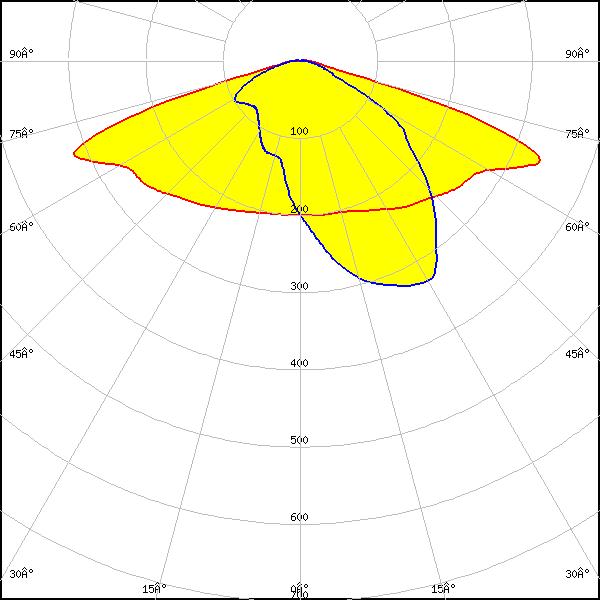

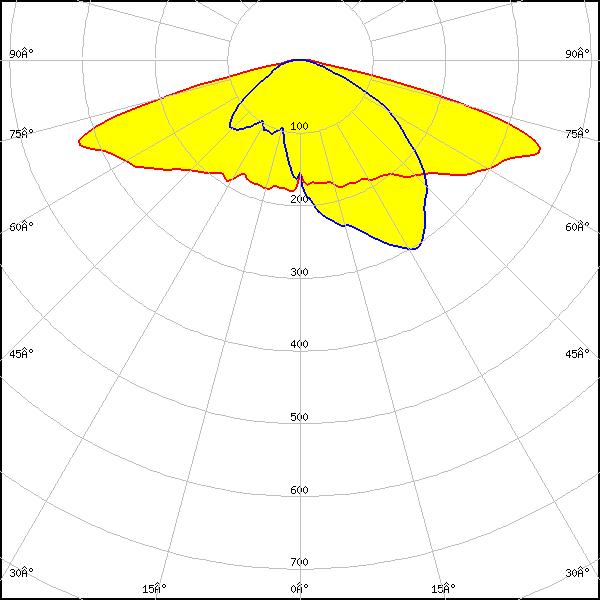

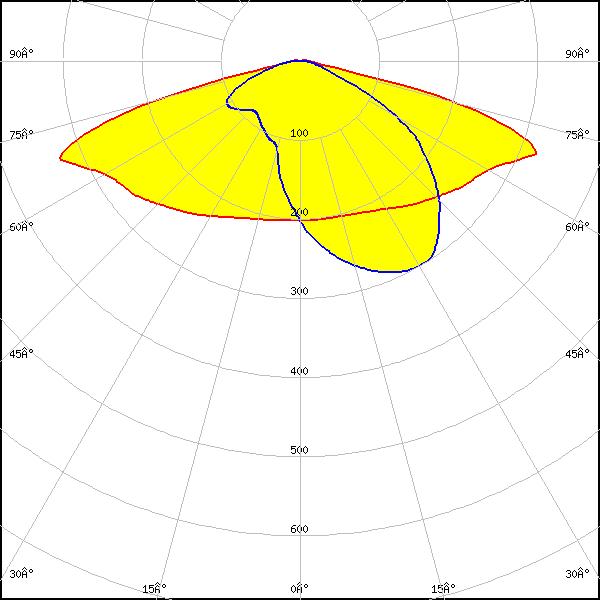

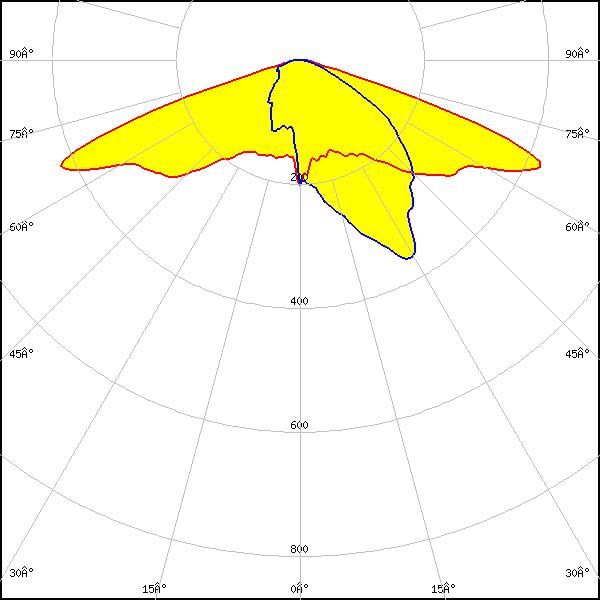

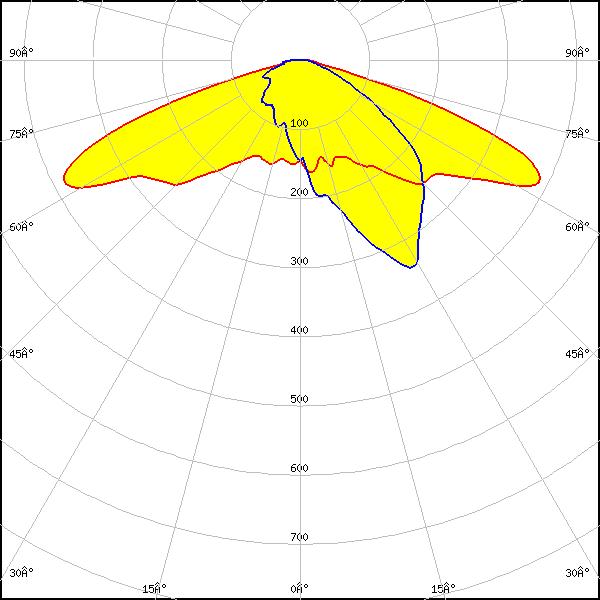

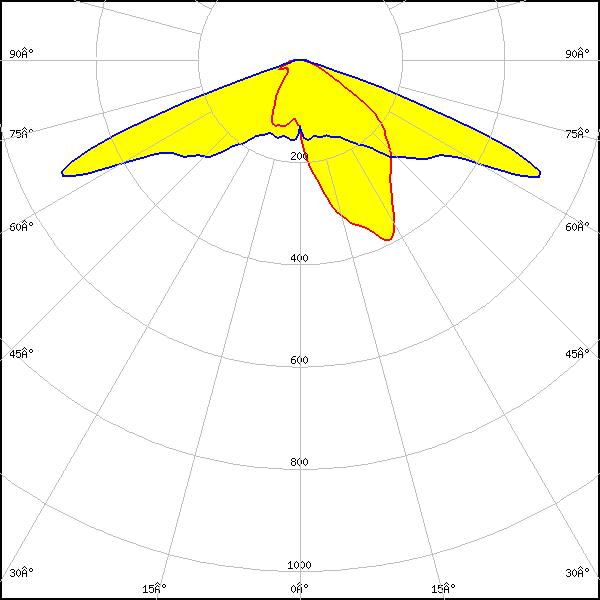

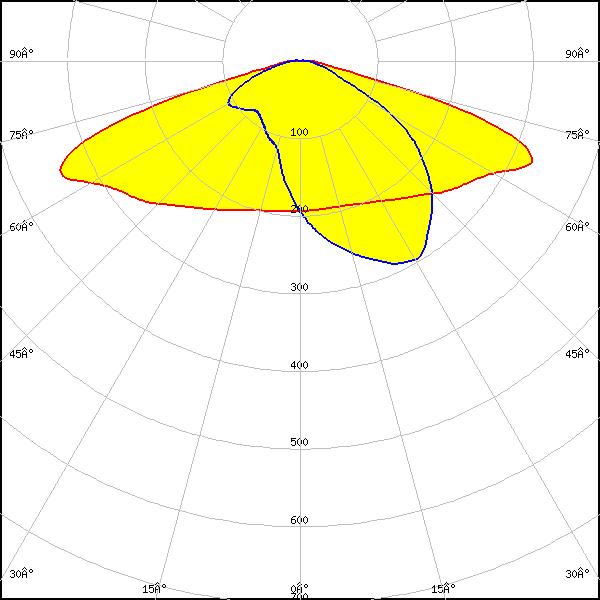

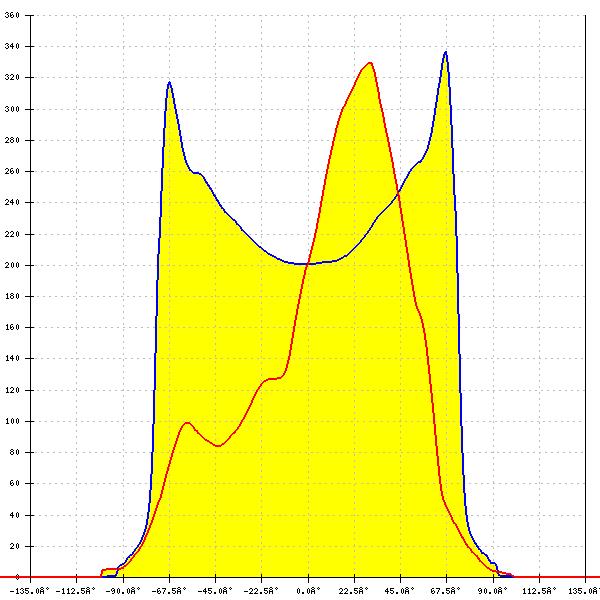

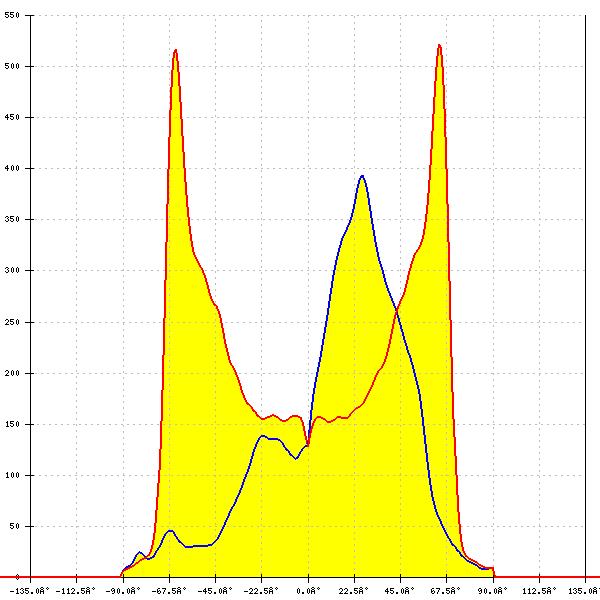

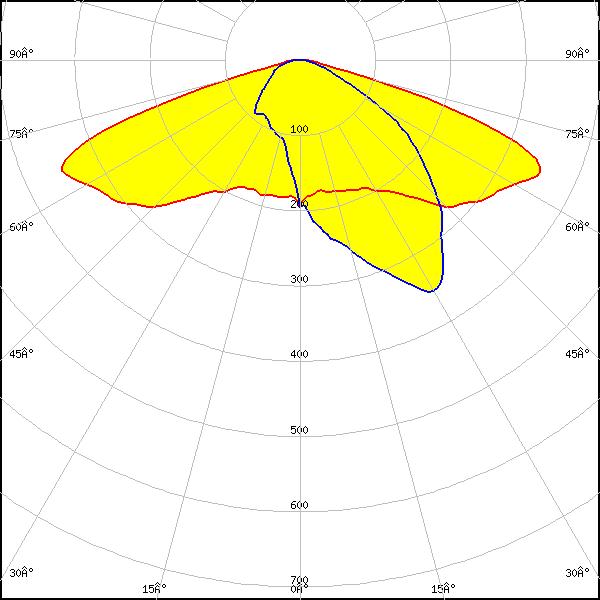

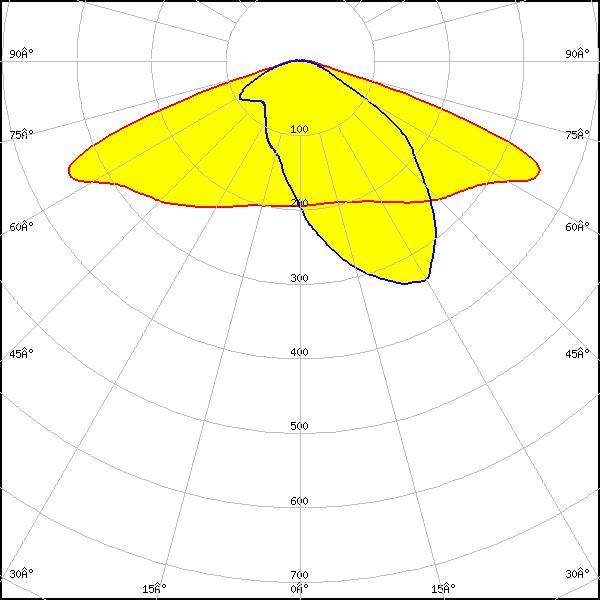

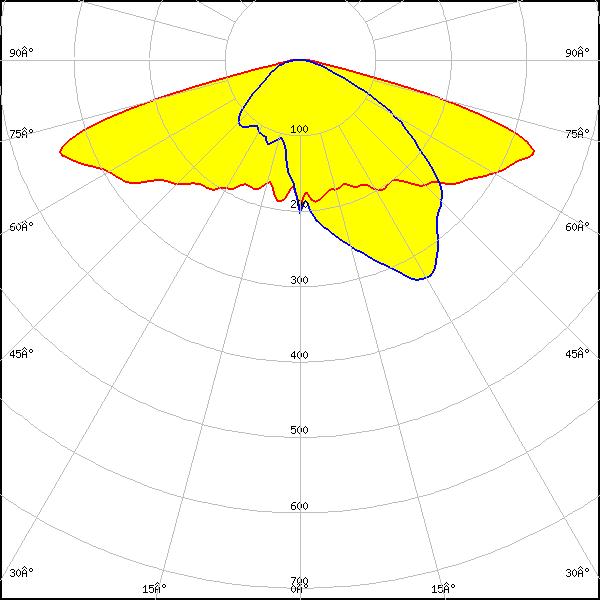

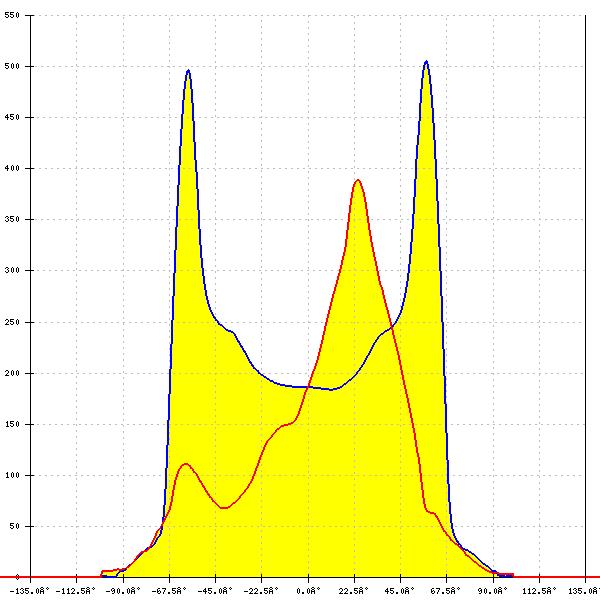

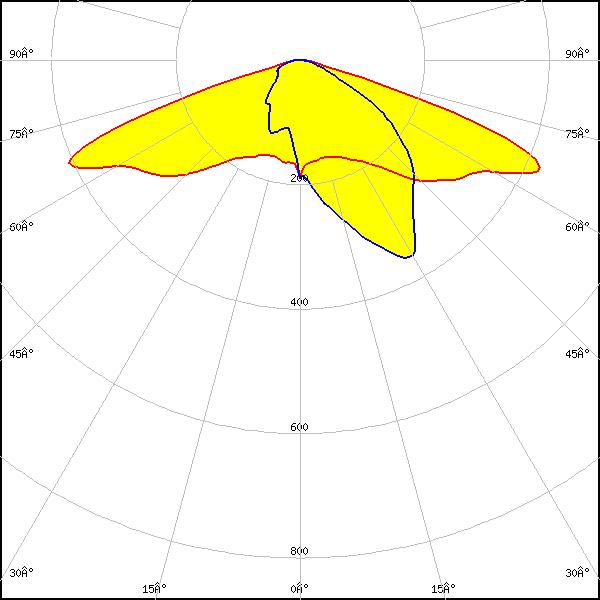

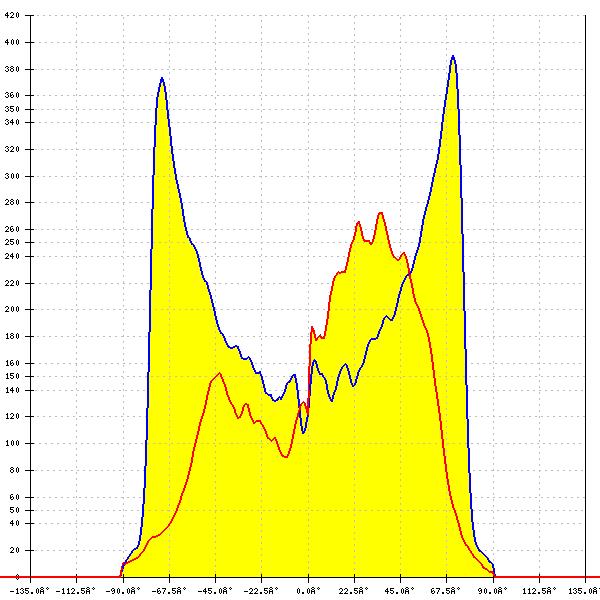

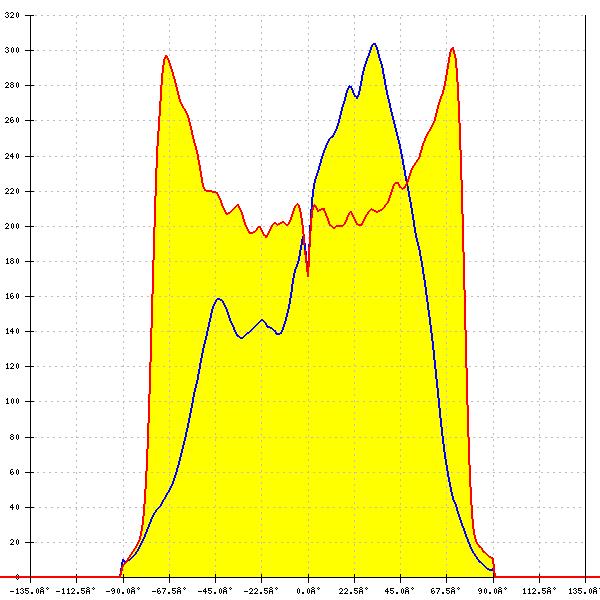

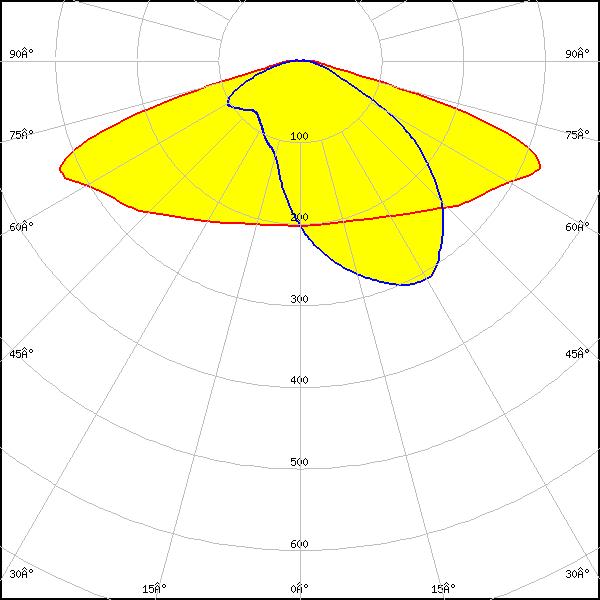

Optical results

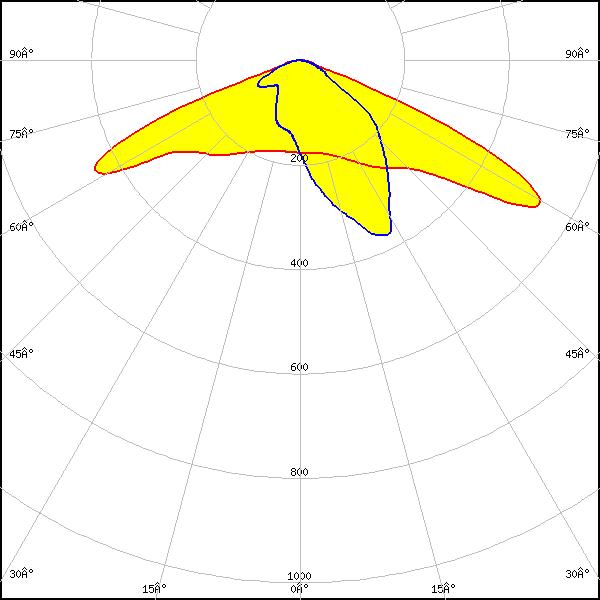

LED: HiQLED STR28 CR JК3030 4x7 xxx
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: HiQLED STR28 CR JE2835 4x7 xxx
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX STR28 XD2x14 xxx G8
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

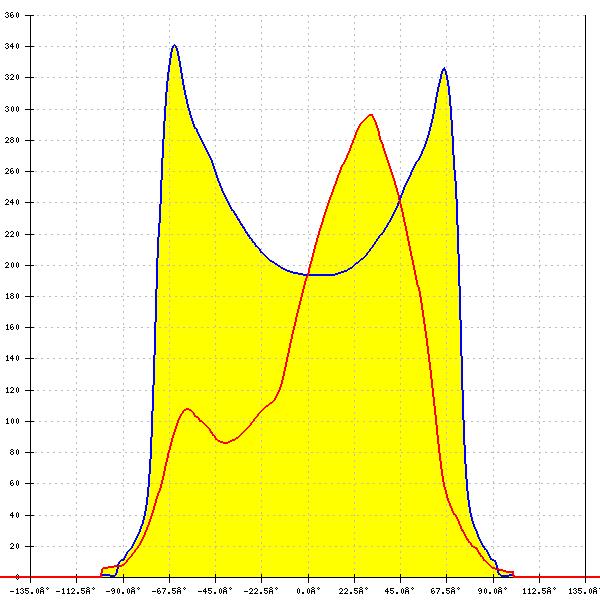

LED: QUICK FLUX STR28 XP2x14 xxx G7
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX STR28 XT2x14 xxx G5
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

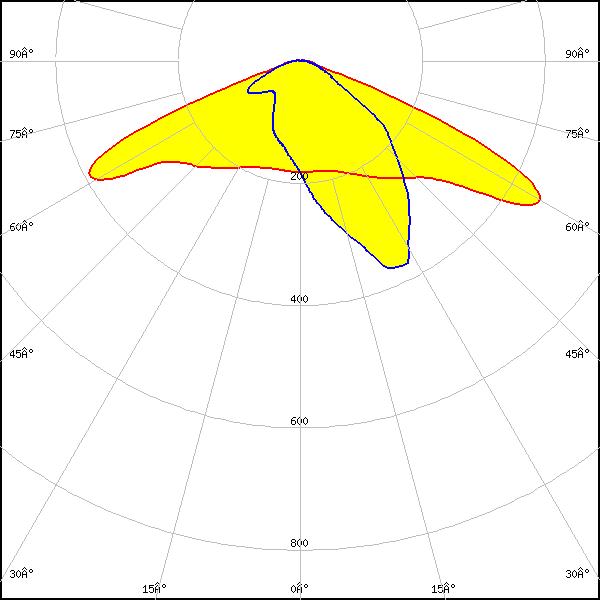

LED: J Series 2835
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

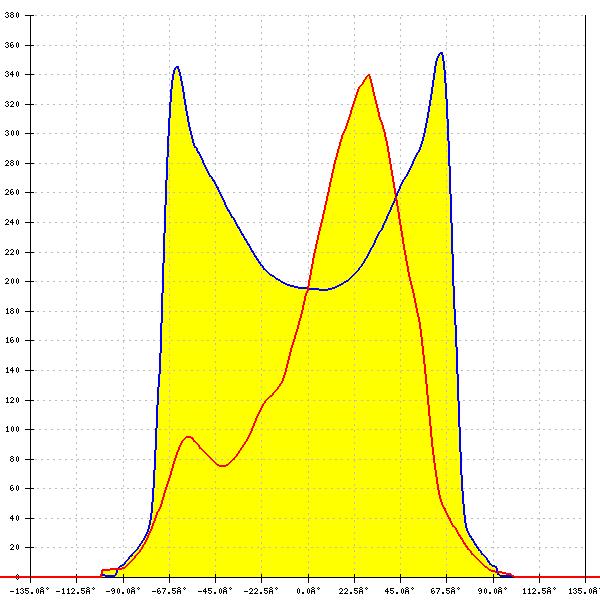

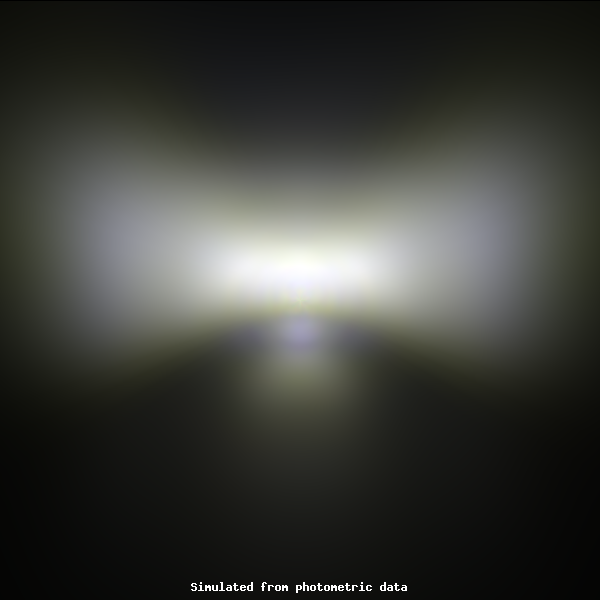

LED: J Series 3030
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: J Series 3030
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

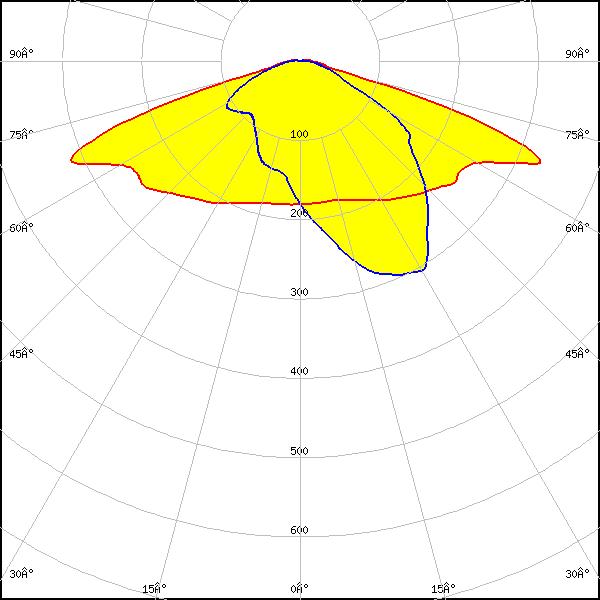

LED: XD16
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

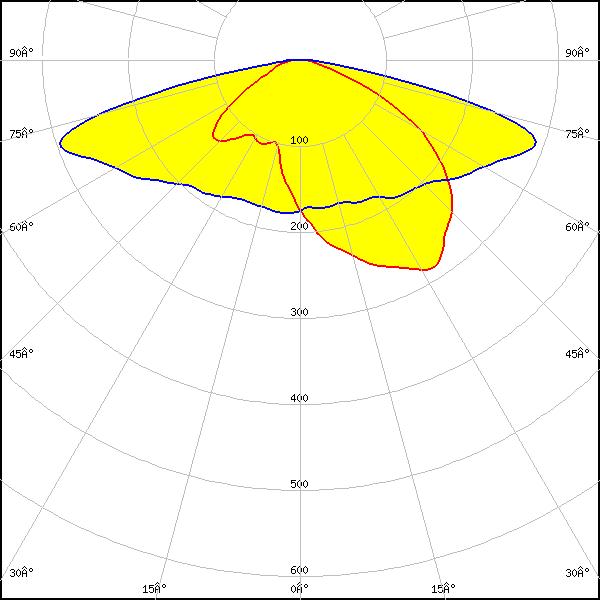

LED: XP-G
FWHM: asymmetric
Peak intensity: 0.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

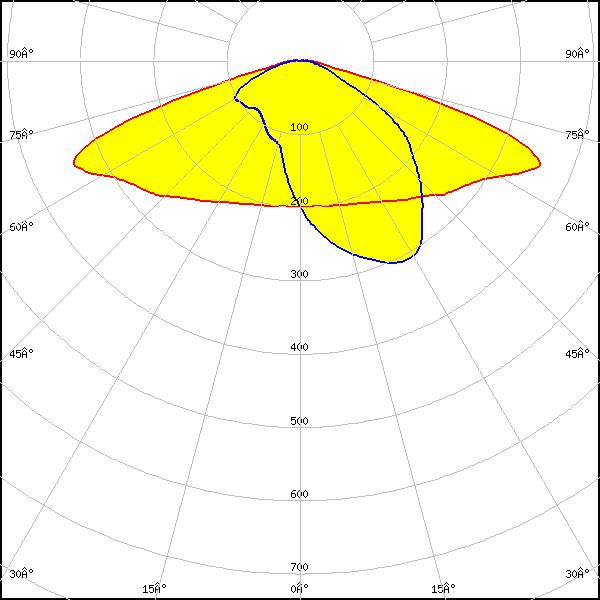

LED: XT-E
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

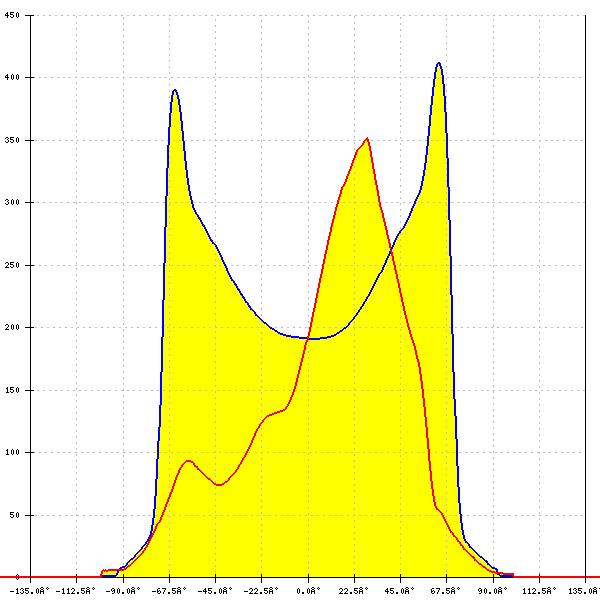

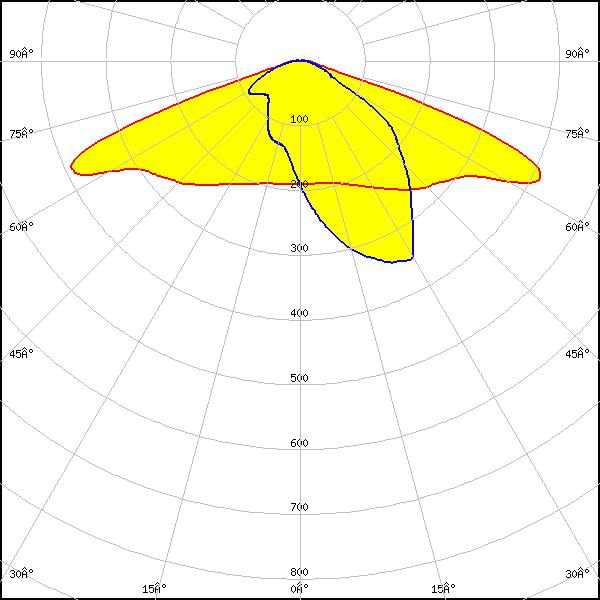

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

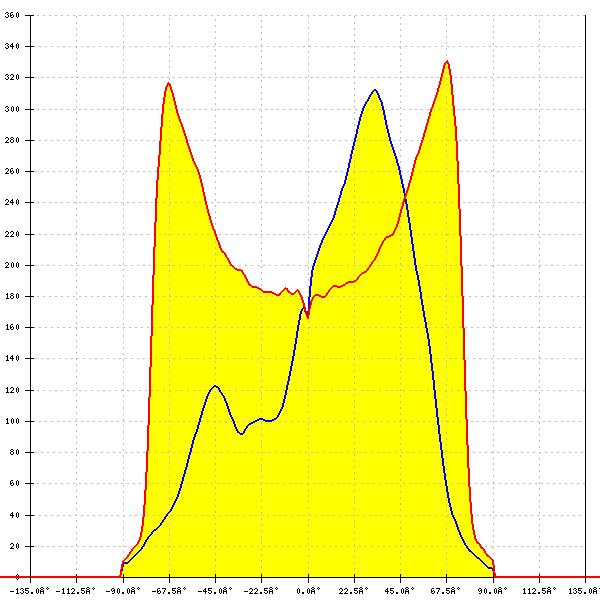

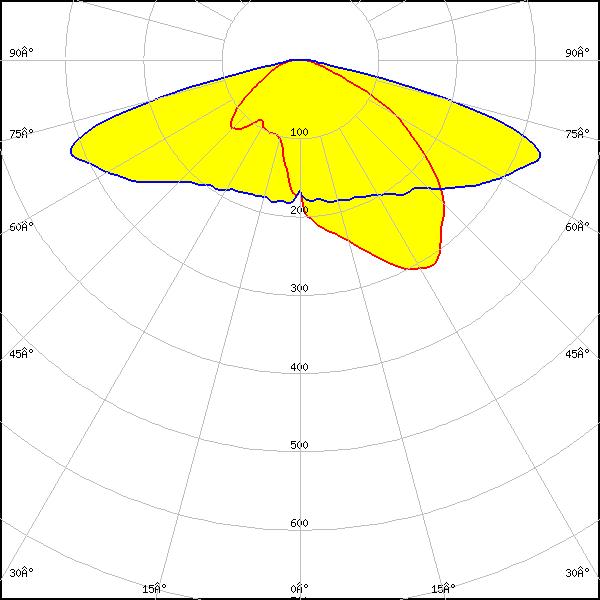

LED: LUXEON V2
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

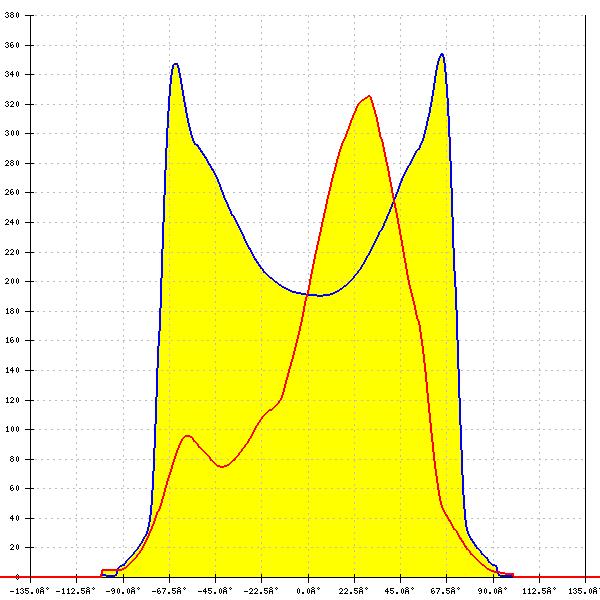

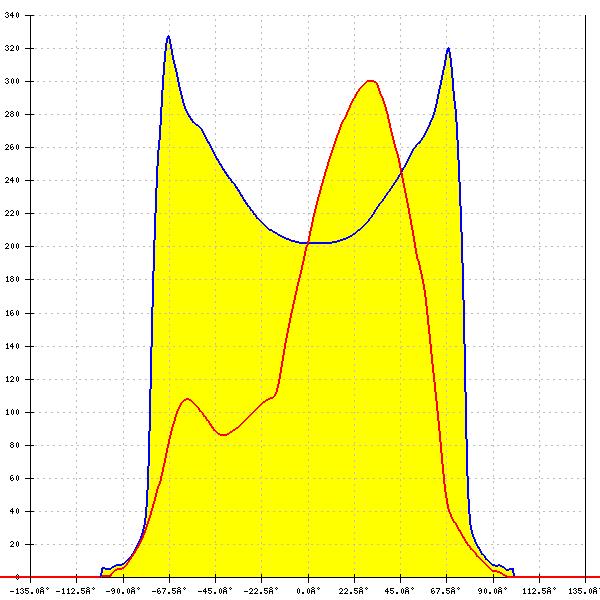

LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

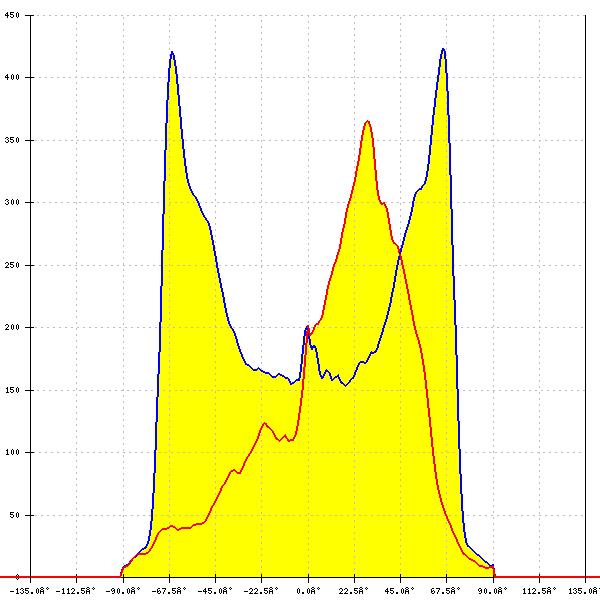

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

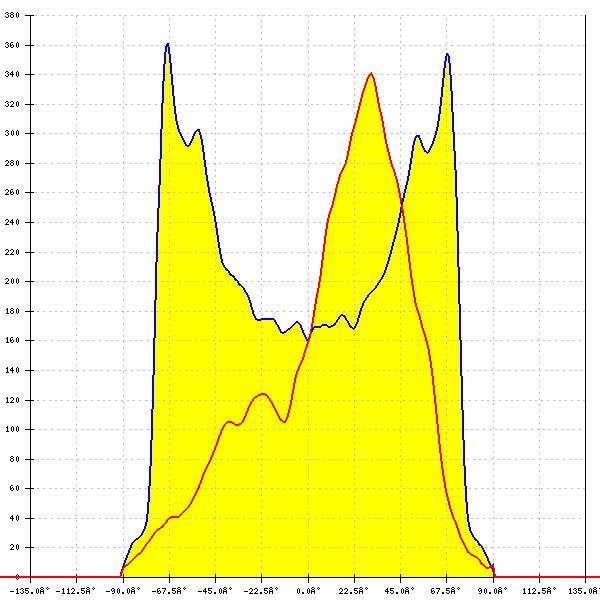

LED: Duris S5 (2 chip)
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

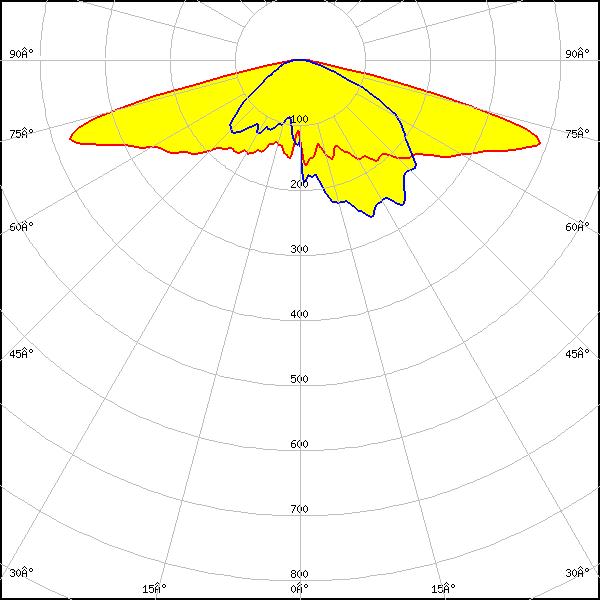

LED: OSLON SSL 150
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM SC28 (LH181B)
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

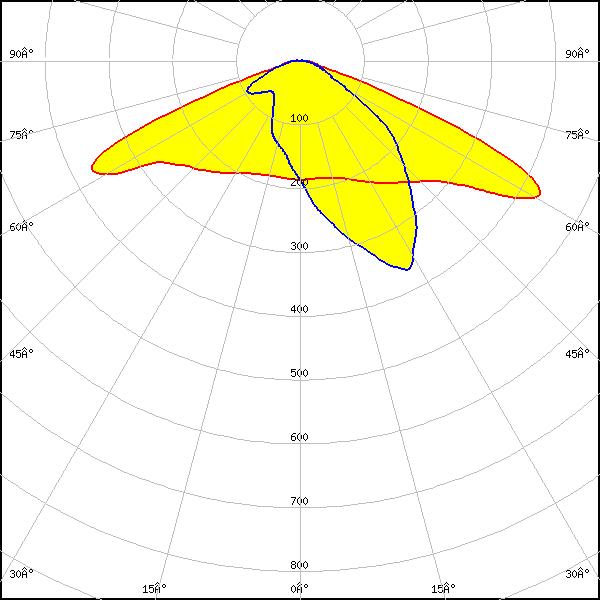

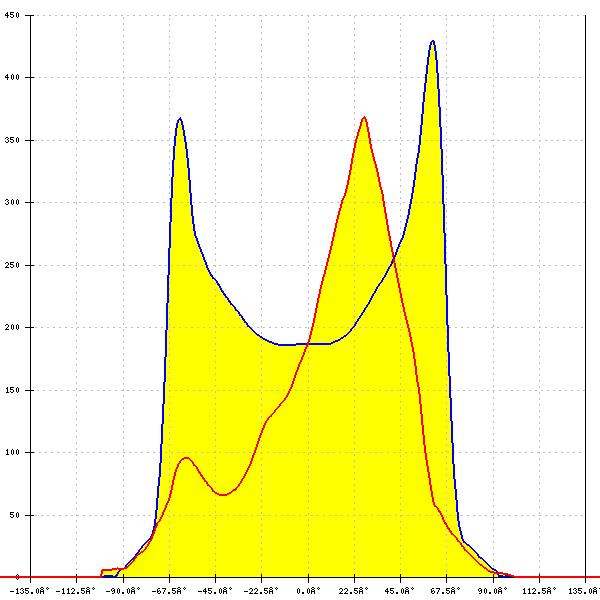

LED: HiLOM SM28 (LM301B)
FWHM: asymmetric
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

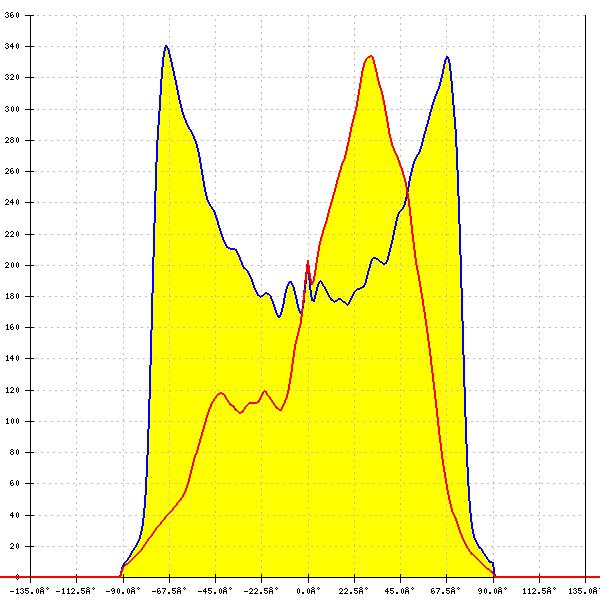

LED: Z5M1/Z5M2
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

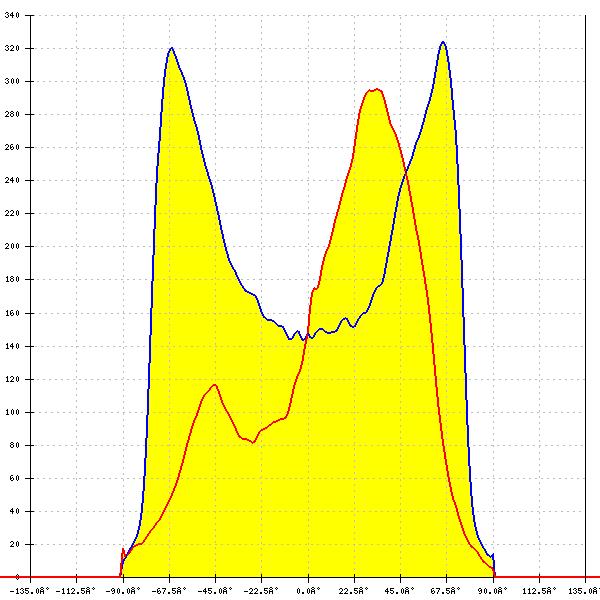

LED: Z8Y22P
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
