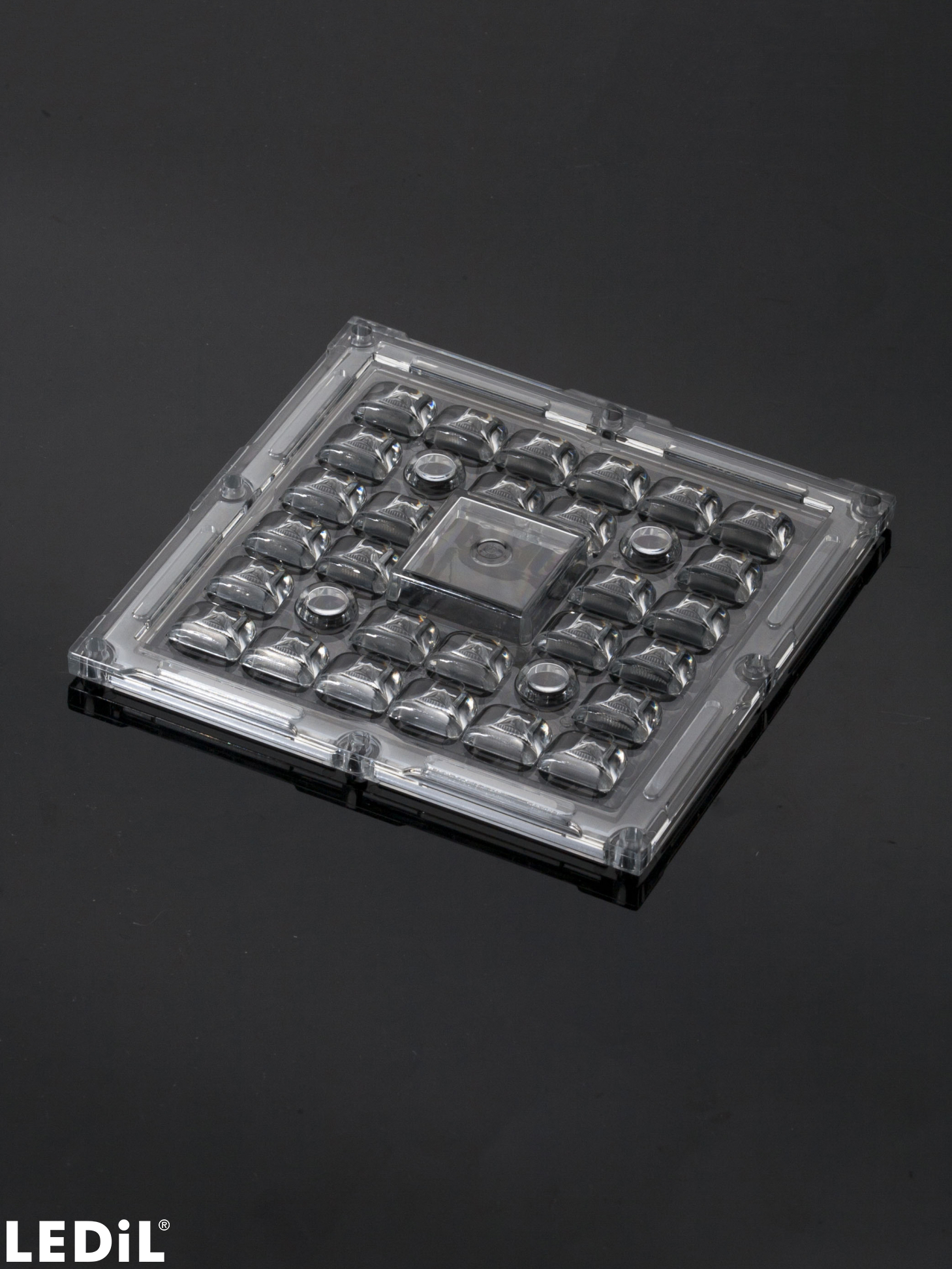

    CS16104_STRADELLA-IP-28-T3-PC

    Print

    IESNA Type III (medium) beam for roads that are equal to or wider than mounting height. Variant made from PC.

    Specification
    • Dimensions:
      100 x  100 mm
    • Height:
      9.20 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      156 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      6.3 kg
    • MPQ:
      78 pcs
    • MOQ:
      78 pcs
    • MOQ size:
      480 x 280 x 130 mm
    • MOQ weight:
      3.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS16104_STRADELLA-IP-28-T3-PC

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    STRADELLA-IP-28

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    PRODUCT NEWS - STRADELLA-IP-28

    Application guide

    LEDiL guide for street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

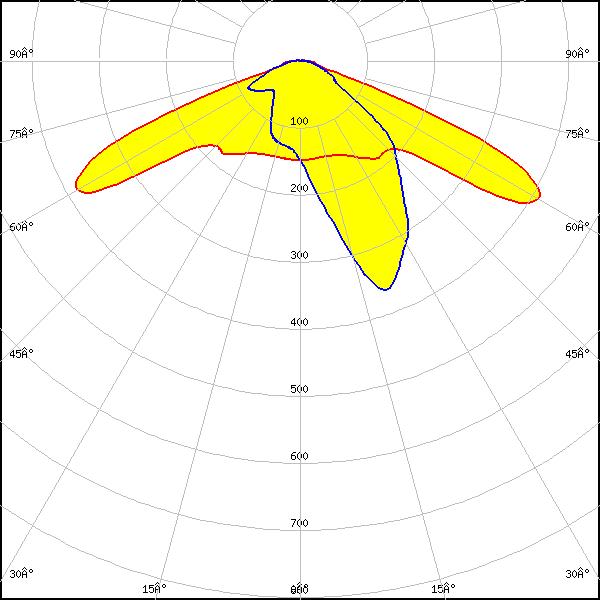

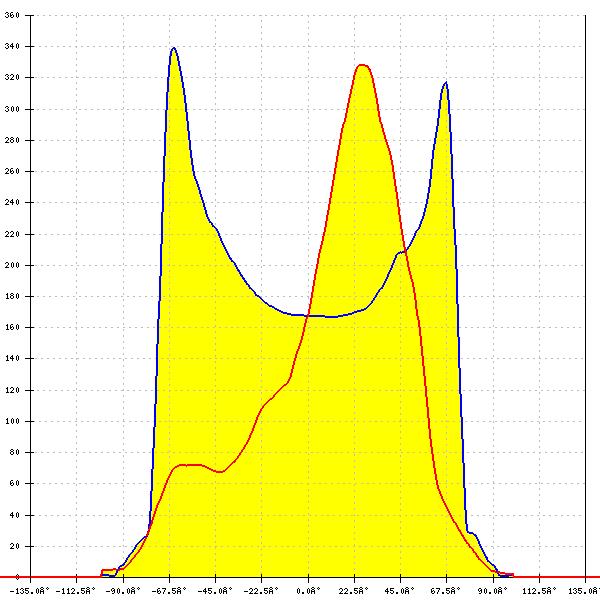

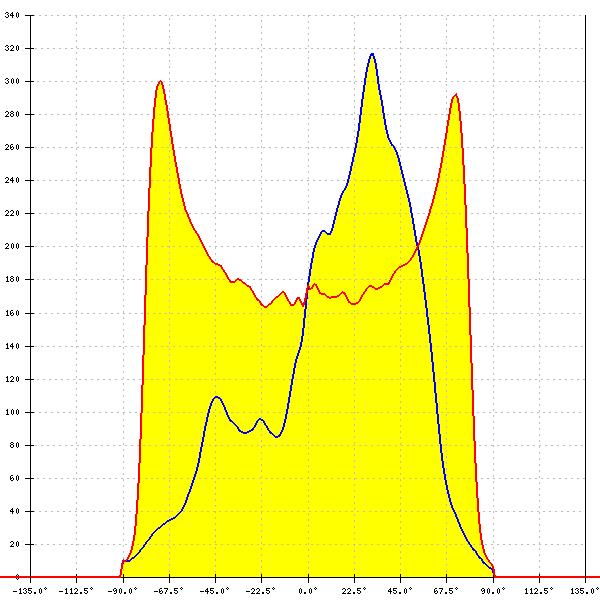

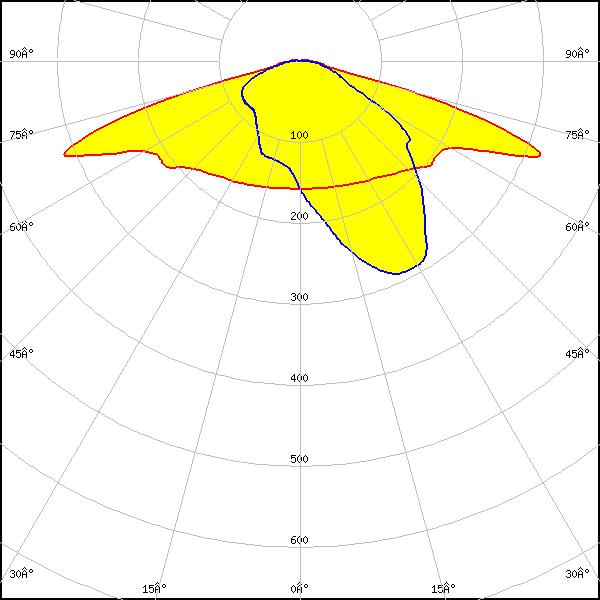

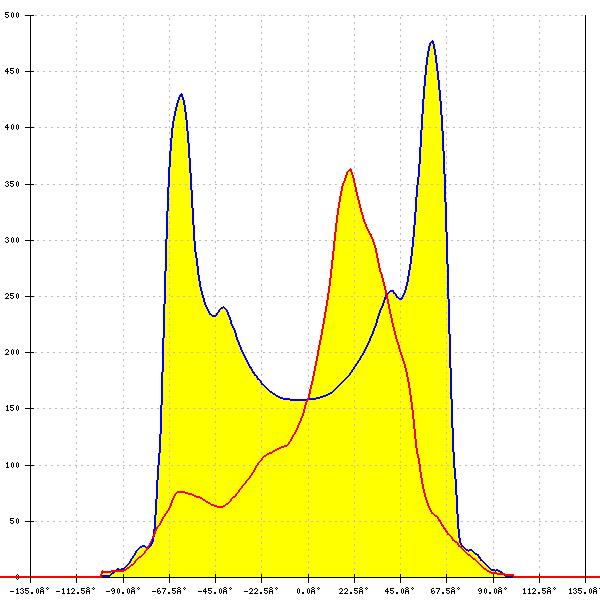

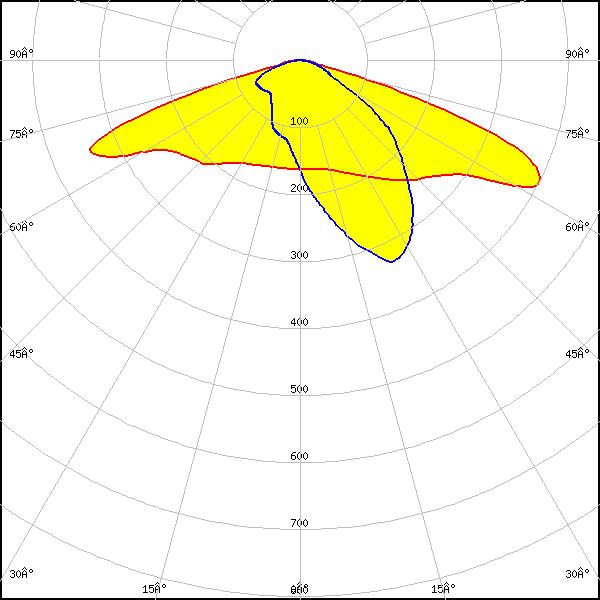

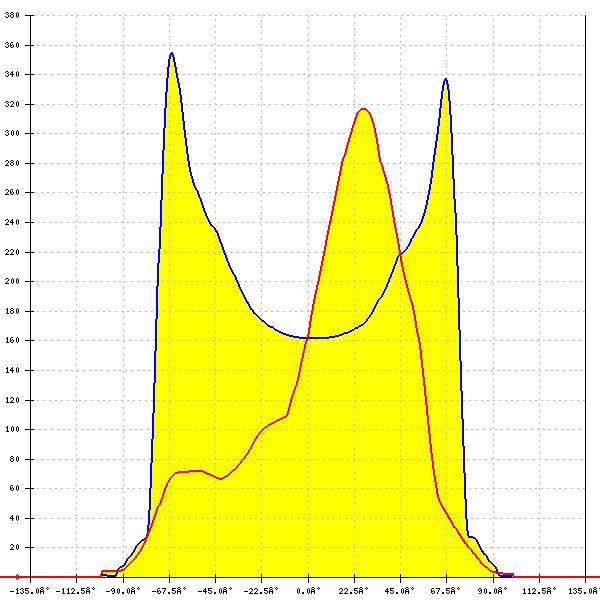

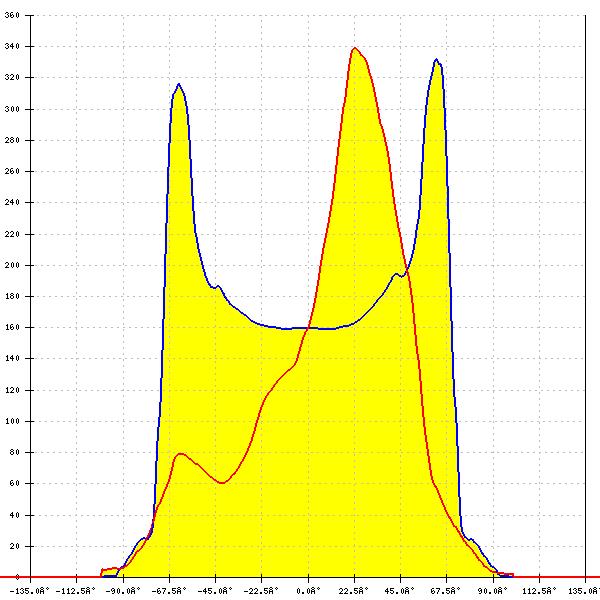

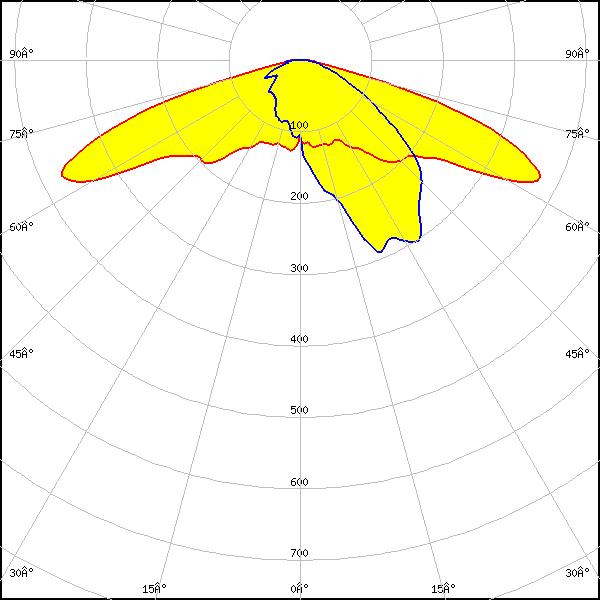

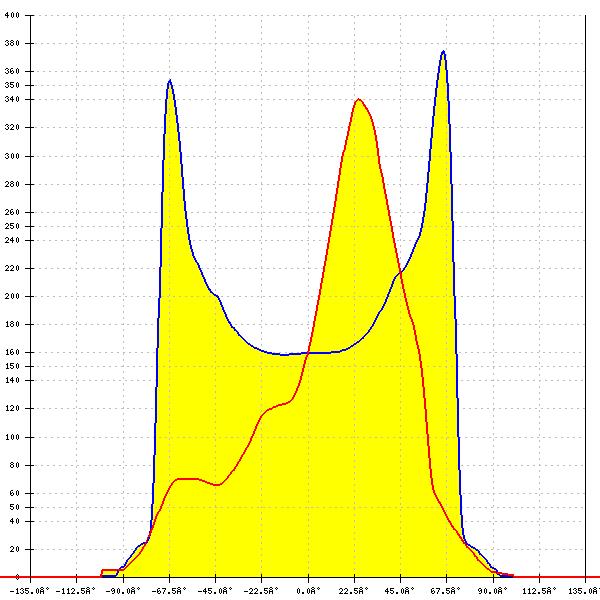

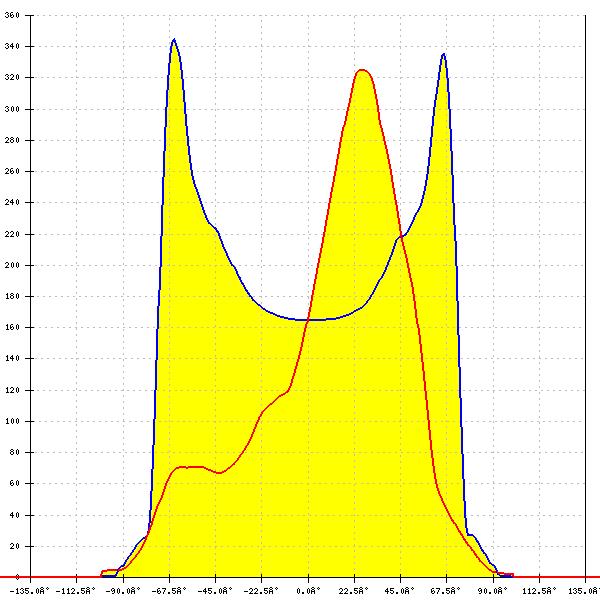

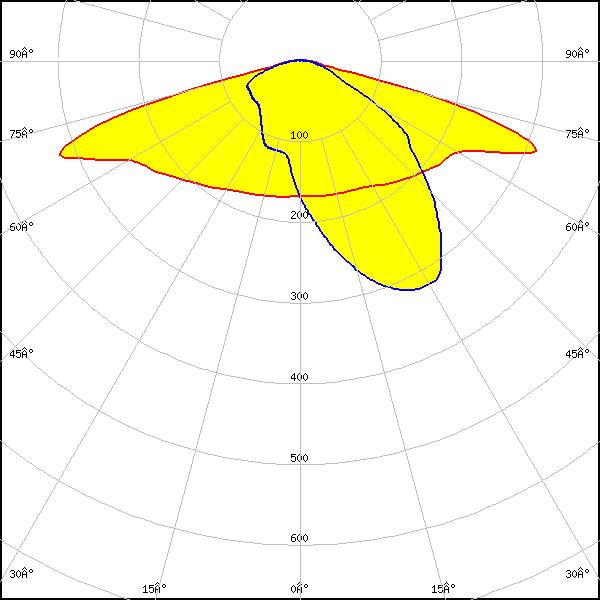

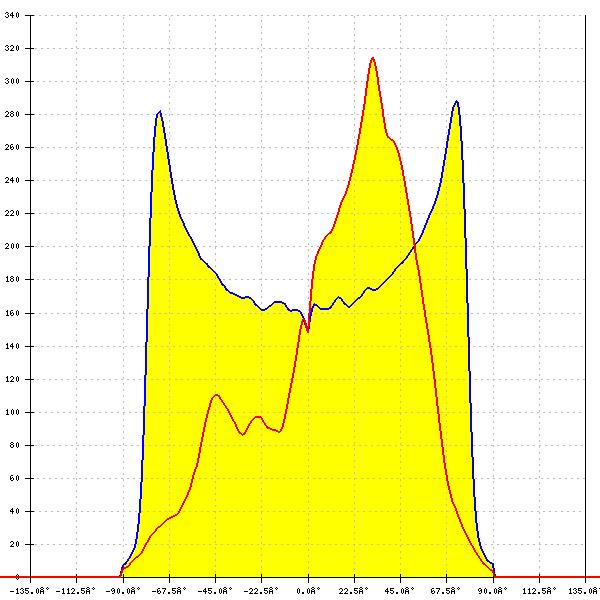

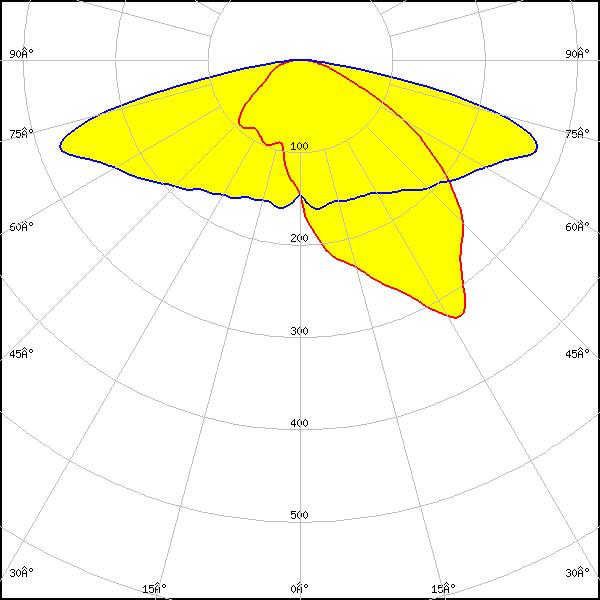

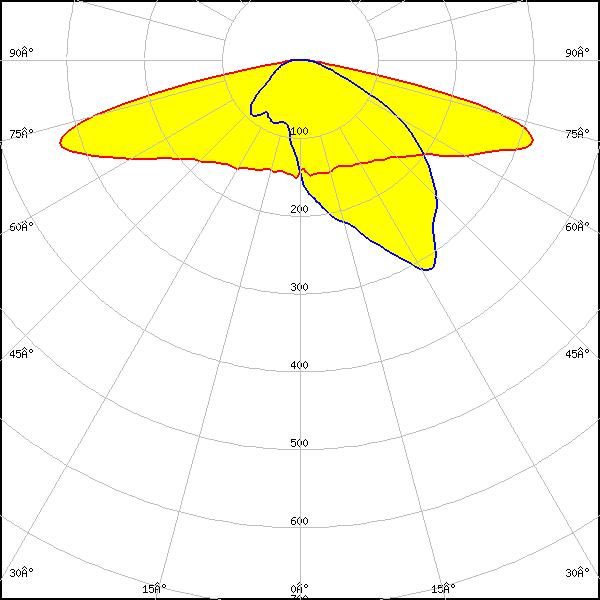

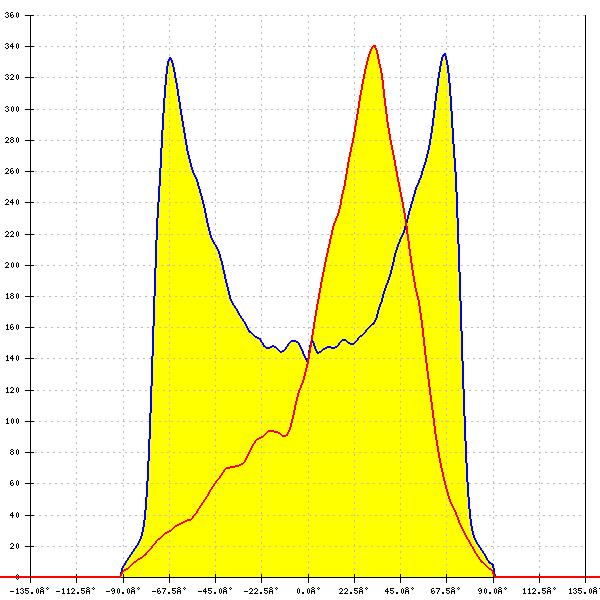

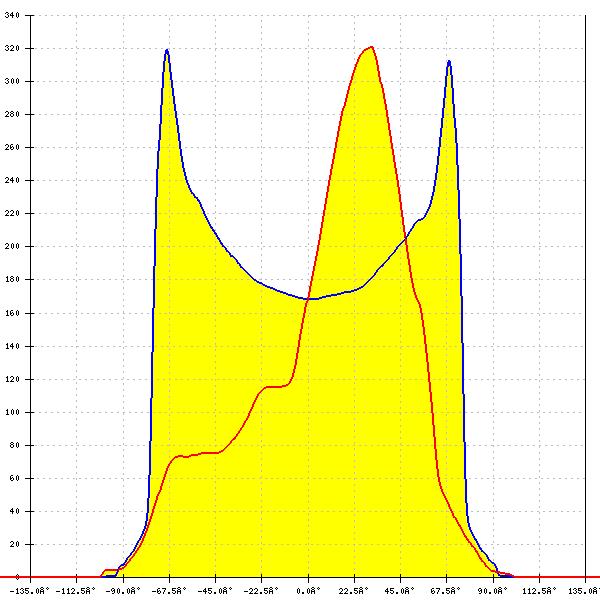

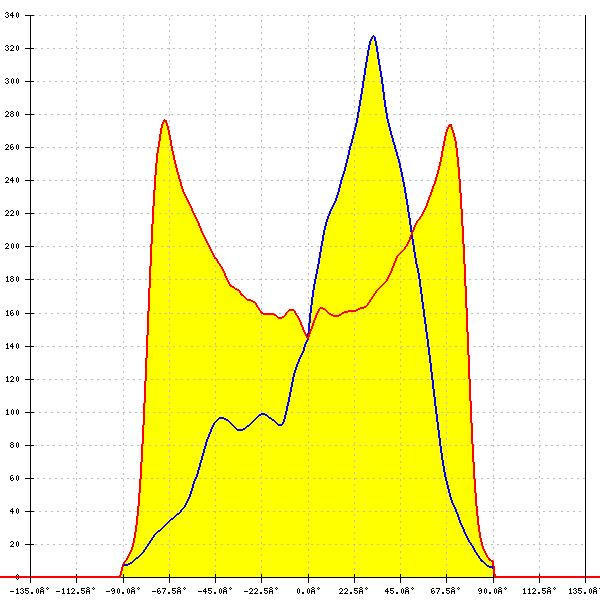

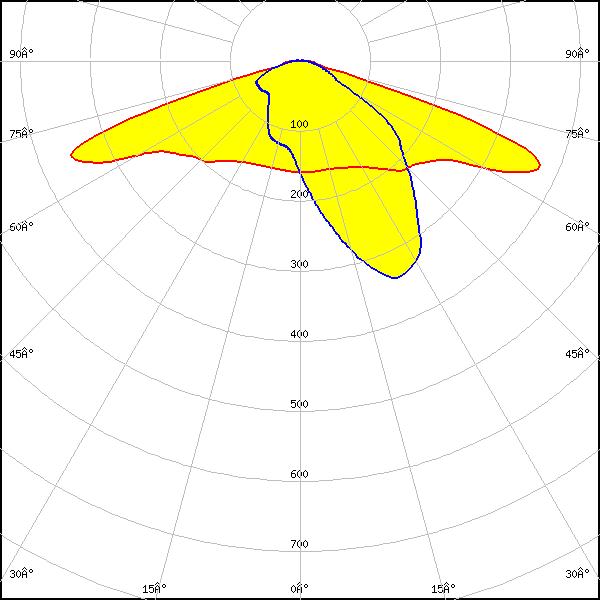

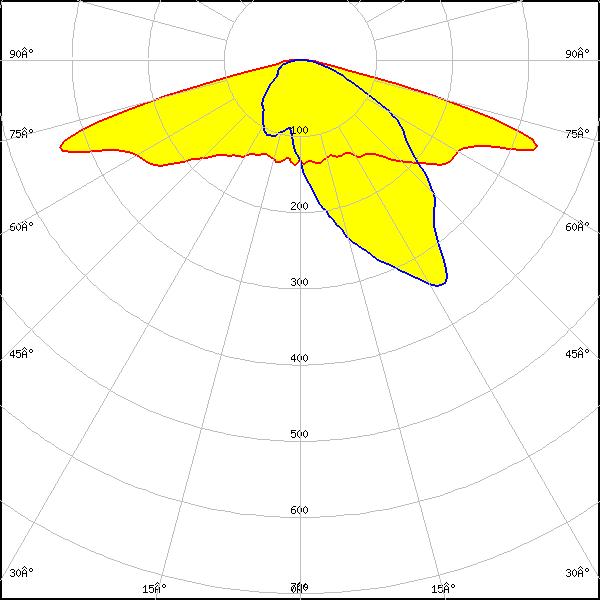

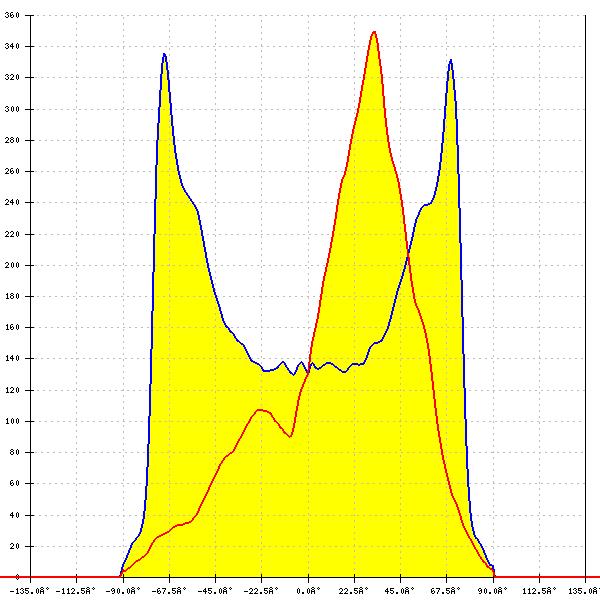

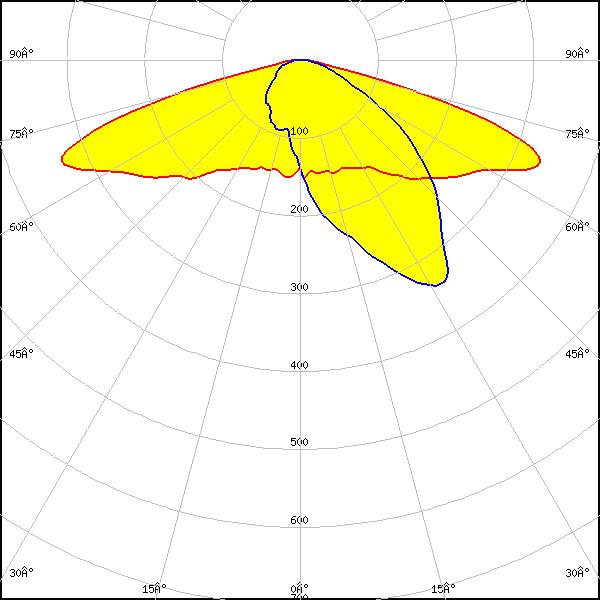

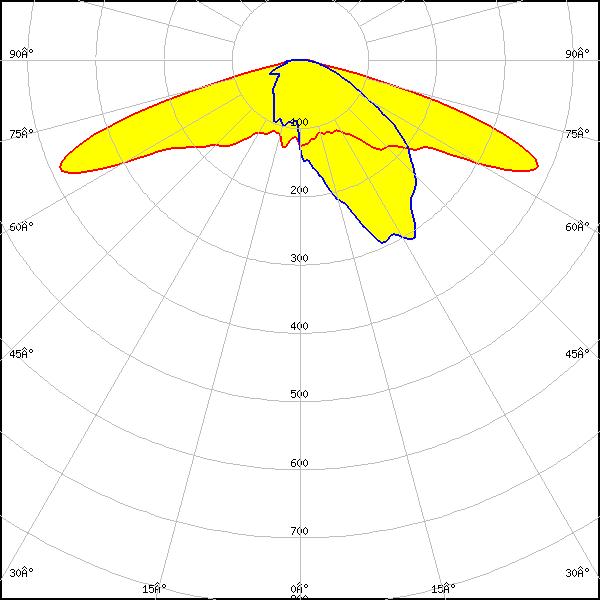

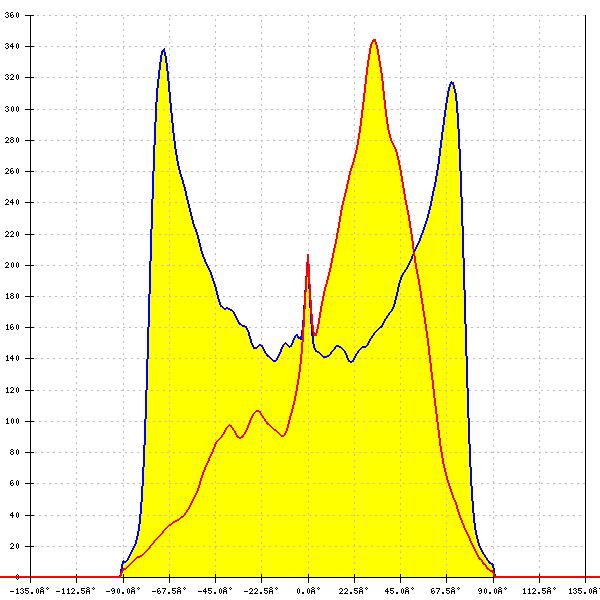

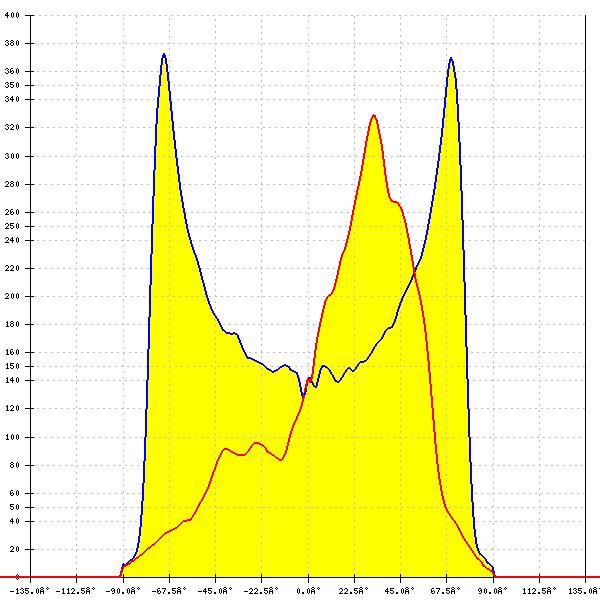

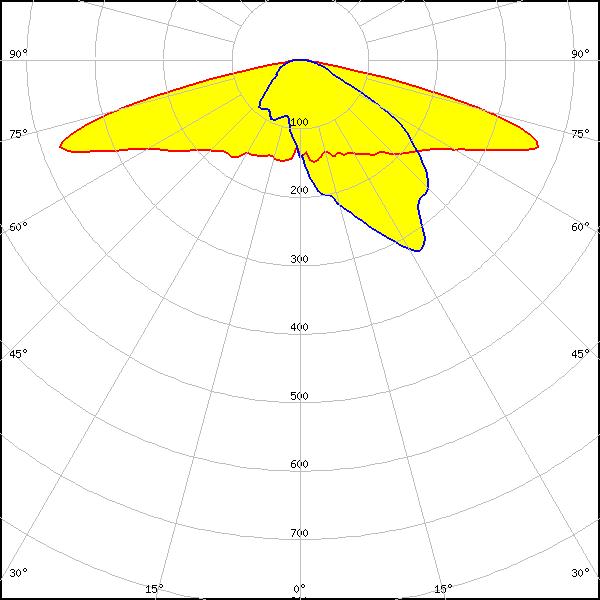

    Optical results

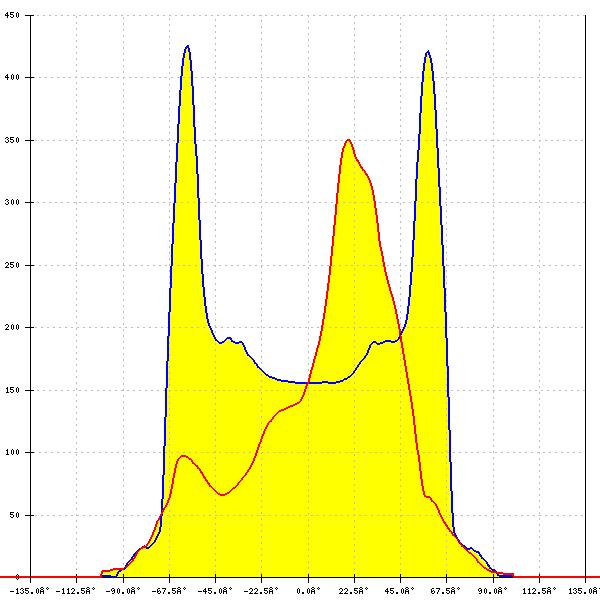

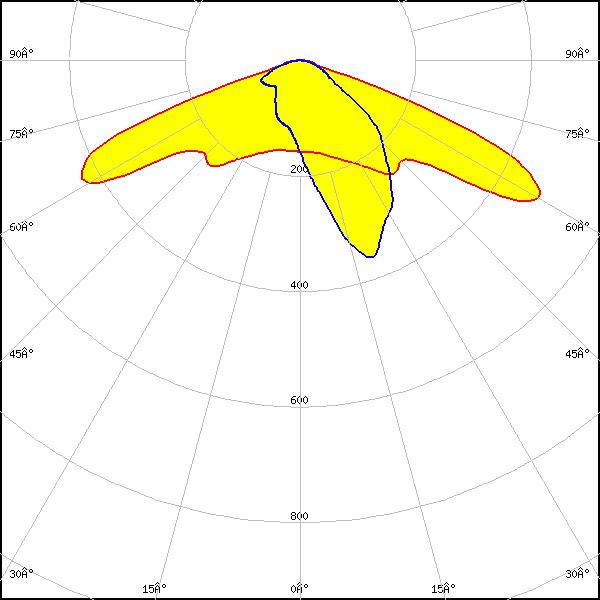

    LED: HiQLED STR28 CR JE2835 4x7 xxx
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

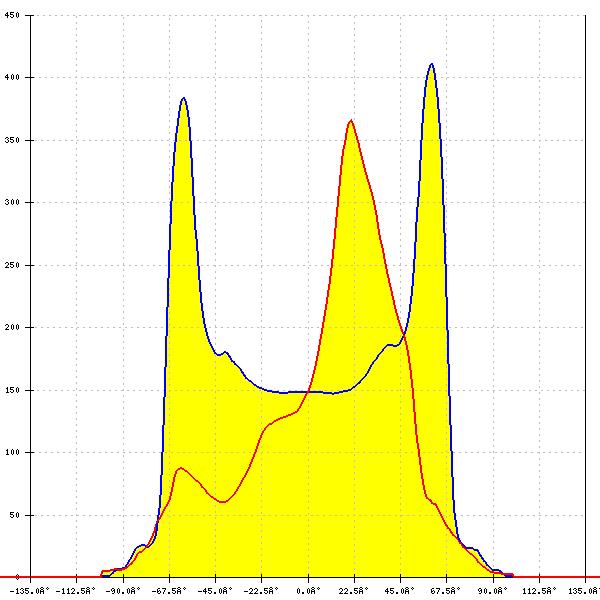

    LED: HiQLED STR28 CR JK3030 4x7 xxx
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: QUICK FLUX STR28 XD2x14 xxx G8
    FWHM: asymmetric
    Peak intensity: 0.810 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

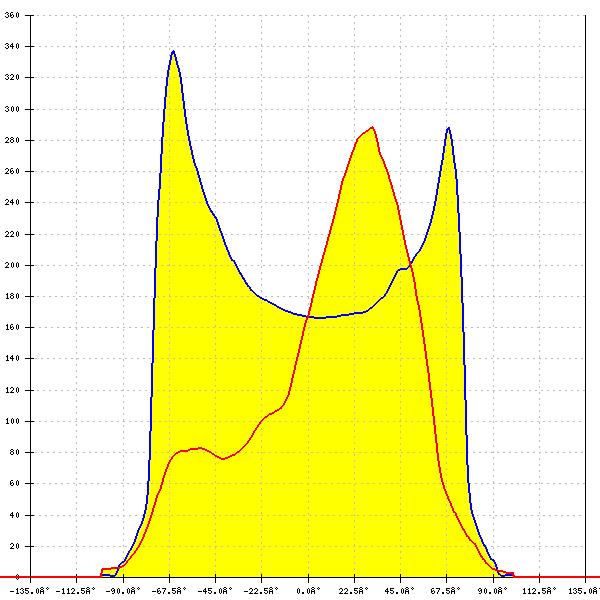

    LED: QUICK FLUX STR28 XP2x14 xxx G7
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

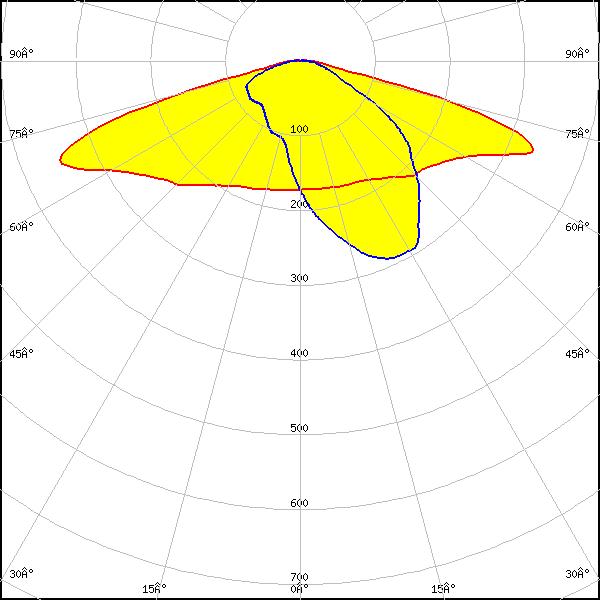

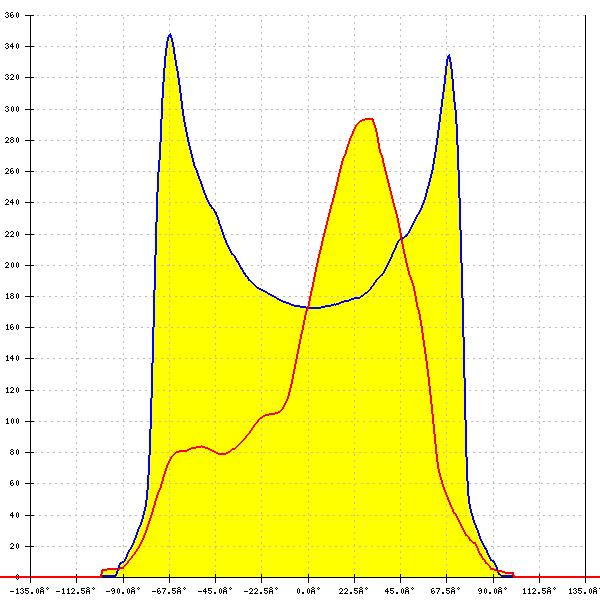

    LED: QUICK FLUX STR28 XT2x14 xxx G5
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 2835
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

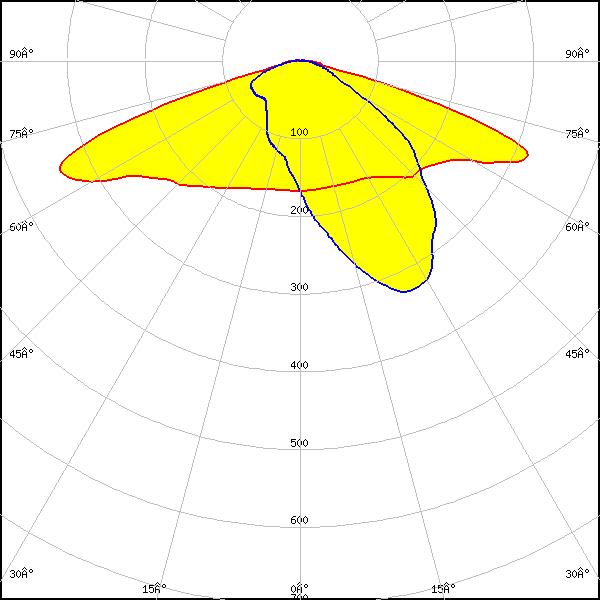

    LED: J Series 3030
    FWHM: asymmetric
    Peak intensity: 0.769 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 3030
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

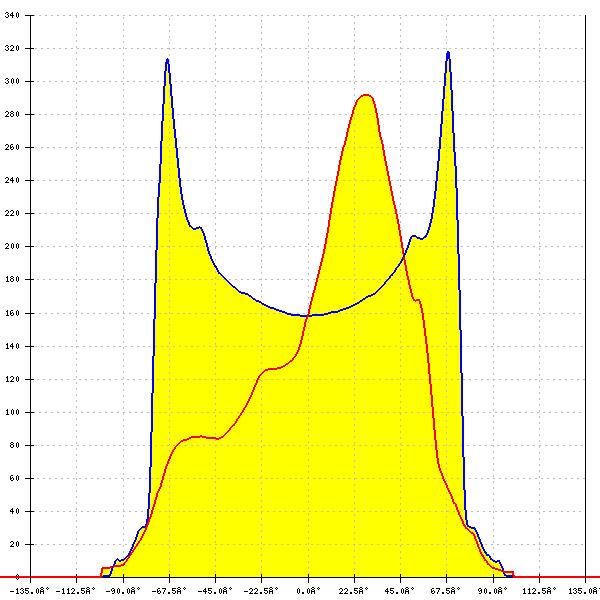

    LED: XD16
    FWHM: asymmetric
    Peak intensity: 0.810 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

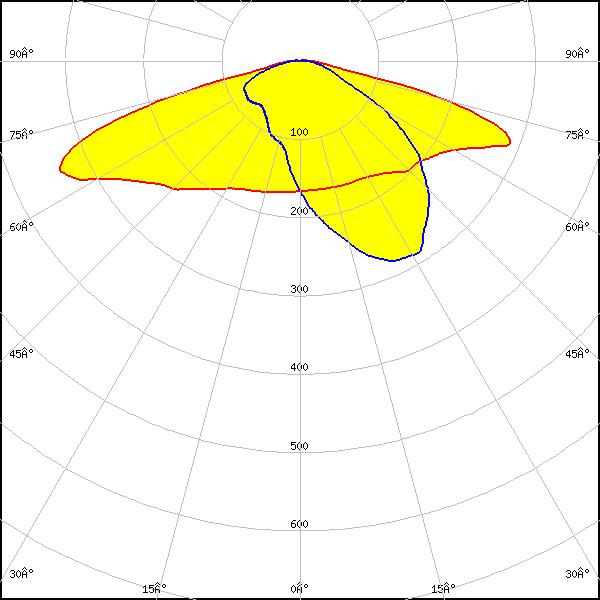

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.880 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

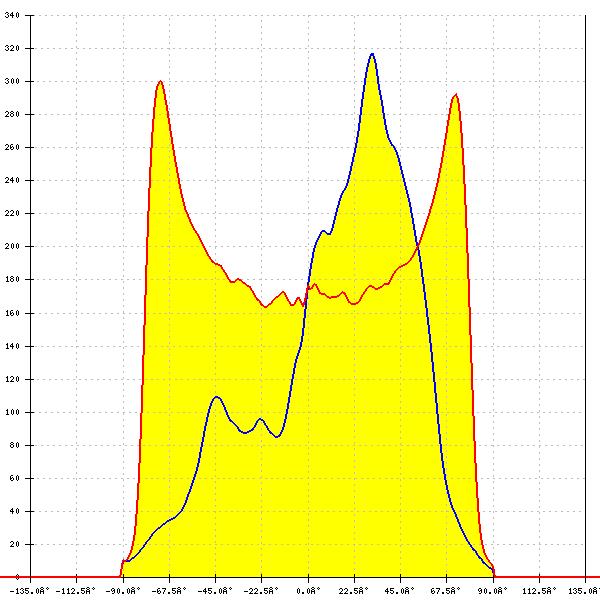

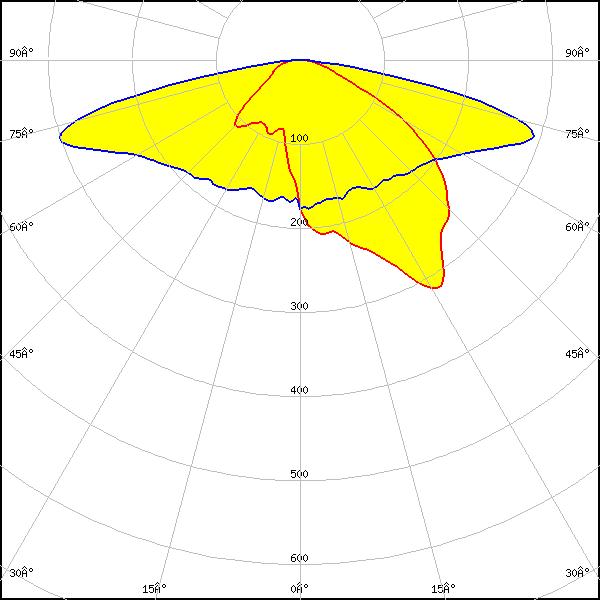

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 0.497 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

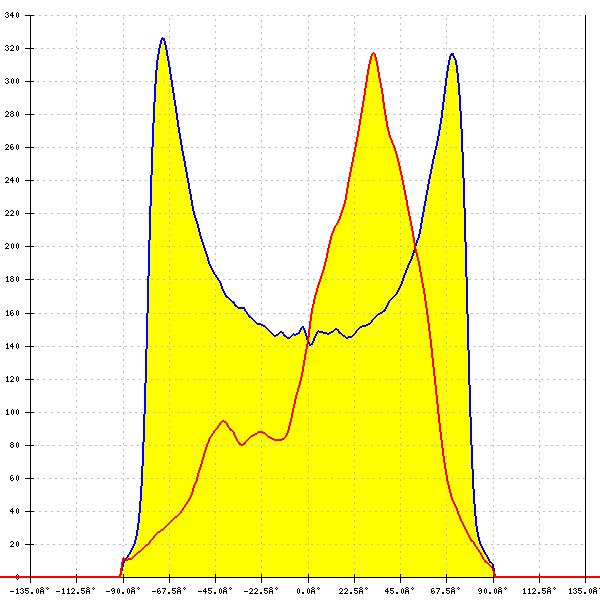

    LED: LUXEON V2
    FWHM: asymmetric
    Peak intensity: 0.577 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

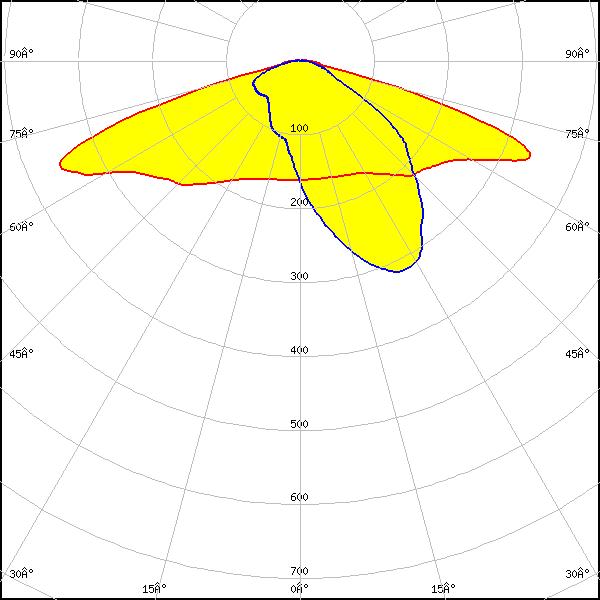

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

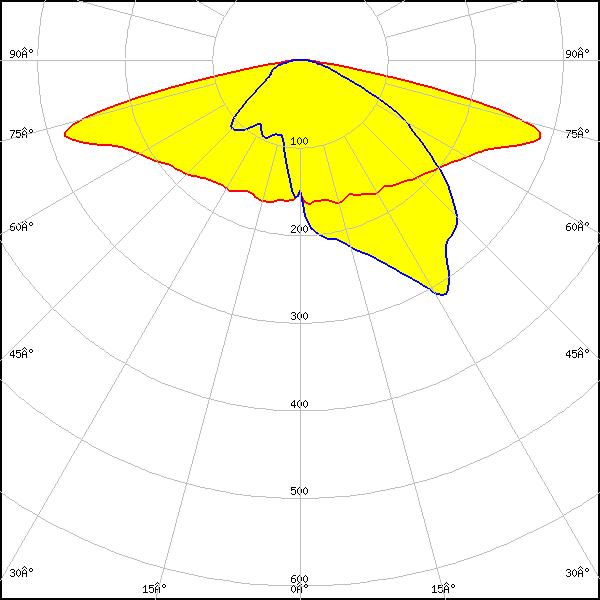

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.484 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

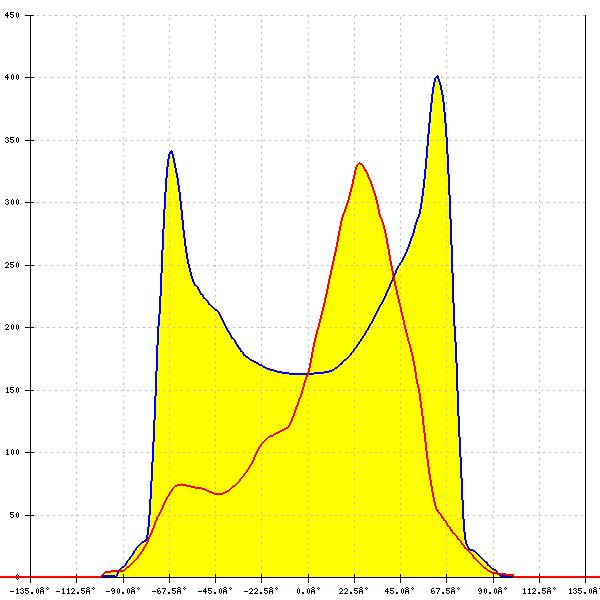

    LED: Duris S5 (2 chip)
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 2424
    FWHM: asymmetric
    Peak intensity: 0.651 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

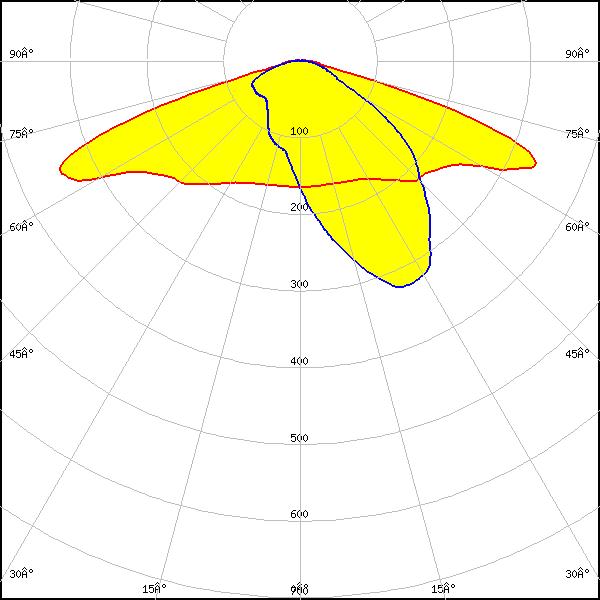

    LED: OSCONIQ S 3030 (QSLR31)
