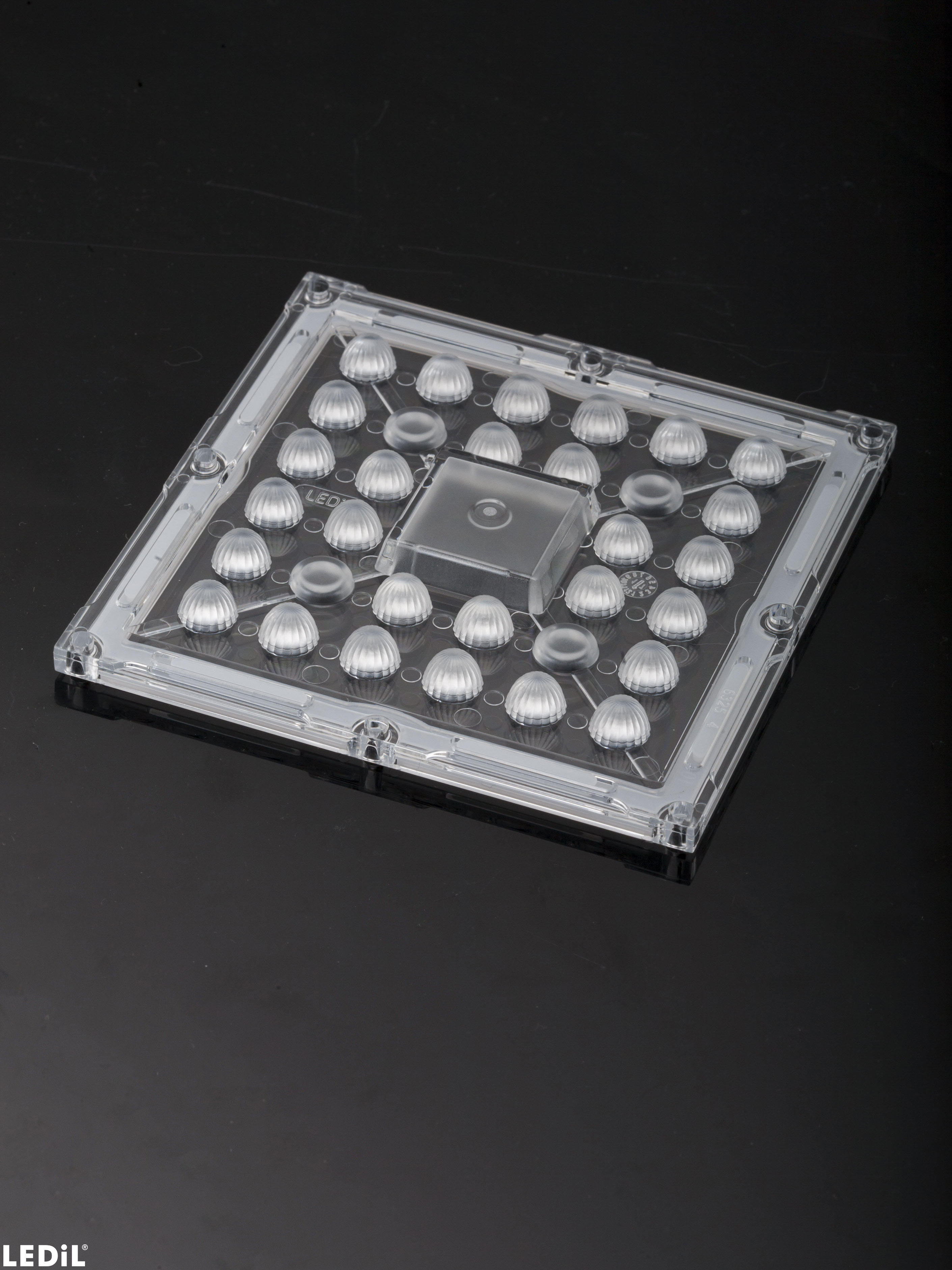

CS16322_STRADELLA-IP-28-HB-S

Print

~30° spot beam. Variant made from PMMA.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.5 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • STRADELLA-IP-28-HB-S, Multi-lens, PMMA
  • STRADELLA-28-SEAL, Seal, Silicone

WARNING: Cancer – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    5.9 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

Typical Applications

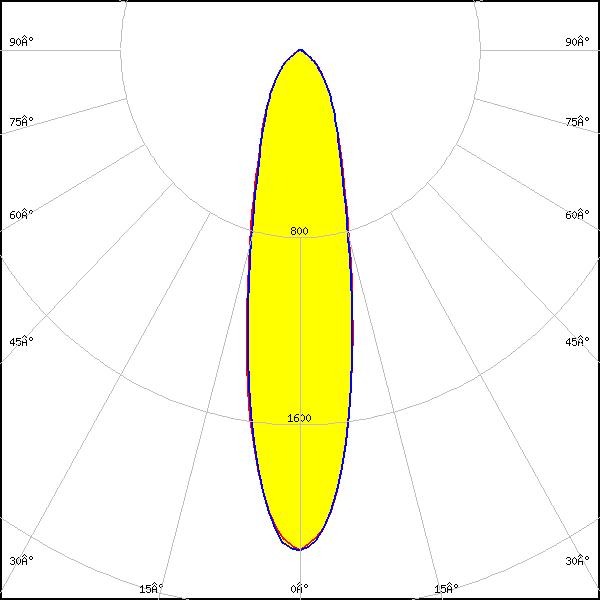

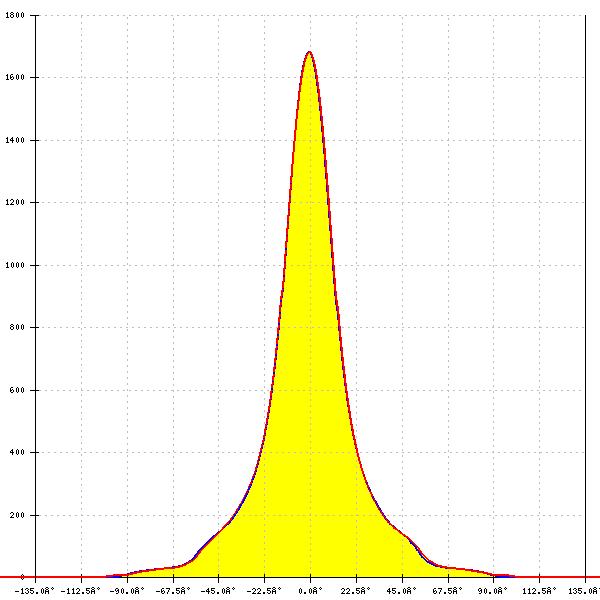

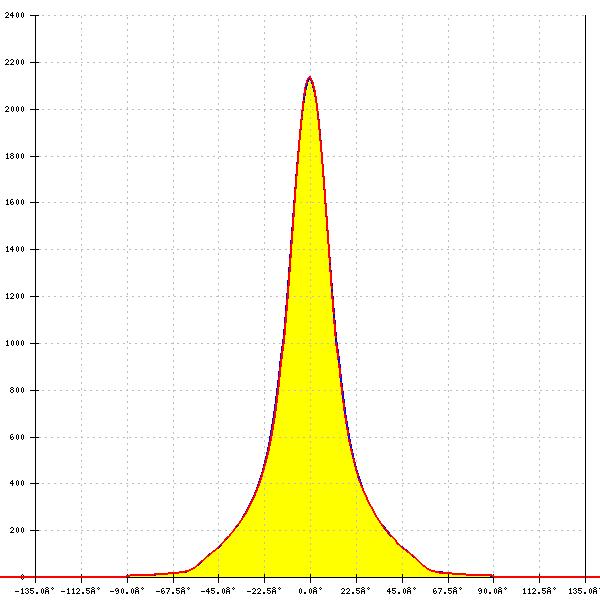

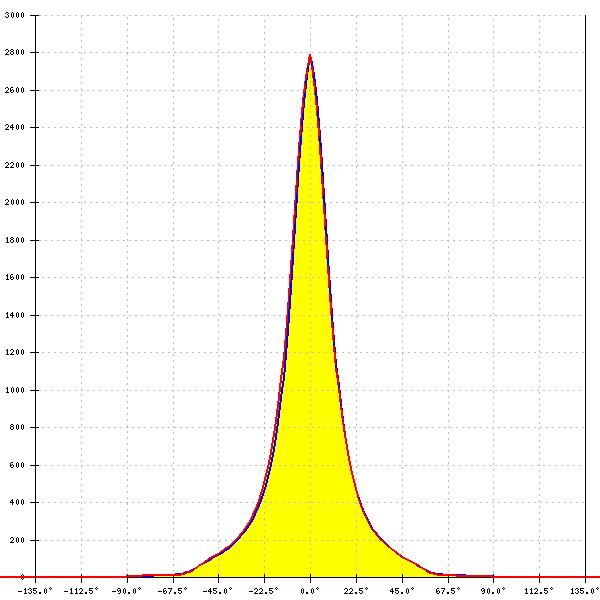

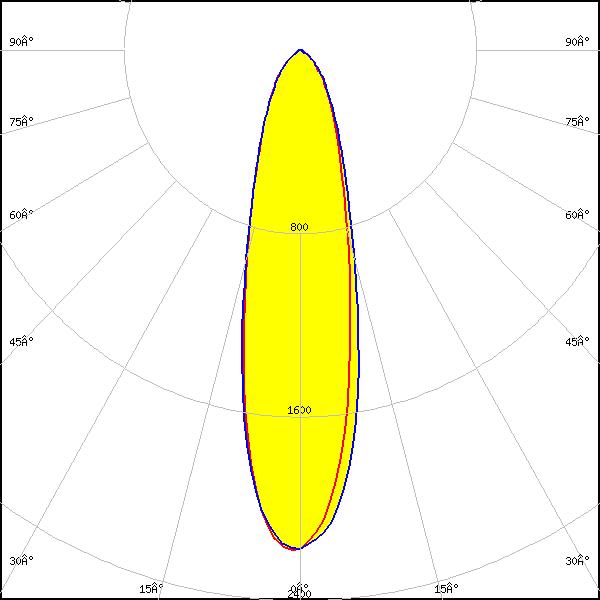

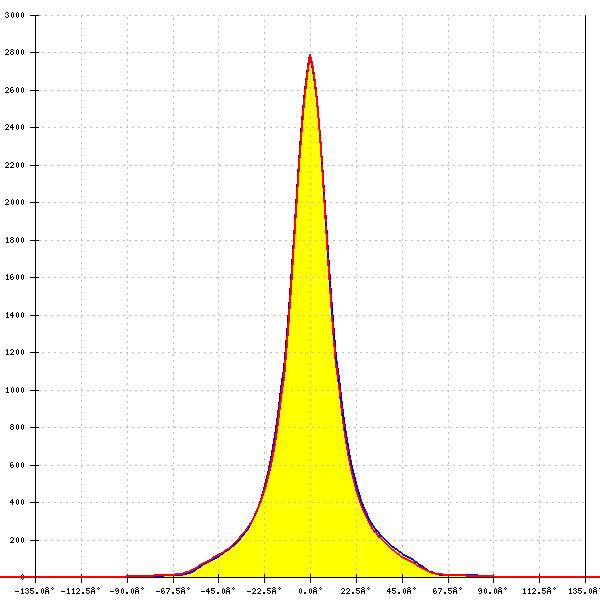

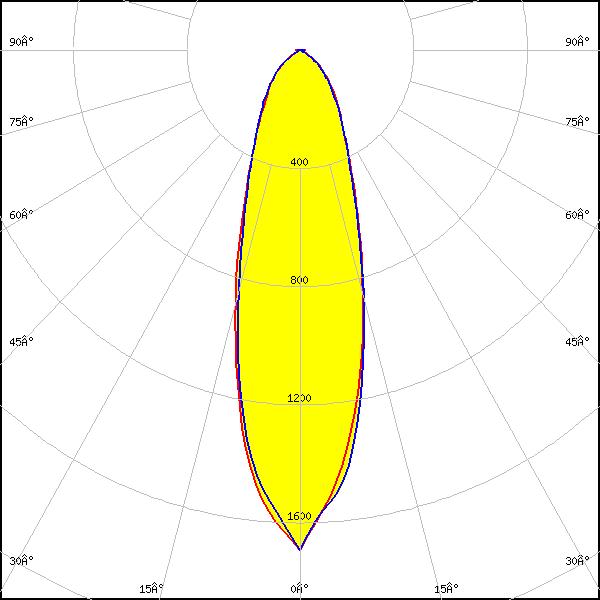

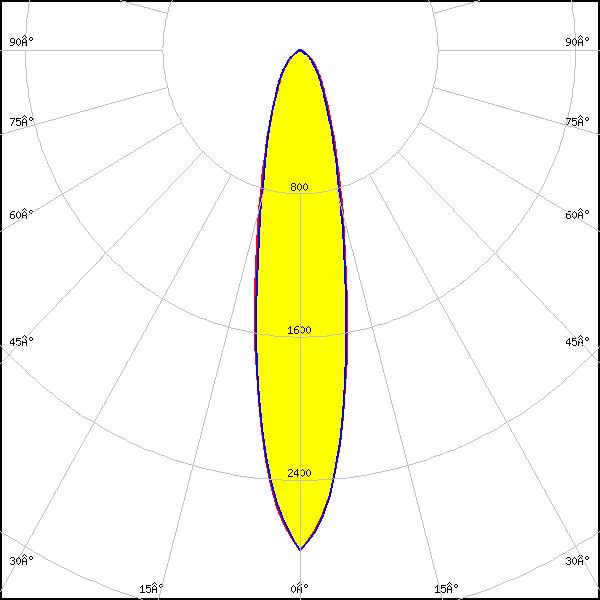

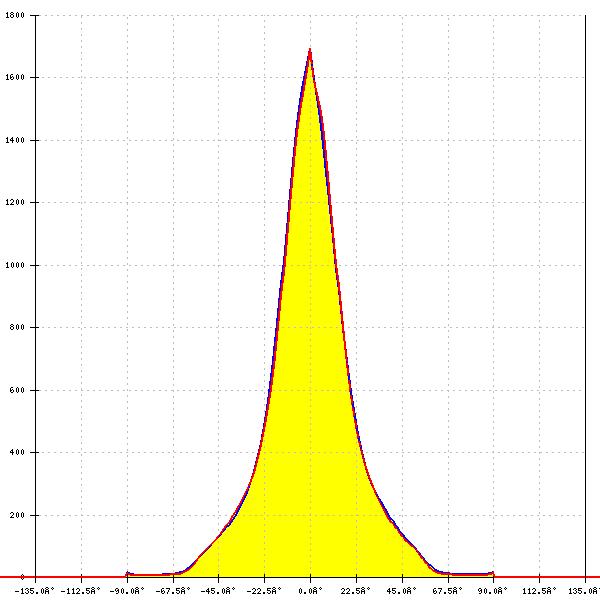

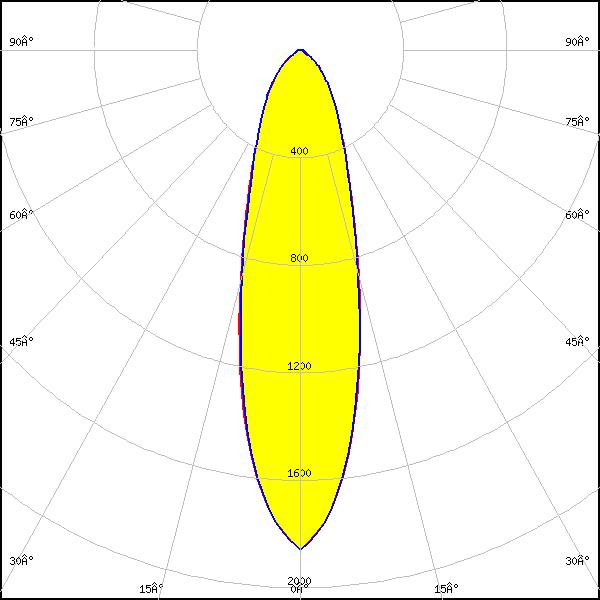

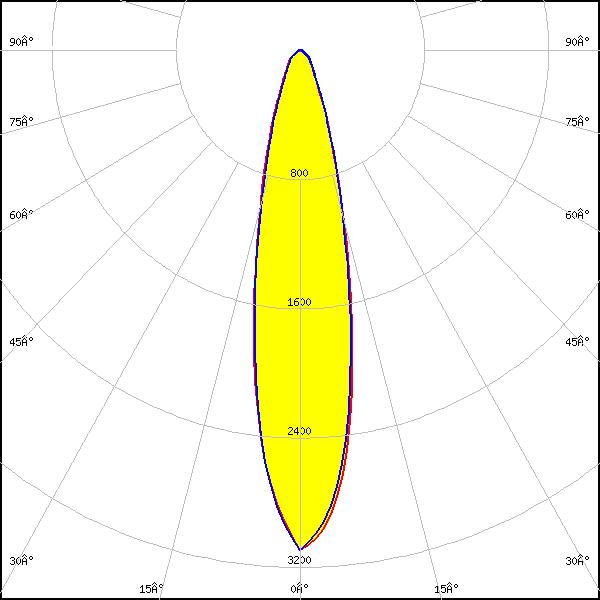

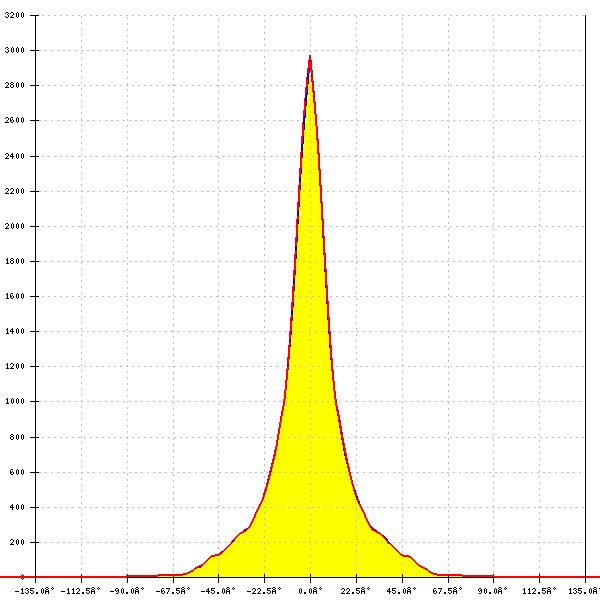

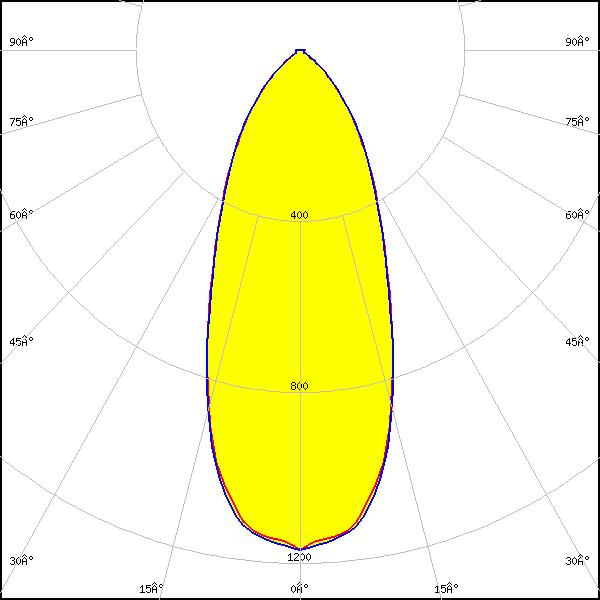

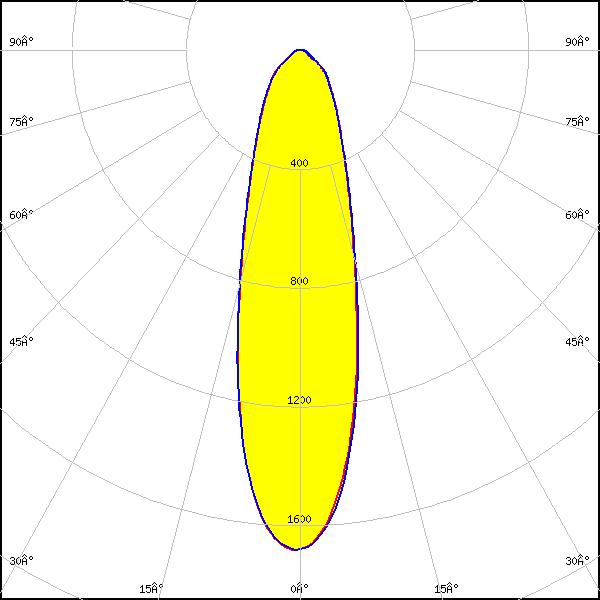

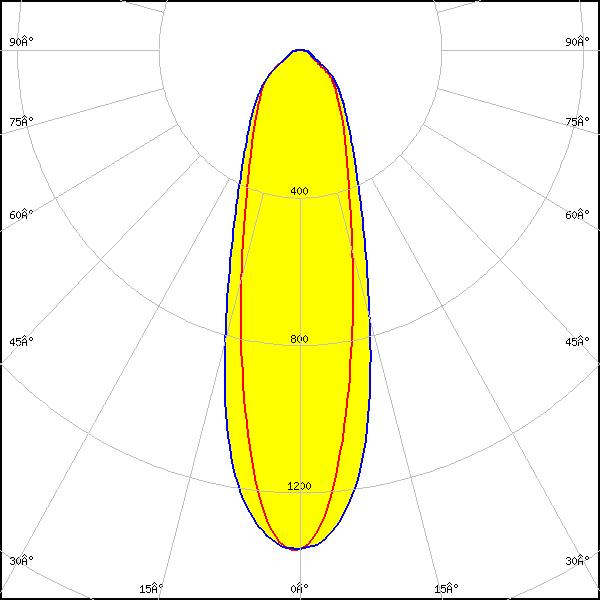

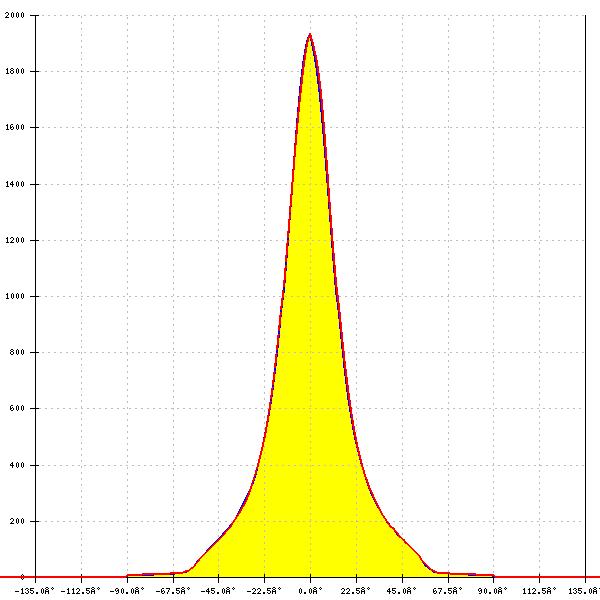

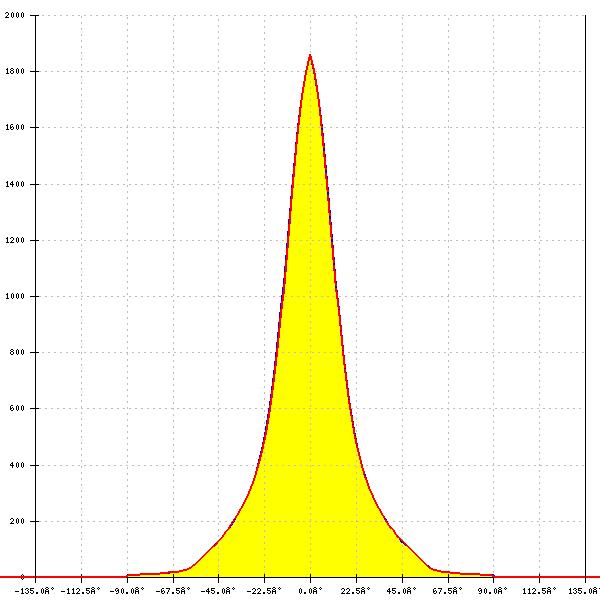

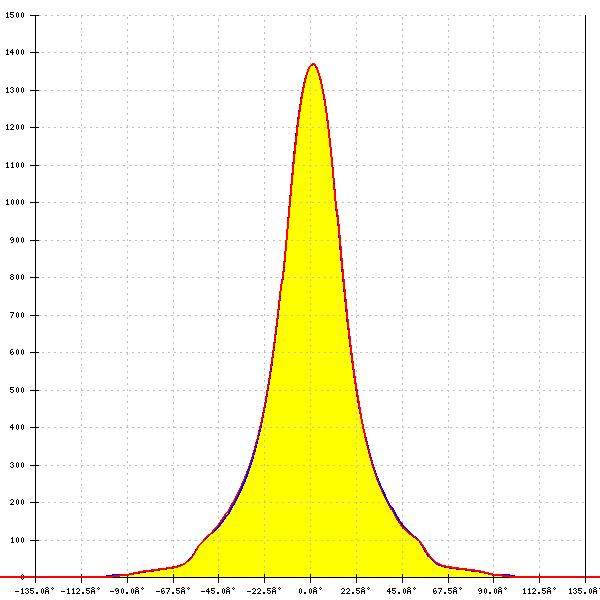

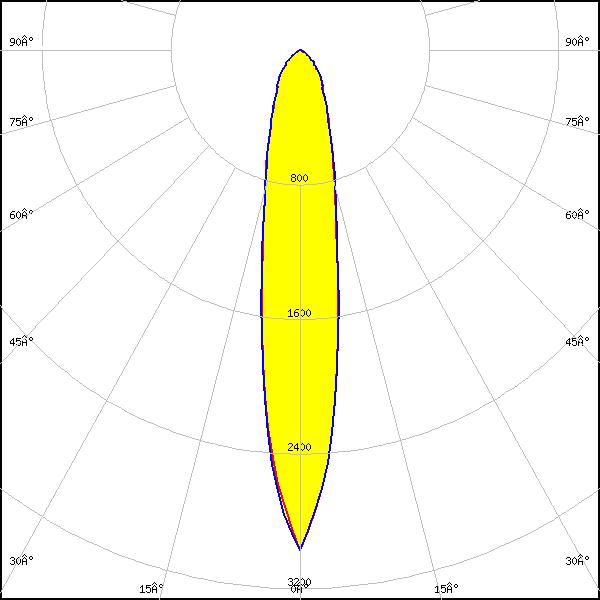

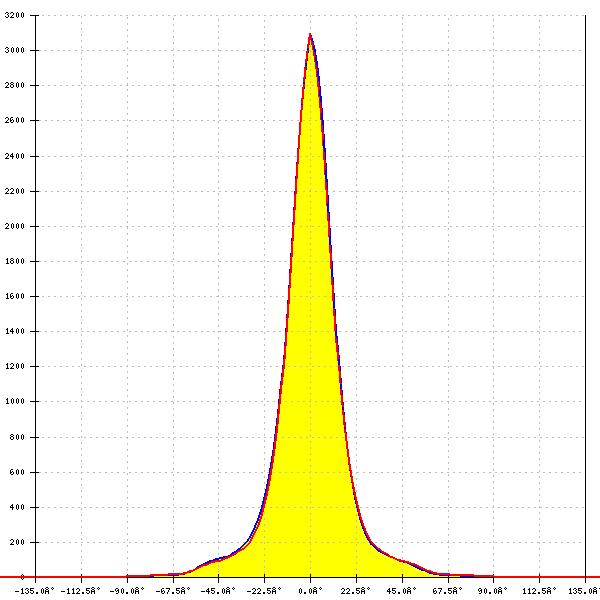

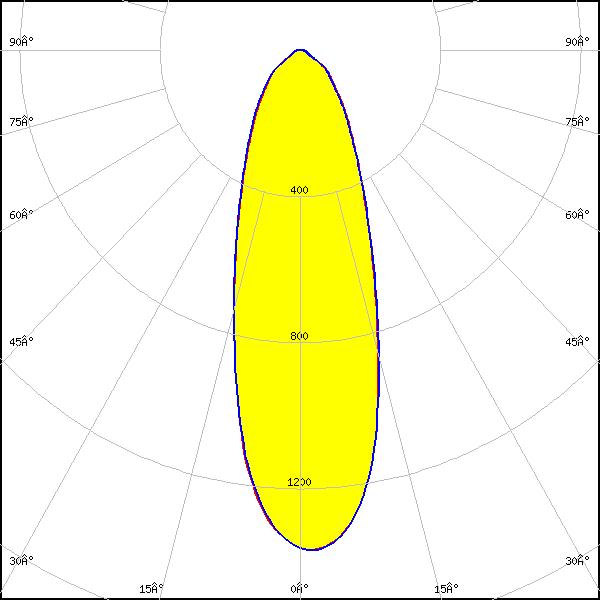

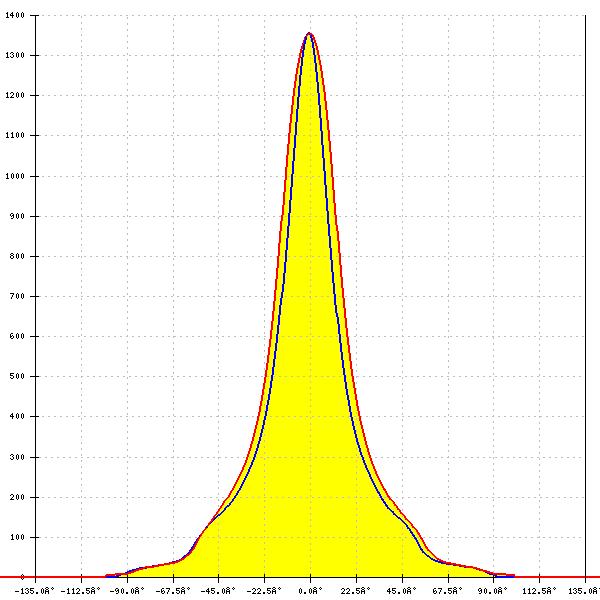

Optical results

LED: HiQLED STR28 CR JК3030 4x7 xxx
FWHM: 22°
Peak intensity: 2.1 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

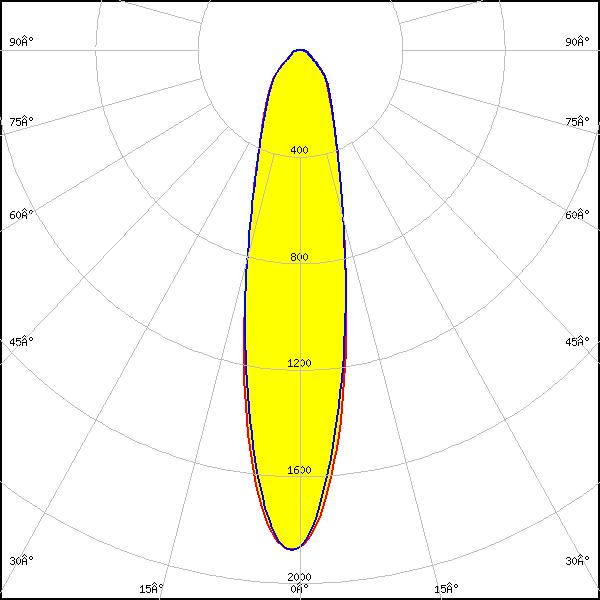

LED: HiQLED STR28 CR JE2835 4x7 xxx
FWHM: 24°
Peak intensity: 1.9 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

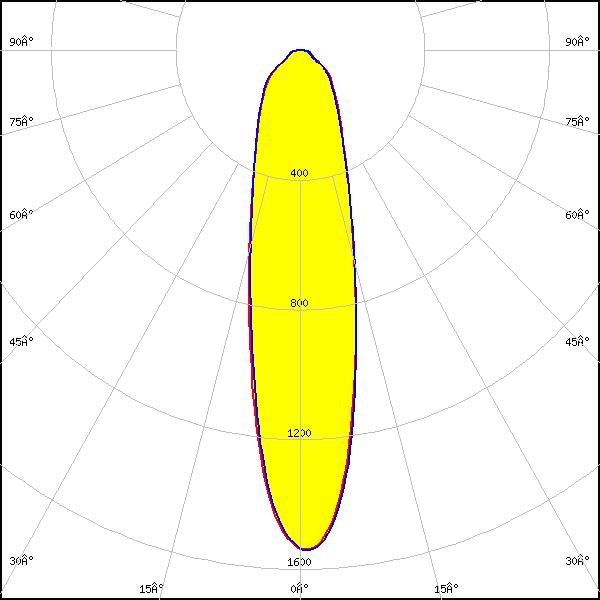

LED: QUICK FLUX STR28 XD2x14 xxx G8
FWHM: 26°
Peak intensity: 1.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

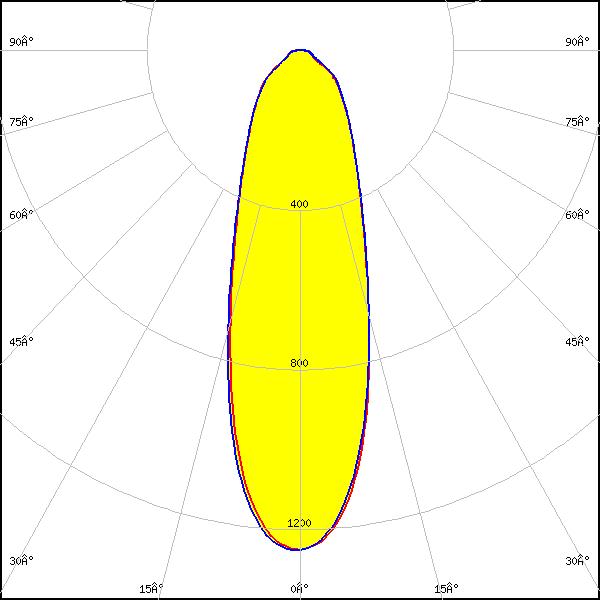

LED: QUICK FLUX STR28 XP2x14 xxx G7
FWHM: 33°
Peak intensity: 1.3 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

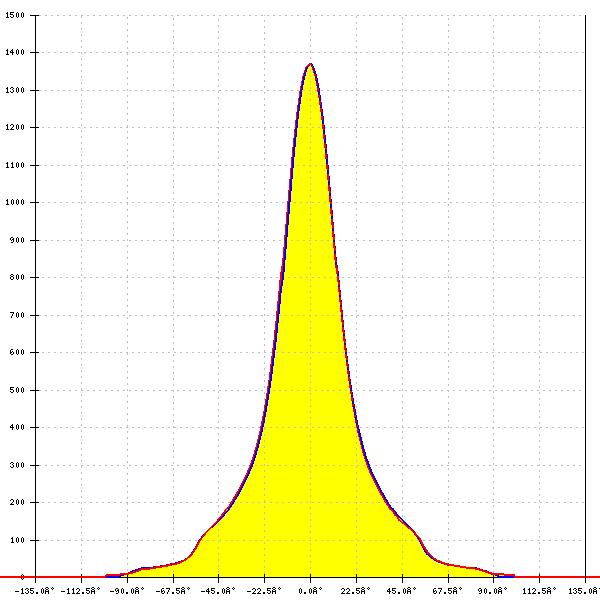

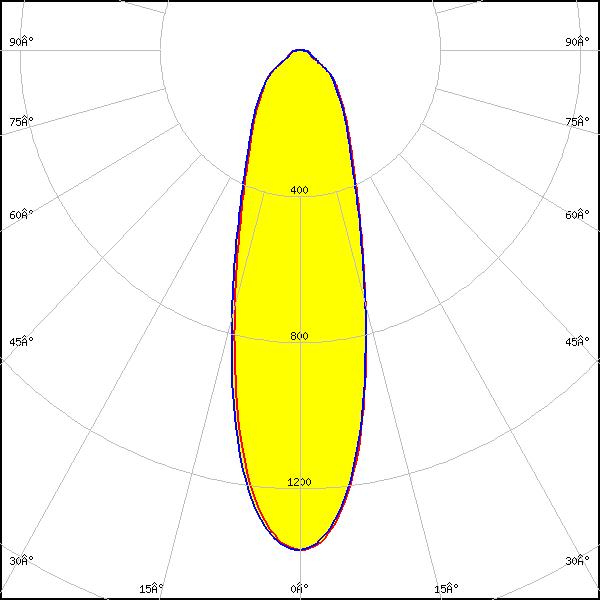

LED: QUICK FLUX STR28 XT2x14 xxx G5
FWHM: 32°
Peak intensity: 1.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

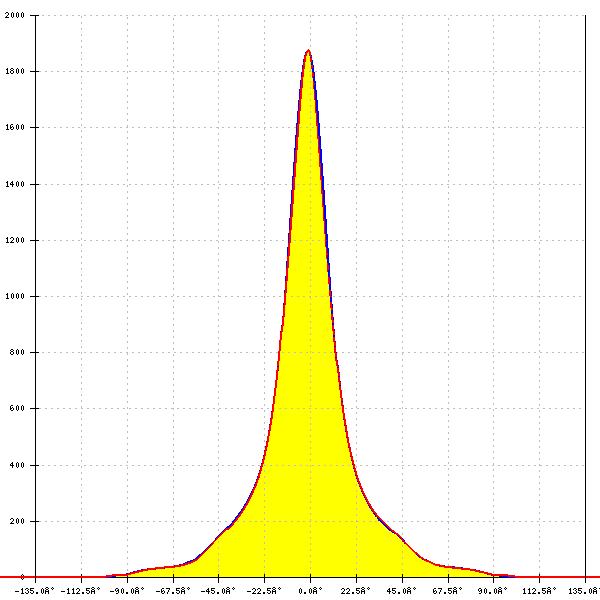

LED: J Series 2835
FWHM: 24°
Peak intensity: 1.9 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

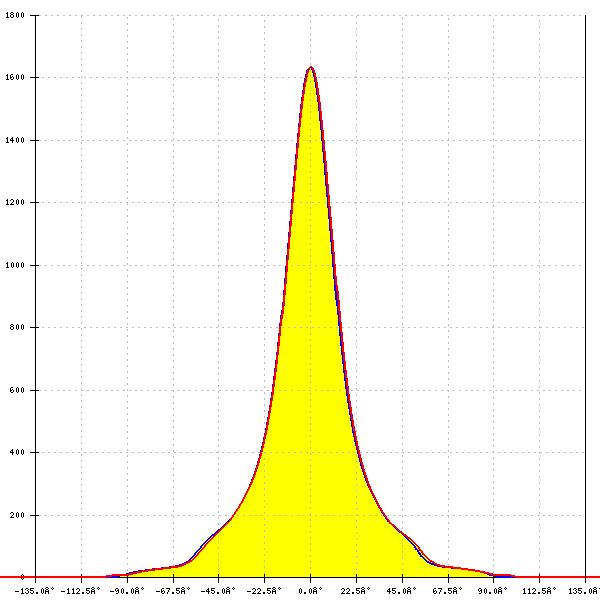

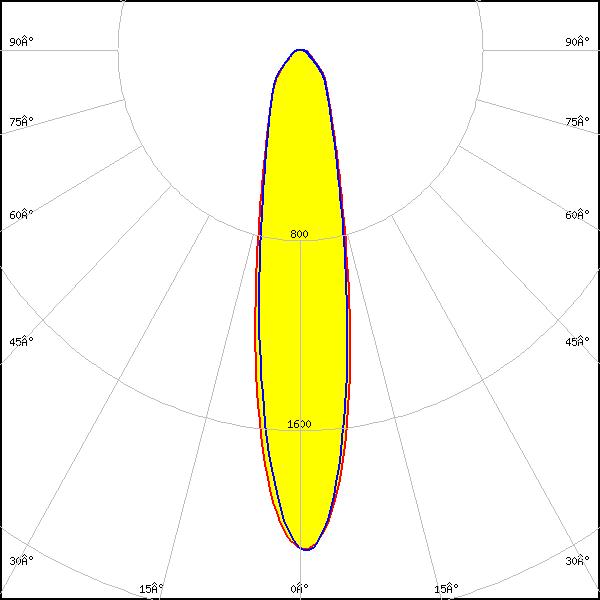

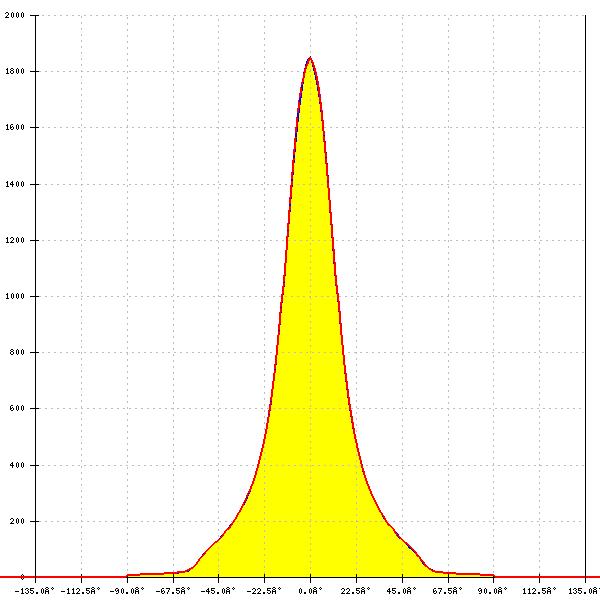

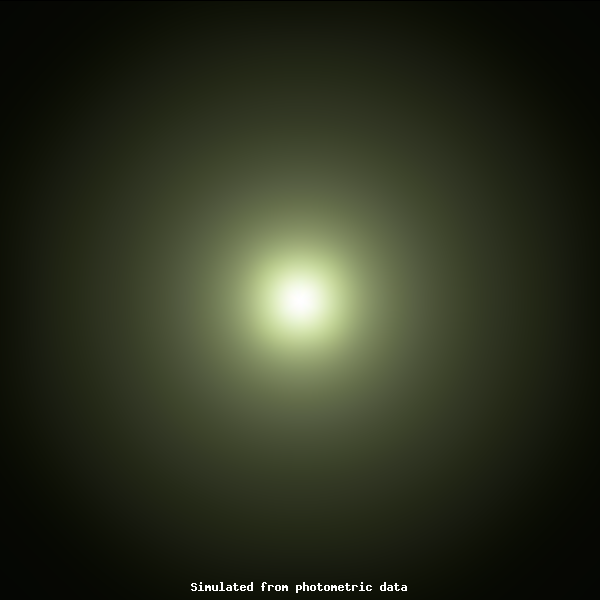

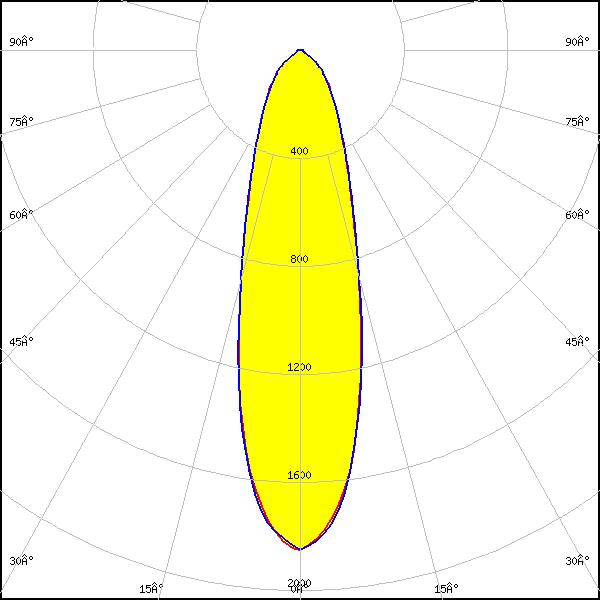

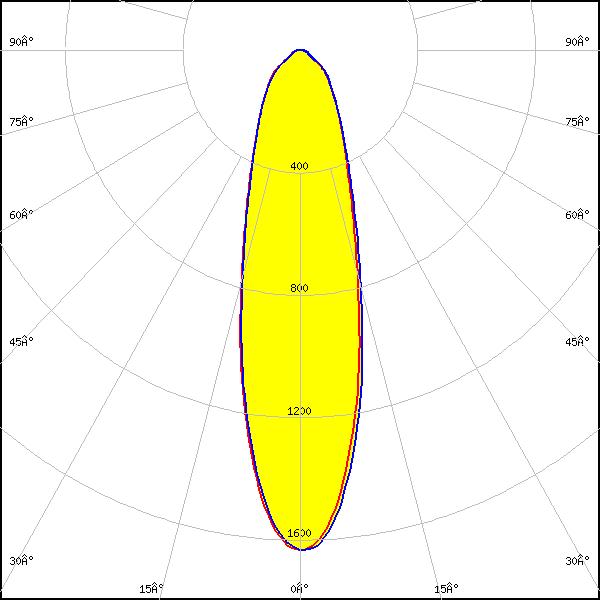

LED: J Series 3030
FWHM: 22°
Peak intensity: 2.1 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

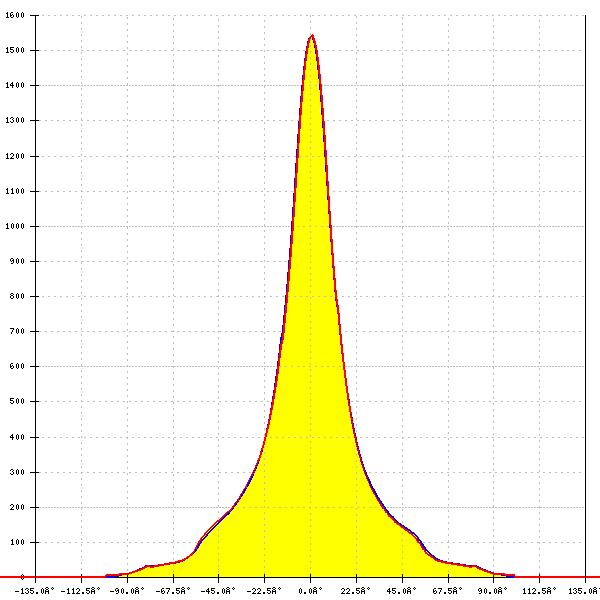

LED: XD16
FWHM: 26°
Peak intensity: 1.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

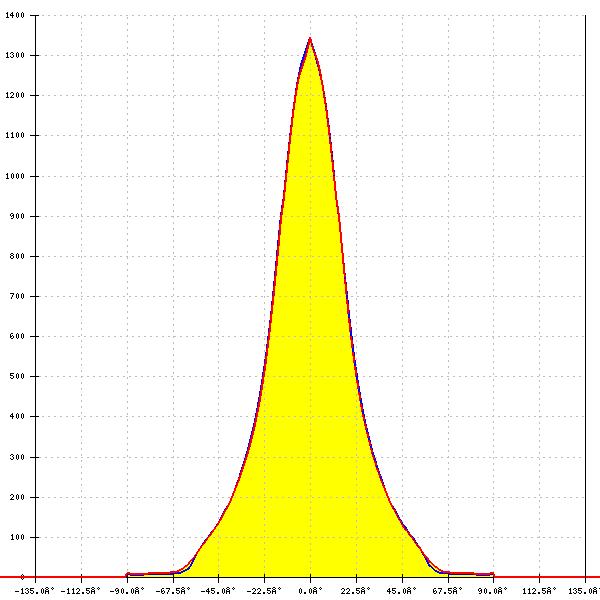

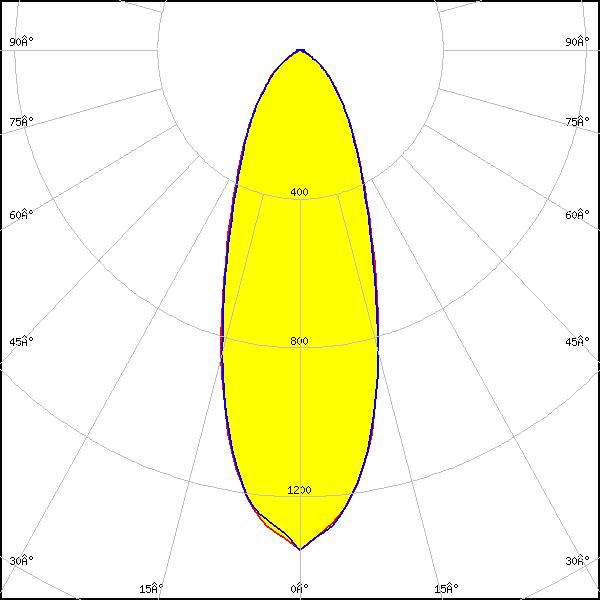

LED: XP-G2
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White

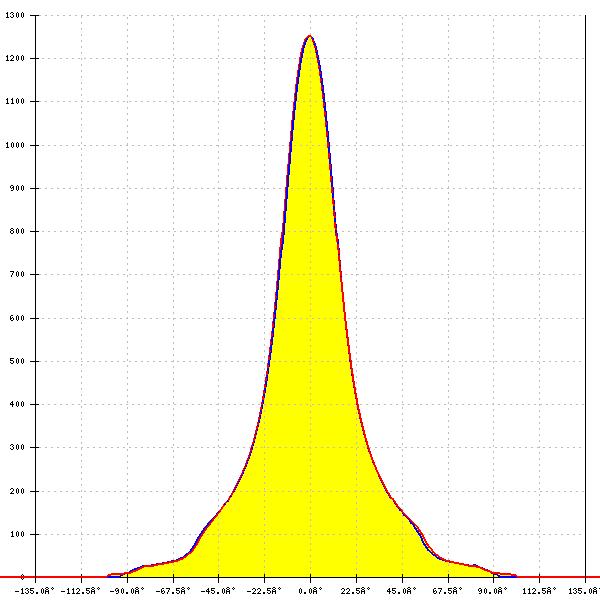

LED: XP-G3
FWHM: 33°
Peak intensity: 1.3 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: XT-E
FWHM: 32°
Peak intensity: 1.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LG 3030
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White

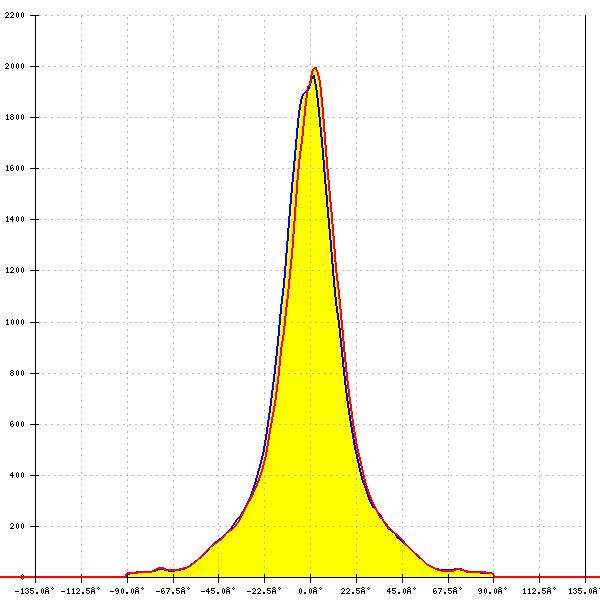

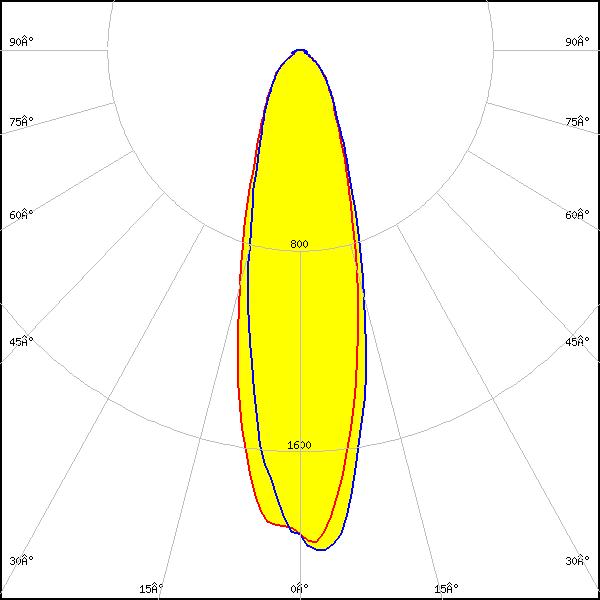

LED: LUXEON 3030 2D (Round LES)
FWHM: 27°
Peak intensity: 2.0 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON TX
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White

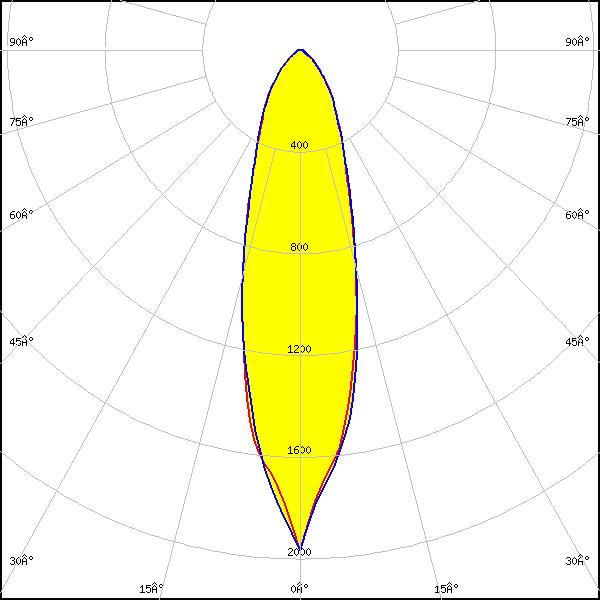

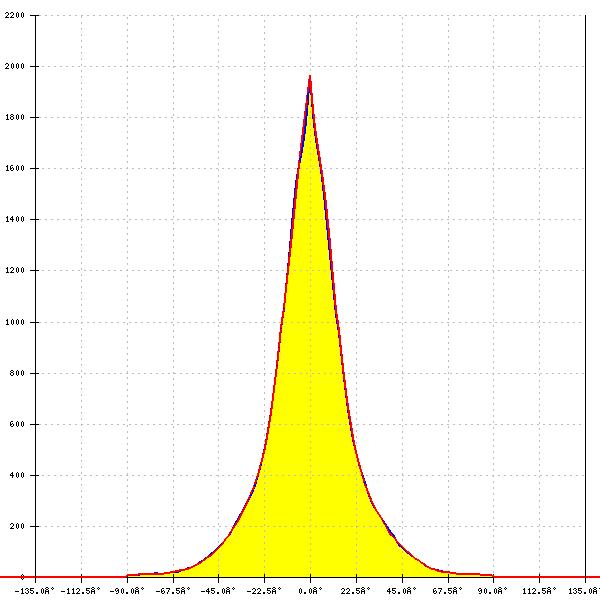

LED: NF2x757G
FWHM: 28°
Peak intensity: 2.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

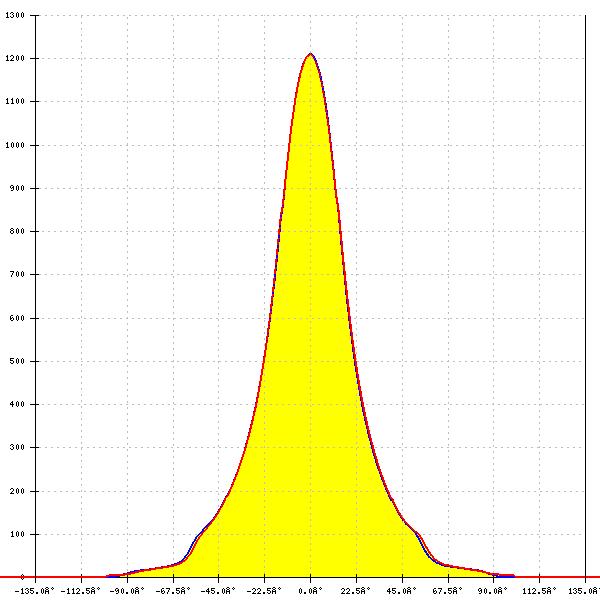

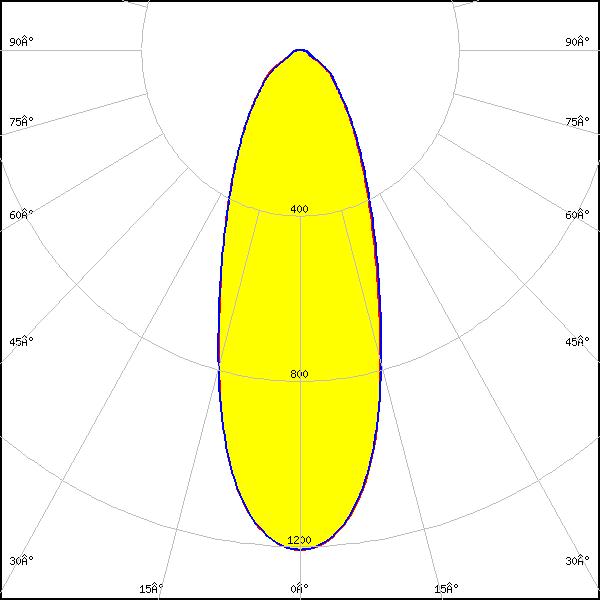

LED: NVSW319B
FWHM: 39°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

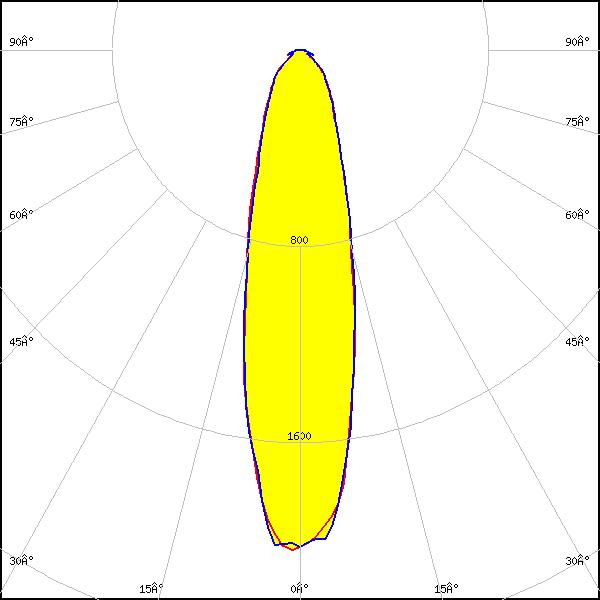

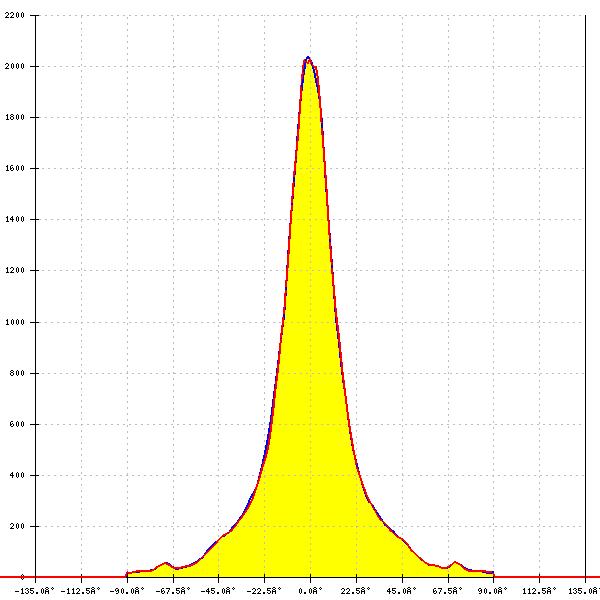

LED: NVSxE21A
FWHM: 25°
Peak intensity: 2.1 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

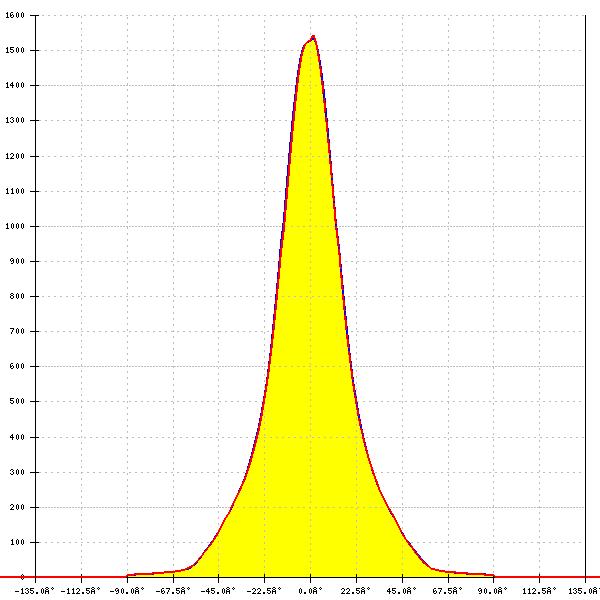

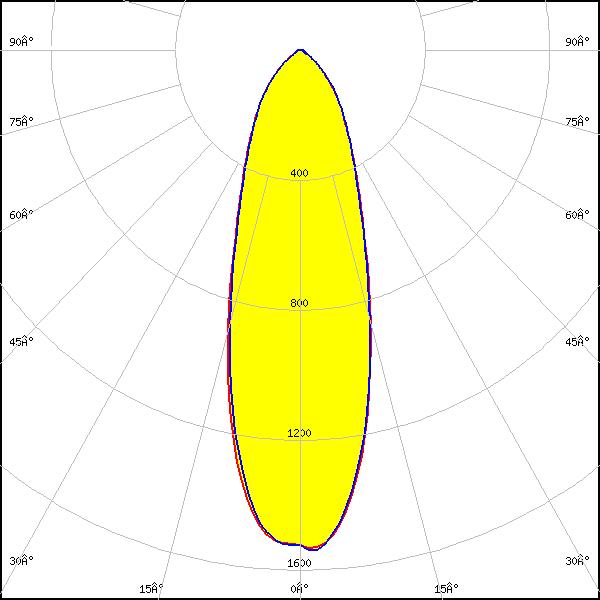

LED: NVSxx19B/NVSxx19C
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White

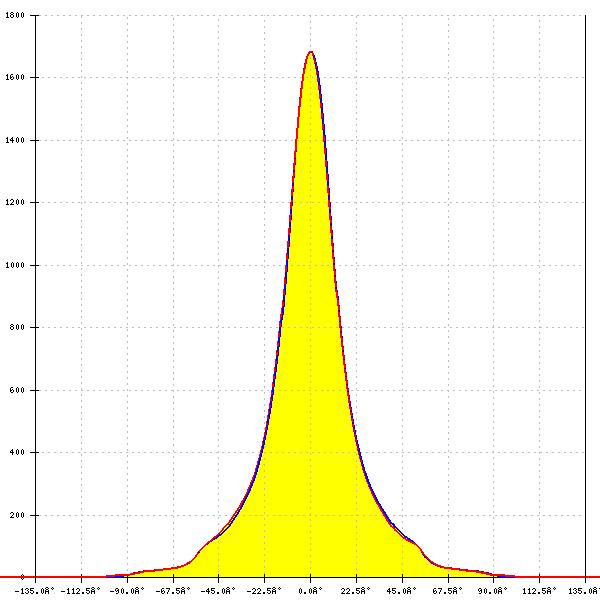

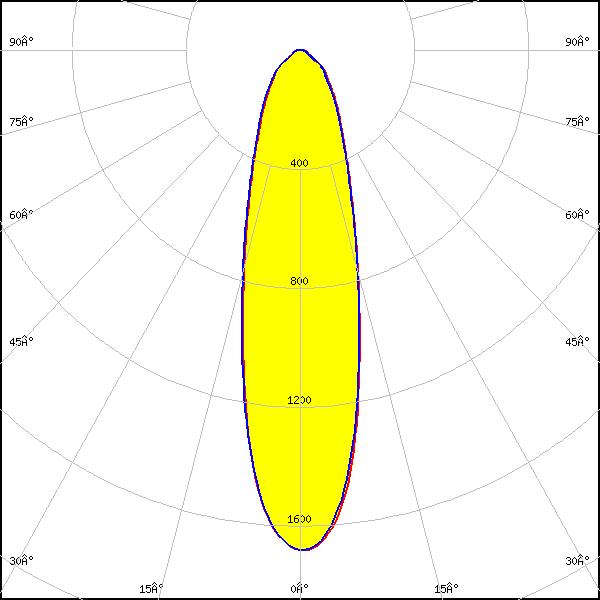

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 30°
Peak intensity: 1.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

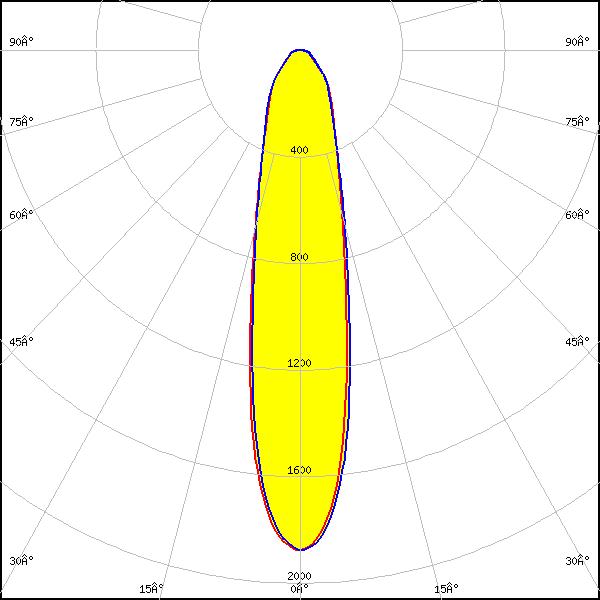

LED: HiLOM SC28 (LH181B)
FWHM: 23°
Peak intensity: 1.9 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

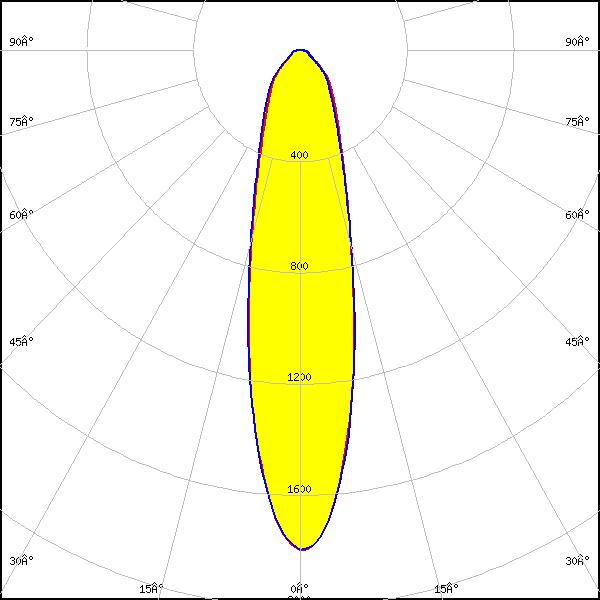

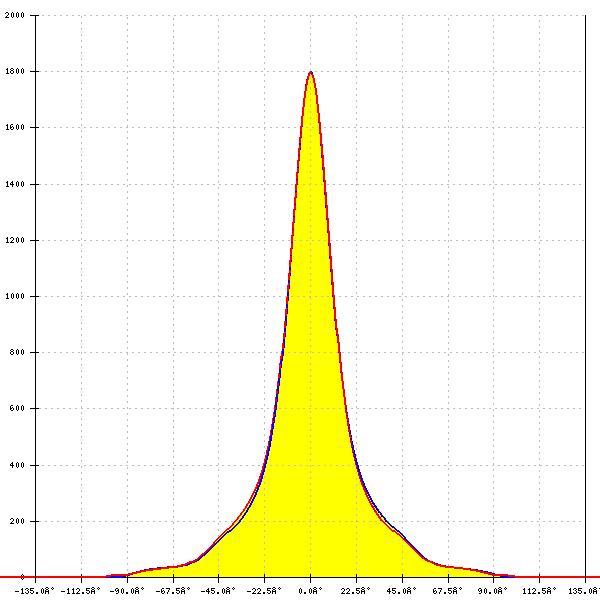

LED: HiLOM SM28 (LM301B)
FWHM: 25°
Peak intensity: 1.8 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

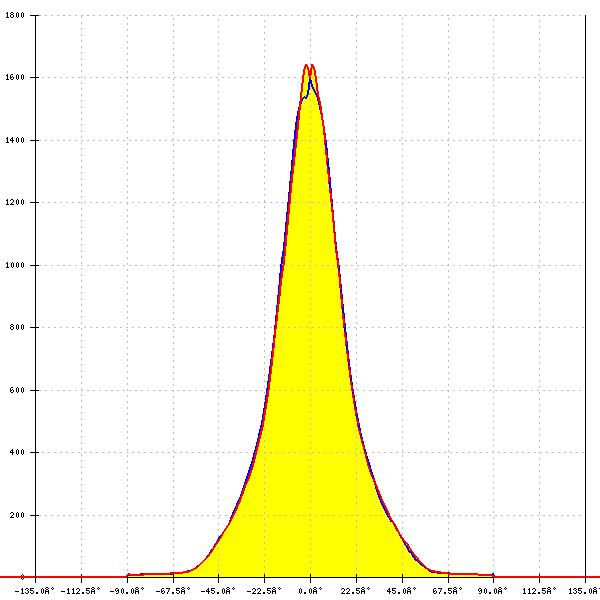

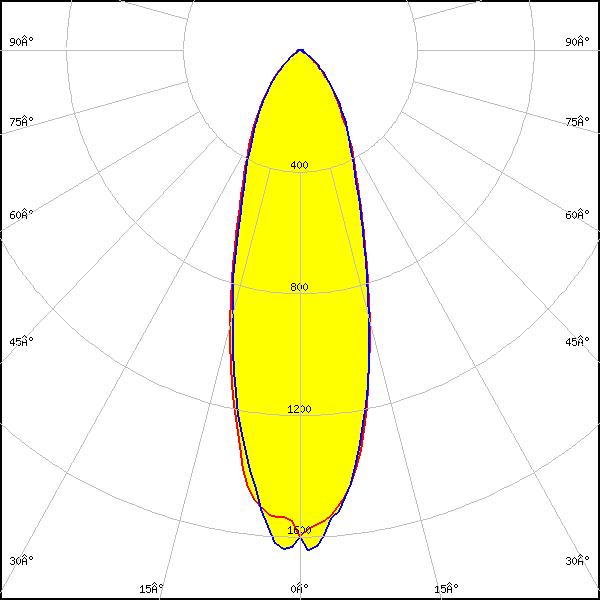

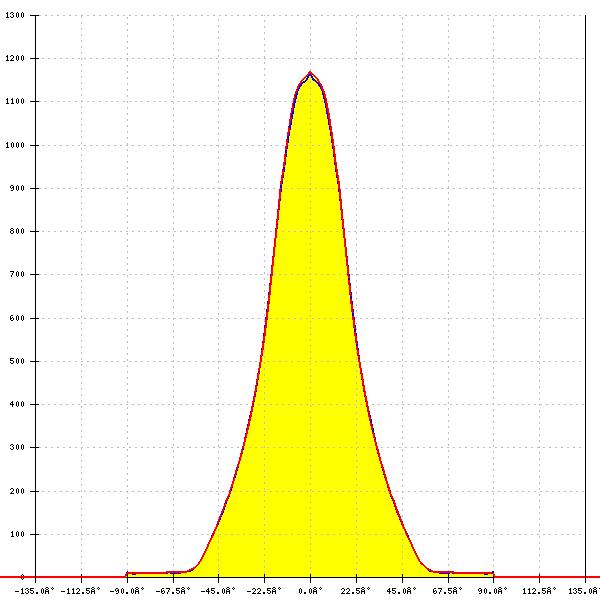

LED: LH351B
FWHM: 33°
Peak intensity: 1.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

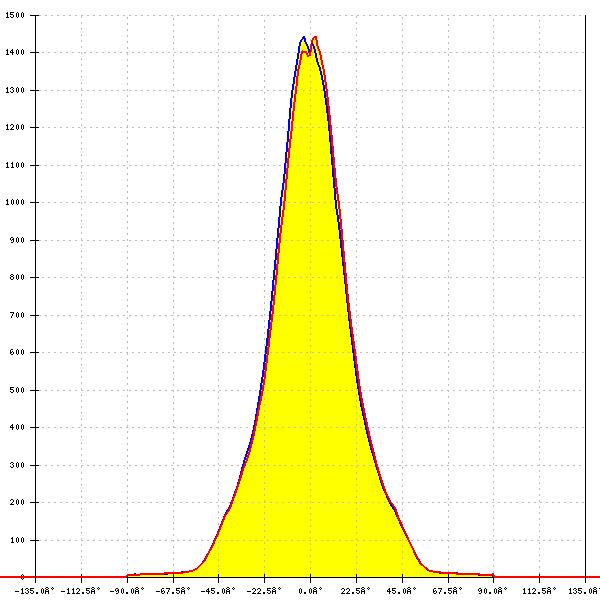

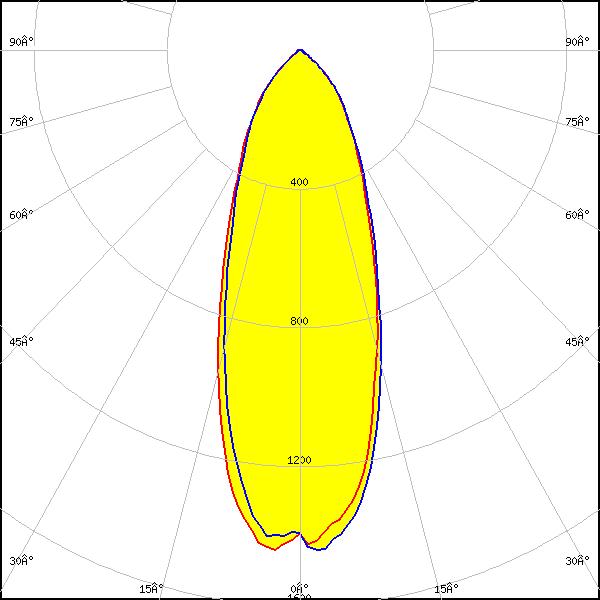

LED: LH351C
FWHM: 37°
Peak intensity: 1.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LM301A
Peak intensity: 0.0 cd/lm
LEDs/each optic: 1
Light colour: White

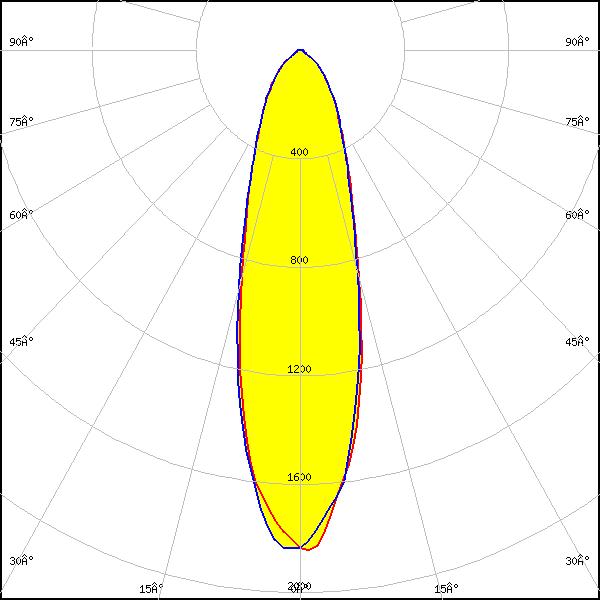

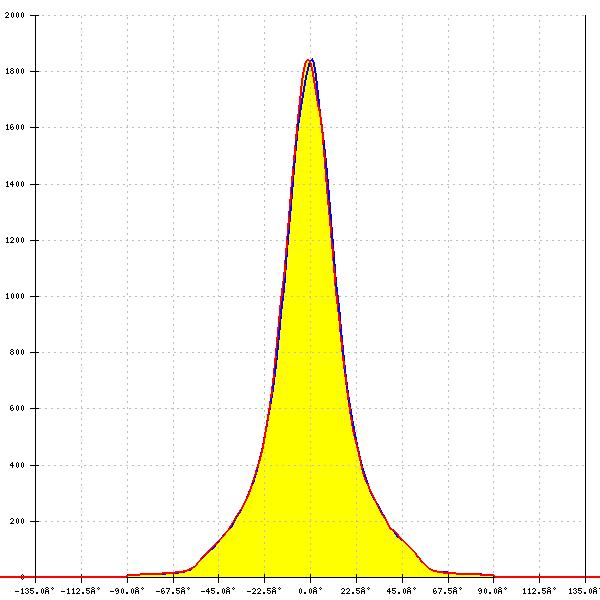

LED: LM301B
FWHM: 29°
Peak intensity: 1.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

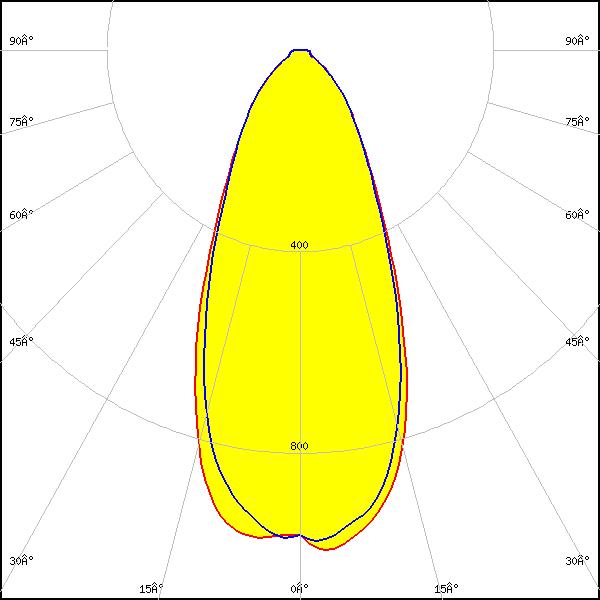

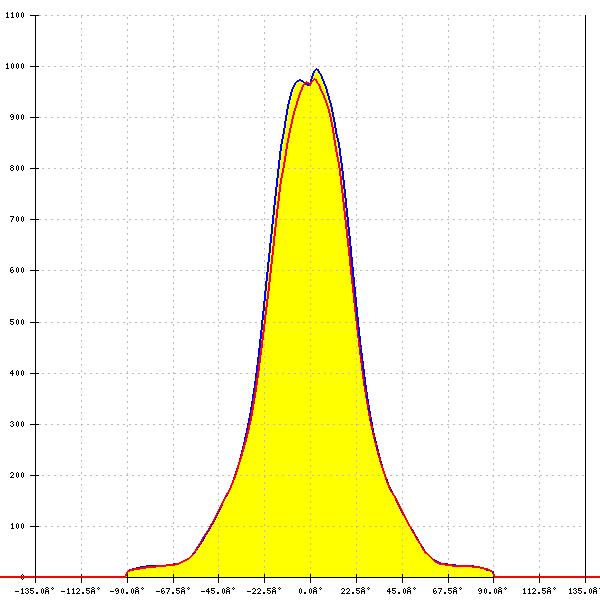

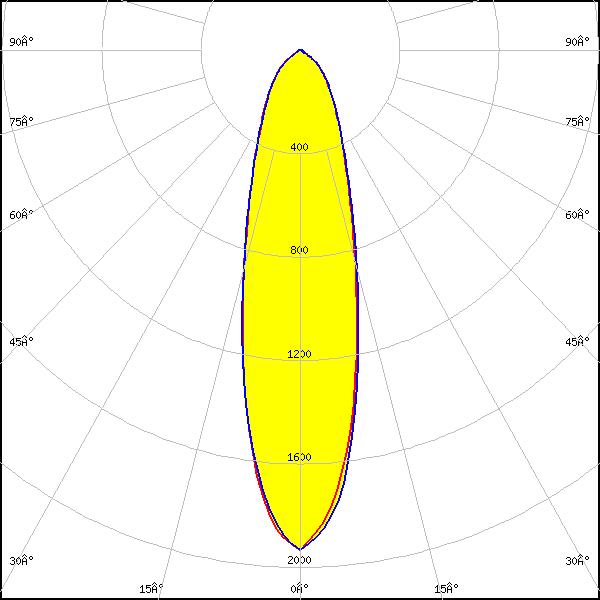

LED: SEOUL DC 5050 6V
FWHM: 46°
Peak intensity: 1.0 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

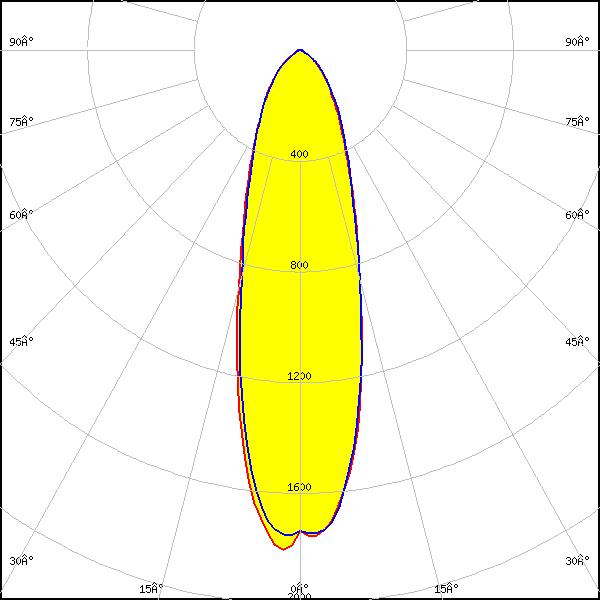

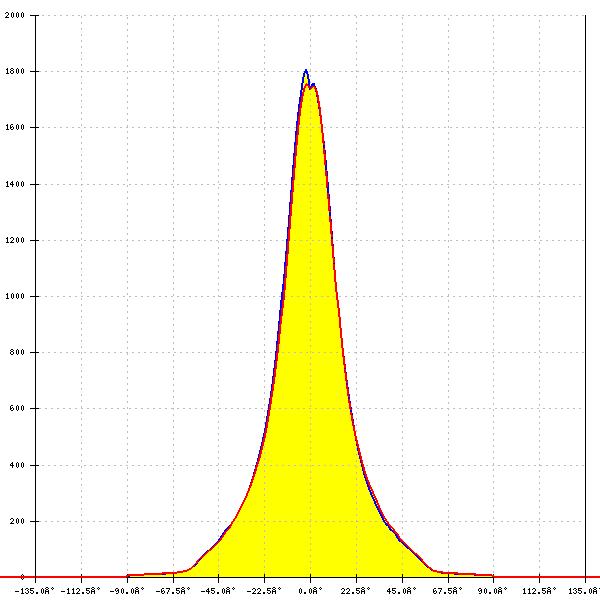

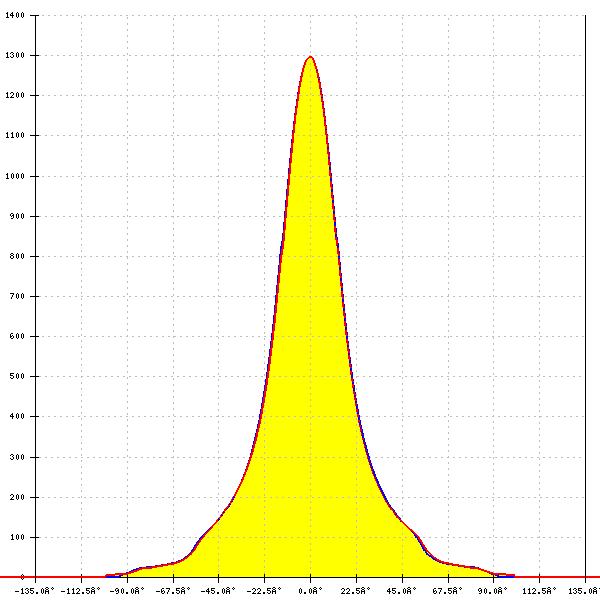

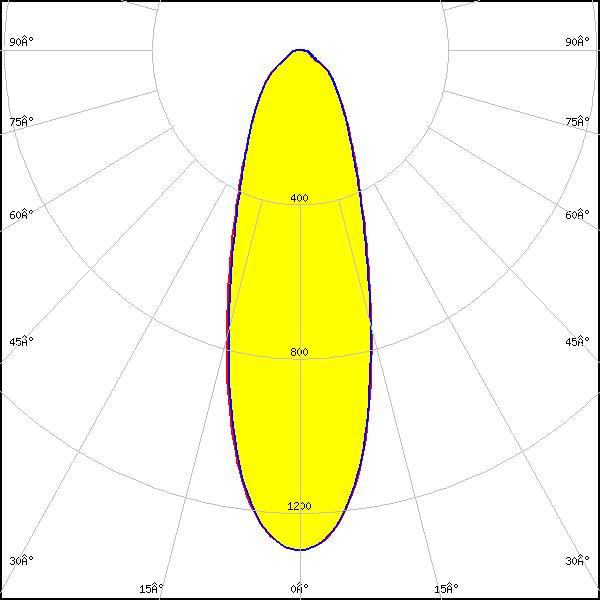

LED: Z5M1/Z5M2
FWHM: 30°
Peak intensity: 1.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

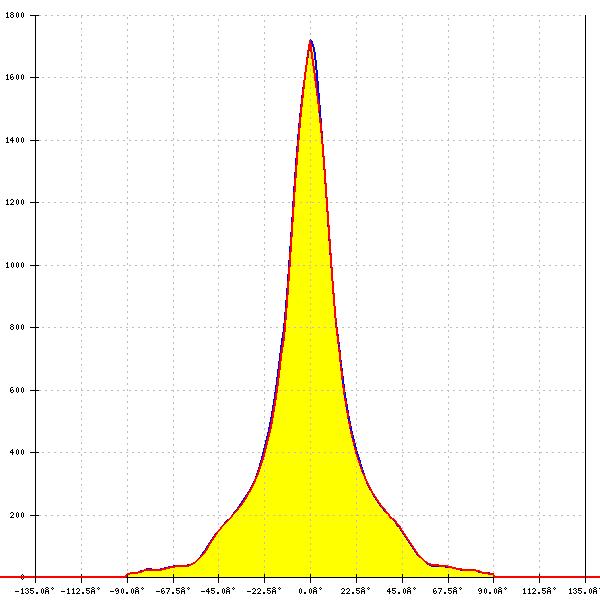

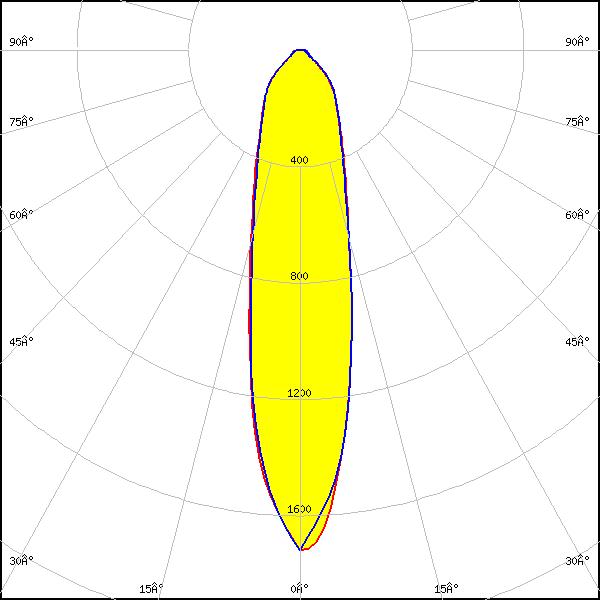

LED: Z8Y19
FWHM: 24°
Peak intensity: 1.7 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

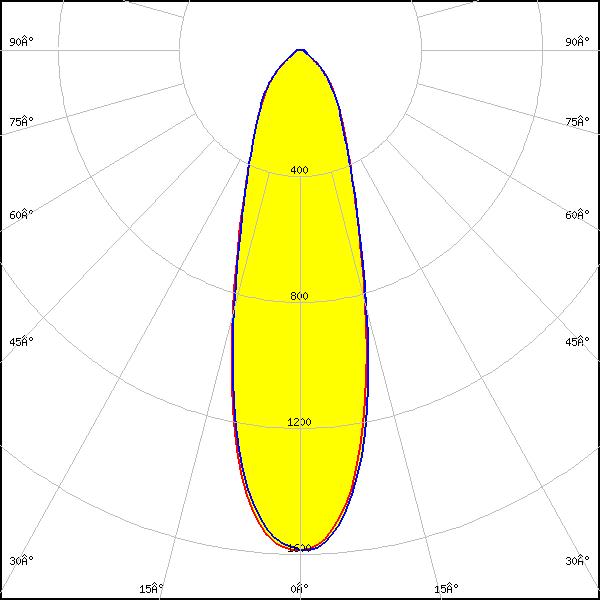

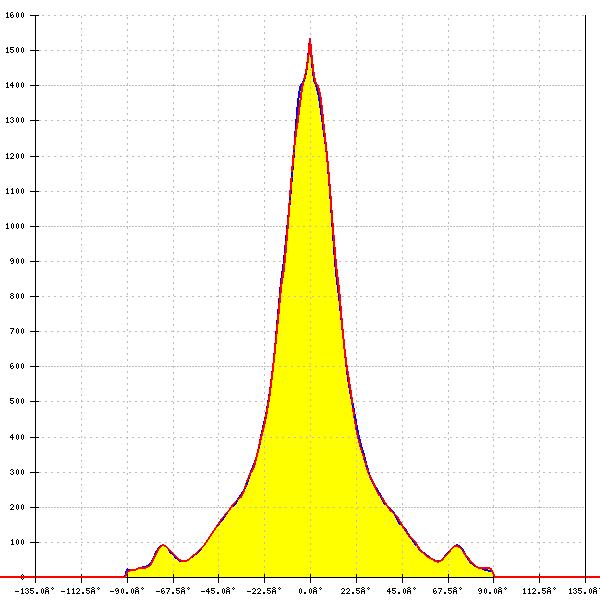

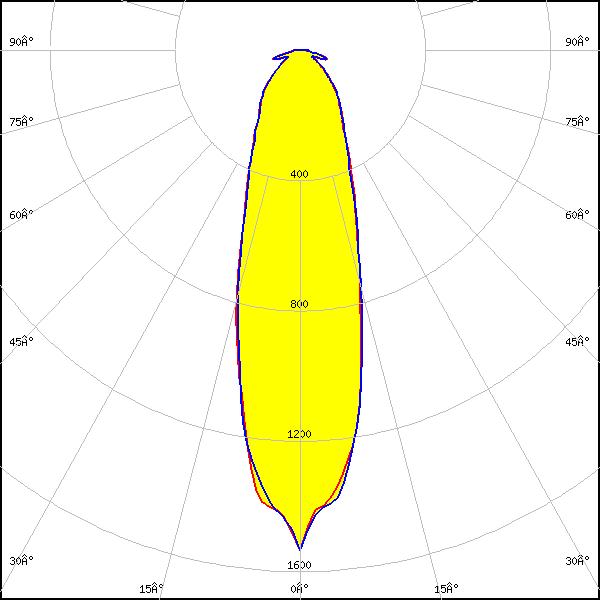

LED: Z8Y22
FWHM: 29°
Peak intensity: 1.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
