CS16323_STRADELLA-IP-28-HB-M

Print

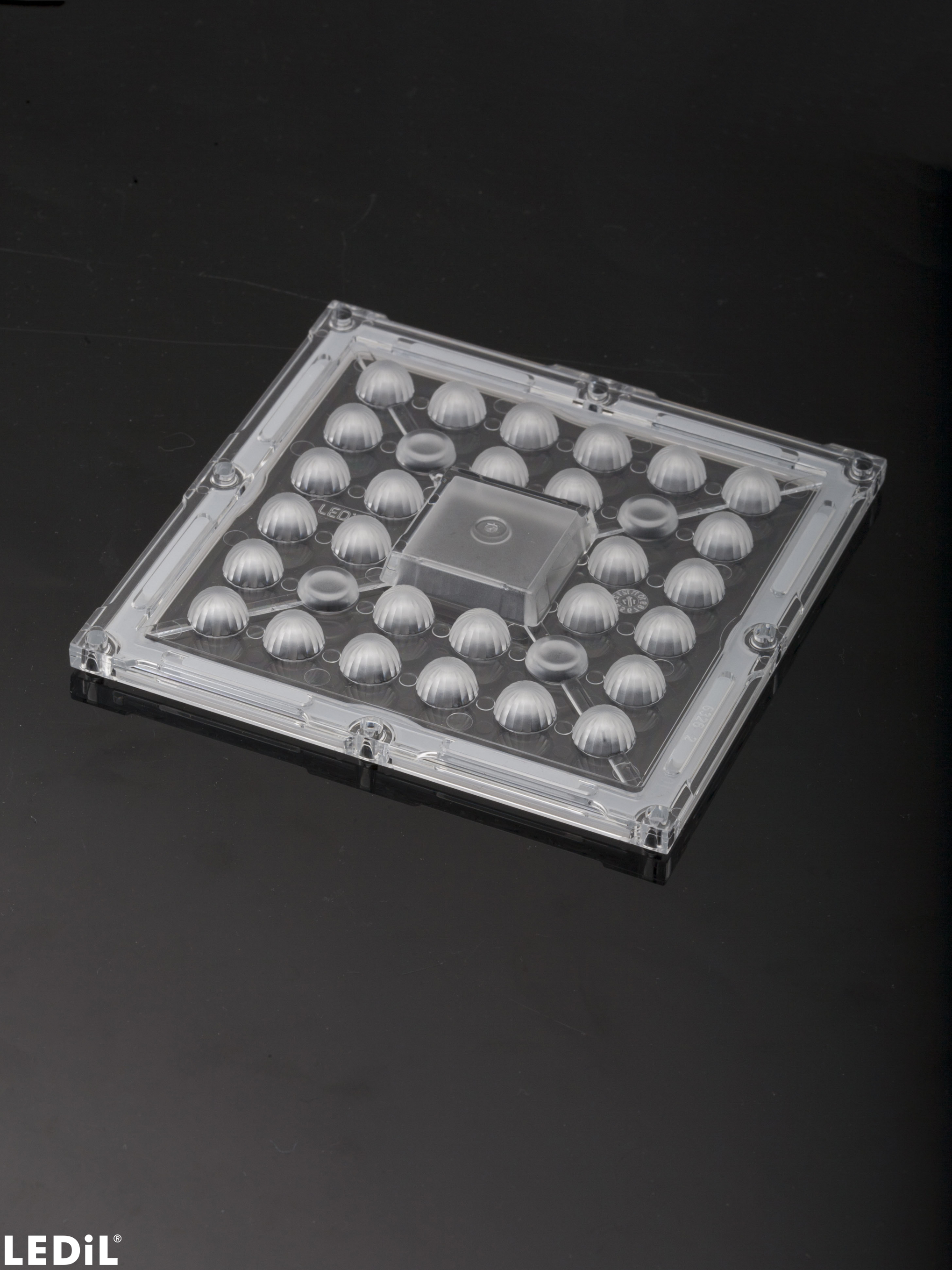

~65° medium beam. Variant made from PMMA.

Specification
  • Dimensions:
    100 x 100 mm
  • Height:
    9.5 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • STRADELLA-IP-28-HB-M, Multi-lens, PMMA
  • STRADELLA-28-SEAL, Seal, Silicone
Packing information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    5.8 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

Typical Applications

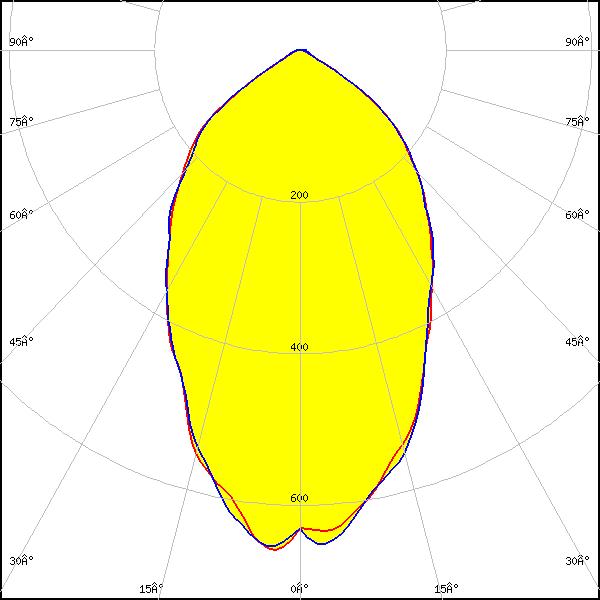

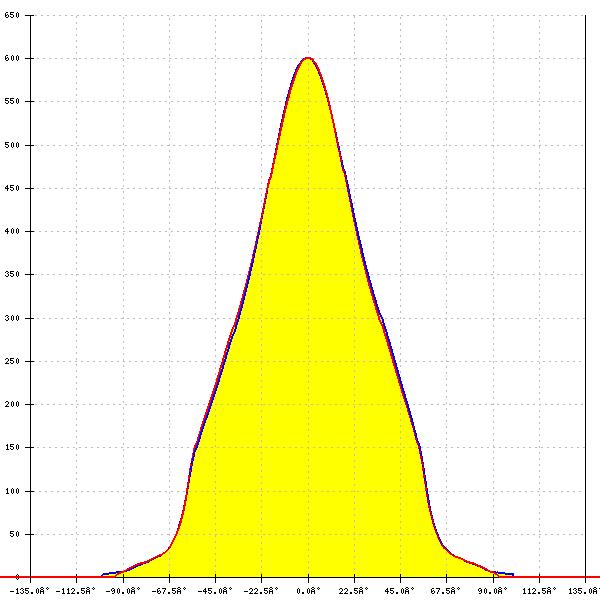

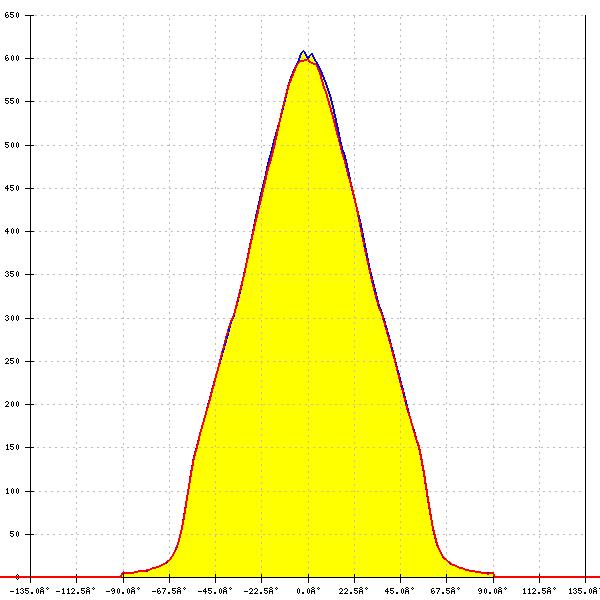

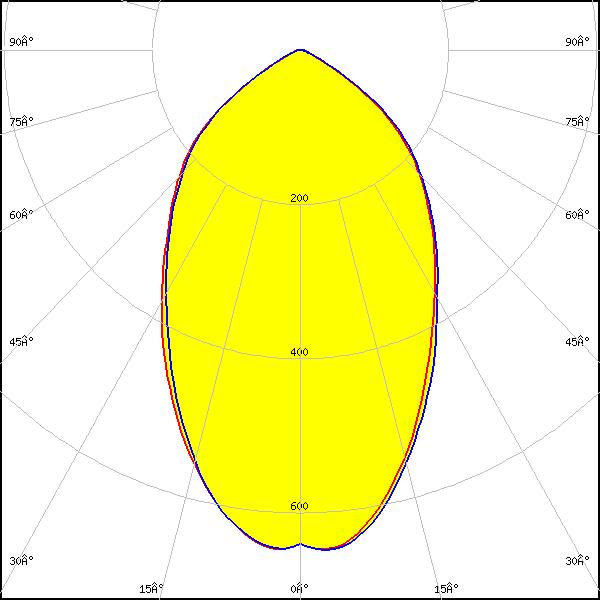

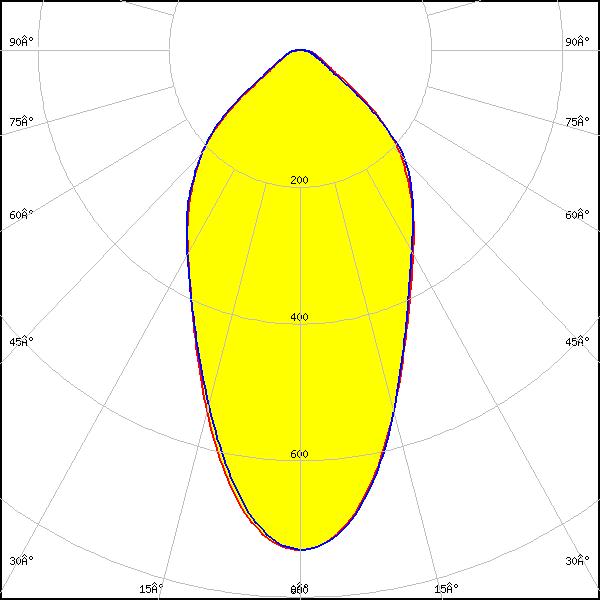

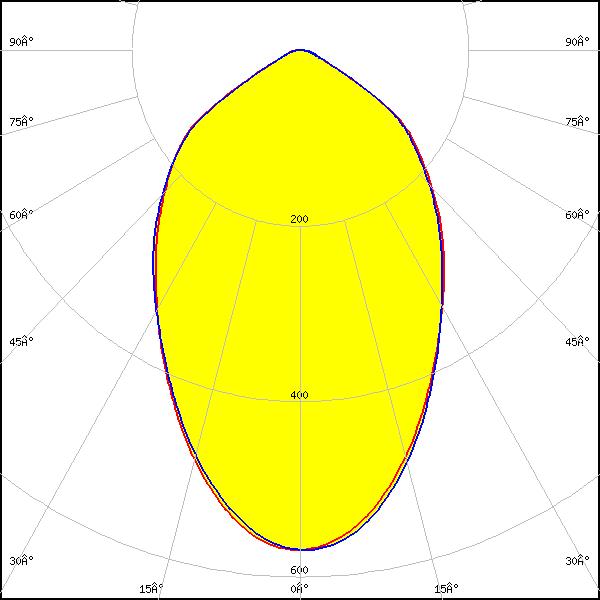

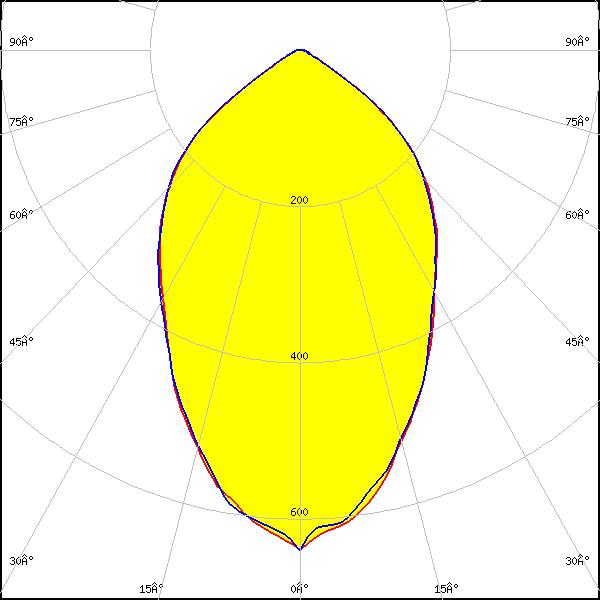

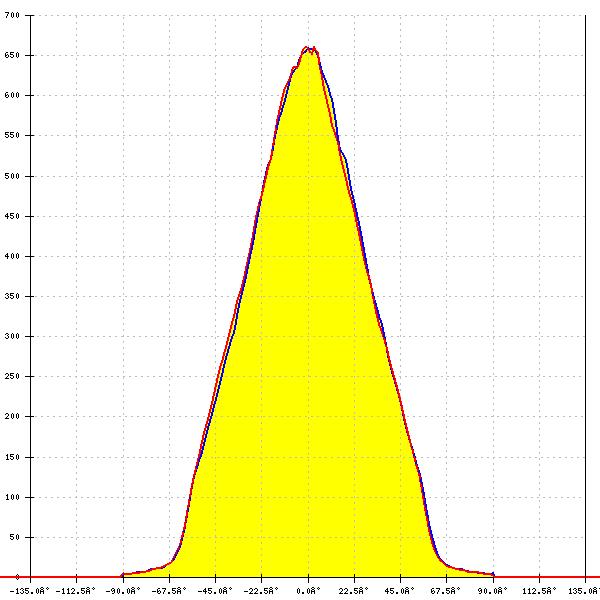

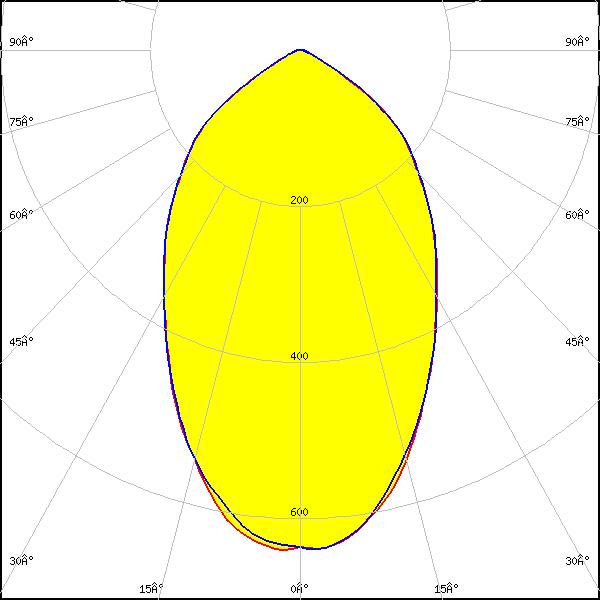

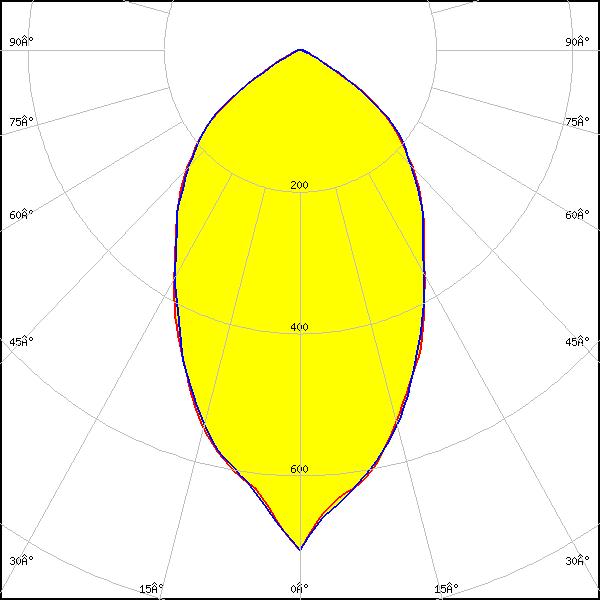

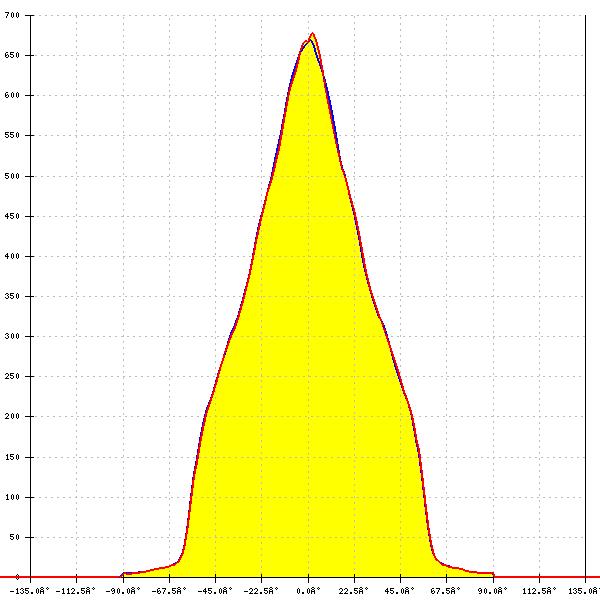

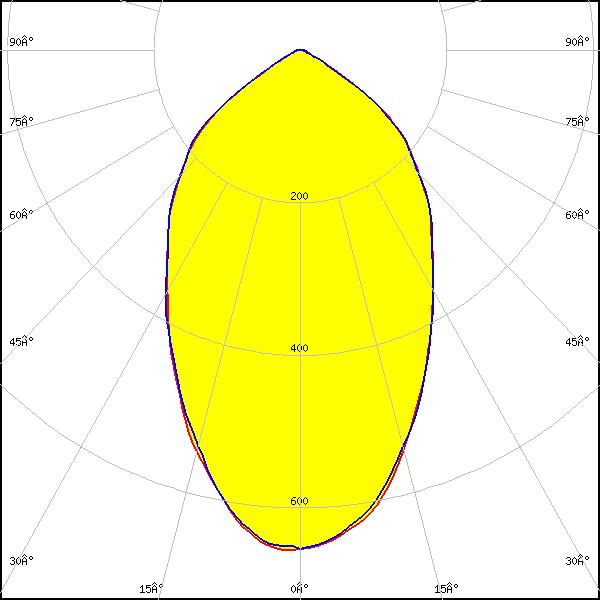

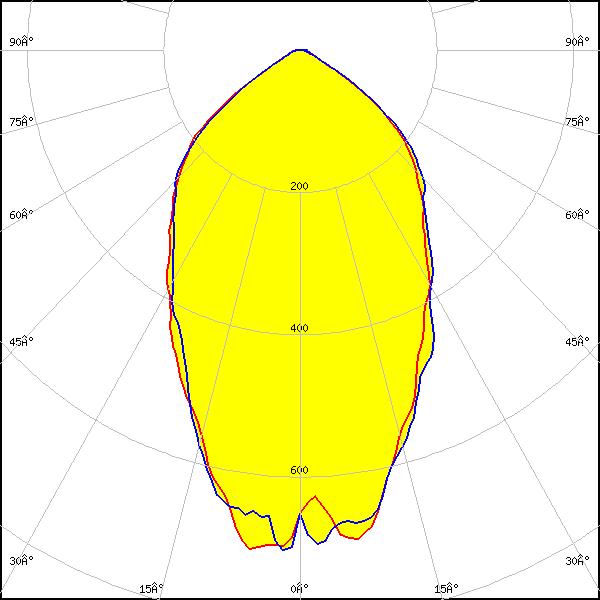

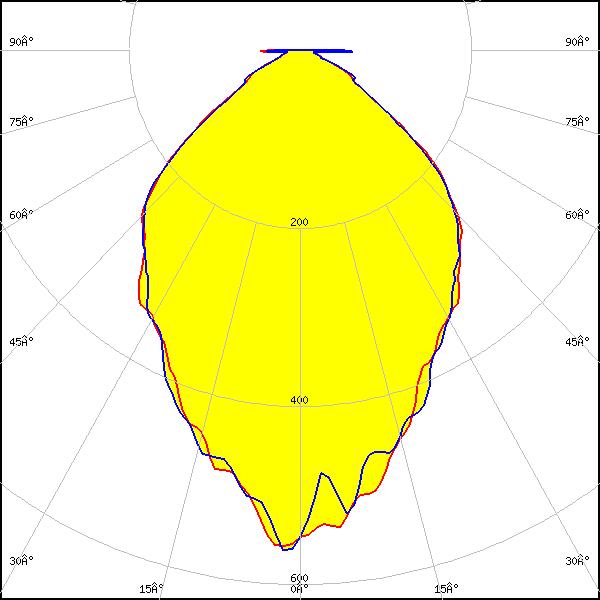

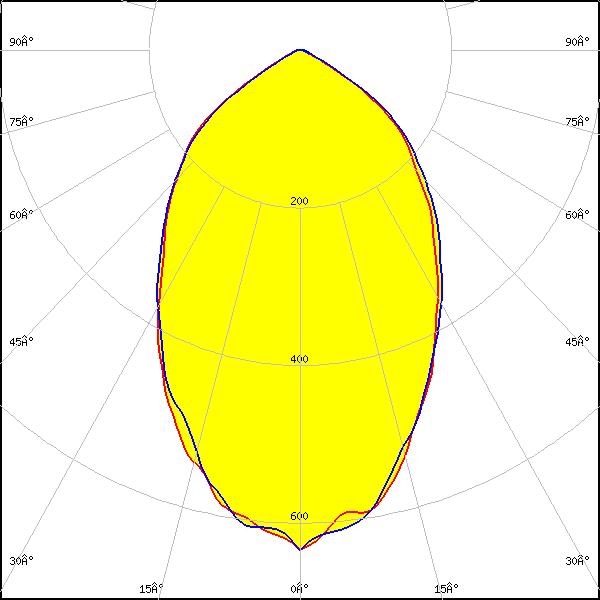

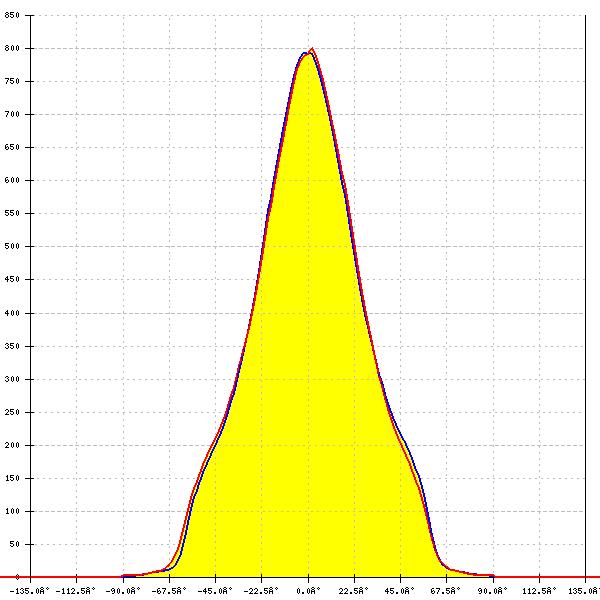

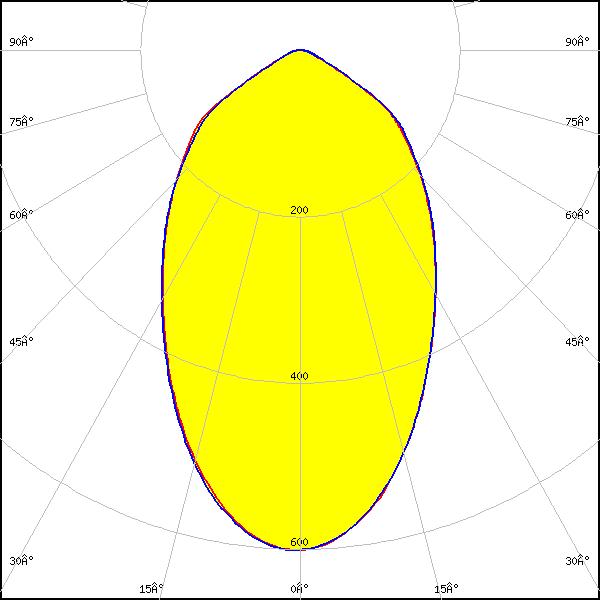

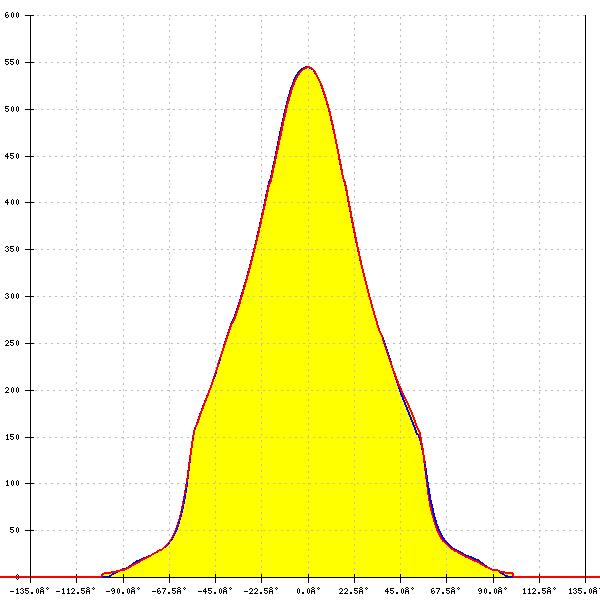

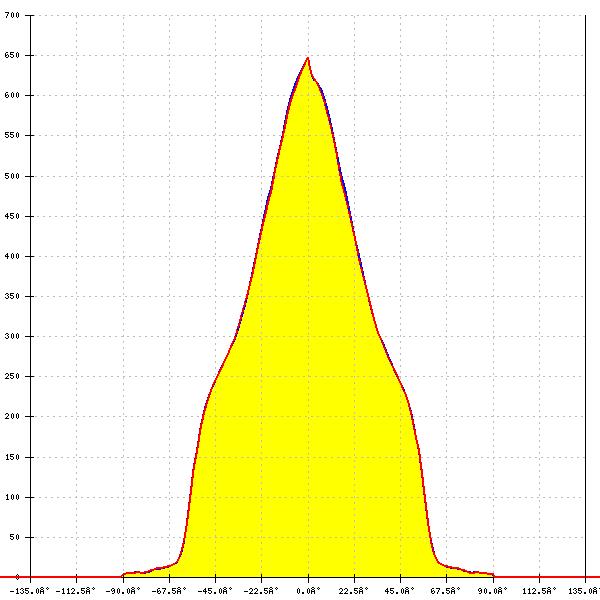

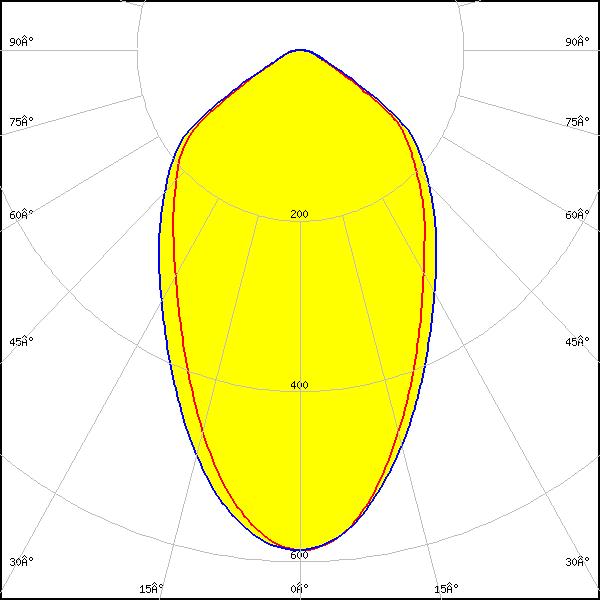

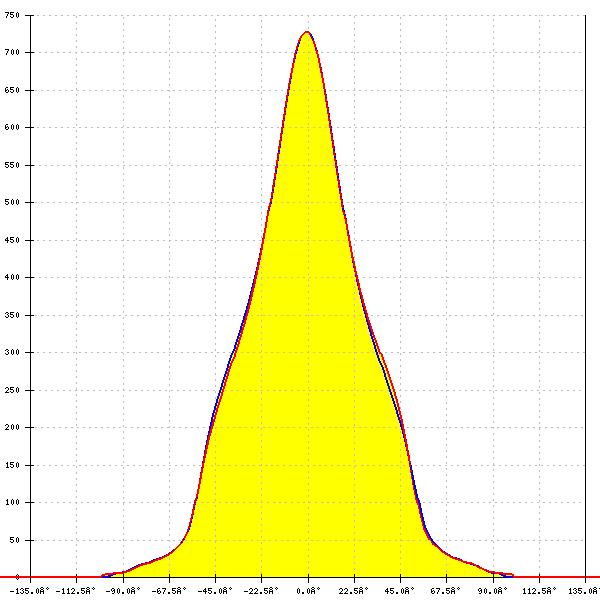

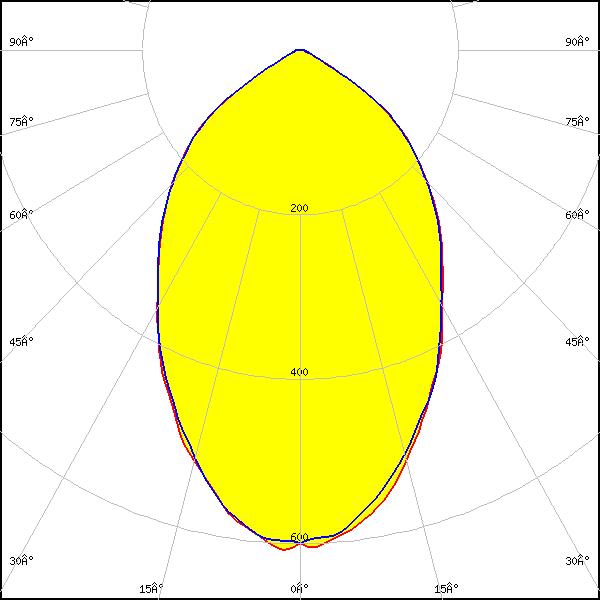

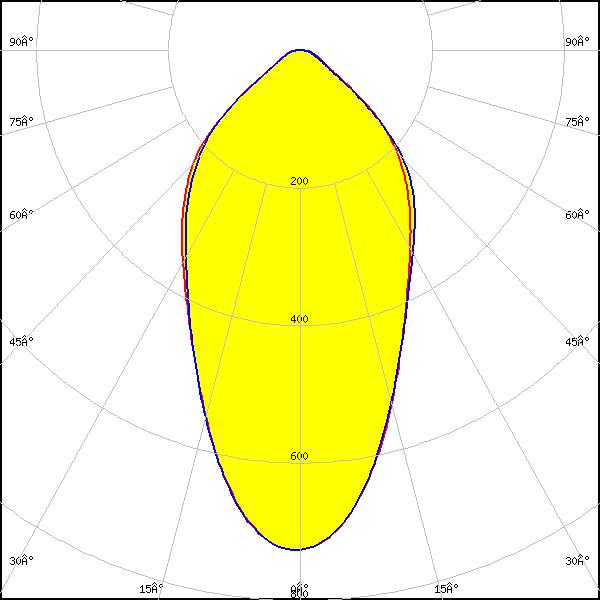

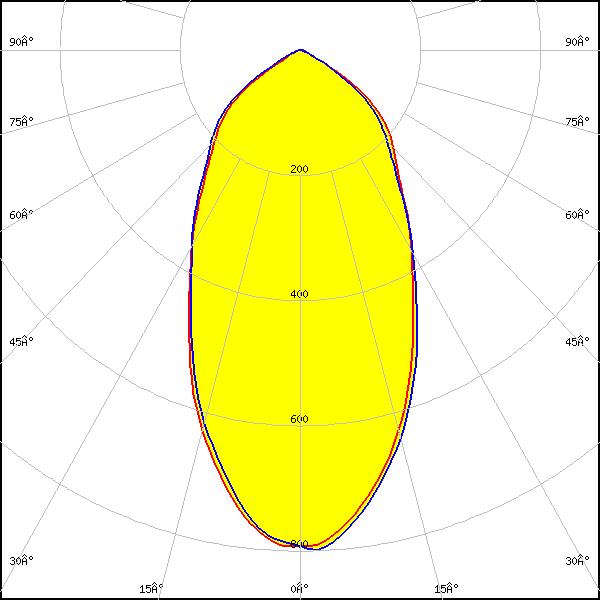

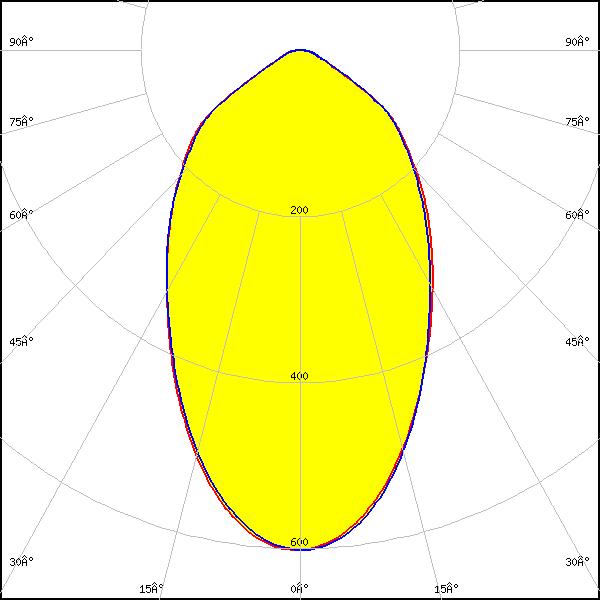

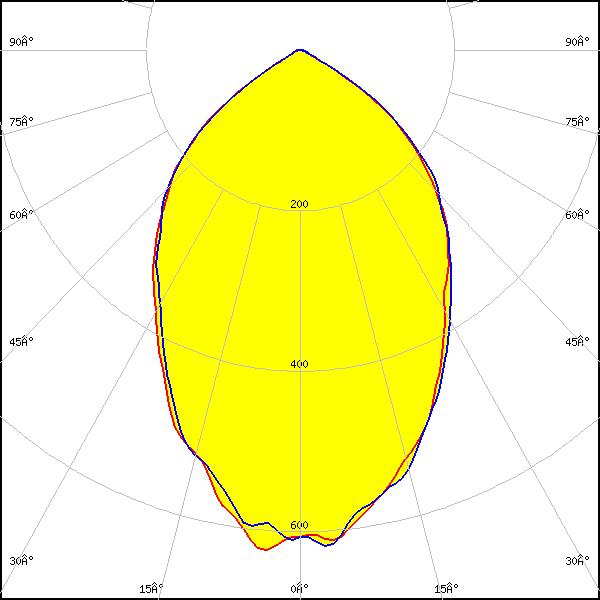

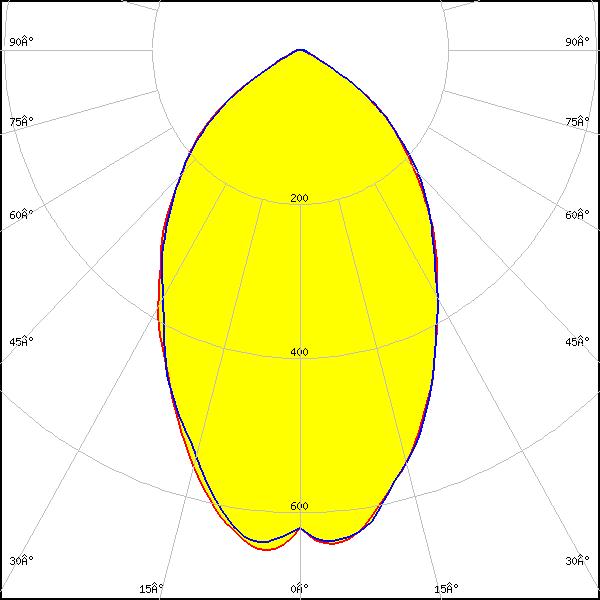

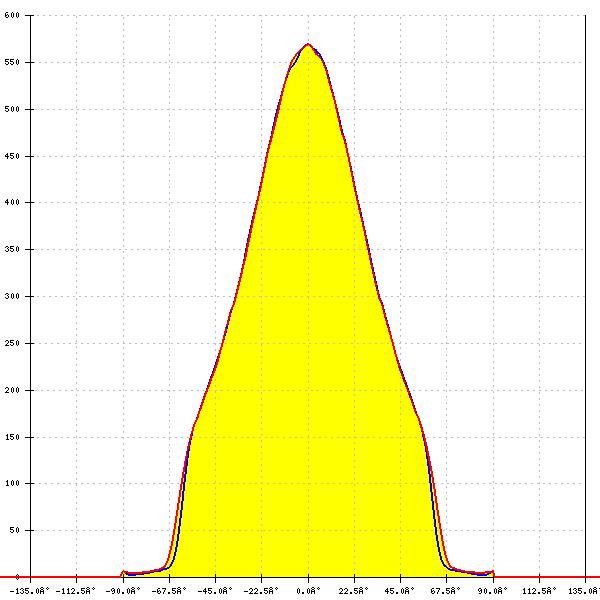

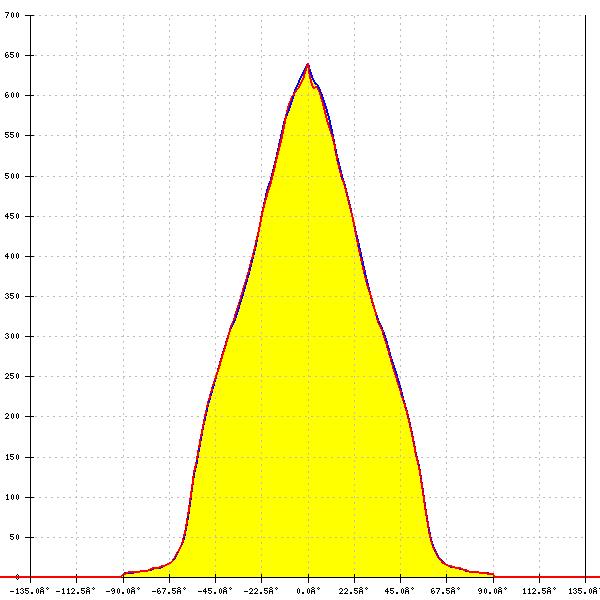

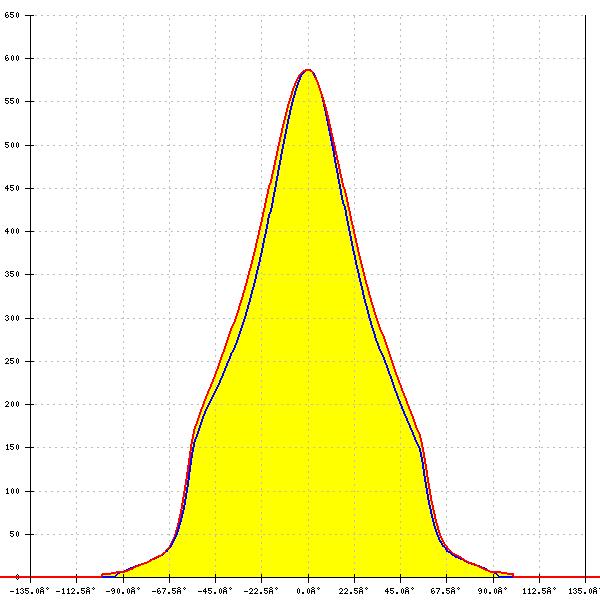

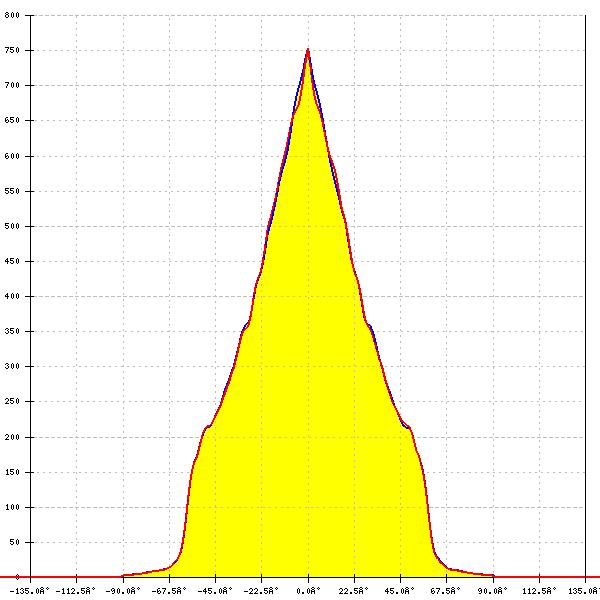

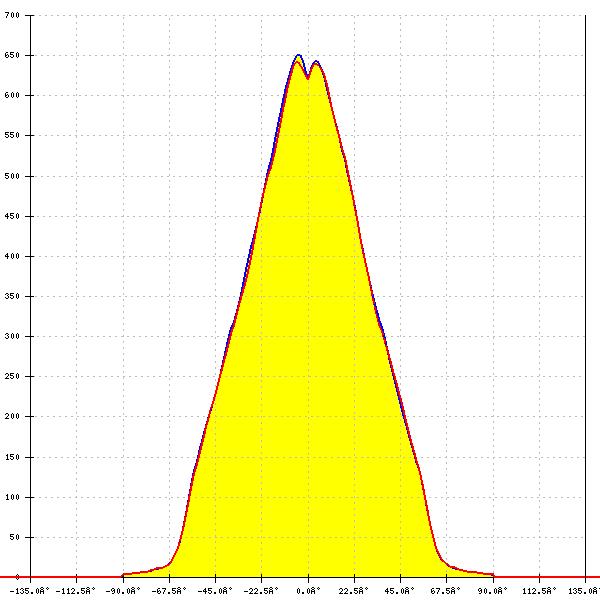

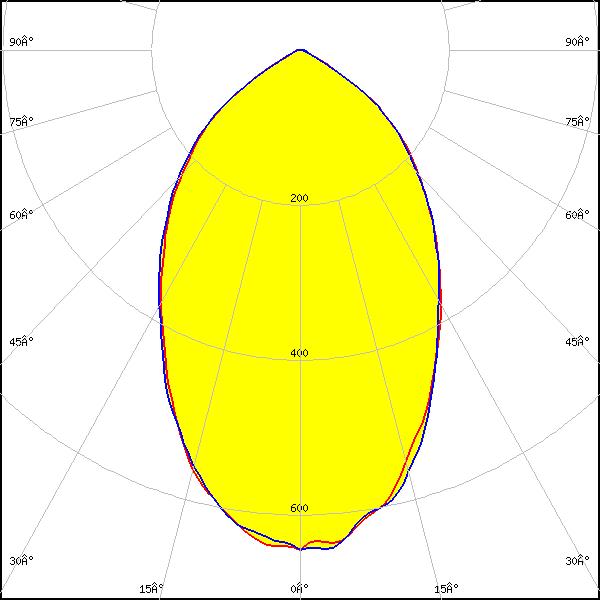

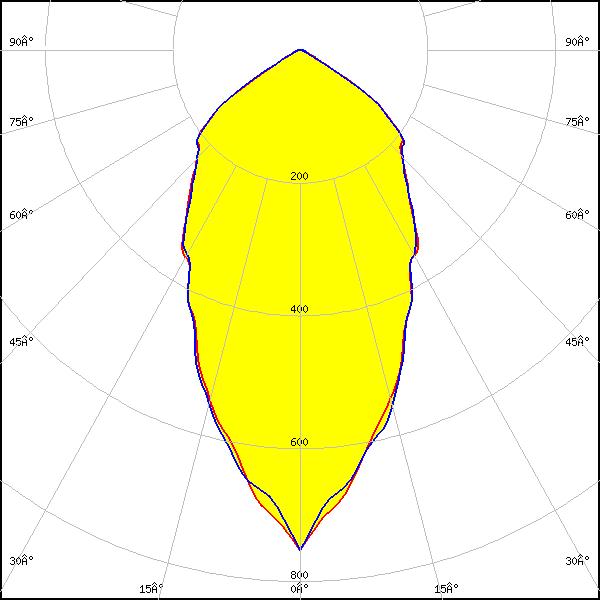

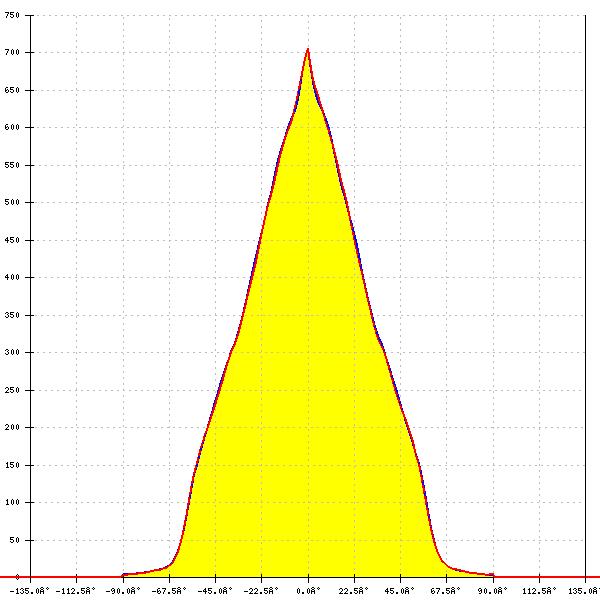

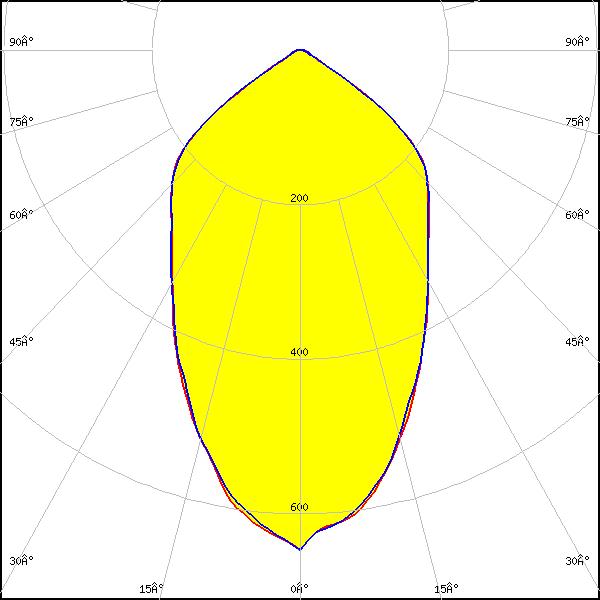

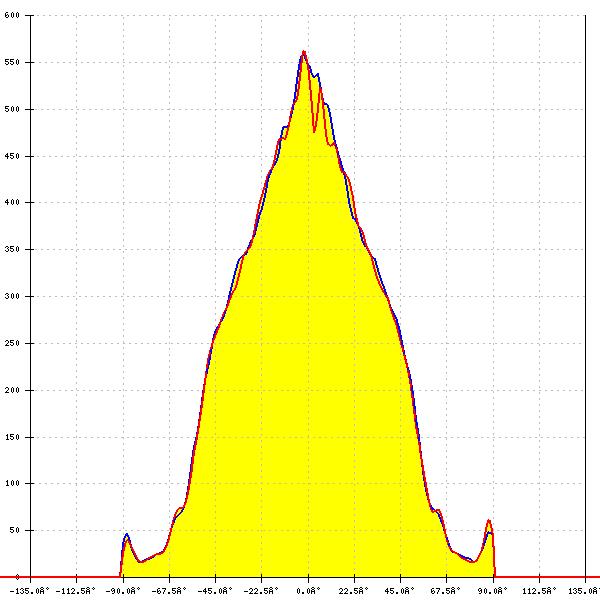

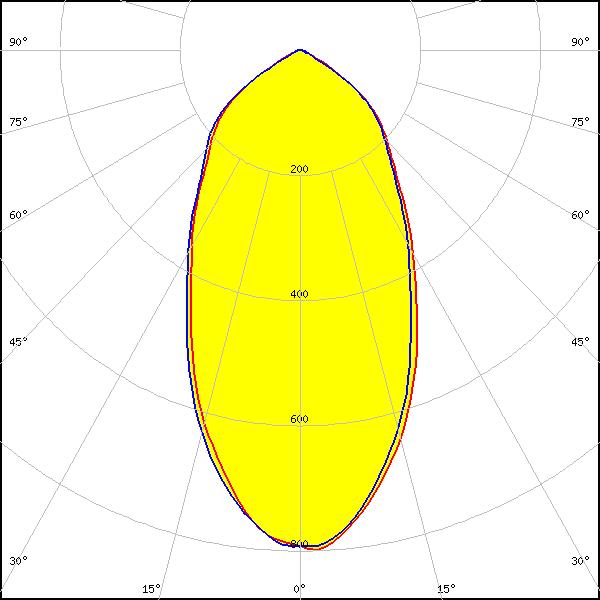

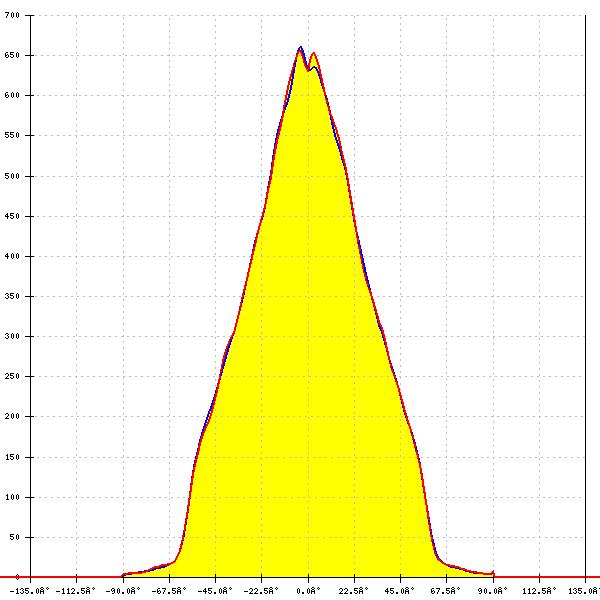

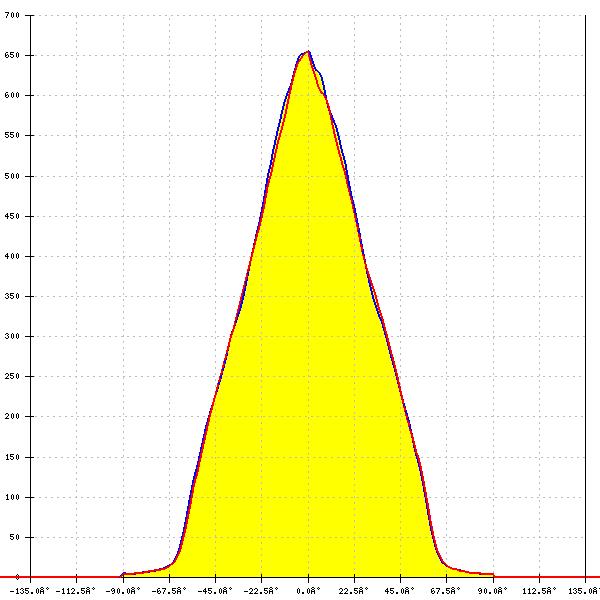

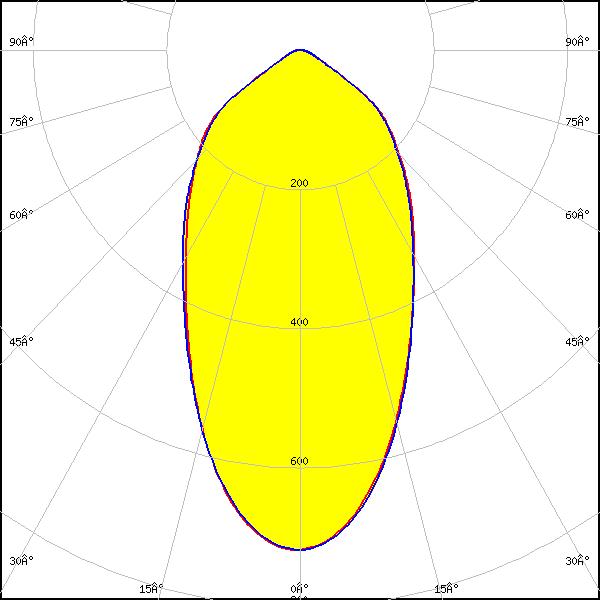

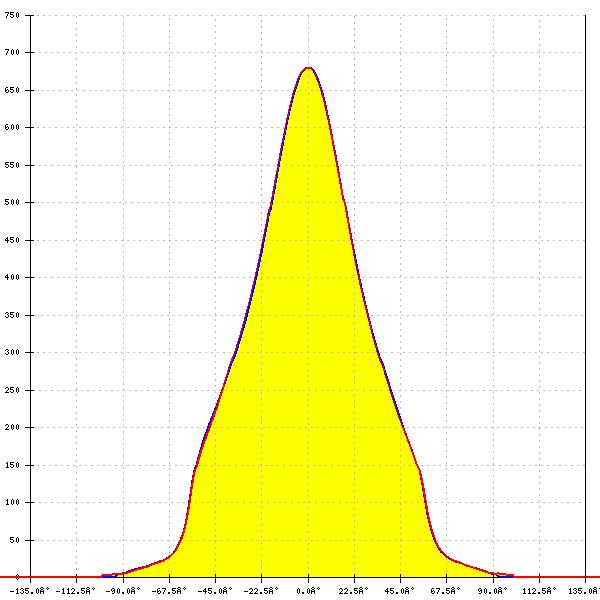

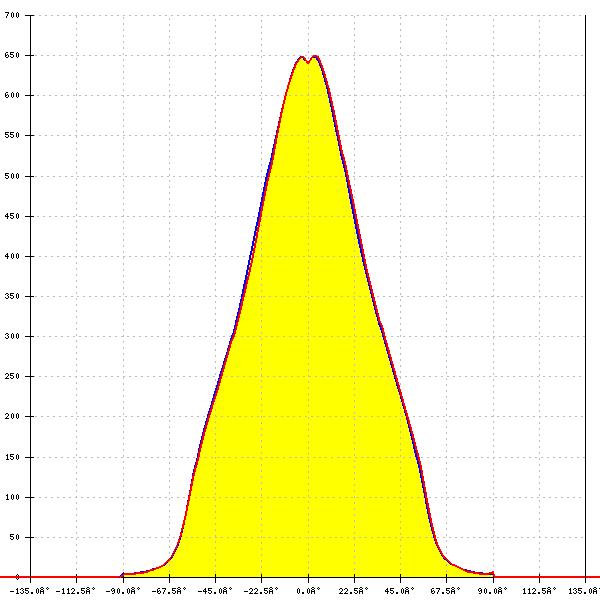

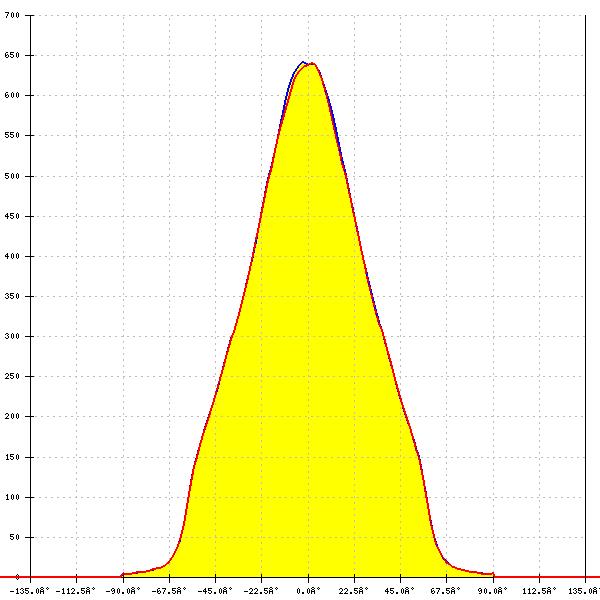

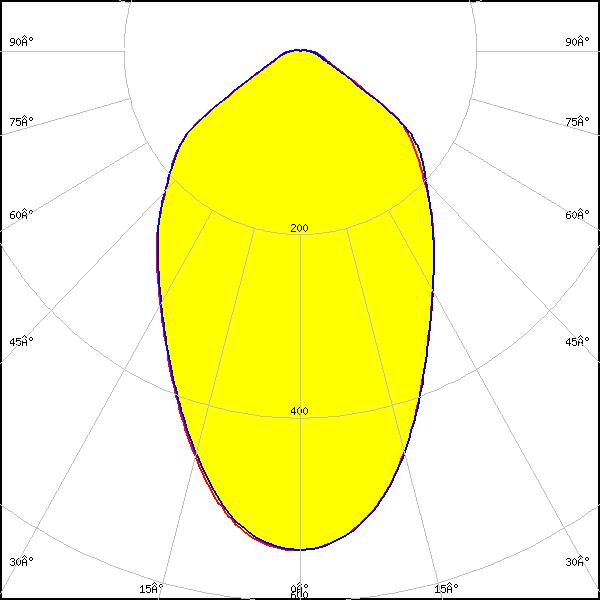

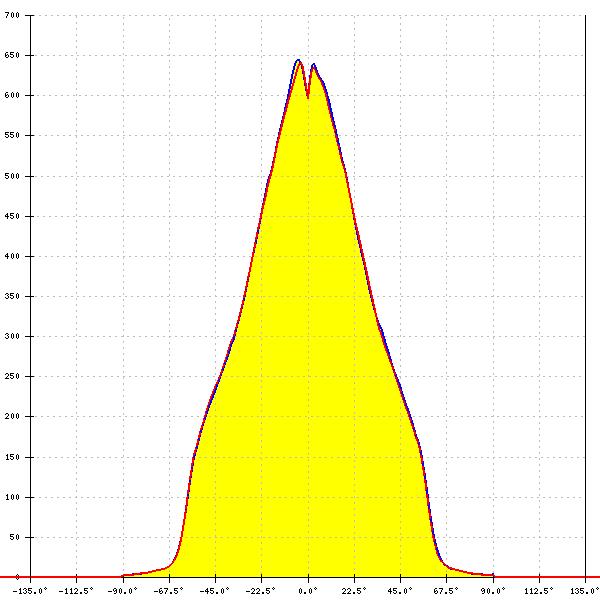

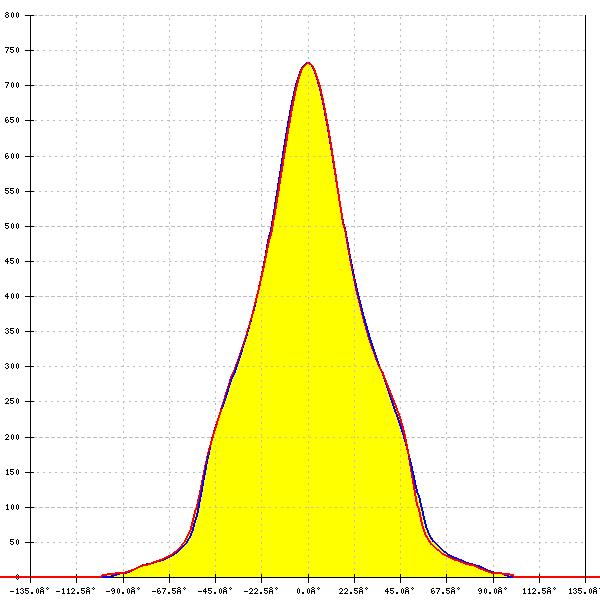

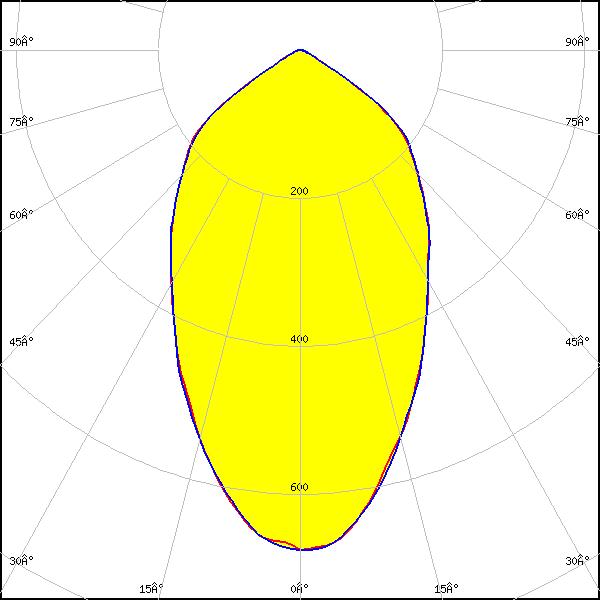

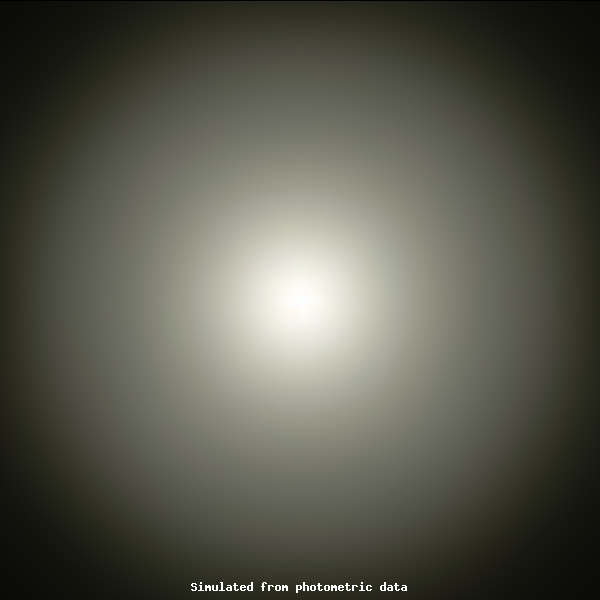

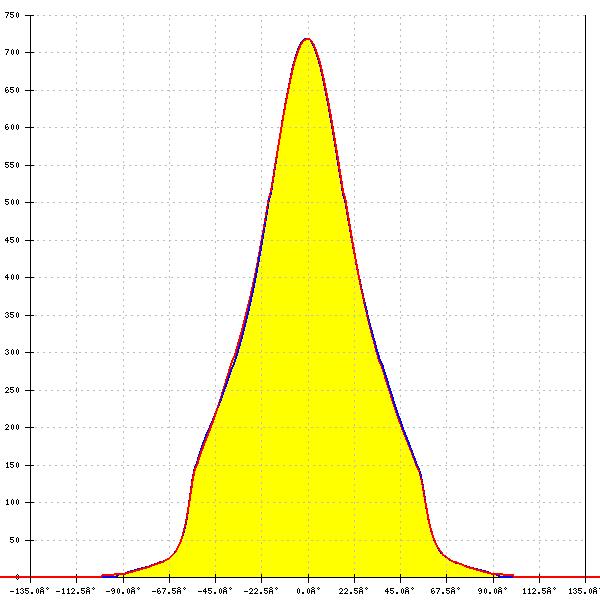

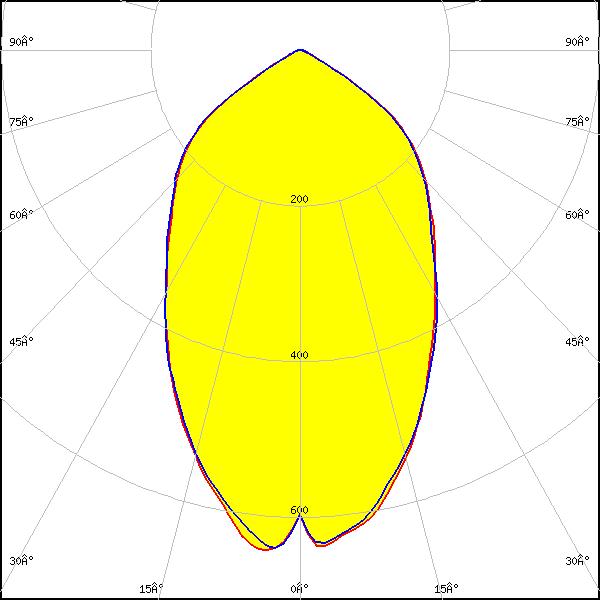

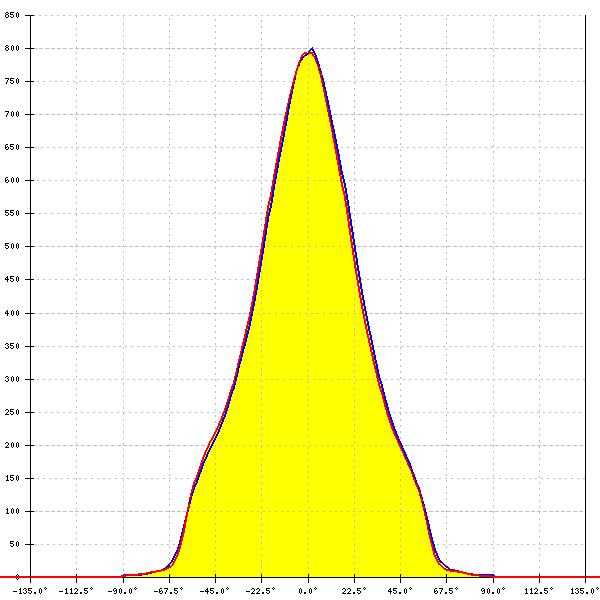

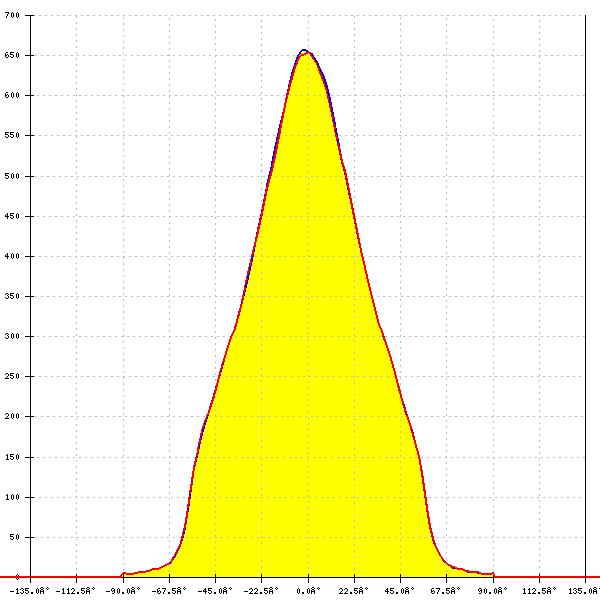

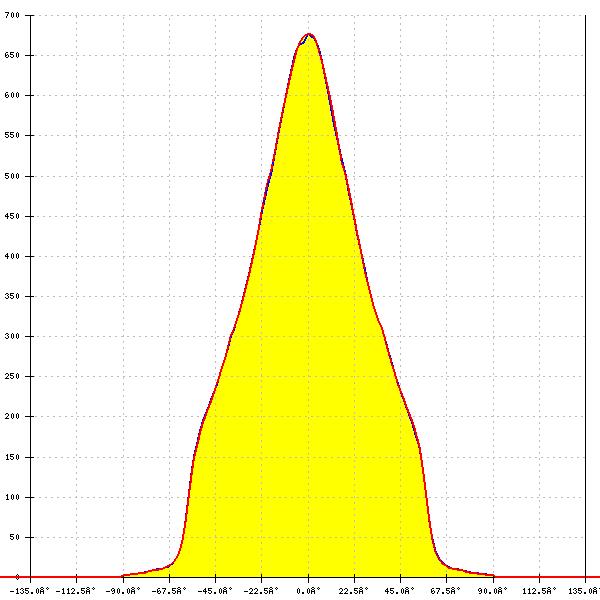

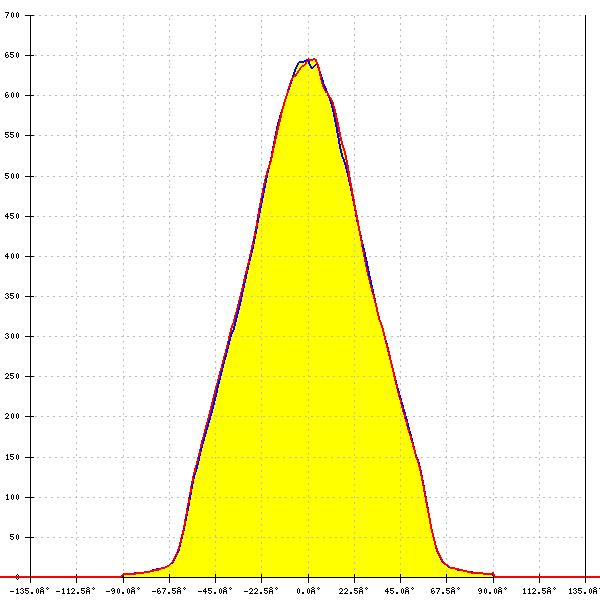

Optical results

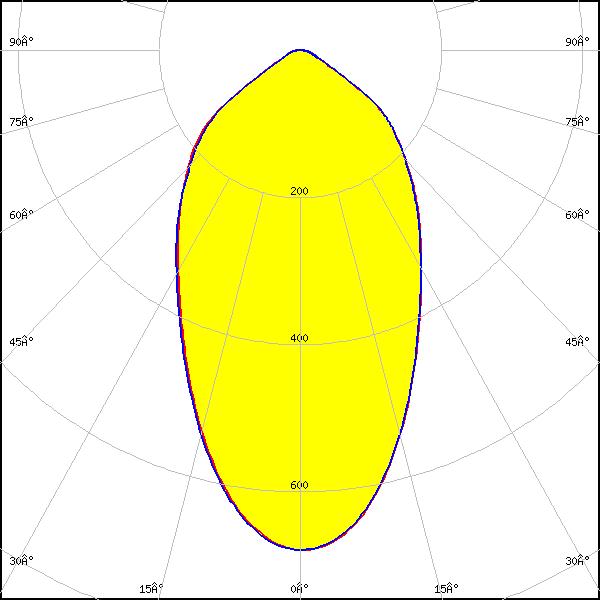

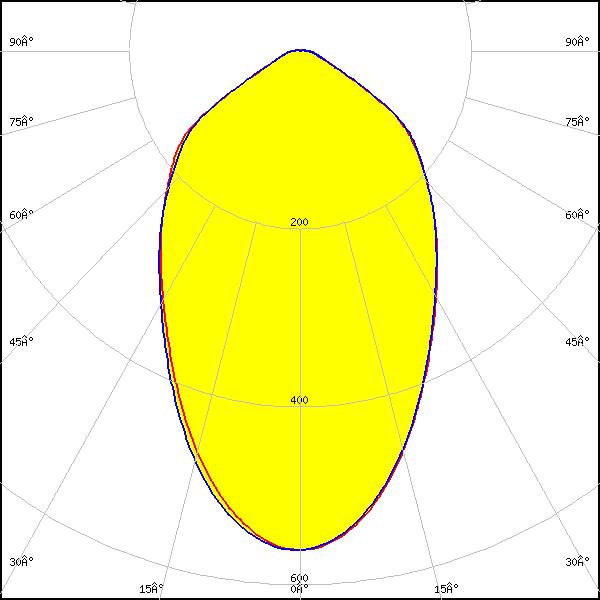

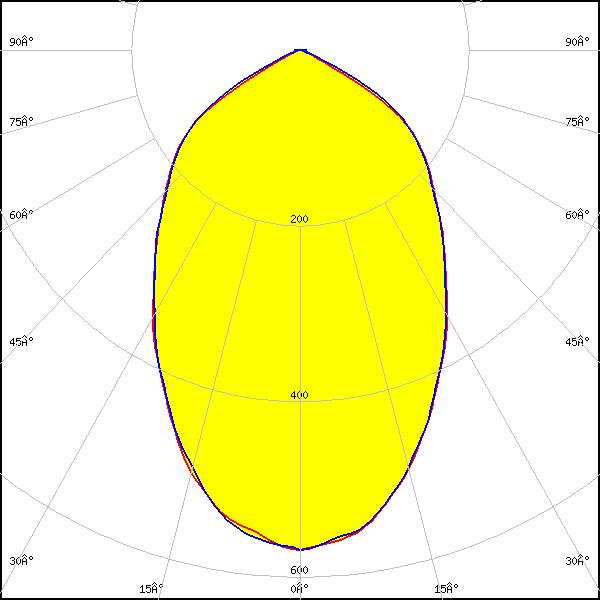

LED: XP-G2
Peak intensity: 0.0 cd/lm

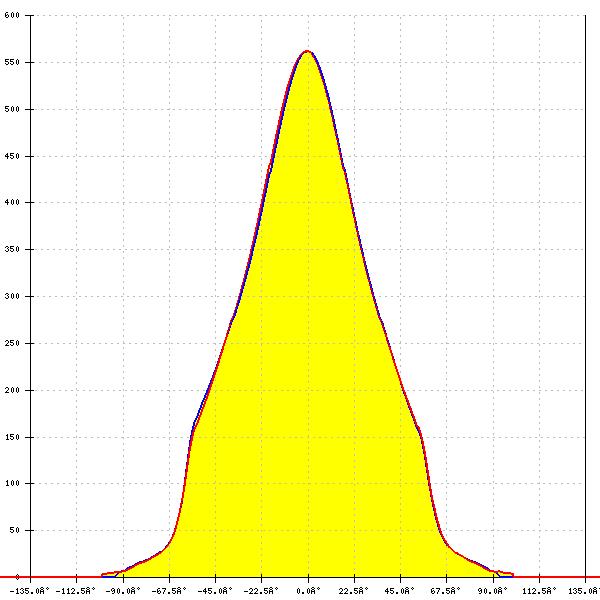

LED: XP-G3
FWHM: 71°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %

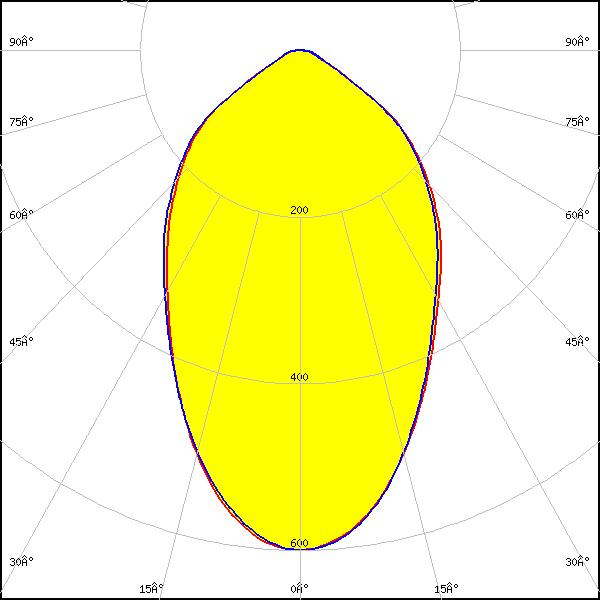

LED: XT-E
FWHM: 70°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LED: LG 3030
Peak intensity: 0.0 cd/lm

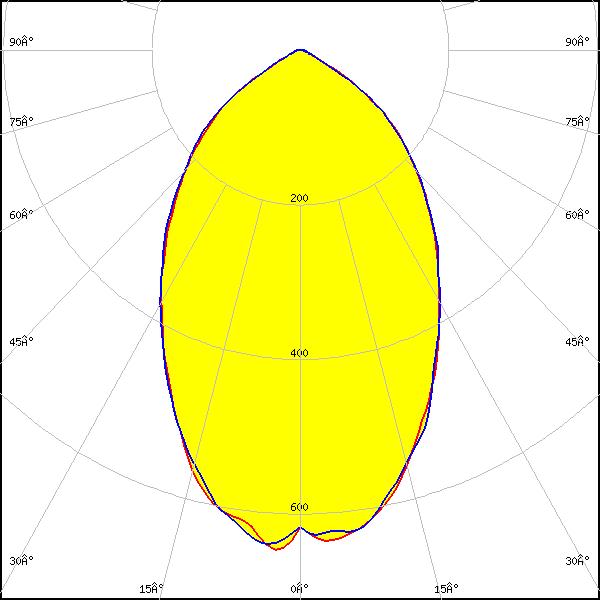

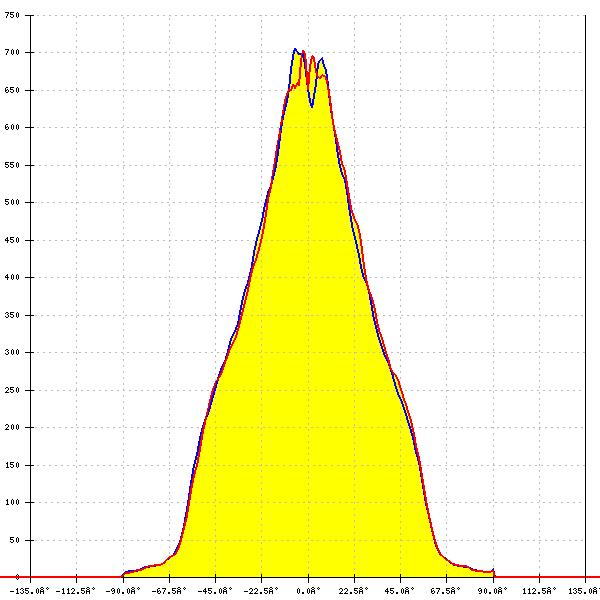

LED: LUXEON 3030 2D (Round LES)
FWHM: 58°
Peak intensity: 0.8 cd/lm
Efficiency: 92 %

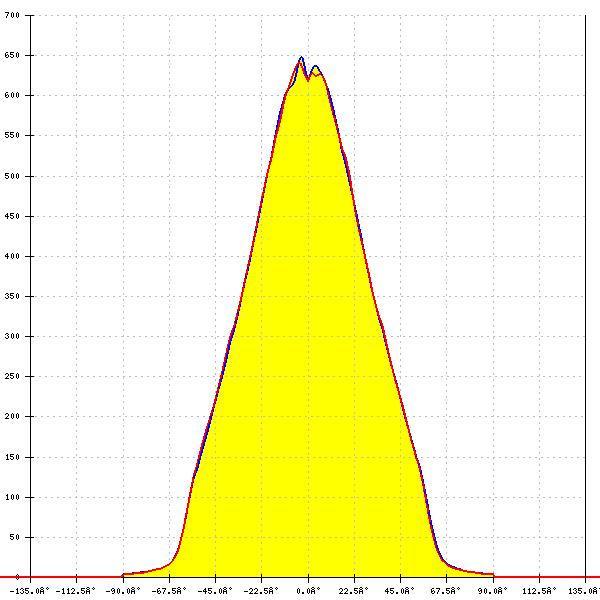

LED: LUXEON 5050
FWHM: 69°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LED: LUXEON TX
Peak intensity: 0.0 cd/lm
LED: NF2x757G
FWHM: 63°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LED: NF2x757G
FWHM: 63°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %

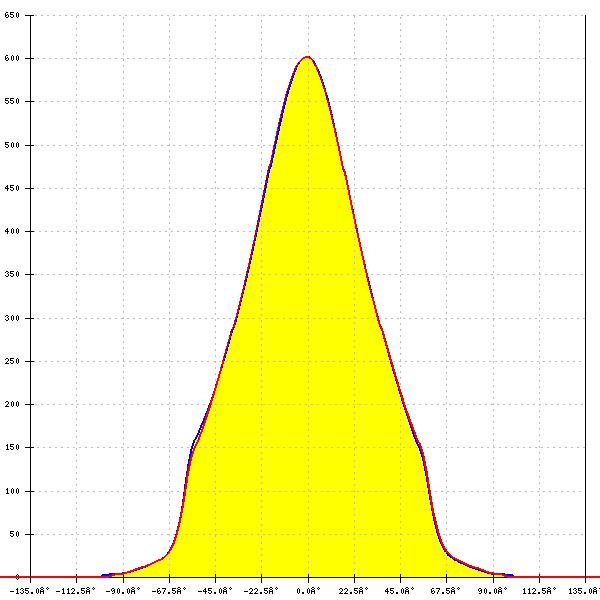

LED: NVSxE21A
FWHM: 58°
Peak intensity: 0.7 cd/lm
Efficiency: 92 %

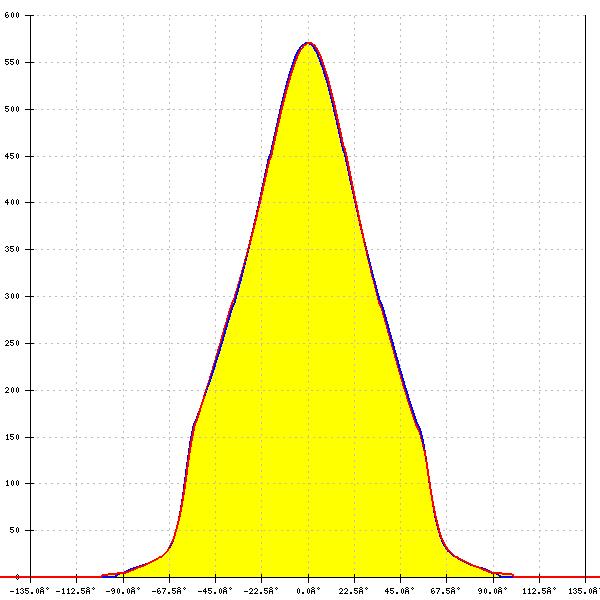

LED: NVSxx19B/NVSxx19C
Peak intensity: 0.0 cd/lm
LED: Duris S5 (2 chip)
Peak intensity: 0.0 cd/lm
LED: Duris S5 (2 chip)
FWHM: 64°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %

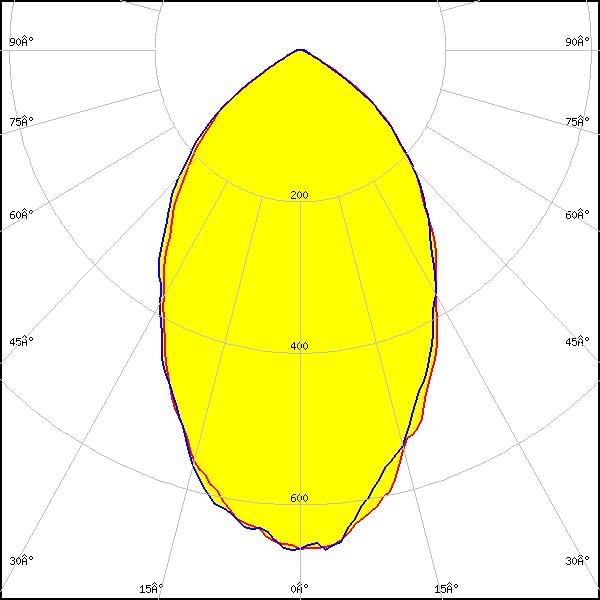

LED: Duris S8
FWHM: 67°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %

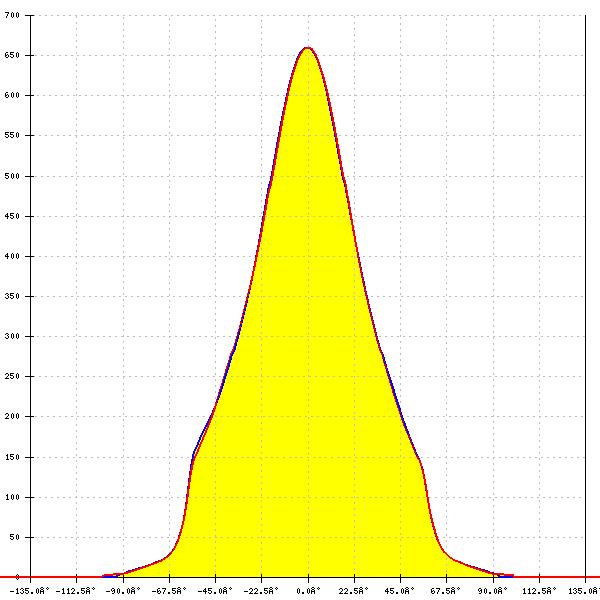

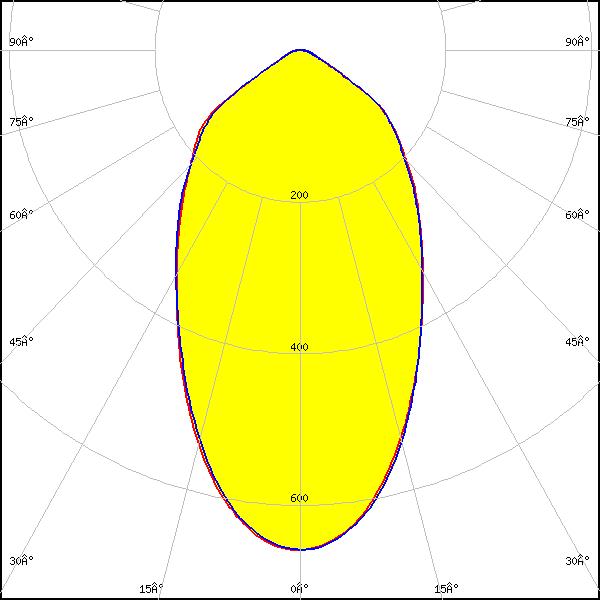

LED: Oslon Square Gen3
FWHM: 68°
Peak intensity: 0.6 cd/lm
Efficiency: 93 %

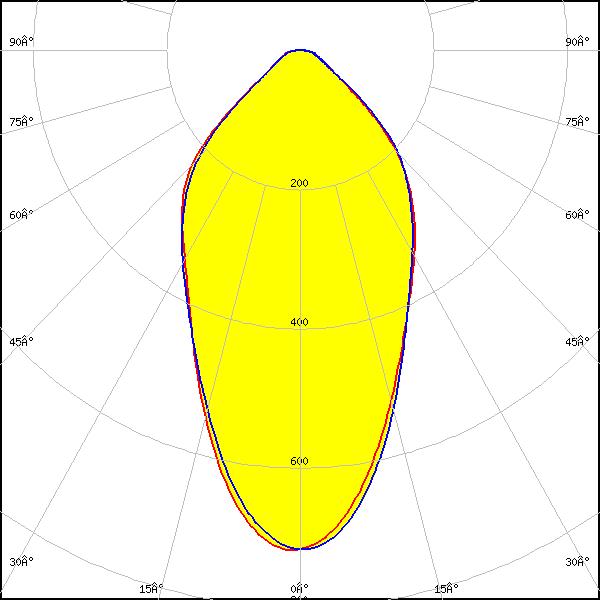

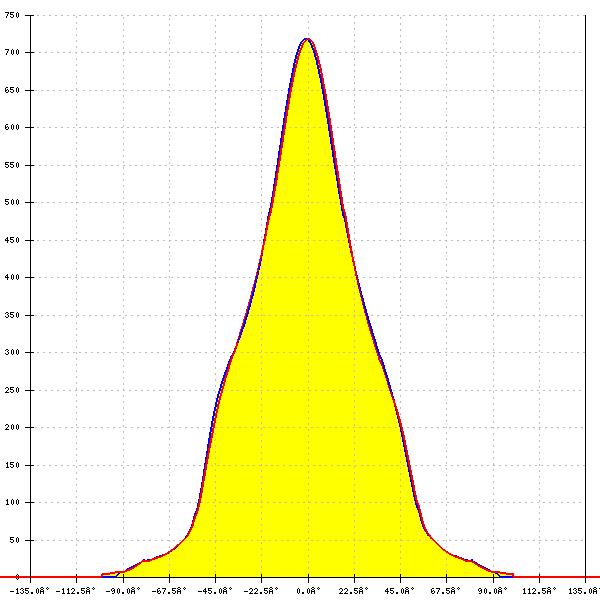

LED: HiLOM SC28 (LH181B)
FWHM: 57°
Peak intensity: 0.7 cd/lm
Efficiency: 91 %

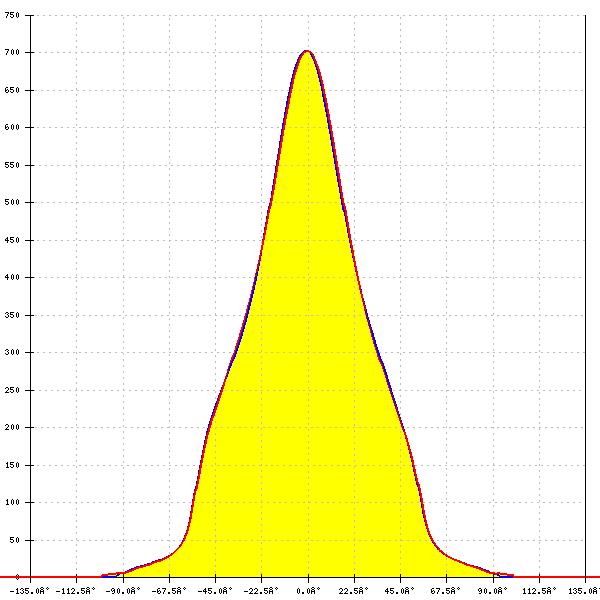

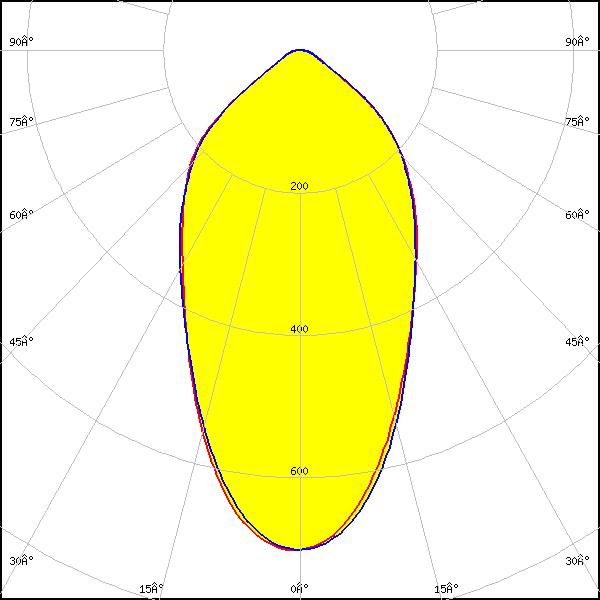

LED: HiLOM SM28 (LM301B)
FWHM: 58°
Peak intensity: 0.7 cd/lm
Efficiency: 93 %

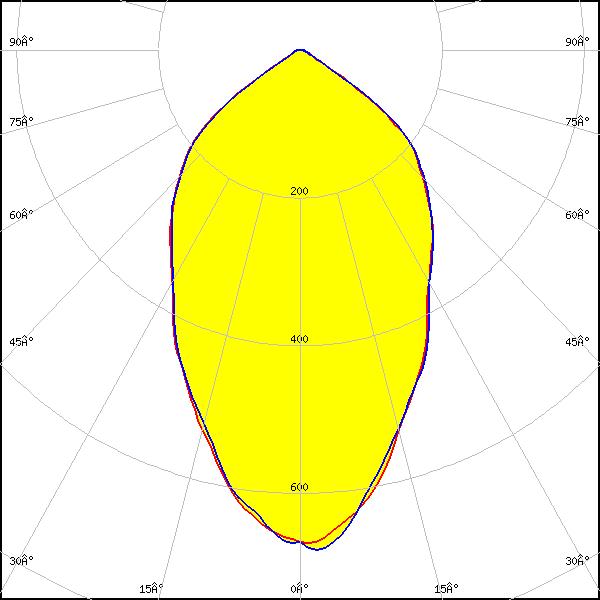

LED: LH181B
FWHM: 65°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %

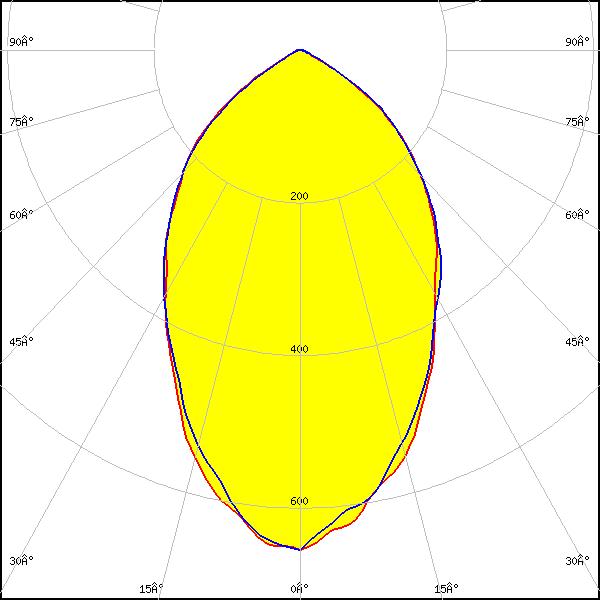

LED: LH351B
FWHM: 71°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %

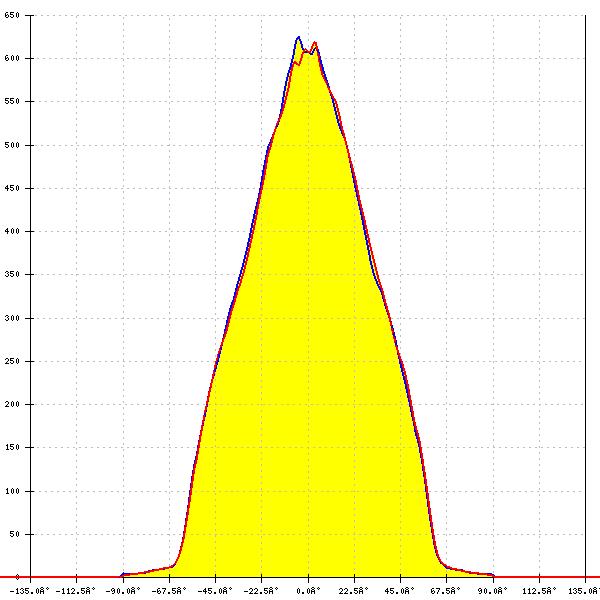

LED: LH351C
FWHM: 75°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LED: LM301A
Peak intensity: 0.0 cd/lm

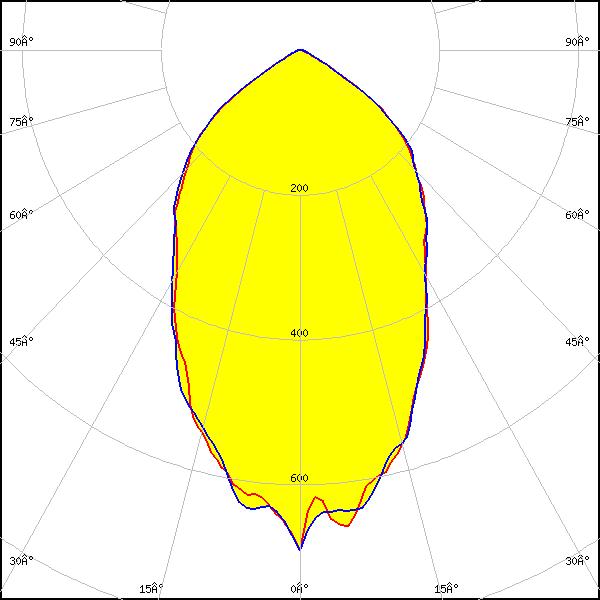

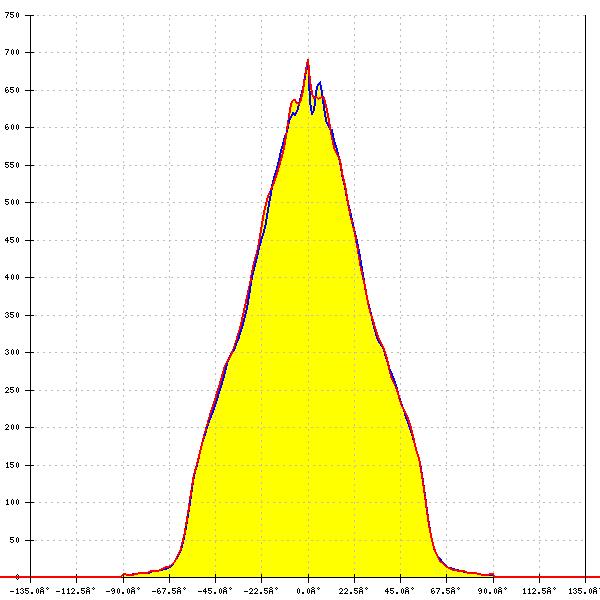

LED: LM301B
FWHM: 63°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %

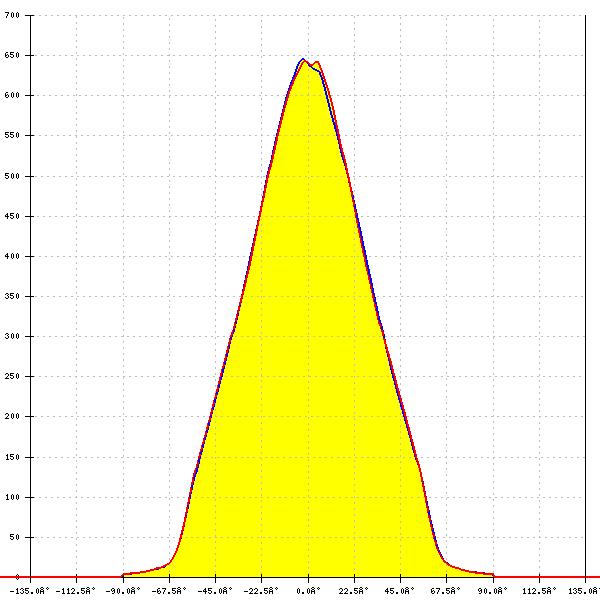

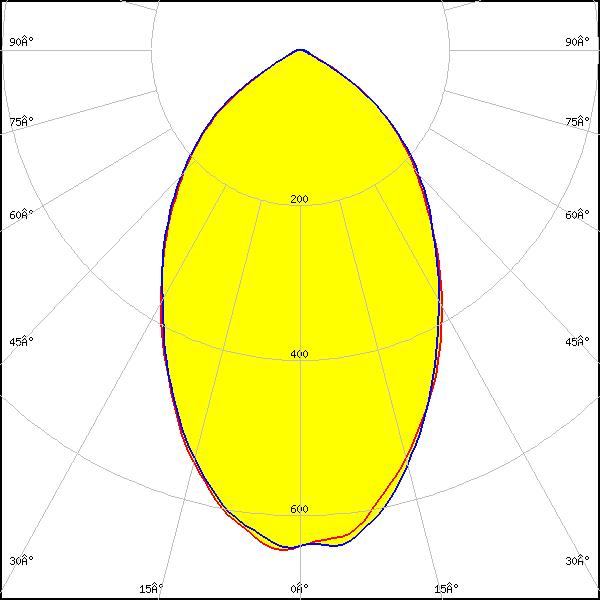

LED: SEOUL DC 5050 6V
FWHM: 69°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %

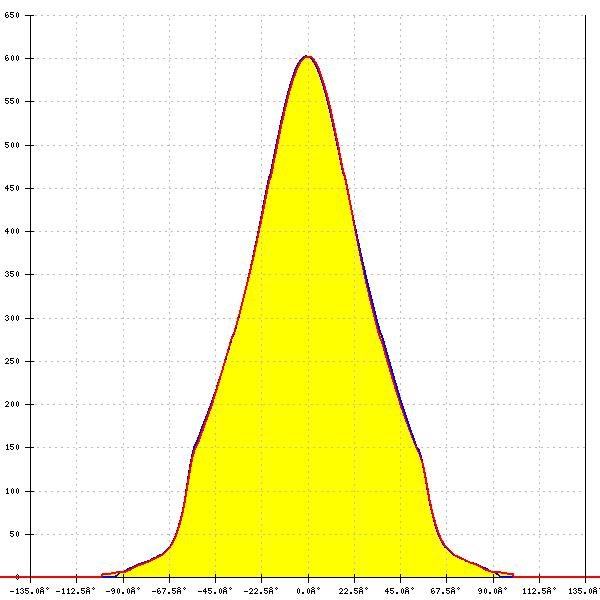

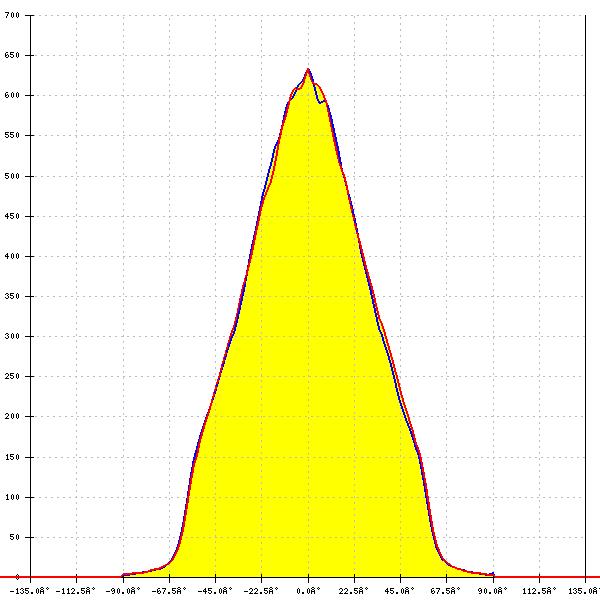

LED: Z5M1/Z5M2
FWHM: 70°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LED: Z8Y19
FWHM: 65°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LED: Z8Y22
FWHM: 76°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
