CS16324_STRADELLA-IP-28-HB-W

Print

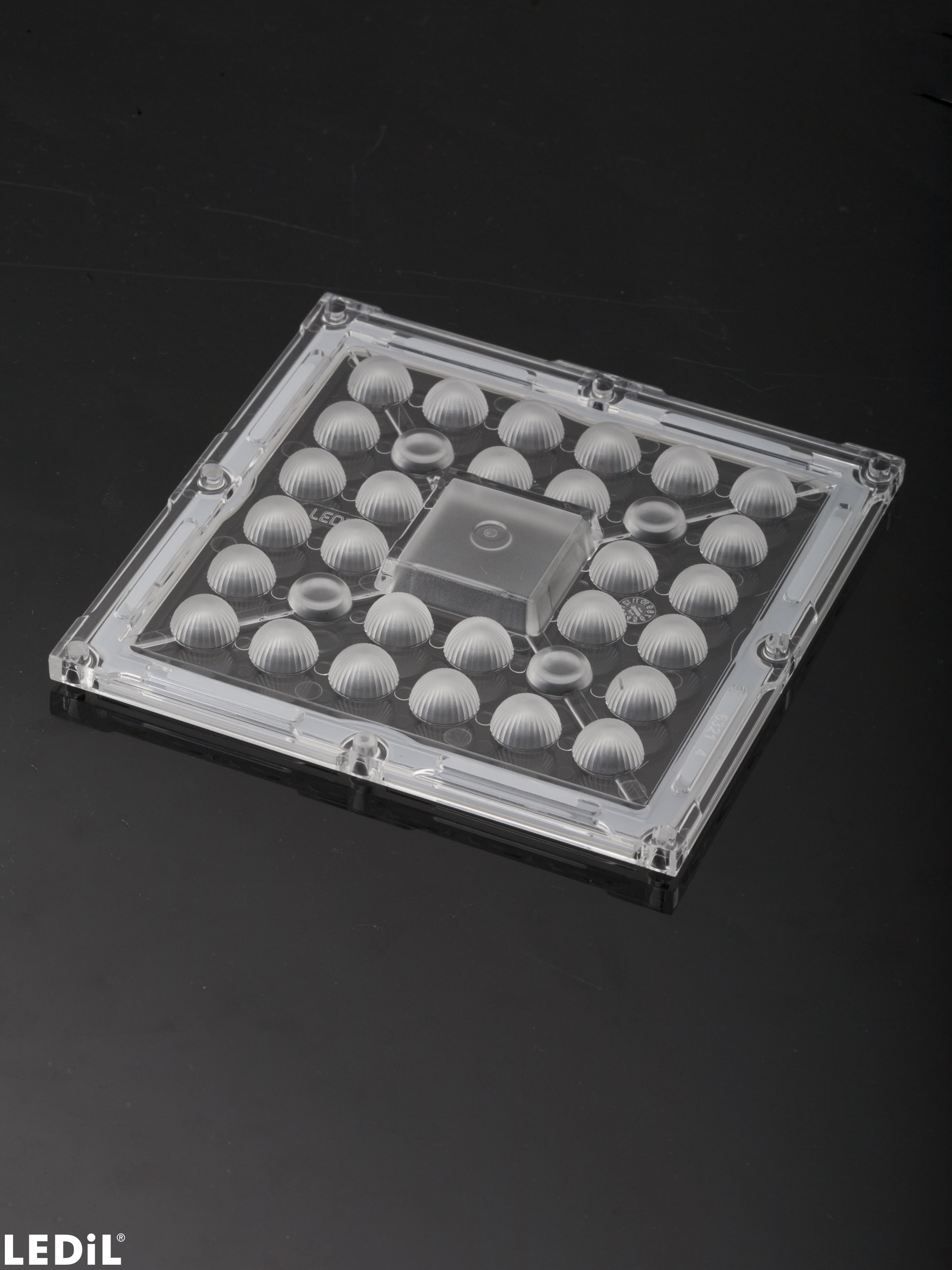

~90° wide beam. Variant made from PMMA.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.50 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    5.9 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS16324_STRADELLA-IP-28-HB-W
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

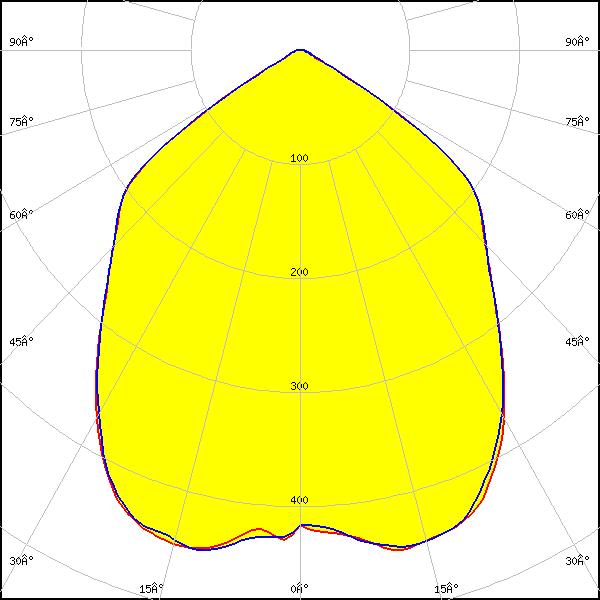

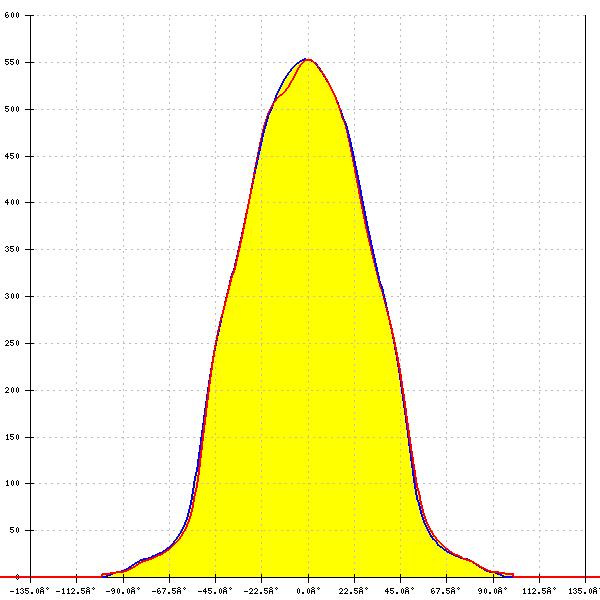

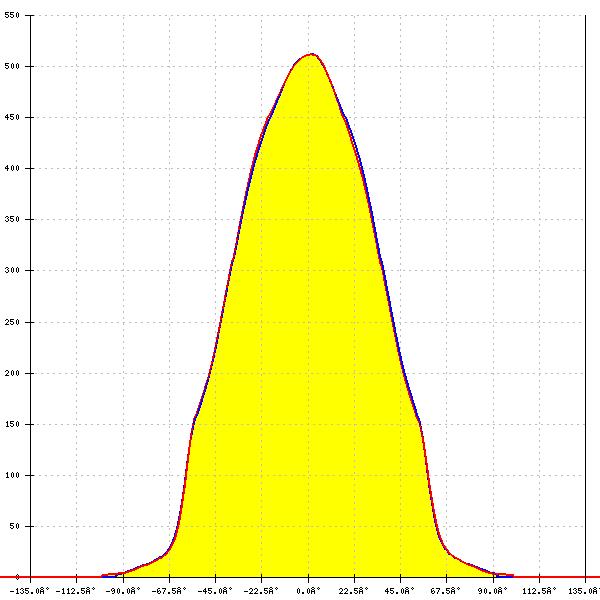

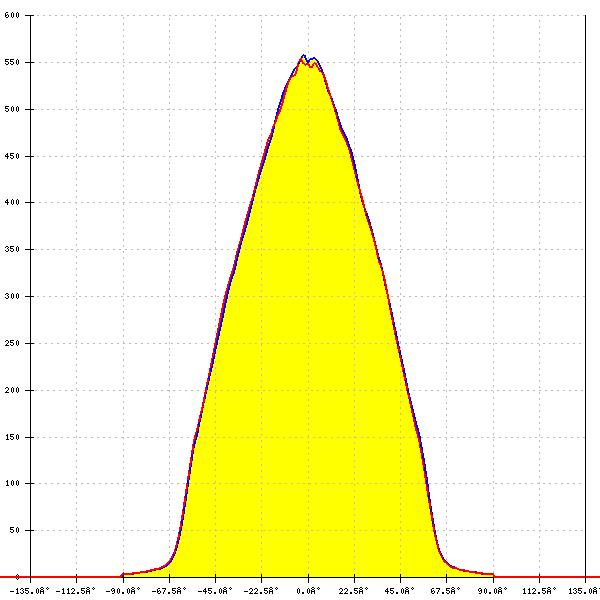

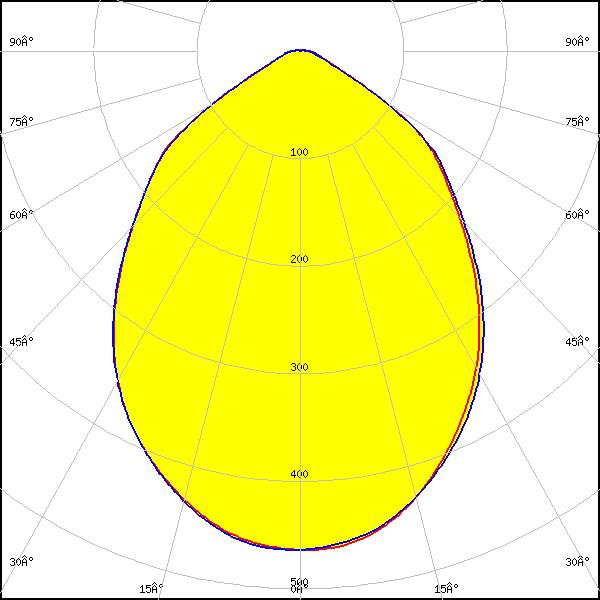

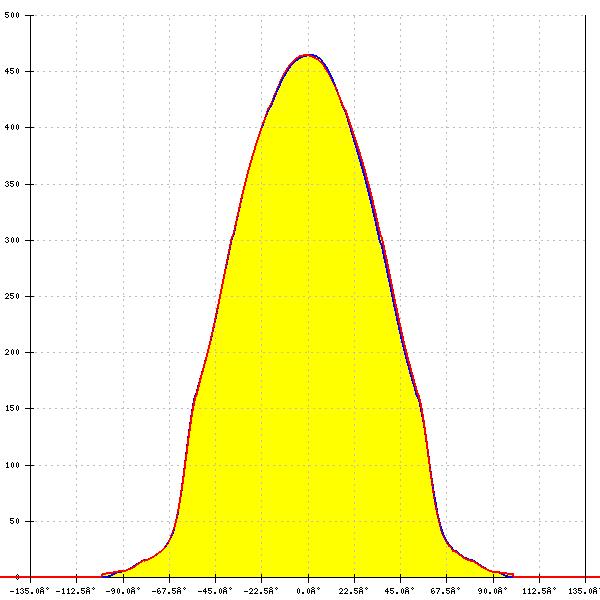

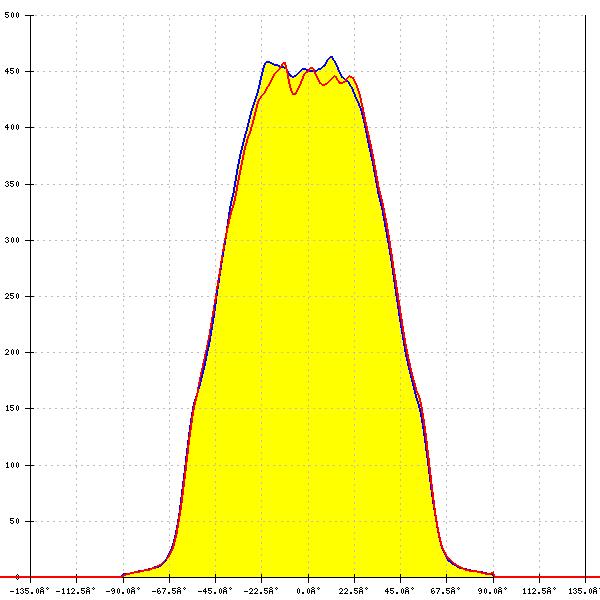

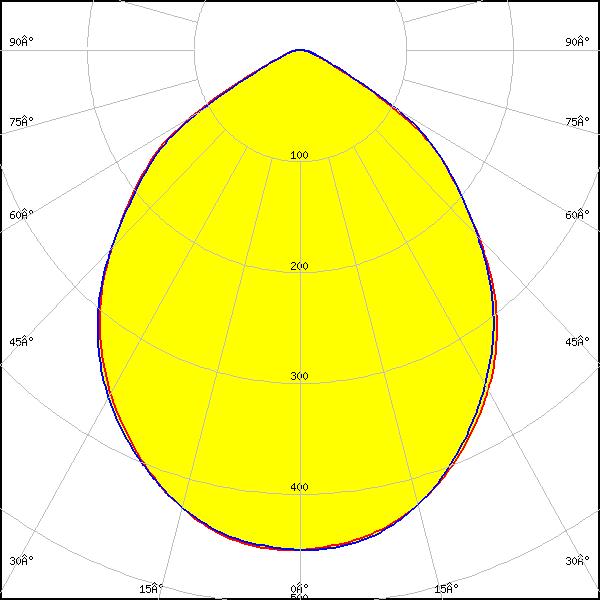

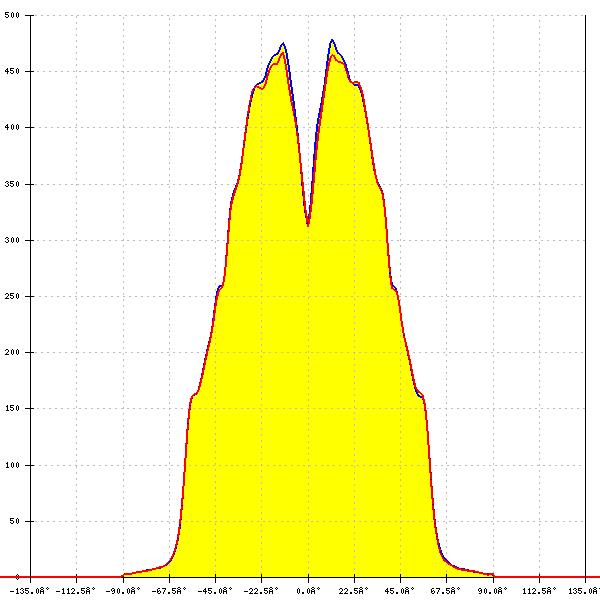

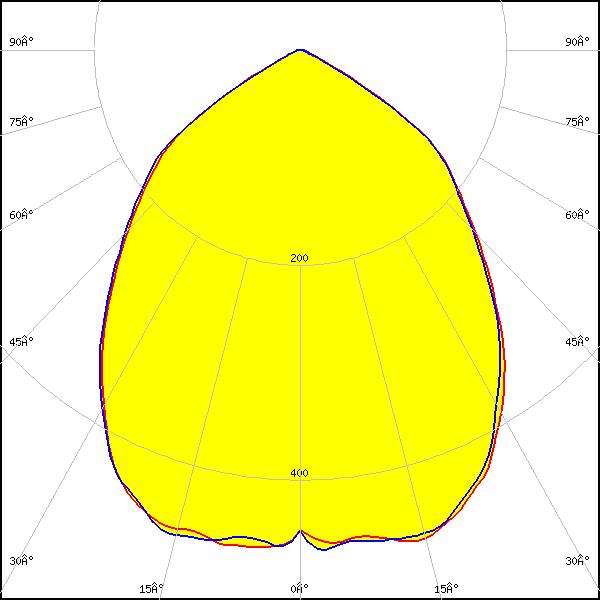

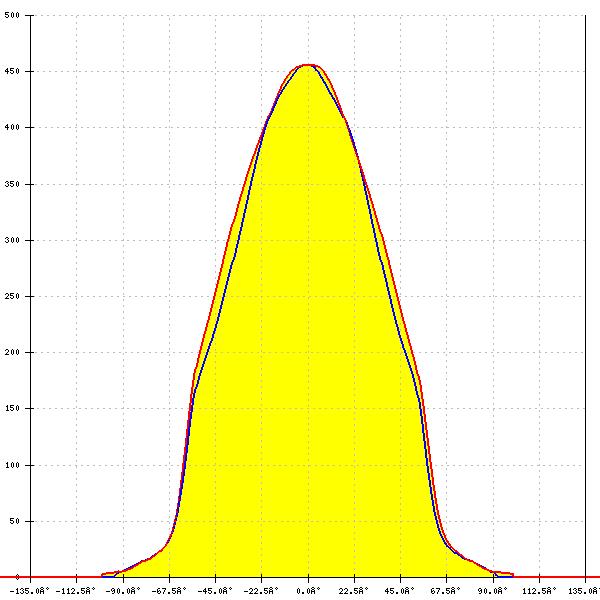

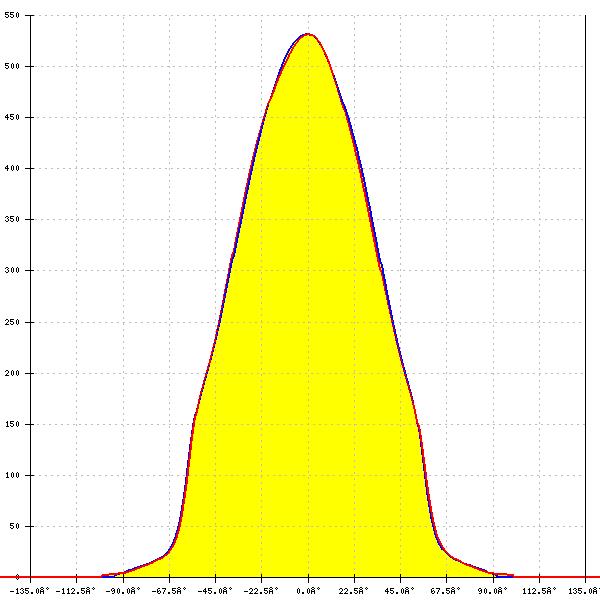

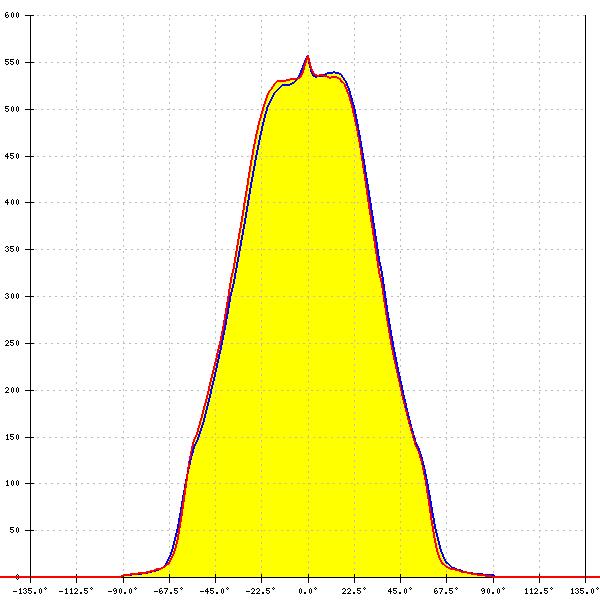

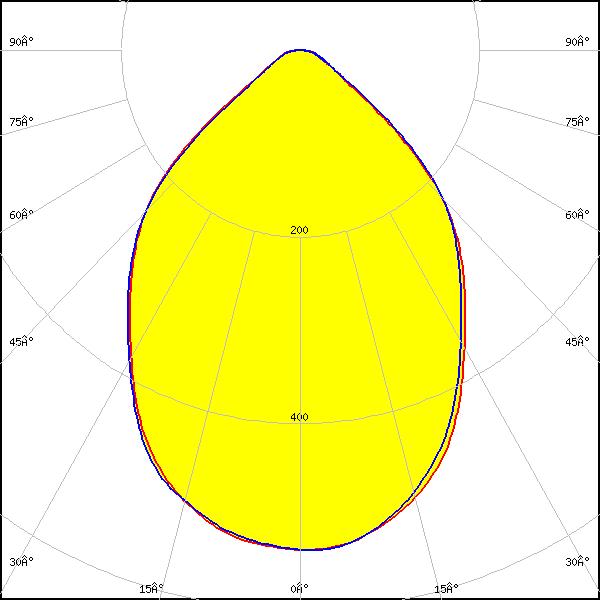

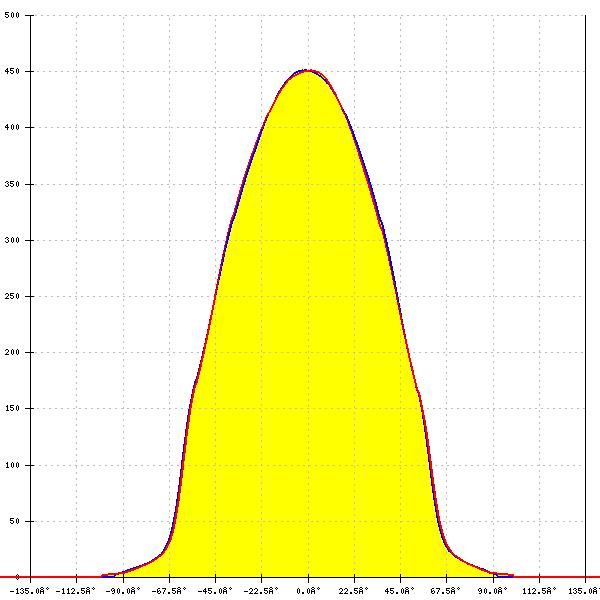

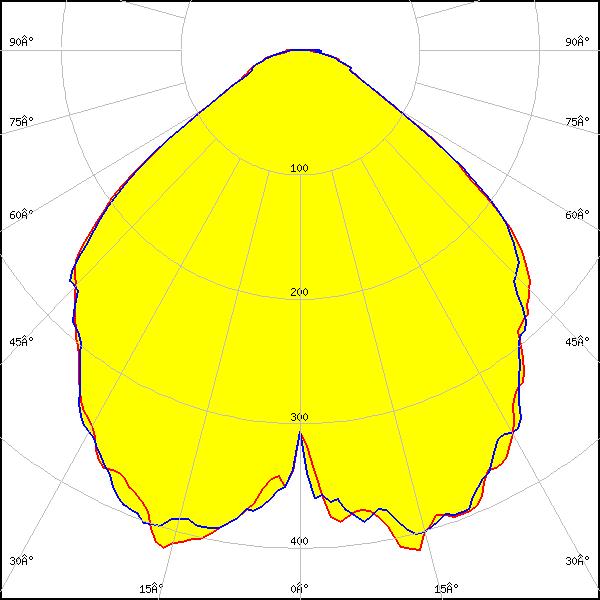

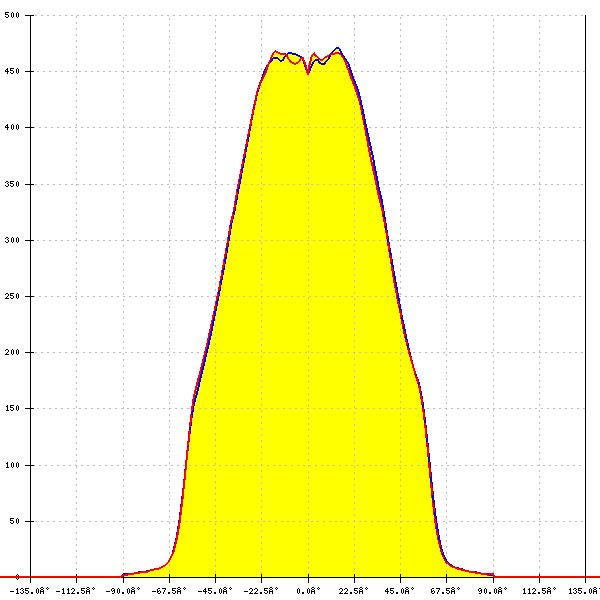

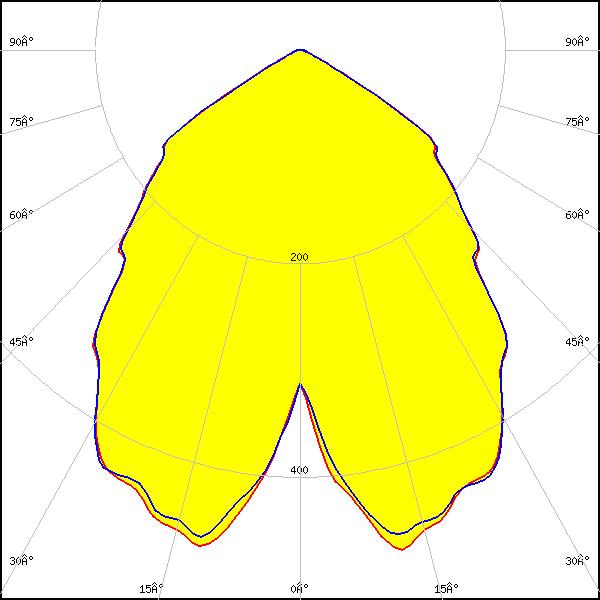

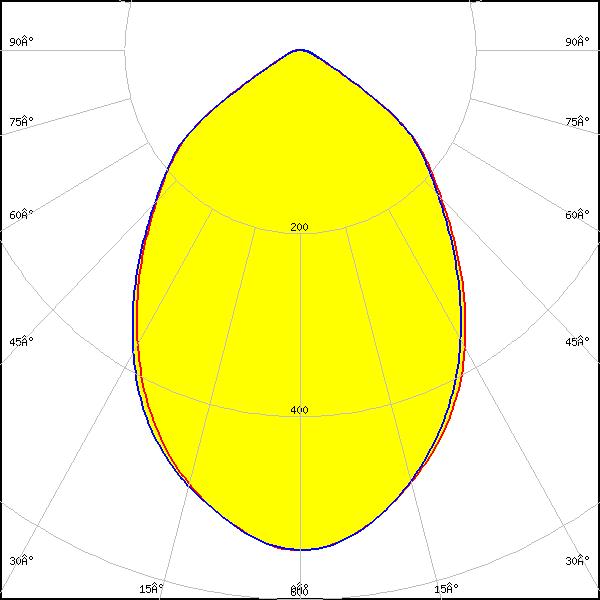

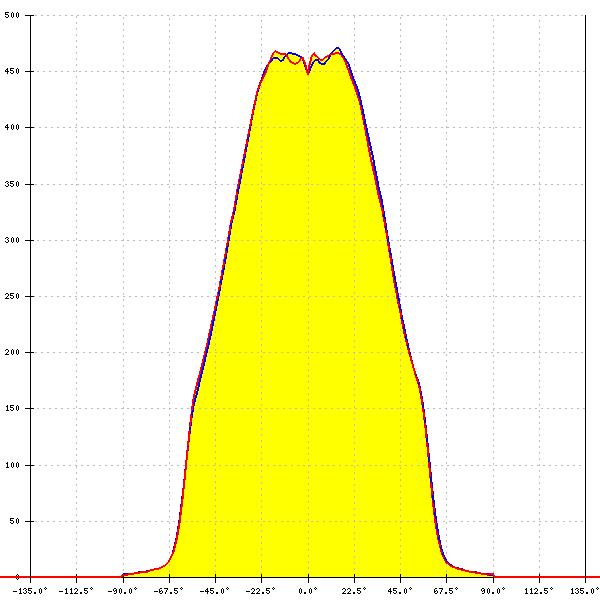

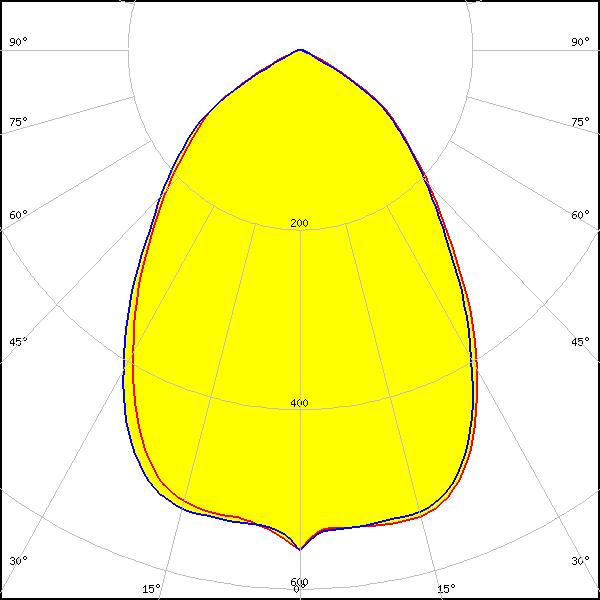

Optical results

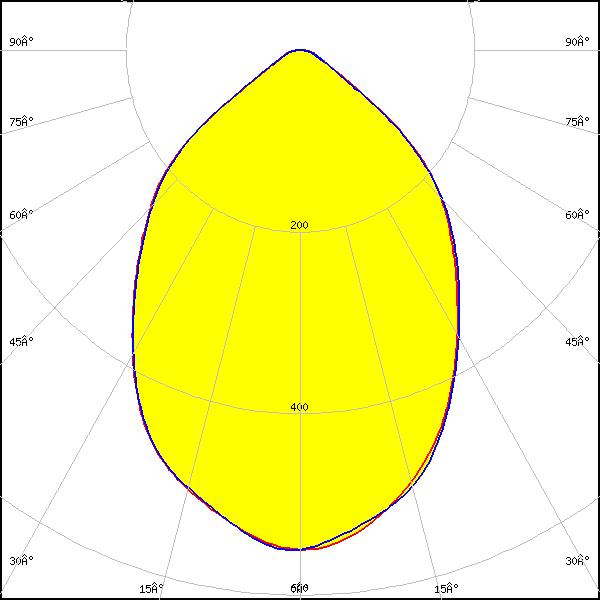

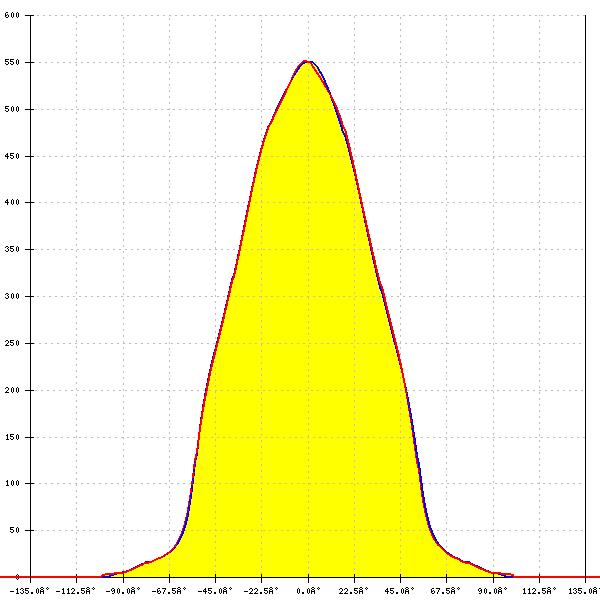

LED: HiQLED STR28 CR JE2835 4x7 xxx
FWHM: 81°
FWTM: 119°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

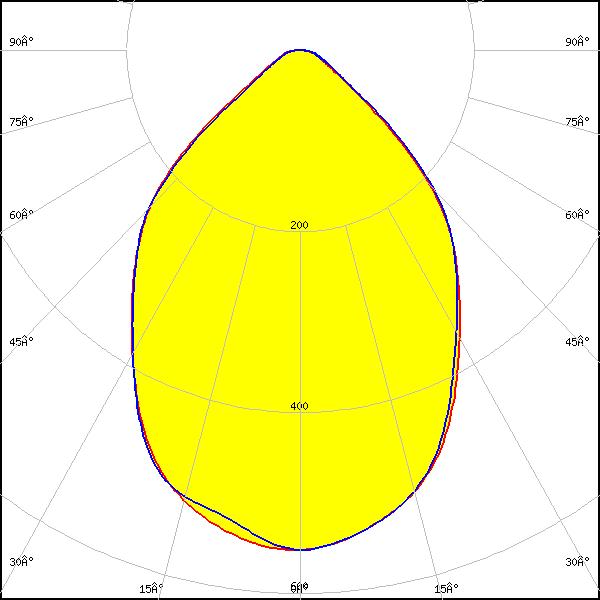

LED: HiQLED STR28 CR JK3030 4x7 xxx
FWHM: 81°
FWTM: 117°
Peak intensity: 0.600 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX STR28 XD2x14 xxx G8
FWHM: 91°
FWTM: 130°
Peak intensity: 0.430 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: QUICK FLUX STR28 XP2x14 xxx G7
FWHM: 88°
FWTM: 129°
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

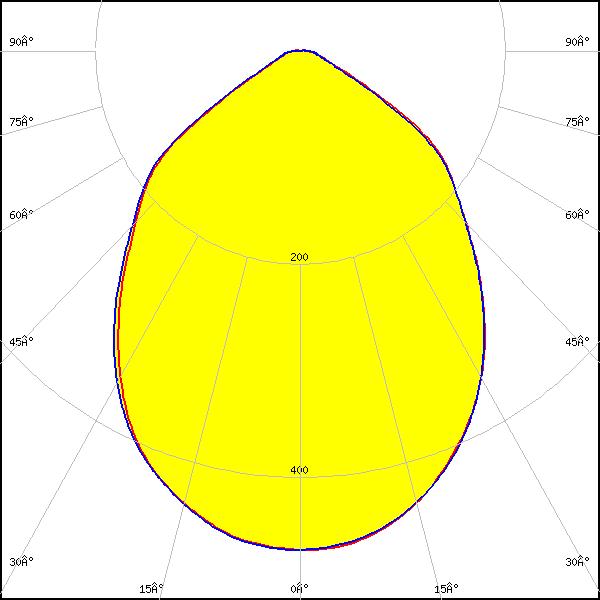

LED: QUICK FLUX STR28 XT2x14 xxx G5
FWHM: 89°
FWTM: 131°
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 2835
FWHM: 81°
FWTM: 119°
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

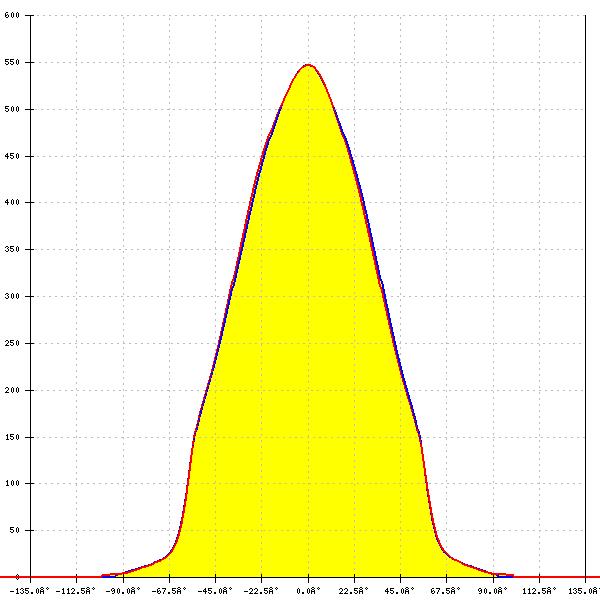

LED: J Series 3030
FWHM: 80°
FWTM: 123°
Peak intensity: 0.546 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 3030
FWHM: 81°
FWTM: 117°
Peak intensity: 0.600 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

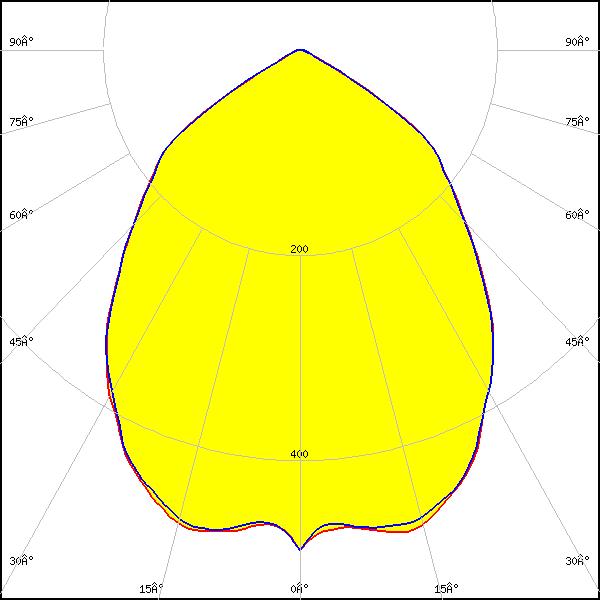

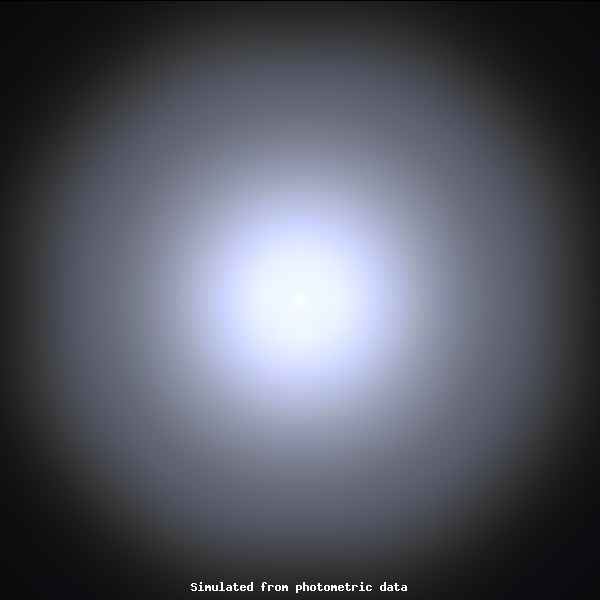

LED: J Series 3030C
FWHM: 88°
FWTM: 124°
Peak intensity: 0.487 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

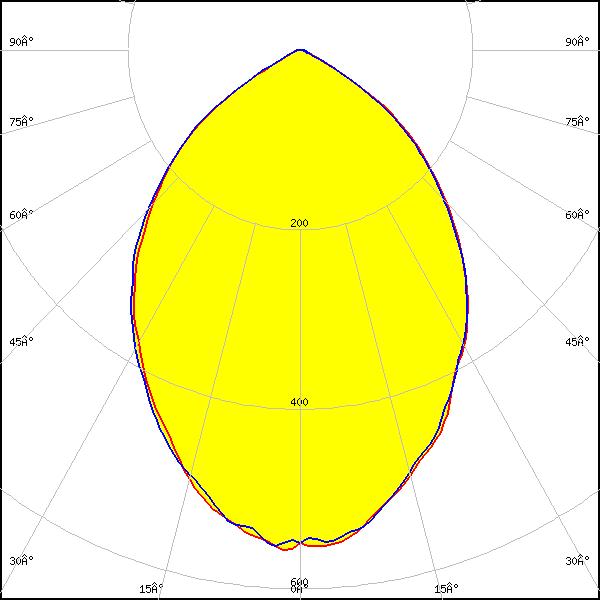

LED: J Series 5050 Round LES
FWHM: 82°
FWTM: 122°
Peak intensity: 0.575 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

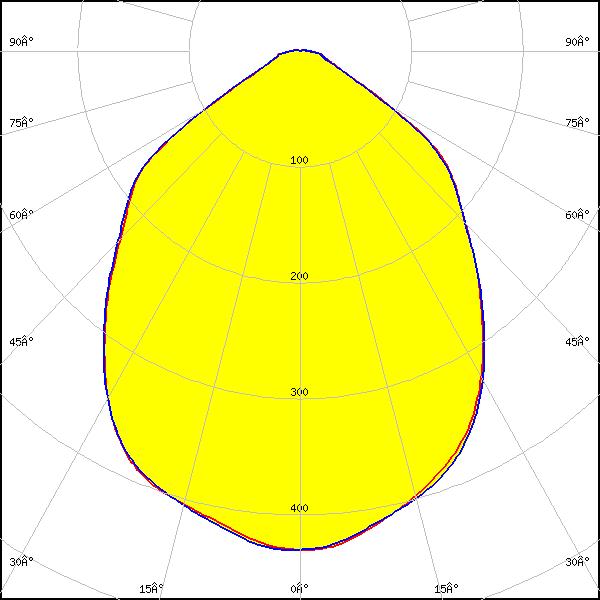

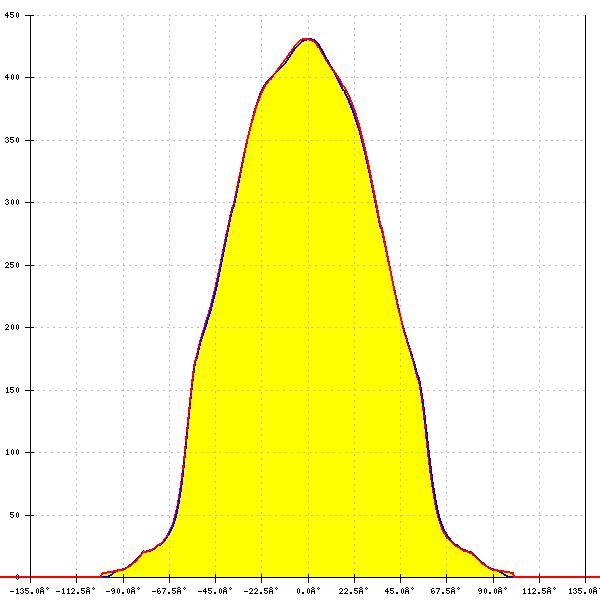

LED: XD16
FWHM: 91°
FWTM: 130°
Peak intensity: 0.430 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2
LEDs/each optic: 1
Light colour/type: White

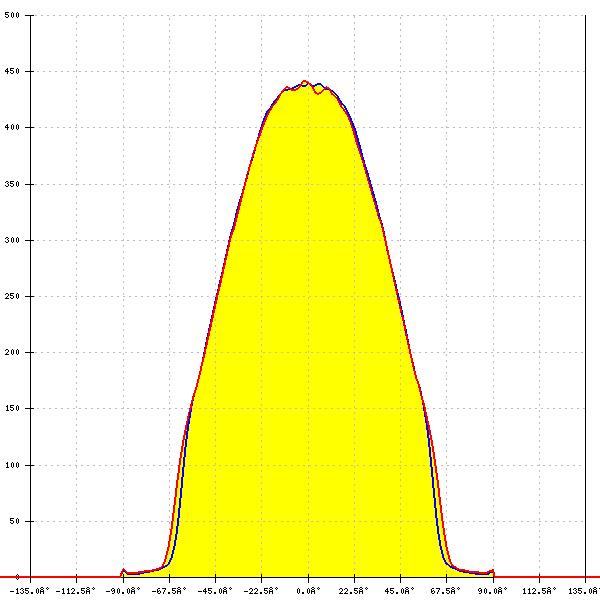

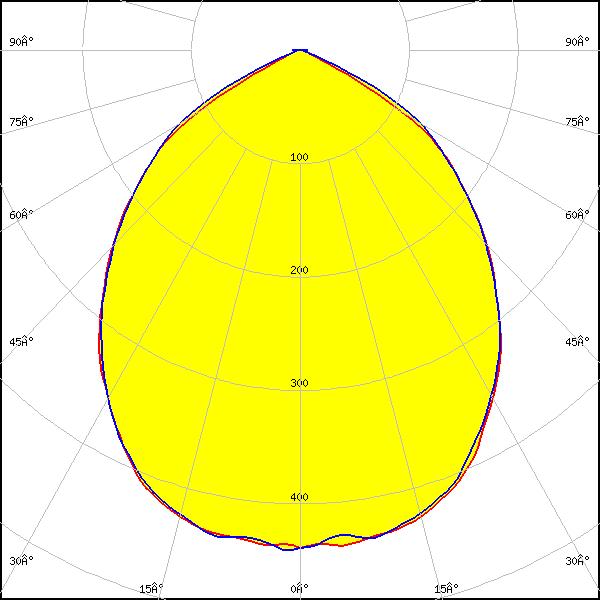

LED: XP-G2 HE
FWHM: 96°
FWTM: 129°
Peak intensity: 0.446 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: 88°
FWTM: 129°
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

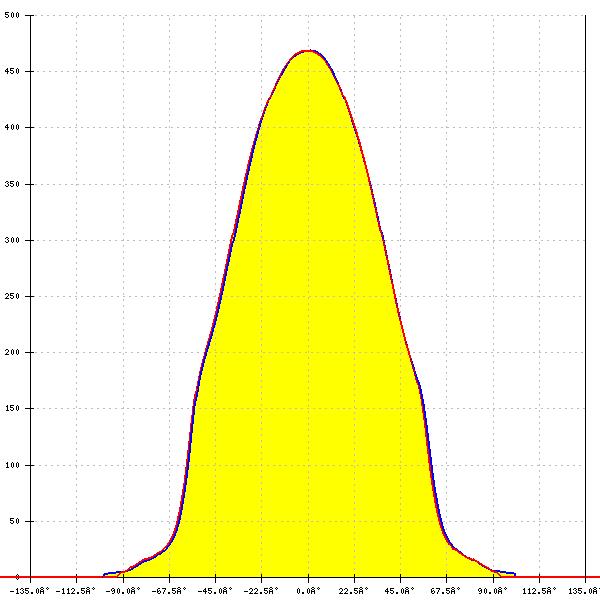

LED: XT-E
FWHM: 89°
FWTM: 131°
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

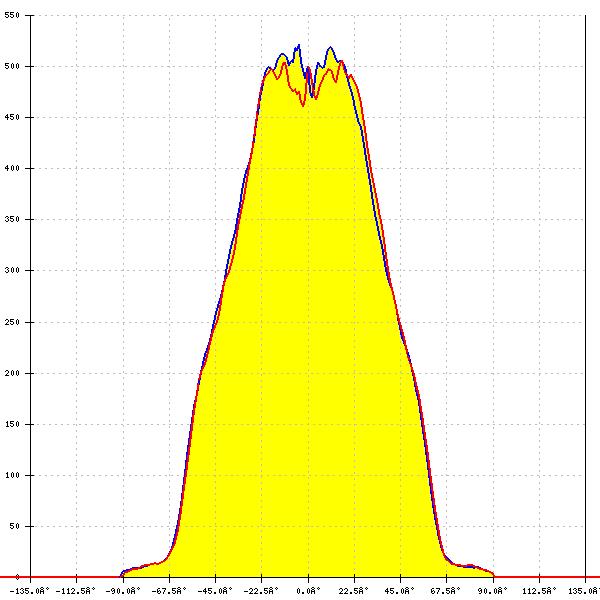

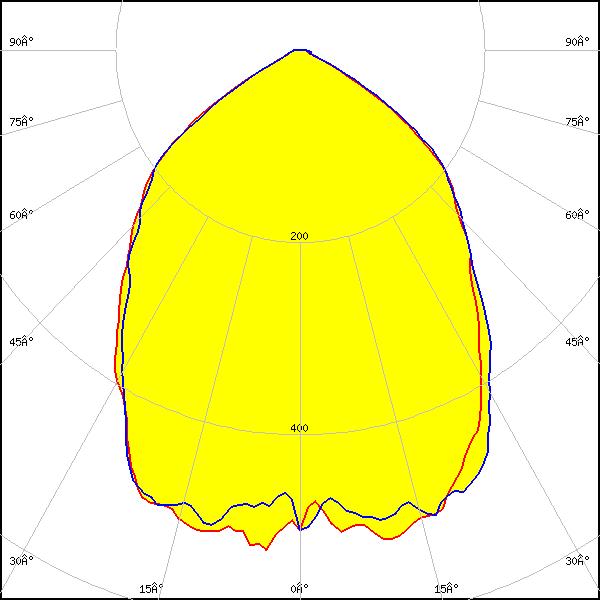

LED: LUXEON 3030 2D (Round LES)
FWHM: 85°
FWTM: 125°
Peak intensity: 0.520 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

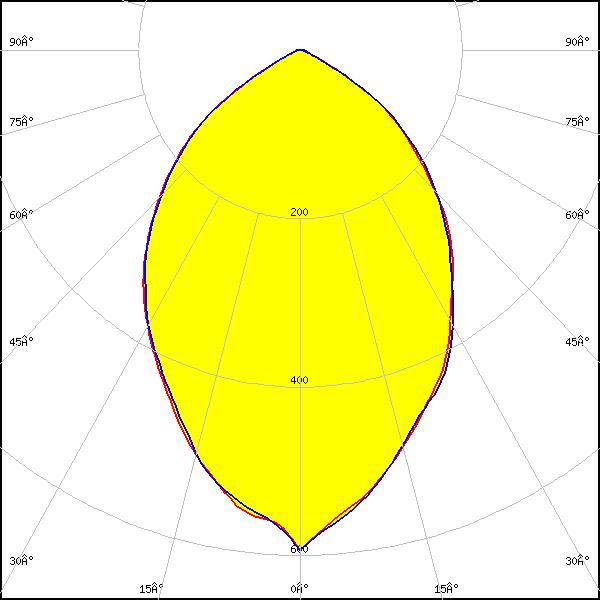

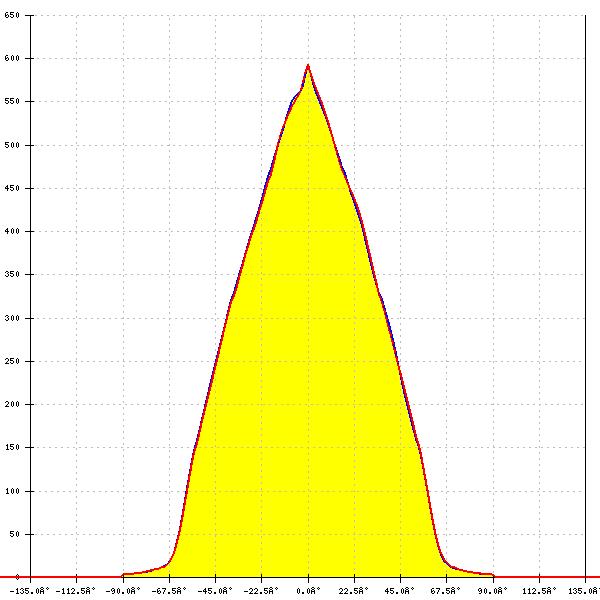

LED: LUXEON 5050 Round LES
FWHM: 78°
FWTM: 123°
Peak intensity: 0.590 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

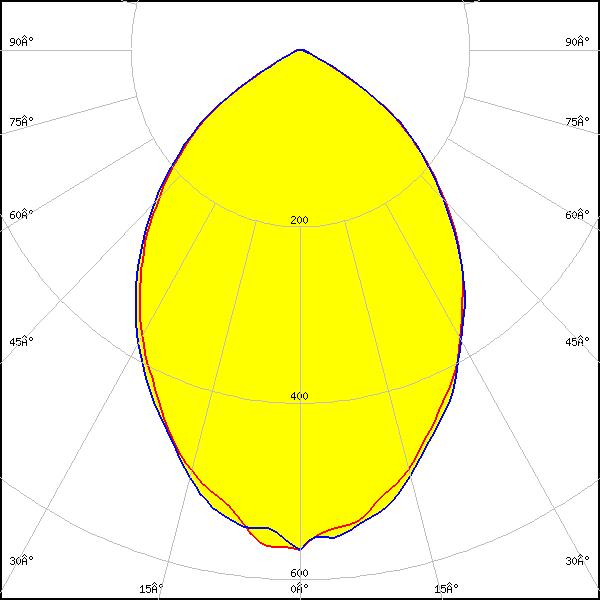

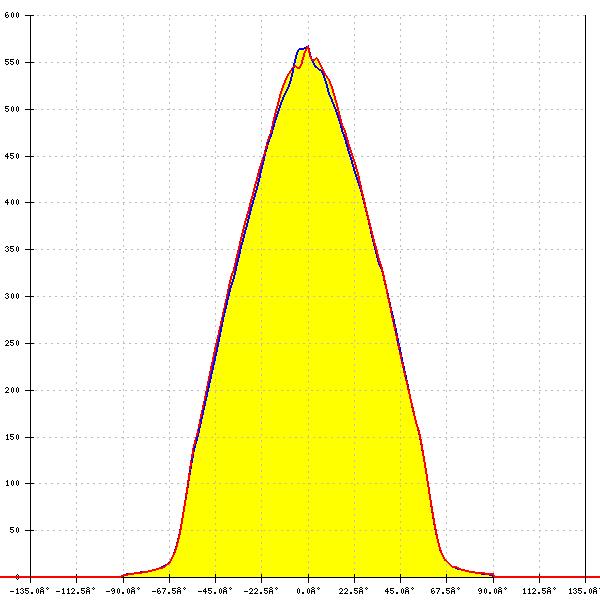

LED: LUXEON 5050 Square LES
FWHM: 81°
FWTM: 123°
Peak intensity: 0.570 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON TX
LEDs/each optic: 1
Light colour/type: White

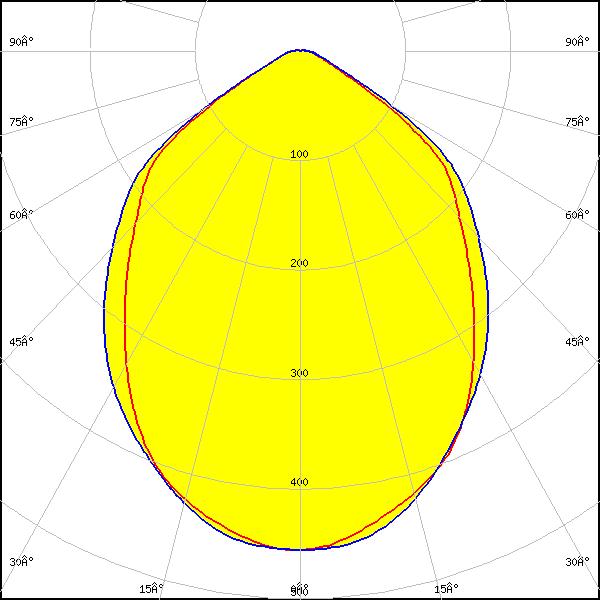

LED: NF2W585AR
FWHM: 91°
FWTM: 129°
Peak intensity: 0.456 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NF2W585AR
FWHM: 91°
FWTM: 129°
Peak intensity: 0.455 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

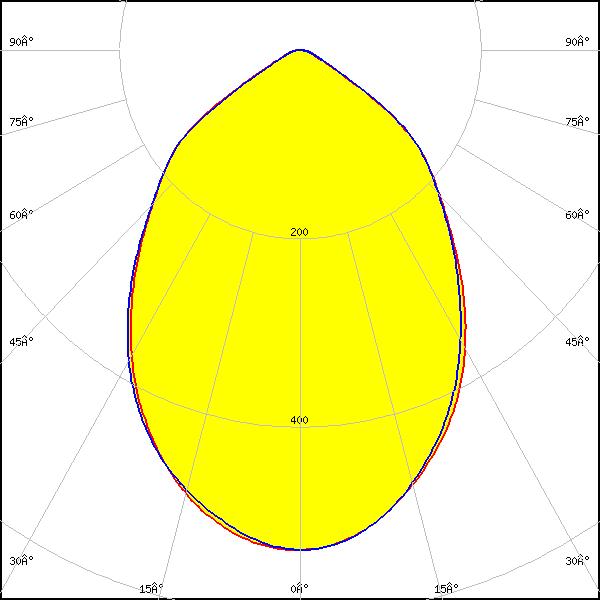

LED: NF2x757G
FWHM: 81°
FWTM: 123°
Peak intensity: 0.530 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

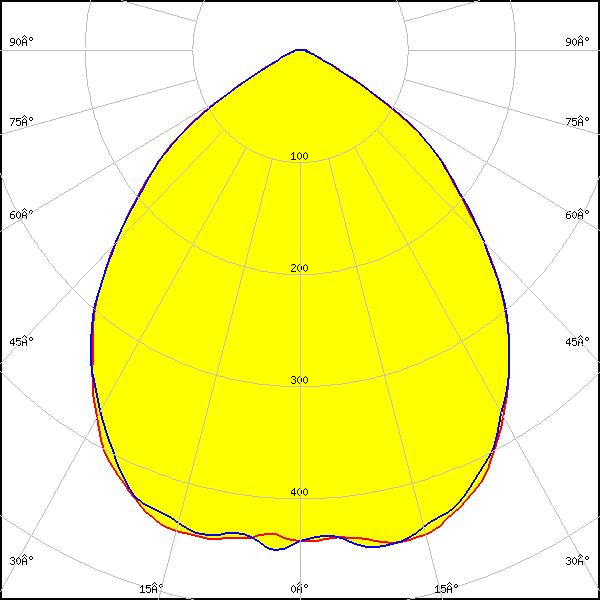

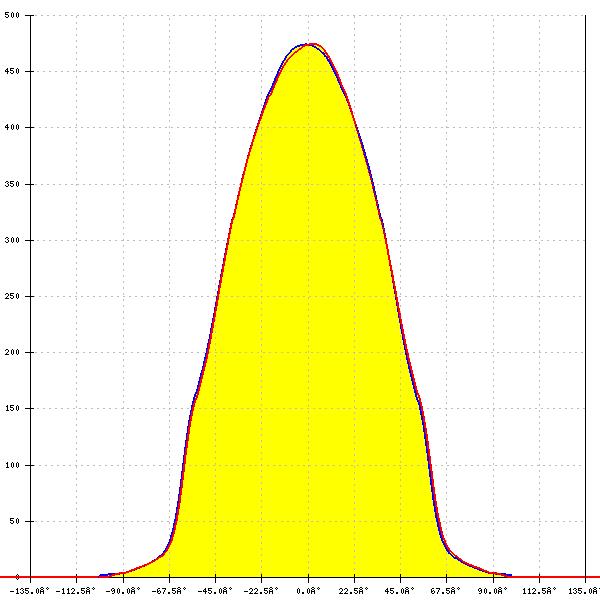

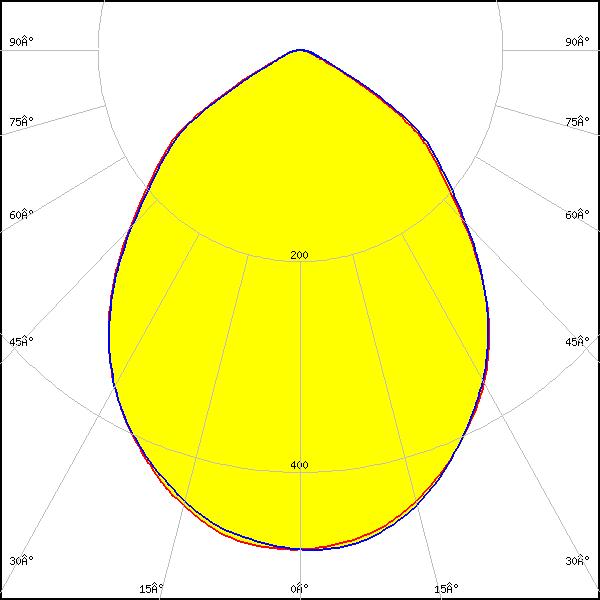

LED: NVSW219F
FWHM: 89°
FWTM: 128°
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW319B
FWHM: 94°
FWTM: 130°
Peak intensity: 0.450 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

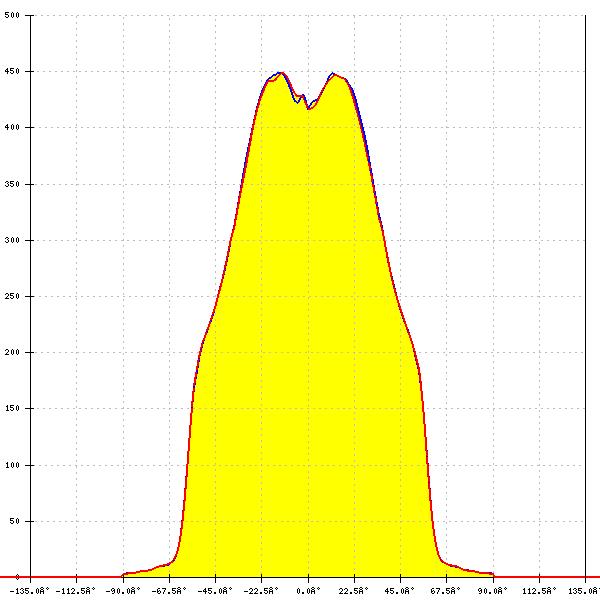

LED: NVSxE21A
FWHM: 96°
FWTM: 122°
Peak intensity: 0.453 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

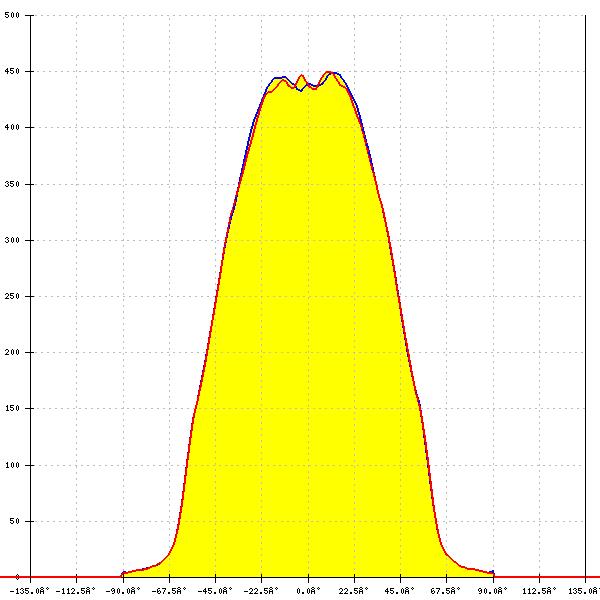

LED: NVSxx19B/NVSxx19C
FWHM: 94°
FWTM: 126°
Peak intensity: 0.452 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S5 (2 chip)
FWHM: 86°
FWTM: 124°
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

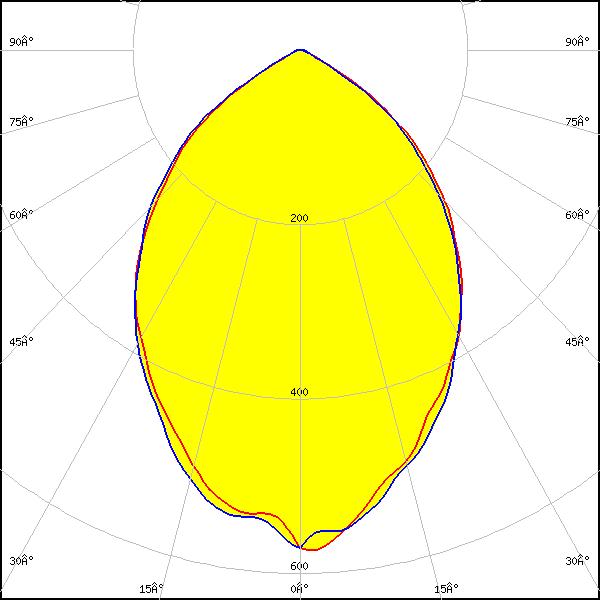

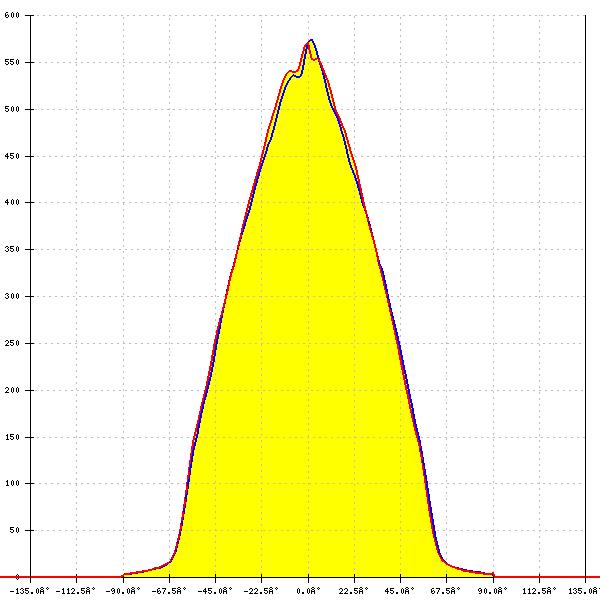

LED: Duris S8
FWHM: 81°
FWTM: 122°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

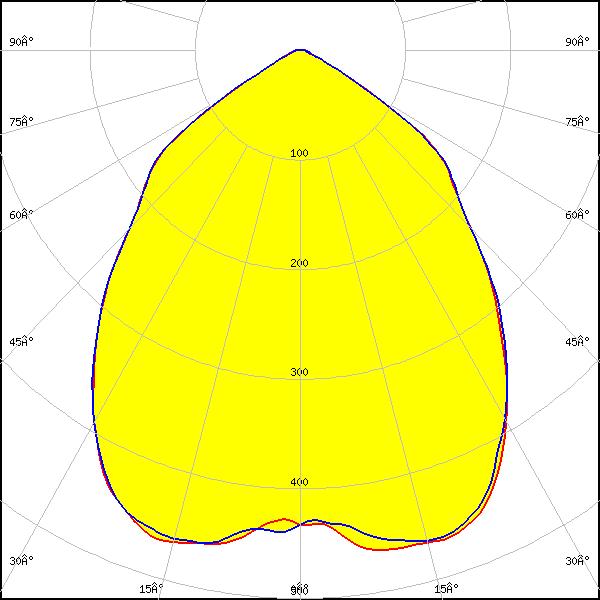

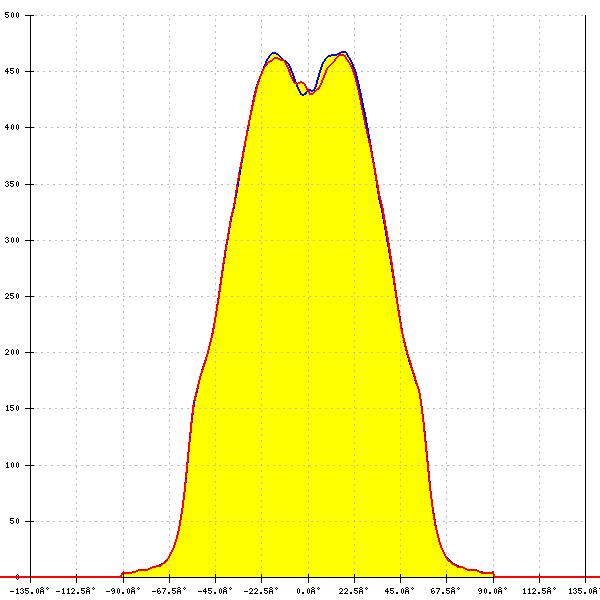

LED: OSCONIQ C 2424
FWHM: 90°
FWTM: 124°
Peak intensity: 0.473 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 3030
FWHM: 88° + 89°
FWTM: 122° + 122°
Peak intensity: 0.494 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

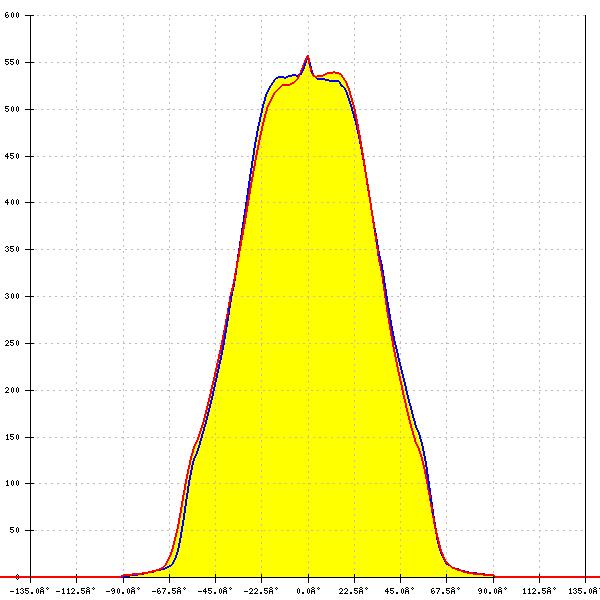

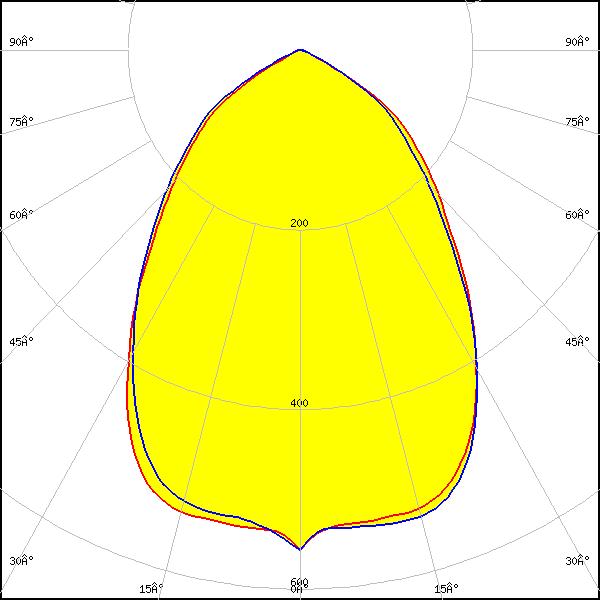

LED: OSCONIQ P 3030
FWHM: 78°
FWTM: 124°
Peak intensity: 0.557 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

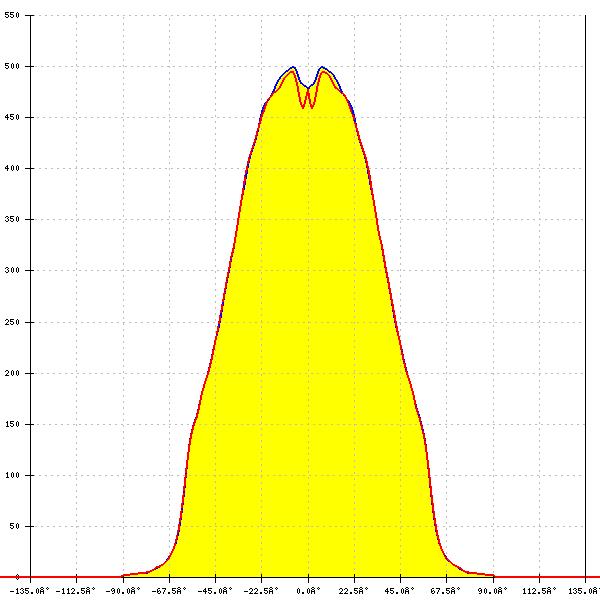

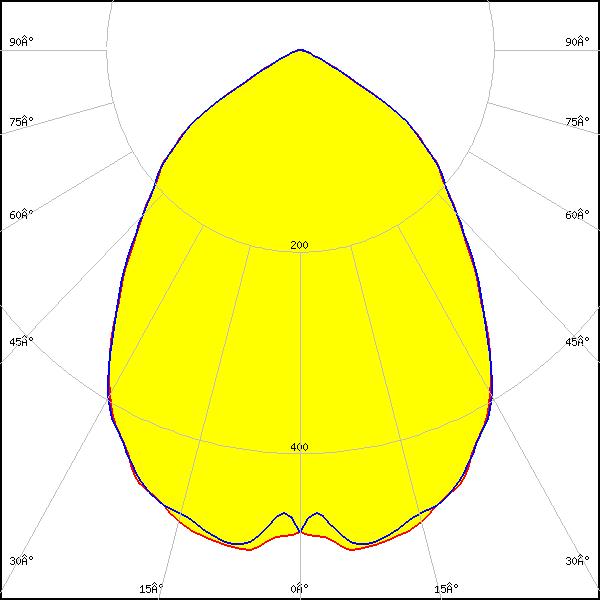

LED: OSCONIQ P 3737 (2W version)
FWHM: 86°
FWTM: 124°
Peak intensity: 0.501 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

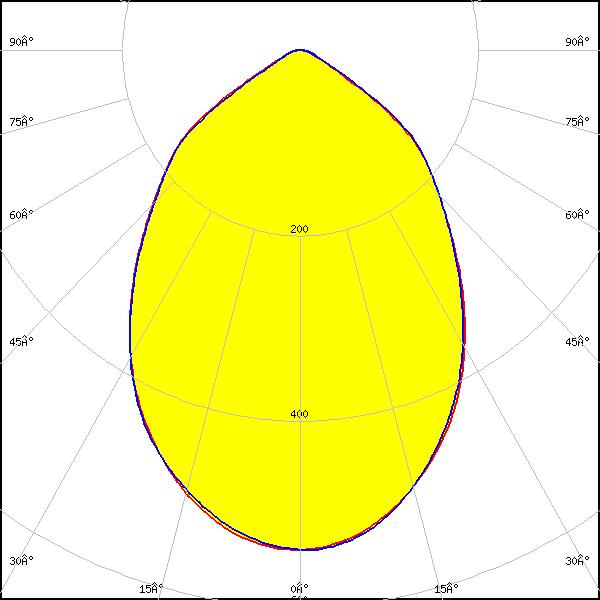

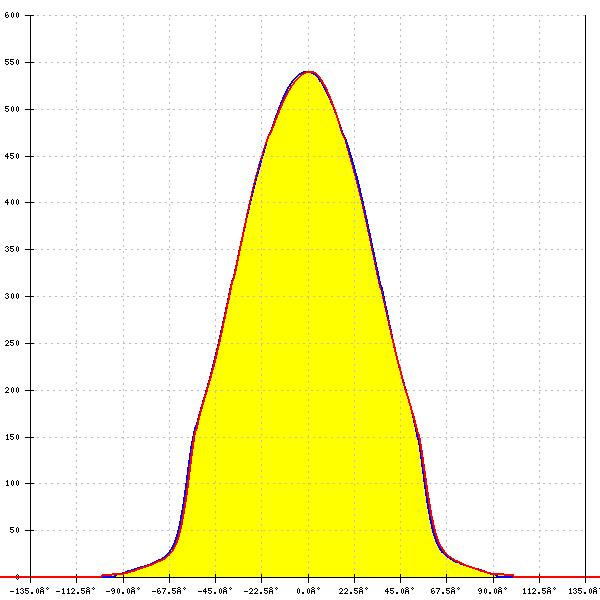

LED: OSCONIQ S 3030 (QSLR31)
FWHM: 81°
FWTM: 123°
Peak intensity: 0.540 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Pure 1414
FWHM: 90°
FWTM: 124°
Peak intensity: 0.487 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

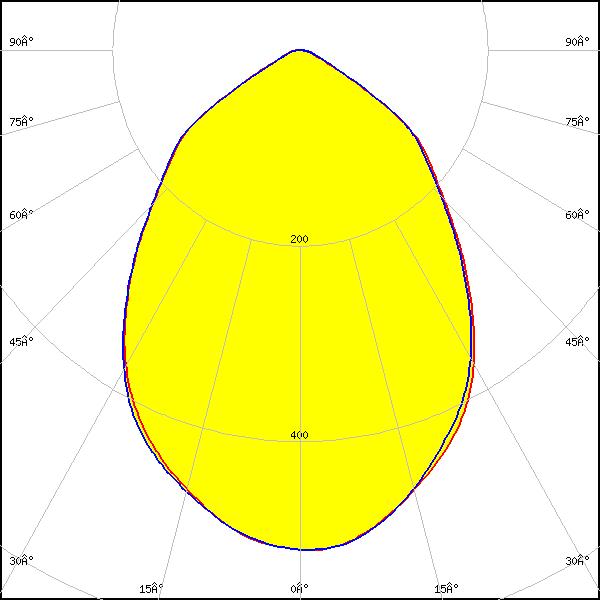

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 82°
FWTM: 126°
Peak intensity: 0.512 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

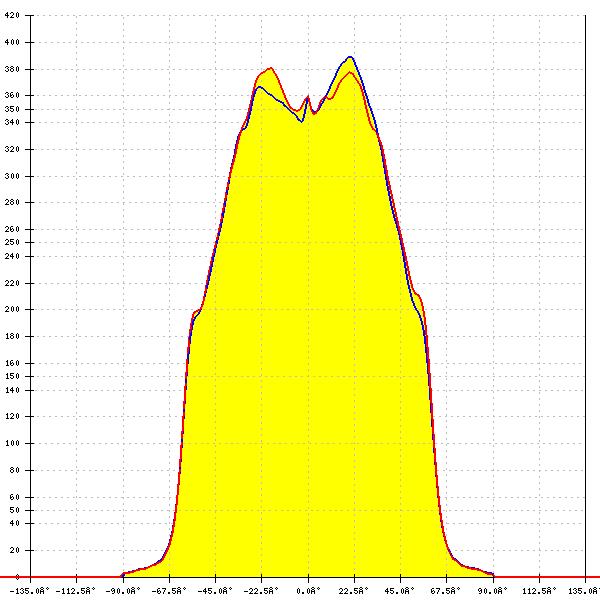

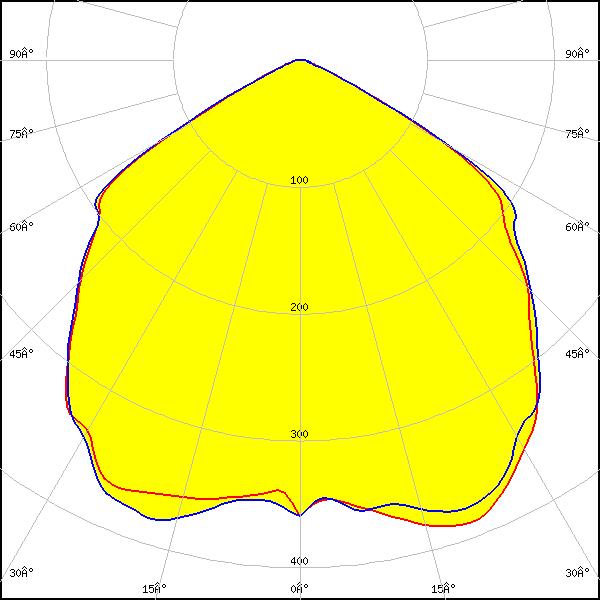

LED: OSLON SSL 150
FWHM: 107°
FWTM: 130°
Peak intensity: 0.390 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

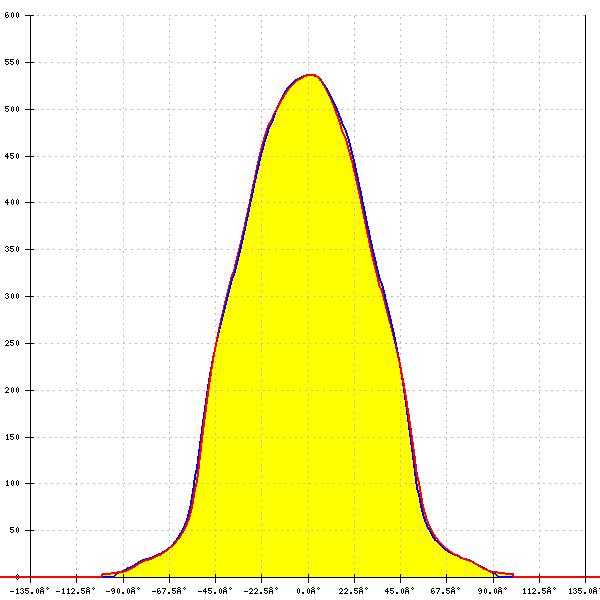

LED: HiLOM SC28 (LH181B)
FWHM: 83°
FWTM: 119°
Peak intensity: 0.540 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

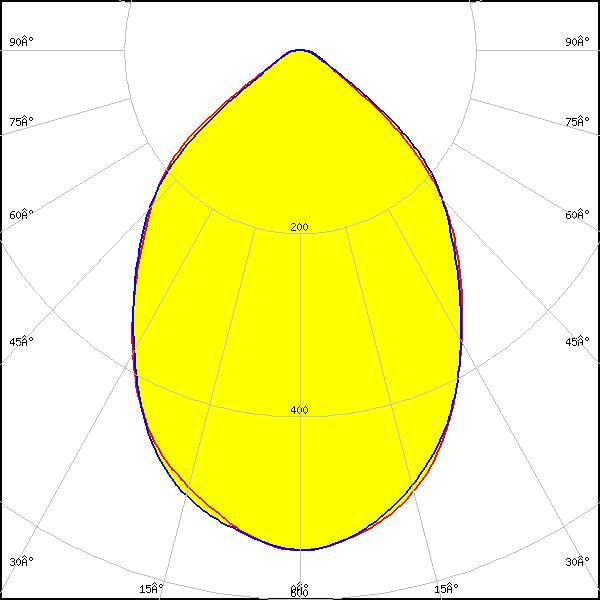

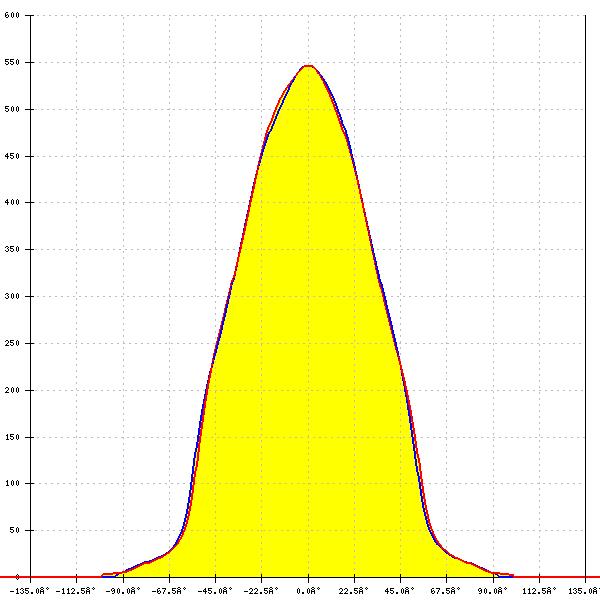

LED: HiLOM SM28 (LM301B)
FWHM: 81°
FWTM: 119°
Peak intensity: 0.550 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301A
LEDs/each optic: 1
Light colour/type: White

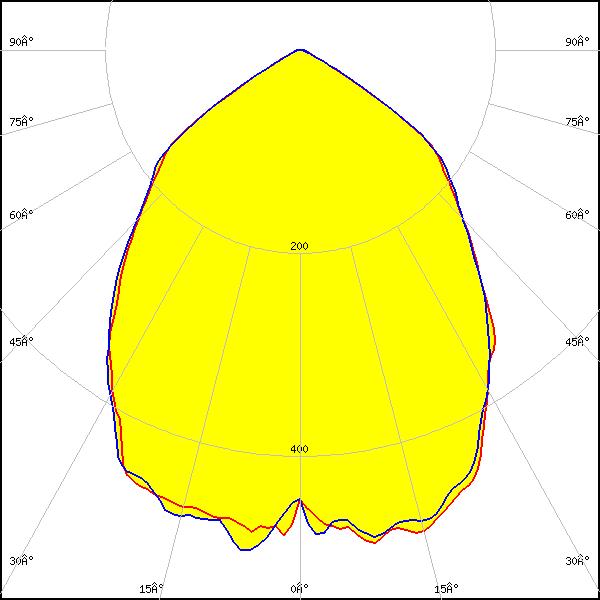

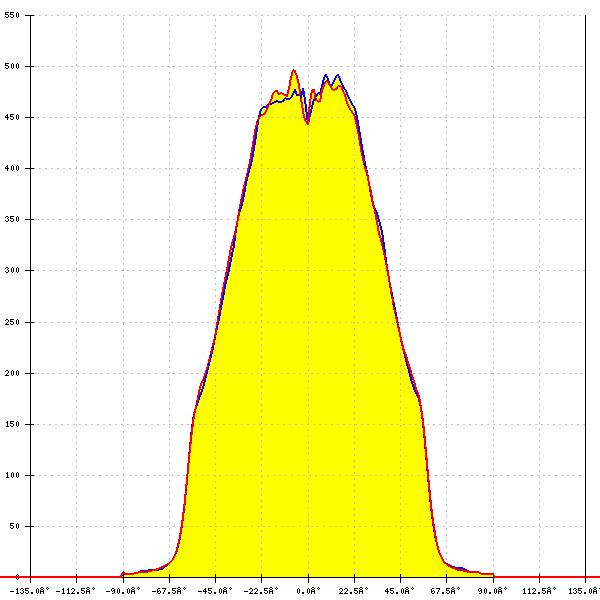

LED: LM301B
FWHM: 87°
FWTM: 123°
Peak intensity: 0.510 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

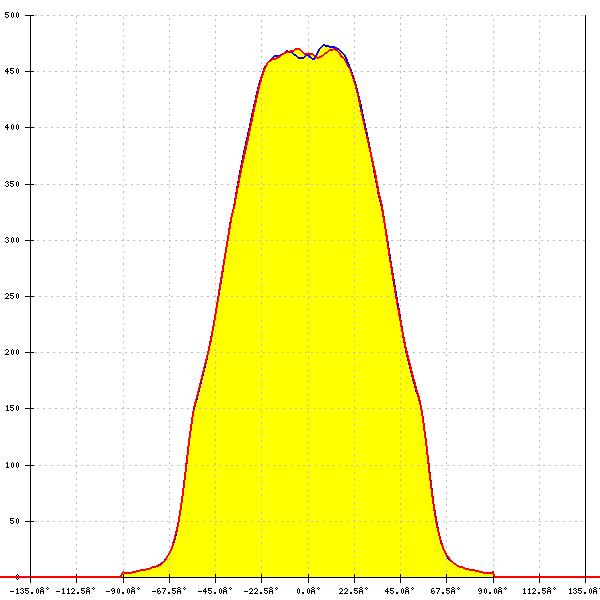

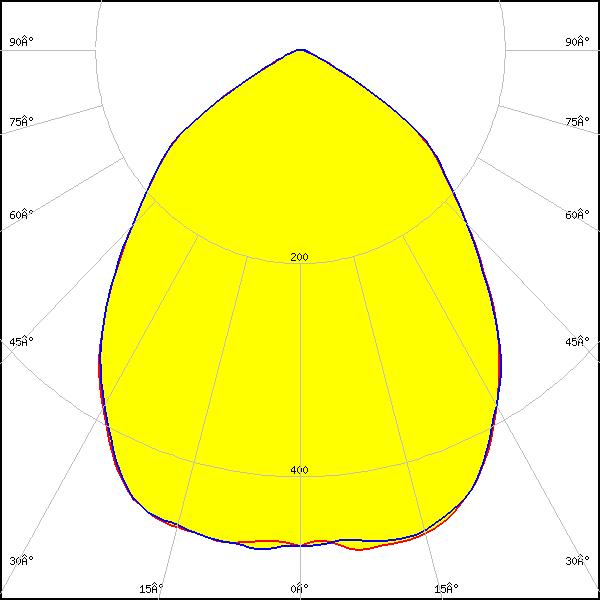

LED: SEOUL 3030
FWHM: 90°
FWTM: 126°
Peak intensity: 0.473 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3030C
FWHM: 91°
FWTM: 124°
Peak intensity: 0.475 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

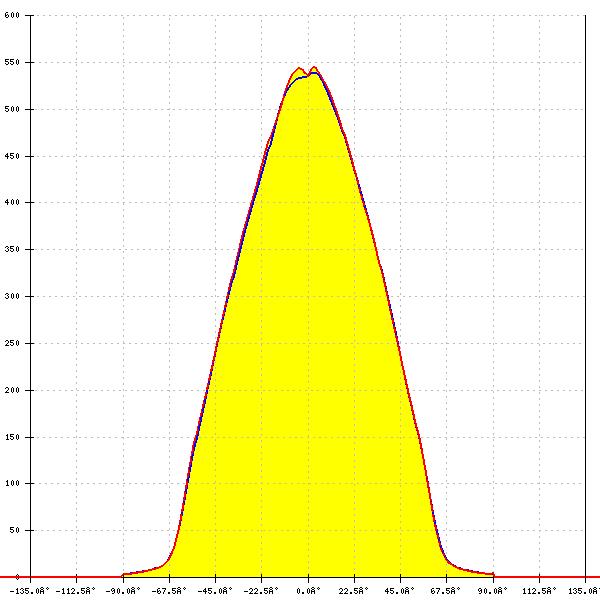

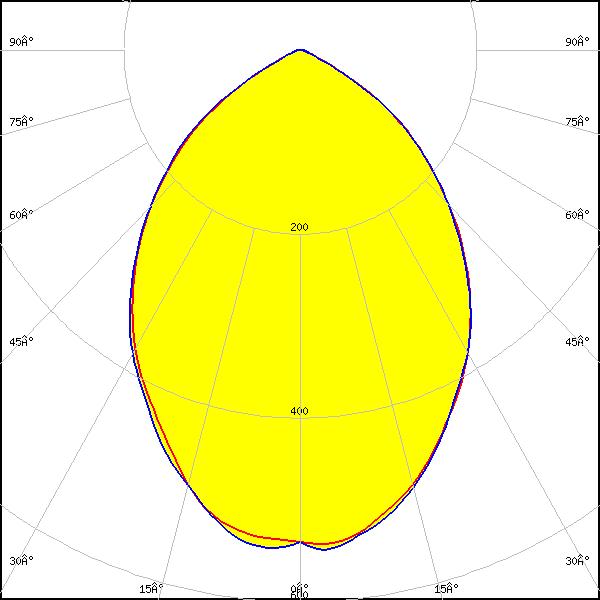

LED: SEOUL DC 5050 6V
FWHM: 82°
FWTM: 125°
Peak intensity: 0.550 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

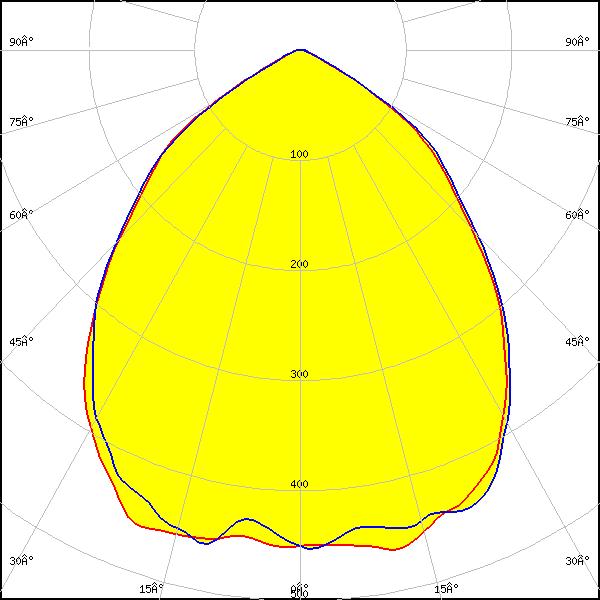

LED: Z5M1/Z5M2
FWHM: 91°
FWTM: 127°
Peak intensity: 0.470 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

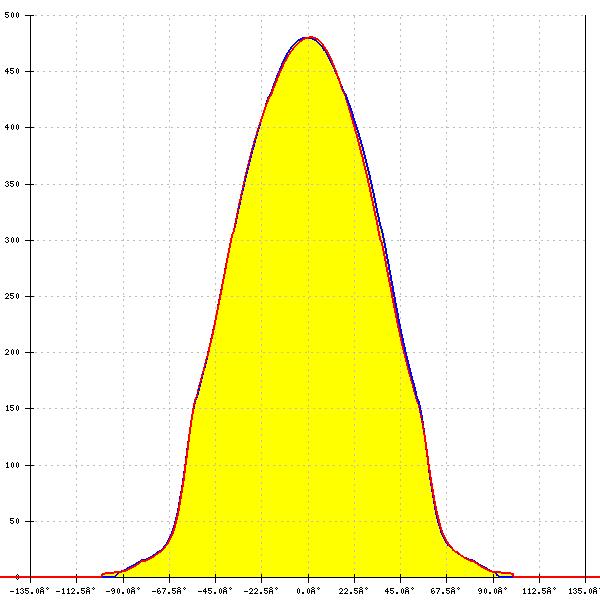

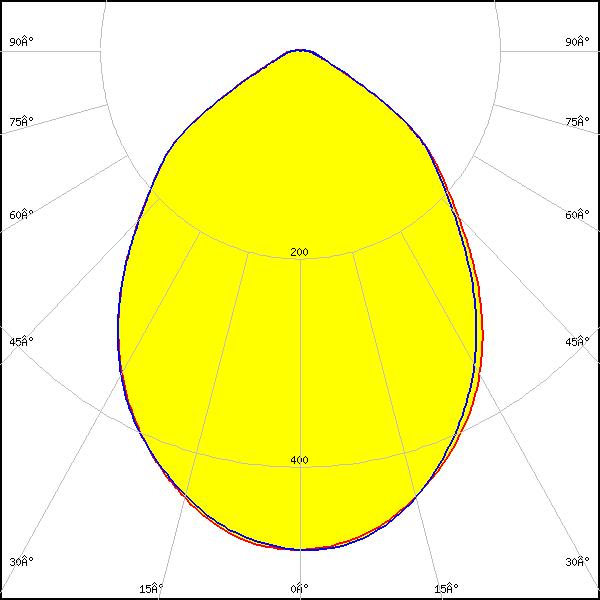

LED: Z5M3
FWHM: 86°
FWTM: 128°
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

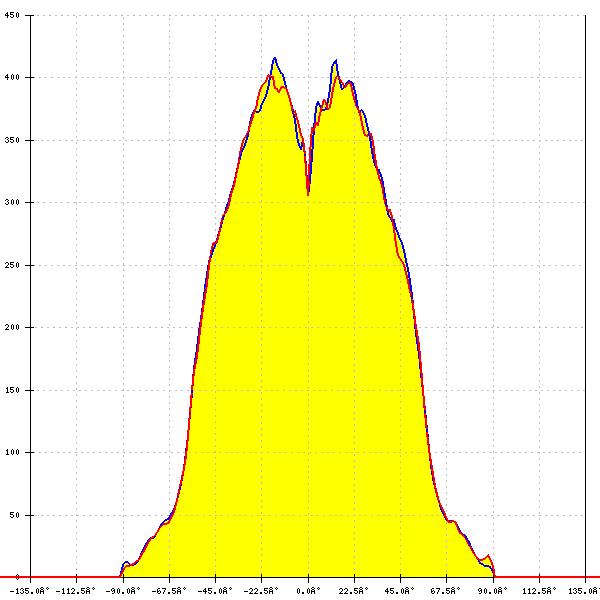

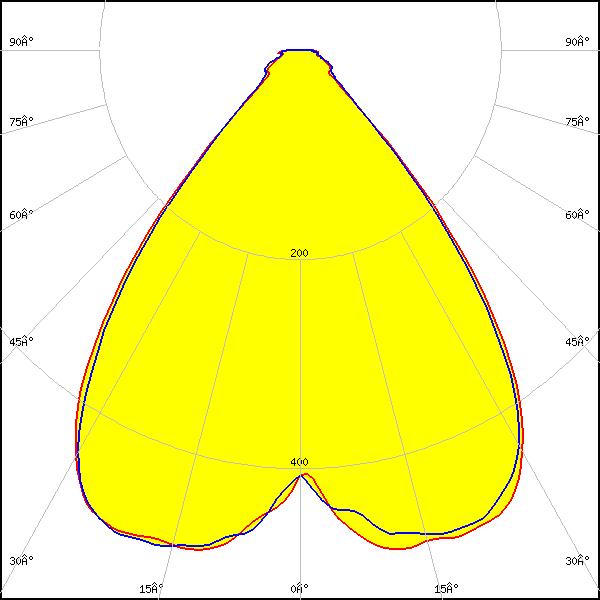

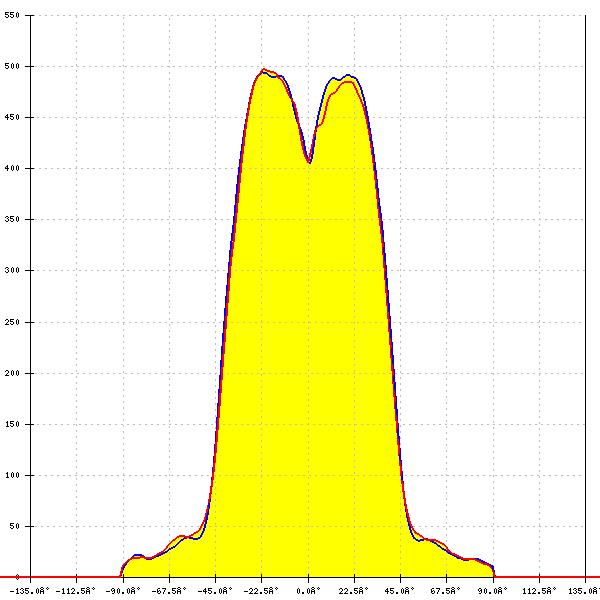

LED: Z8Y22
