CS16329_STRADELLA-IP-28-HB-M-PC

Print

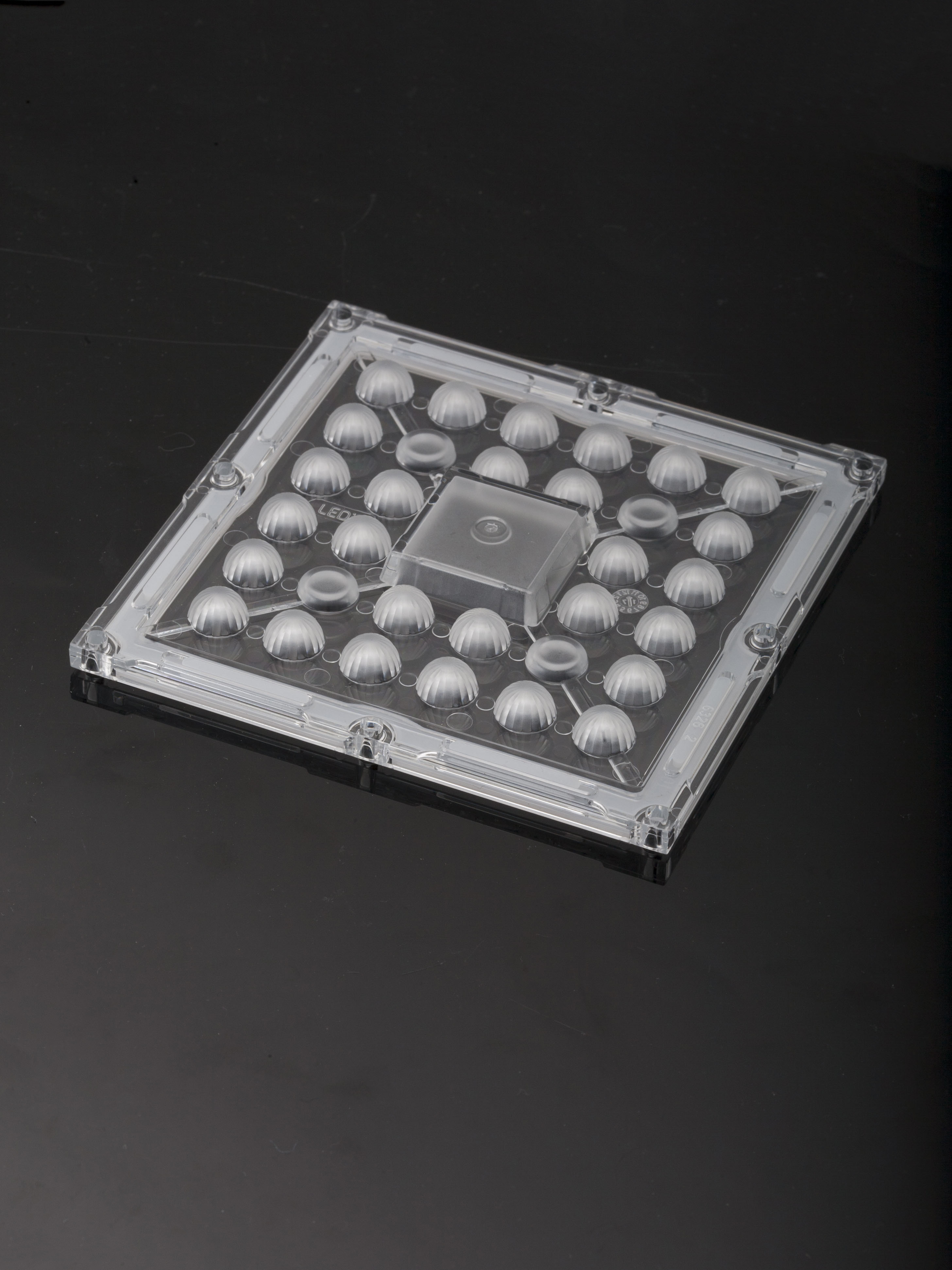

~65° medium beam. Variant made from PC.

Specification
  • Dimensions:
    100 x  100 mm
  • Height:
    9.50 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    5.9 kg
  • MPQ:
    78 pcs
  • MOQ:
    78 pcs
  • MOQ size:
    480 x 280 x 130 mm
  • MOQ weight:
    3.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS16329_STRADELLA-IP-28-HB-M-PC
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Please note that due to varying asymmetric chip locations the exact source of light is not always located at the center of the LED packet. If maximum uniformity is required LEDiL recommends rotating such LEDs on the PCB in a regular pattern for smoother results.

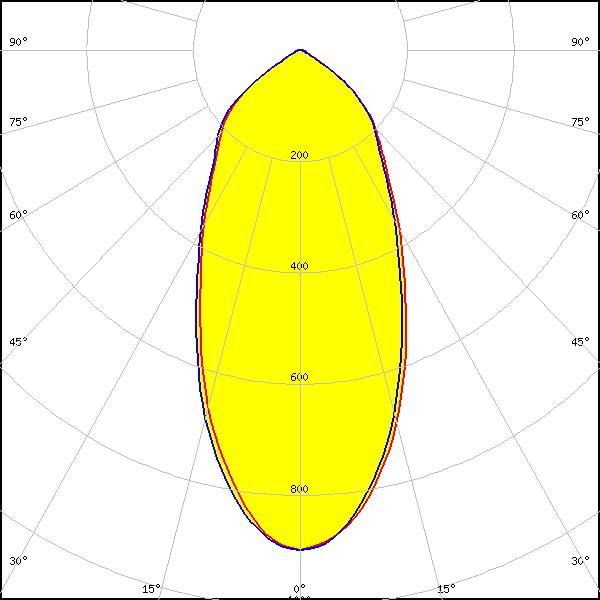

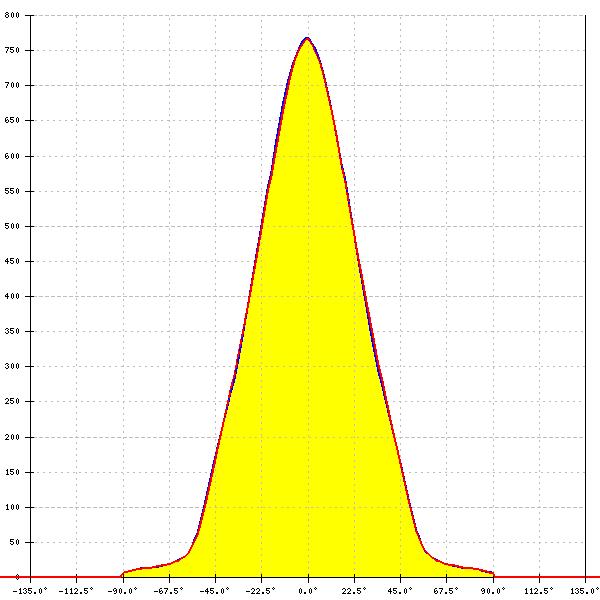

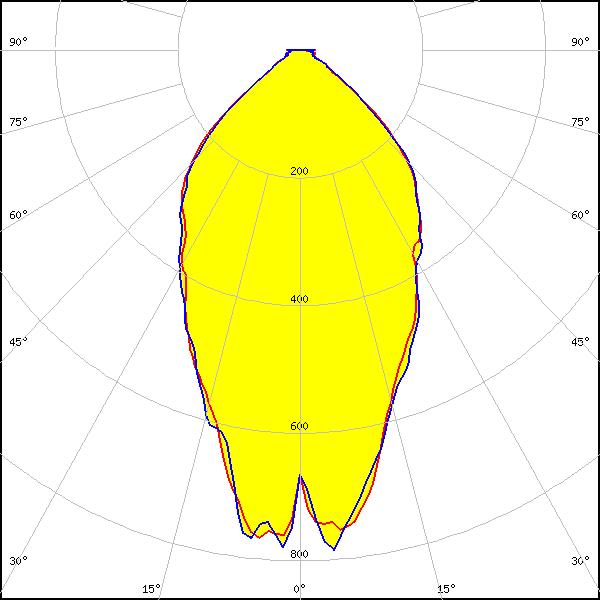

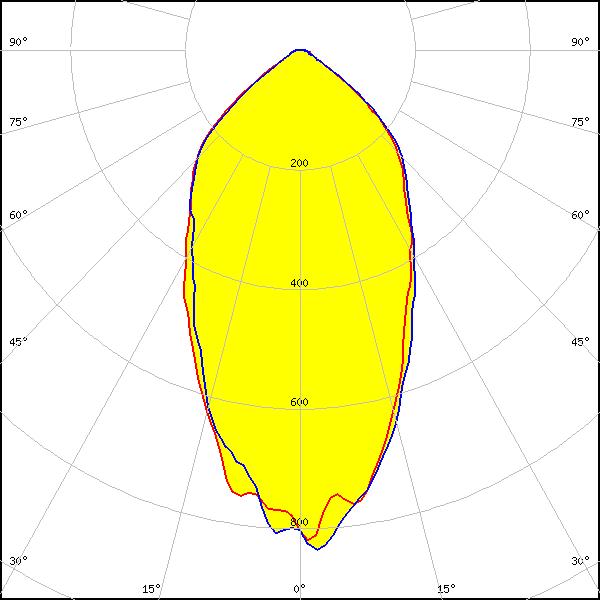

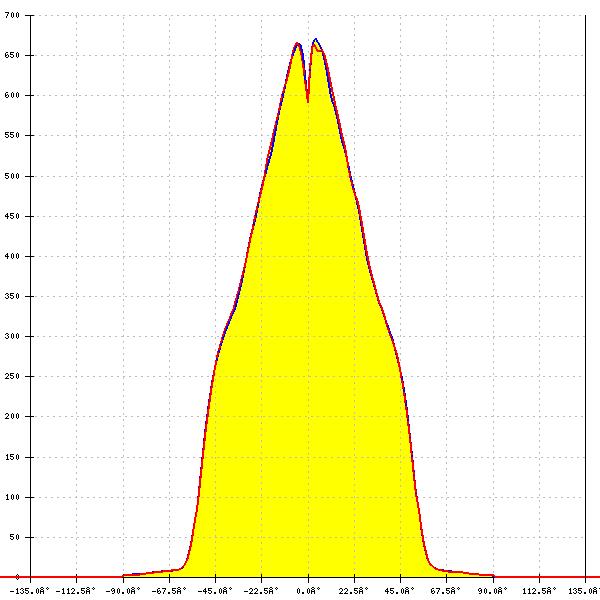

Optical results

LED: HiQLED STR28 CR JE2835 4x7 xxx
FWHM: 48°
FWTM: 108°
Peak intensity: 0.820 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

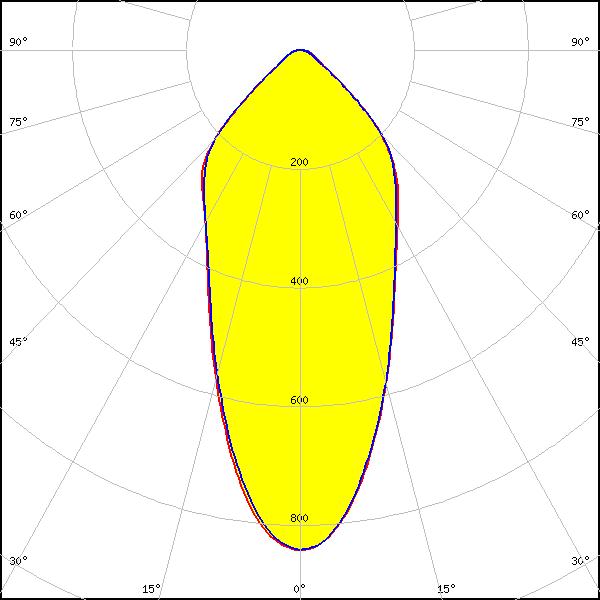

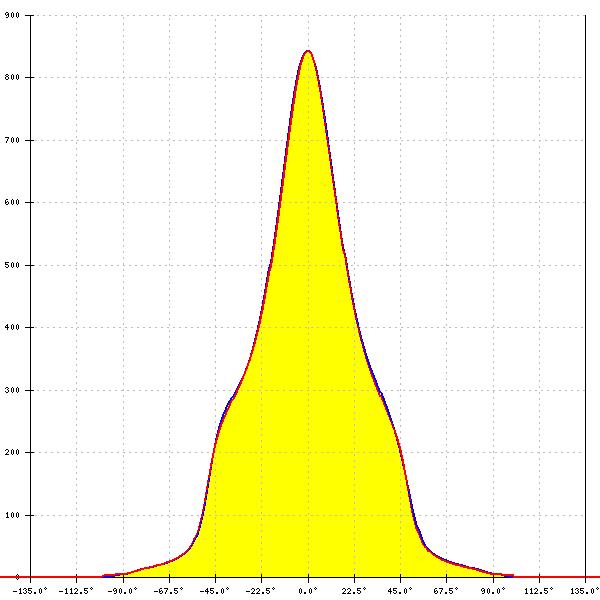

LED: HiQLED STR28 CR JK3030 4x7 xxx
FWHM: 46°
FWTM: 105°
Peak intensity: 0.840 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

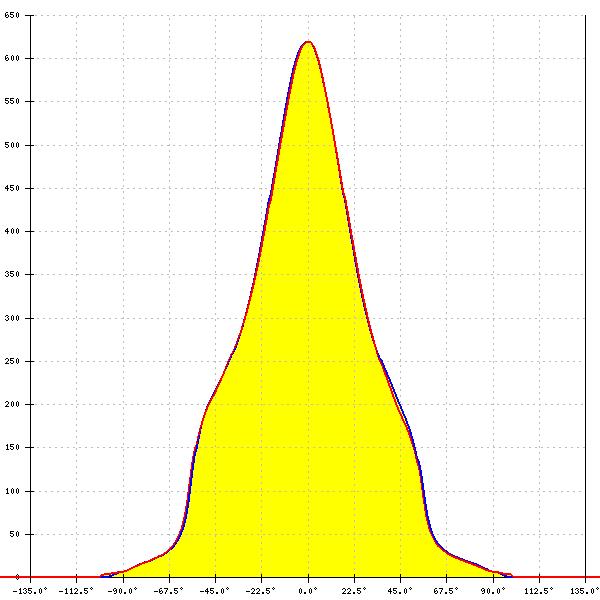

LED: QUICK FLUX STR28 XD2x14 xxx G8
FWHM: 58°
FWTM: 119°
Peak intensity: 0.620 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

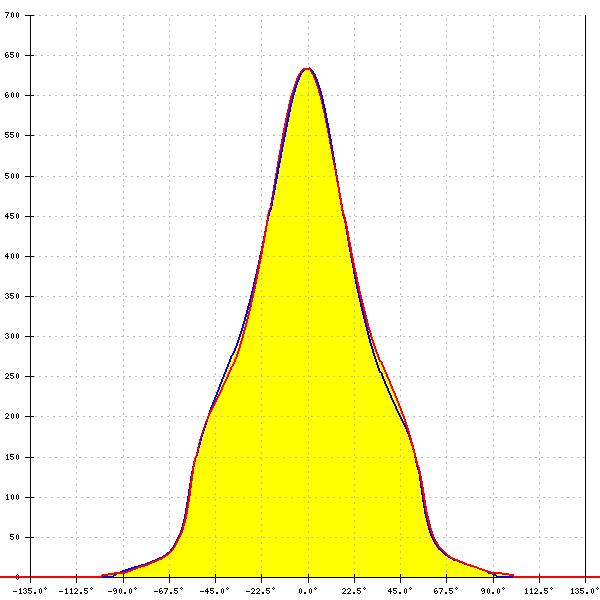

LED: QUICK FLUX STR28 XP2x14 xxx G7
FWHM: 59°
FWTM: 119°
Peak intensity: 0.630 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

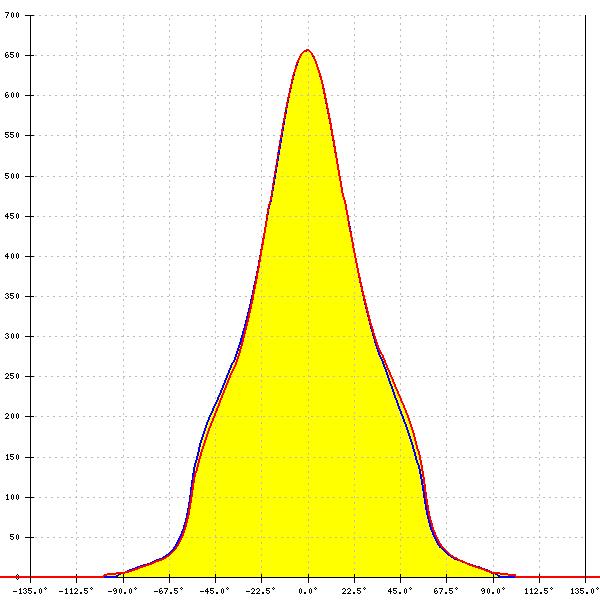

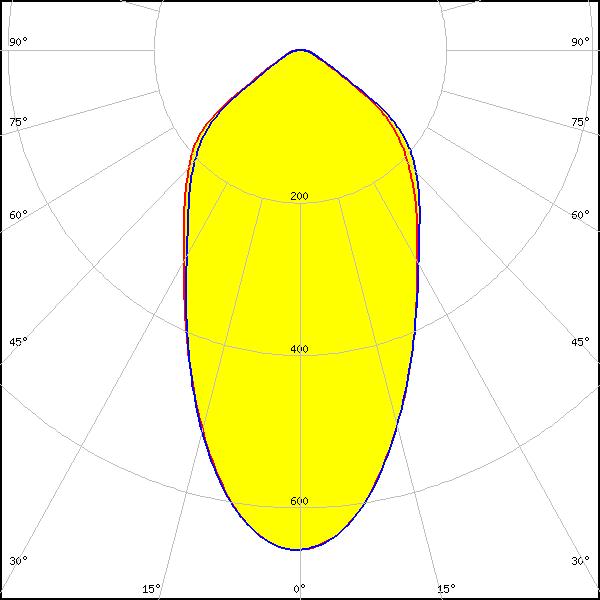

LED: QUICK FLUX STR28 XT2x14 xxx G5
FWHM: 58°
FWTM: 121°
Peak intensity: 0.660 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

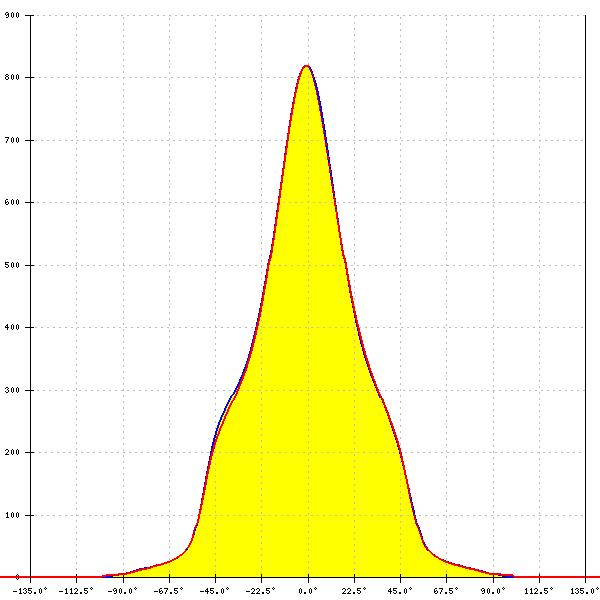

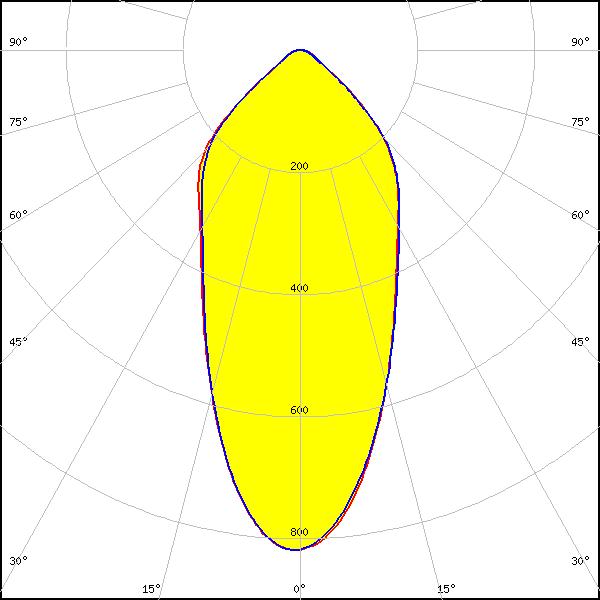

LED: J Series 2835
FWHM: 48°
FWTM: 108°
Peak intensity: 0.820 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

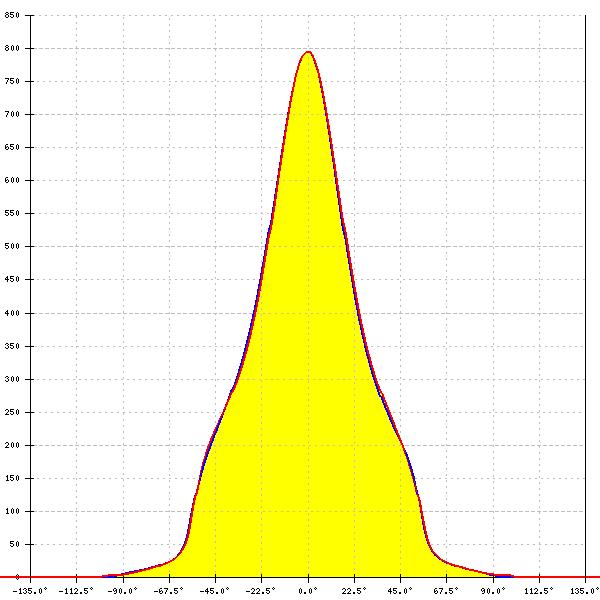

LED: J Series 3030
FWHM: 51°
FWTM: 114°
Peak intensity: 0.794 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

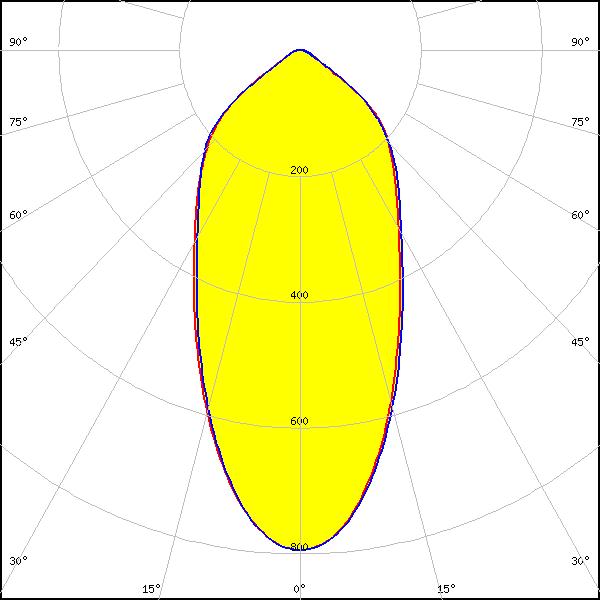

LED: J Series 3030
FWHM: 46°
FWTM: 105°
Peak intensity: 0.840 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

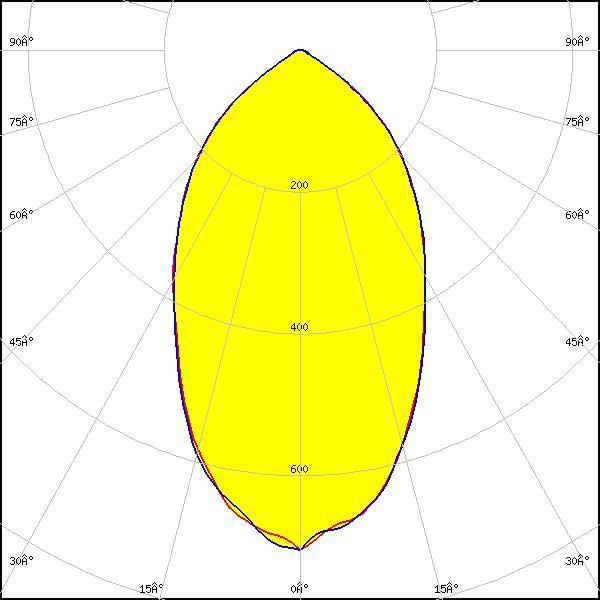

LED: J Series 5050C 6V E Class
FWHM: 63°
FWTM: 114°
Peak intensity: 0.711 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

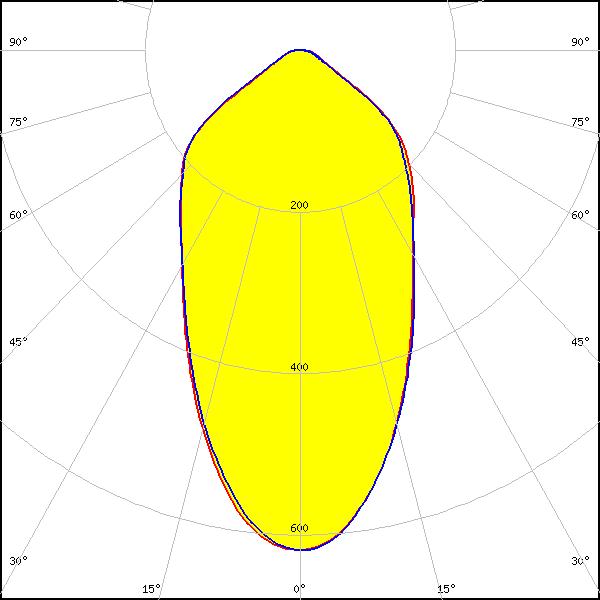

LED: XD16
FWHM: 58°
FWTM: 119°
Peak intensity: 0.620 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

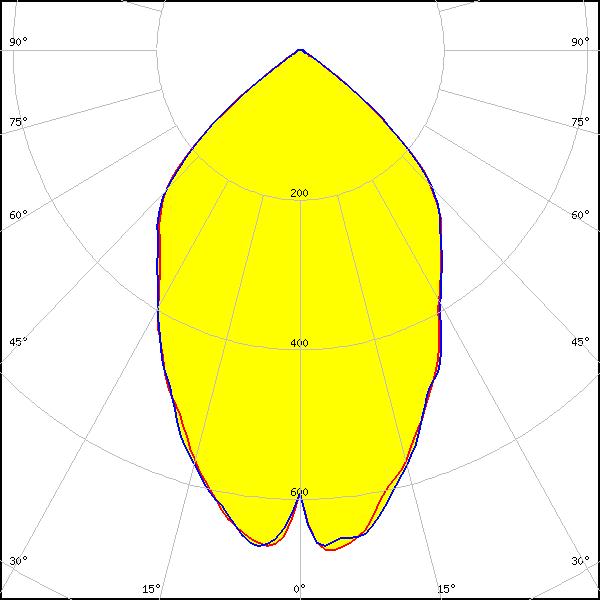

LED: XP-G2
LEDs/each optic: 1
Light colour/type: White

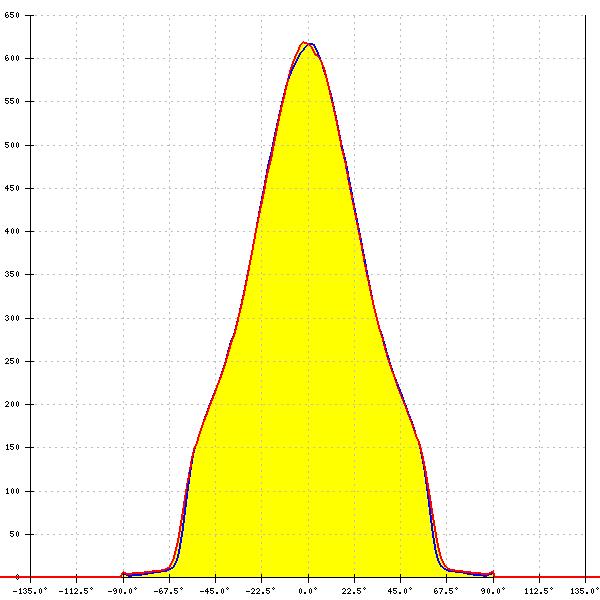

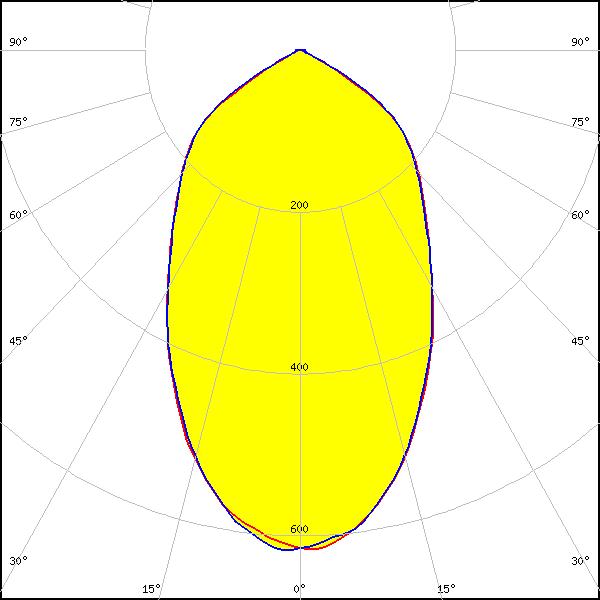

LED: XP-G2 HE
FWHM: 66°
FWTM: 122°
Peak intensity: 0.619 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

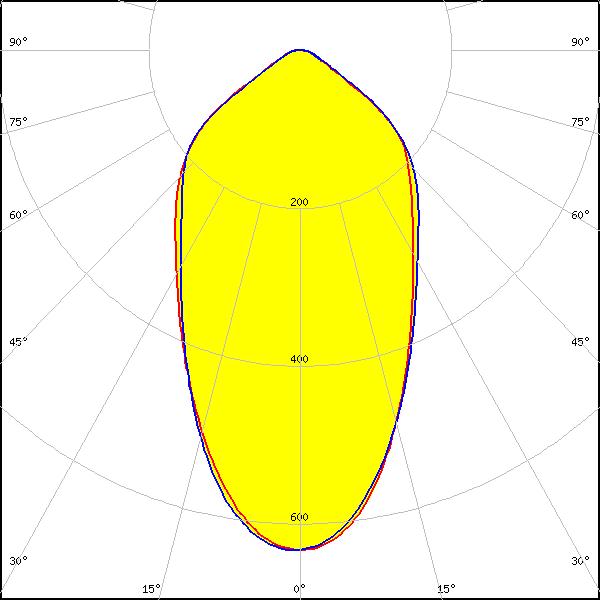

LED: XP-G3
FWHM: 59°
FWTM: 119°
Peak intensity: 0.630 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

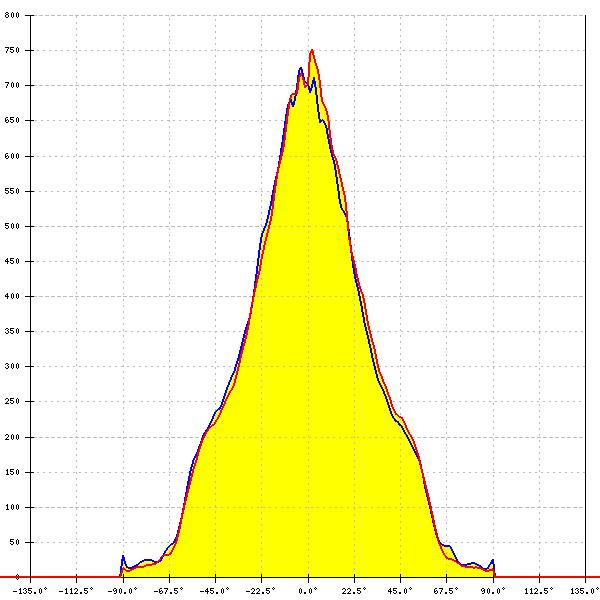

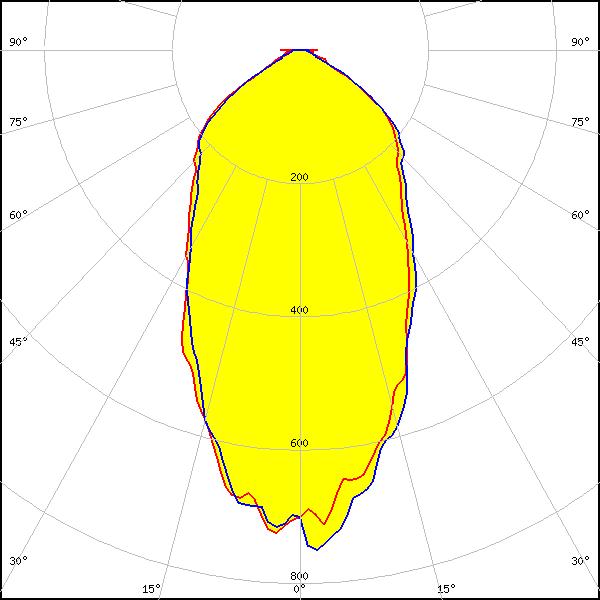

LED: XT-E
FWHM: 58°
FWTM: 121°
Peak intensity: 0.660 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

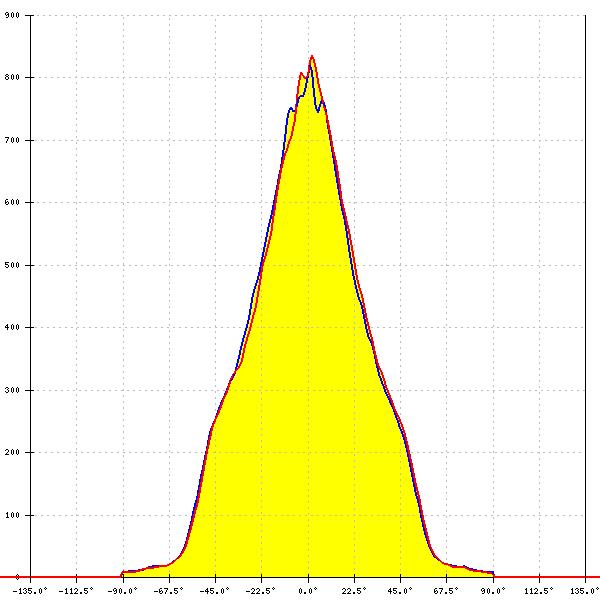

LED: LUXEON 3030 2D (Round LES)
FWHM: 53°
FWTM: 112°
Peak intensity: 0.862 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON TX
LEDs/each optic: 1
Light colour/type: White

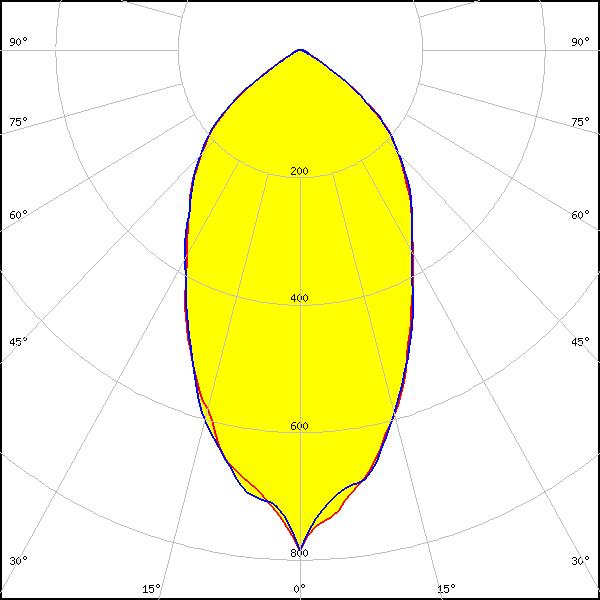

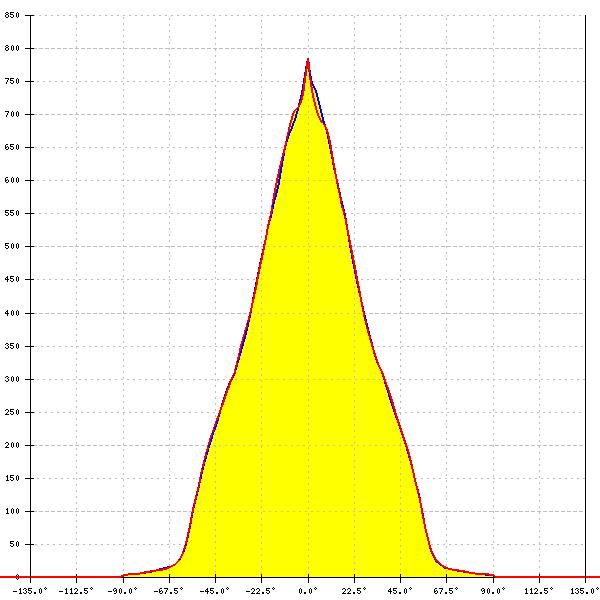

LED: NF2x757G
FWHM: 57°
FWTM: 114°
Peak intensity: 0.790 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

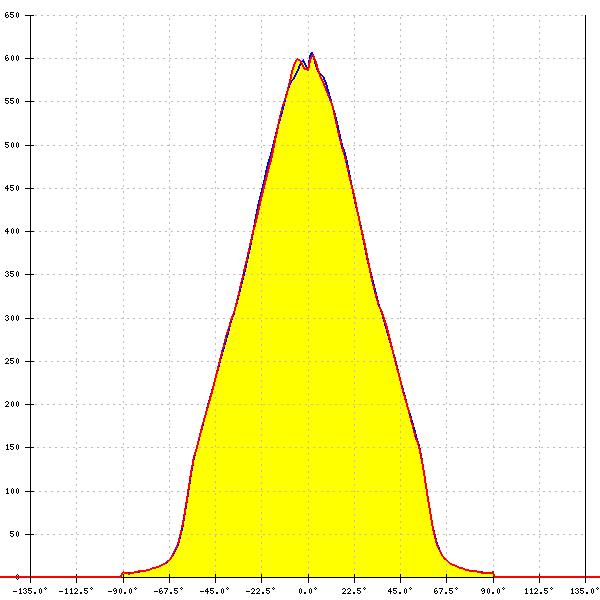

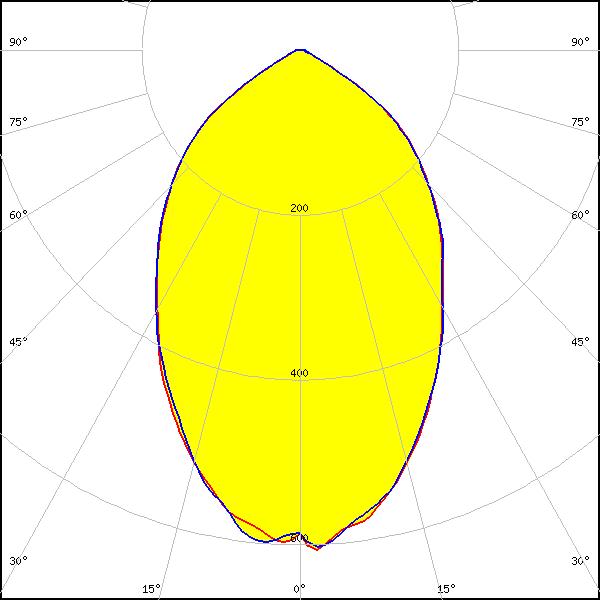

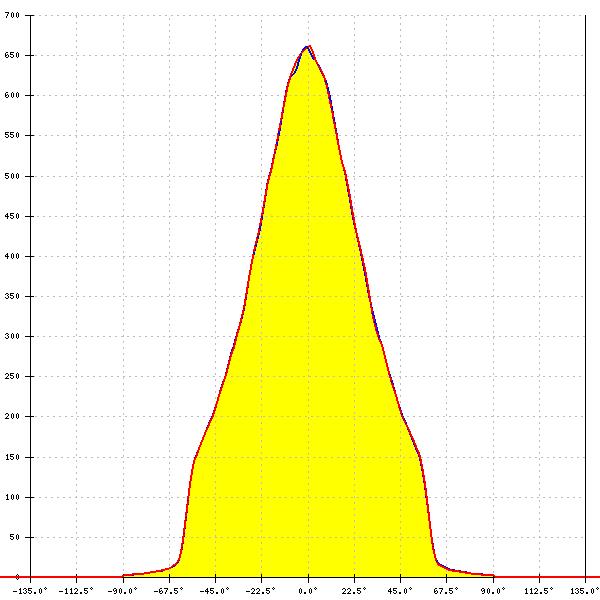

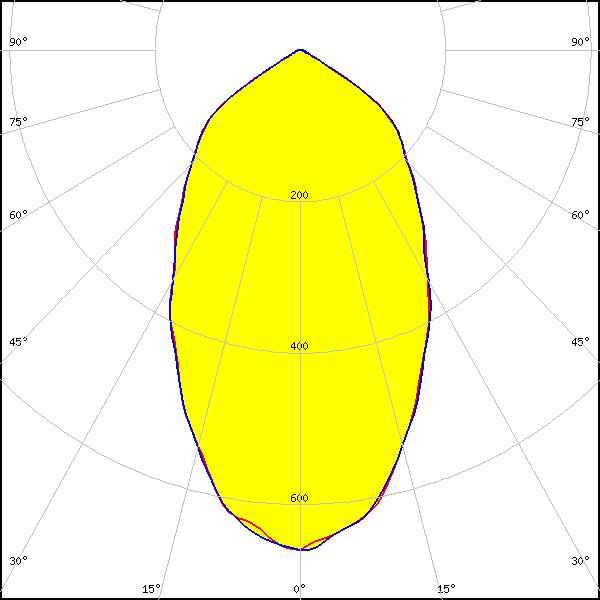

LED: NVSW219F
FWHM: 63° + 64°
FWTM: 118° + 118°
Peak intensity: 0.672 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

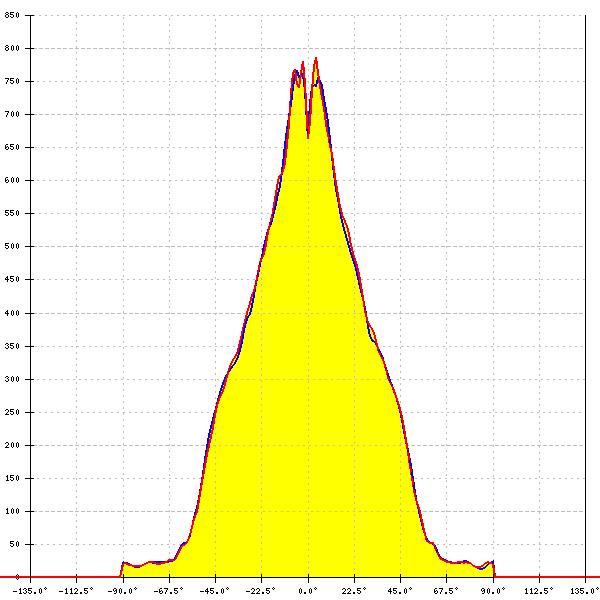

LED: NVSxE21A
FWHM: 55°
FWTM: 111°
Peak intensity: 0.802 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: 73°
FWTM: 122°
Peak intensity: 0.618 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S5 (2 chip)
LEDs/each optic: 1
Light colour/type: White

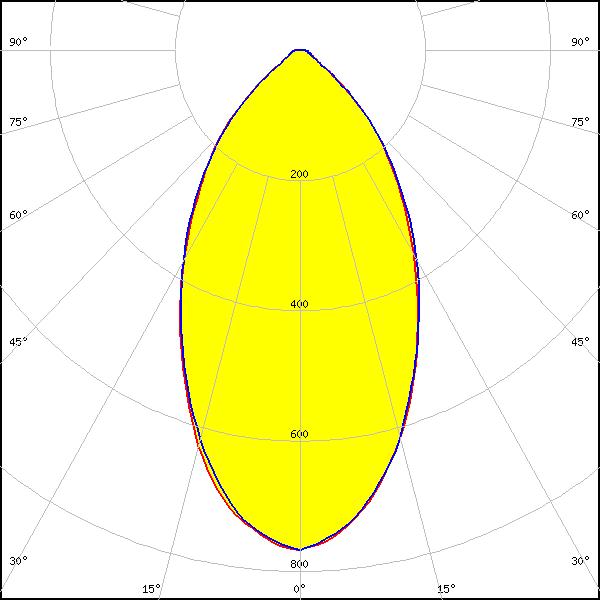

LED: Duris S8
FWHM: 58°
FWTM: 104°
Peak intensity: 0.768 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

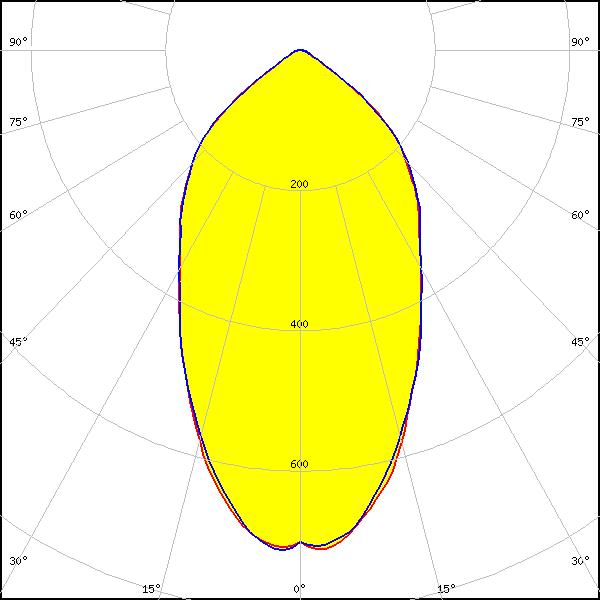

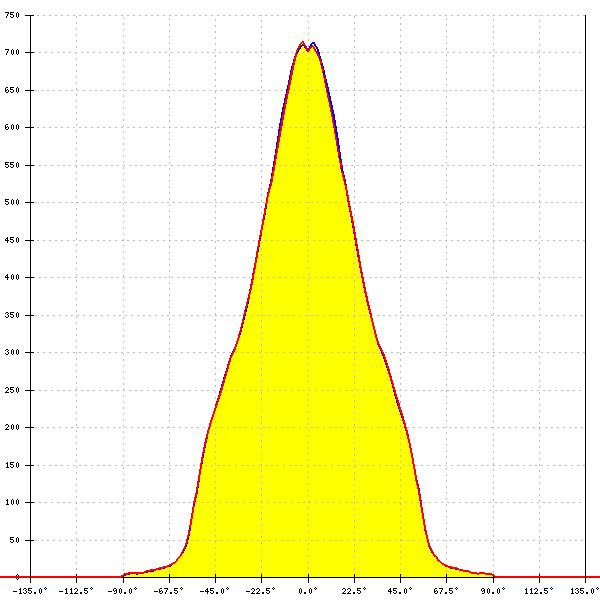

LED: OSCONIQ C 2424
FWHM: 60°
FWTM: 114°
Peak intensity: 0.722 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

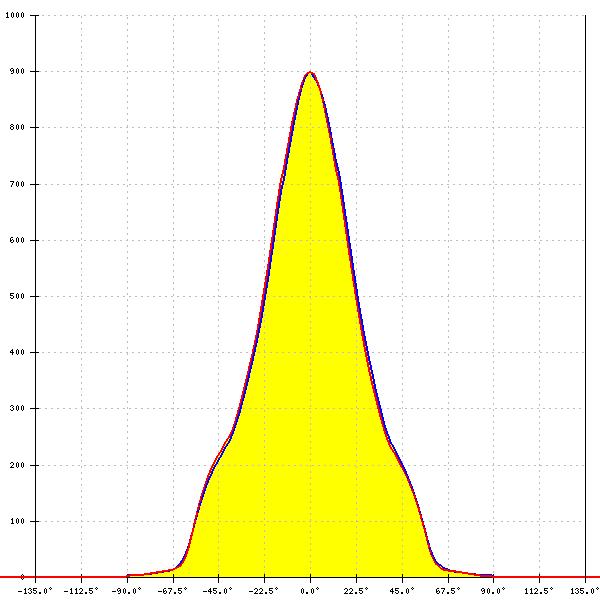

LED: OSCONIQ P 3030
FWHM: 50°
FWTM: 113°
Peak intensity: 0.901 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

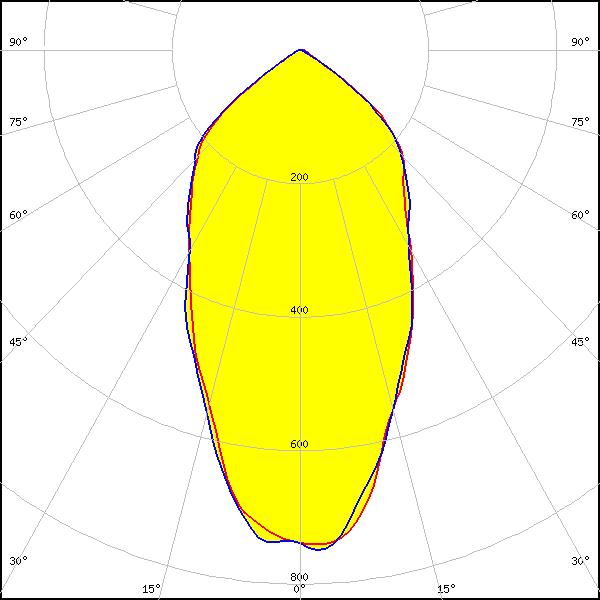

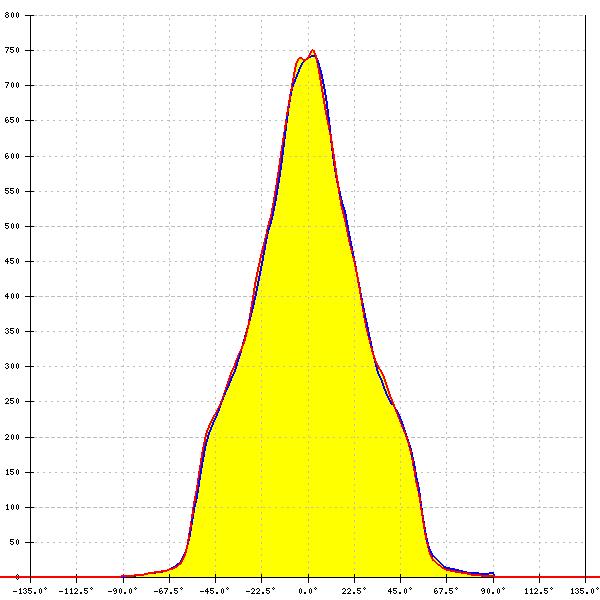

LED: OSCONIQ P 3737 (2W version)
FWHM: 56°
FWTM: 113°
Peak intensity: 0.755 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

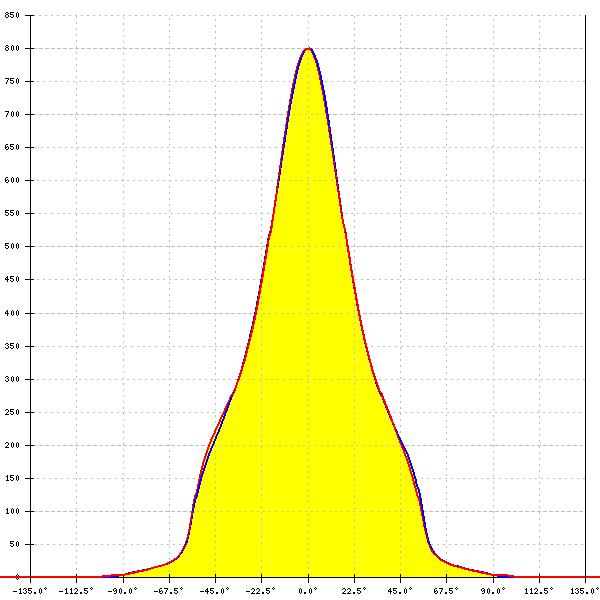

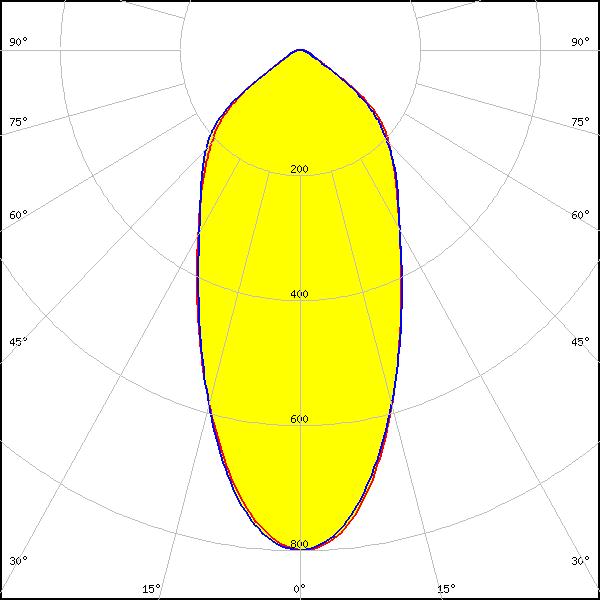

LED: OSCONIQ S 3030 (QSLR31)
FWHM: 50°
FWTM: 113°
Peak intensity: 0.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

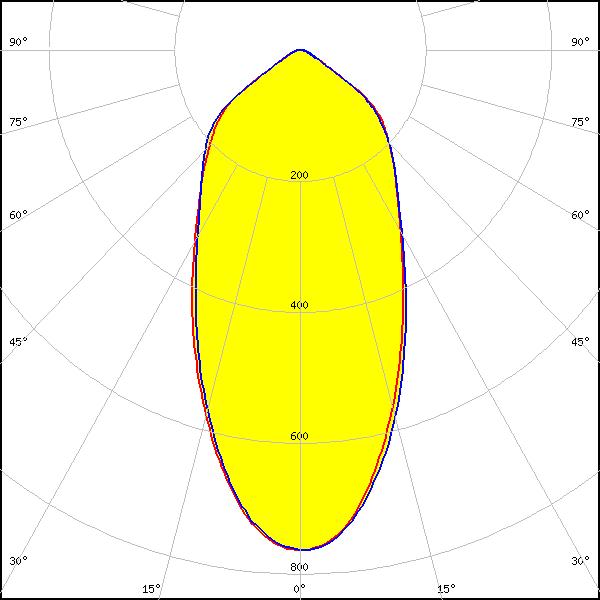

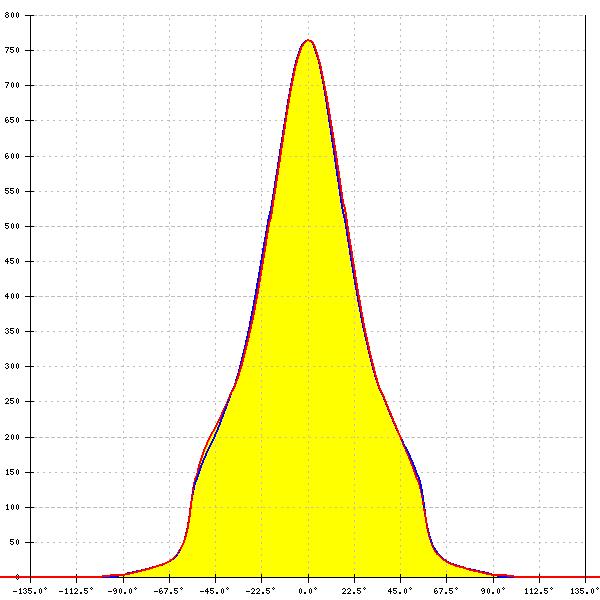

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 52°
FWTM: 116°
Peak intensity: 0.764 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

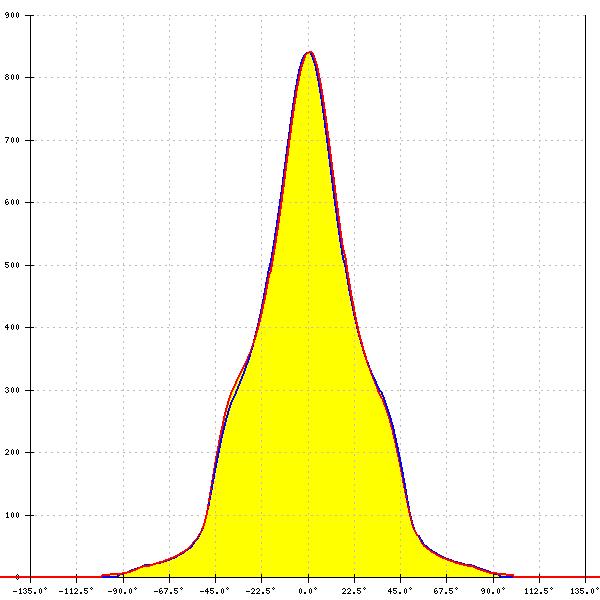

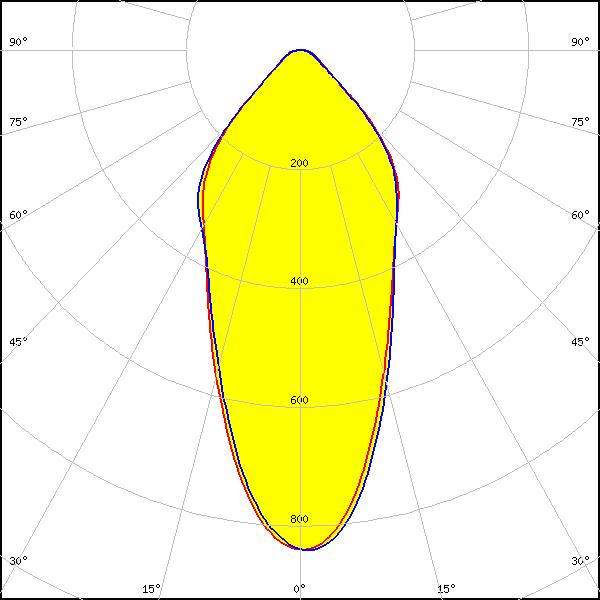

LED: HiLOM SC28 (LH181B)
FWHM: 46°
FWTM: 102°
Peak intensity: 0.840 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

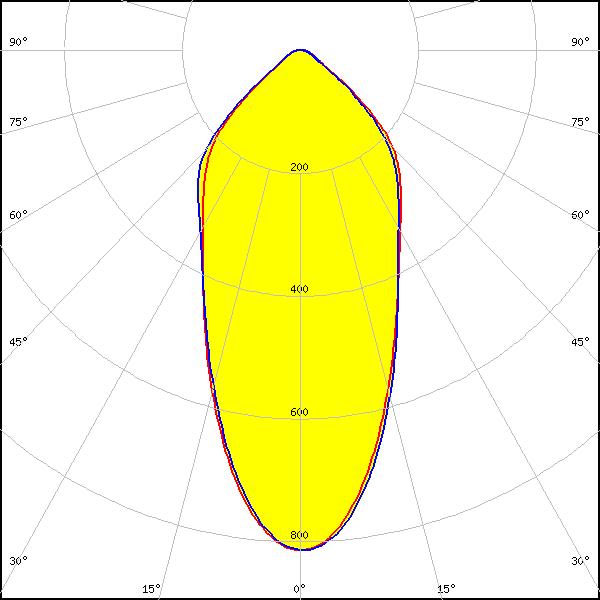

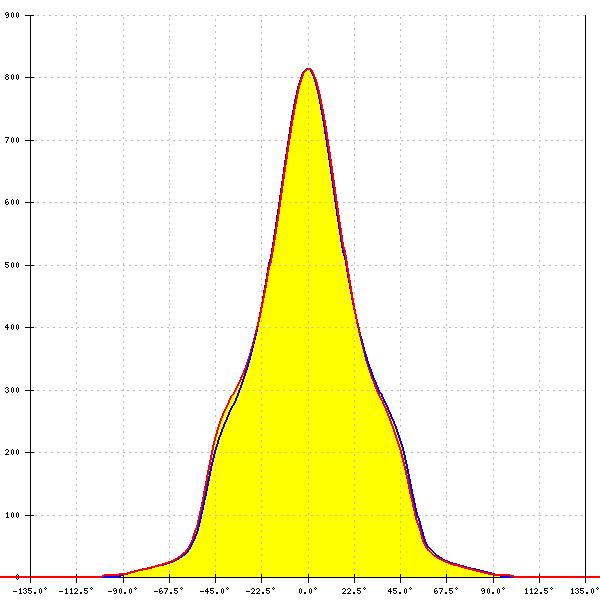

LED: HiLOM SM28 (LM301B)
FWHM: 48°
FWTM: 108°
Peak intensity: 0.810 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

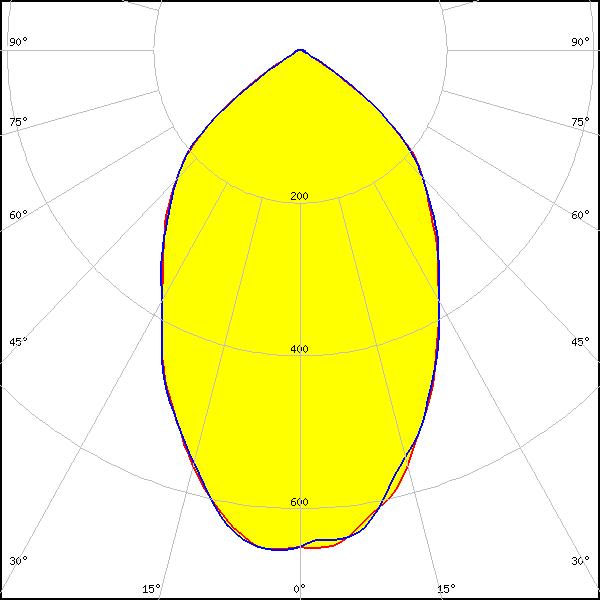

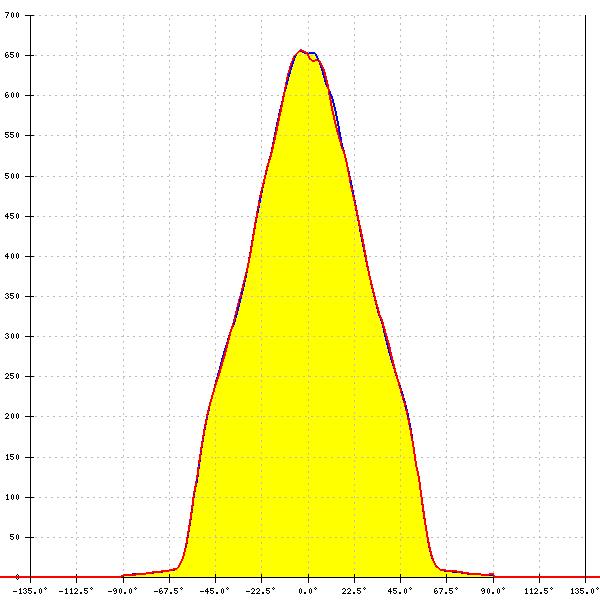

LED: LH351C
FWHM: 70°
FWTM: 114°
Peak intensity: 0.677 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301A
LEDs/each optic: 1
Light colour/type: White

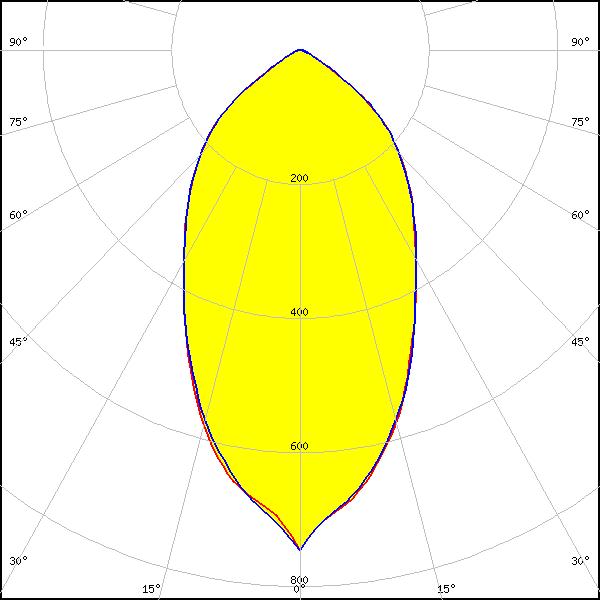

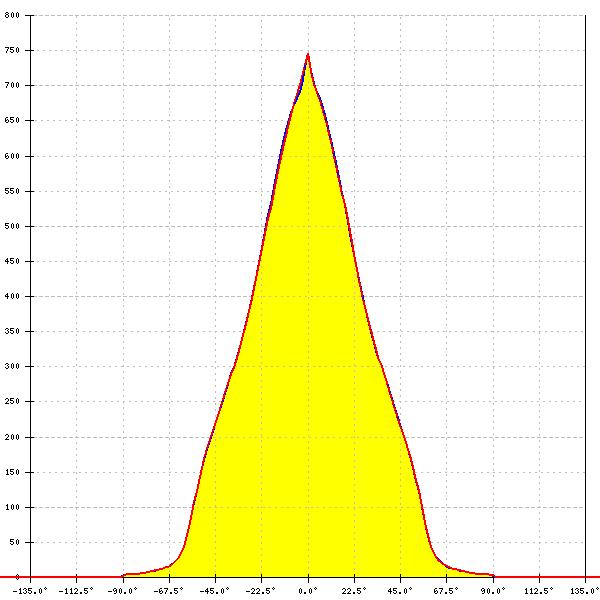

LED: SEOUL 3030
FWHM: 58°
FWTM: 114°
Peak intensity: 0.746 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

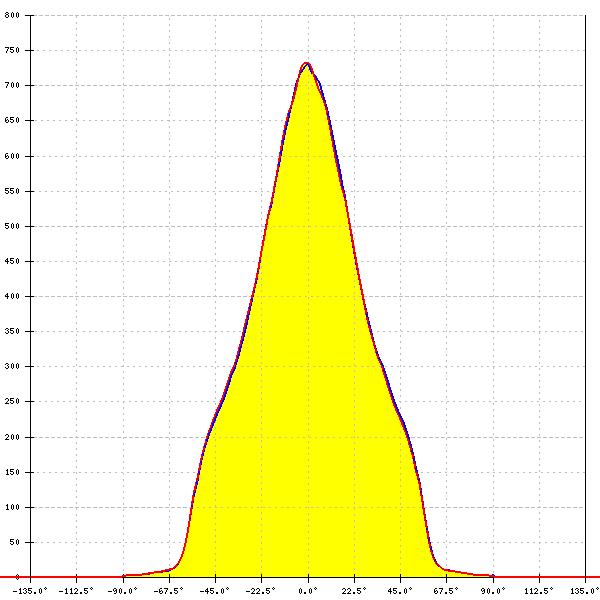

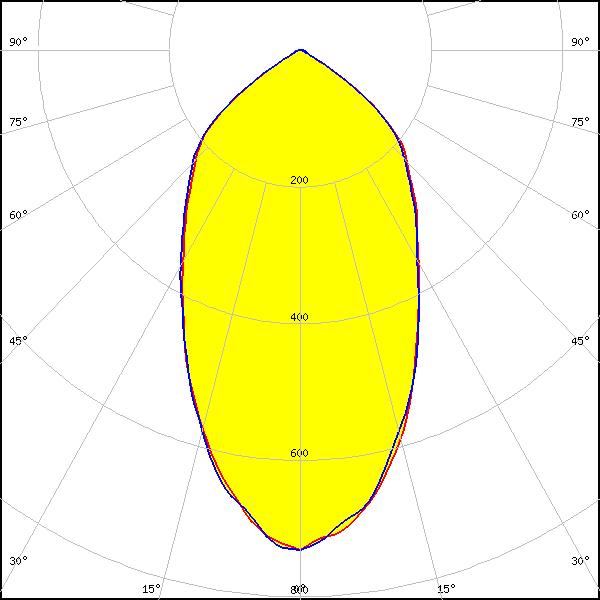

LED: SEOUL DC 3030C
FWHM: 59°
FWTM: 116°
Peak intensity: 0.744 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

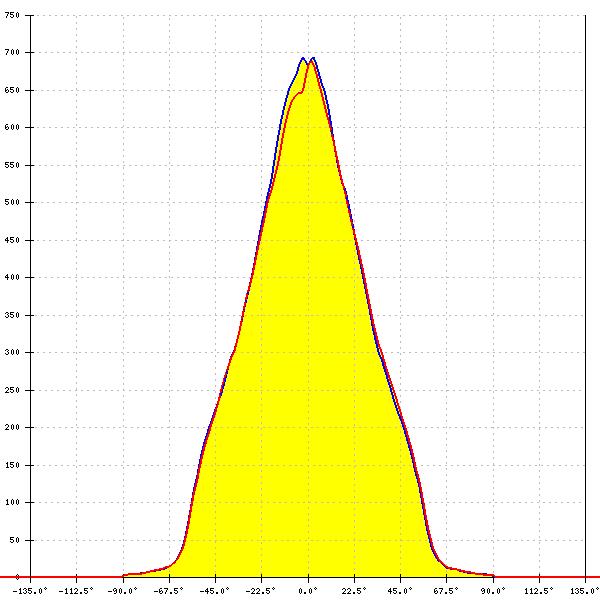

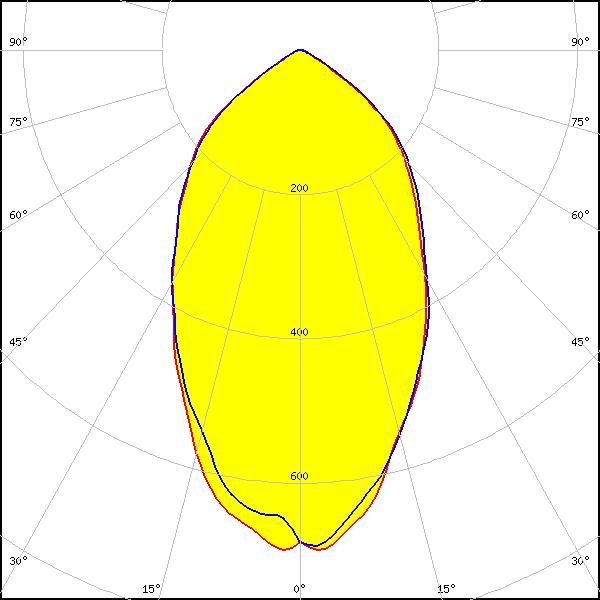

LED: Z5M1/Z5M2
FWHM: 63°
FWTM: 116°
Peak intensity: 0.720 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

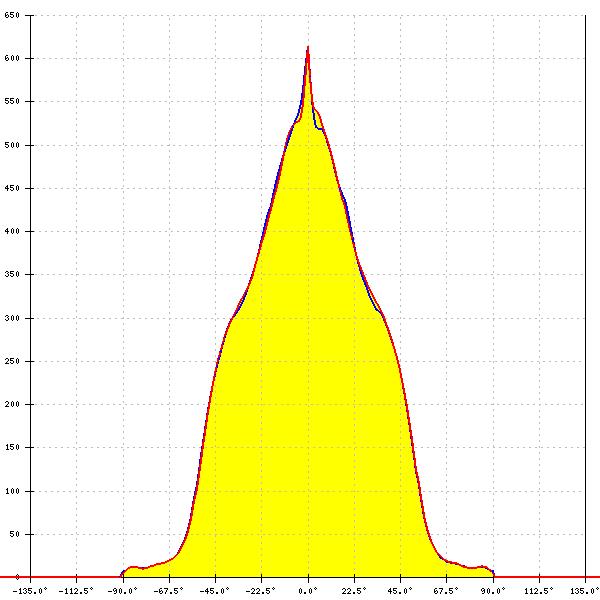

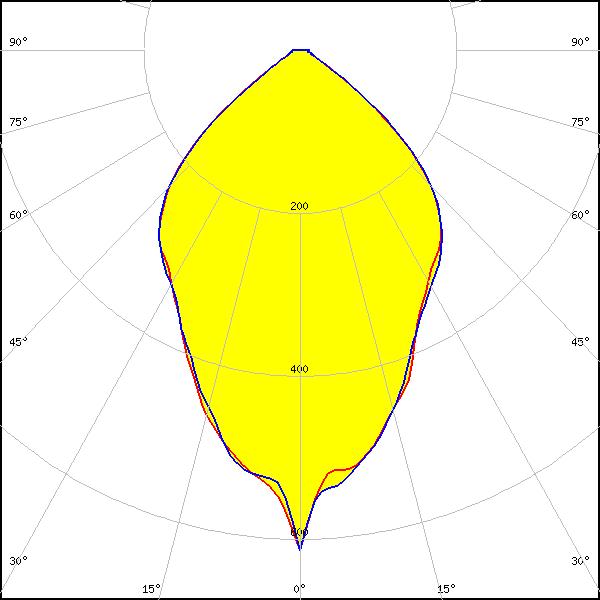

LED: Z8Y19
FWHM: 73°
FWTM: 115°
Peak intensity: 0.610 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

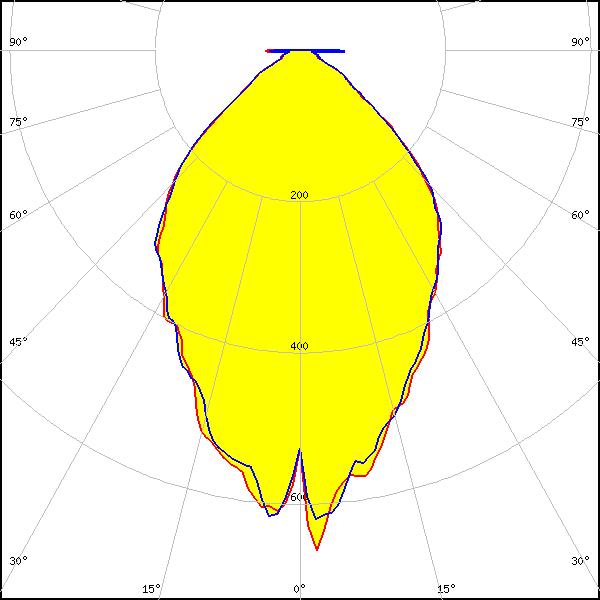

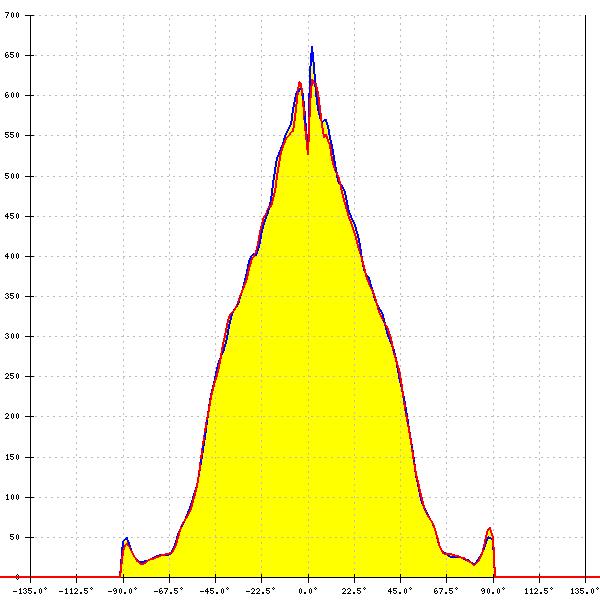

LED: Z8Y22
FWHM: 71°
FWTM: 121°
Peak intensity: 0.653 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
