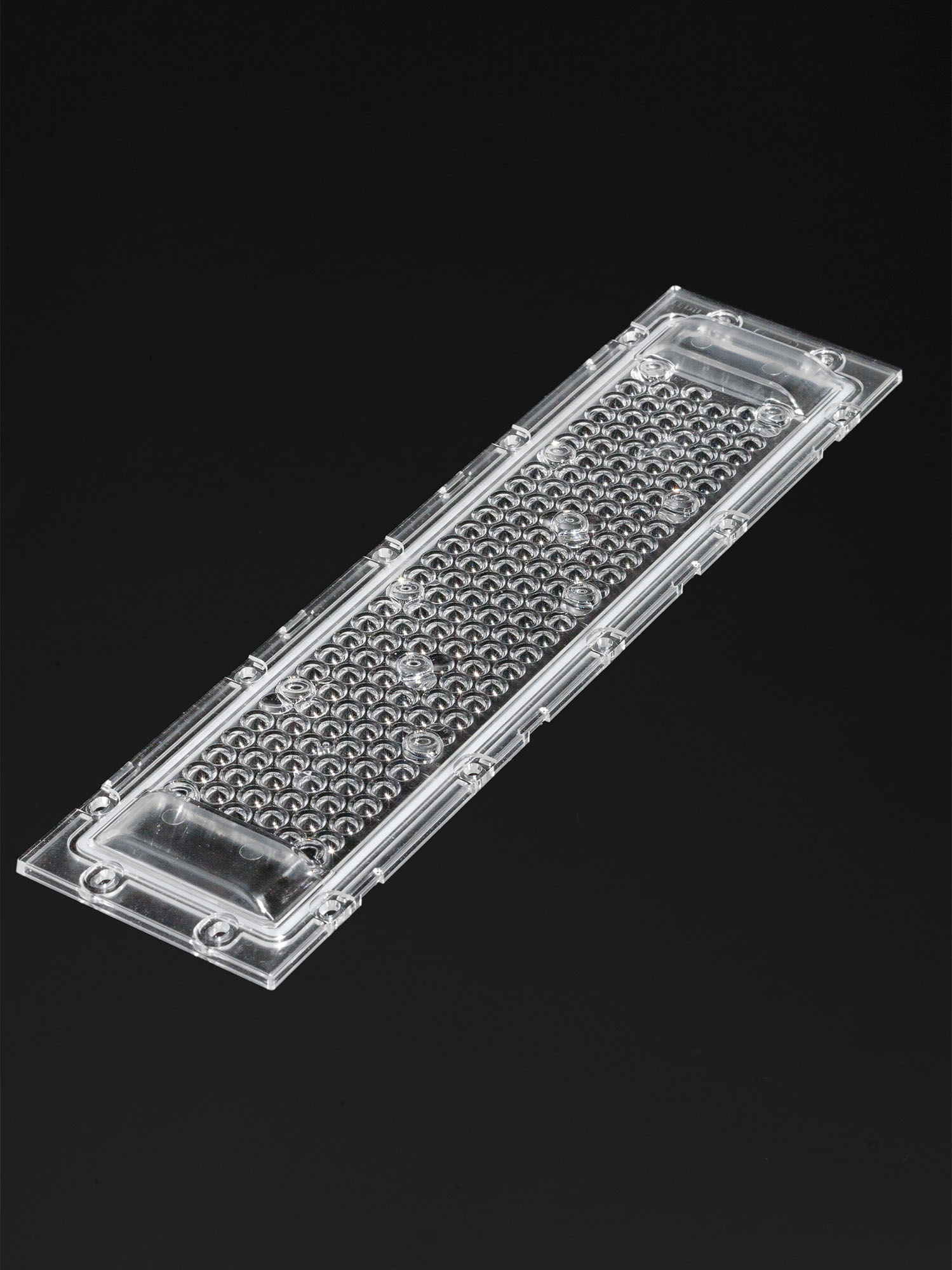

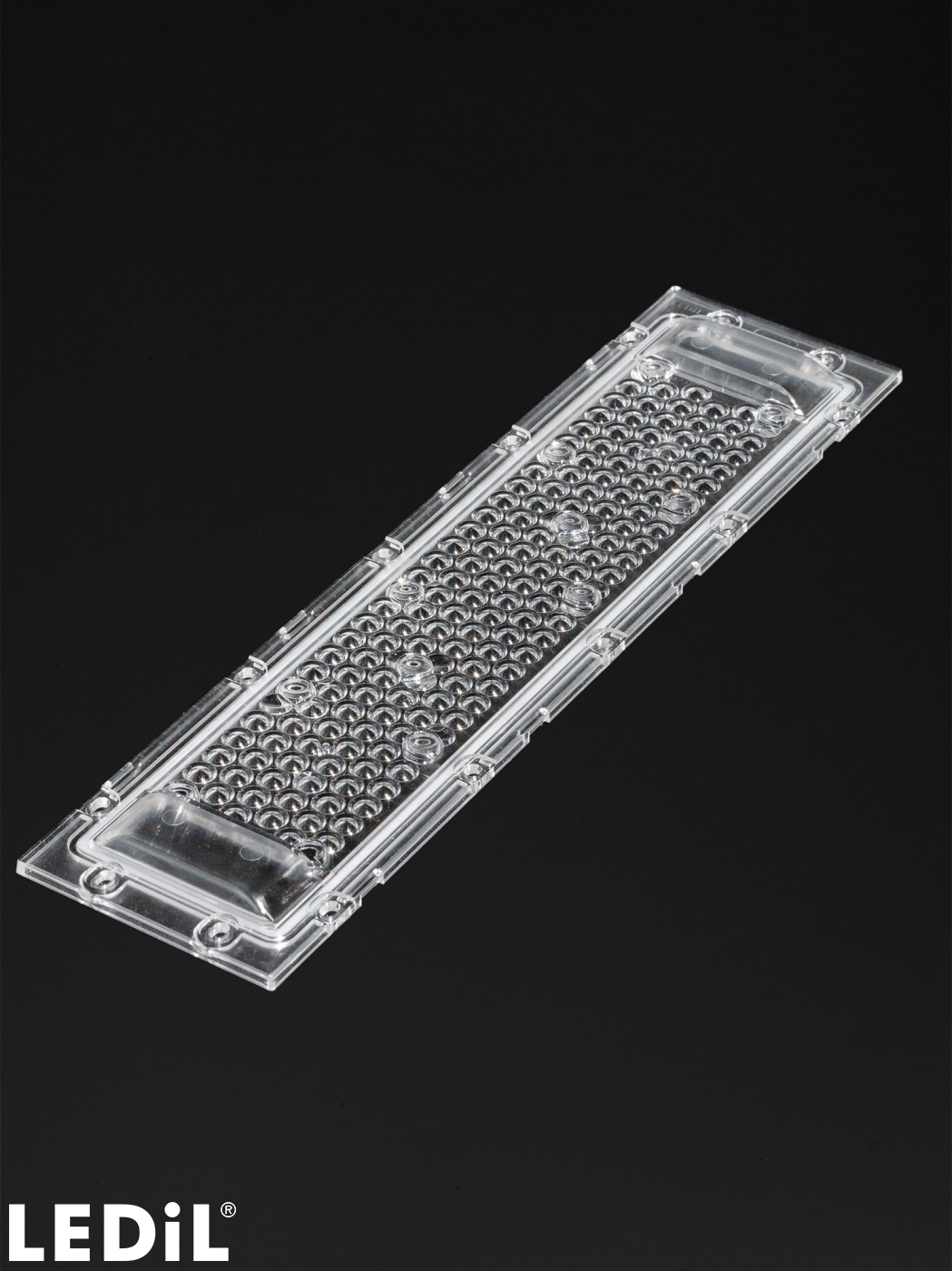

CS16619_DAHLIA-TL110

Print

~120° wide beam

Specification
  • Dimensions:
    321 x  81 mm
  • Height:
    11.00 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    80 pcs
  • Box size:
    343 x 343 x 298 mm
  • Box weight:
    8.9 kg
  • MPQ:
    4 pcs
  • MOQ:
    80 pcs
  • MOQ size:
    343 x 343 x 298 mm
  • MOQ weight:
    8.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CS16619_DAHLIA-TL110

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

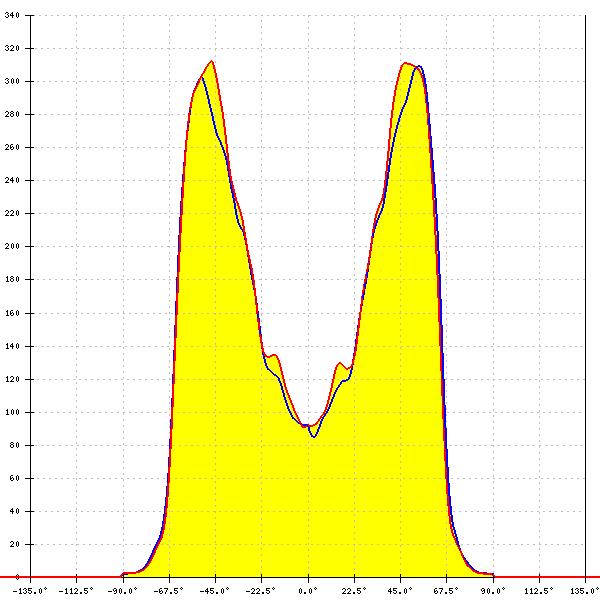

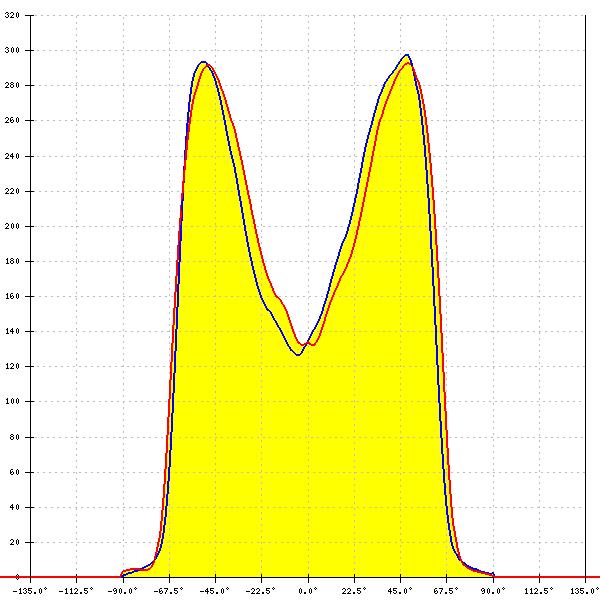

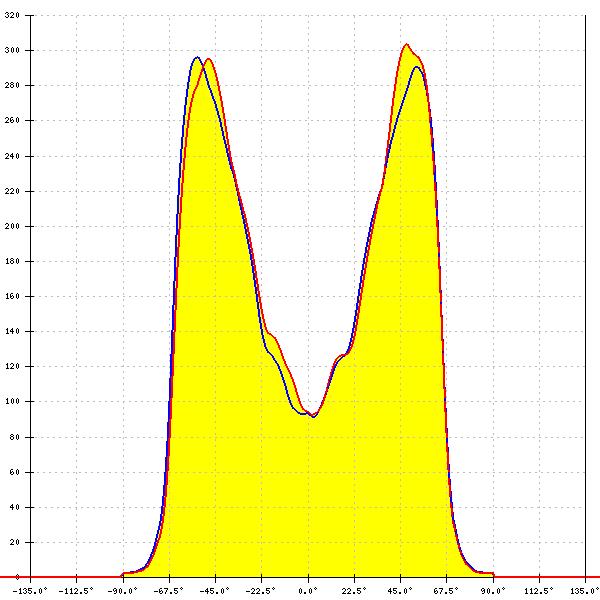

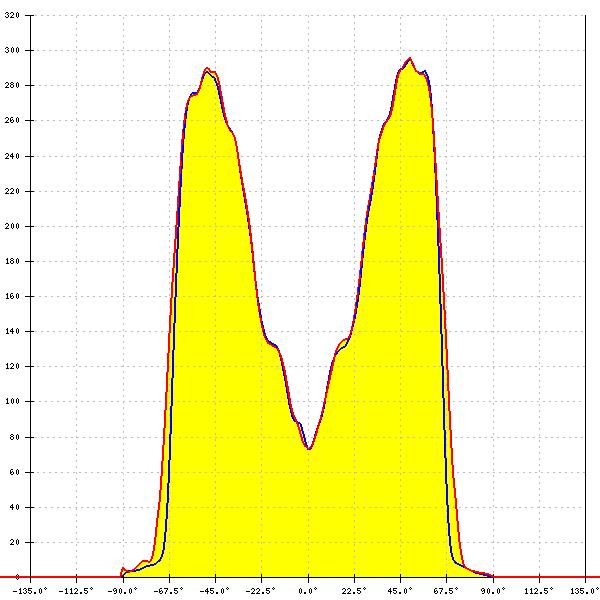

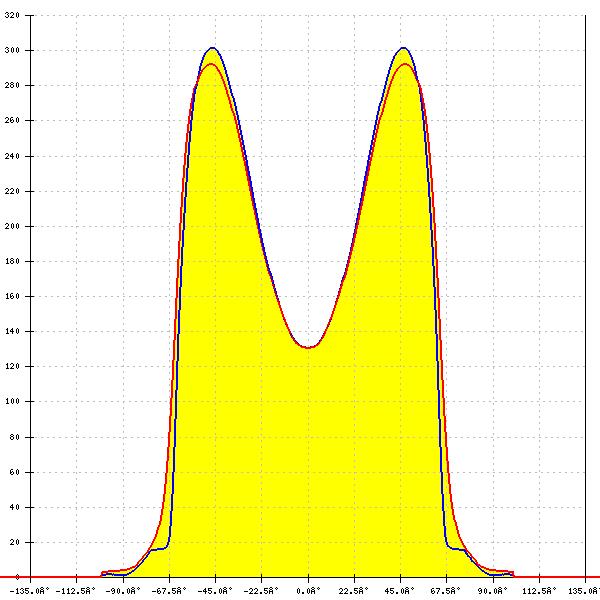

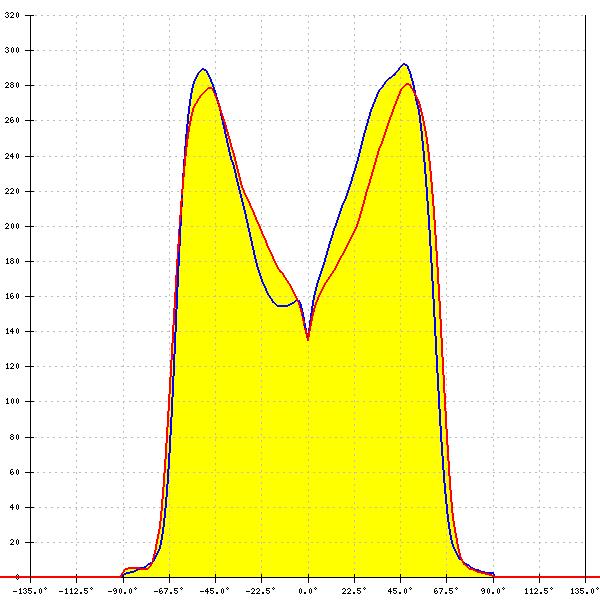

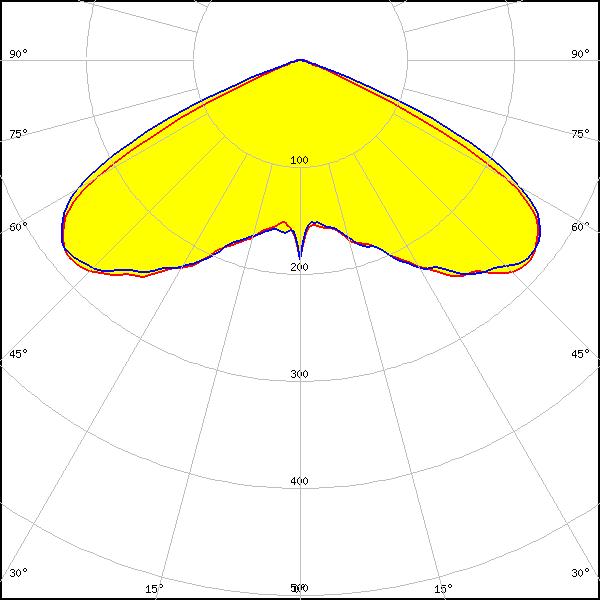

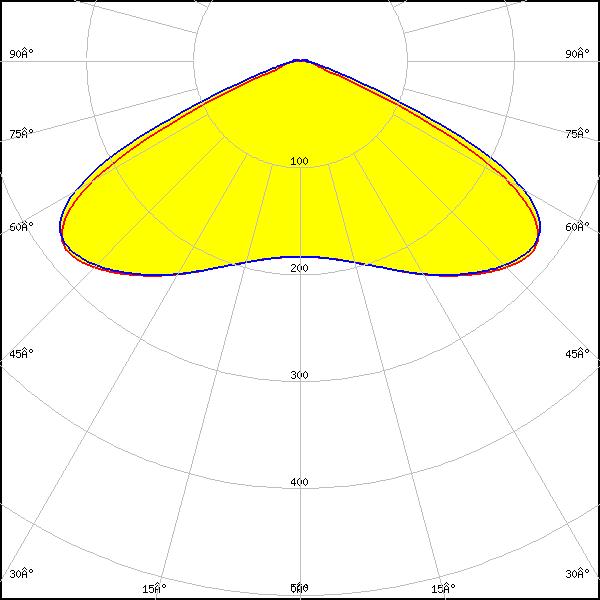

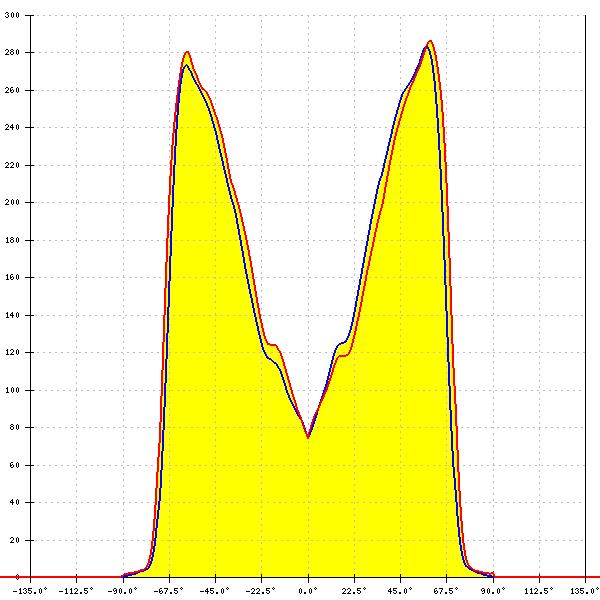

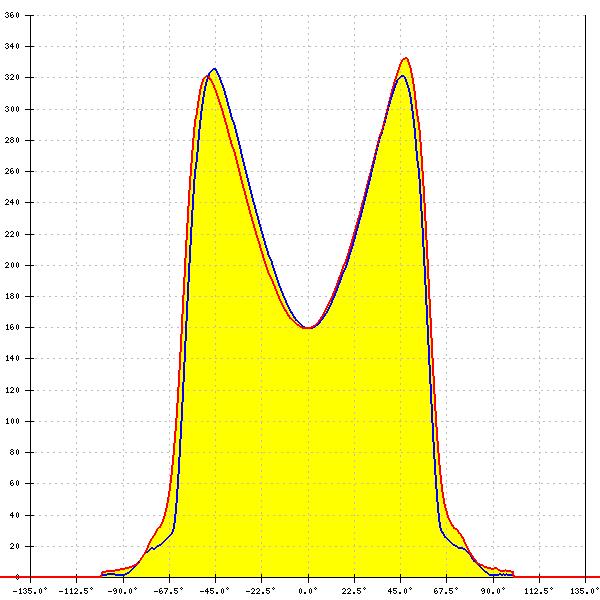

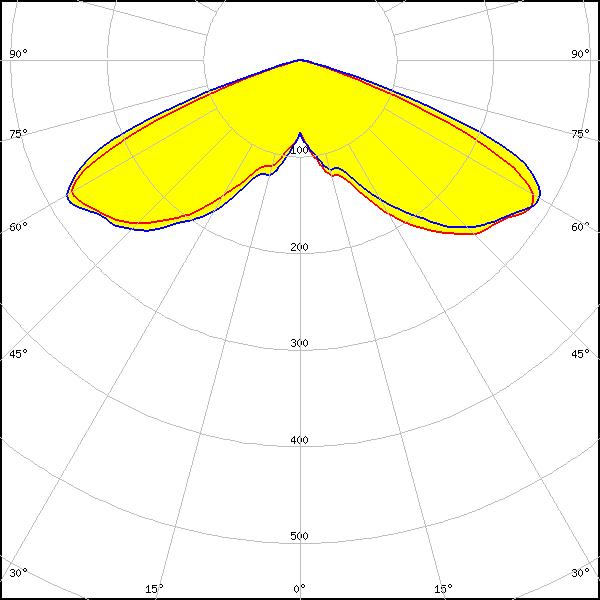

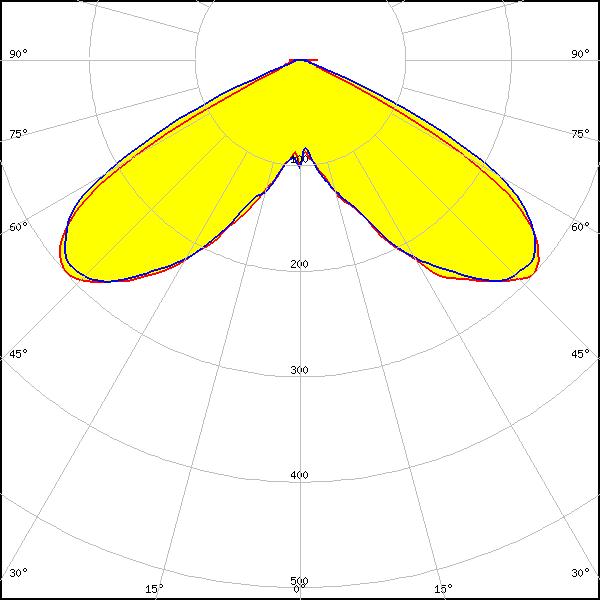

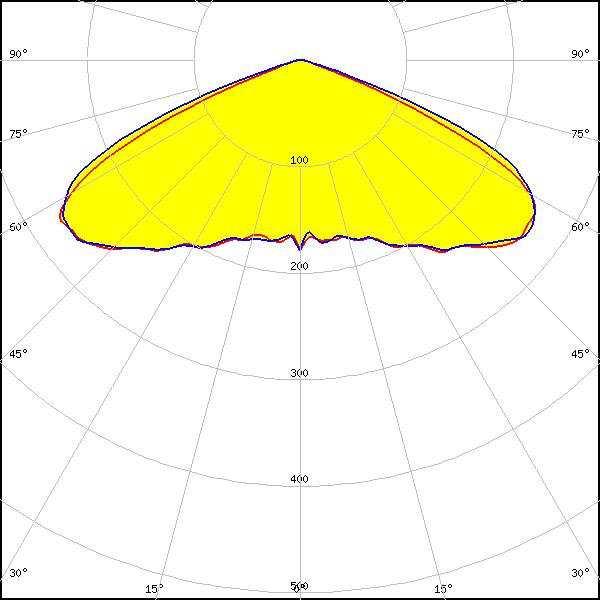

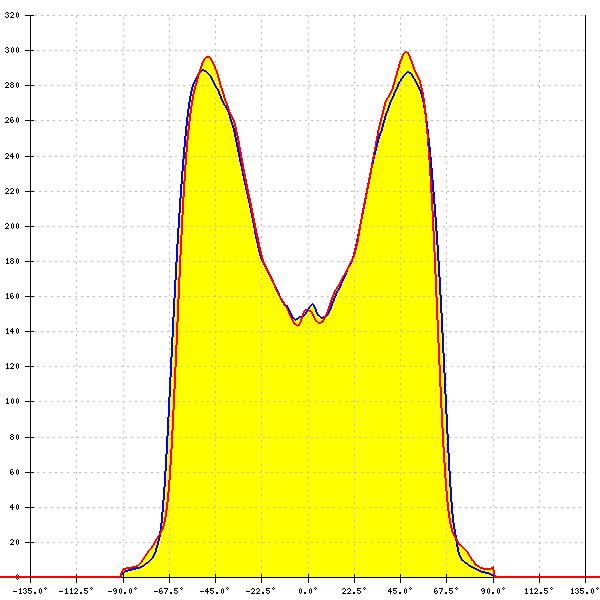

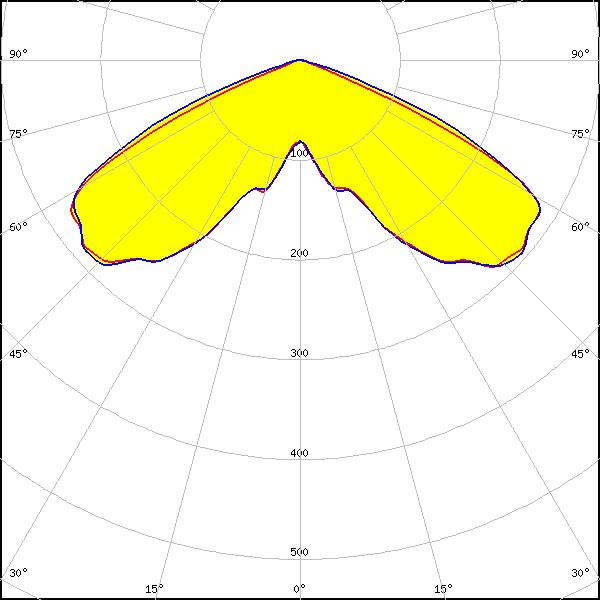

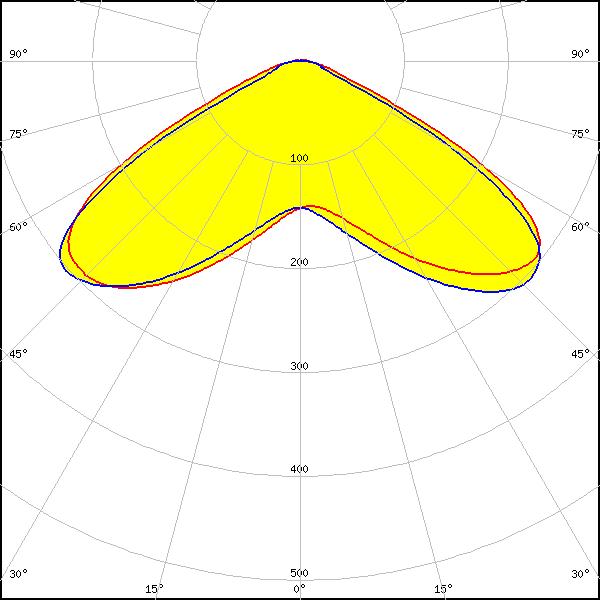

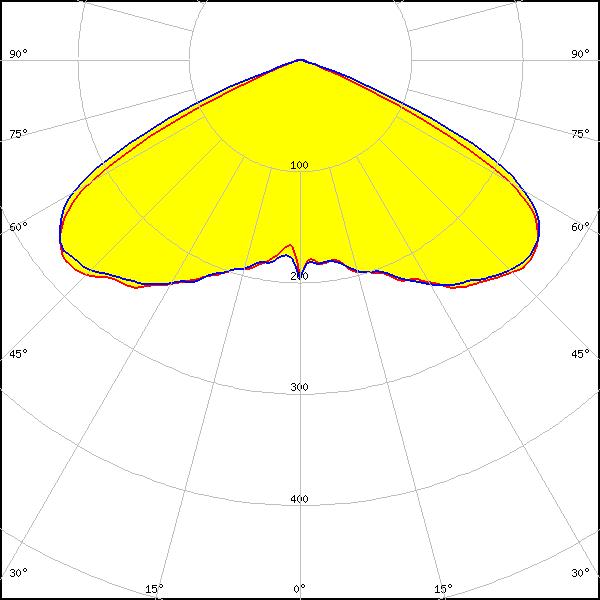

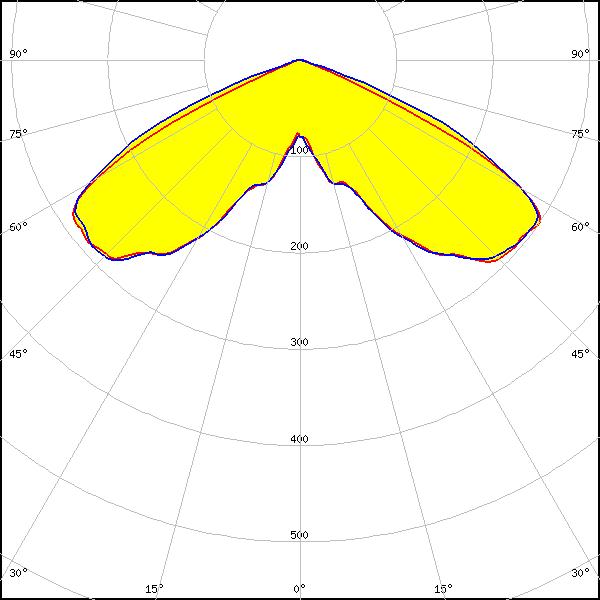

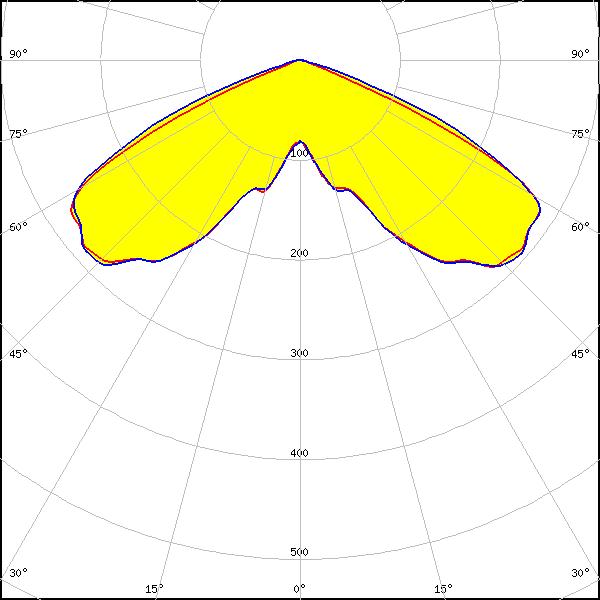

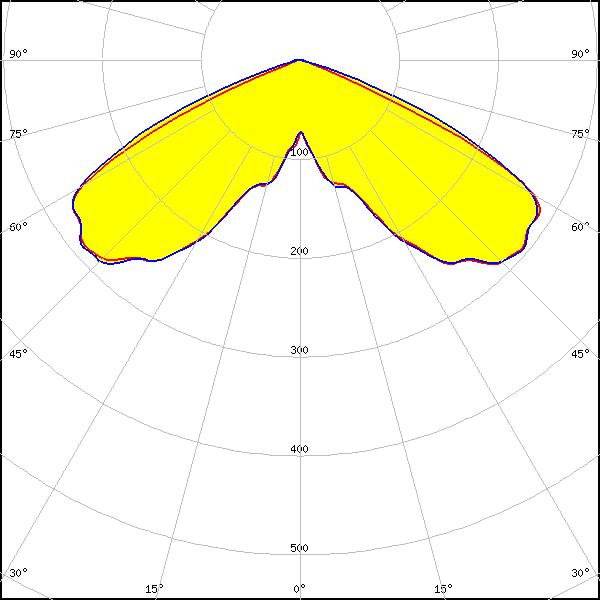

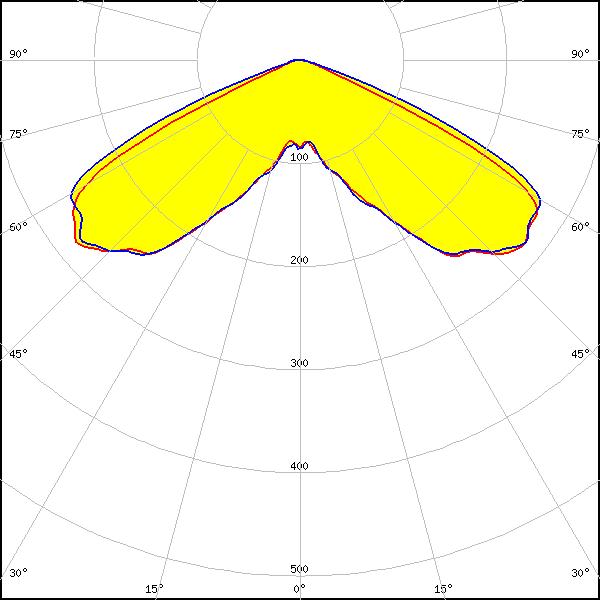

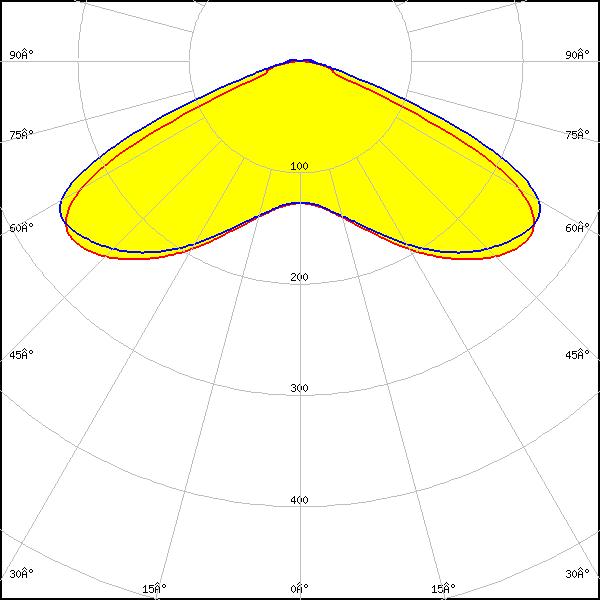

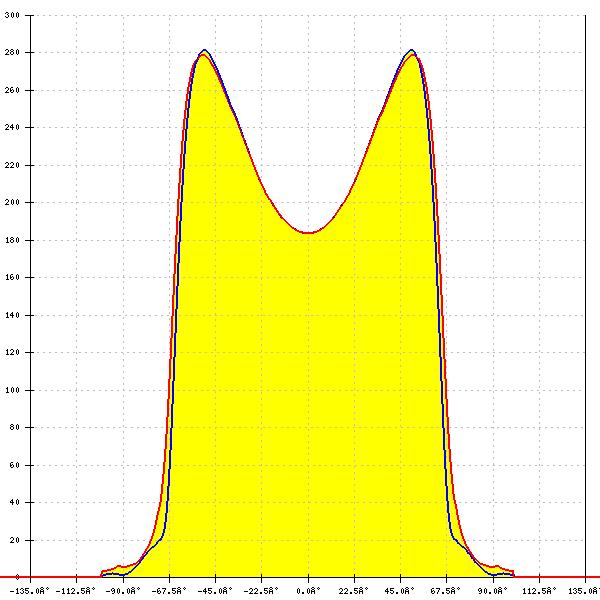

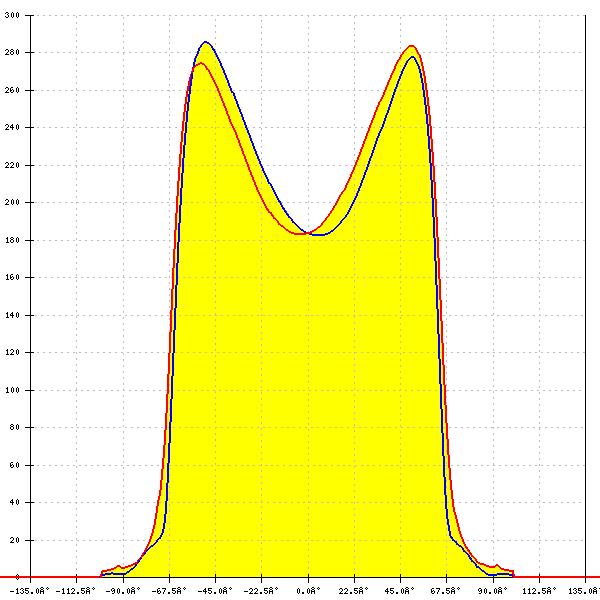

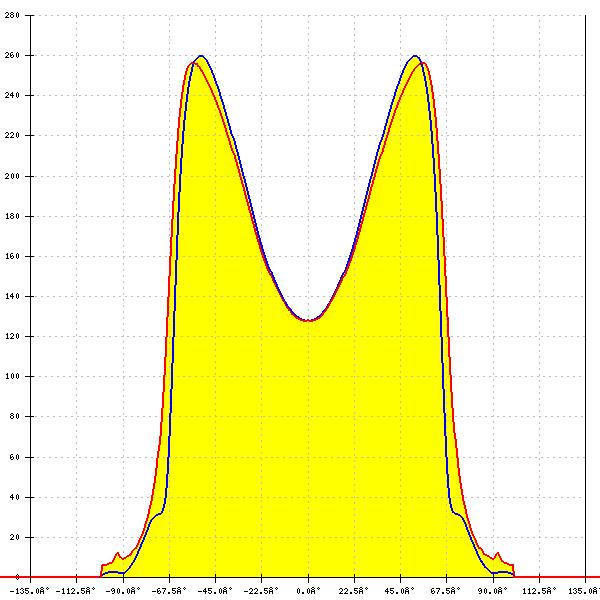

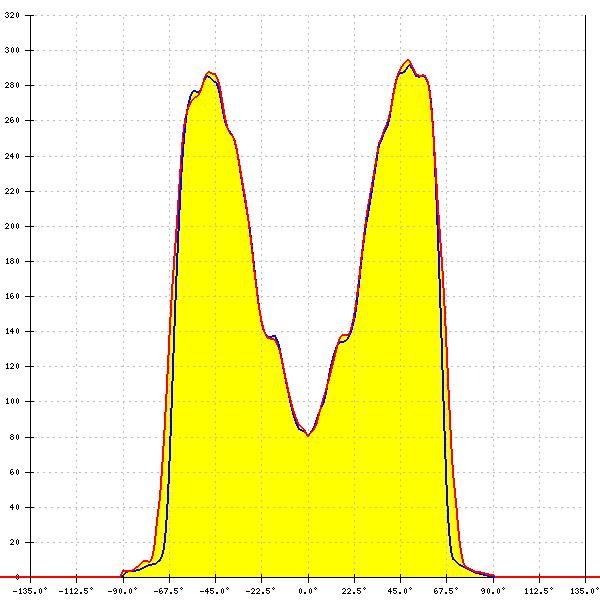

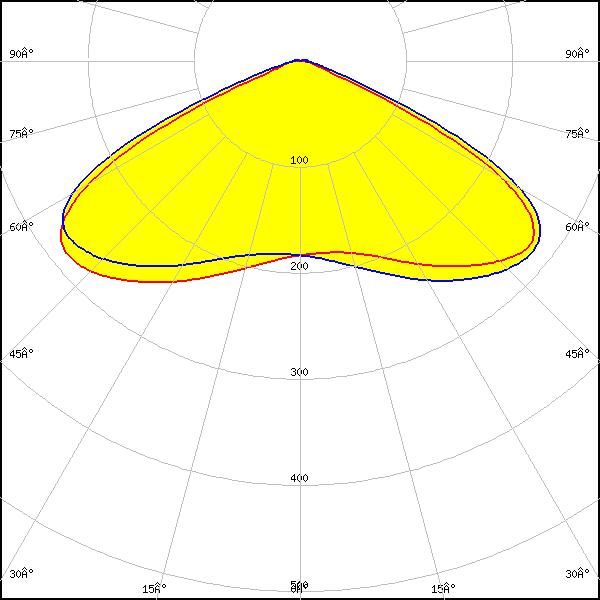

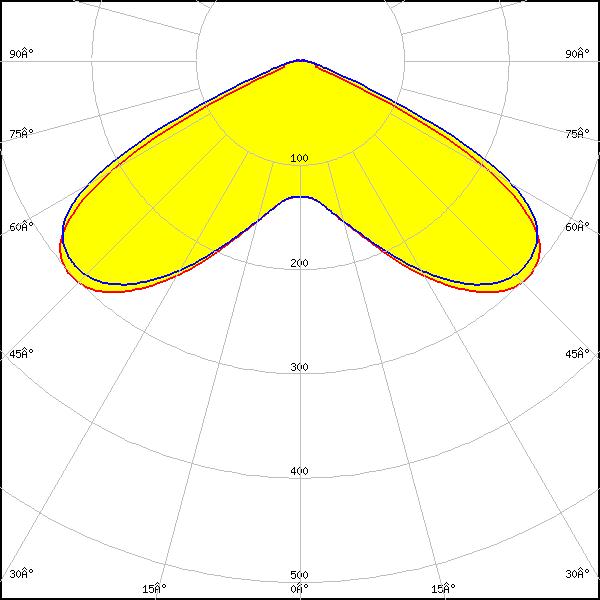

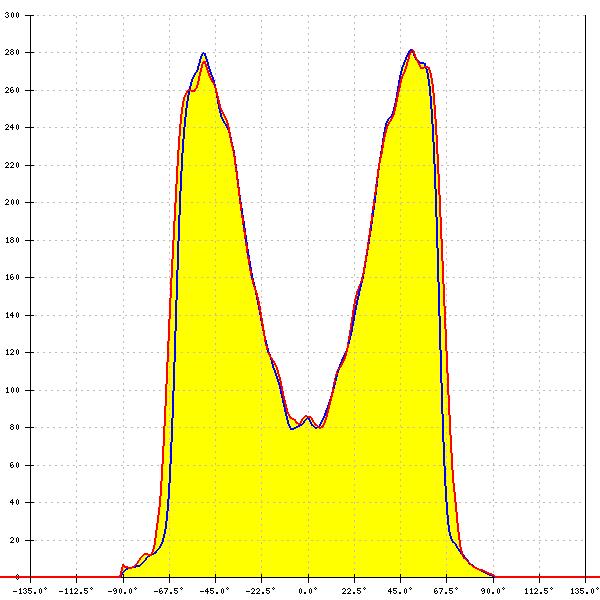

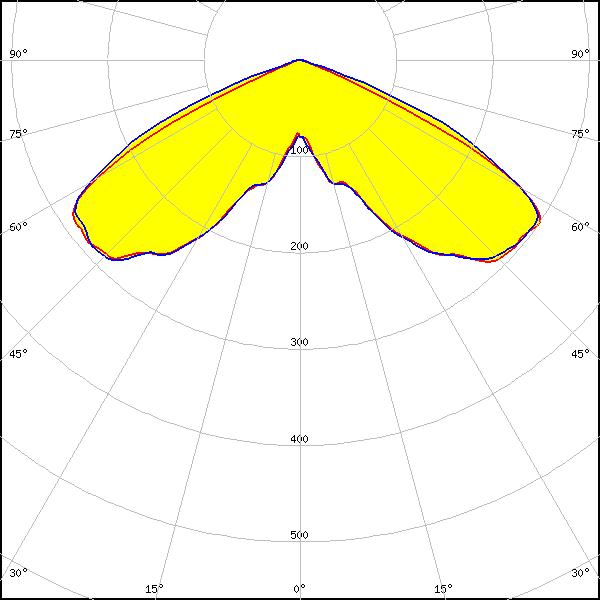

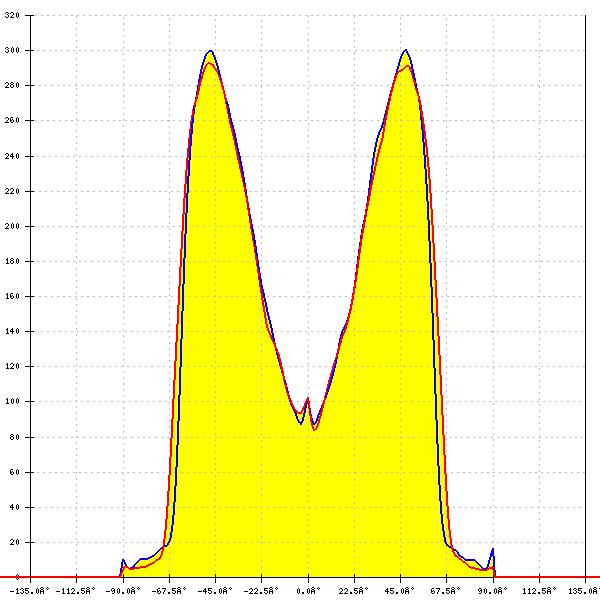

Optical results

LED: L0-278053-RRRR-C1000-K237
FWHM: 122°
FWTM: 142°
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Red

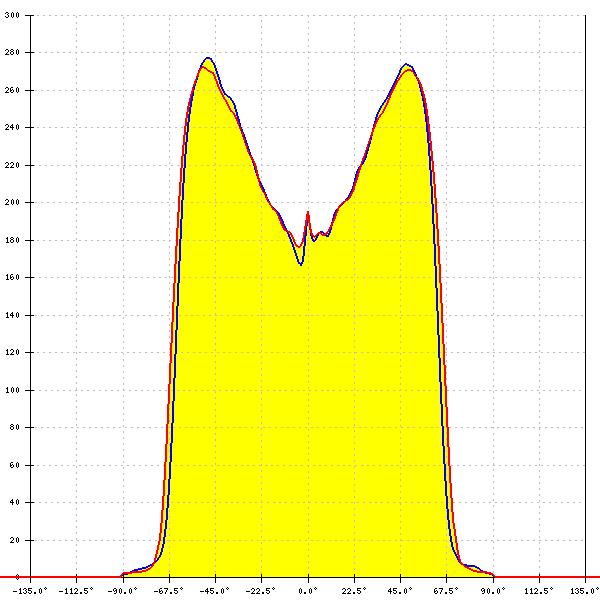

LED: J Series 2835
FWHM: 129°
FWTM: 140°
Peak intensity: 0.278 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

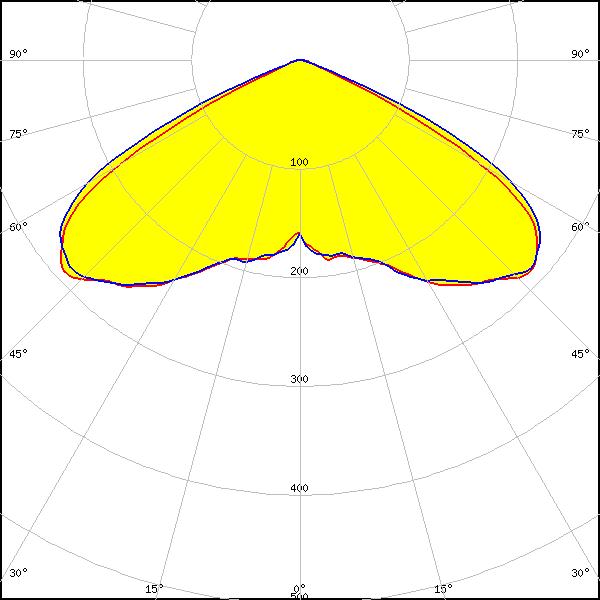

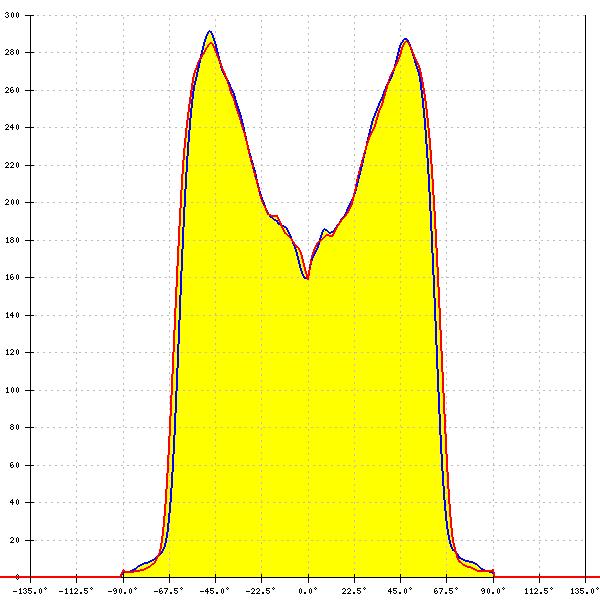

LED: J Series 3030
FWHM: 126°
FWTM: 138°
Peak intensity: 0.291 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

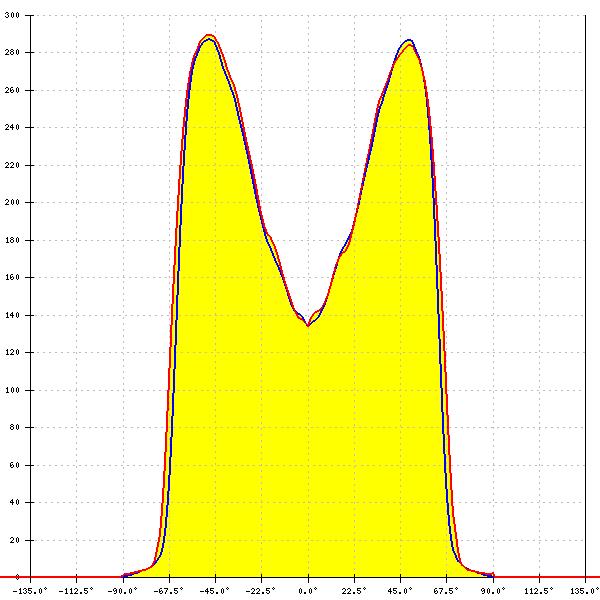

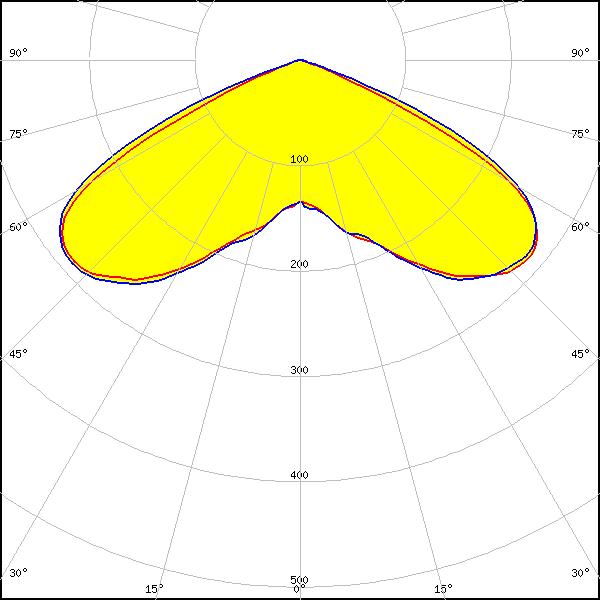

LED: LUXEON 2835 Line
FWHM: 118°
FWTM: 133°
Peak intensity: 0.290 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

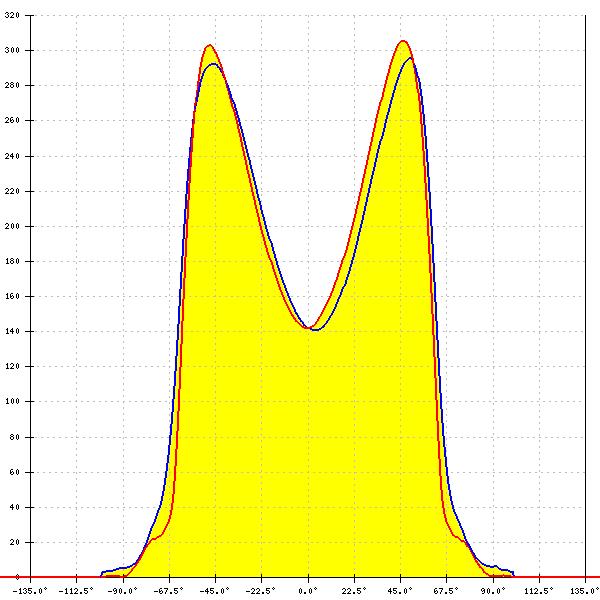

LED: SST-10-B130
FWHM: 123°
FWTM: 140°
Peak intensity: 0.323 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: Deep Red

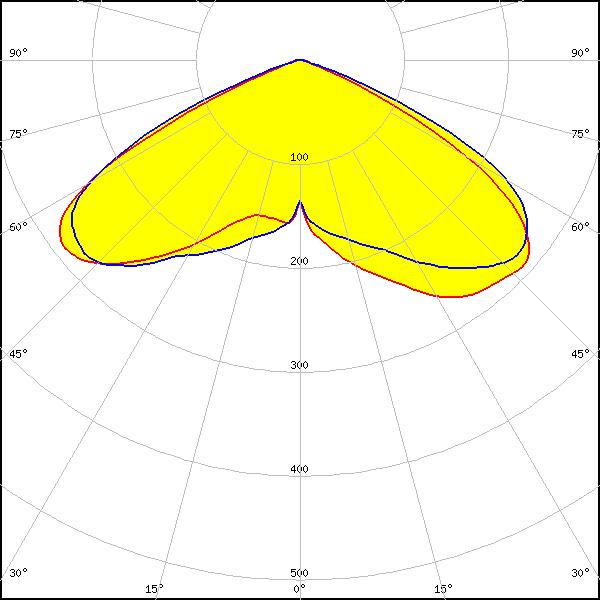

LED: NF2x757G
FWHM: 127°
FWTM: 140°
Peak intensity: 0.290 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

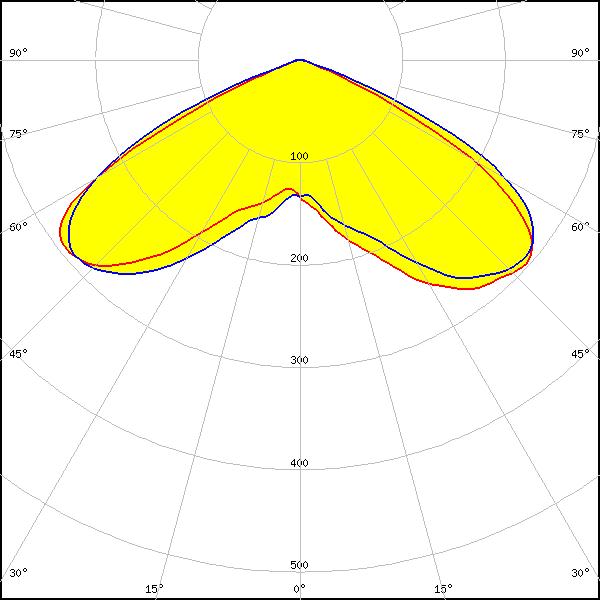

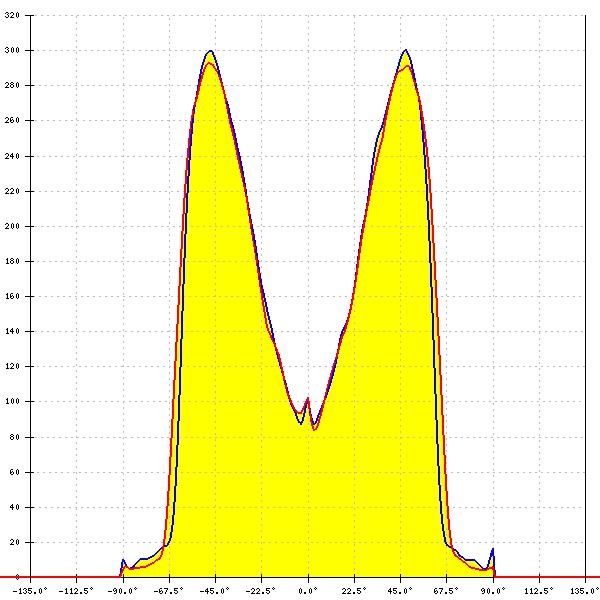

LED: NFSx757G
FWHM: 127°
FWTM: 140°
Peak intensity: 0.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

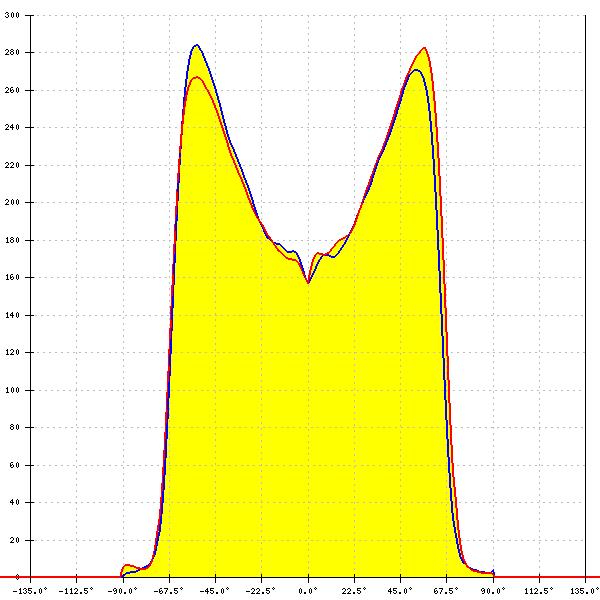

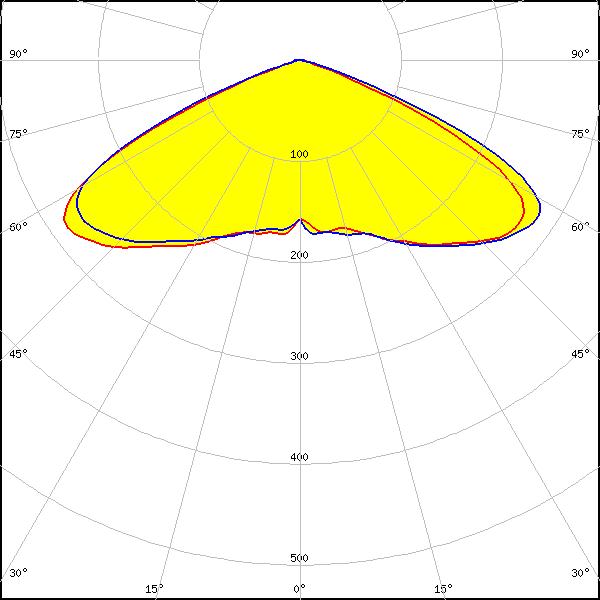

LED: NVSxx19B/NVSxx19C
FWHM: 132°
FWTM: 144°
Peak intensity: 0.280 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

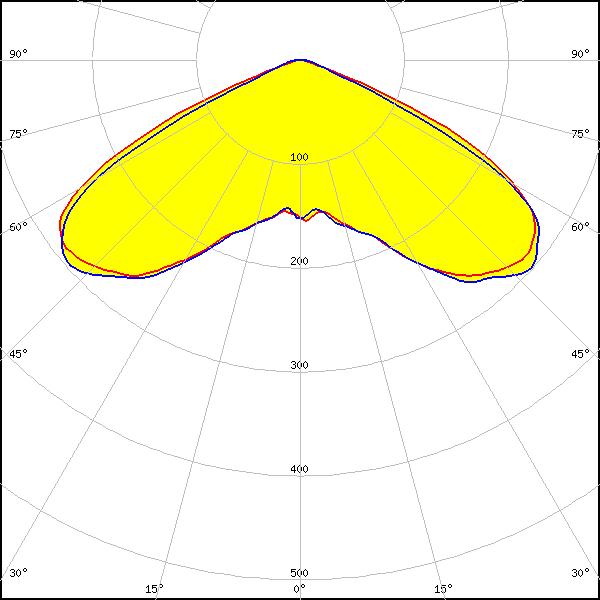

LED: Duris S5 (Single chip)
FWHM: 128°
FWTM: 141°
Peak intensity: 0.299 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

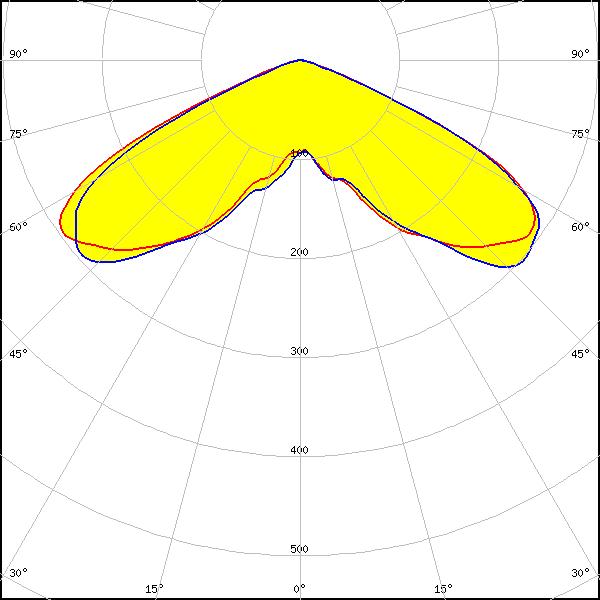

LED: OSCONIQ P 3030
FWHM: 128°
FWTM: 142°
Peak intensity: 0.324 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Hyper Red
LED: OSCONIQ P 3030
FWHM: 129°
FWTM: 142°
Peak intensity: 0.319 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

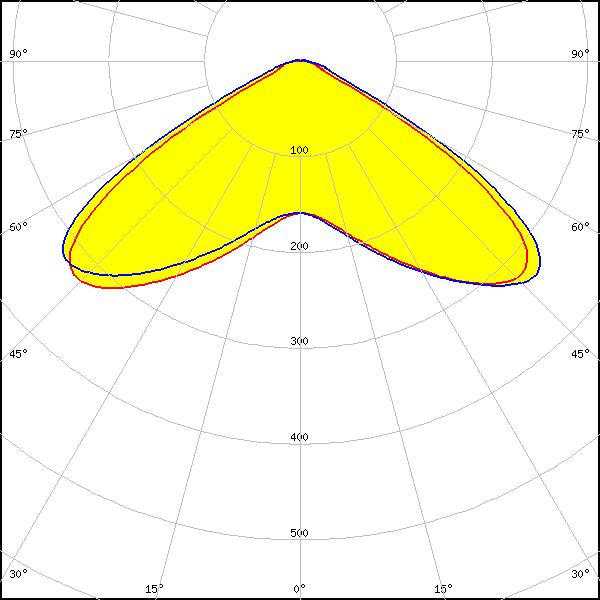

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 122°
FWTM: 142°
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Hyper Red

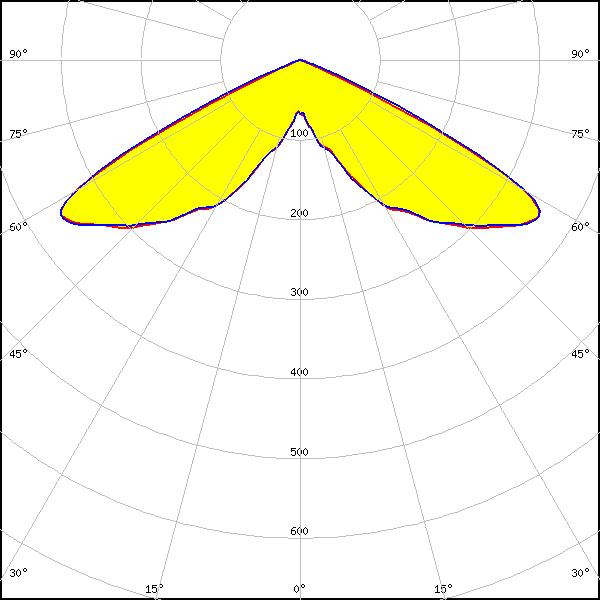

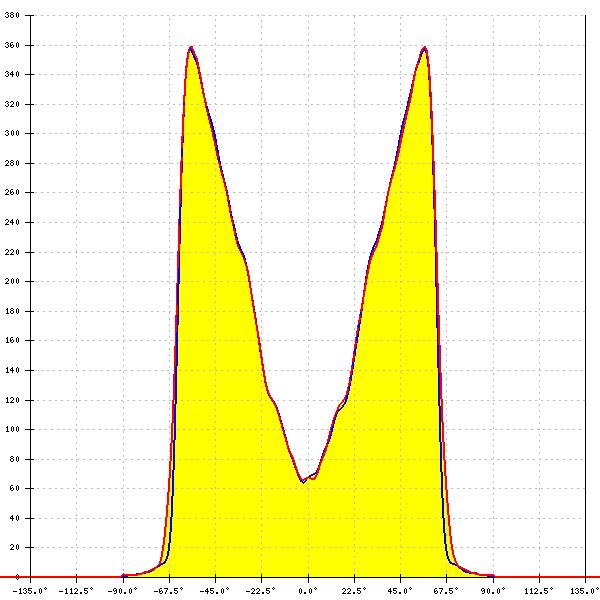

LED: OSLON SSL 120
FWHM: 127°
FWTM: 135°
Peak intensity: 0.373 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: Red

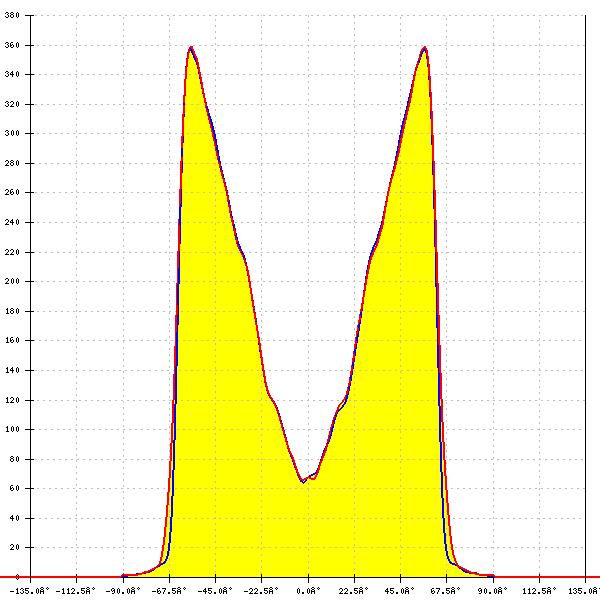

LED: OSLON SSL 120
FWHM: 127°
FWTM: 137°
Peak intensity: 0.347 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: Red
LED: OSLON SSL 120
FWHM: 128°
FWTM: 137°
Peak intensity: 0.331 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Blue

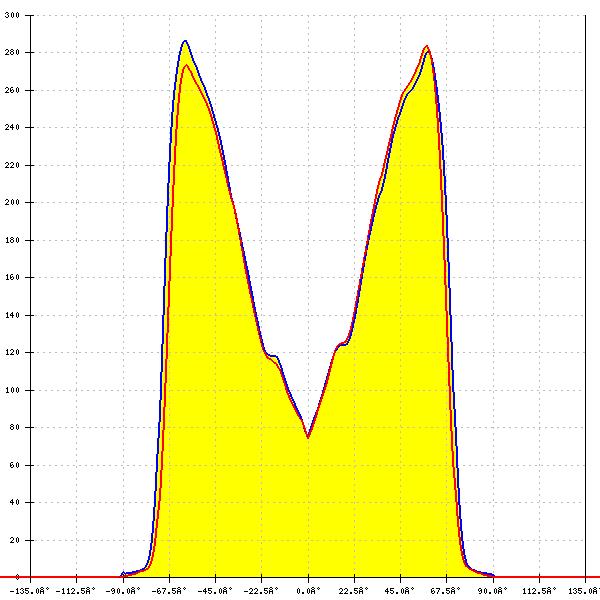

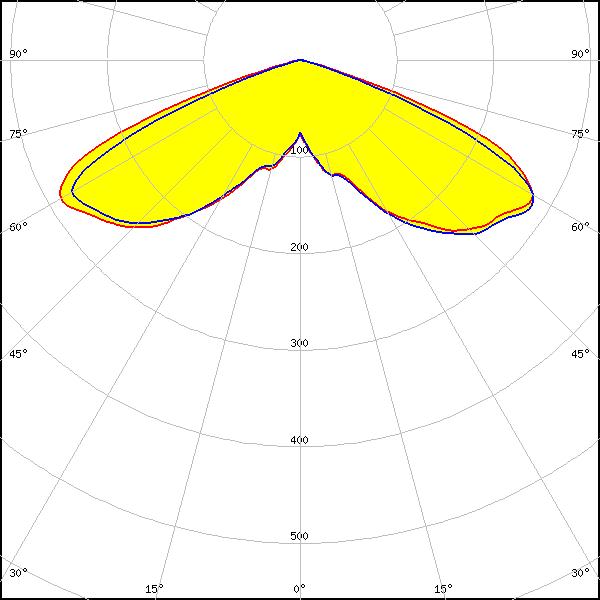

LED: OSLON SSL 150
FWHM: 137°
FWTM: 146°
Peak intensity: 0.288 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

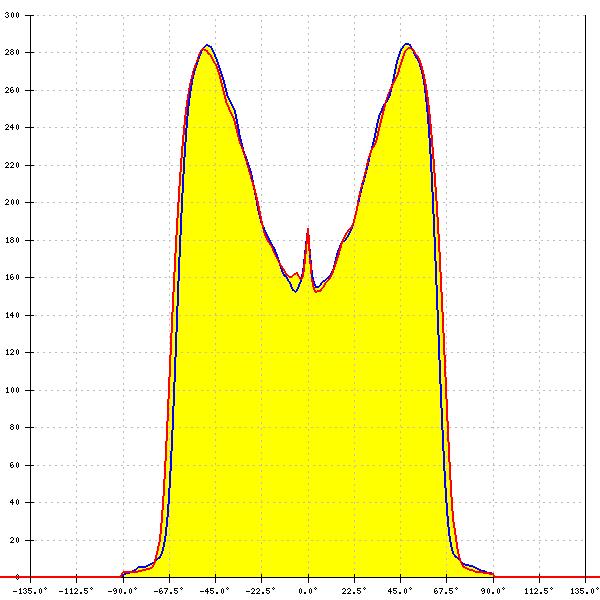

LED: SEOUL DC 3030
FWHM: 129°
FWTM: 140°
Peak intensity: 0.286 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

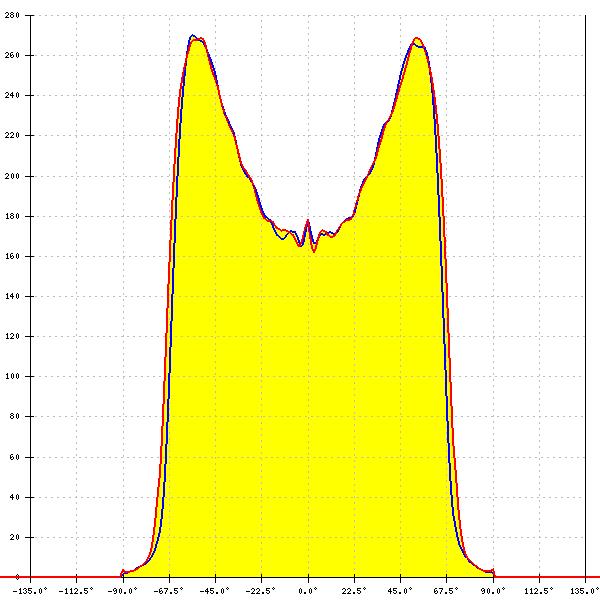

LED: Z5M
FWHM: 134°
FWTM: 146°
Peak intensity: 0.270 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
