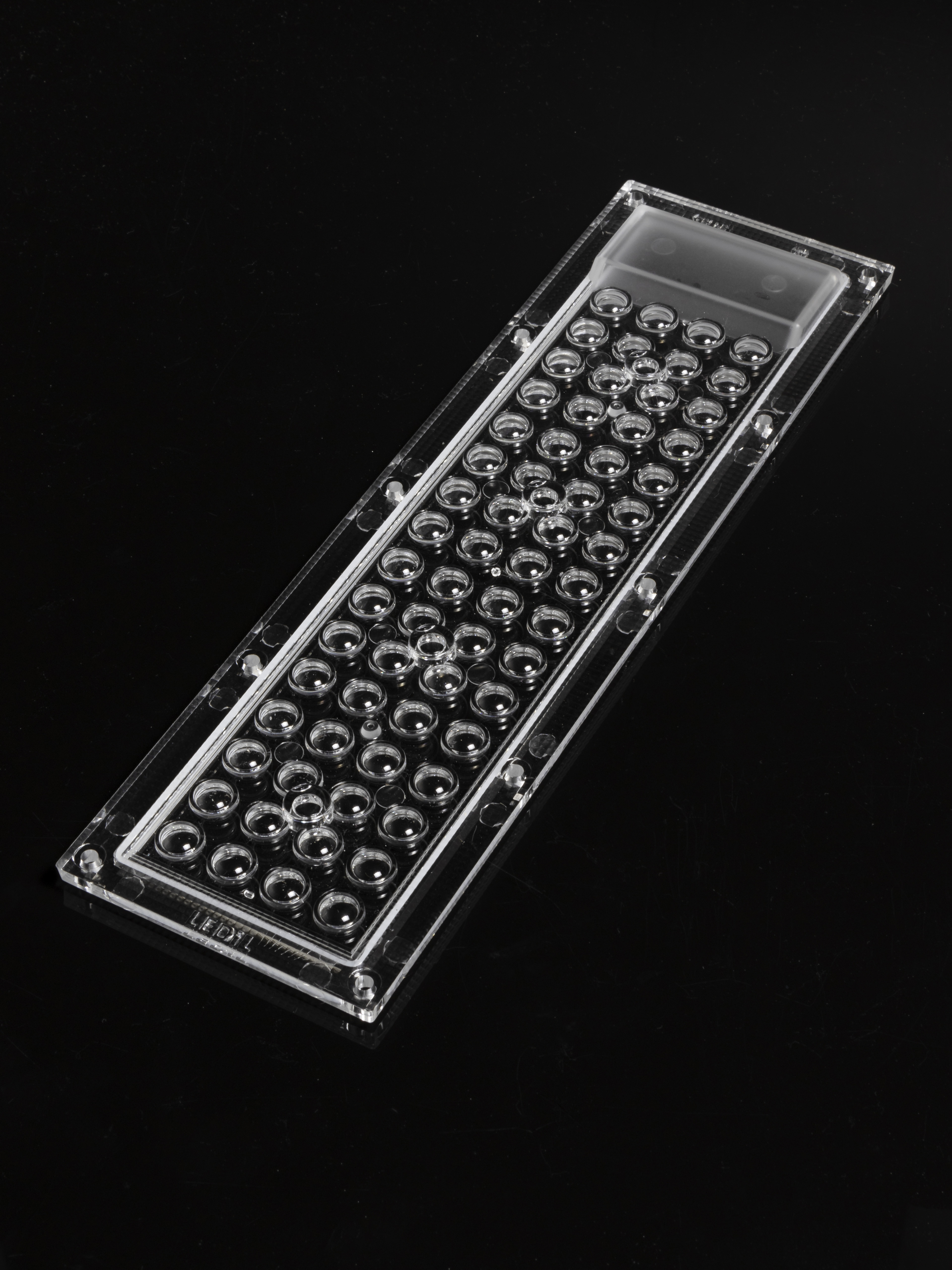

CS17219_STRADELLA-IP-64-HB-W

Print

~90° spot beam.

Specification
  • Dimensions:
    74 x  253 mm
  • Height:
    9.20 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    108 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    9.1 kg
  • MPQ:
    36 pcs
  • MOQ:
    108 pcs
  • MOQ size:
    476 x 273 x 247 mm
  • MOQ weight:
    9.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CS17219_STRADELLA-IP-64-HB-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

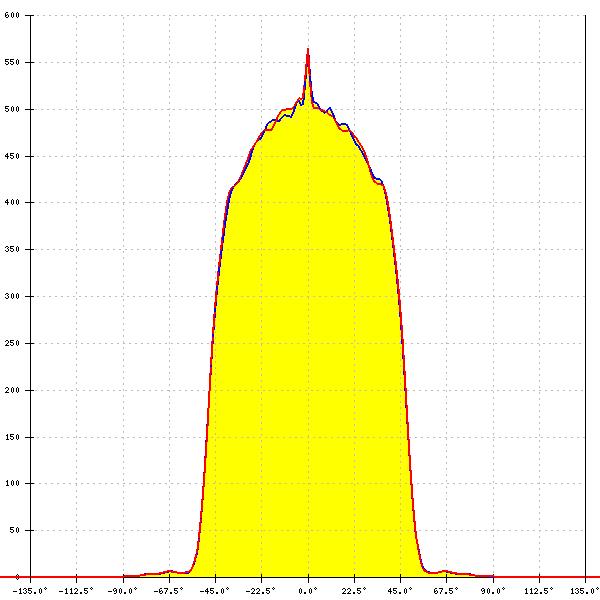

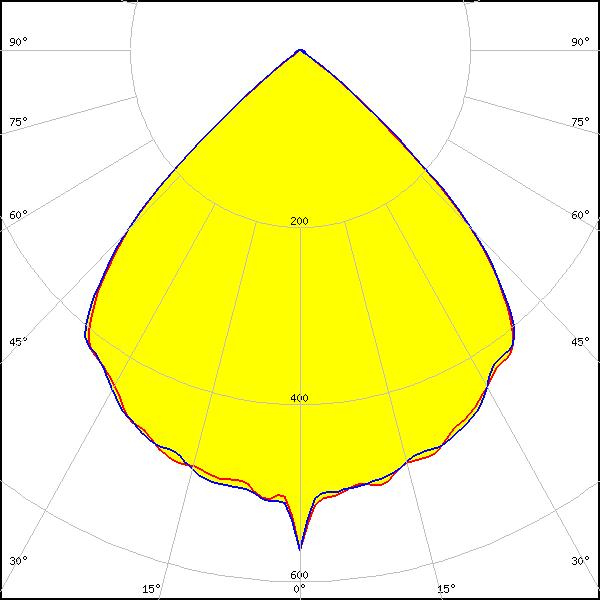

LED: J Series 2835
FWHM: 90°
FWTM: 104°
Peak intensity: 0.565 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

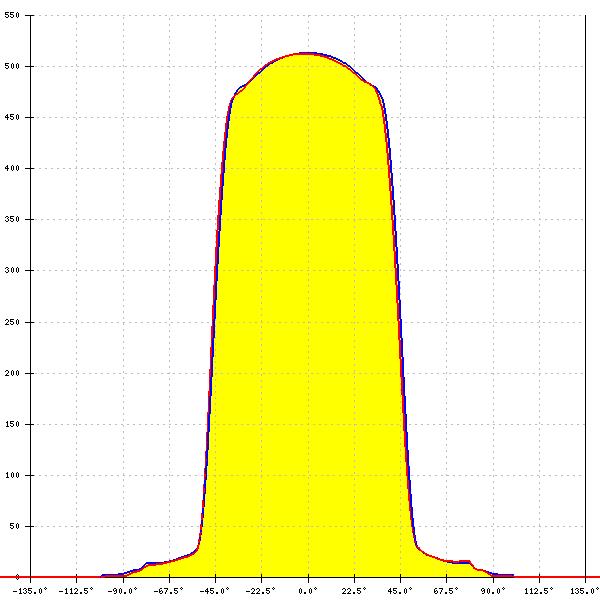

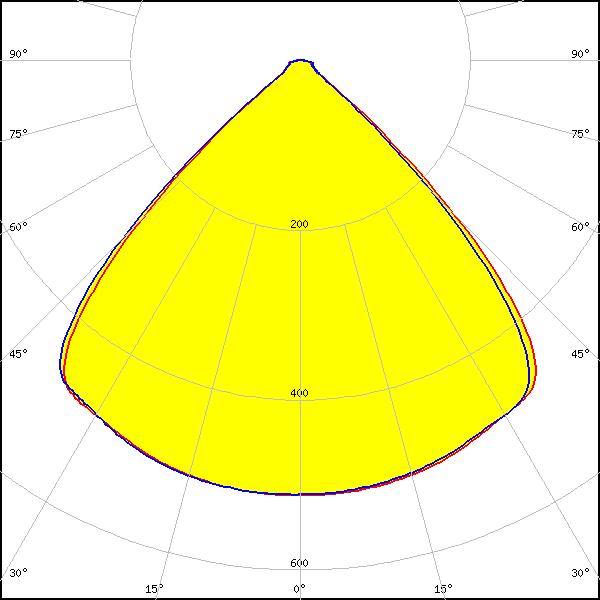

LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM: 90°
FWTM: 103°
Peak intensity: 0.513 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

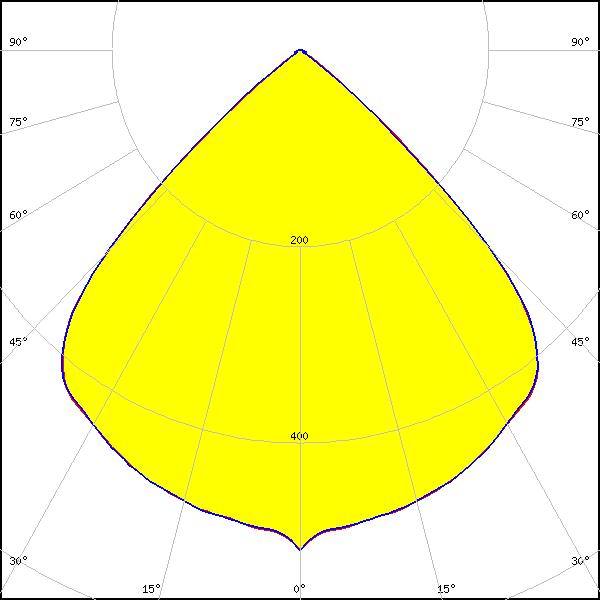

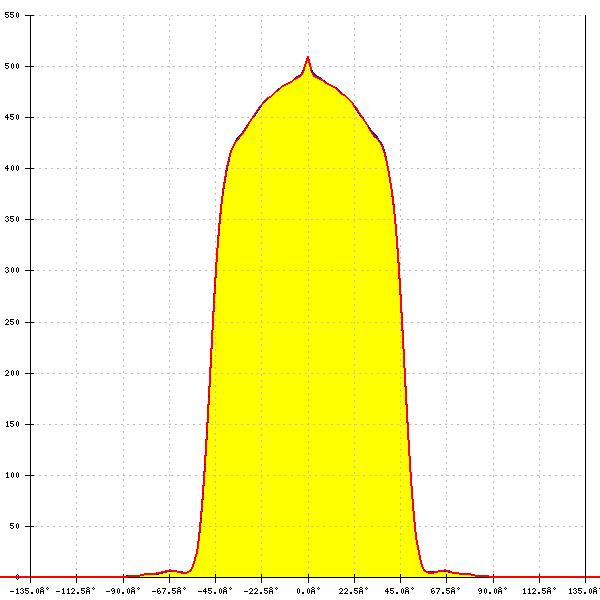

LED: LUXEON 3030 2D (Round LES)
FWHM: 92°
FWTM: 104°
Peak intensity: 0.509 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

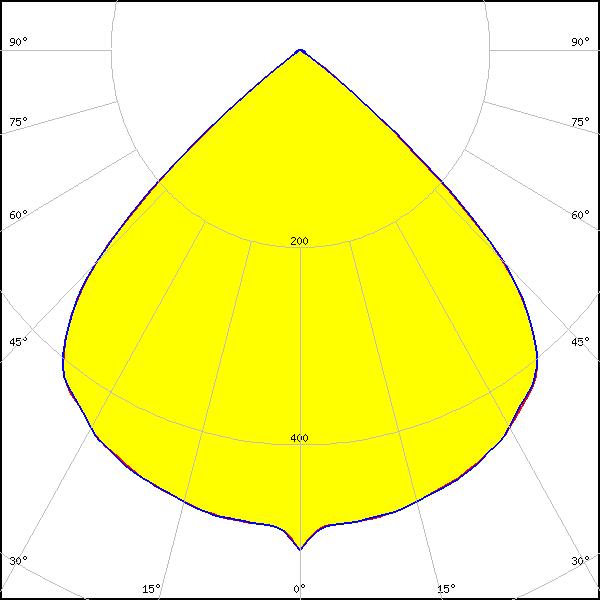

LED: LUXEON 3030 2D (Square LES)
FWHM: 94°
FWTM: 106°
Peak intensity: 0.507 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

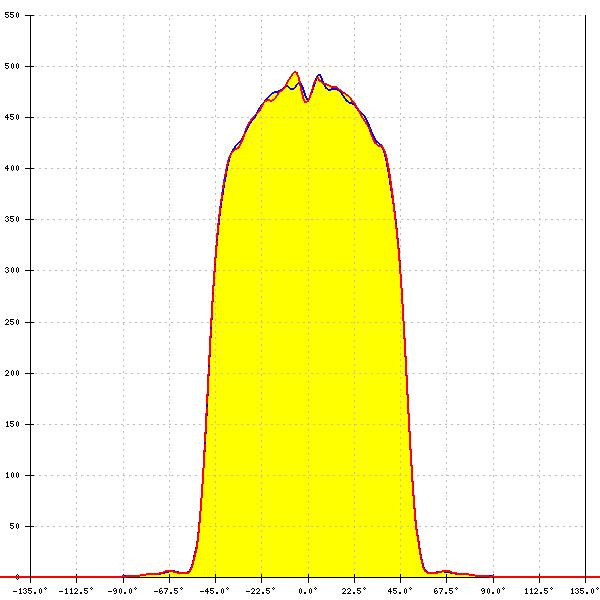

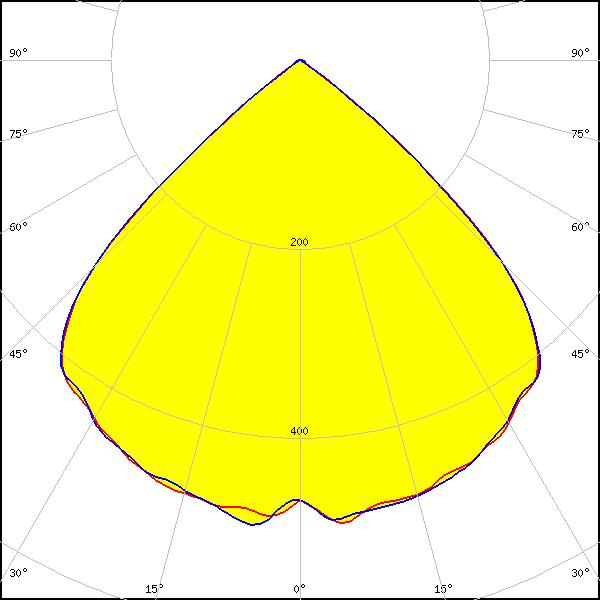

LED: LUXEON 3030 HE Plus
FWHM: 94°
FWTM: 106°
Peak intensity: 0.510 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

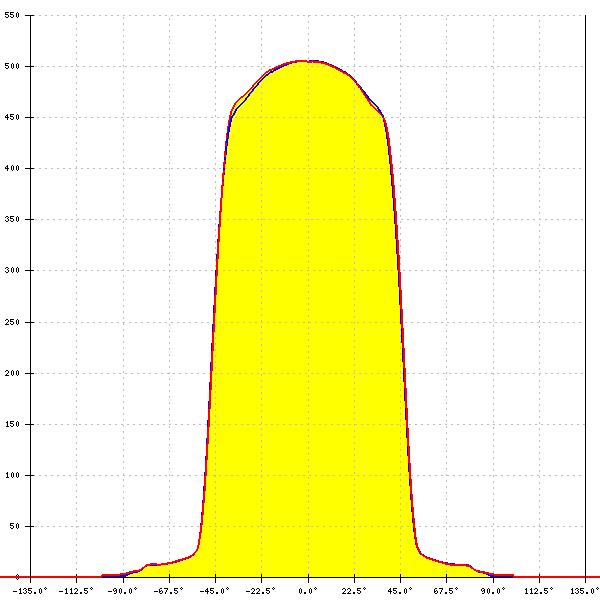

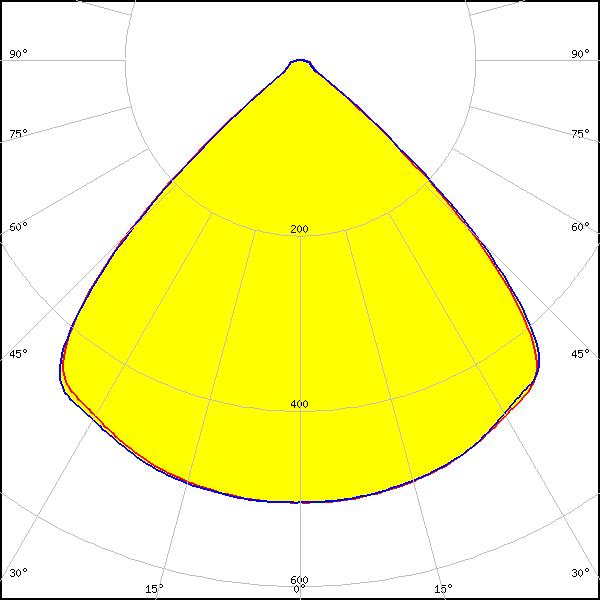

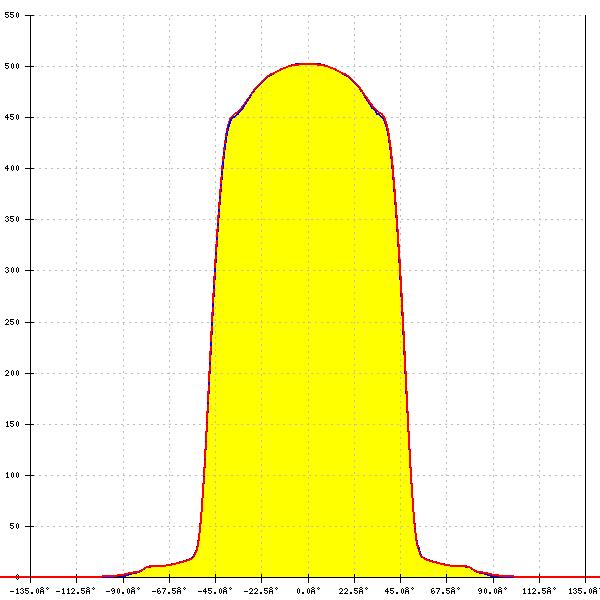

LED: RecLED 223x50mm 4200lm 8x0 4x16 Opt G1
FWHM: 91°
FWTM: 104°
Peak intensity: 0.505 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

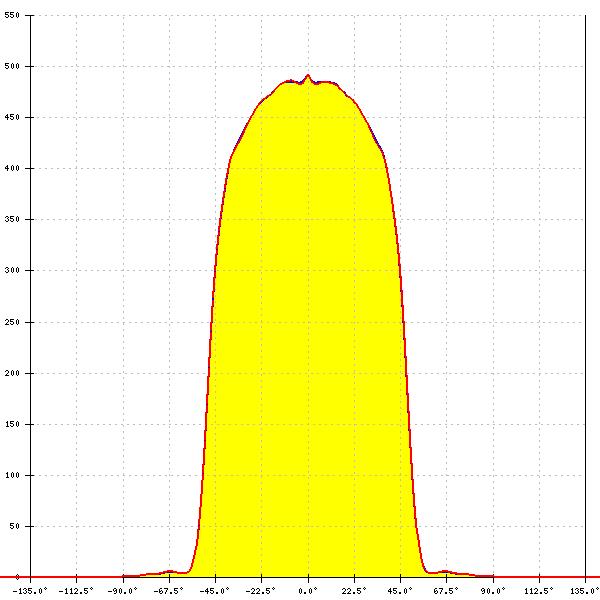

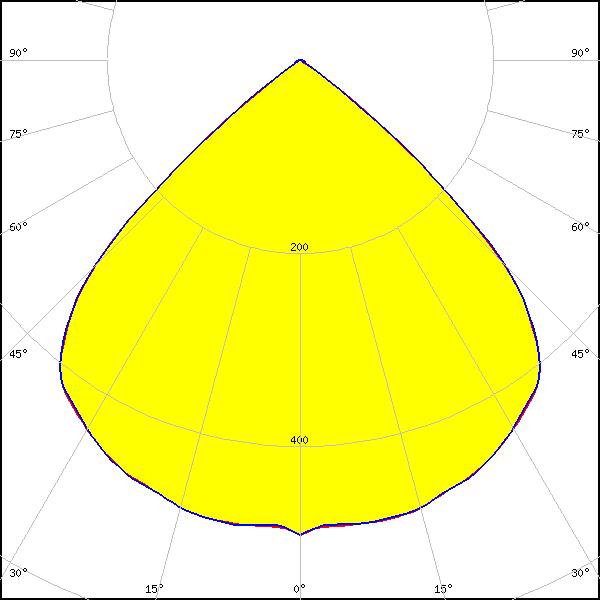

LED: NF2x757G
FWHM: 94°
FWTM: 106°
Peak intensity: 0.495 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

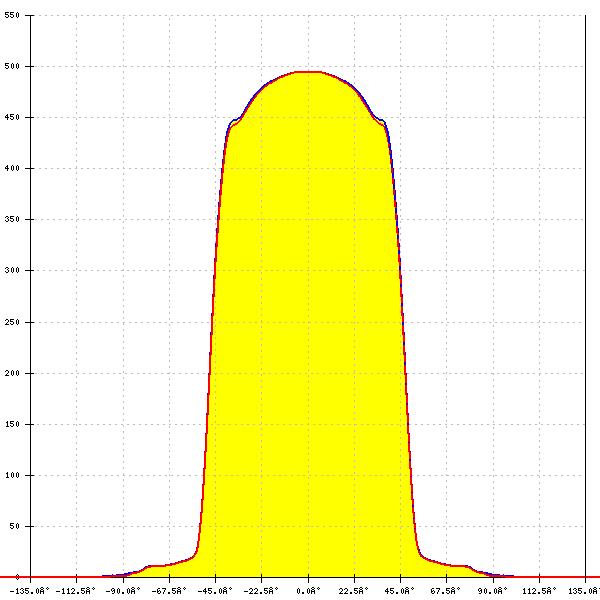

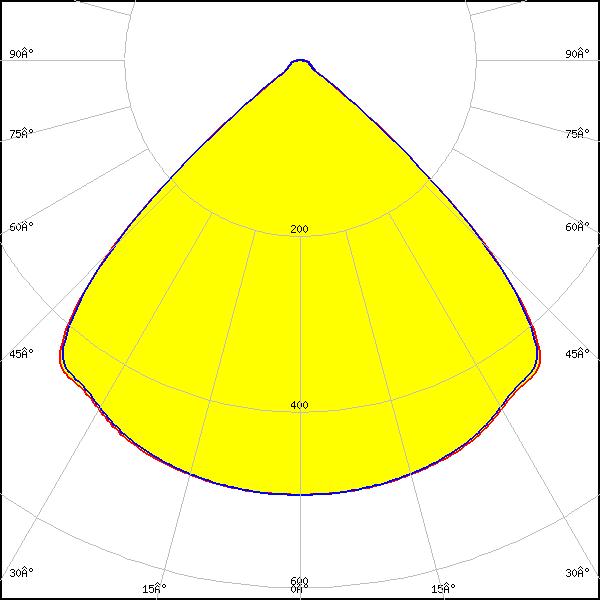

LED: PrevaLED Brick MP 4x16
FWHM: 93°
FWTM: 105°
Peak intensity: 0.495 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris E 2835
FWHM: 94°
FWTM: 106°
Peak intensity: 0.492 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

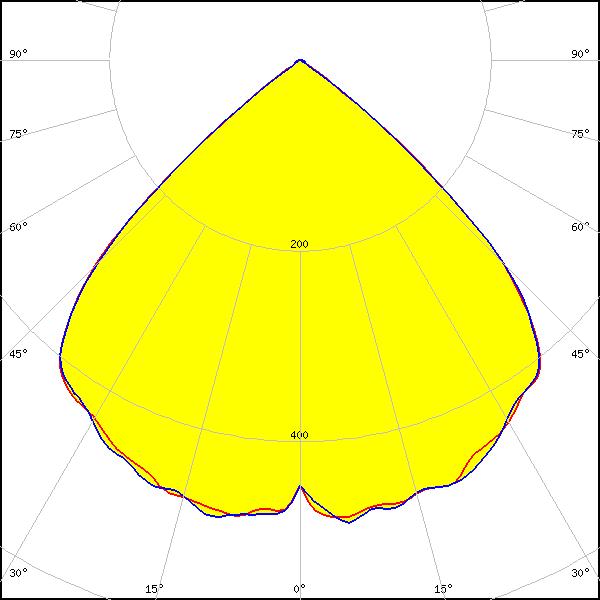

LED: Duris S5 (2 chip)
FWHM: 94°
FWTM: 106°
Peak intensity: 0.497 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

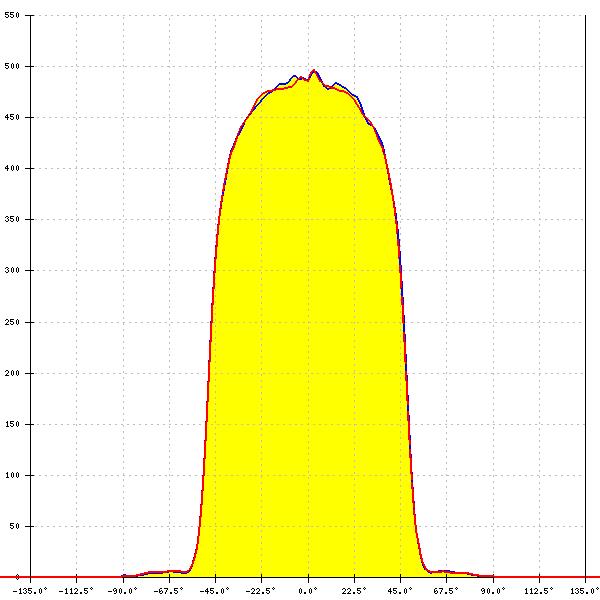

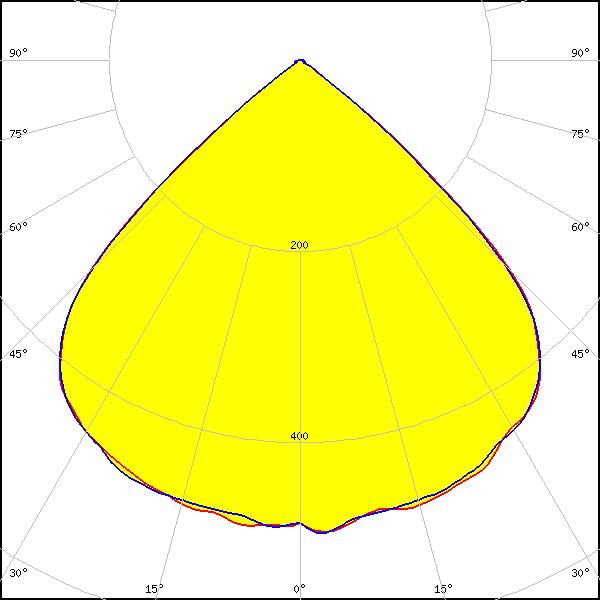

LED: Duris S5 (Single chip)
FWHM: 94°
FWTM: 106°
Peak intensity: 0.501 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

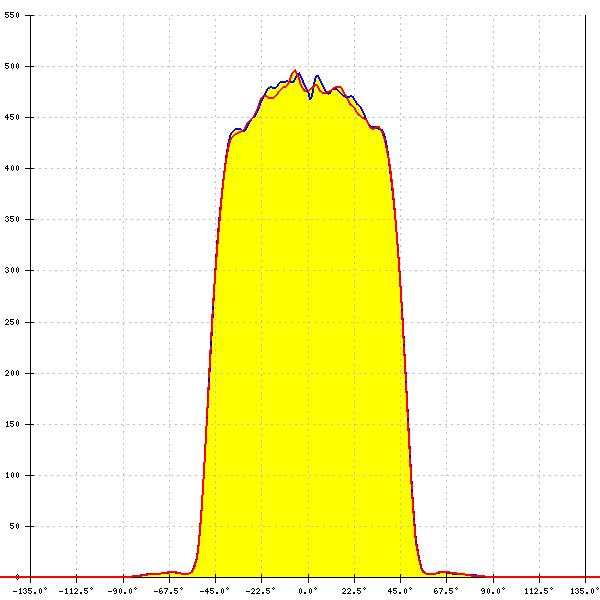

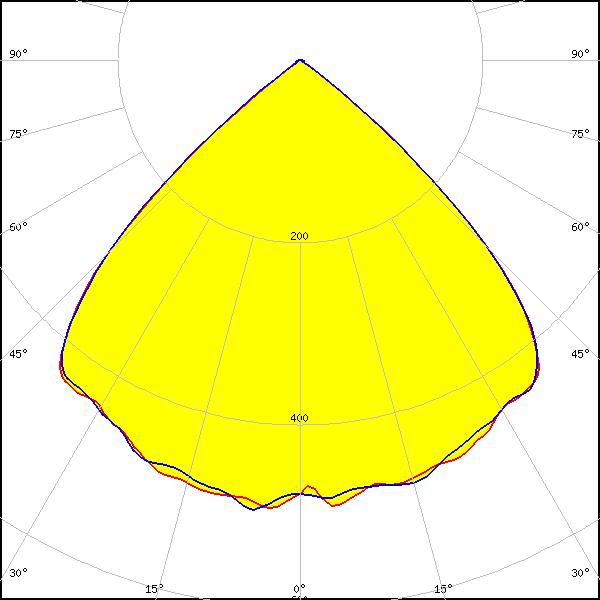

LED: OSCONIQ C 3030
FWHM: 93°
FWTM: 104°
Peak intensity: 0.506 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

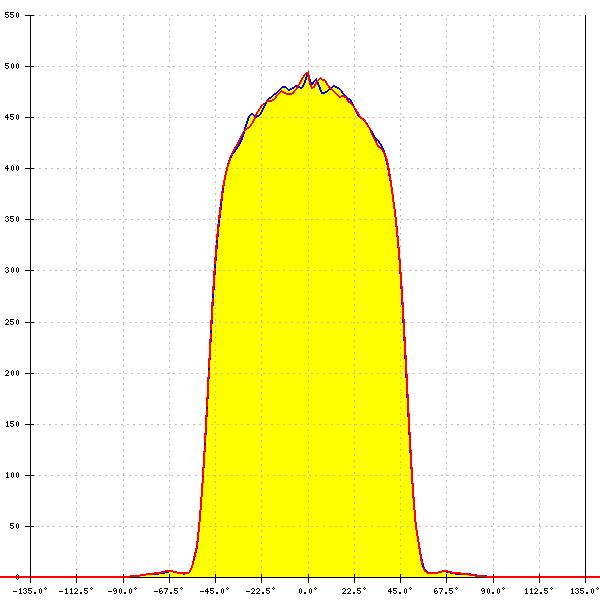

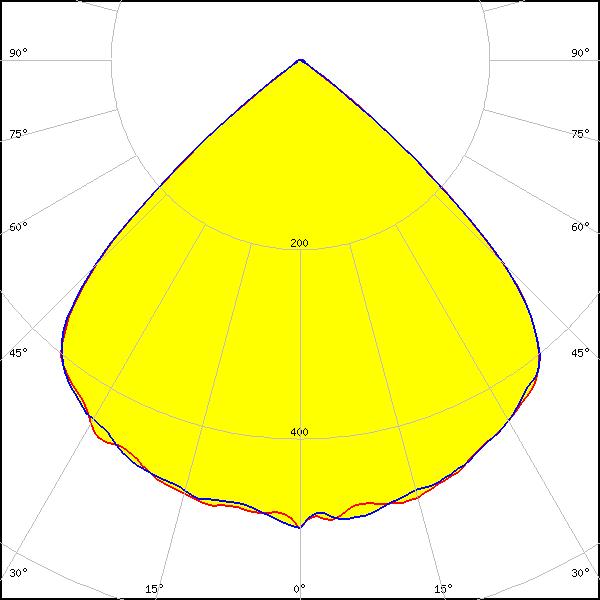

LED: OSCONIQ S 3030 (QSLR31)
FWHM: 94°
FWTM: 106°
Peak intensity: 0.498 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

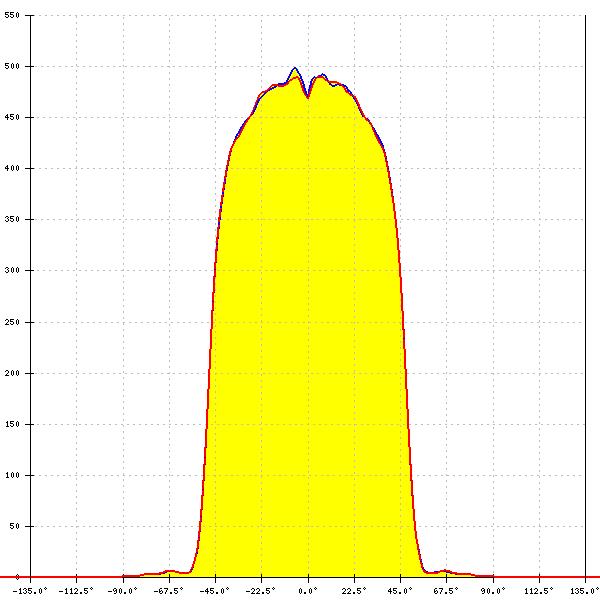

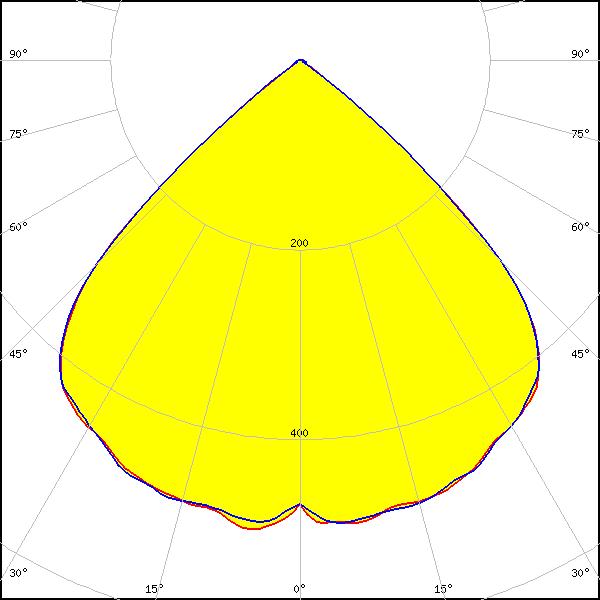

LED: Fortimo FastFlex LED 4x16 DHE G4
FWHM: 94°
FWTM: 106°
Peak intensity: 0.499 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

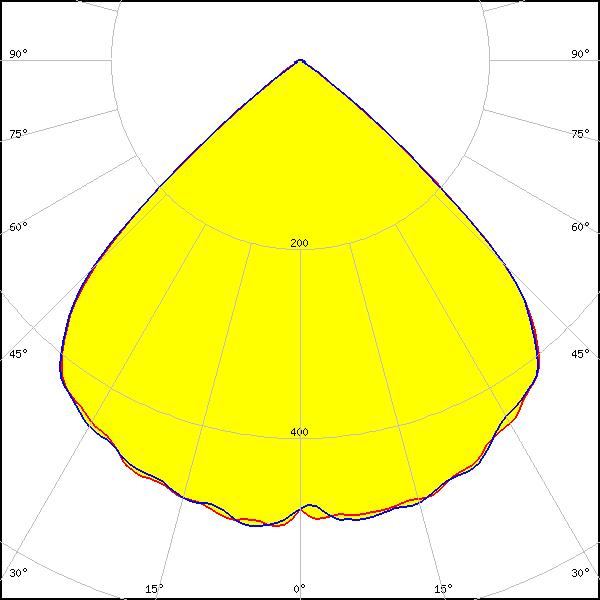

LED: HiLOM RM64 (LM301B)
FWHM: 94°
FWTM: 106°
Peak intensity: 0.512 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

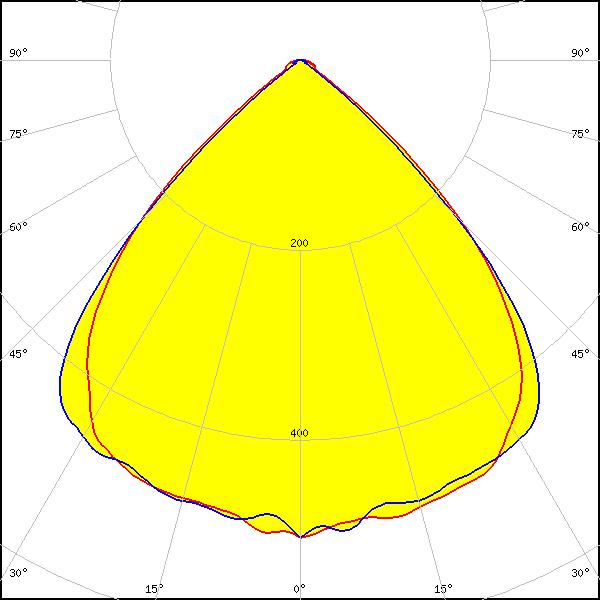

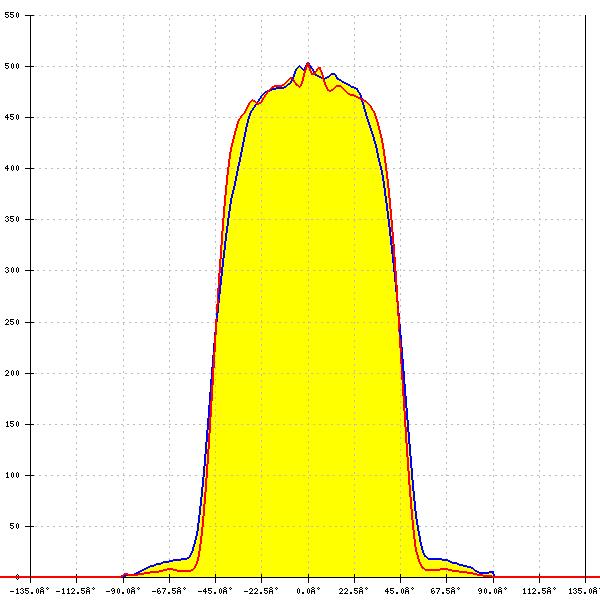

LED: LH181B
FWHM: 89°
FWTM: 105°
Peak intensity: 0.524 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour/type: White
LED: LM301B
FWHM: 94°
FWTM: 106°
Peak intensity: 0.512 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

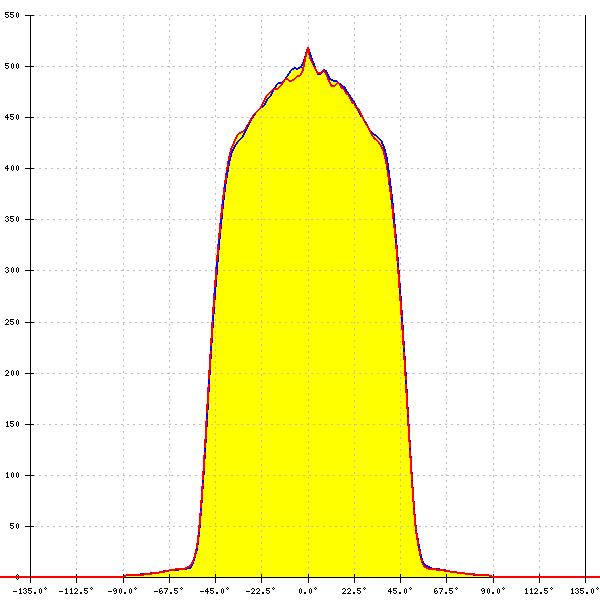

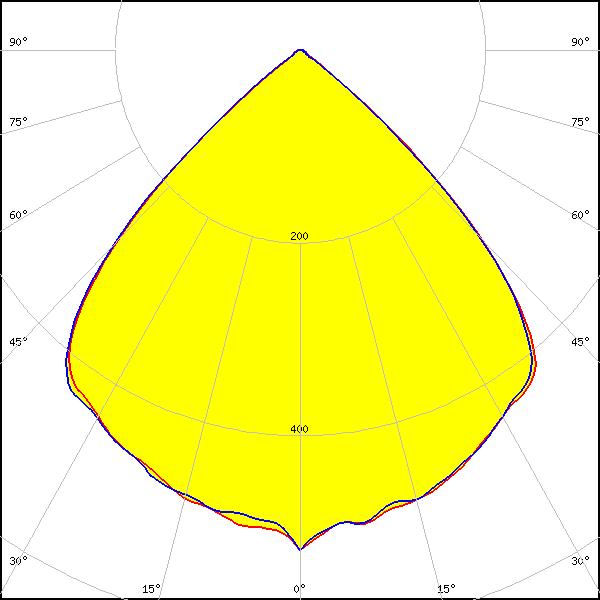

LED: LM301D
FWHM: 92°
FWTM: 106°
Peak intensity: 0.519 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

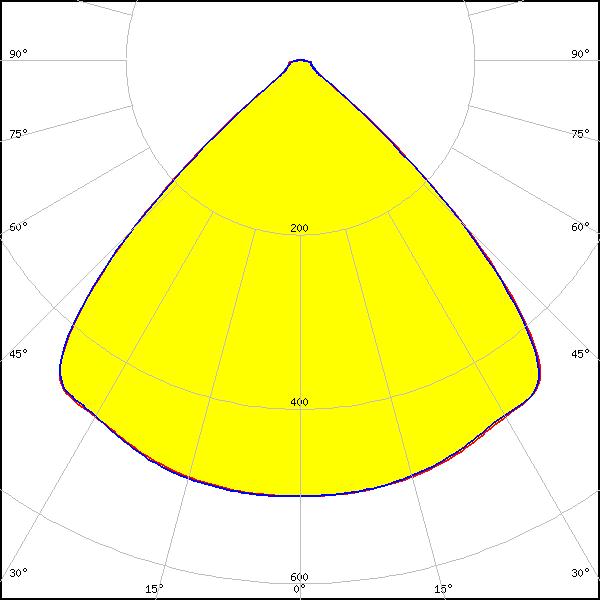

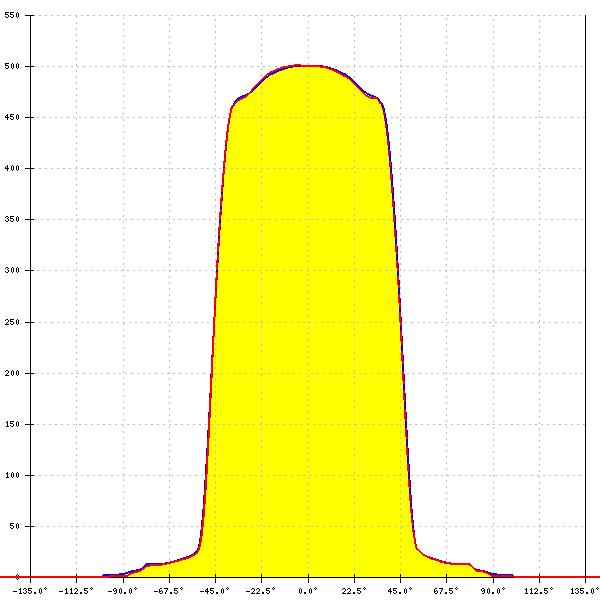

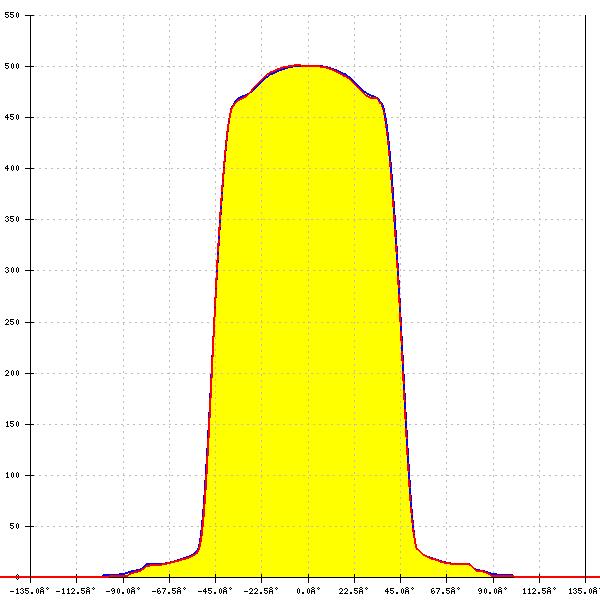

LED: KAAX-VB-2300-840-48
FWHM: 91°
FWTM: 103°
Peak intensity: 0.501 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

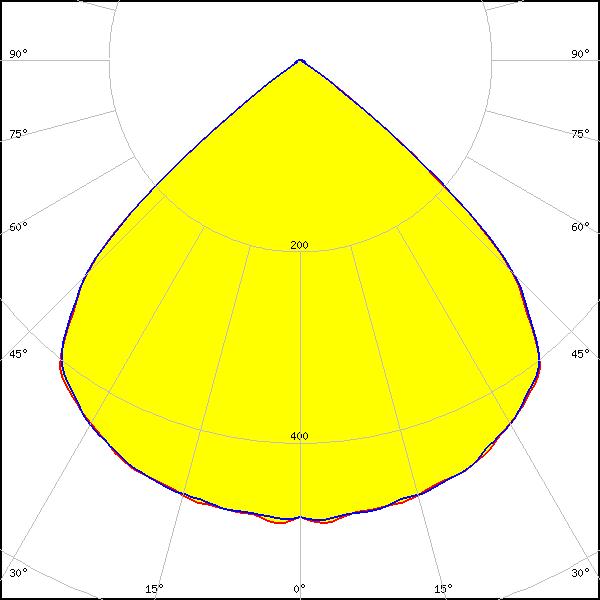

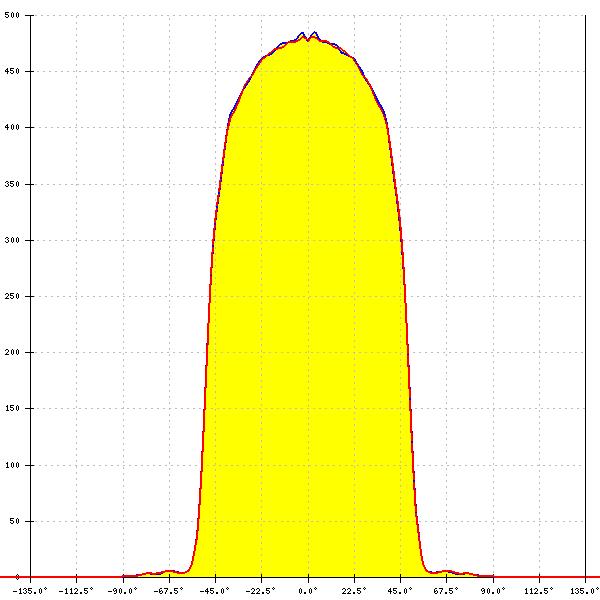

LED: SEOUL 3030
FWHM: 96°
FWTM: 106°
Peak intensity: 0.490 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 95°
FWTM: 106°
Peak intensity: 0.486 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 4x16 4000lm MP ADV2 OTD
FWHM: 94°
FWTM: 106°
Peak intensity: 0.512 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
