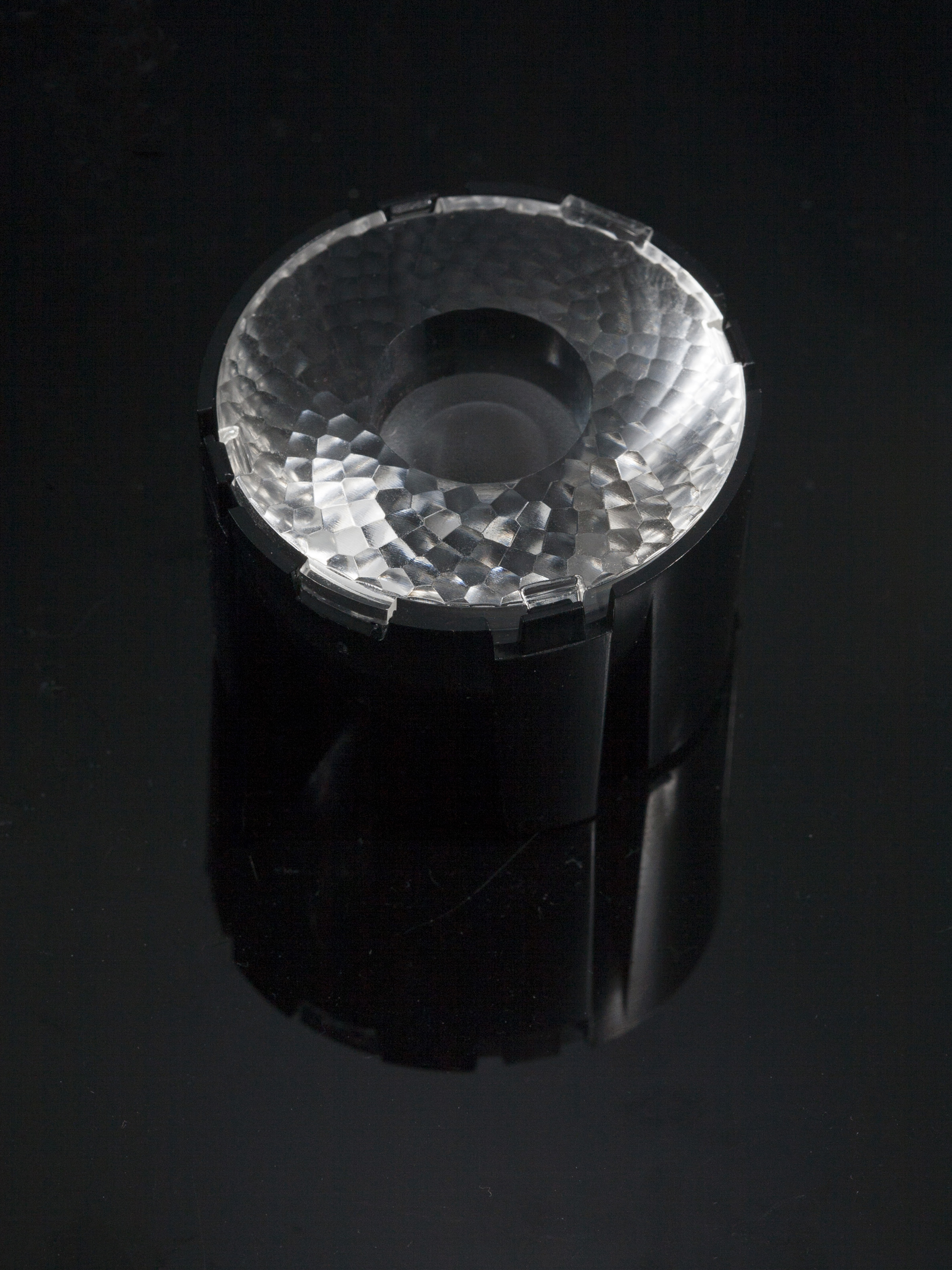

GABRIELLA-45-S

Print

~9° spot beam with holder and installation tape

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    45 mm
  • Height:
    29.10 mm
  • Fastening:
    tape, pin, screw
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Assembly
    1 pcs
  • Single lens
  • C15927_GABRIELLA-45-S
    clear
  • Quantity in box:
    405 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    11.50 kg
  • MPQ:
    45 pcs
  • MOQ:
    90 pcs
  • MOQ Size:
    480 x 280 x 90 mm
  • MOQ Weight:
    2.60 kg
  • Assembly
  • CA15928_GABRIELLA-45-HLD-T
    black
  • Quantity in box:
    405 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    5.70 kg
  • MPQ:
    45 pcs
  • MOQ:
    90 pcs
  • MOQ Size:
    480 x 280 x 80 mm
  • MOQ Weight:
    1.20 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C15927_GABRIELLA-45-S
    CA15928_GABRIELLA-45-HLD-T

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

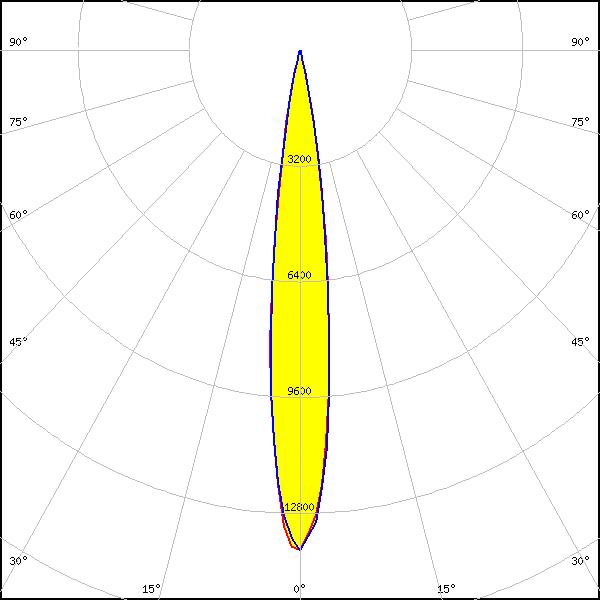

LED: XHP50
FWHM: 14°
FWTM: 24°
Peak intensity: 13.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

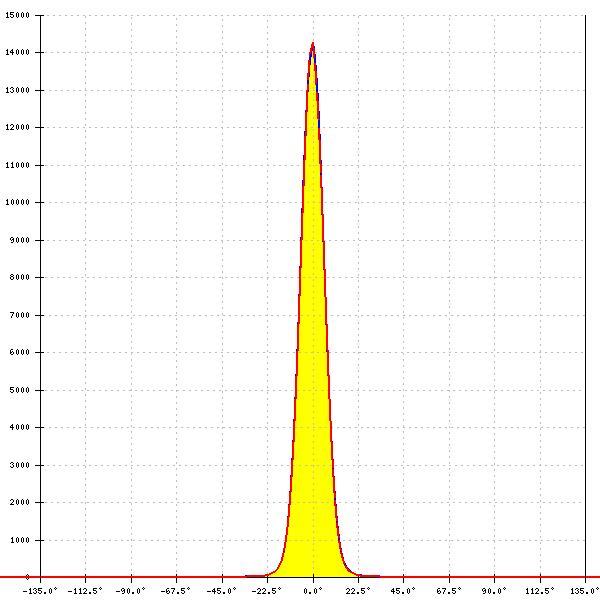

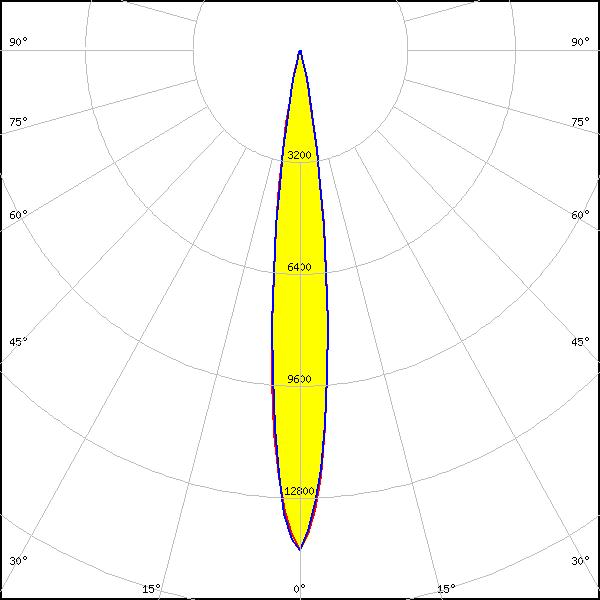

LED: XHP50.2
FWHM: 13°
FWTM: 24°
Peak intensity: 14.290 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

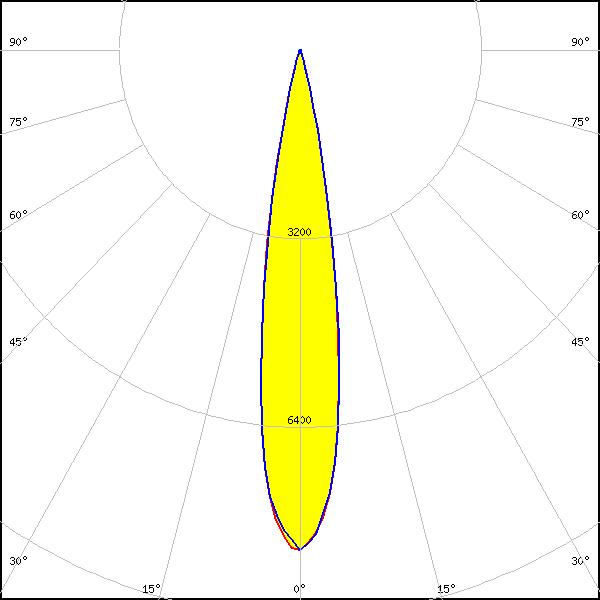

LED: XHP70
FWHM: 18°
FWTM: 29°
Peak intensity: 8.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

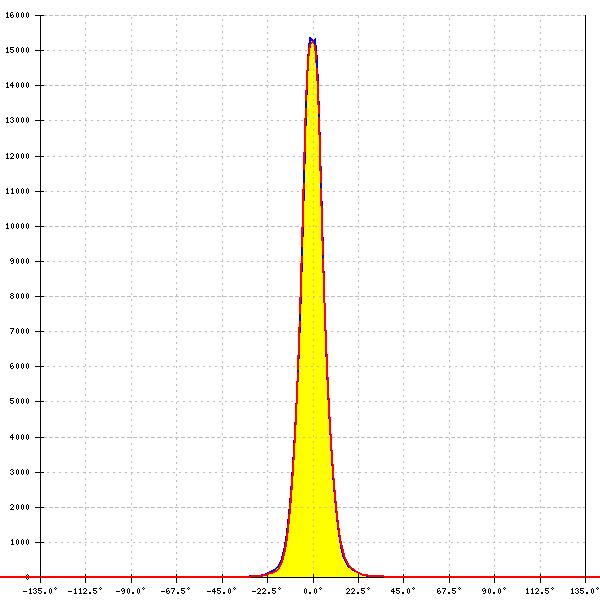

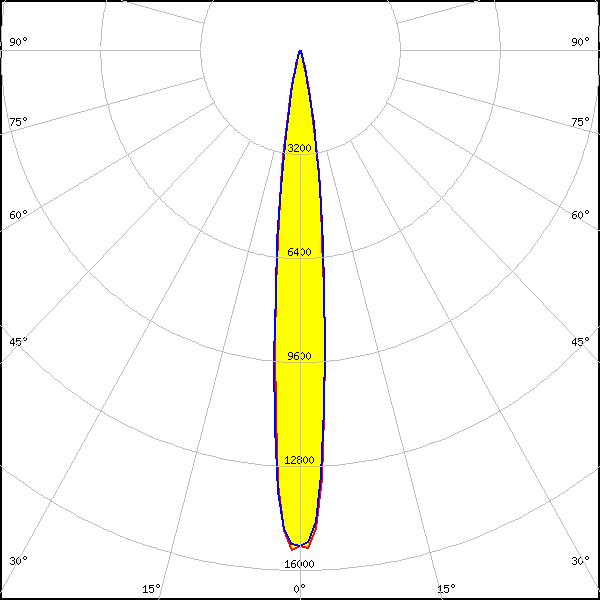

LED: XM-L RGBW (XMLCTW)
FWHM: 12°
FWTM: 24°
Peak intensity: 15.444 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

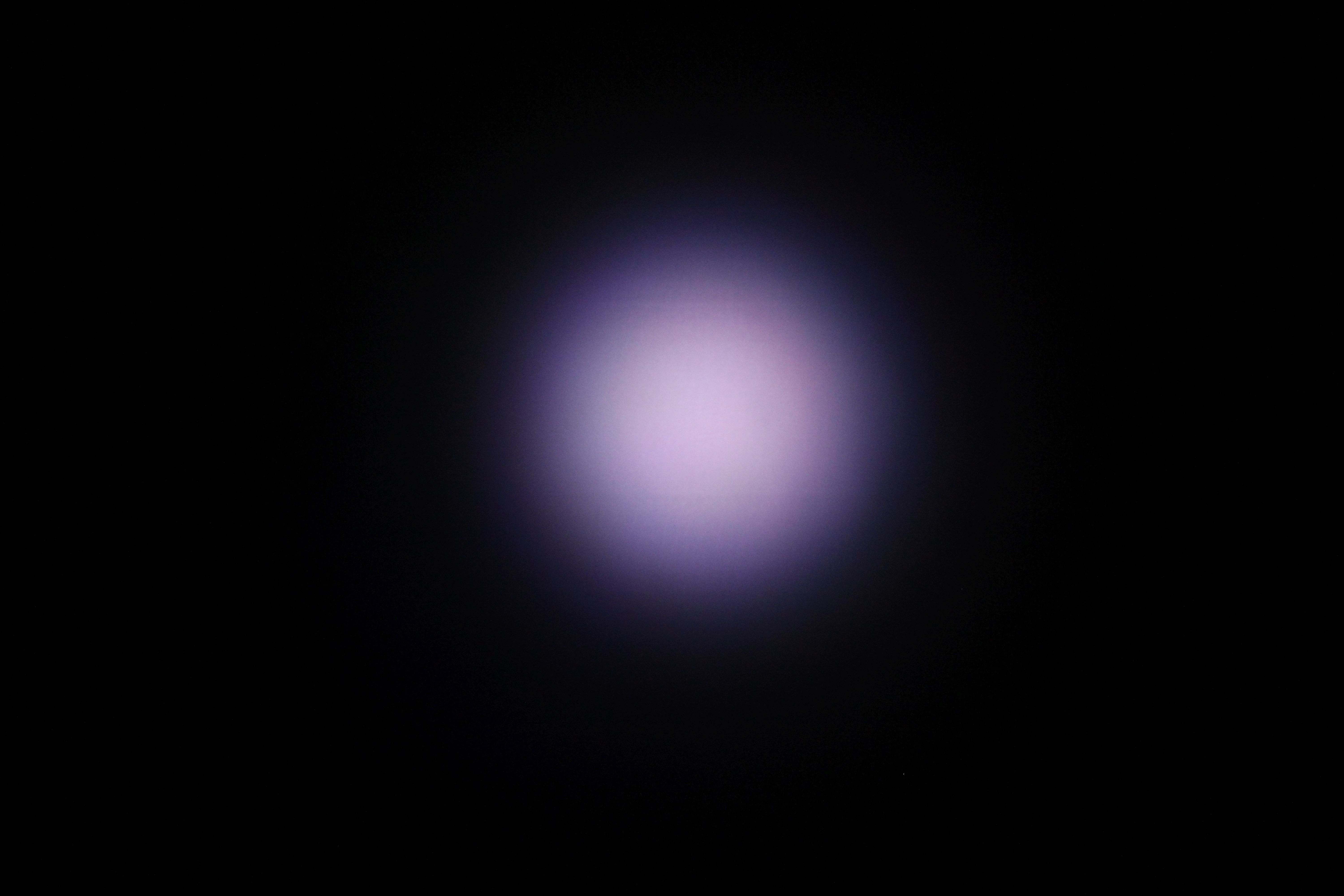

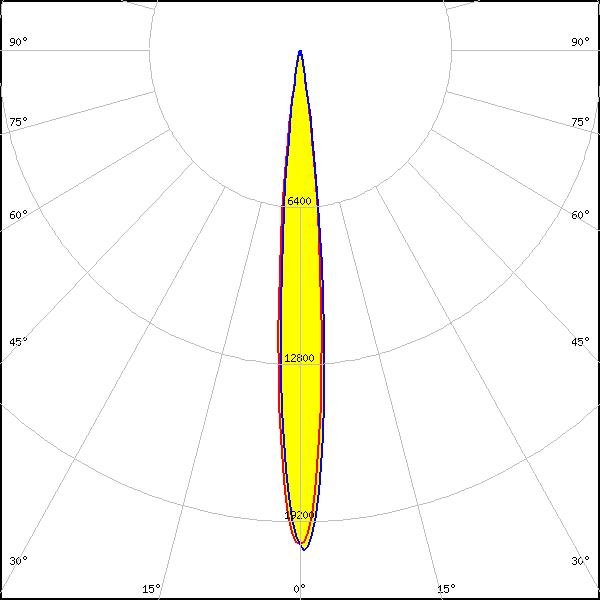

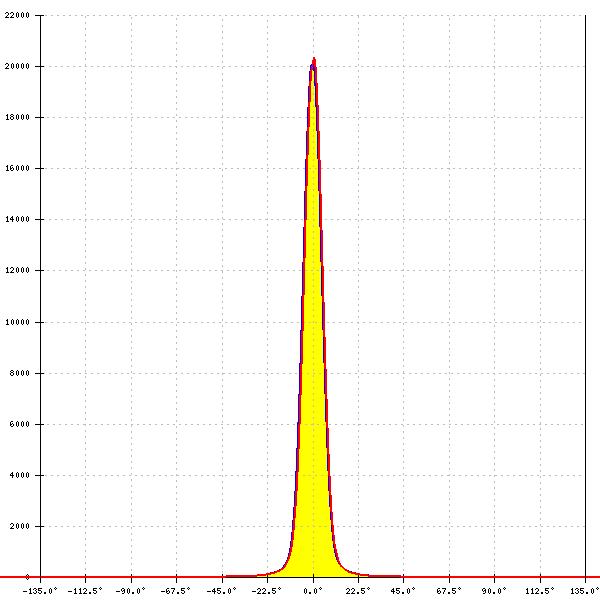

LED: XM-L RGBW (XMLDCL HI)
FWHM: 10°
FWTM: 19°
Peak intensity: 20.362 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: RGBW

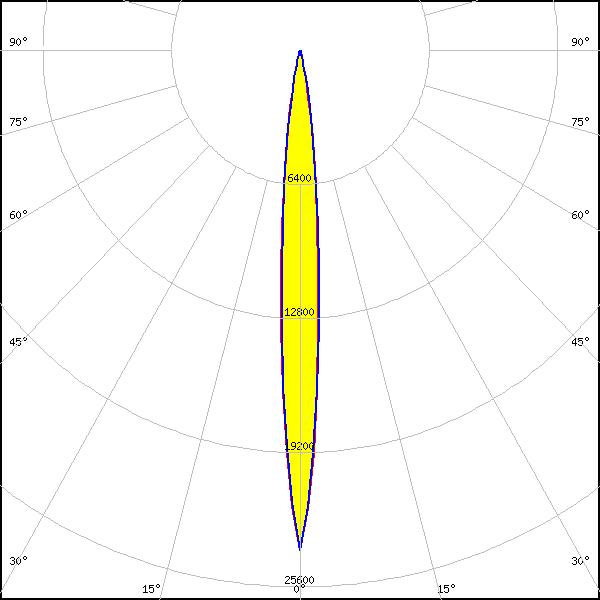

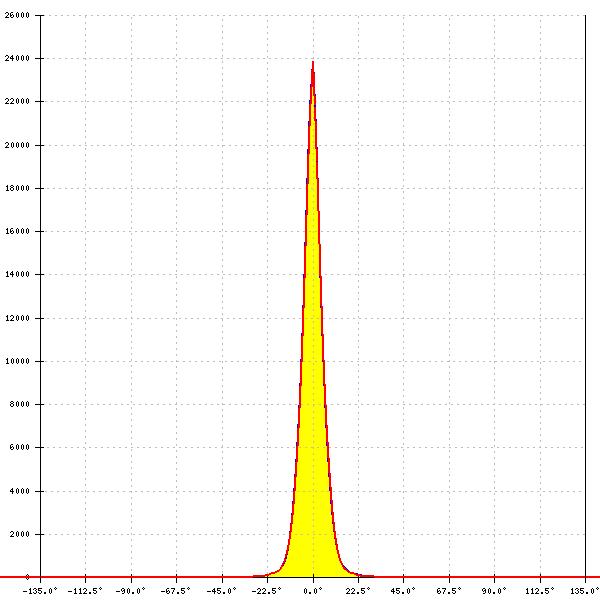

LED: XP-L HD
FWHM: 8°
FWTM: 21°
Peak intensity: 23.873 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

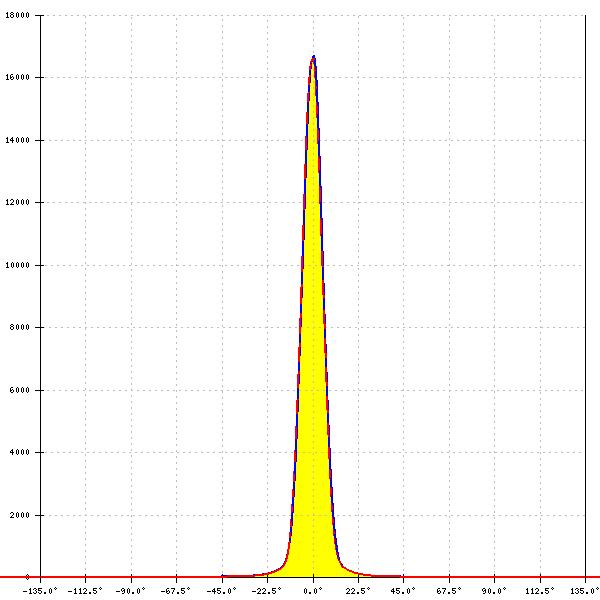

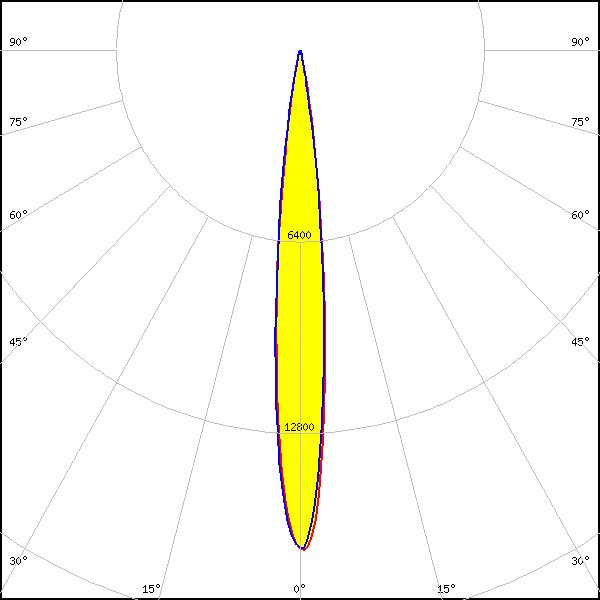

LED: XQ-E HD
FWHM: 11°
FWTM: 21°
Peak intensity: 16.800 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: RGBW

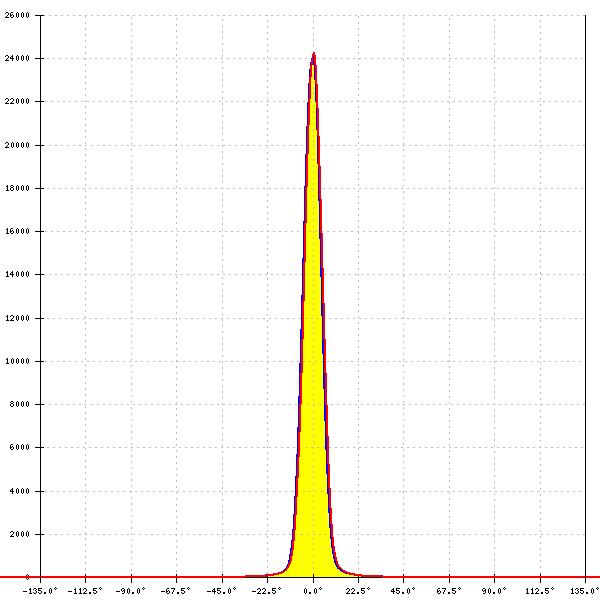

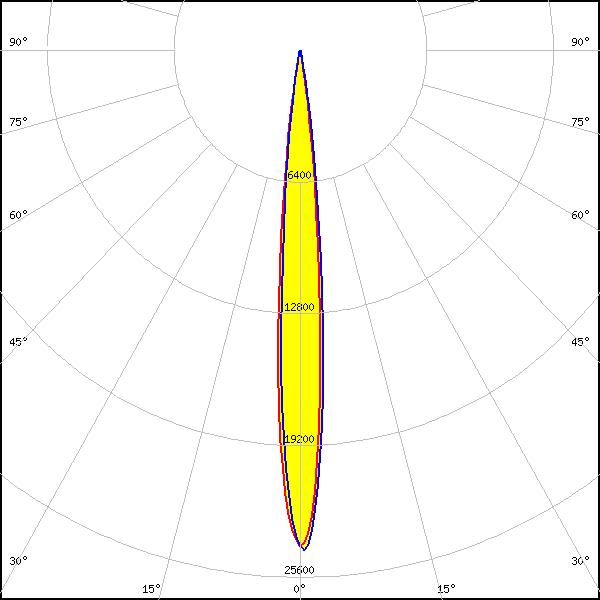

LED: LZ4-04MDPB
FWHM: 10°
FWTM: 18°
Peak intensity: 24.300 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

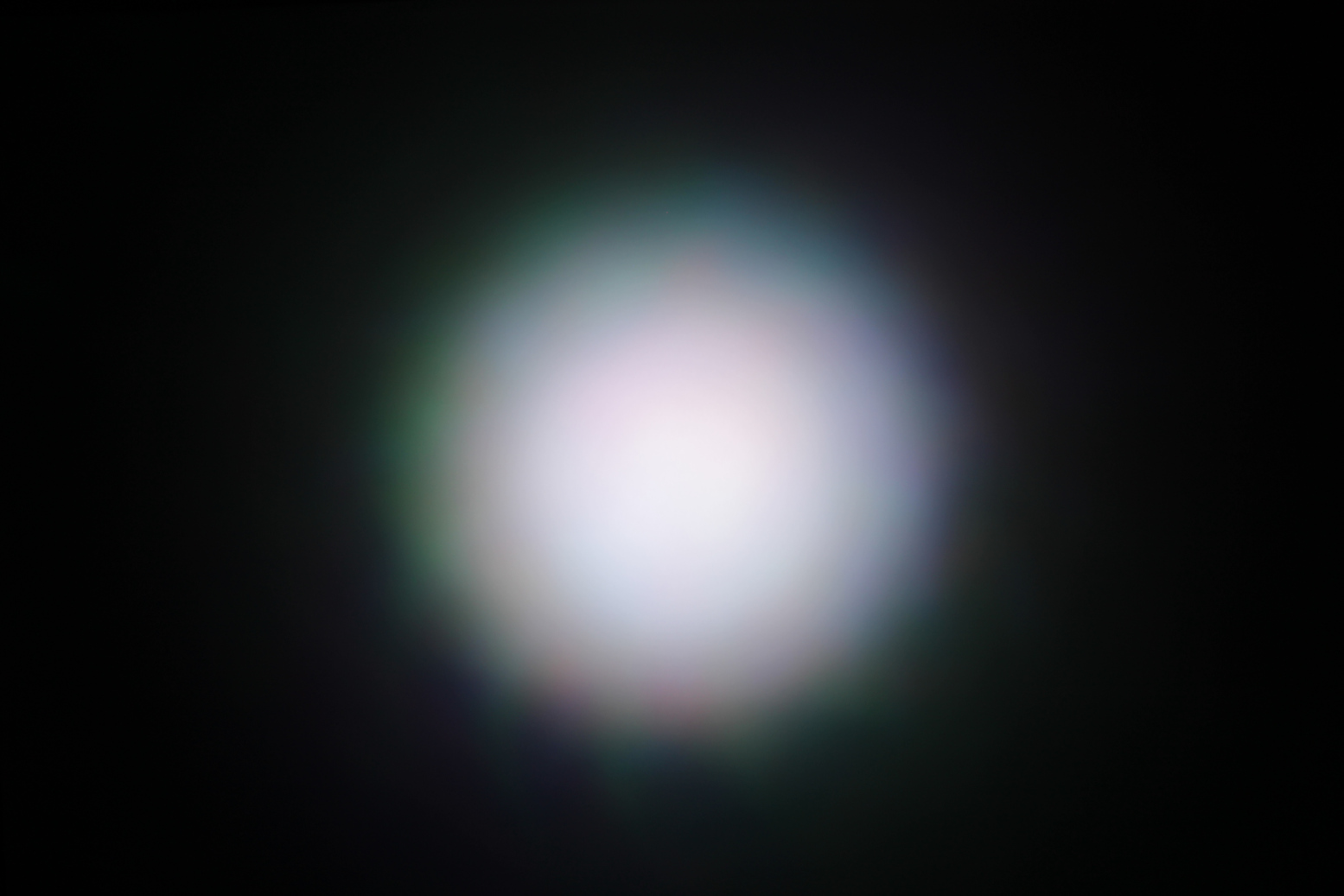

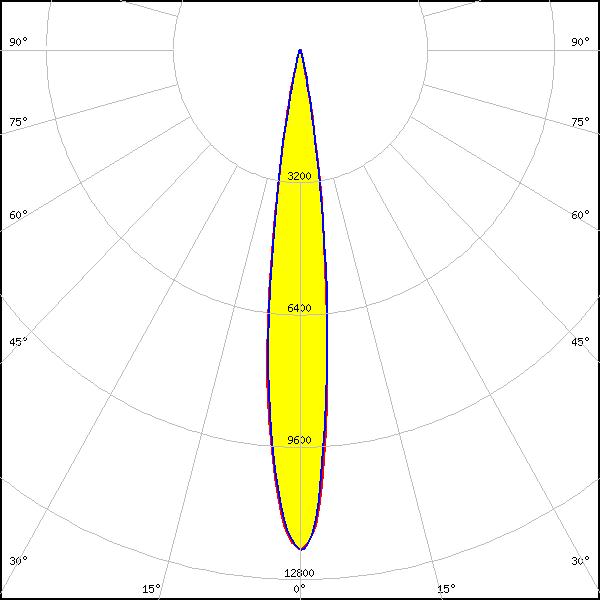

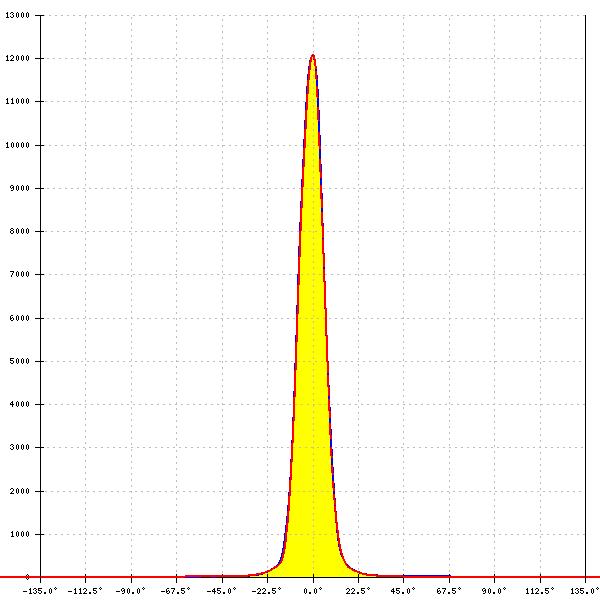

LED: LUXEON CZ
FWHM: 14°
FWTM: 25°
Peak intensity: 12.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: RGBW

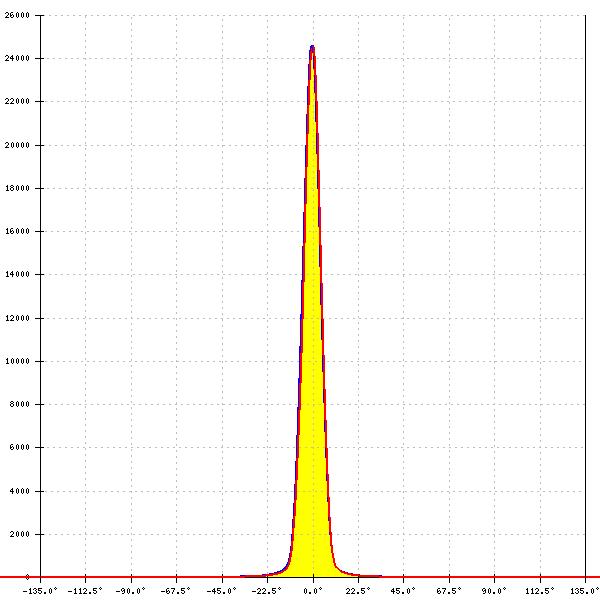

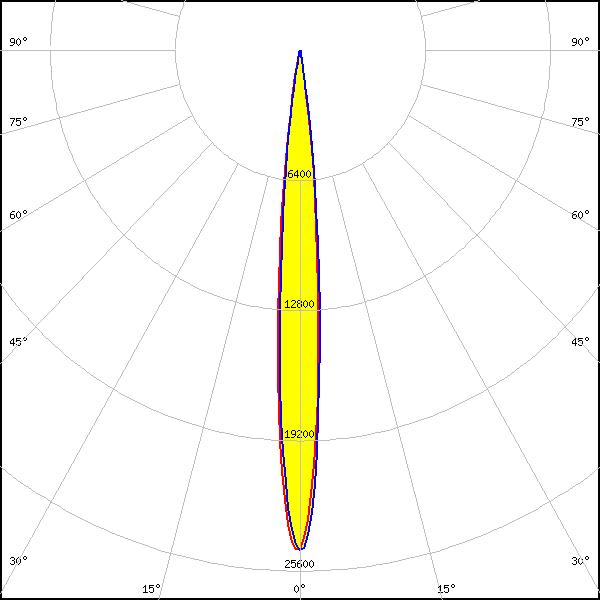

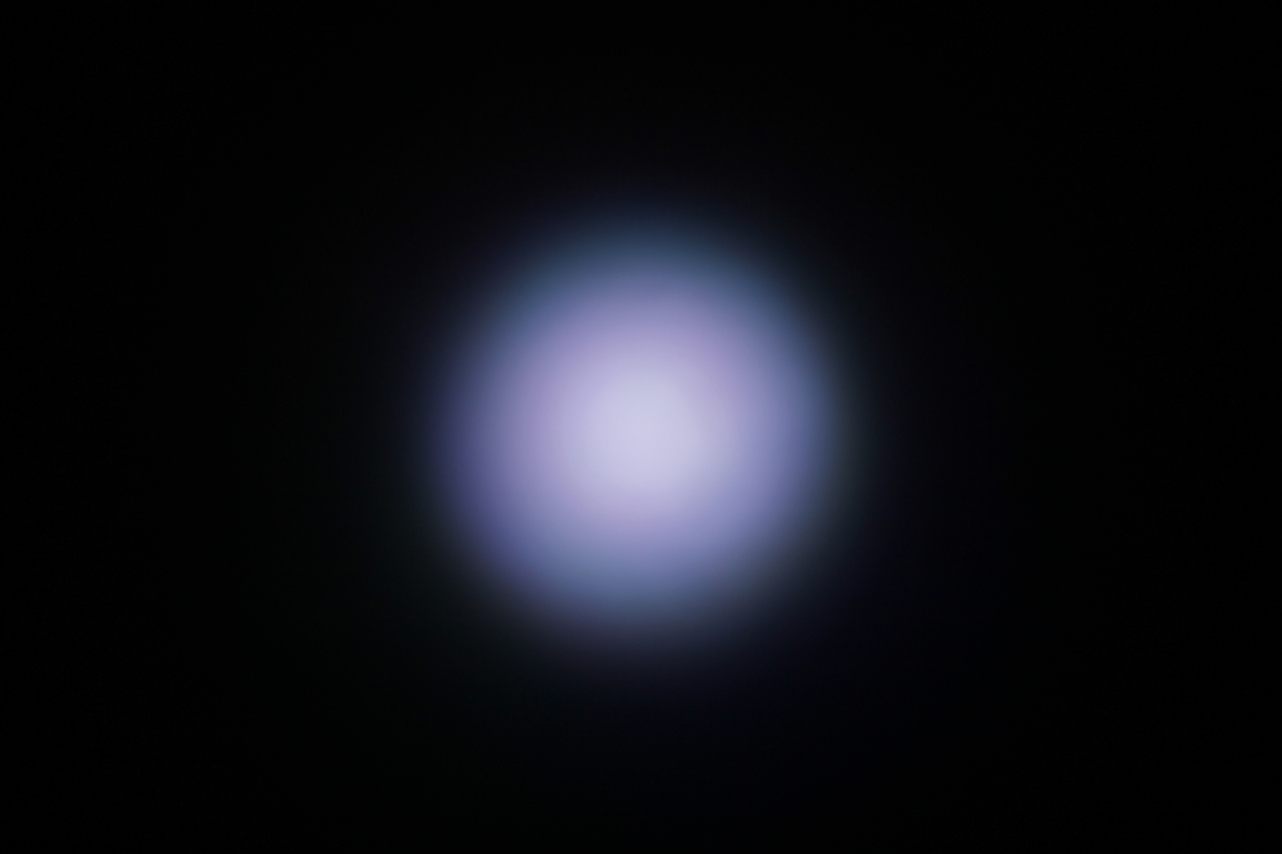

LED: SBM-40-RGBW
FWHM: 10°
FWTM: 18°
Peak intensity: 25.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

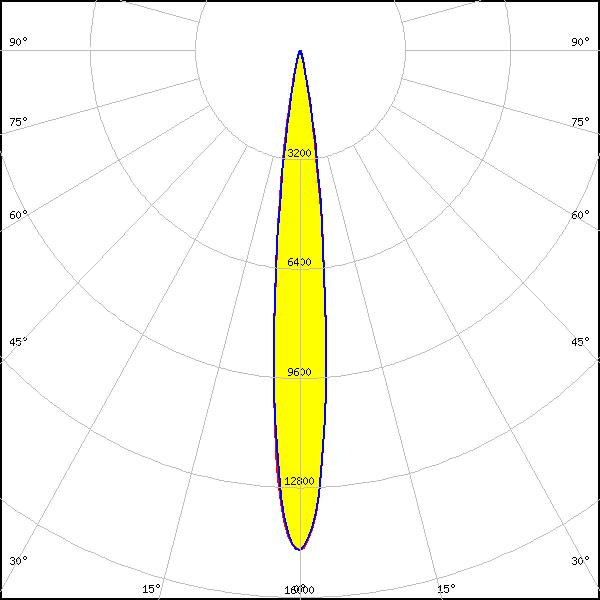

LED: NCSxE17A
FWHM: 12°
FWTM: 23°
Peak intensity: 15.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: RGBW

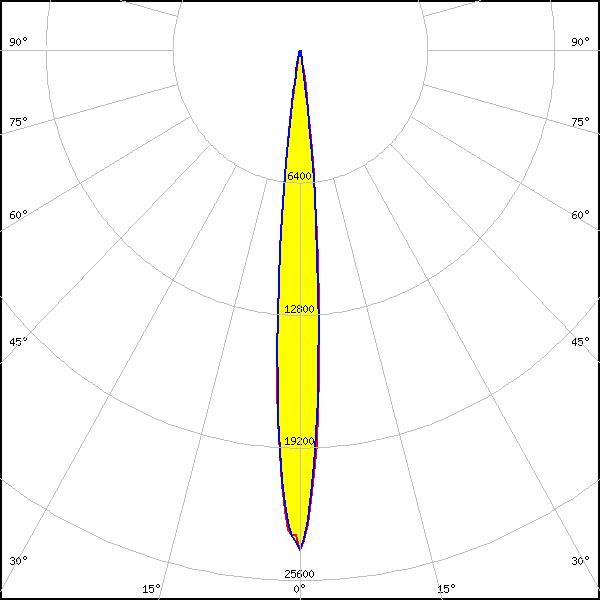

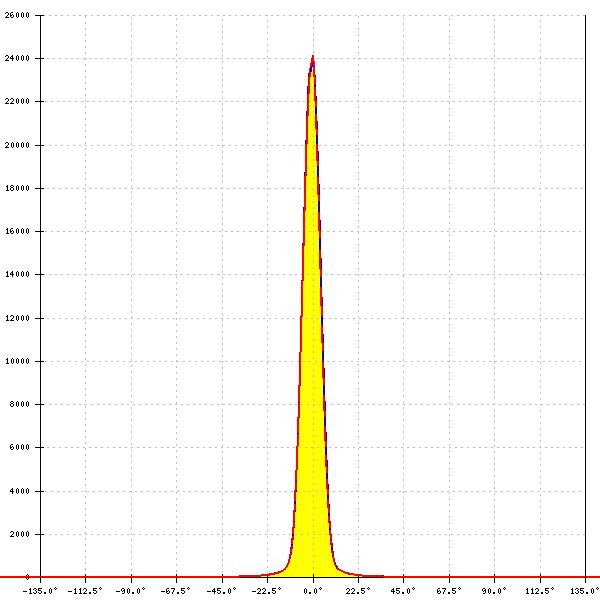

LED: NVSW219F
FWHM: 10°
FWTM: 17°
Peak intensity: 24.500 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

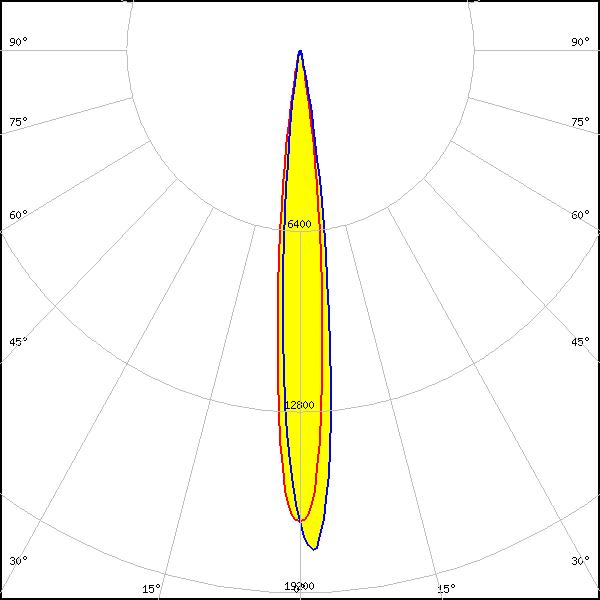

LED: OSLON Pure 1414
FWHM: 11°
FWTM: 20°
Peak intensity: 17.719 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: RGBW

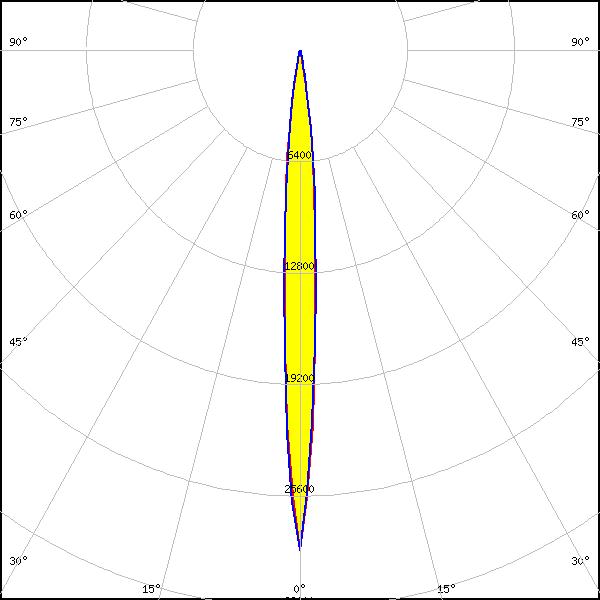

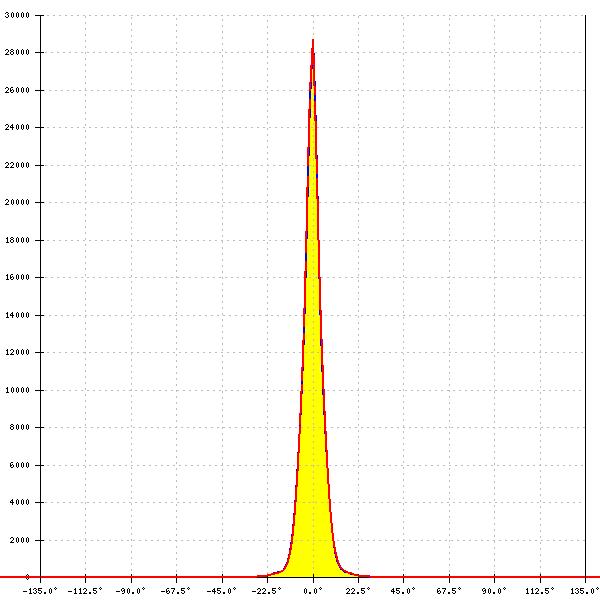

LED: OSTAR Stage (S2WN)
FWHM: 10°
FWTM: 17°
Peak intensity: 25.890 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: OSTAR Stage (S2WP)
FWHM: 8°
FWTM: 19°
Peak intensity: 28.717 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

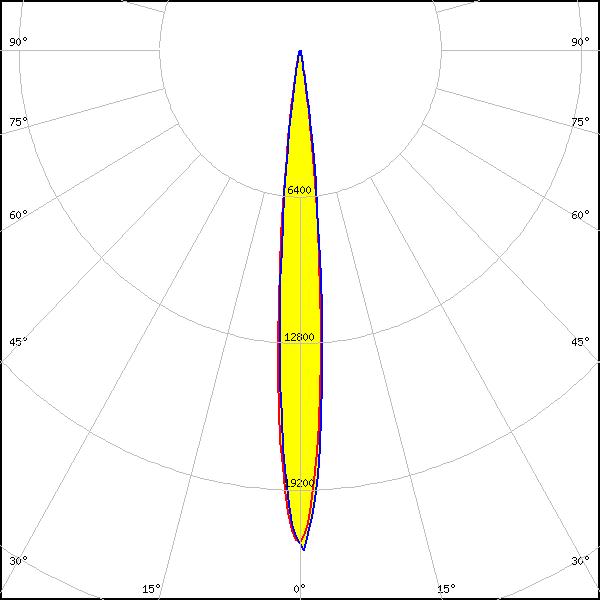

LED: SPF05F0A
FWHM: 10°
FWTM: 19°
Peak intensity: 21.828 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: RGBW

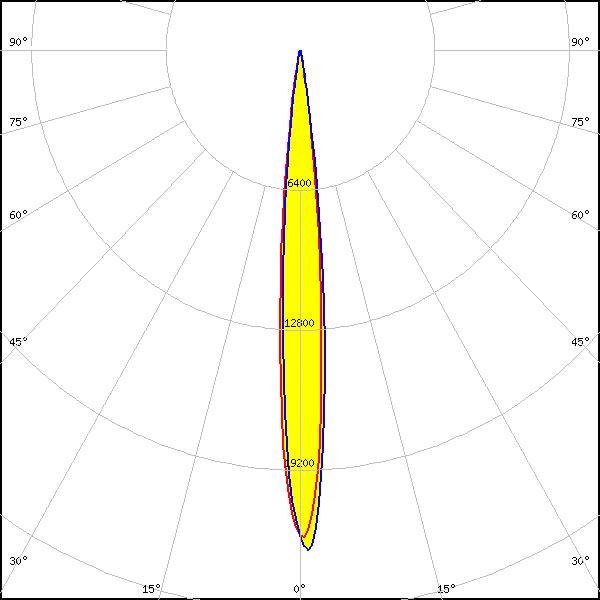

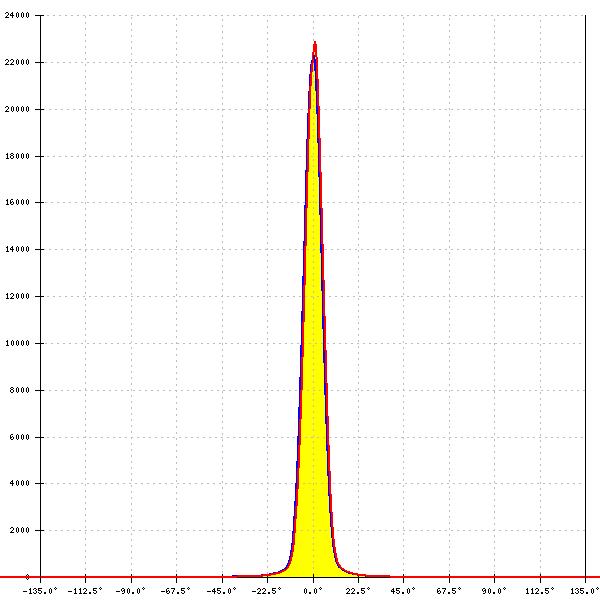

LED: SPF05F0B
FWHM: 10°
FWTM: 18°
Peak intensity: 22.925 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: RGBW

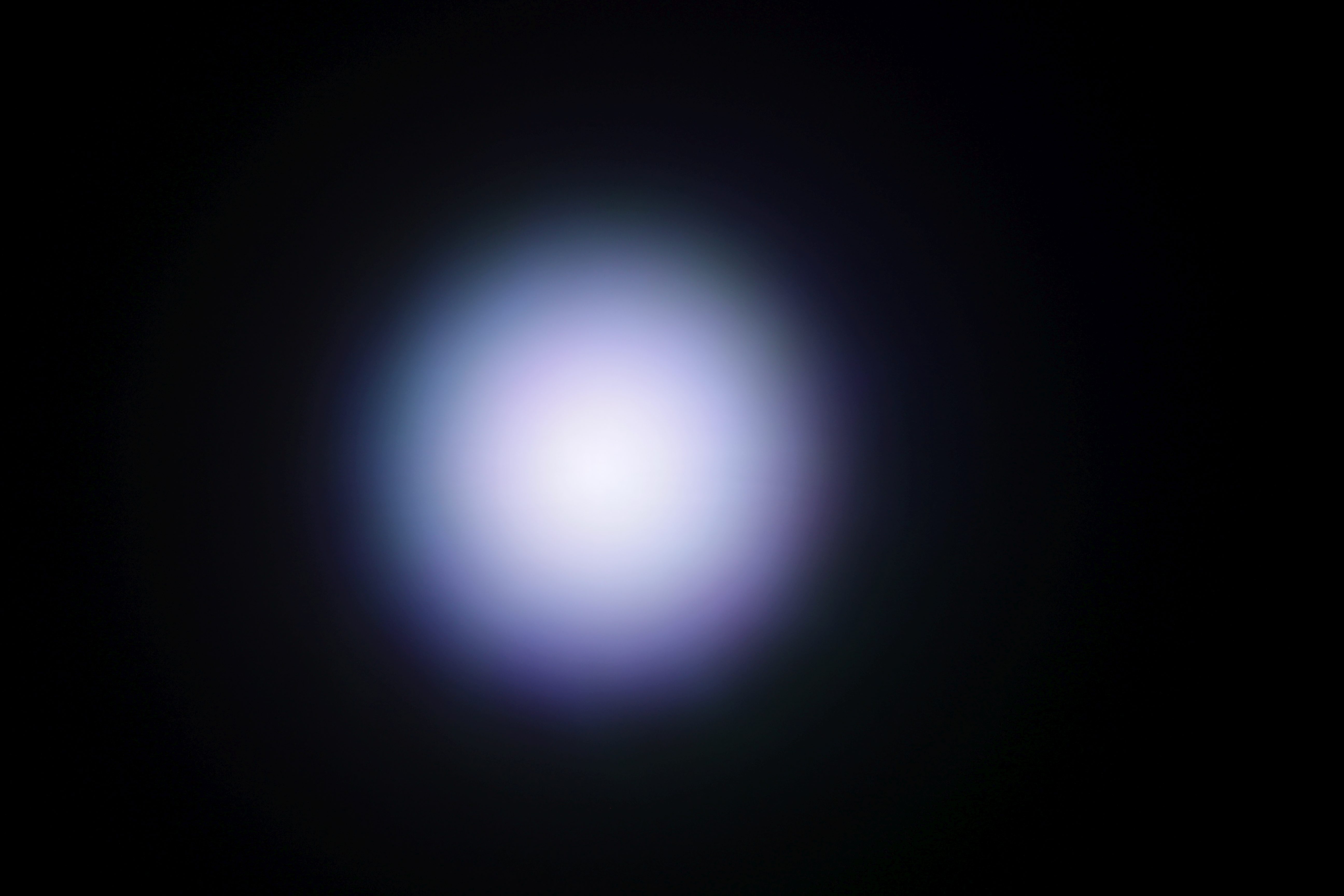

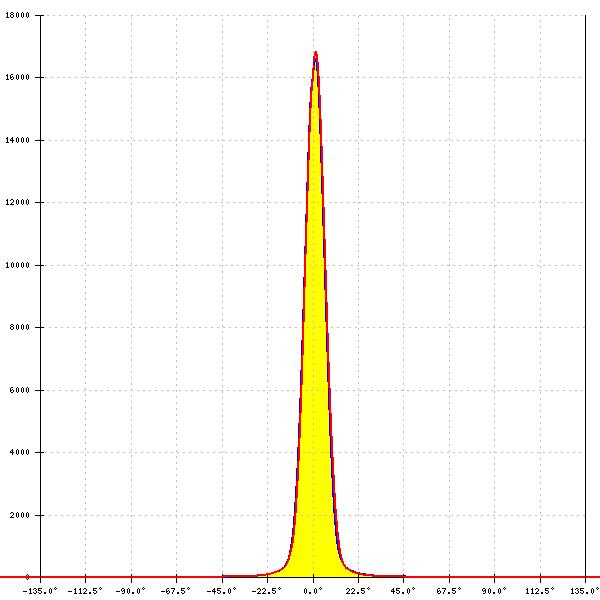

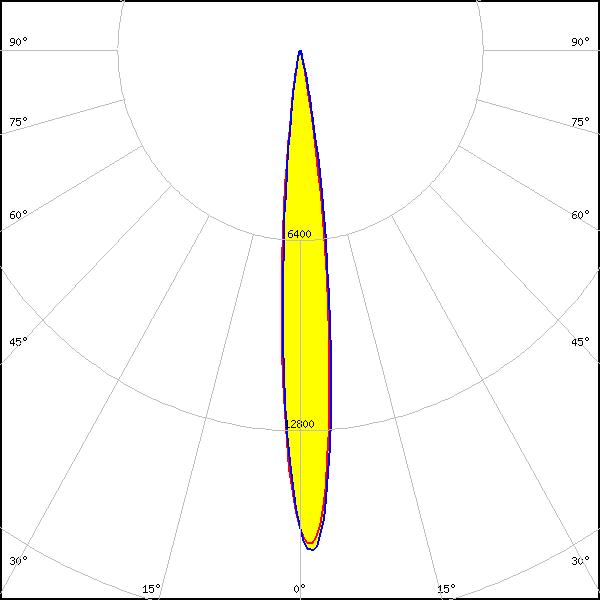

LED: SPF05F0C
FWHM: 11°
FWTM: 20°
Peak intensity: 17.373 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: RGBW
