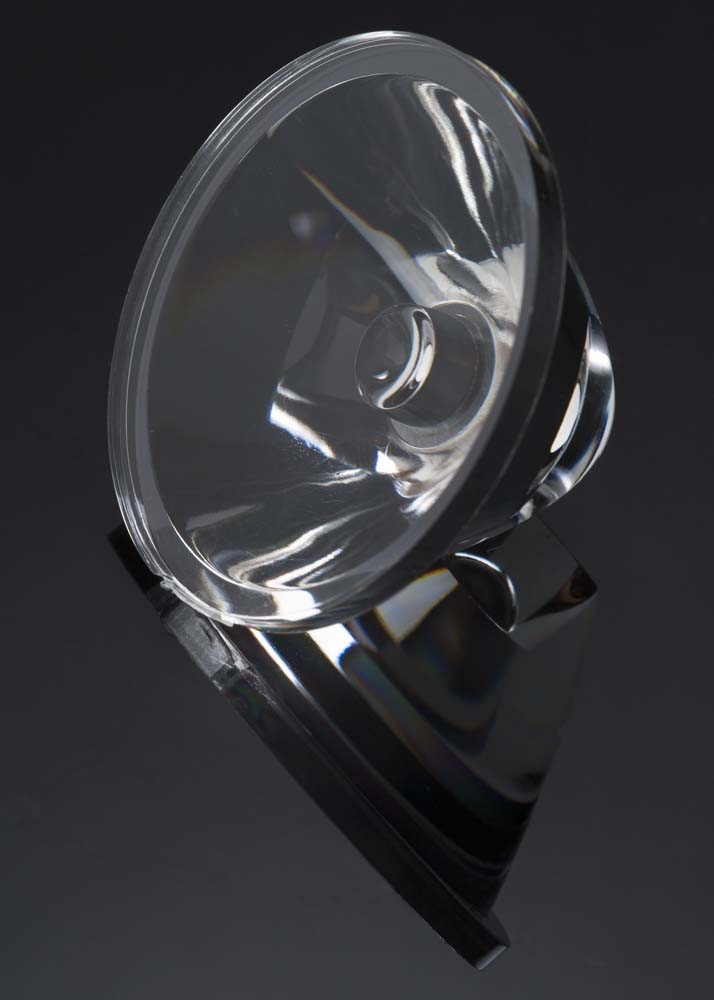

    F12916_CRYSTAL-RS

    Print

    ~5.1° spot beam

    Specification
    • Dimensions:
      47 mm
    • Height:
      27.40 mm
    • Fastening:
      snaps
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      288 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.6 kg
    • MPQ:
      32 pcs
    • MOQ:
      64 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      2.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F12916_CRYSTAL-RS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR130.d - Change of packaging quantities 301116

    PCN

    Product change notification NR111.b - Replacement of CRYSTAL-RS lens 211015

    PCN

    Product change notification NR103.b - Change of product order codes 280515

    Case story

    Hotel Hubertus

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - CRYSTAL

    Application area

    Outdoor Special Applications

    Application area

    Indoor Architectural Lighting

    Case story

    The Basilica of San Francesco

    Optical results

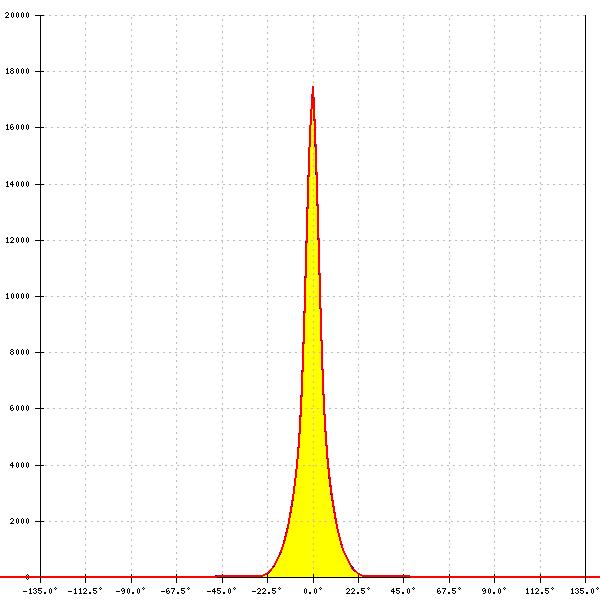

    LED: CLU7A2/7A3
    FWHM: 8°
    FWTM: 24°
    Peak intensity: 17.481 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

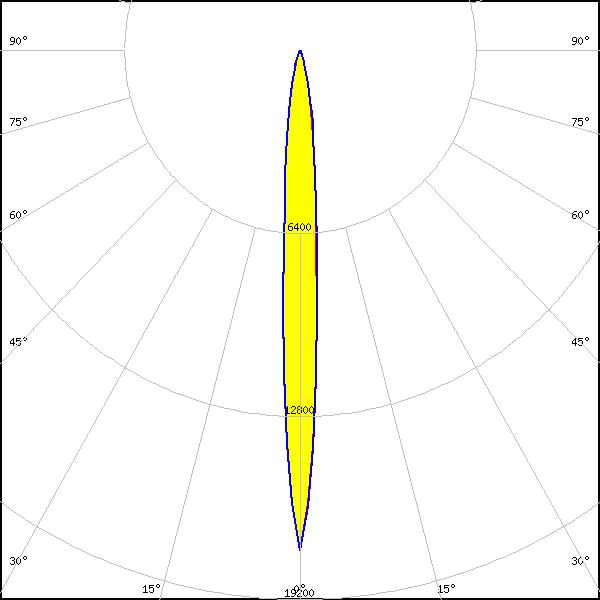

    LED: CLU7A3 Type-F
    FWHM: 10°
    FWTM: 24°
    Peak intensity: 17.452 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

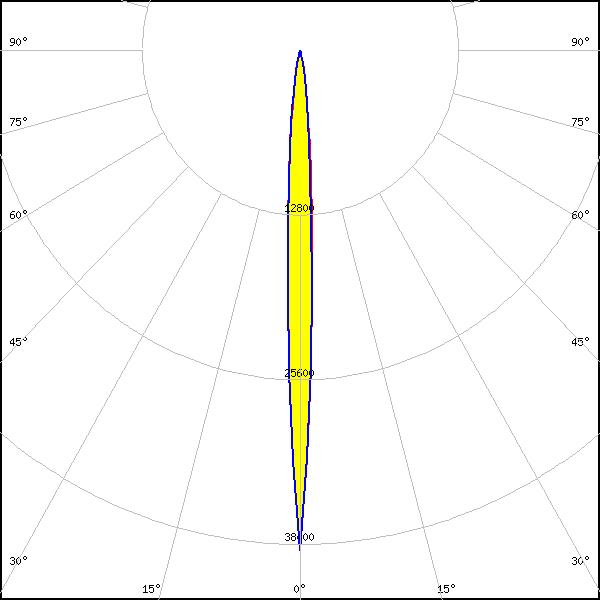

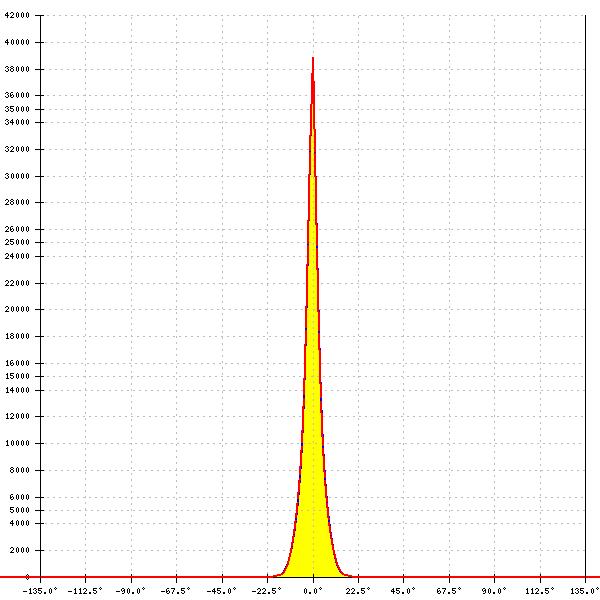

    LED: CLU7L3
    FWHM: 6°
    FWTM: 16°
    Peak intensity: 38.869 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

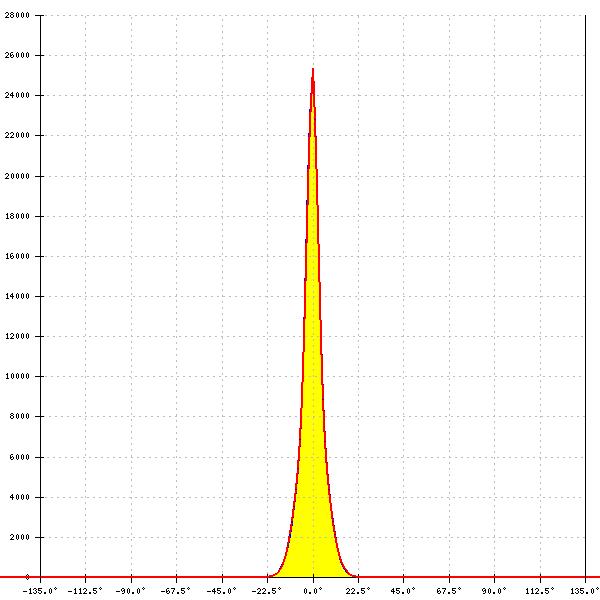

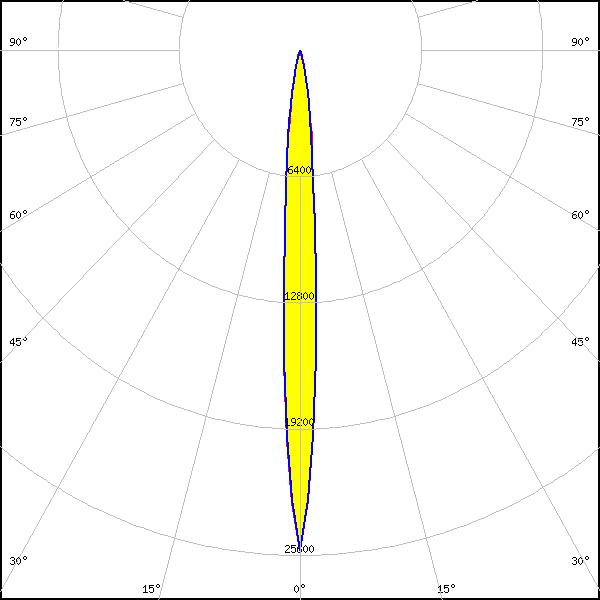

    LED: CLU7S3
    FWHM: 8°
    FWTM: 20°
    Peak intensity: 25.346 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

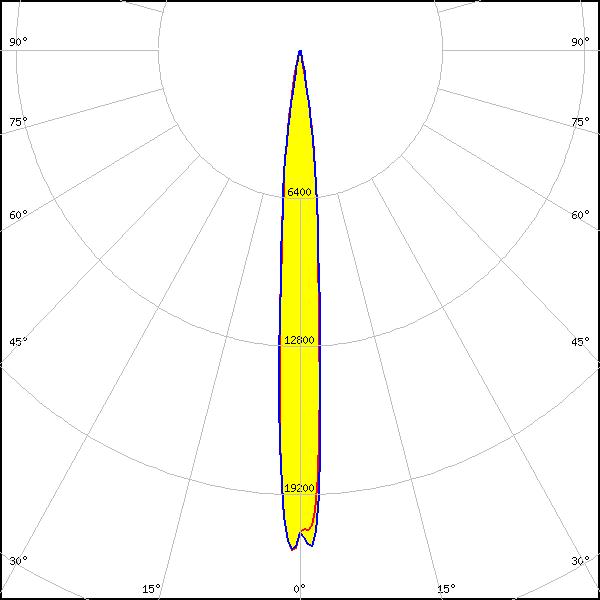

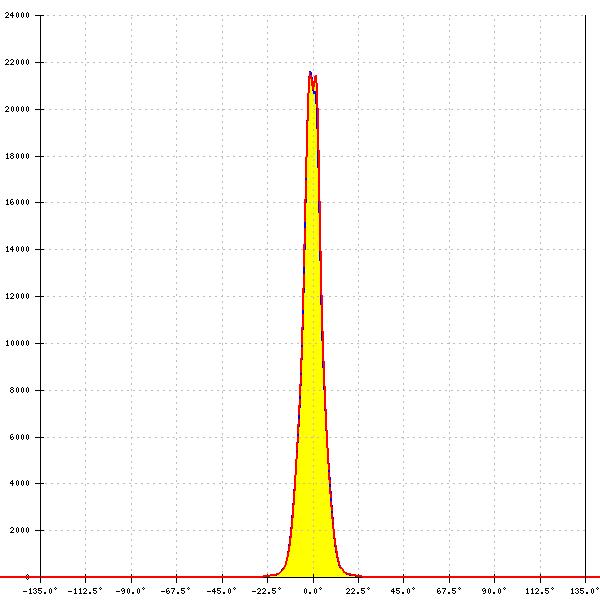

    LED: XHP35.2 HD
    FWHM: 9°
    FWTM: 20°
    Peak intensity: 22.597 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

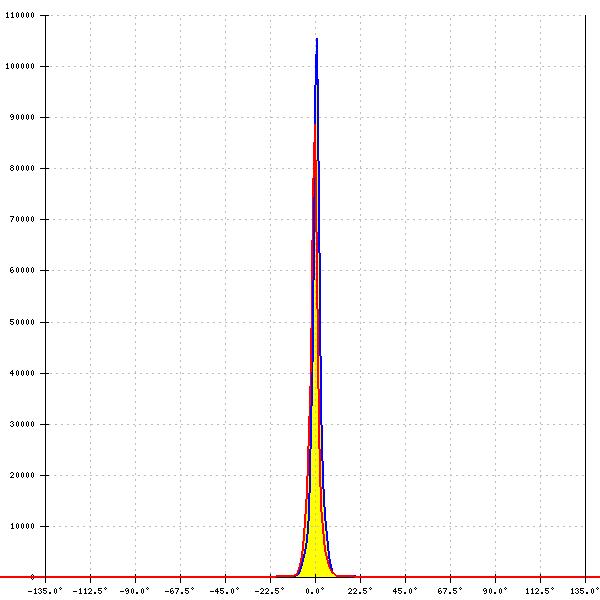

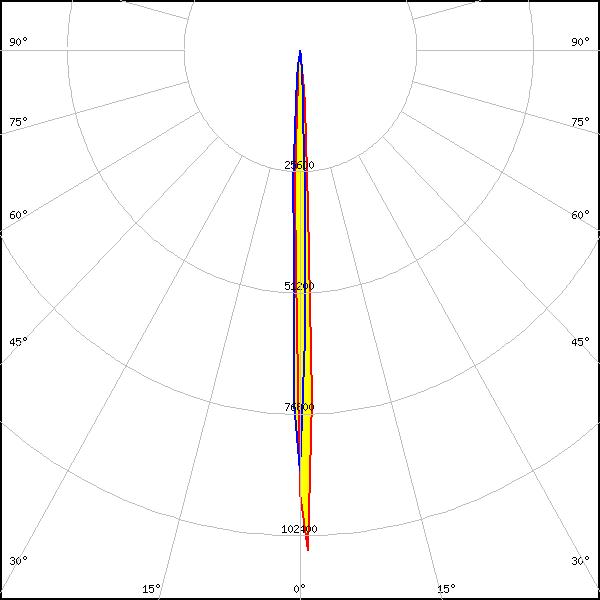

    LED: XP-E
    FWHM: 3°
    FWTM: 9°
    Peak intensity: 106.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 5°
    FWTM: 11°
    Peak intensity: 68.290 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON A
    FWHM: 5°
    FWTM: 14°
    Peak intensity: 58.900 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

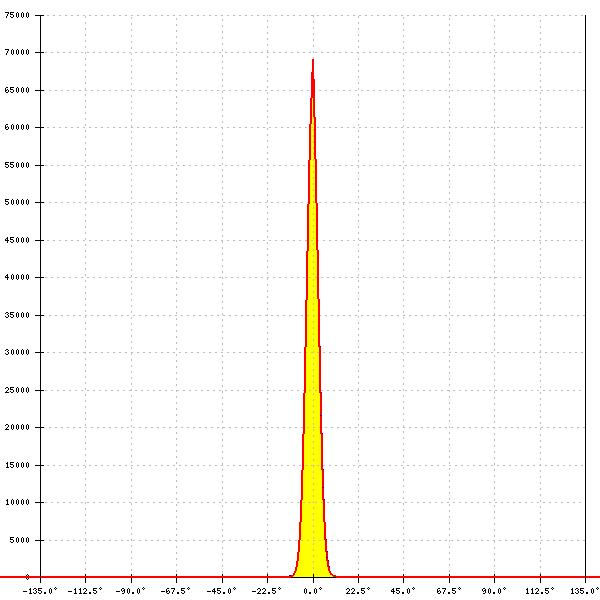

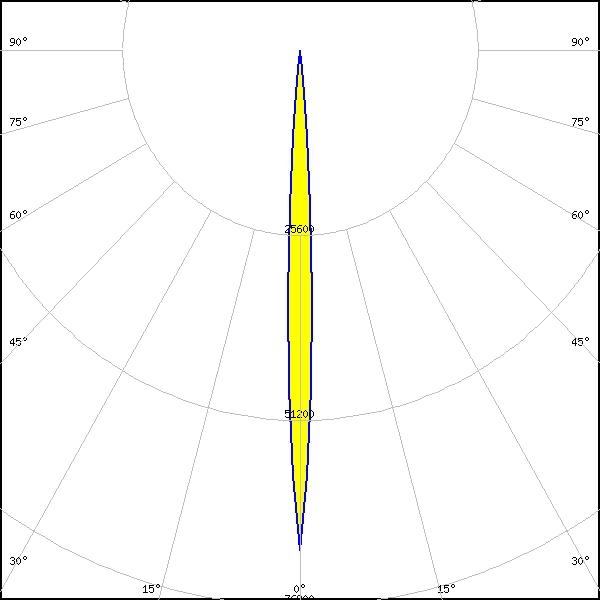

    LED: NVSW719AC
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 69.184 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 5°
    FWTM: 17°
    Peak intensity: 42.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 5°
    FWTM: 14°
    Peak intensity: 57.030 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351Z
    FWHM: 4°
    FWTM: 12°
    Peak intensity: 77.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
