F13659_ANGELINA-S-B

Print

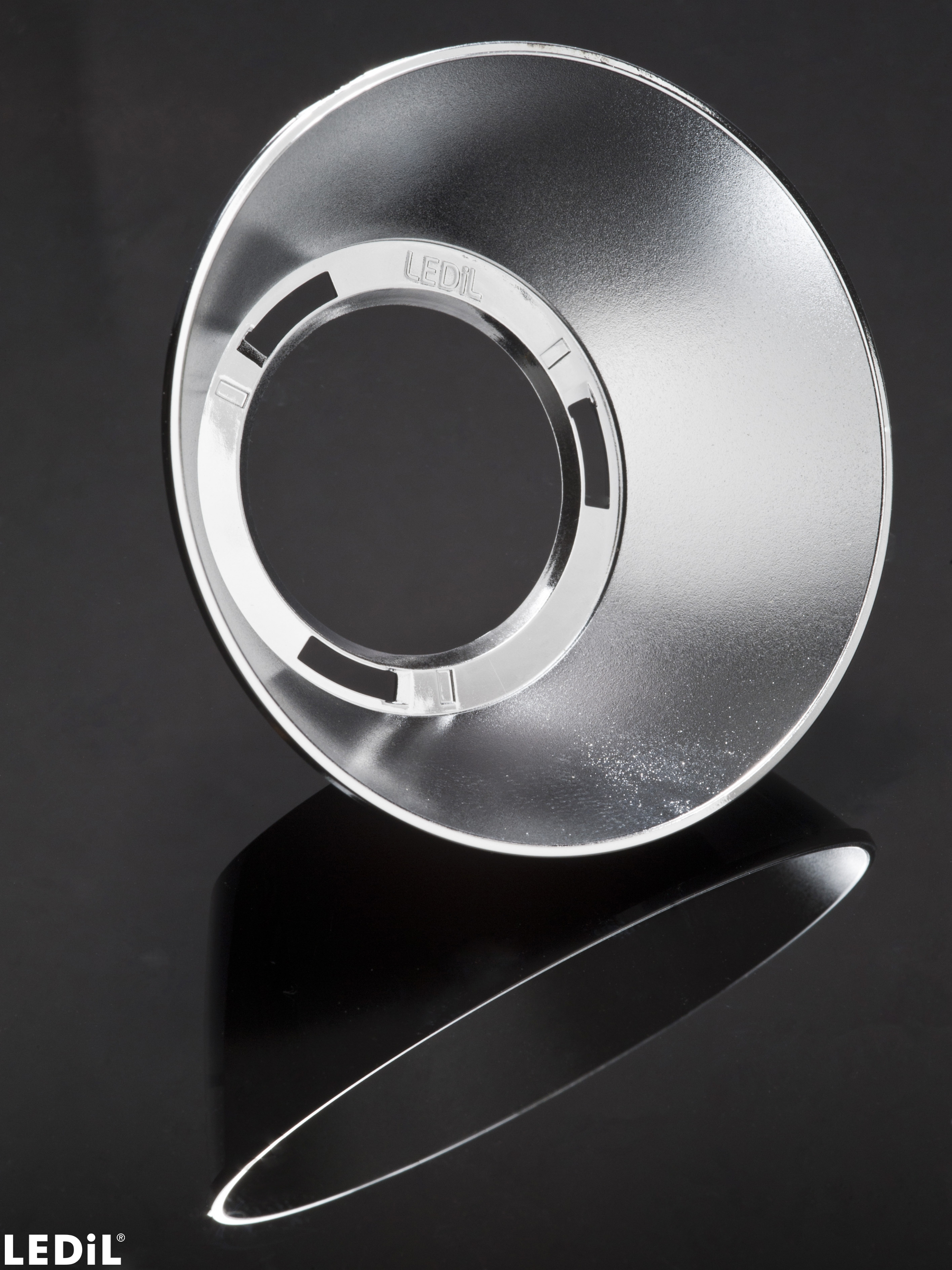

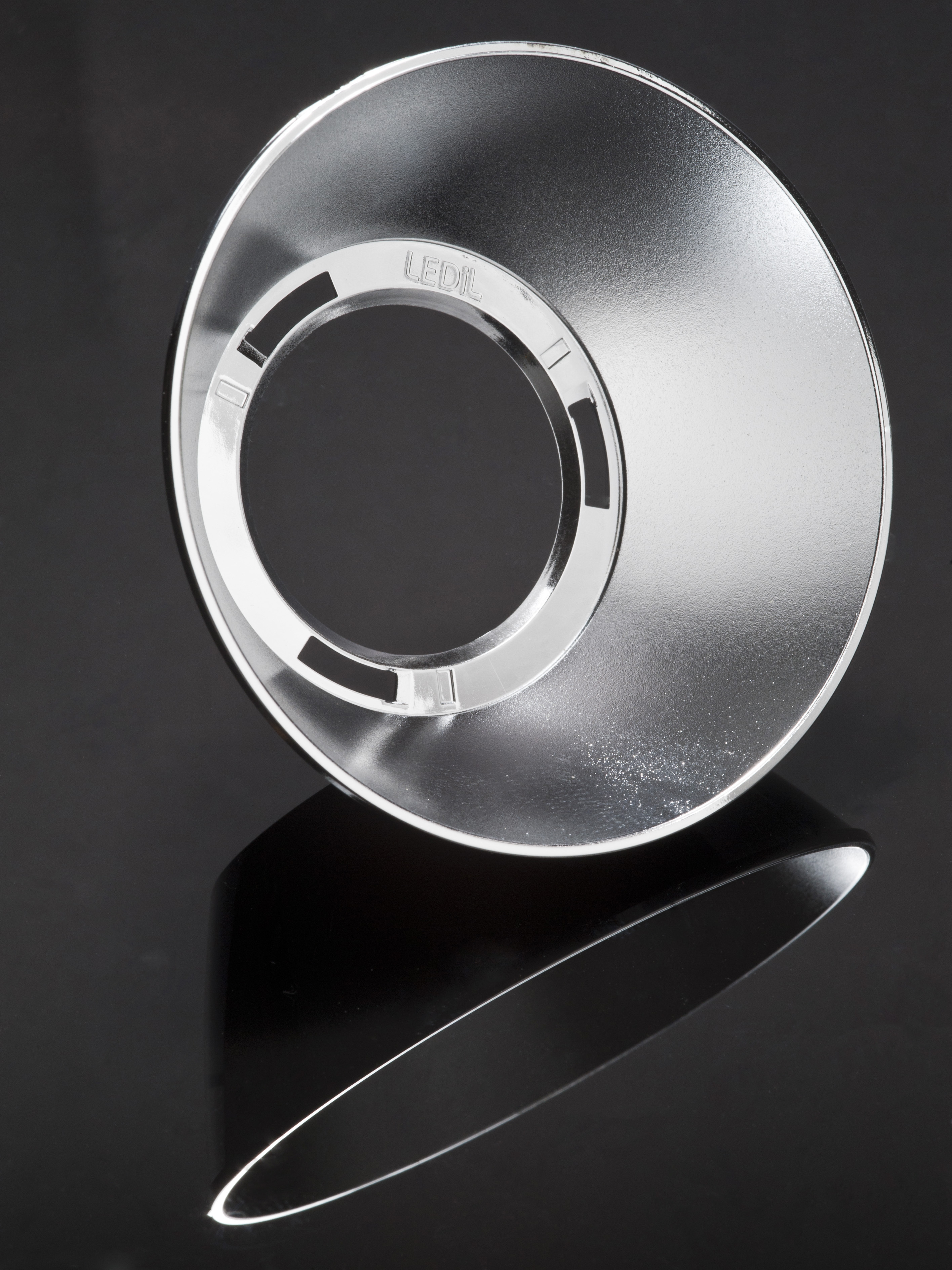

~20° spot beam compatible with BJB connectors

Specification
  • Dimensions:
    82 mm
  • Height:
    31.0 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials
  • PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    2035 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    11.3 kg
  • MPQ:
    55 pcs
  • MOQ:
    110 pcs
  • MOQ size:
    320 x 230 x 150 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F13659_ANGELINA-S-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

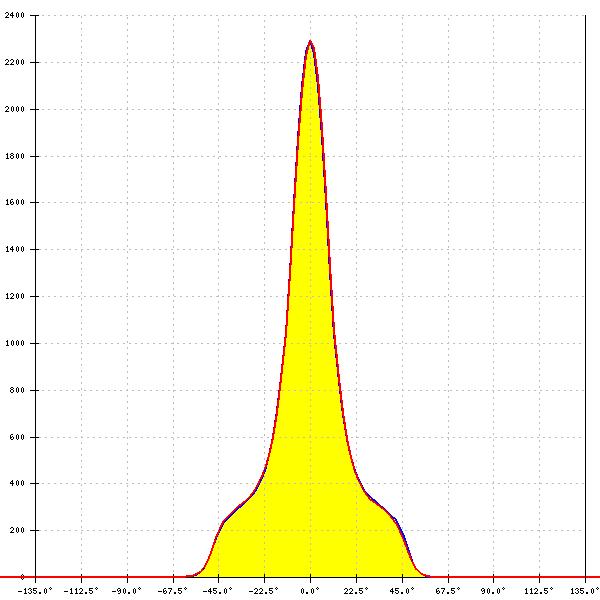

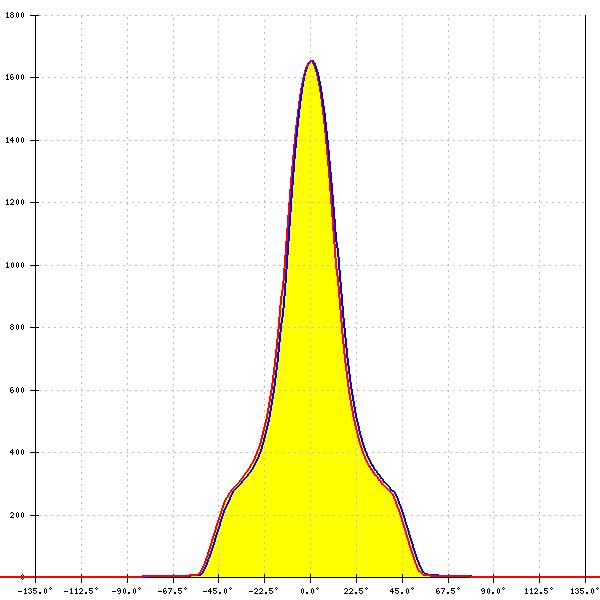

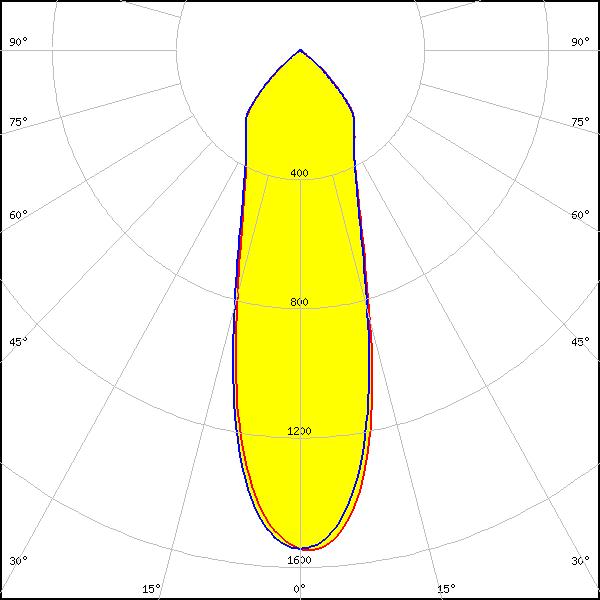

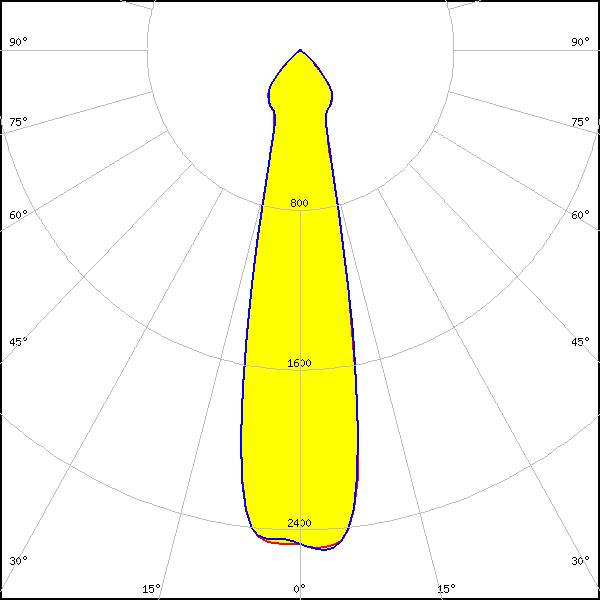

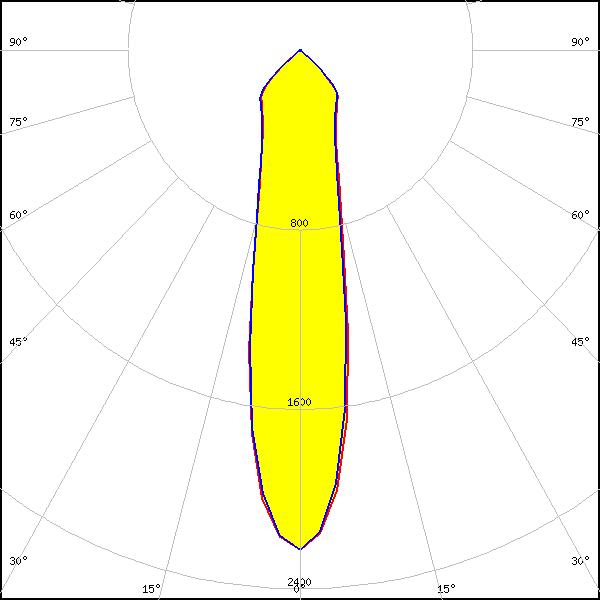

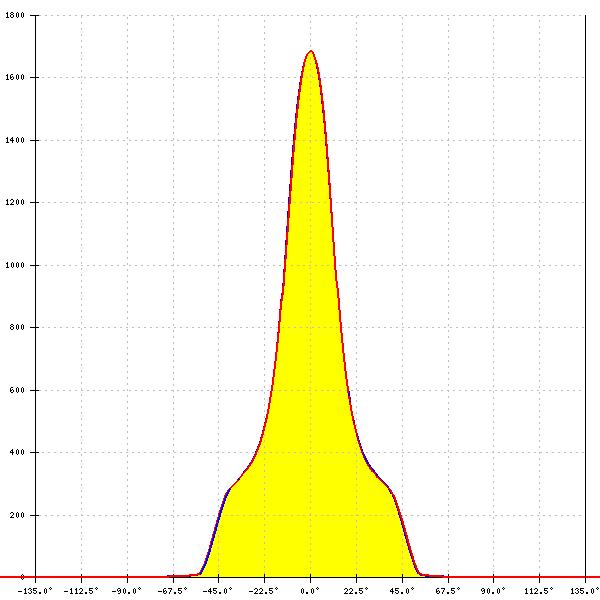

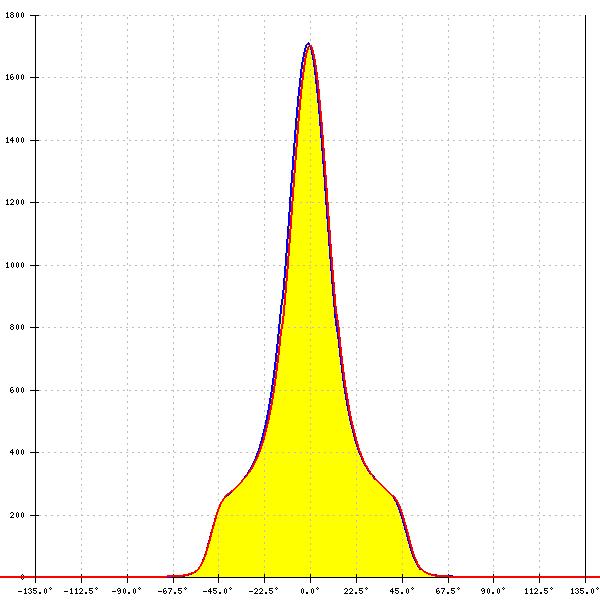

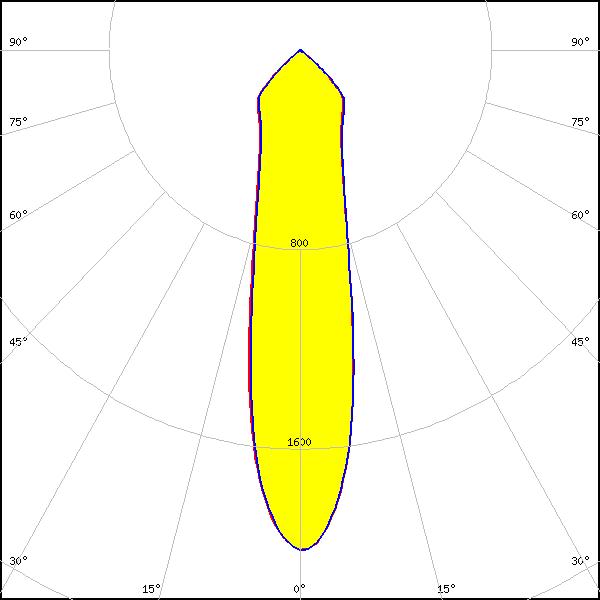

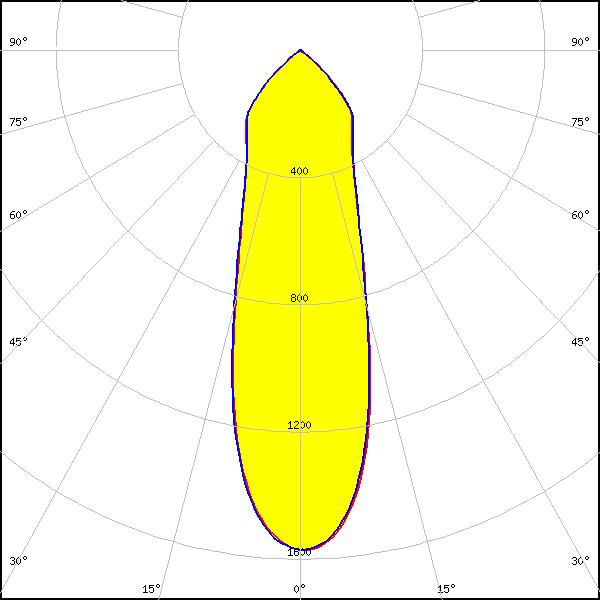

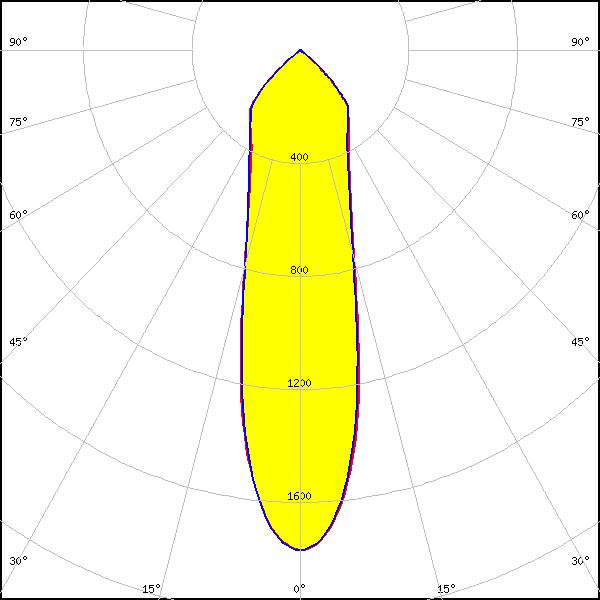

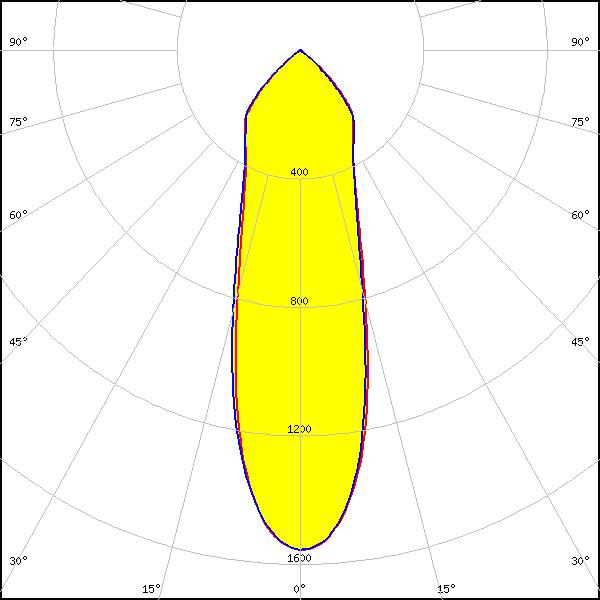

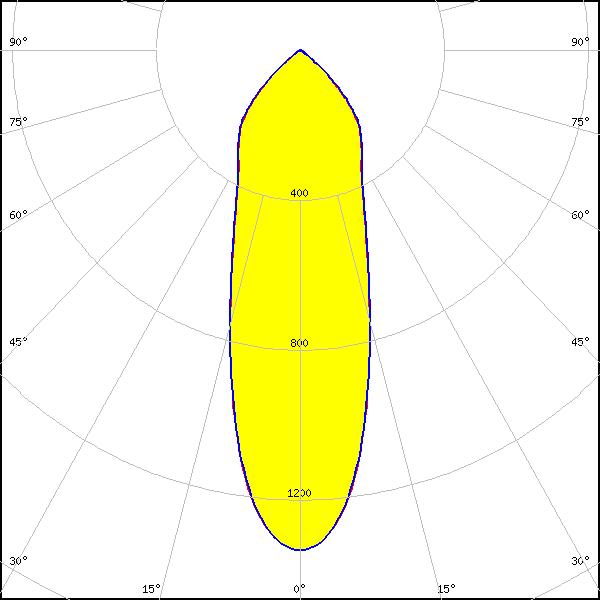

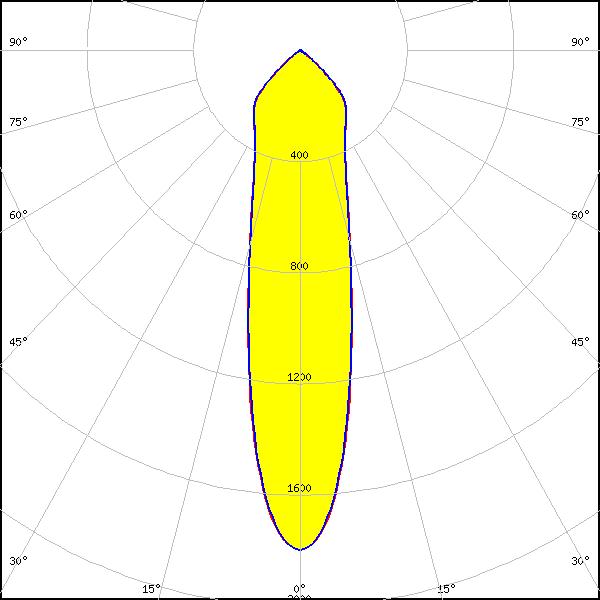

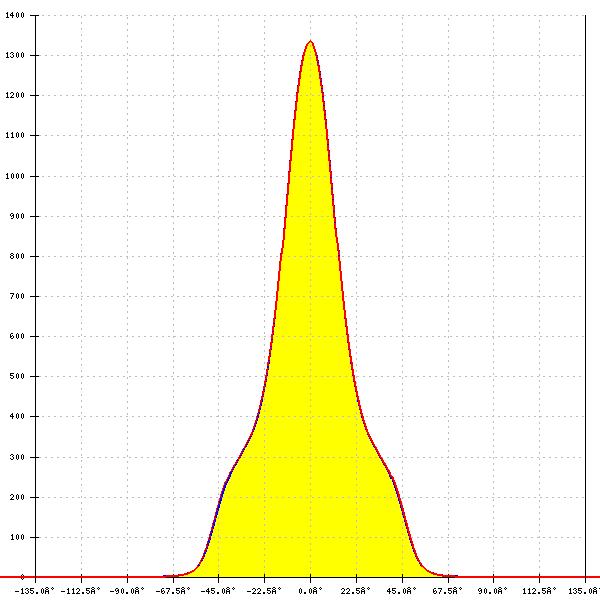

Optical results

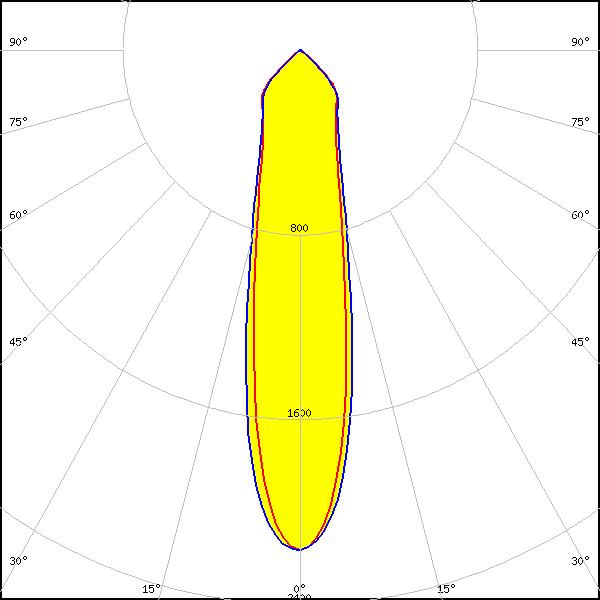

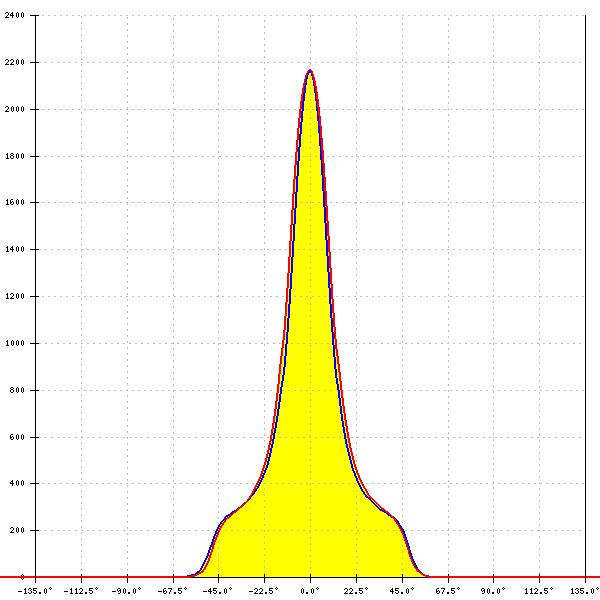

LED: BXRA ES Rectangle
Required components:
BJB: 47.319.2040
FWHM: 23°
Peak intensity: 2.2 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

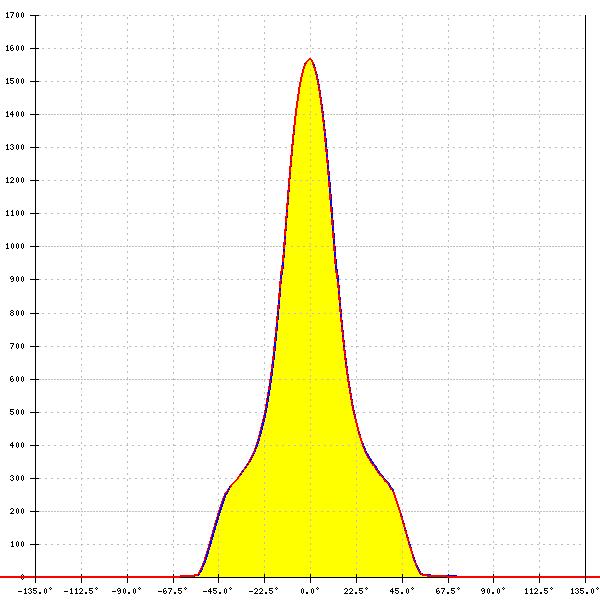

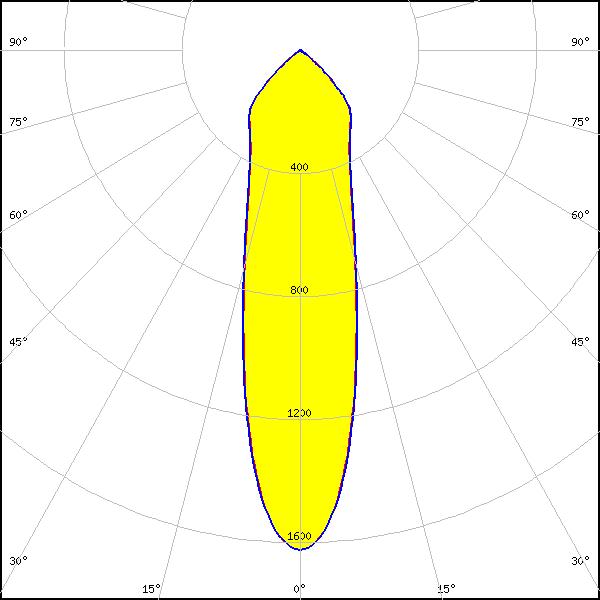

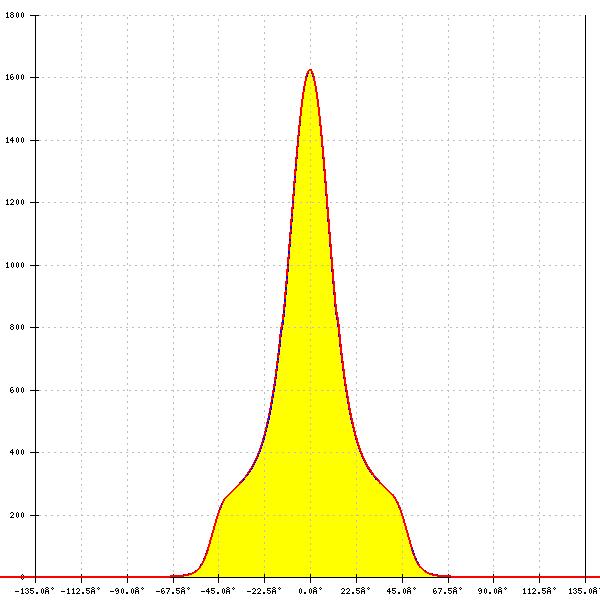

LED: V15 Gen6
Required components:
BJB: 47.319.2224
FWHM: 24°
Peak intensity: 2.0 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

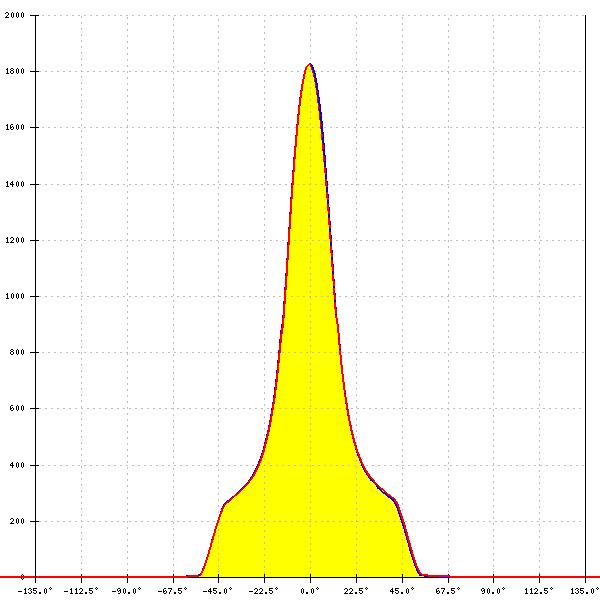

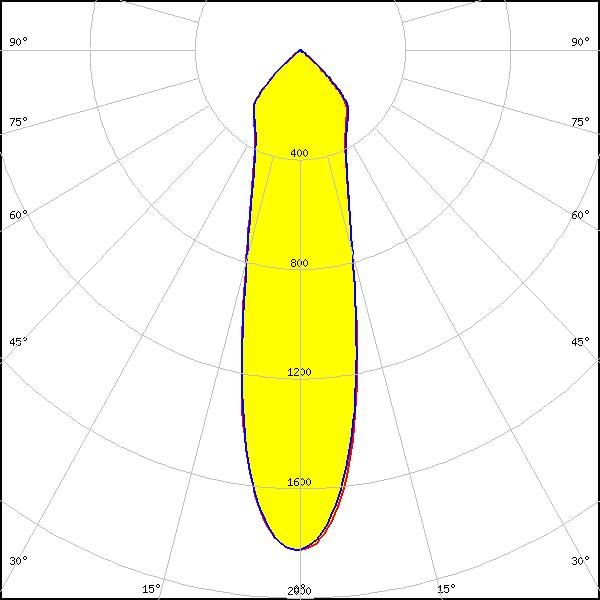

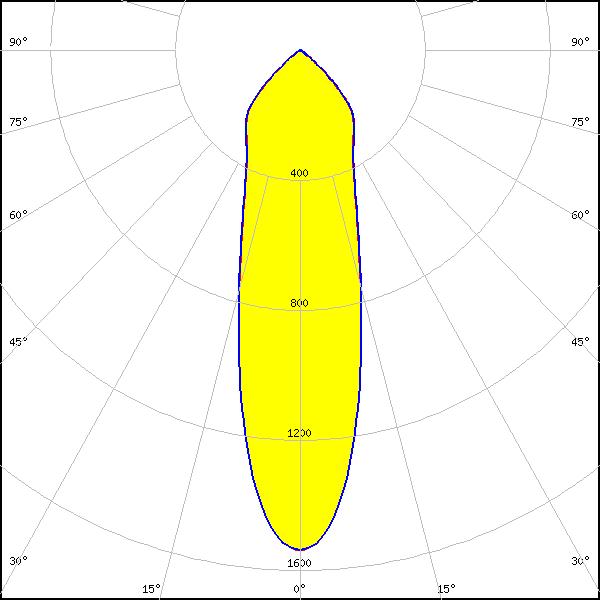

LED: V18 Gen6
Required components:
BJB: 47.319.2274
FWHM: 27°
Peak intensity: 1.8 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

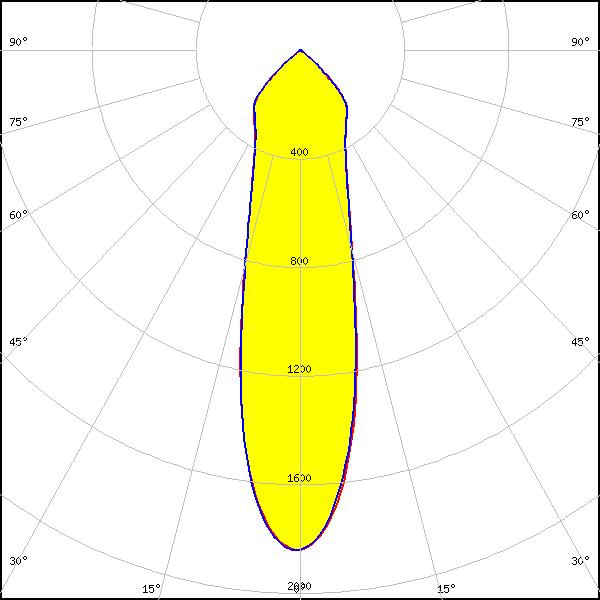

LED: V18 Gen7
Required components:
BJB: 47.319.2350
FWHM: 27°
Peak intensity: 1.8 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

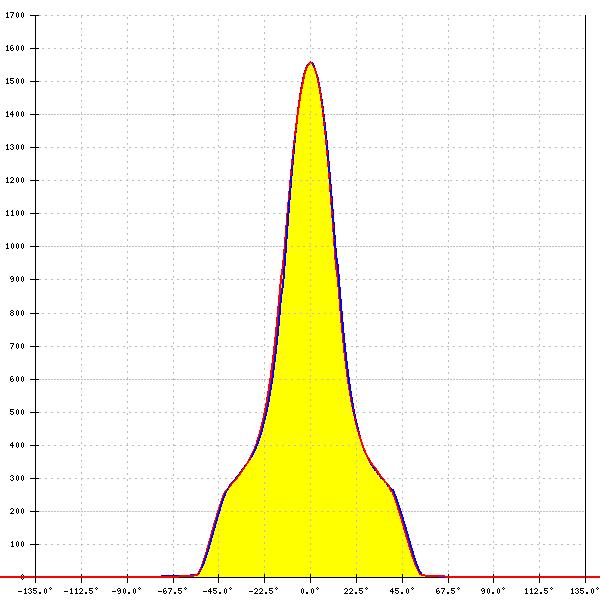

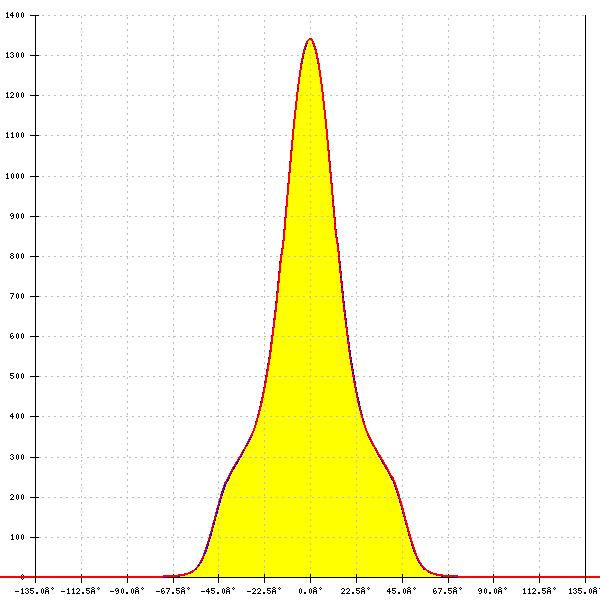

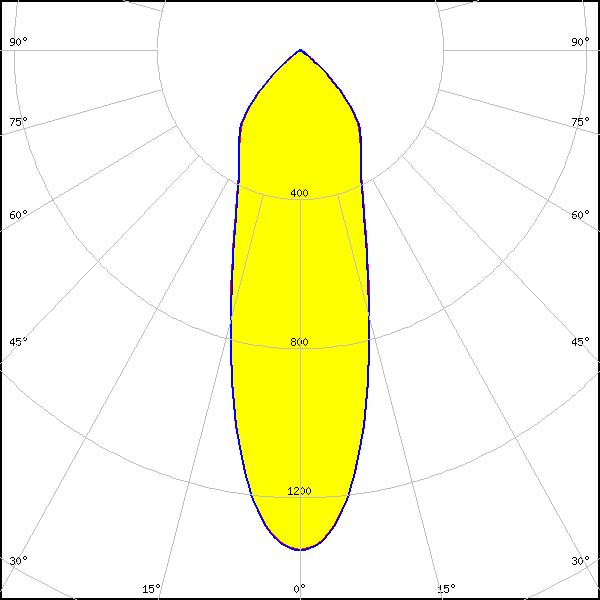

LED: V22 Gen6
Required components:
A.A.G. STUCCHI: 8102/G2
FWHM: 31°
Peak intensity: 1.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

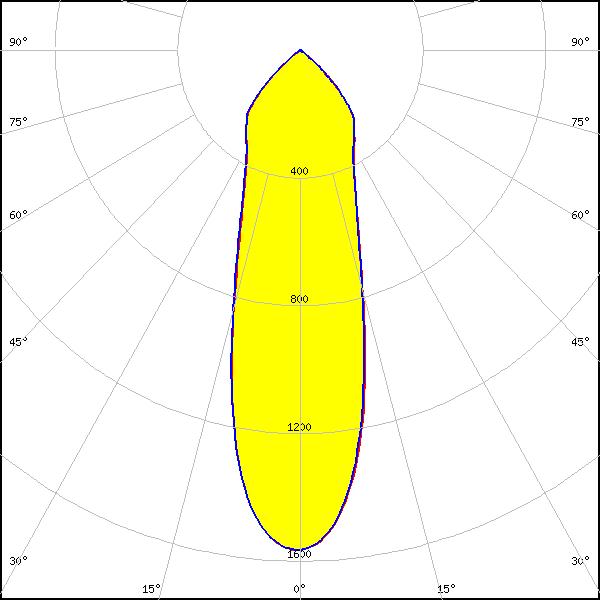

LED: V22 Gen7
Required components:
BJB: 47.319.2030
FWHM: 31°
Peak intensity: 1.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

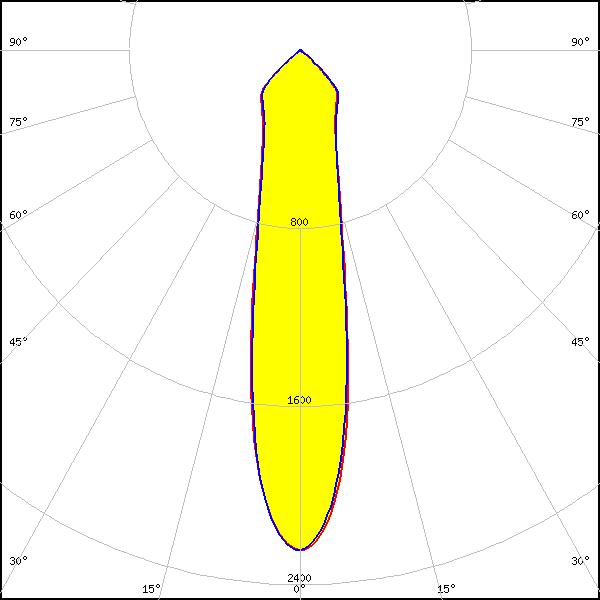

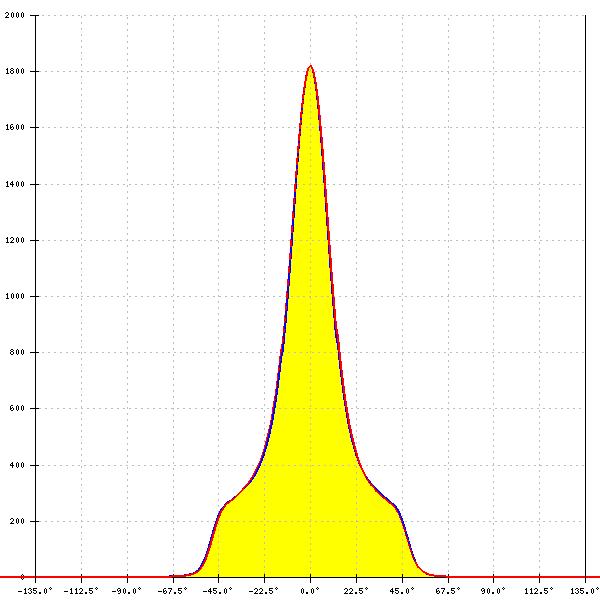

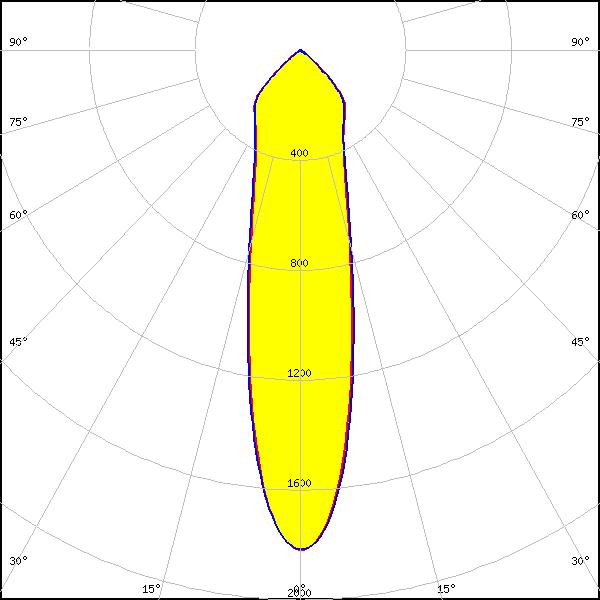

LED: CLL03x/CLU03x
Required components:
A.A.G. STUCCHI: 8101/G2
F13671_ANGE-RZ-LENS
FWHM: 25°
Peak intensity: 1.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

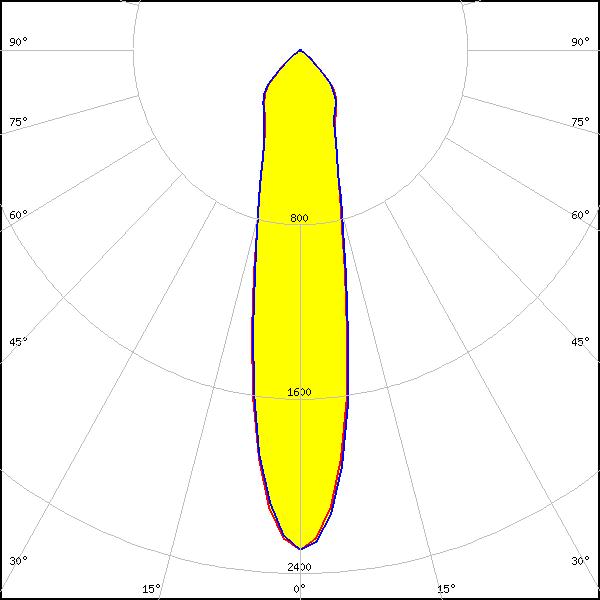

LED: CLL03x/CLU03x
Required components:
A.A.G. STUCCHI: 8101/G2
FWHM: 22°
Peak intensity: 2.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

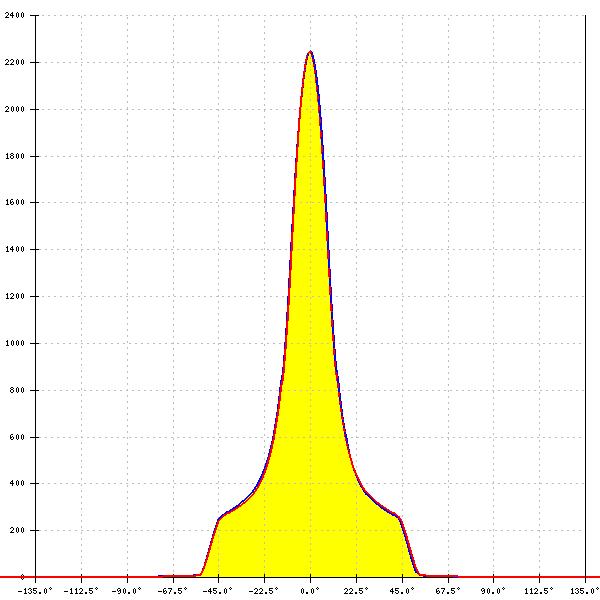

LED: CLL03x/CLU03x
Required components:
BJB: 47.319.2021
FWHM: 23°
Peak intensity: 2.2 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

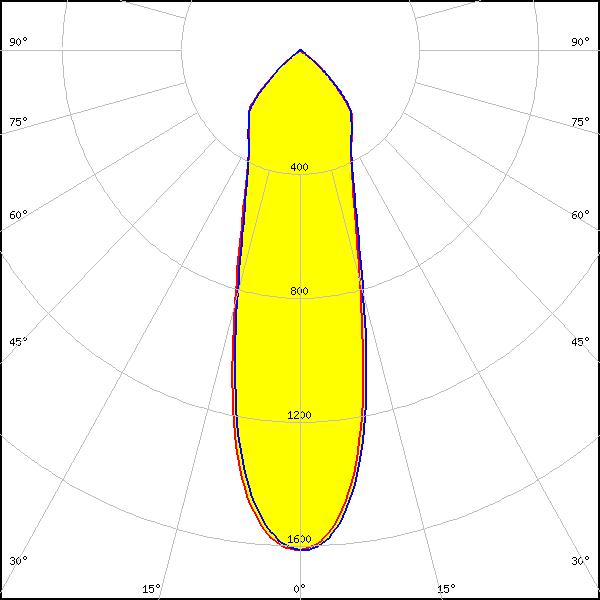

LED: CLL04x/CLU04x
Required components:
BJB: 47.319.2315
FWHM: 24°
Peak intensity: 2.5 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: CLL04x/CLU04x
Required components:
BJB: 47.319.2030
FWHM: 22°
Peak intensity: 3.1 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

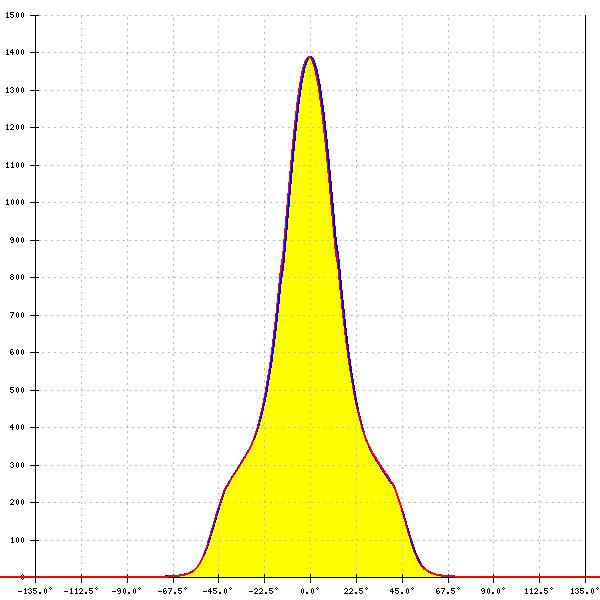

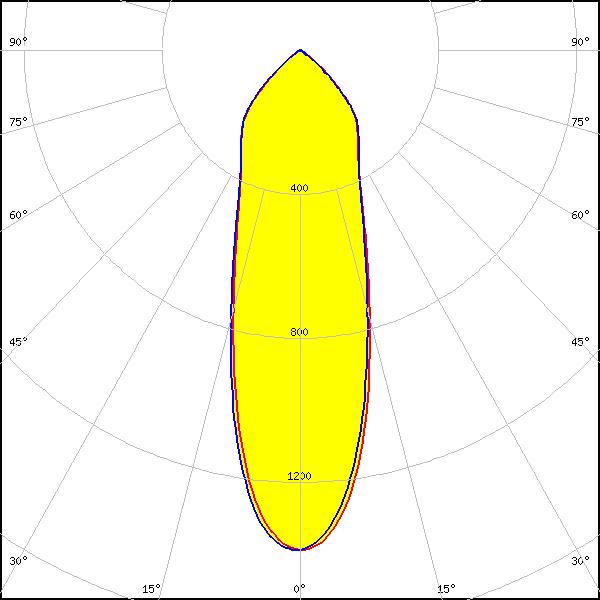

LED: CLL04x/CLU04x
Required components:
A.A.G. STUCCHI: 8102/G2
F13671_ANGE-RZ-LENS
FWHM: 33°
Peak intensity: 1.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

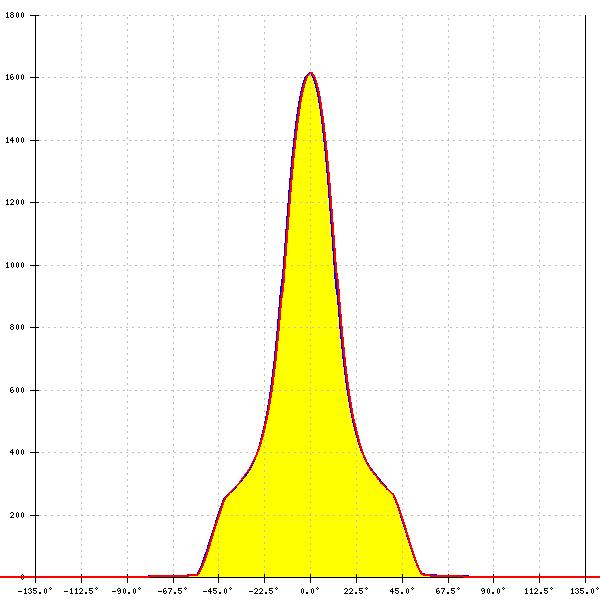

LED: CLL04x/CLU04x
Required components:
A.A.G. STUCCHI: 8102/G2
FWHM: 30°
Peak intensity: 1.6 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

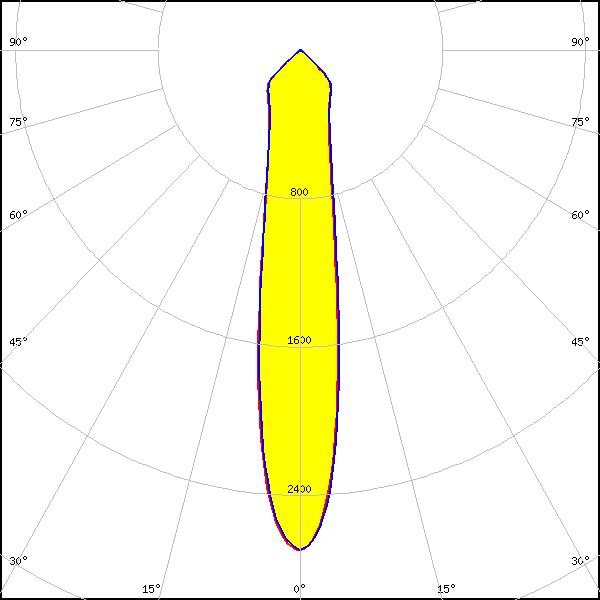

LED: CLU720/721
Required components:
A.A.G. STUCCHI: 8101/G2
FWHM: 19°
Peak intensity: 2.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

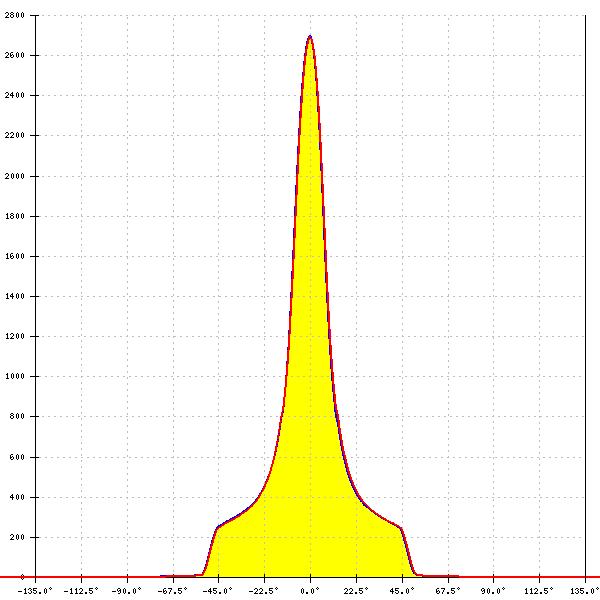

LED: CLU720/721
Required components:
BJB: 47.319.2021
FWHM: 19°
Peak intensity: 2.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CLU730/731
Required components:
BJB: 47.319.2030
FWHM: 16°
Peak intensity: 5.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

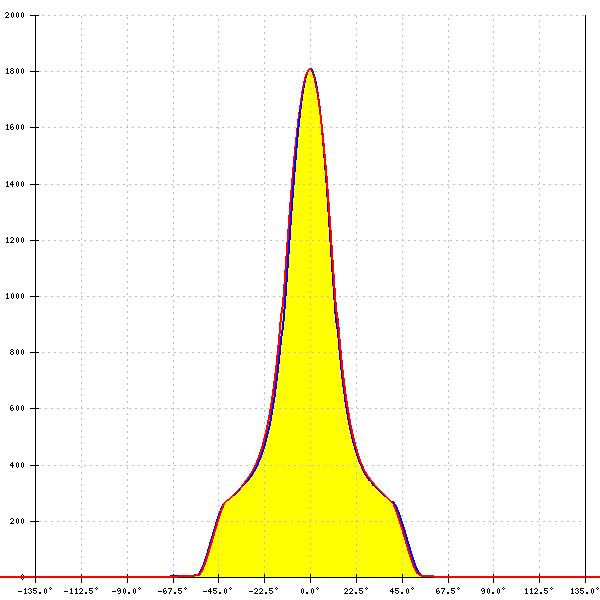

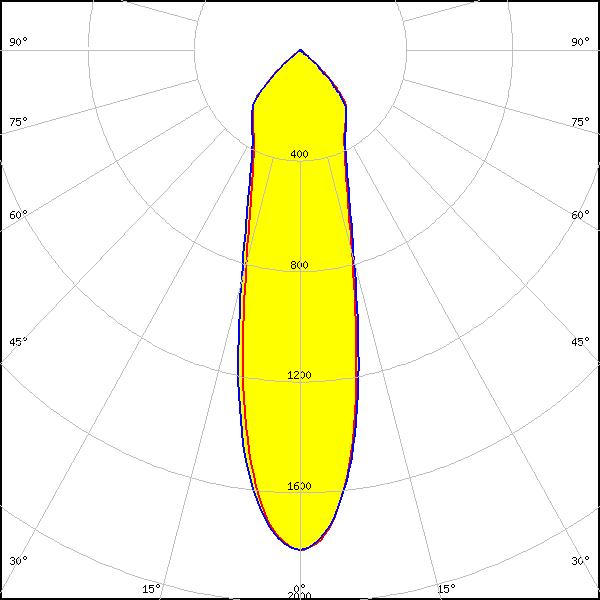

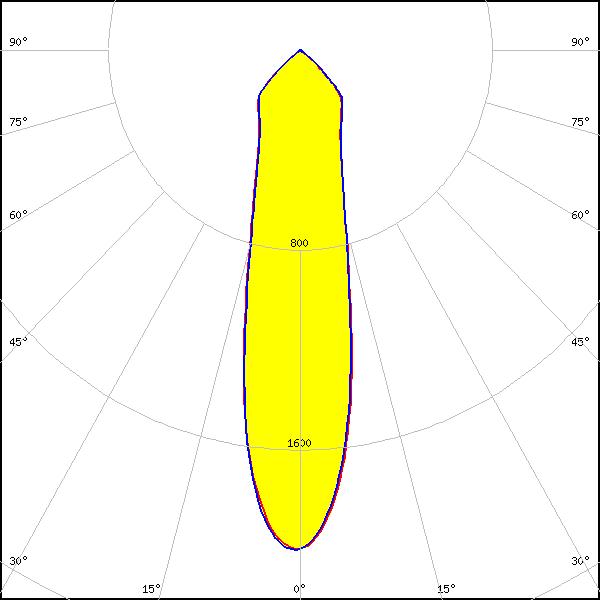

LED: CXA/B 25xx
Required components:
BJB: 47.319.2141
FWHM: 27°
Peak intensity: 1.8 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

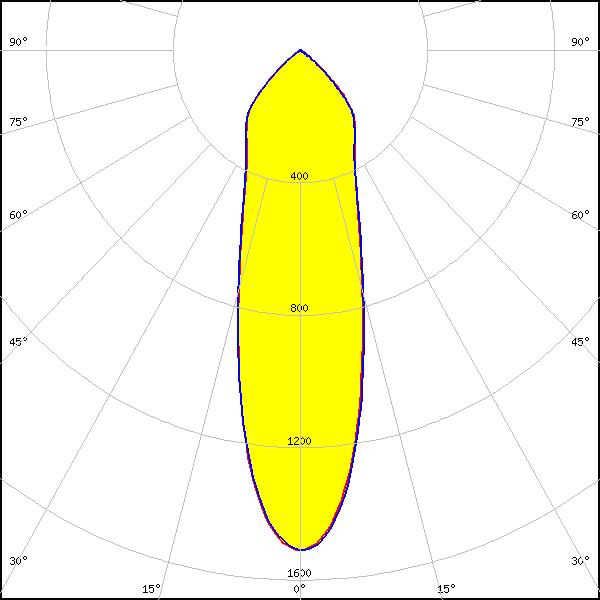

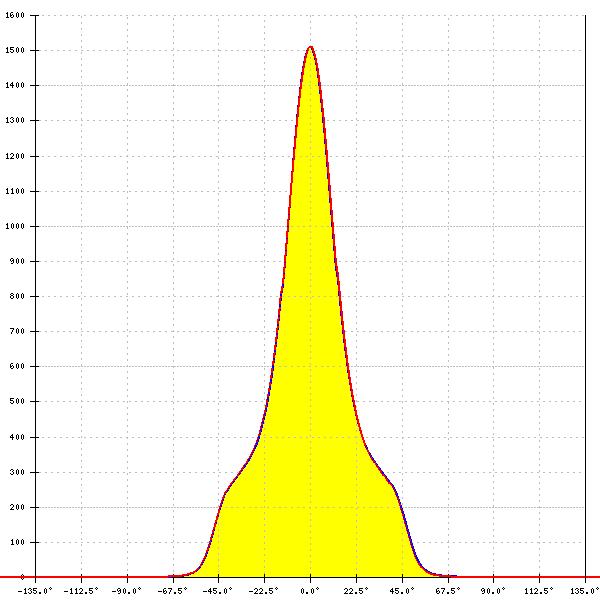

LED: CXA/B 25xx
Required components:
BJB: 47.319.2141
F13671_ANGE-RZ-LENS
FWHM: 30°
Peak intensity: 1.5 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 25xx
Required components:
A.A.G. STUCCHI: 8401/G2
FWHM: 25°
Peak intensity: 2.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

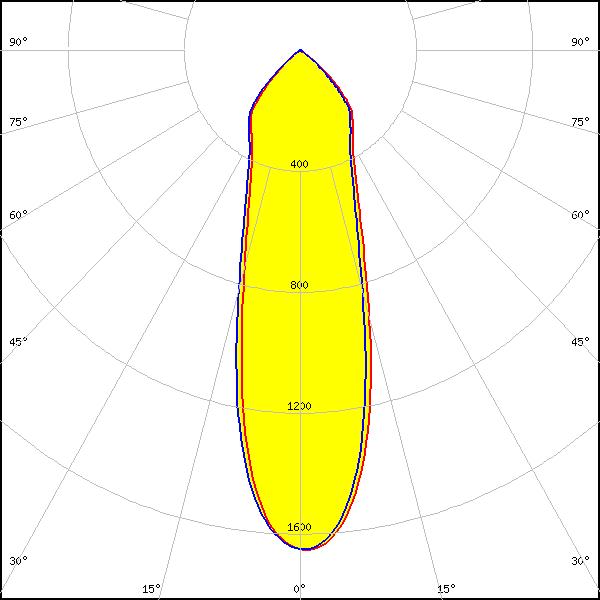

LED: CXA/B 30xx
Required components:
A.A.G. STUCCHI: 8404/G2
FWHM: 30°
Peak intensity: 1.7 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

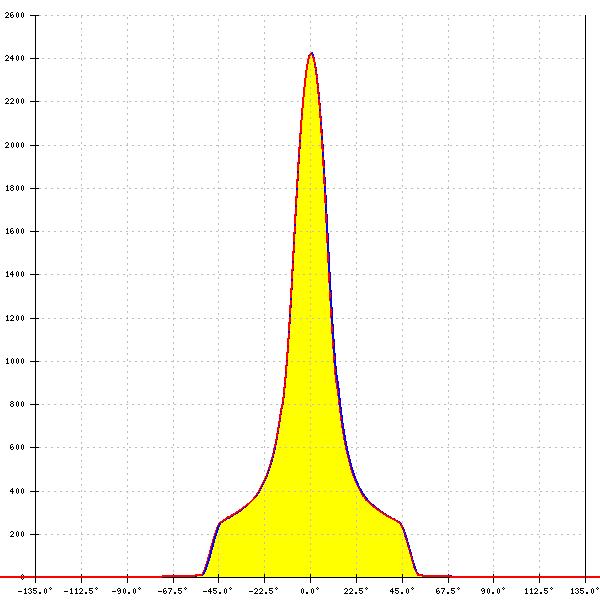

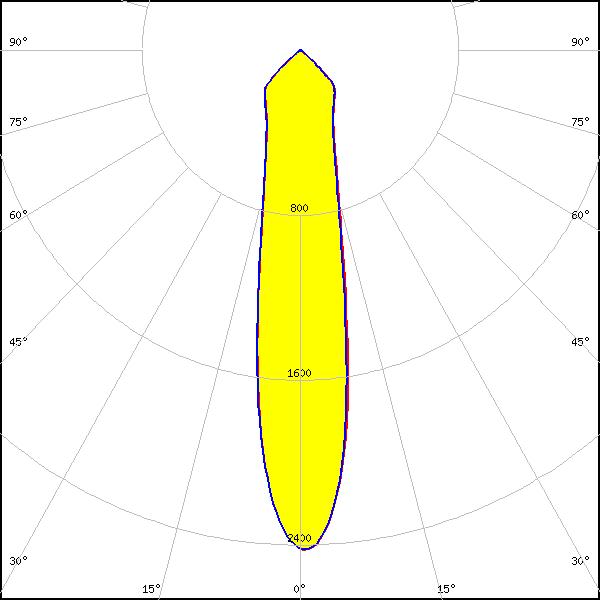

LED: LUXEON CoB 1204/1205
Required components:
A.A.G. STUCCHI: 8301/G2
FWHM: 21°
Peak intensity: 2.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1208
Required components:
A.A.G. STUCCHI: 8301/G2
FWHM: 23°
Peak intensity: 2.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

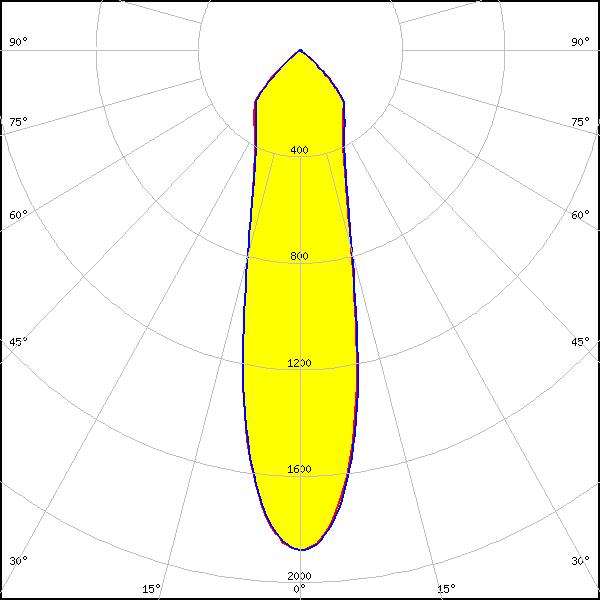

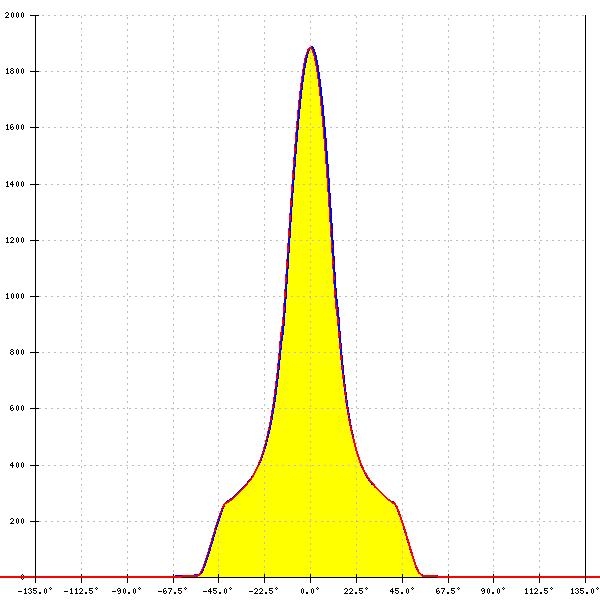

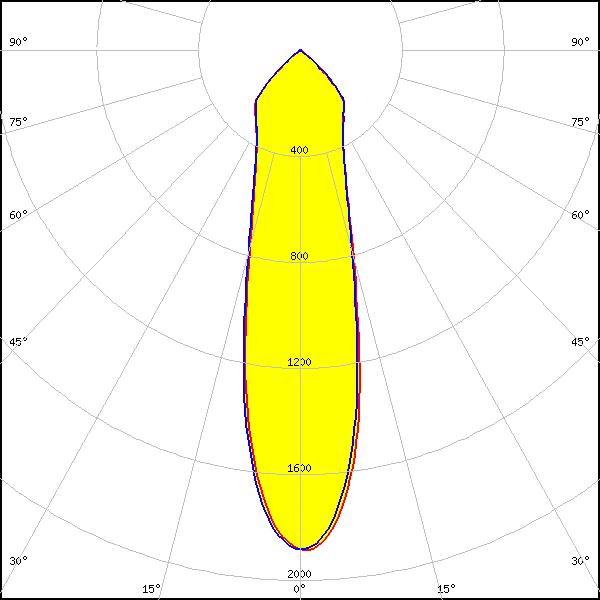

LED: LUXEON CoB 1211
Required components:
BJB: 47.319.2030
FWHM: 26°
Peak intensity: 1.9 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

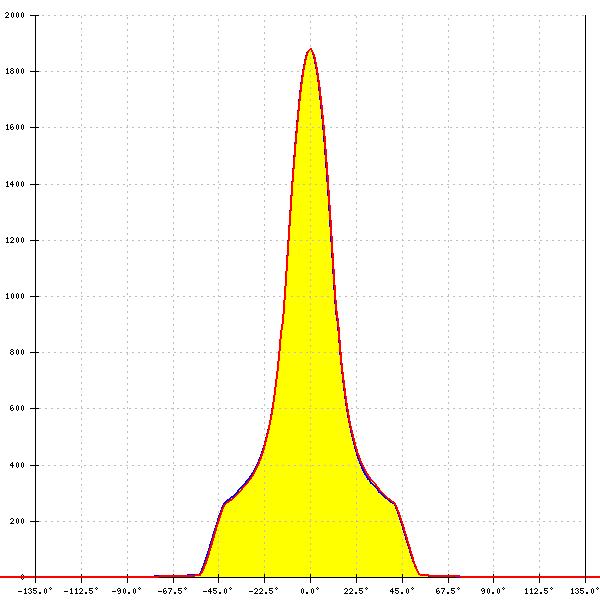

LED: LUXEON CoB 1211
Required components:
A.A.G. STUCCHI: 8102/G2
FWHM: 26°
Peak intensity: 1.9 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

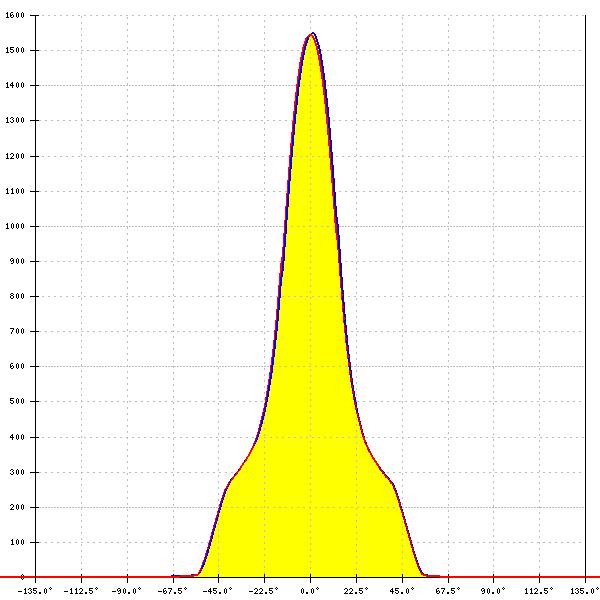

LED: LUXEON CoB 1216/1812
Required components:
BJB: 47.319.2030
FWHM: 32°
Peak intensity: 1.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

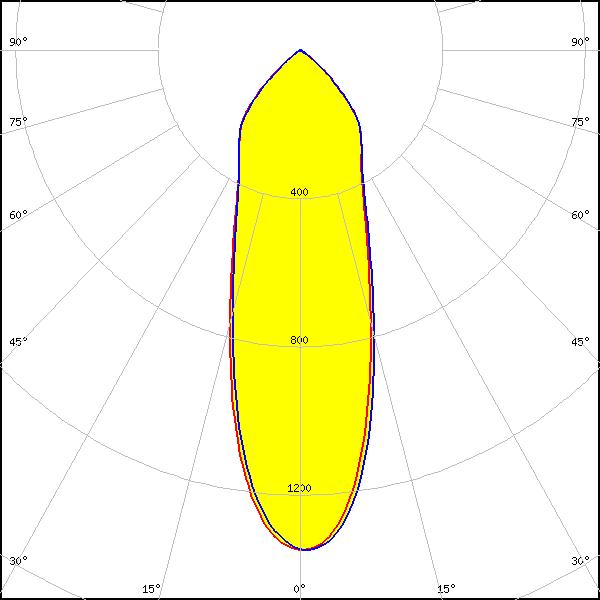

LED: LUXEON CoB 1216/1812
Required components:
BJB: 47.319.2030
F13671_ANGE-RZ-LENS
FWHM: 34°
Peak intensity: 1.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

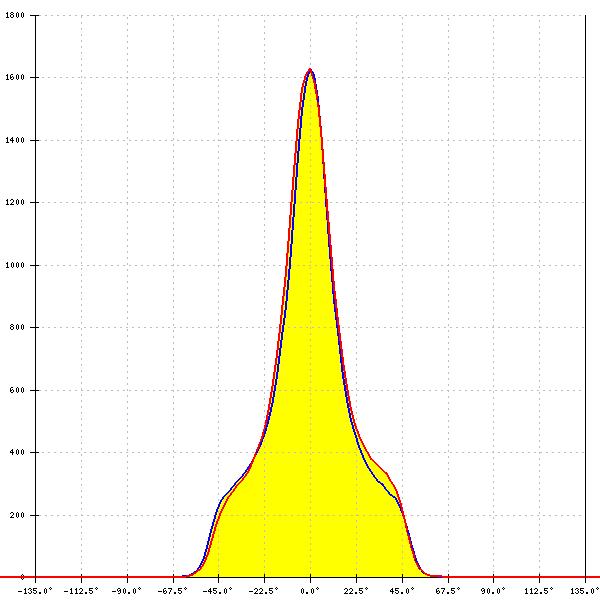

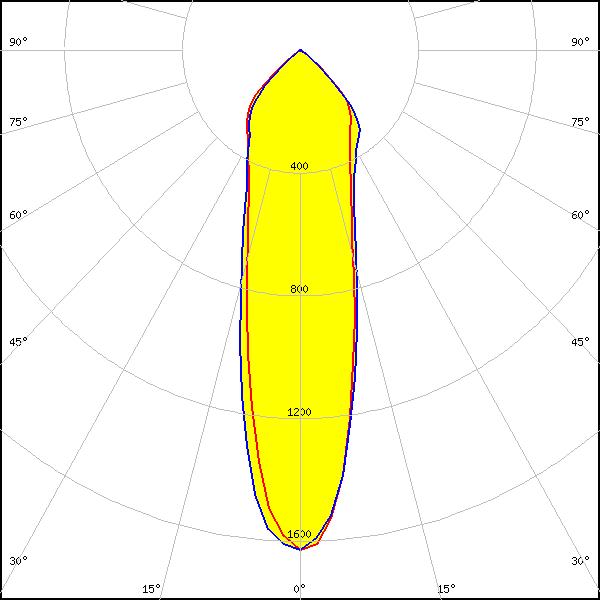

LED: LUXEON K12
Required components:
BJB: 47.319.2070
FWHM: 15°
LEDs/each optic: 1
Light colour: White
LED: LUXEON K12
Required components:
BJB: 47.319.2070
F13671_ANGE-RZ-LENS
FWHM: 27°
Peak intensity: 1.6 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

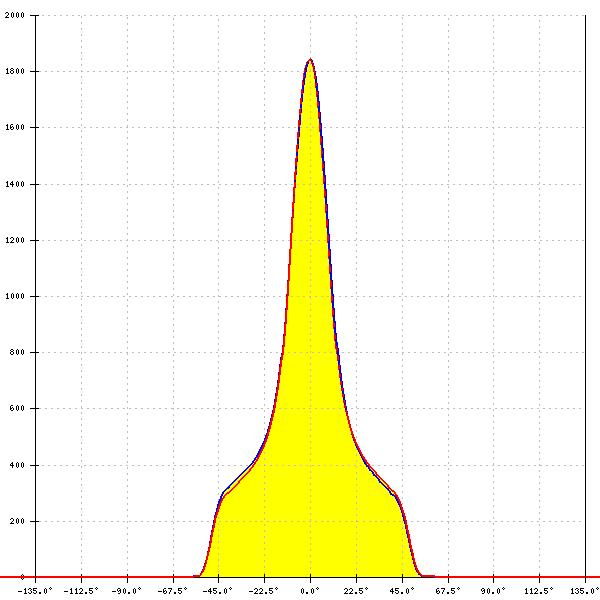

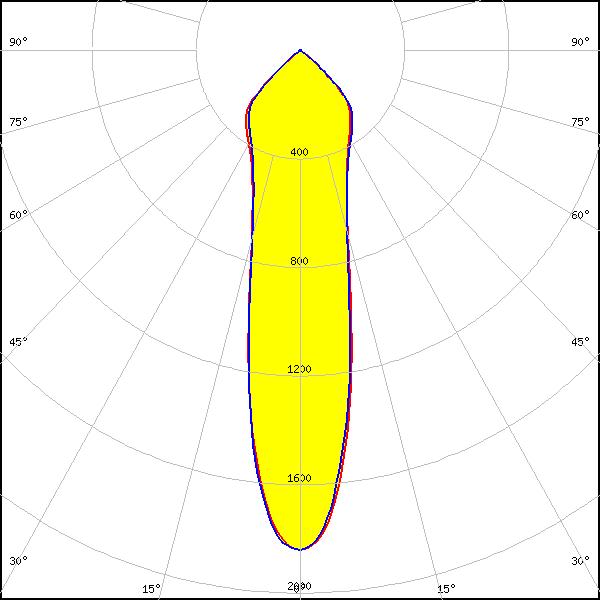

LED: LUXEON K16
Required components:
BJB: 47.319.2070
FWHM: 24°
Peak intensity: 1.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

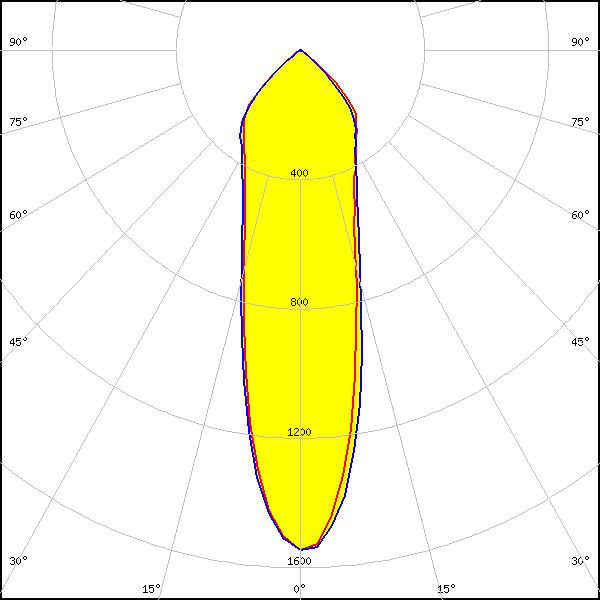

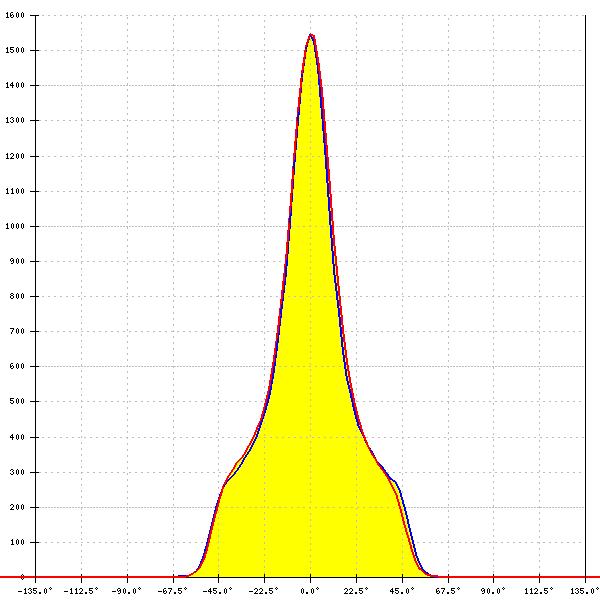

LED: LUXEON K16
Required components:
BJB: 47.319.2070
F13671_ANGE-RZ-LENS
FWHM: 29°
Peak intensity: 1.5 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

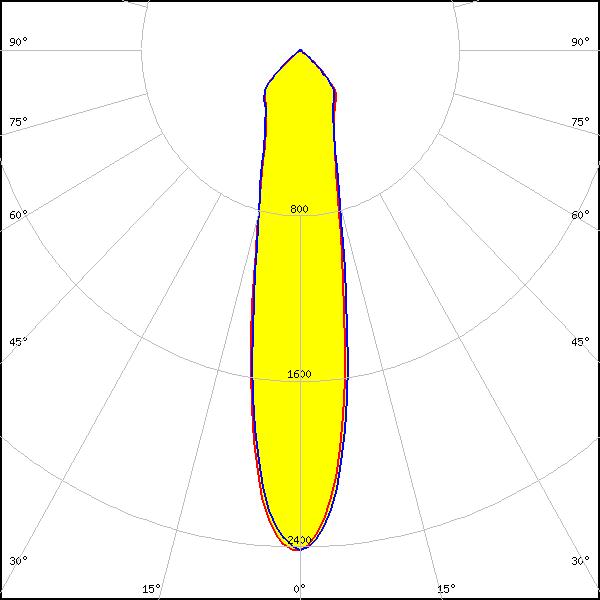

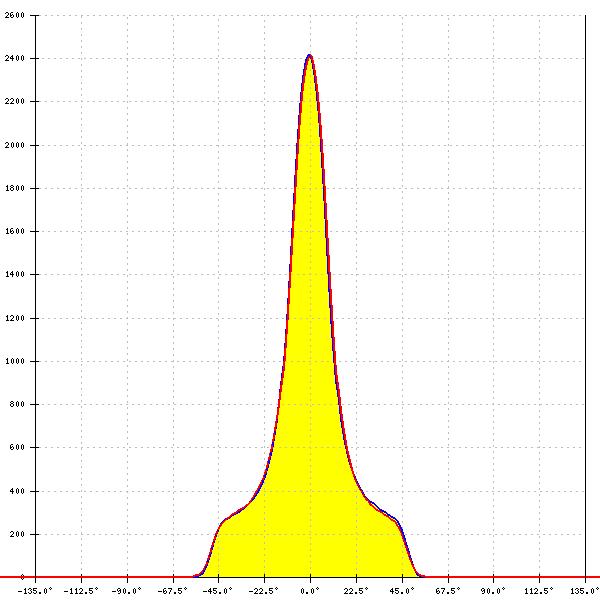

LED: CxM-14 (19x19)
Required components:
BJB: 47.319.2021
FWHM: 23°
Peak intensity: 2.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

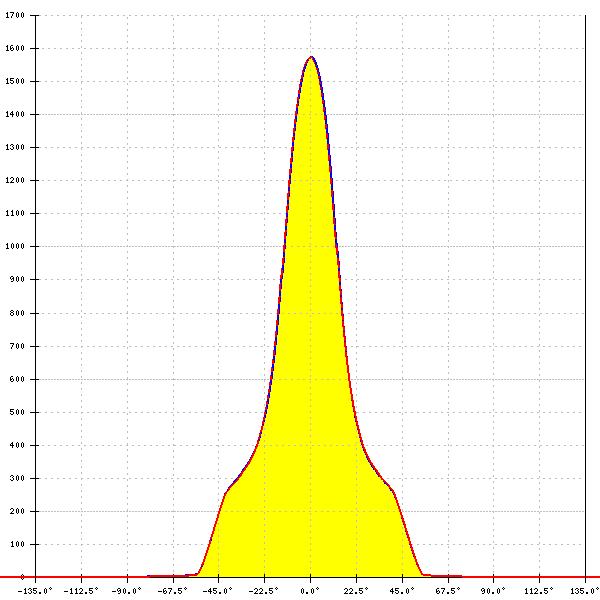

LED: CxM-22 (28x28)
Required components:
BJB: 47.319.2030
FWHM: 32°
Peak intensity: 1.6 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

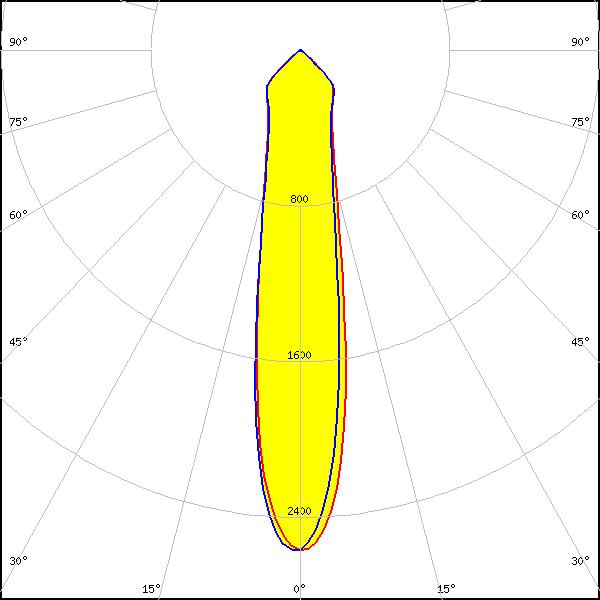

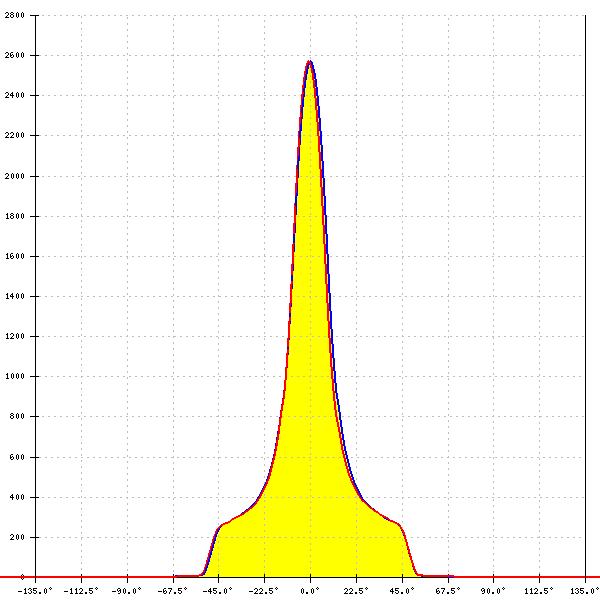

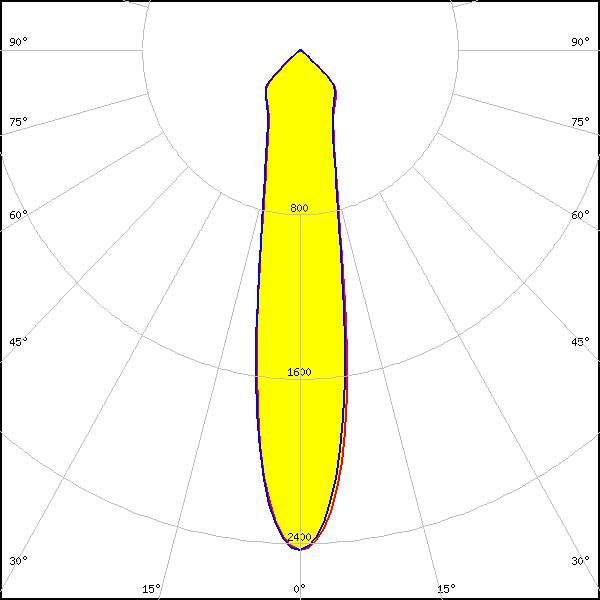

LED: Soleriq S13
Required components:
A.A.G. STUCCHI: 8502/G2
FWHM: 20°
Peak intensity: 2.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Soleriq S13 19x19
Required components:
BJB: 47.319.2021
FWHM: 20°
Peak intensity: 2.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

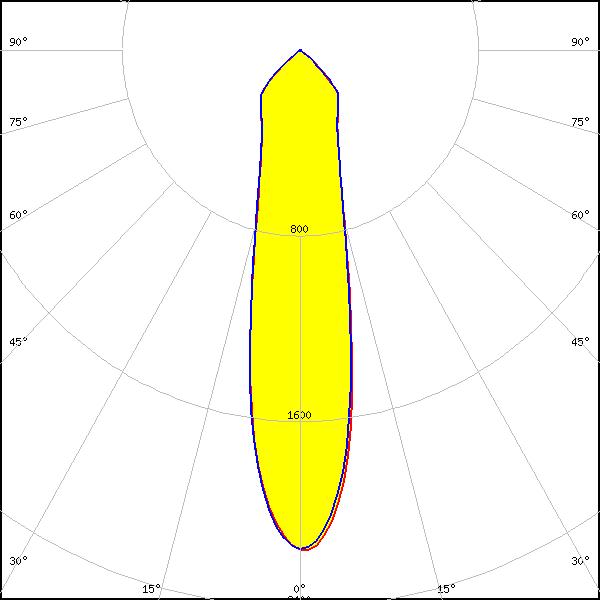

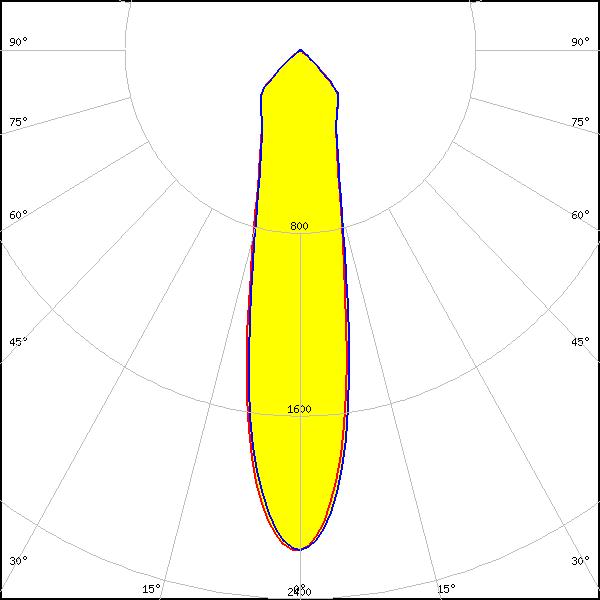

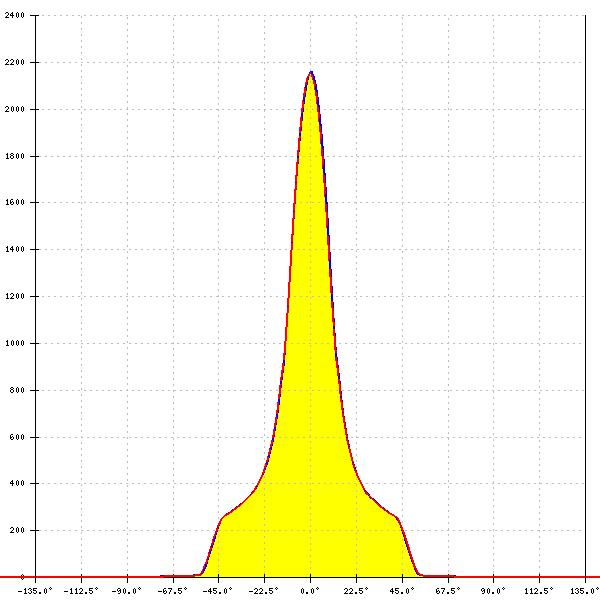

LED: Soleriq S19
Required components:
A.A.G. STUCCHI: 8503/G2
FWHM: 23°
Peak intensity: 2.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Soleriq S19
Required components:
BJB: 47.319.2170
FWHM: 23°
Peak intensity: 2.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

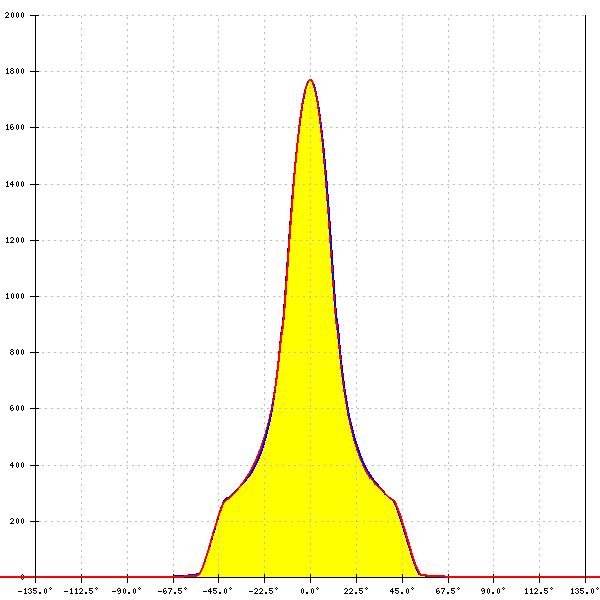

LED: Fortimo SLM L19 CoB
Required components:
BJB: 47.319.2030
FWHM: 27°
Peak intensity: 1.8 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

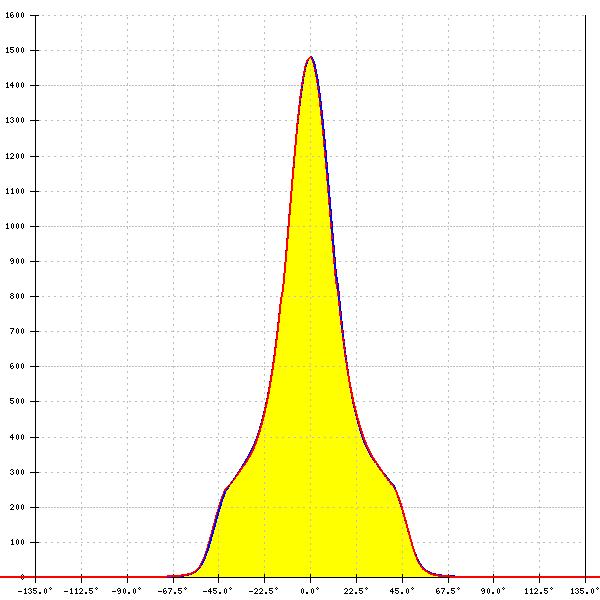

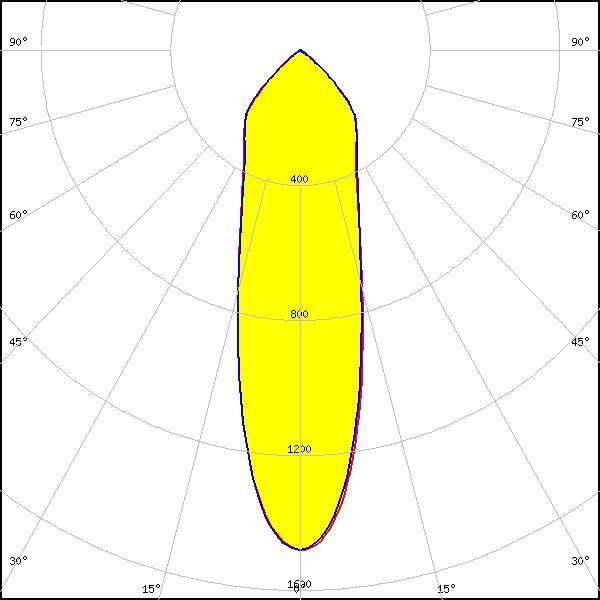

LED: Fortimo SLM L19 CoB
Required components:
BJB: 47.319.2030
F13671_ANGE-RZ-LENS
FWHM: 30°
Peak intensity: 1.5 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

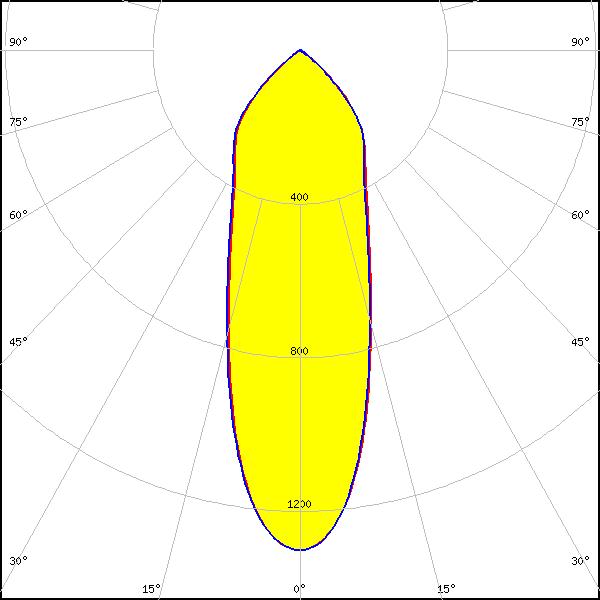

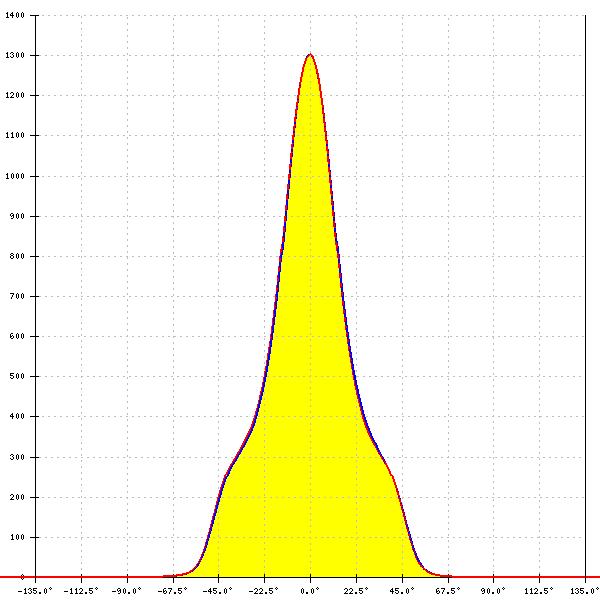

LED: Fortimo SLM L23 CoB
Required components:
BJB: 47.319.2030
F13671_ANGE-RZ-LENS
FWHM: 34°
Peak intensity: 1.3 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

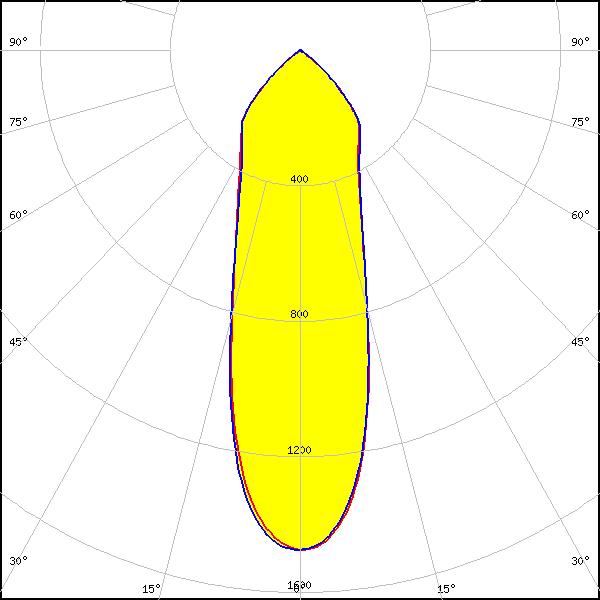

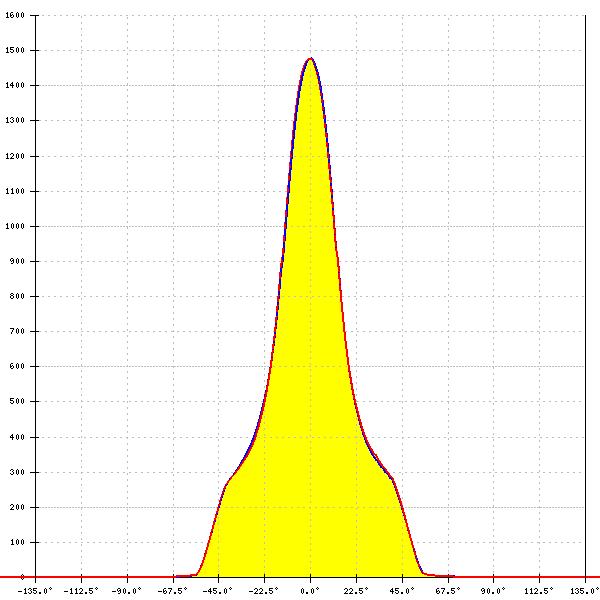

LED: Fortimo SLM L23 CoB
Required components:
BJB: 47.319.2030
FWHM: 32°
Peak intensity: 1.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
A.A.G. STUCCHI: 8101/G2
FWHM: 24°
Peak intensity: 2.1 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
BJB: 47.319.2021
FWHM: 24°
Peak intensity: 2.1 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
A.A.G. STUCCHI: 8101/G2
F13671_ANGE-RZ-LENS
FWHM: 27°
Peak intensity: 1.7 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
BJB: 47.319.2021
F13671_ANGE-RZ-LENS
FWHM: 27°
Peak intensity: 1.7 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LC040D / LC060D / LC080D
Required components:
BJB: 47.319.2030
FWHM: 27°
Peak intensity: 2.2 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

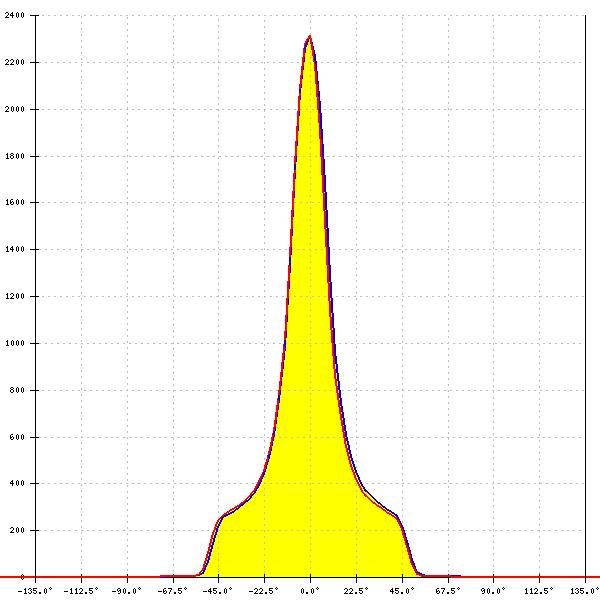

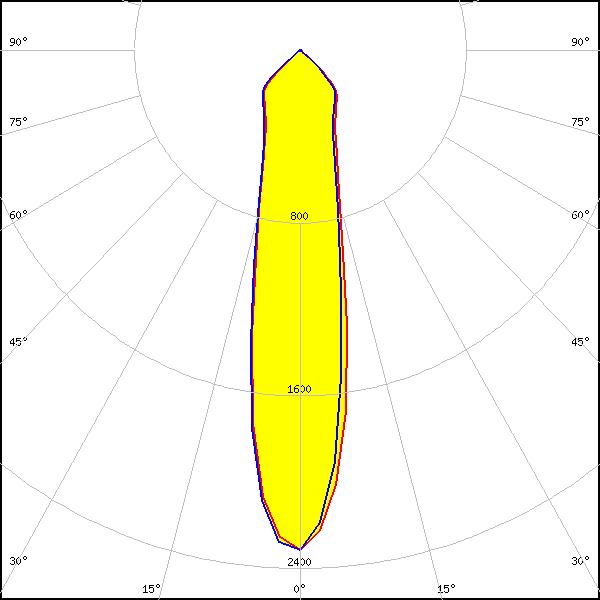

LED: ZC12/18
Required components:
A.A.G. STUCCHI: 8101/G2
FWHM: 22°
Peak intensity: 2.3 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

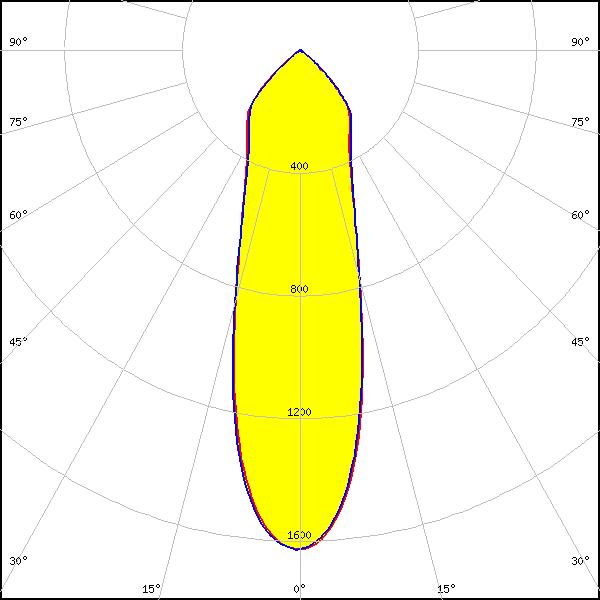

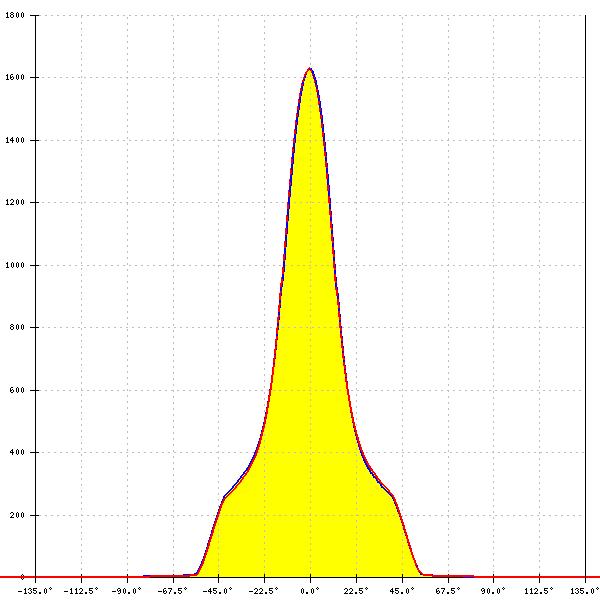

LED: ZC25/40/60
Required components:
A.A.G. STUCCHI: 8102/G2
FWHM: 30°
Peak intensity: 1.6 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: Mega Zenigata (GW5DGC)
Required components:
BJB: 47.319.2011
LEDs/each optic: 1
Light colour: White

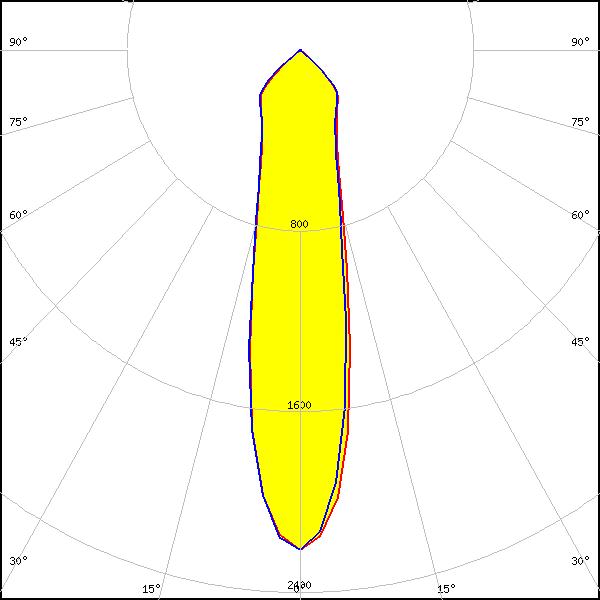

LED: Mega Zenigata (GW6DME)
Required components:
BJB: 47.319.2011
LEDs/each optic: 1
Light colour: White

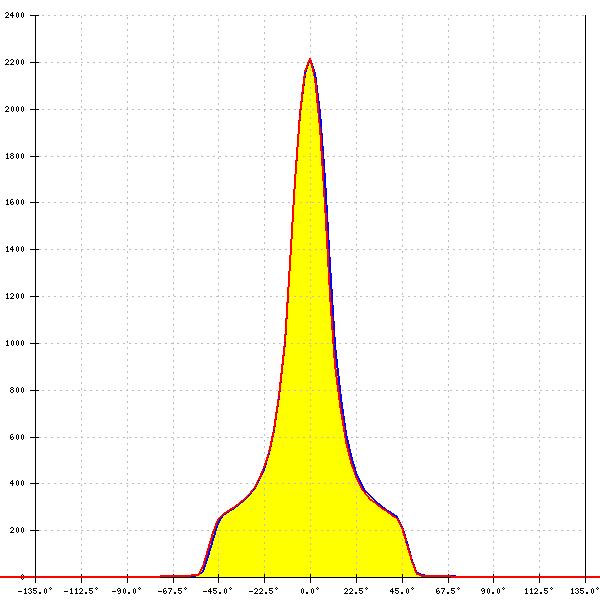

LED: Mega Zenigata (GW6DME)
Required components:
A.A.G. STUCCHI: 8301/G2
FWHM: 23°
Peak intensity: 2.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

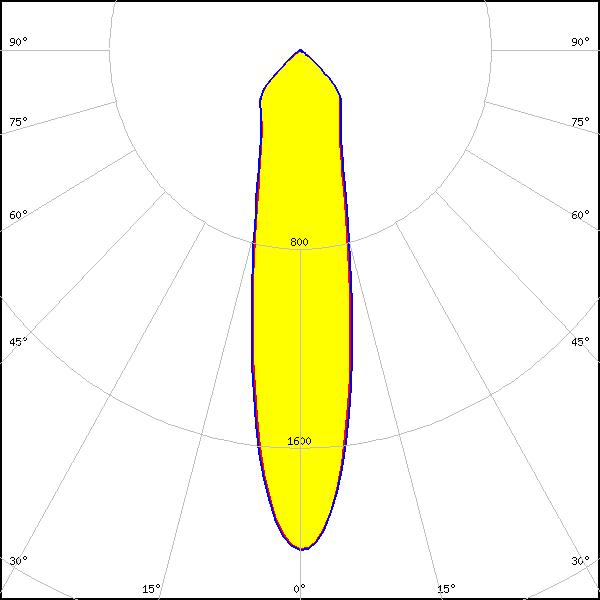

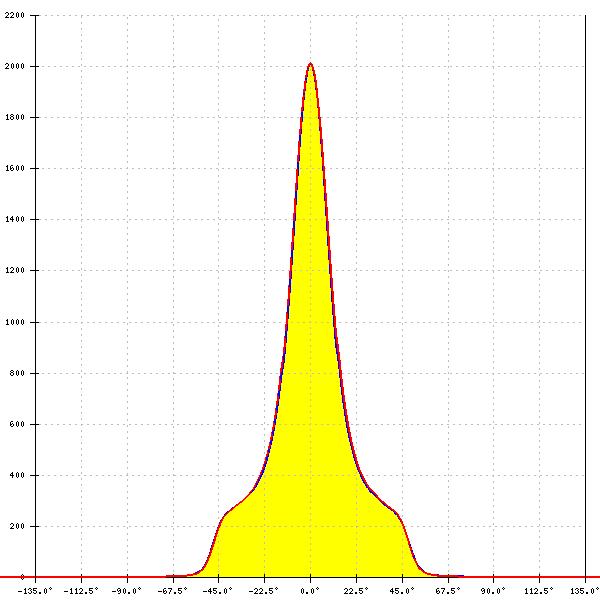

LED: Tiger Zenigata (GWTGCBG4FD)
Required components:
BJB: 47.319.2051
F13671_ANGE-RZ-LENS
FWHM: 23°
Peak intensity: 2.0 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

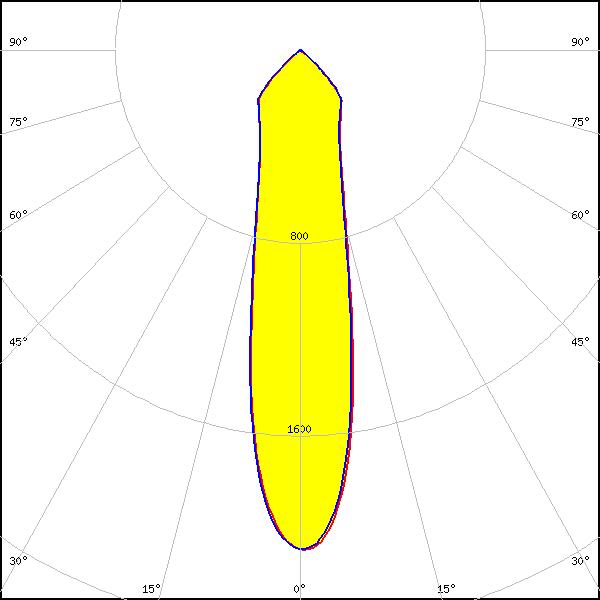

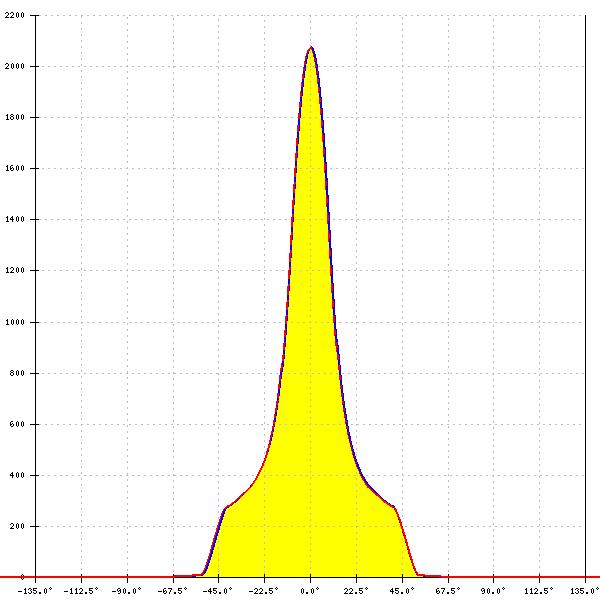

LED: SLE G7 LES17 H
FWHM: 24°
Peak intensity: 2.1 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

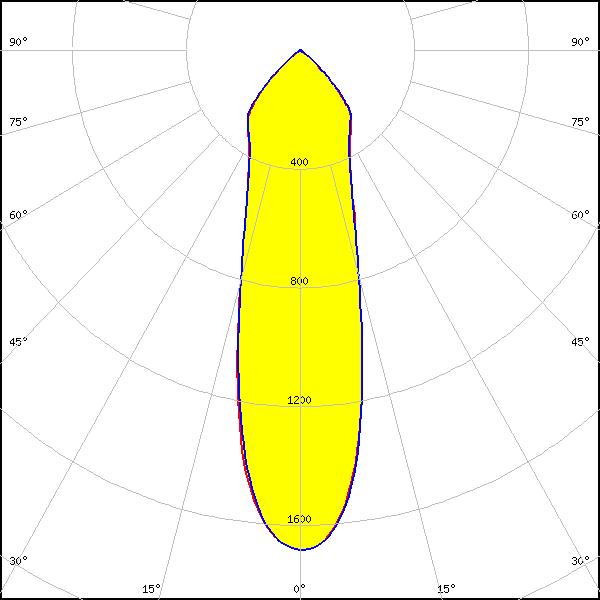

LED: SLE G7 LES21 H
FWHM: 29°
Peak intensity: 1.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

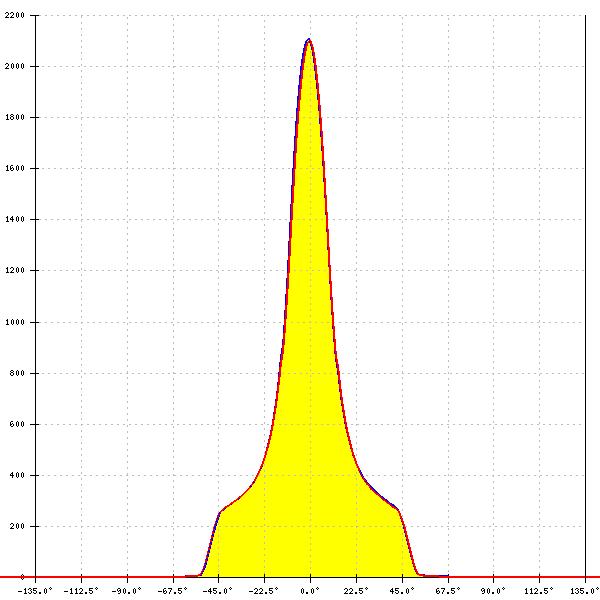

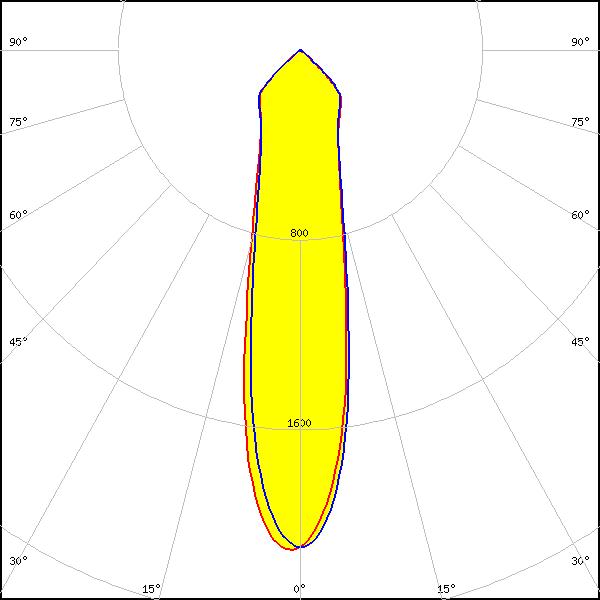

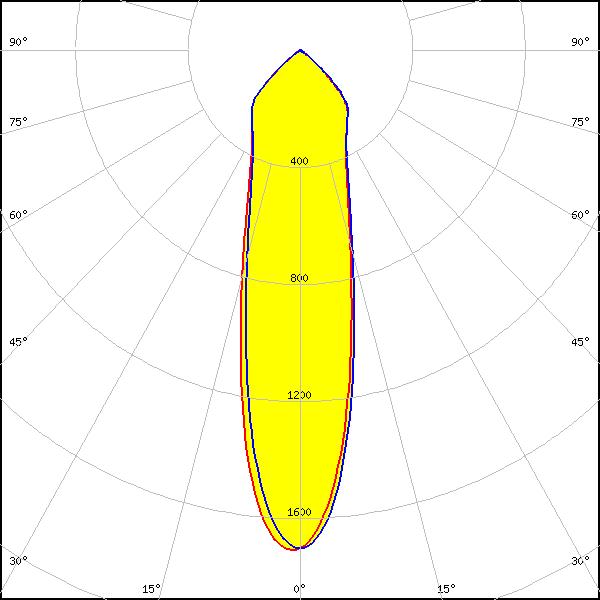

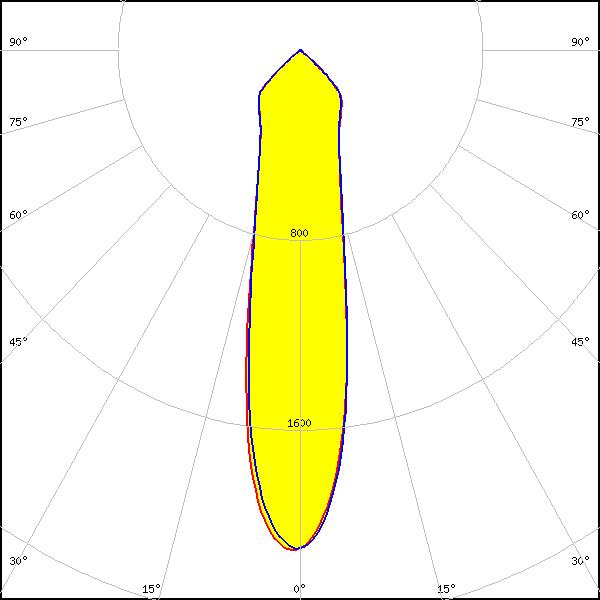

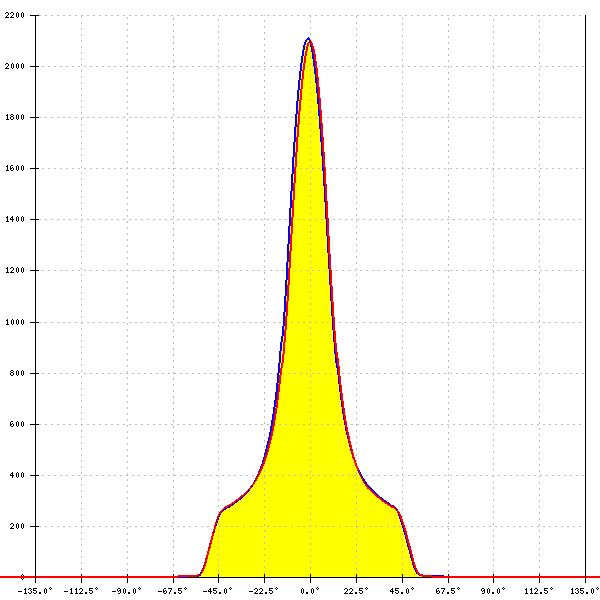

LED: XOB 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 23°
Peak intensity: 2.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

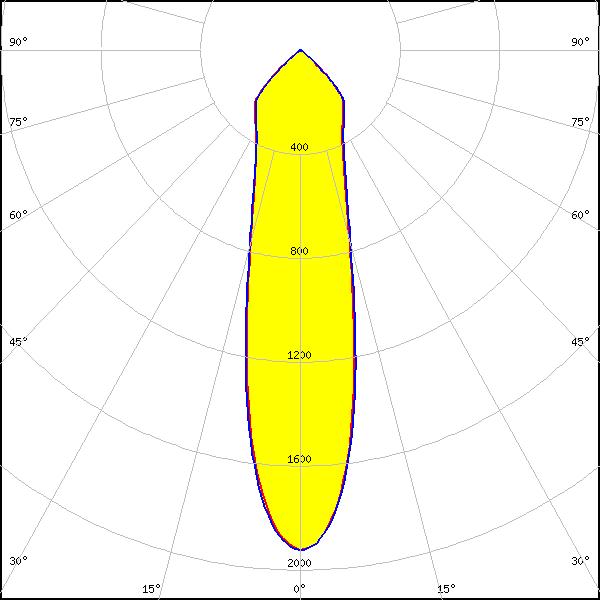

LED: XTM - 19mm LES
Required components:
FWHM: 25°
Peak intensity: 1.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
