F13660_ANGELINA-M-B
Print

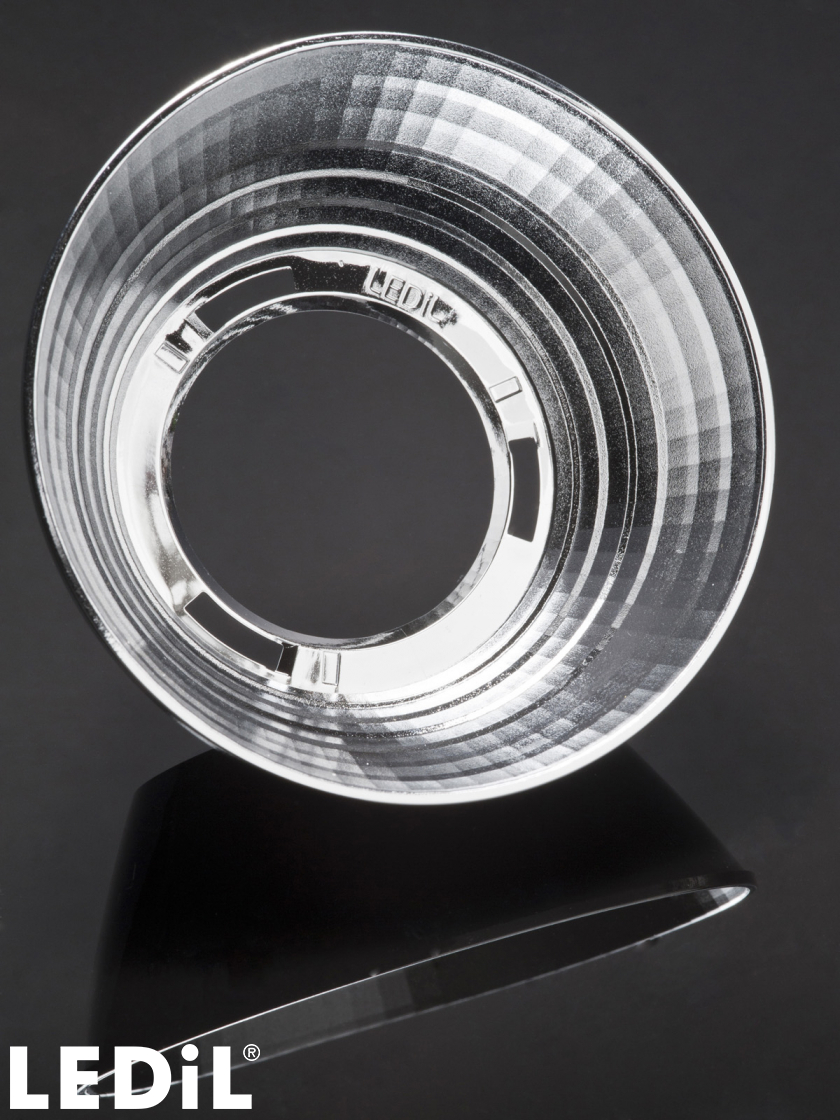

~30° medium beam compatible with BJB and B+W connectors
Specification
-
Dimensions:82 mm
-
Height:31.00 mm
-
Fastening:socket
-
Colour:metal
-
RoHS and REACH compliant:Yes
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:825 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:10.0 kg
-
MPQ:55 pcs
-
MOQ:110 pcs
-
MOQ size:320 x 230 x 150 mm
-
MOQ weight:1.5 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

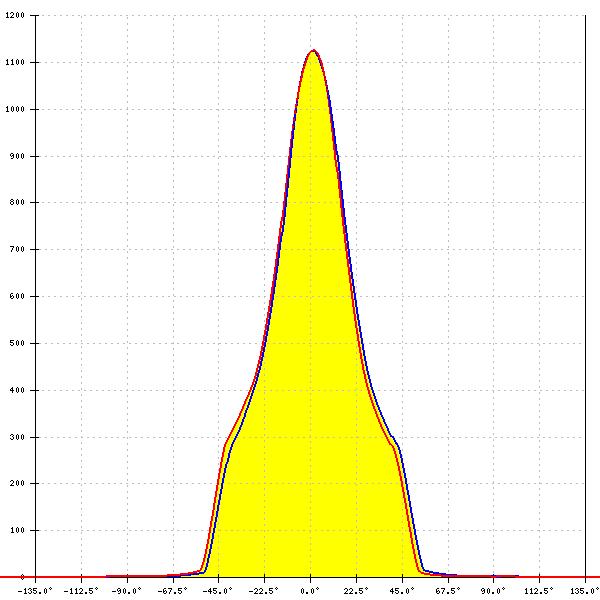

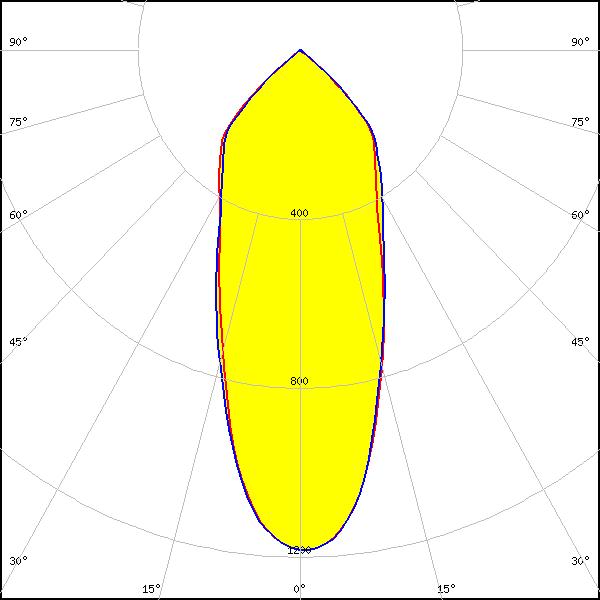

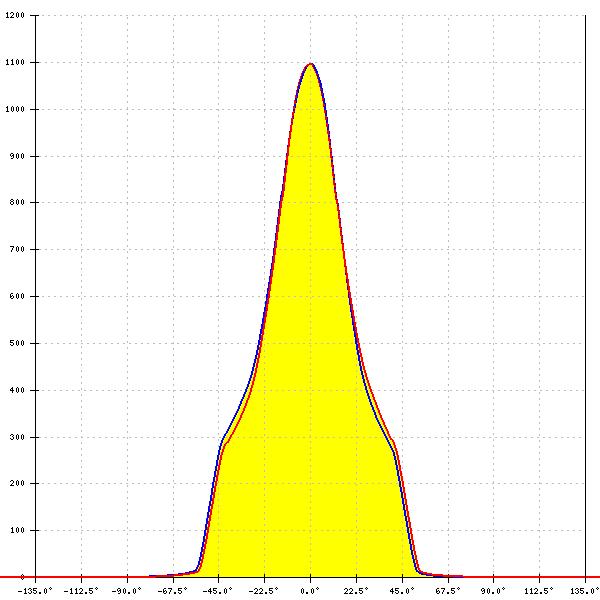

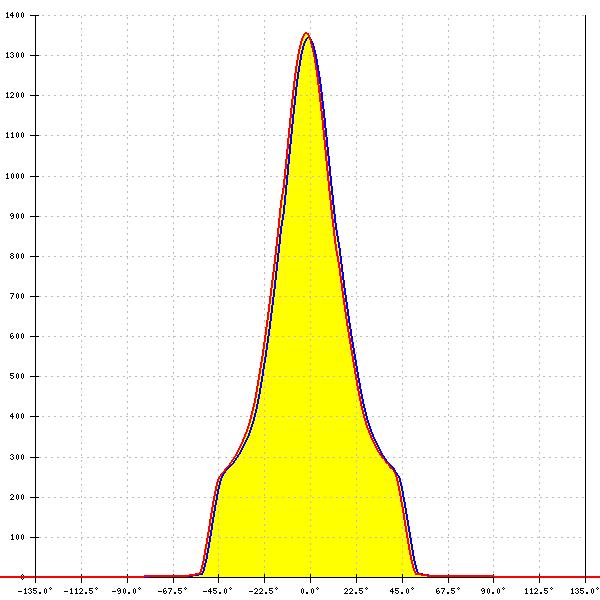

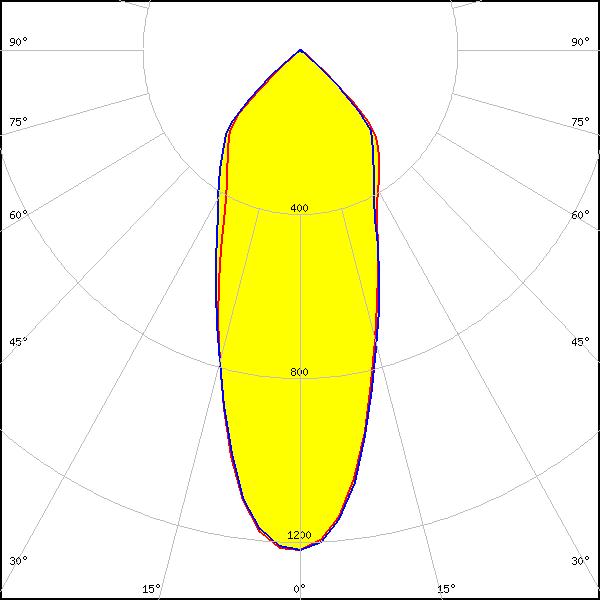

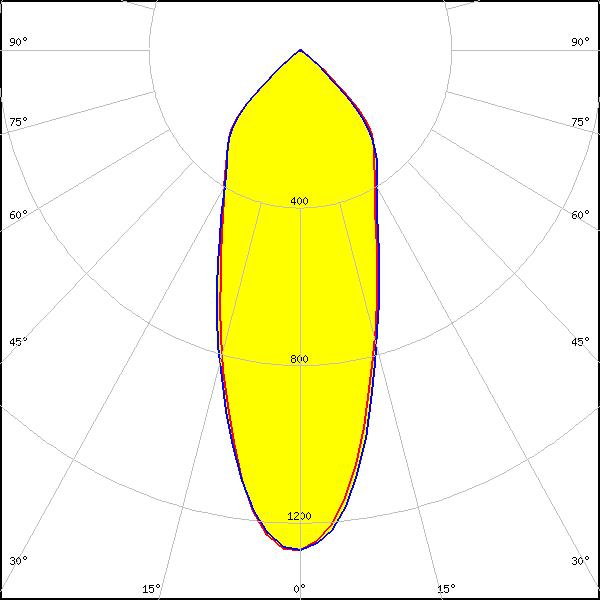

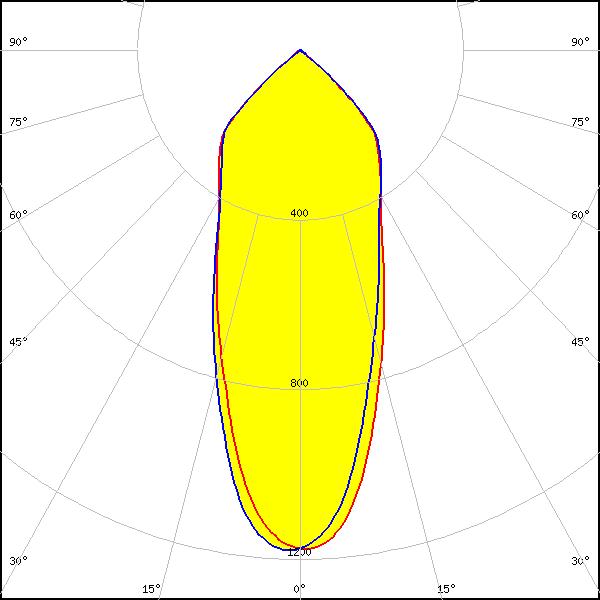

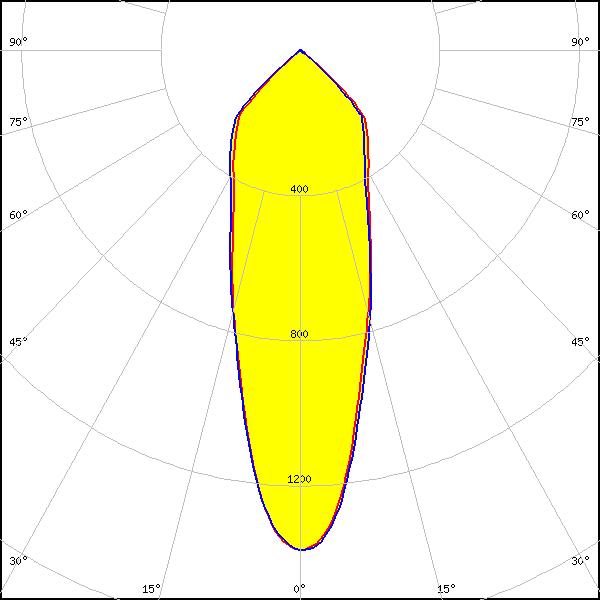

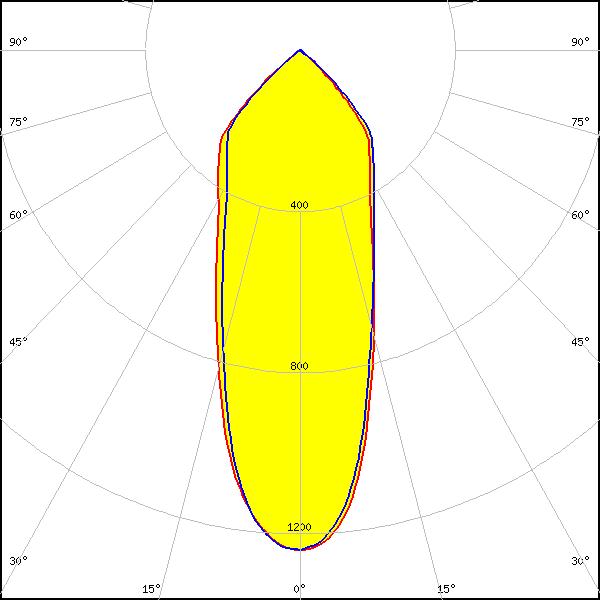

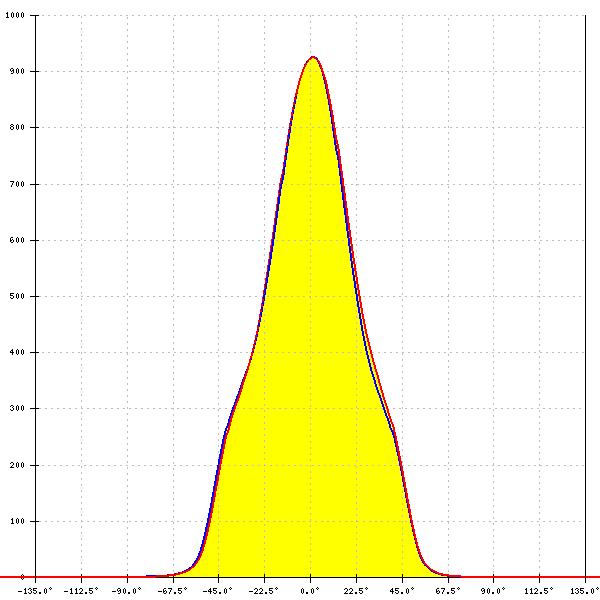

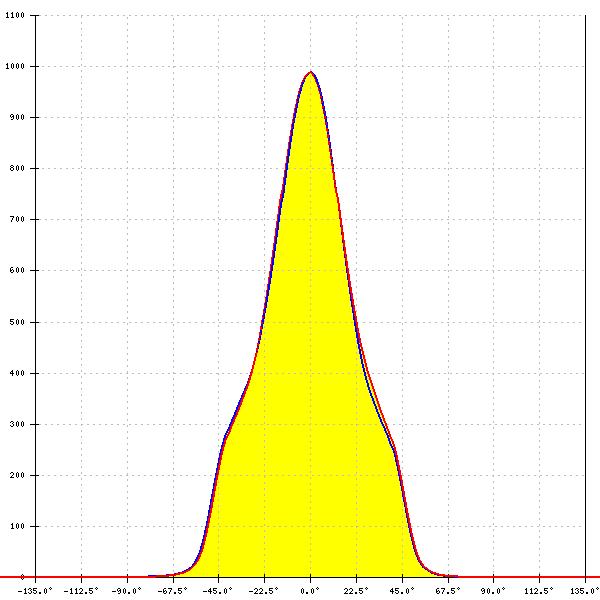

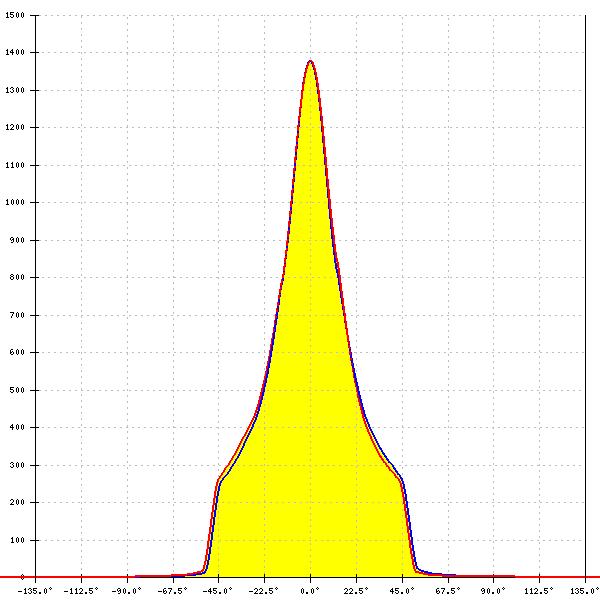

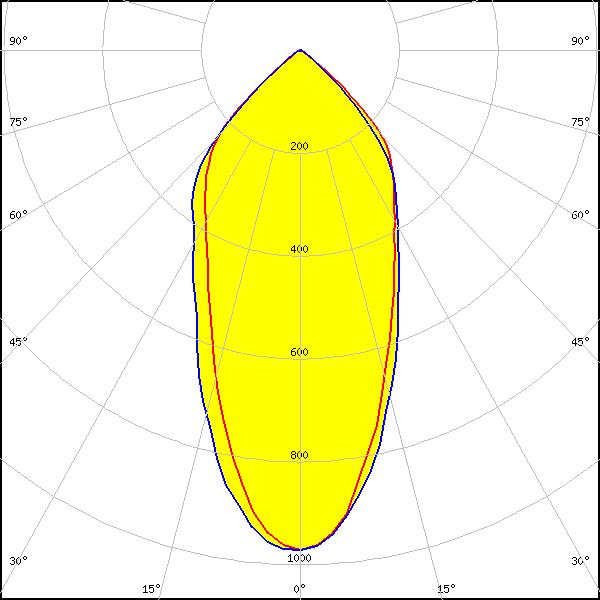

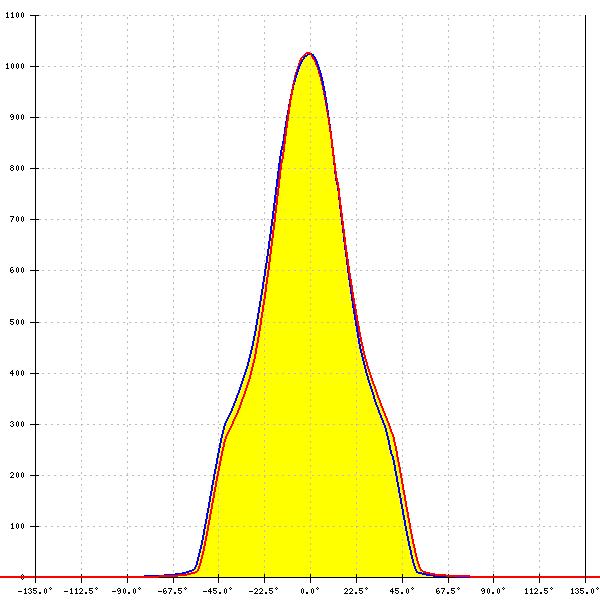

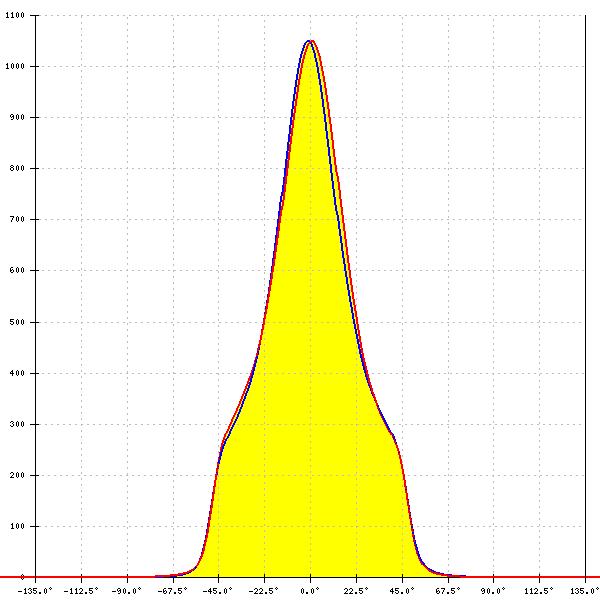

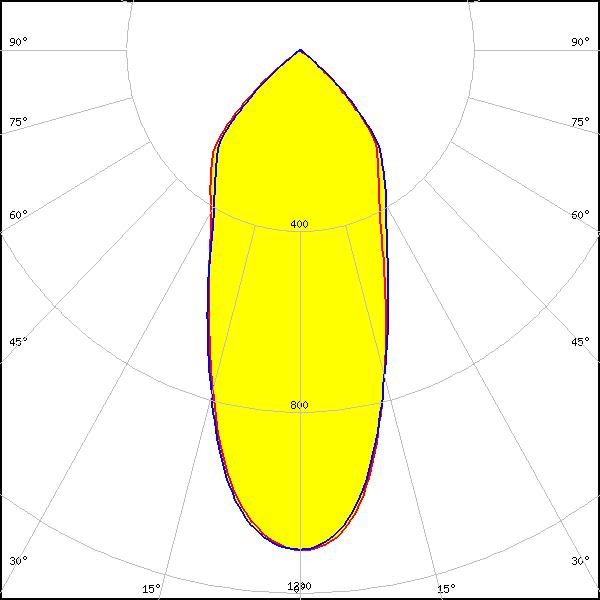

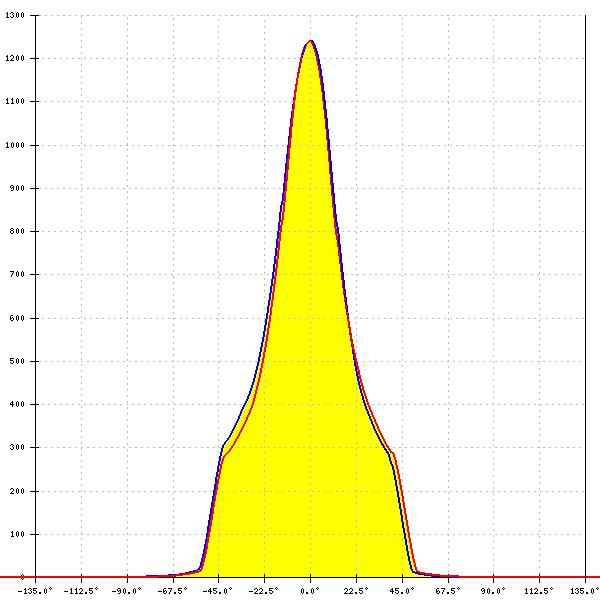

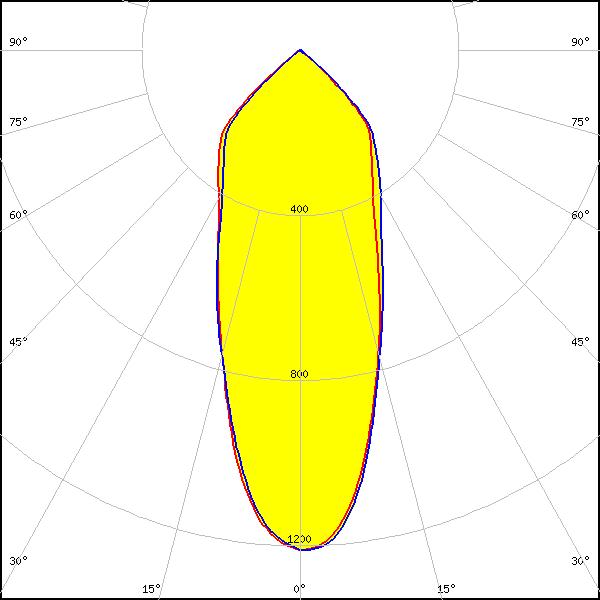

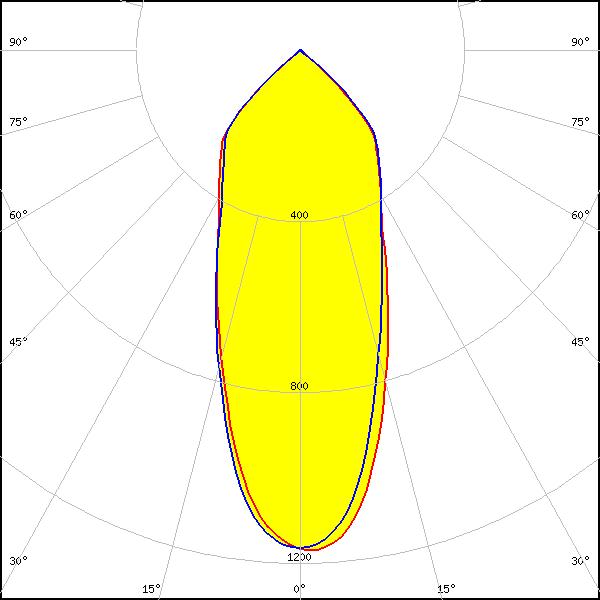

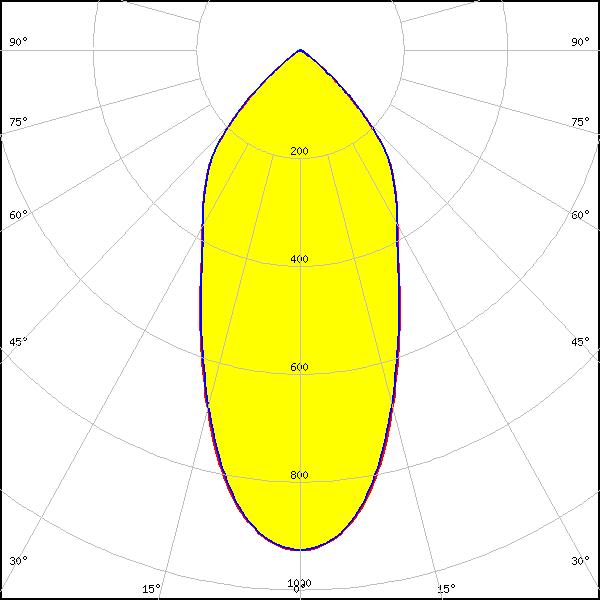

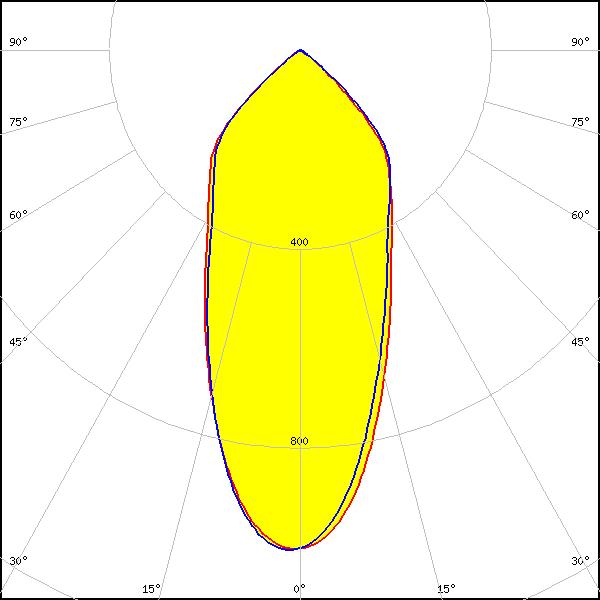

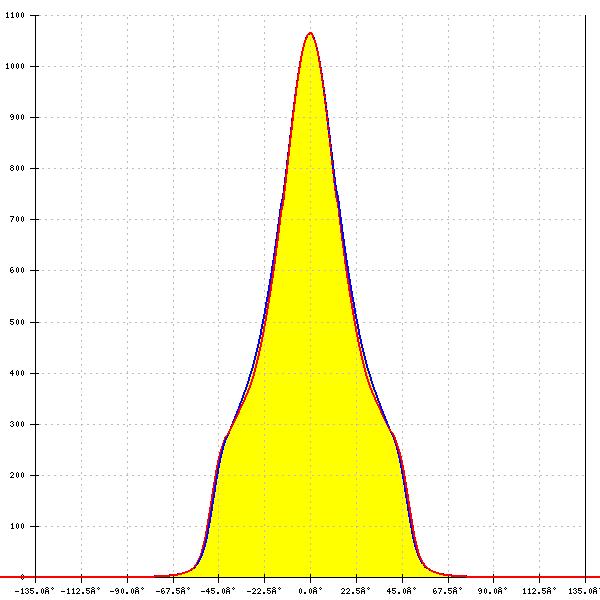

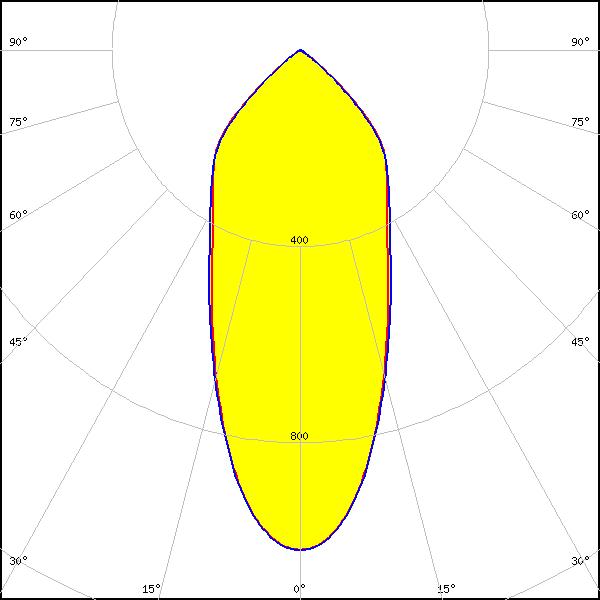

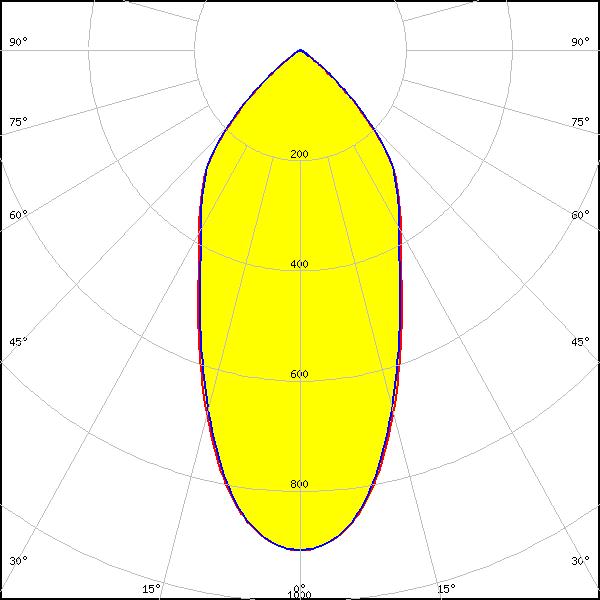

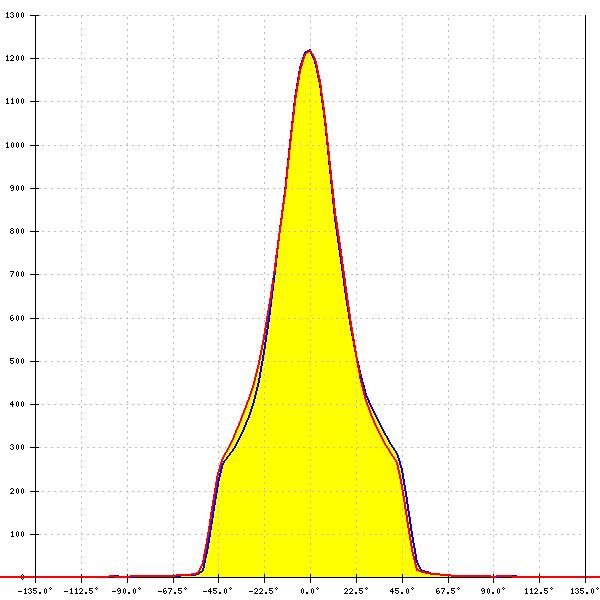

Optical results

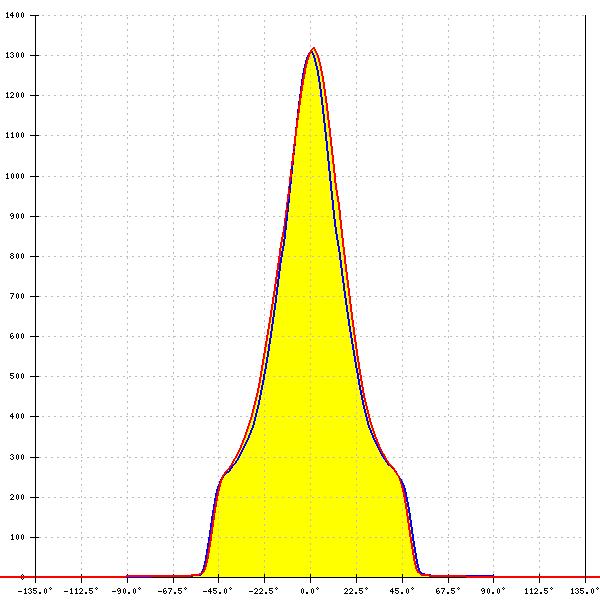

LED:

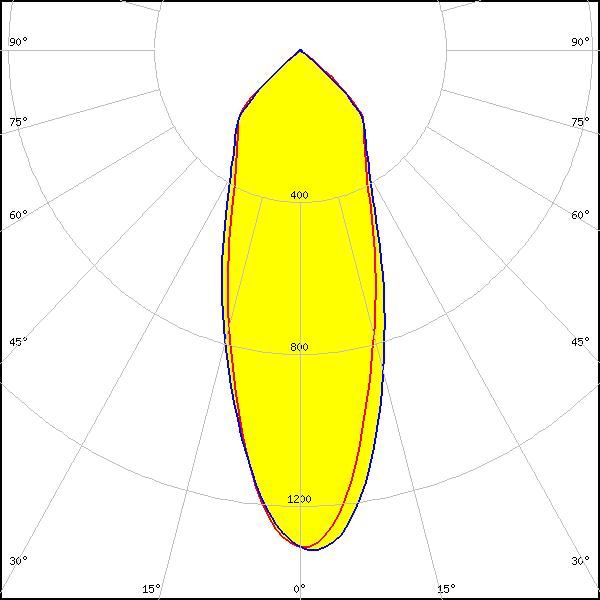

BXRA ES Rectangle
LES size: 19.2 mm
Required components:
BJB: 47.319.2040
FWHM:
38°
FWTM:
97°
Peak intensity:
1.320 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

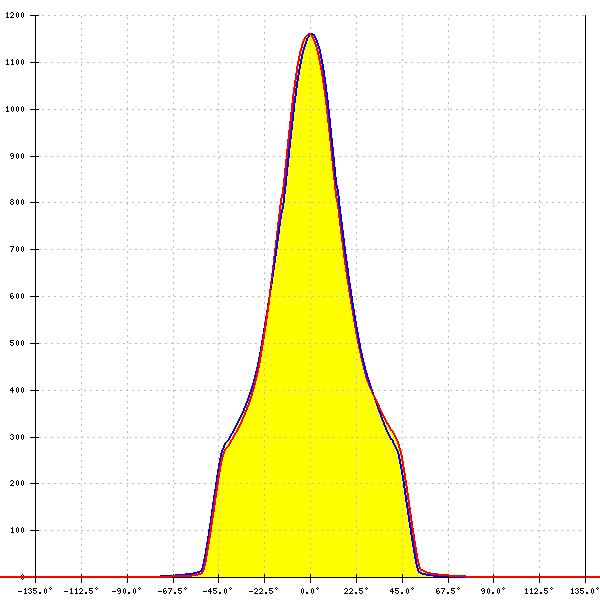

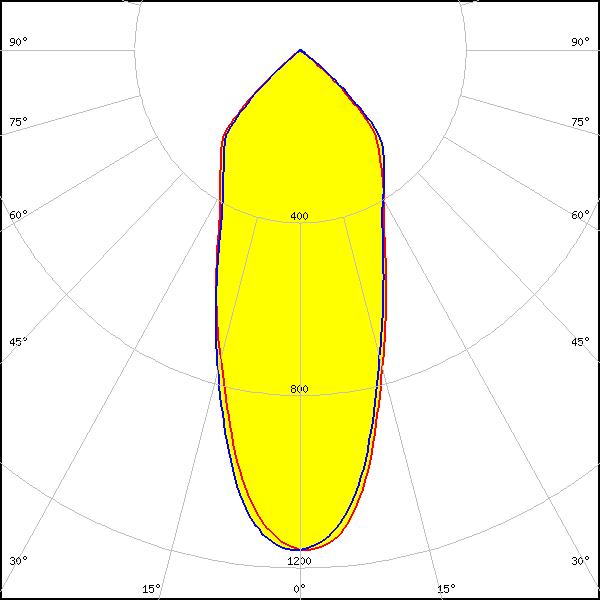

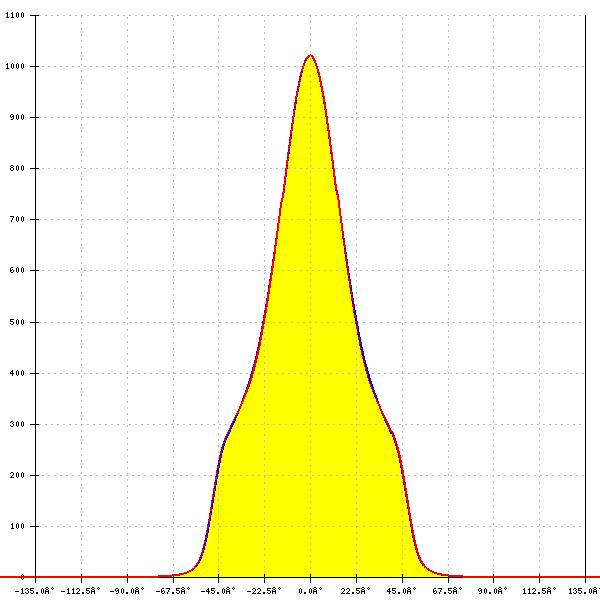

LED:
V15 Gen6
LES size: 15.2 mm
Required components:
BJB: 47.319.2224
FWHM:
41°
FWTM:
98°
Peak intensity:
1.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

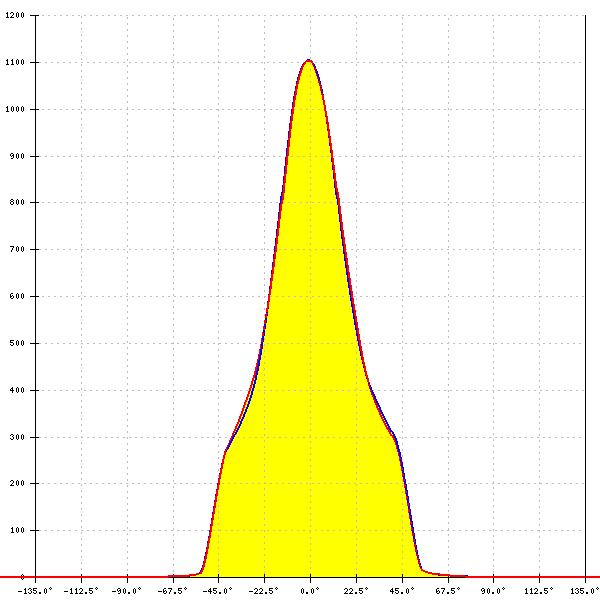

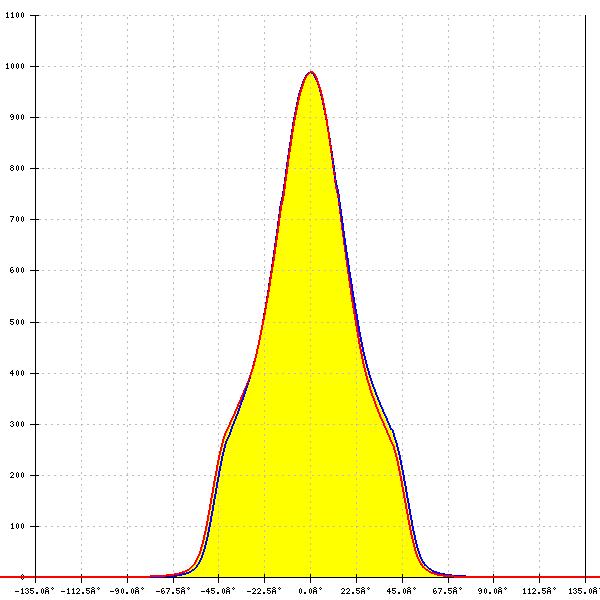

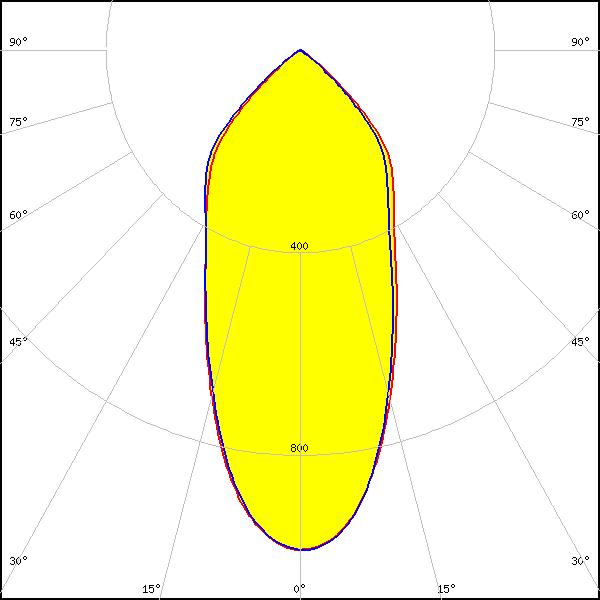

LED:

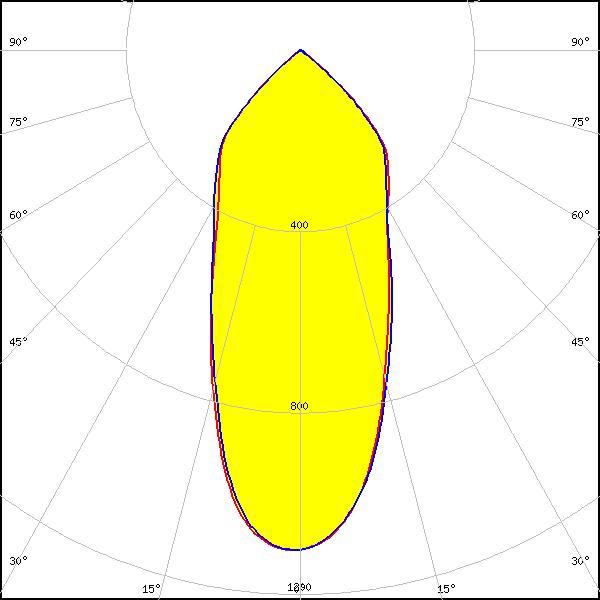

V18 Gen6
LES size: 18.6 mm
Required components:
BJB: 47.319.2274
FWHM:
44°
FWTM:
98°
Peak intensity:
1.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

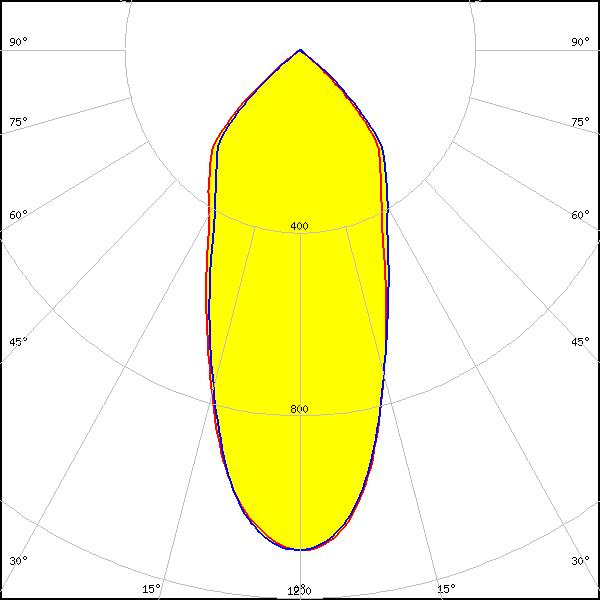

LED:
V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
44°
FWTM:
99°
Peak intensity:
1.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

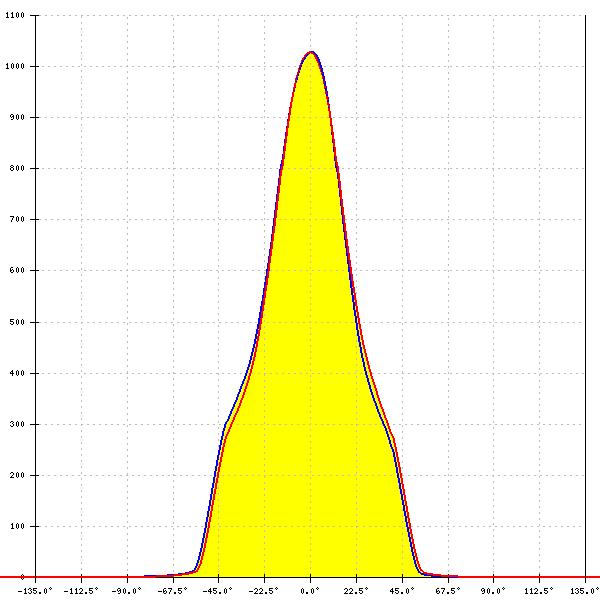

LED:

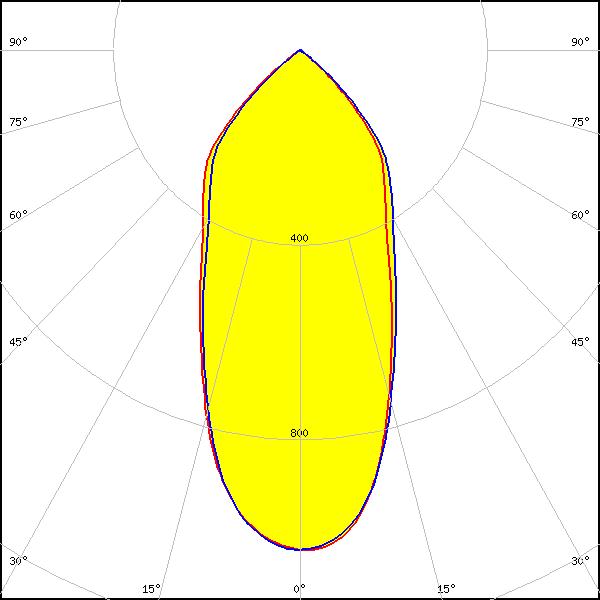

V22 Gen6
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
47°
FWTM:
98°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

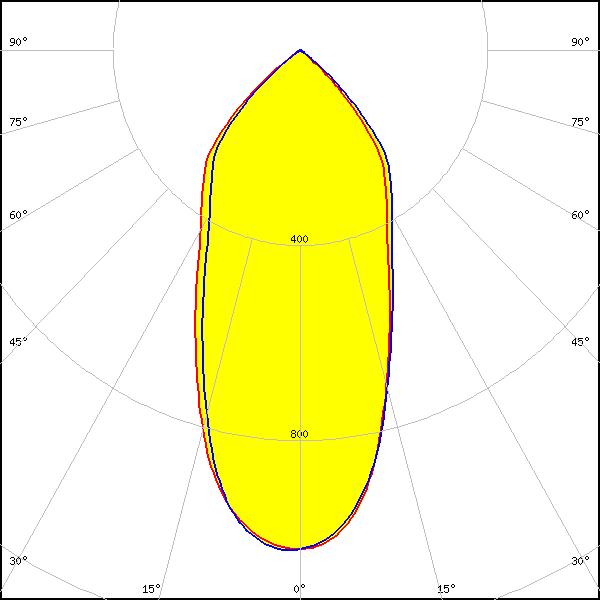

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM:
47°
FWTM:
98°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

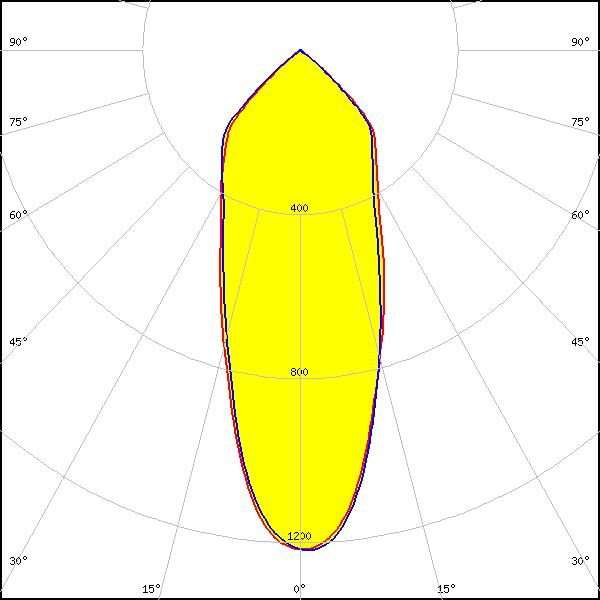

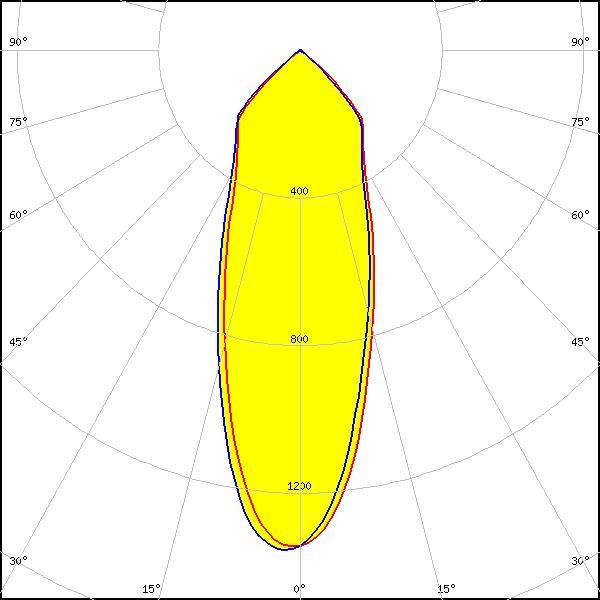

LED:
CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
37°
FWTM:
96°
Peak intensity:
1.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU03x
LES size: 14.5 mm
Required components:
FWHM:
43°
FWTM:
99°
Peak intensity:
1.050 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

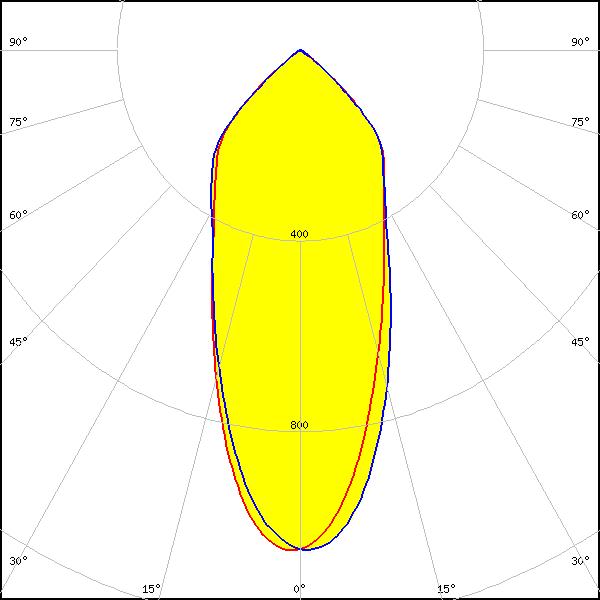

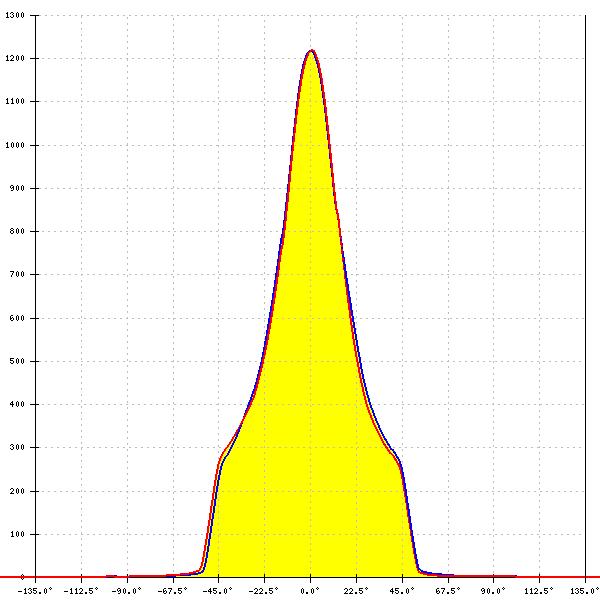

LED:
CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
39°
FWTM:
98°
Peak intensity:
1.220 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

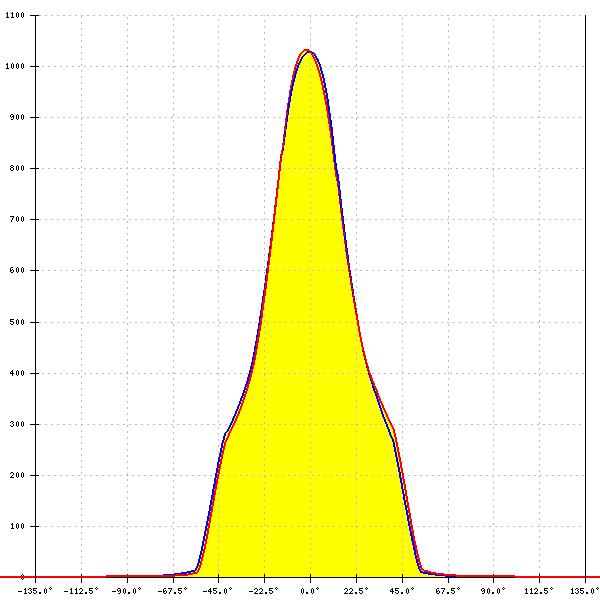

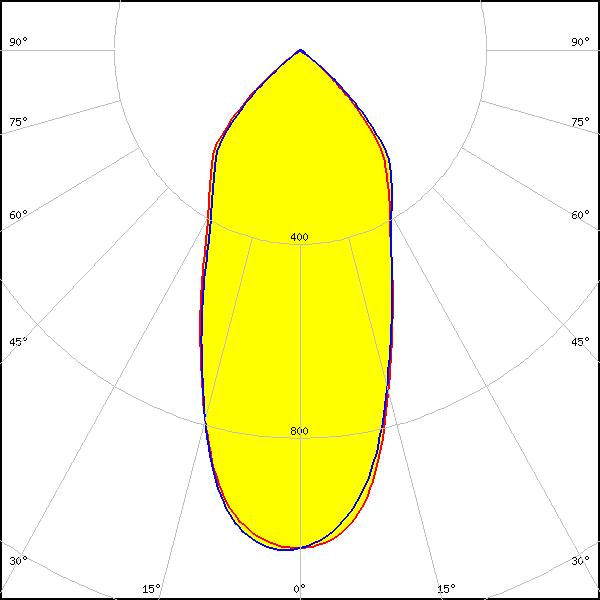

LED:
CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
37°
FWTM:
90°
Peak intensity:
1.600 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU04x
LES size: 22.0 mm
Required components:
FWHM:
50°
FWTM:
101°
Peak intensity:
0.920 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

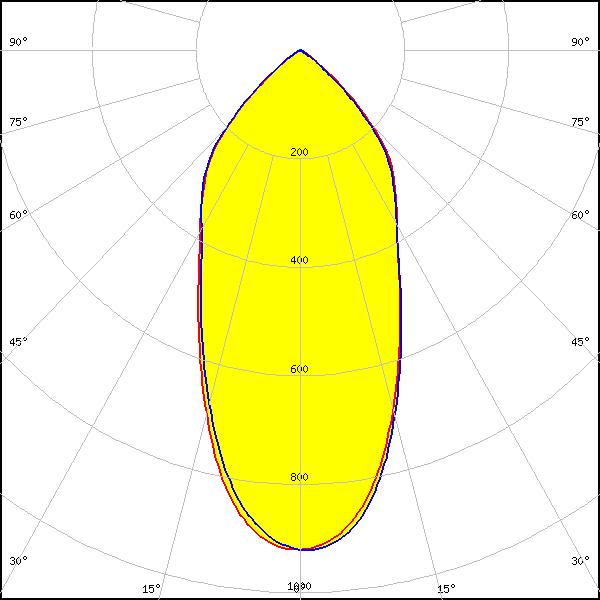

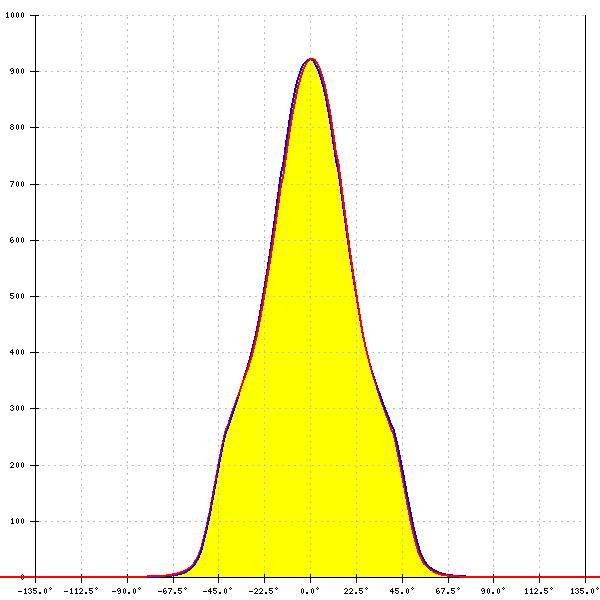

LED:
CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
39°
FWTM:
98°
Peak intensity:
1.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
35°
FWTM:
97°
Peak intensity:
1.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
BJB: 47.319.2021
FWHM:
34°
FWTM:
96°
Peak intensity:
1.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

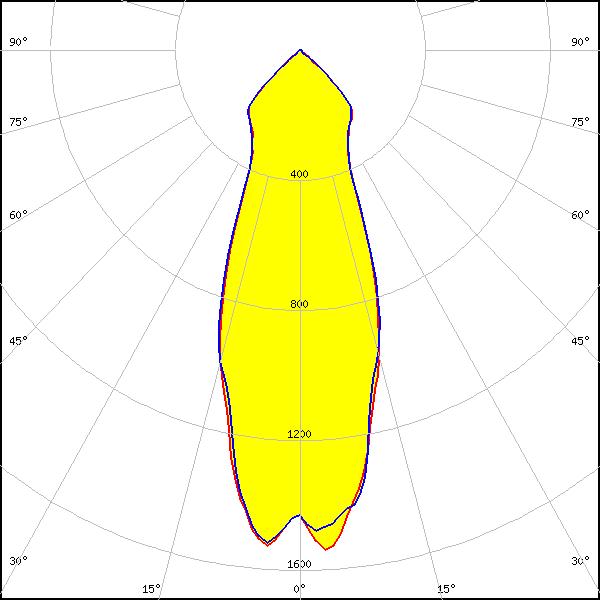

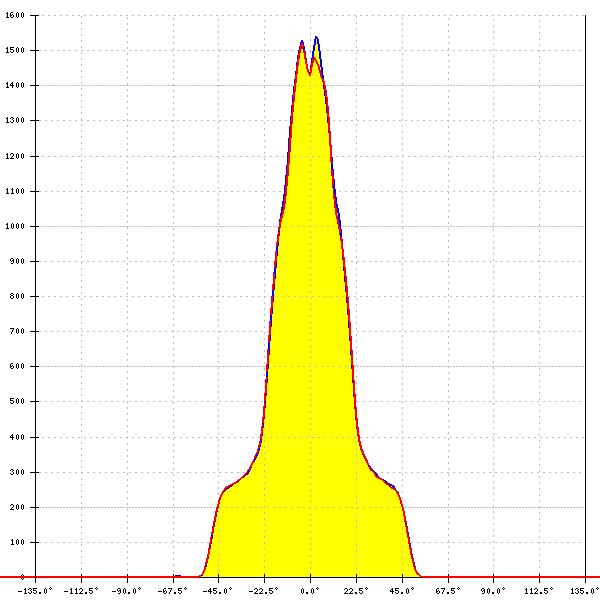

LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
BJB: 47.319.2030
FWHM:
37°
FWTM:
93°
Peak intensity:
1.570 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

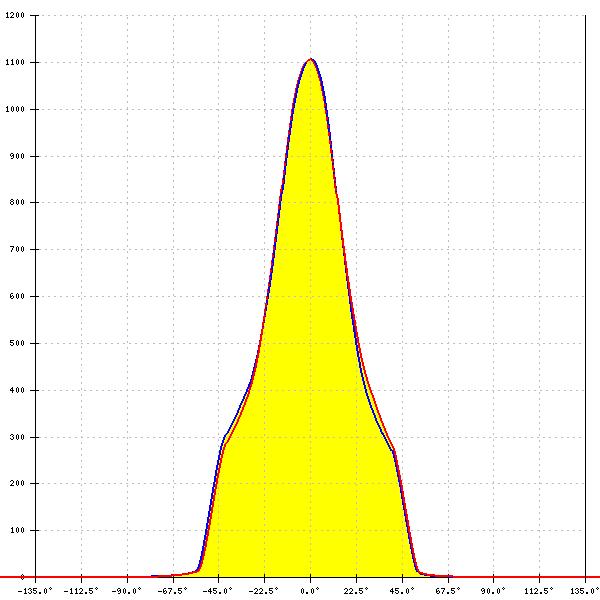

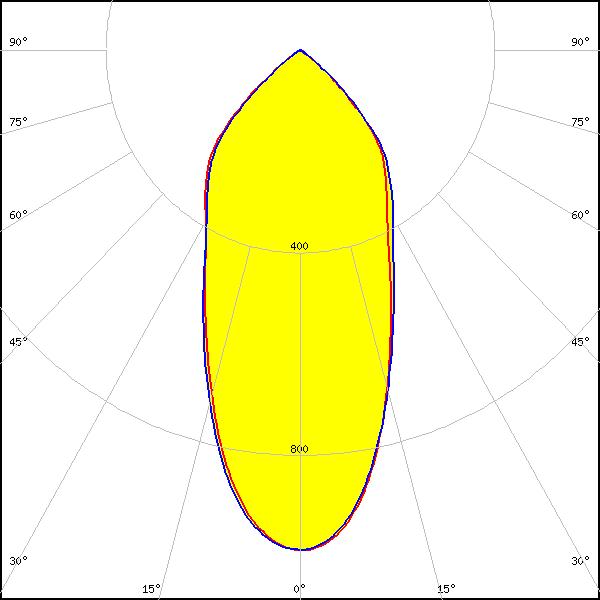

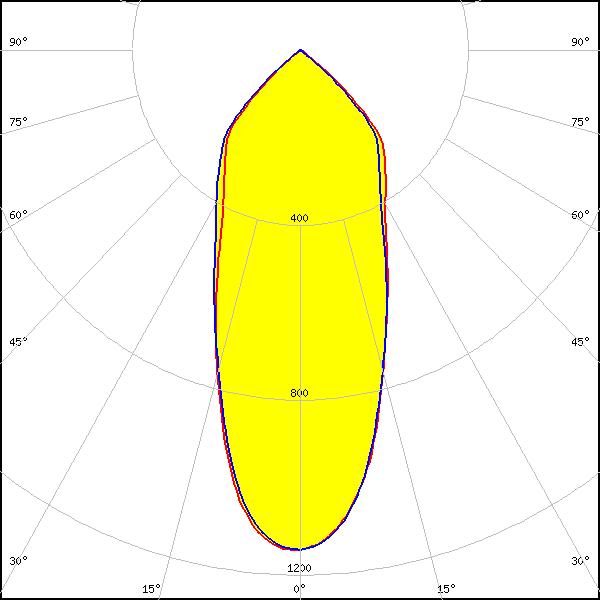

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
BJB: 47.319.2141
FWHM:
44°
FWTM:
98°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
46°
FWTM:
99°
Peak intensity:
0.990 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

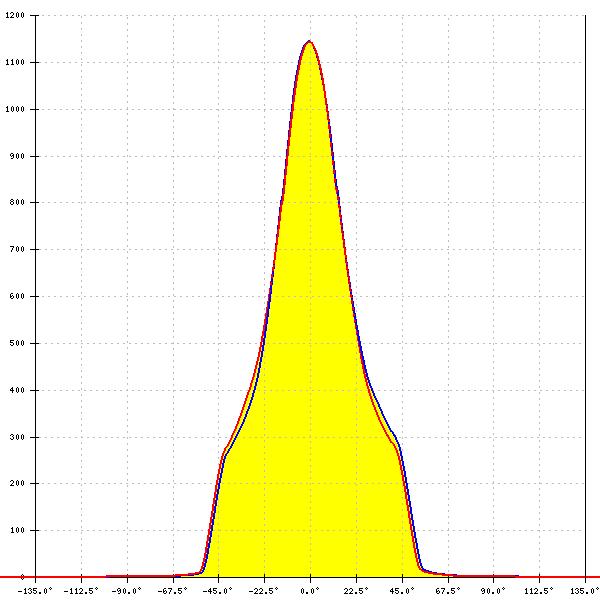

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM:
42°
FWTM:
98°
Peak intensity:
1.140 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

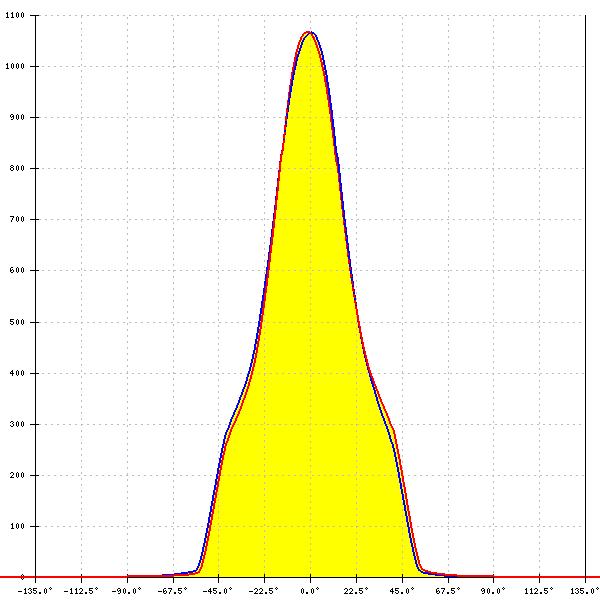

LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8404-G2
FWHM:
45°
FWTM:
98°
Peak intensity:
1.070 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

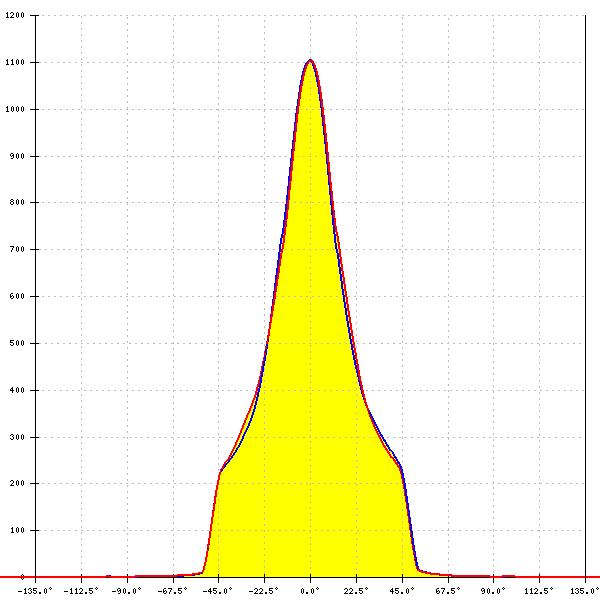

LED:

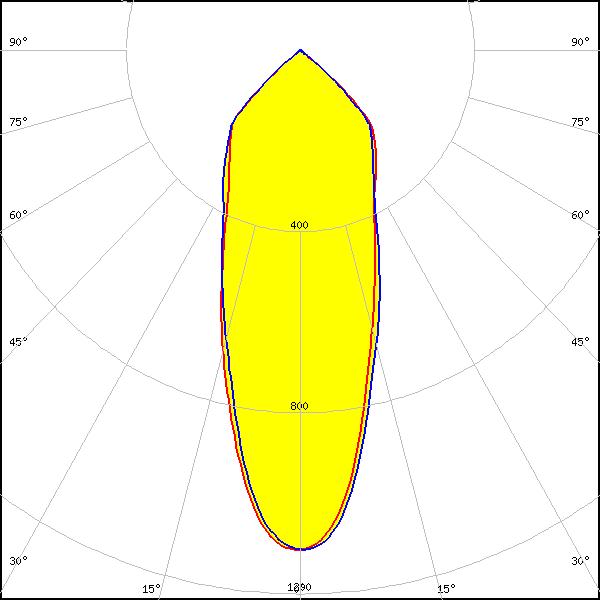

LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
38°
FWTM:
97°
Peak intensity:
1.260 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
39°
FWTM:
97°
Peak intensity:
1.230 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

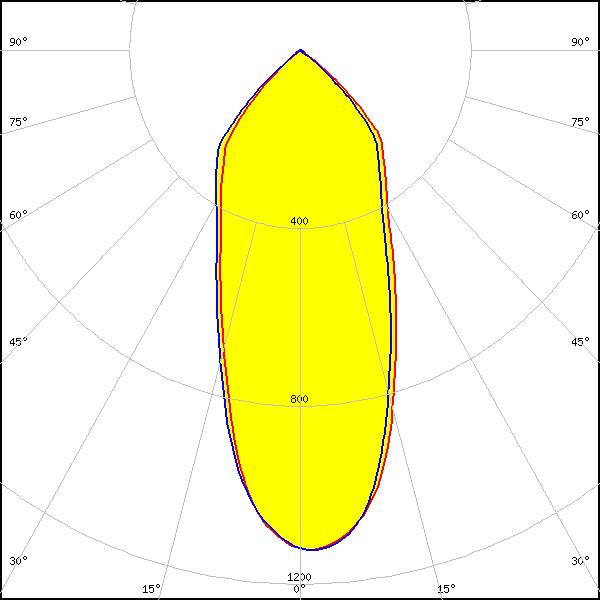

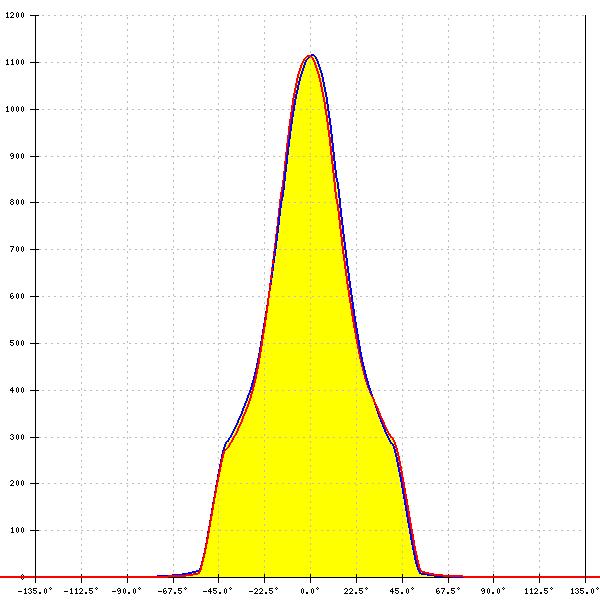

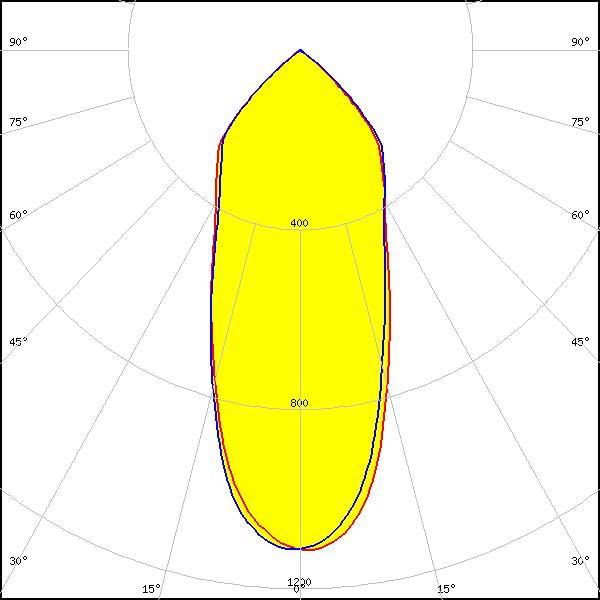

LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
BJB: 47.319.2030
FWHM:
44°
FWTM:
98°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
43°
FWTM:
97°
Peak intensity:
1.130 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

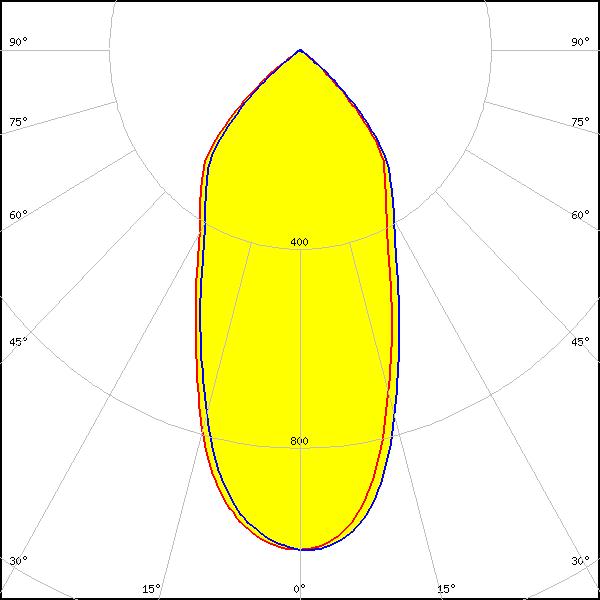

LED:

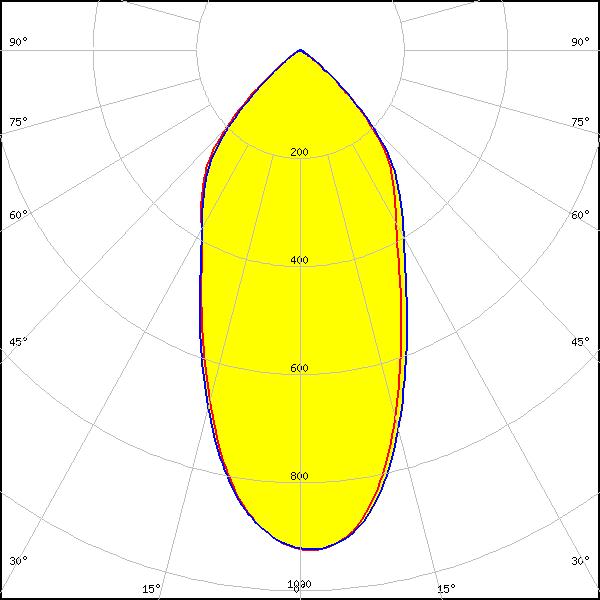

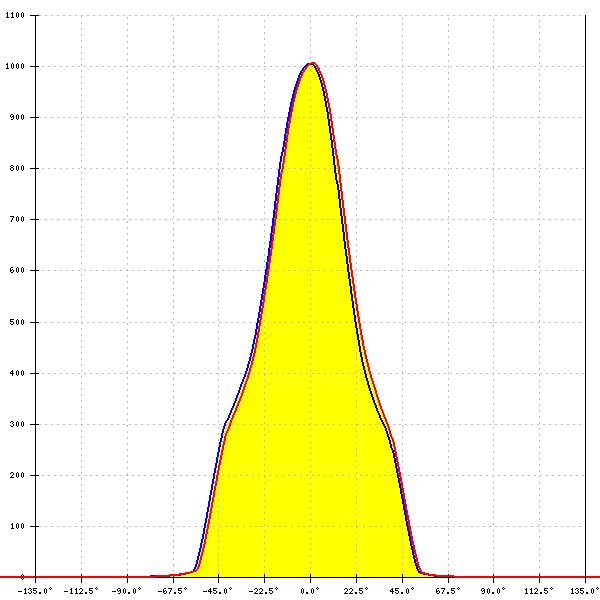

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
49°
FWTM:
99°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
50°
FWTM:
100°
Peak intensity:
0.930 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON K12
LES size: 13.5 mm
Required components:
BJB: 47.319.2070
FWHM:
29°
FWTM:
93°
LEDs/each optic:
1
Light colour/type:
White

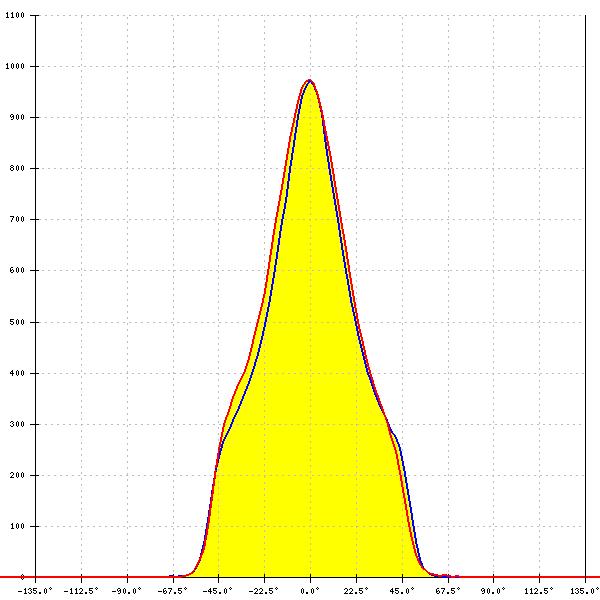

LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
48°
FWTM:
101°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

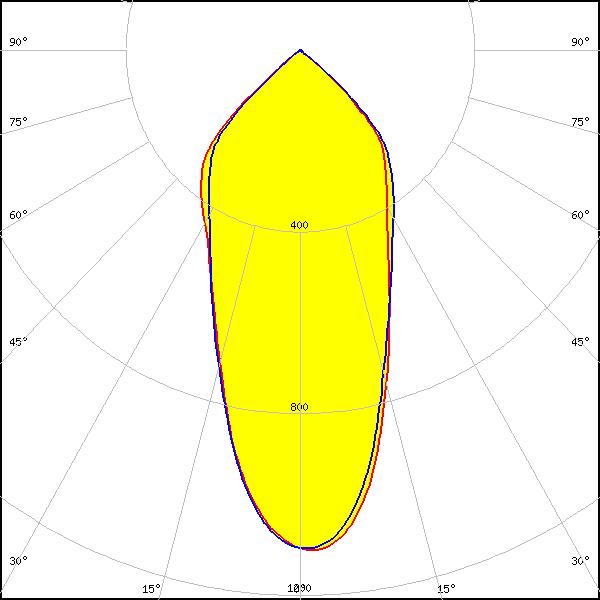

LED:
LUXEON K16
LES size: 17.0 mm
Required components:
BJB: 47.319.2070
FWHM:
44°
FWTM:
98°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

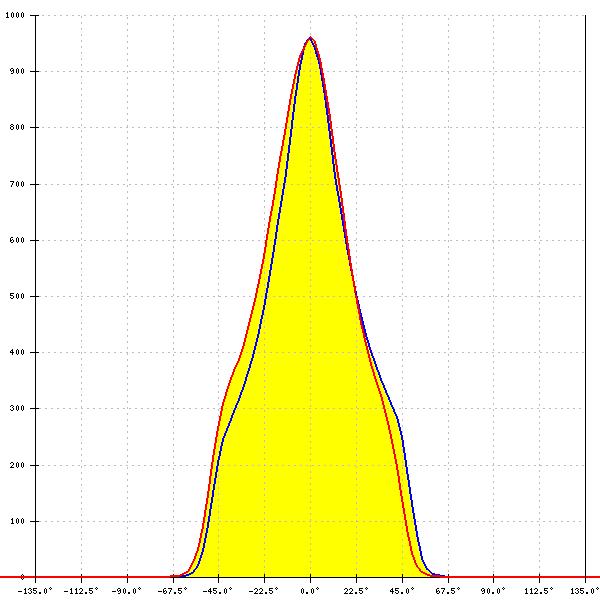

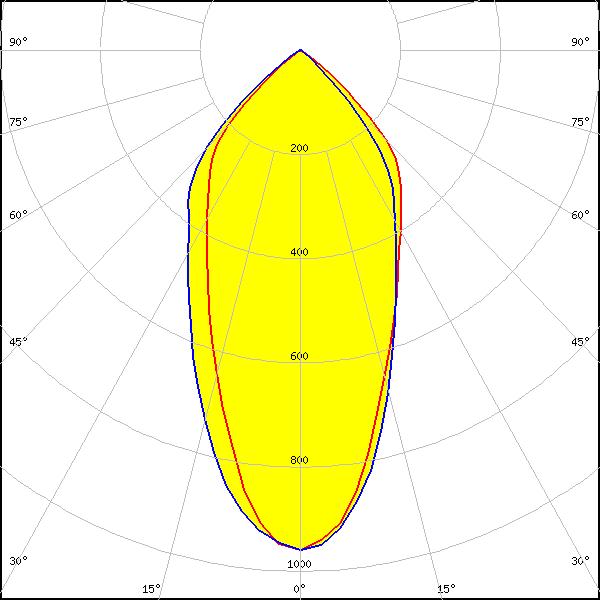

LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
50°
FWTM:
101°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

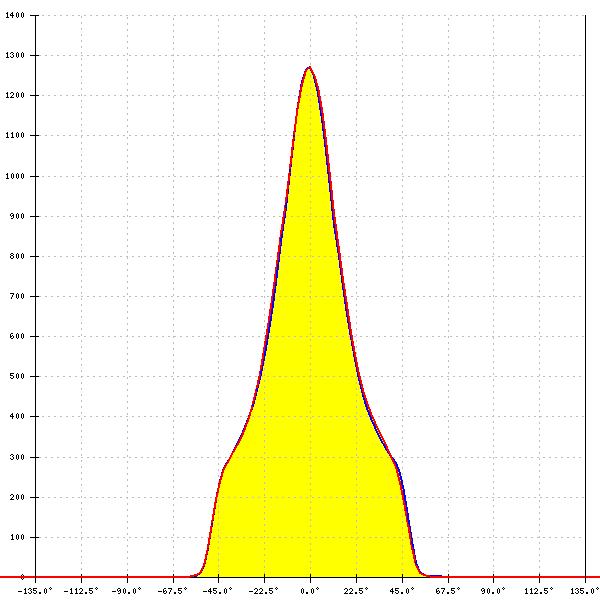

LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
40°
FWTM:
98°
Peak intensity:
1.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

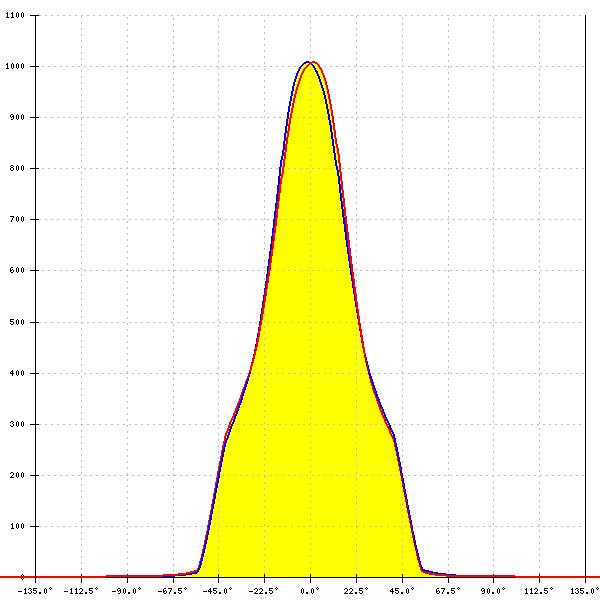

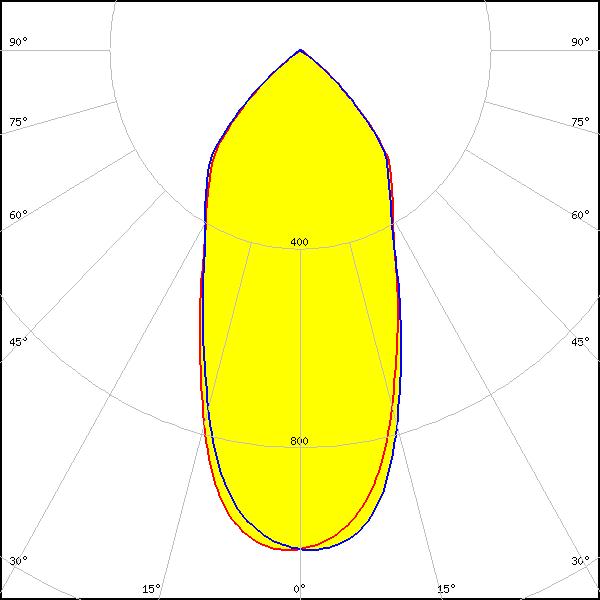

LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
48°
FWTM:
99°
Peak intensity:
1.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

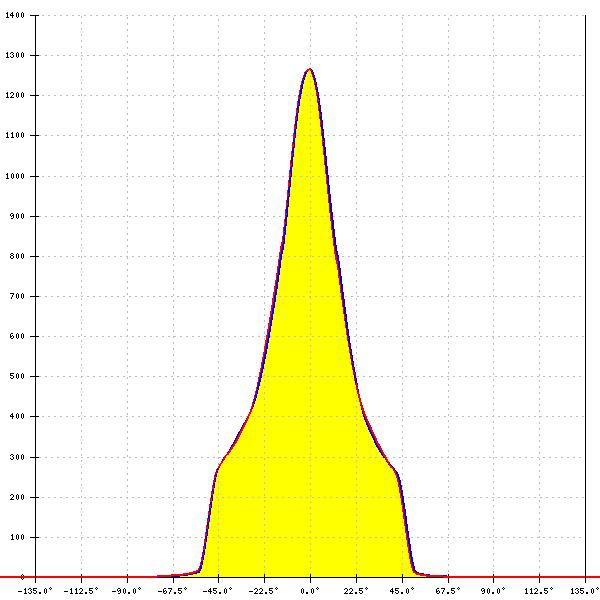

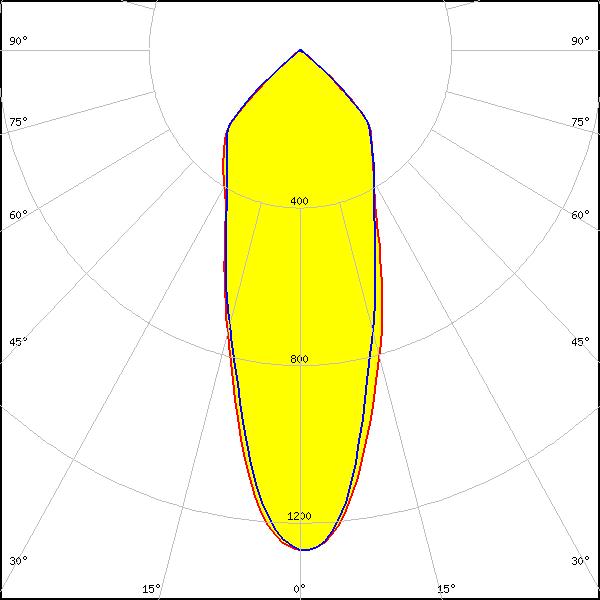

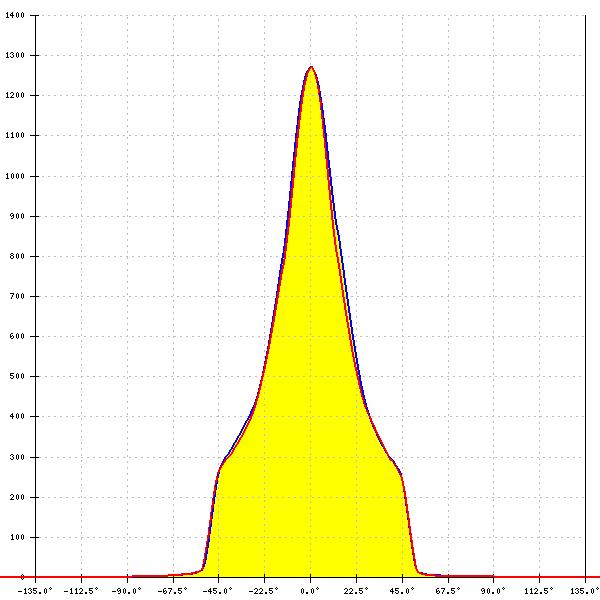

LED:

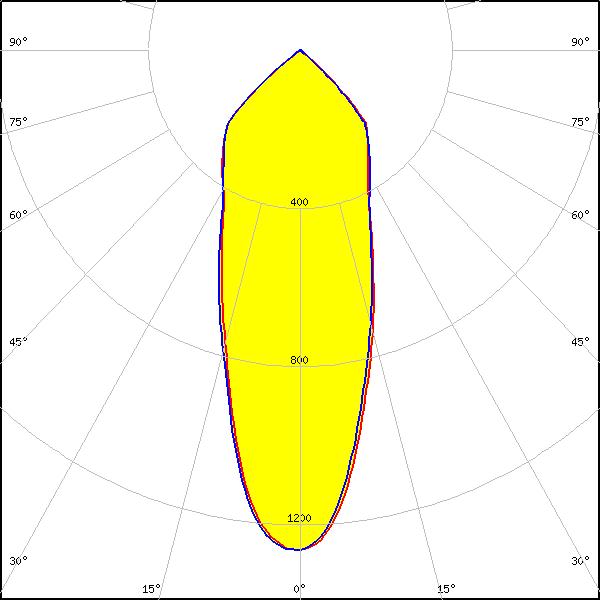

Soleriq S13
LES size: 13.2 mm
Required components:
A.A.G. STUCCHI: 8502-G2
FWHM:
37°
FWTM:
98°
Peak intensity:
1.270 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
BJB: 47.319.2021
FWHM:
37°
FWTM:
97°
Peak intensity:
0.920 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

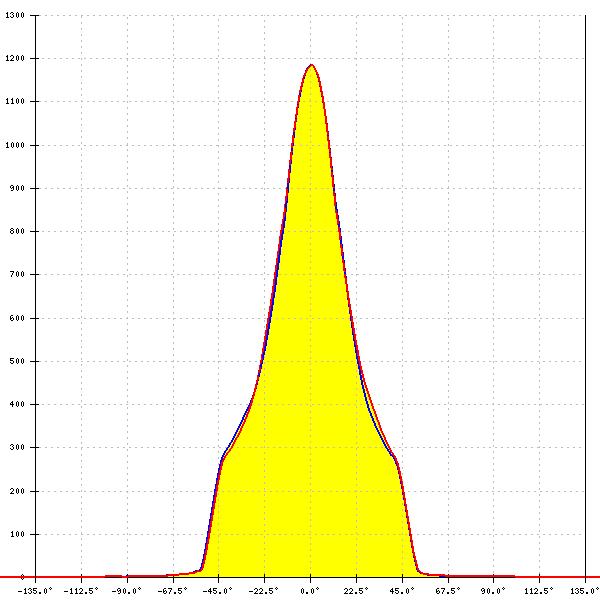

LED:
Soleriq S19
LES size: 17.9 mm
Required components:
A.A.G. STUCCHI: 8503-G2
FWHM:
41°
FWTM:
97°
Peak intensity:
1.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

LED:

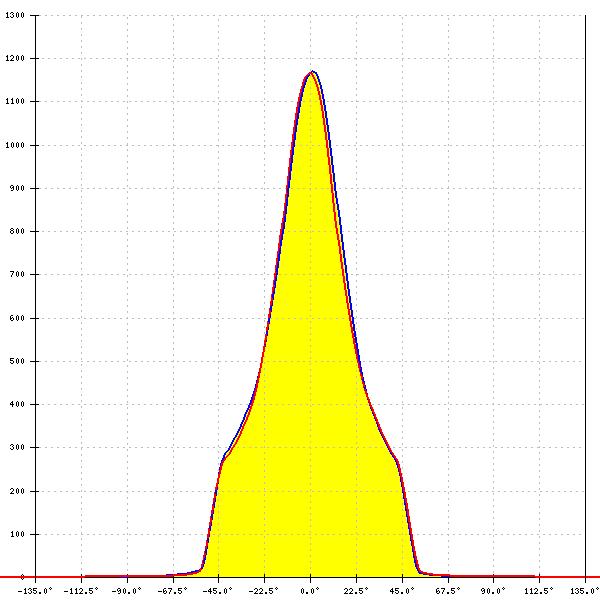

Soleriq S19
LES size: 17.9 mm
Required components:
BJB: 47.319.2170
FWHM:
41°
FWTM:
98°
Peak intensity:
1.170 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:

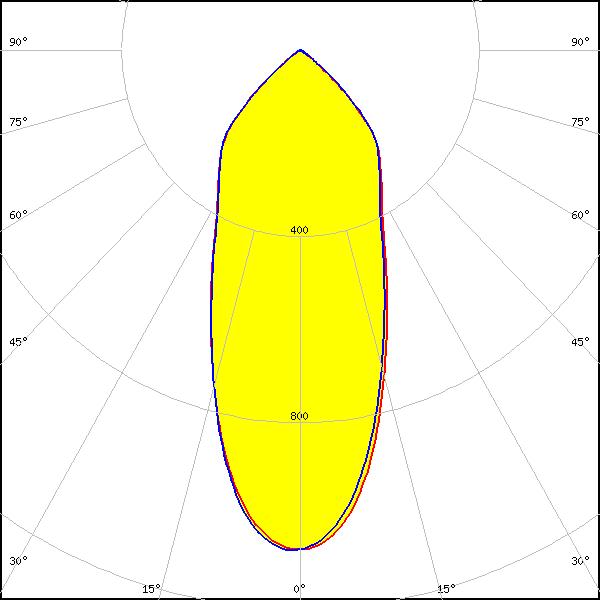

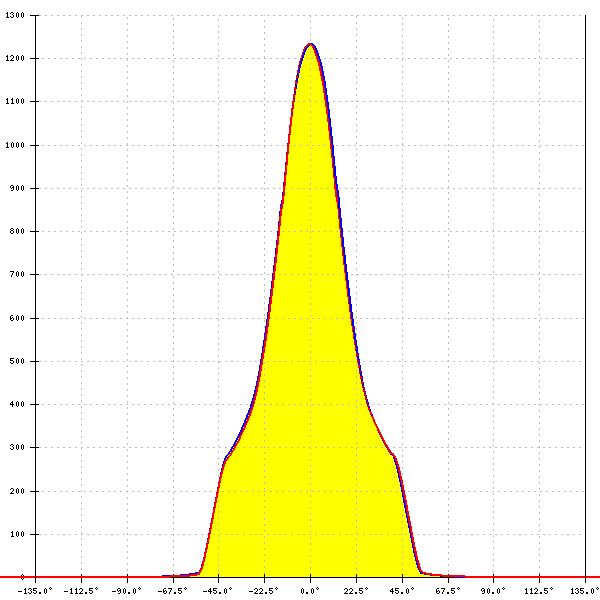

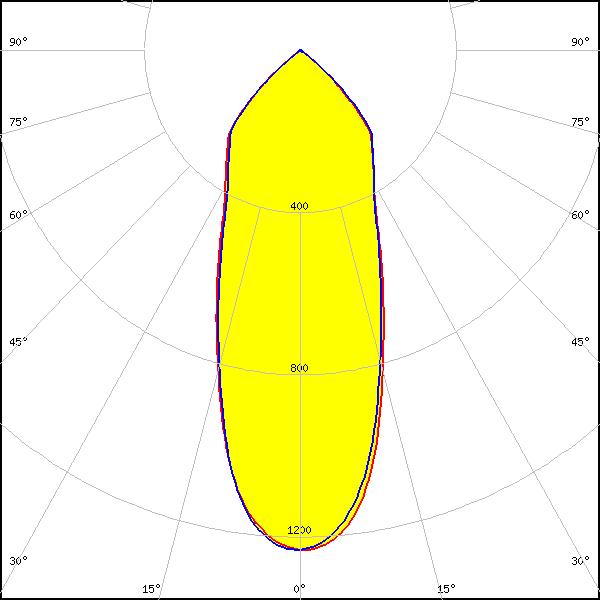

Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
BJB: 47.319.2030
FWHM:
40°
FWTM:
97°
Peak intensity:
1.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

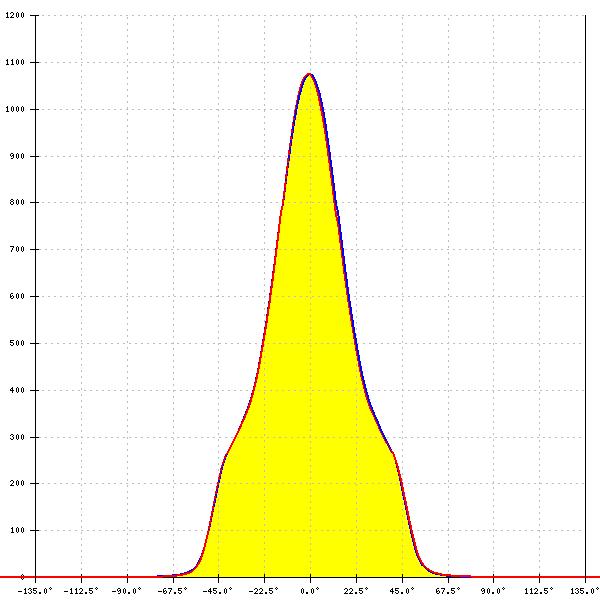

LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
42°
FWTM:
98°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

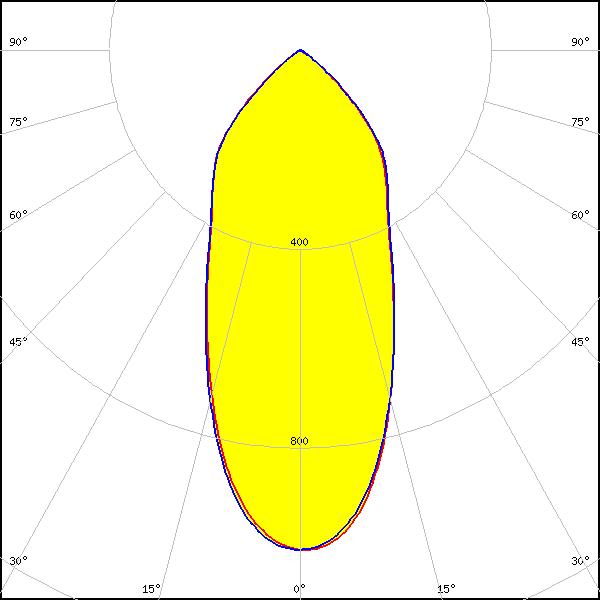

LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
45°
FWTM:
99°
Peak intensity:
1.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

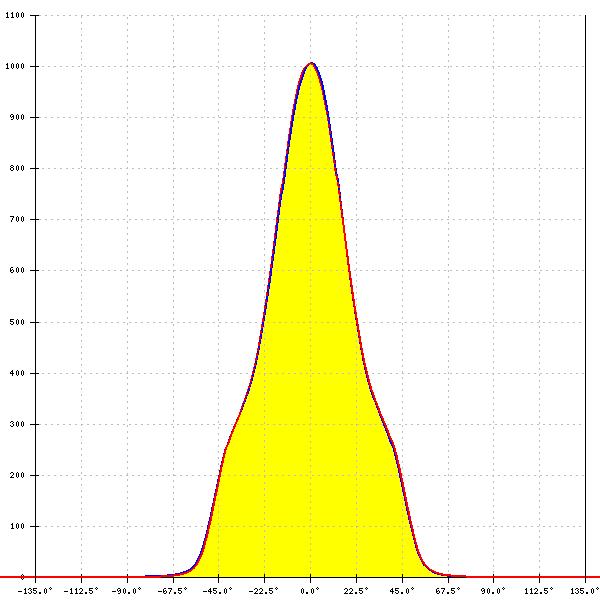

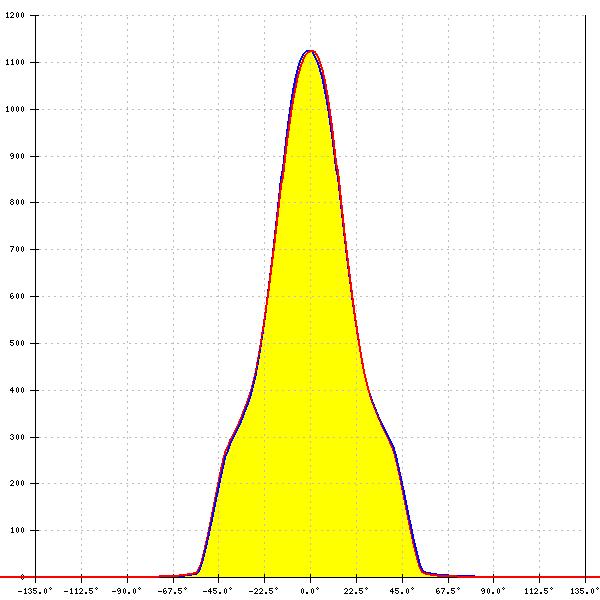

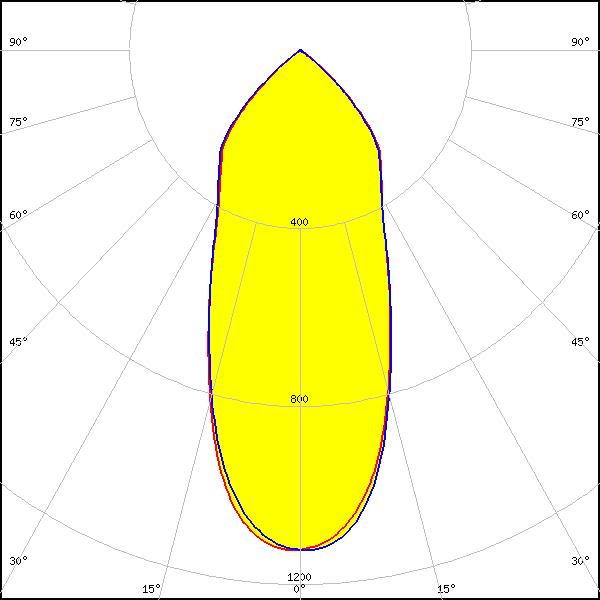

LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
44°
FWTM:
98°
Peak intensity:
1.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

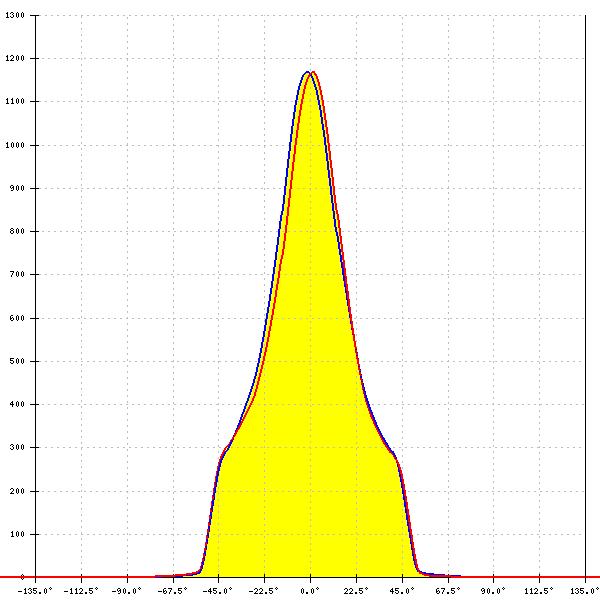

LED:

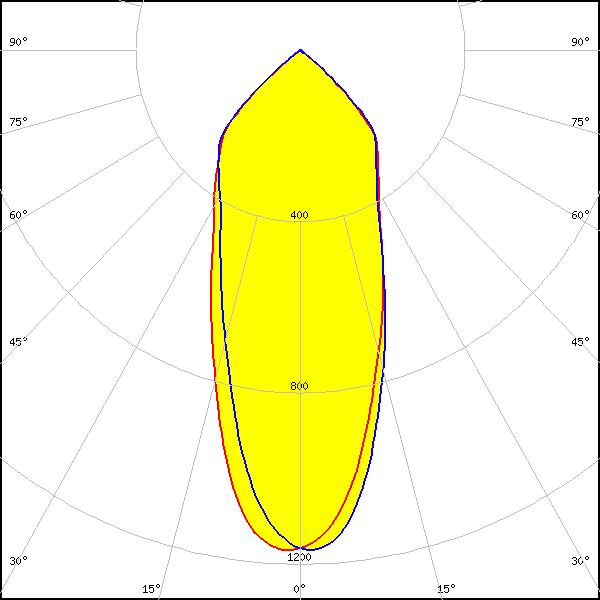

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
41°
FWTM:
98°
Peak intensity:
1.170 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
41°
FWTM:
98°
Peak intensity:
1.170 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

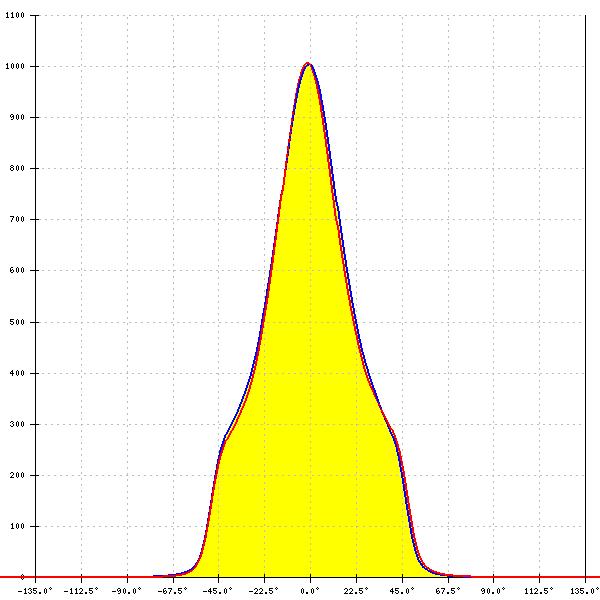

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
45°
FWTM:
100°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
45°
FWTM:
100°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
41°
FWTM:
94°
Peak intensity:
1.270 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

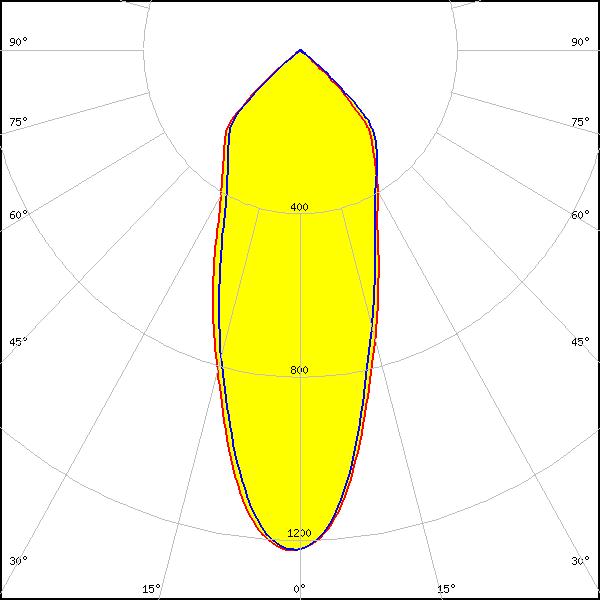

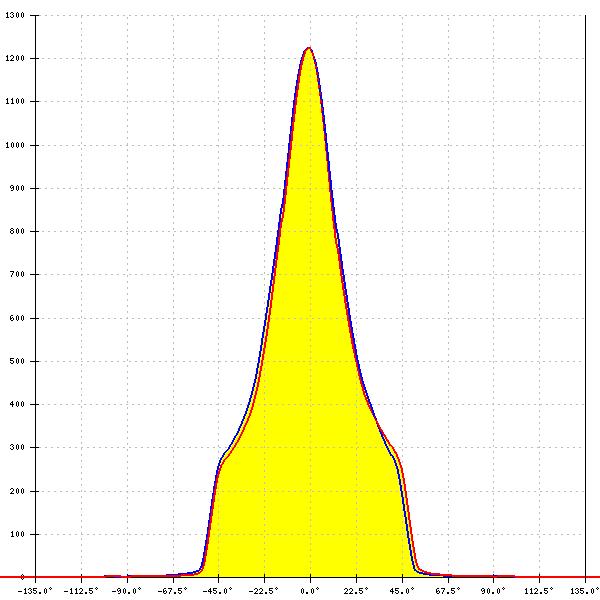

LED:
ZC12/18
LES size: 14.6 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
39°
FWTM:
97°
Peak intensity:
1.230 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

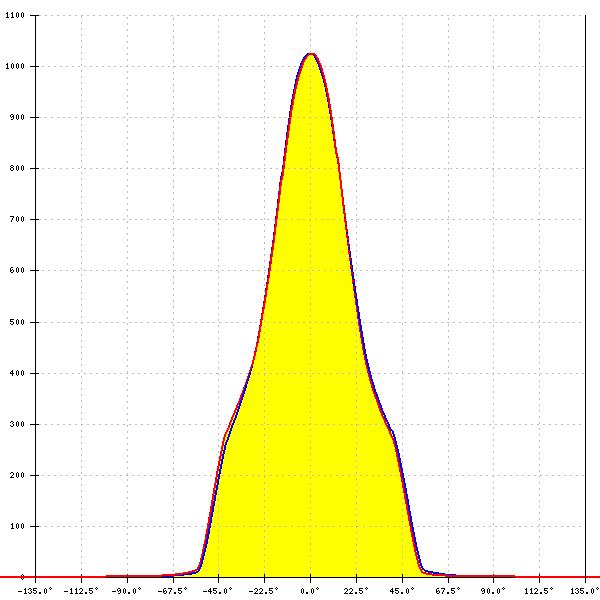

LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
47°
FWTM:
99°
Peak intensity:
1.030 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
LEDs/each optic:
1
Light colour/type:
White

LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
LEDs/each optic:
1
Light colour/type:
White

LED:

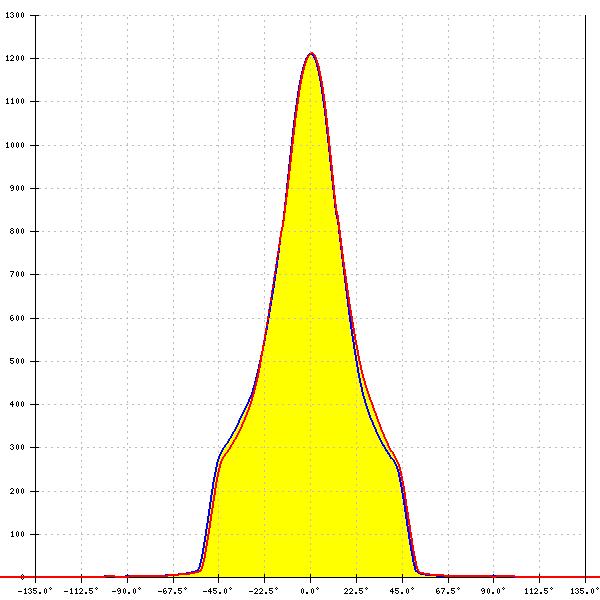

Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
40°
FWTM:
98°
Peak intensity:
1.210 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

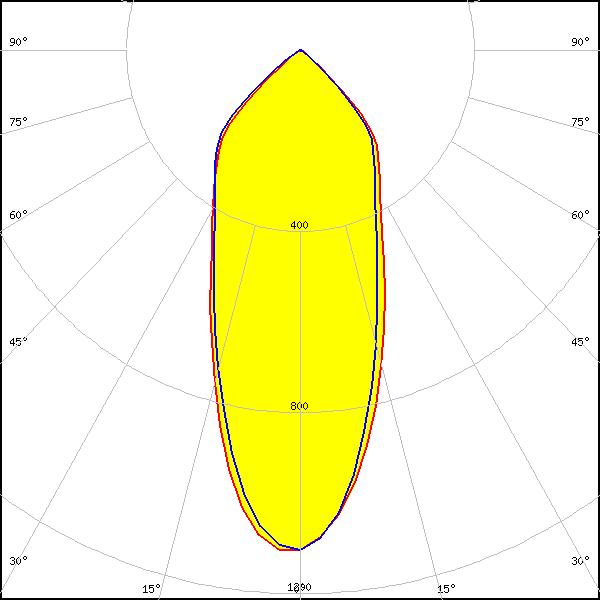

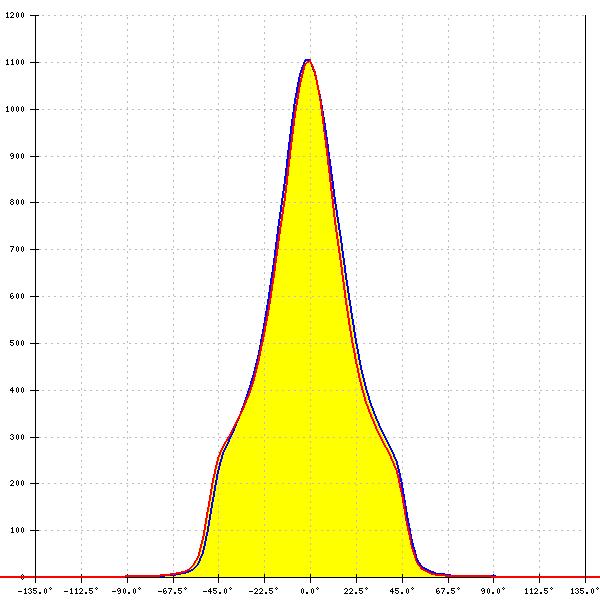

LED:
Tiger Zenigata (GWTGCBG4FD)
LES size: 15.5 mm
Required components:
FWHM:
41°
FWTM:
99°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
SLE G7 LES17 H
FWHM:
38°
FWTM:
96°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

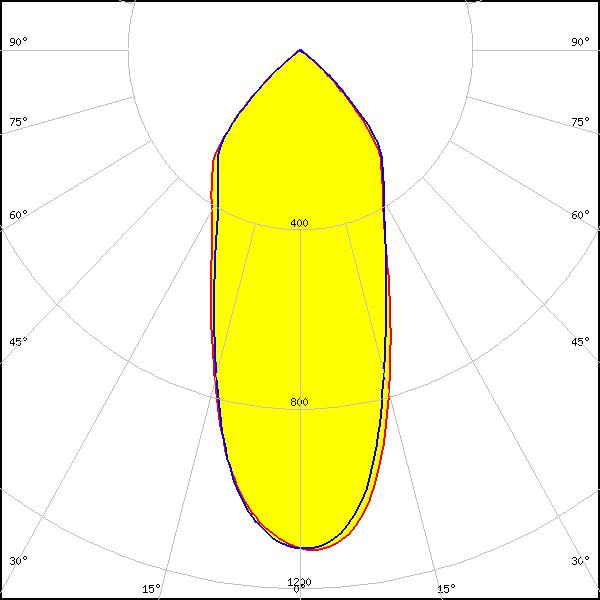

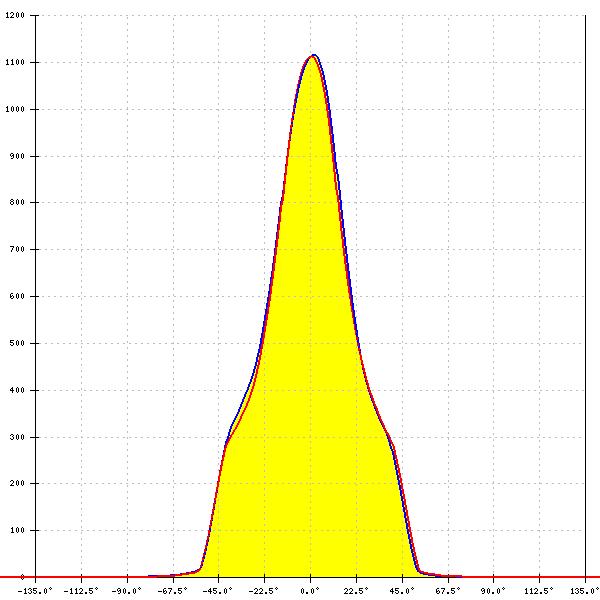

LED:
SLE G7 LES21 H
FWHM:
43°
FWTM:
97°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
40°
FWTM:
98°
Peak intensity:
1.180 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

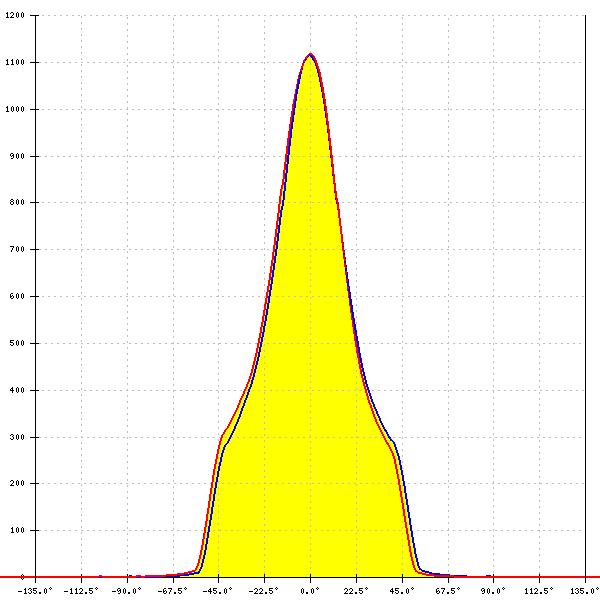

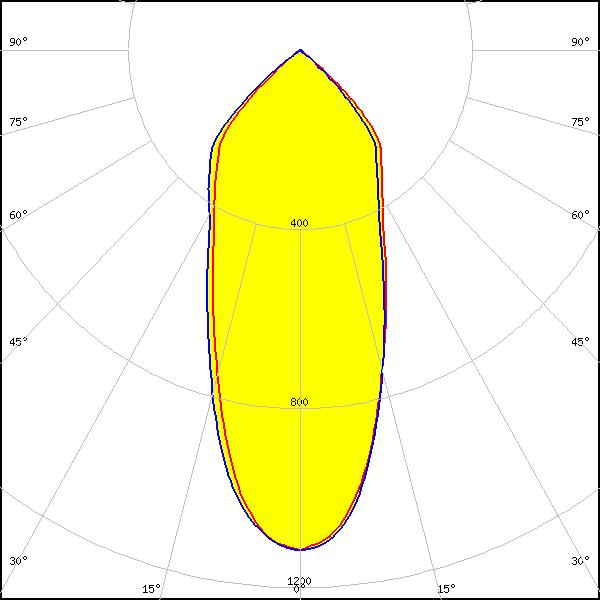

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
43°
FWTM:
98°
Peak intensity:
1.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
Manage Consent
To provide the best experiences, we use technologies like cookies to store and/or access device information. Consenting to these technologies will allow us to process data such as browsing behavior or unique IDs on this site. Not consenting or withdrawing consent, may adversely affect certain features and functions.
Functional Always active
The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service explicitly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.
Preferences
The technical storage or access is necessary for the legitimate purpose of storing preferences that are not requested by the subscriber or user.
Statistics
The technical storage or access that is used exclusively for statistical purposes.
The technical storage or access that is used exclusively for anonymous statistical purposes. Without a subpoena, voluntary compliance on the part of your Internet Service Provider, or additional records from a third party, information stored or retrieved for this purpose alone cannot usually be used to identify you.
Marketing
The technical storage or access is required to create user profiles to send advertising, or to track the user on a website or across several websites for similar marketing purposes.
