F13661_ANGELINA-W-B

Print

~50° wide beam compatible with BJB and B+W connectors

Specification
  • Dimensions:
    82 mm
  • Height:
    31.00 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    825 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    10.6 kg
  • MPQ:
    55 pcs
  • MOQ:
    110 pcs
  • MOQ size:
    320 x 230 x 150 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F13661_ANGELINA-W-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

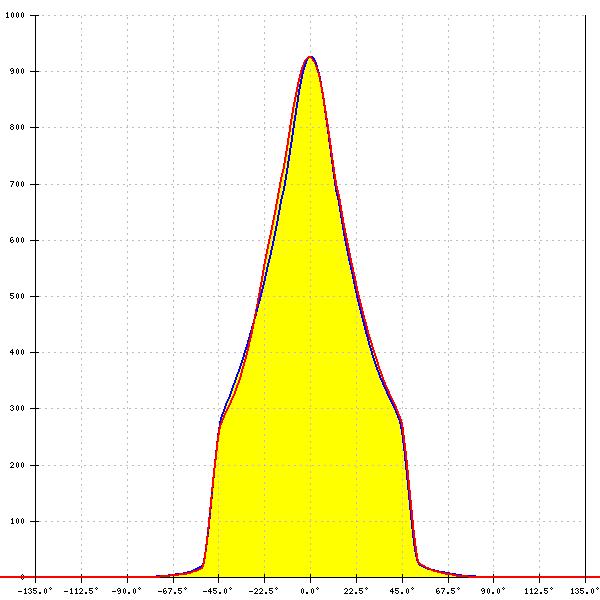

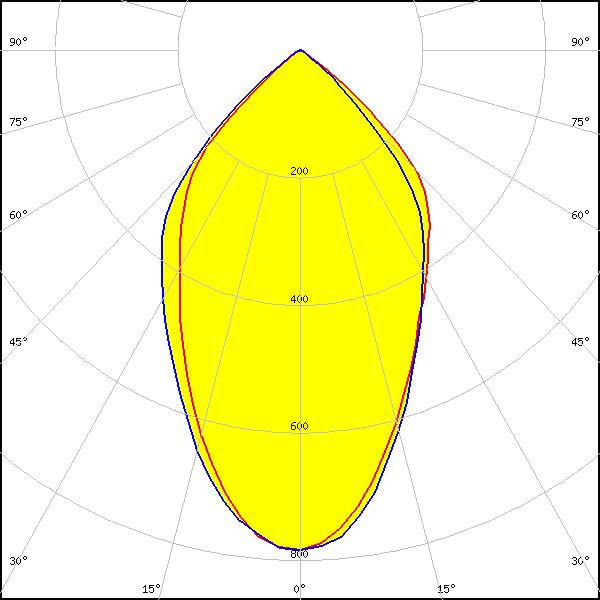

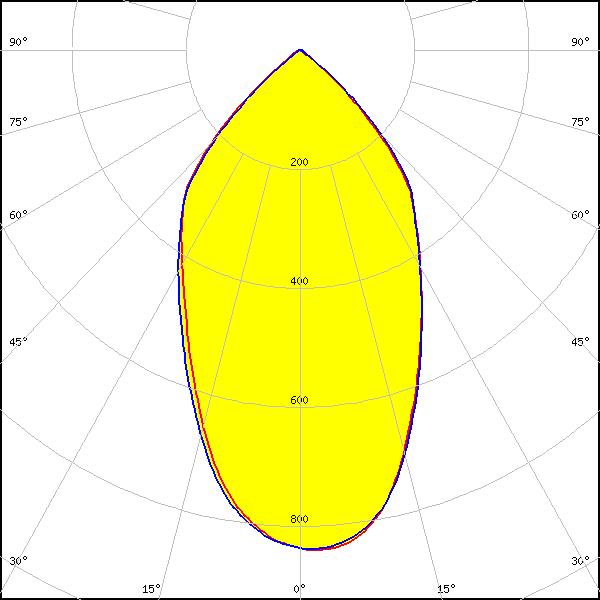

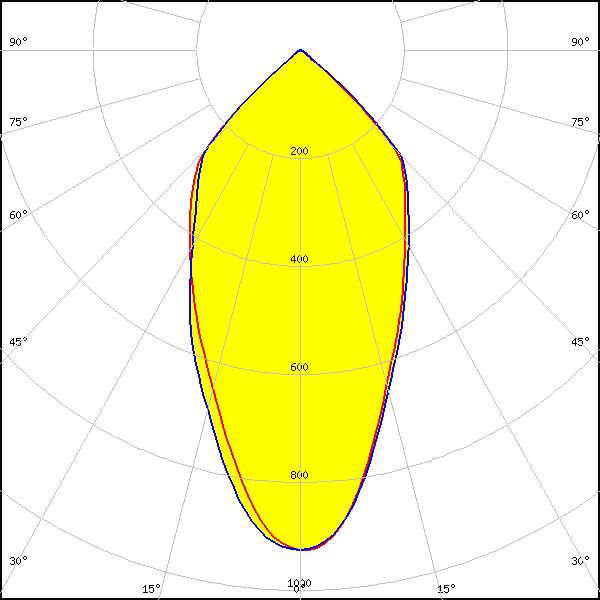

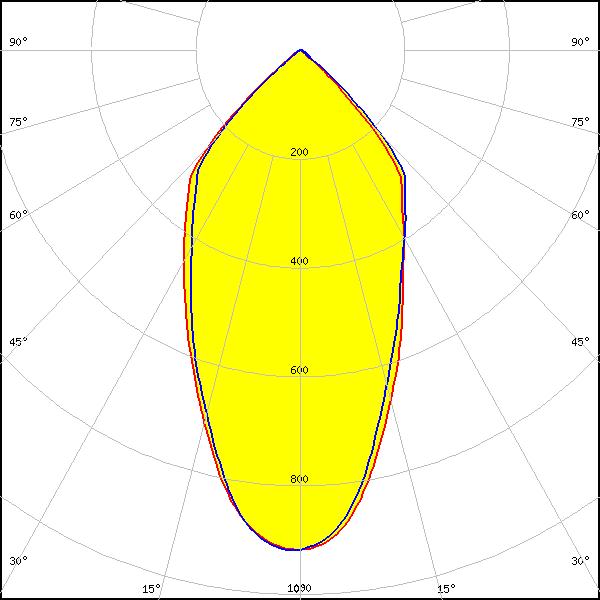

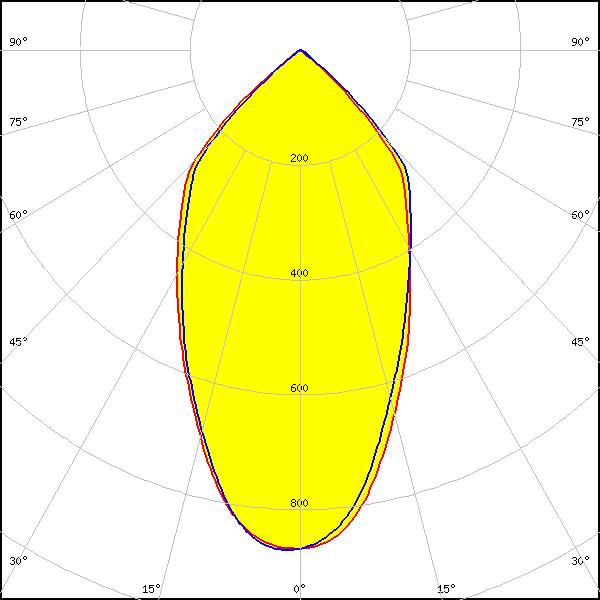

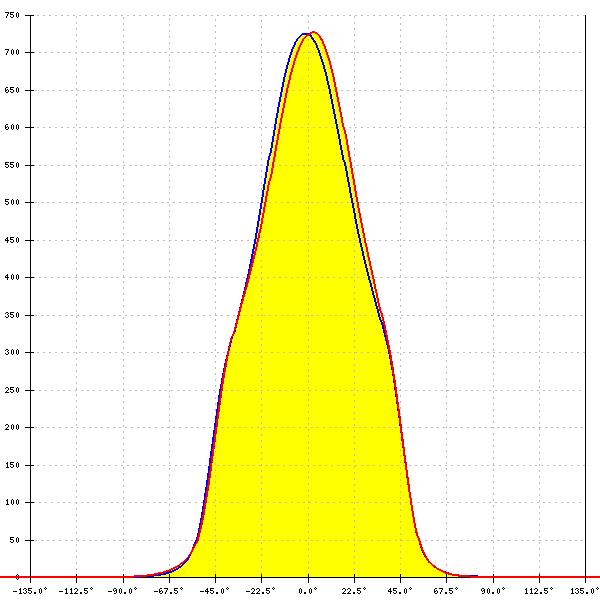

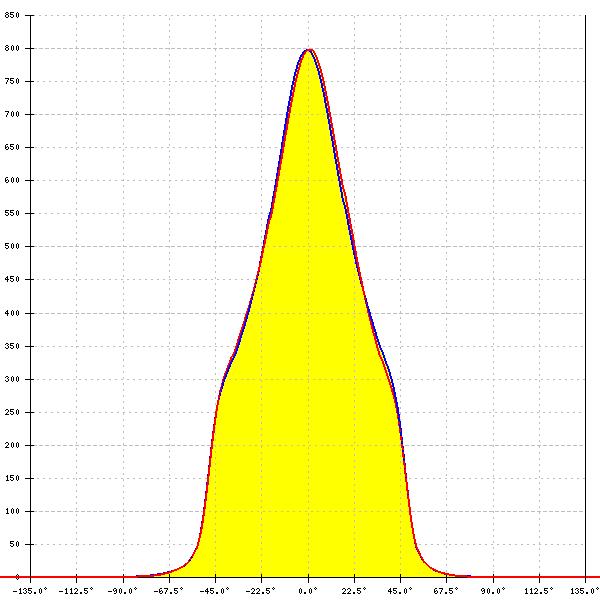

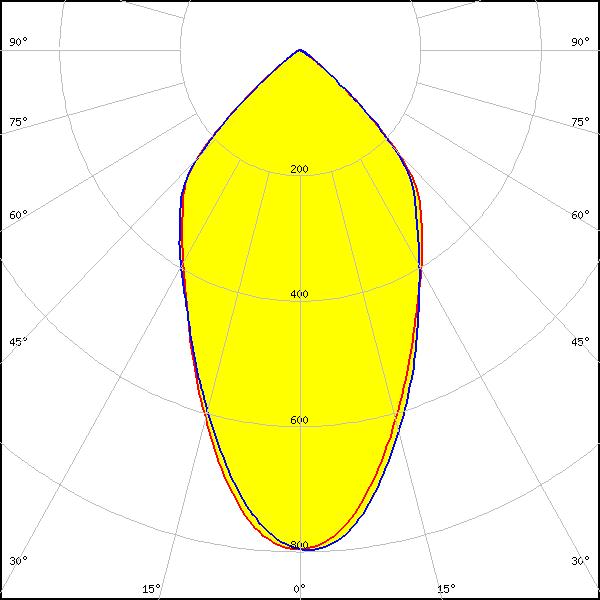

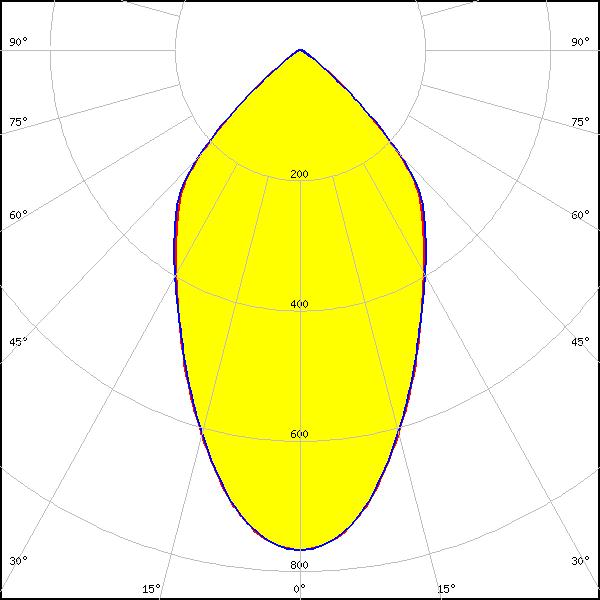

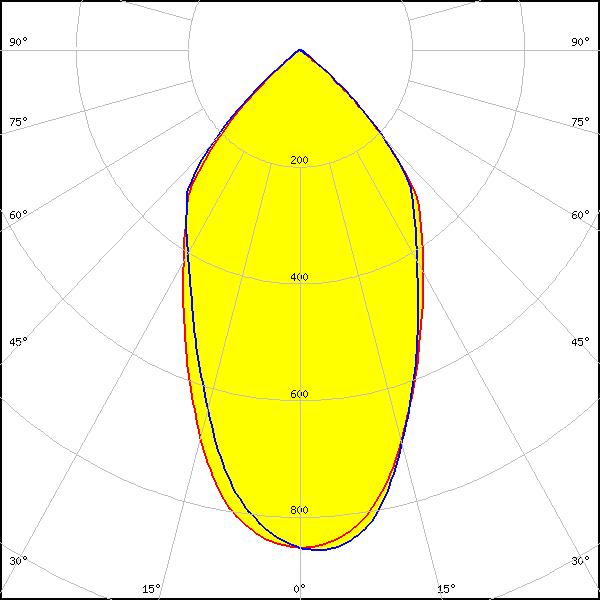

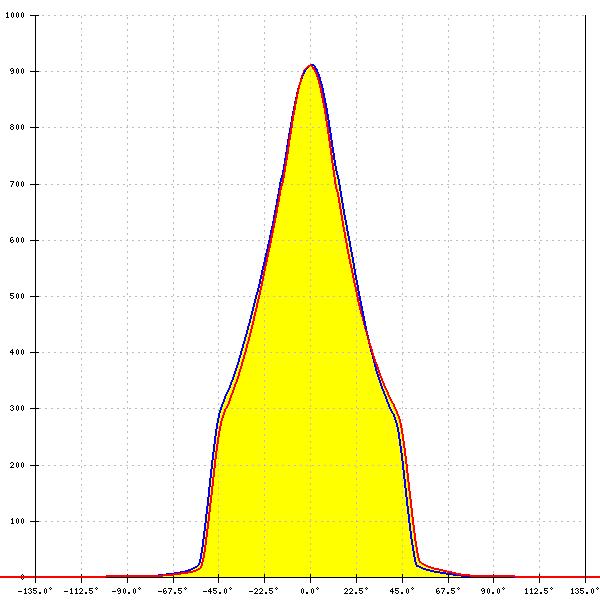

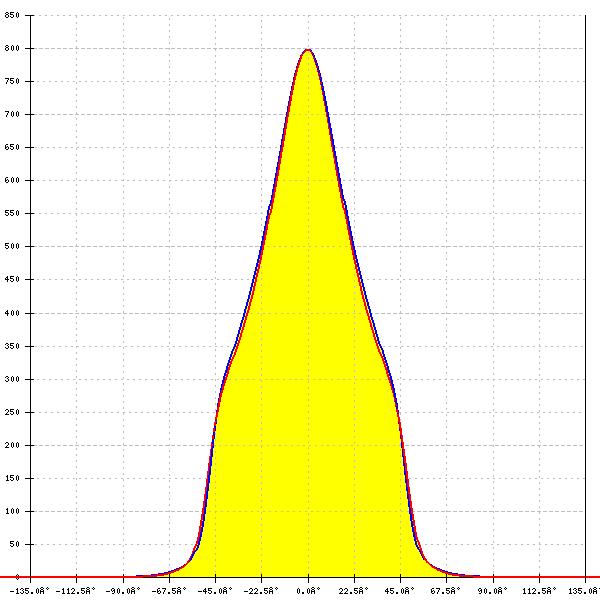

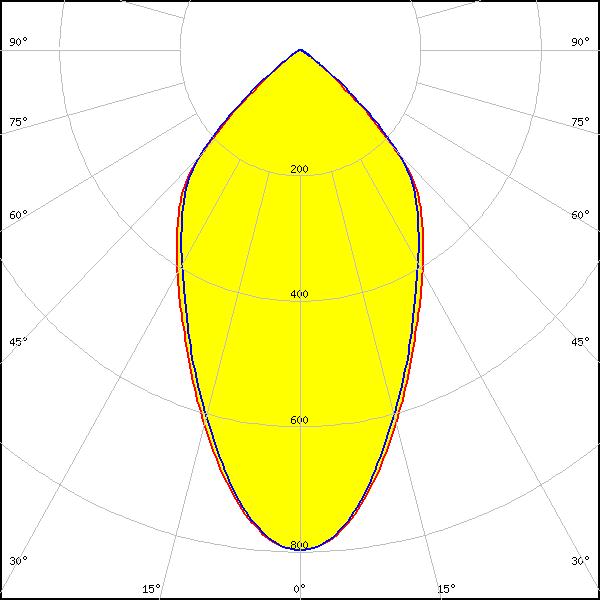

Optical results

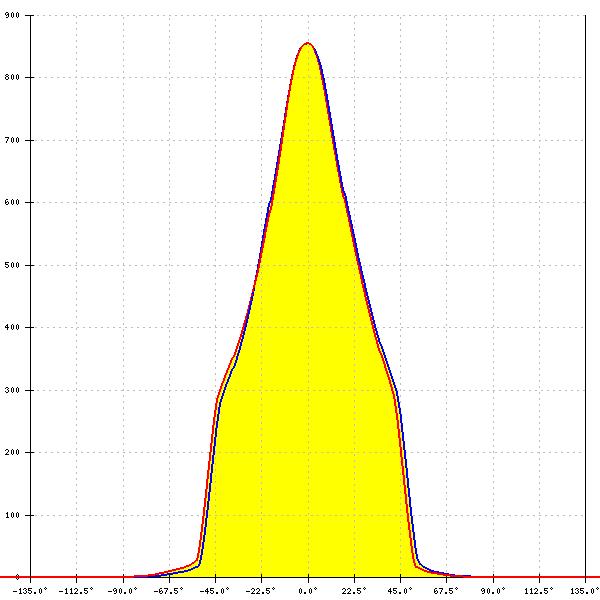

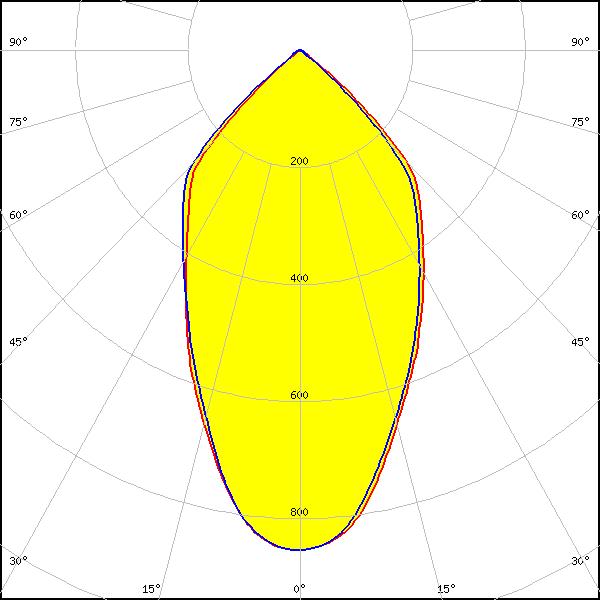

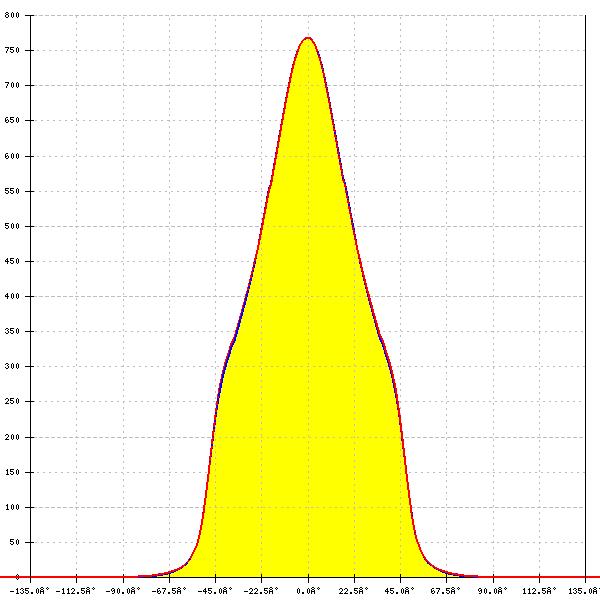

LED: V15 Gen6
Required components:
BJB: 47.319.2224
FWHM: 59°
FWTM: 101°
Peak intensity: 0.850 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

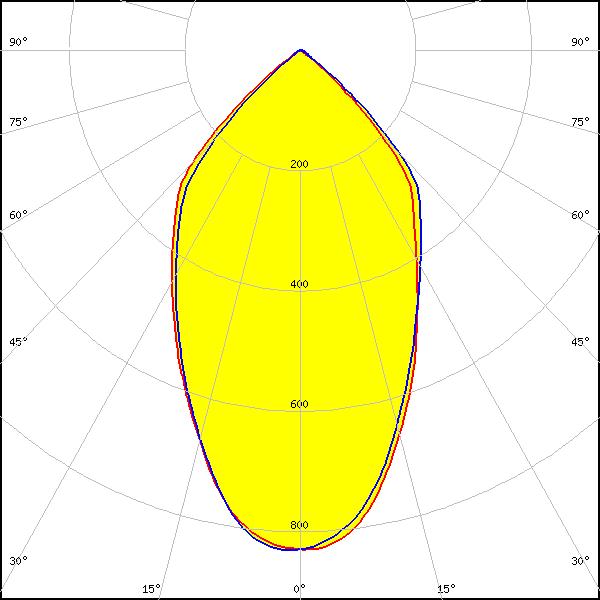

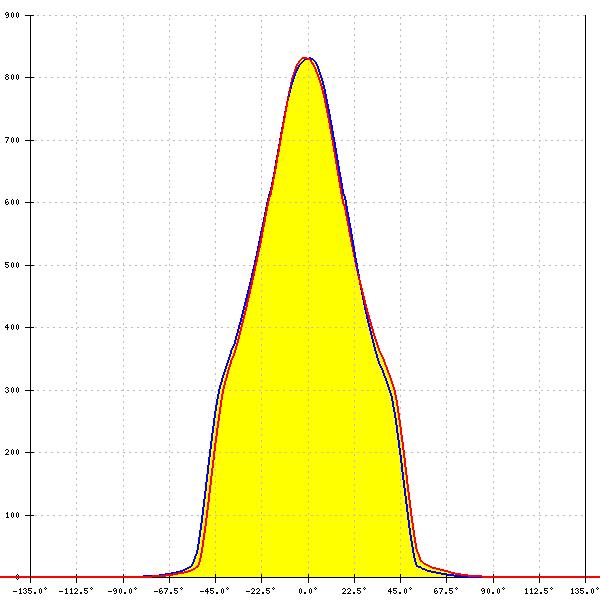

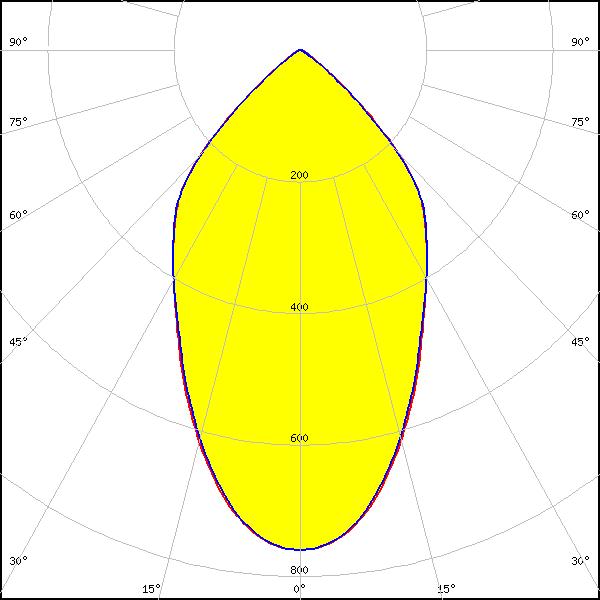

LED: V18 Gen6
Required components:
BJB: 47.319.2274
FWHM: 61°
FWTM: 101°
Peak intensity: 0.830 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

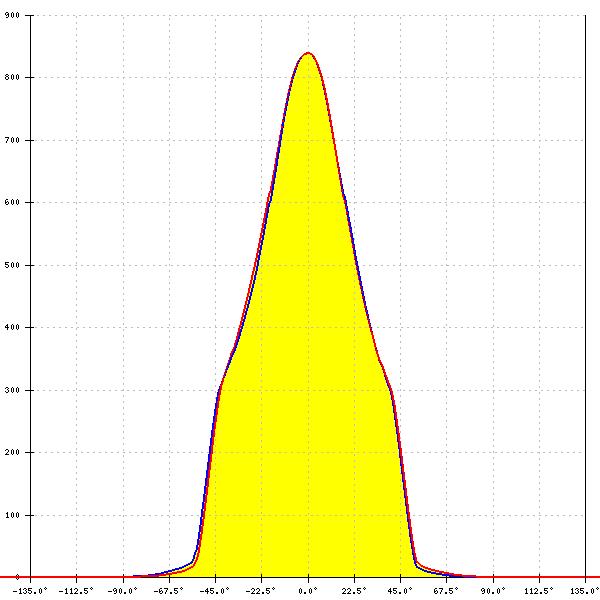

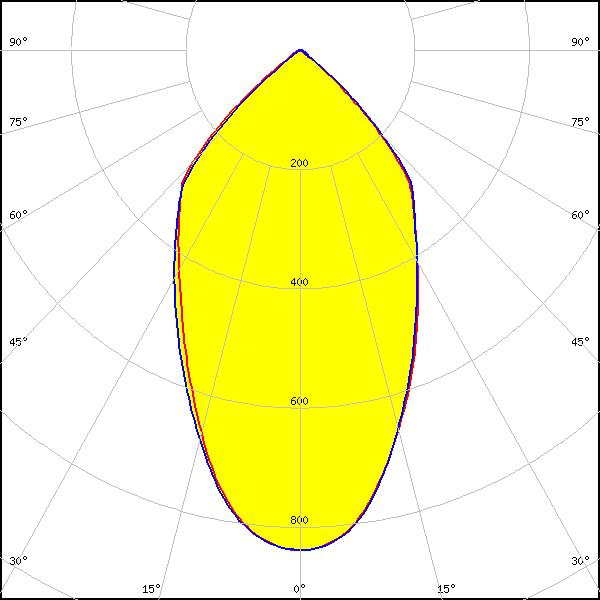

LED: V18 Gen7
Required components:
BJB: 47.319.2350
FWHM: 60°
FWTM: 102°
Peak intensity: 0.840 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

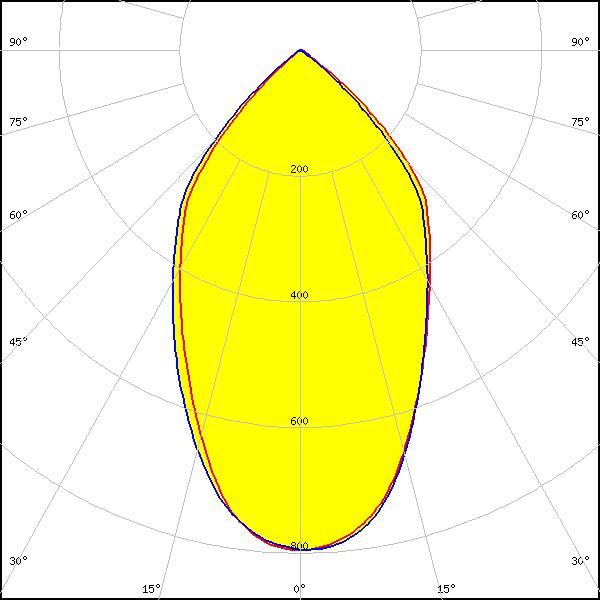

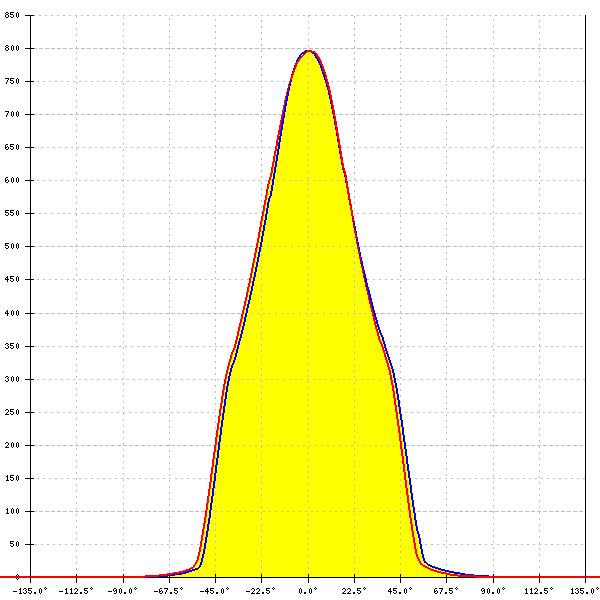

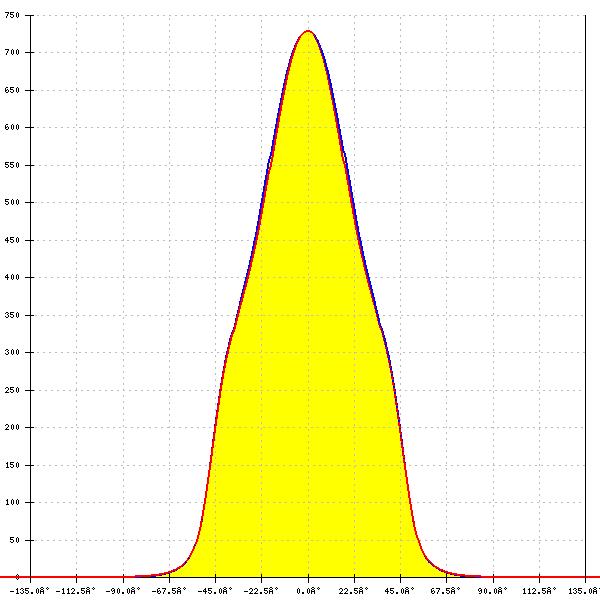

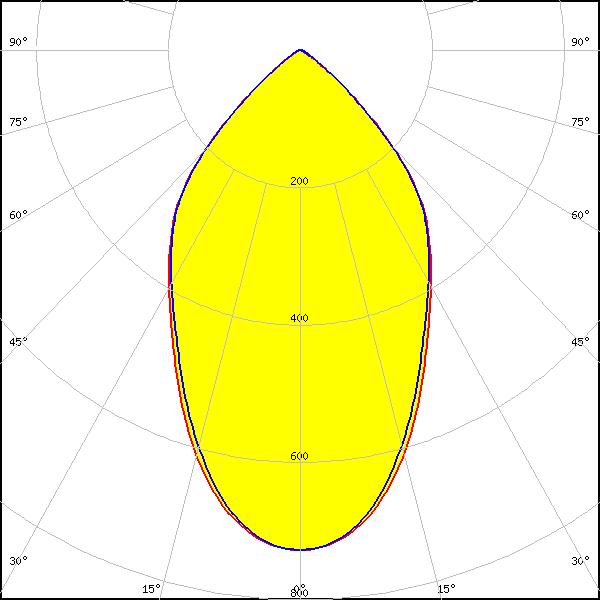

LED: V22 Gen6
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM: 63°
FWTM: 101°
Peak intensity: 0.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

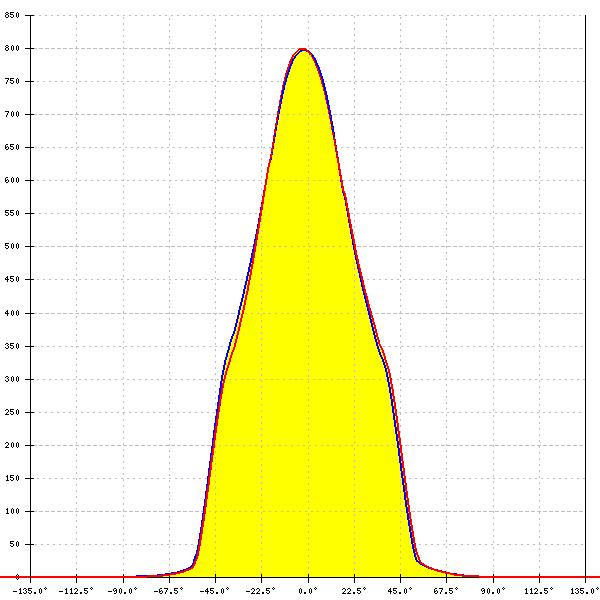

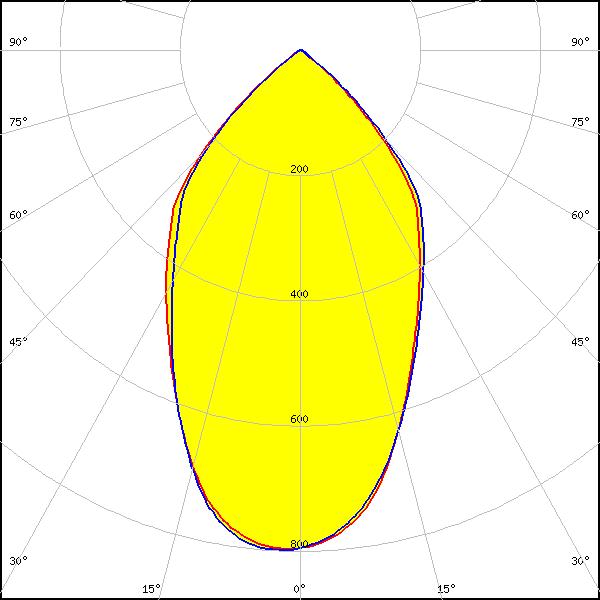

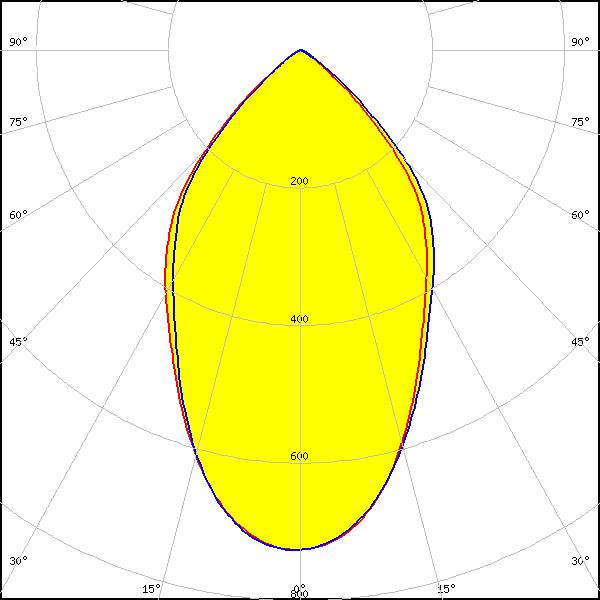

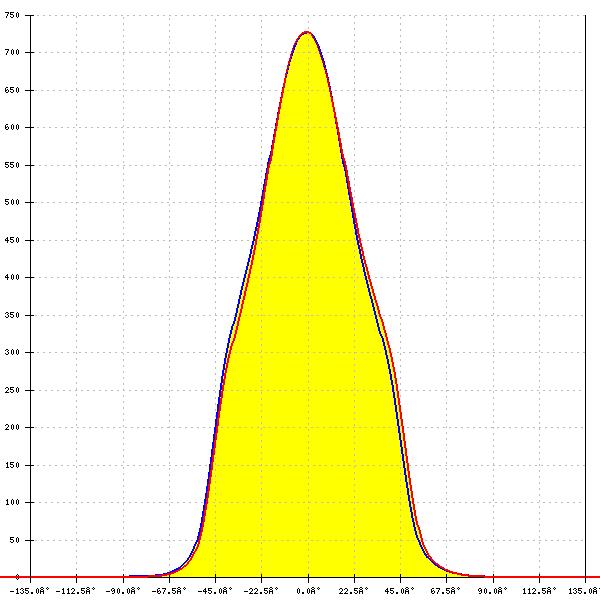

LED: V22 Gen7
Required components:
BJB: 47.319.2030
FWHM: 63°
FWTM: 102°
Peak intensity: 0.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

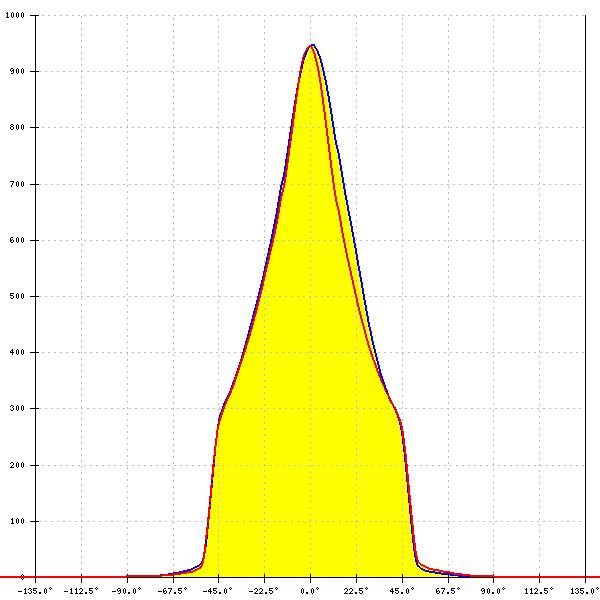

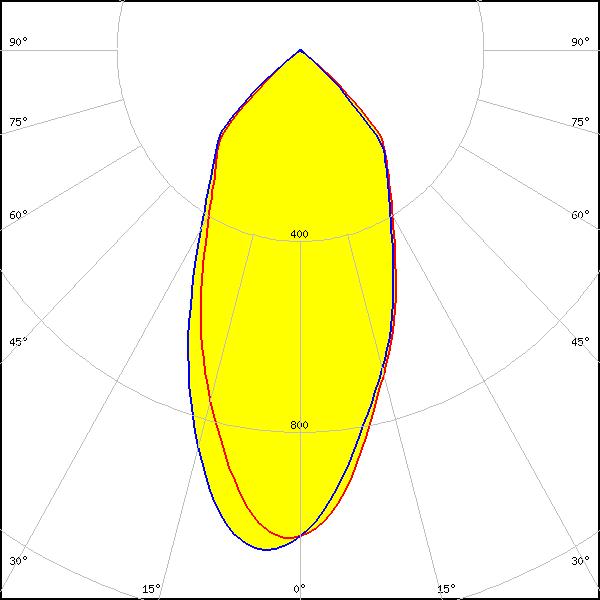

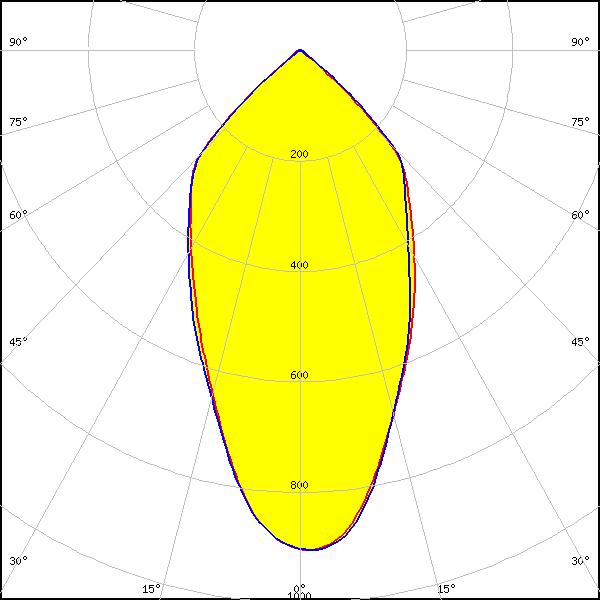

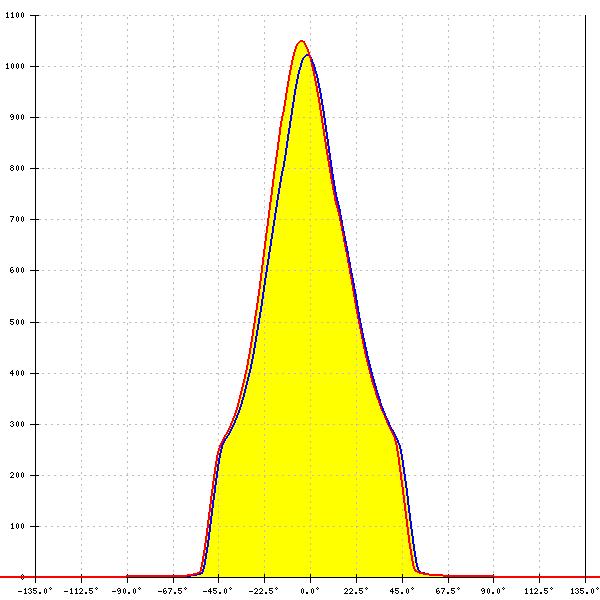

LED: CLL03x/CLU03x
Required components:
BJB: 47.319.2021
FWHM: 49°
FWTM: 98°
Peak intensity: 1.000 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
Required components:
A.A.G. STUCCHI: 8101-G2
F13671_ANGE-RZ-LENS
FWHM: 60°
FWTM: 102°
Peak intensity: 0.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM: 55°
FWTM: 100°
Peak intensity: 0.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

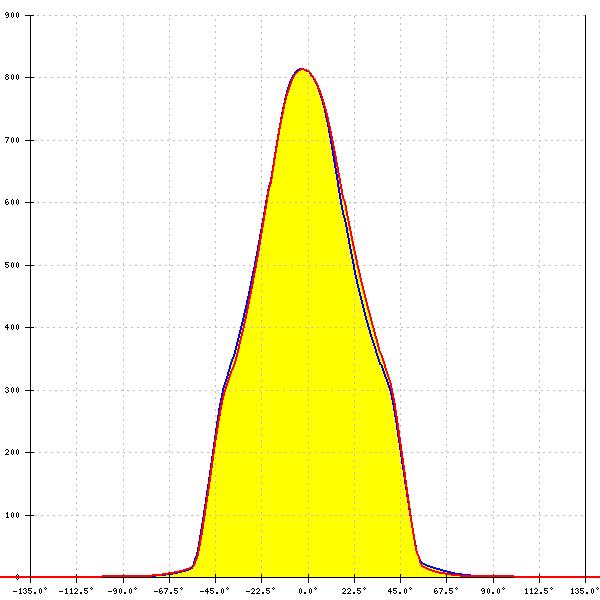

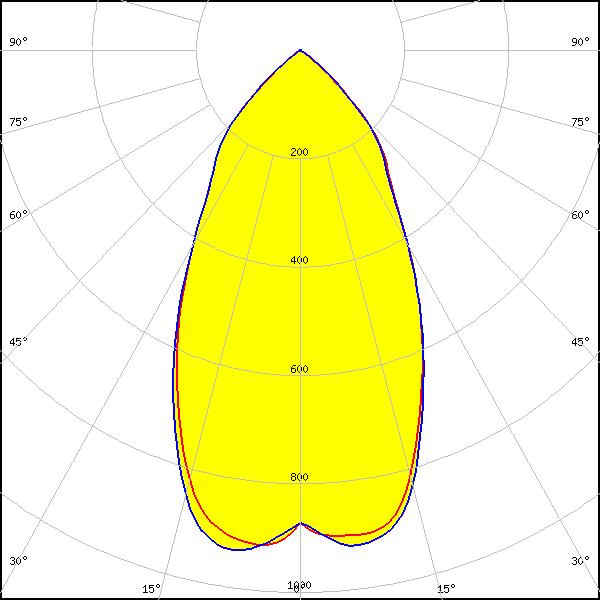

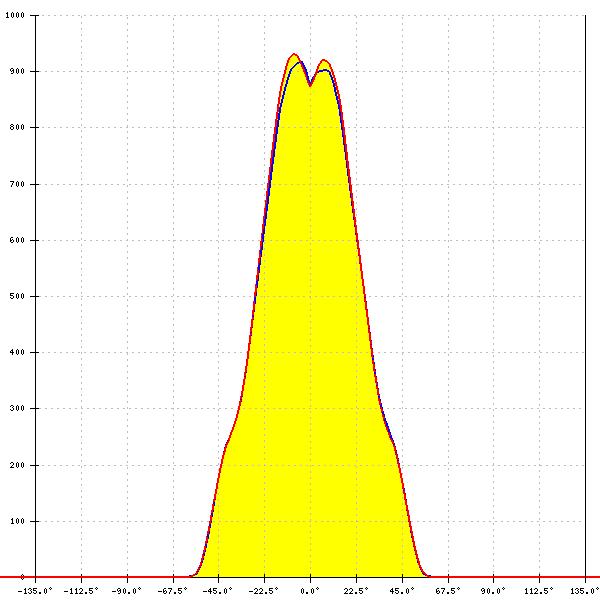

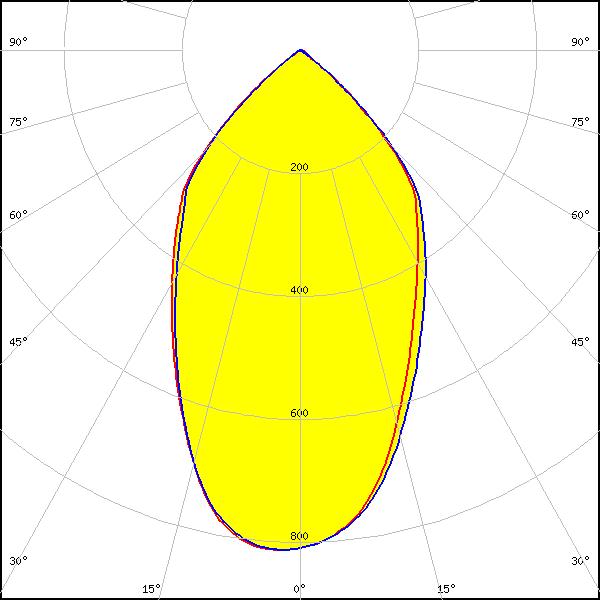

LED: CLL04x/CLU04x
Required components:
BJB: 47.319.2030
FWHM: 52°
FWTM: 94°
Peak intensity: 1.100 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
Required components:
BJB: 47.319.2030
FWHM: 55°
FWTM: 98°
Peak intensity: 0.940 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

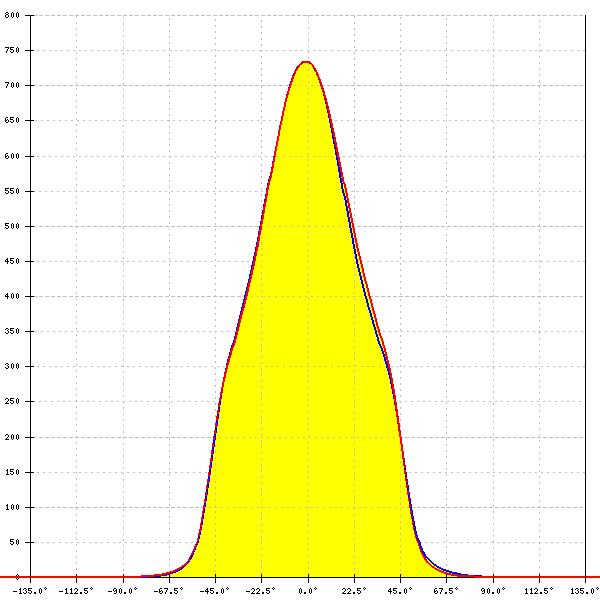

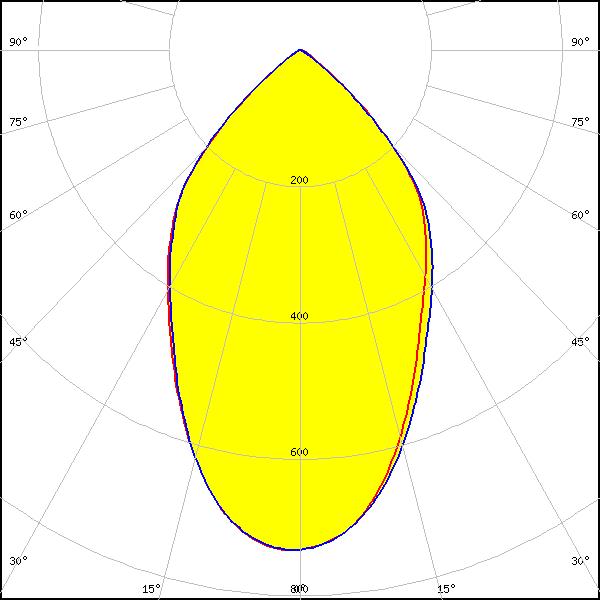

LED: CLL04x/CLU04x
Required components:
A.A.G. STUCCHI: 8102-G2
F13671_ANGE-RZ-LENS
FWHM: 66°
FWTM: 104°
Peak intensity: 0.730 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM: 62°
FWTM: 102°
Peak intensity: 0.820 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

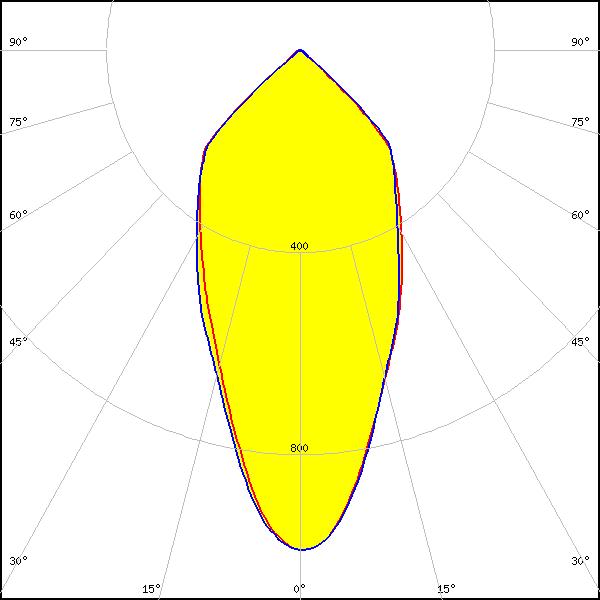

LED: CLU720/721/723
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM: 51°
FWTM: 100°
Peak intensity: 0.950 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

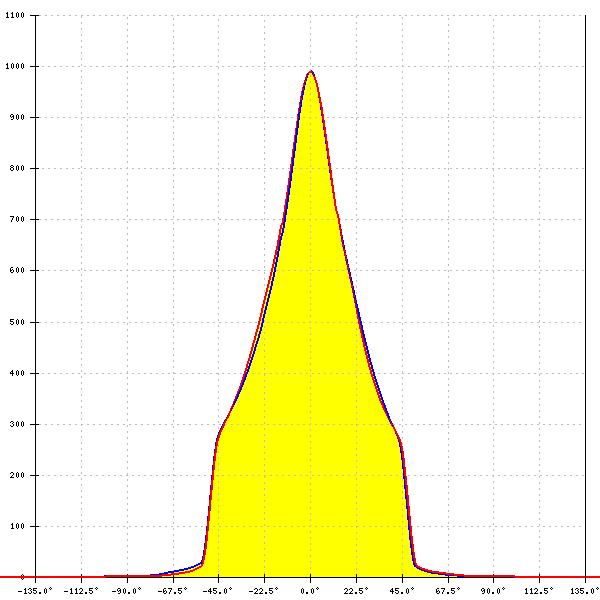

LED: CLU720/721/723
Required components:
BJB: 47.319.2021
FWHM: 49°
FWTM: 99°
Peak intensity: 1.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

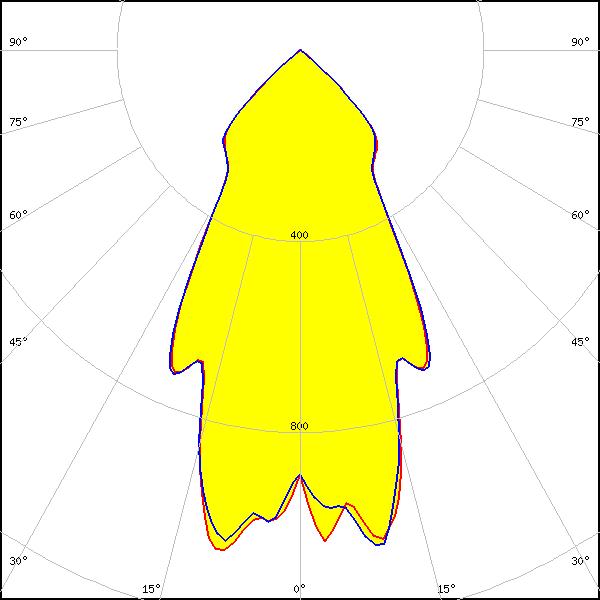

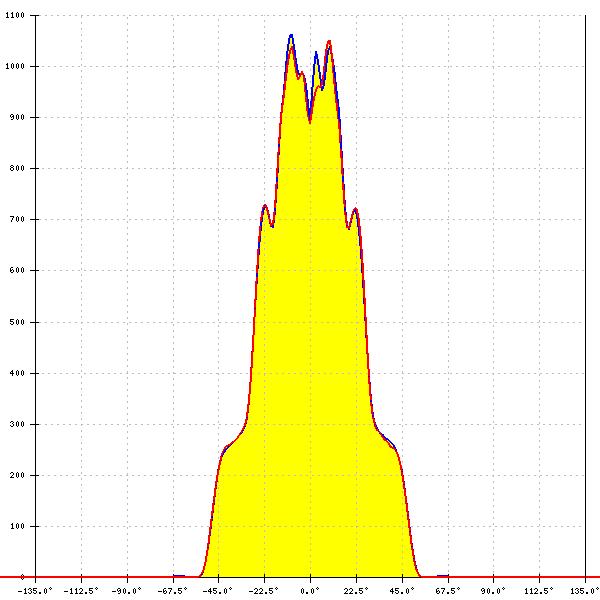

LED: CLU730/731/733
Required components:
BJB: 47.319.2030
FWHM: 52°
FWTM: 98°
Peak intensity: 1.080 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

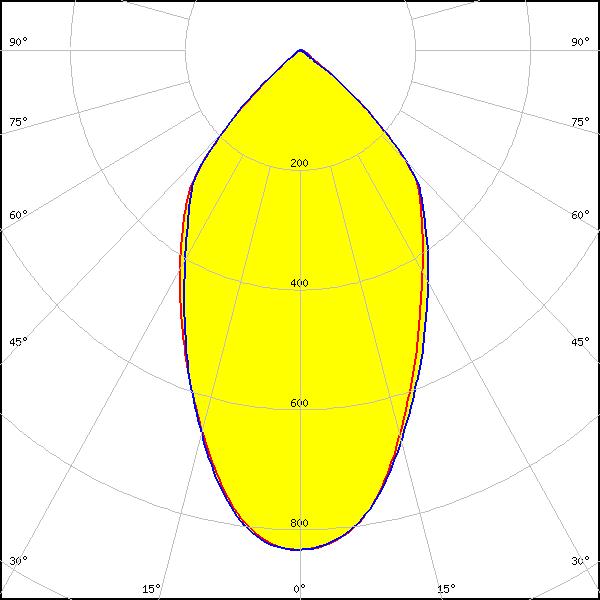

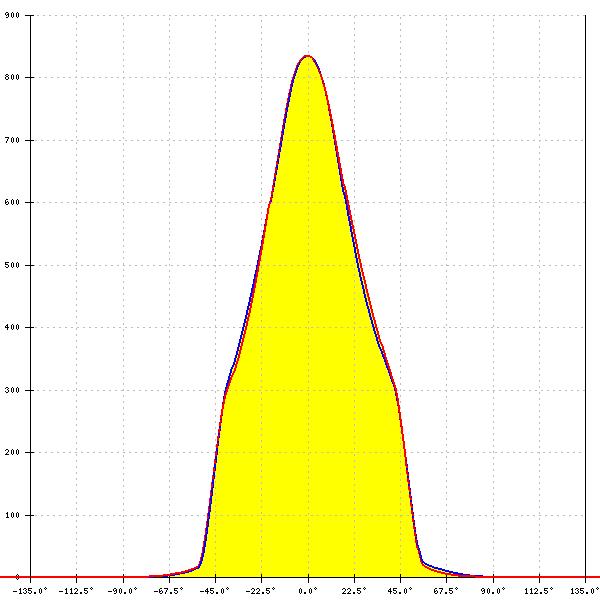

LED: CXA/B 25xx
Required components:
BJB: 47.319.2141
FWHM: 61°
FWTM: 101°
Peak intensity: 0.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

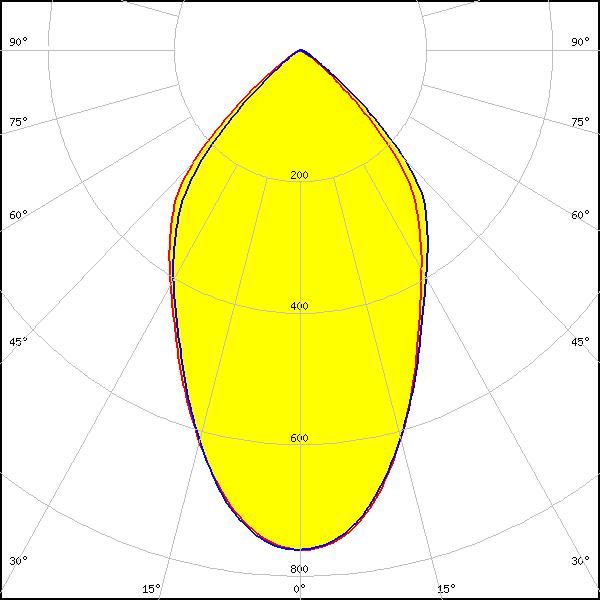

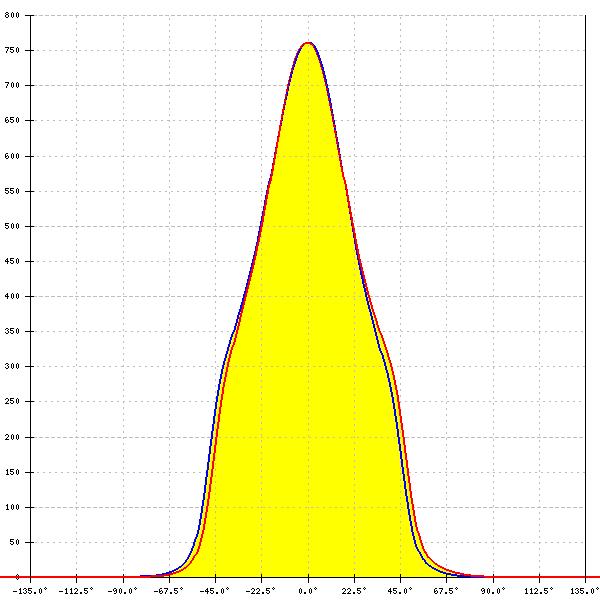

LED: CXA/B 25xx
Required components:
BJB: 47.319.2141
F13671_ANGE-RZ-LENS
FWHM: 64°
FWTM: 103°
Peak intensity: 0.760 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

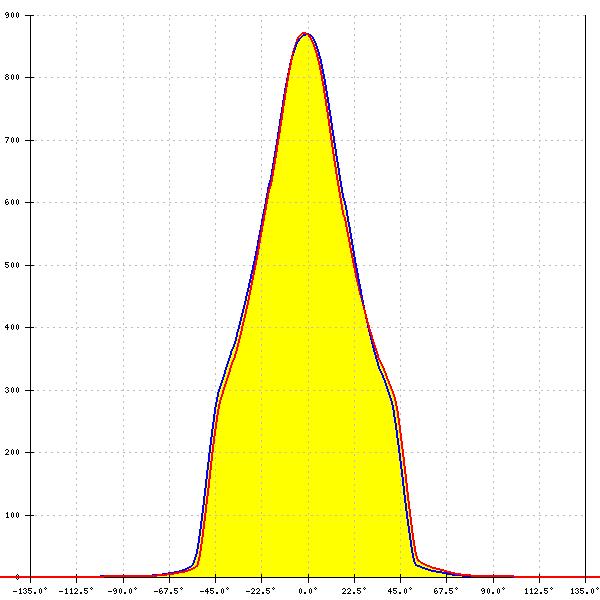

LED: CXA/B 25xx
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM: 57°
FWTM: 101°
Peak intensity: 0.870 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

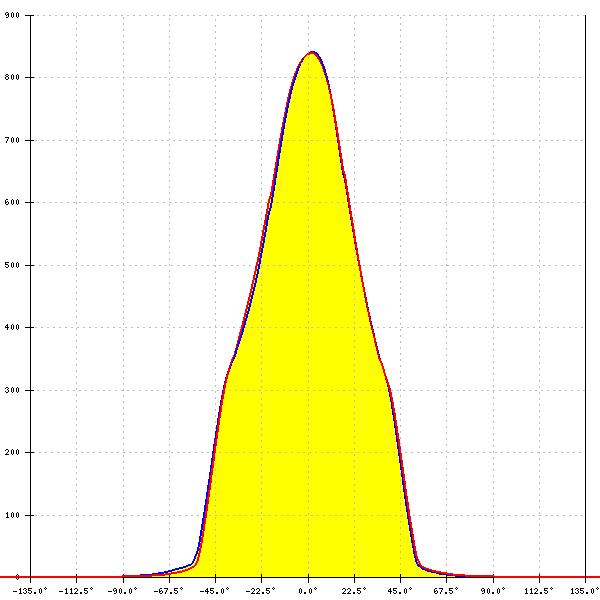

LED: CXA/B 30xx
Required components:
A.A.G. STUCCHI: 8404-G2
FWHM: 63°
FWTM: 101°
Peak intensity: 0.840 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

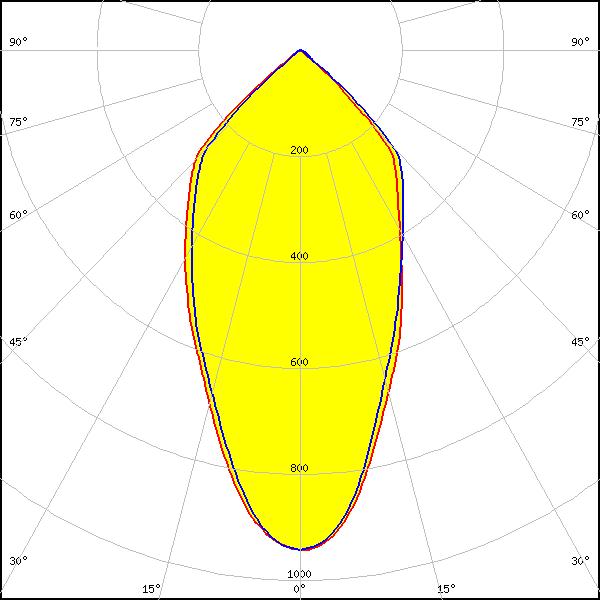

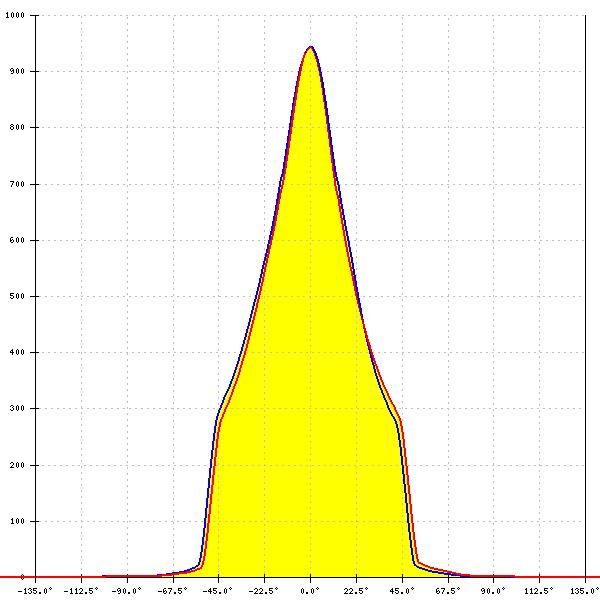

LED: LUXEON CoB 1204/1205
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM: 53°
FWTM: 100°
Peak intensity: 0.940 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

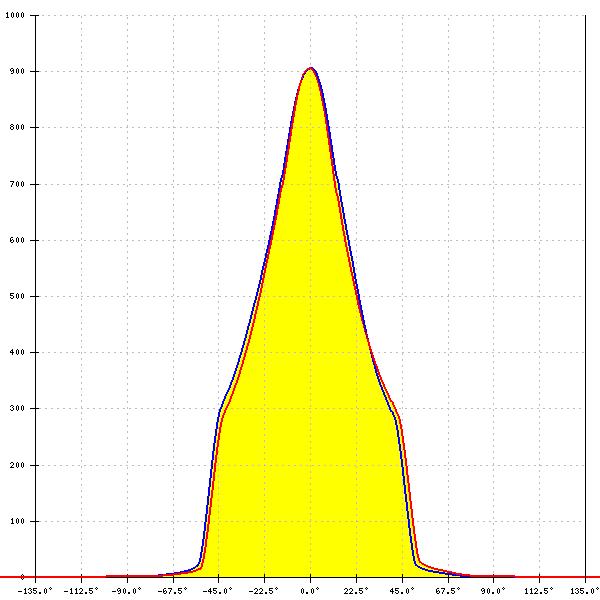

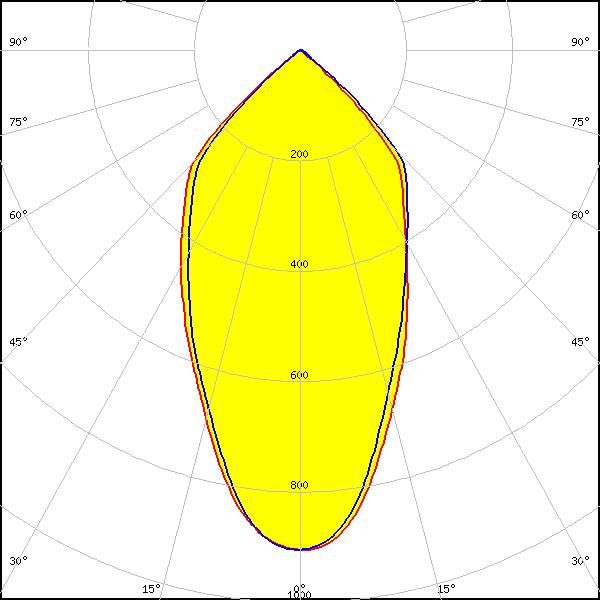

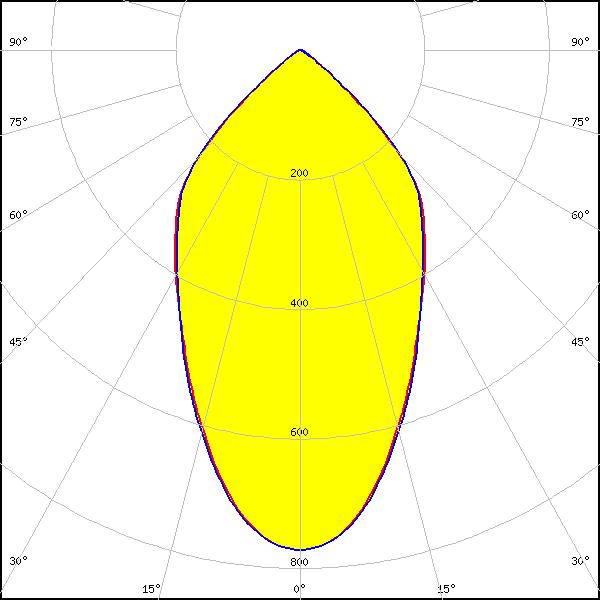

LED: LUXEON CoB 1208
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM: 55°
FWTM: 100°
Peak intensity: 0.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

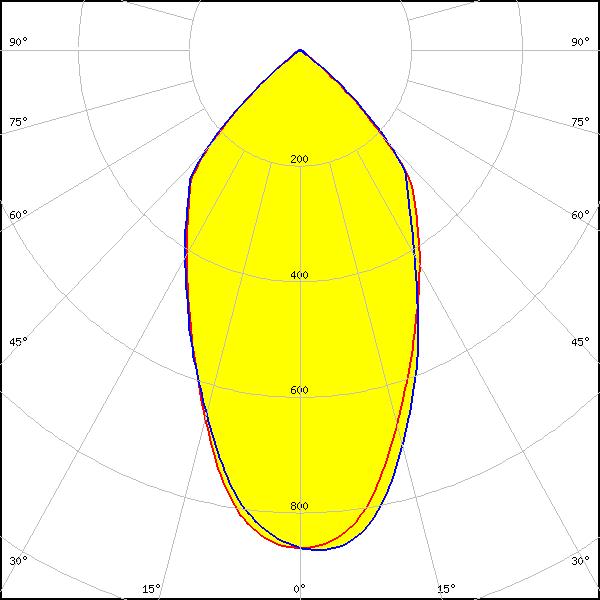

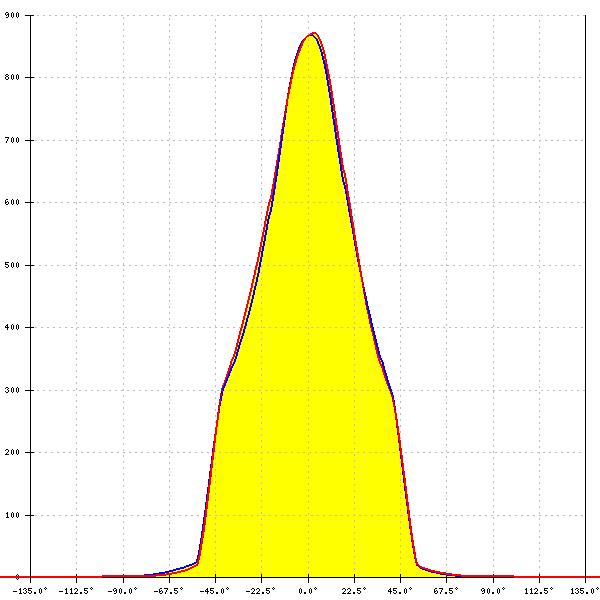

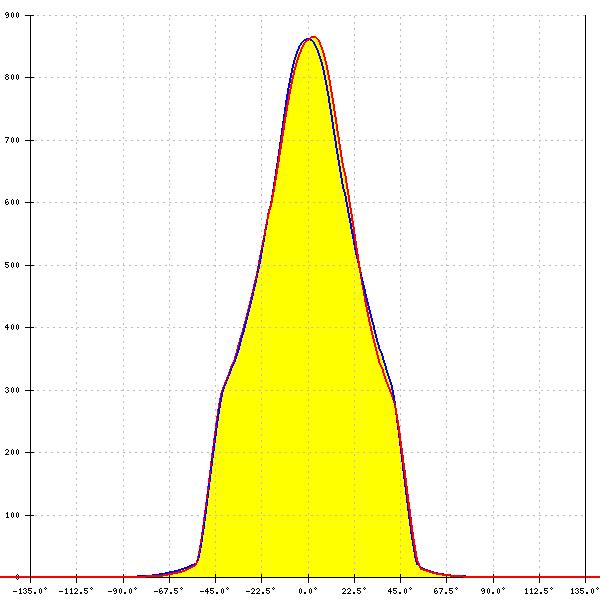

LED: LUXEON CoB 1211
Required components:
BJB: 47.319.2030
FWHM: 58°
FWTM: 101°
Peak intensity: 0.870 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

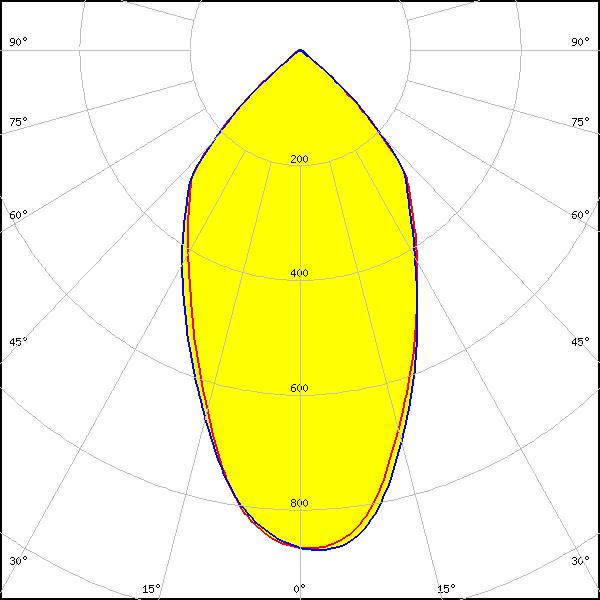

LED: LUXEON CoB 1211
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM: 58°
FWTM: 100°
Peak intensity: 0.870 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

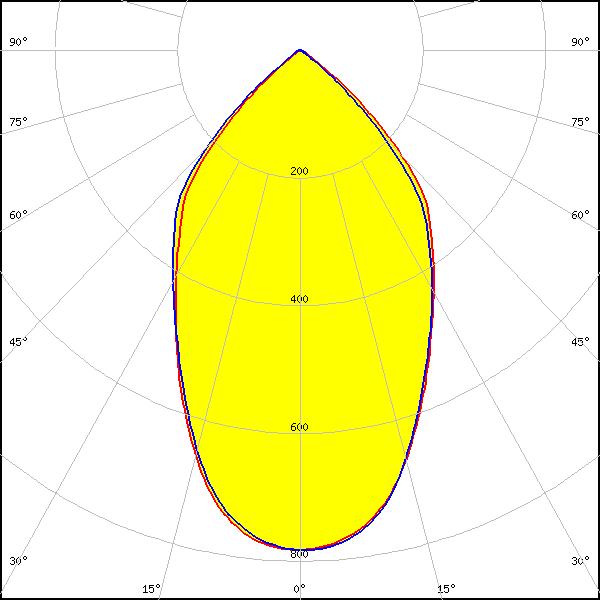

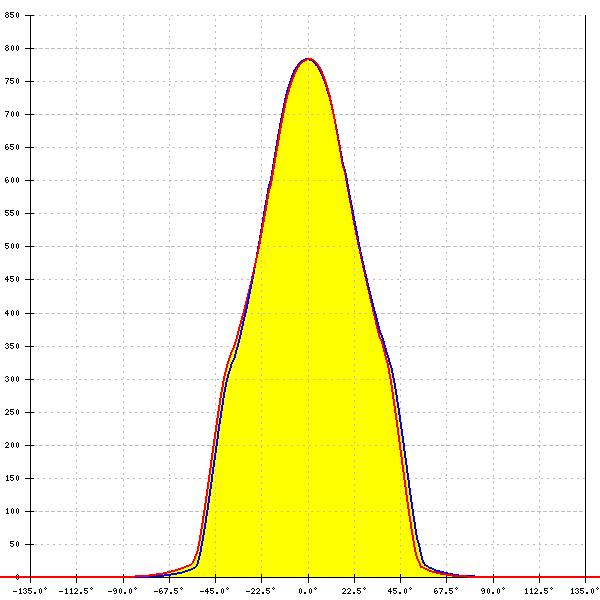

LED: LUXEON CoB 1213/1216/1812
Required components:
BJB: 47.319.2030
FWHM: 65°
FWTM: 102°
Peak intensity: 0.780 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

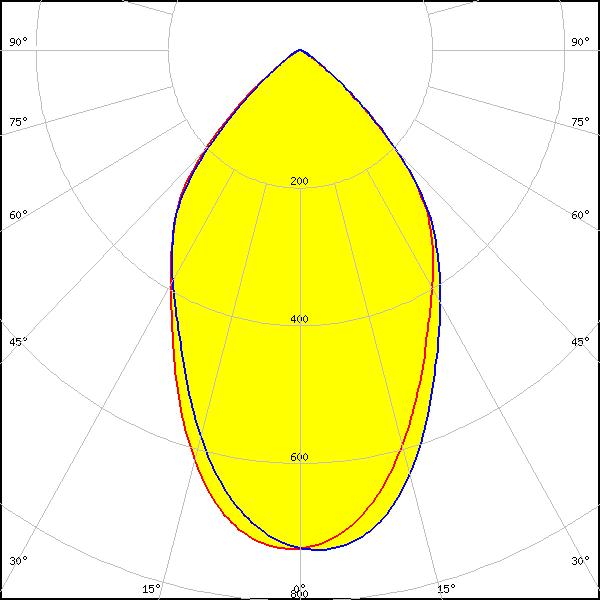

LED: LUXEON CoB 1213/1216/1812
Required components:
BJB: 47.319.2030
F13671_ANGE-RZ-LENS
FWHM: 67°
FWTM: 104°
Peak intensity: 0.730 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON K12
Required components:
BJB: 47.319.2070
FWHM: 46°
FWTM: 96°
LEDs/each optic: 1
Light colour/type: White

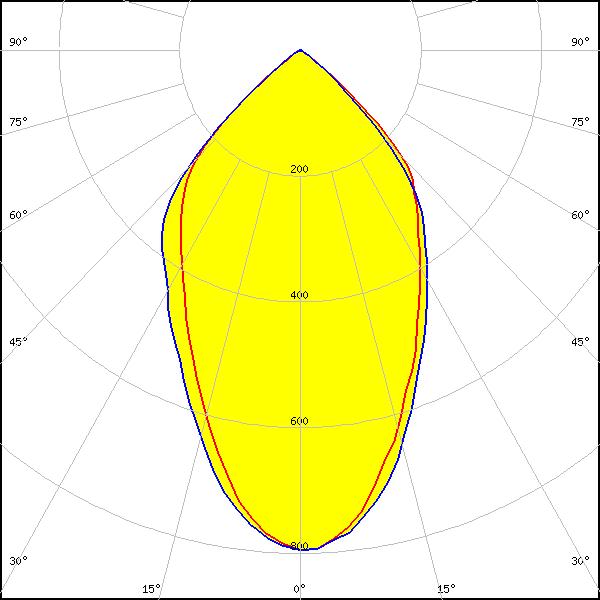

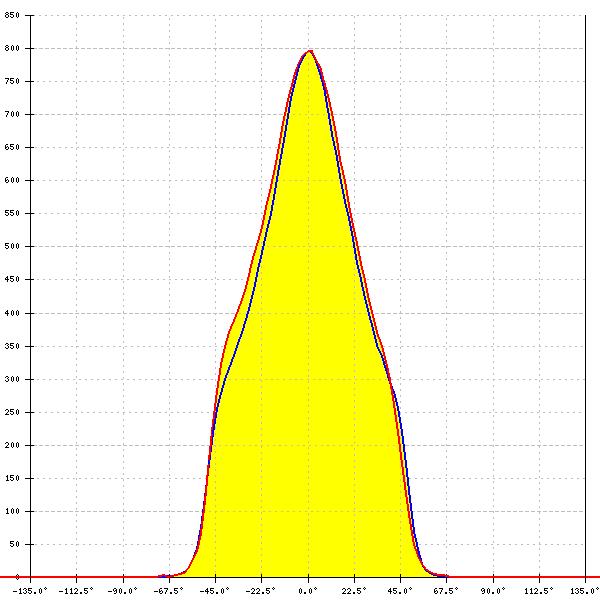

LED: LUXEON K12
Required components:
BJB: 47.319.2070
F13671_ANGE-RZ-LENS
FWHM: 64°
FWTM: 104°
Peak intensity: 0.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

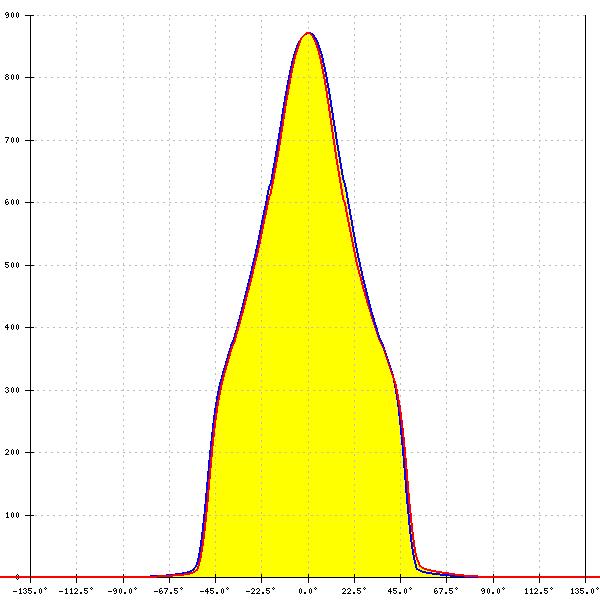

LED: LUXEON K16
Required components:
BJB: 47.319.2070
FWHM: 61°
FWTM: -
Peak intensity: 0.870 cd/lm
LEDs/each optic: 1
Light colour/type: White

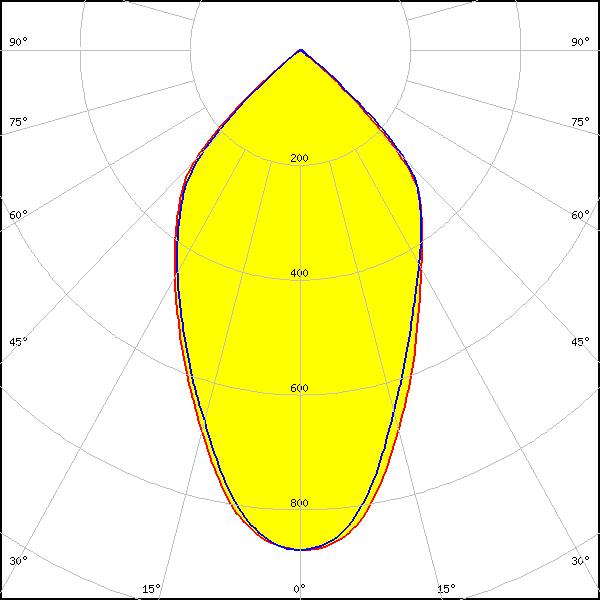

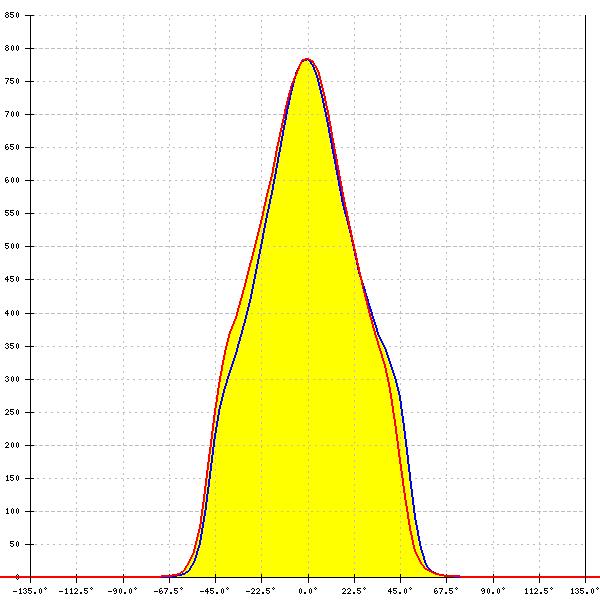

LED: LUXEON K16
Required components:
BJB: 47.319.2070
F13671_ANGE-RZ-LENS
FWHM: 65°
FWTM: 104°
Peak intensity: 0.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

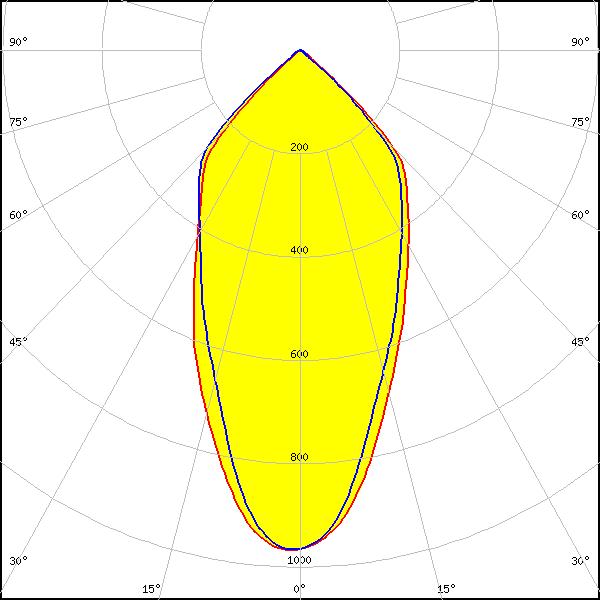

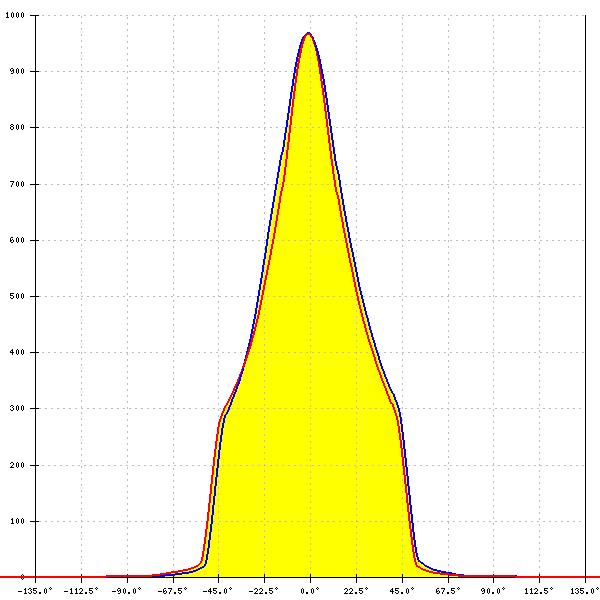

LED: CxM-14 (19x19)
Required components:
BJB: 47.319.2021
FWHM: 51°
FWTM: 99°
Peak intensity: 0.970 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

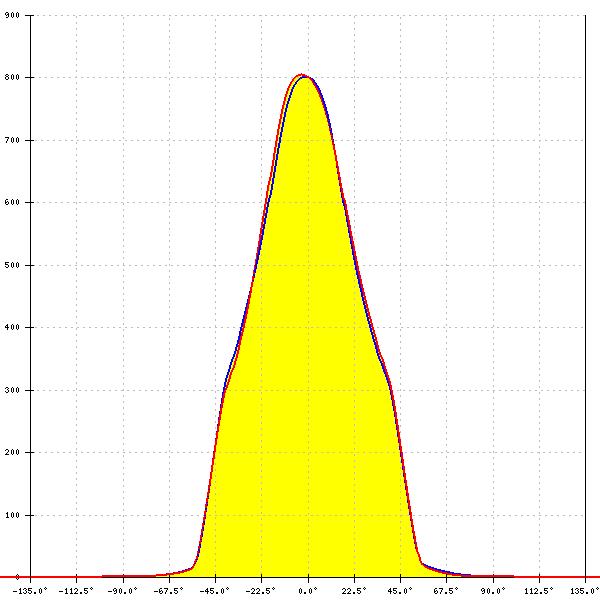

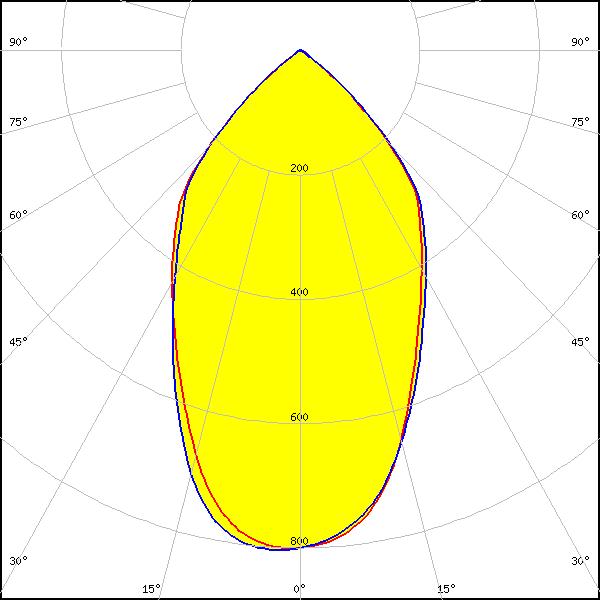

LED: CxM-22 (28x28)
Required components:
BJB: 47.319.2030
FWHM: 63°
FWTM: 102°
Peak intensity: 0.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

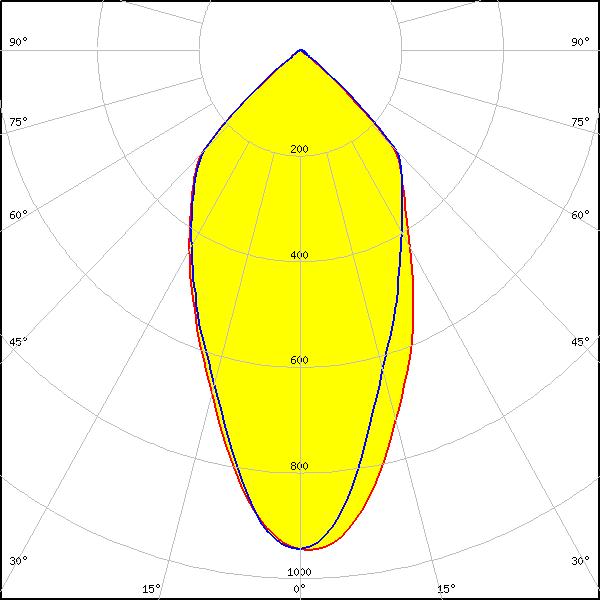

LED: Soleriq S13
Required components:
A.A.G. STUCCHI: 8502-G2
FWHM: 52°
FWTM: 100°
Peak intensity: 0.950 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13 19x19
Required components:
BJB: 47.319.2021
FWHM: 53°
FWTM: 100°
Peak intensity: 0.920 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

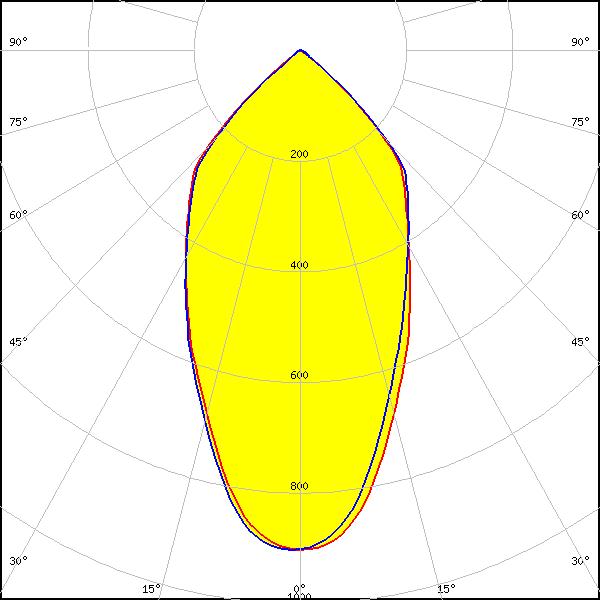

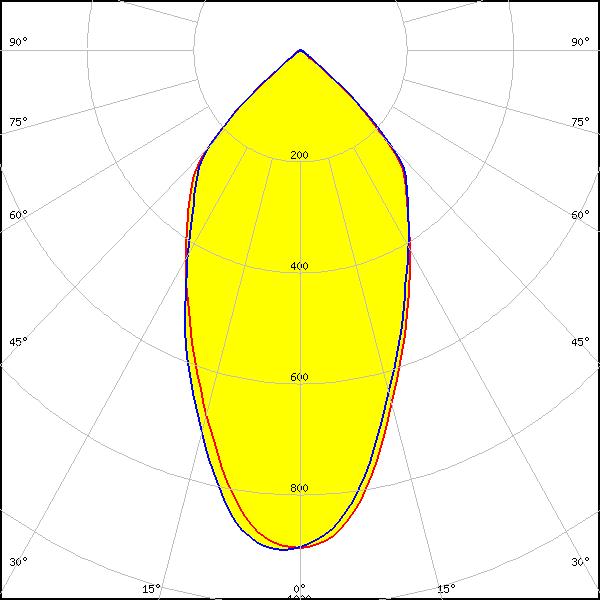

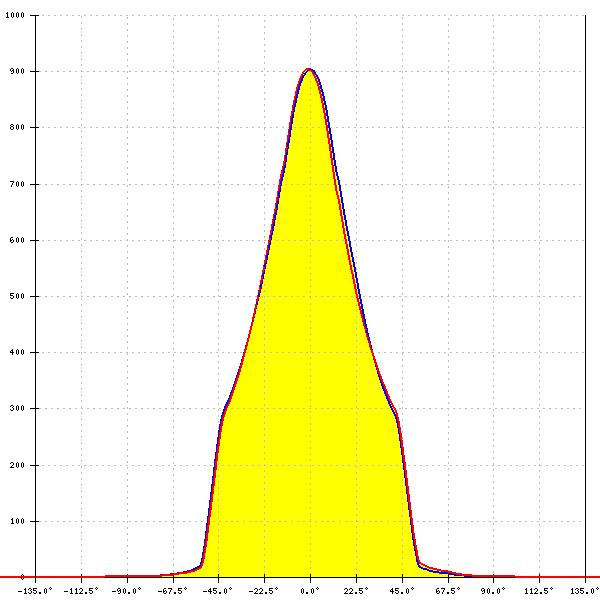

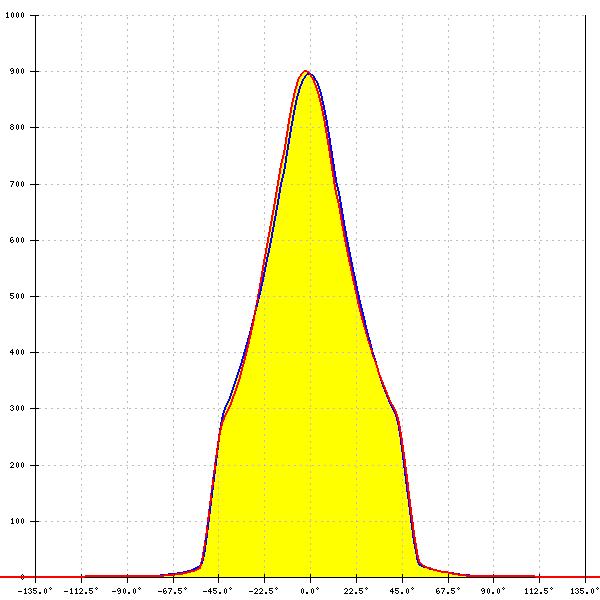

LED: Soleriq S19
Required components:
A.A.G. STUCCHI: 8503-G2
FWHM: 55°
FWTM: 100°
Peak intensity: 0.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S19
Required components:
BJB: 47.319.2170
FWHM: 55°
FWTM: 100°
Peak intensity: 0.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

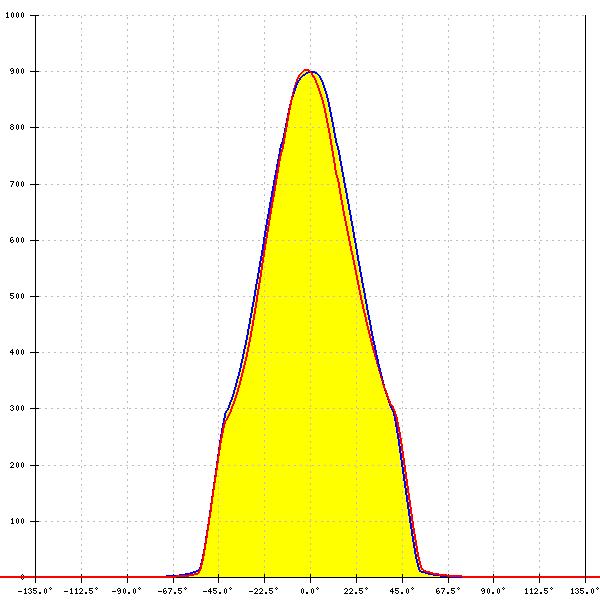

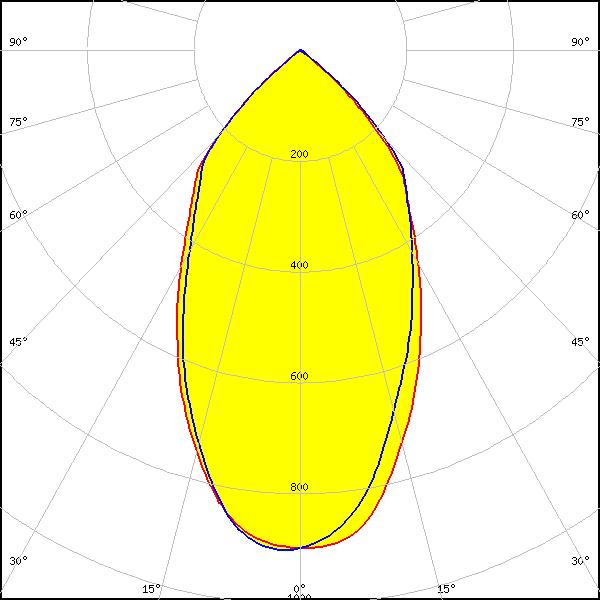

LED: Fortimo SLM L19 CoB
Required components:
BJB: 47.319.2030
FWHM: 58°
FWTM: 100°
Peak intensity: 0.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

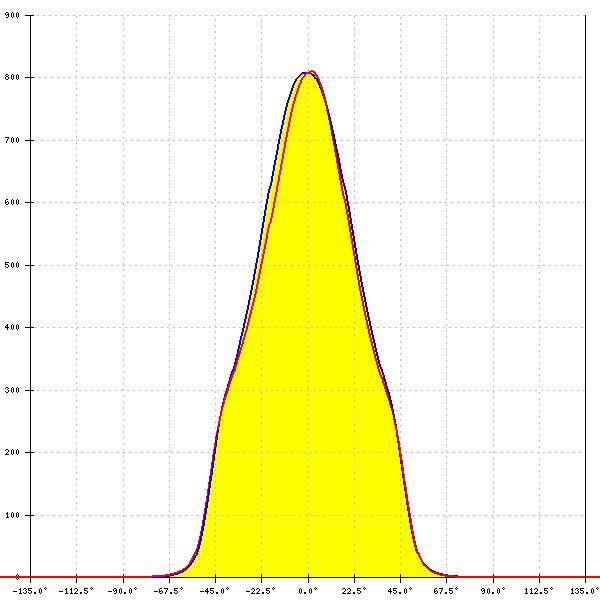

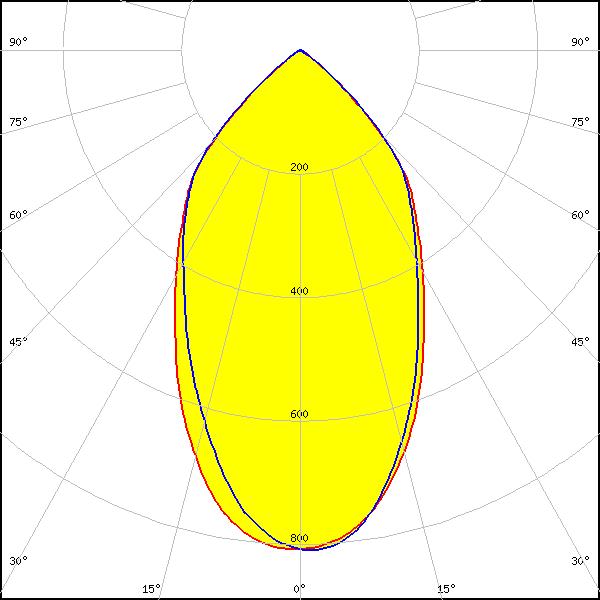

LED: Fortimo SLM L19 CoB
Required components:
BJB: 47.319.2030
F13671_ANGE-RZ-LENS
FWHM: 60°
FWTM: 102°
Peak intensity: 0.810 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

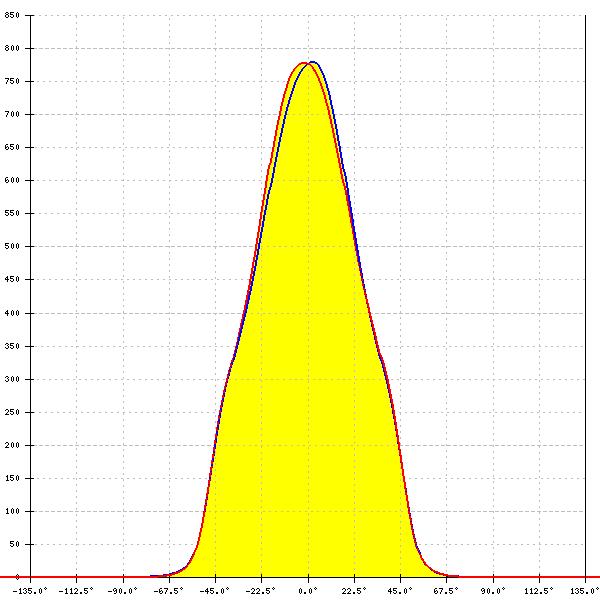

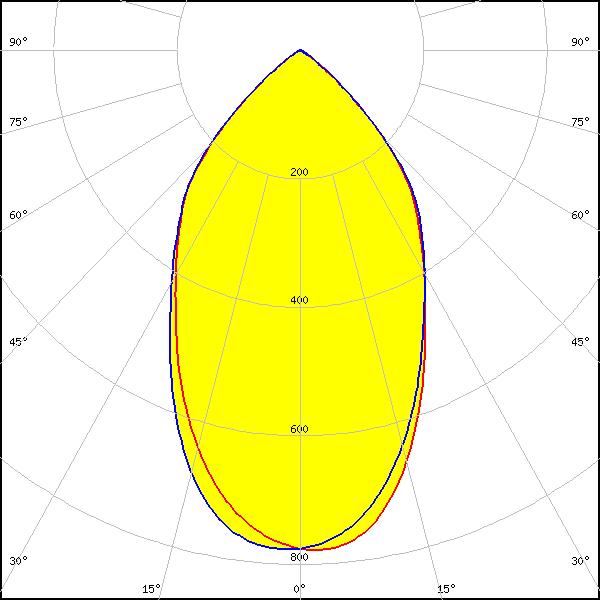

LED: Fortimo SLM L23 CoB
Required components:
BJB: 47.319.2030
F13671_ANGE-RZ-LENS
FWHM: 62°
FWTM: 102°
Peak intensity: 0.800 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

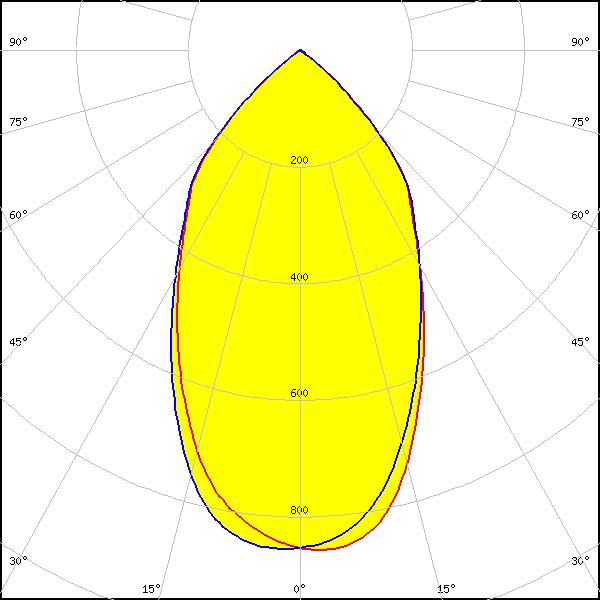

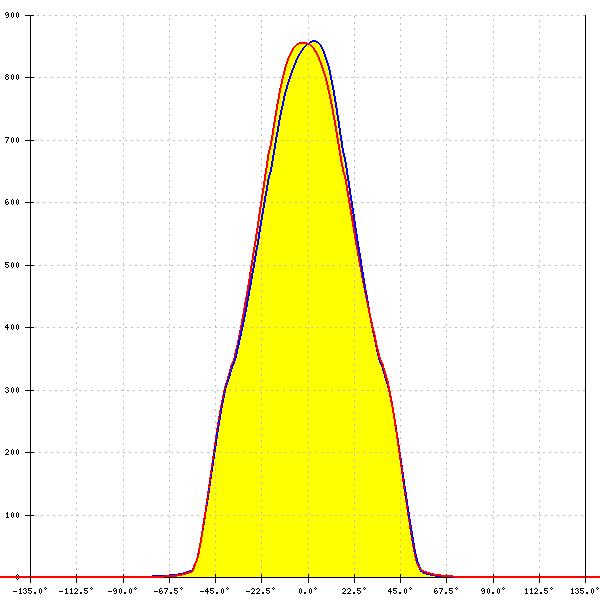

LED: Fortimo SLM L23 CoB
Required components:
BJB: 47.319.2030
FWHM: 60°
FWTM: 101°
Peak intensity: 0.900 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM: 59°
FWTM: 101°
Peak intensity: 0.860 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
BJB: 47.319.2021
FWHM: 59°
FWTM: 101°
Peak intensity: 0.860 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
A.A.G. STUCCHI: 8101-G2
F13671_ANGE-RZ-LENS
FWHM: 62°
FWTM: 103°
Peak intensity: 0.780 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
BJB: 47.319.2021
F13671_ANGE-RZ-LENS
FWHM: 62°
FWTM: 103°
Peak intensity: 0.780 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LC040D / LC060D / LC080D
Required components:
BJB: 47.319.2030
FWHM: 54°
FWTM: 97°
Peak intensity: 0.950 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

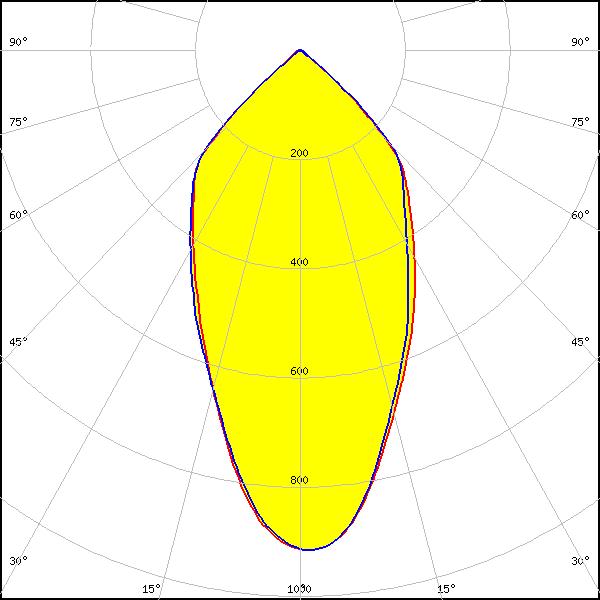

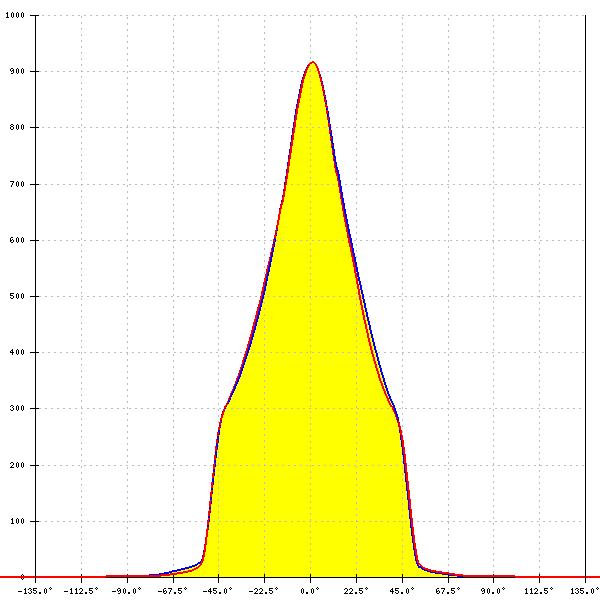

LED: ZC12/18
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM: 54°
FWTM: 99°
Peak intensity: 0.920 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

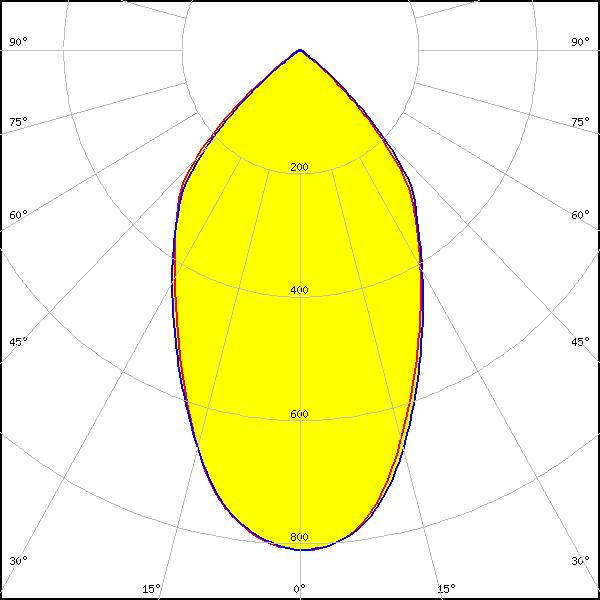

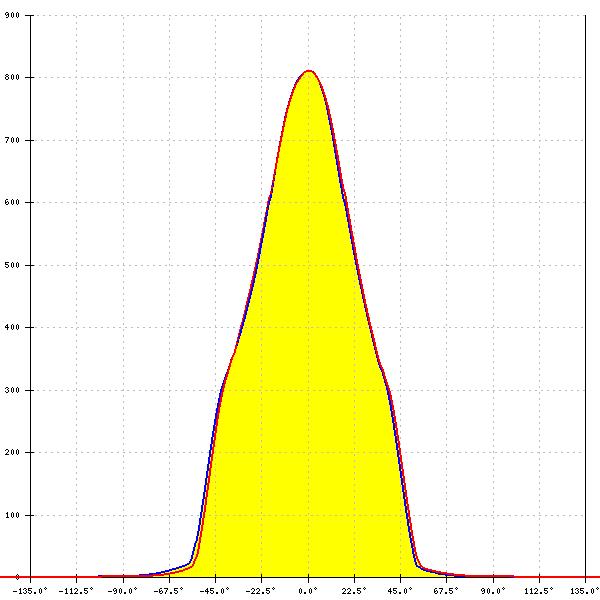

LED: ZC25/40/60
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM: 62°
FWTM: 102°
Peak intensity: 0.810 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: Mega Zenigata (GW5DGC)
Required components:
BJB: 47.319.2011
LEDs/each optic: 1
Light colour/type: White

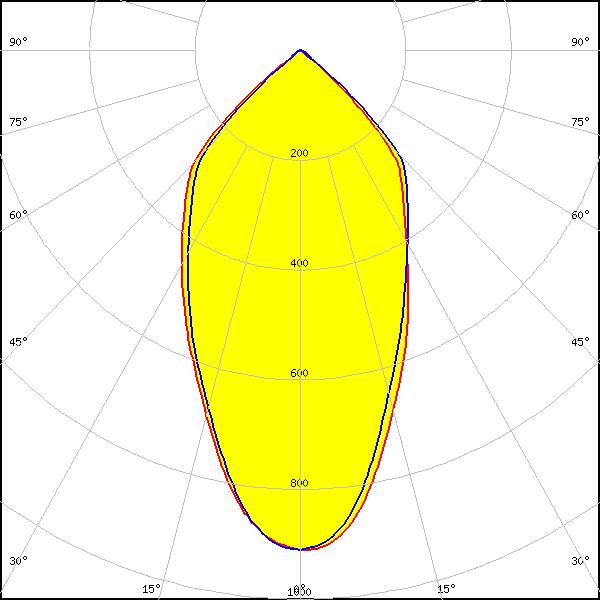

LED: Mega Zenigata (GW6DME)
Required components:
BJB: 47.319.2011
LEDs/each optic: 1
Light colour/type: White
LED: Mega Zenigata (GW6DME)
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM: 55°
FWTM: 100°
Peak intensity: 0.910 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

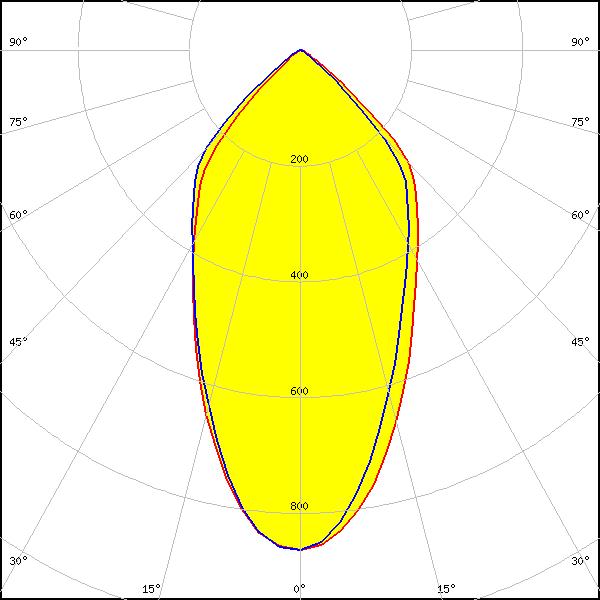

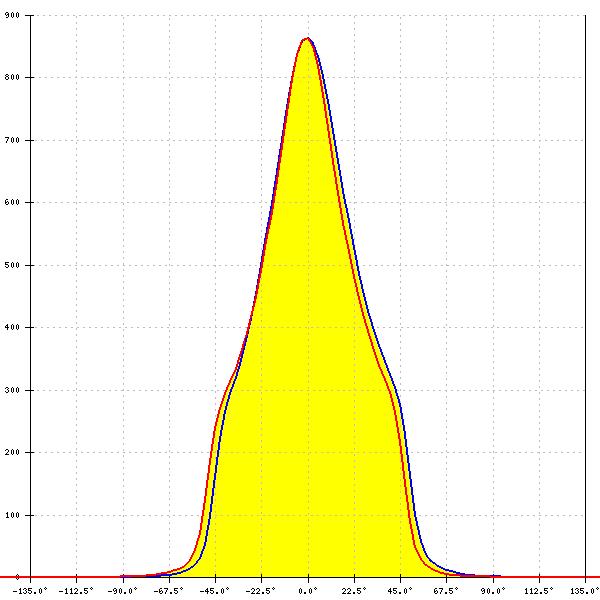

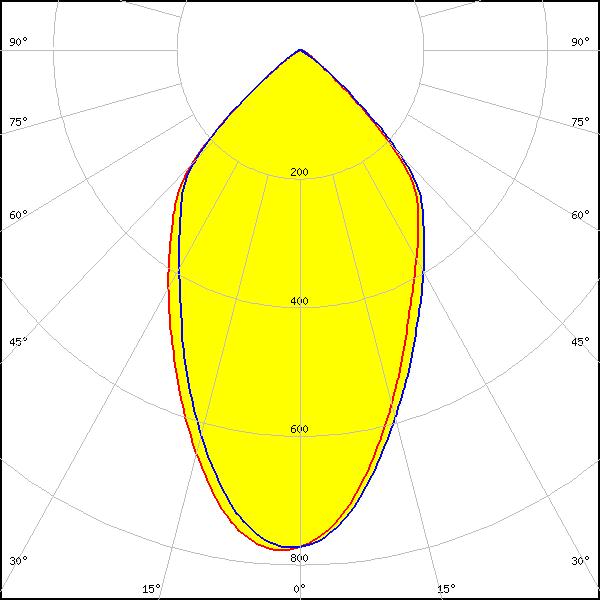

LED: Tiger Zenigata (GWTGCBG4FD)
Required components:
BJB: 47.319.2051
F13671_ANGE-RZ-LENS
FWHM: 54°
FWTM: 101°
Peak intensity: 0.870 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

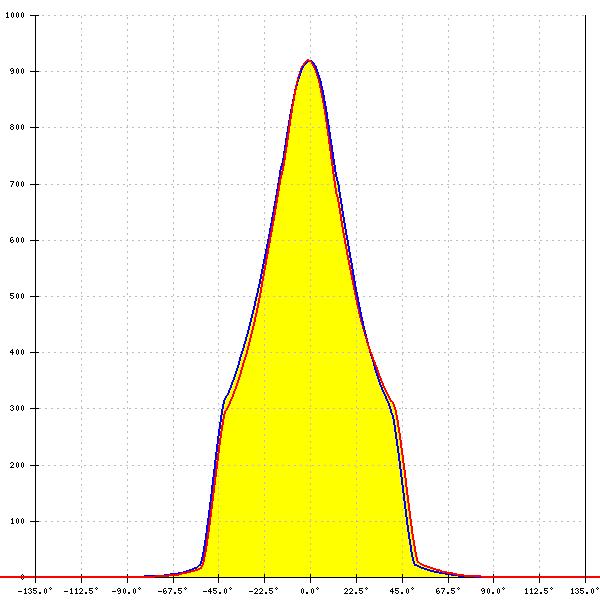

LED: SLE G7 LES17 H
FWHM: 53°
FWTM: 99°
Peak intensity: 0.920 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

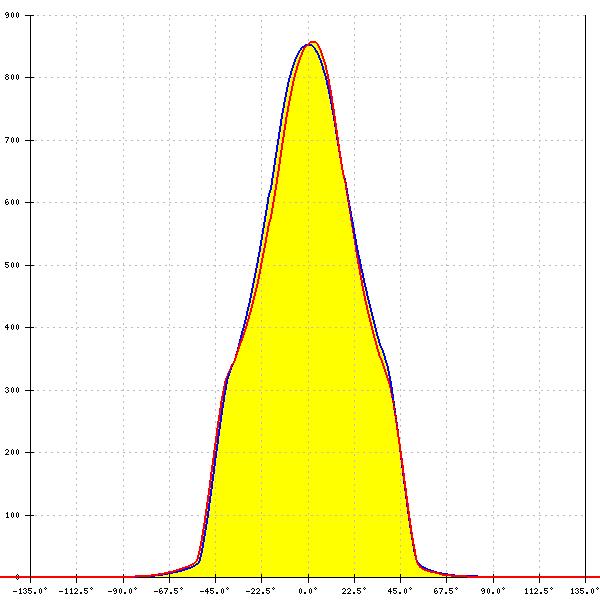

LED: SLE G7 LES21 H
FWHM: 59°
FWTM: 100°
Peak intensity: 0.860 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

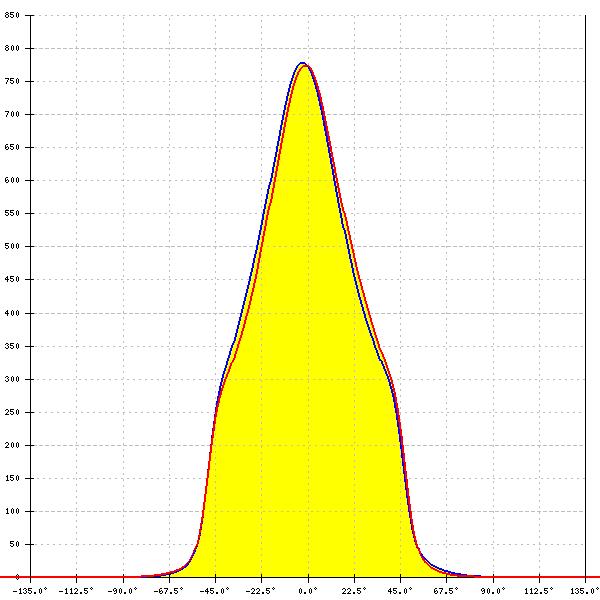

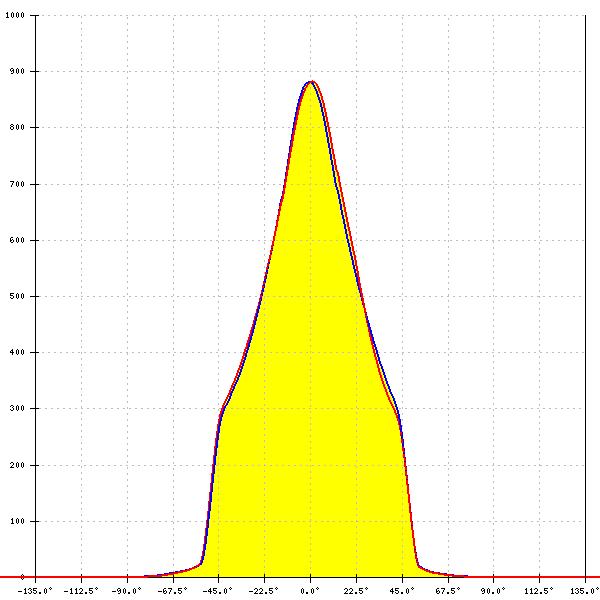

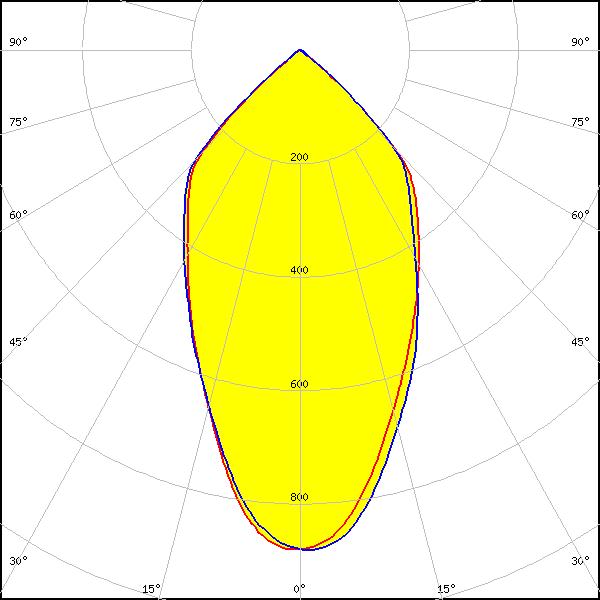

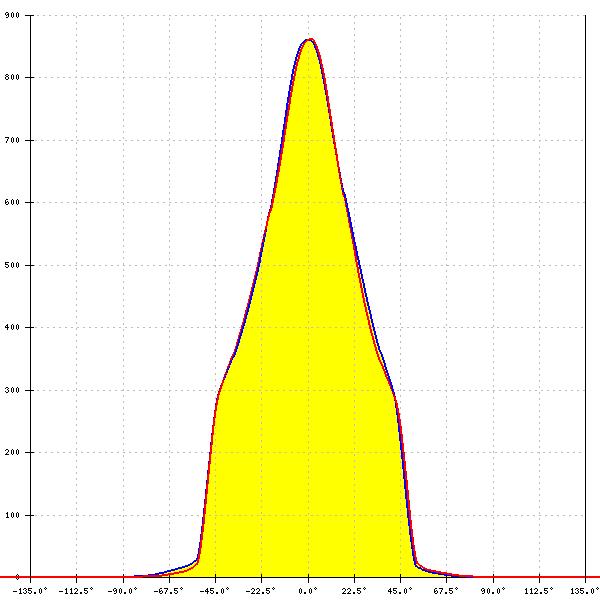

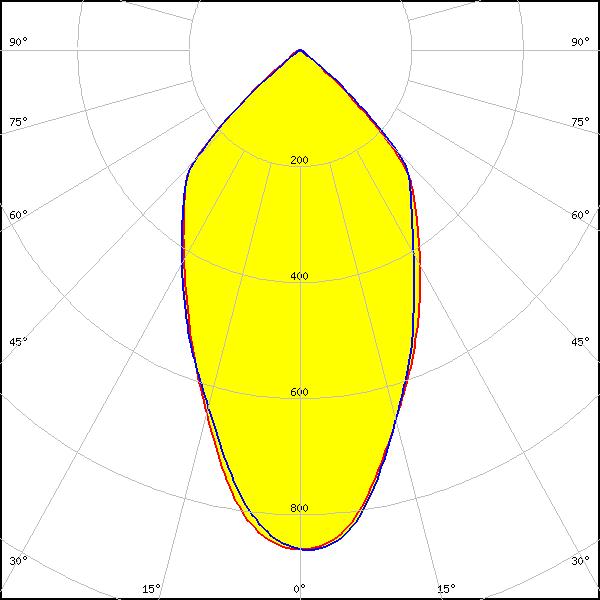

LED: XOB 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 57°
FWTM: 100°
Peak intensity: 0.882 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

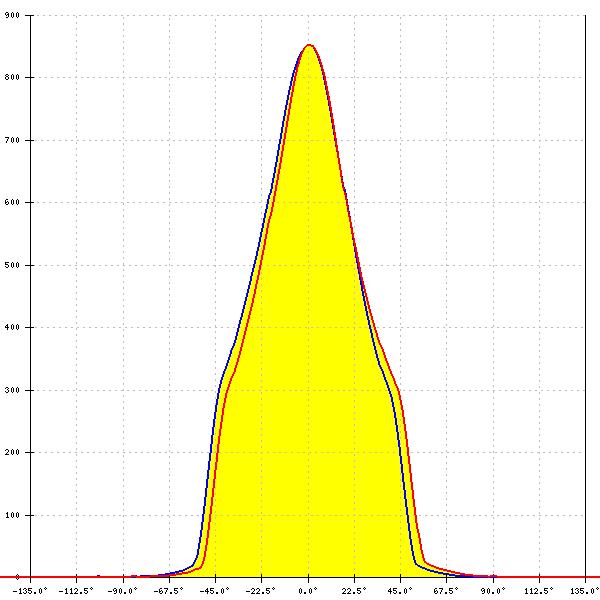

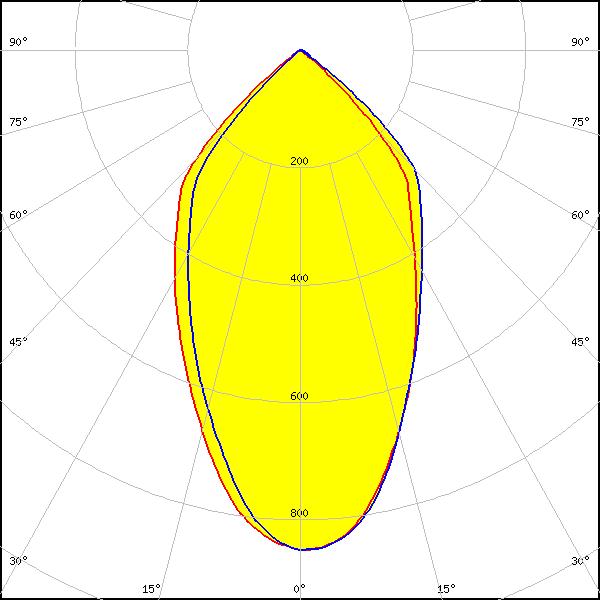

LED: XTM - 19mm LES
Required components:
FWHM: 59°
FWTM: 101°
Peak intensity: 0.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
