F14531_JENNY-CY

Print

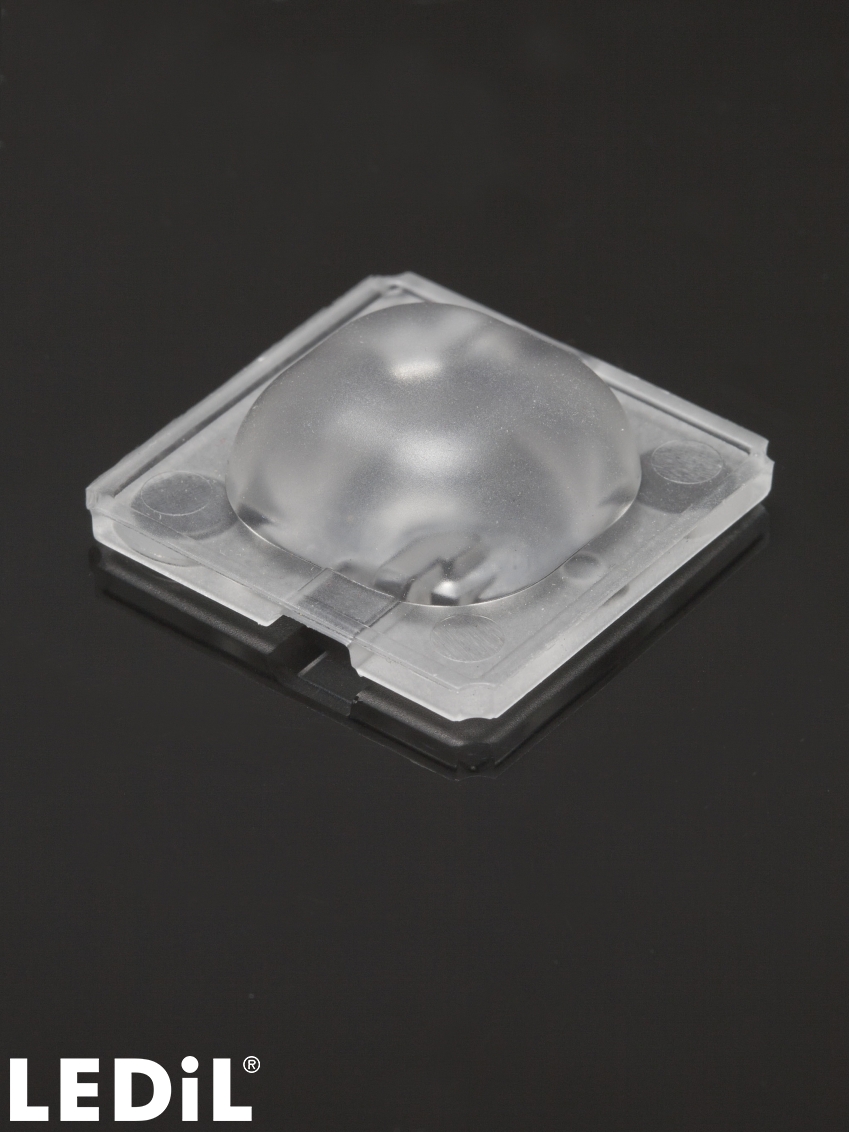

~105° + 105° batwing light distribution for canopy and symmetrical tunnel lighting. Variant with wire channels on the sides enabling compatibility with small COBs.

Specification
  • Dimensions:
    35 x  35 mm
  • Height:
    11.5 mm
  • Fastening:
    tape
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • Silicone

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    1440 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    10.3 kg
  • MPQ:
    60 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F14531_JENNY-CY

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

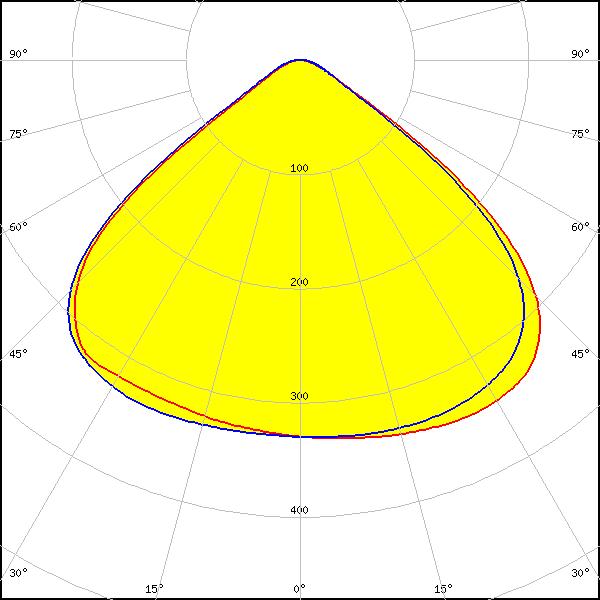

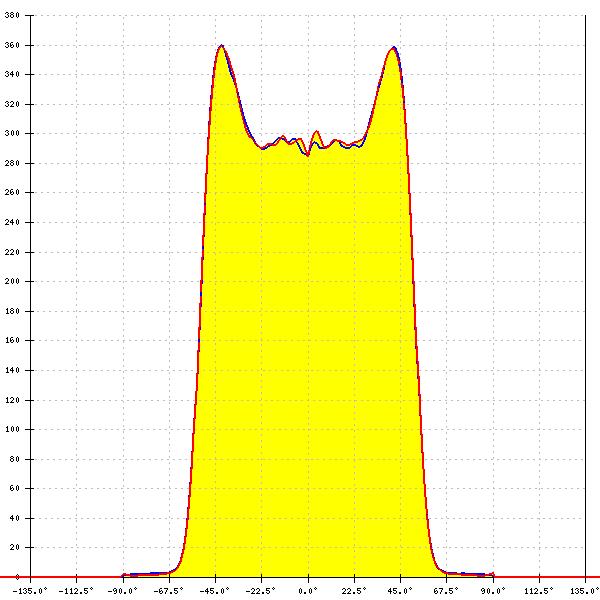

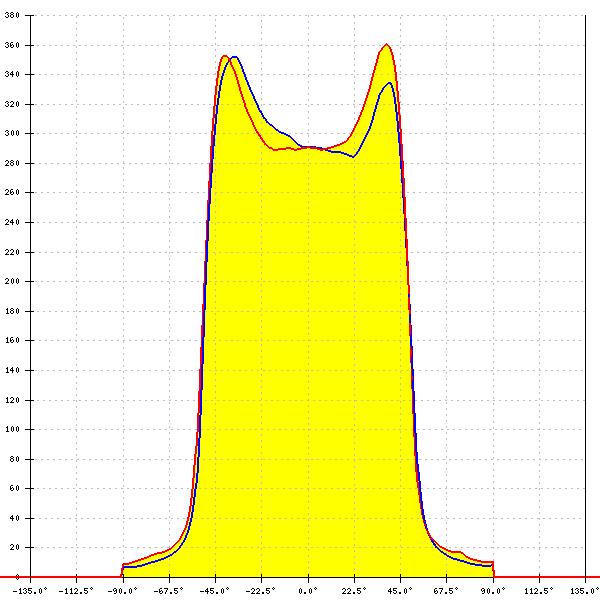

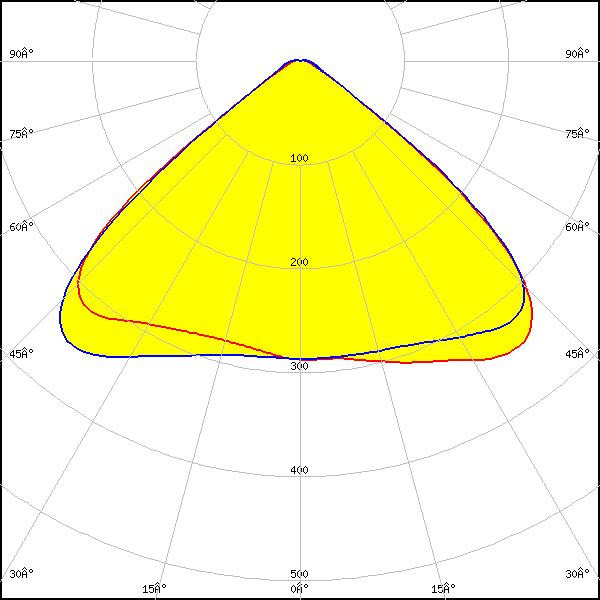

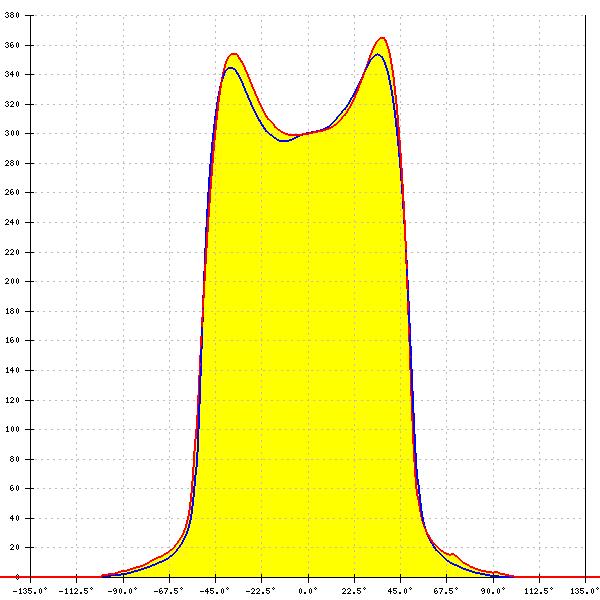

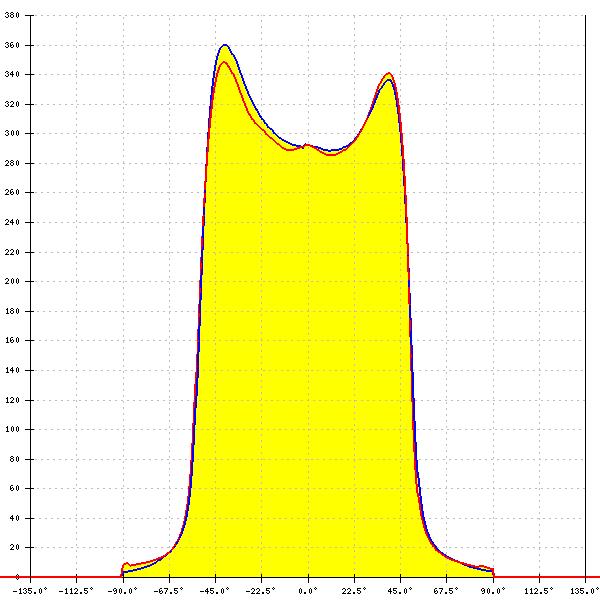

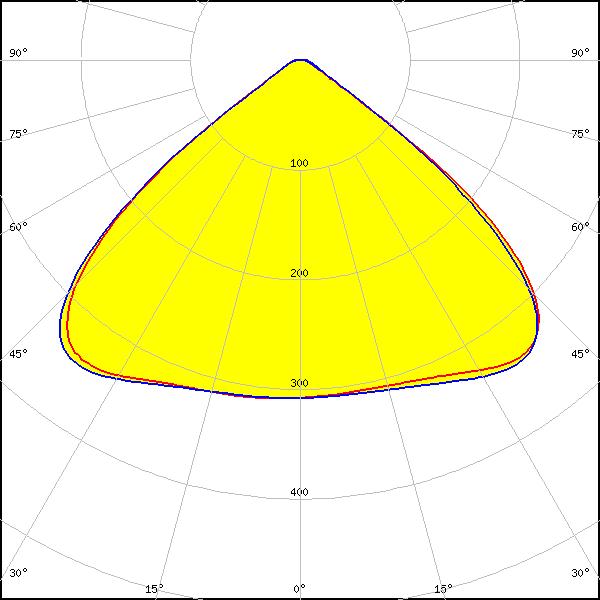

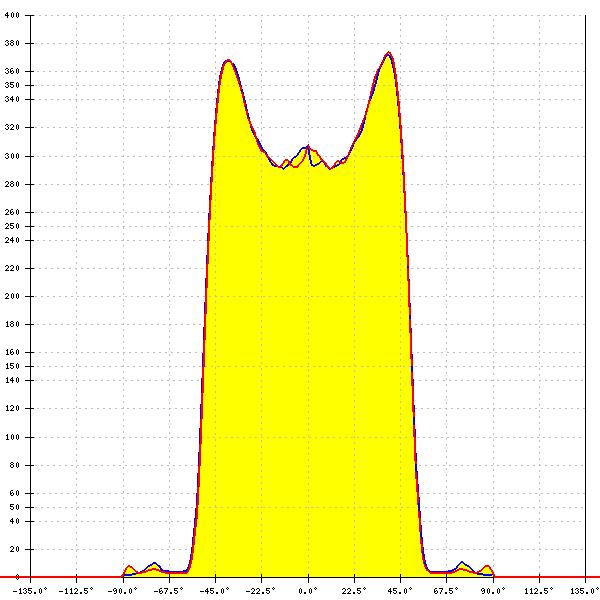

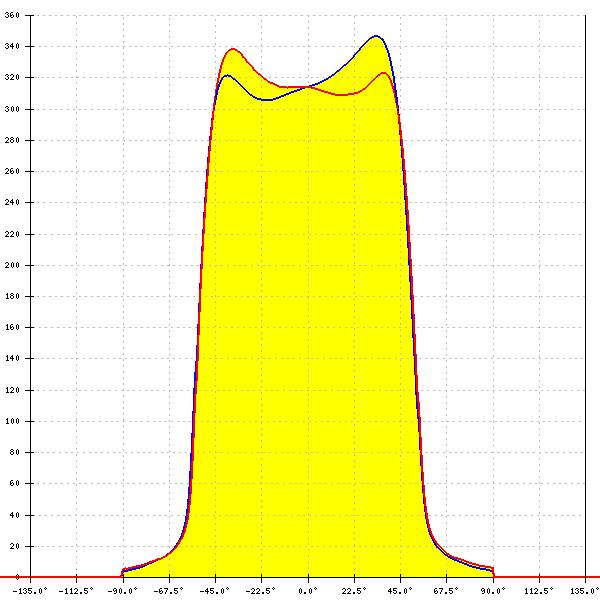

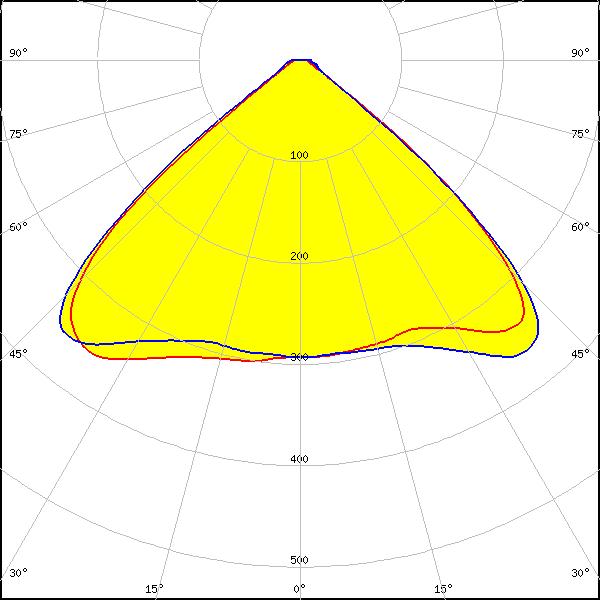

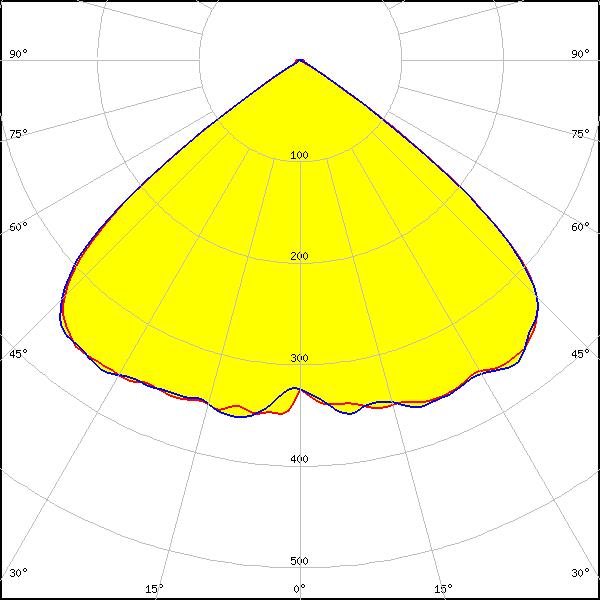

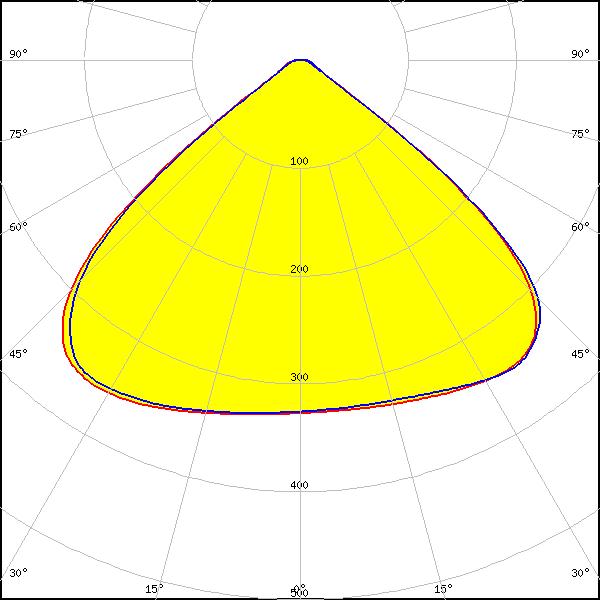

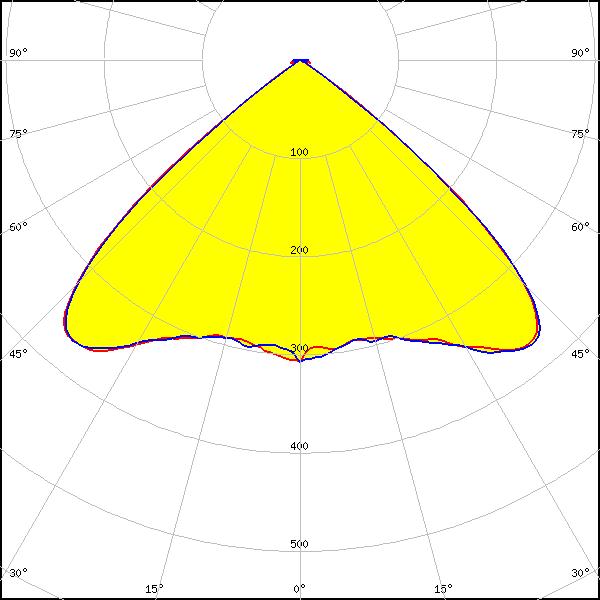

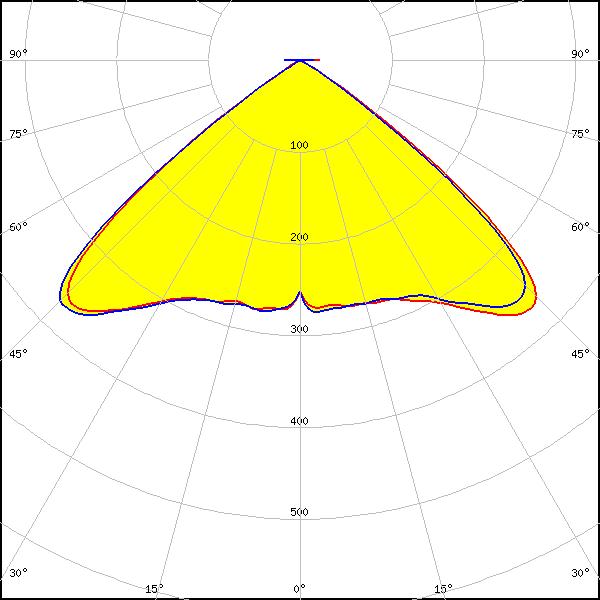

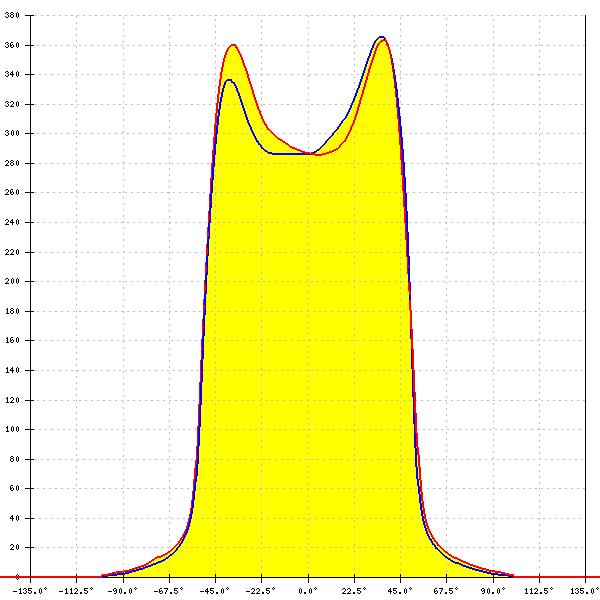

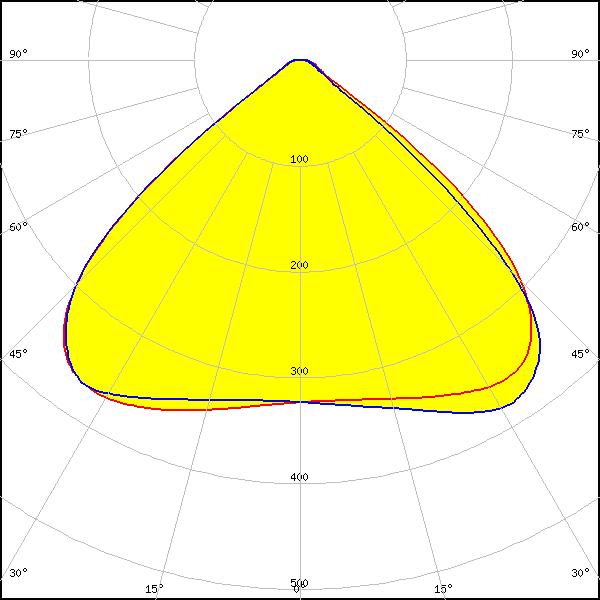

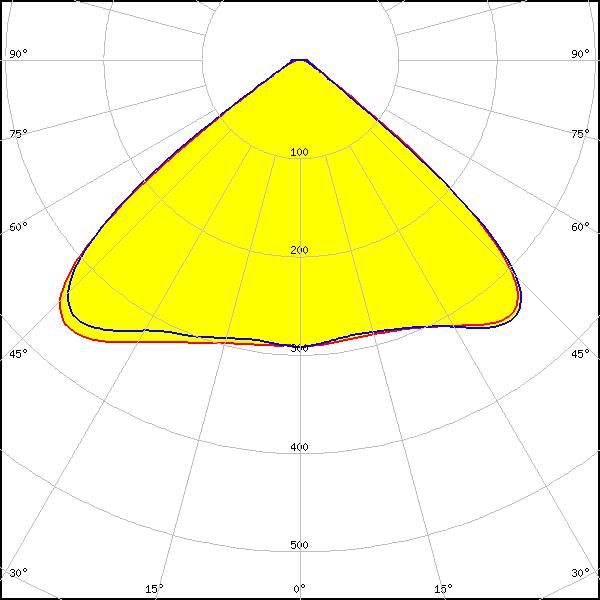

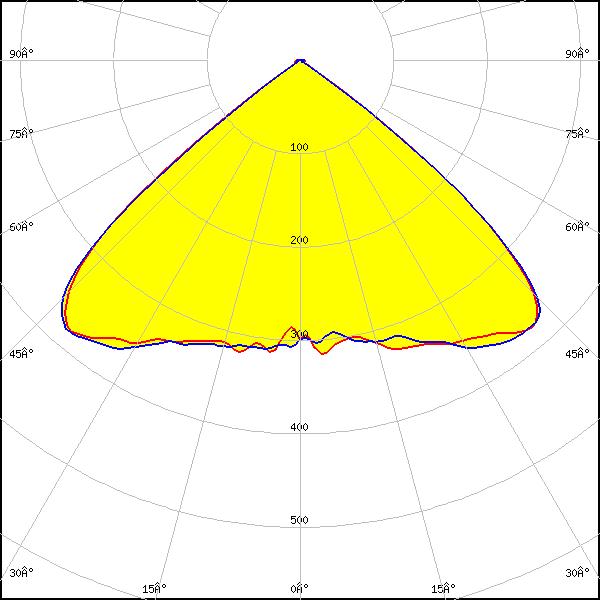

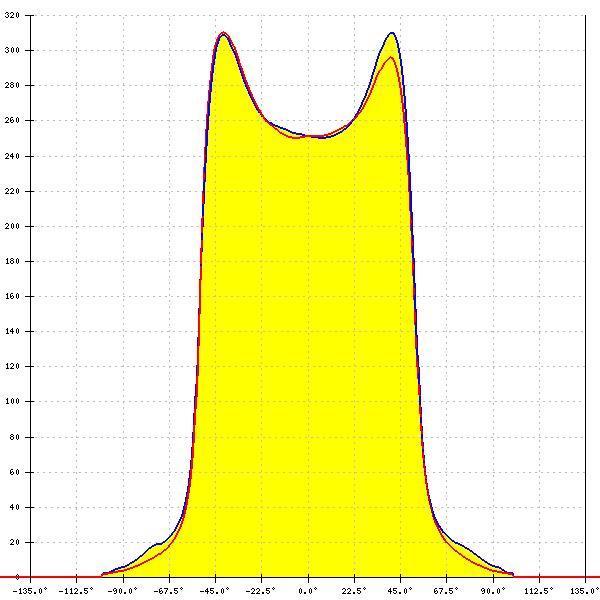

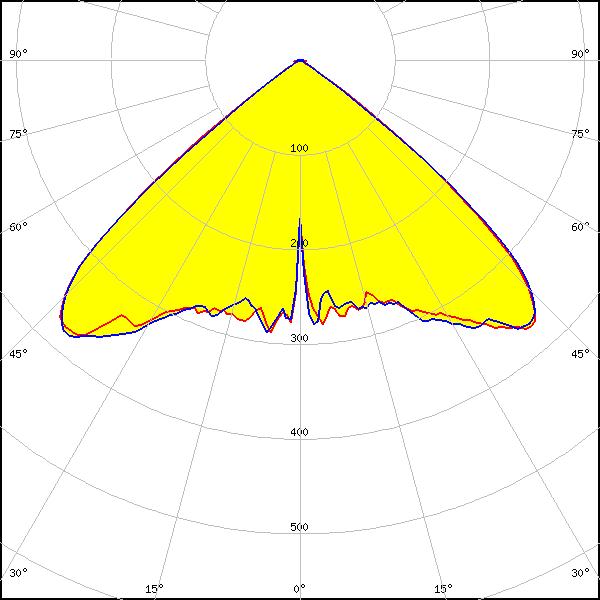

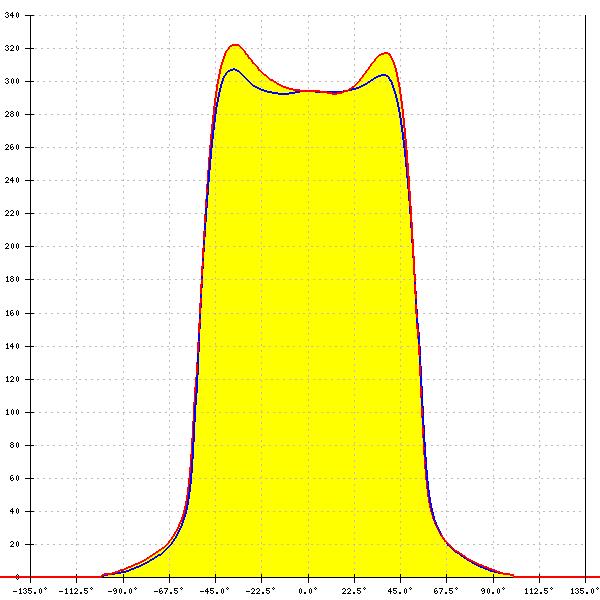

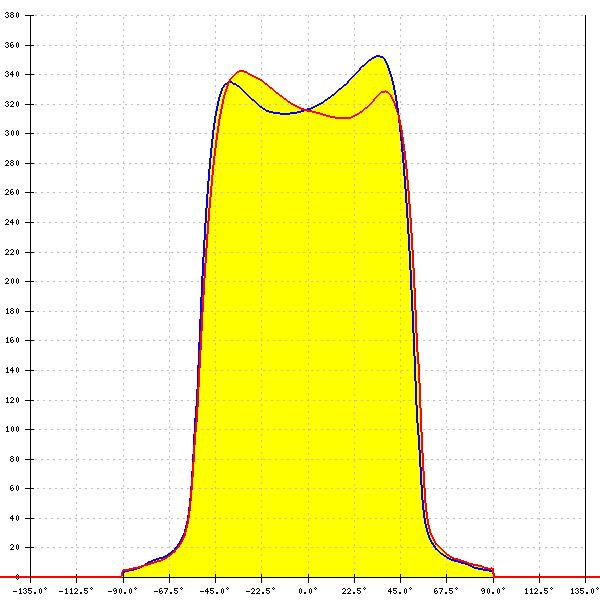

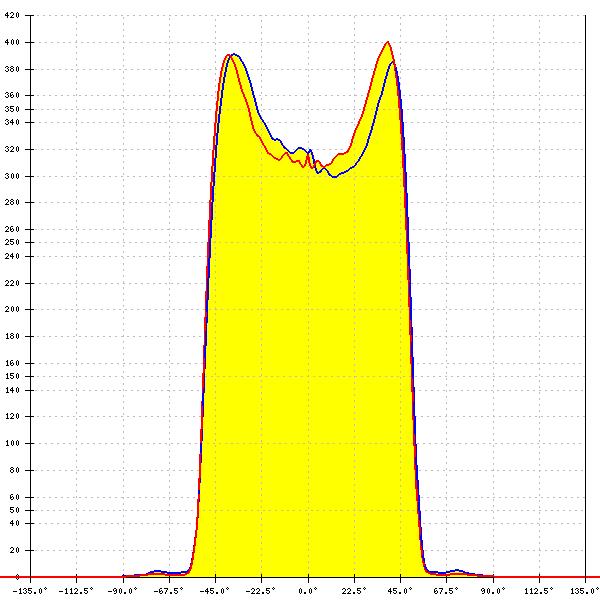

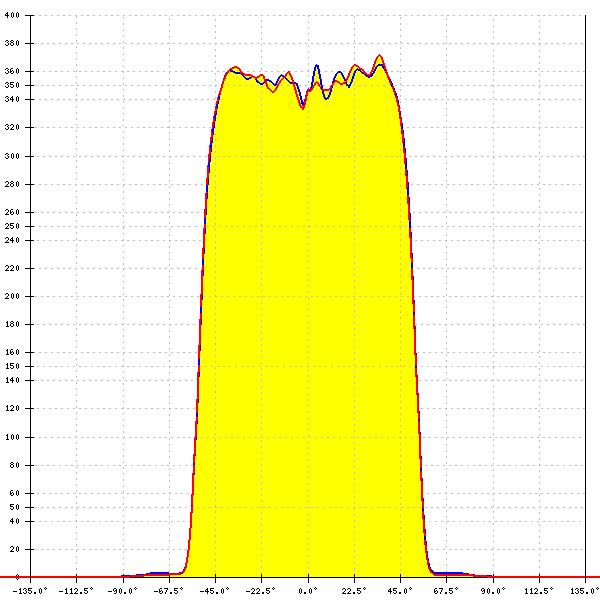

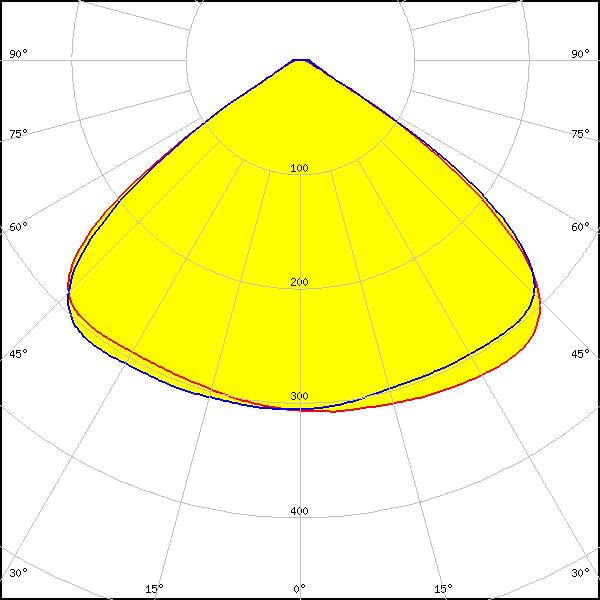

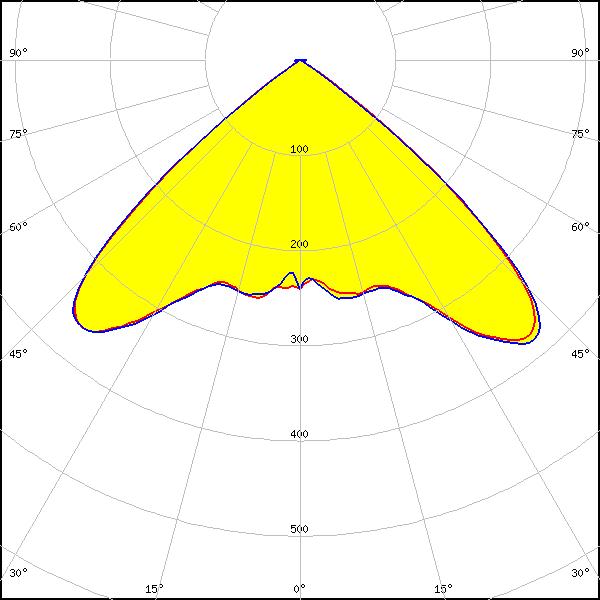

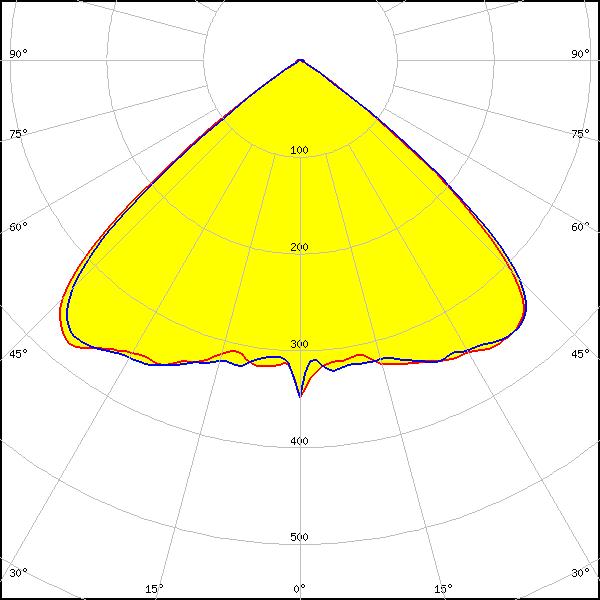

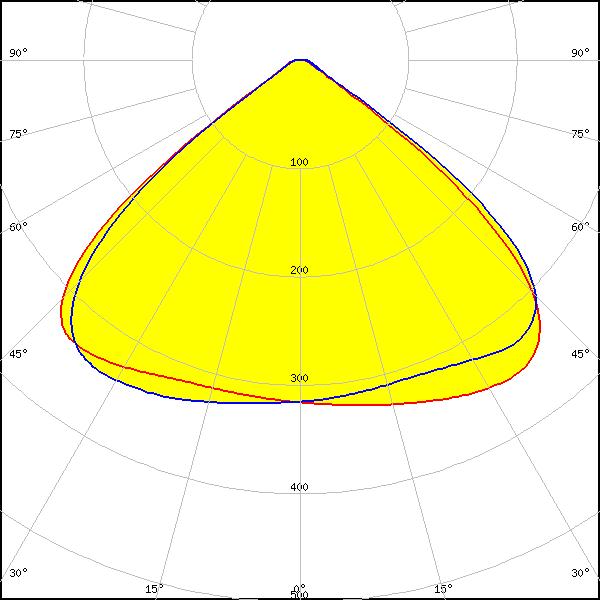

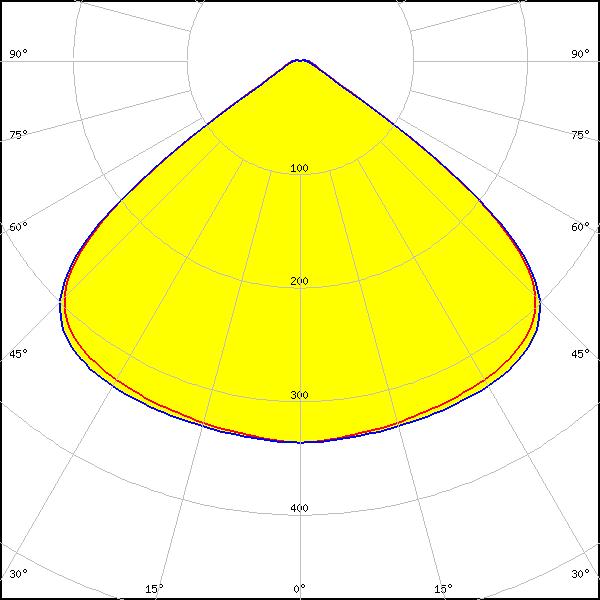

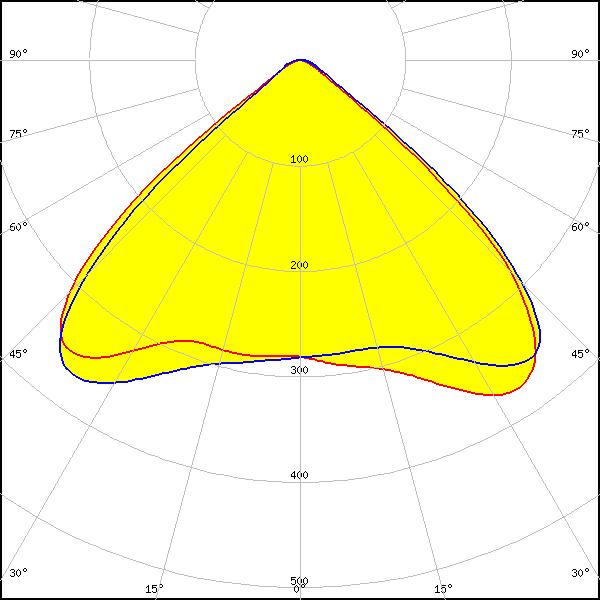

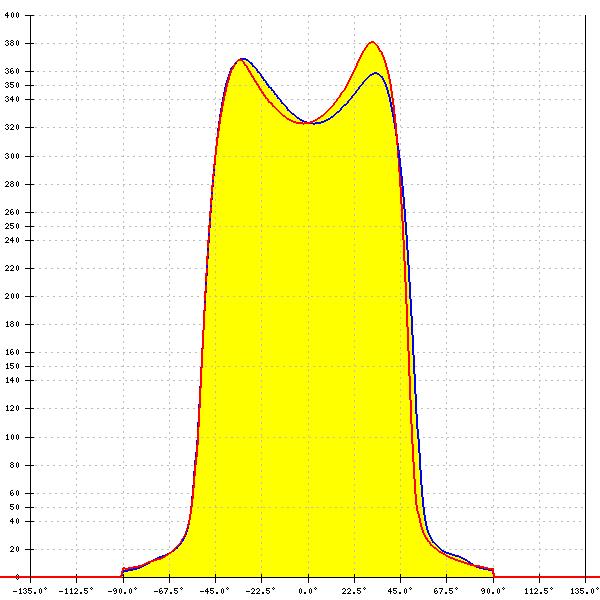

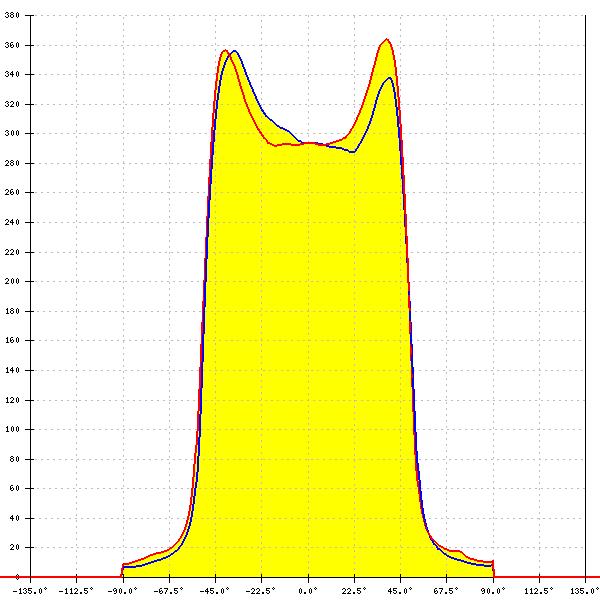

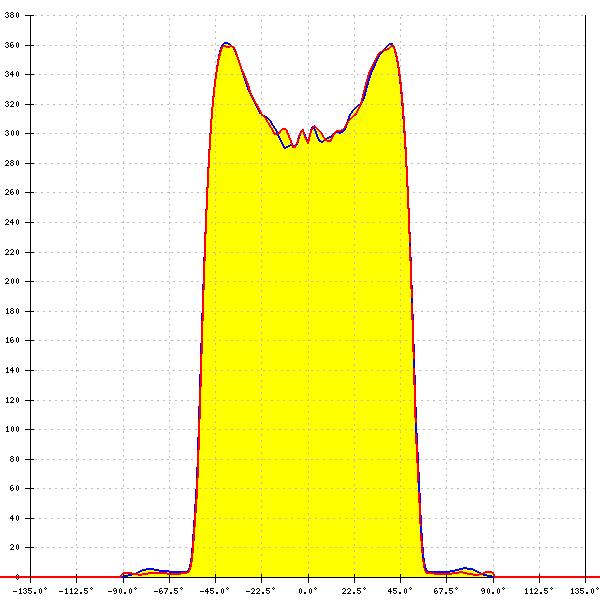

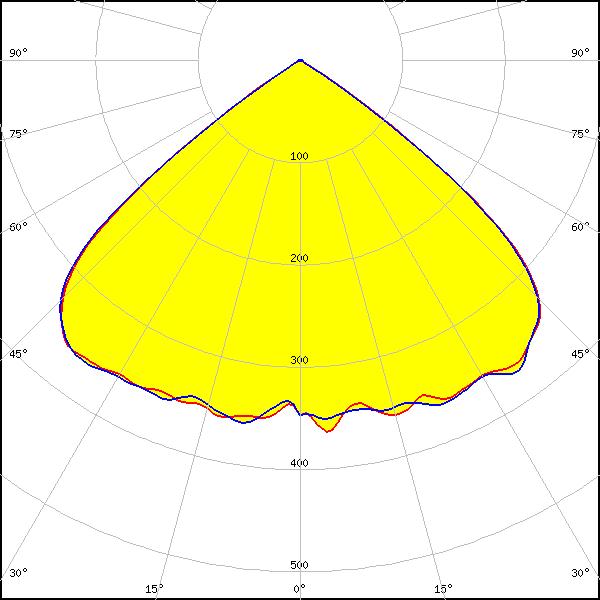

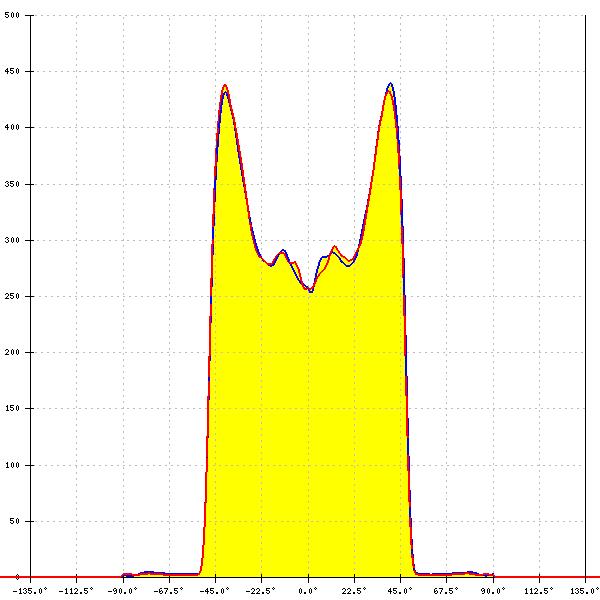

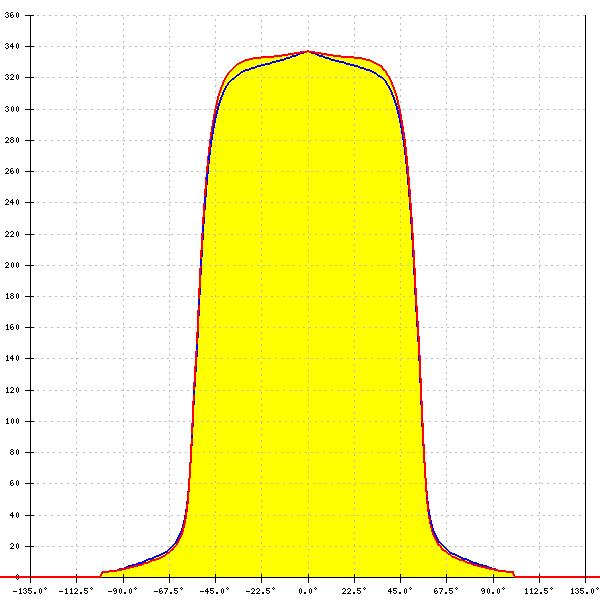

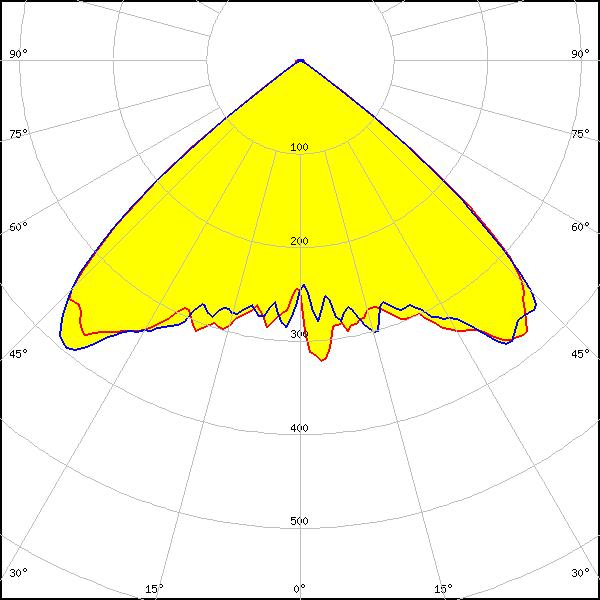

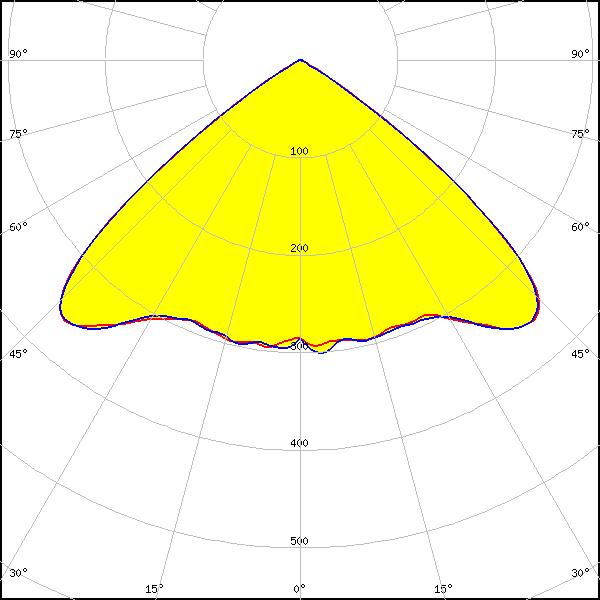

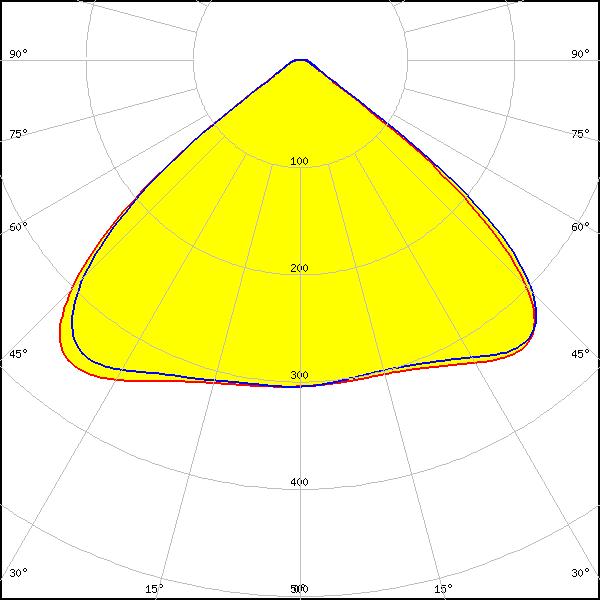

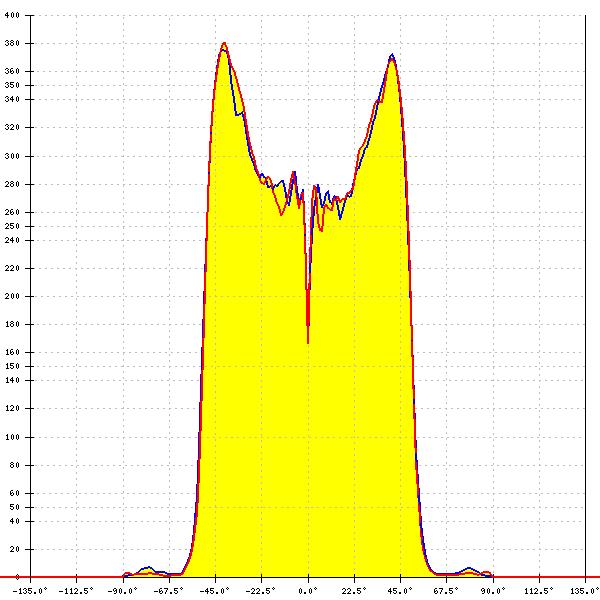

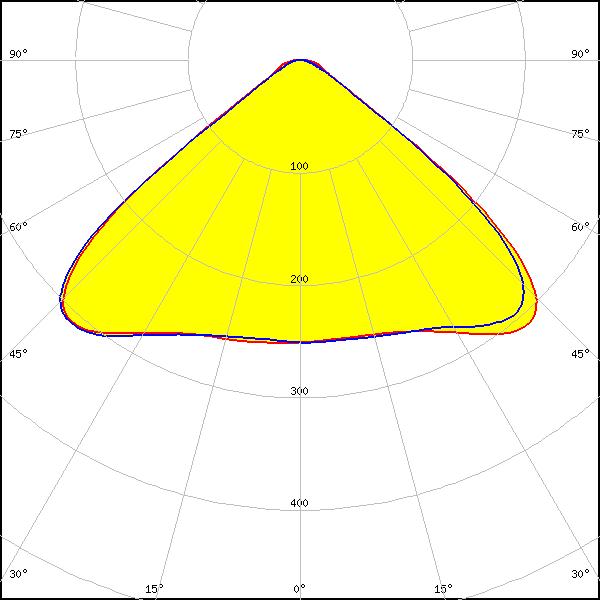

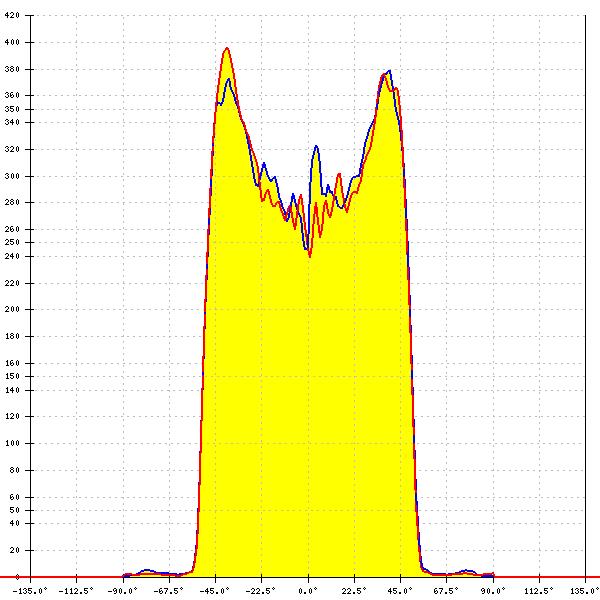

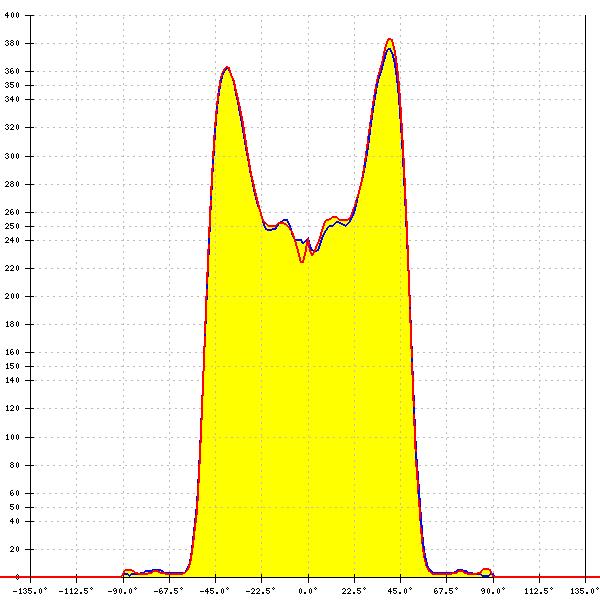

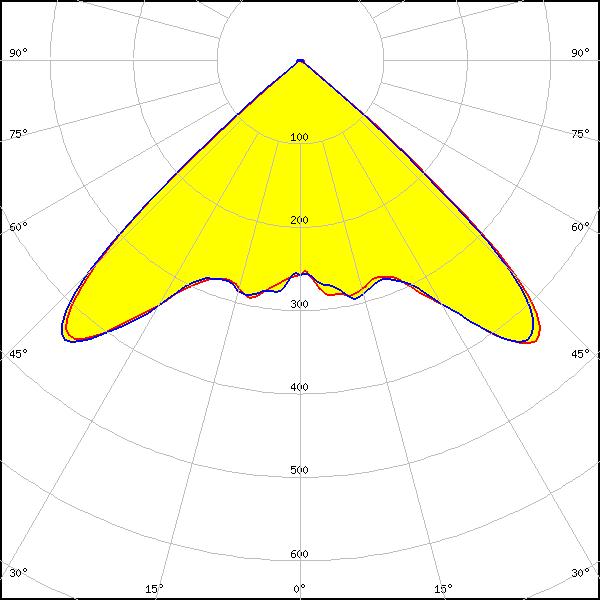

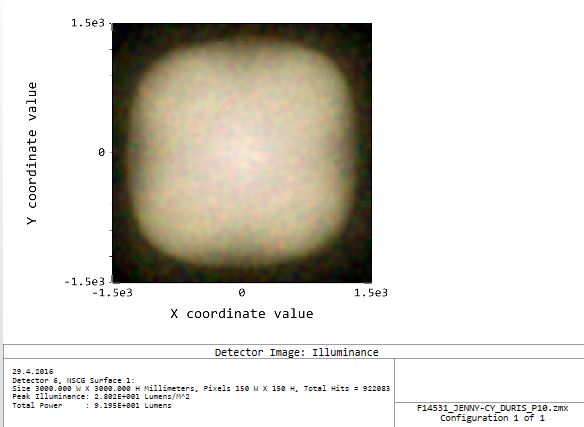

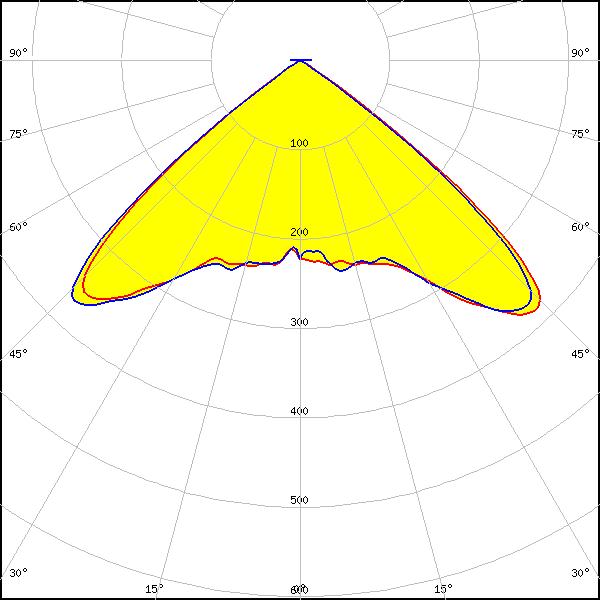

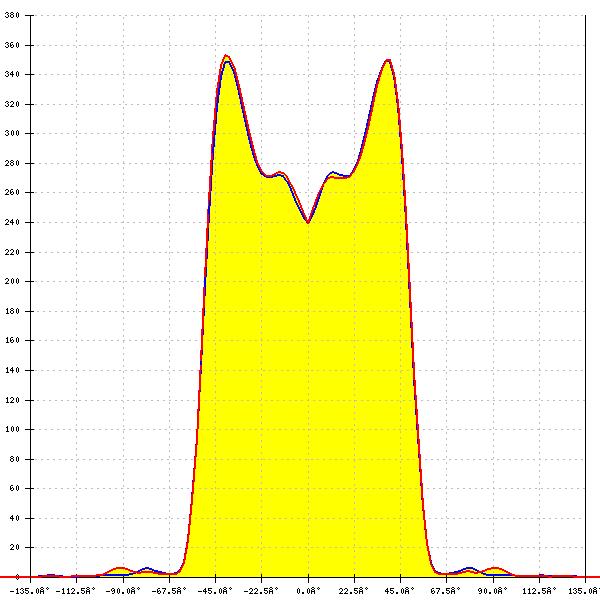

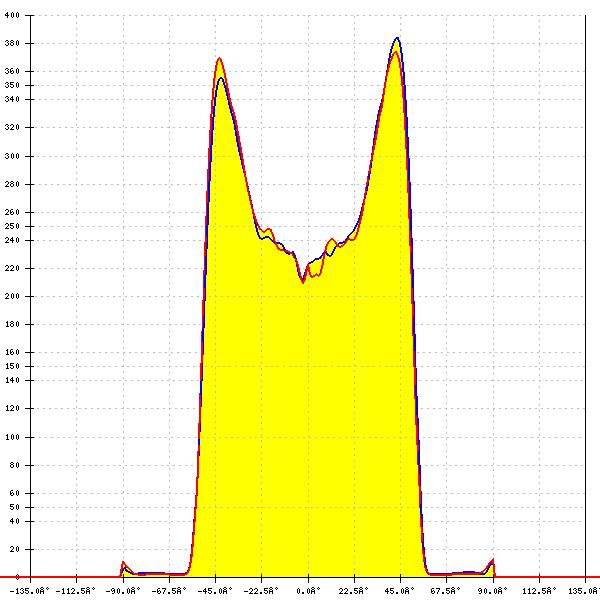

Optical results

LED: V10 Gen6
Required components:
FWHM: 103° + 101°
FWTM: 117° + 115°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V10 Gen6
FWHM: 102°
FWTM: 117°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

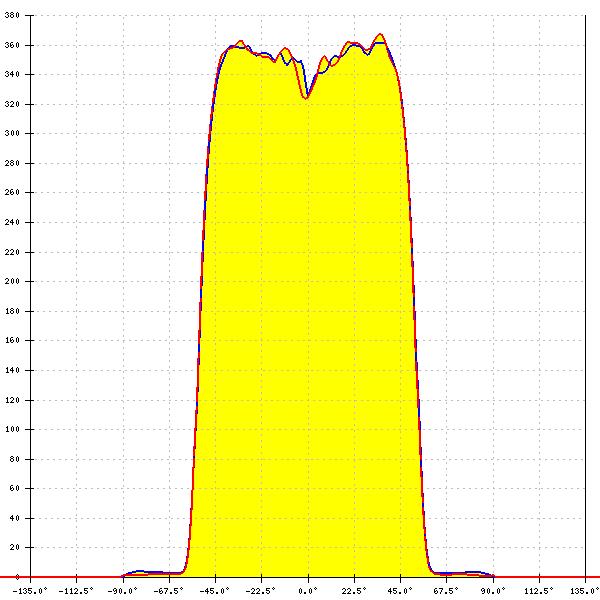

LED: V10 Gen7
FWHM: 95° + 102°
FWTM: 105° + 112°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V10 Gen7
Required components:
FWHM: 95° + 102°
FWTM: 105° + 112°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

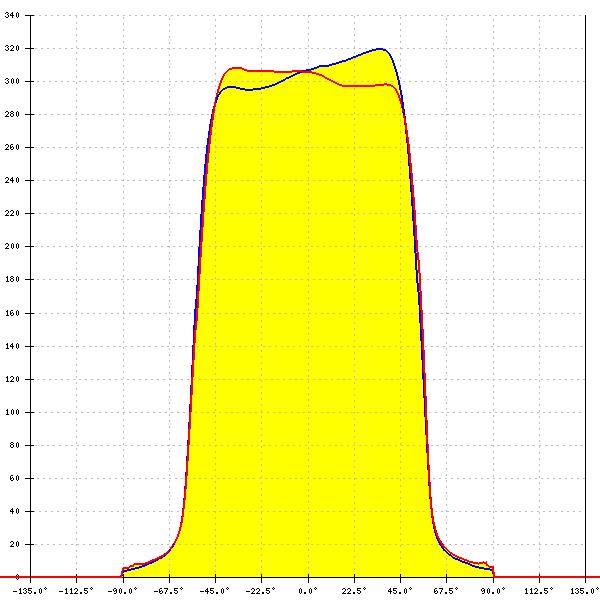

LED: V6 Gen6
Required components:
FWHM: 110°
FWTM: 123°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V6 Gen6
FWHM: 110°
FWTM: 123°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V8 Gen6
Required components:
FWHM: 105° + 106°
FWTM: 118° + 119°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V8 Gen6
FWHM: 105°
FWTM: 121°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

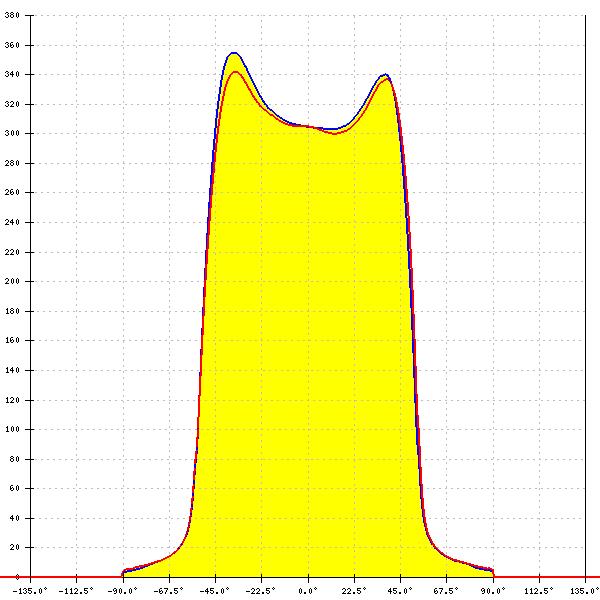

LED: CLL01x
Required components:
FWHM: 104°
FWTM: 116°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CLL01x
FWHM: 104°
FWTM: 117°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

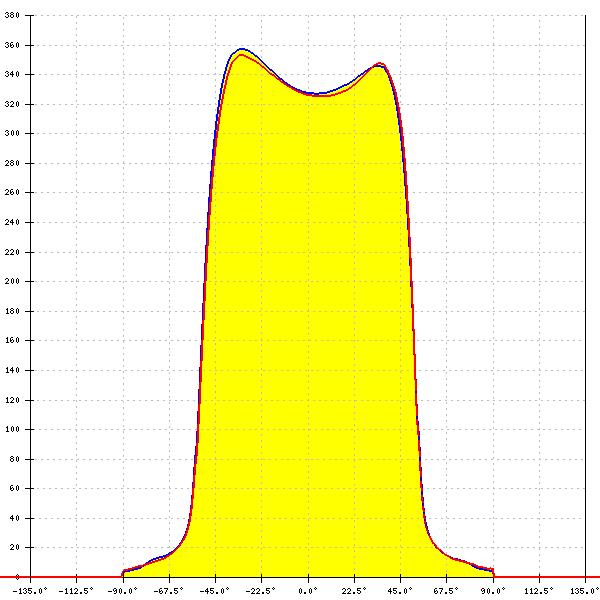

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 103°
FWTM: 117°
Peak intensity: 0.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: CLL02x/CLU02x (LES10)
FWHM: 103°
FWTM: 116°
Peak intensity: 0.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

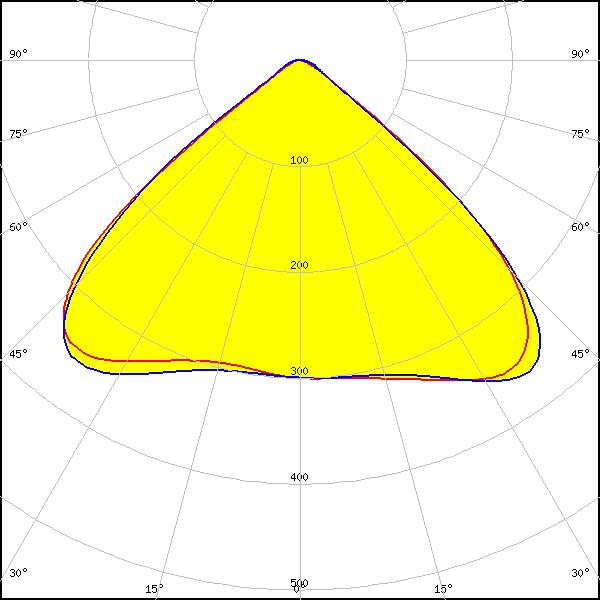

LED: CLU700/701/702
Required components:
FWHM: 102°
FWTM: 116°
Peak intensity: 0.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: CLU700/701/702
FWHM: 102°
FWTM: 116°
Peak intensity: 0.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

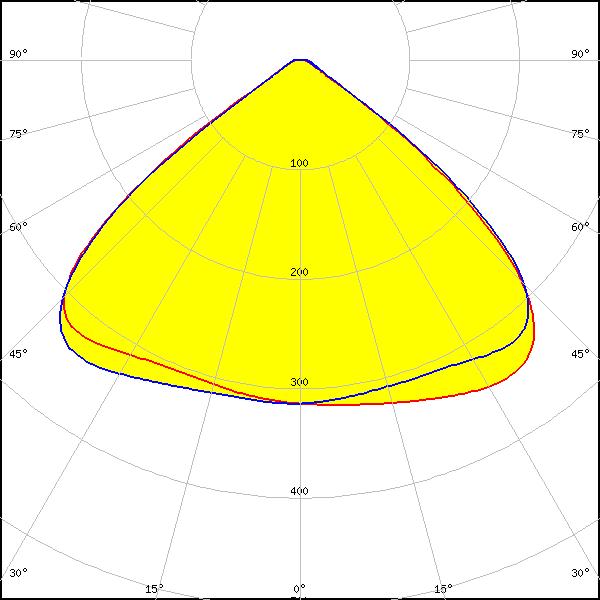

LED: CXA/B 13xx
Required components:
FWHM: 105°
FWTM: 119°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 13xx
FWHM: 105°
FWTM: 119°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 15xx
FWHM: 106°
FWTM: 119°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

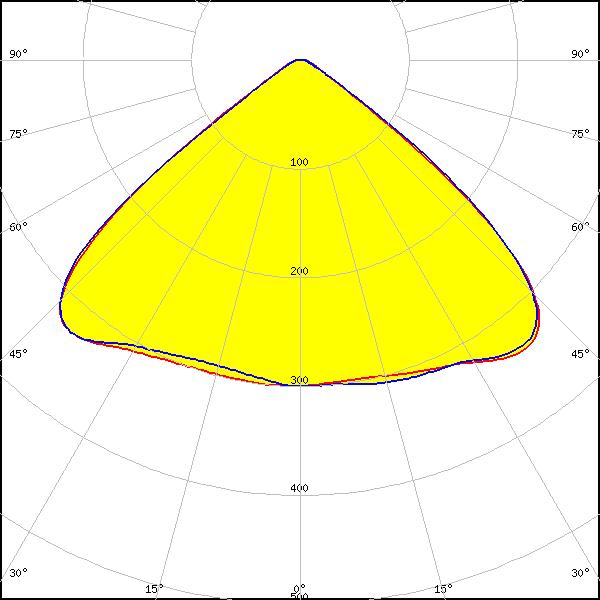

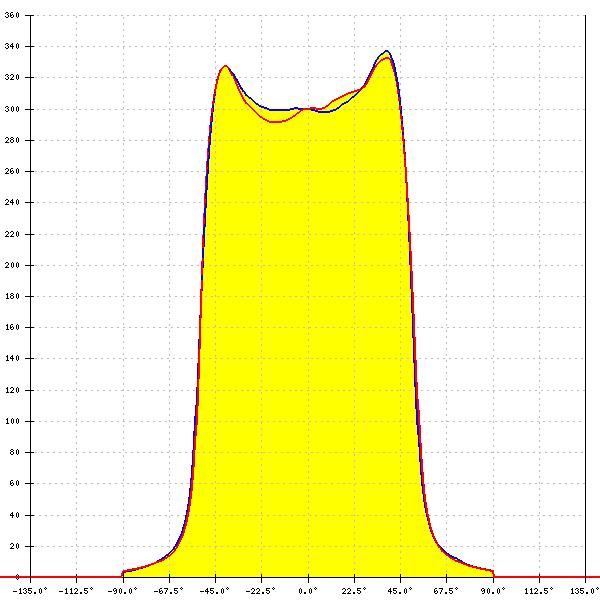

LED: MK-R
Required components:
FWHM: 105°
FWTM: 121°
Peak intensity: 0.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: MK-R
FWHM: 105°
FWTM: 120°
Peak intensity: 0.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: XHP35 HD
FWHM: 102°
FWTM: 112°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

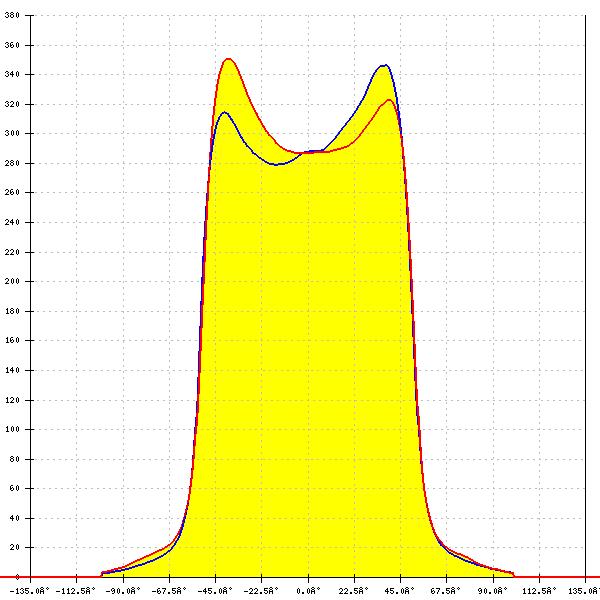

LED: XHP50
Required components:
FWHM: 105°
FWTM: 126°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XHP50
FWHM: 105°
FWTM: 126°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

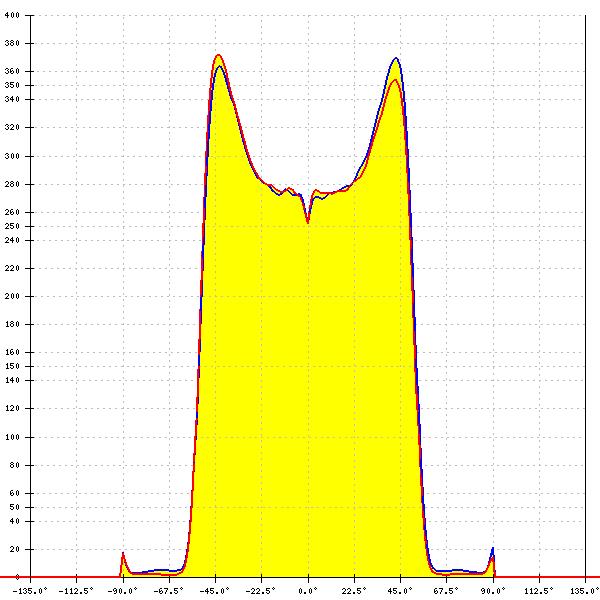

LED: XHP50.2
FWHM: 104°
FWTM: 114°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XM-L EZW
Required components:
FWHM: 102° + 103°
FWTM: 117° + 120°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XM-L EZW
FWHM: 103°
FWTM: 119°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

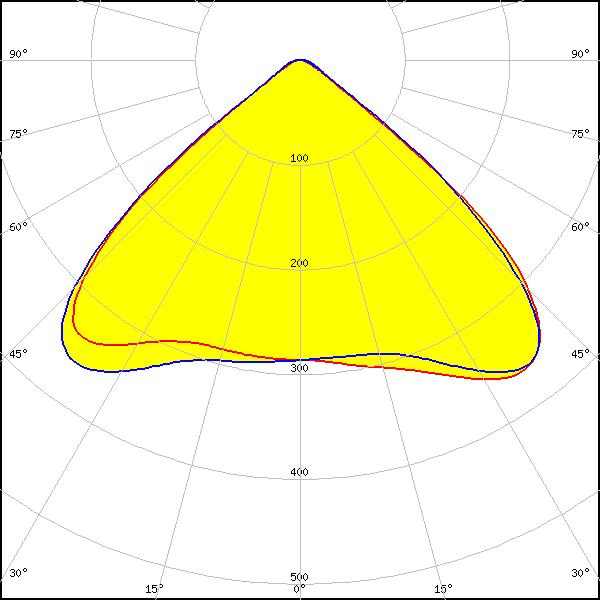

LED: LUXEON 5258
Required components:
FWHM: 103° + 104°
FWTM: 118° + 120°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5258
FWHM: 103°
FWTM: 118°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

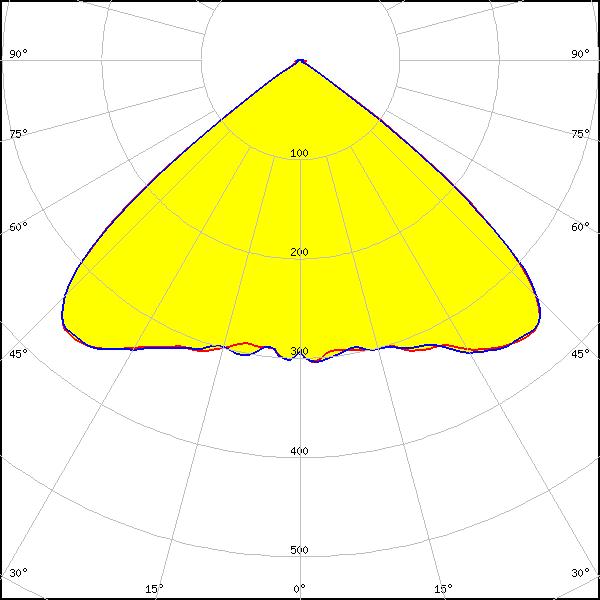

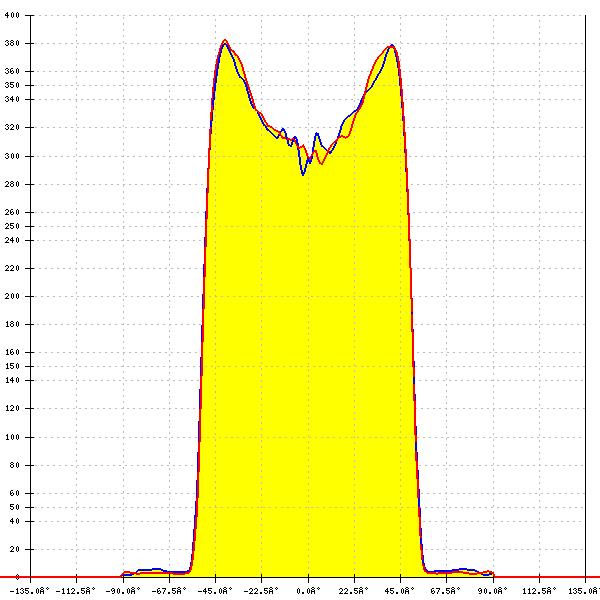

LED: LUXEON 7070
FWHM: 102°
FWTM: 110°
Peak intensity: 0.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON M/MX
Required components:
FWHM: 105°
FWTM: 120°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON M/MX
FWHM: 104°
FWTM: 120°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

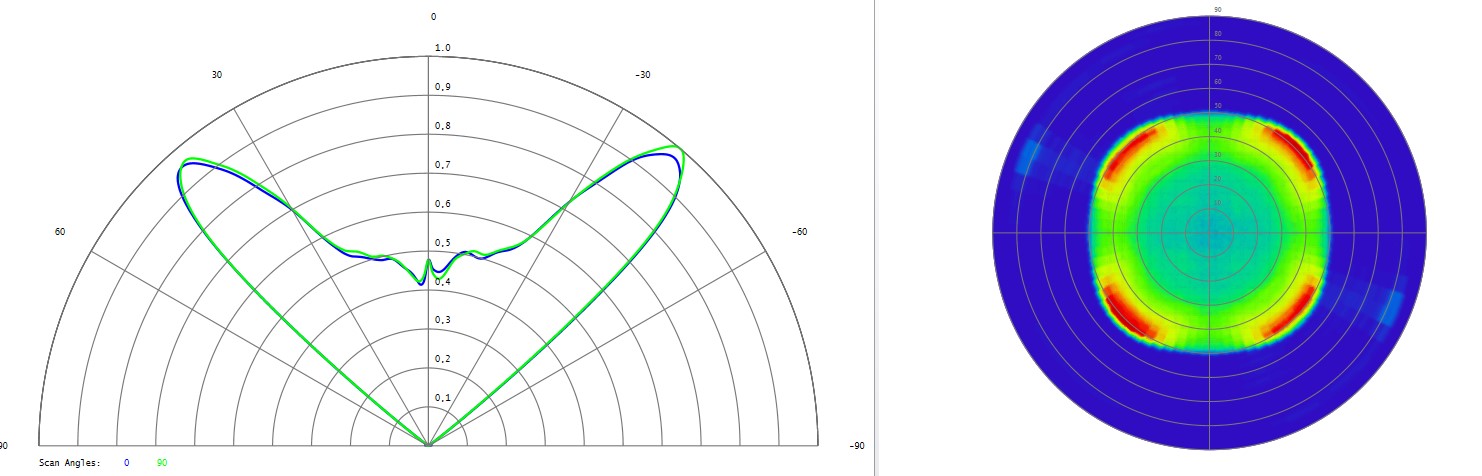

LED: XFM-5050 4 Die
FWHM: 98°
FWTM: 103°
Efficiency: 66 %
LEDs/each optic: 1
Light colour: UV-C
LED: NCSU334A
FWHM: 96°
FWTM: 105°
Efficiency: 71 %
LEDs/each optic: 1
Light colour: UV-C

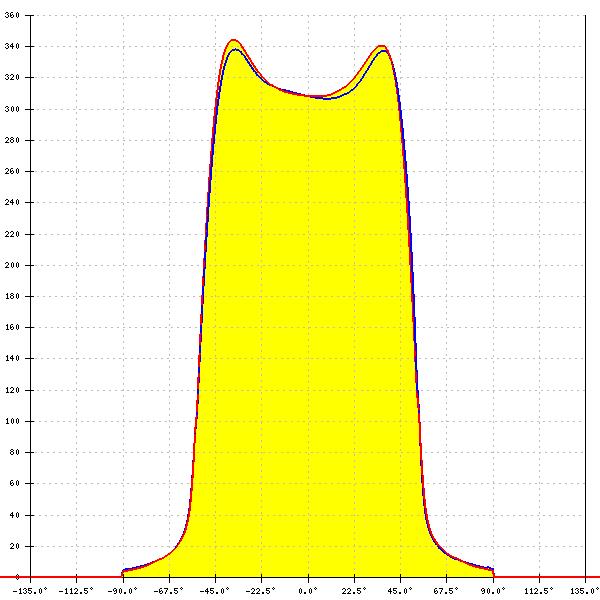

LED: NSMx286M
Required components:
FWHM: 105° + 104°
FWTM: 118° + 119°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NSMx286M
FWHM: 105°
FWTM: 118°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NV4x144A
Required components:
FWHM: 107°
FWTM: 132°
Peak intensity: 0.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

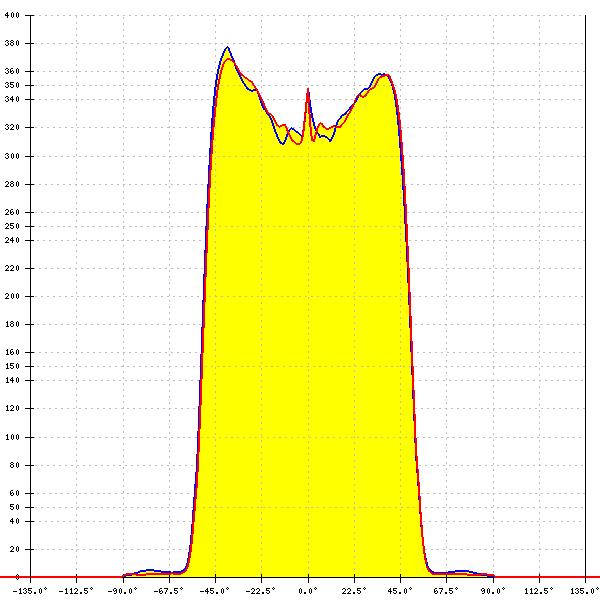

LED: NVSxE21A
FWHM: 100°
FWTM: 110°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

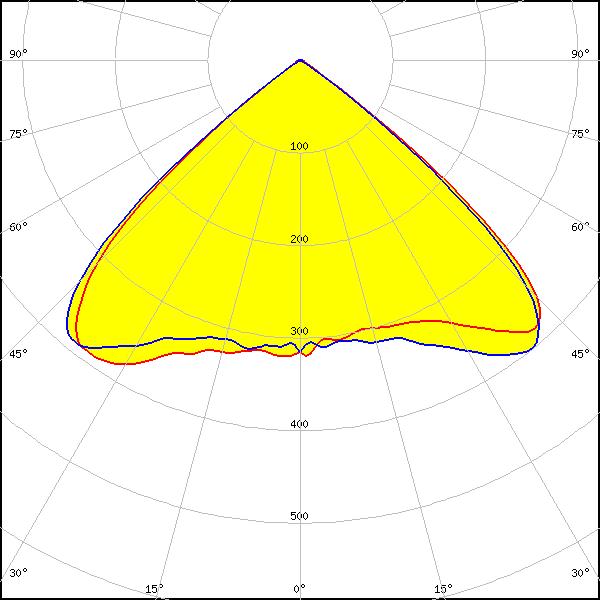

LED: Duris S10
Required components:
FWHM: 108°
FWTM: 124°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Duris S10
FWHM: 108°
FWTM: 124°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

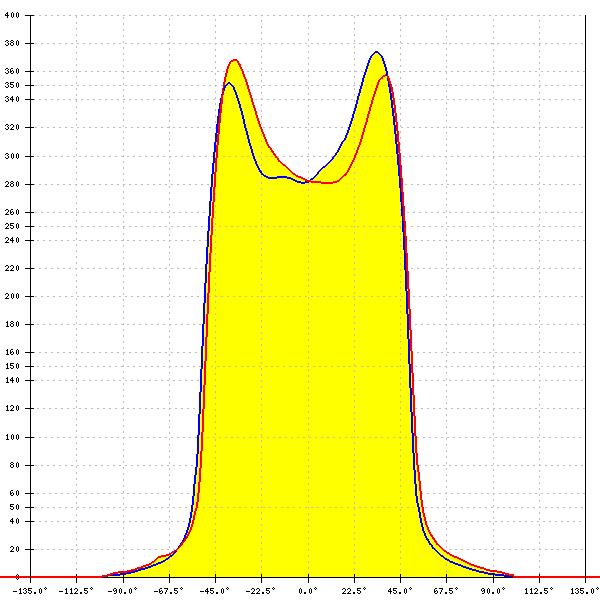

LED: Duris S8
Required components:
FWHM: 102°
FWTM: 117°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
FWHM: 102°
FWTM: 118°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 7070
Required components:
FWHM: 100°
FWTM: 107°
Peak intensity: 0.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 7070
FWHM: 100°
FWTM: 110°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 106°
FWTM: 121°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LC003D / LC006D / LC009D / LC013D
FWHM: 106°
FWTM: 121°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

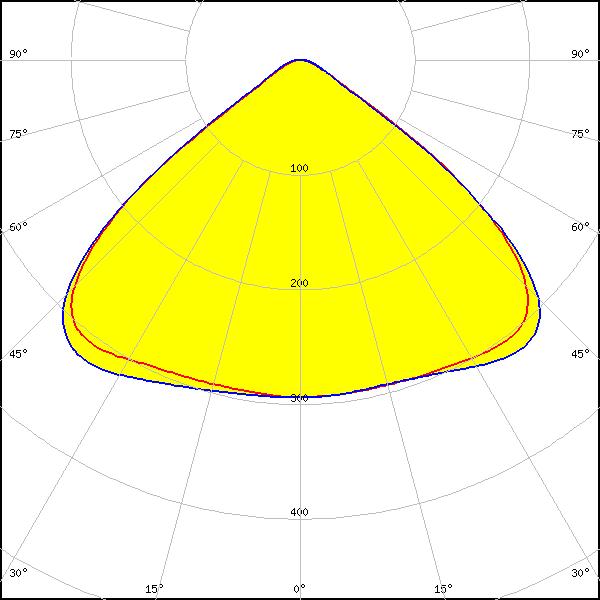

LED: MJT COB LES 6
Required components:
FWHM: 111°
FWTM: 130°
Peak intensity: 0.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: MJT COB LES 6
FWHM: 111°
FWTM: 130°
Peak intensity: 0.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

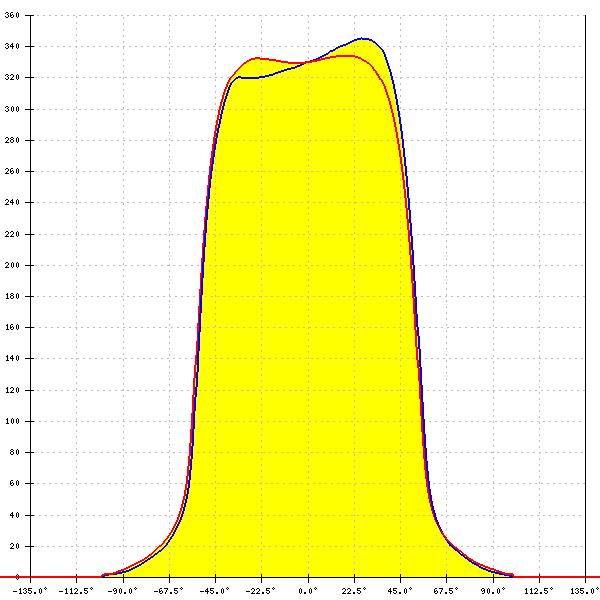

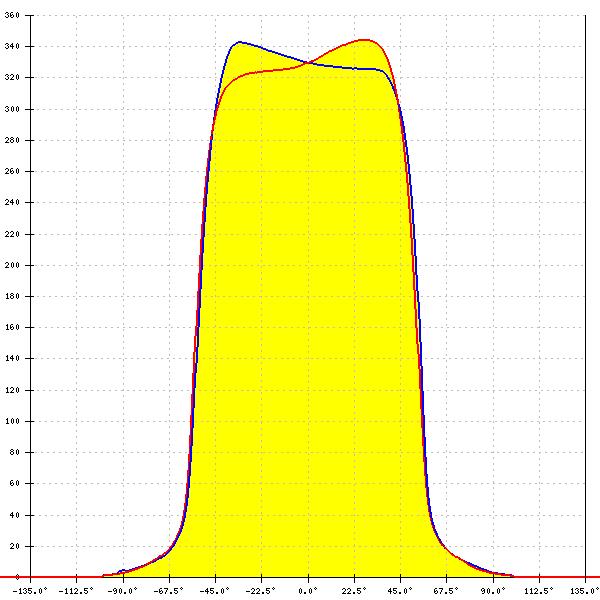

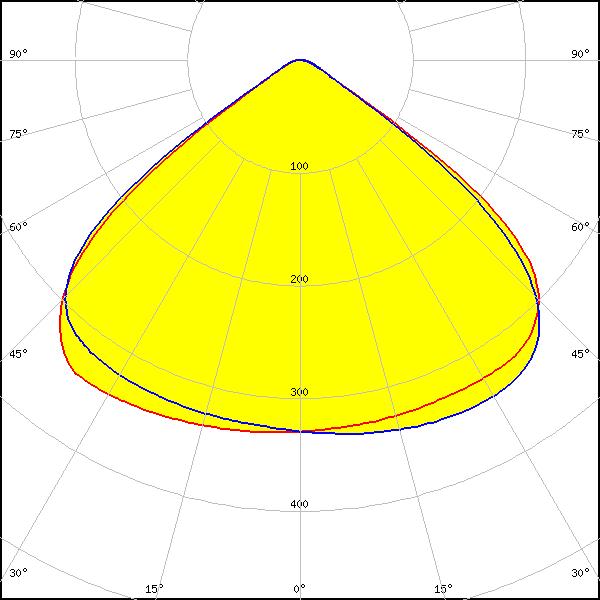

LED: MJT COB LES 9.8
FWHM: 105°
FWTM: 128°
Peak intensity: 0.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: MJT COB LES 9.8
Required components:
FWHM: 105°
FWTM: 128°
Peak intensity: 0.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
