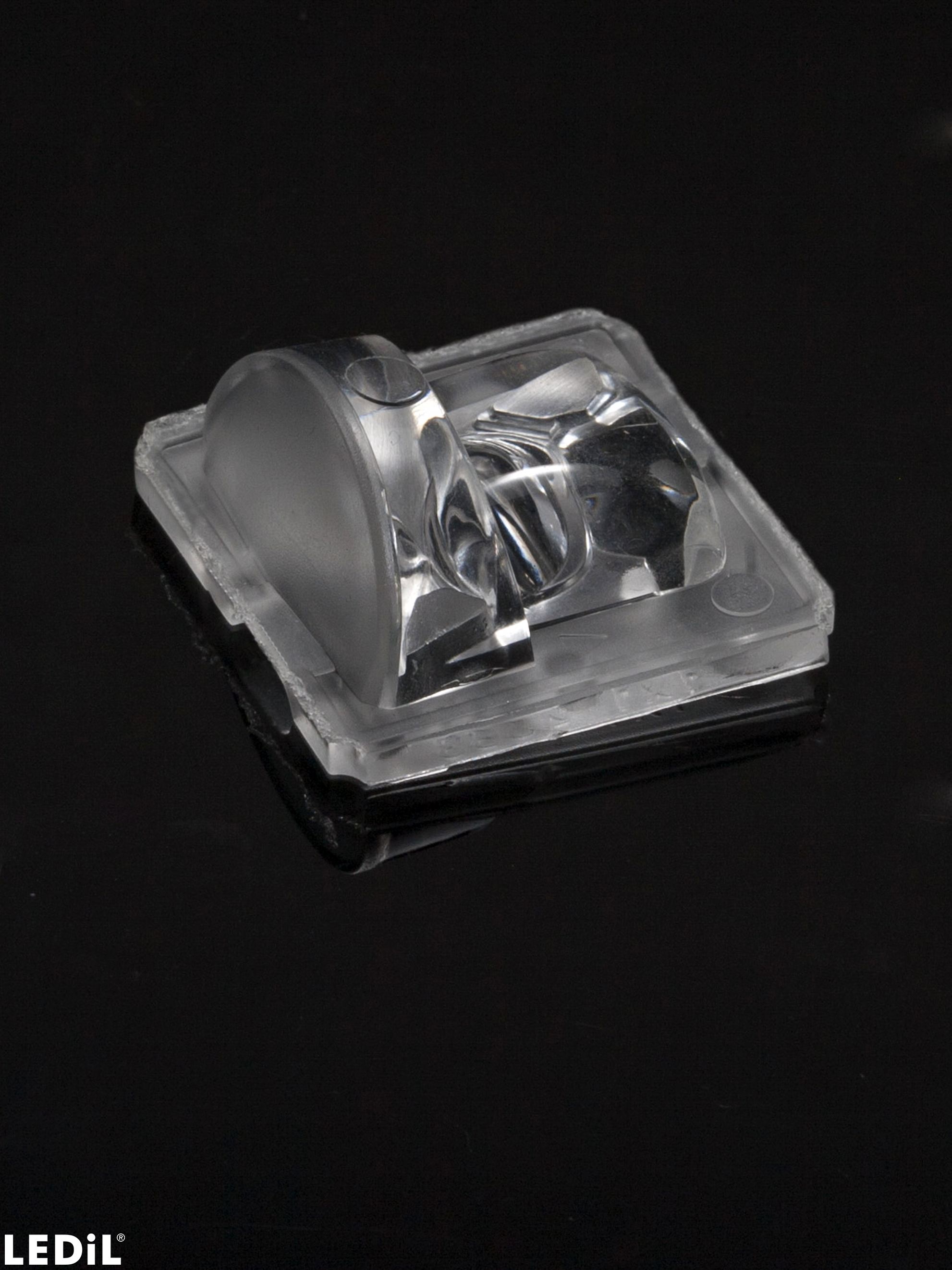

F14563_JENNY-T4

IESNA Type IV light distribution for wider roads and large outdoor areas. Variant with wire channels on the sides enabling compatibility with small COBs.

Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

Specification

Dimensions:

35 x 35 mm
Height:

17.02 mm
Fastening:

glue, pin
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

Silicone
Request material files from Tech Support

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

1020 pcs
Box size:

480 x 280 x 300 mm
Box weight:

8.8 kg
MPQ:

1020 pcs
MOQ:

2040 pcs
MOQ size:

480 x 280 x 300 mm
MOQ weight:

8.8 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: F14563_JENNY-T4

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

F14563_JENNY-T4

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

WHERE TO BUY

FIND A DISTRIBUTOR

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR193 - Minimum order quantity changes in JENNY family

PCN

Product change notification NR189 - EOL Notice and Change of Product status

News

PRODUCT NEWS - JENNY-T4

PCN

Product change notification NR128.e - Change of packaging quantities 241016

Application example

ME4a with JENNY-T4

Application area

Tunnel and Transportation Lighting

Application guide

Guide for Sports lighting optics

Application guide

Guide for Street lighting optics

Application guide

Street lighting optics - 2020_v.1.1_WEB

News

New Products - 2019-01-31

News

New members of the JENNY family for sports field lighting

Application area

Outdoor Special Applications

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

AVAILABLE LEDiL ACCESSORIES

JENNY-HLD-A-BLK

Black frame for JENNY optics

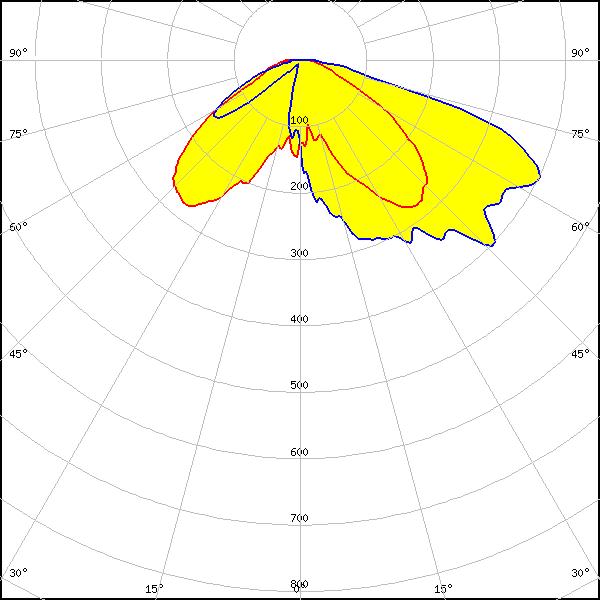

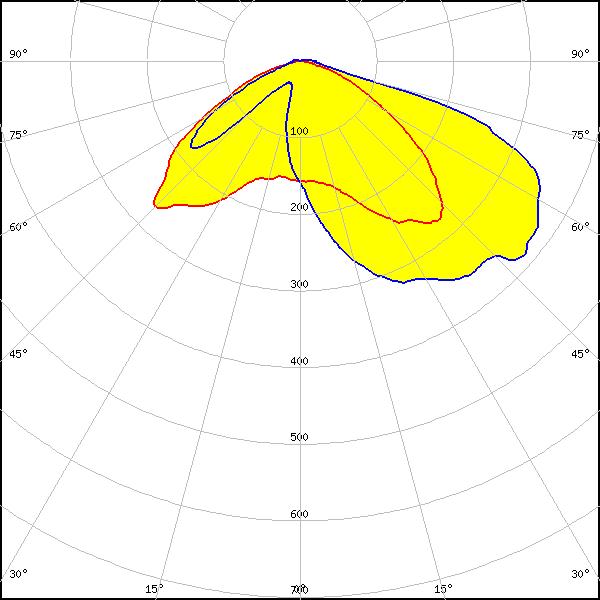

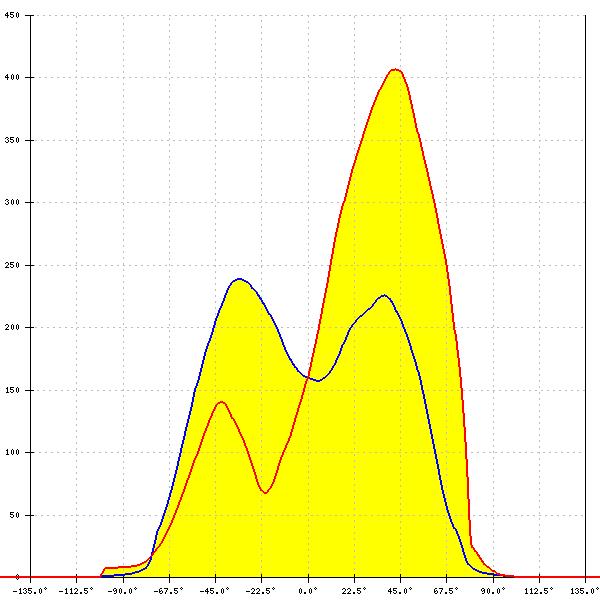

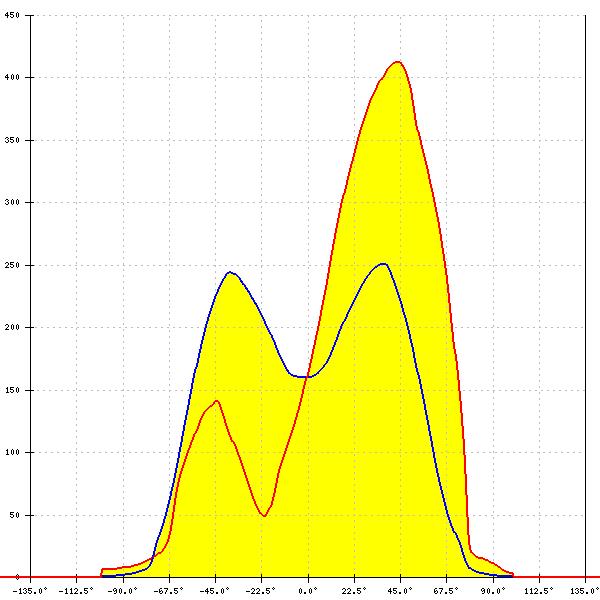

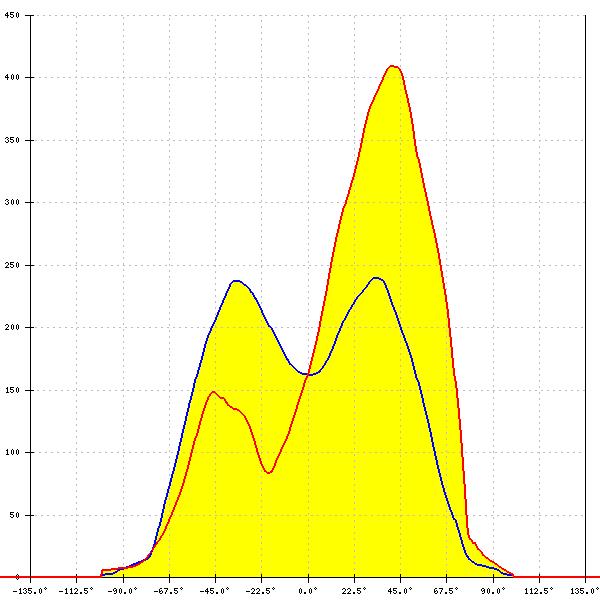

Optical results

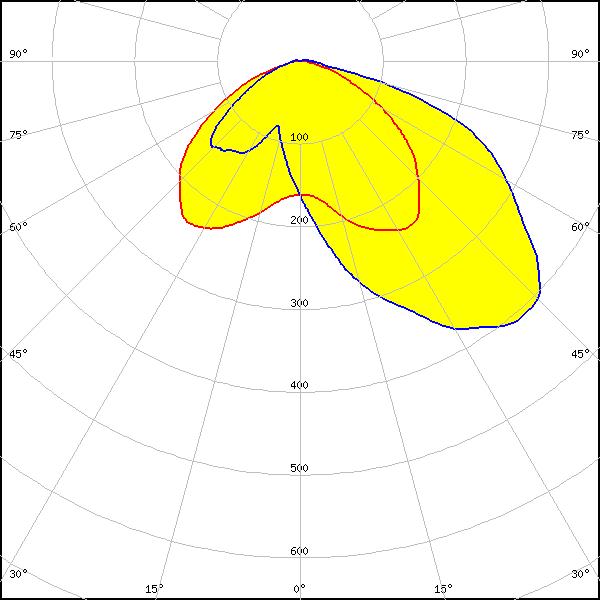

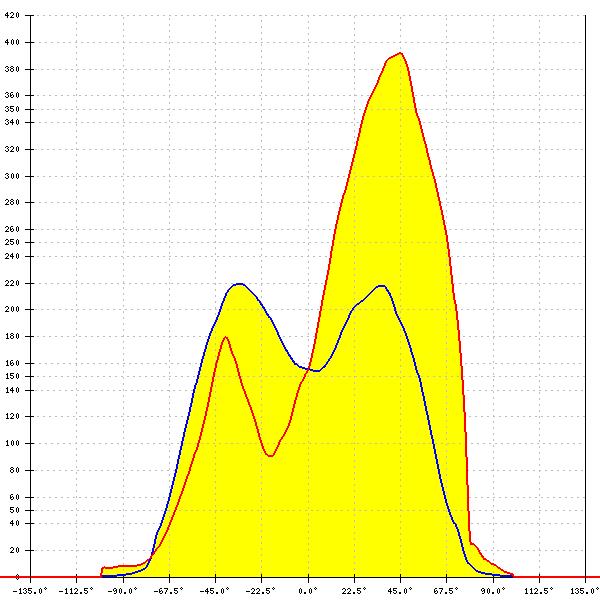

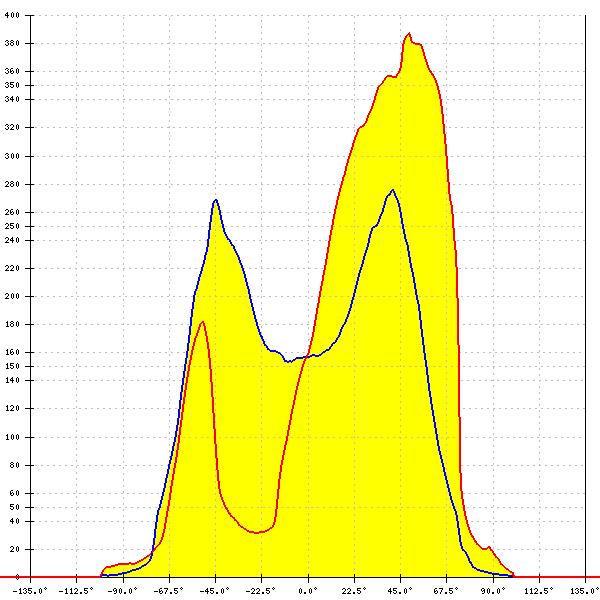

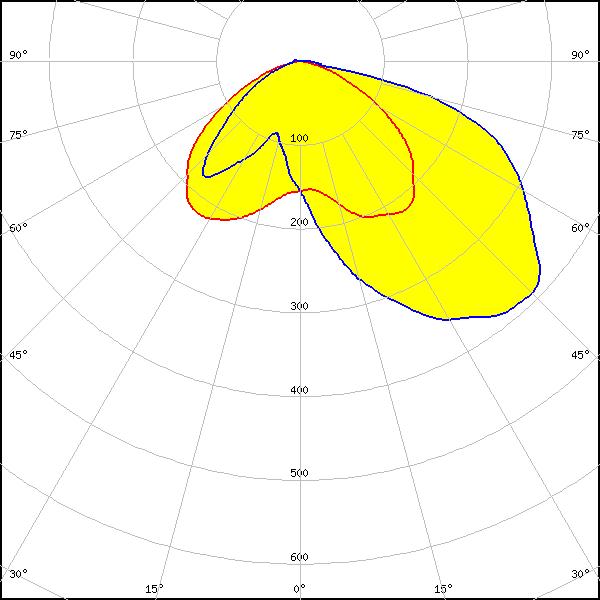

LED: V10 Gen6

LES size: 9.9 mm

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

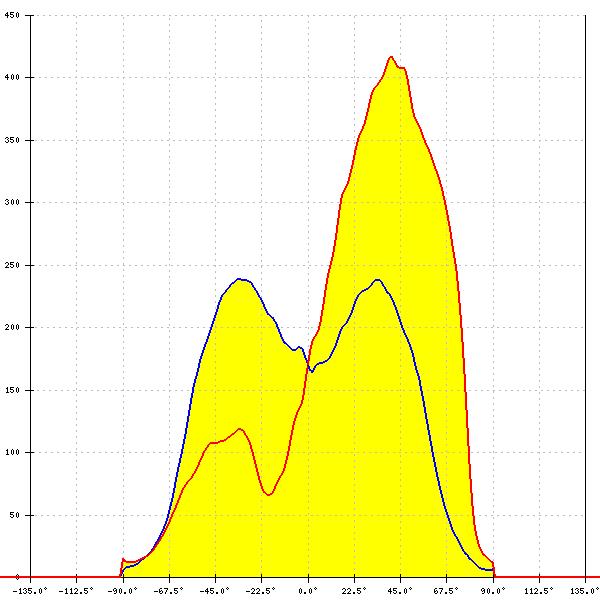

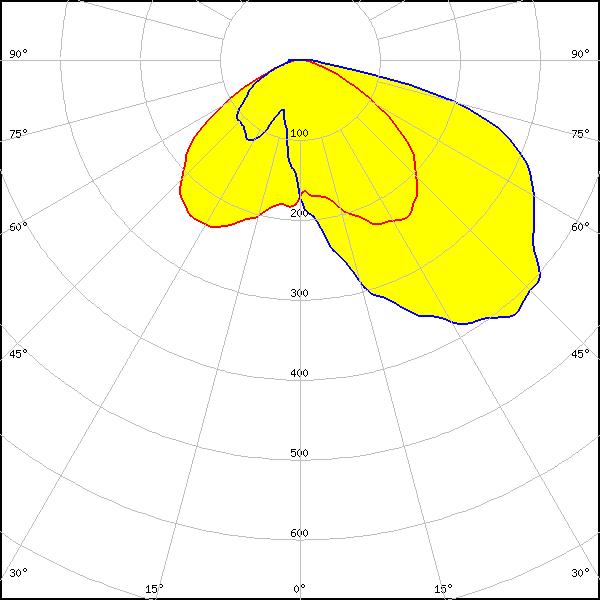

LED: V10 Gen7

LES size: 10.2 mm

FWHM: asymmetric

Peak intensity: 0.440 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

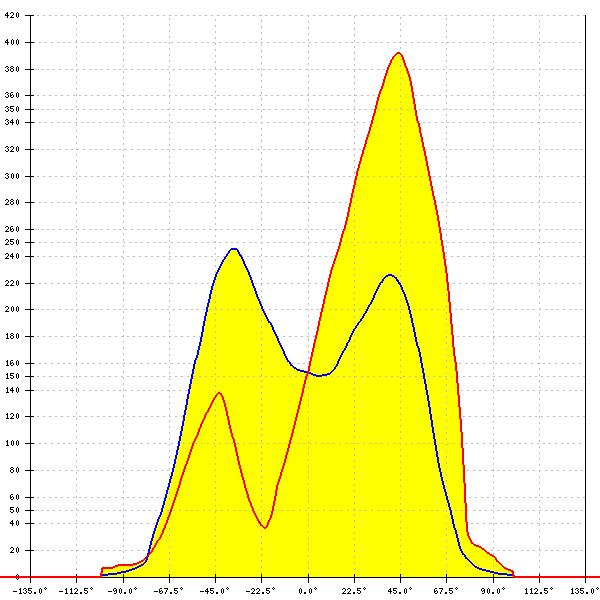

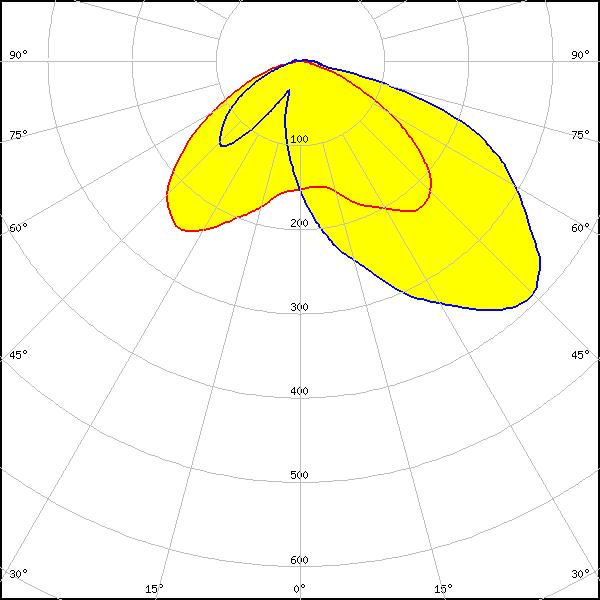

LED: V8 Gen6

LES size: 8.1 mm

FWHM: asymmetric

Peak intensity: 0.480 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

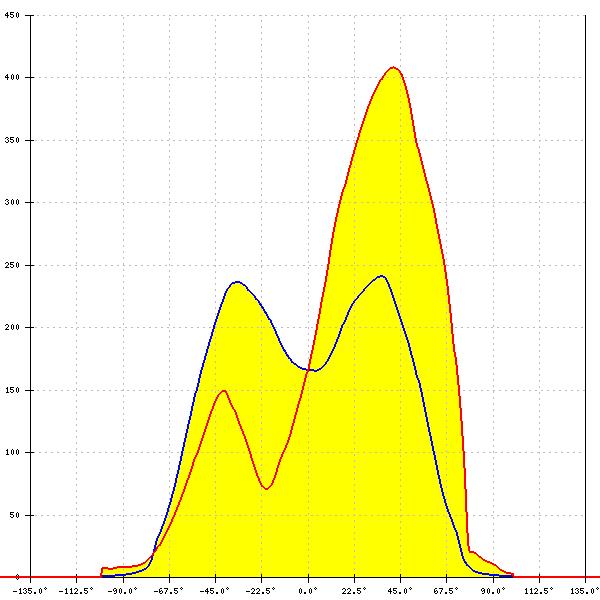

LED: CLU02x (LES10)

LES size: 9.8 mm

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: CXA/B 15xx

LES size: 8.9 mm

FWHM: asymmetric

Peak intensity: 0.480 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: MK-R

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.560 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

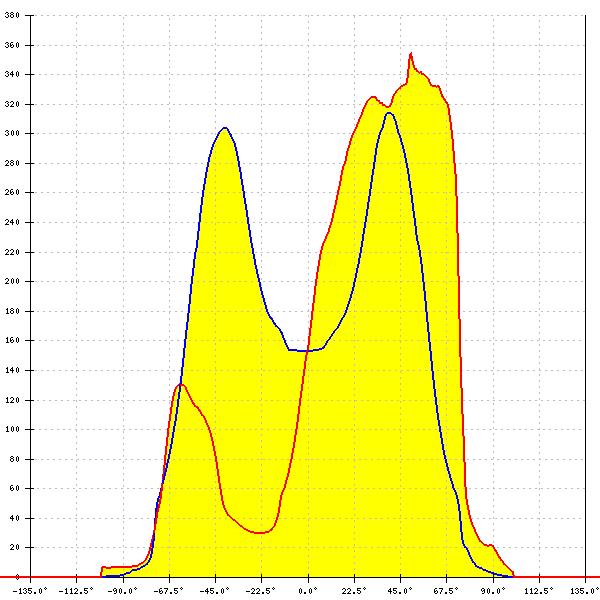

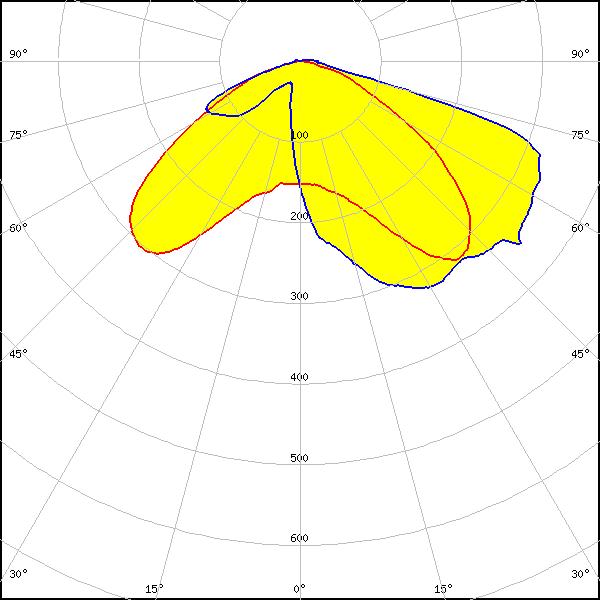

LED: MX-6

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.610 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

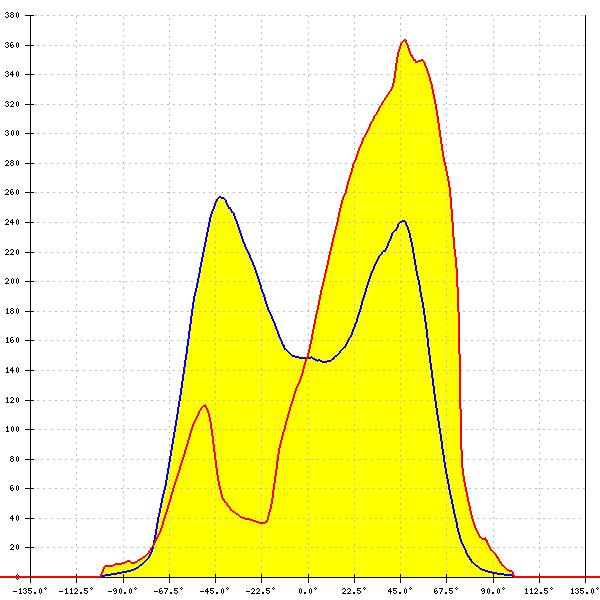

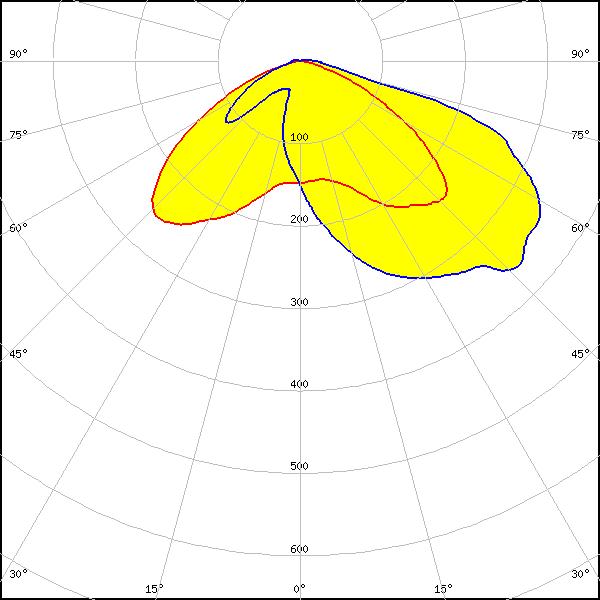

LED: XHP70

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

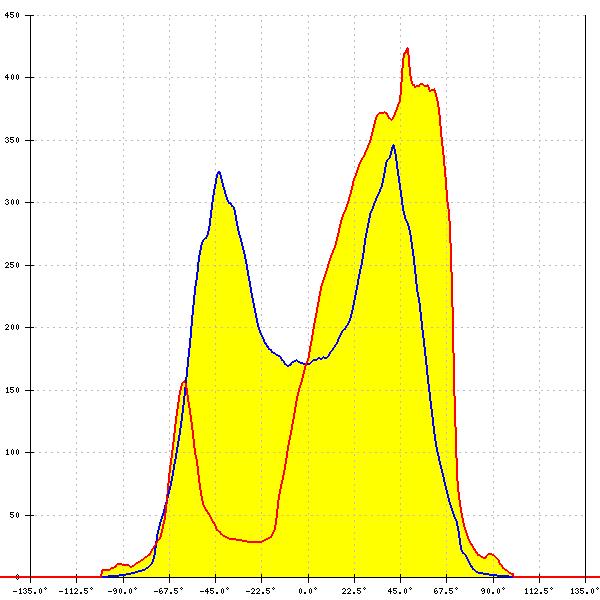

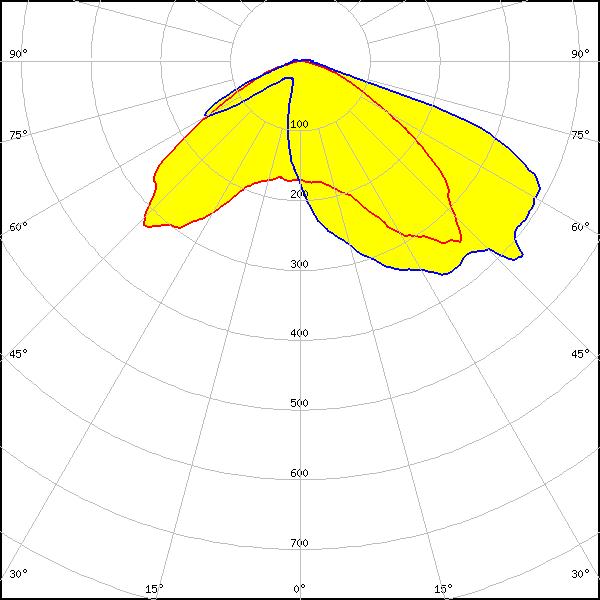

LED: XM-L EZW

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.680 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

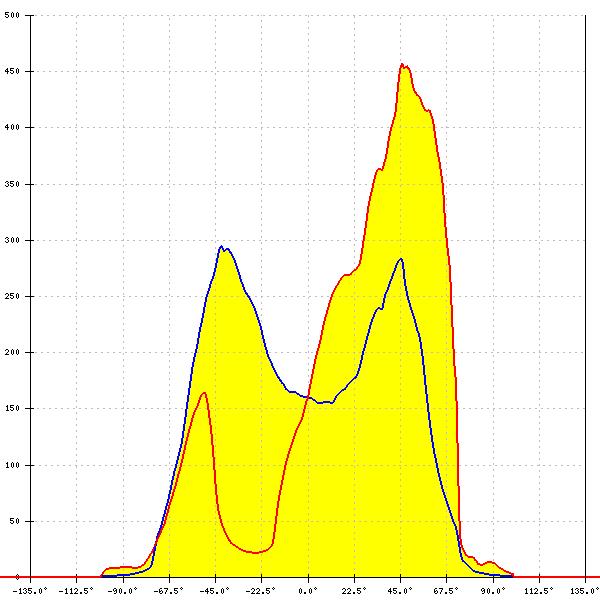

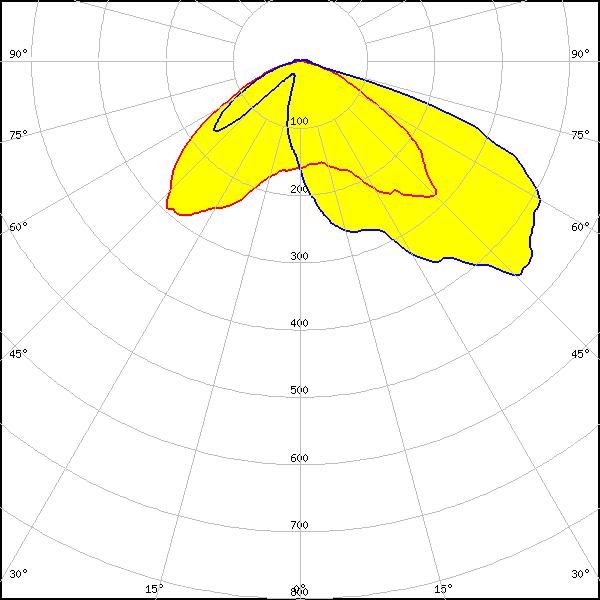

LED: LUXEON M/MX

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.660 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

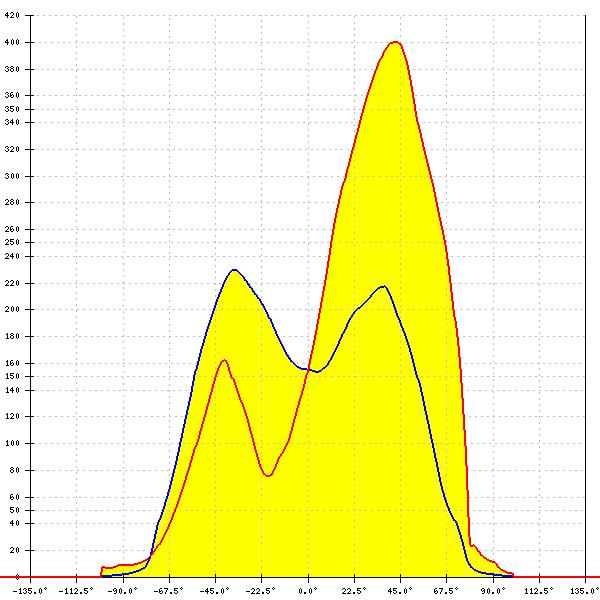

LED: CxM-9 (13.5x13.5)

LES size: 9.6 mm

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 7070

LES size: 0.0 mm

FWHM: asymmetric

Peak intensity: 0.550 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LC003D / LC006D / LC009D / LC013D

LES size: 9.8 mm

FWHM: asymmetric

Peak intensity: 0.470 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

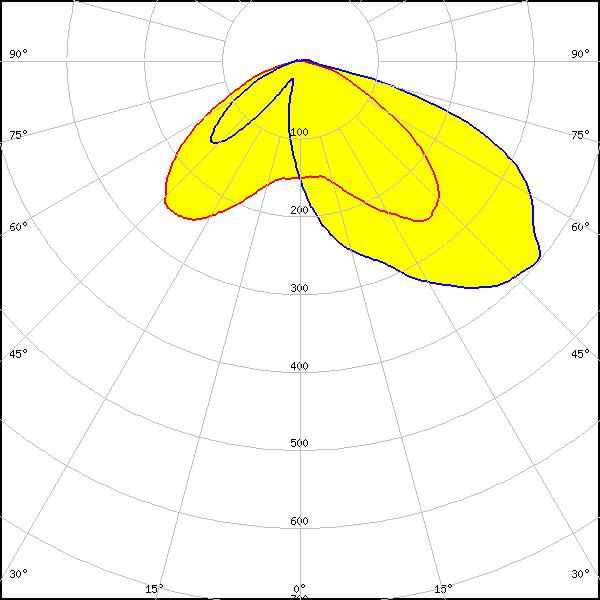

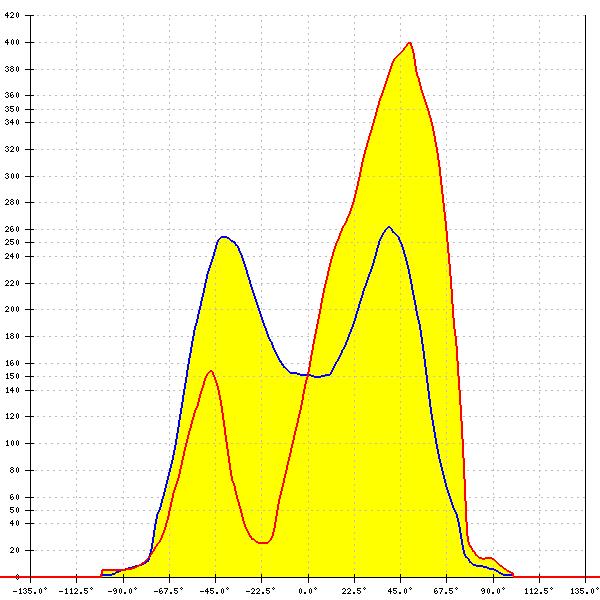

LED: MJT COB LES 6
