F15263_STELLA-HB-WWW

Print

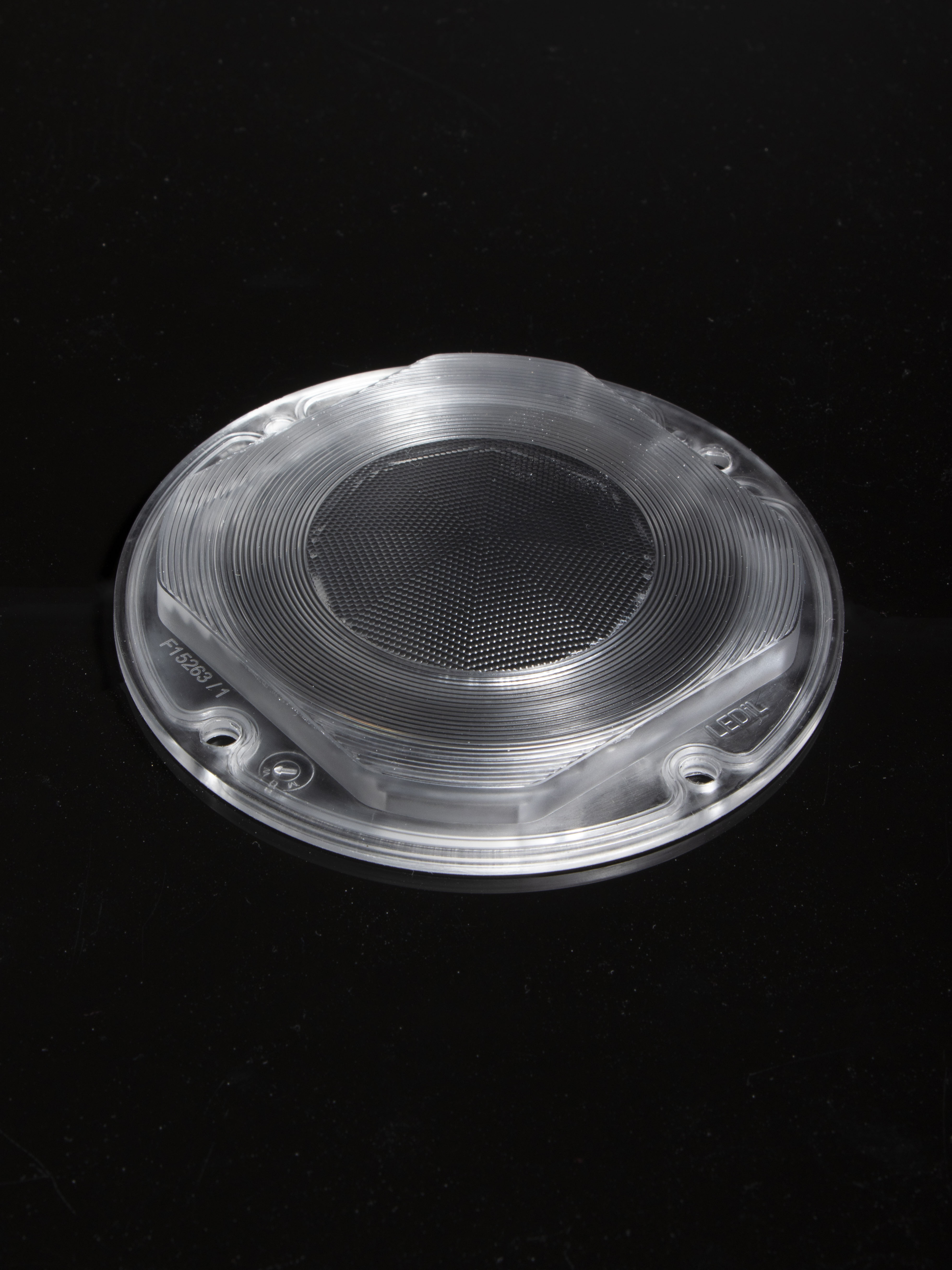

~100° very wide beam for UV-C, warehouse and outdoor lighting. Compatible with up to 30 mm LES size COBs.

Specification
  • Dimensions:
    85 mm
  • Height:
    11.3 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • Silicone

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    90 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    3.1 kg
  • MPQ:
    10 pcs
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15263_STELLA-HB-WWW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

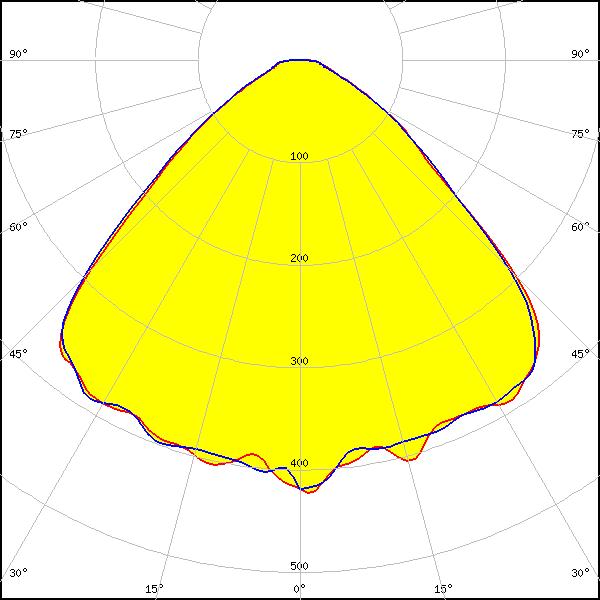

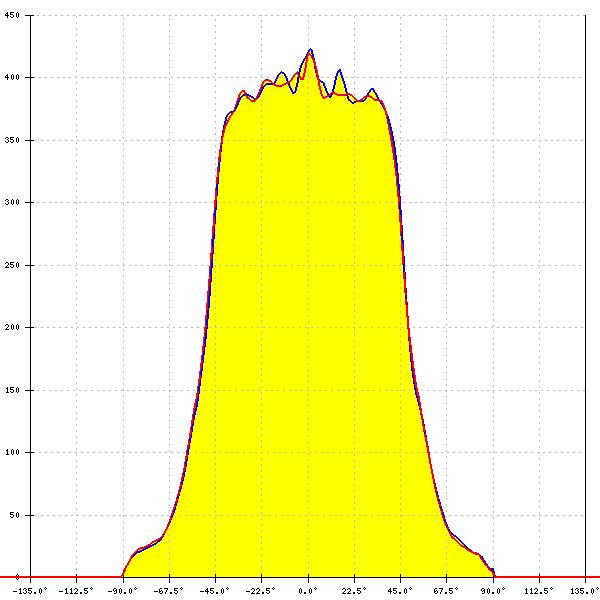

LED: VERO29
FWHM: 97°
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

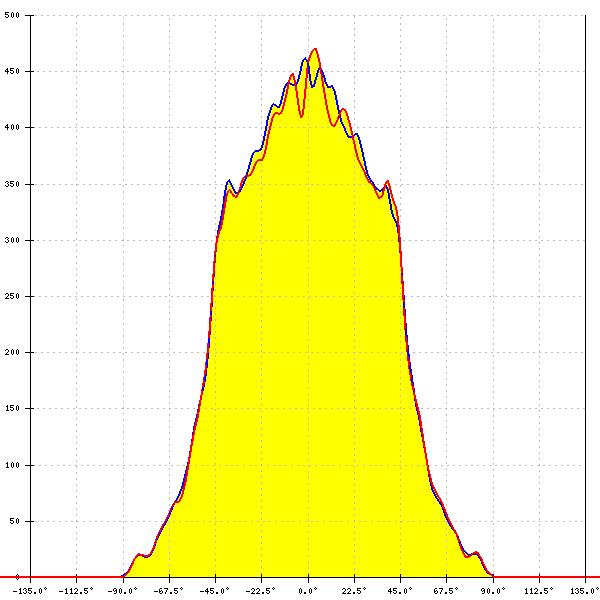

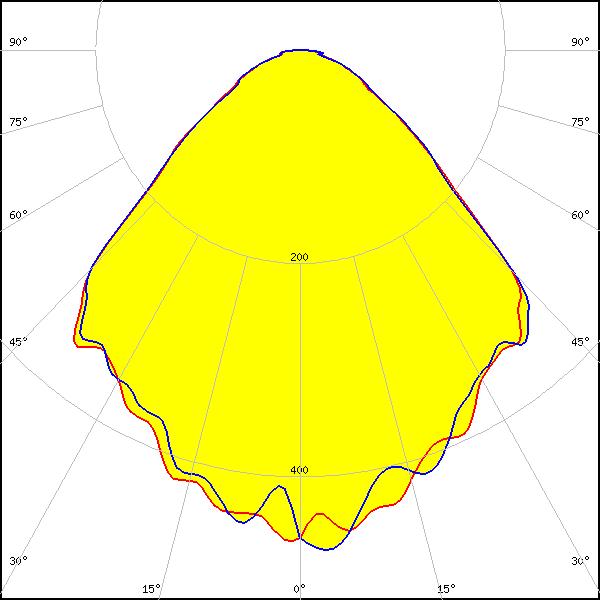

LED: CLL02x/CLU02x (LES10)
FWHM: 97°
Peak intensity: 0.0 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

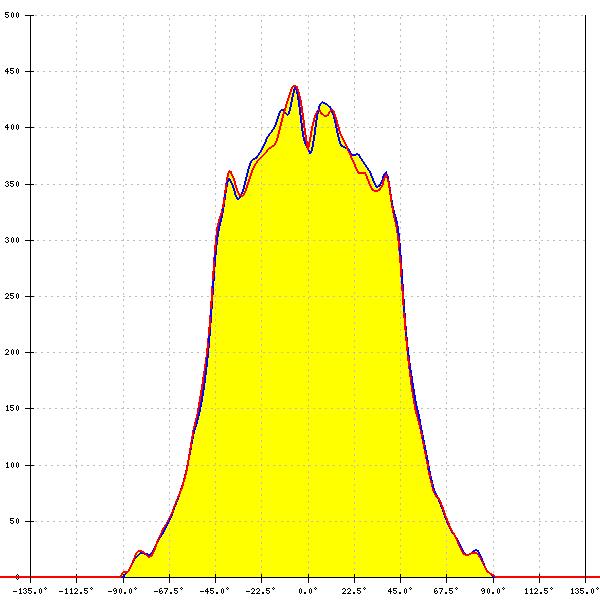

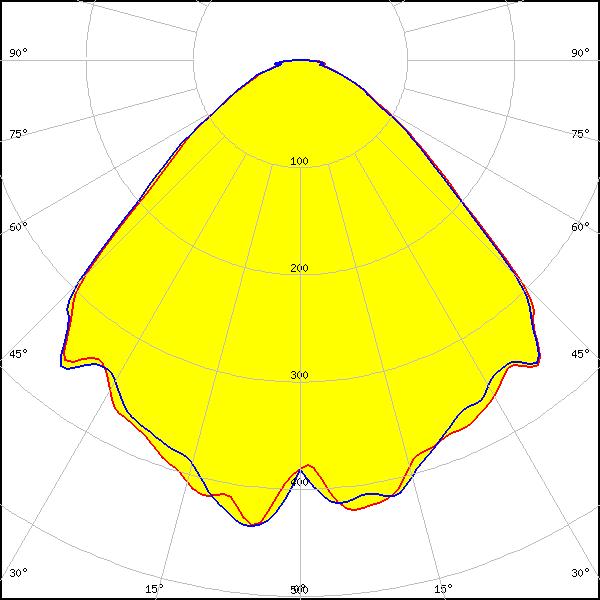

LED: CLL03x/CLU03x
LEDs/each optic: 1
Light colour: White

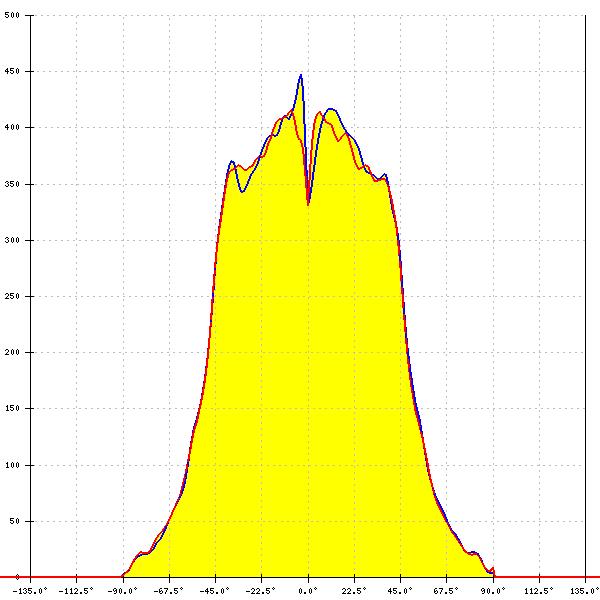

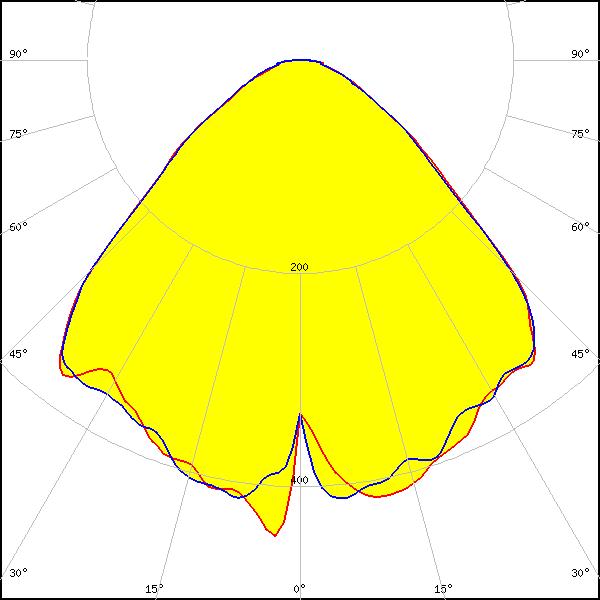

LED: CLL04x/CLU04x
FWHM: 97°
Peak intensity: 0.0 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

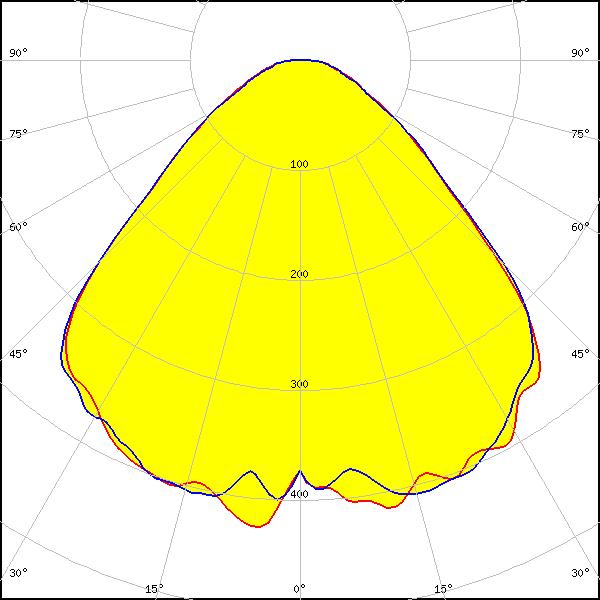

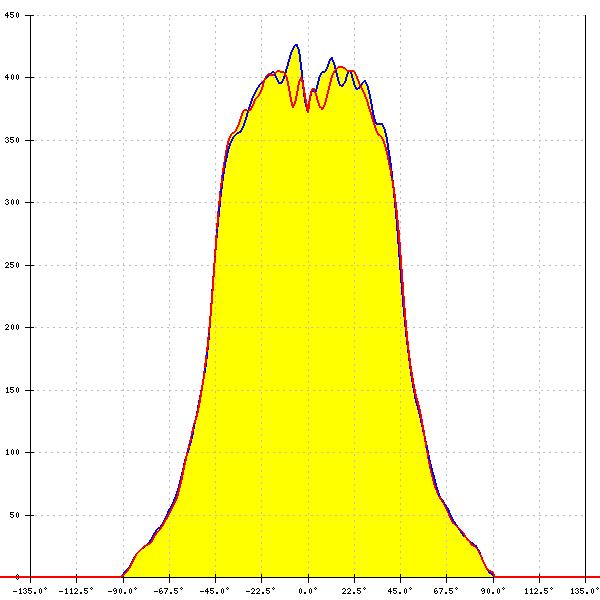

LED: CLL05x/CLU05x
FWHM: 97°
Peak intensity: 0.0 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

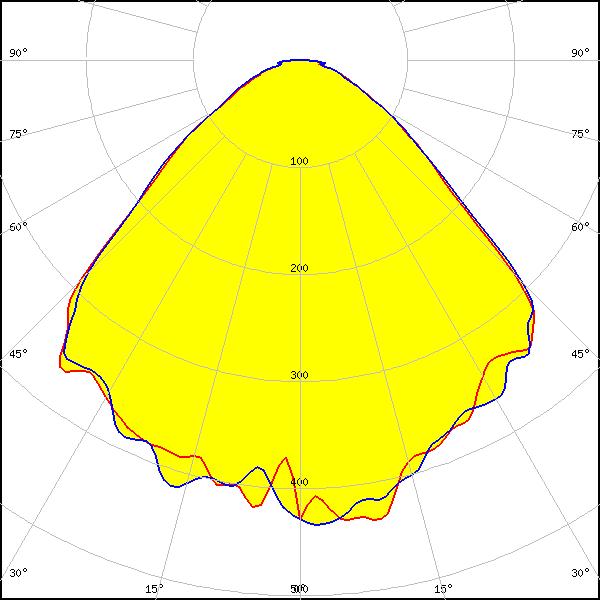

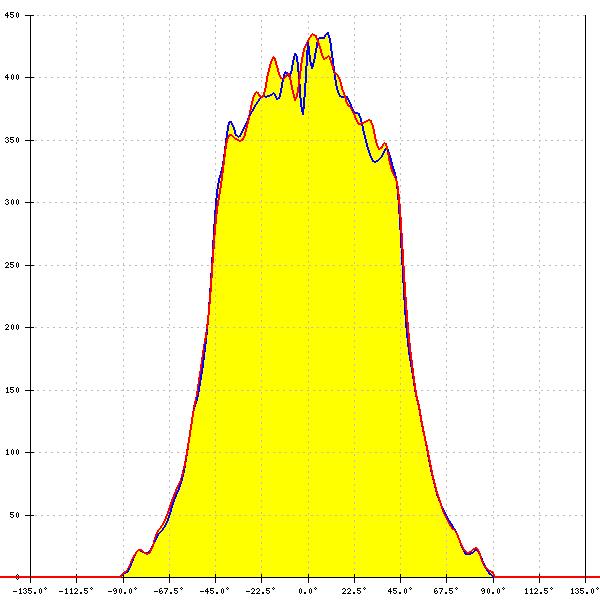

LED: Soleriq S19
LEDs/each optic: 1
Light colour: White
