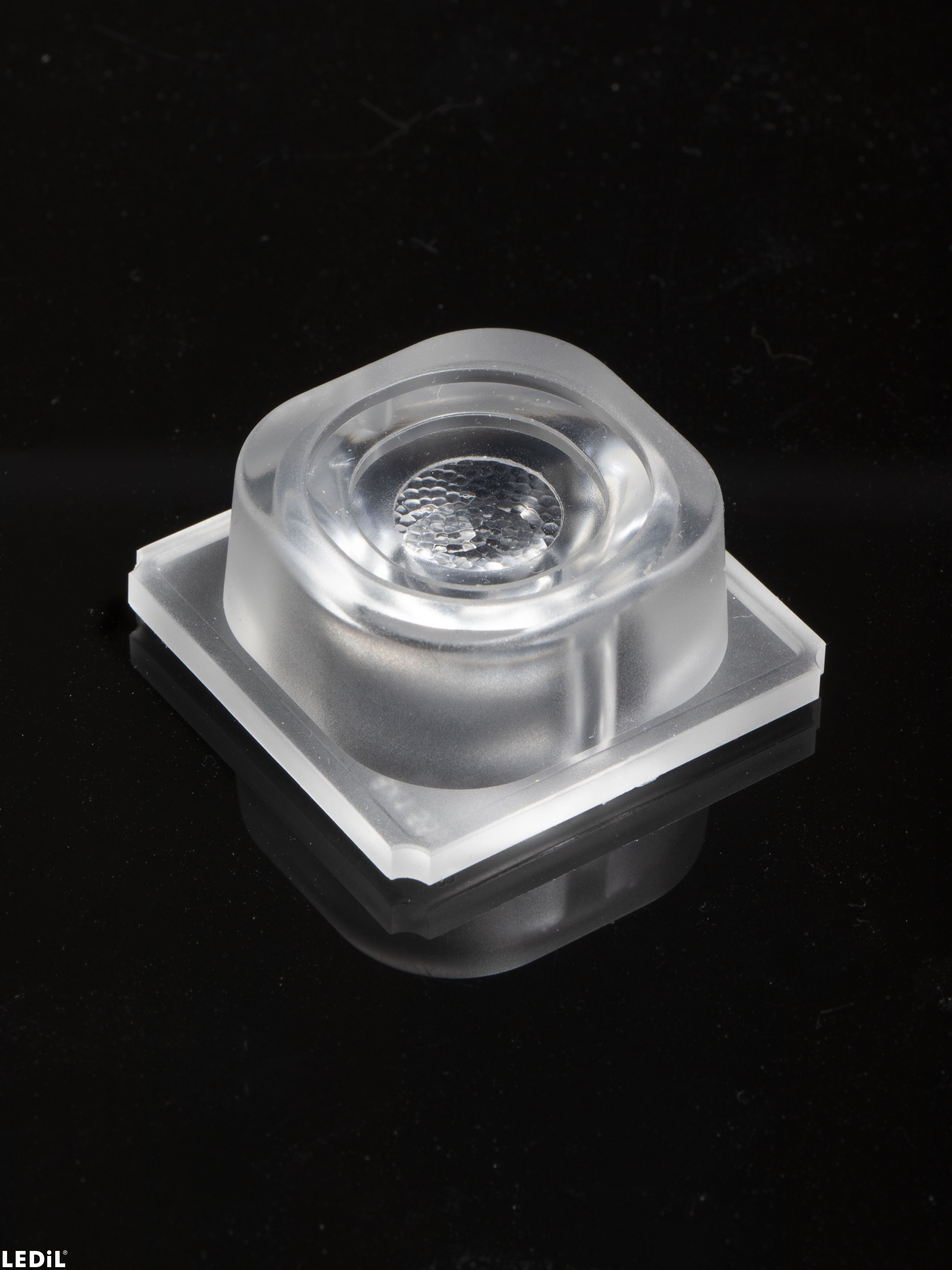

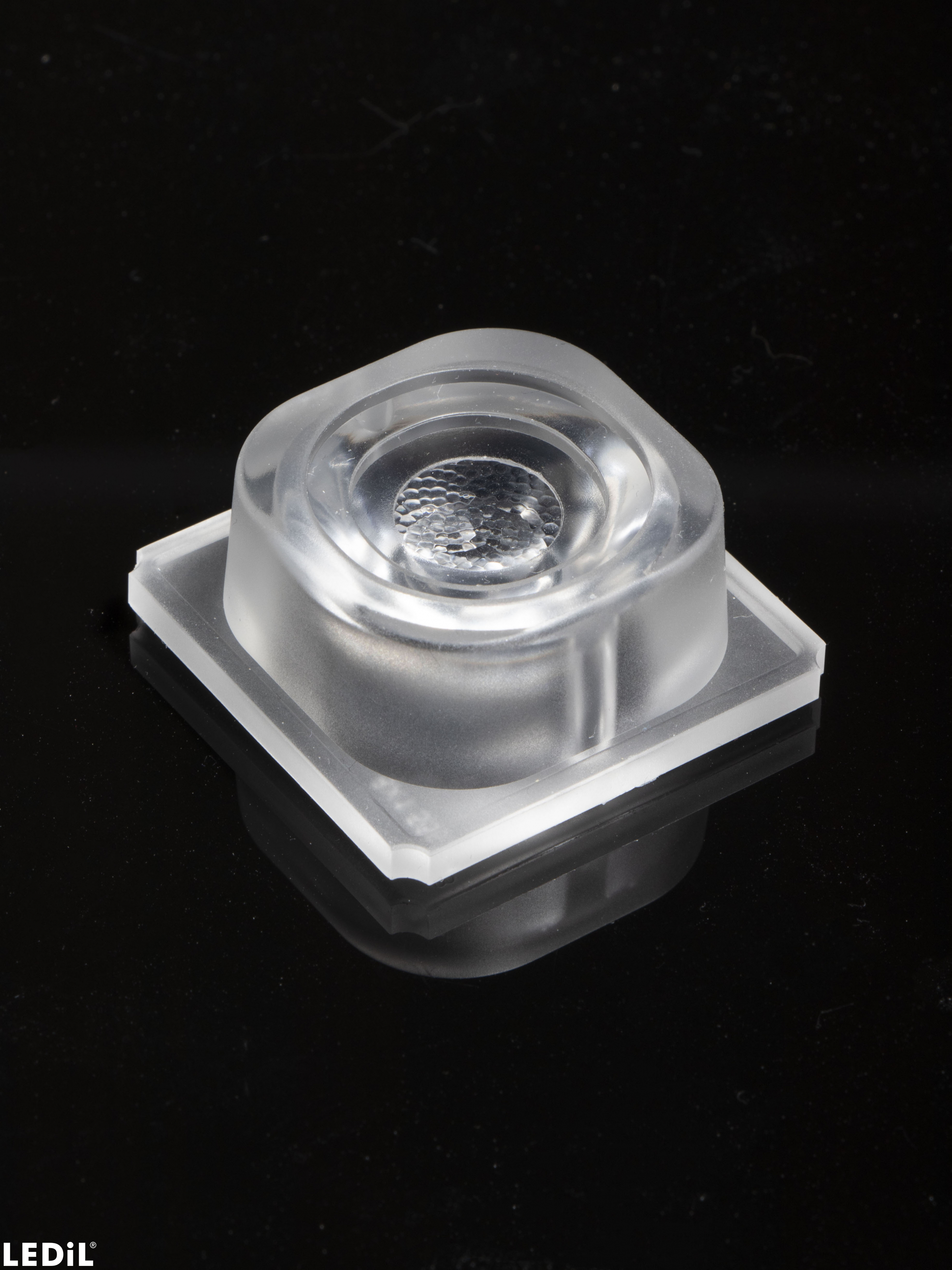

F15538_JENNY-20

Print

~20° beam

Specification
  • Dimensions:
    35 x  35 mm
  • Height:
    14.52 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    1140 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    10.4 kg
  • MPQ:
    60 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15538_JENNY-20

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Use C14436_JENNY-HLD-A-BLK for fastening.

Optical results

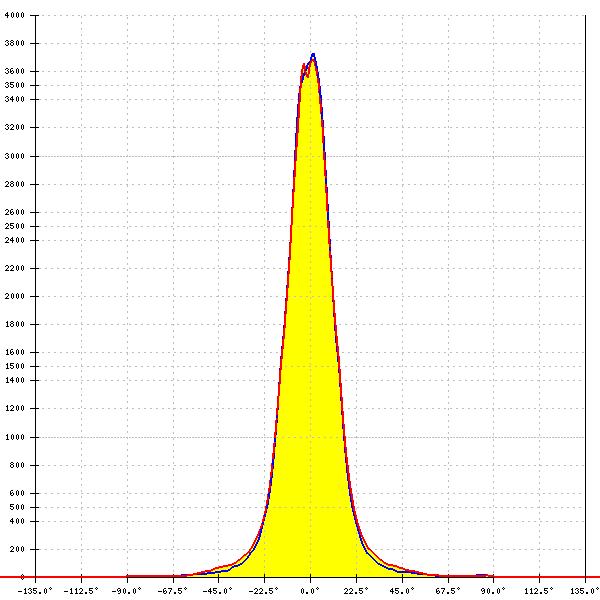

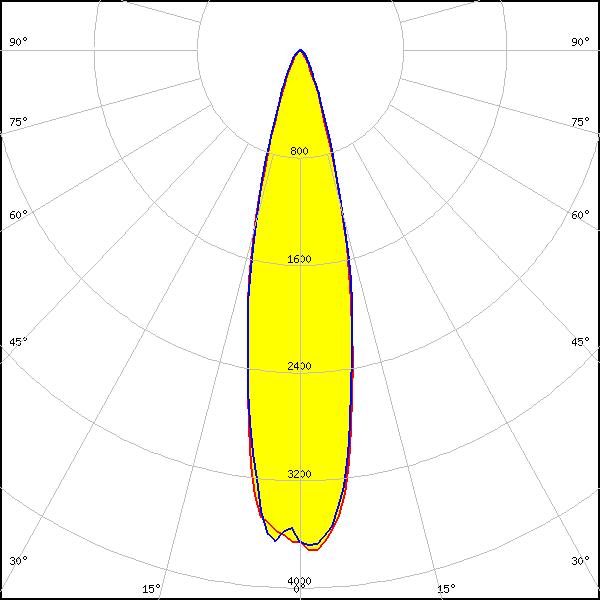

LED: MHD-E/G
FWHM: 24°
FWTM: 47°
Peak intensity: 3.720 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

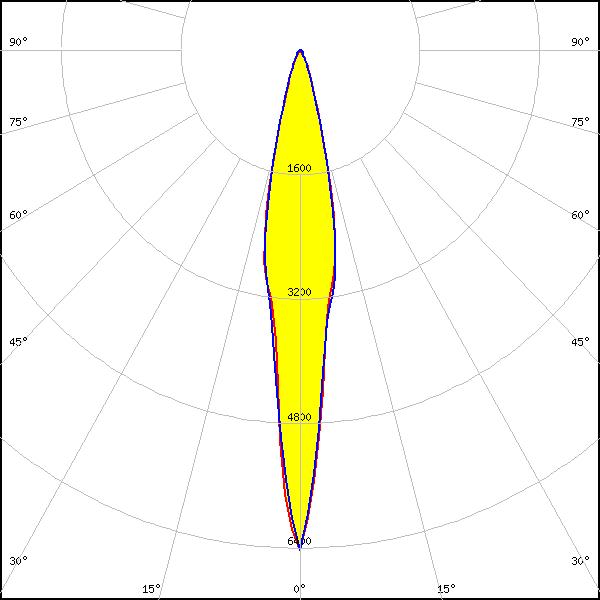

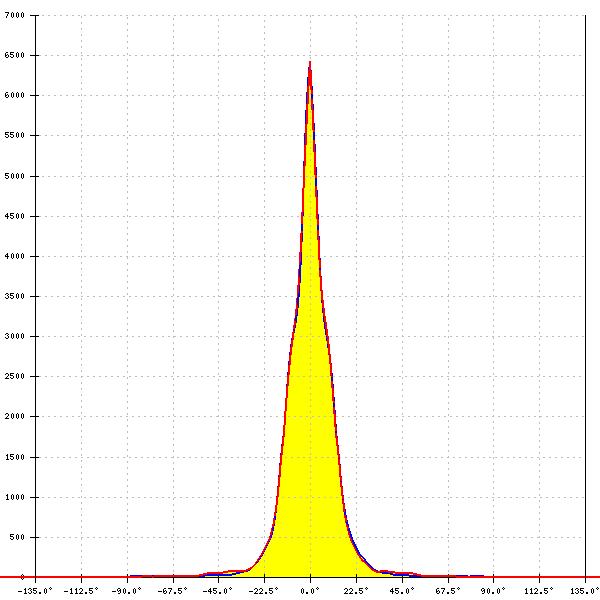

LED: MK-R
FWHM: 14°
FWTM: 36°
Peak intensity: 6.430 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: MK-R2
LEDs/each optic: 1
Light colour/type: White
LED: XHP50
LEDs/each optic: 1
Light colour/type: White

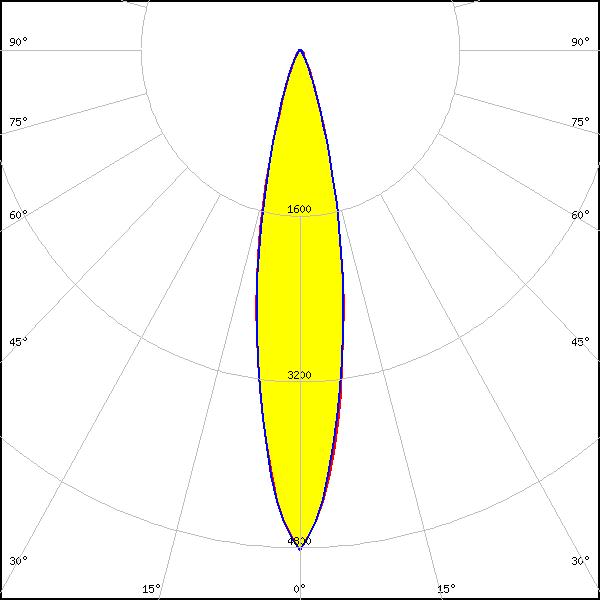

LED: XHP50.2
FWHM: 20°
FWTM: 42°
Peak intensity: 4.827 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

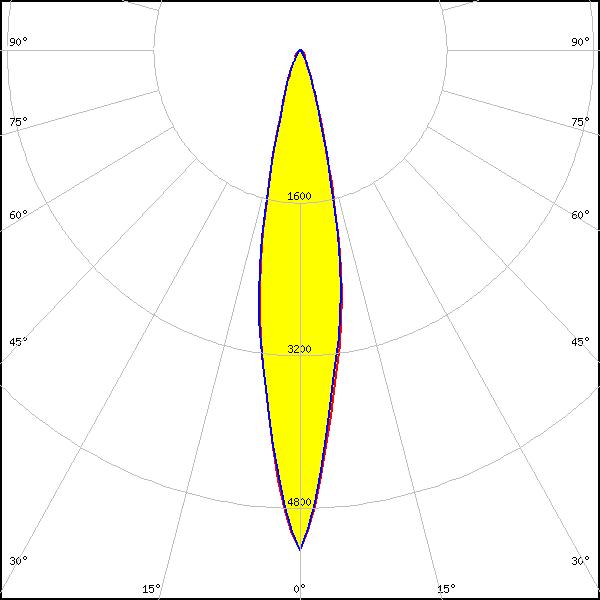

LED: XHP50.3 HD
FWHM: 20°
FWTM: 38°
Peak intensity: 5.239 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50.3 HI
FWHM: 20° + 19°
FWTM: 34° + 34°
Peak intensity: 6.503 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

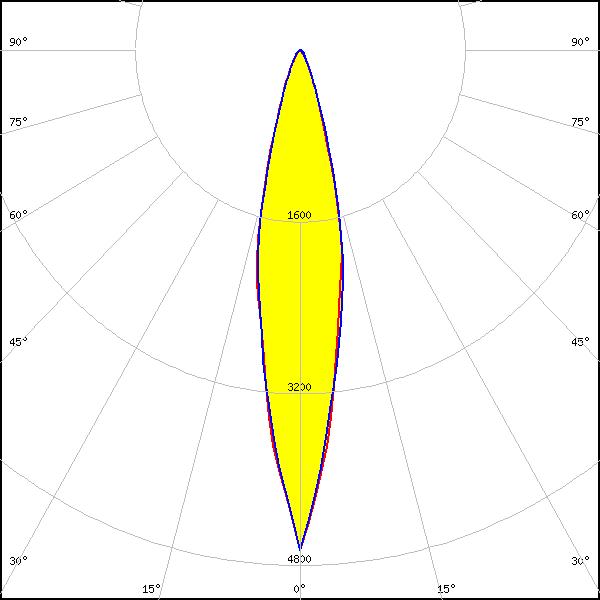

LED: XHP70
FWHM: 20°
FWTM: 43°
Peak intensity: 4.660 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

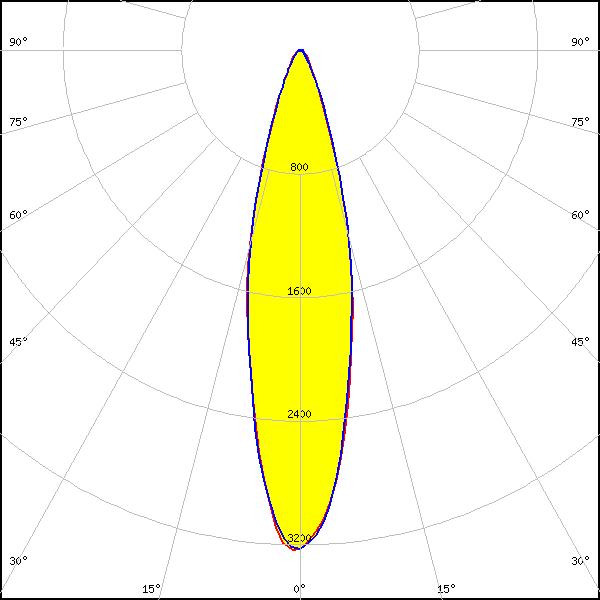

LED: XHP70.2
FWHM: 25°
FWTM: 50°
Peak intensity: 3.250 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP70.3 HD
FWHM: 23°
FWTM: 46°
Peak intensity: 3.773 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

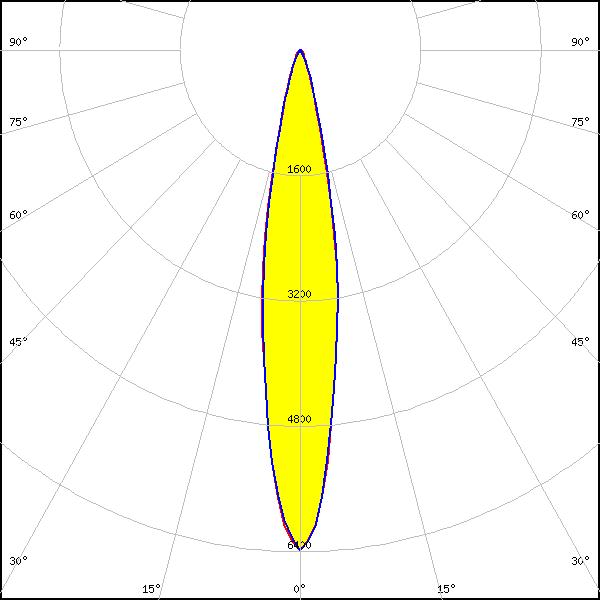

LED: XHP70.3 HI
FWHM: 18°
FWTM: 36°
Peak intensity: 6.384 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

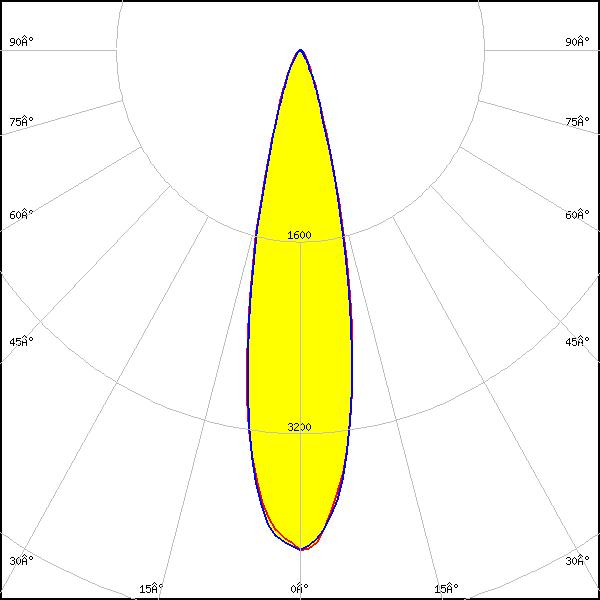

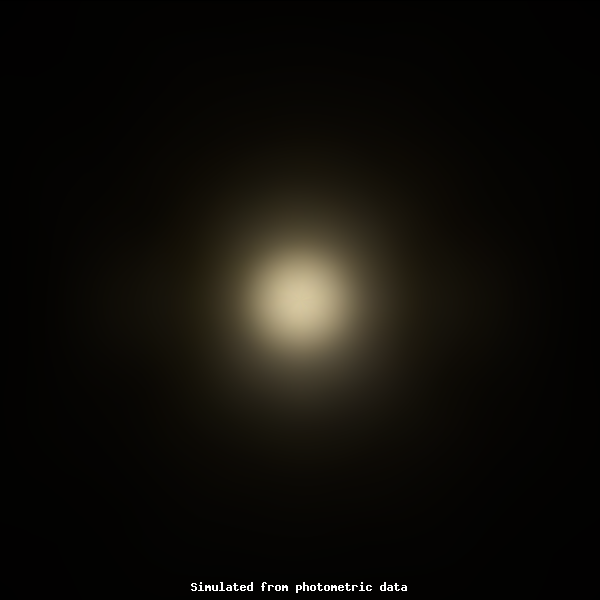

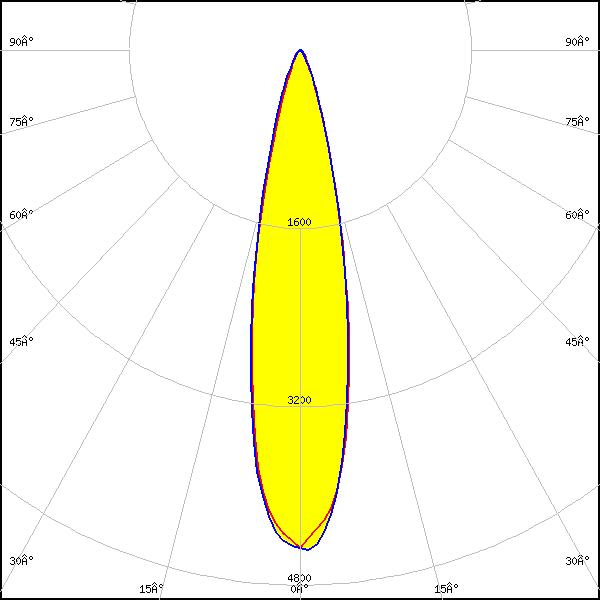

LED: LUXEON 7070
FWHM: 24°
FWTM: 45°
Peak intensity: 4.071 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

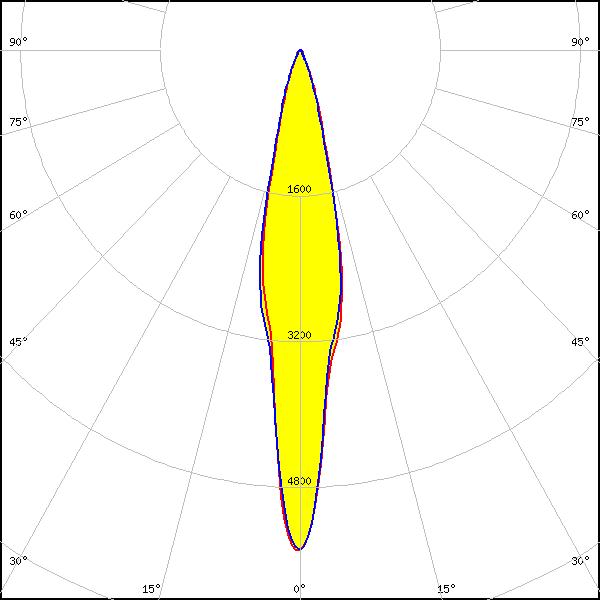

LED: LUXEON M/MX
Required components:
FWHM: 19°
FWTM: 39°
Peak intensity: 5.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

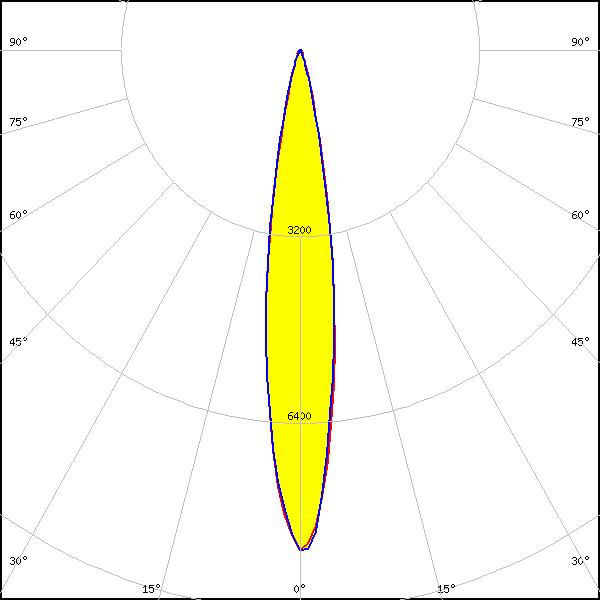

LED: LUXEON MZ
FWHM: 17°
FWTM: 31°
Peak intensity: 8.630 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

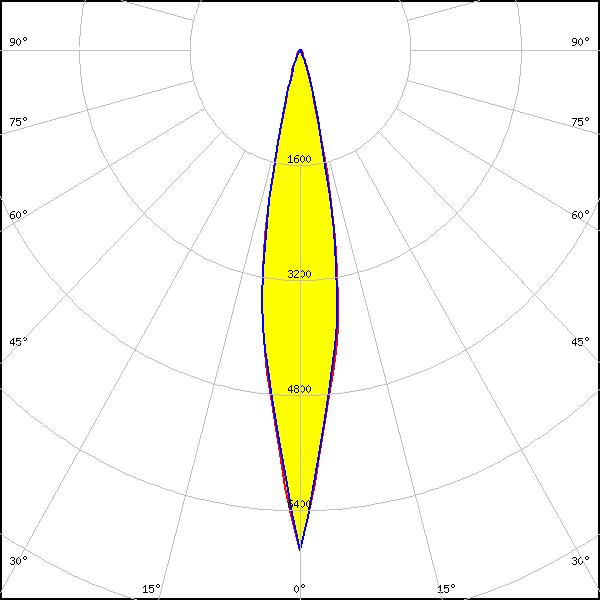

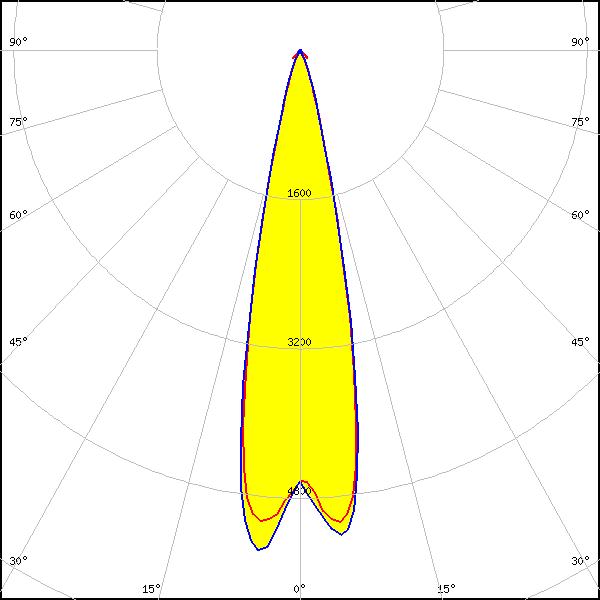

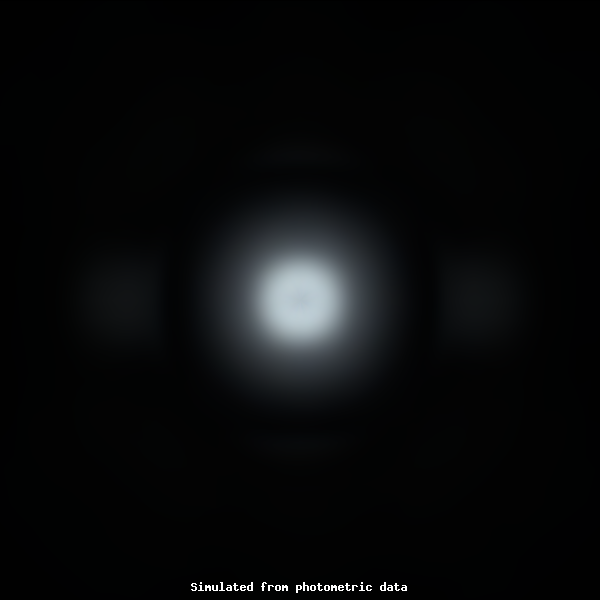

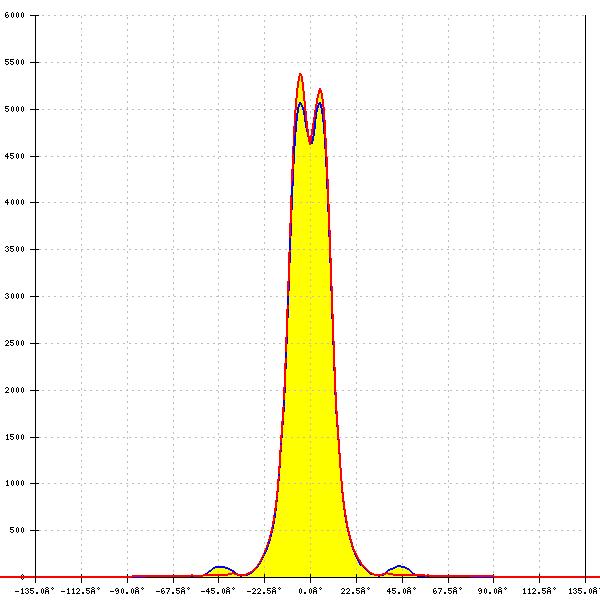

LED: SST-70X-WCS
FWHM: 18°
FWTM: 34°
Peak intensity: 6.951 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

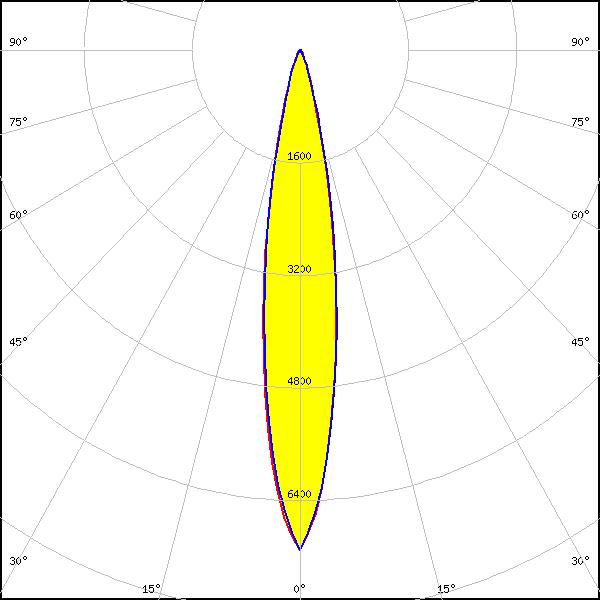

LED: NFMW48xA
Required components:
FWHM: 18°
FWTM: 34°
Peak intensity: 7.109 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

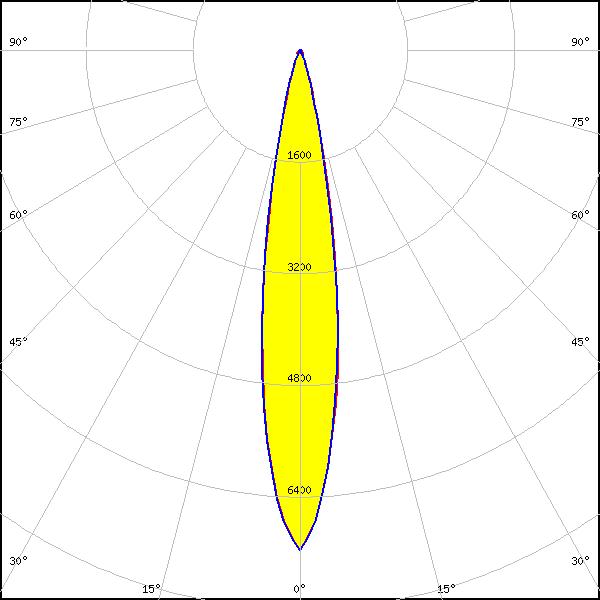

LED: NV4WB35AM
FWHM: 18°
FWTM: 32°
Peak intensity: 7.165 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

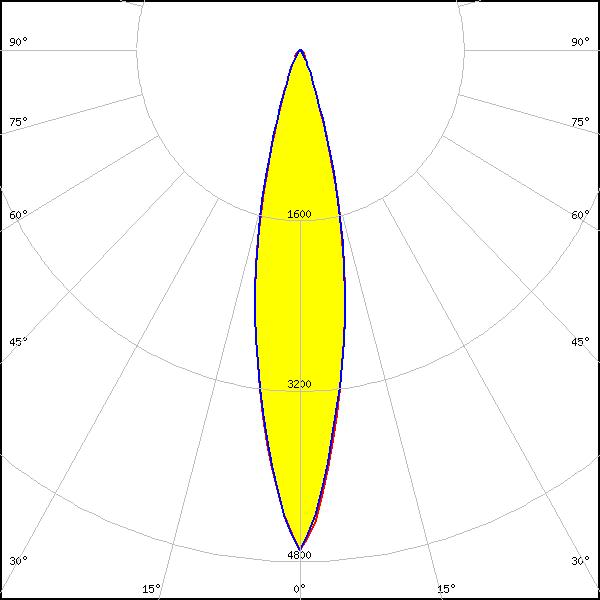

LED: NV4x144A
FWHM: 22°
FWTM: 42°
Peak intensity: 4.690 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

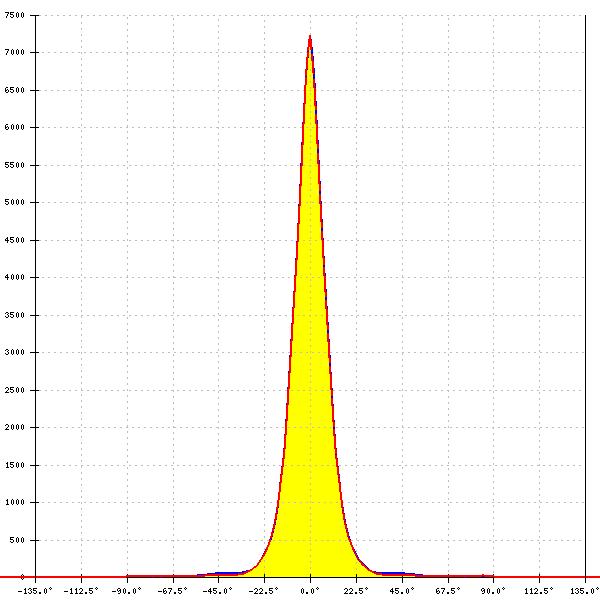

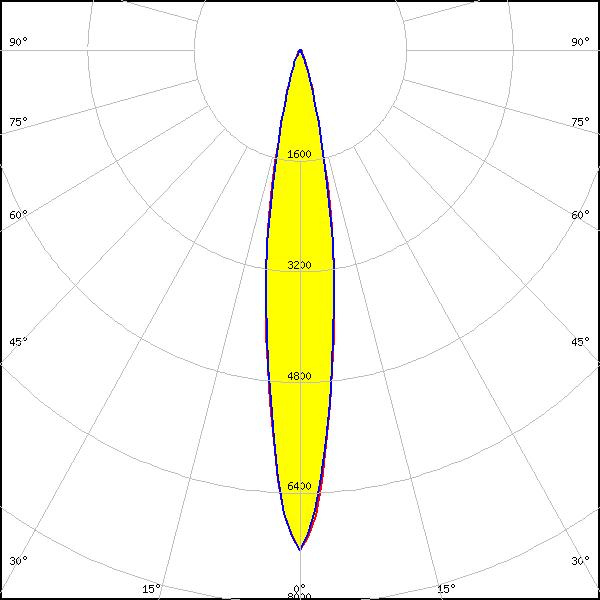

LED: NVSxE21A
FWHM: 16°
FWTM: 34°
Peak intensity: 7.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

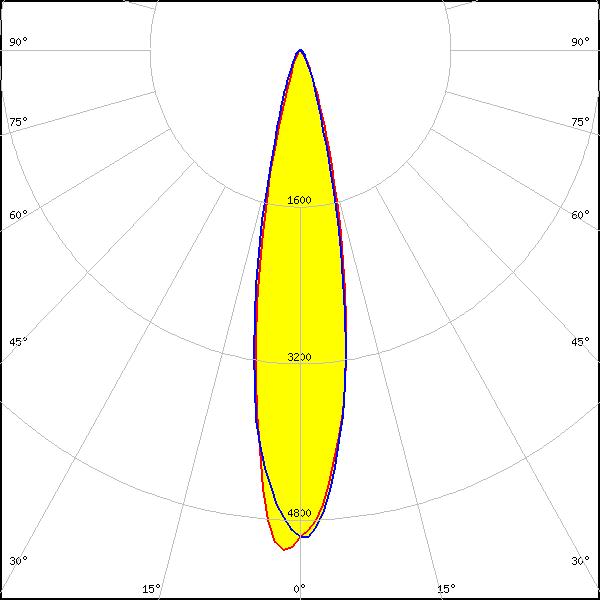

LED: Duris S10
FWHM: 21°
FWTM: 41°
Peak intensity: 5.080 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

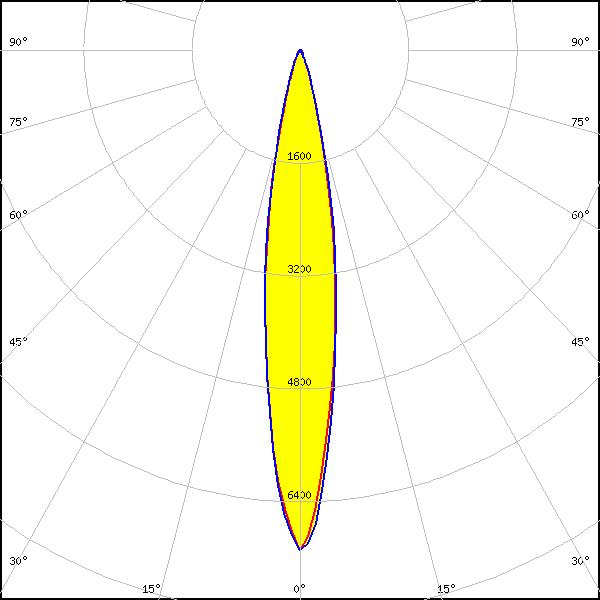

LED: Duris S8
FWHM: 17°
FWTM: 35°
Peak intensity: 7.090 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

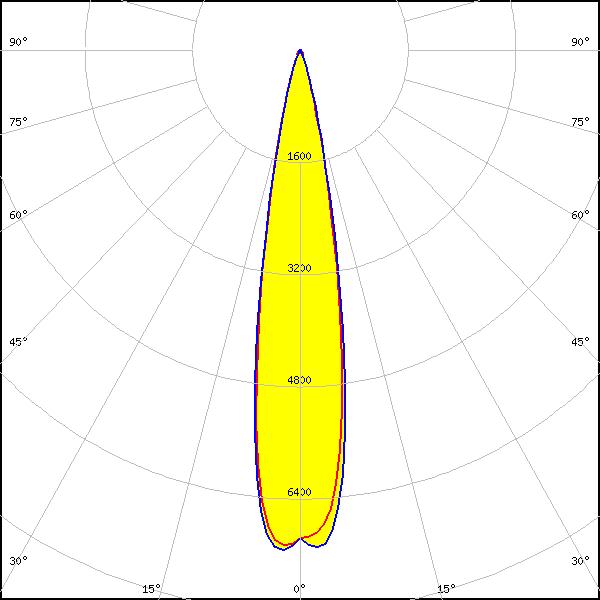

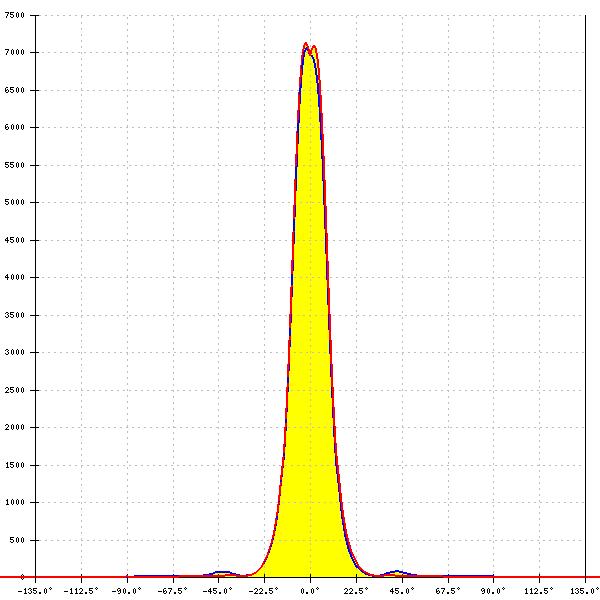

LED: OSCONIQ P 3737 (2W version)
FWHM: 20°
FWTM: 34°
Peak intensity: 7.160 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 7070
FWHM: 13°
FWTM: 34°
Peak intensity: 7.880 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

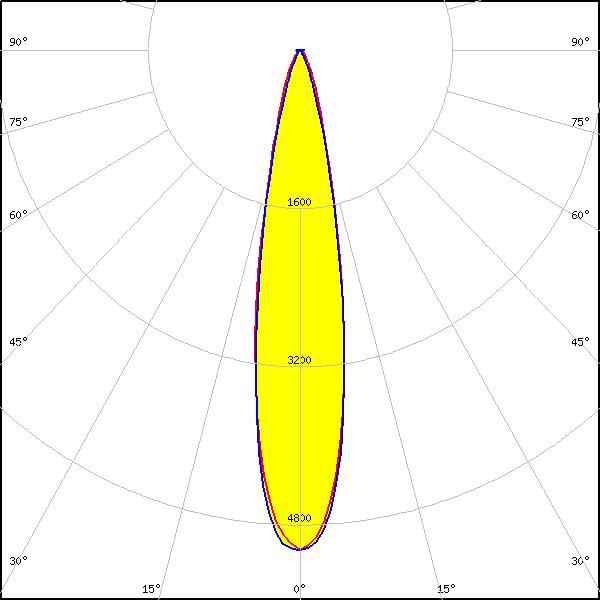

LED: Z8Y22
FWHM: 20°
FWTM: 40°
Peak intensity: 5.061 cd/lm
Efficiency: 95 %
LEDs/each optic: 4
Light colour/type: White
