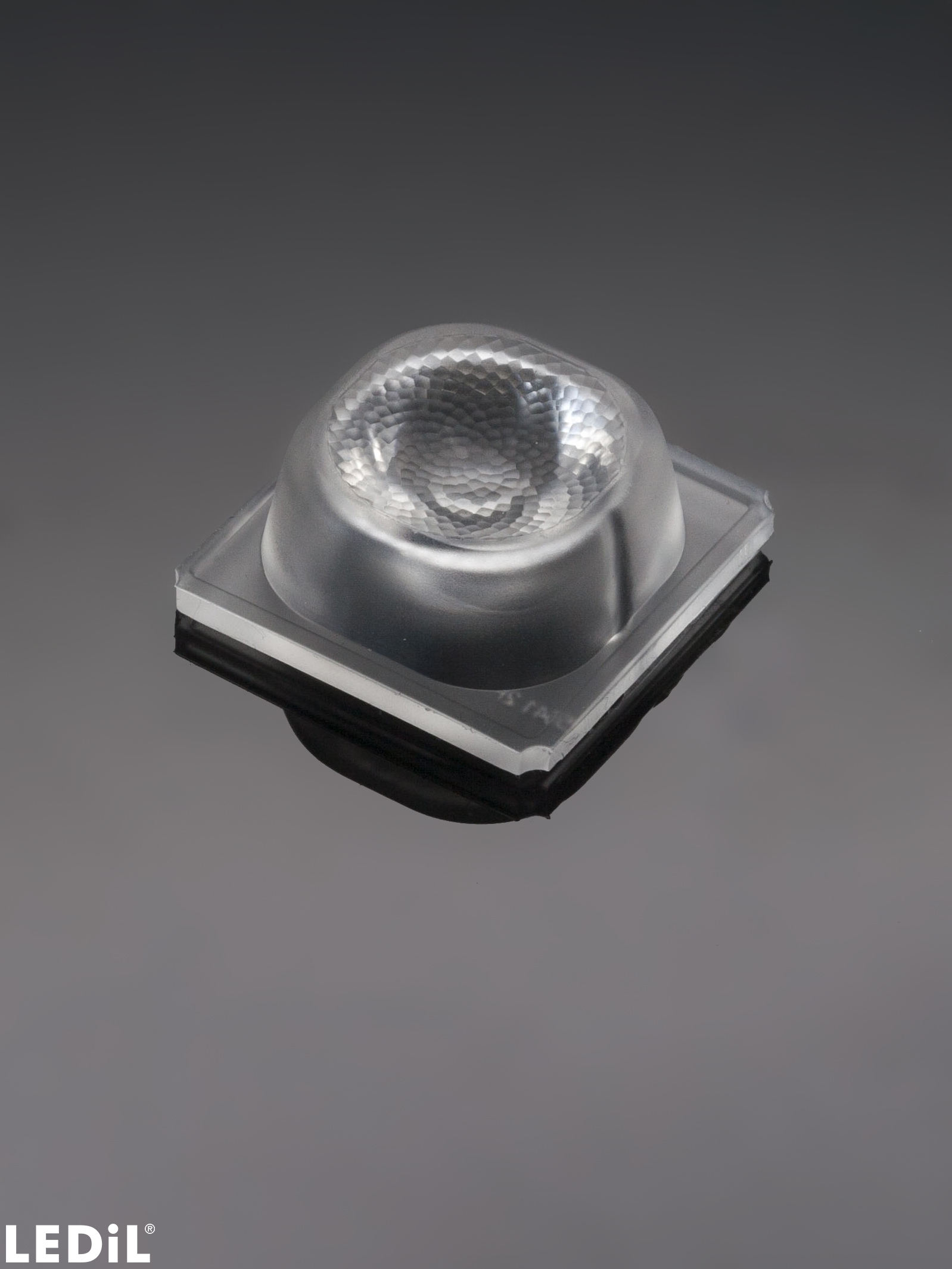

F15541_JENNY-60

Print

~60° beam

Specification
  • Dimensions:
    35 x  35 mm
  • Height:
    13.42 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    1200 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.9 kg
  • MPQ:
    60 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15541_JENNY-60

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Use C14436_JENNY-HLD-A-BLK for fastening.

Optical results

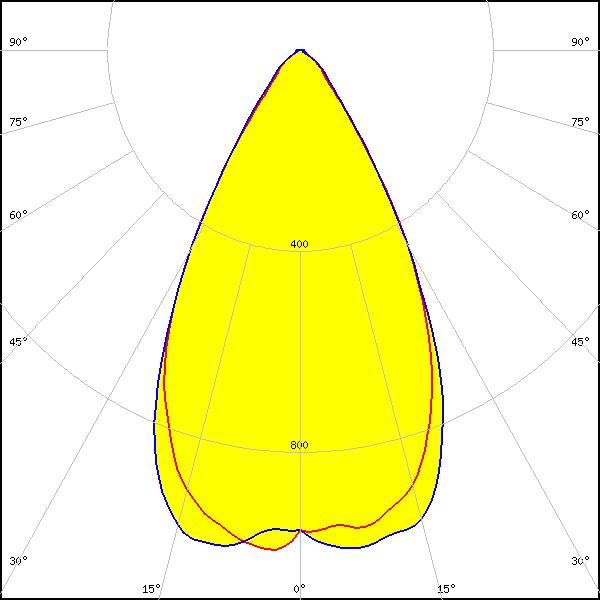

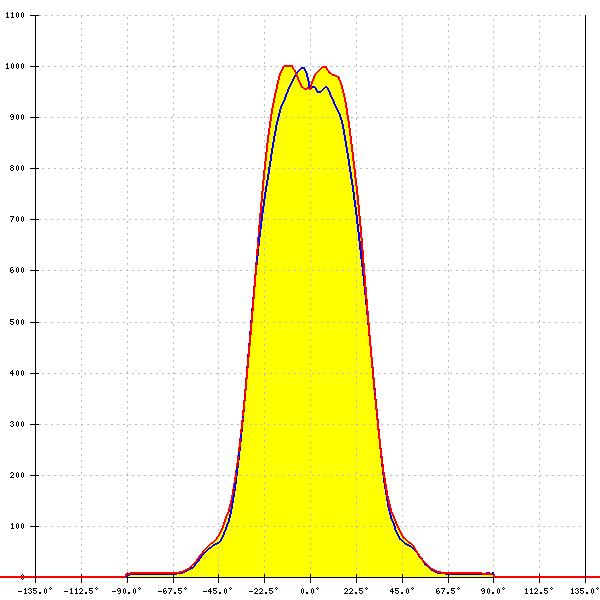

LED: MHD-E/G
FWHM: 57°
FWTM: 84°
Peak intensity: 1.020 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

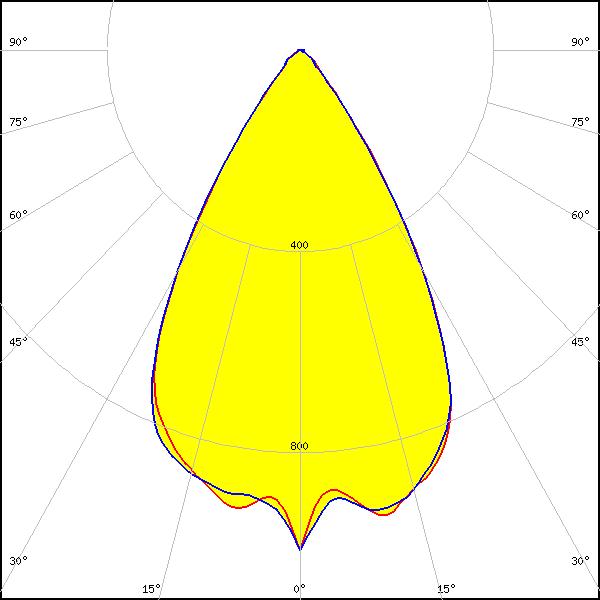

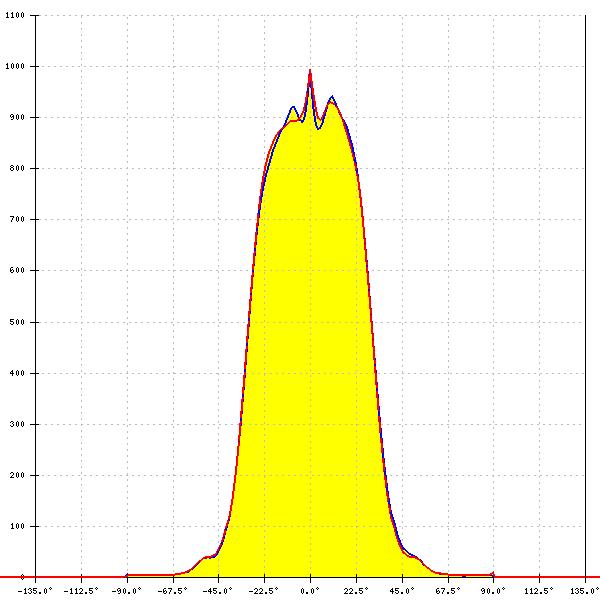

LED: MK-R
FWHM: 57°
FWTM: 82°
Peak intensity: 1.000 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: MK-R2
LEDs/each optic: 1
Light colour/type: White

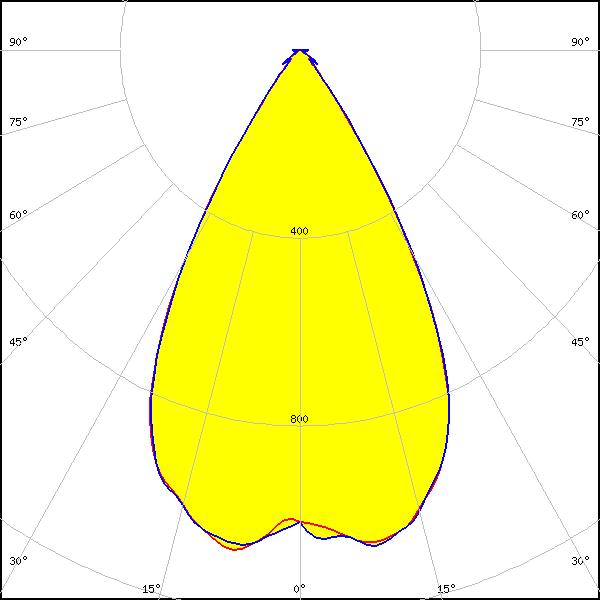

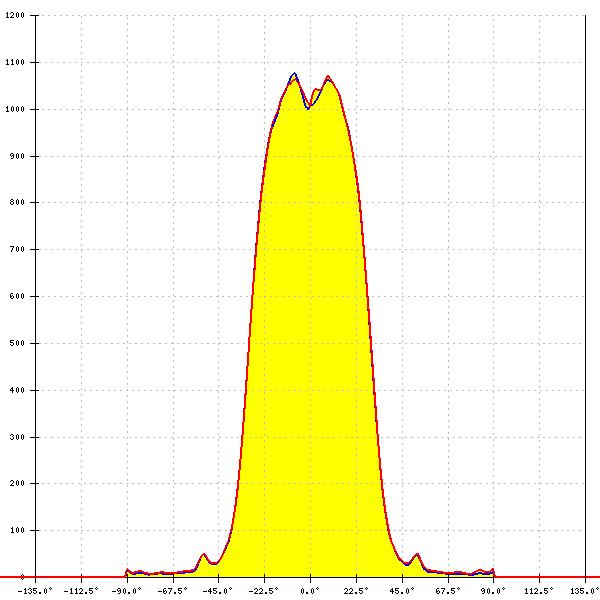

LED: XHP50
LEDs/each optic: 1
Light colour/type: White

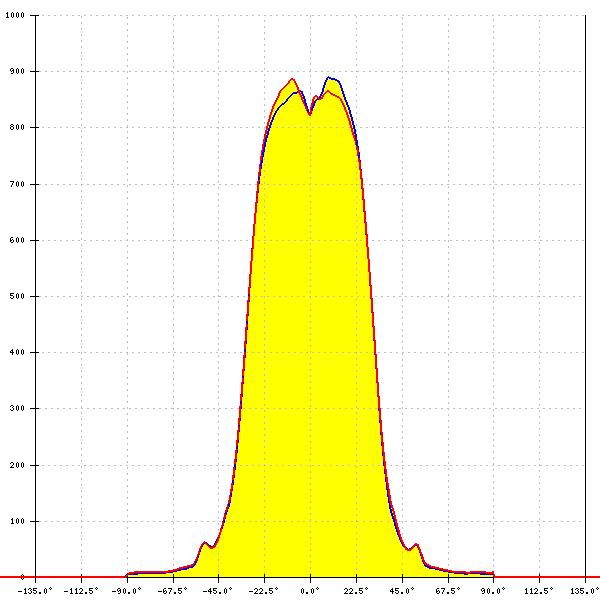

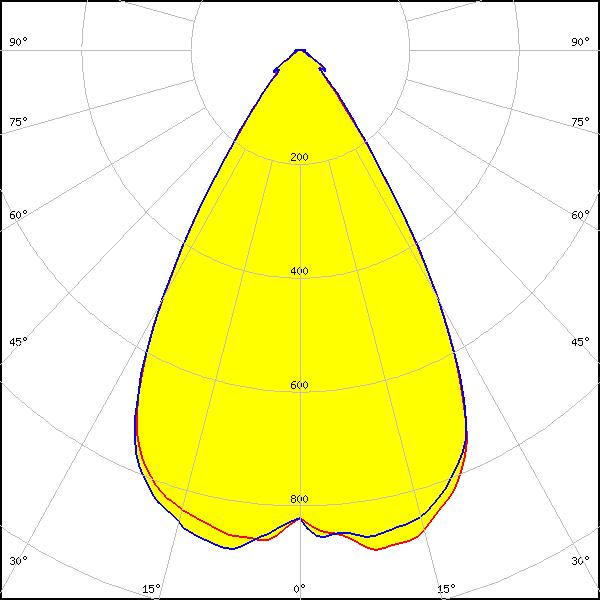

LED: XHP50.3 HD
FWHM: 62°
FWTM: 86°
Peak intensity: 0.925 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50.3 HI
FWHM: 58°
FWTM: 77°
Peak intensity: 1.108 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

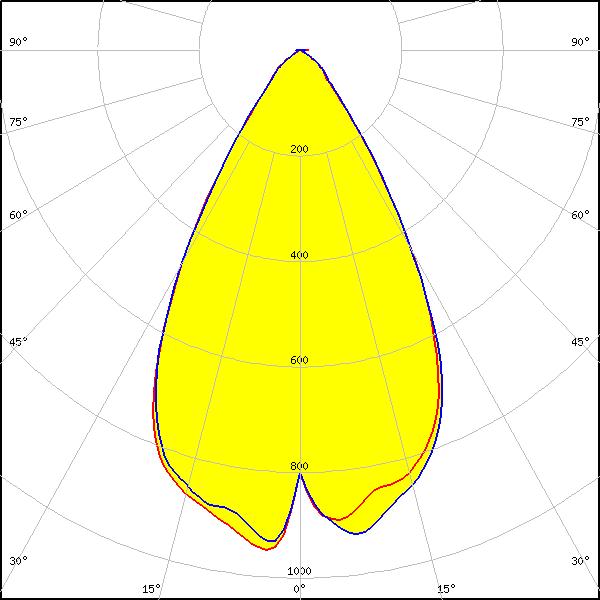

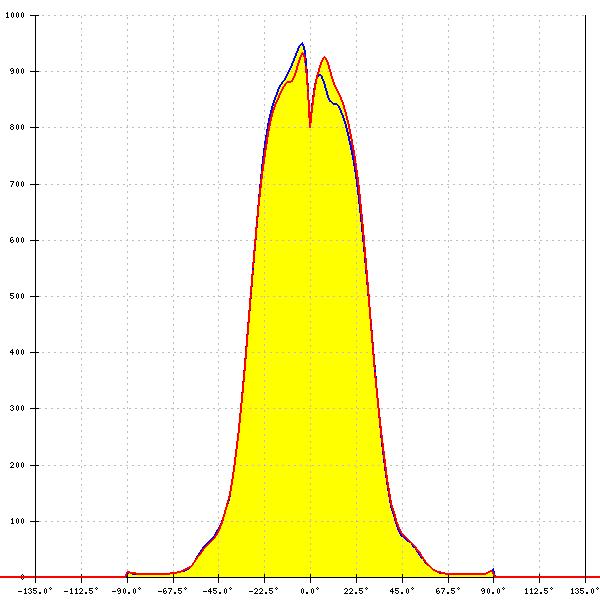

LED: XHP70
FWHM: 59°
FWTM: 86°
Peak intensity: 0.950 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

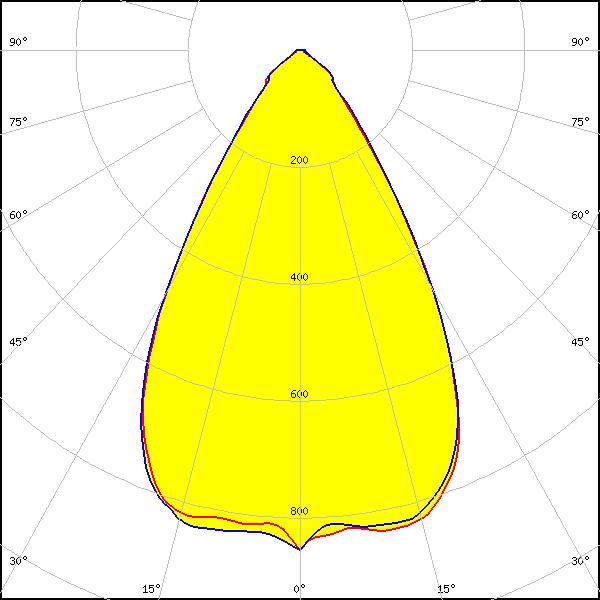

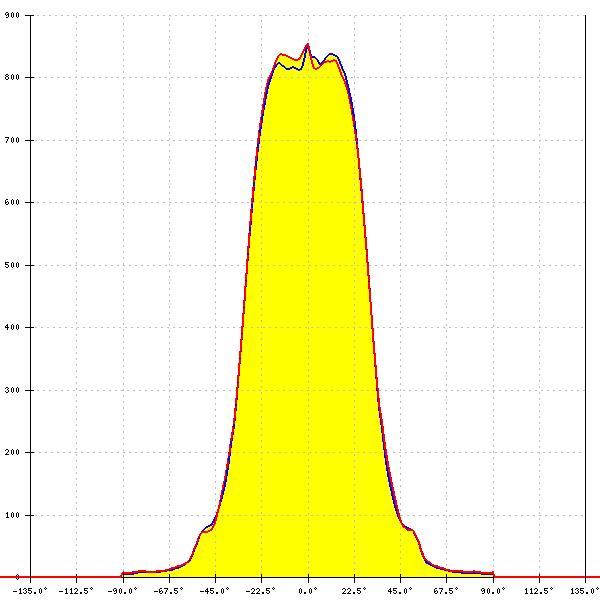

LED: XHP70.3 HD
FWHM: 62°
FWTM: 92°
Peak intensity: 0.858 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

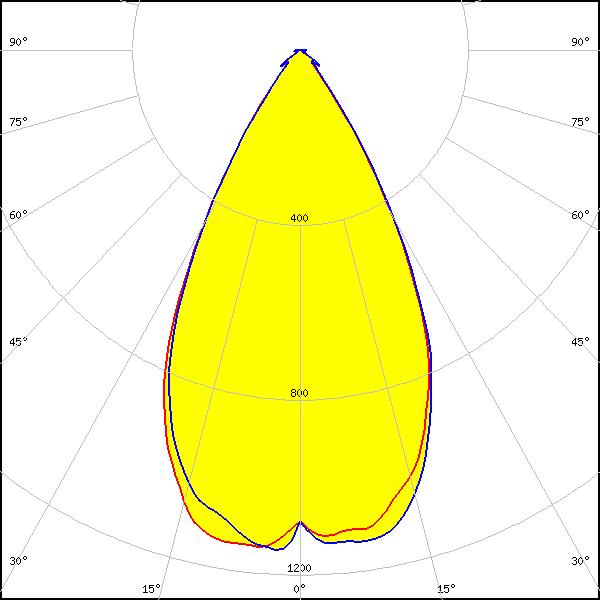

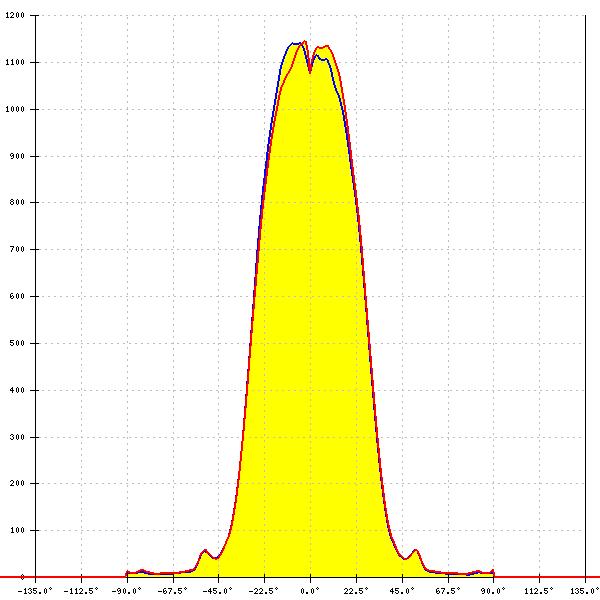

LED: XHP70.3 HI
FWHM: 56°
FWTM: 77°
Peak intensity: 1.178 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

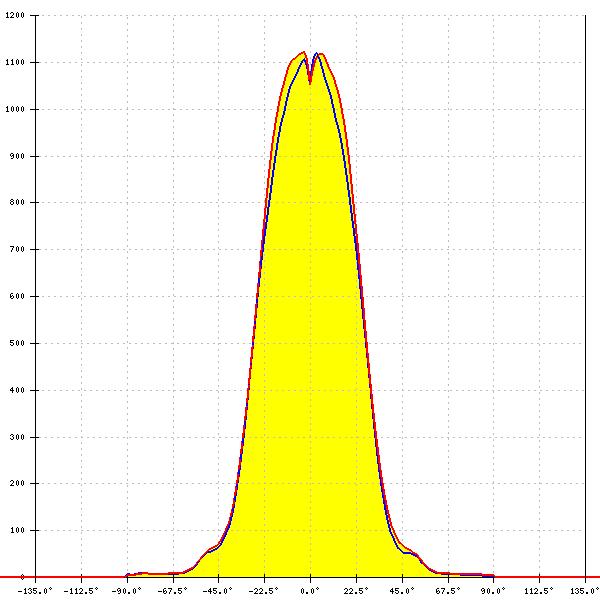

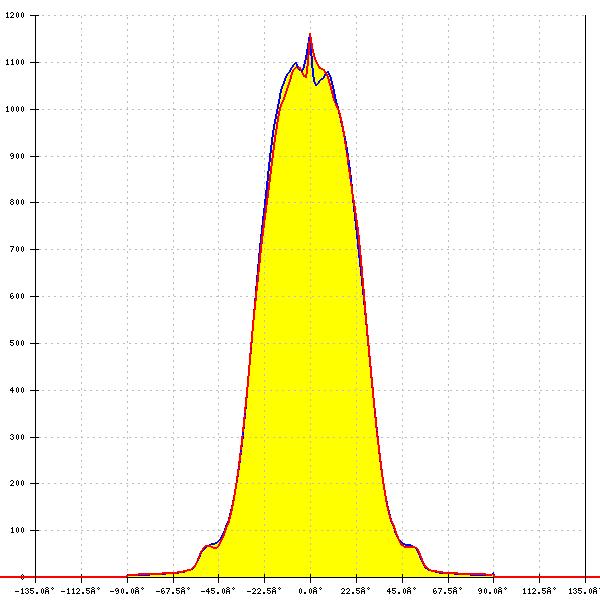

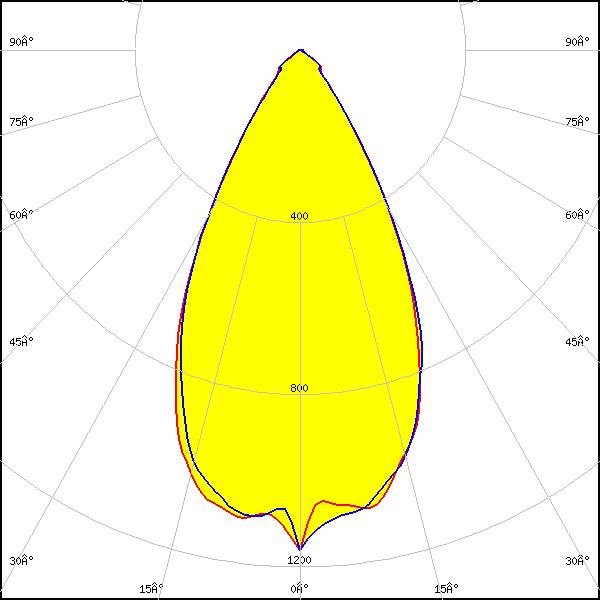

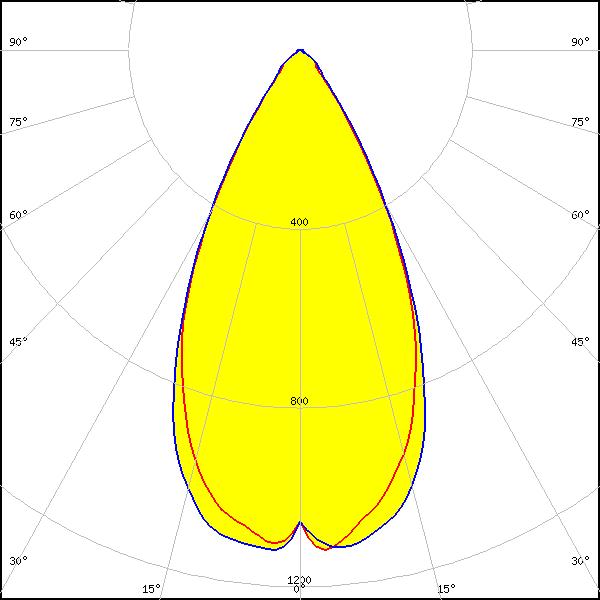

LED: LUXEON 7070
FWHM: 54°
FWTM: 80°
Peak intensity: 1.131 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

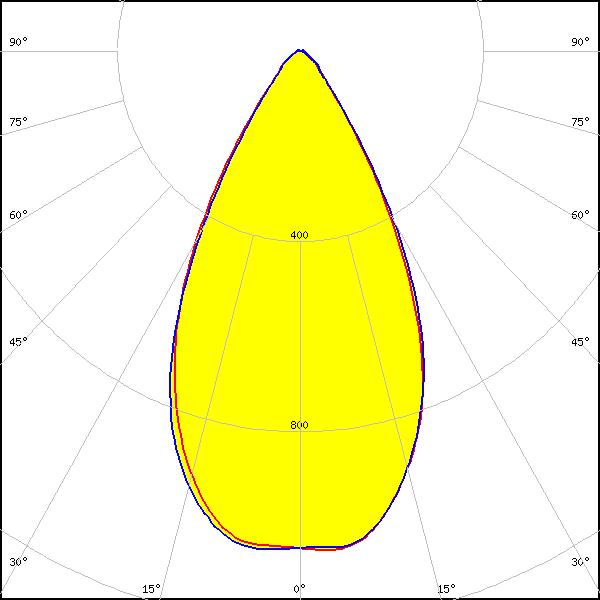

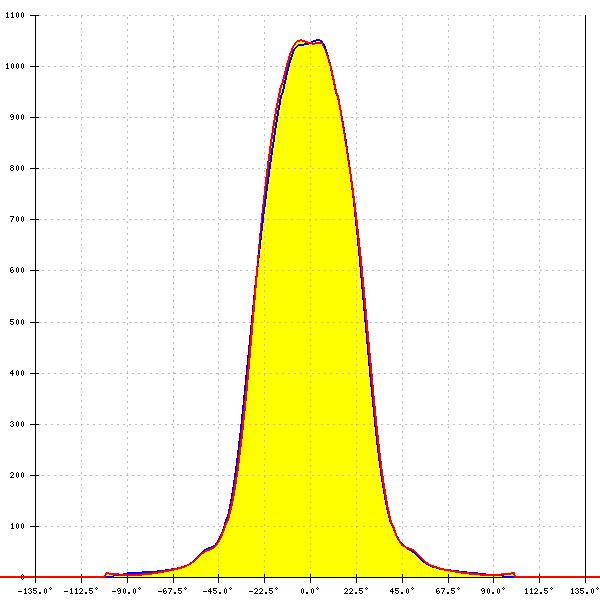

LED: LUXEON M/MX
FWHM: 55°
FWTM: 81°
Peak intensity: 1.100 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

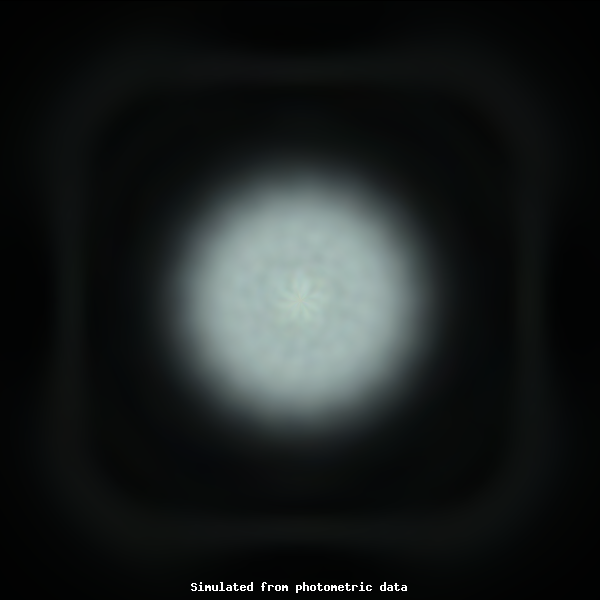

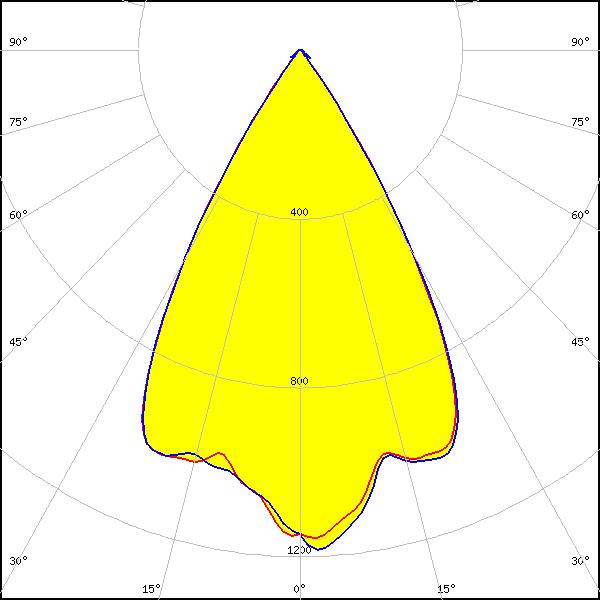

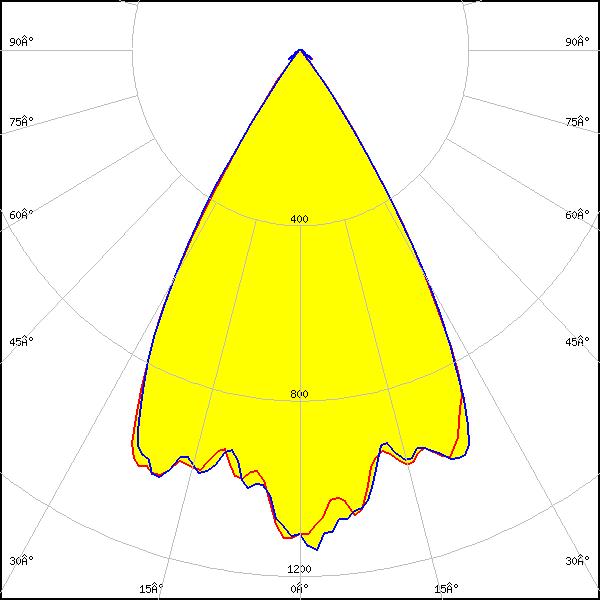

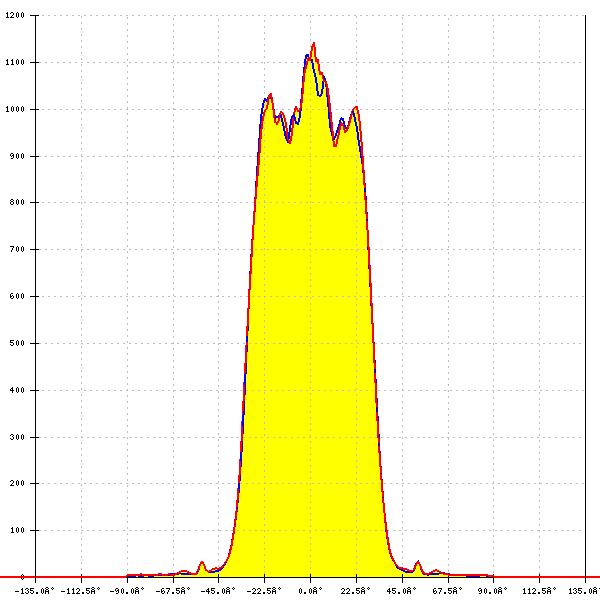

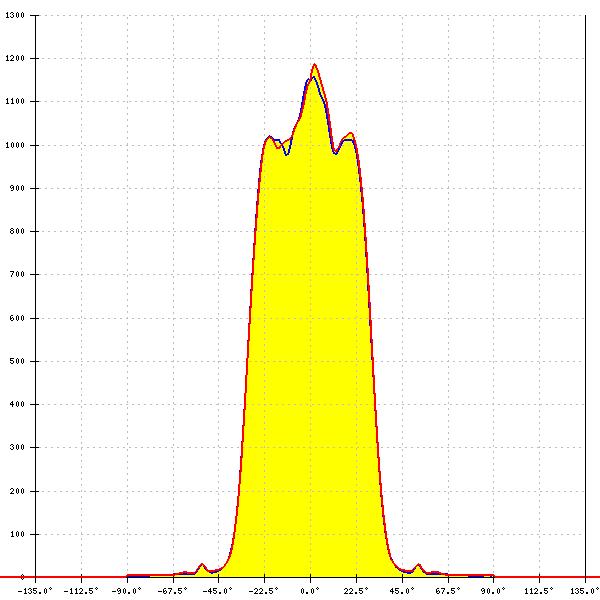

LED: SFT-40-WCS
FWHM: 60°
FWTM: 74°
Peak intensity: 1.235 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

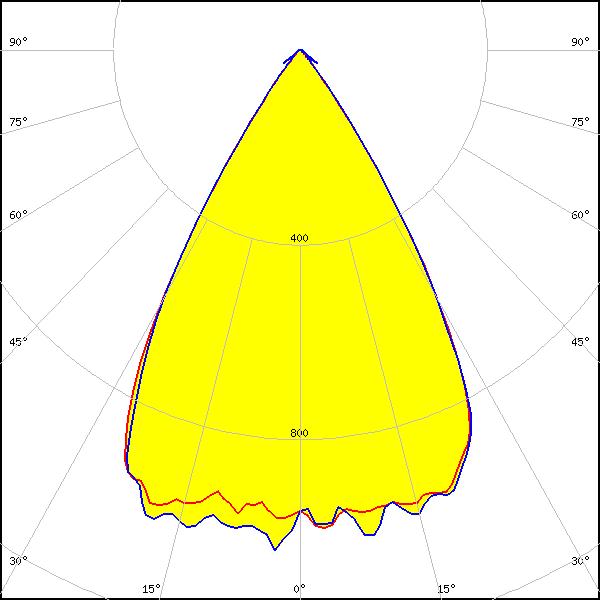

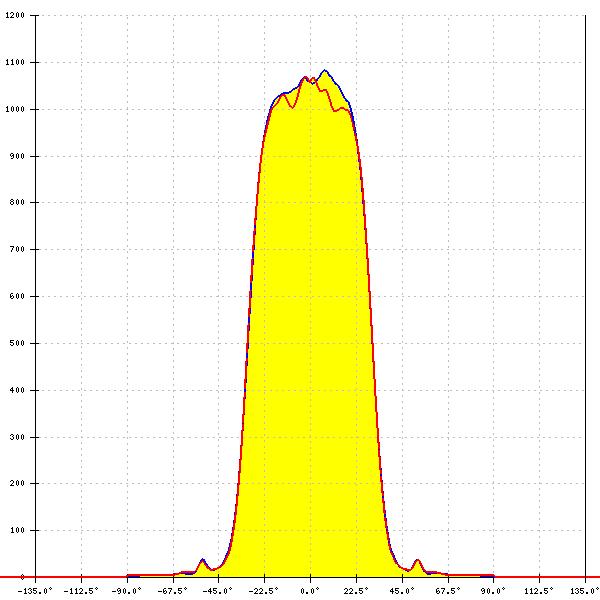

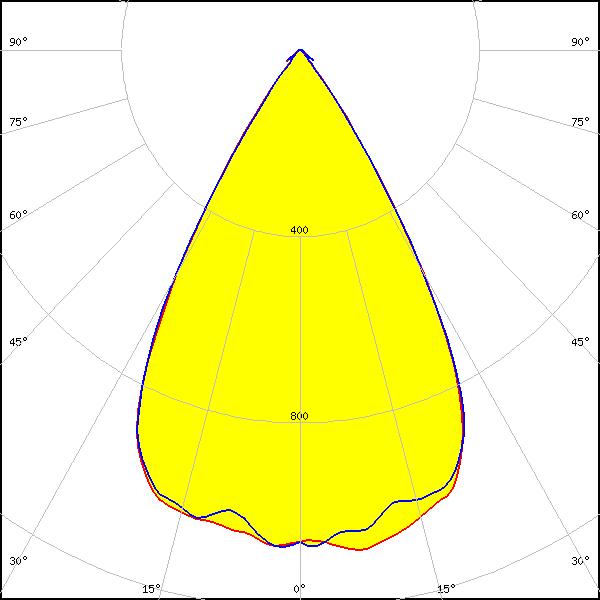

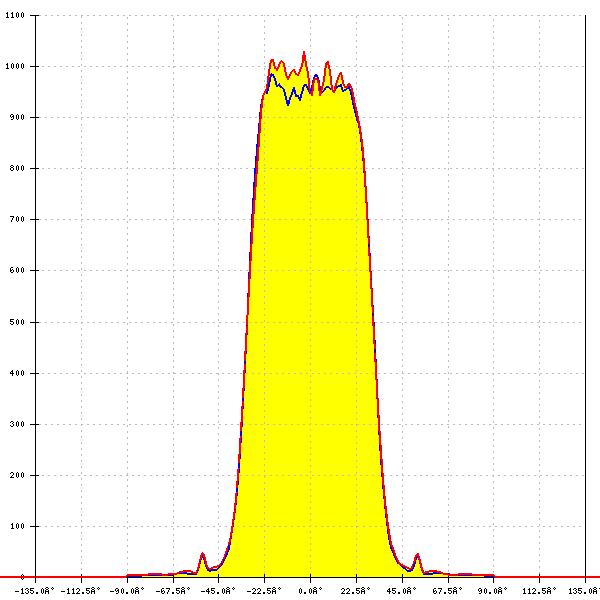

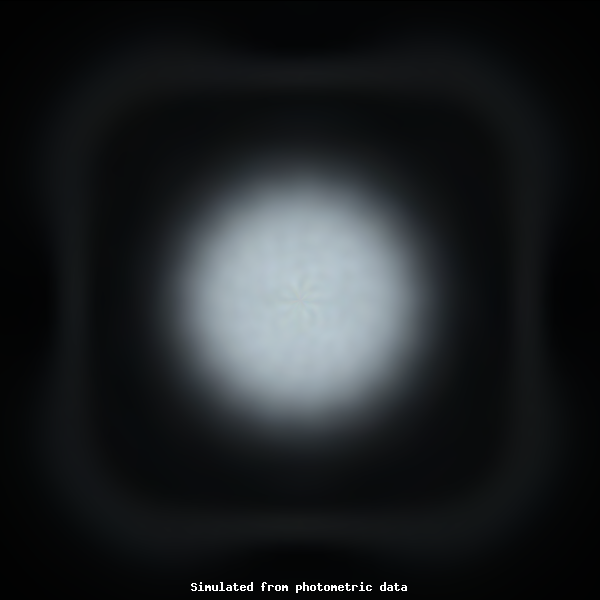

LED: SFT-70X-WCS
FWHM: 60°
FWTM: 76°
Peak intensity: 1.129 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

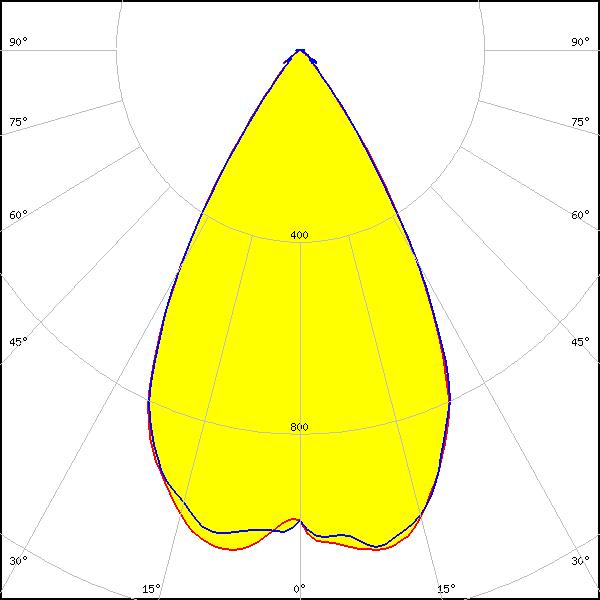

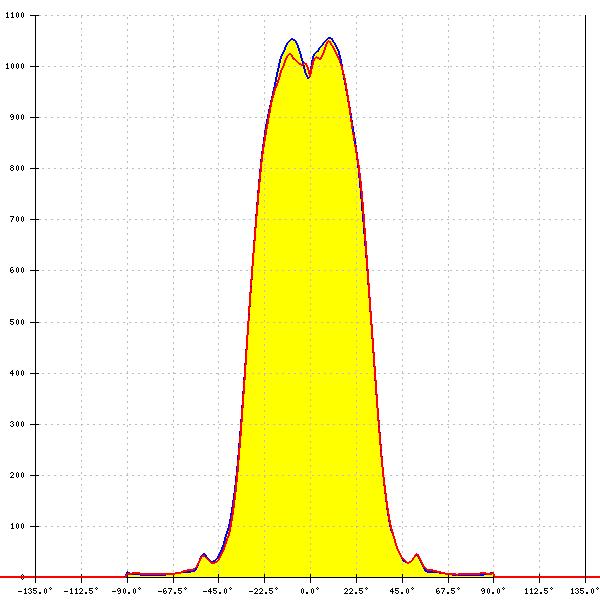

LED: SST-70X-WCS
FWHM: 60°
FWTM: 79°
Peak intensity: 1.092 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

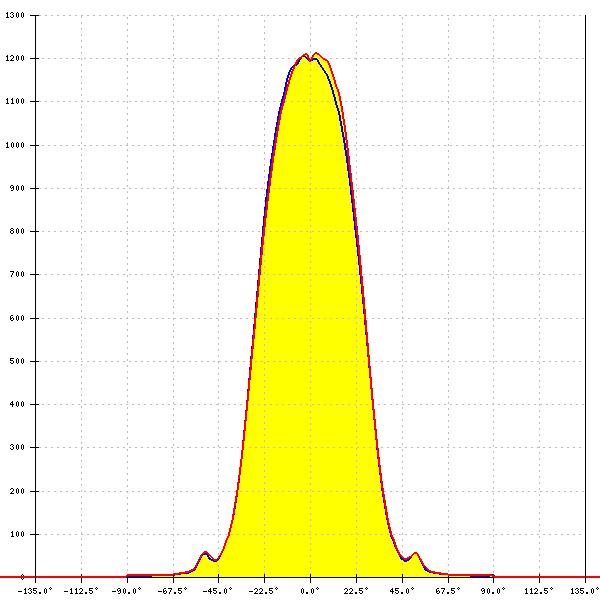

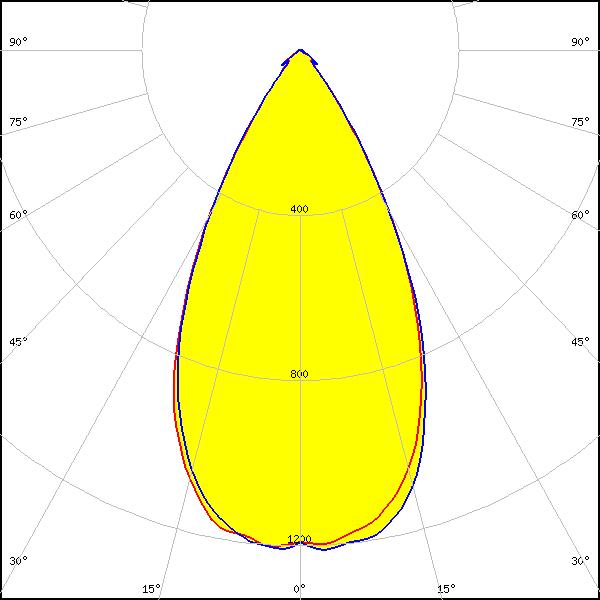

LED: NFMW48xA
FWHM: 54°
FWTM: 78°
Peak intensity: 1.231 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

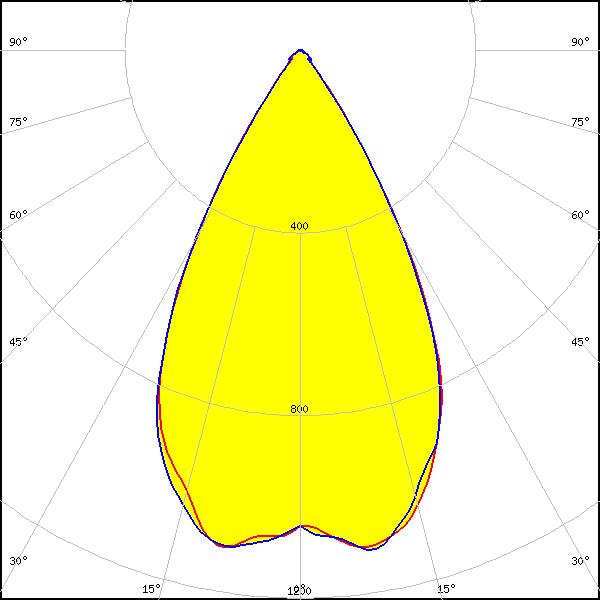

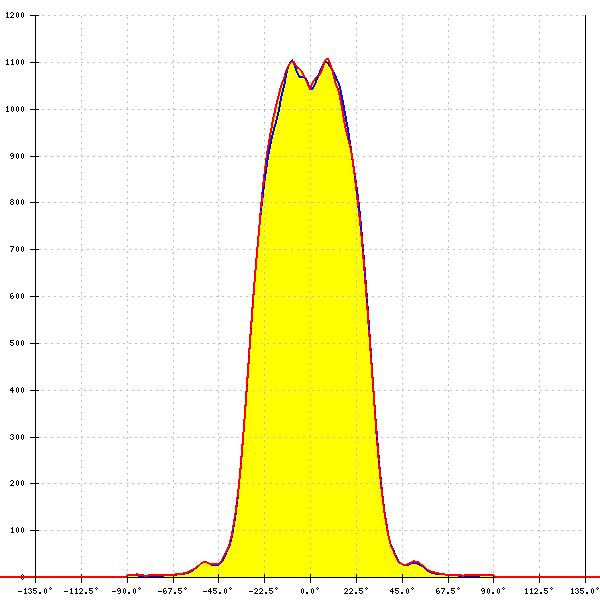

LED: NV4WB35AM
FWHM: 58°
FWTM: 76°
Peak intensity: 1.162 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

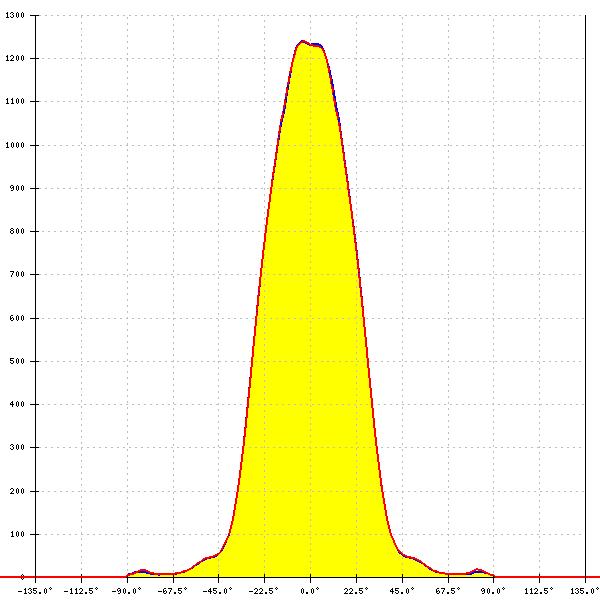

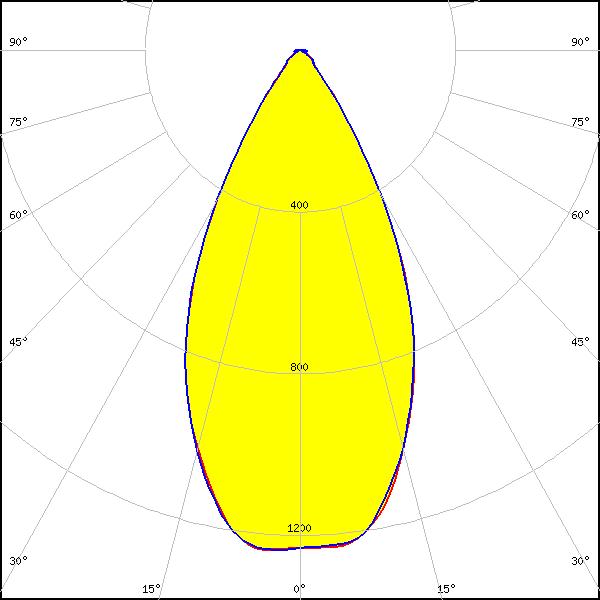

LED: NVSxE21A
FWHM: 51°
FWTM: 77°
Peak intensity: 1.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

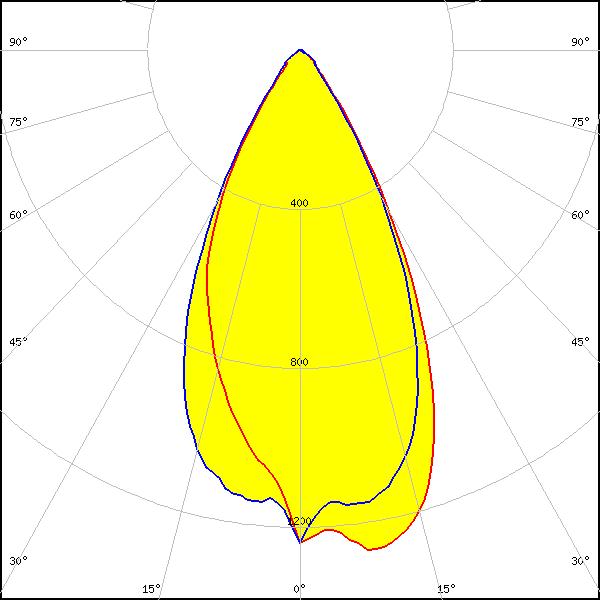

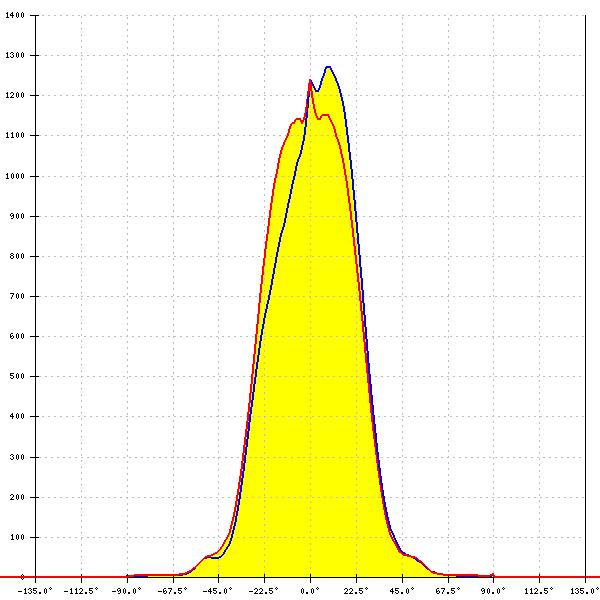

LED: Duris S10
FWHM: 49°
FWTM: 77°
Peak intensity: 1.280 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

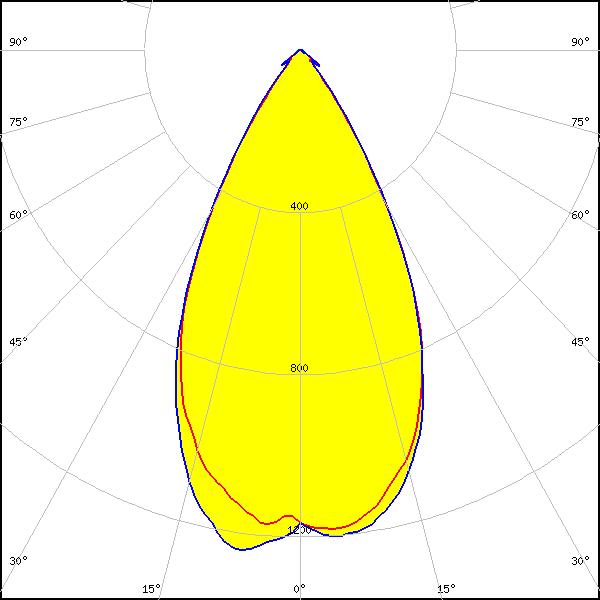

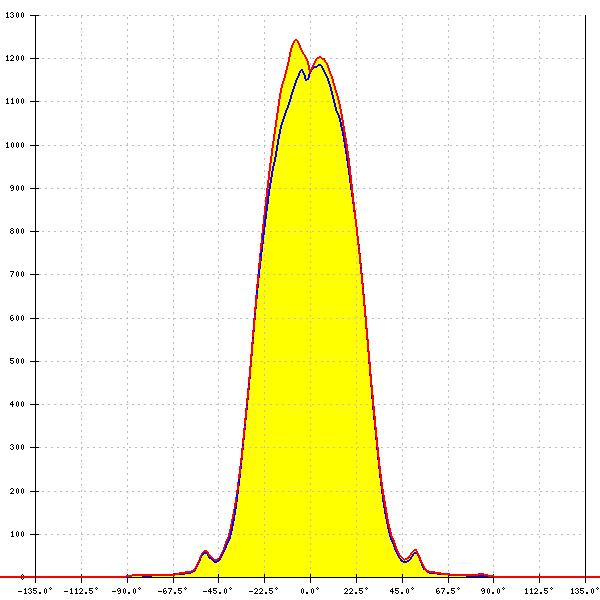

LED: Duris S8
FWHM: 50°
FWTM: 77°
Peak intensity: 1.240 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

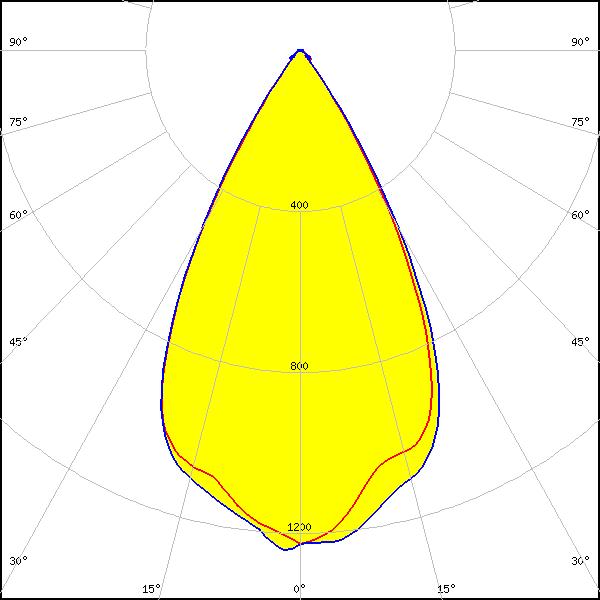

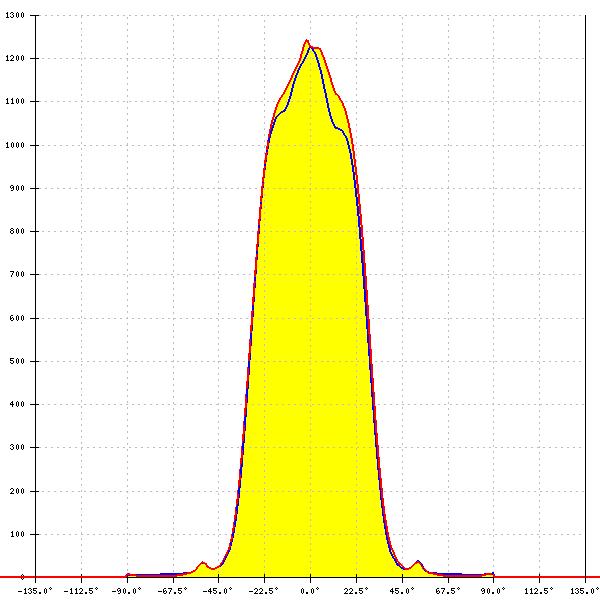

LED: OSCONIQ P 3737 (2W version)
FWHM: 56°
FWTM: 75°
Peak intensity: 1.243 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: 56°
FWTM: 75°
Peak intensity: 1.240 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 7070
FWHM: 55°
FWTM: 79°
Peak intensity: 1.100 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

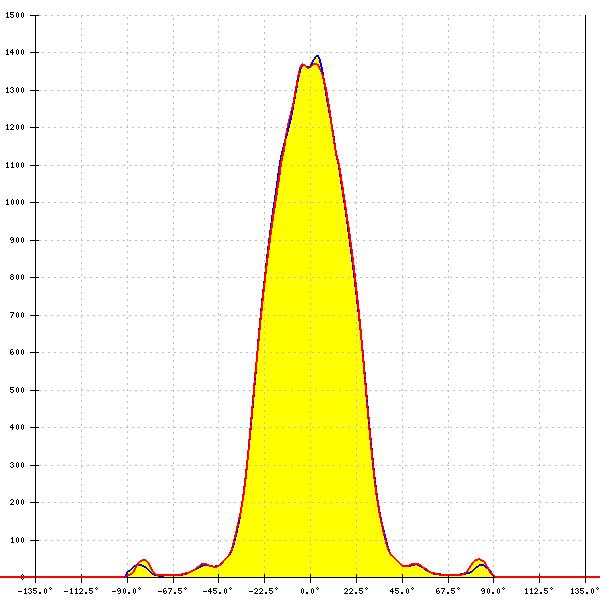

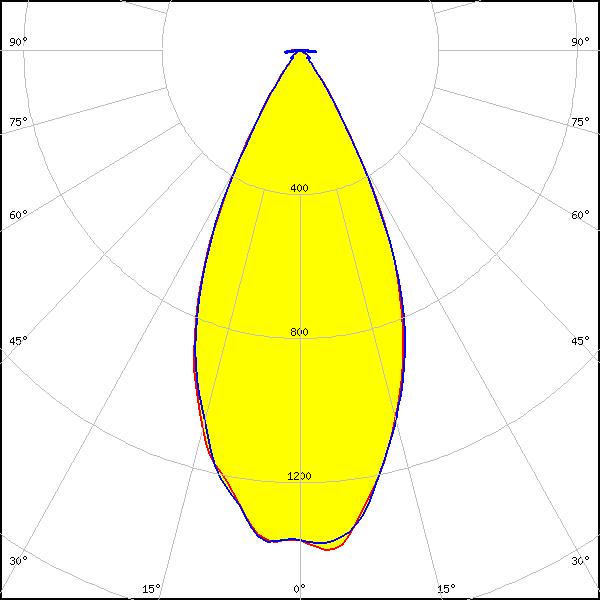

LED: Z8Y22
FWHM: 48°
FWTM: 72°
Peak intensity: 1.418 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CUN66B1G
FWHM: 41°
FWTM: 65°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: UV-A
