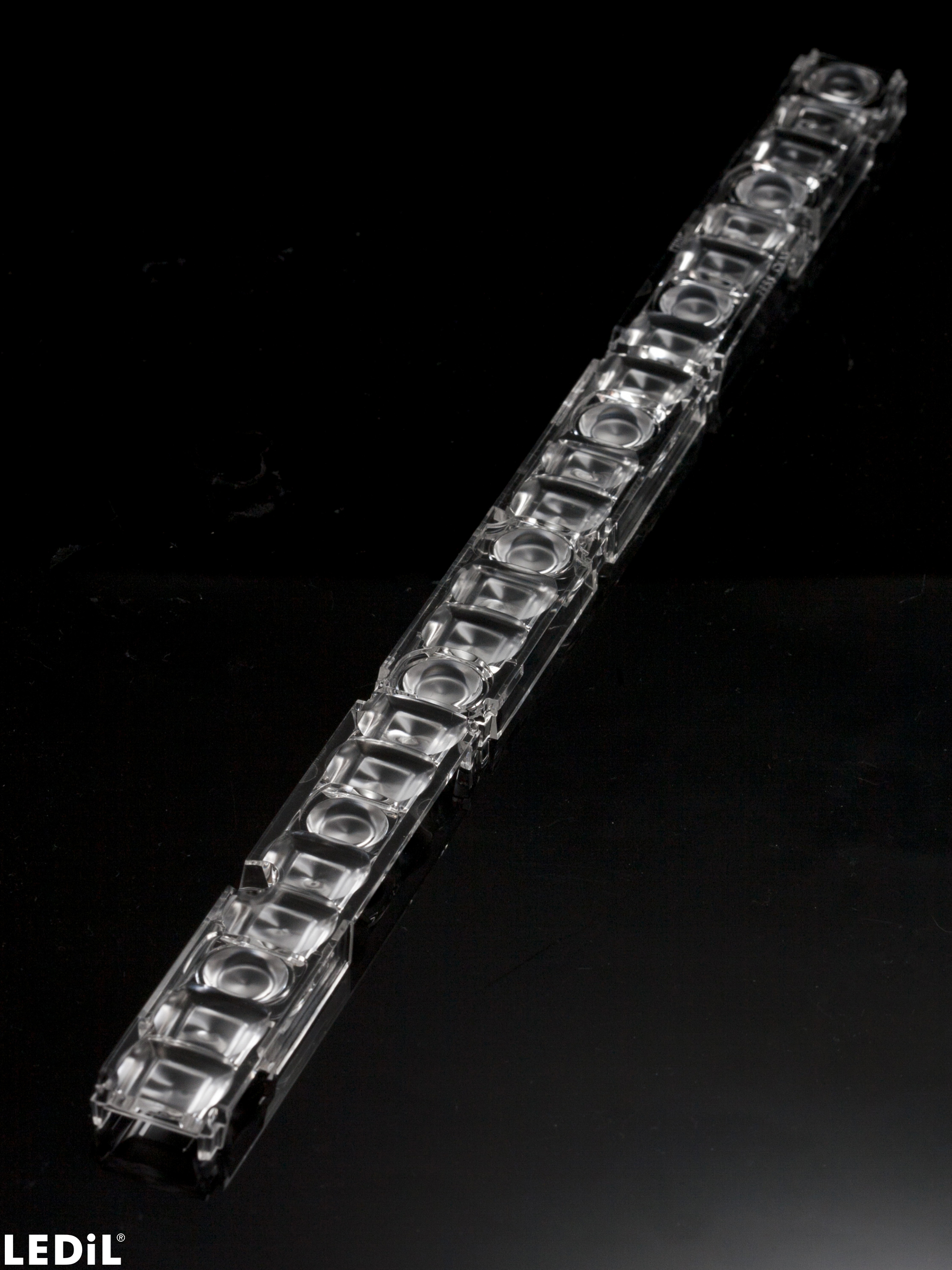

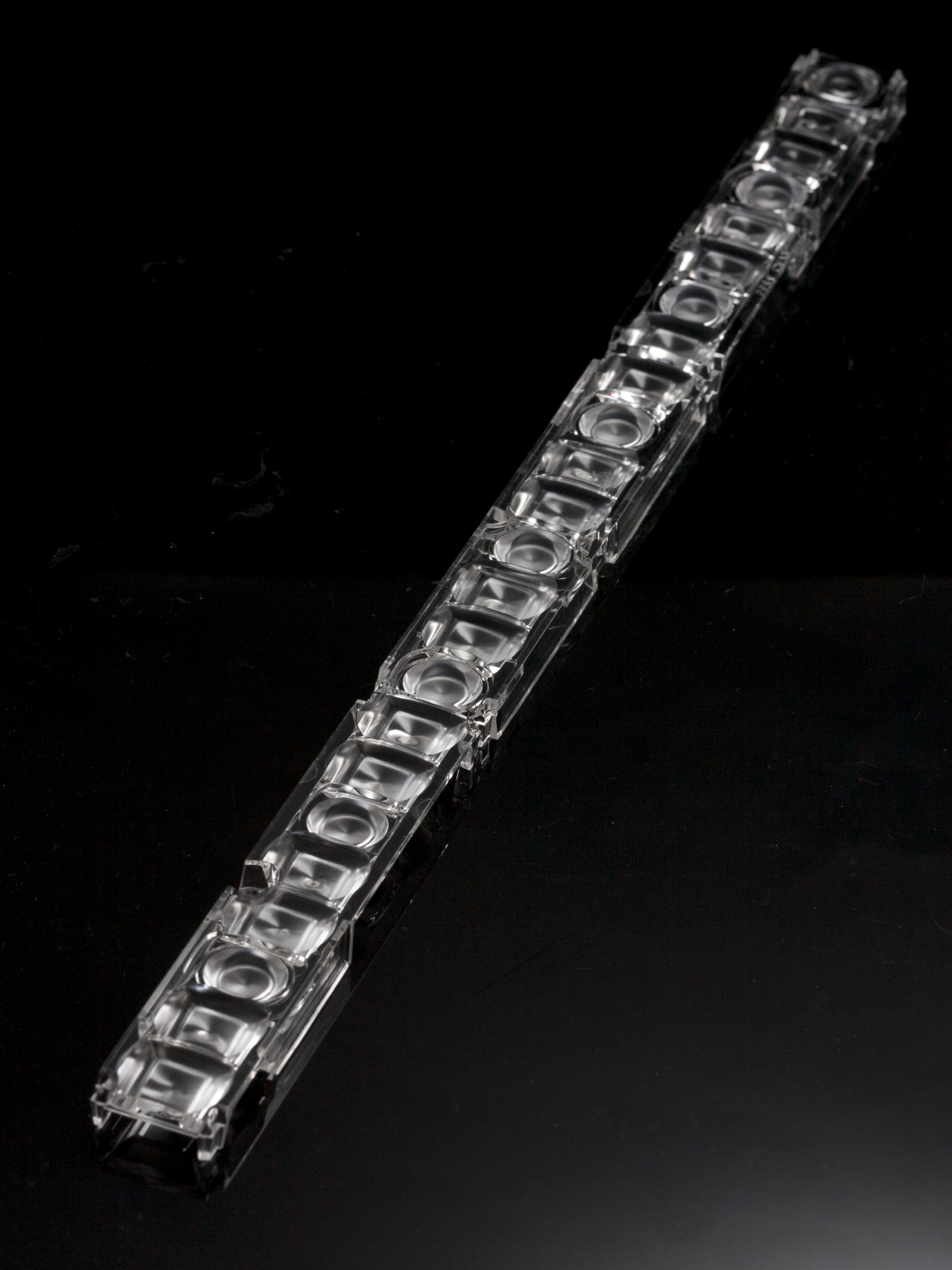

    F15684_FLORENCE-1R-GC-Z60

    Print

    ~70° wide beam

    Specification
    • Dimensions:
      19 x  283 mm
    • Height:
      7.66 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      165 pcs
    • Box size:
      398 x 298 x 265 mm
    • Box weight:
      4.8 kg
    • MPQ:
      15 pcs
    • MOQ:
      45 pcs
    • MOQ size:
      400 x 300 x 100 mm
    • MOQ weight:
      1.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      F15684_FLORENCE-1R-GC-Z60
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    FLORENCE-1R assembly instruction

    Application example

    Office lighting with FLORENCE-1R-GC and FLORENCE-1R

    News

    Linear lighting solutions

    News

    PRODUCT NEWS - FLORENCE-1R-GC

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application guide

    Guide for Retail Lighting Optics

    Article

    Illuminating supermarkets with LEDiL optics

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FLORENCE-1R-CLIP-A

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

    FLORENCE-1R-CLIP-B

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

    FLORENCE-1R-CLIP-C

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

    Optical results

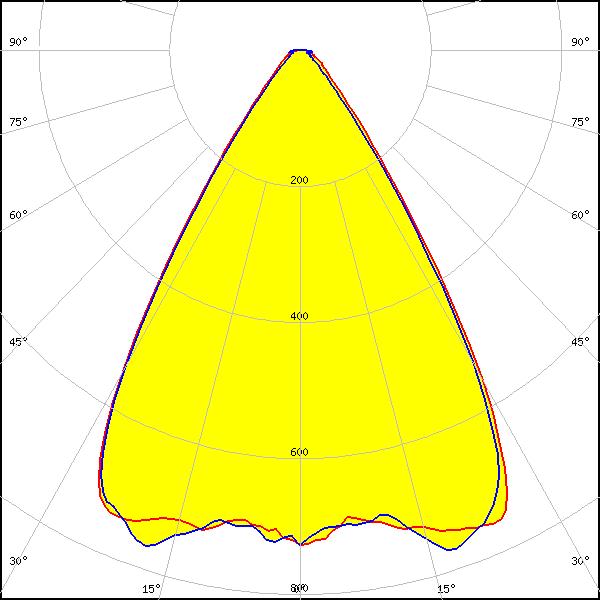

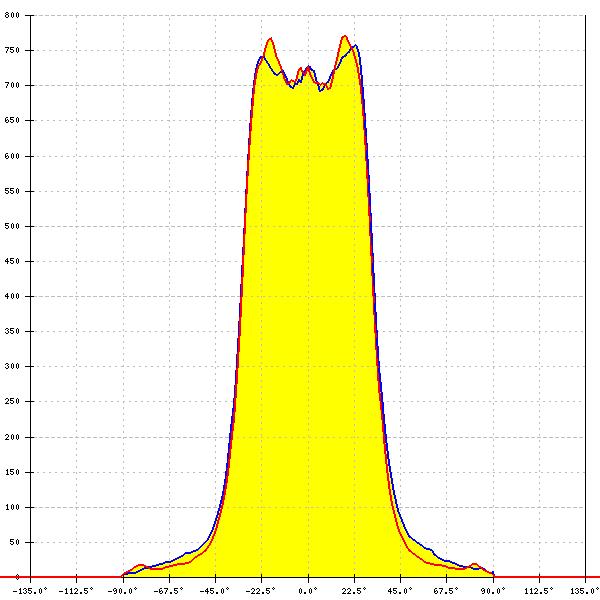

    LED: LUXEON 2835 Architectural
    FWHM: 58°
    FWTM: 84°
    Peak intensity: 0.790 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

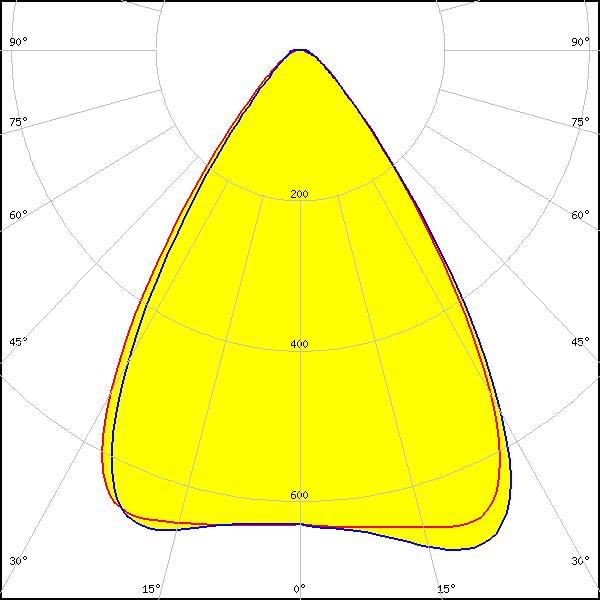

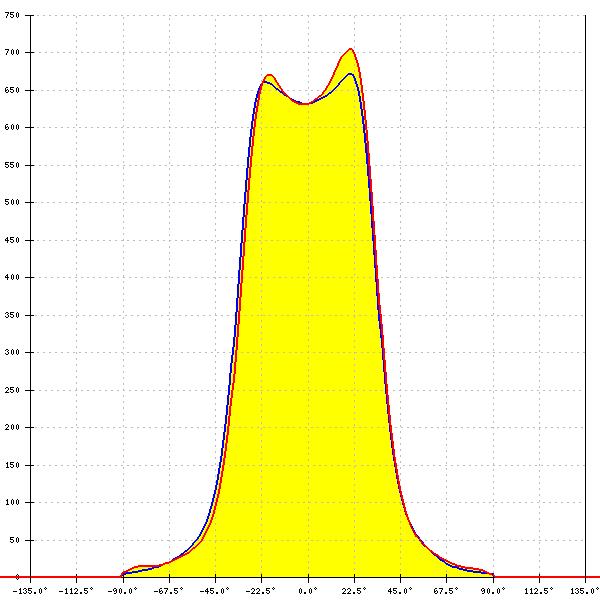

    LED: Duris E 2835
    FWHM: 64°
    FWTM: 96°
    Peak intensity: 0.710 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

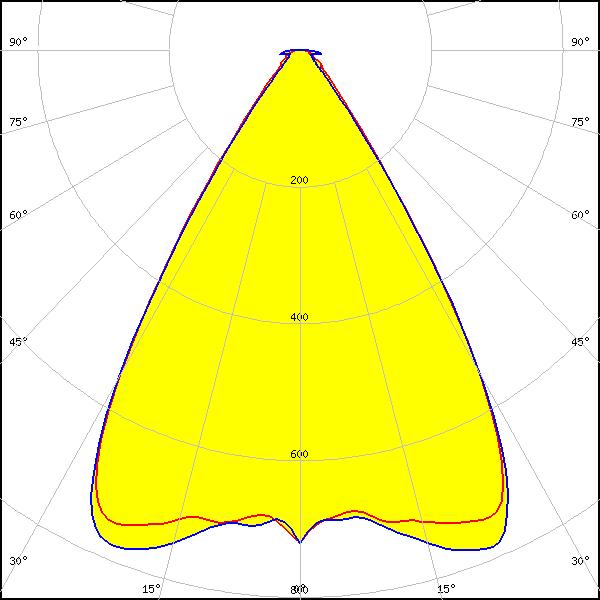

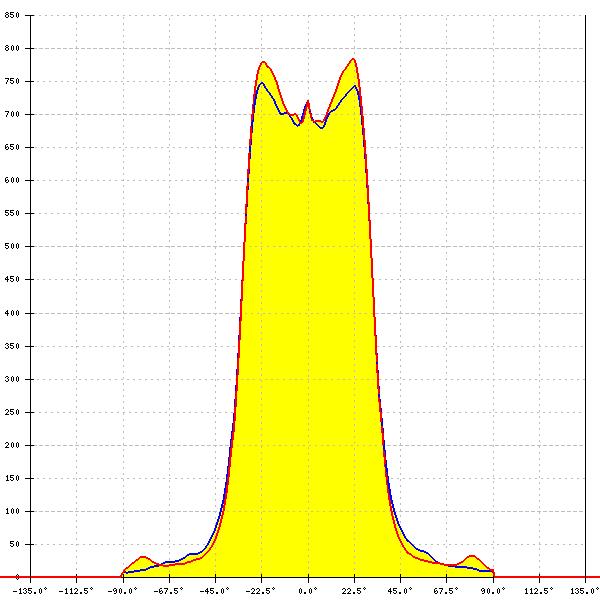

    LED: LH181B
    FWHM: 66°
    FWTM: 88°
    Peak intensity: 0.807 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

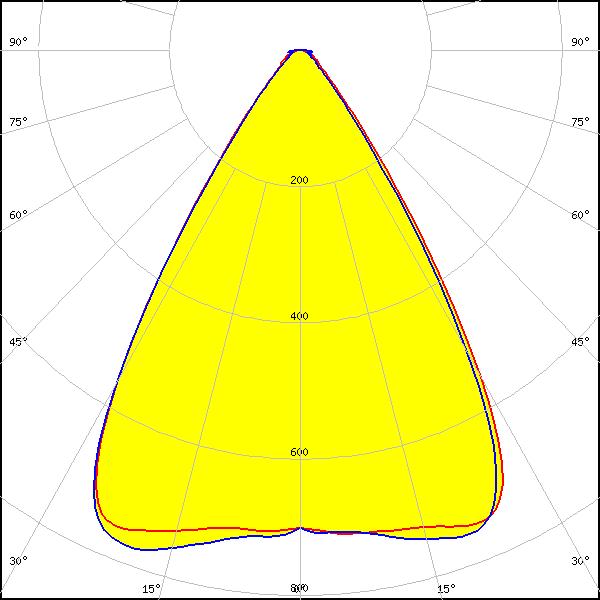

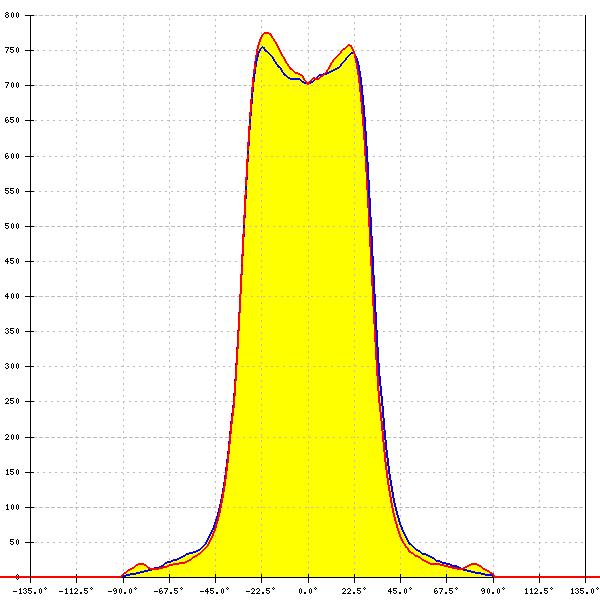

    LED: LM28xB Series
    FWHM: 58°
    FWTM: 83°
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

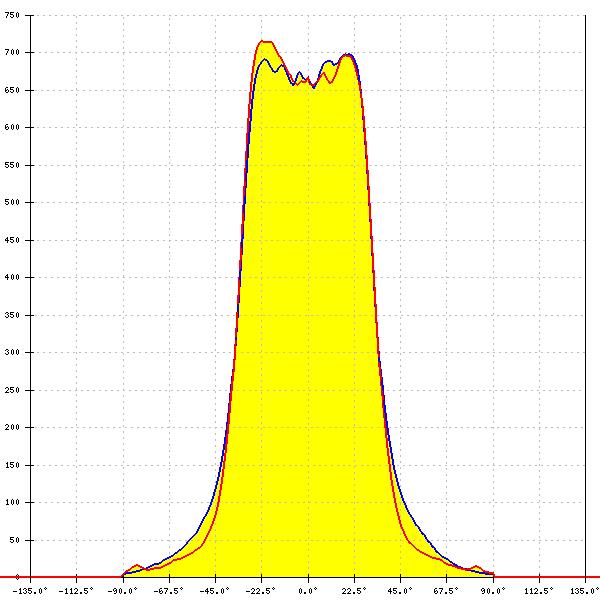

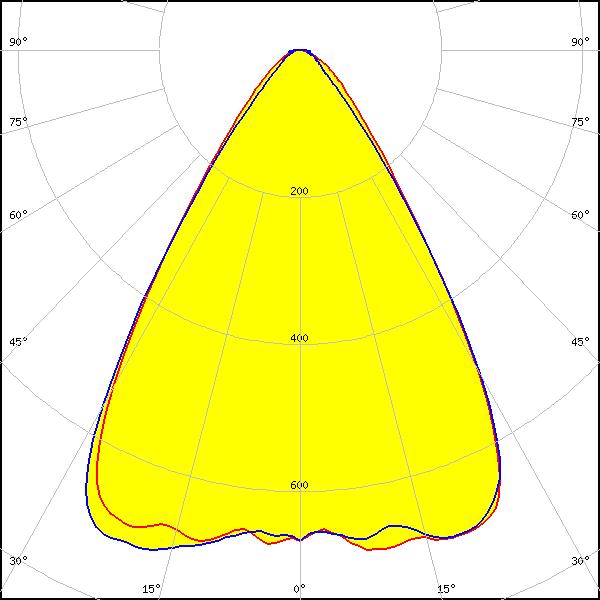

    LED: LM561B
    FWHM: 67°
    FWTM: 97°
    Peak intensity: 0.730 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

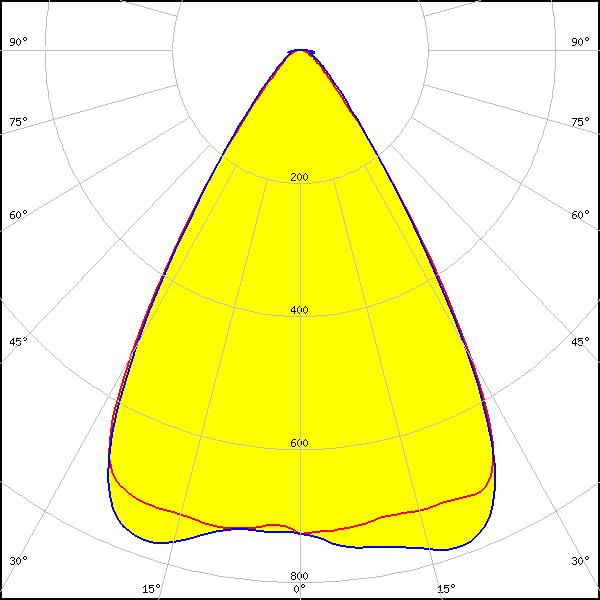

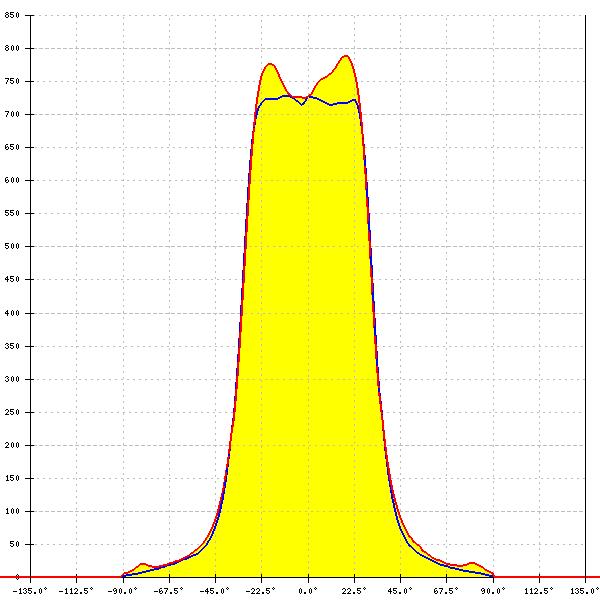

    LED: LM561B Plus
    FWHM: 65°
    FWTM: 91°
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

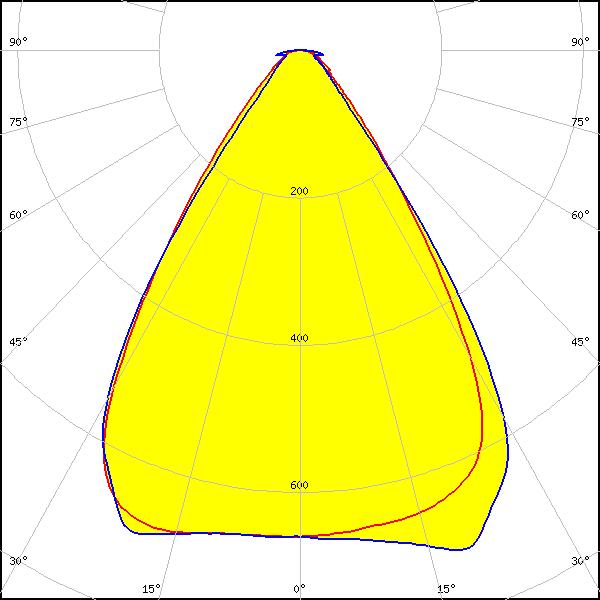

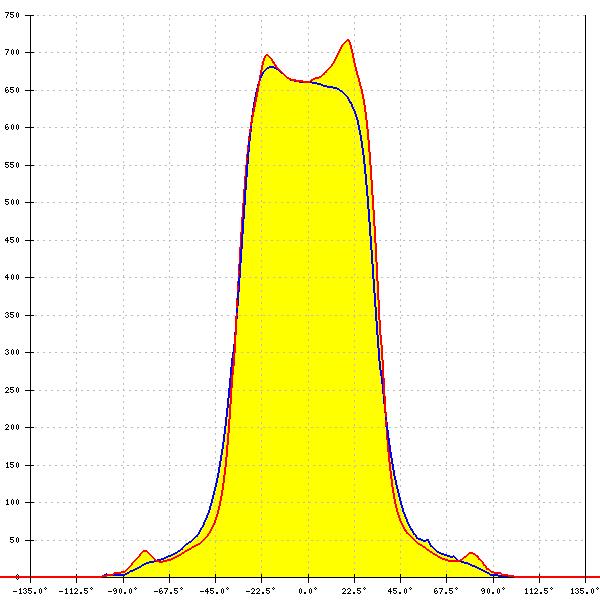

    LED: LT-S282N
    FWHM: 70°
    FWTM: 97°
    Peak intensity: 0.720 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

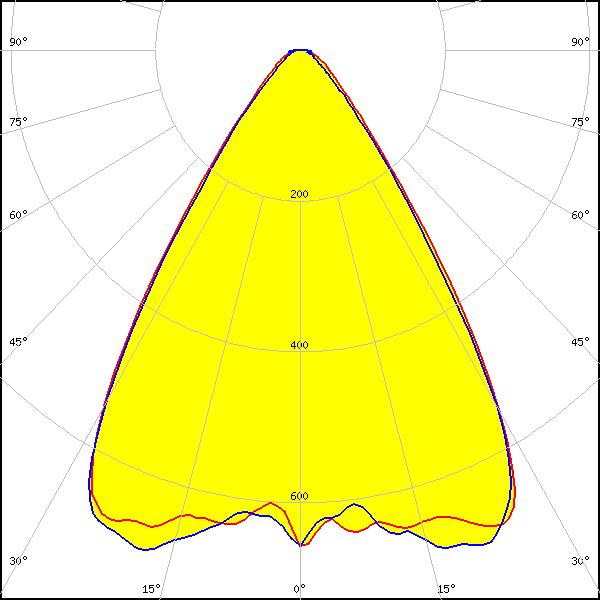

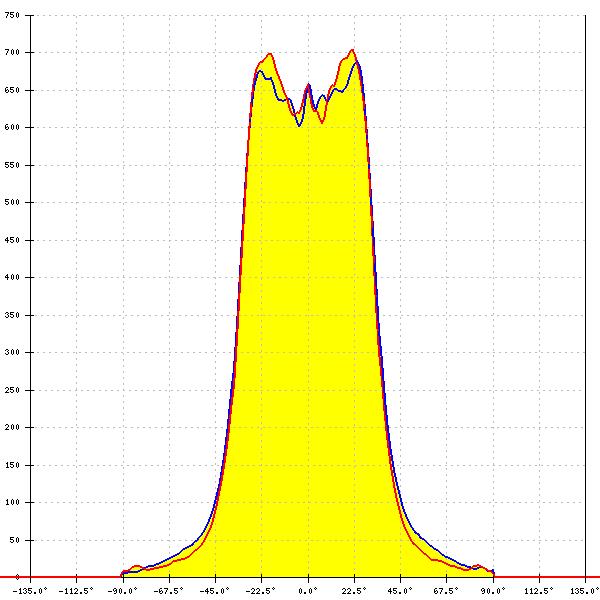

    LED: SEOUL DC 3030C
    FWHM: 69°
    FWTM: 97°
    Peak intensity: 0.736 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
