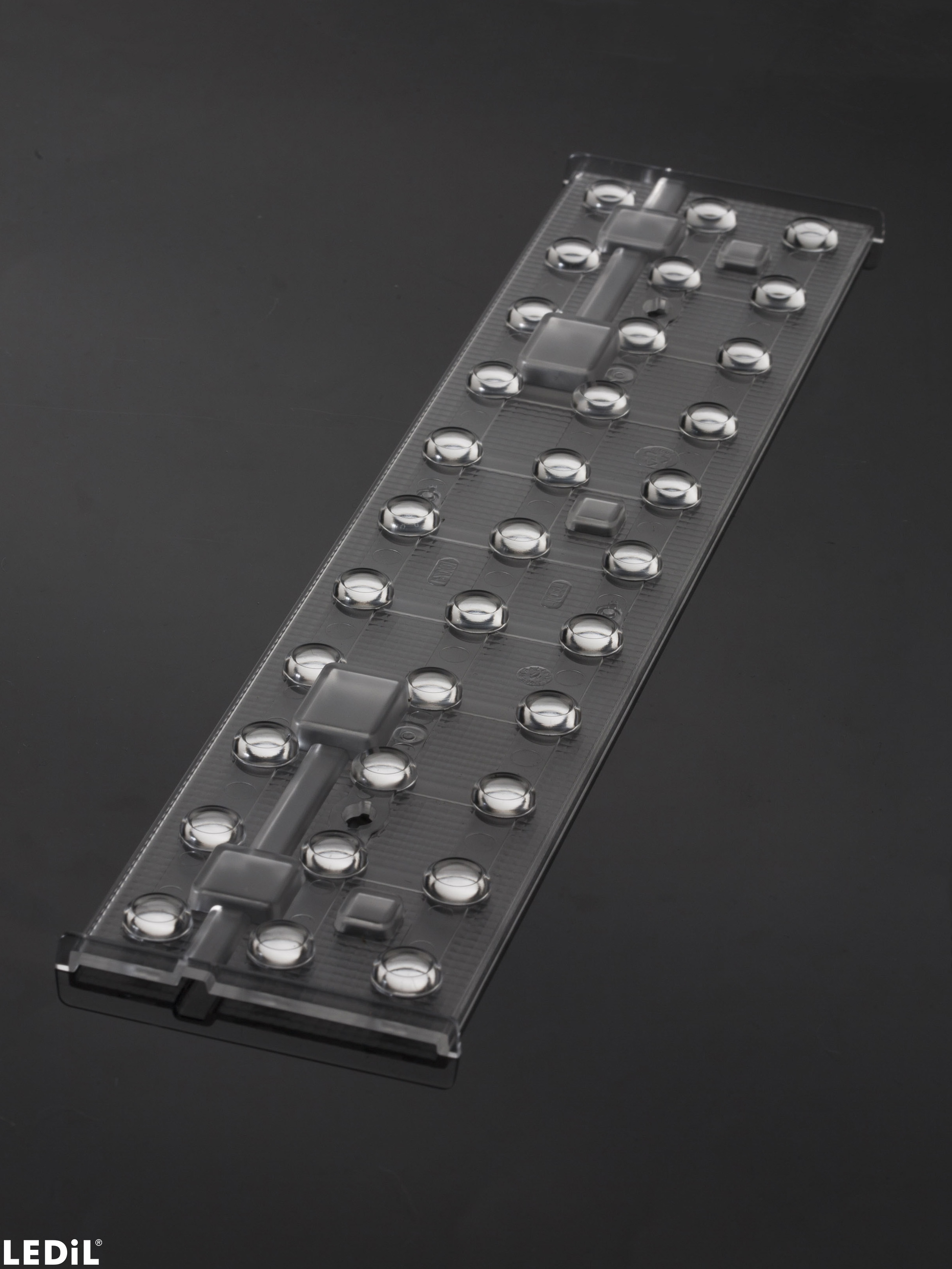

F16007_FLORENCE2-Z90
Print
~90° wide beam
Specification
-
Dimensions:285 x 64 mm
-
Height:8.10 mm
-
Fastening:screw
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
Ordering information
-
Quantity in box:78 pcs
-
Box size:398 x 298 x 140 mm
-
Box weight:4.8 kg
-
MPQ:6 pcs
-
MOQ:18 pcs
-
MOQ size:400 x 300 x 50 mm
-
MOQ weight:1.4 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

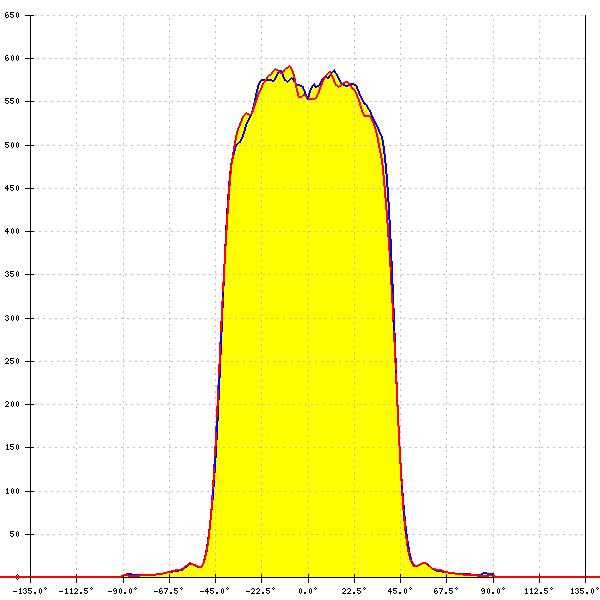

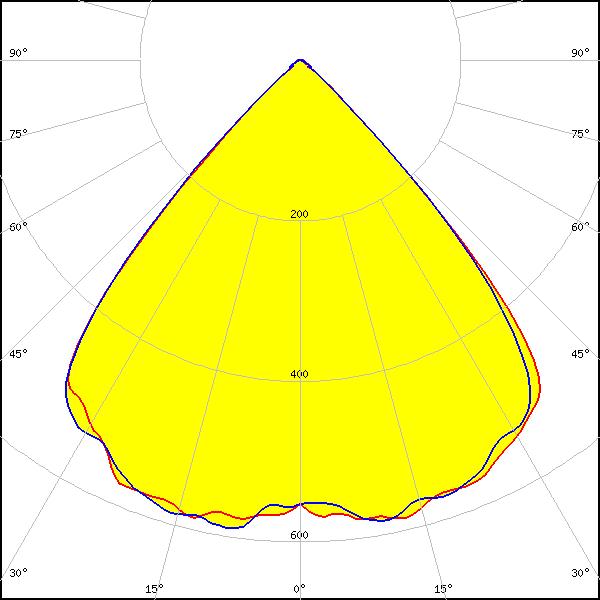

LED:

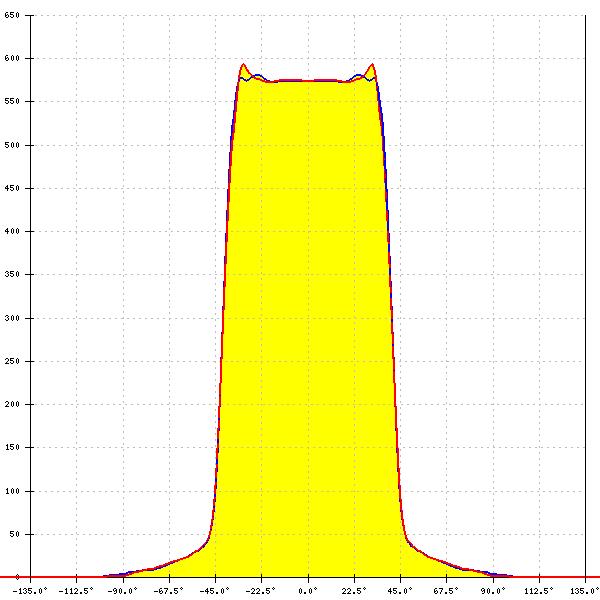

J Series 2835
FWHM:
84°
FWTM:
96°
Peak intensity:
0.597 cd/lm
Efficiency:
93 %
LEDs/each optic:
2
Light colour/type:
White

LED:
J Series 2835
FWHM:
82°
FWTM:
94°
Peak intensity:
0.599 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

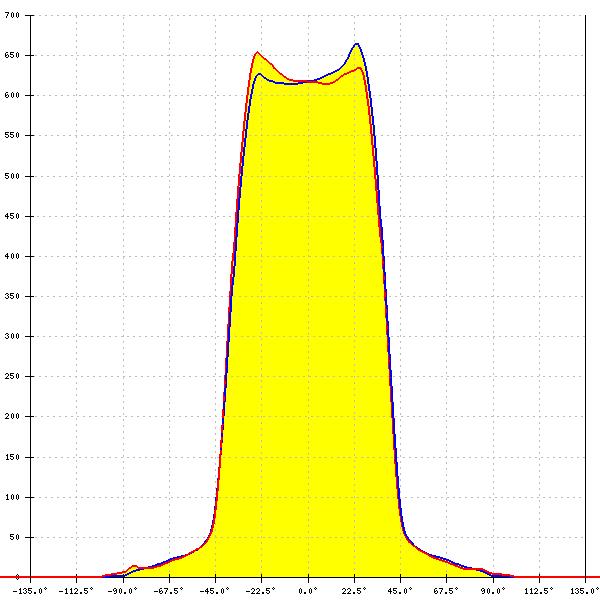

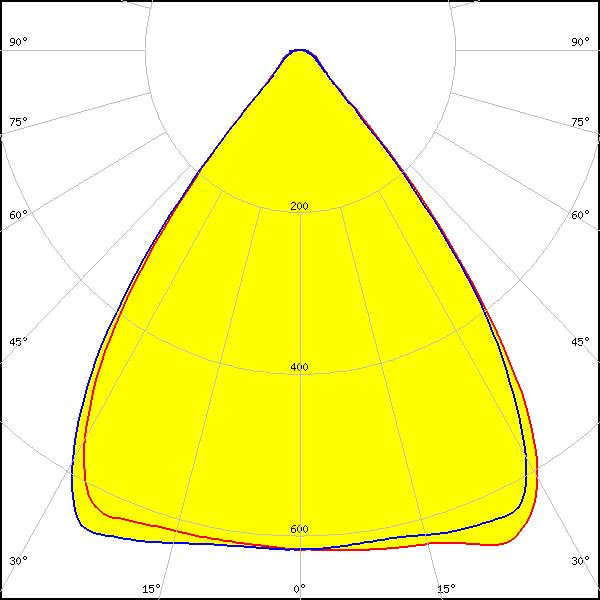

LED:
LED-Modul 280 x 55 mm 1B
FWHM:
76°
FWTM:
92°
Peak intensity:
0.665 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

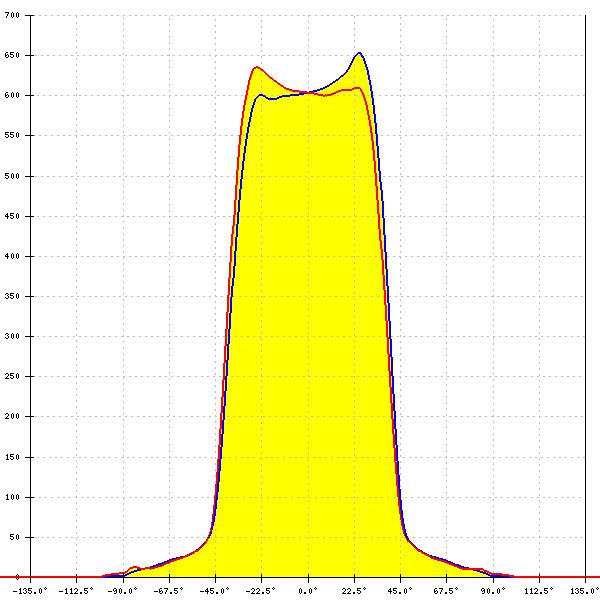

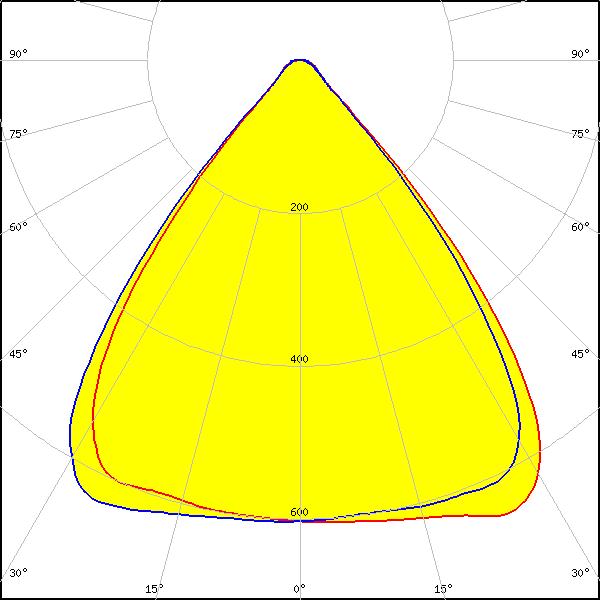

LED:
LED-Modul 280 x 55 mm 1F
FWHM:
77°
FWTM:
93°
Peak intensity:
0.655 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

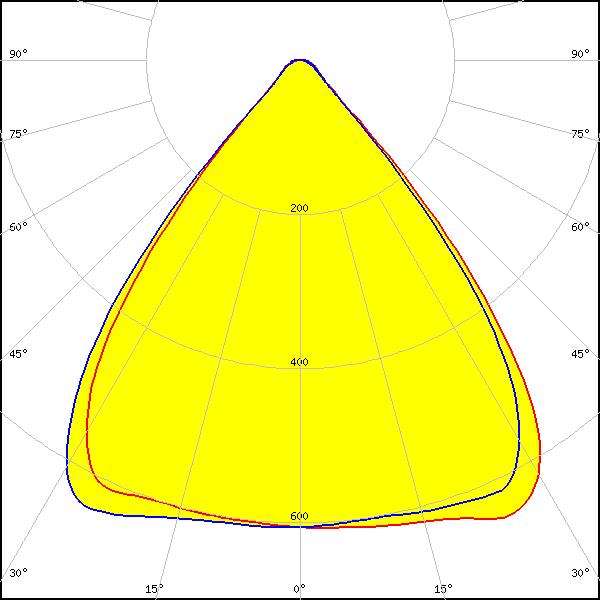

LED:

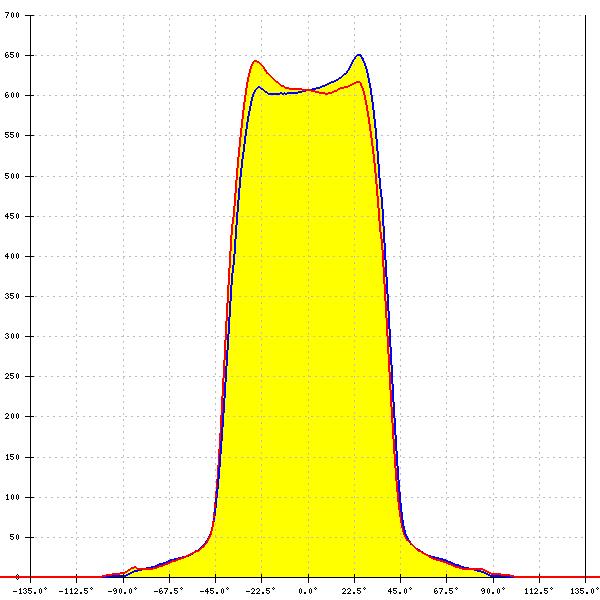

LED-Modul 280 x 55 mm 2F
FWHM:
77°
FWTM:
92°
Peak intensity:
0.653 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

LED:

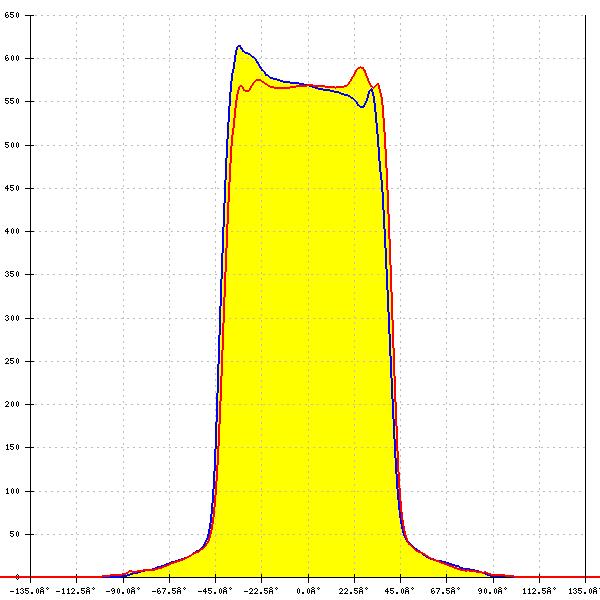

PL-BAR-G3 1100 280x55
FWHM:
82°
FWTM:
94°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:

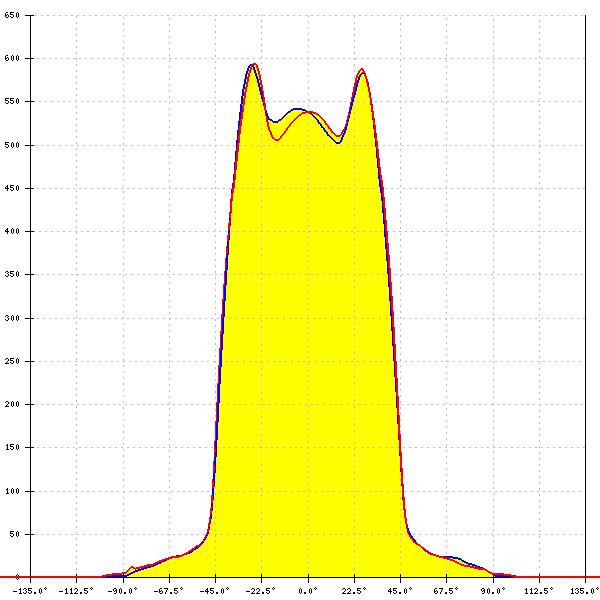

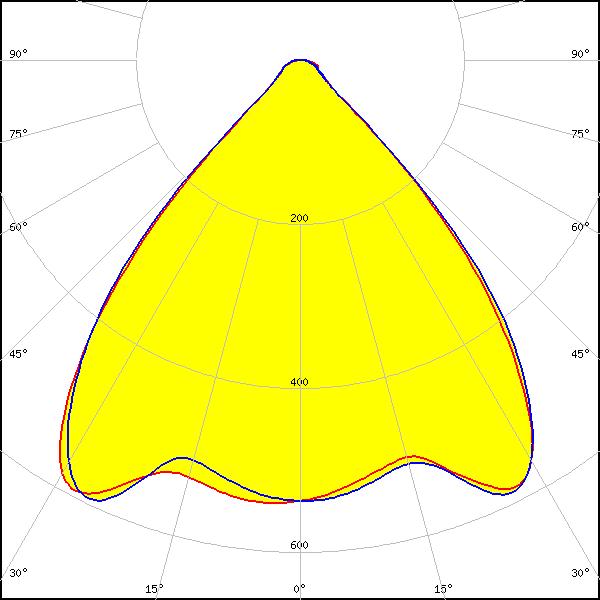

LUXEON 5050 Round LES
FWHM:
82°
FWTM:
96°
Peak intensity:
0.595 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

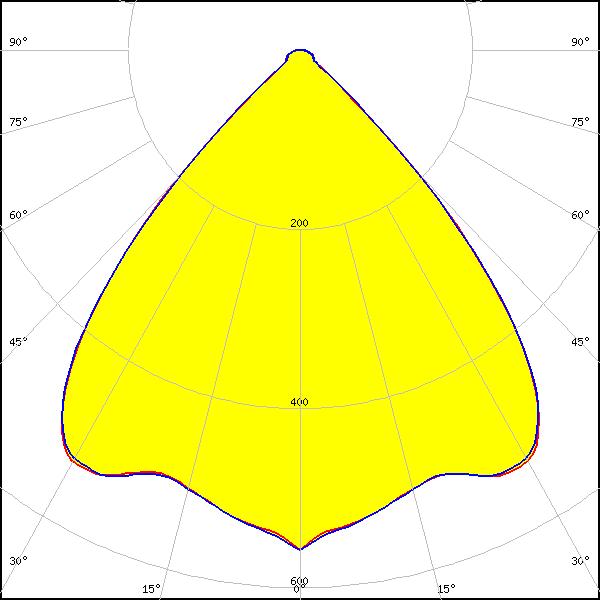

LED:

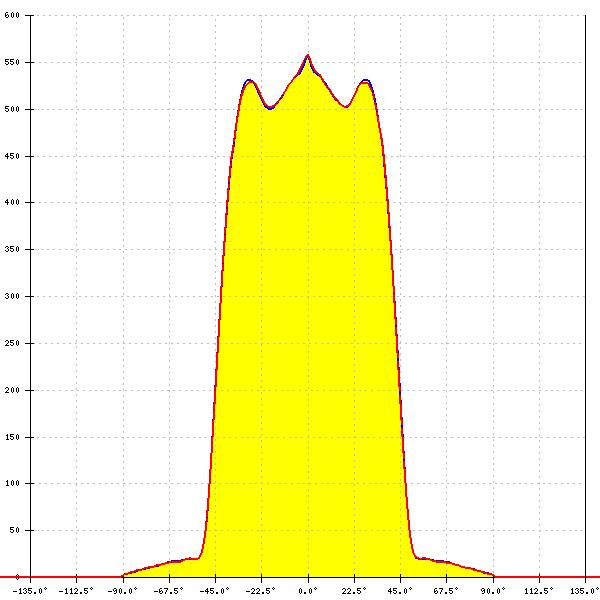

LUXEON 5050 Square LES
FWHM:
86°
FWTM:
98°
Peak intensity:
0.558 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

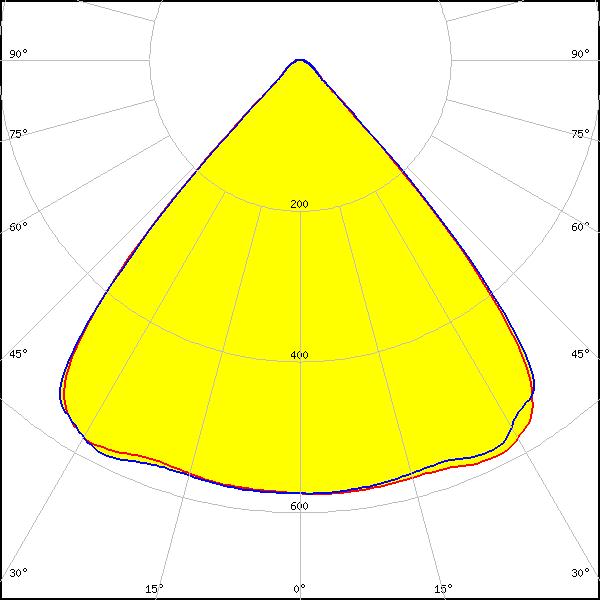

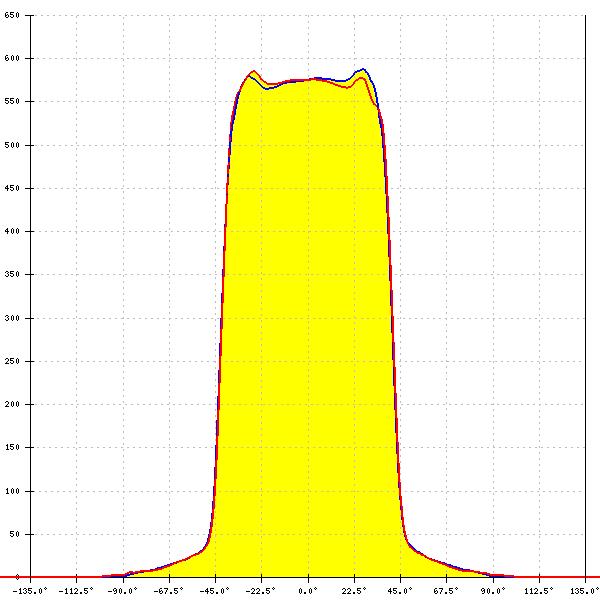

LED:
LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM:
83°
FWTM:
94°
Peak intensity:
0.580 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

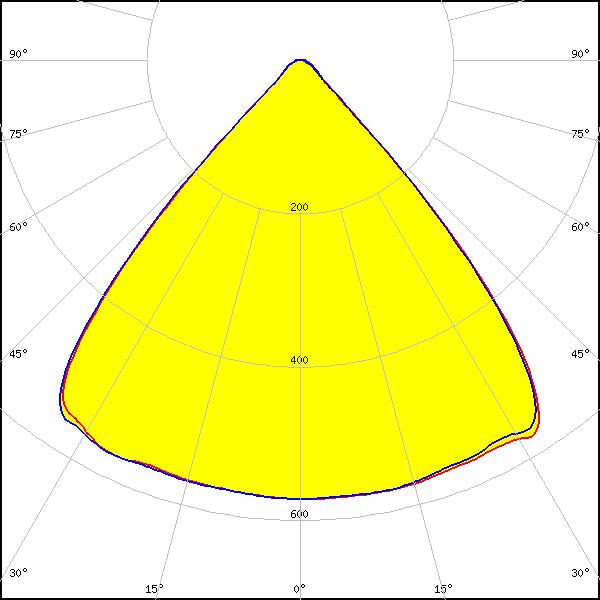

LED:

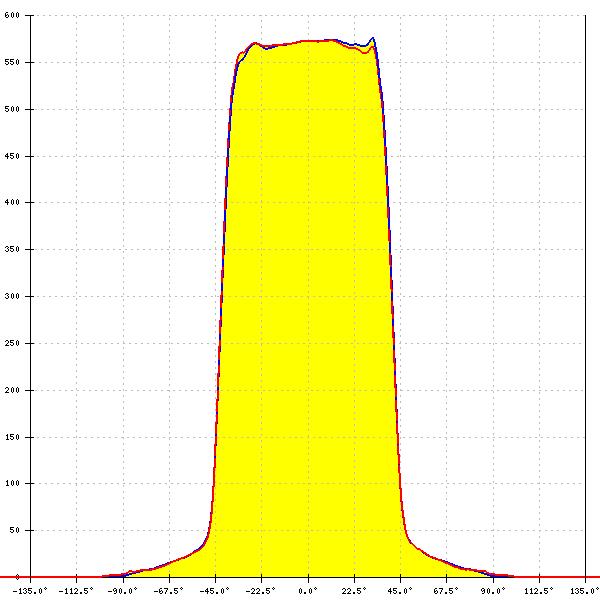

NFSW757H
FWHM:
83°
FWTM:
95°
Peak intensity:
0.576 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

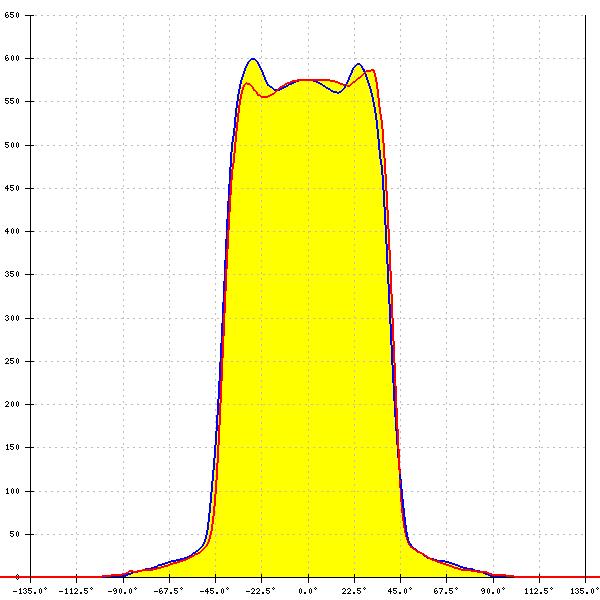

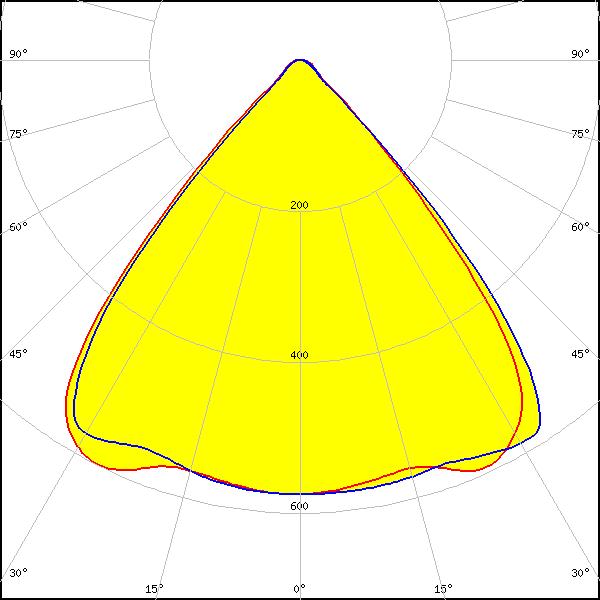

LED:
Duris E5
FWHM:
82°
FWTM:
97°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

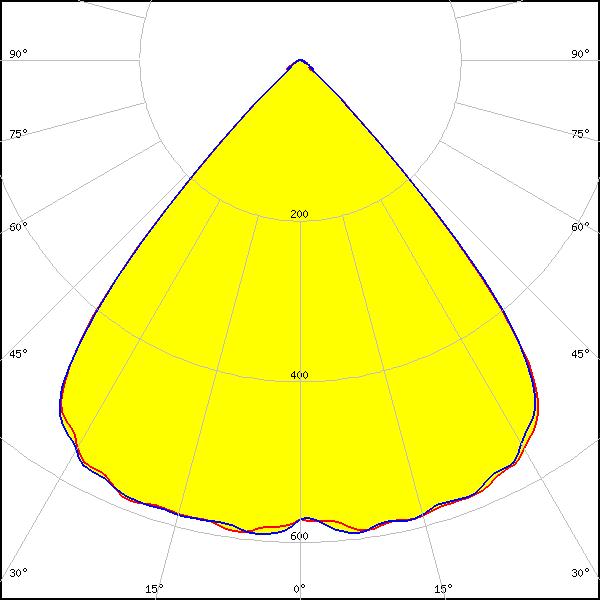

LED:

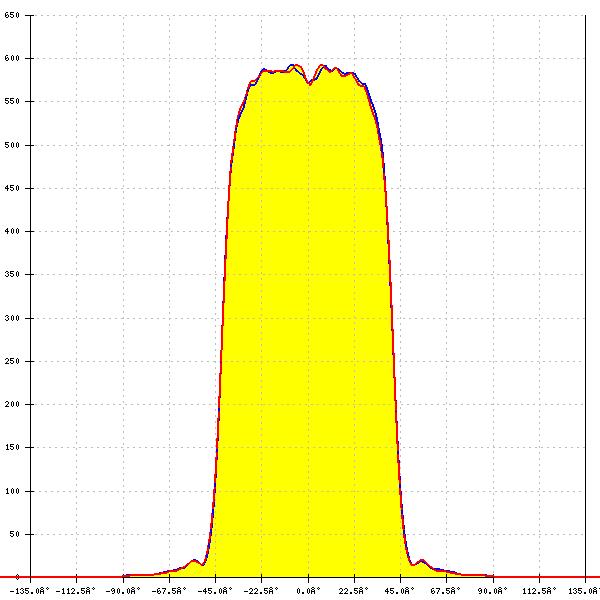

DURIS S5 (Single chip)
FWHM:
82°
FWTM:
94°
Peak intensity:
0.597 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

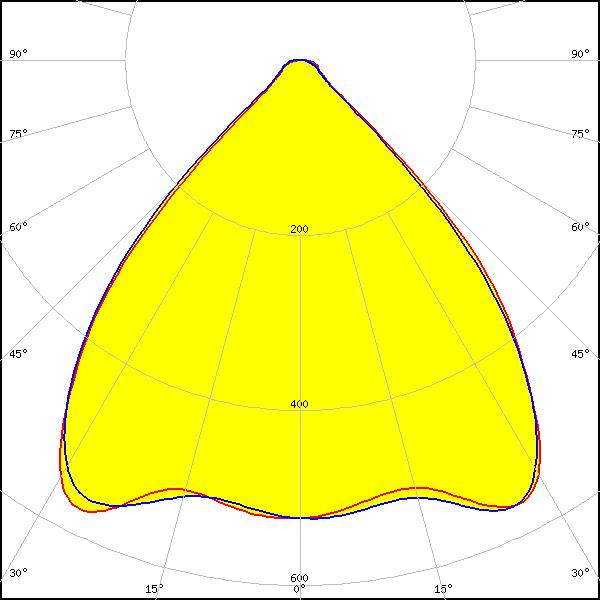

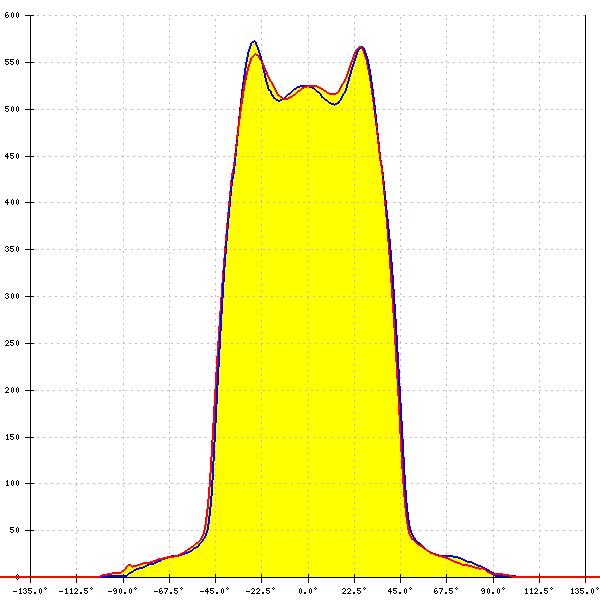

LED:
Duris S8
FWHM:
84°
FWTM:
98°
Peak intensity:
0.572 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo LED Line VO 1ft MF 3R HV5
FWHM:
76°
FWTM:
91°
Peak intensity:
0.682 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

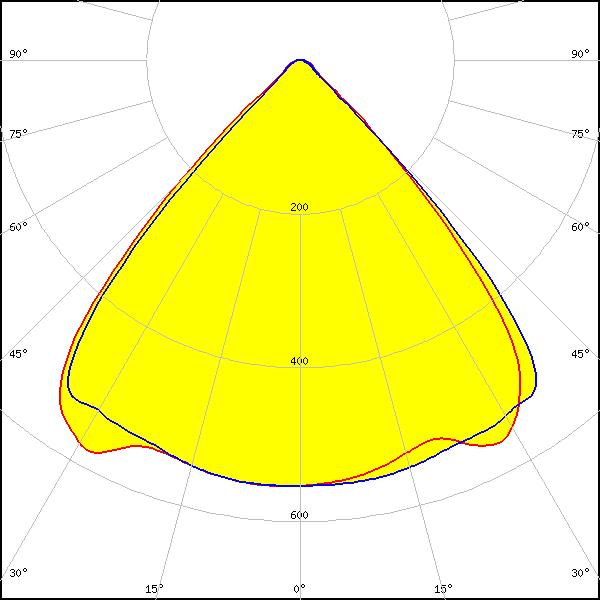

LED:

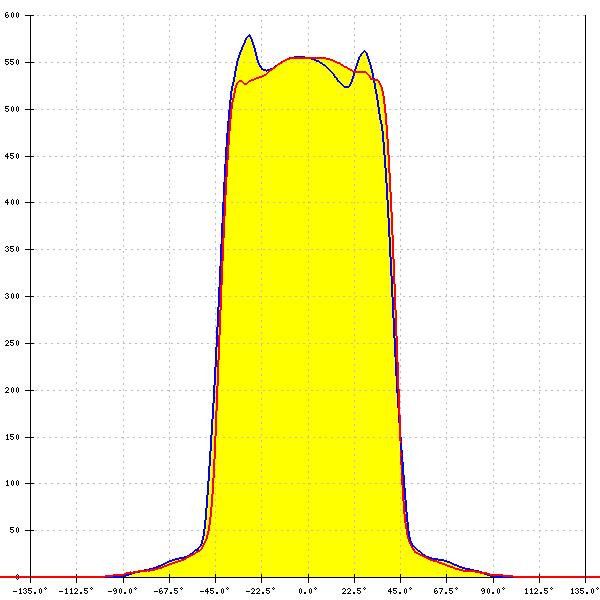

Fortimo LED Line 1ft 1100lm 3R HV4
FWHM:
85°
FWTM:
99°
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

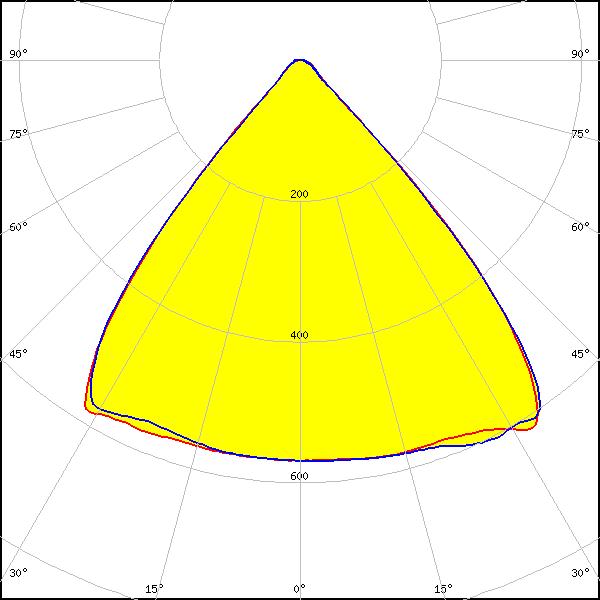

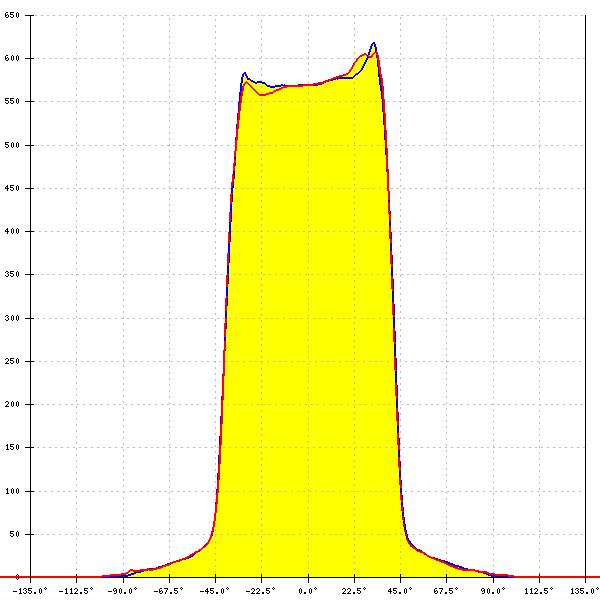

LED:
Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM:
82°
FWTM:
93°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo LED Line 1ft HF 3R HV5
FWHM:
81°
FWTM:
93°
Peak intensity:
0.609 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo LED Line 1ft LF 3R HV5 & LV5
FWHM:
81°
FWTM:
93°
Peak intensity:
0.626 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo LED Line 1ft MF 3R HV5 & LV5
FWHM:
81°
FWTM:
93°
Peak intensity:
0.618 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Fortimo LED Line 2ft 2200lm 3R HV4
FWHM:
85°
FWTM:
99°
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

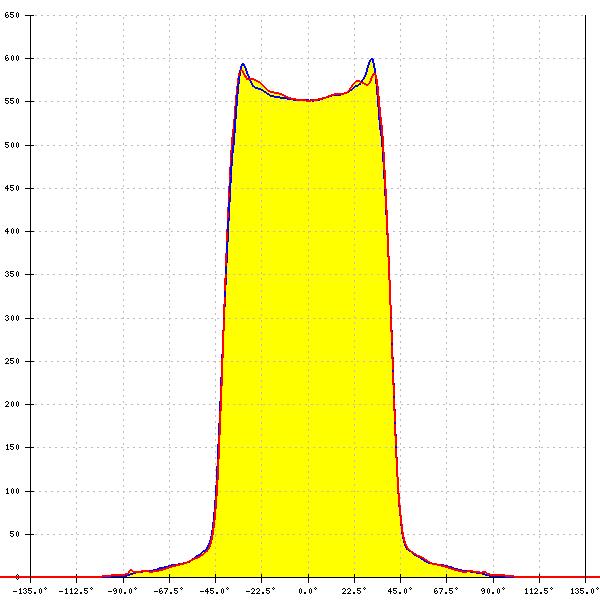

LED:

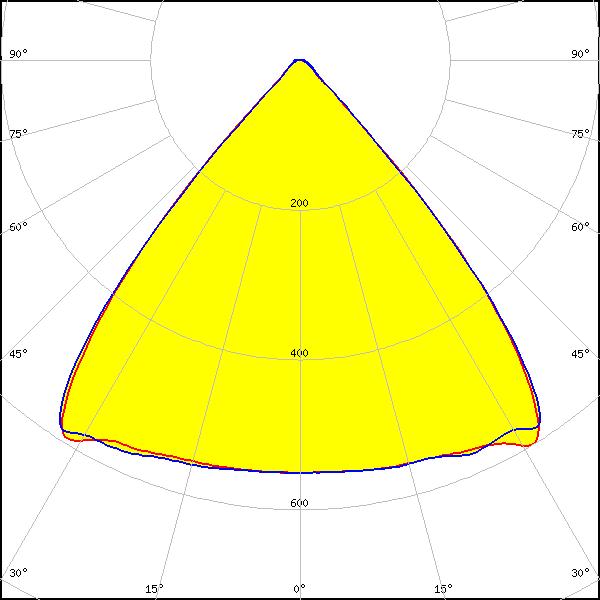

LM28xB Series
FWHM:
82°
FWTM:
92°
Peak intensity:
0.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

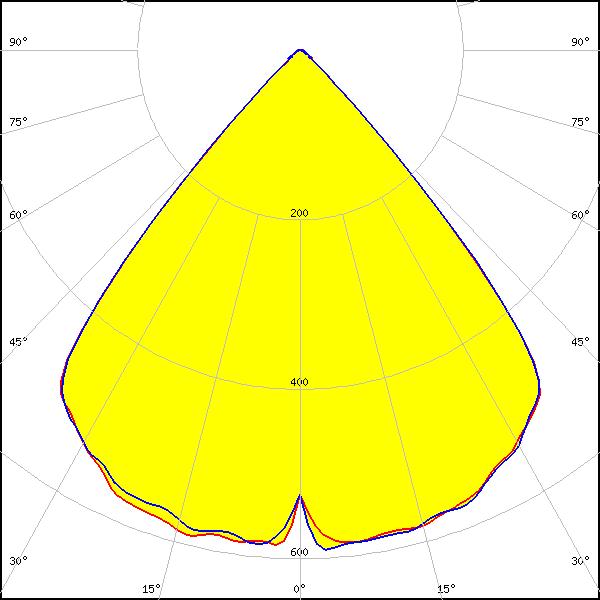

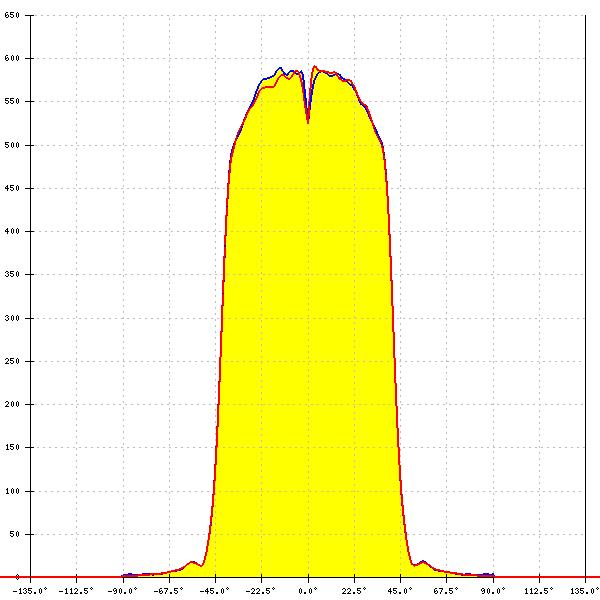

LED:
LM301B
FWHM:
84°
FWTM:
94°
Peak intensity:
0.601 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

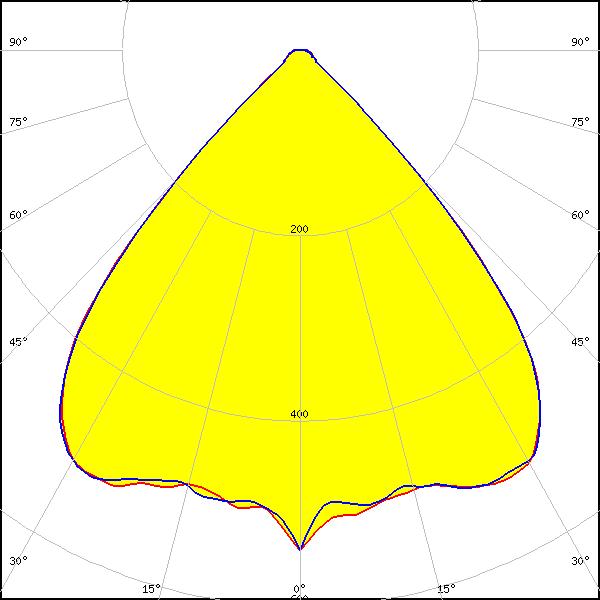

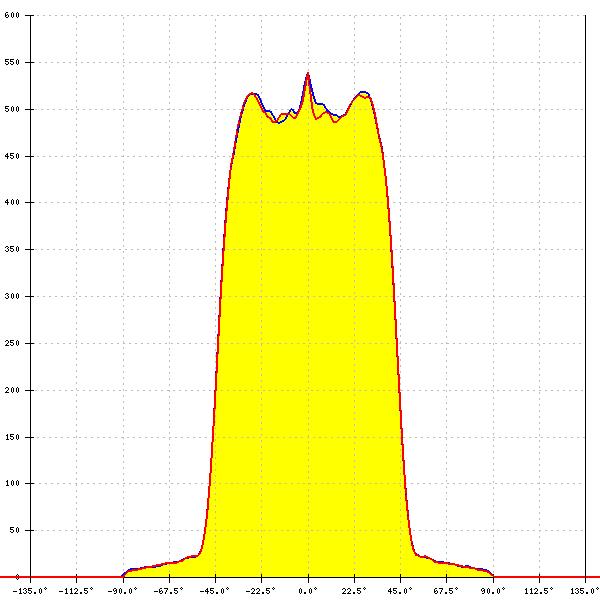

LED:
LM301B
FWHM:
86°
FWTM:
100°
Peak intensity:
0.553 cd/lm
Efficiency:
92 %
LEDs/each optic:
2
Light colour/type:
White

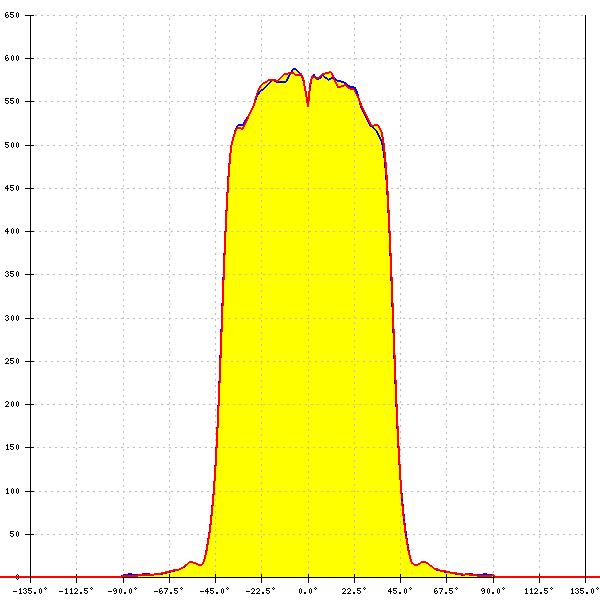

LED:

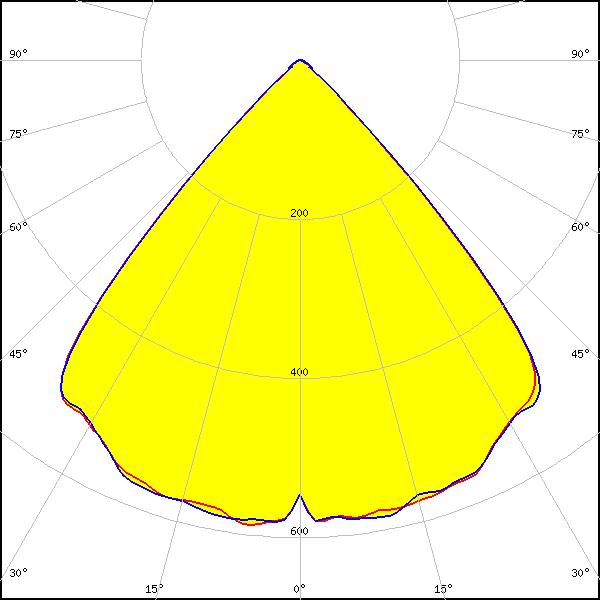

LM302Z plus
FWHM:
84°
FWTM:
94°
Peak intensity:
0.601 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

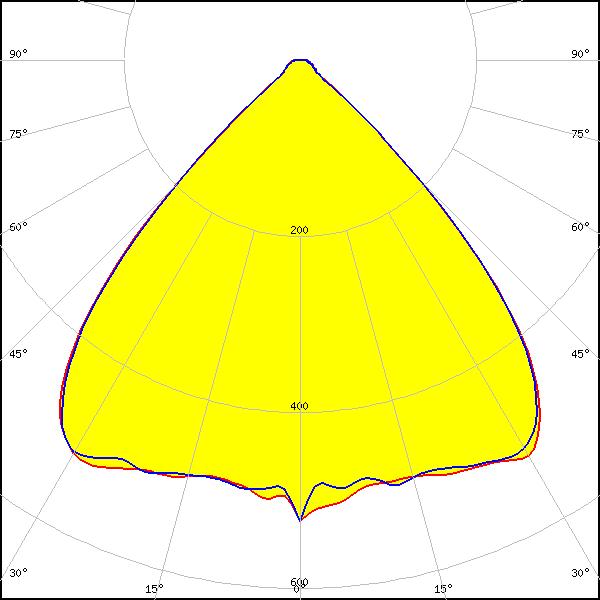

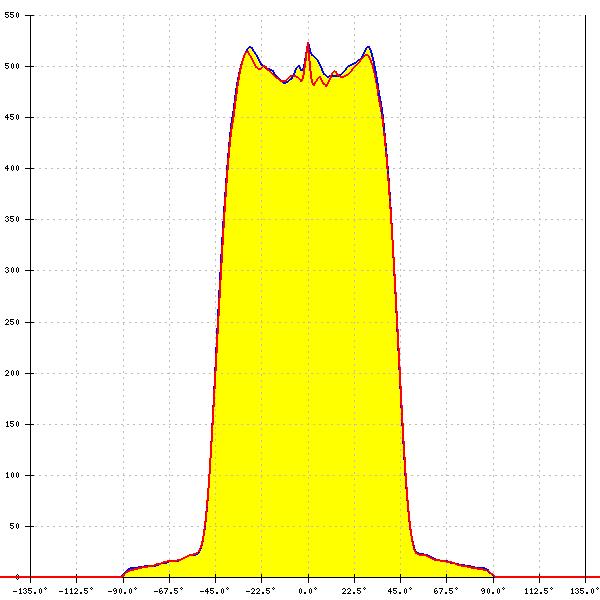

LED:
LM302Z plus
FWHM:
86°
FWTM:
100°
Peak intensity:
0.539 cd/lm
Efficiency:
92 %
LEDs/each optic:
2
Light colour/type:
White

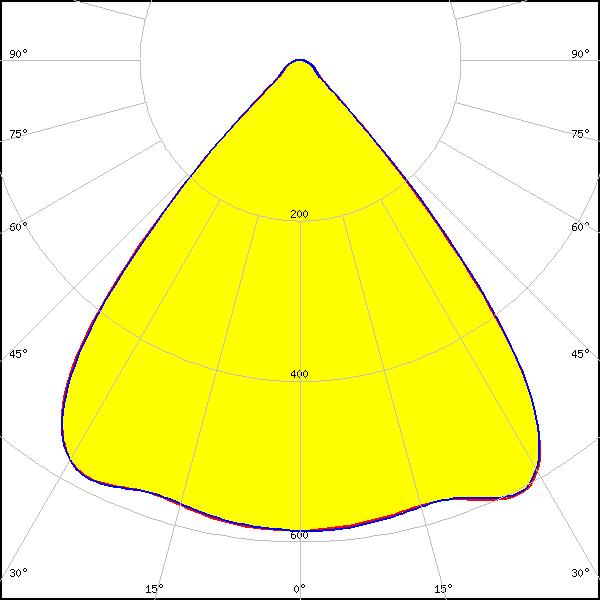

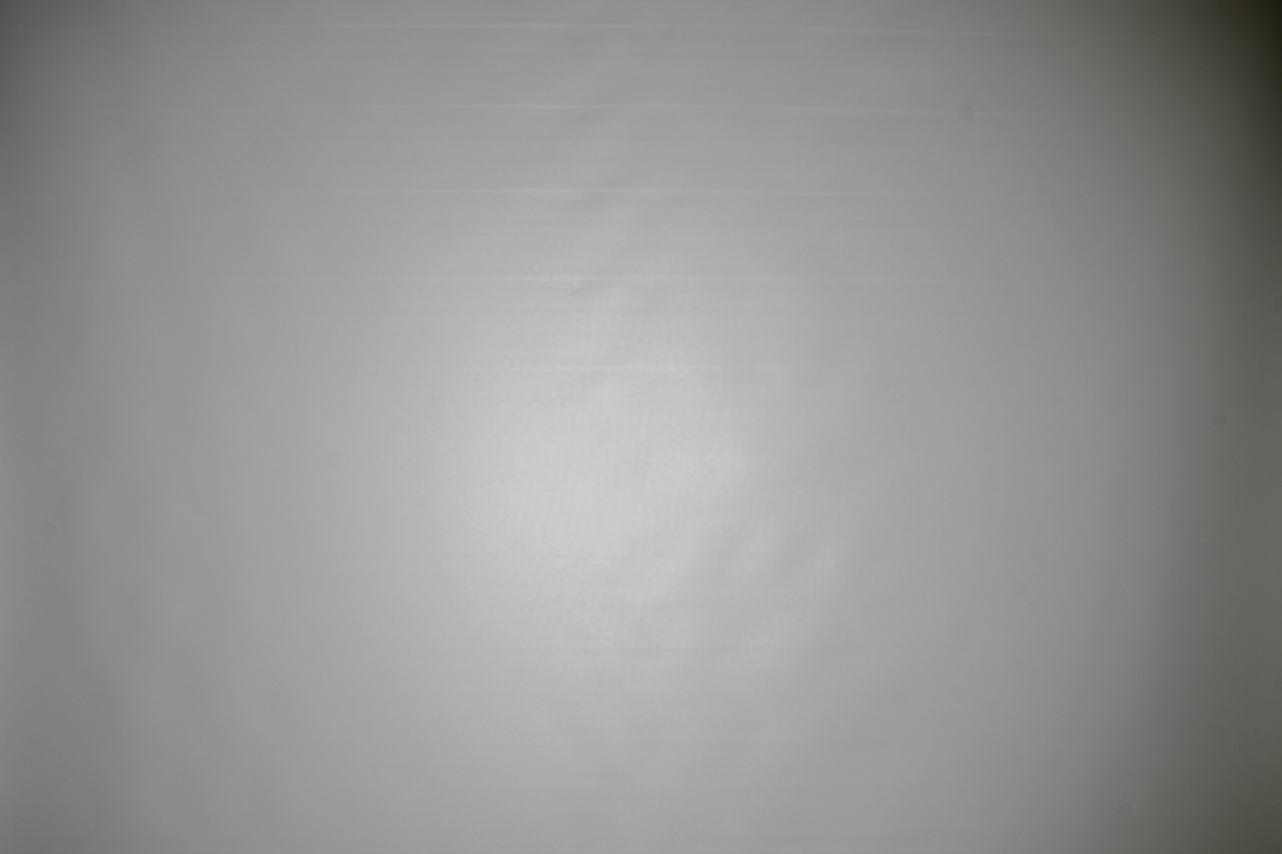

LED:

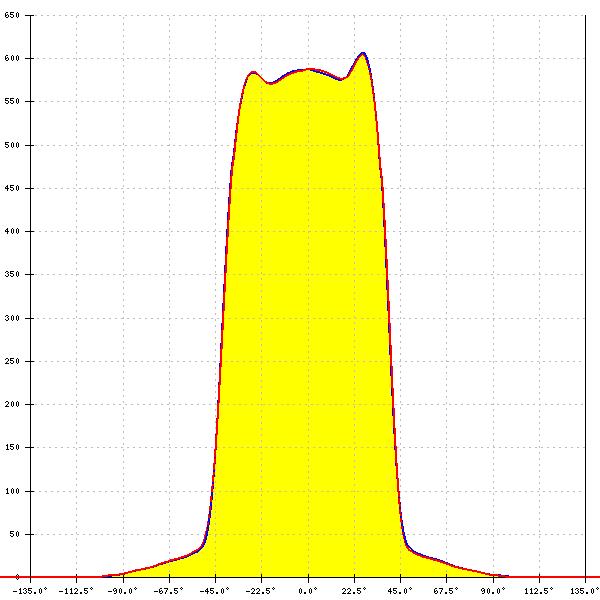

LM561B Plus
FWHM:
81°
FWTM:
95°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

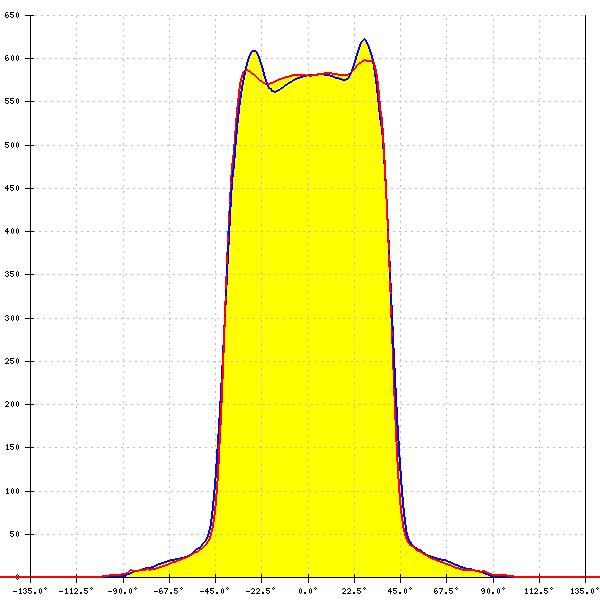

LED:

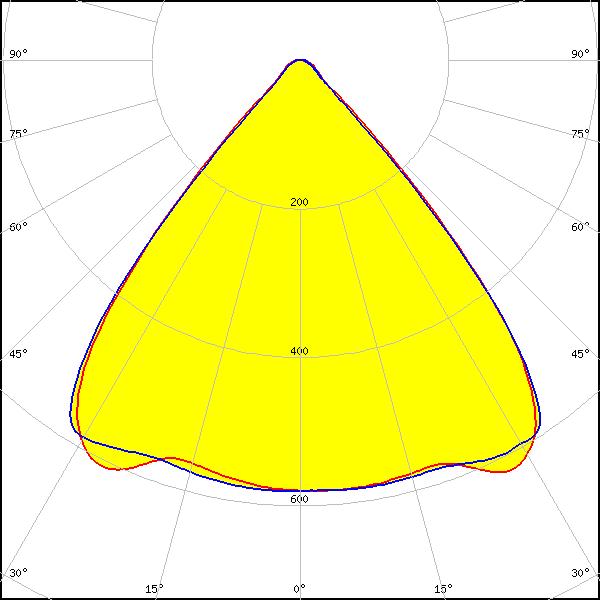

LT-R286A
FWHM:
81°
FWTM:
94°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

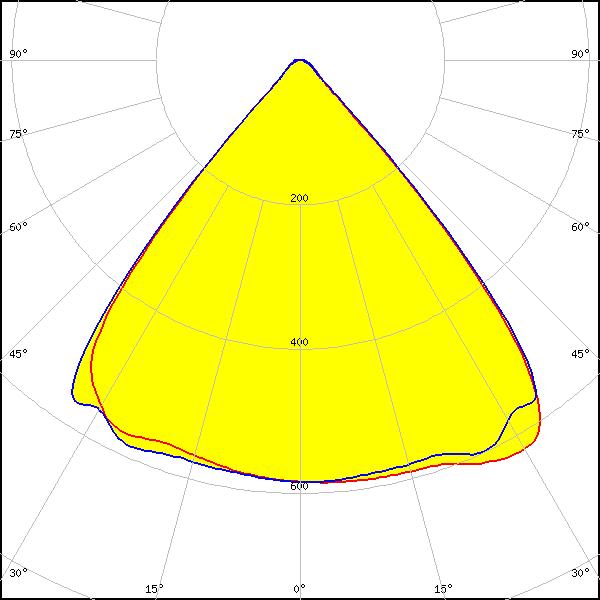

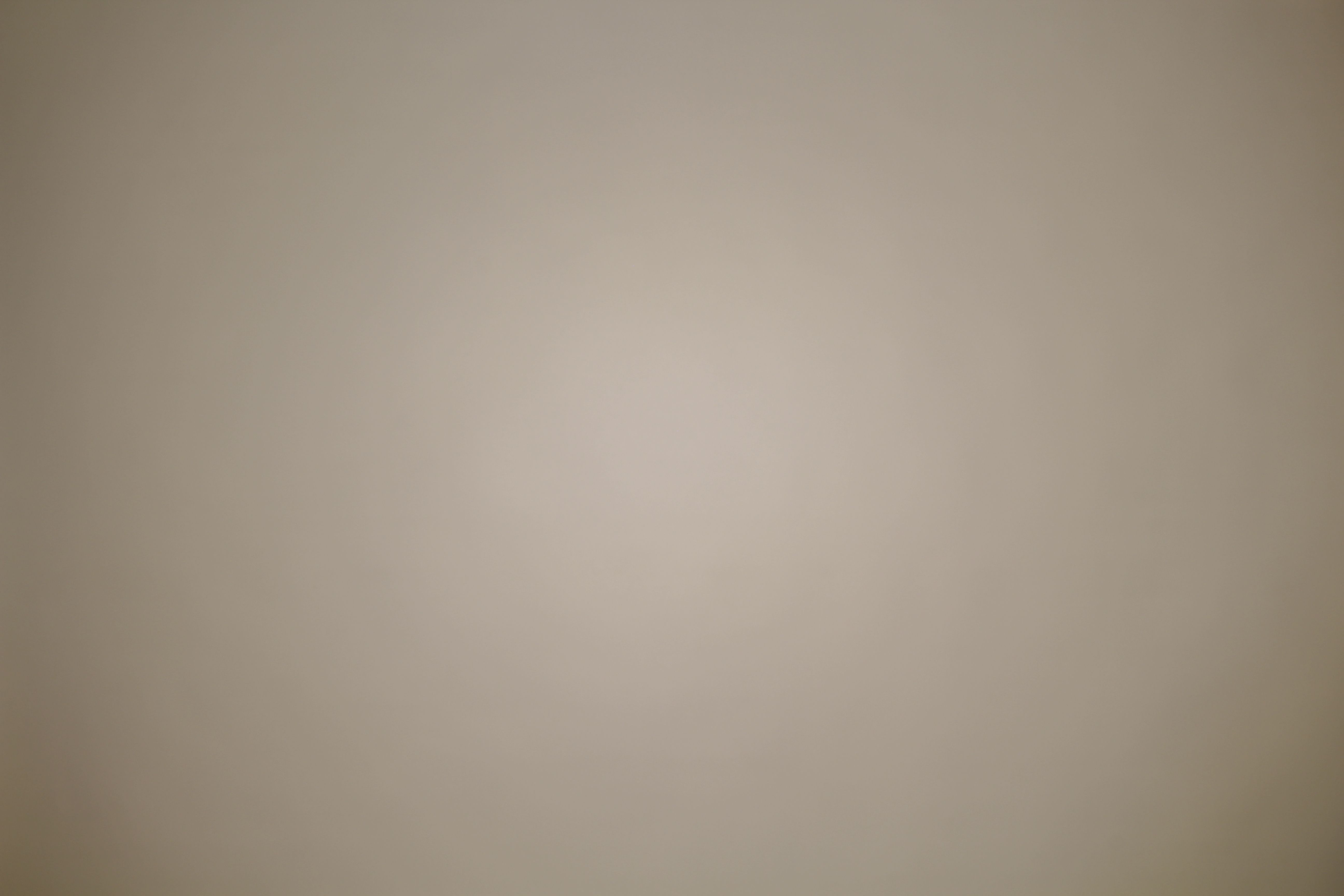

LED:

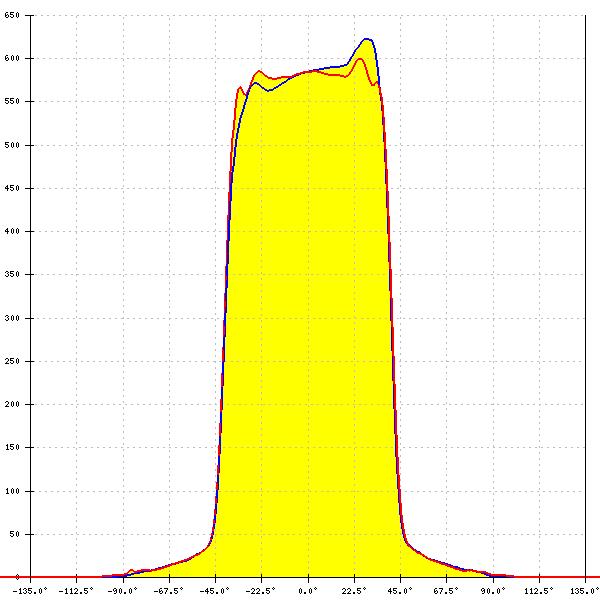

SEOUL 3030
FWHM:
81°
FWTM:
92°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

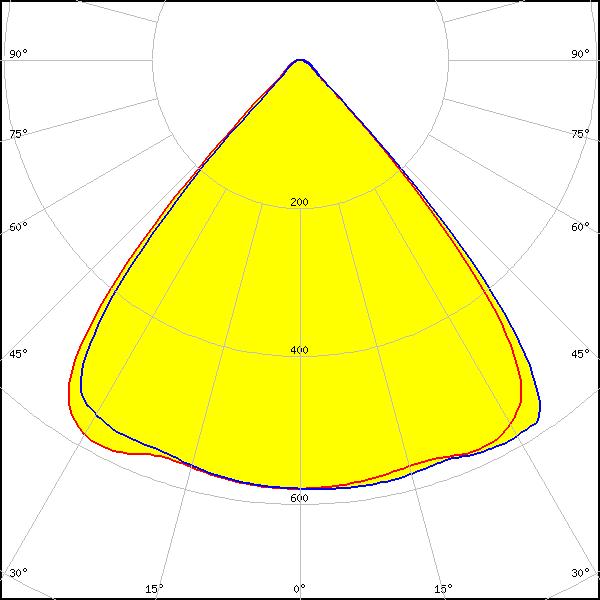

LED:
SEOUL 5630C
FWHM:
82°
FWTM:
95°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
SEOUL DC 3030
FWHM:
81°
FWTM:
92°
Peak intensity:
0.630 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

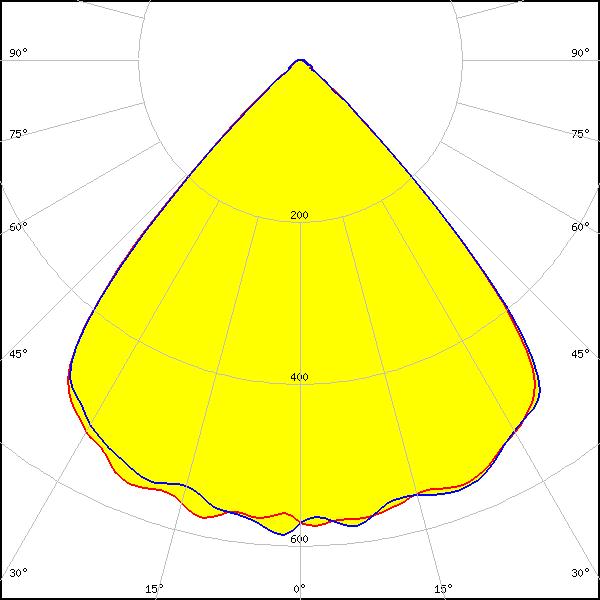

LED:

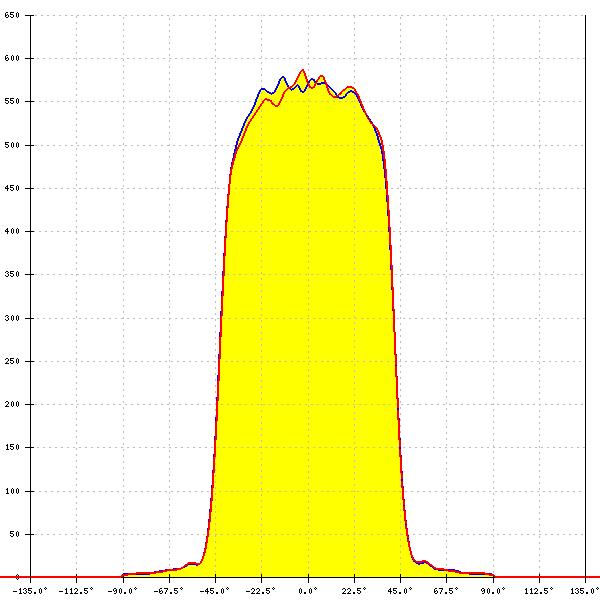

SEOUL DC 3030C
FWHM:
84°
FWTM:
96°
Peak intensity:
0.599 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

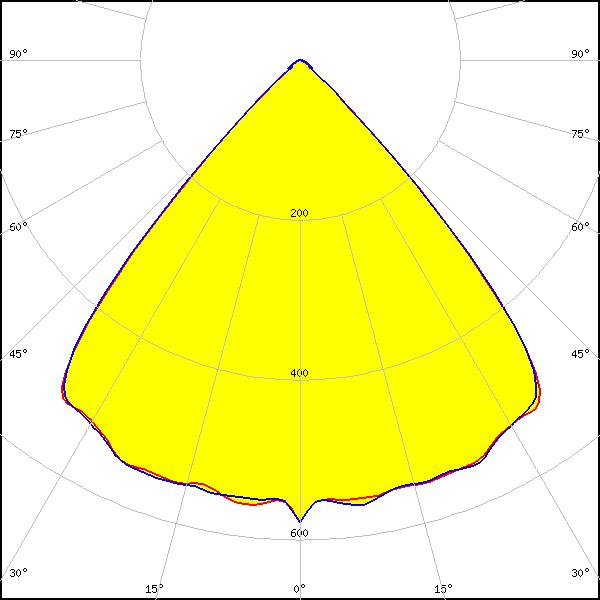

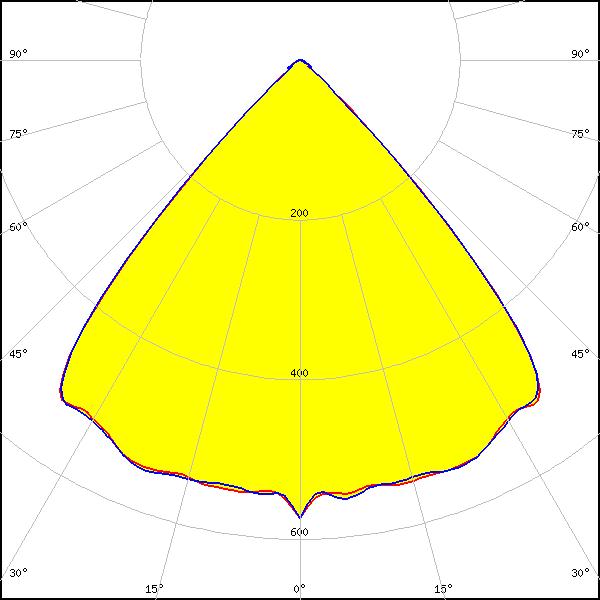

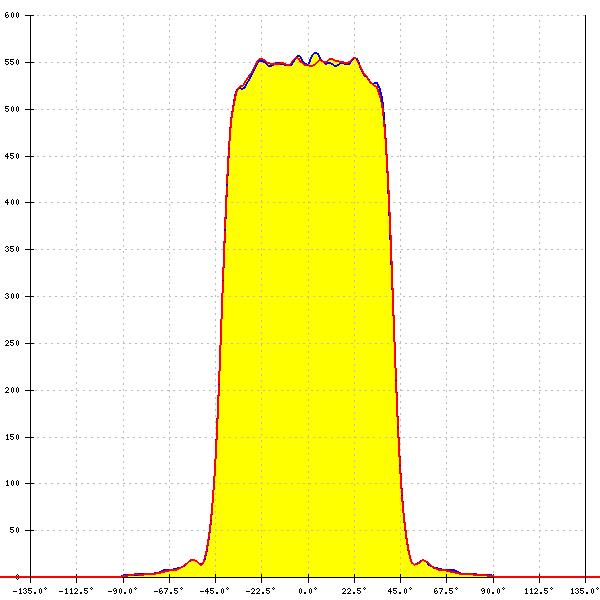

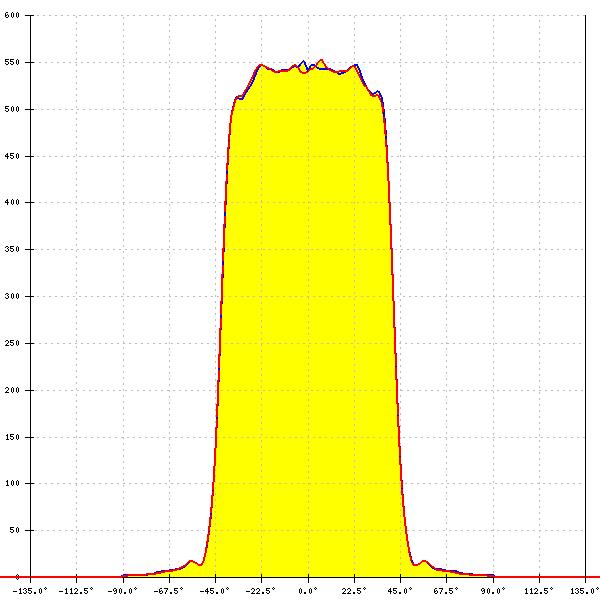

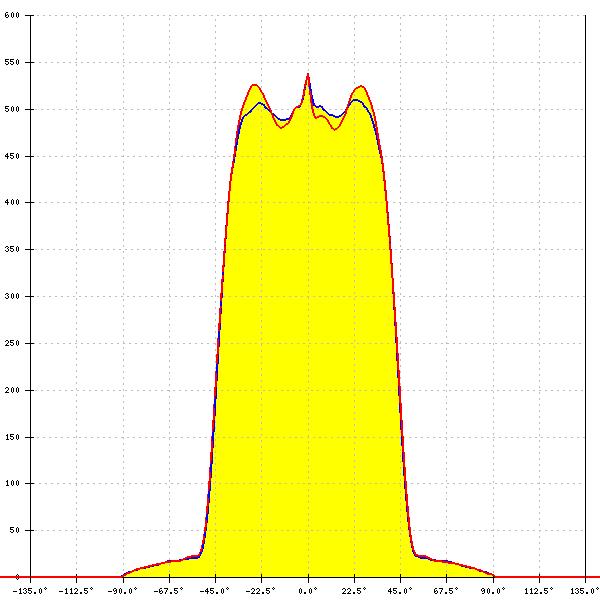

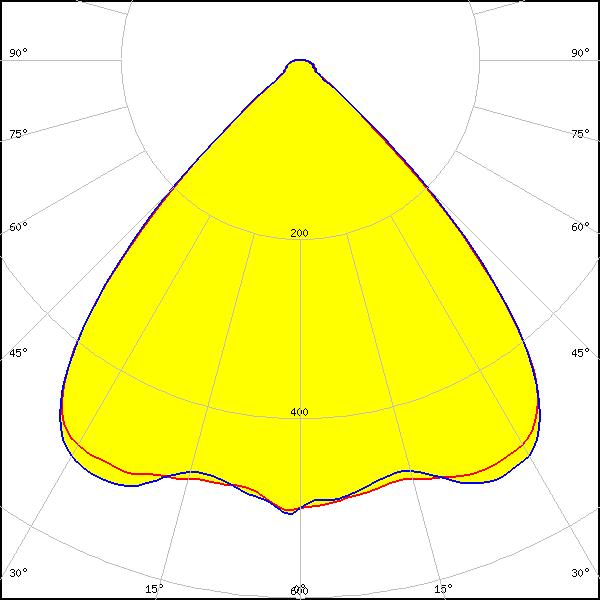

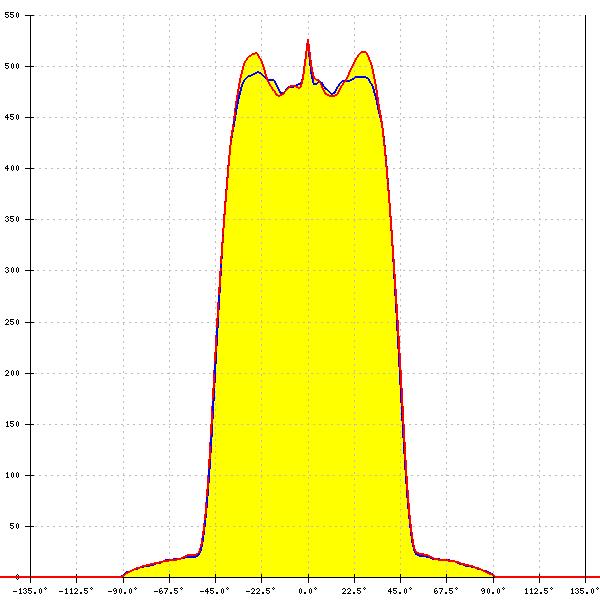

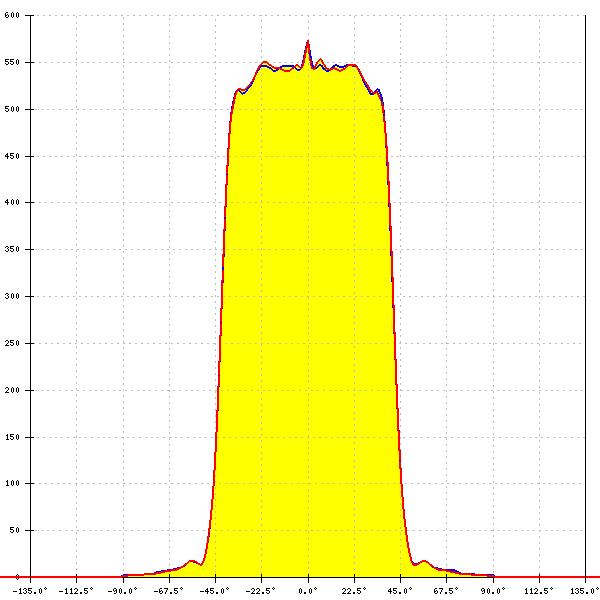

LED:

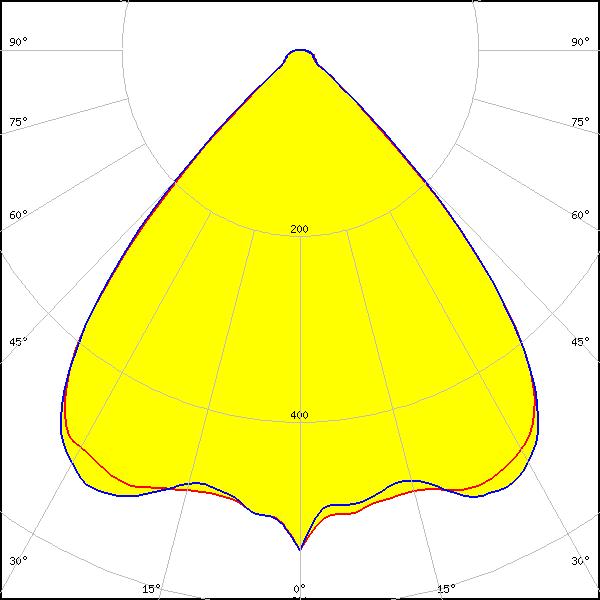

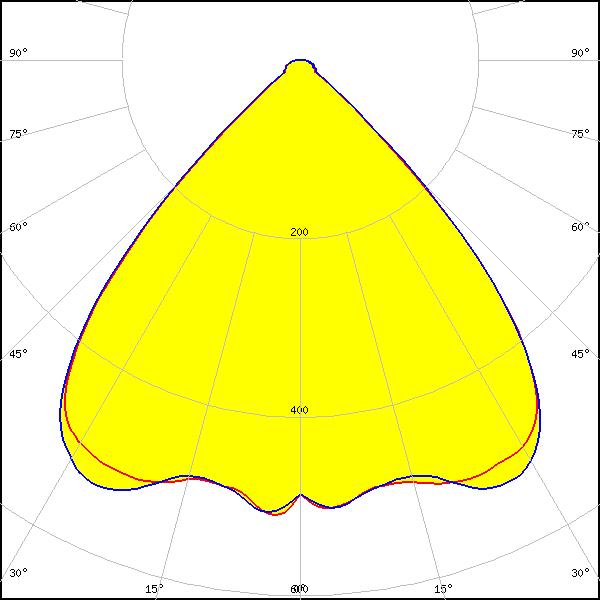

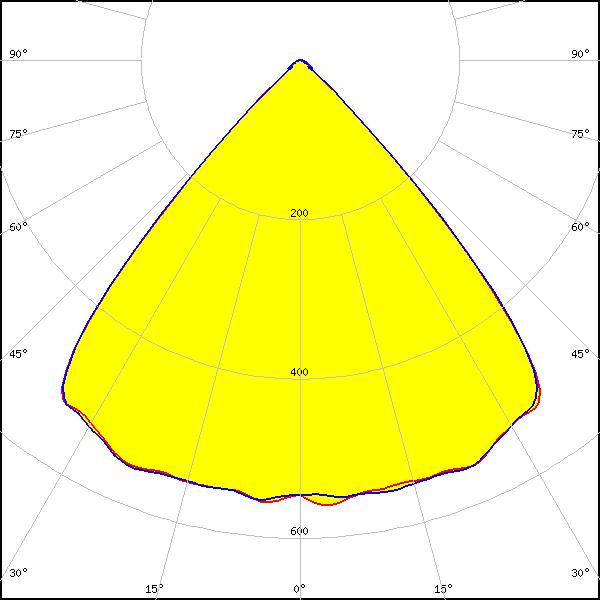

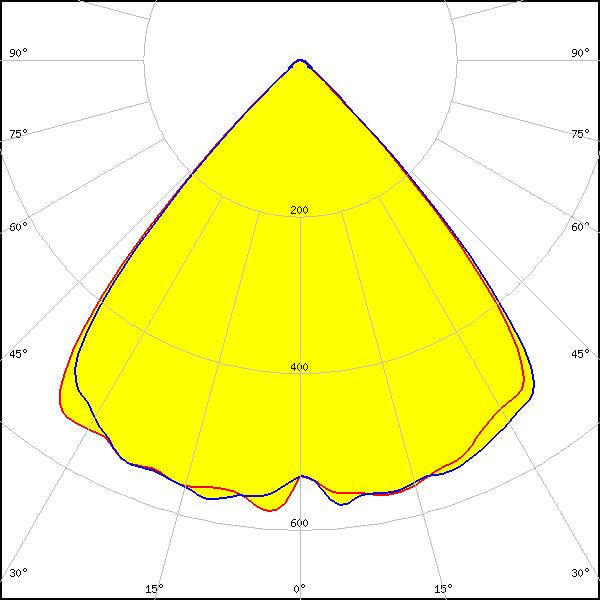

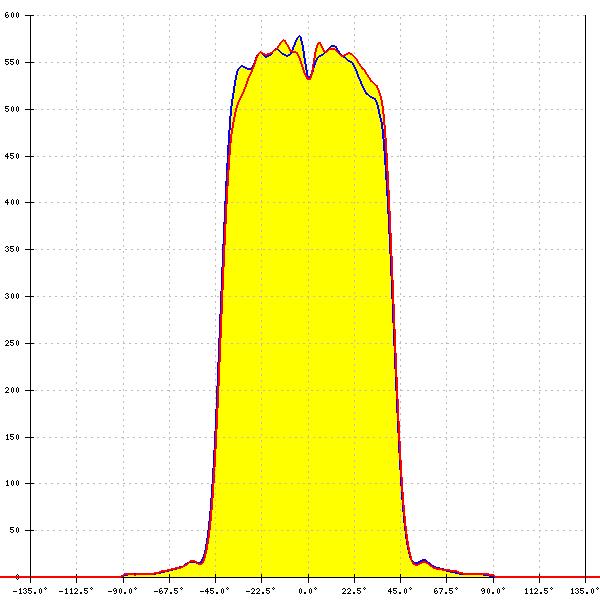

SEOUL DC 3528
FWHM:
84°
FWTM:
94°
Peak intensity:
0.562 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

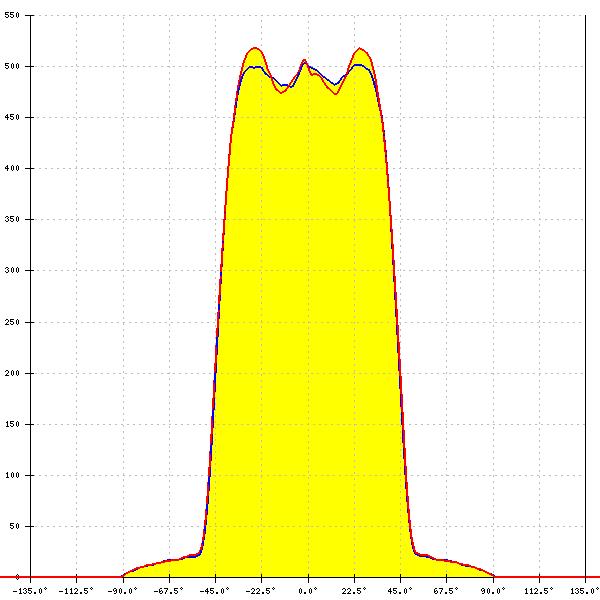

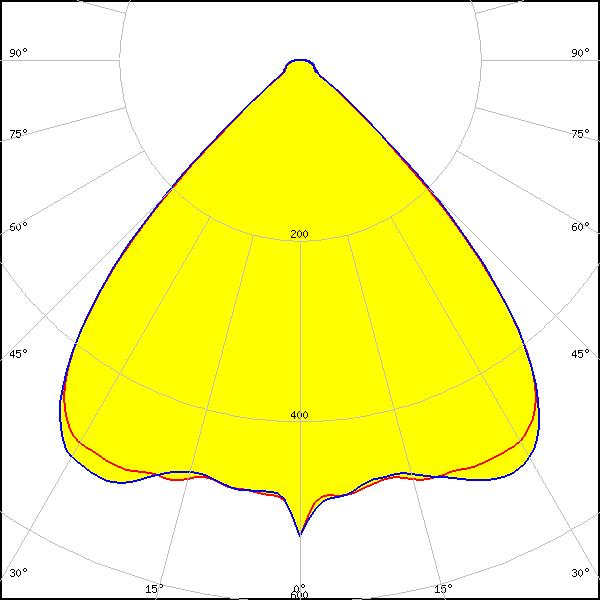

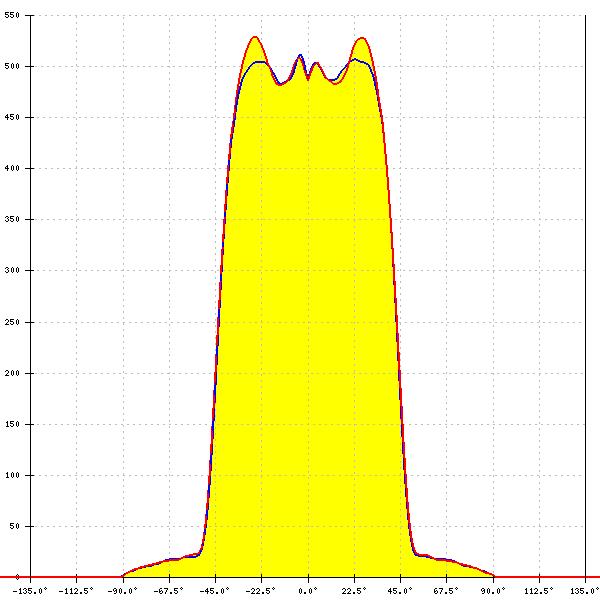

LED:
SEOUL DC 3528
FWHM:
86°
FWTM:
100°
Peak intensity:
0.546 cd/lm
Efficiency:
91 %
LEDs/each optic:
2
Light colour/type:
White

LED:
SEOUL DC 3528
FWHM:
84°
FWTM:
94°
Peak intensity:
0.578 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:
SEOUL DC 3528
FWHM:
86°
FWTM:
100°
Peak intensity:
0.543 cd/lm
Efficiency:
91 %
LEDs/each optic:
2
Light colour/type:
White

LED:
SEOUL DC 3528
FWHM:
84°
FWTM:
95°
Peak intensity:
0.573 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:
SEOUL DC 3528
FWHM:
86°
FWTM:
100°
Peak intensity:
0.537 cd/lm
Efficiency:
91 %
LEDs/each optic:
2
Light colour/type:
White

LED:
SEOUL DC 3528
FWHM:
84°
FWTM:
96°
Peak intensity:
0.557 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:
SEOUL DC 3528
FWHM:
86°
FWTM:
100°
Peak intensity:
0.534 cd/lm
Efficiency:
91 %
LEDs/each optic:
2
Light colour/type:
White

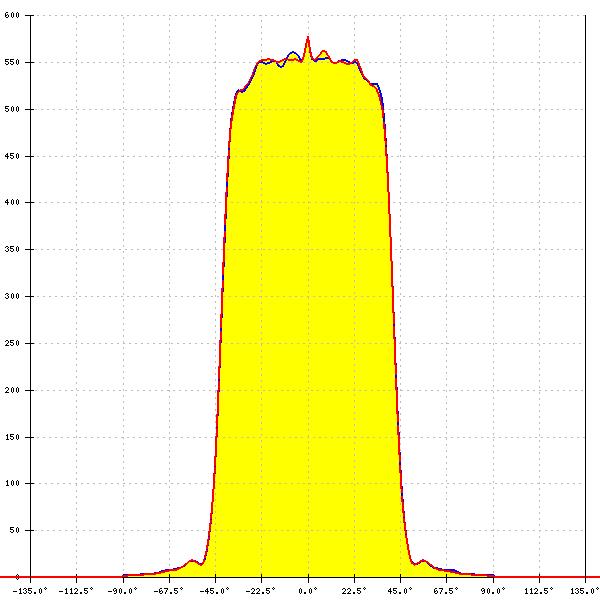

LED:
SEOUL DC 3528
FWHM:
83°
FWTM:
95°
Peak intensity:
0.580 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
