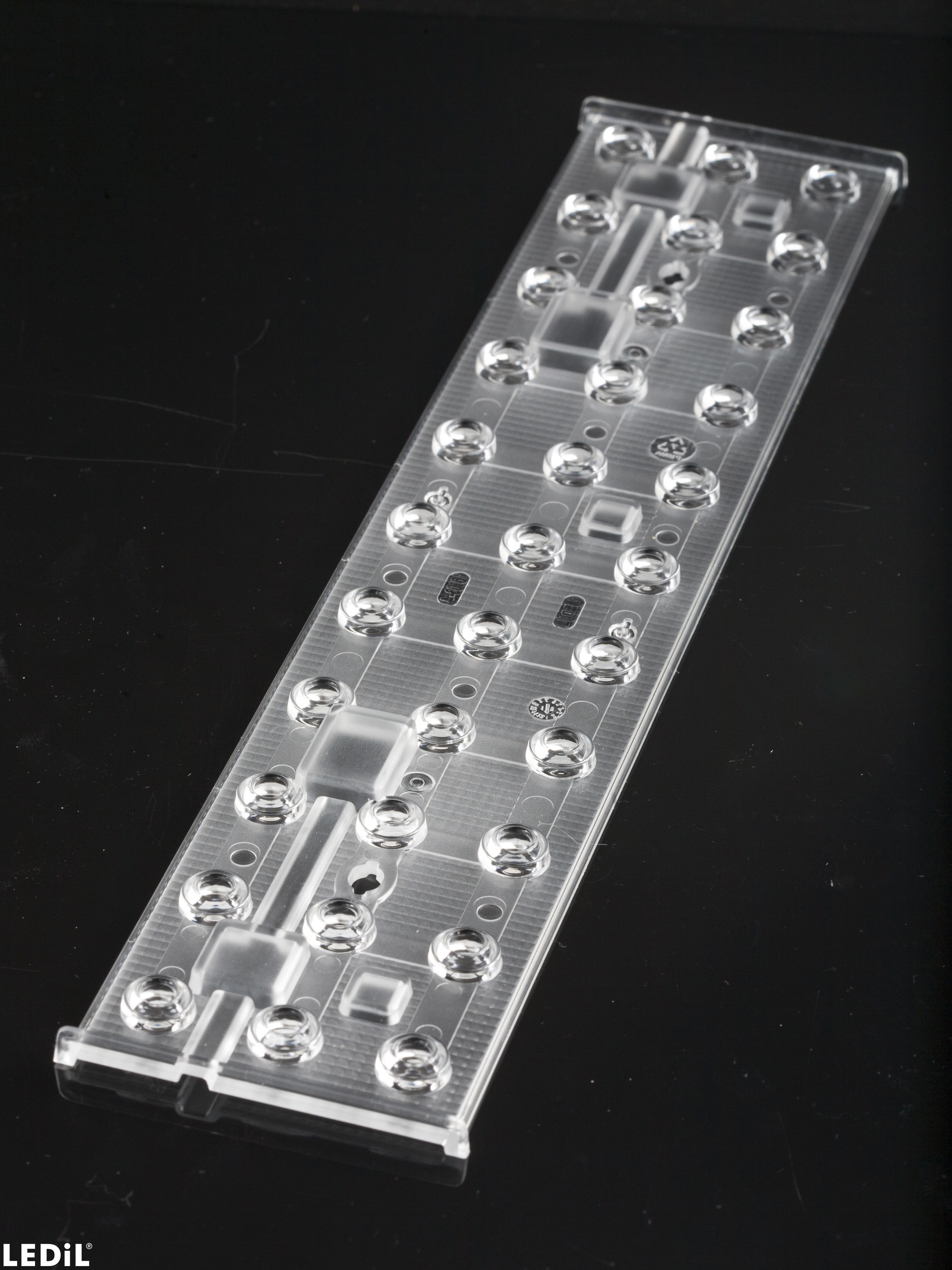

F16008_FLORENCE2-Z60

Print

~60° wide beam

Specification
  • Dimensions:
    285 x  64 mm
  • Height:
    8.10 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    78 pcs
  • Box size:
    398 x 298 x 140 mm
  • Box weight:
    4.8 kg
  • MPQ:
    6 pcs
  • MOQ:
    18 pcs
  • MOQ size:
    400 x 300 x 50 mm
  • MOQ weight:
    1.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16008_FLORENCE2-Z60

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

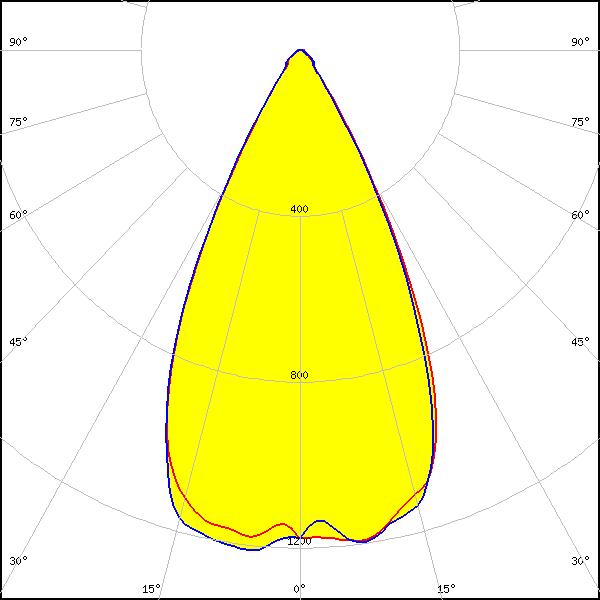

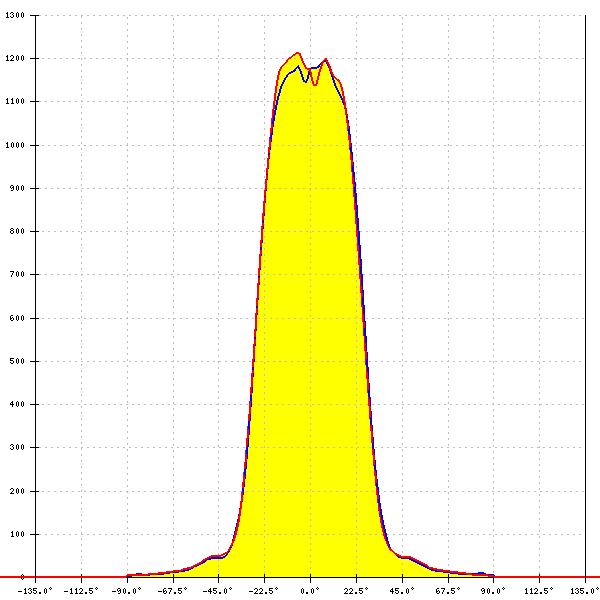

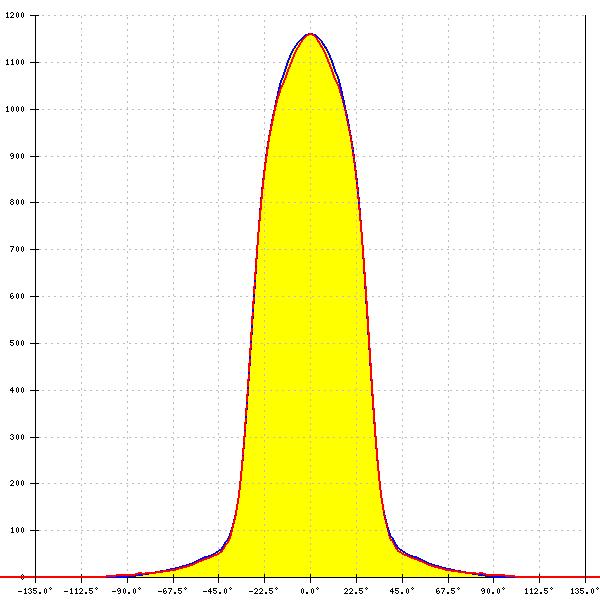

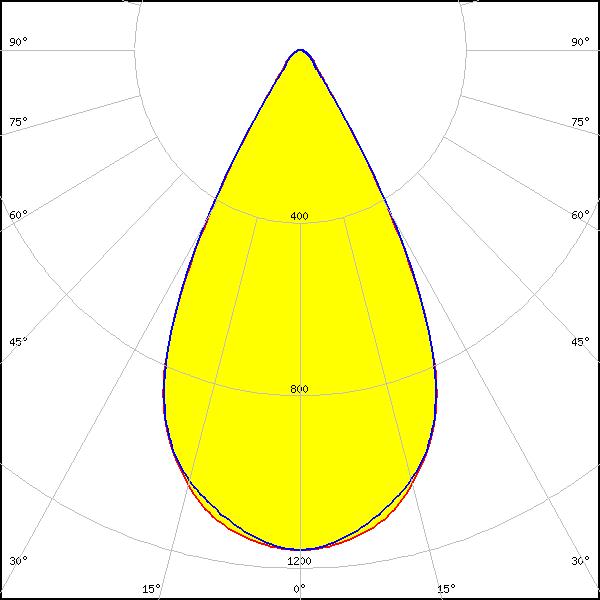

LED: J Series 2835
FWHM: 53°
FWTM: 72°
Peak intensity: 1.228 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White
LED: J Series 2835
FWHM: 56°
FWTM: 75°
Peak intensity: 1.160 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

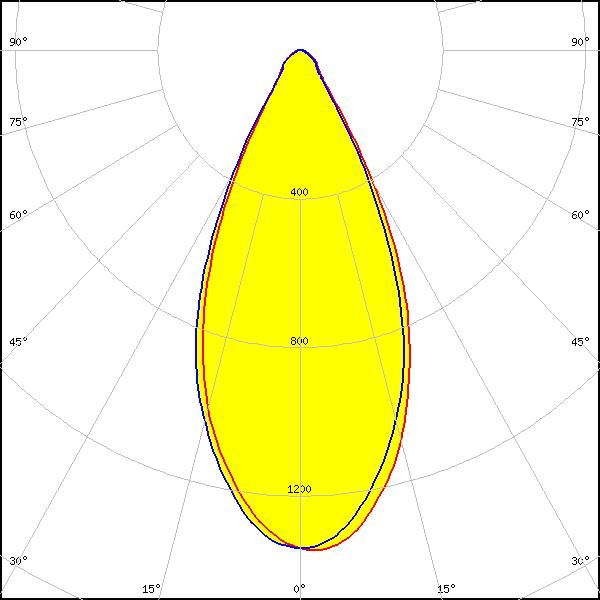

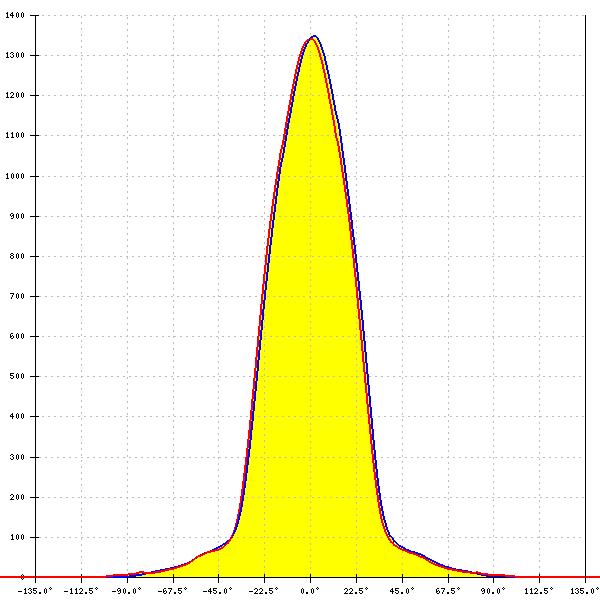

LED: LED-Modul 280 x 55 mm 1B
FWHM: 48°
FWTM: 73°
Peak intensity: 1.348 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

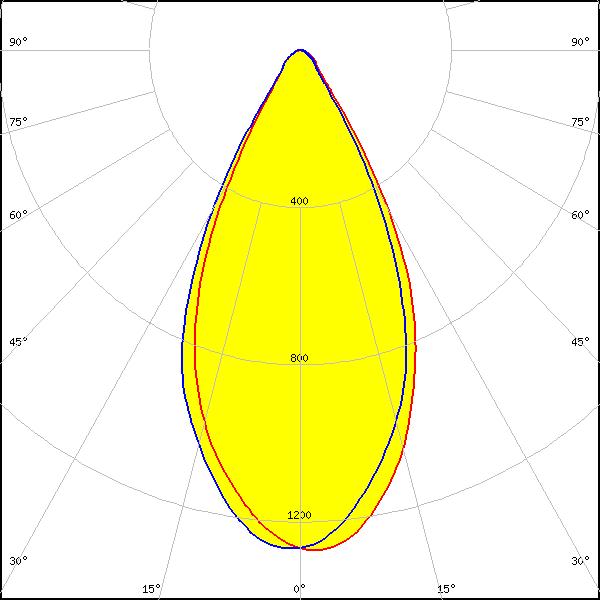

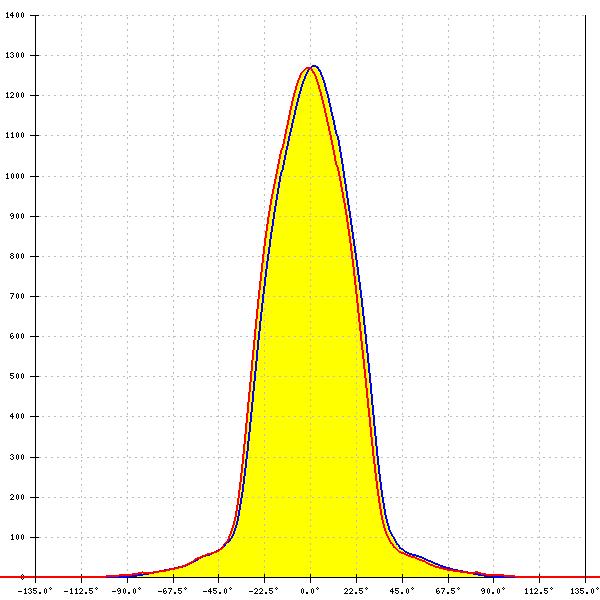

LED: LED-Modul 280 x 55 mm 2F
FWHM: 51°
FWTM: 75°
Peak intensity: 1.274 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

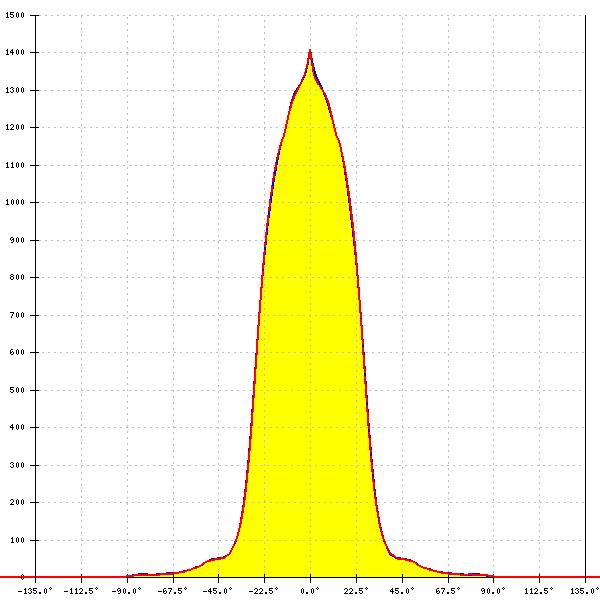

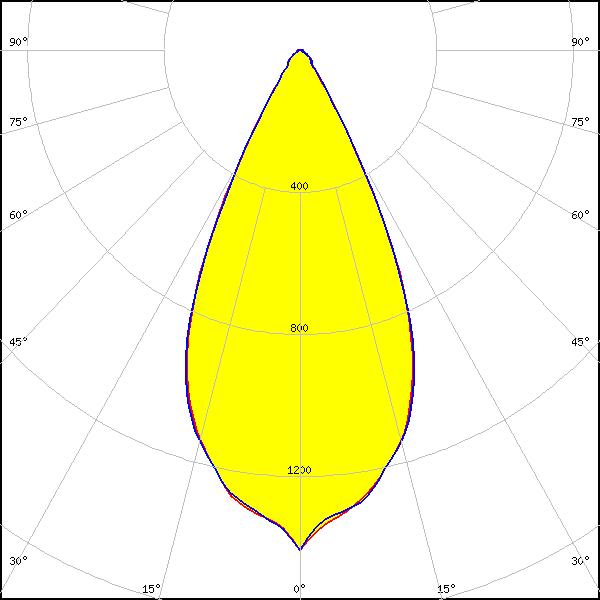

LED: LUXEON 3030 2D (Square LES)
FWHM: 50°
FWTM: 68°
Peak intensity: 1.408 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

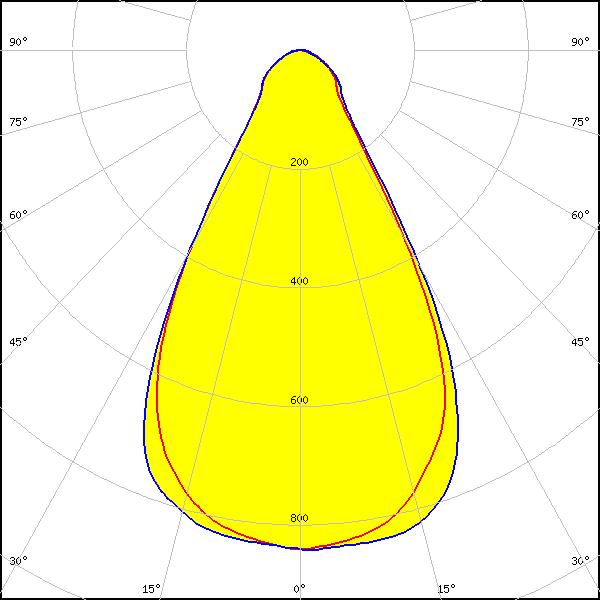

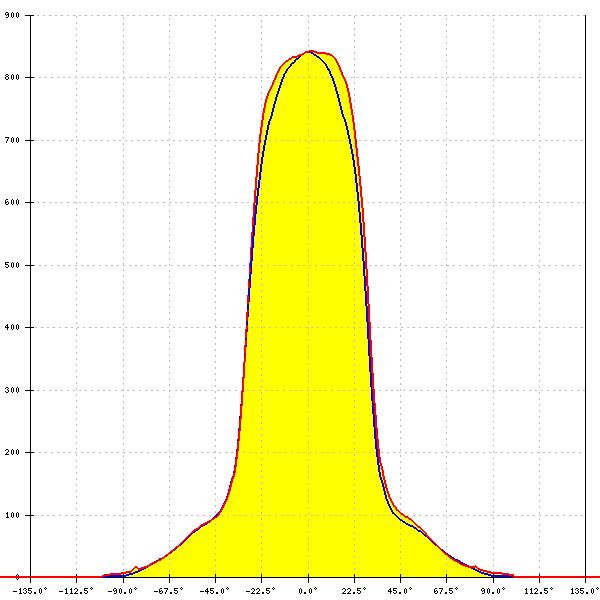

LED: LUXEON 5050 Round LES
FWHM: 58°
FWTM: 99°
Peak intensity: 0.844 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

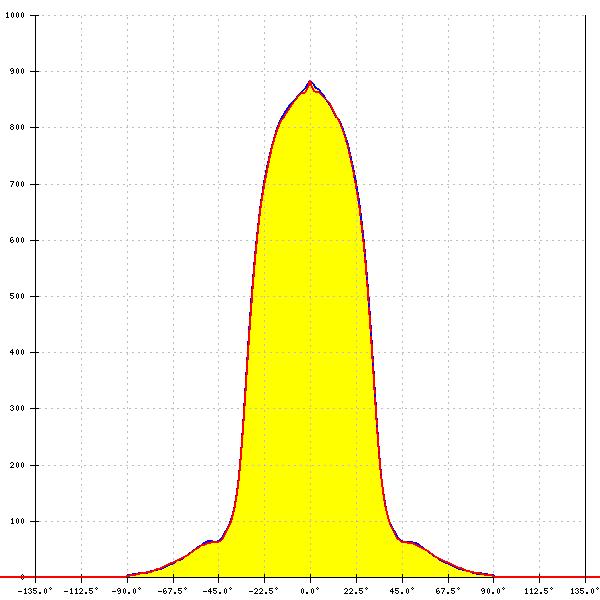

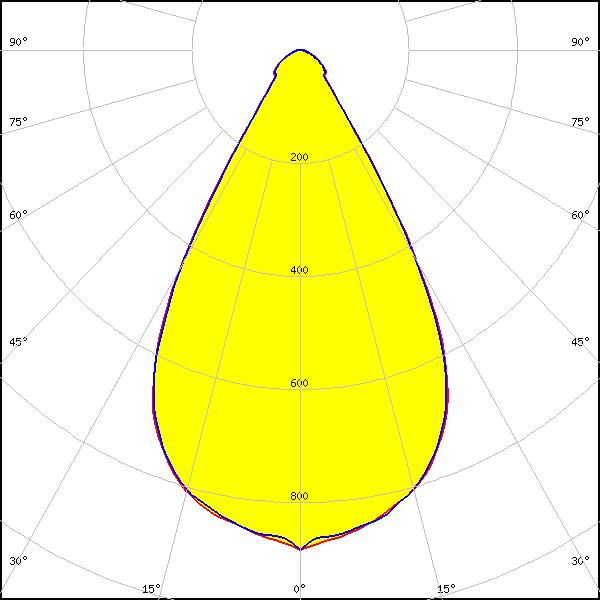

LED: LUXEON 5050 Square LES
FWHM: 60°
FWTM: 81°
Peak intensity: 0.886 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

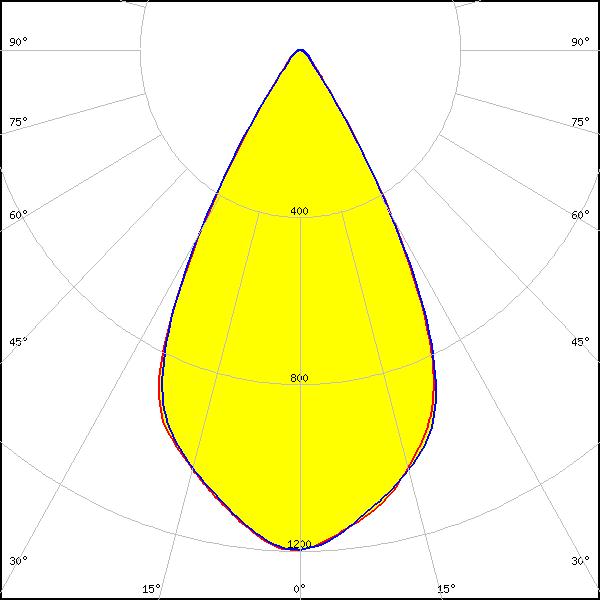

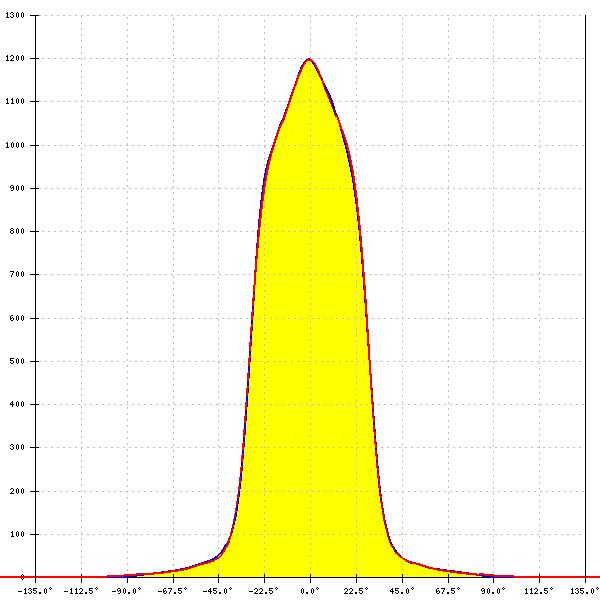

LED: LUXEON XR-3535L (L202 - xxxx033C30001)
FWHM: 56°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

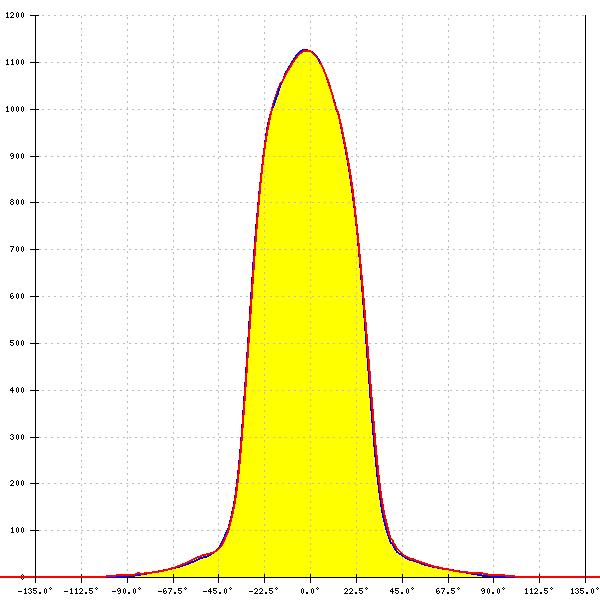

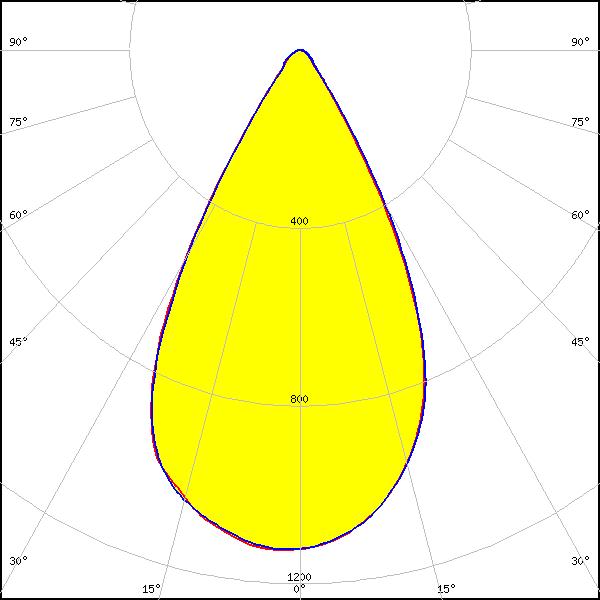

LED: NFSW757H
FWHM: 56°
FWTM: 77°
Peak intensity: 1.127 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: PL-BAR-G3 1100 280x55
FWHM: 54°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

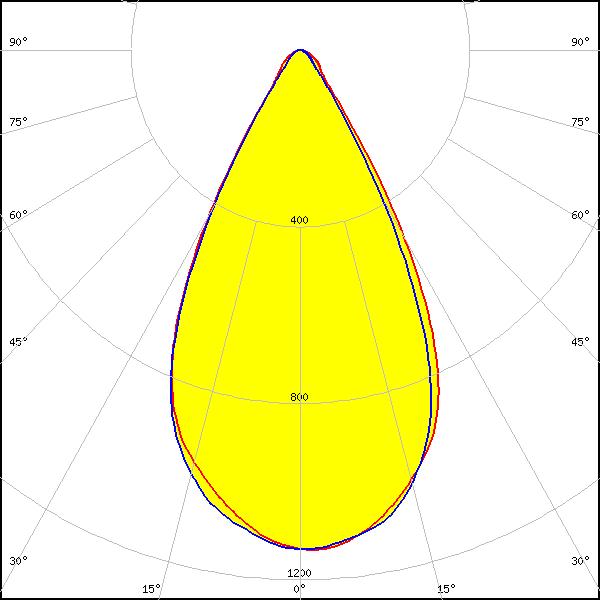

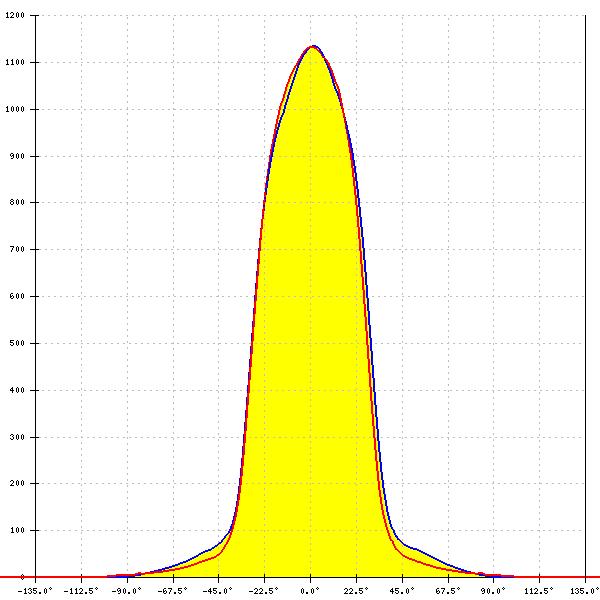

LED: Duris E5
FWHM: 56°
FWTM: 78°
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

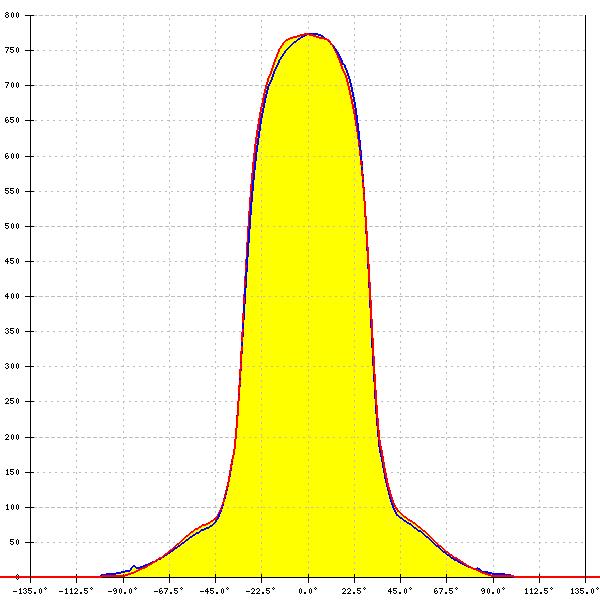

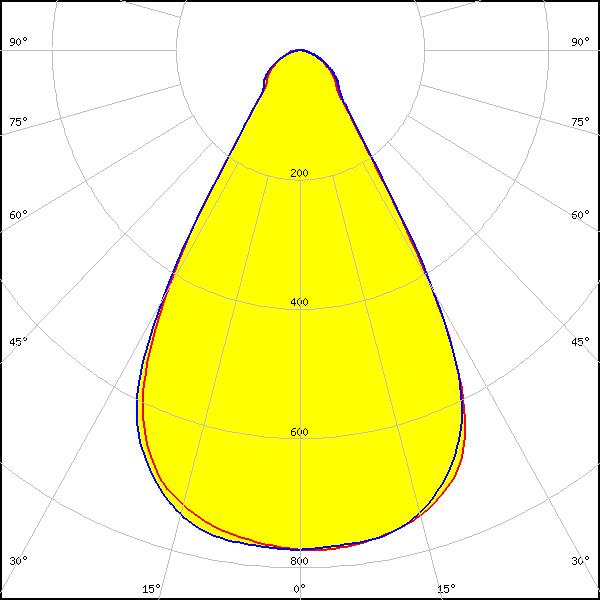

LED: Duris S8
FWHM: 62°
FWTM: 96°
Peak intensity: 0.774 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line VO 1ft MF 3R HV5
FWHM: 44°
FWTM: 67°
Peak intensity: 1.545 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft 1100lm 3R HV4
FWHM: 57°
FWTM: 77°
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

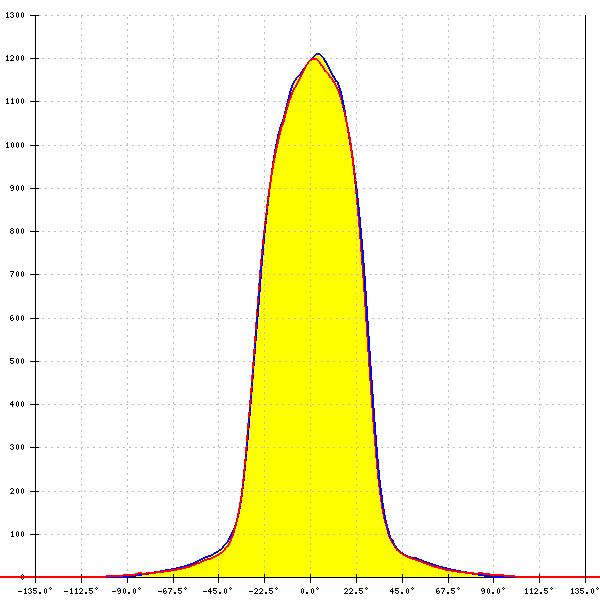

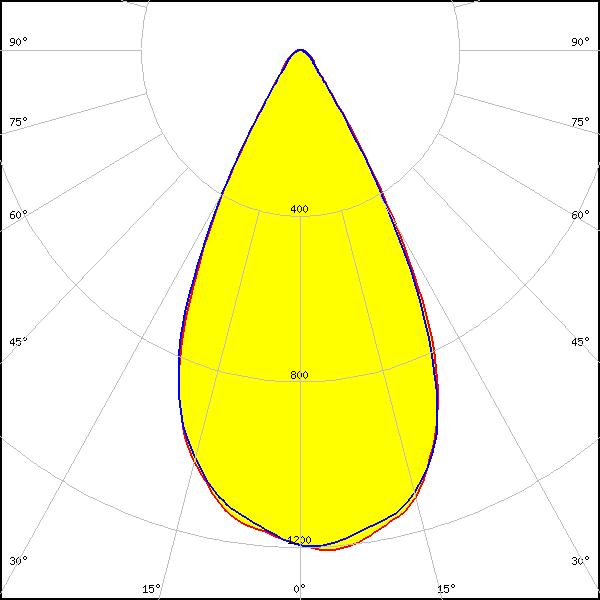

LED: Fortimo LED Line 1ft 650lm 3R HV4 & LV4
FWHM: 54°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft HF 3R HV5
FWHM: 46°
FWTM: 69°
Peak intensity: 1.473 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft LF 3R HV5 & LV5
FWHM: 53°
FWTM: 75°
Peak intensity: 1.192 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo LED Line 1ft MF 3R HV5 & LV5
FWHM: 46°
FWTM: 69°
Peak intensity: 1.427 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

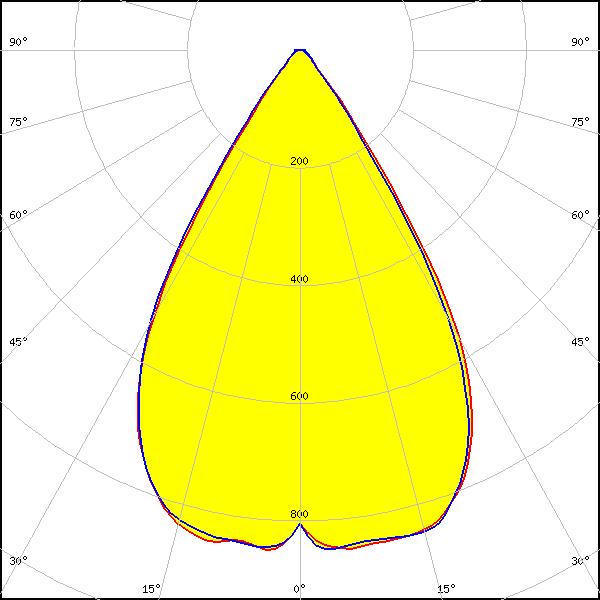

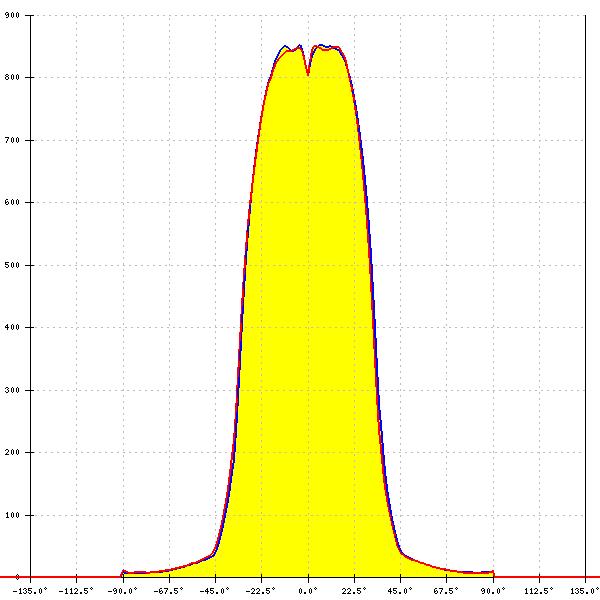

LED: LH351D
FWHM: 65°
FWTM: 84°
Peak intensity: 0.870 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

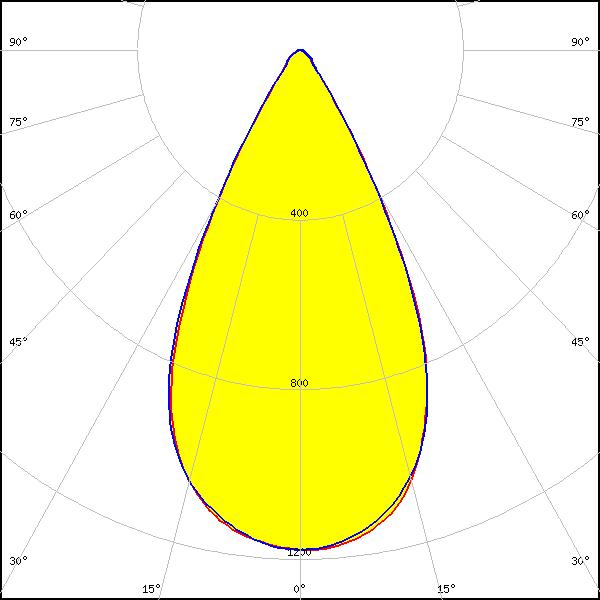

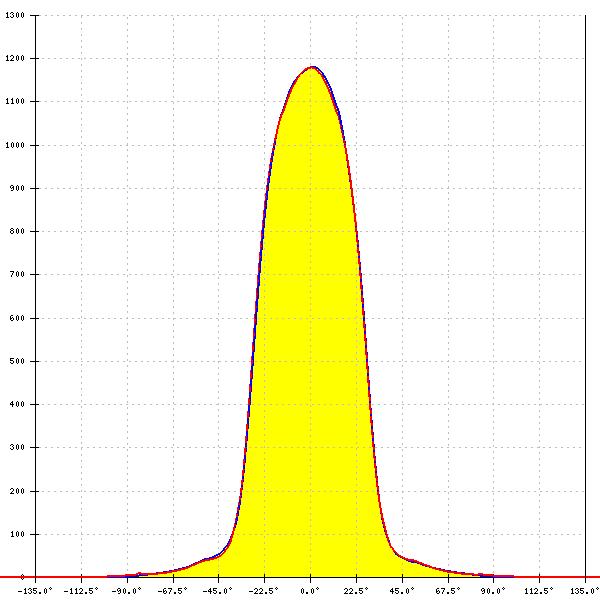

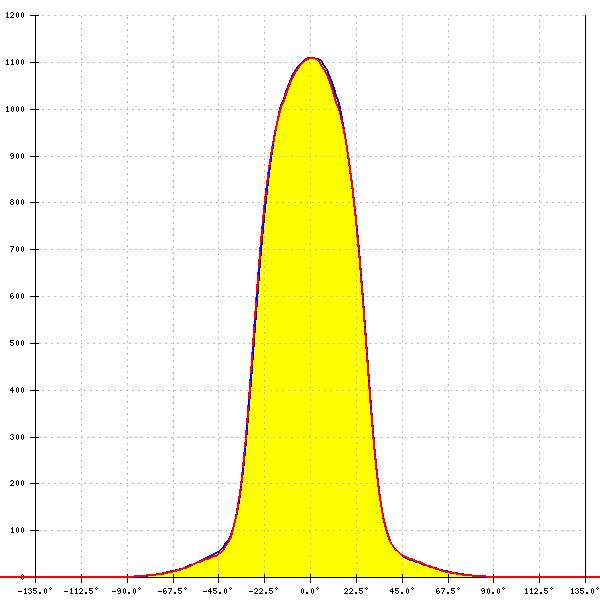

LED: LM28xB Series
FWHM: 54°
FWTM: 75°
Peak intensity: 1.113 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

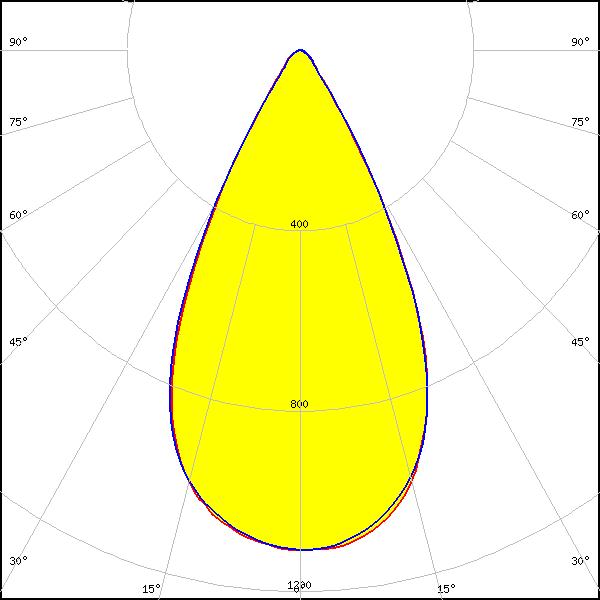

LED: LM28xB Series
FWHM: 53°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

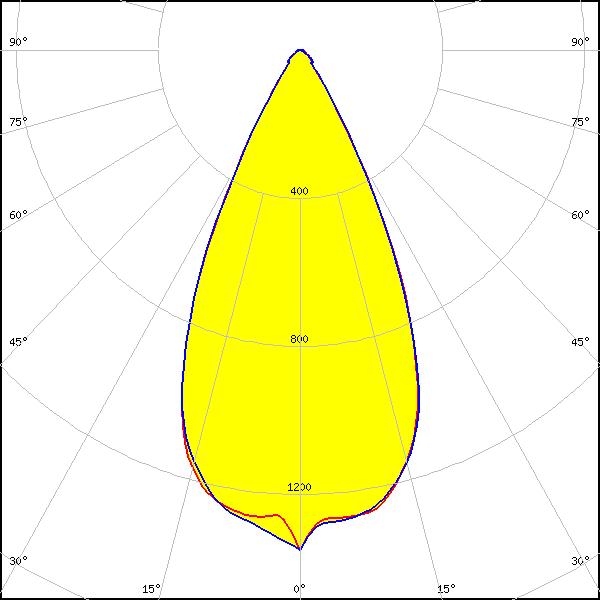

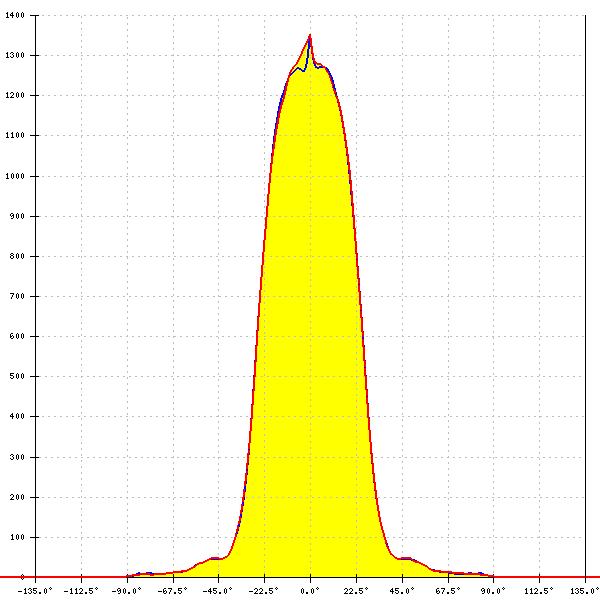

LED: LM301B
FWHM: 50°
FWTM: 70°
Peak intensity: 1.351 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

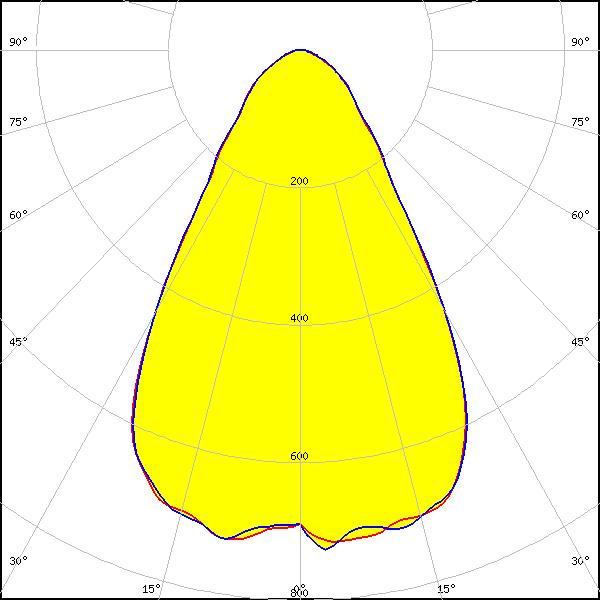

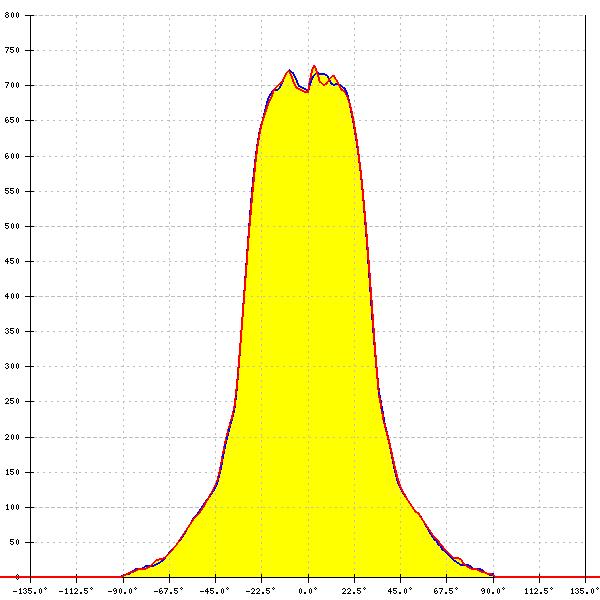

LED: LM301B
FWHM: 64°
FWTM: 116°
Peak intensity: 0.730 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

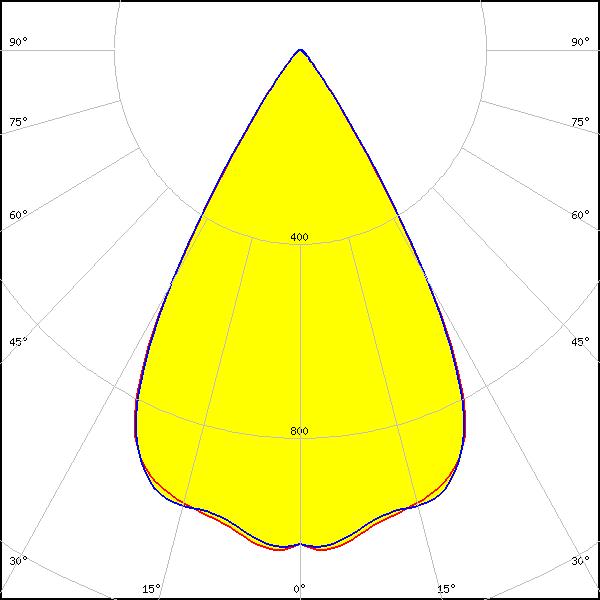

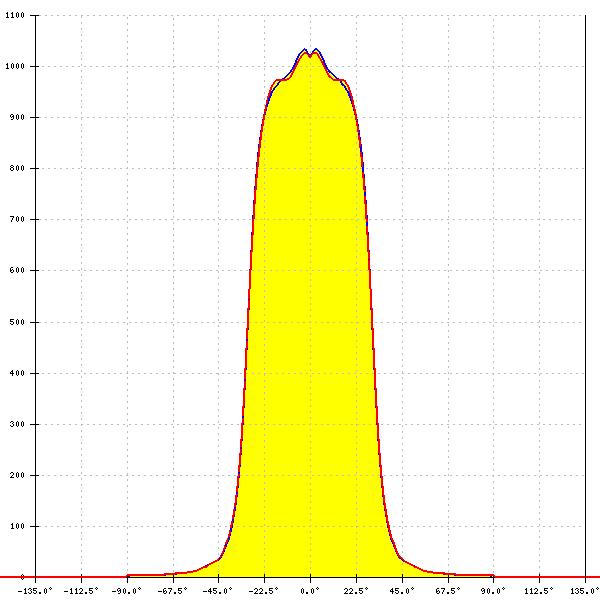

LED: LM302Z
FWHM: 60°
FWTM: 78°
Peak intensity: 1.033 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

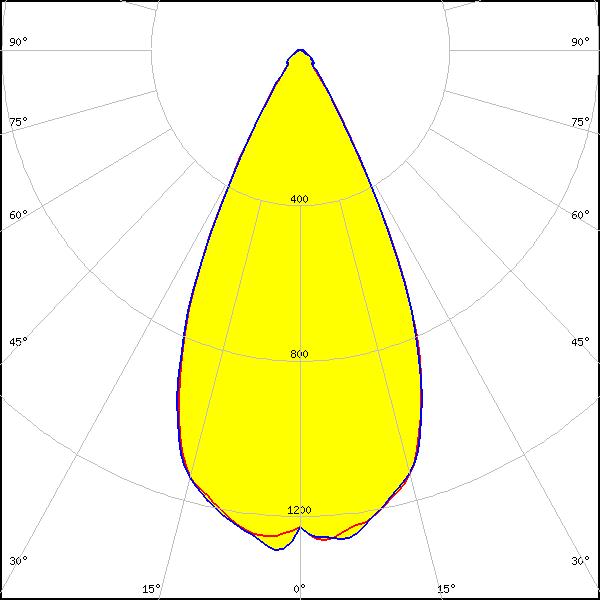

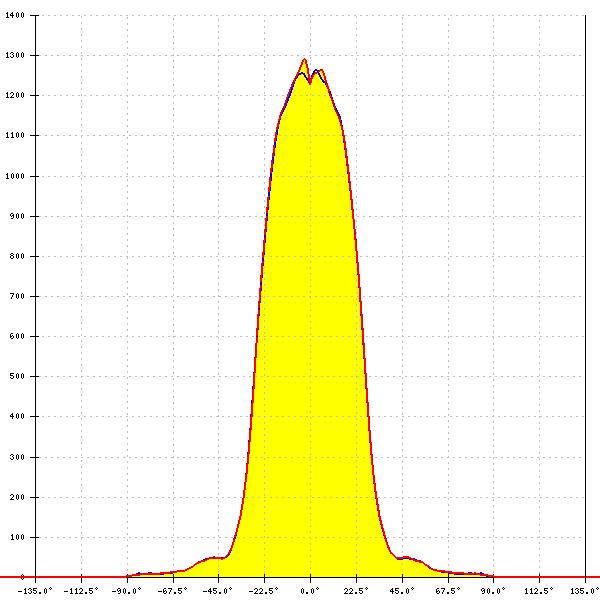

LED: LM302Z plus
FWHM: 52°
FWTM: 71°
Peak intensity: 1.310 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

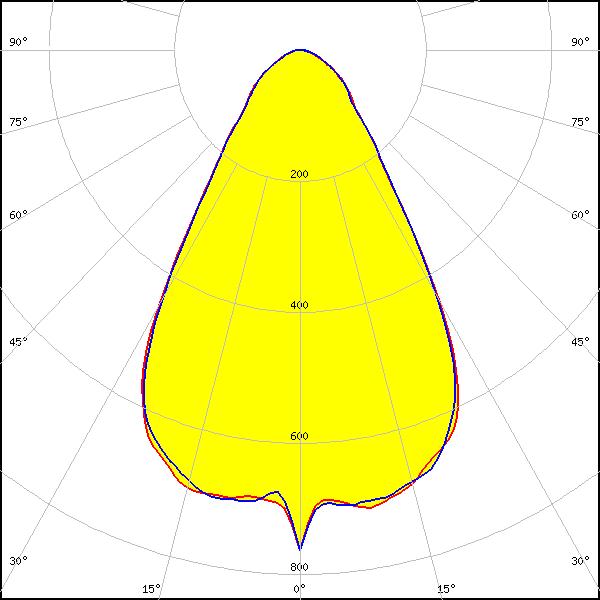

LED: LM302Z plus
FWHM: 64°
FWTM: 114°
Peak intensity: 0.764 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

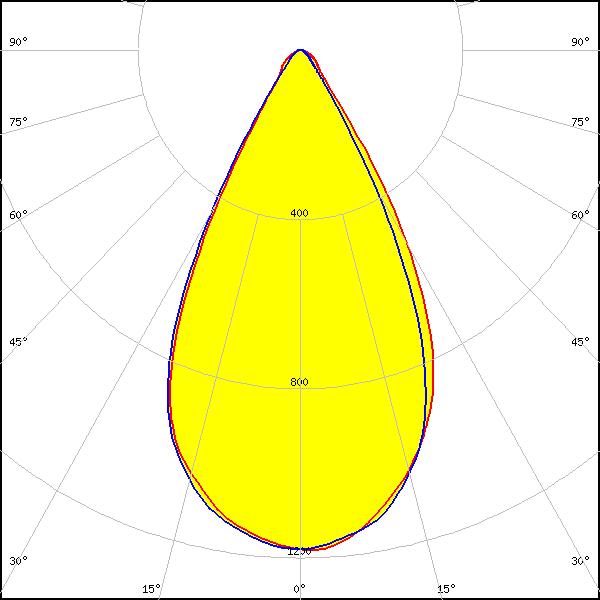

LED: LM561B Plus
FWHM: 54°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

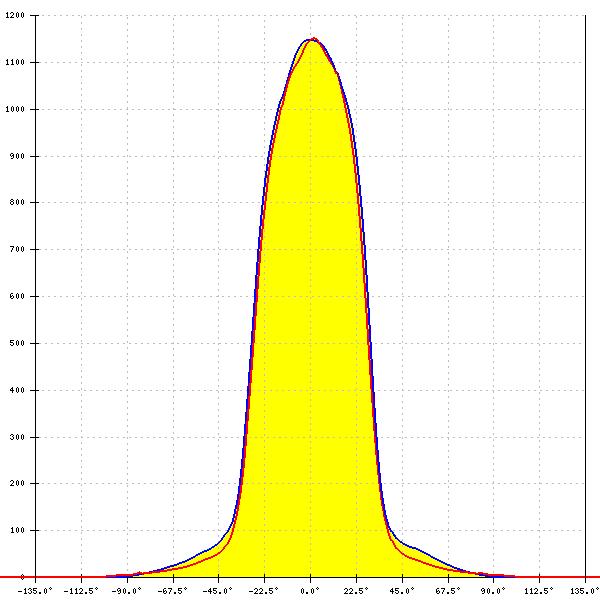

LED: LT-R286A
FWHM: 55°
FWTM: 76°
Peak intensity: 1.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

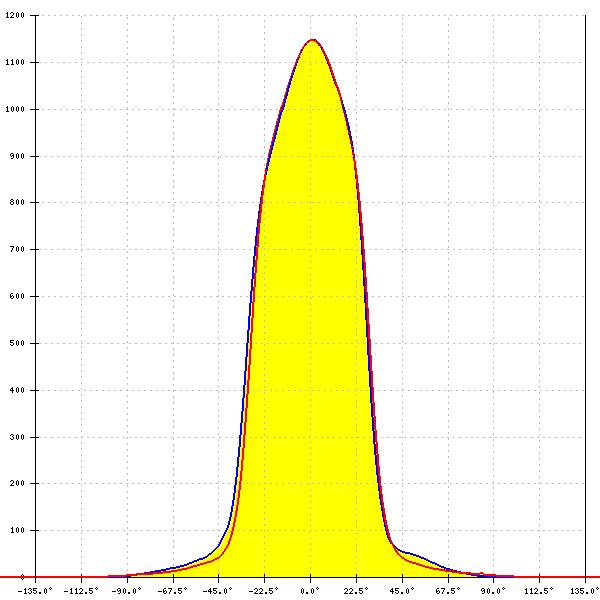

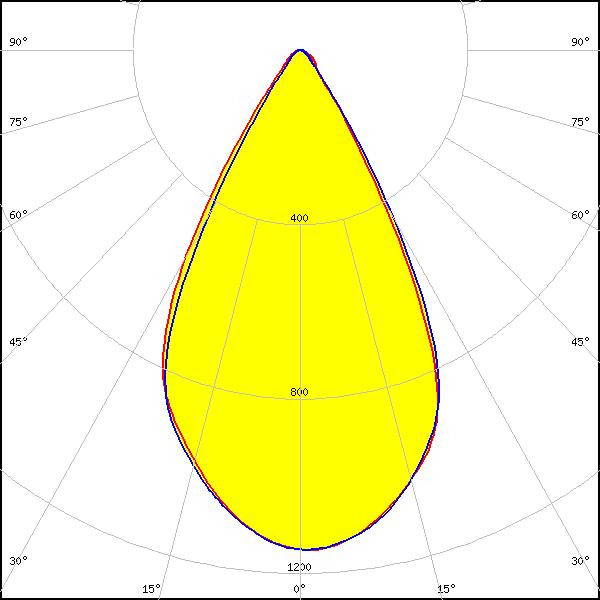

LED: SEOUL 5630
FWHM: 57°
FWTM: 77°
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

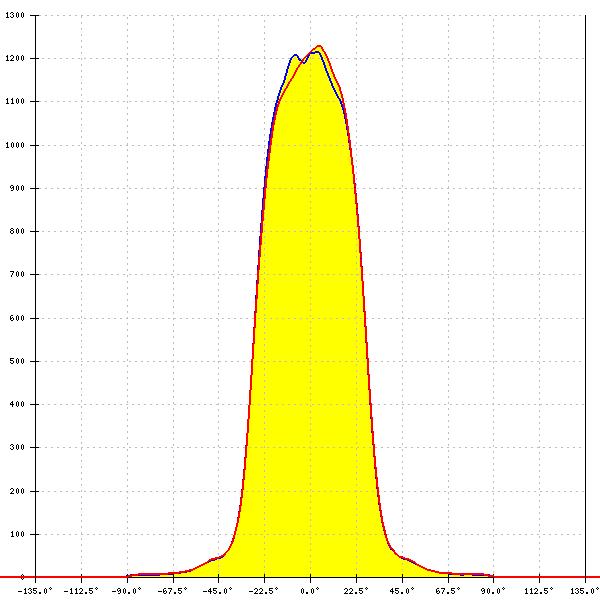

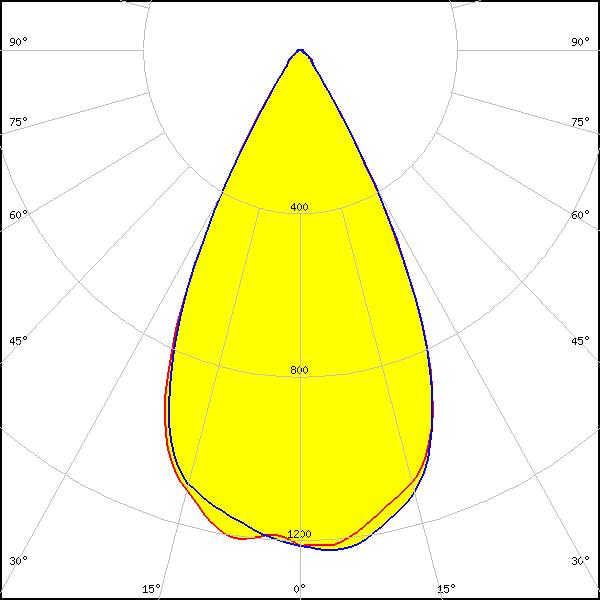

LED: SEOUL DC 3030C
FWHM: 54°
FWTM: 72°
Peak intensity: 1.237 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

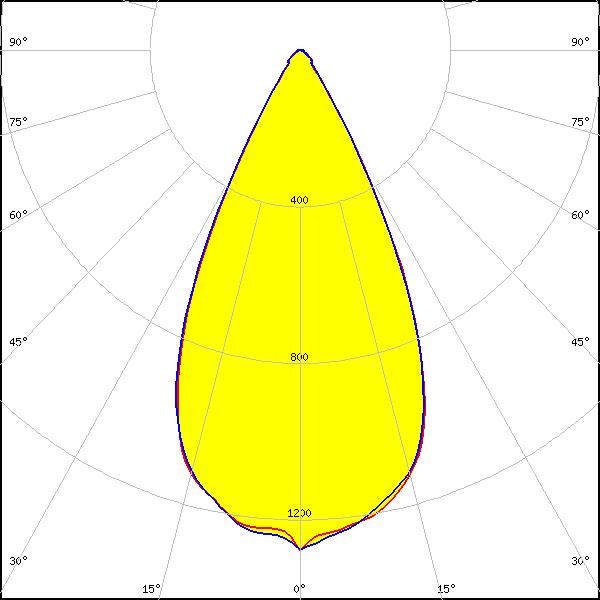

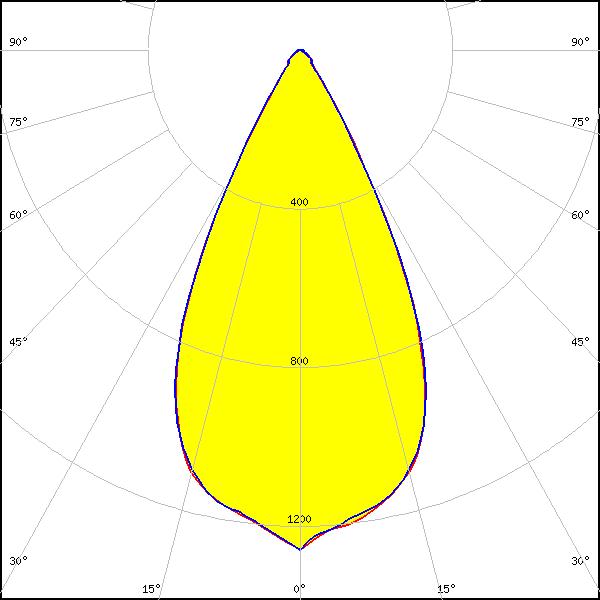

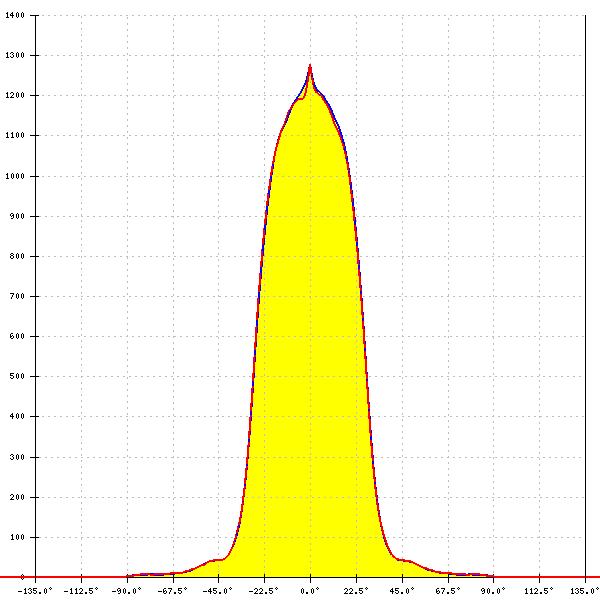

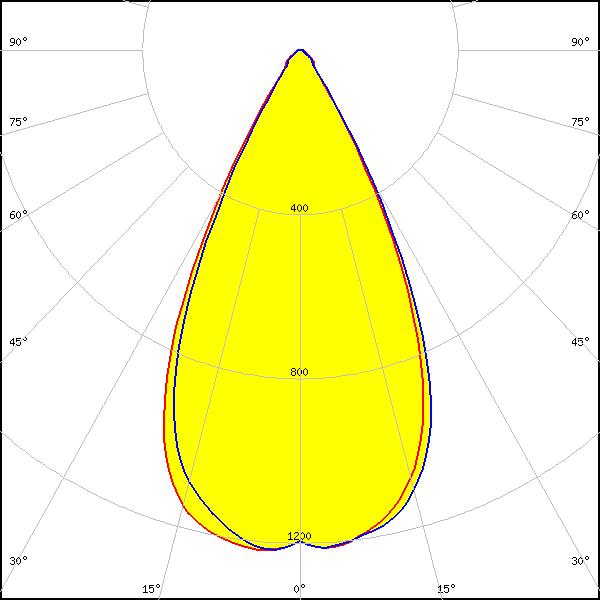

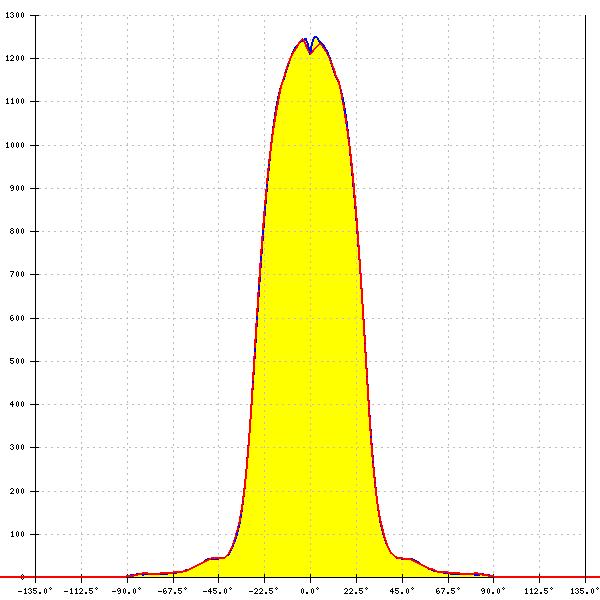

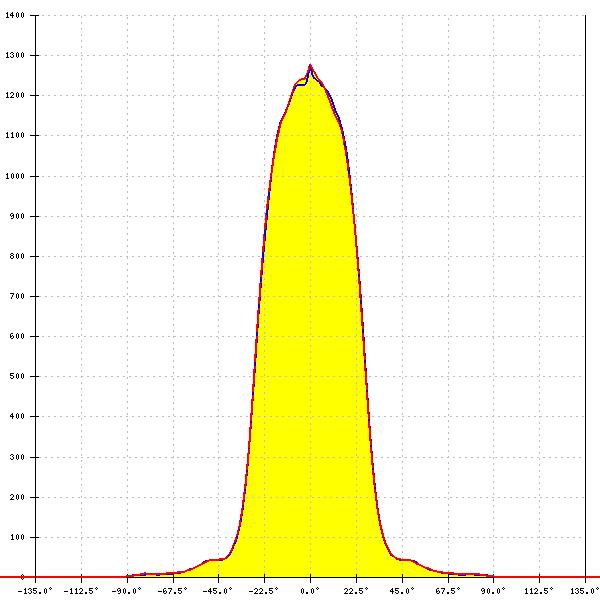

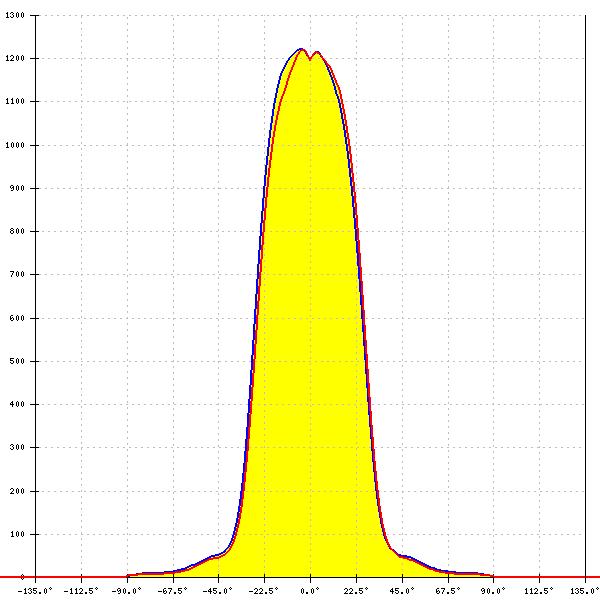

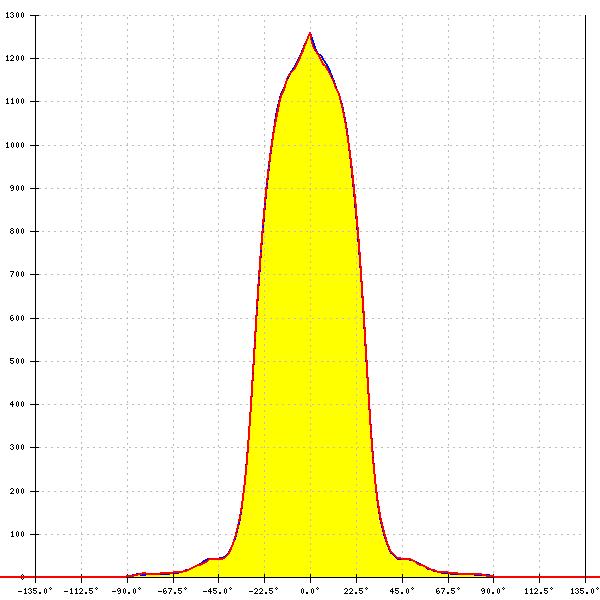

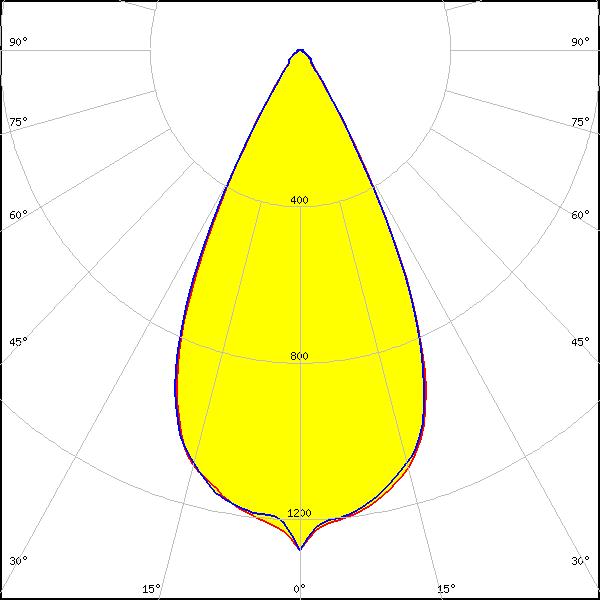

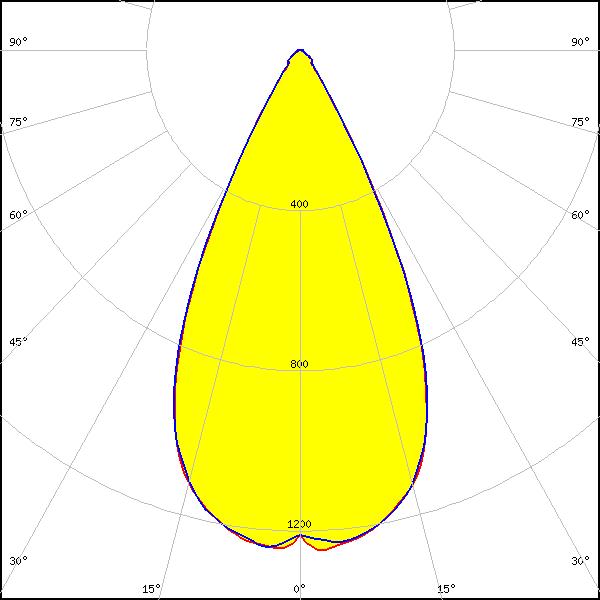

LED: SEOUL DC 3528
FWHM: 52°
FWTM: 70°
Peak intensity: 1.256 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

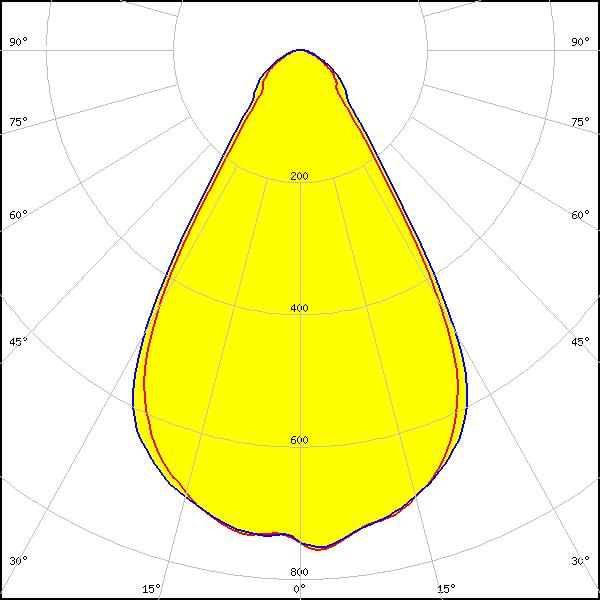

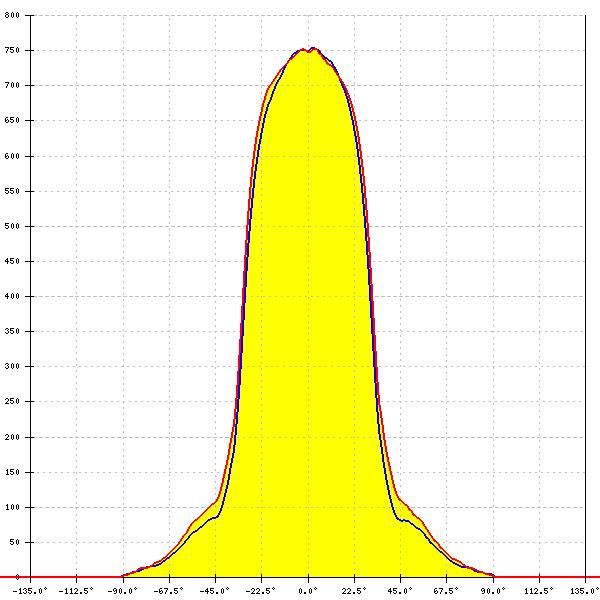

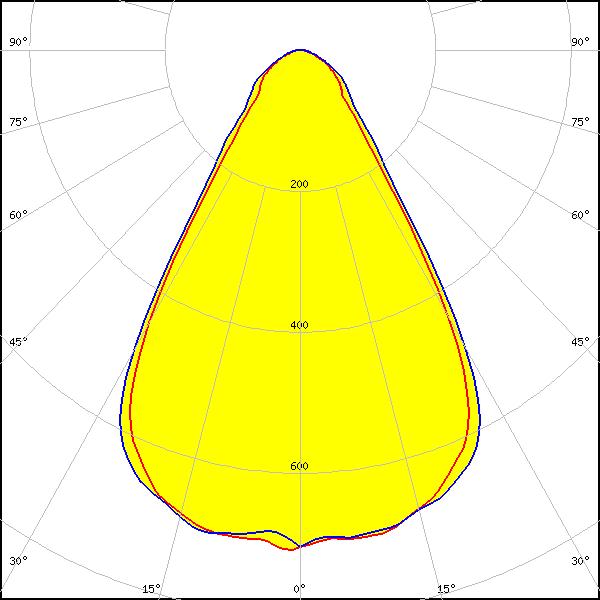

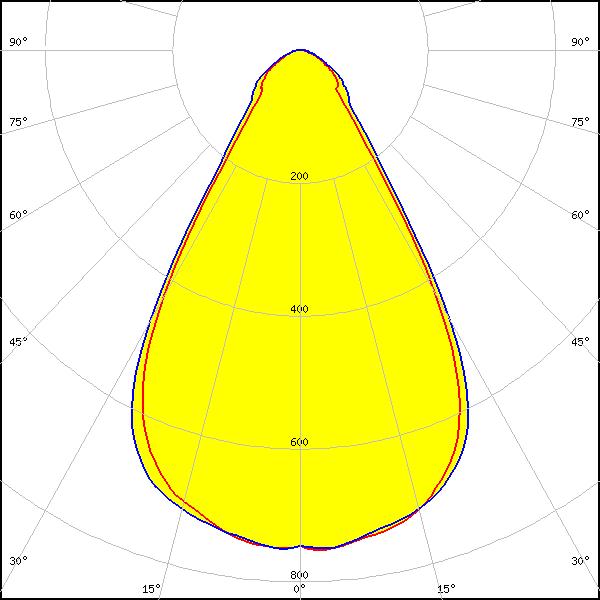

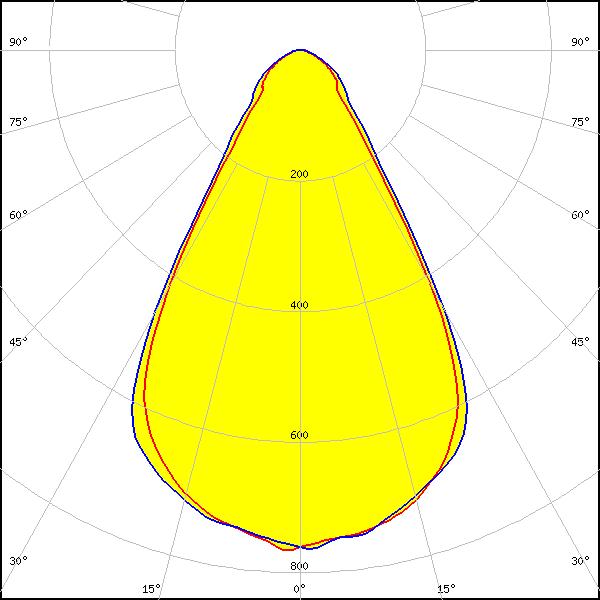

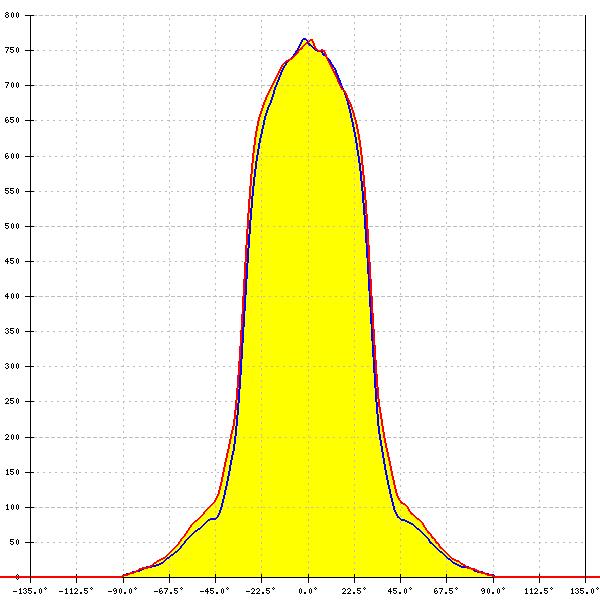

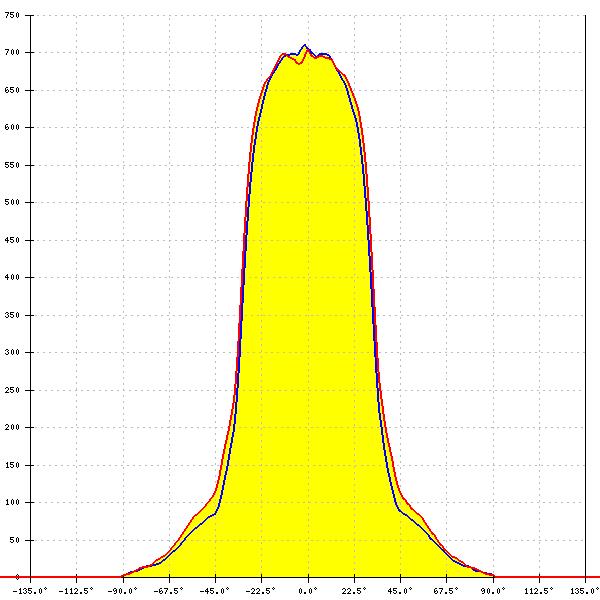

LED: SEOUL DC 3528
FWHM: 62° + 64°
FWTM: 102° + 112°
Peak intensity: 0.761 cd/lm
Efficiency: 86 %
LEDs/each optic: 2
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 52°
FWTM: 70°
Peak intensity: 1.278 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 62° + 64°
FWTM: 100° + 112°
Peak intensity: 0.778 cd/lm
Efficiency: 86 %
LEDs/each optic: 2
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 52°
FWTM: 70°
Peak intensity: 1.261 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 62° + 64°
FWTM: 99° + 111°
Peak intensity: 0.758 cd/lm
Efficiency: 86 %
LEDs/each optic: 2
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 52°
FWTM: 70°
Peak intensity: 1.279 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 64° + 66°
FWTM: 105° + 116°
Peak intensity: 0.710 cd/lm
Efficiency: 86 %
LEDs/each optic: 2
Light colour/type: White
LED: SEOUL DC 3528
FWHM: 52°
FWTM: 72°
Peak intensity: 1.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

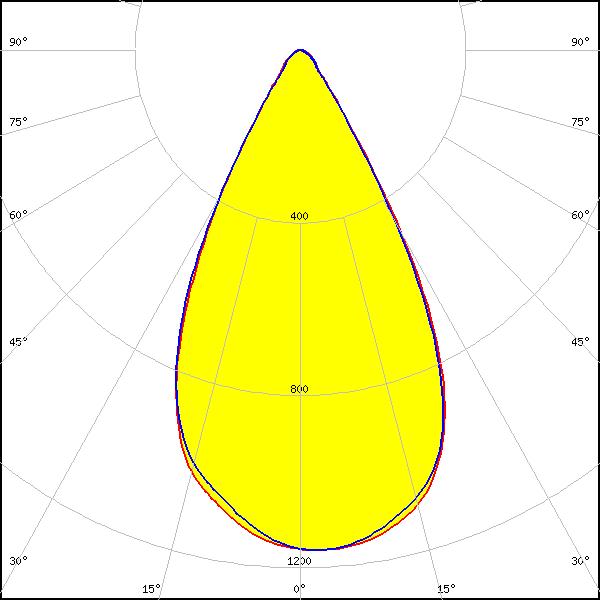

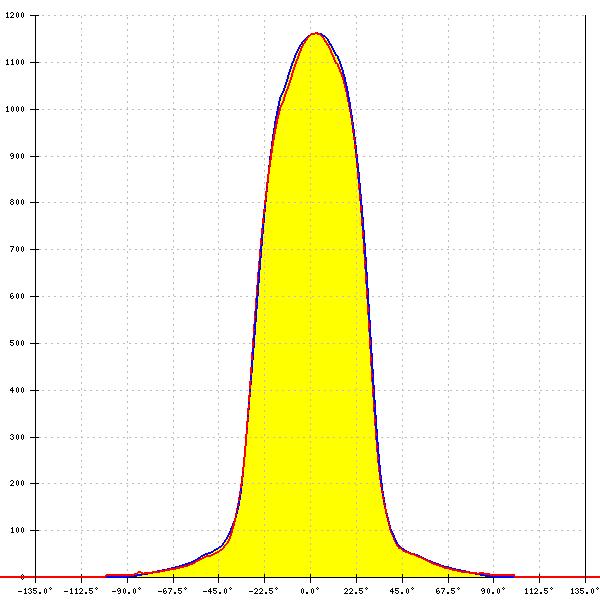

LED: LLE 55x566mm 4000lm ADV5
FWHM: 55°
FWTM: 76°
Peak intensity: 1.165 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
