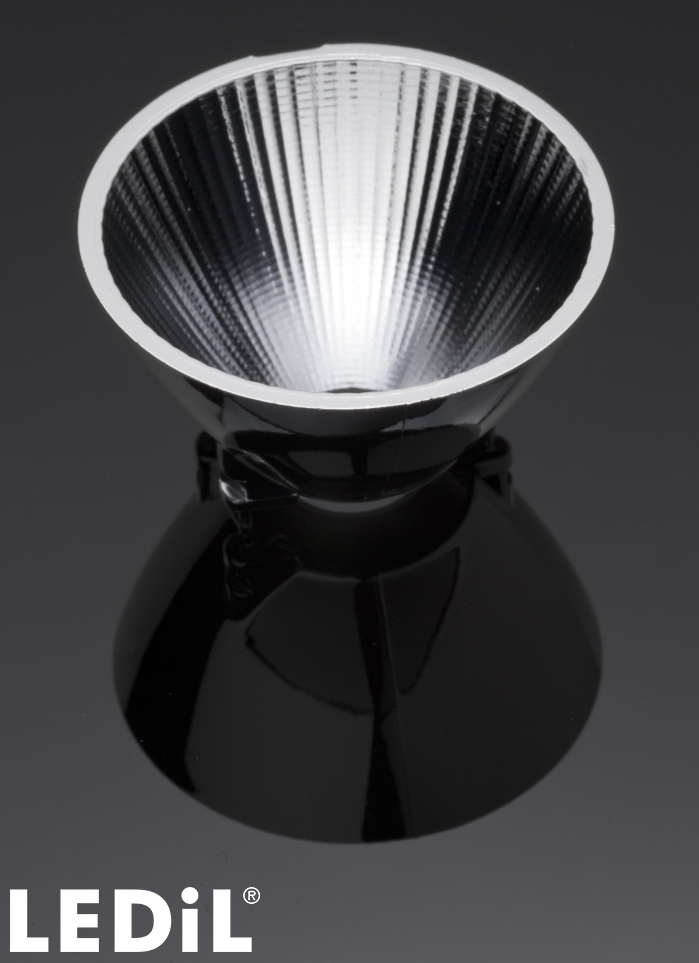

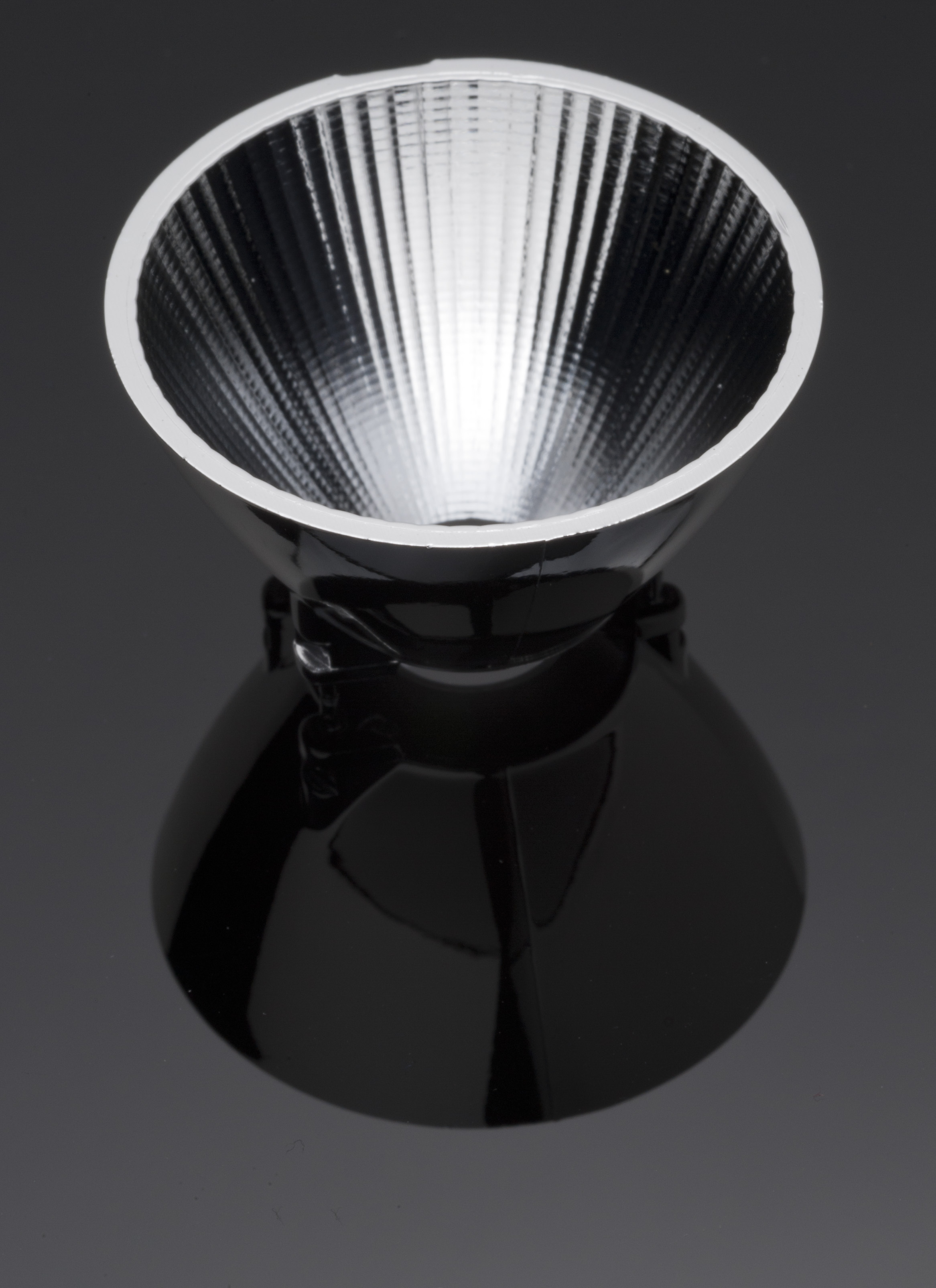

F16884_TYRA-S

Print

~20° spot beam.

Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

Specification
  • Dimensions:
    40 mm
  • Height:
    23.10 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    352 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    2.9 kg
  • MPQ:
    352 pcs
  • MOQ:
    5280 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    2.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16884_TYRA-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
WHERE TO BUY

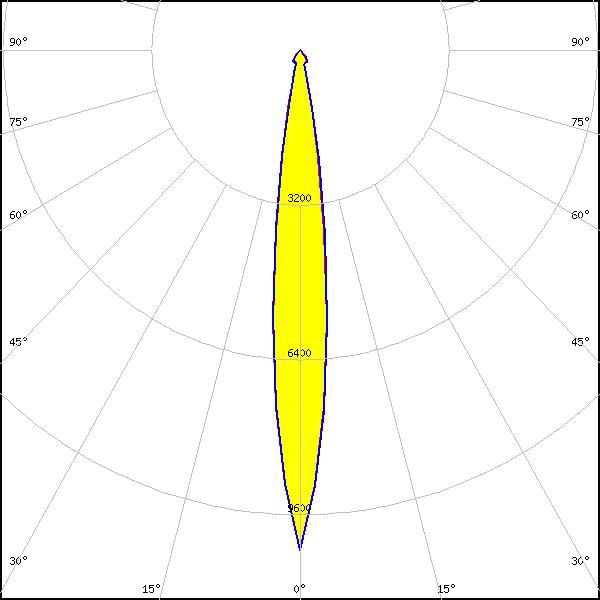

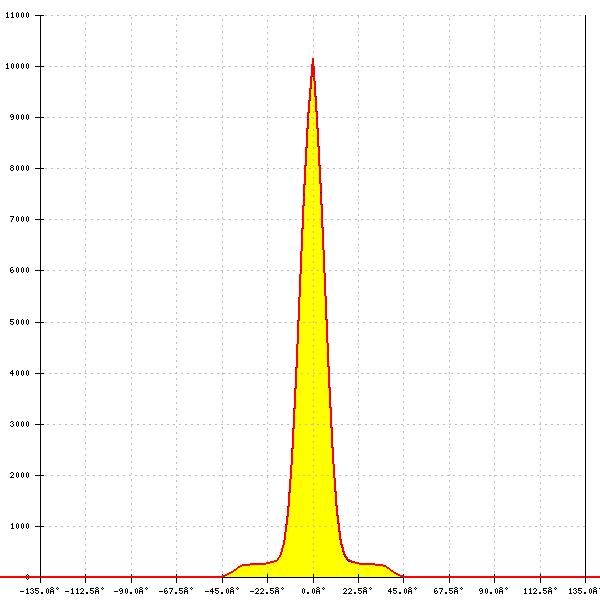

Optical results

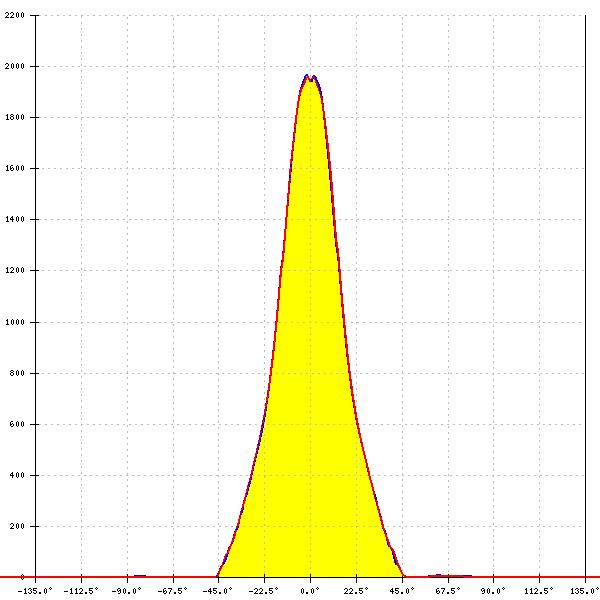

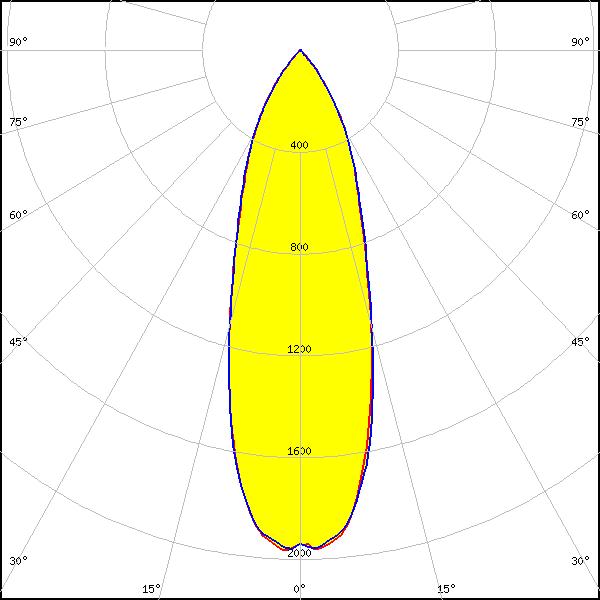

LED: MP-L
FWHM: 33°
FWTM: 72°
Peak intensity: 1.965 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

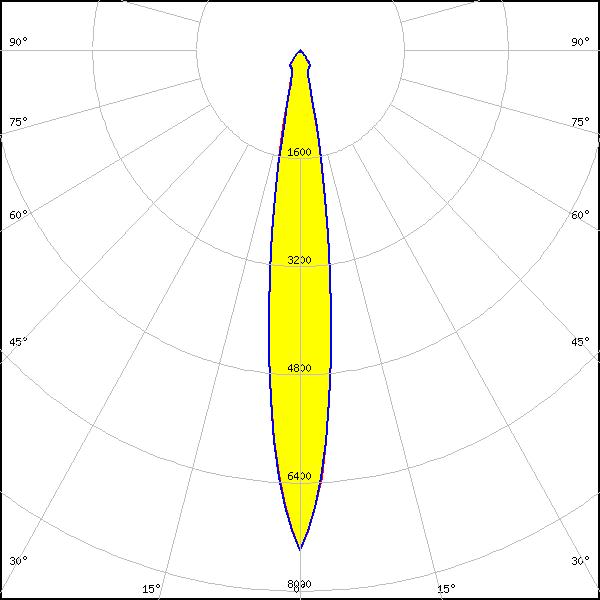

LED: LUXEON 5050 Square LES
FWHM: 14°
FWTM: 30°
Peak intensity: 7.397 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

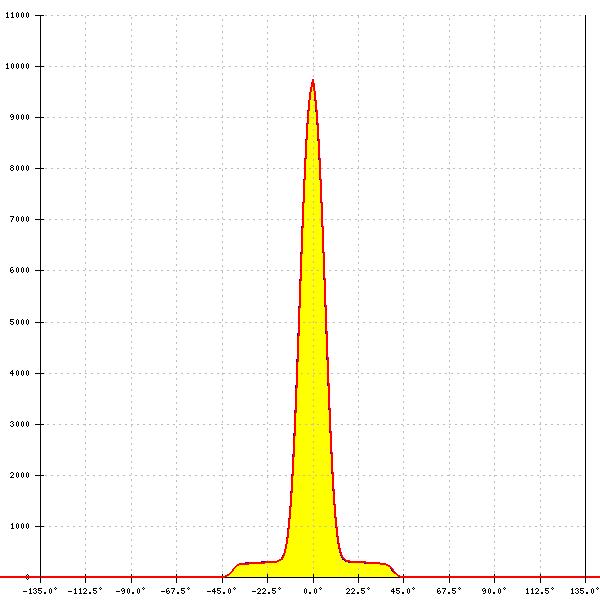

LED: NVSW219F
FWHM: 14°
FWTM: 24°
Peak intensity: 9.742 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
