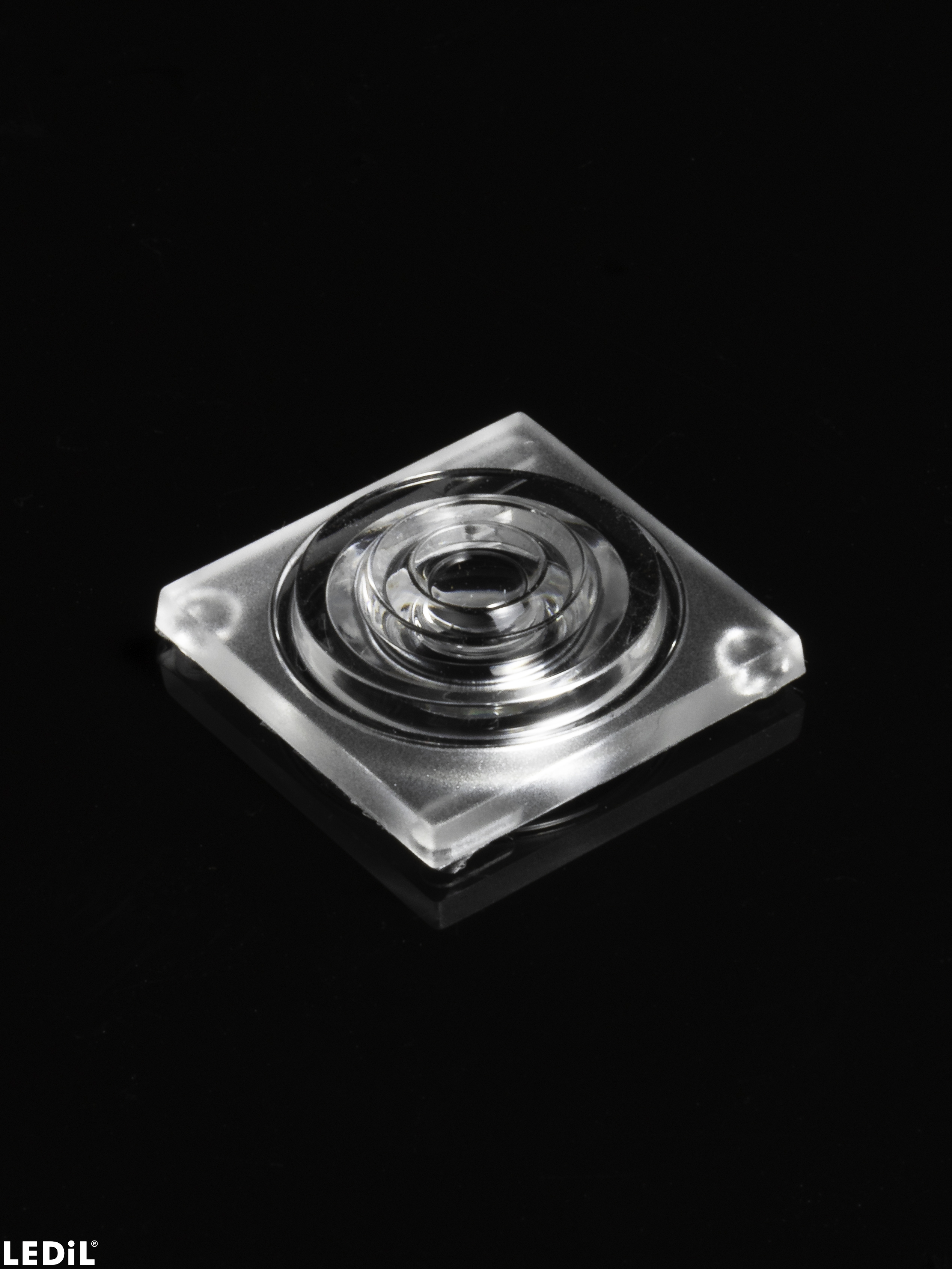

    F17826_VIOLETTA-W

    Print

    ~60° wide beam

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      6.51 mm
    • Fastening:
      pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2025 pcs
    • Box size:
      485 x 280 x 100 mm
    • Box weight:
      4.3 kg
    • MPQ:
      135 pcs
    • MOQ:
      270 pcs
    • MOQ size:
      480 x 280 x 30 mm
    • MOQ weight:
      0.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F17826_VIOLETTA-W

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    Installation Guide

    General installation guide

    Downloadable content

    VIOLETTA frame design example

    Luminaire, example

    Luminaire example with VIOLETTA

    News

    VIOLETTA - Small silicone lenses for UV-C applications

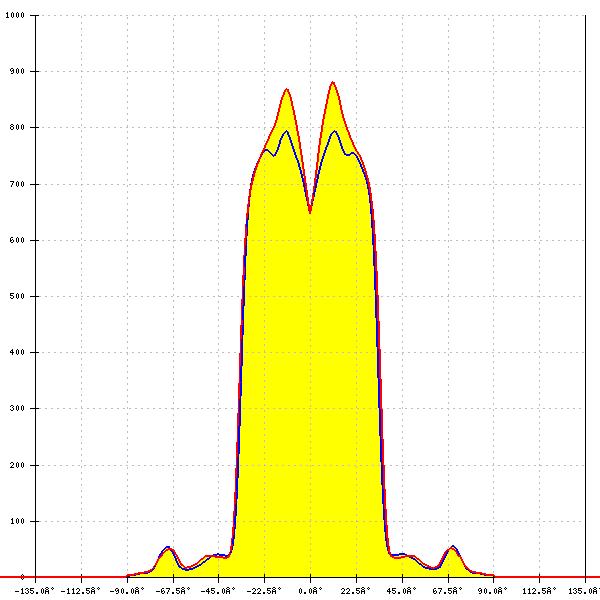

    Optical results

    LED: Bolb UV-C 6060 SMD
    FWHM: 56°
    FWTM: 74°
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour: UV-C

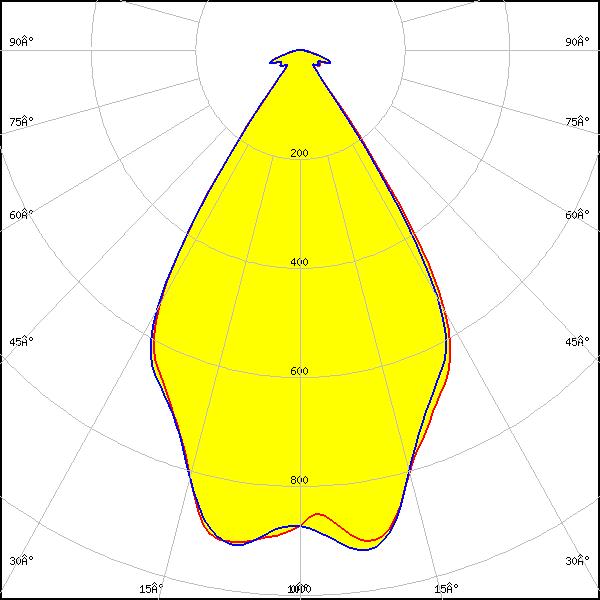

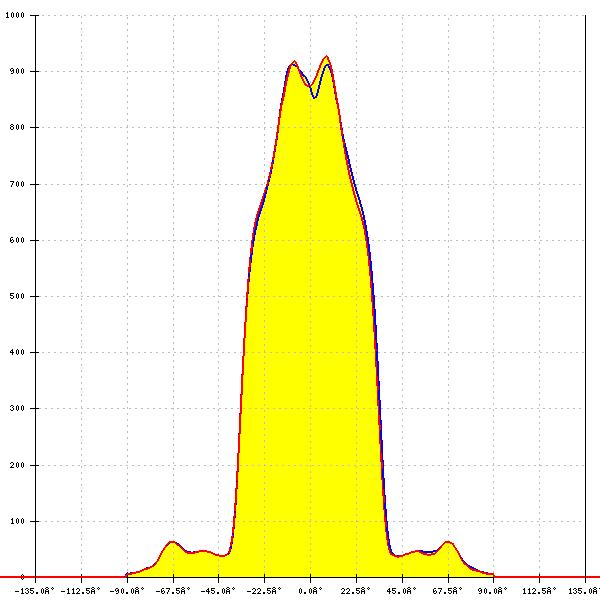

    LED: Bridgelux SMD 5050
    FWHM: 64°
    FWTM: 76°
    Peak intensity: 0.927 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour: White
    LED: KL265-50V-SM-WD
    FWHM: 48°
    FWTM: 68°
    Efficiency: 62 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: S3535-DR100-W272-P40
    FWHM: 52°
    FWTM: 72°
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: XFM-5050 2 Die
    FWHM: 56°
    FWTM: 74°
    Efficiency: 65 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: XFM-5050 3 Die
    FWHM: 55°
    FWTM: 73°
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour: UV-C

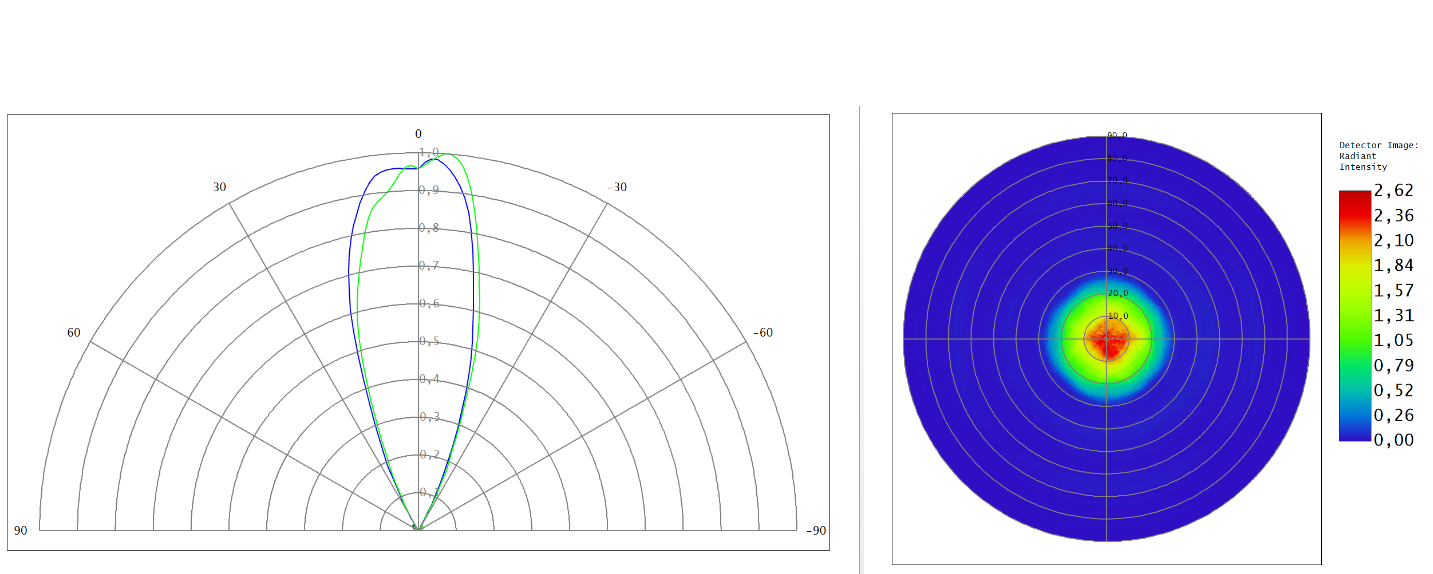

    LED: XST-3535-UV
    FWHM: 36°
    FWTM: 54°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: UV-C

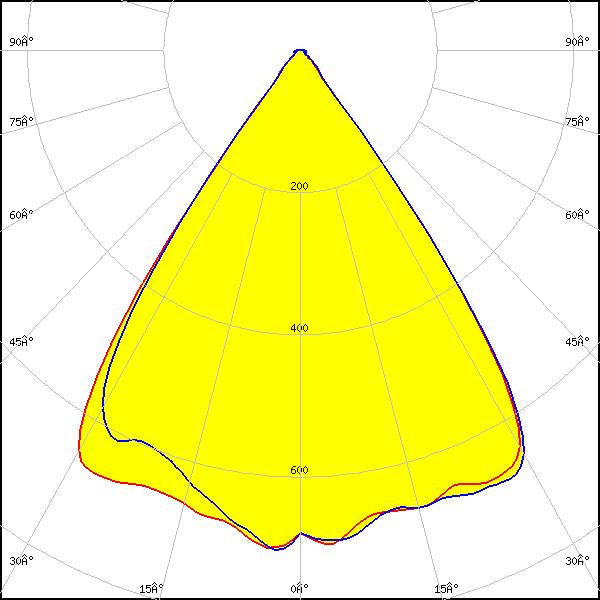

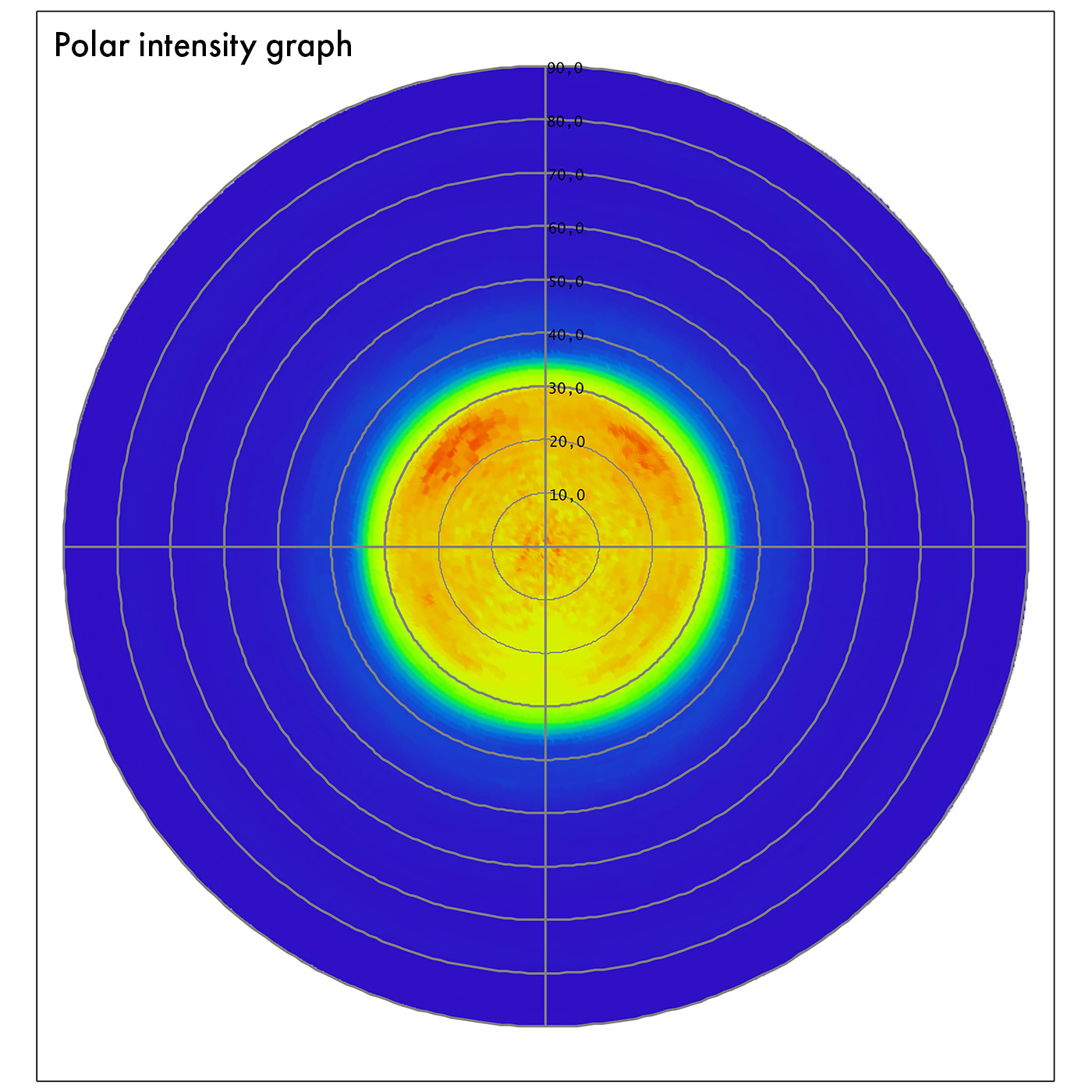

    LED: NC4U334BR
    FWHM: 67°
    FWTM: 75°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour: UV-C

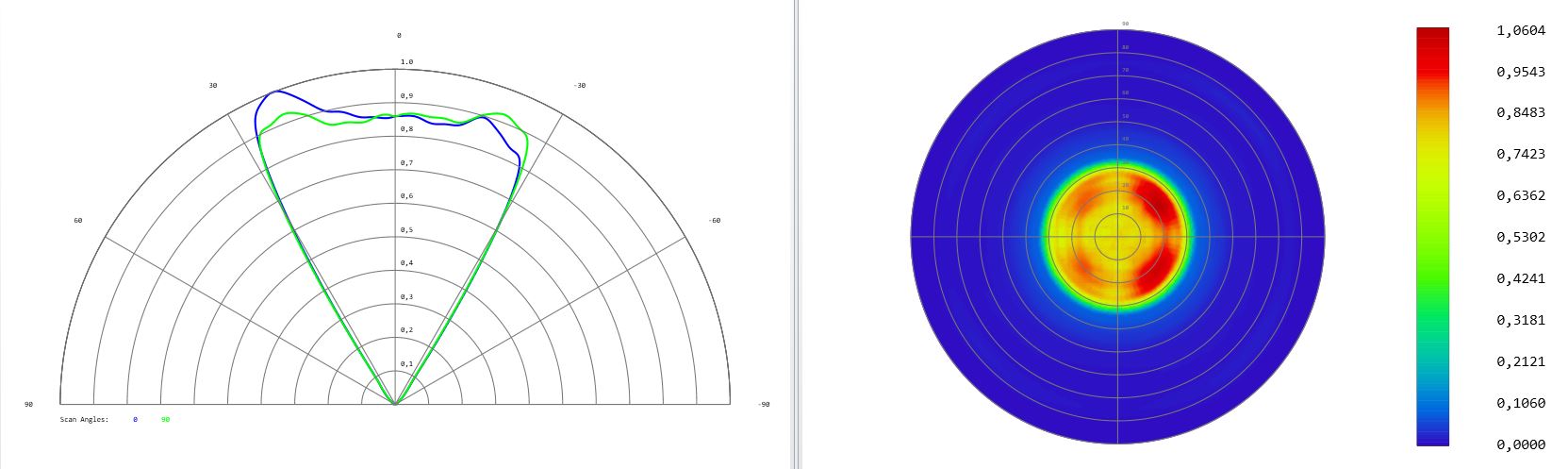

    LED: NCSU334A
    FWHM: 62°
    FWTM: 72°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour: UV-C

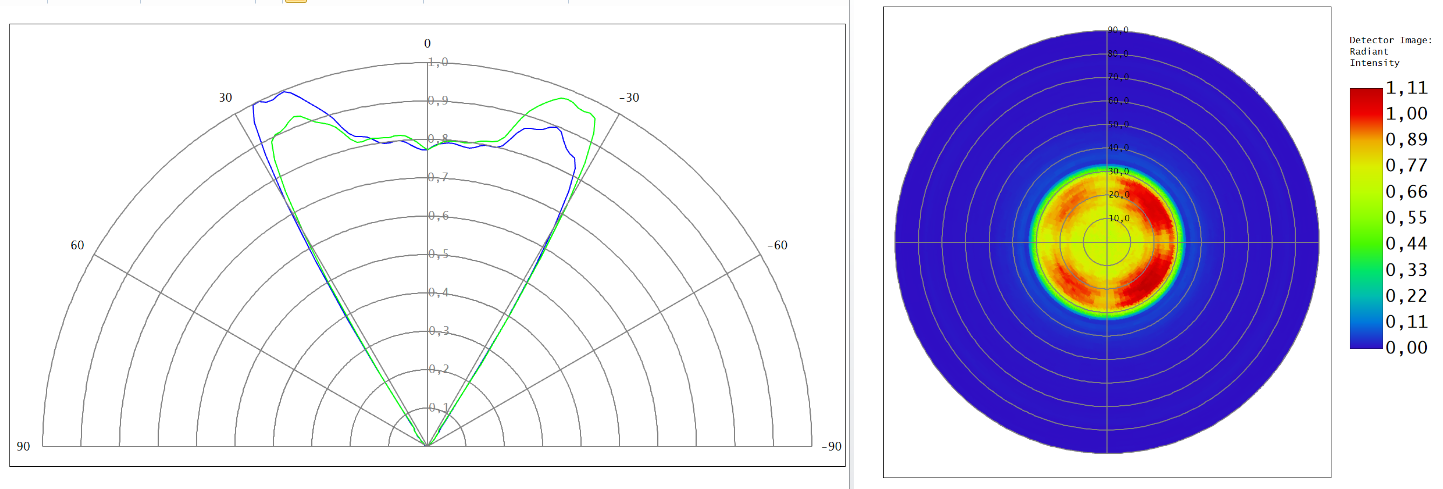

    LED: NCSU334B
    FWHM: 61°
    FWTM: 69°
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: NCSU434A
    FWHM: 61°
    FWTM: 64°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour: UV-C

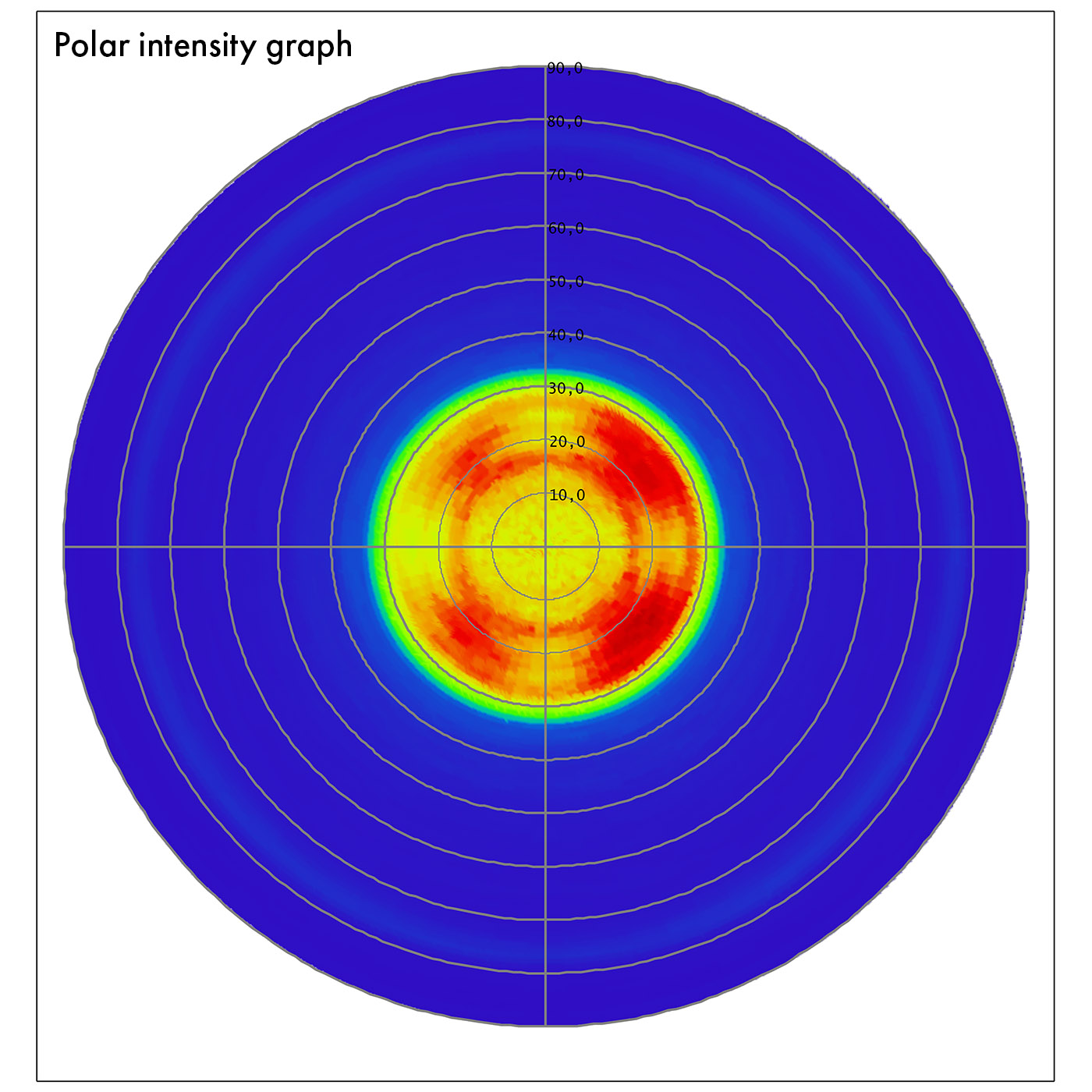

    LED: NCSU434B
    FWHM: 63°
    FWTM: 70°
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: NVSU233B
    FWHM: 84°
    FWTM: 108°
    Peak intensity: 0.645 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour: UV-A
    LED: NVSU233B-D4
    FWHM: 45°
    FWTM: 58°
    Peak intensity: 2.065 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour: UV-A
    LED: OSLON UV 3636 (SU CULBN1.VC)
    FWHM: 54°
    FWTM: 76°
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour: UV-C

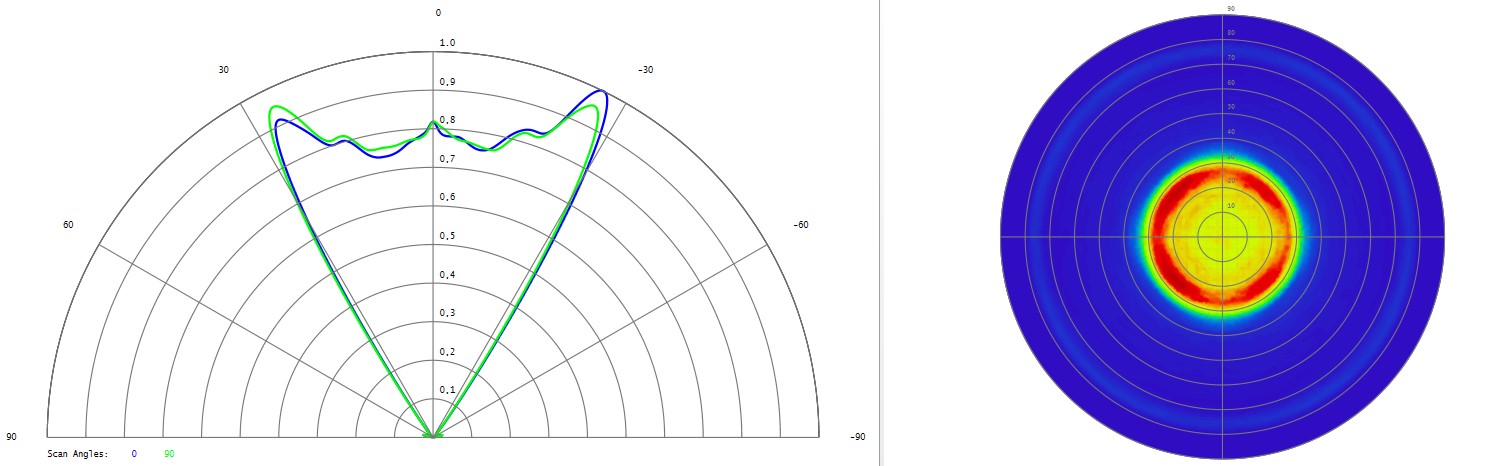

    LED: OSLON UV 3636 (SU CULDN1.VC)
    FWHM: 63°
    FWTM: 72°
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: OSLON UV 3636 (SU CULDN1.VC)
    FWHM: 57°
    FWTM: 79°
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: OSLON UV 6060 (SU CZHEF1.VC)
    FWHM: 53°
    FWTM: 72°
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: OSLON UV 6060 (SU CZHPF1.VC)
    FWHM: 53°
    FWTM: 72°
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: UV351A
    FWHM: 58°
    FWTM: 77°
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: UV351B
    FWHM: 51°
    FWTM: 74°
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: UV352B
    FWHM: 60°
    FWTM: 77°
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: UV353B
    FWHM: 59°
    FWTM: 78°
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour: UV-C
    LED: ZEUBE265 Series
    FWHM: 43°
    FWTM: 63°
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour: UV-C
