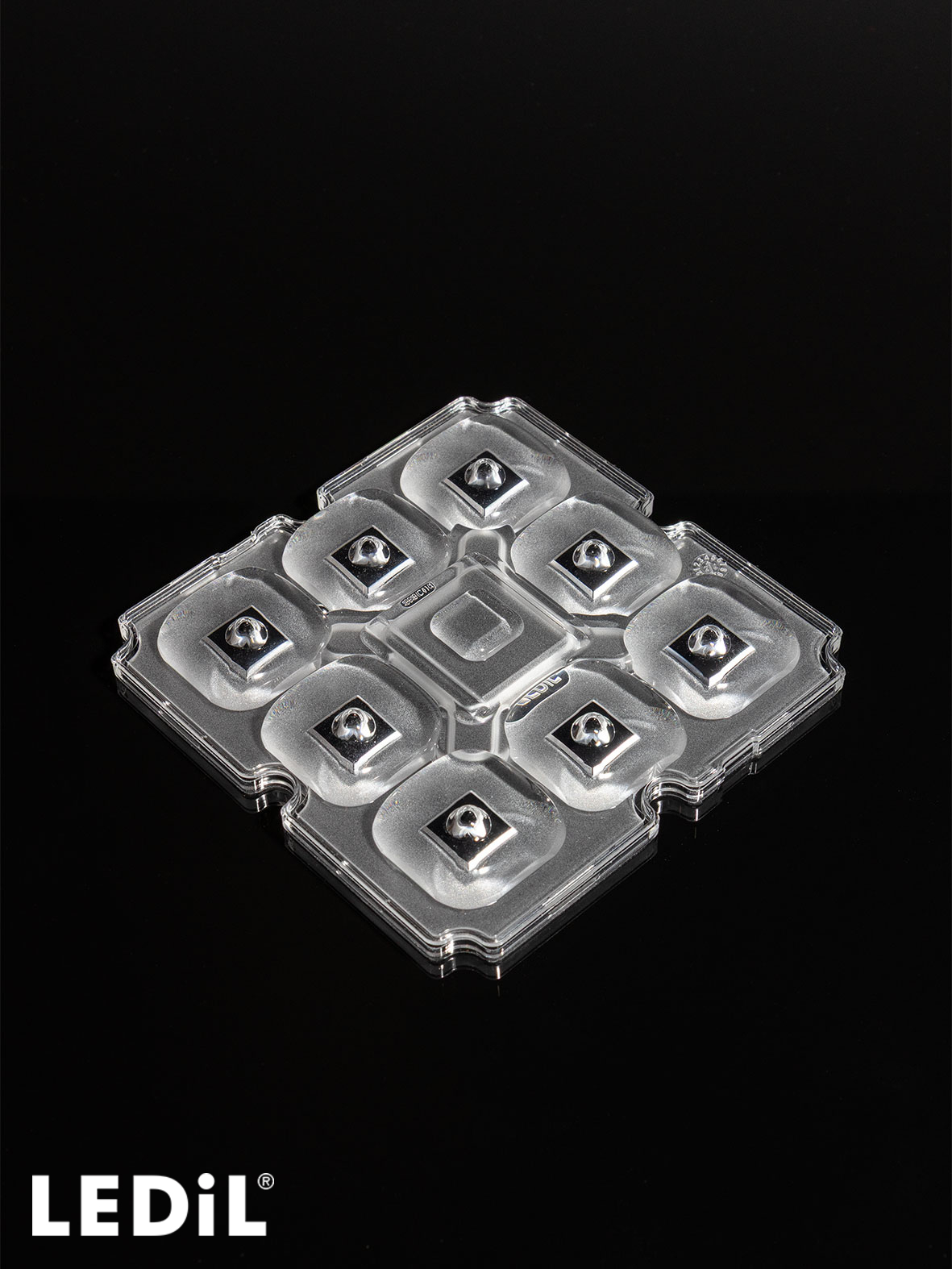

F19919_STRADA-IP-8MXS-T5

IESNA Type V (square) beam for wide areas lighting such as car parks.

Specification

Dimensions:

87 x 87 mm
Height:

10.92 mm
Colour:

clear
Ingress protection classes:

IP66, IP67
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

Silicone
Request material files from Tech Support

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

240 pcs
Box size:

400 x 300 x 300 mm
Box weight:

11.2 kg
MPQ:

12 pcs
MOQ:

240 pcs
MOQ size:

400 x 300 x 300 mm
MOQ weight:

11.2 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: F19919_STRADA-IP-8MXS-T5

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

F19919_STRADA-IP-8MXS-T5

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Catalogue

LEDiL Latest products catalogue 2026

News

More reach, high LPW – STRADA-IP-8MXS silicone

Luminaire, example

Luminaire example with STRADA-IP-8MXS

Application guide

Guide for Urban lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

AVAILABLE LEDiL ACCESSORIES

STRADA-IP-8MXS-FRAME

Black shade for additional backlight control.

Optical results

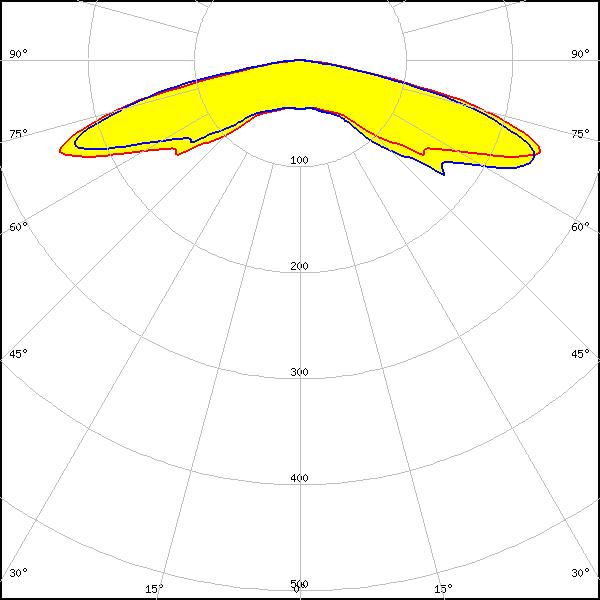

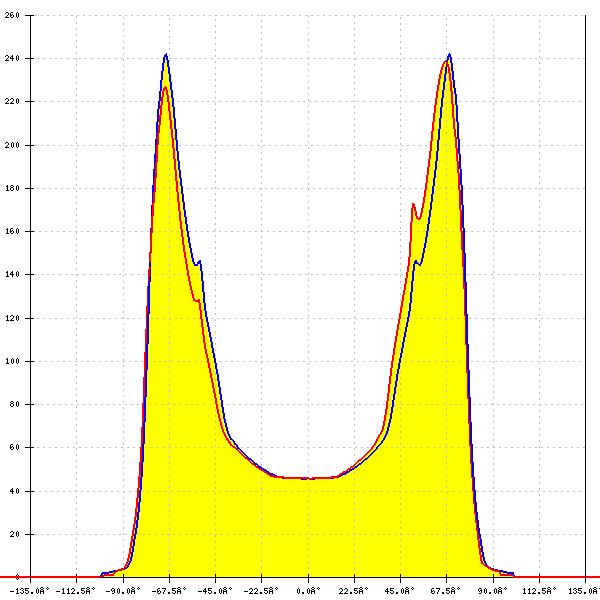

LED: LIGHT ENGINE STRADA-IP-8-MXS 8 LEDS 70X70MM E CLASS

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: asymmetric

Peak intensity: 0.473 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

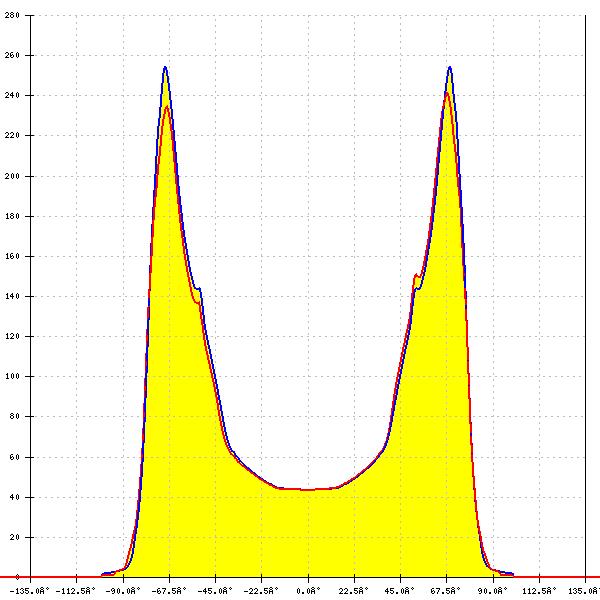

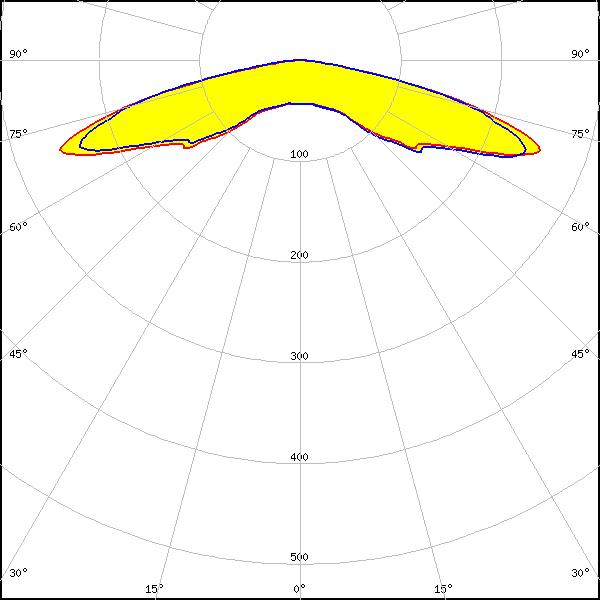

LED: J Series 5050C 6V E Class

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: asymmetric

Peak intensity: 0.508 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: L2-0406000008-50500E (STRADA-IP-8MXS)

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: asymmetric

Peak intensity: 0.508 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Square LES

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: asymmetric

Peak intensity: 0.524 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

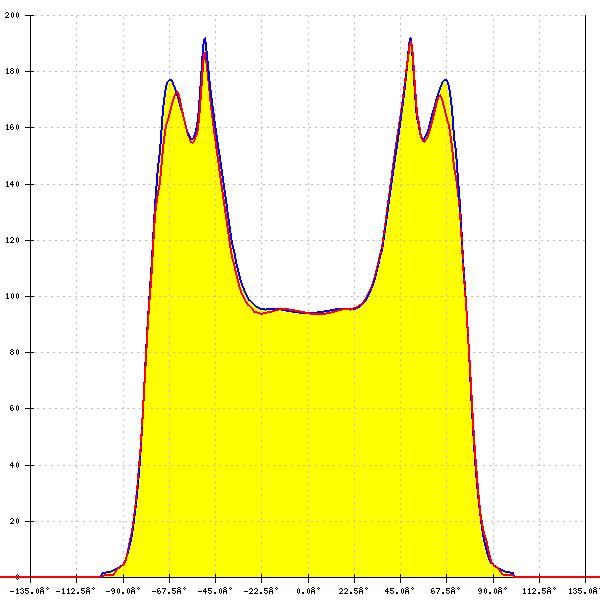

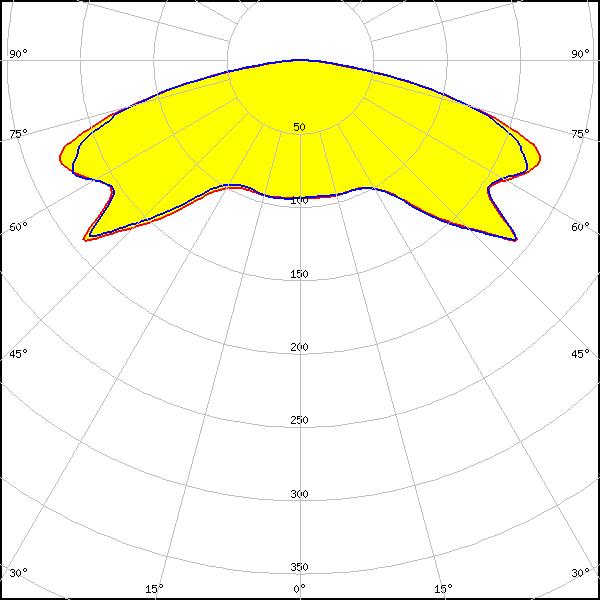

LED: LUXEON 7070

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: asymmetric

Peak intensity: 0.302 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

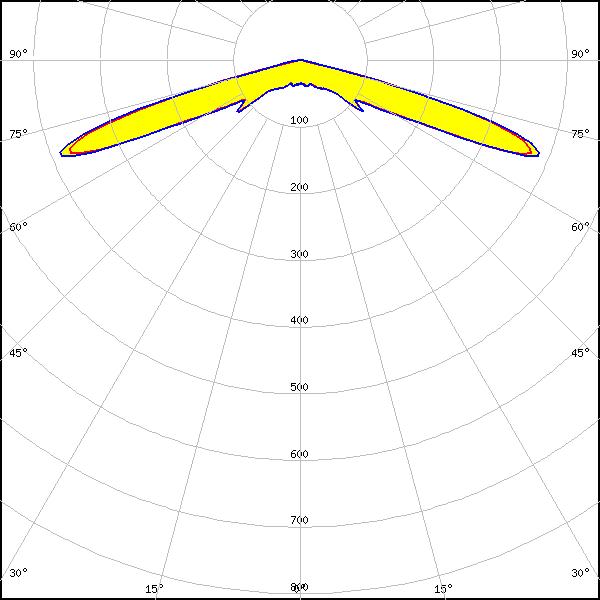

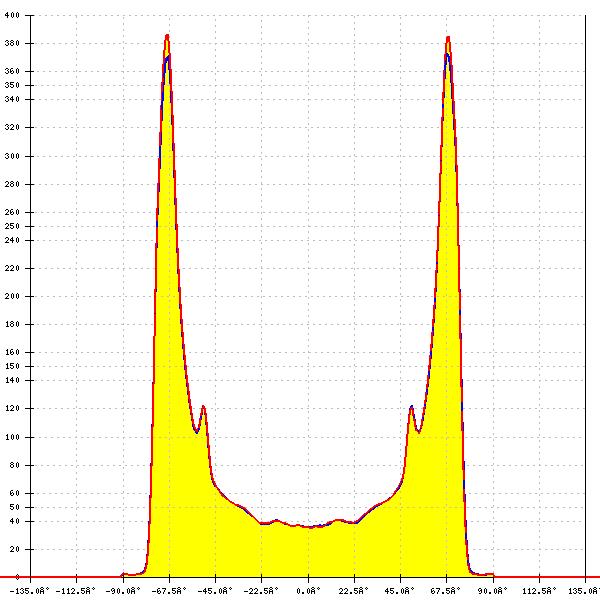

LED: LUXEON HL4Z

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: asymmetric

Peak intensity: 0.790 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

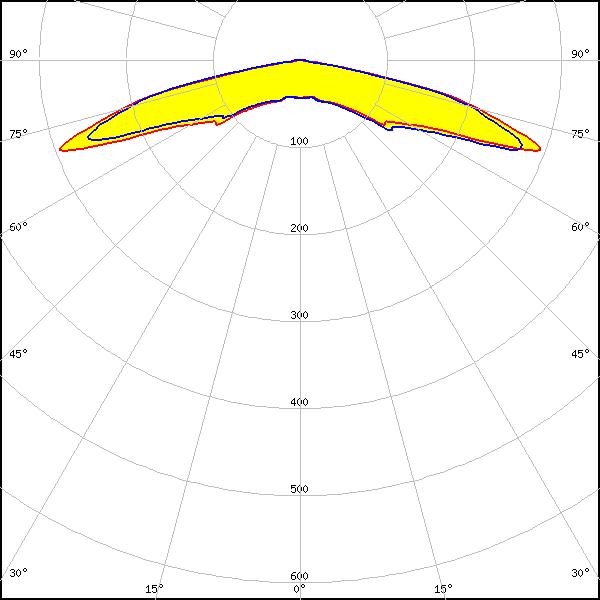

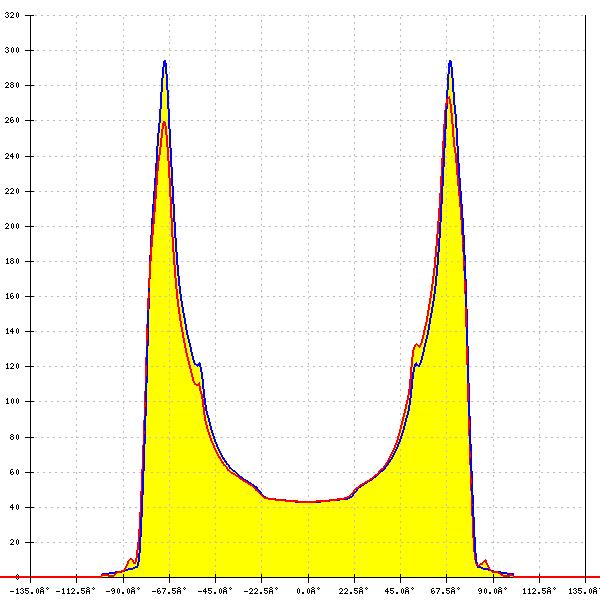

LED: NV4WB35AM

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: asymmetric

Peak intensity: 0.668 cd/lm

Efficiency: 84 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

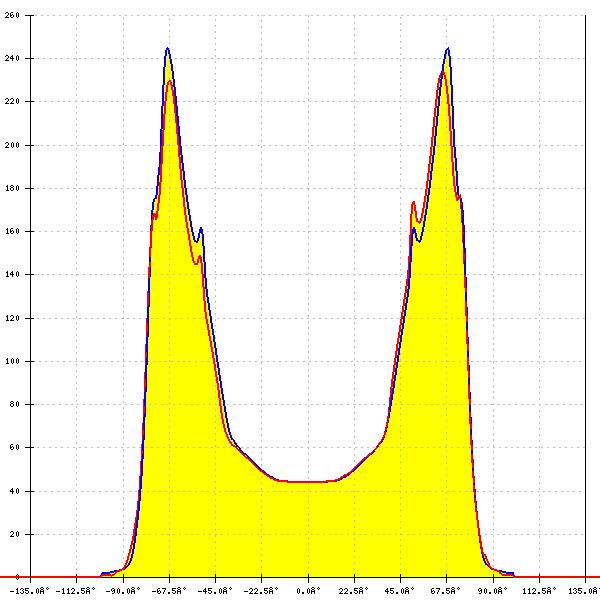

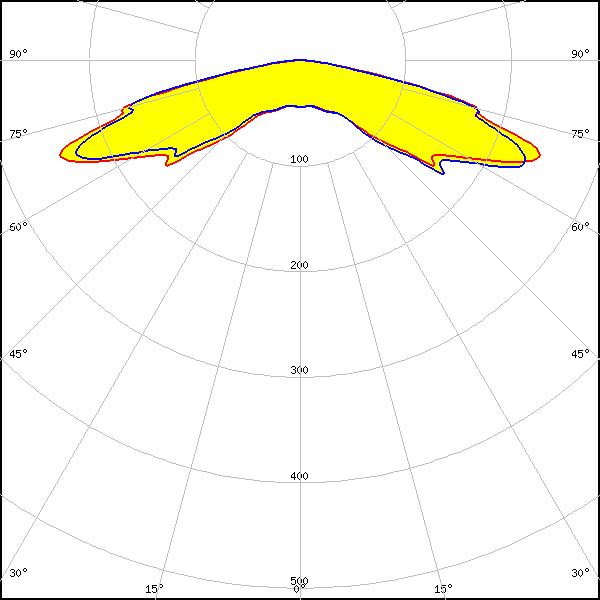

LED: OSCONIQ S 5050 (Q9LR33)

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON Square CSSRM2/CSSRM3

Required components:

F19918_STRADA-IP-8MXS-FRAME

FWHM: 160°

FWTM: 168°

Peak intensity: 0.679 cd/lm

Efficiency: 82 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

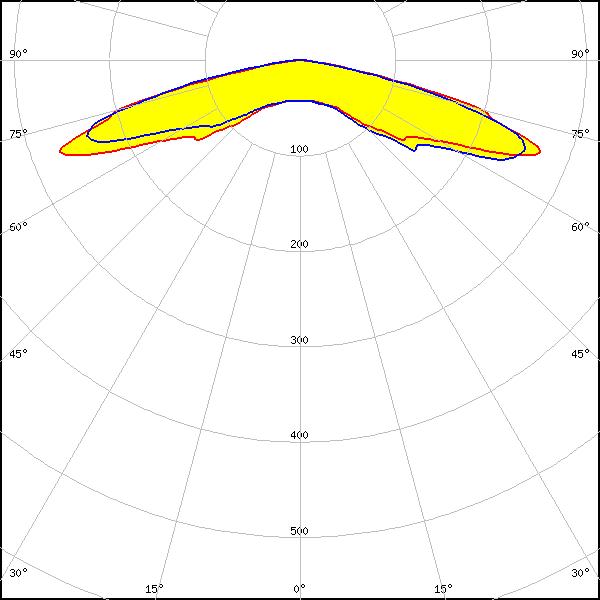

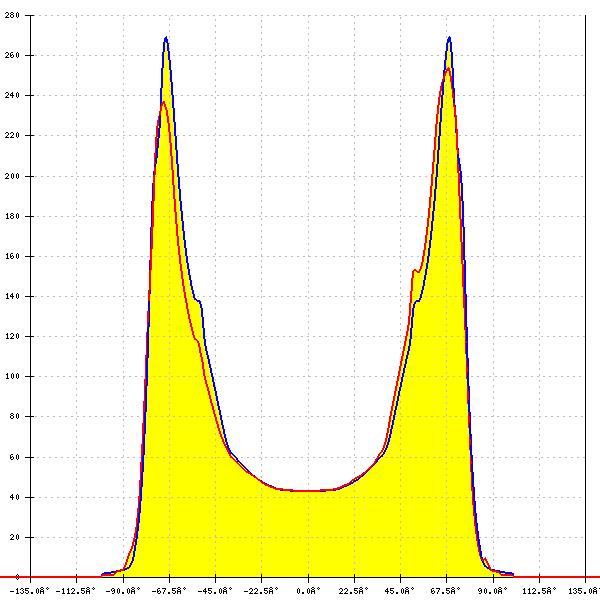

LED: XAMAN-VP-3500-740-48
