    FA10613_LM1-RS

    Print

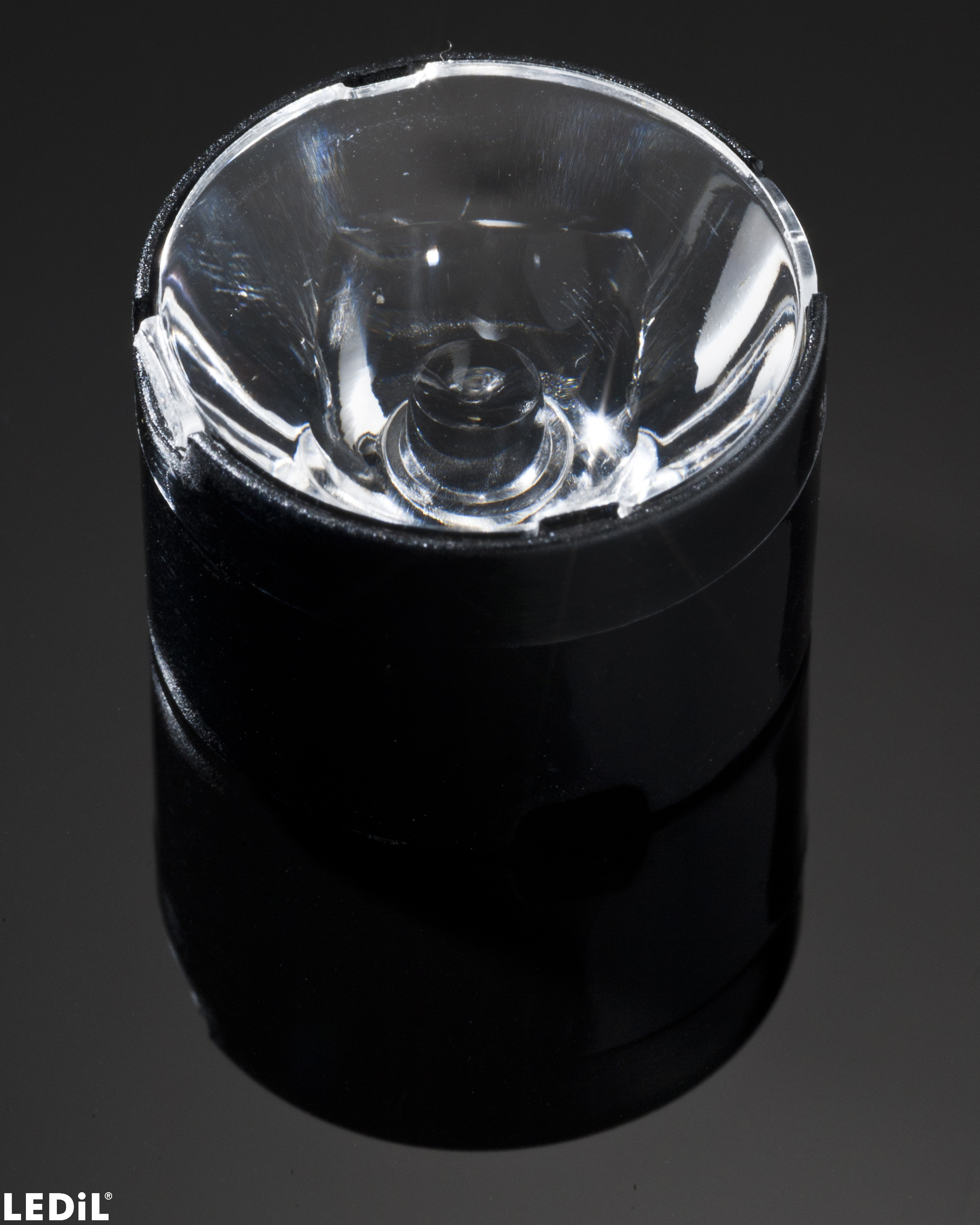

    ~20° spot beam optimized for CREE MC-E. 14.04 mm high assembly with installation tape.

    Specification
    • Dimensions:
      22 mm
    • Height:
      14.04 mm
    • Fastening:
      tape
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2160 pcs
    • Box weight:
      10.2 kg
    • MPQ:
      144 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FA10613_LM1-RS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Badia di Pomaio resort

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Case story

    The Luneur amusement park

    Case story

    The OZ Mall

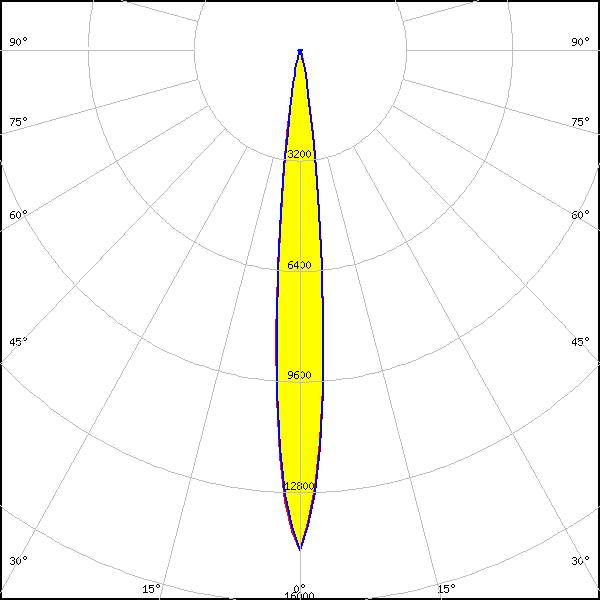

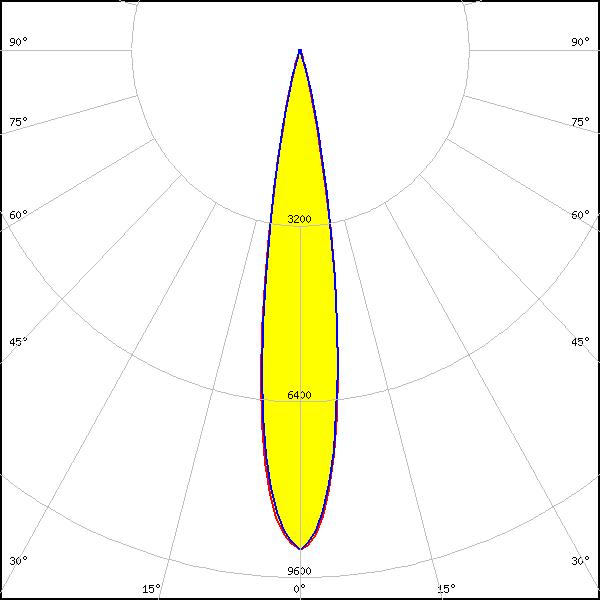

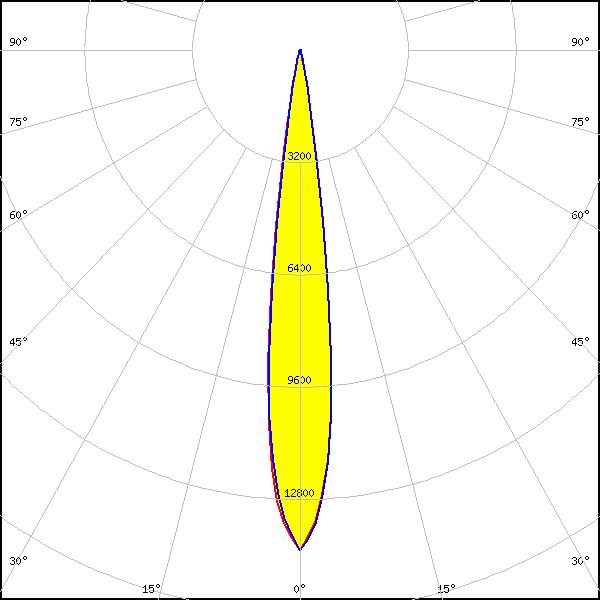

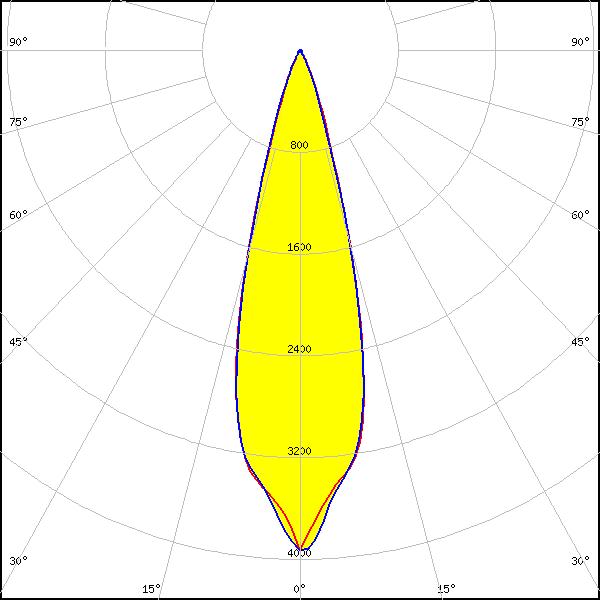

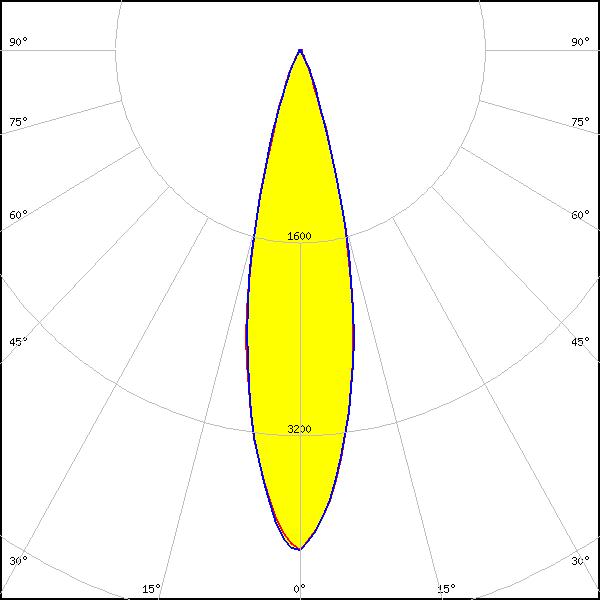

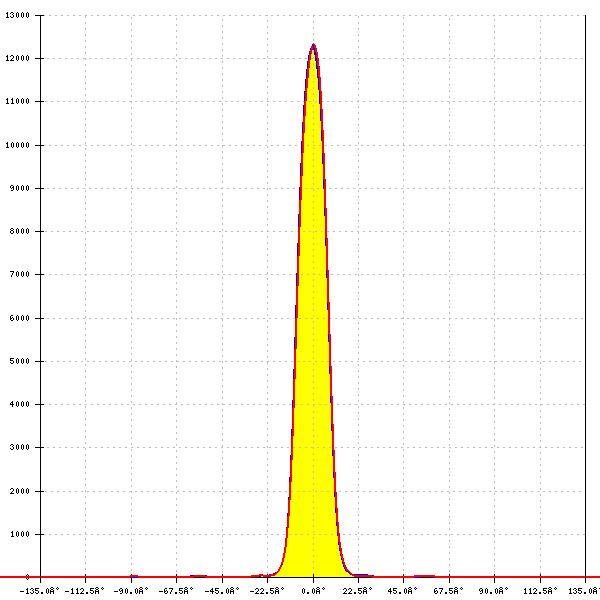

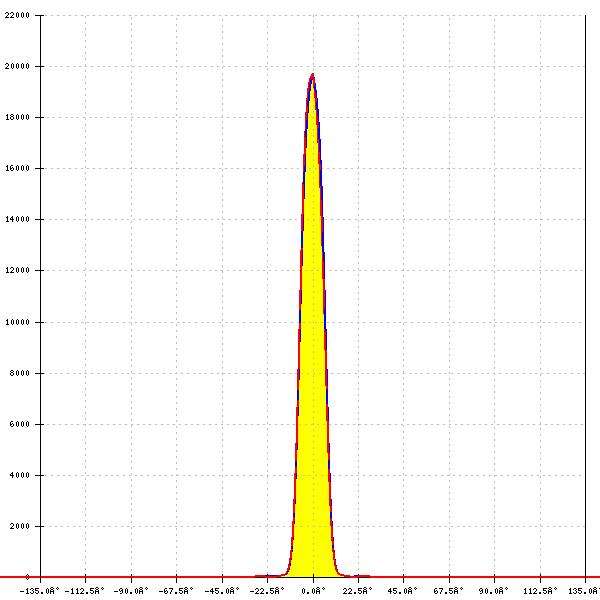

    Optical results

    LED: MC-E
    FWHM: 21°
    FWTM: -
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

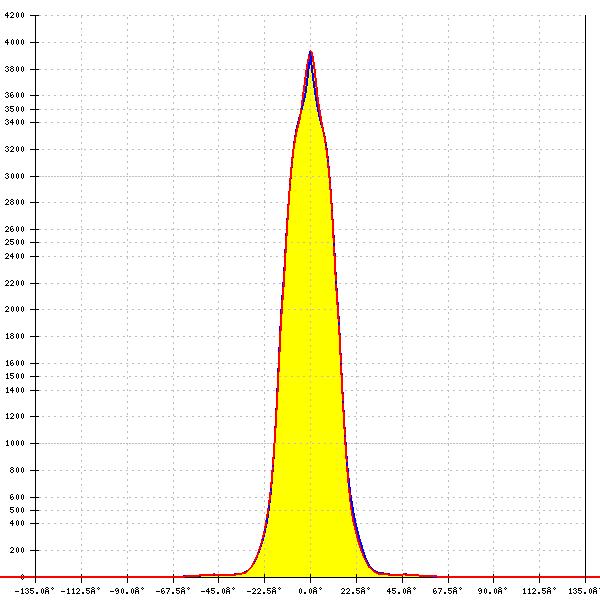

    LED: MK-R
    FWHM: 28°
    FWTM: 44°
    Peak intensity: 3.928 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

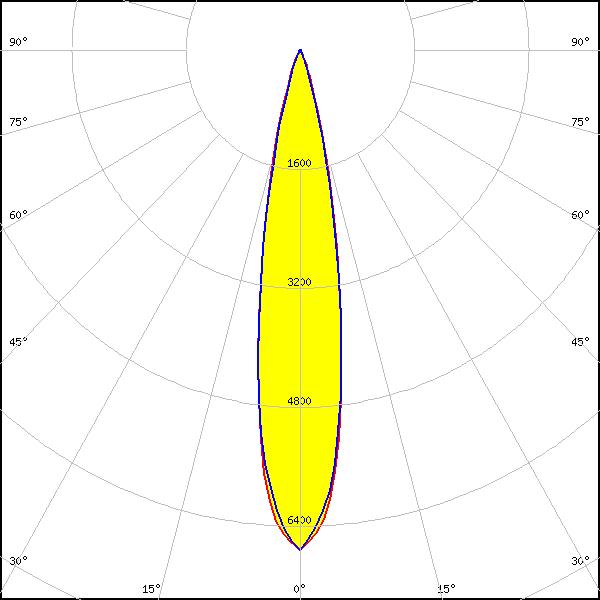

    LED: MX-6
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 6.722 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

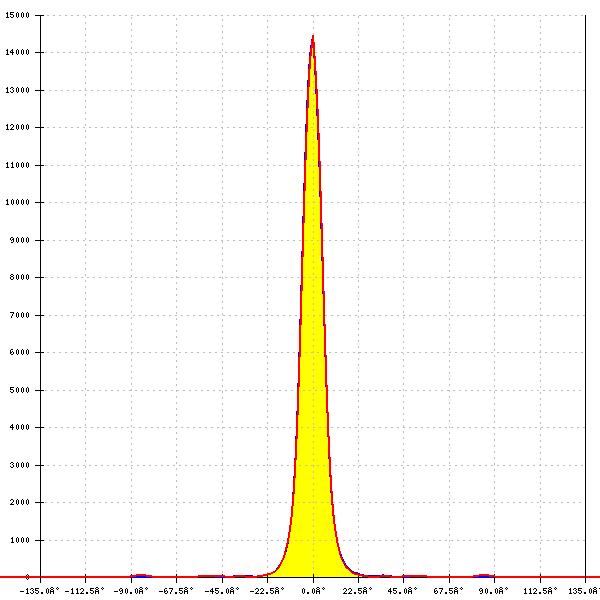

    LED: XB-D
    FWHM: 11°
    FWTM: 22°
    Peak intensity: 14.472 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

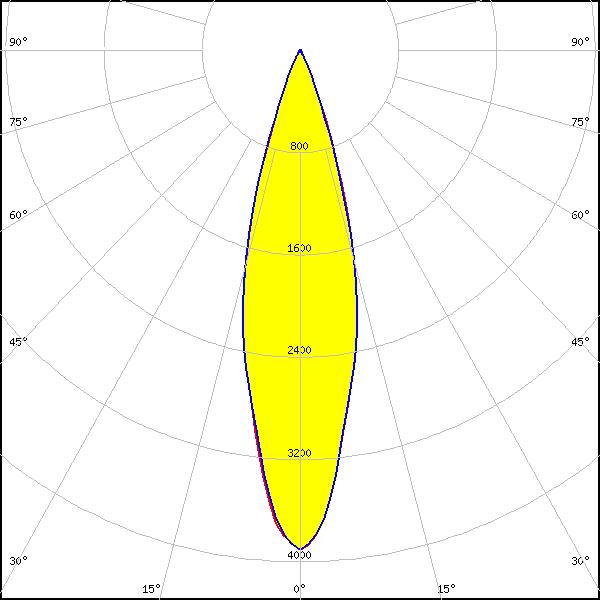

    LED: XHP35.2 HD
    FWHM: 28°
    FWTM: 46°
    Peak intensity: 3.924 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50
    FWHM: 28°
    FWTM: 43°
    Peak intensity: 3.869 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.2
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 4.155 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.3 HD
    FWHM: 24°
    FWTM: 40°
    Peak intensity: 4.810 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

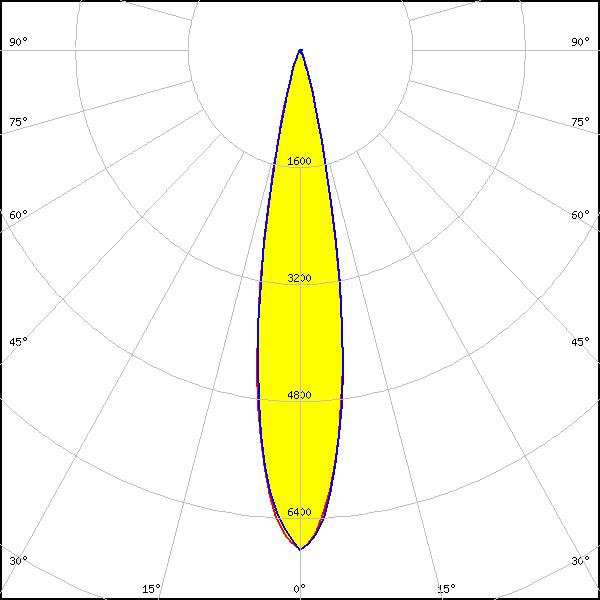

    LED: XHP50.3 HI
    FWHM: 20°
    FWTM: 34°
    Peak intensity: 6.834 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

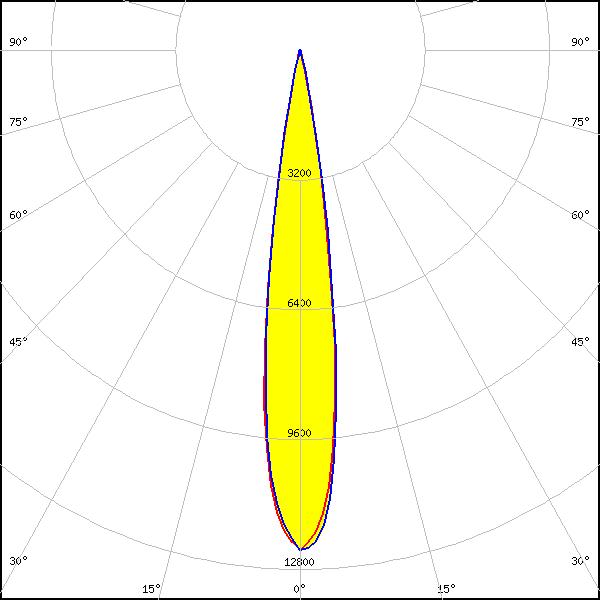

    LED: XP-G2
    FWHM: 16°
    FWTM: 24°
    Peak intensity: 12.369 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

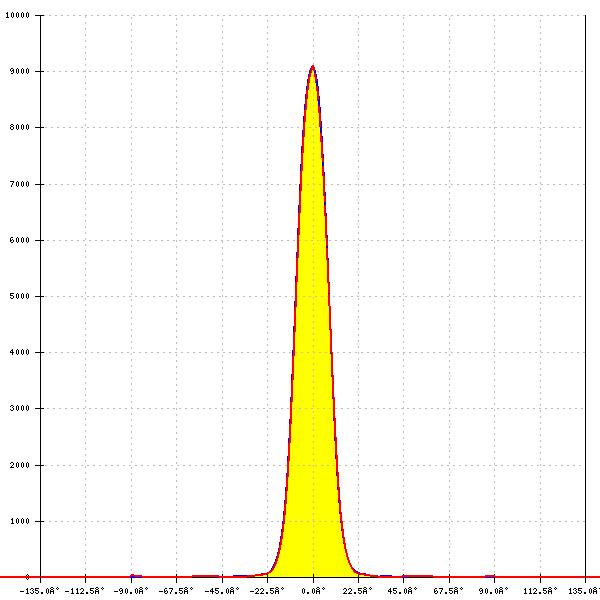

    LED: XP-G3
    FWHM: 18°
    FWTM: 29°
    Peak intensity: 9.107 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

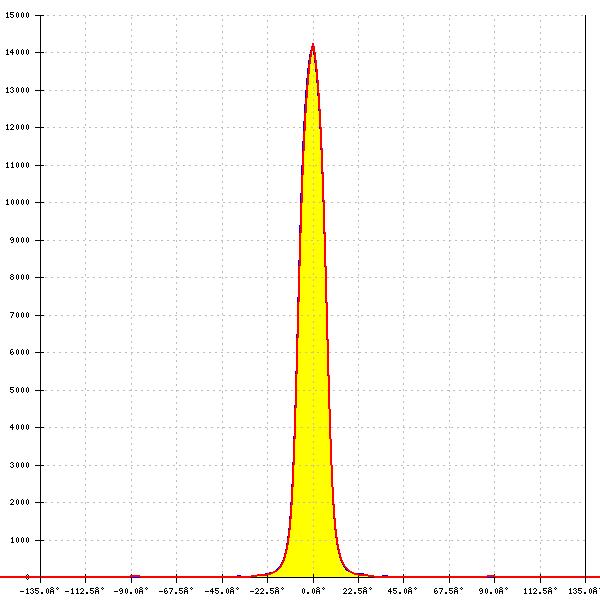

    LED: XP-G4 HI
    FWHM: 14°
    FWTM: 22°
    Peak intensity: 14.249 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

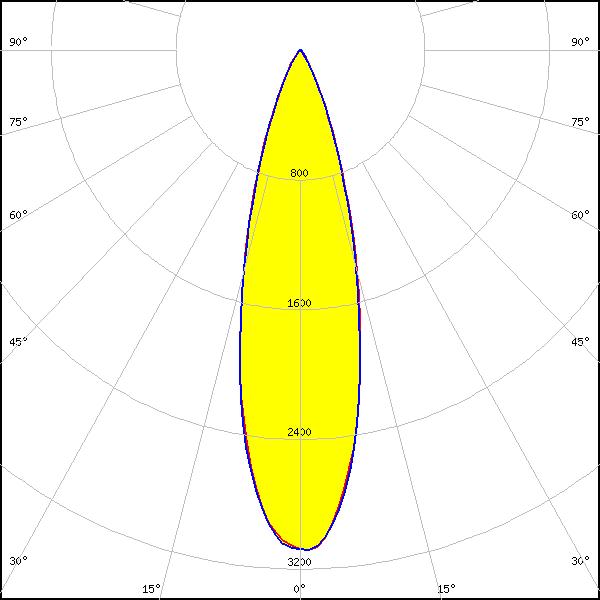

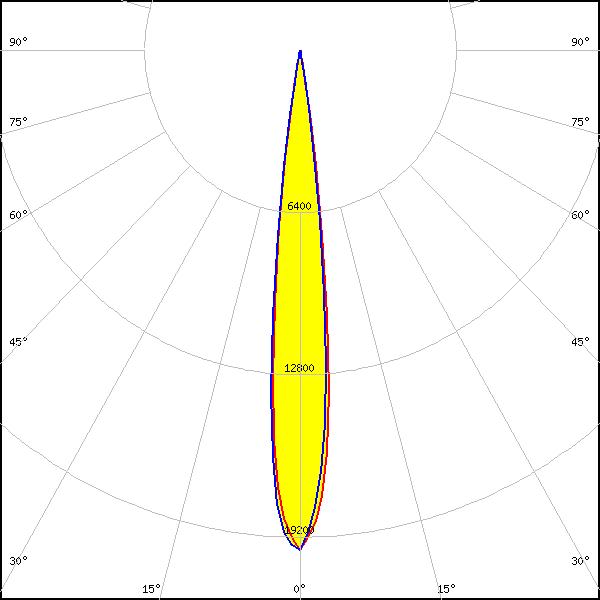

    LED: LUXEON 5050 Square LES
    FWHM: 28°
    FWTM: 53°
    Peak intensity: 3.114 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CZ
    FWHM: 12°
    FWTM: 18°
    Peak intensity: 19.725 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Red

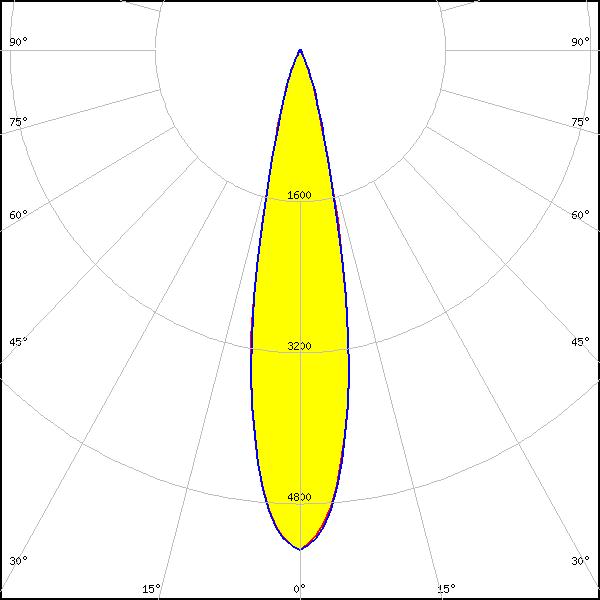

    LED: NFMW48xA
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.292 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

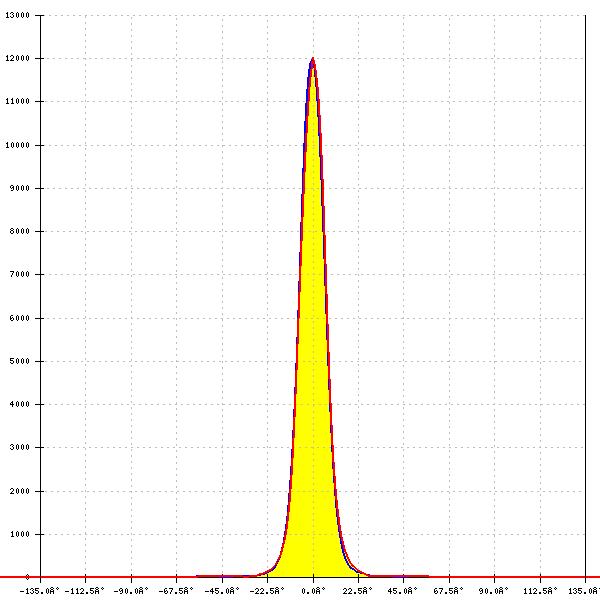

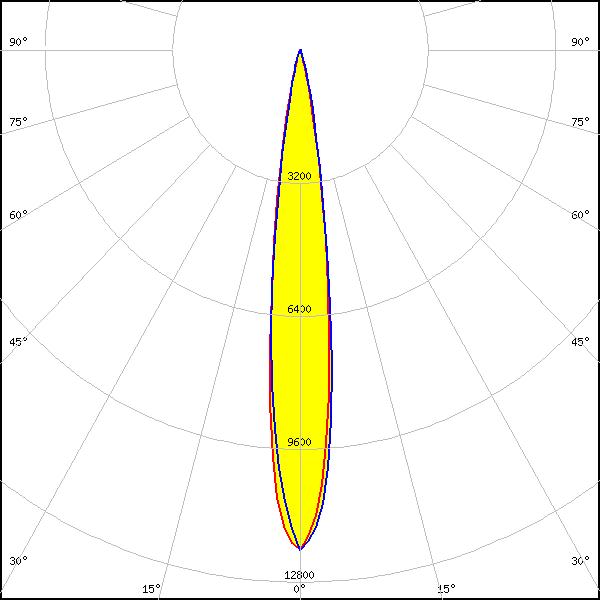

    LED: Duris E5
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 12.036 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

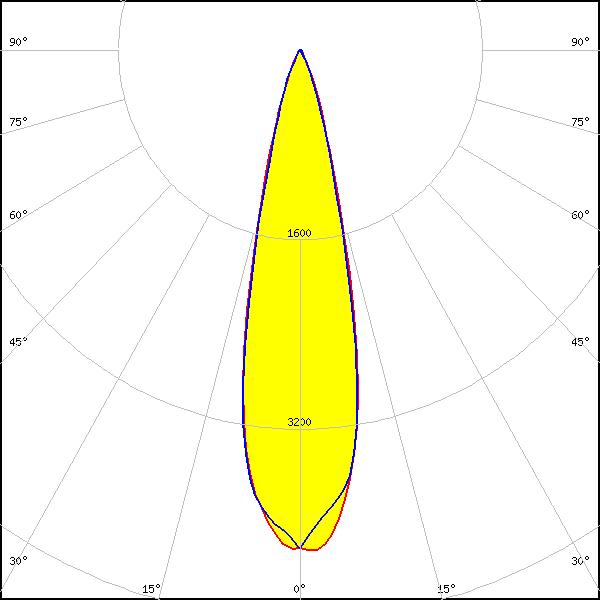

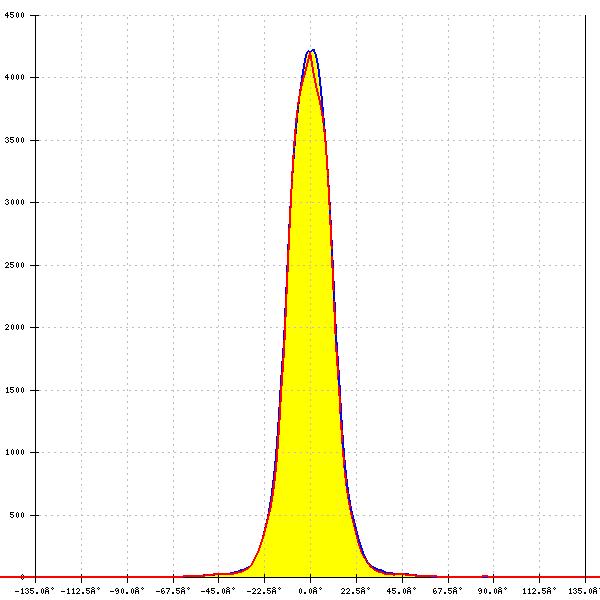

    LED: Duris S8
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 4.256 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSTAR Stage (S2WM)
    FWHM: 16°
    FWTM: 25°
    Peak intensity: 12.224 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
