    FA10751_LO2-RS

    Print

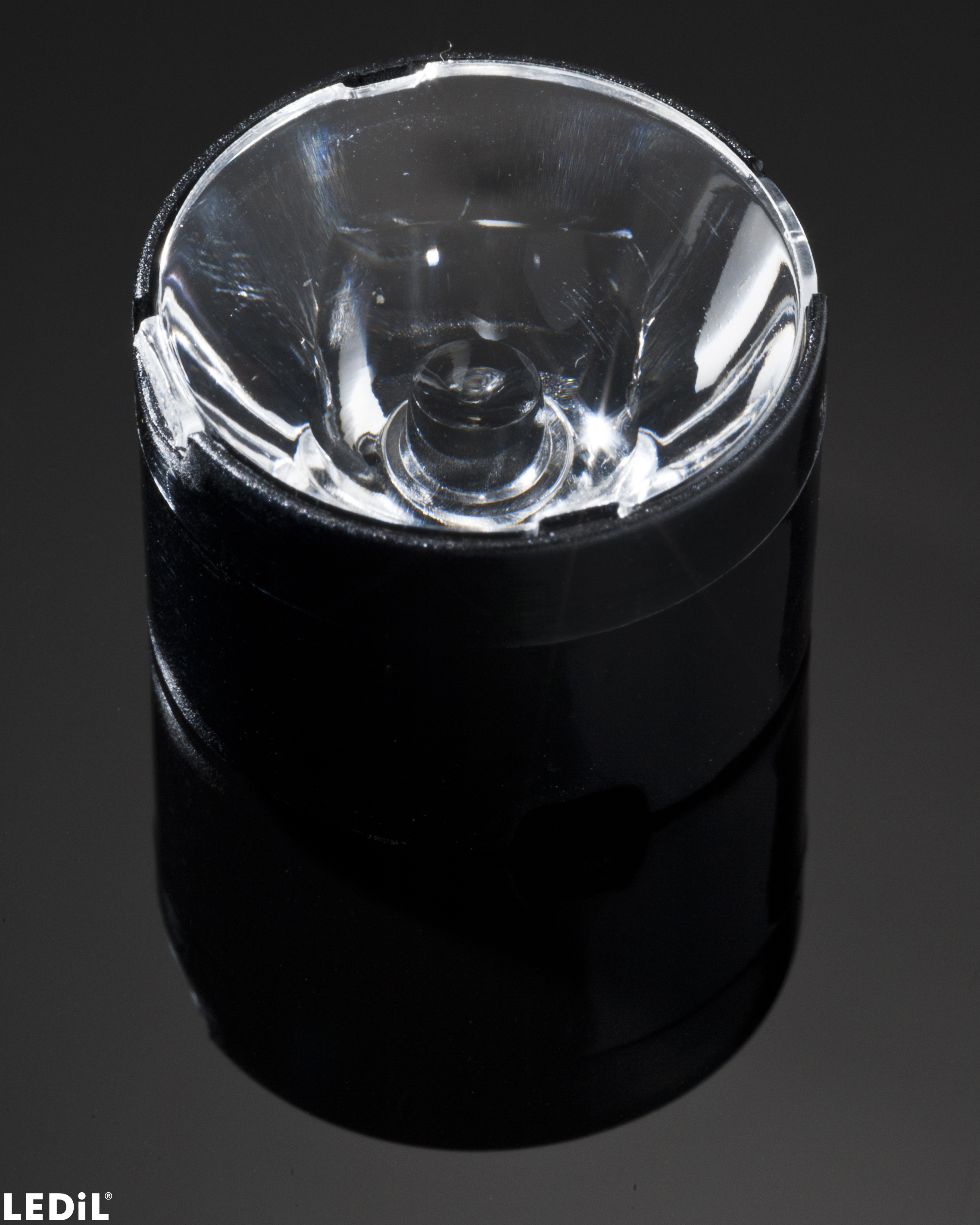

    ~9.6° spot beam optimized for Osram Golden Dragon+. 14.6 mm high assembly with installation tape.

    Specification
    • Dimensions:
      22 mm
    • Height:
      14.60 mm
    • Fastening:
      tape
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2304 pcs
    • Box size:
      470 x 235 x 270 mm
    • Box weight:
      11.2 kg
    • MPQ:
      144 pcs
    • MOQ:
      288 pcs
    • MOQ size:
      470 x 240 x 50 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FA10751_LO2-RS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Badia di Pomaio resort

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Case story

    The Luneur amusement park

    Case story

    The OZ Mall

    Optical results

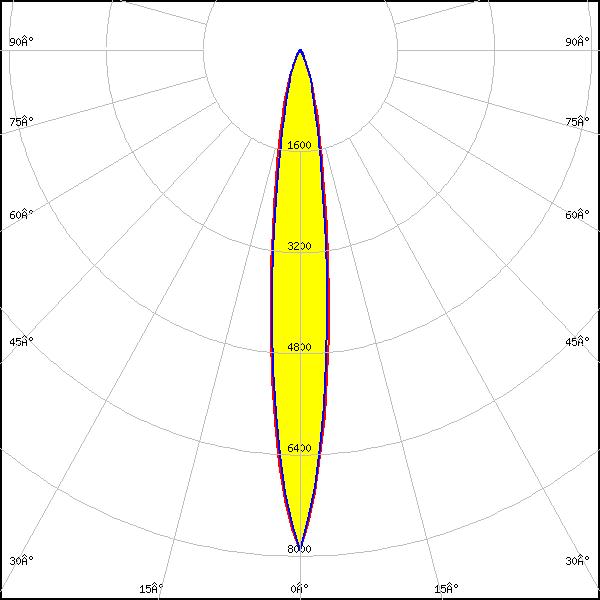

    LED: MX-6
    FWHM: 14°
    FWTM: 35°
    Peak intensity: 7.908 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

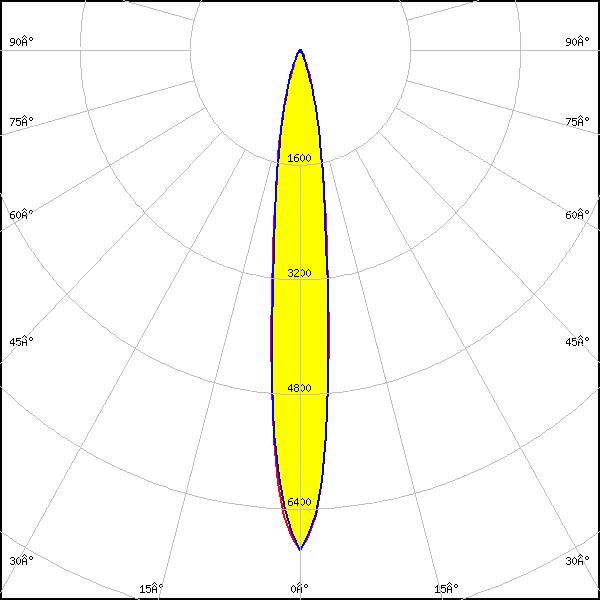

    LED: XHP50.3 HI
    FWHM: 14°
    FWTM: 34°
    Peak intensity: 6.973 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

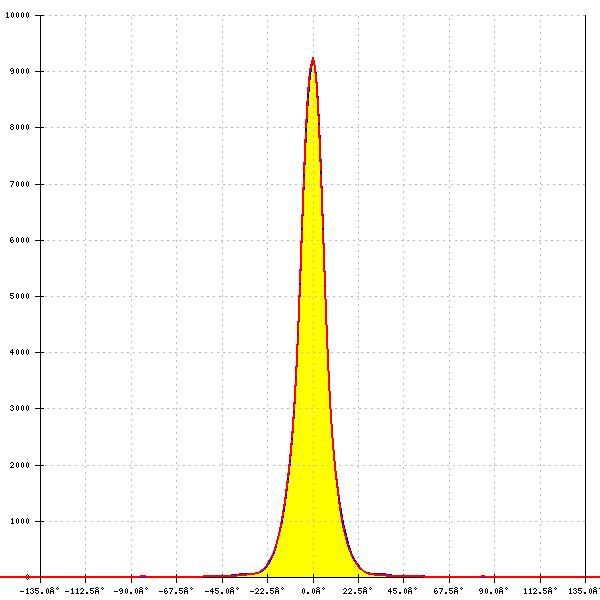

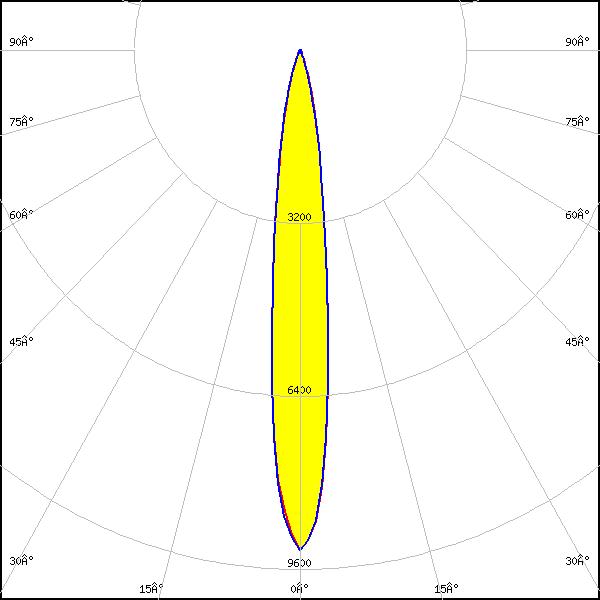

    LED: XM-L
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 9.247 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

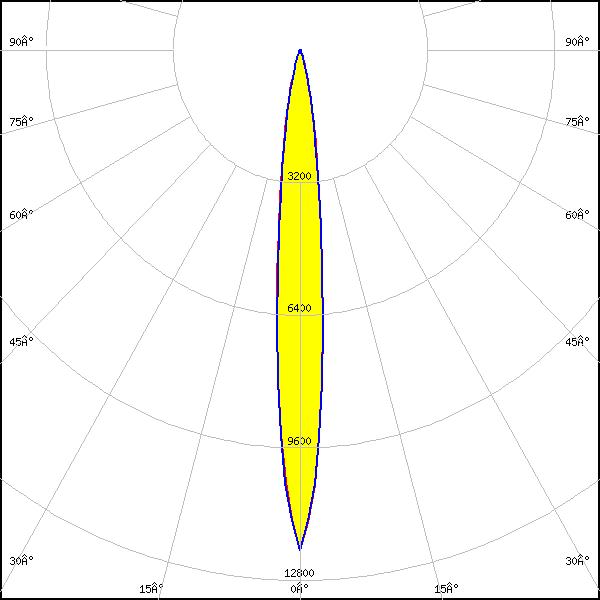

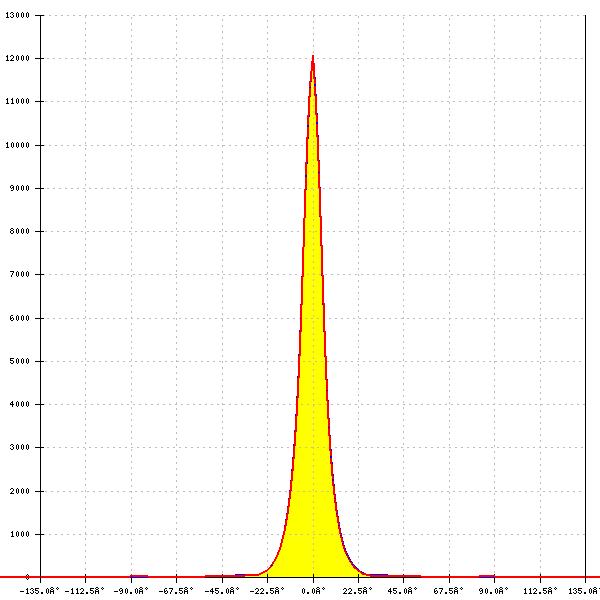

    LED: XP-G3
    FWHM: 10°
    FWTM: 26°
    Peak intensity: 12.076 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

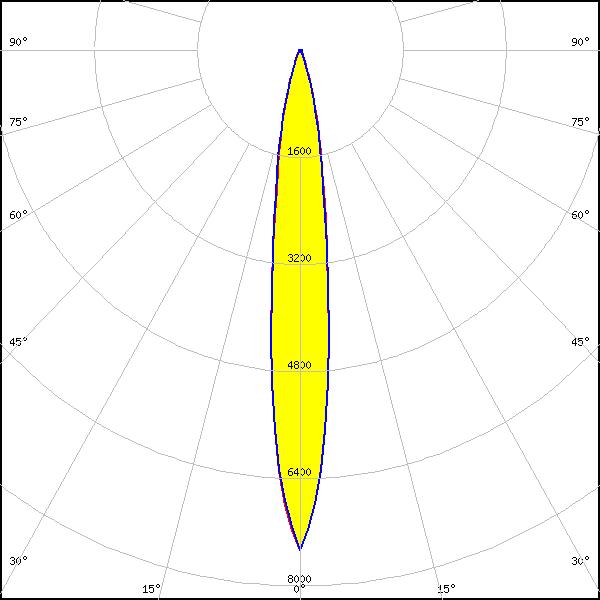

    LED: XP-L2
    FWHM: 14°
    FWTM: 33°
    Peak intensity: 7.469 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

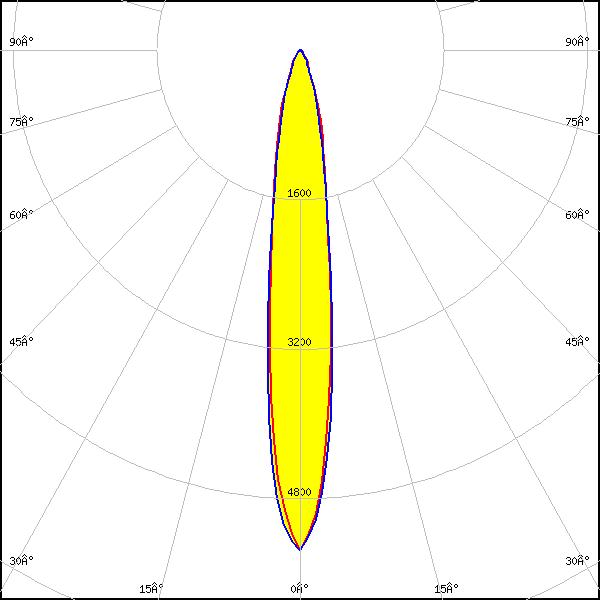

    LED: LUXEON 5050 Square LES
    FWHM: 15°
    FWTM: 39°
    Peak intensity: 5.352 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

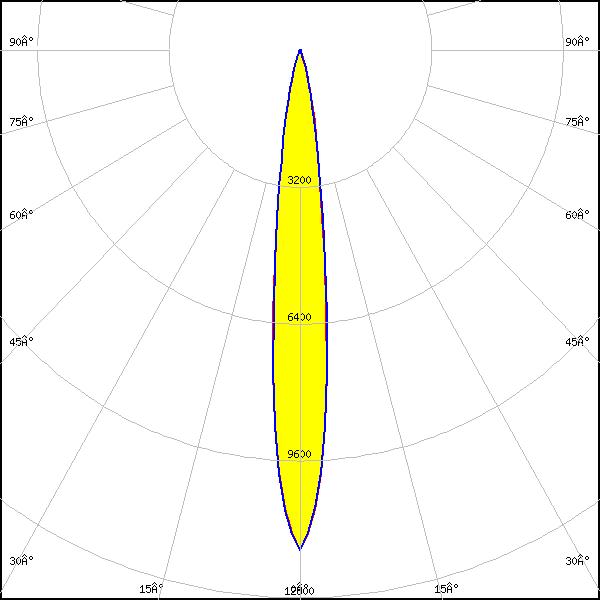

    LED: NVSW319B
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 11.692 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

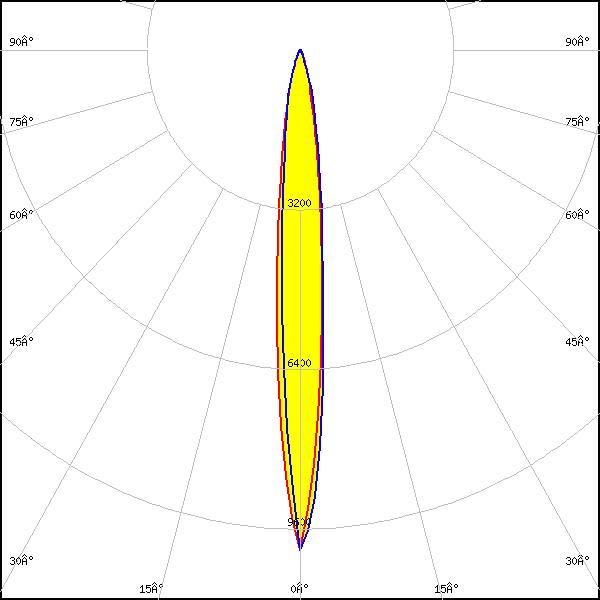

    LED: Duris E5
    FWHM: 10°
    FWTM: 29°
    Peak intensity: 10.028 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Golden Dragon+
    FWHM: 7°
    FWTM: -
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSTAR Stage (S2WM)
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.549 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
