FA11208_TINA-RS

Print

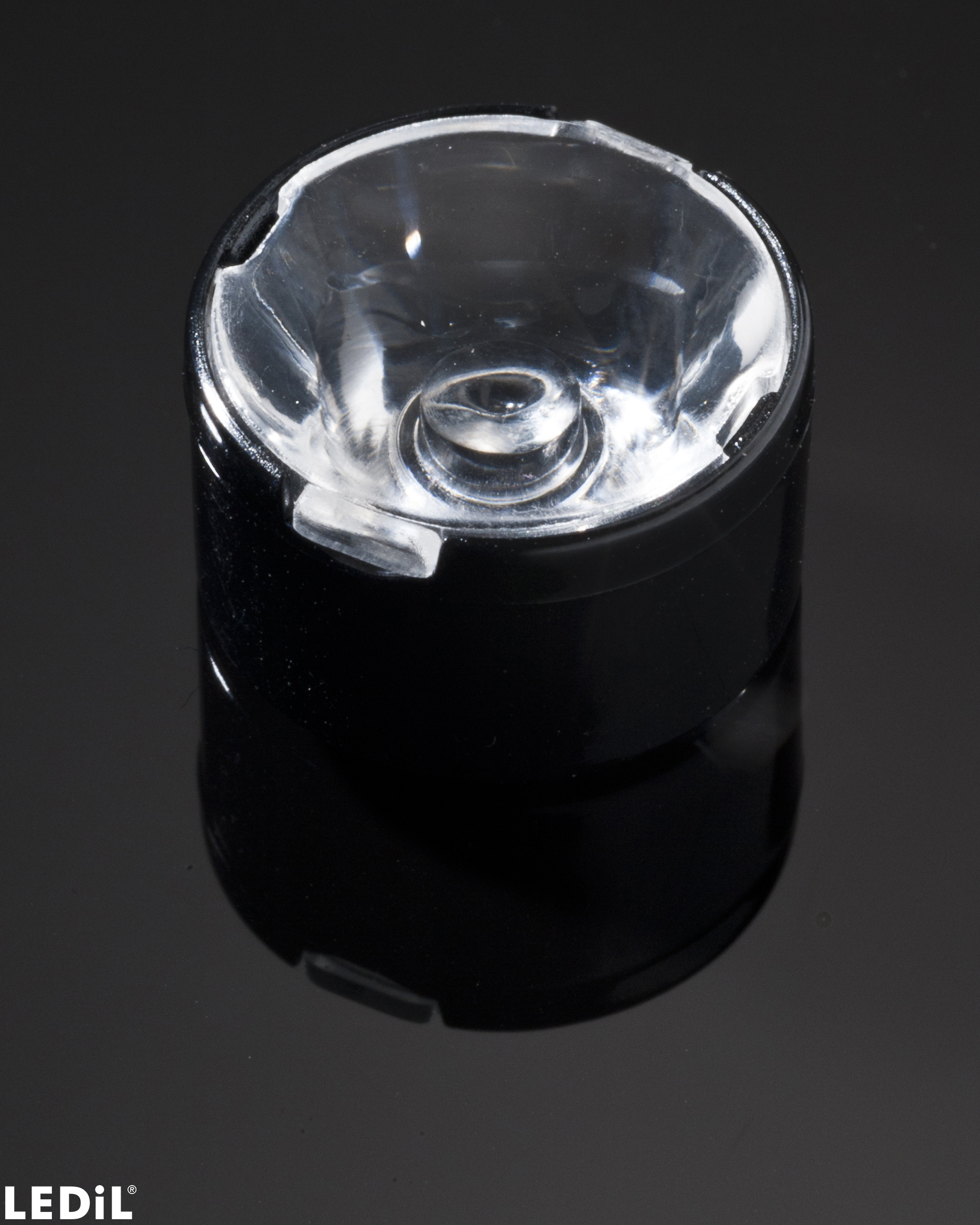

~13° spot beam. Assembly with holder, installation tape and location pins.

Specification
  • Dimensions:
    16 mm
  • Height:
    9.5 mm
  • Fastening:
    tape, pin
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials
  • TINA-XP-RS, Single lens, PMMA
  • TINA-HLD-PIN-BLK, Holder, PC
  • TINA-TAPE3, Tape, Acrylic foam

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    2016 pcs
  • Box size:
    470 x 240 x 105 mm
  • Box weight:
    4.1 kg
  • MPQ:
    144 pcs
  • MOQ:
    288 pcs
  • MOQ size:
    470 x 240 x 30 mm
  • MOQ weight:
    1.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FA11208_TINA-RS

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

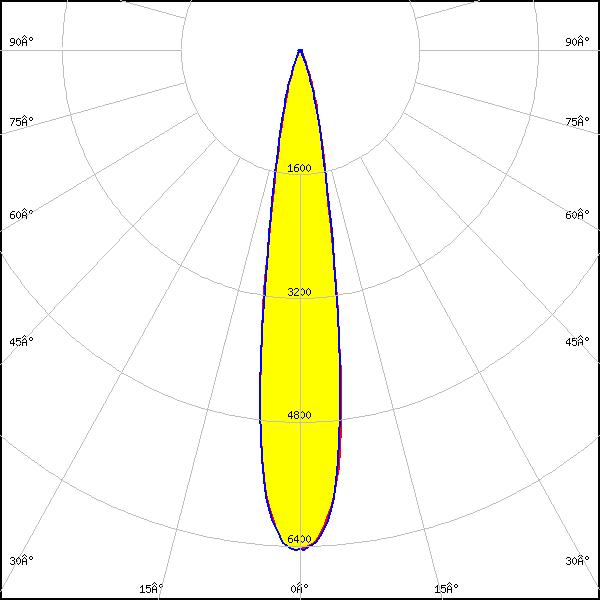

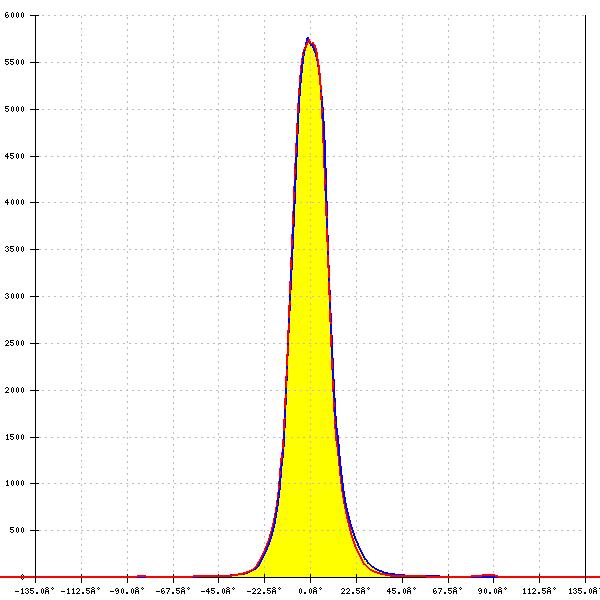

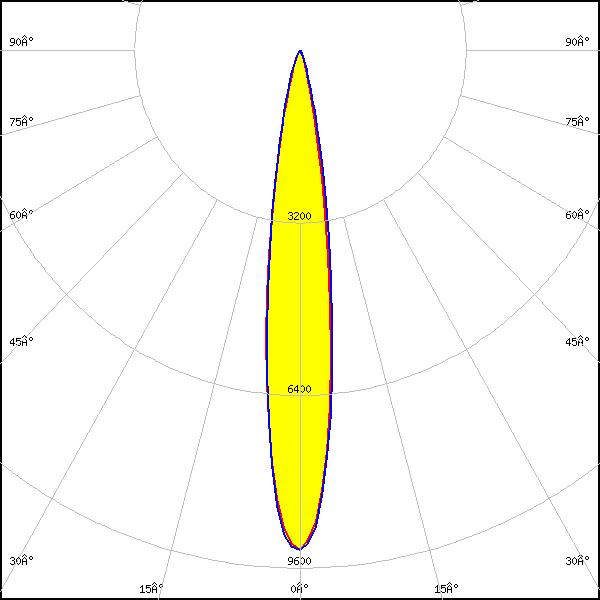

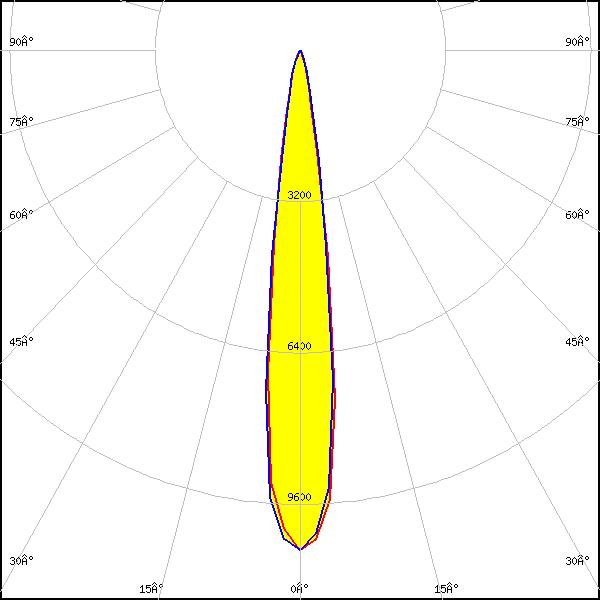

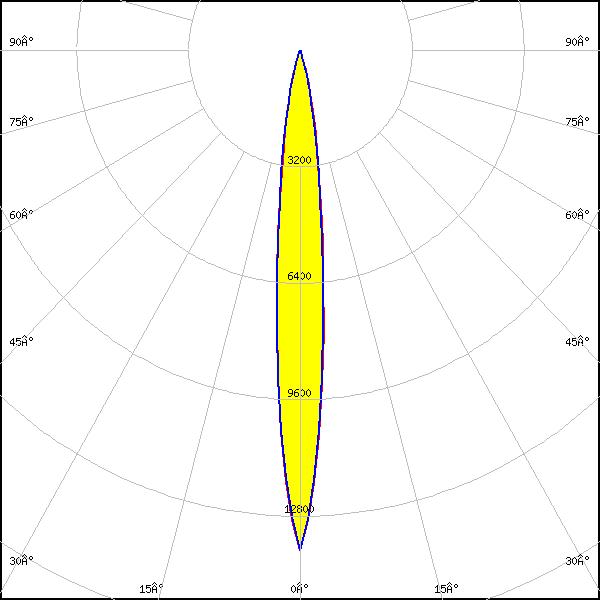

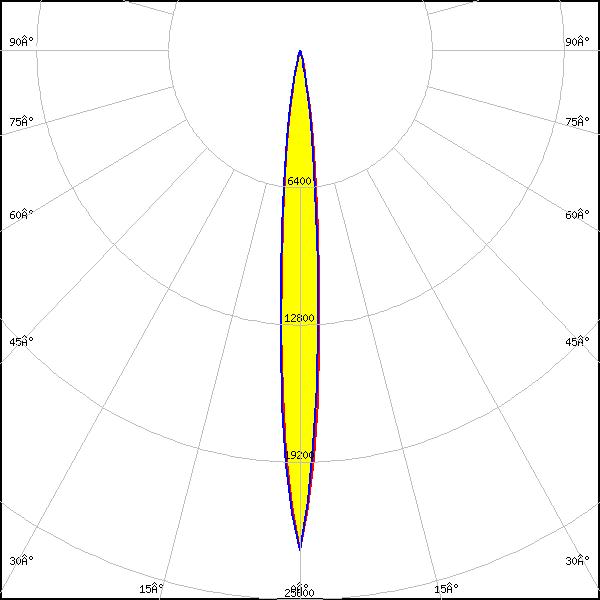

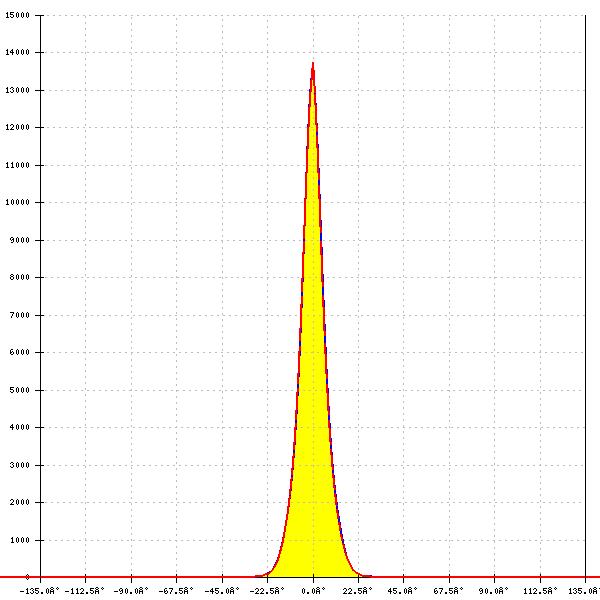

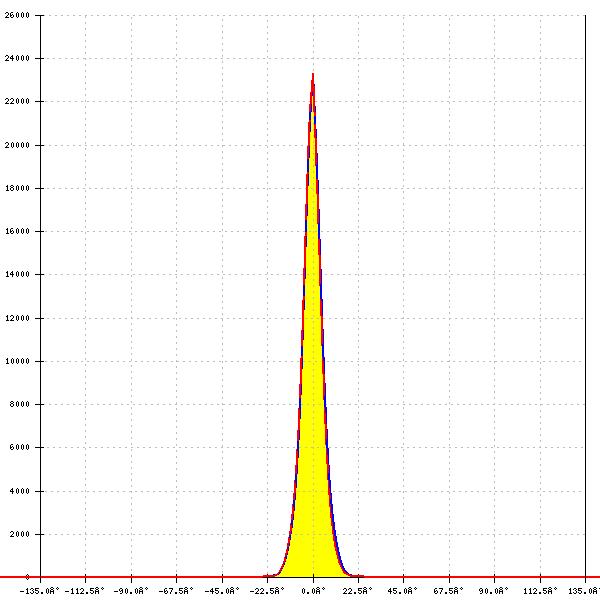

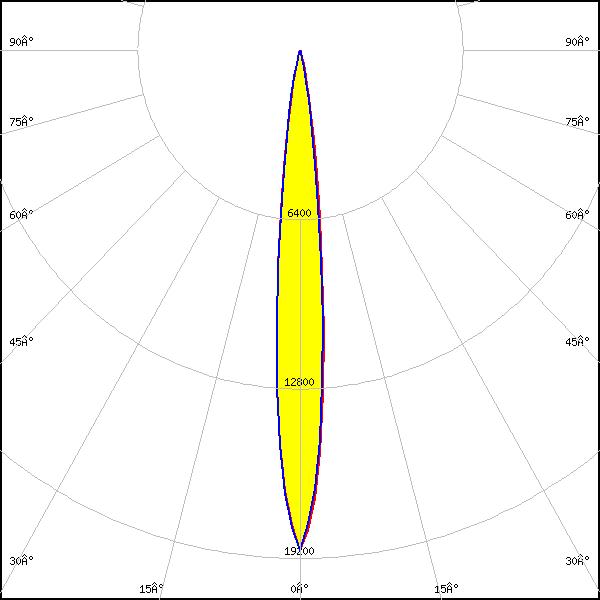

Optical results

LED: XB-H
FWHM: 15°
FWTM: 27°
Peak intensity: 10.6 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

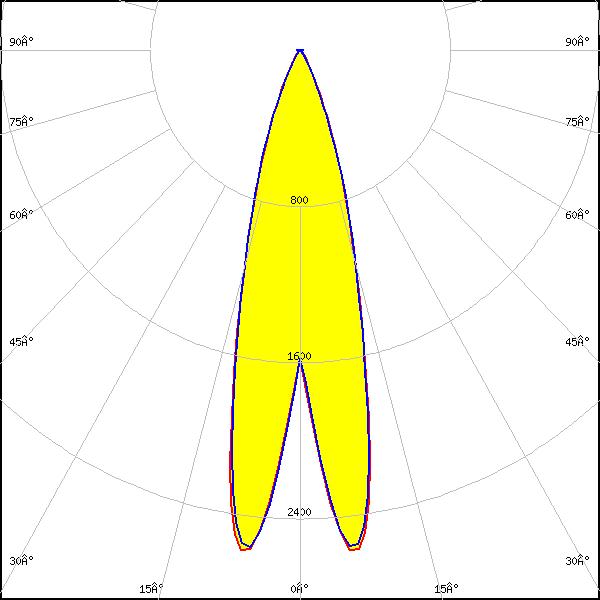

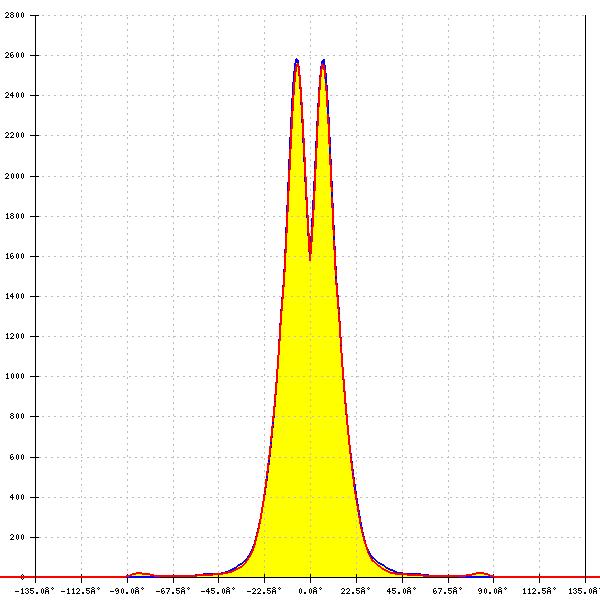

LED: NCSxE17A
FWHM: 28°
FWTM: 50°
Peak intensity: 2.7 cd/lm
Efficiency: 85 %
LEDs/each optic: 4
Light colour: White
LED: NF2x757G
FWHM: 16°
FWTM: 30°
Peak intensity: 9.3 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

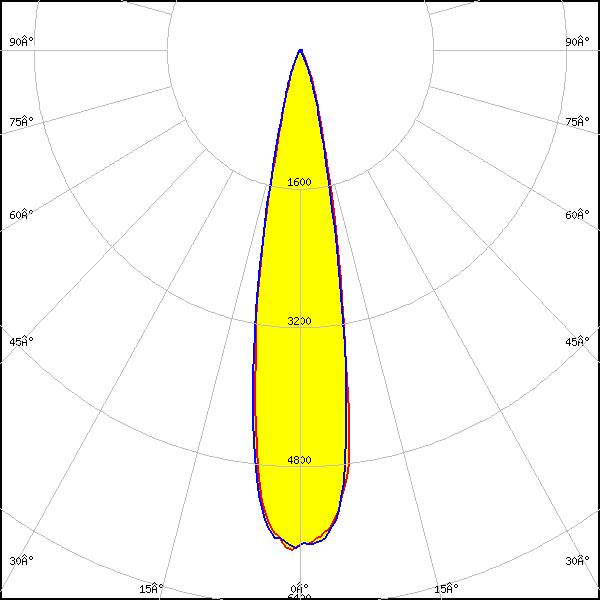

LED: NVSW3x9A
FWHM: 20°
FWTM: 37°
Peak intensity: 5.8 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

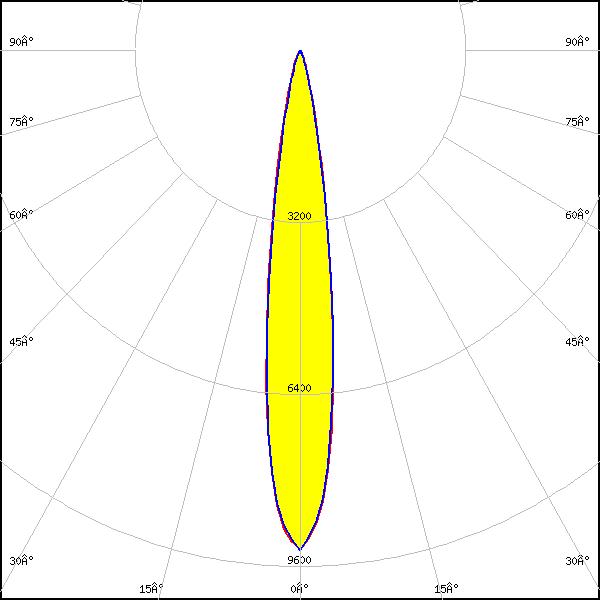

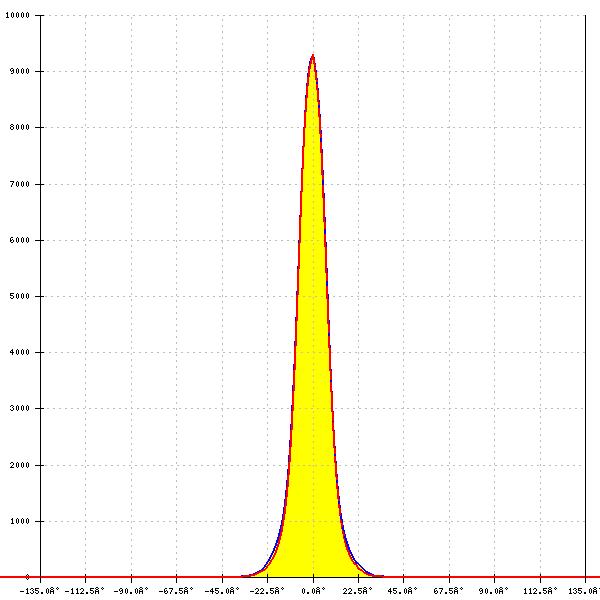

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 16°
FWTM: 30°
Peak intensity: 9.3 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

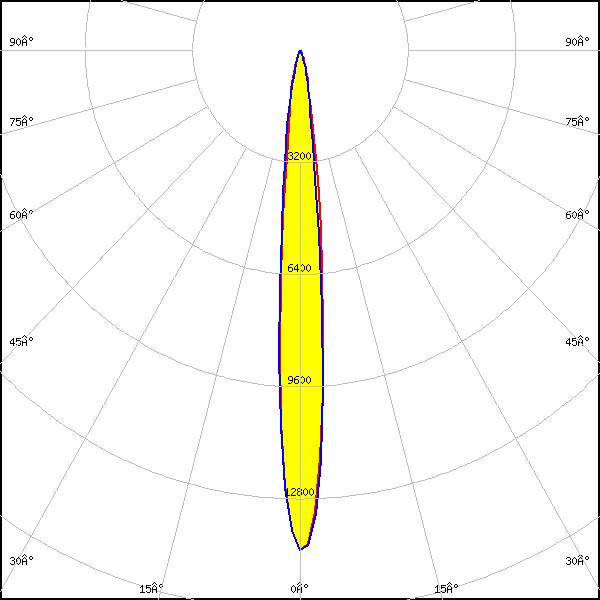

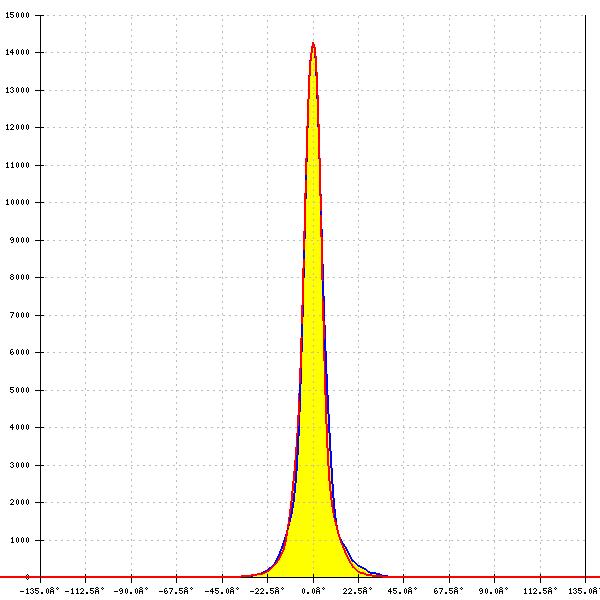

LED: OSLON SSL 80
FWHM: 11°
FWTM: 23°
Peak intensity: 14.3 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: SFH 4715S
FWHM: 15°
FWTM: 26°
LEDs/each optic: 1
Light colour: White
LED: SFH 4725S
FWHM: 10°
FWTM: 24°
LEDs/each optic: 1
Light colour: White
LED: SYNIOS S2222 (KW DDLM31)
FWHM: 12° + 11°
FWTM: 22° + 22°
Peak intensity: 17.9 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: LH351A
FWHM: 14°
FWTM: 26°
Peak intensity: 7.8 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22P
FWHM: 17°
FWTM: 35°
Peak intensity: 6.4 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
