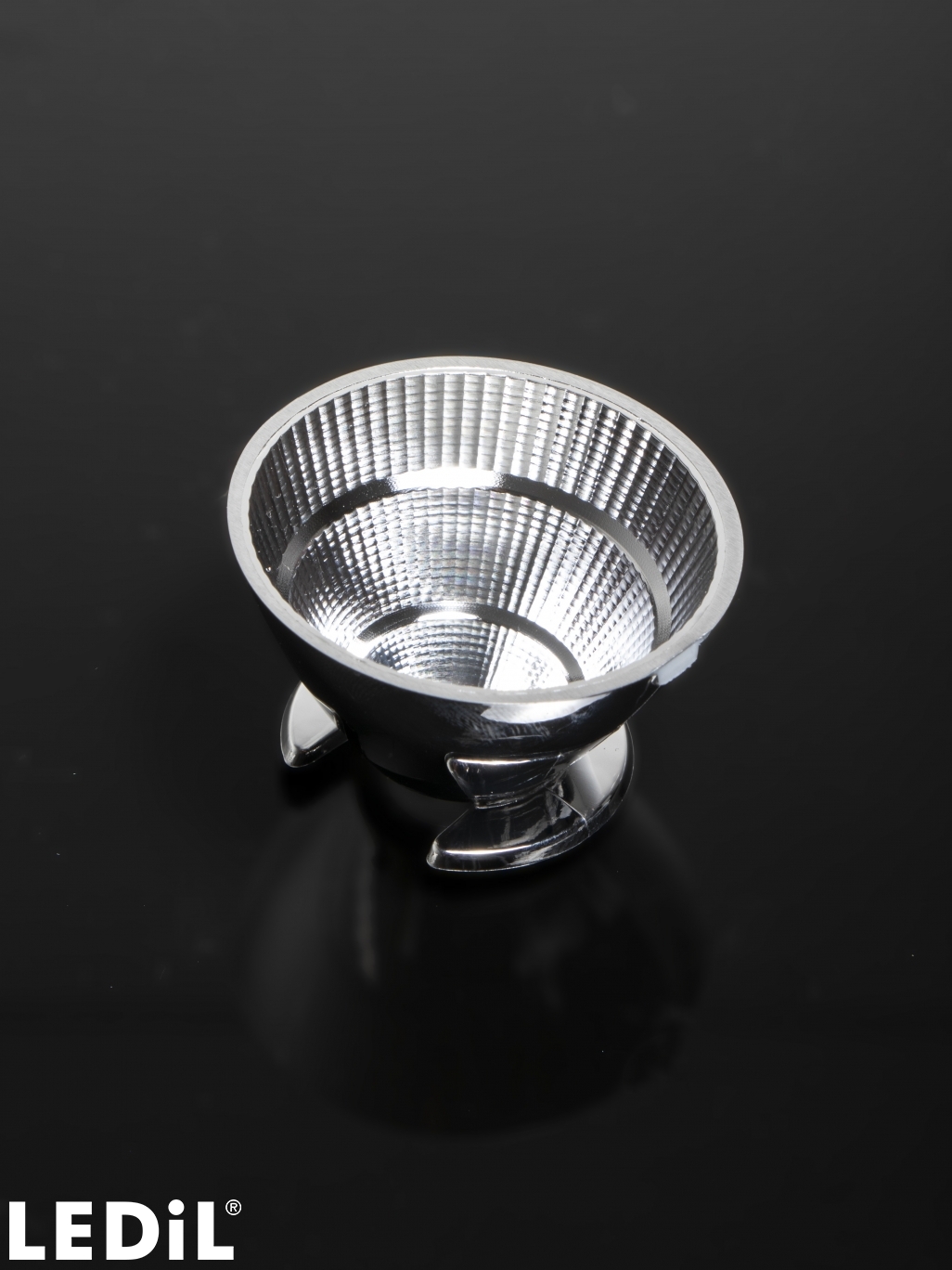

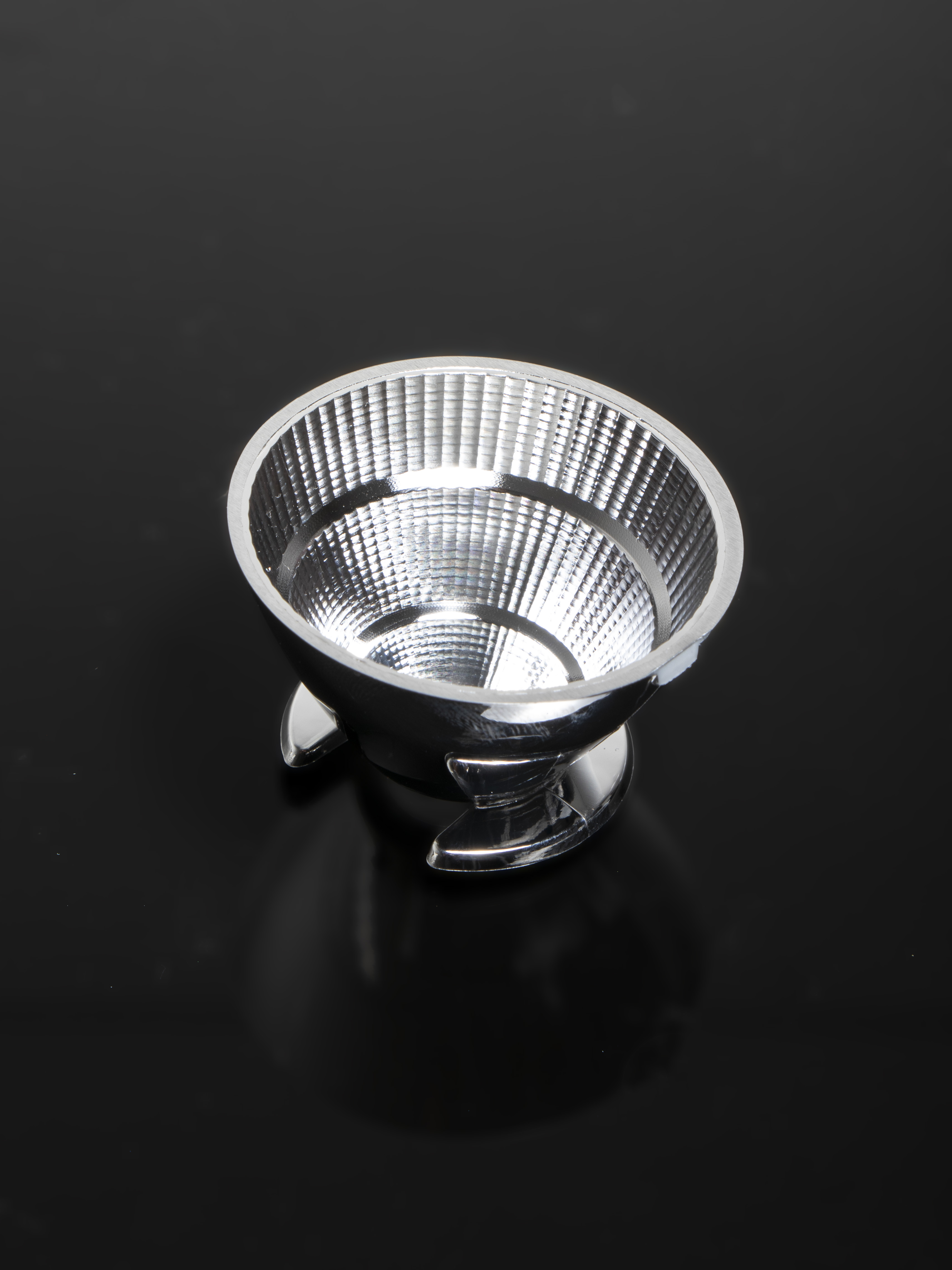

FA16987_TYRA2-M

Print

~20° medium beam. Assembly with installation tape.

Specification
  • Dimensions:
    40 mm
  • Height:
    24.3 mm
  • Fastening:
    tape, pin
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials
  • TYRA2-M, Reflector, PC, HMDS
  • TYRA2-TAPE, Tape, PU tape

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    352 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    3.2 kg
  • MPQ:
    32 pcs
  • MOQ:
    96 pcs
  • MOQ size:
    480 x 280 x 90 mm
  • MOQ weight:
    1.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FA16987_TYRA2-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Typical Applications

Optical results

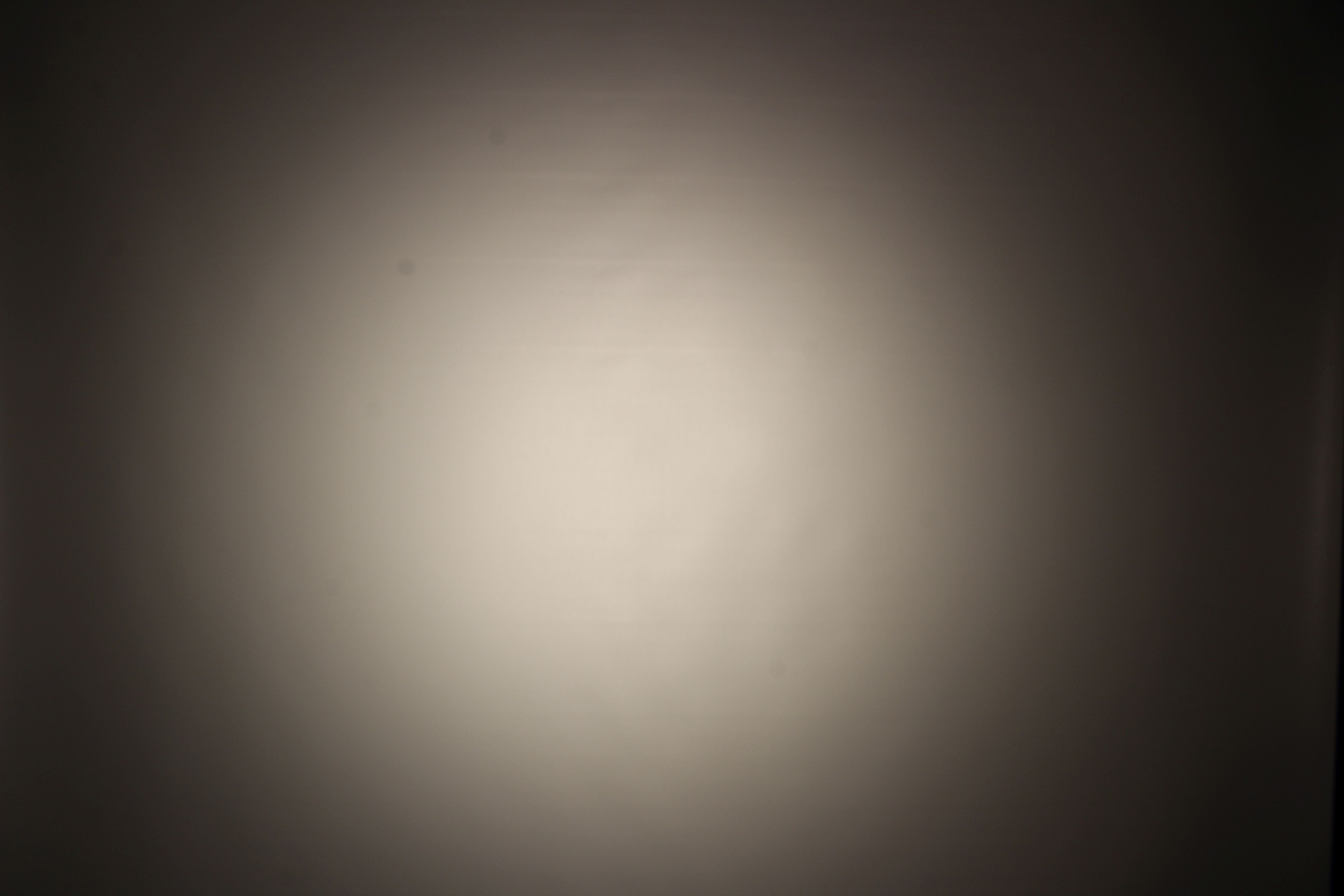

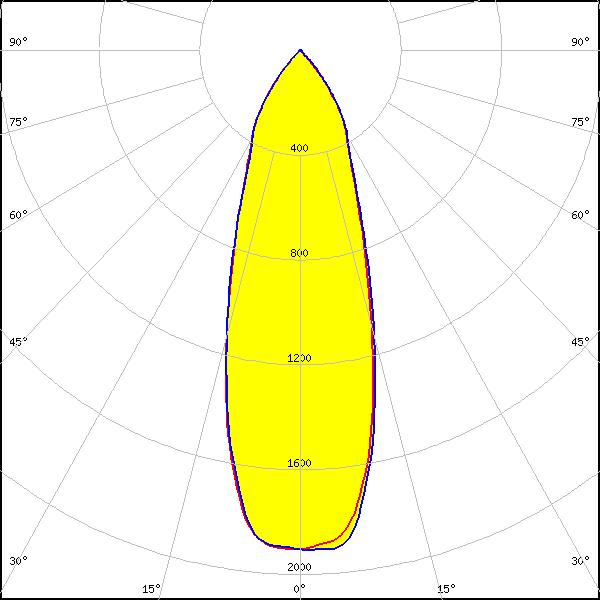

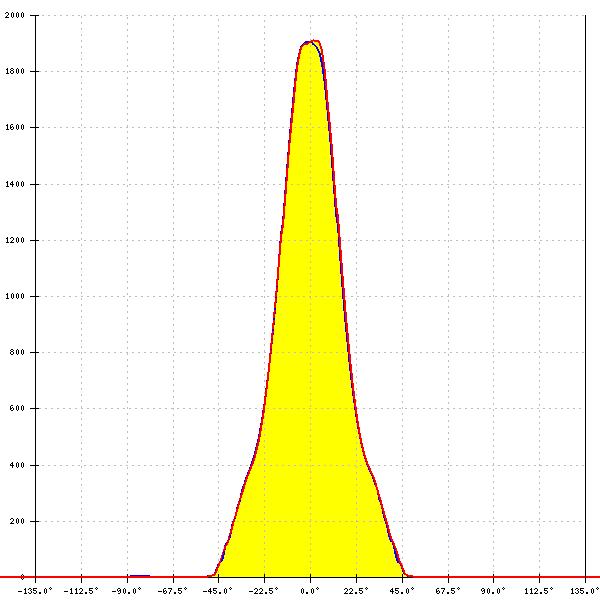

LED: MP-L
FWHM: 34°
Peak intensity: 1.9 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

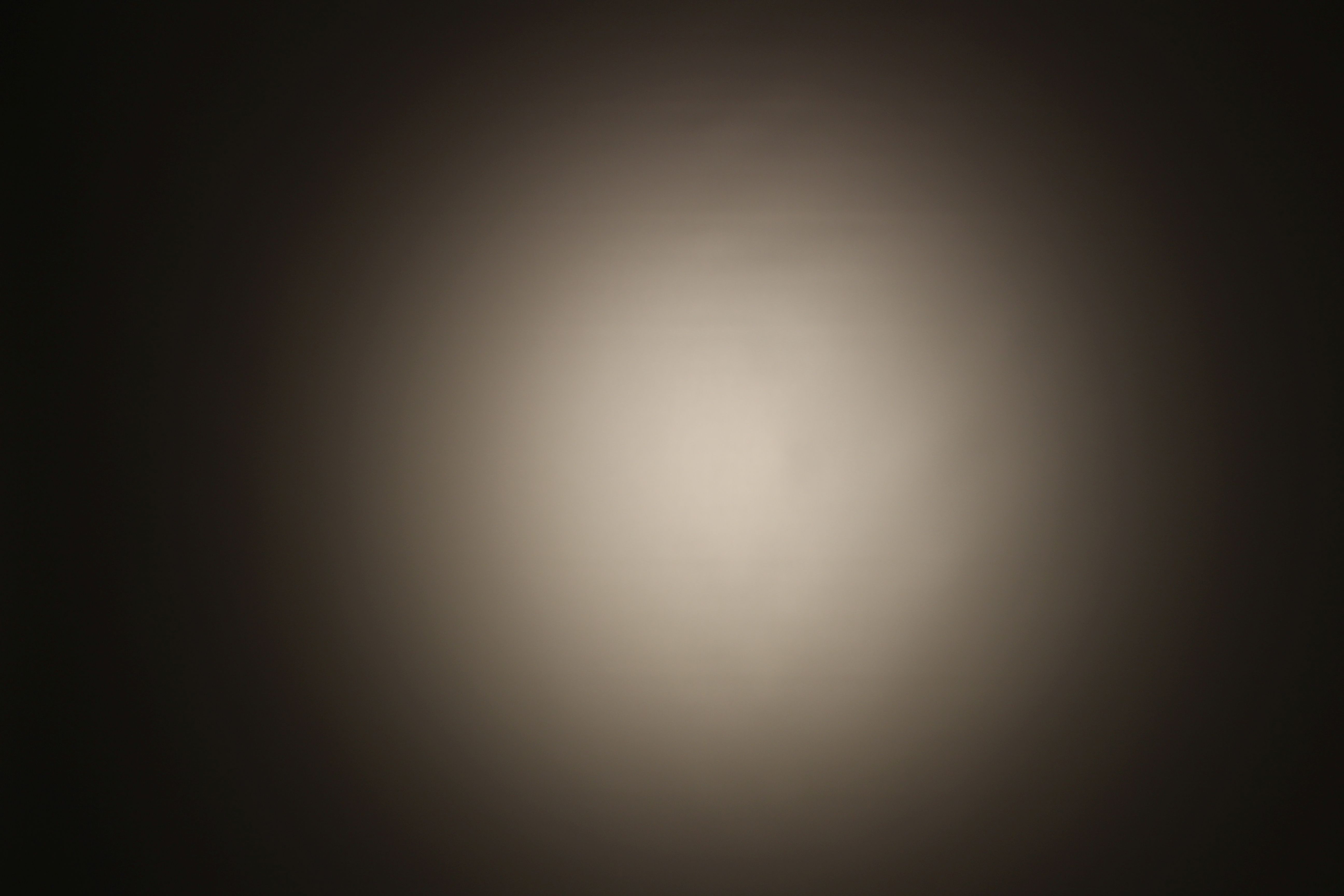

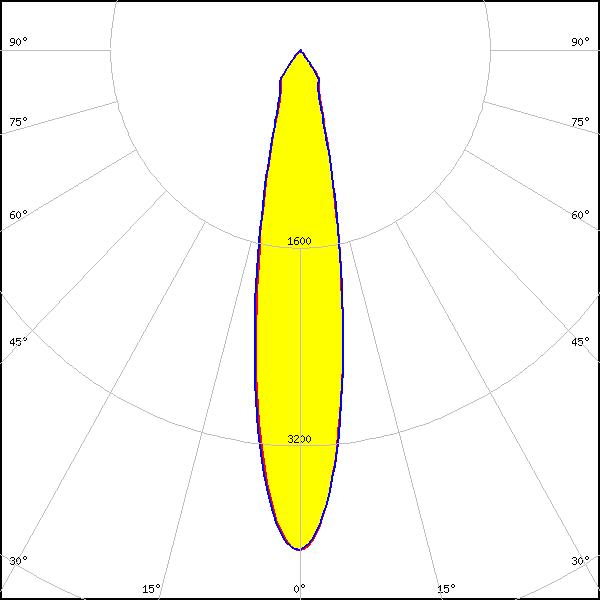

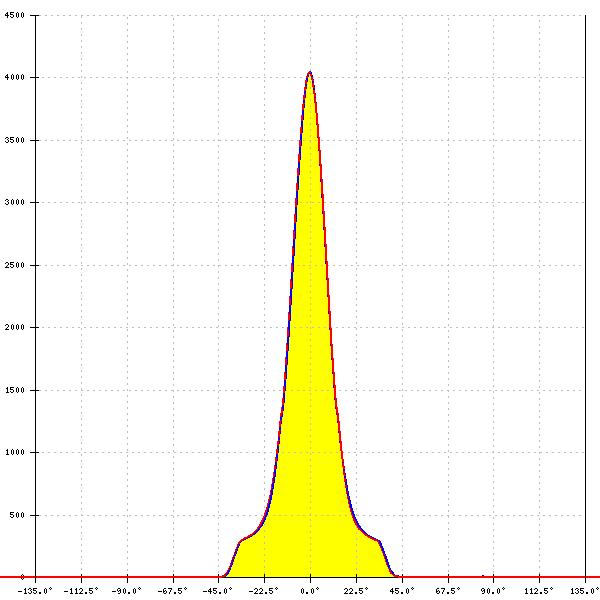

LED: Duris S10
FWHM: 21°
Peak intensity: 4.0 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

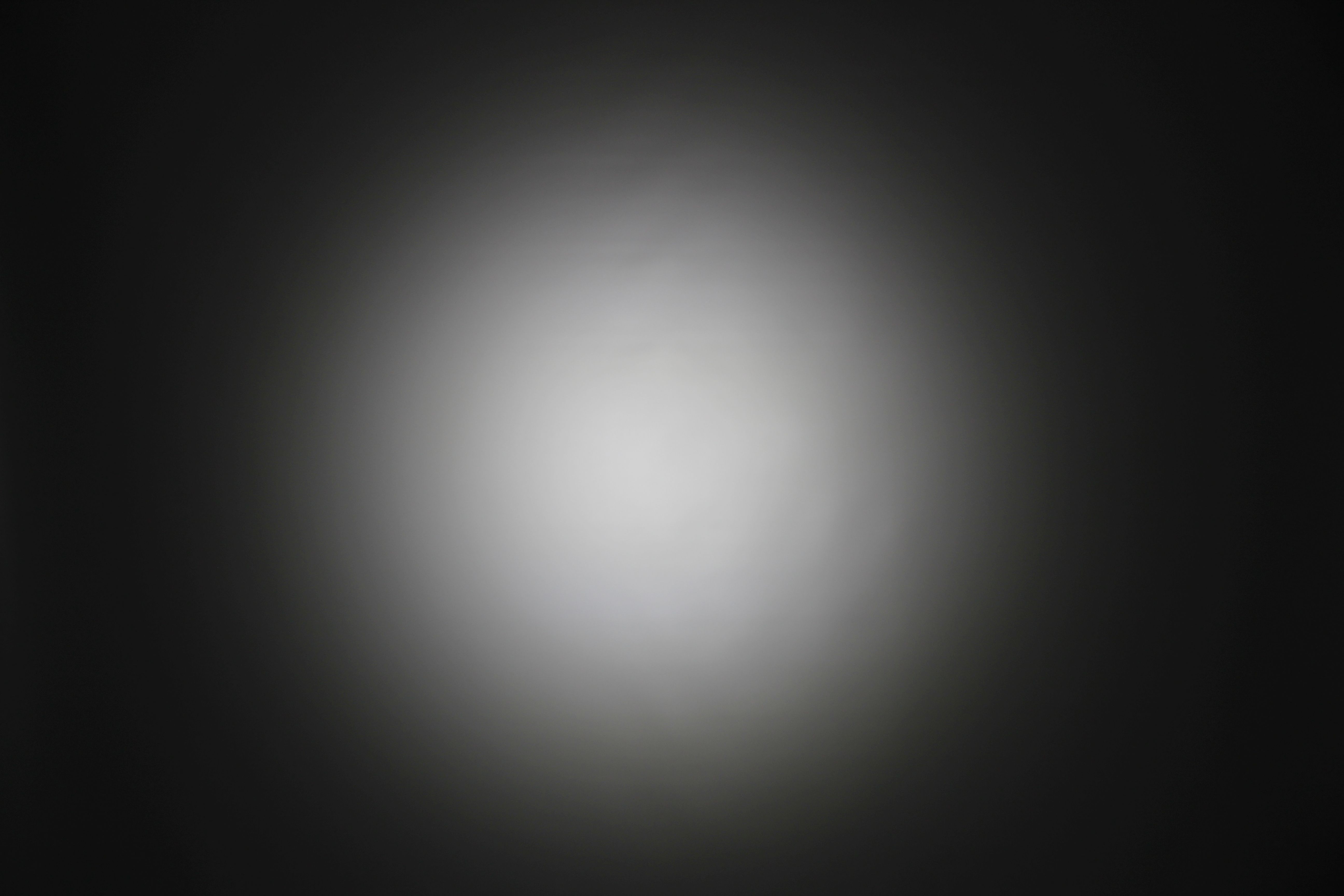

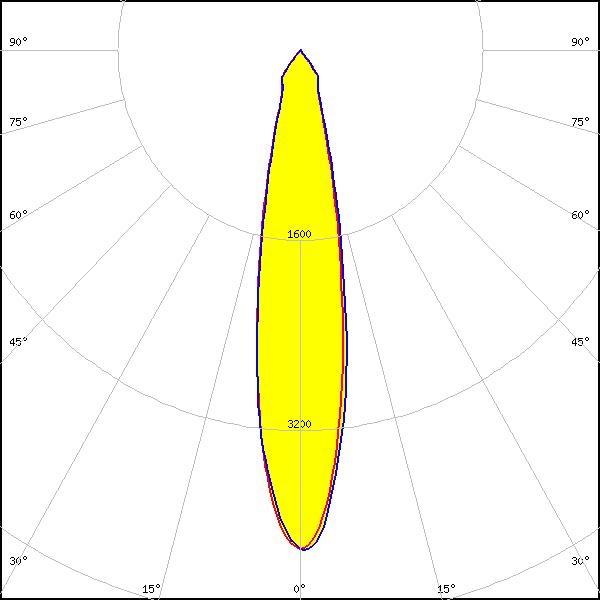

LED: Duris S8
FWHM: 21°
Peak intensity: 4.2 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
