FCA12104_IRIS
Print

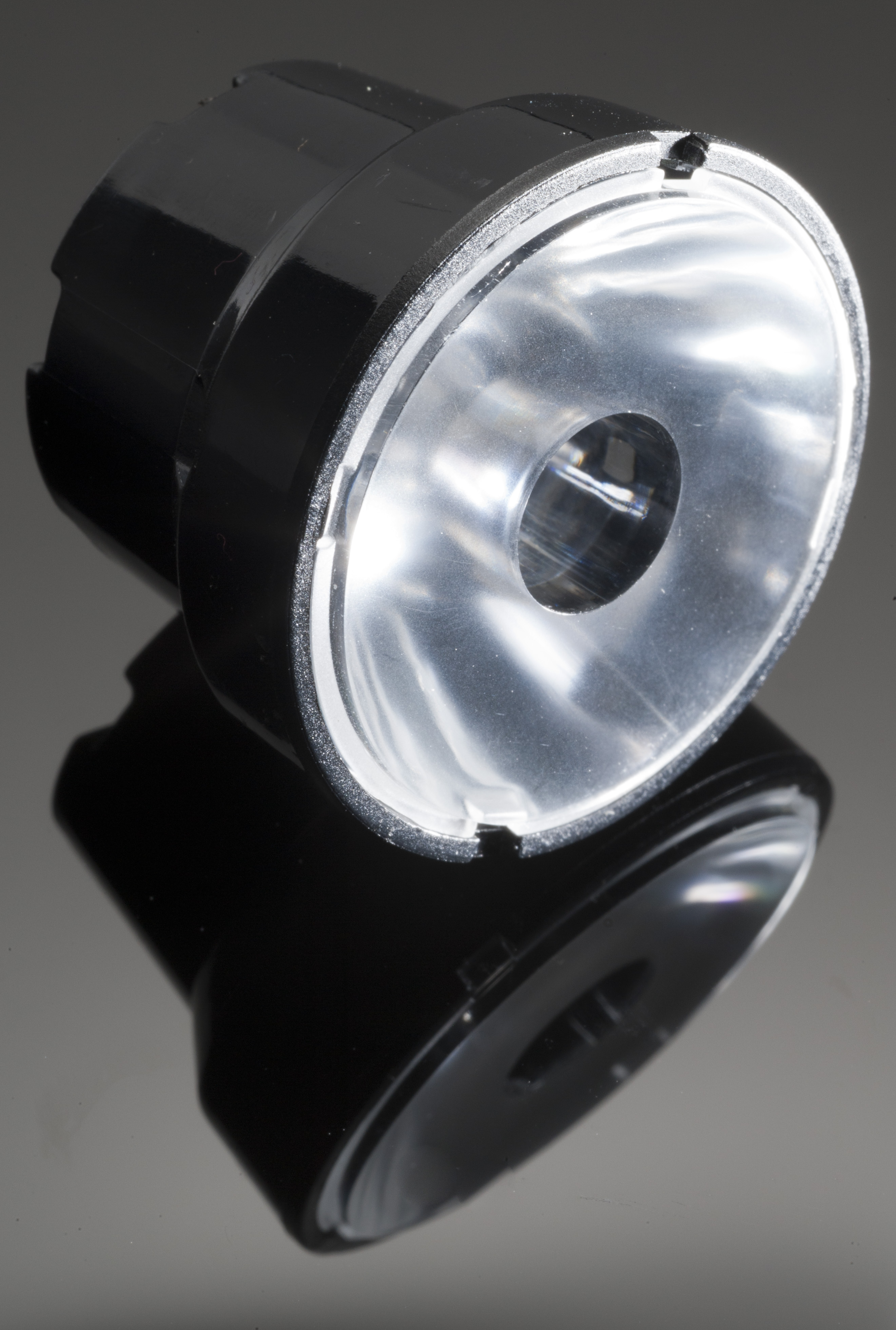

~5° real spot beam optimized for CREE XM-L. Assembly with holder and installation tape.
Component Materials
- IRISSingle lensPMMA
- IRIS-XM-HLDHolderPC
- SPUTNIK-TAPETapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

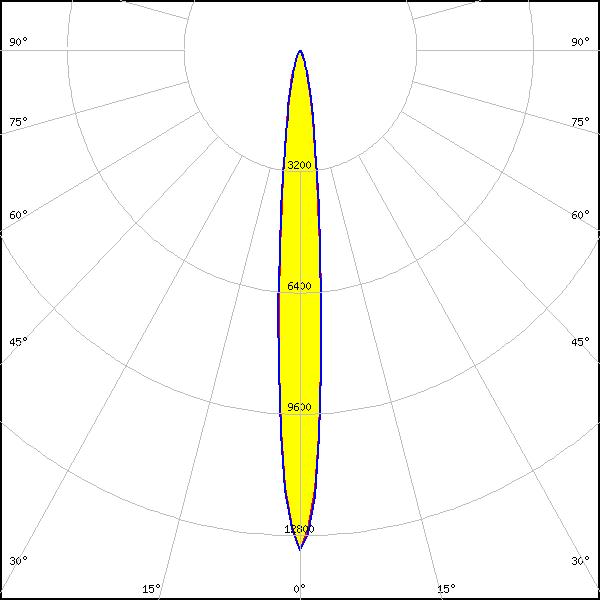

LED:

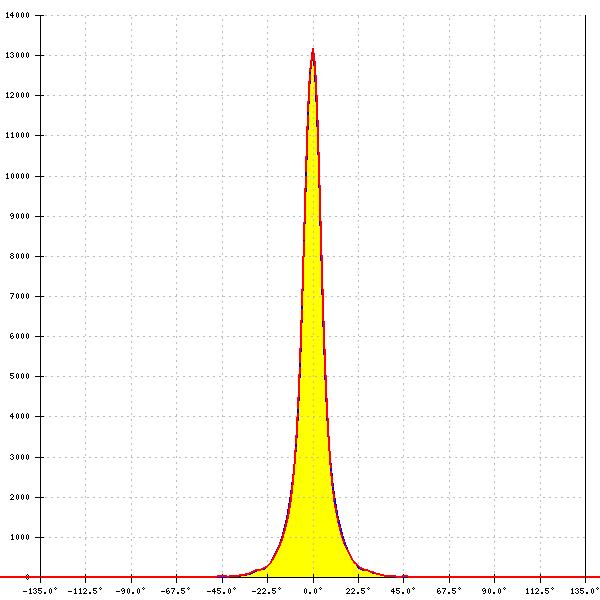

J Series 5050B 6V K Class
FWHM:
10°
FWTM:
26°
Peak intensity:
13.190 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

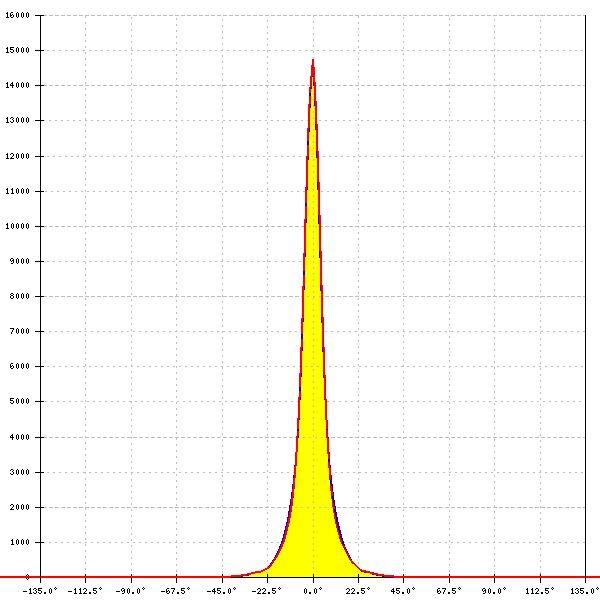

LED:

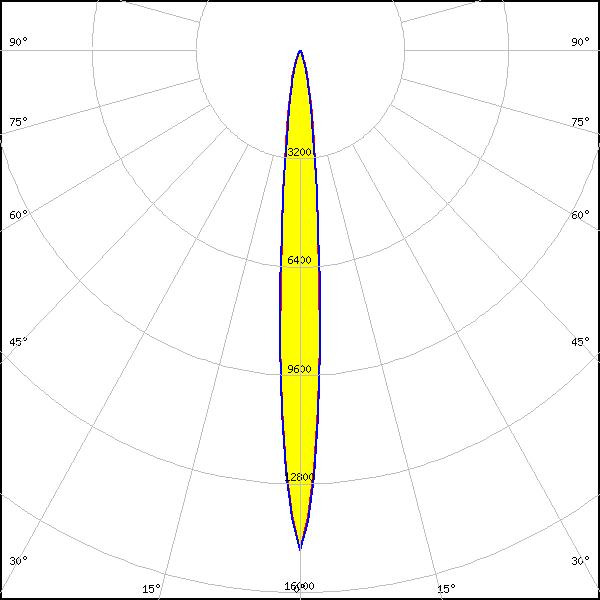

J Series 5050C 6V E Class
FWHM:
10°
FWTM:
25°
Peak intensity:
14.756 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

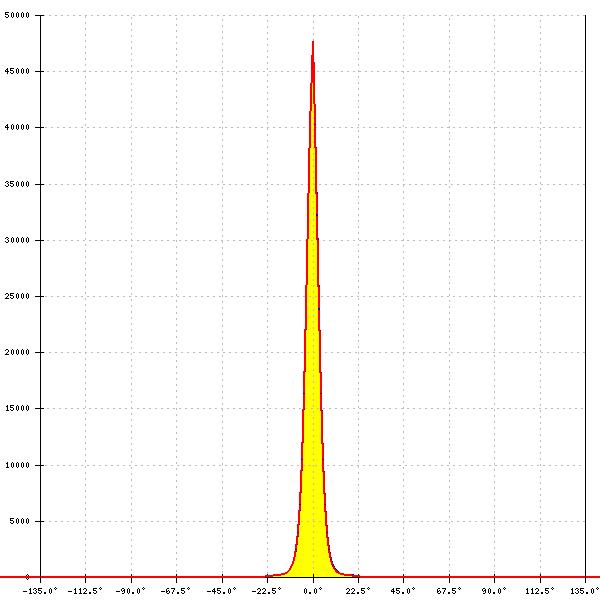

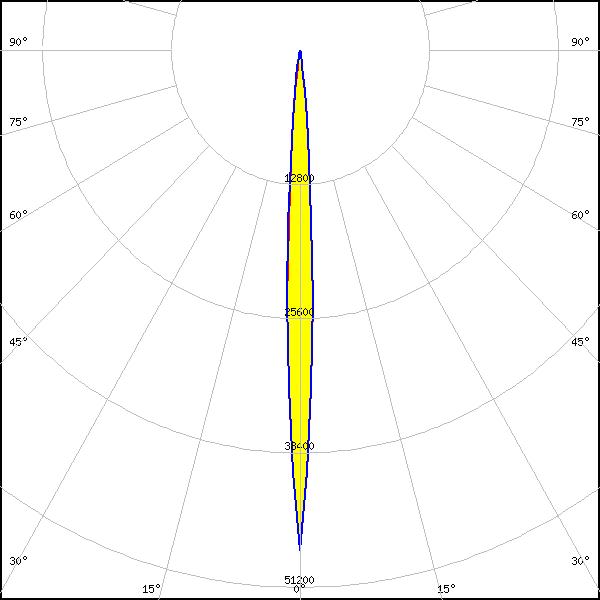

XD16
FWHM:
6°
FWTM:
14°
Peak intensity:
47.689 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

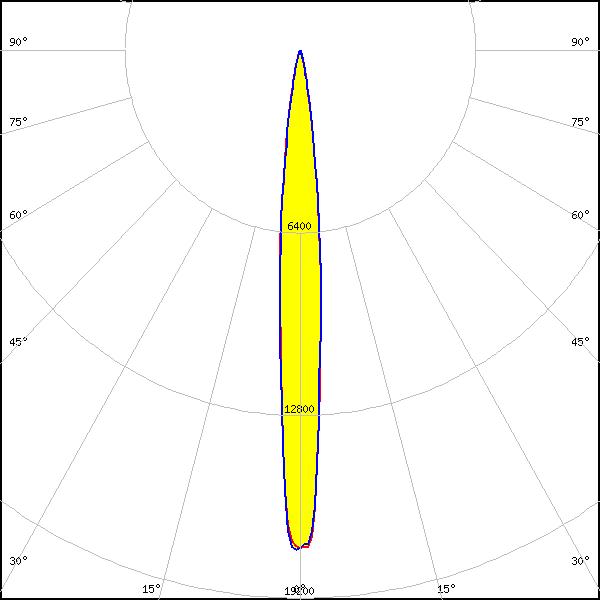

XHP35 HD
FWHM:
10°
FWTM:
22°
Peak intensity:
17.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

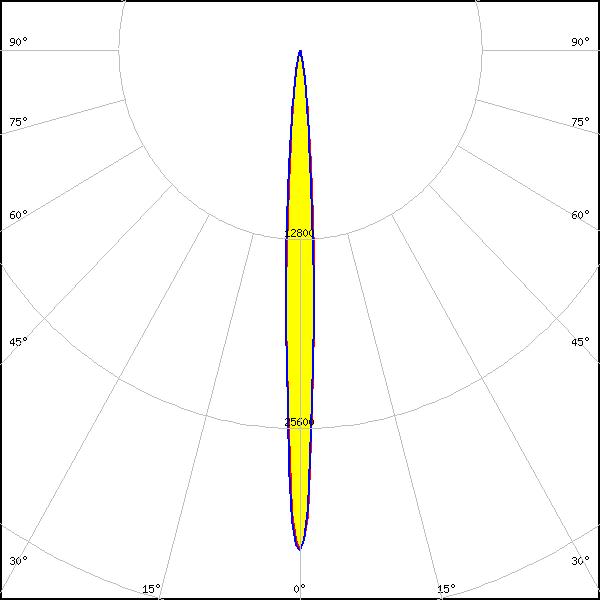

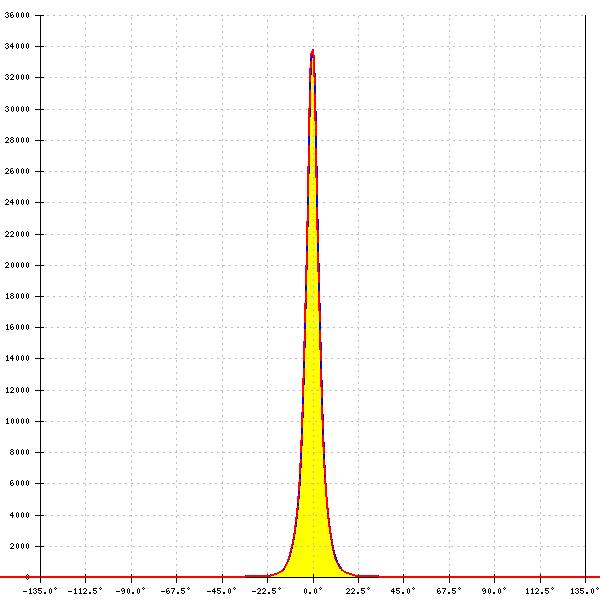

LED:

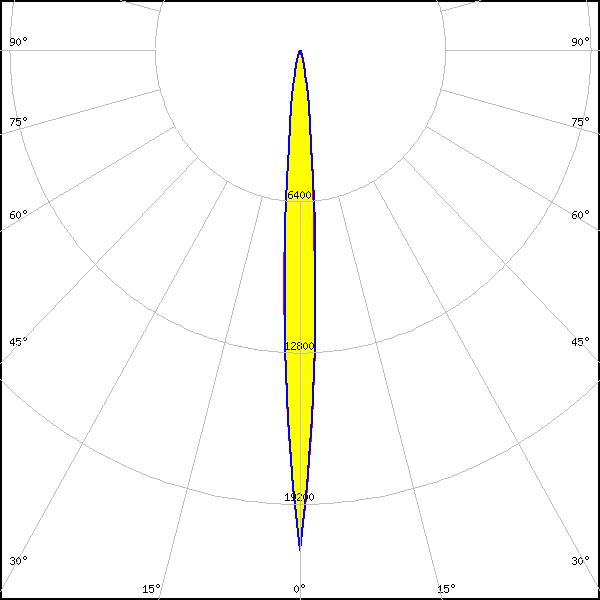

XHP35 HI
FWHM:
7°
FWTM:
16°
Peak intensity:
33.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35.2 HD
FWHM:
8°
FWTM:
20°
Peak intensity:
21.149 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

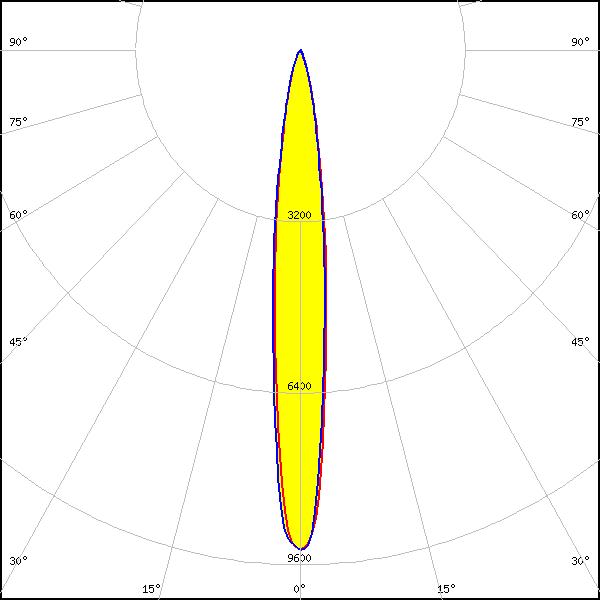

XHP50.2
FWHM:
12°
FWTM:
30°
Peak intensity:
9.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

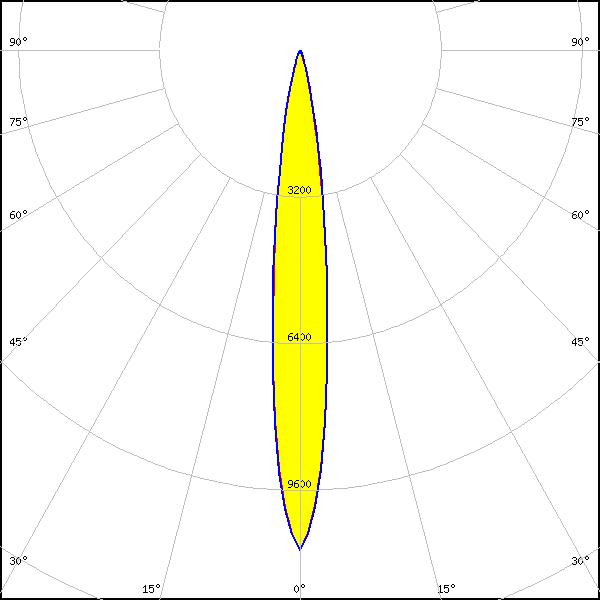

LED:
XHP50.3 HD
FWHM:
13°
FWTM:
28°
Peak intensity:
10.907 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

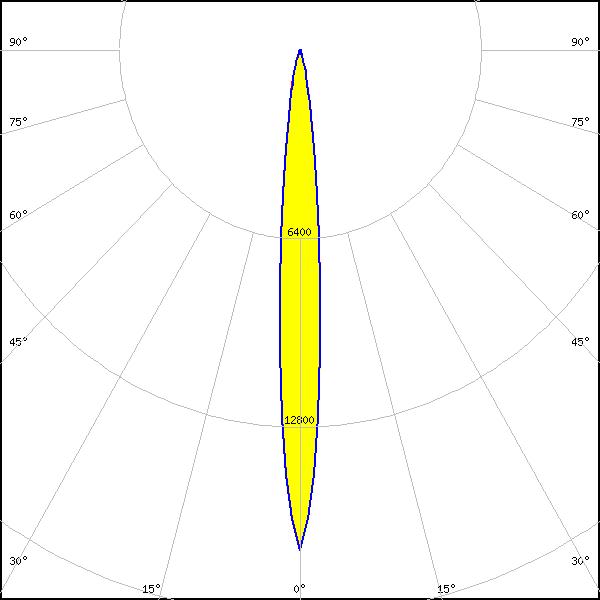

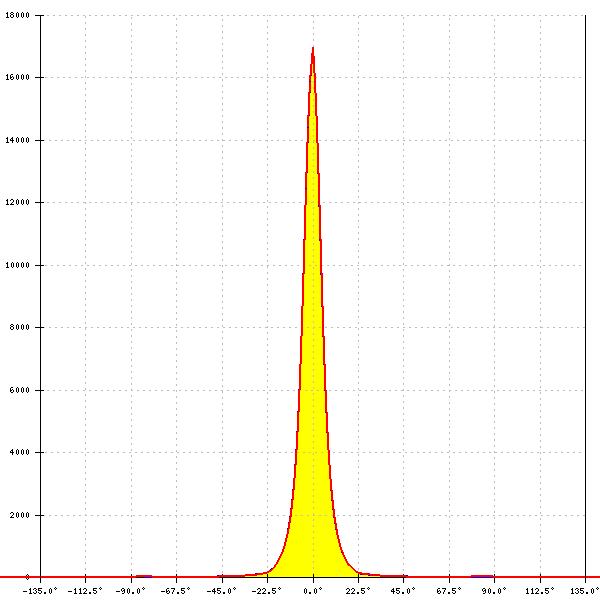

XHP50.3 HI
FWHM:
10°
FWTM:
22°
Peak intensity:
16.986 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

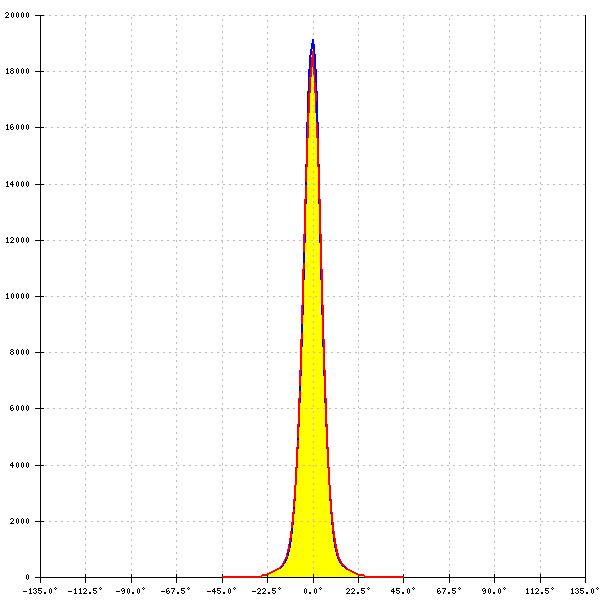

LED:

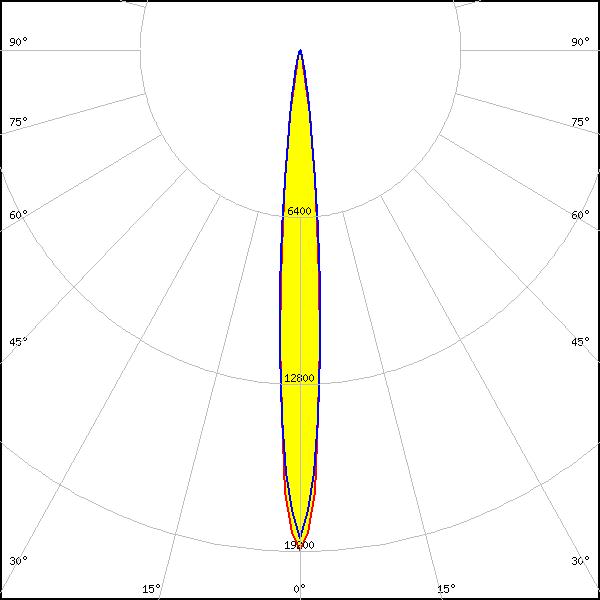

XM-L
FWHM:
9°
FWTM:
19°
Peak intensity:
19.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

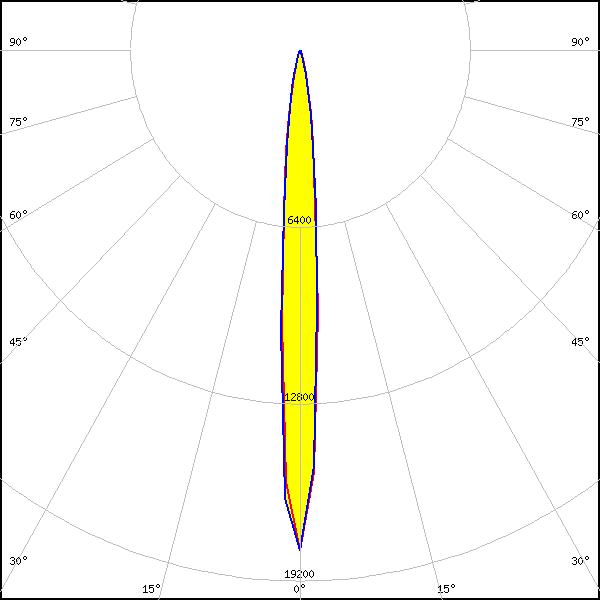

LED:
XM-L2
FWHM:
10°
FWTM:
23°
Peak intensity:
18.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

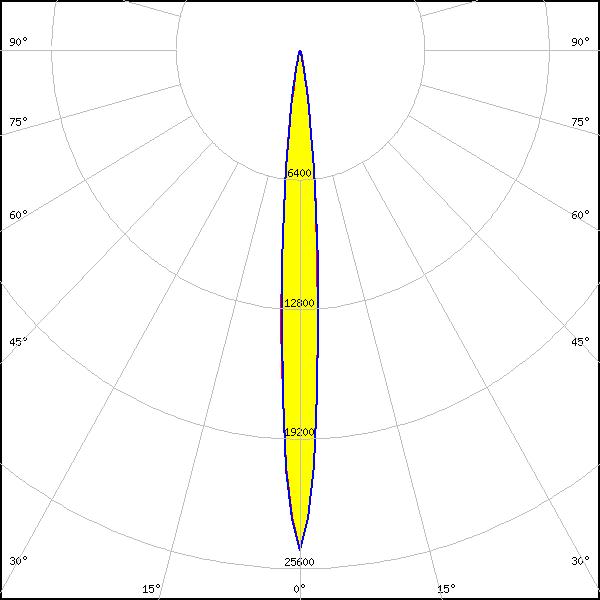

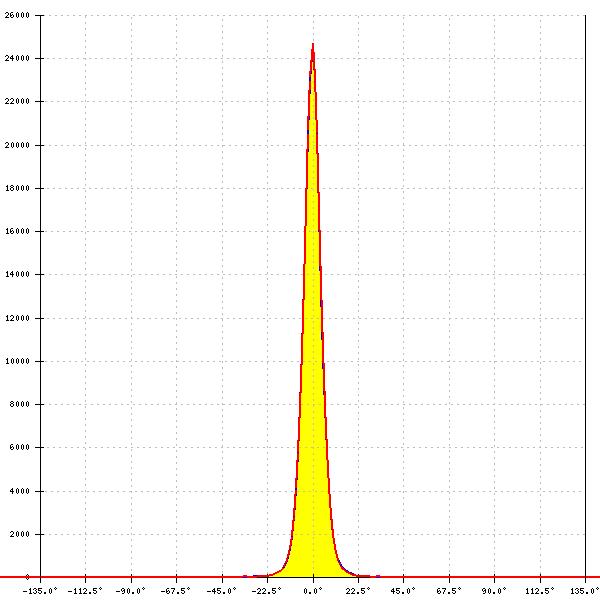

LED:
XP-L HD
FWHM:
9°
FWTM:
19°
Peak intensity:
24.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

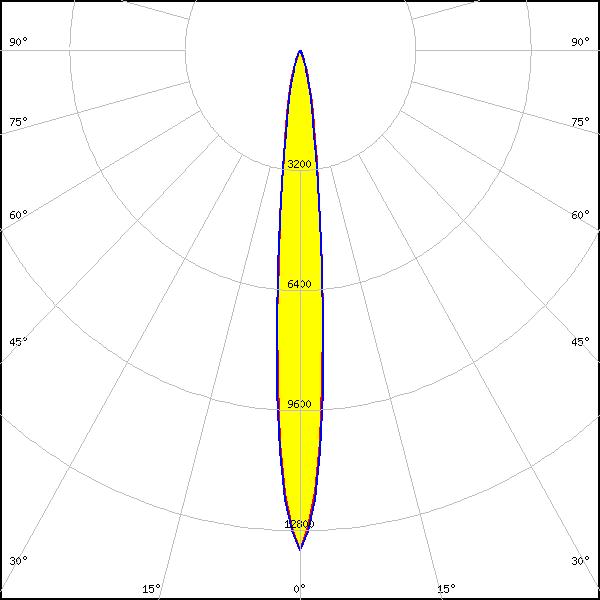

LUXEON 5050 Round LES
FWHM:
10°
FWTM:
27°
Peak intensity:
13.325 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

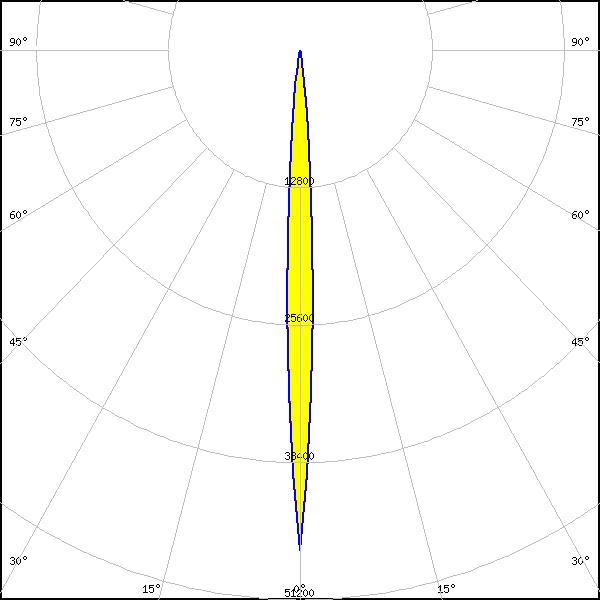

SFT-40-WCS
FWHM:
6°
FWTM:
14°
Peak intensity:
46.587 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

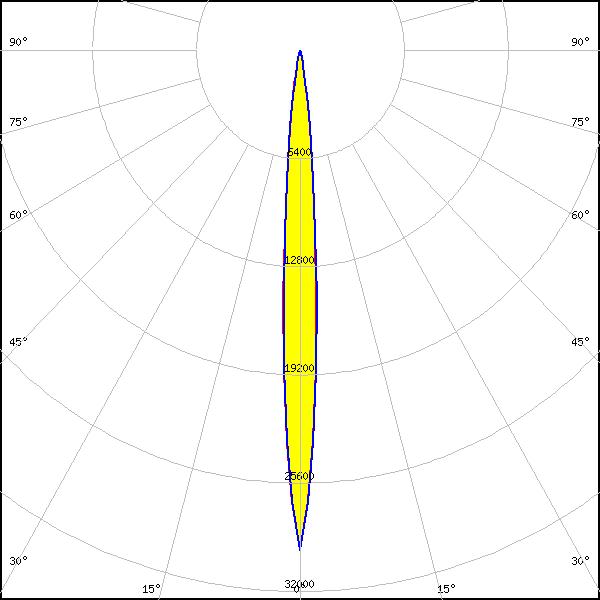

SFT-70X-WCS
FWHM:
8°
FWTM:
18°
Peak intensity:
29.579 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-20 Gen2
FWHM:
6°
FWTM:
14°
Peak intensity:
43.422 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

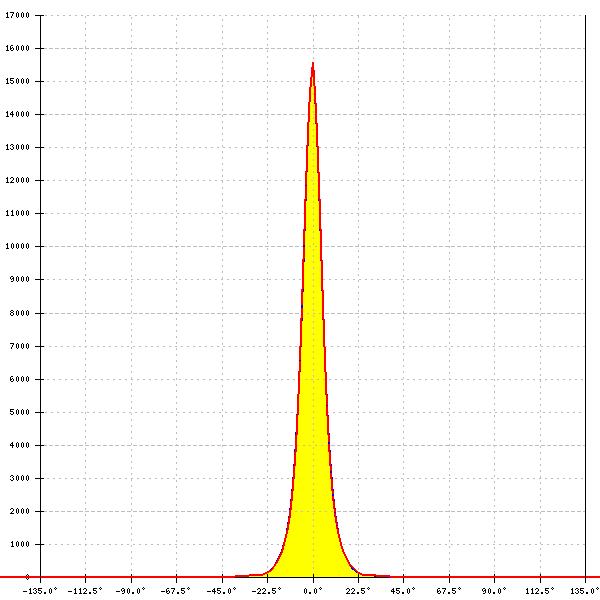

LED:

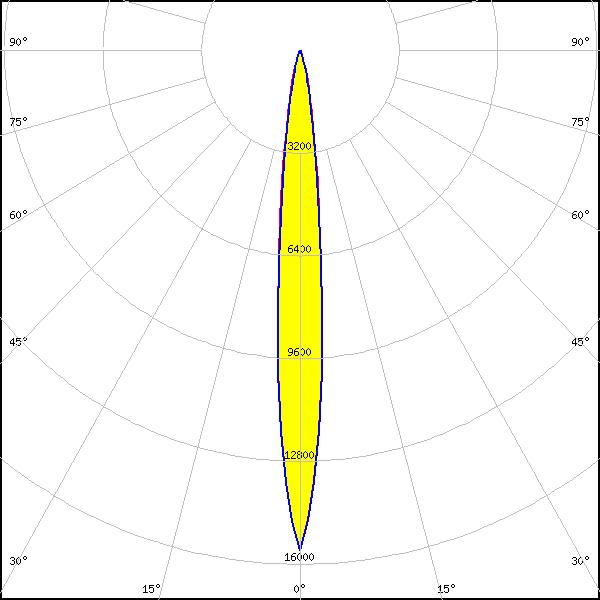

SST-70X-WCS
FWHM:
10°
FWTM:
24°
Peak intensity:
15.571 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

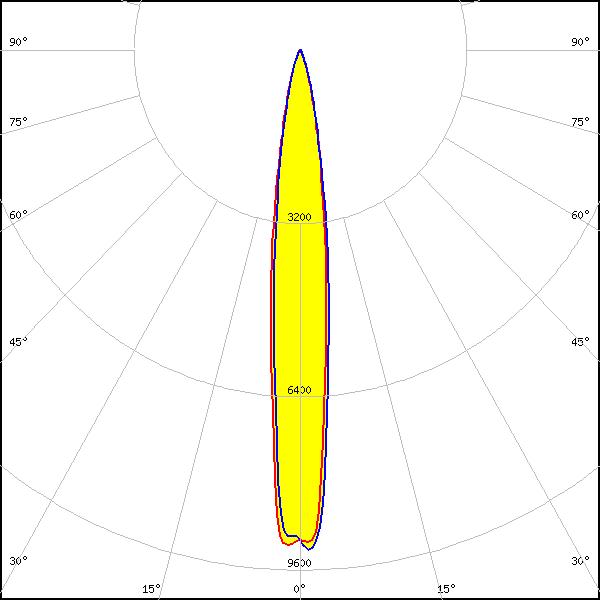

NV4x144A
FWHM:
13°
FWTM:
31°
Peak intensity:
9.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

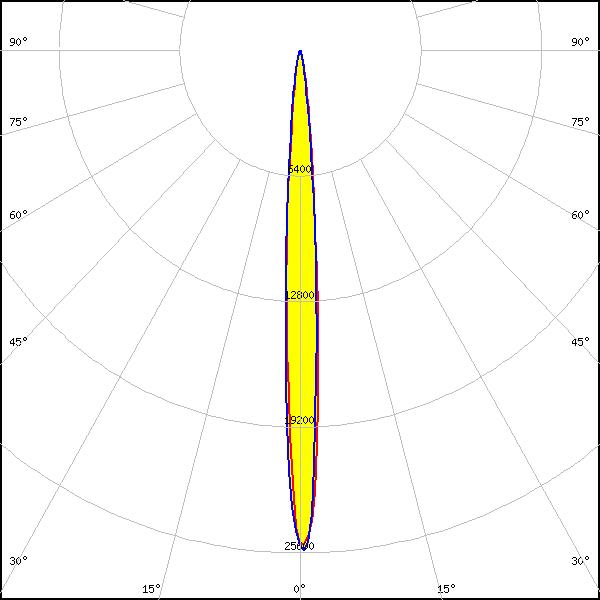

LED:
NVSW3x9A
FWHM:
7°
FWTM:
17°
Peak intensity:
25.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

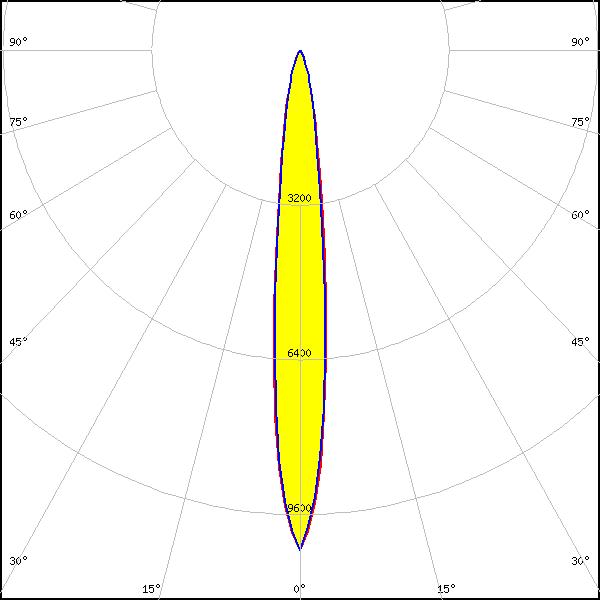

Duris S8
FWHM:
12°
FWTM:
30°
Peak intensity:
10.339 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

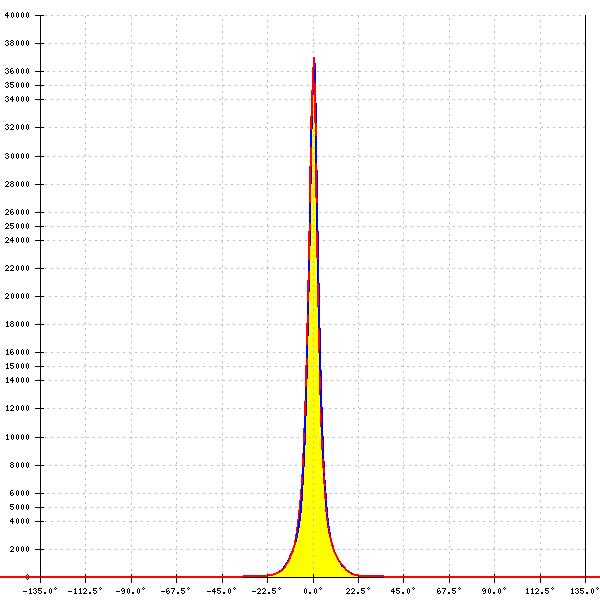

LED:

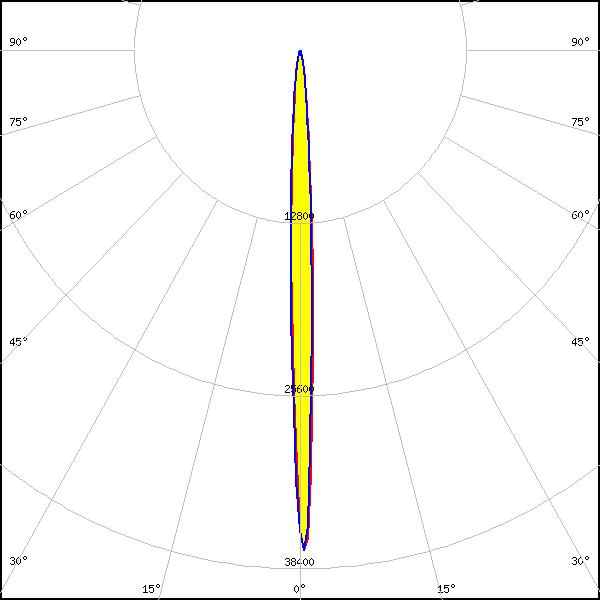

OSCONIQ P 3737 (2W version)
FWHM:
5°
FWTM:
14°
Peak intensity:
38.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
