FCA14295_BILLIE-B

Asymmetric beam for wall-washing. Assembly with holder and installation tape.

Specification

Dimensions:

22 mm
Height:

16.10 mm
Fastening:

tape, pin
Colour:

white
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

BILLIE-B
Single lens
PMMA
BILLIE-HLD-PIN-TAPE
Holder
PC
HEIDI-TAPE
Tape
Acryl tape
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

1792 pcs
Box size:

480 x 280 x 300 mm
MPQ:

112 pcs
MOQ:

336 pcs
MOQ size:

480 x 280 x 70 mm
MOQ weight:

1.8 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: FCA14295_BILLIE-B

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

FCA14295_BILLIE-B

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Application example

Wall-washing with BILLIE-B

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application area

Outdoor Special Applications

Application area

Architectural Outdoor Lighting

Application area

Indoor Architectural Lighting

Optical results

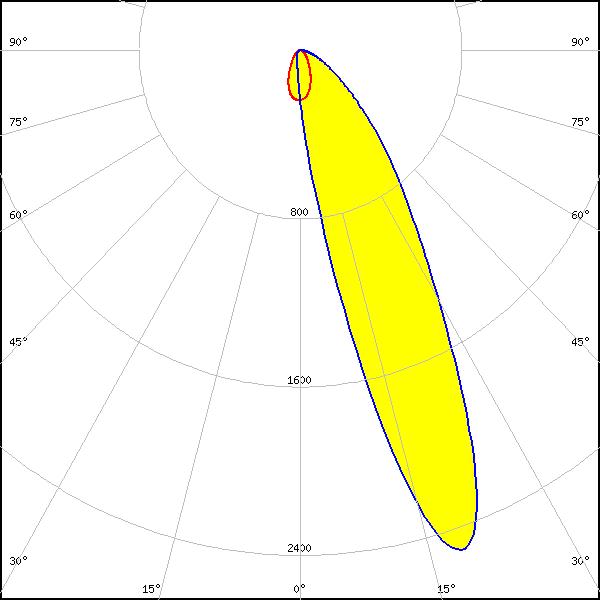

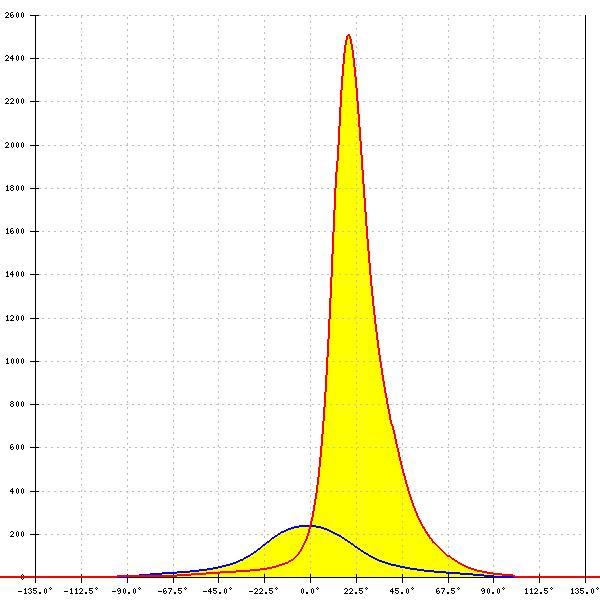

LED: XP-E

FWHM: asymmetric

Peak intensity: 2.500 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

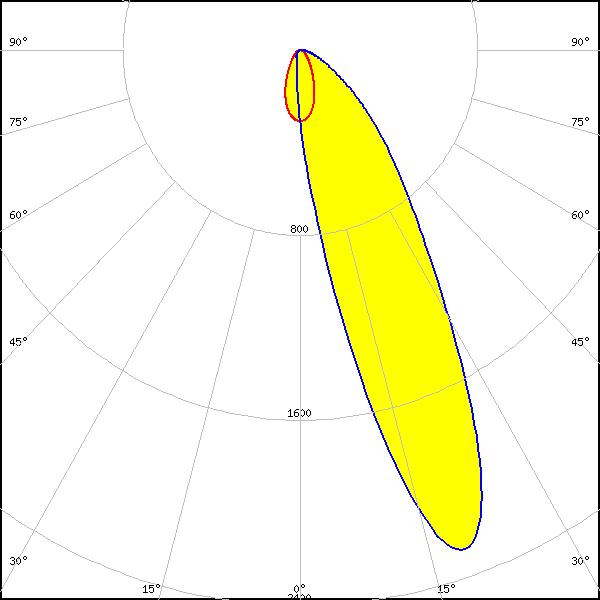

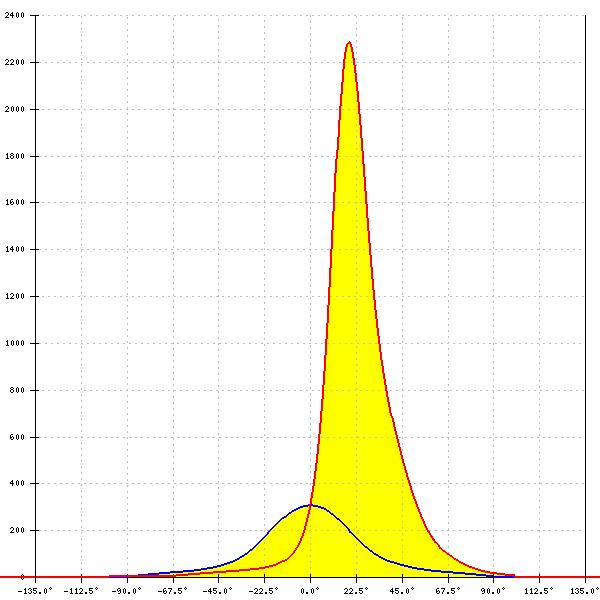

LED: XP-G

FWHM: asymmetric

Peak intensity: 2.300 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

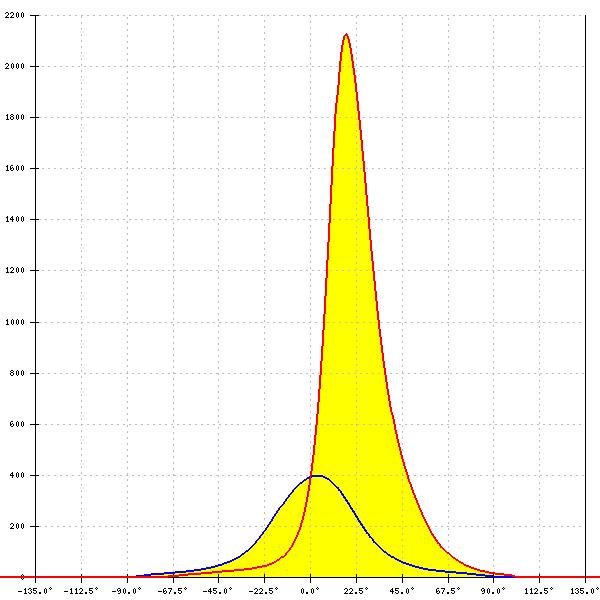

LED: LUXEON Rebel

FWHM: asymmetric

Peak intensity: 2.100 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

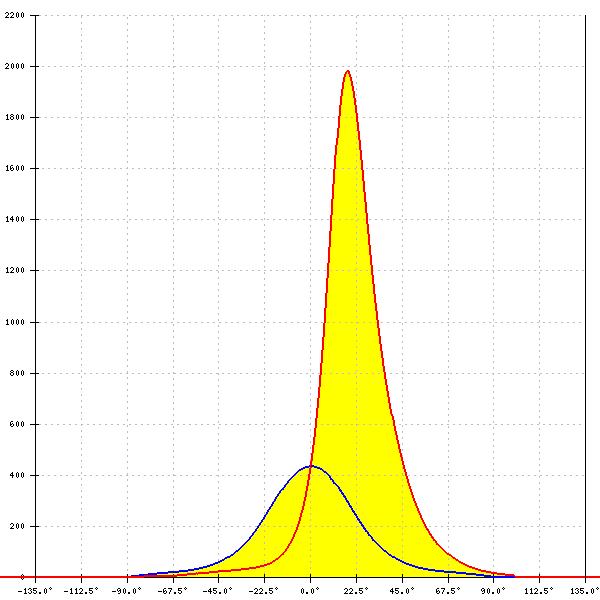

LED: LUXEON Rebel ES

FWHM: asymmetric

Peak intensity: 2.000 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

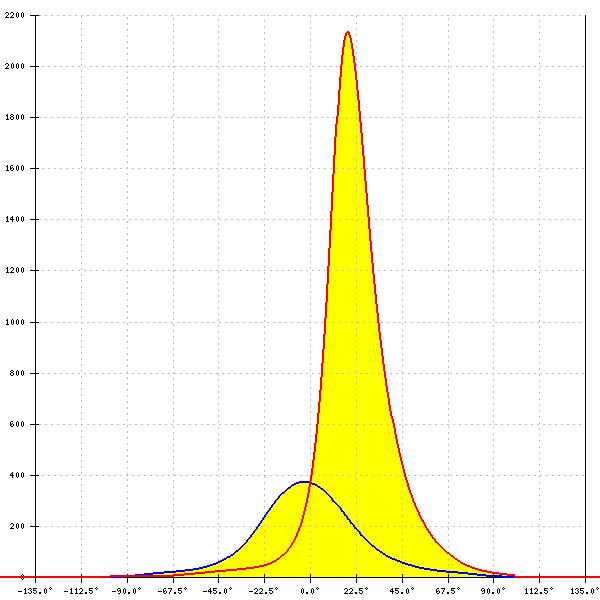

LED: NCSxx19B

FWHM: asymmetric

Peak intensity: 2.100 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

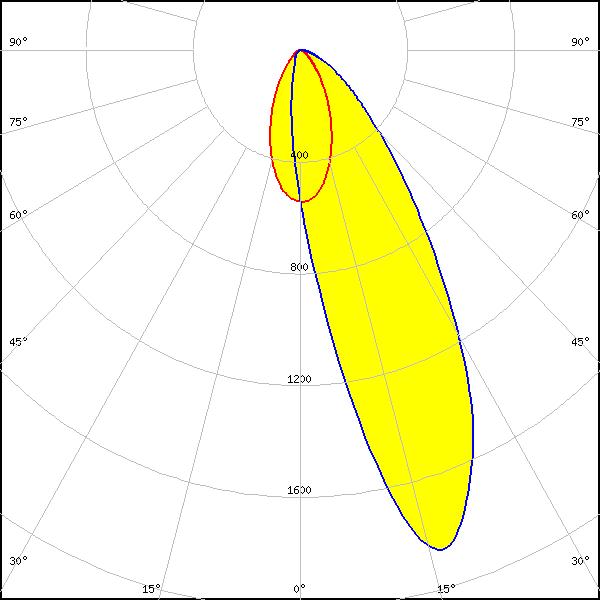

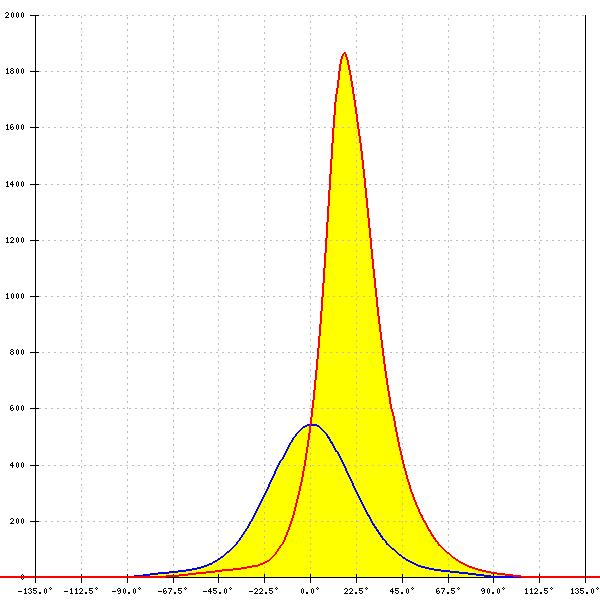

LED: NF2x757D

FWHM: asymmetric

Peak intensity: 1.900 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

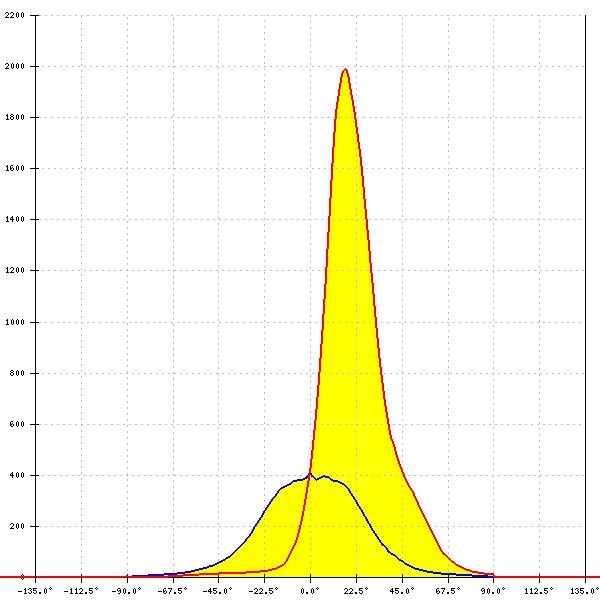

LED: NF2x757G

FWHM: asymmetric

Peak intensity: 2.000 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

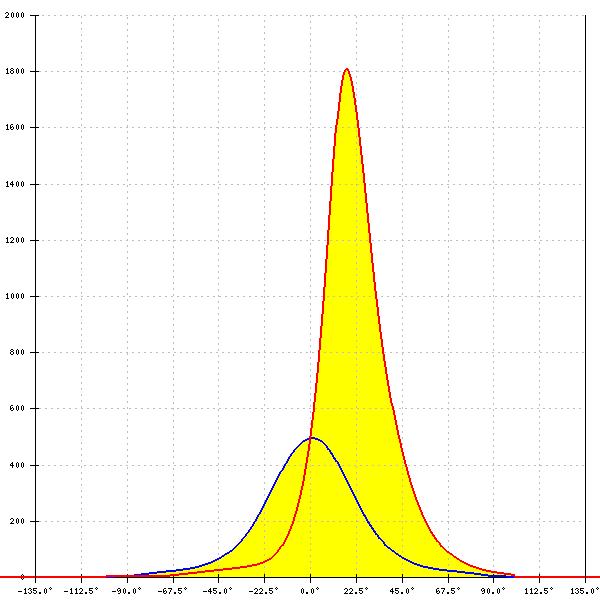

LED: NVSxx19B/NVSxx19C

FWHM: asymmetric

Peak intensity: 1.800 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

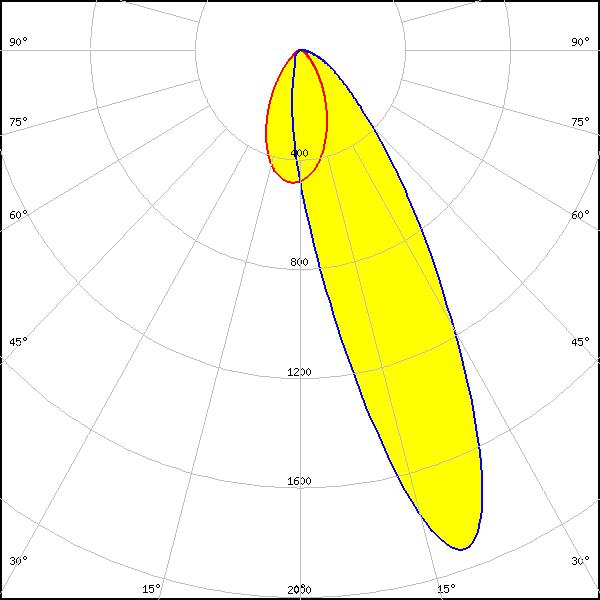

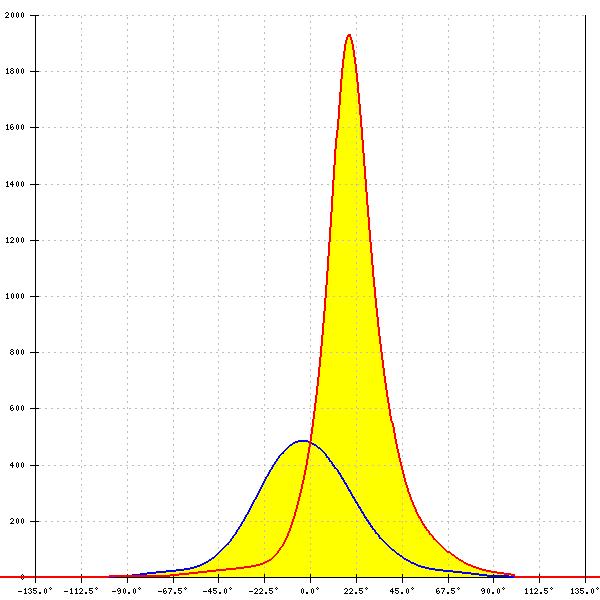

LED: DURIS S5 (2 chip)

FWHM: asymmetric

Peak intensity: 1.900 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

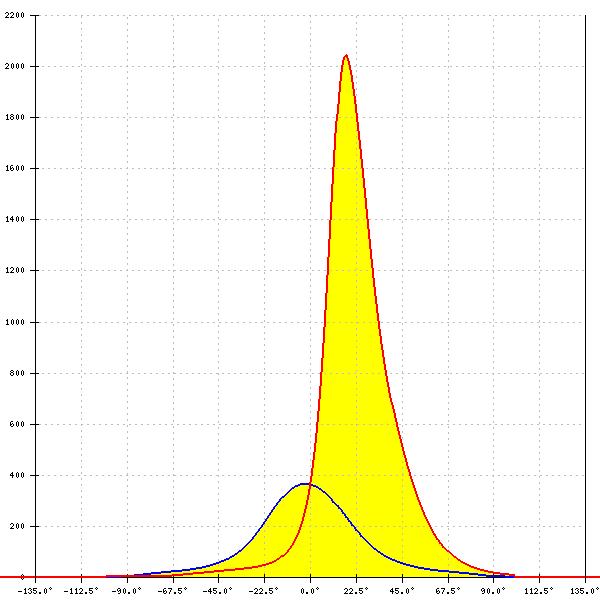

LED: OSLON Square EC

FWHM: asymmetric

Peak intensity: 2.000 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH351B

FWHM: asymmetric

Peak intensity: 2.100 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH351Z

FWHM: asymmetric

Peak intensity: 2.300 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

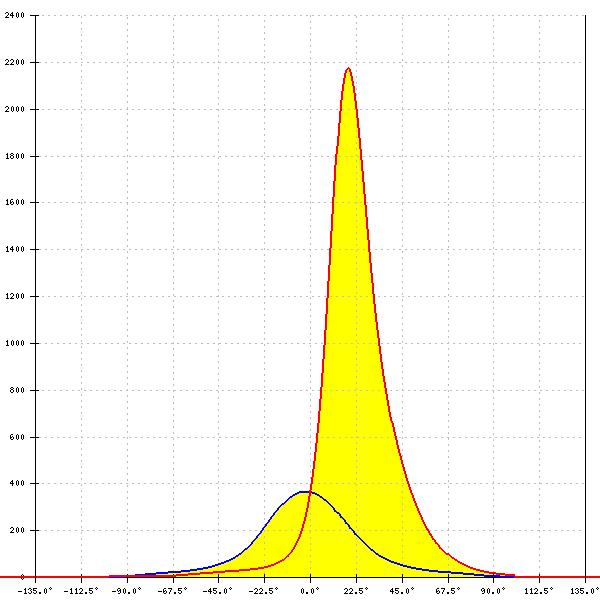

LED: Z5M1/Z5M2

FWHM: asymmetric

Peak intensity: 2.200 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
