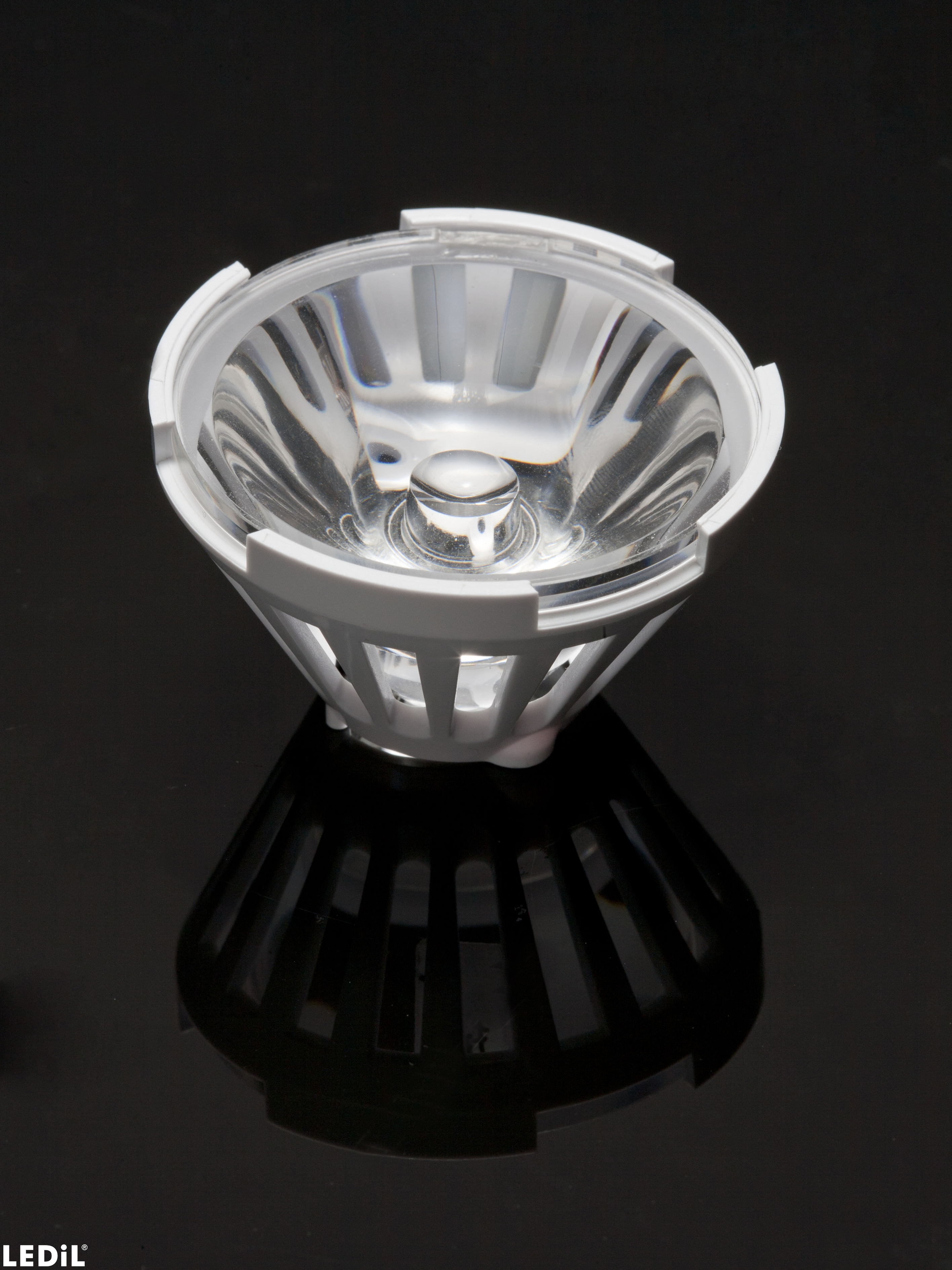

    CRYSTAL-RS

    Print

    ~5.1° spot beam. Assembly with holder.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      50 mm
    • Height:
      28.70 mm
    • Fastening:
      pin, screw
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Holder
      1 pcs
    • Single lens
    • F12916_CRYSTAL-RS
      clear
    • Quantity in box:
      288 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.60 kg
    • MPQ:
      32 pcs
    • MOQ:
      64 pcs
    • MOQ Size:
      480 x 280 x 100 mm
    • MOQ Weight:
      2.30 kg
    • Holder
    • C13478_CRYSTAL-HLD
      white
    • Quantity in box:
      1152 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.10 kg
    • MPQ:
      32 pcs
    • MOQ:
      64 pcs
    • MOQ Size:
      300 x 250 x 70 mm
    • MOQ Weight:
      0.50 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      F12916_CRYSTAL-RS
      C13478_CRYSTAL-HLD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR182 - Change of ordering method and quantities

    PCN

    Product change notification NR111.b - Replacement of CRYSTAL-RS lens 211015

    Case story

    Hotel Hubertus

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - CRYSTAL

    Application area

    Outdoor Special Applications

    Application area

    Indoor Architectural Lighting

    Case story

    The Basilica of San Francesco

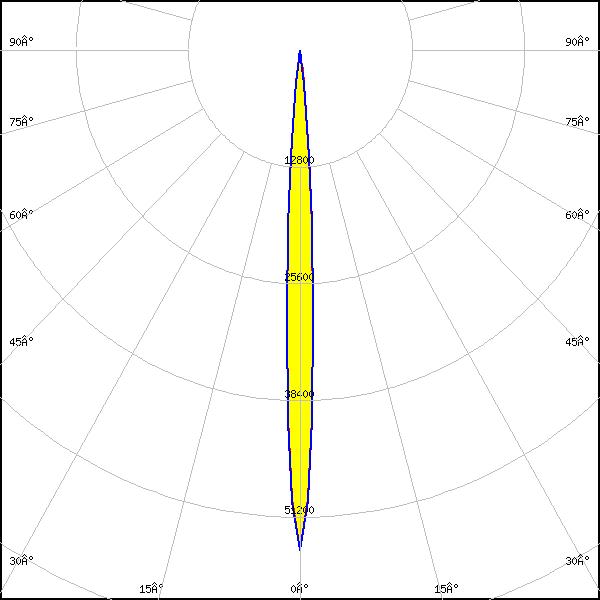

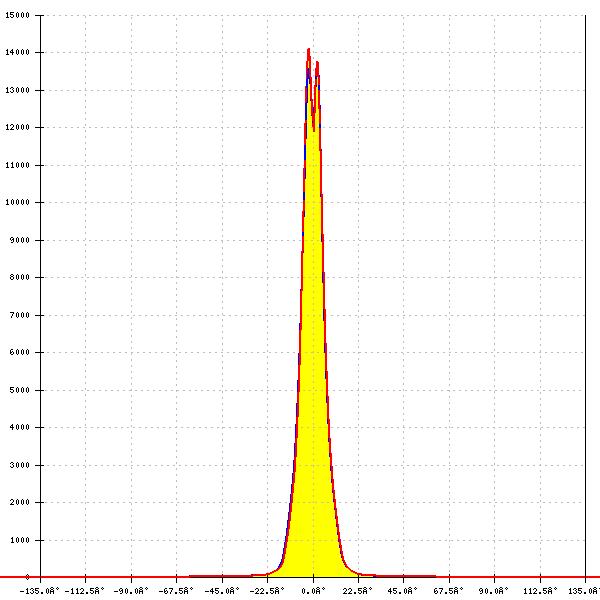

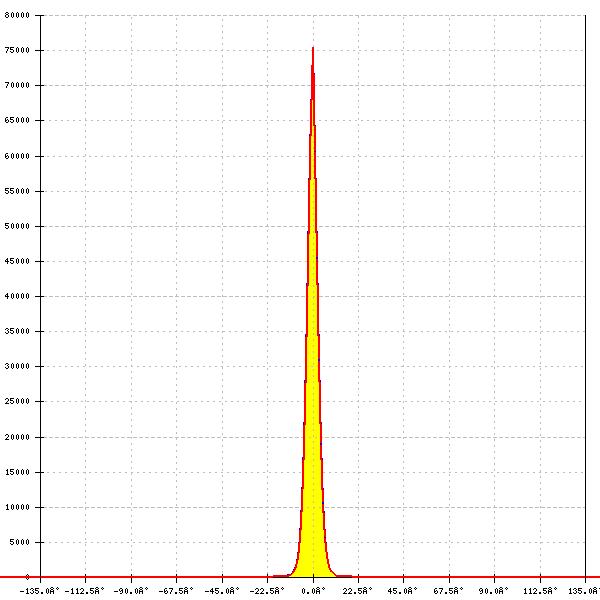

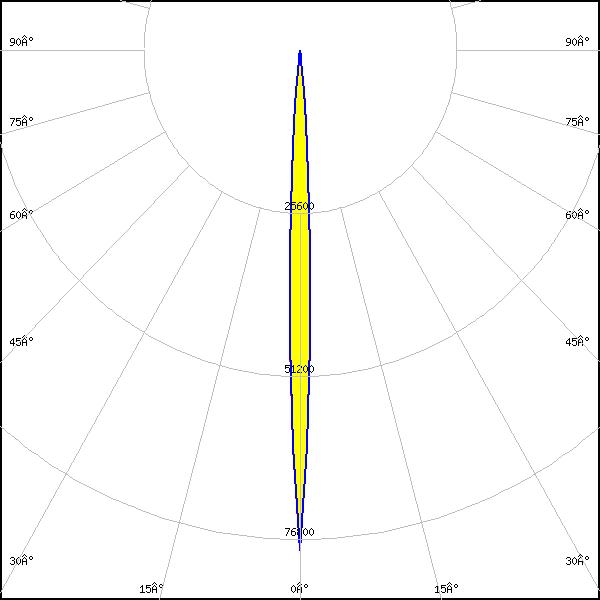

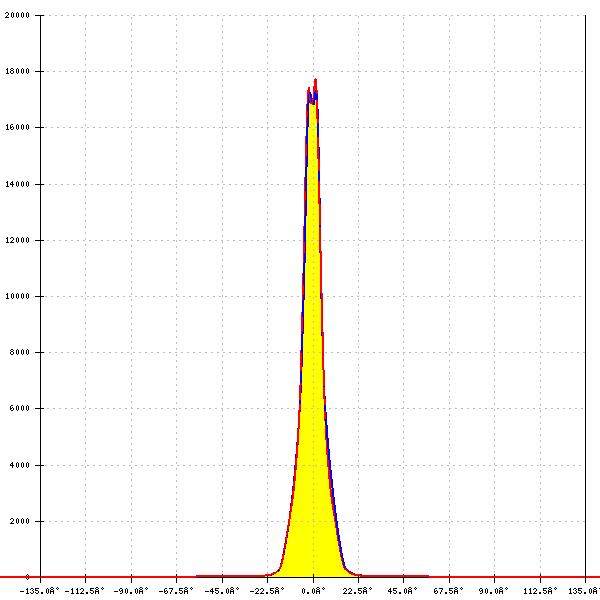

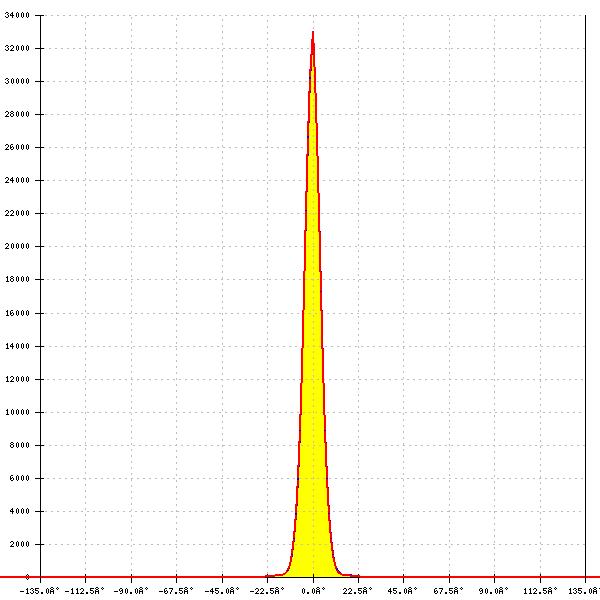

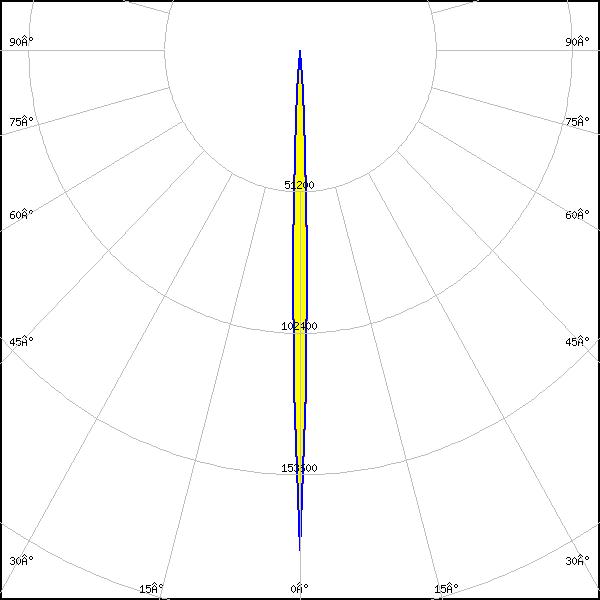

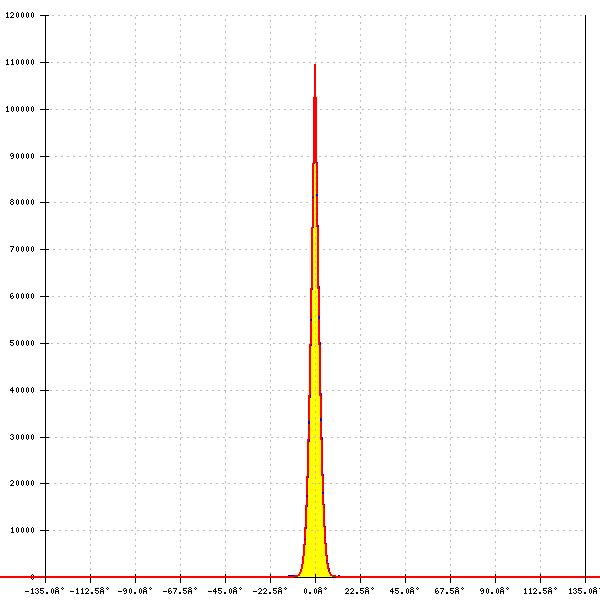

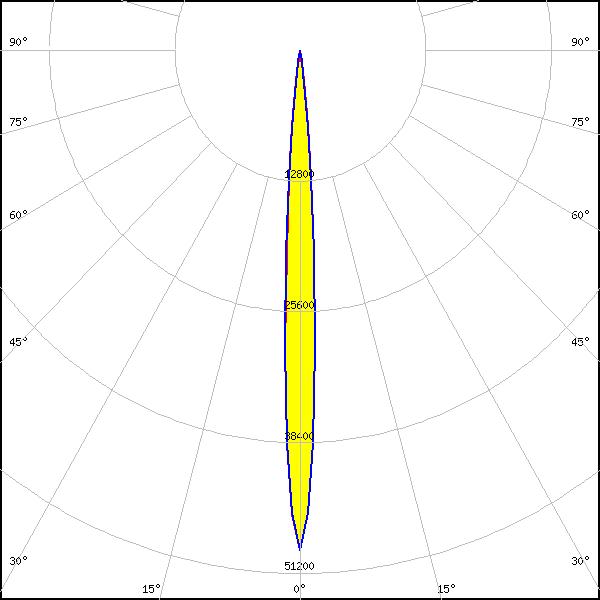

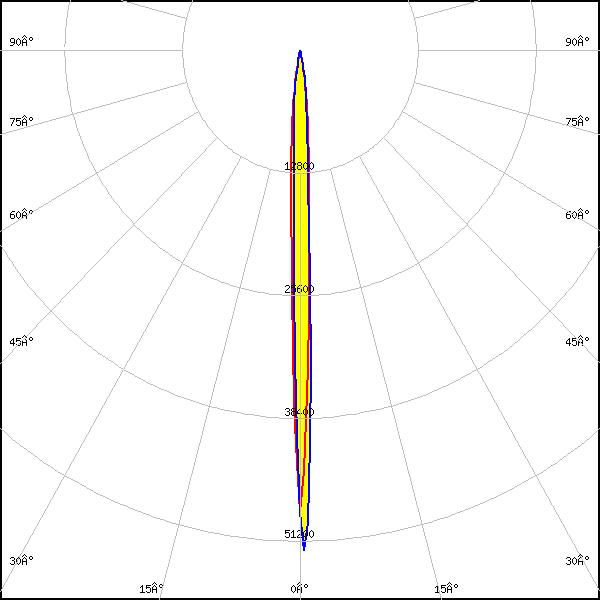

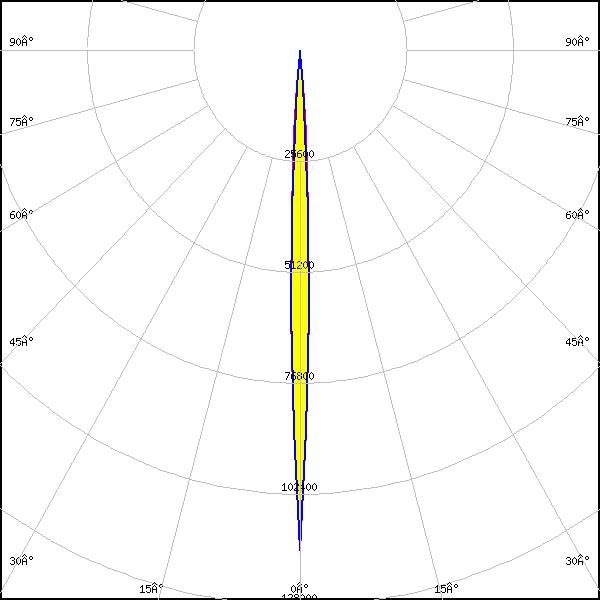

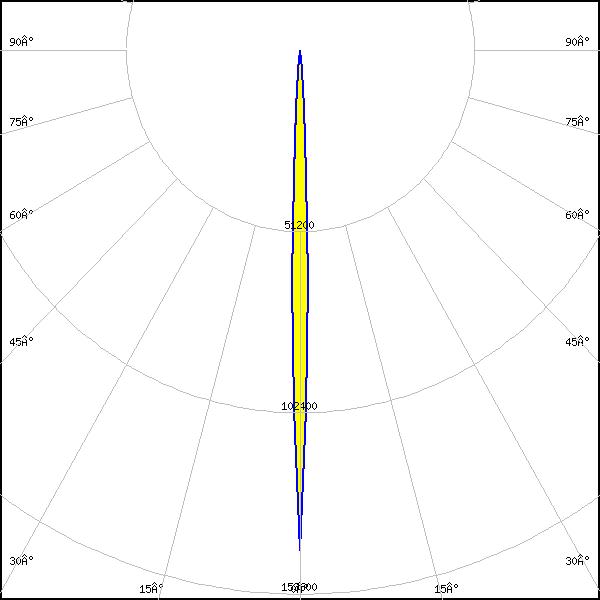

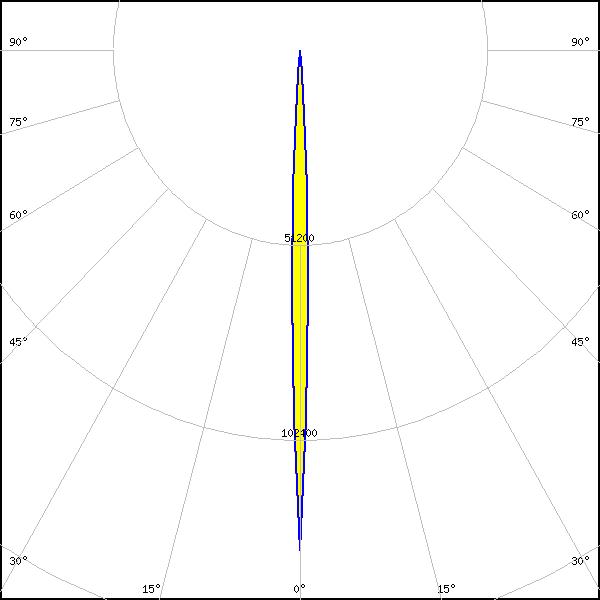

    Optical results

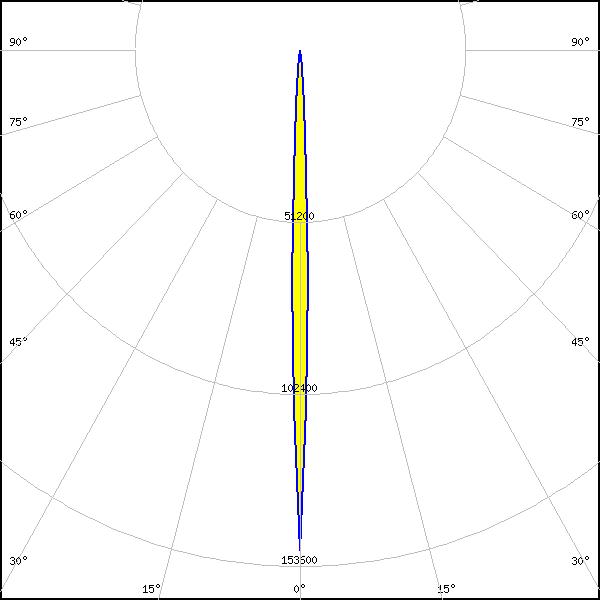

    LED: XE-G
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 141.281 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HI
    FWHM: 6°
    FWTM: 15°
    Peak intensity: 48.300 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

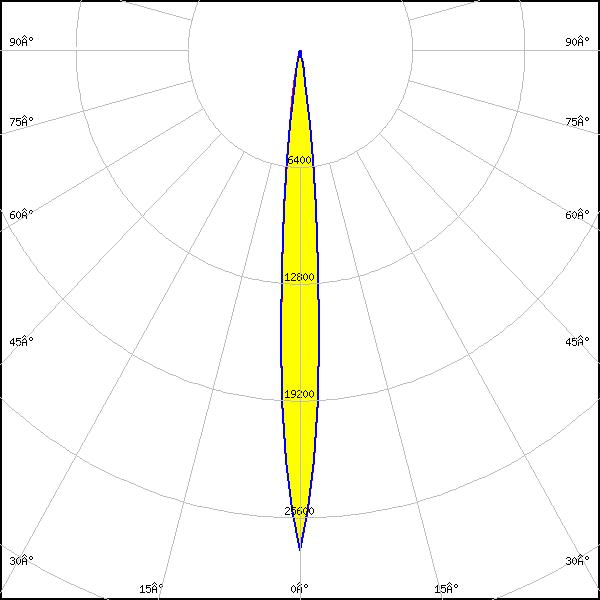

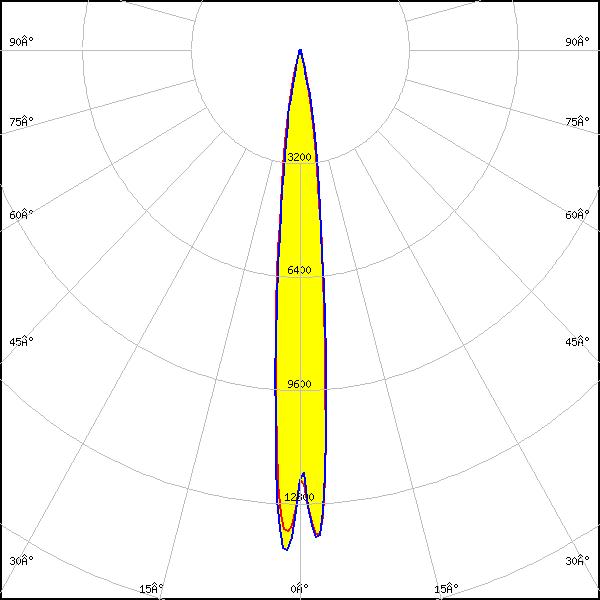

    LED: XHP50
    FWHM: 11°
    FWTM: 24°
    Peak intensity: 14.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

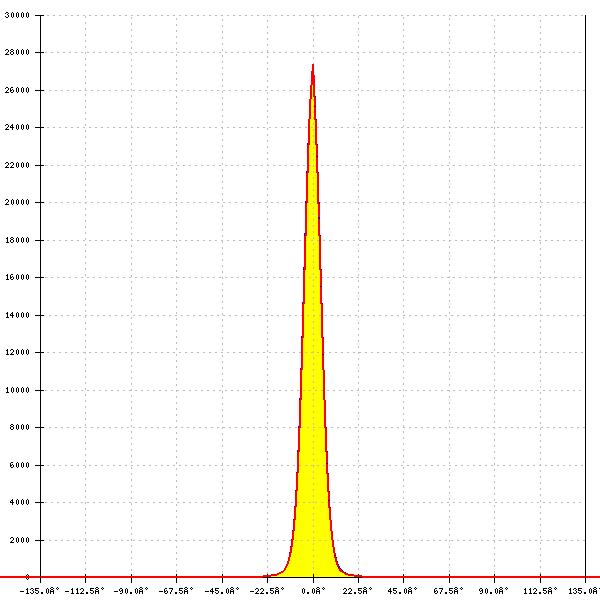

    LED: XHP50.3 HI
    FWHM: 10° + 8°
    FWTM: 18° + 18°
    Peak intensity: 27.378 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

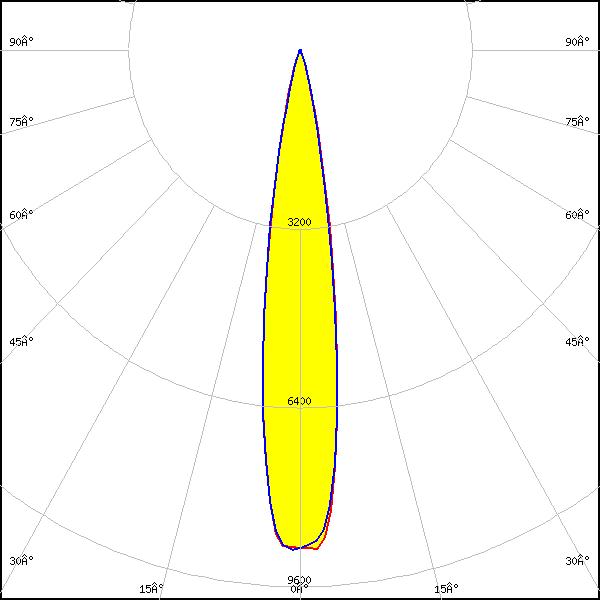

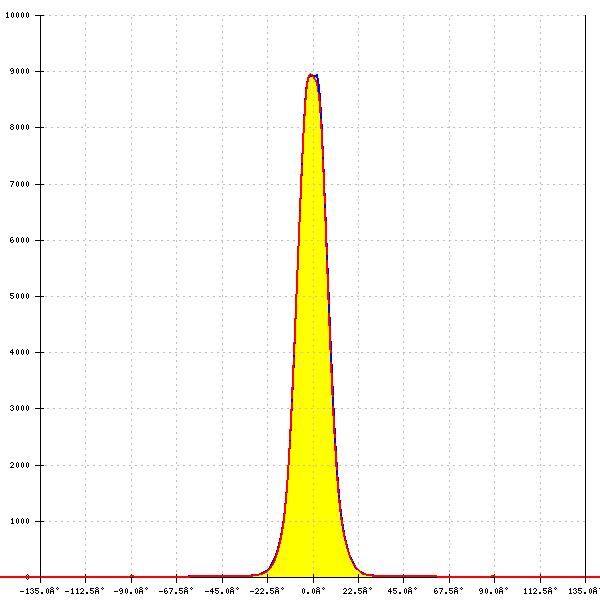

    LED: XHP70.2
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 9.021 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

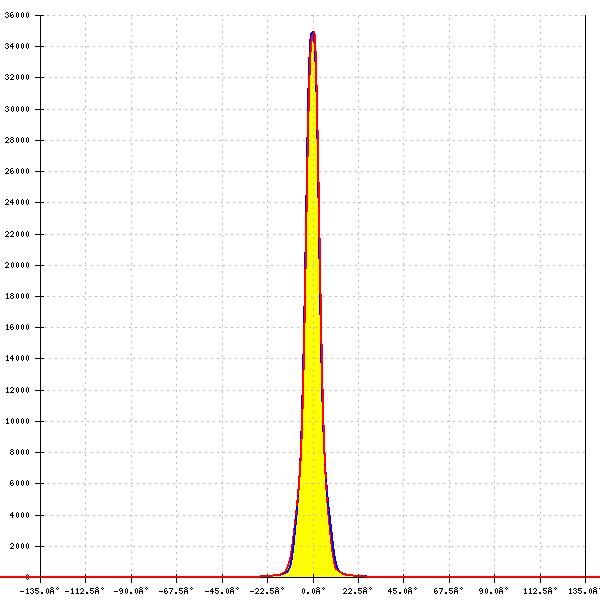

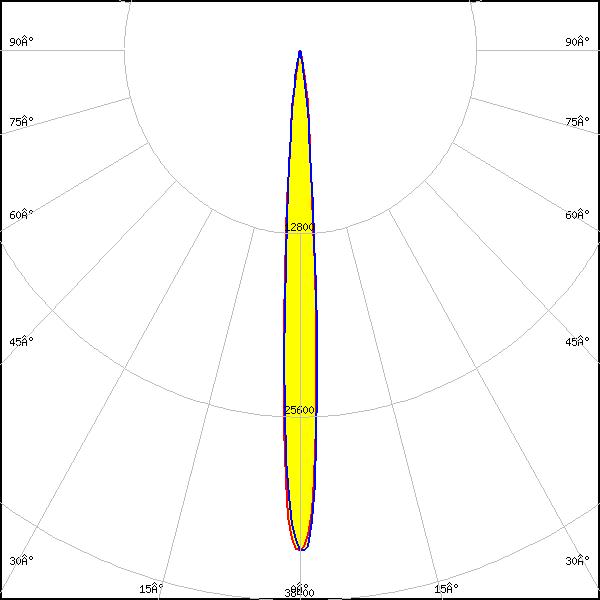

    LED: XM-L
    FWHM: 7°
    FWTM: 17°
    Peak intensity: 34.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 5°
    FWTM: 11°
    Peak intensity: 68.290 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

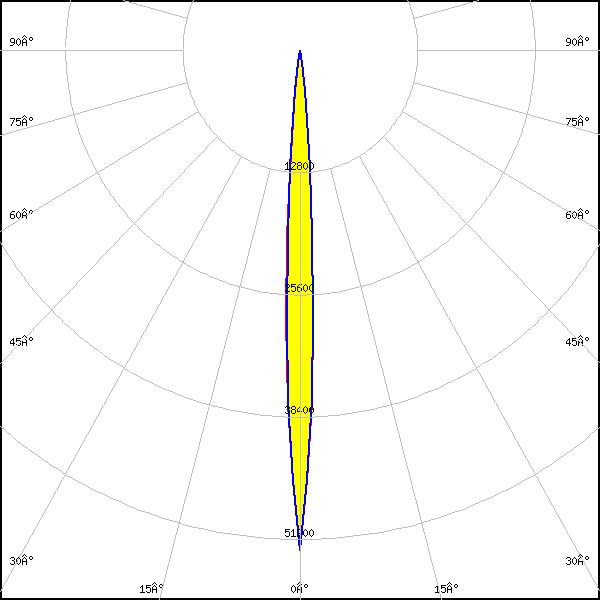

    LED: XP-G3
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 52.341 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

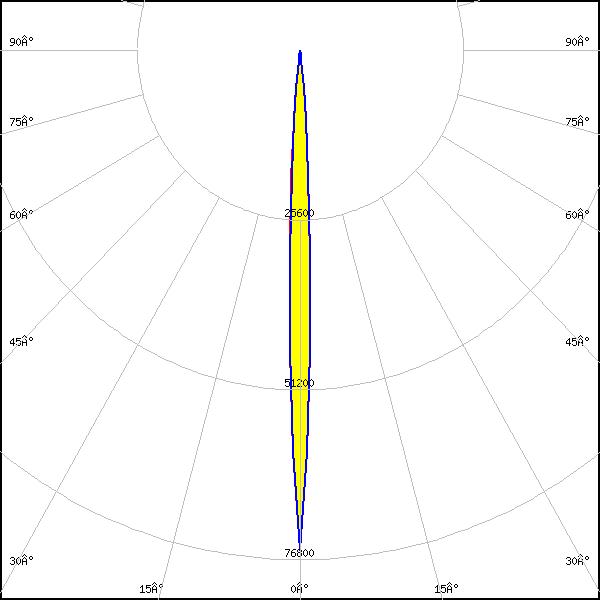

    LED: XP-G4 HI
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 75.408 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

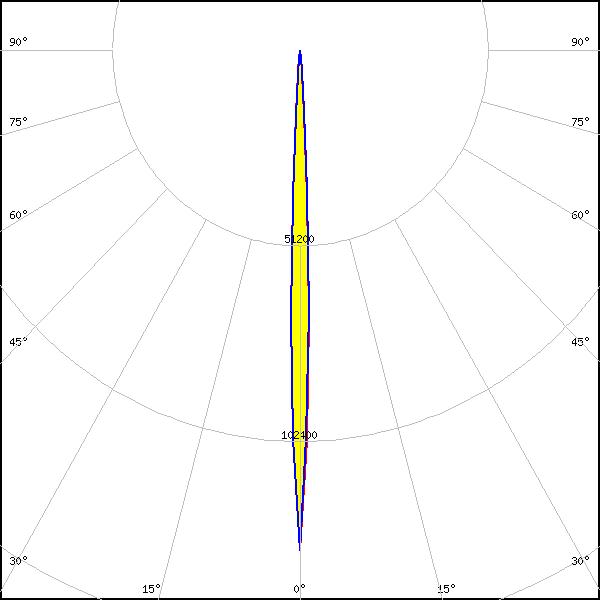

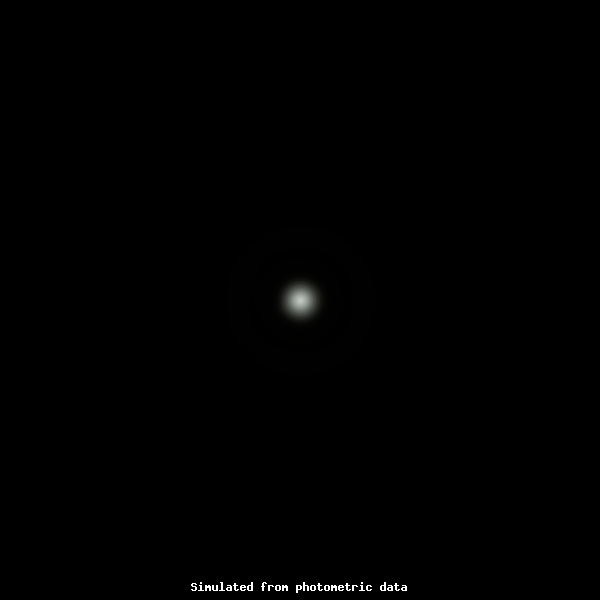

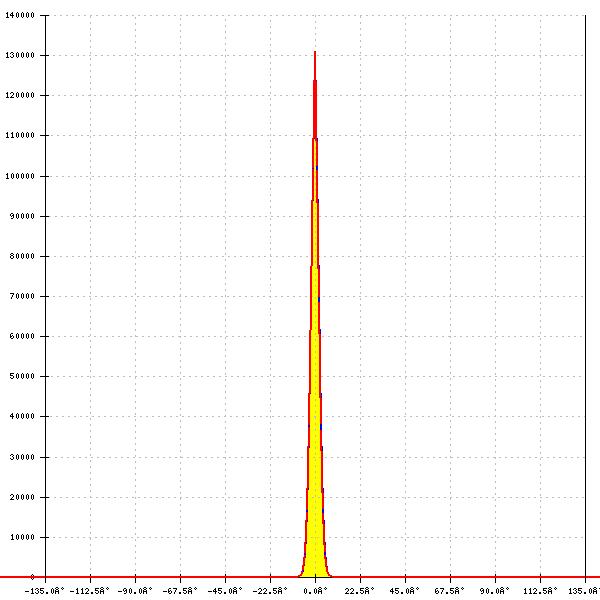

    LED: XP-GR
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 130.946 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

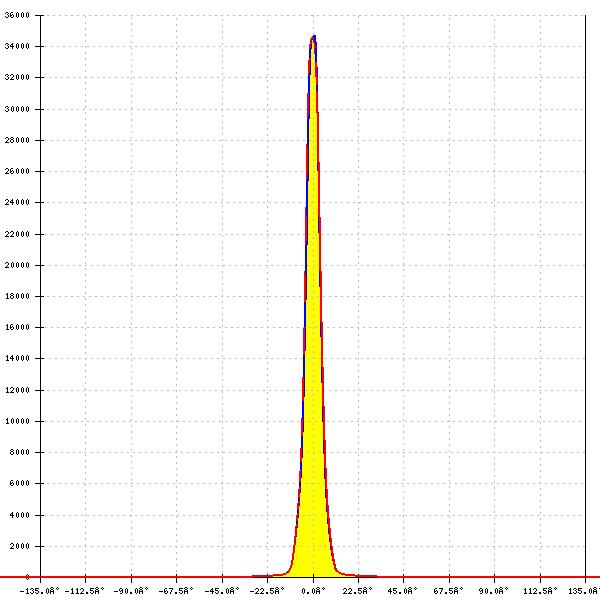

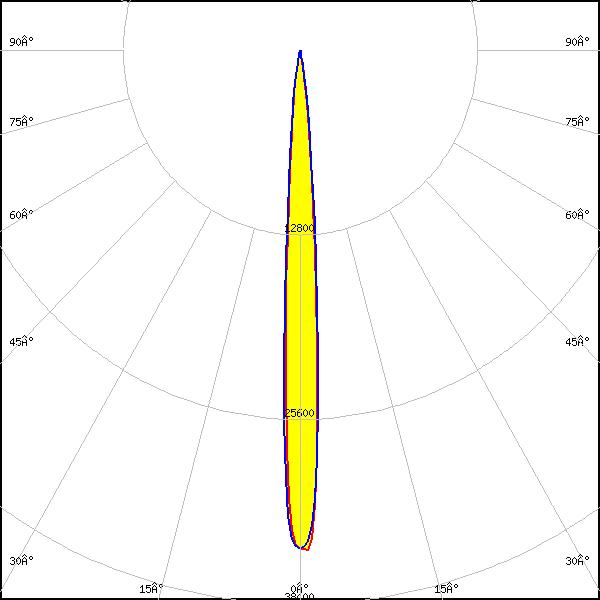

    LED: XP-L HD
    FWHM: 7°
    FWTM: 15°
    Peak intensity: 34.700 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

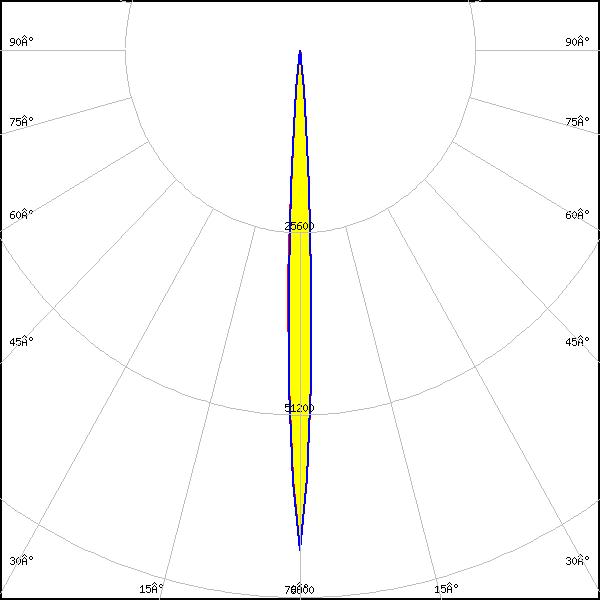

    LED: XP-L HI
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 70.220 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

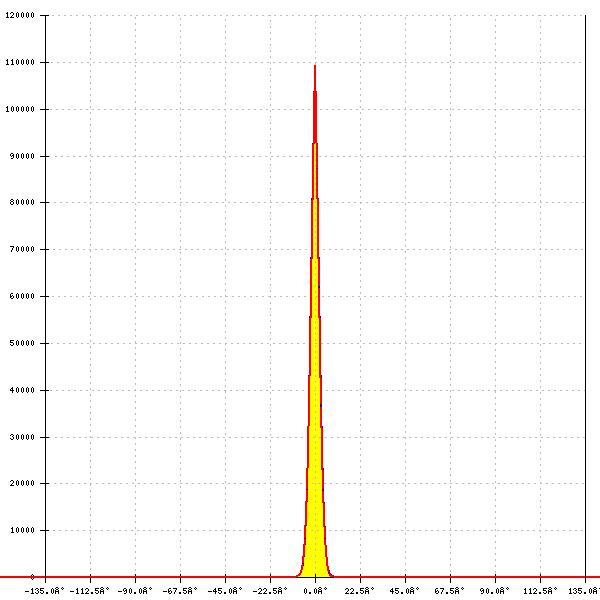

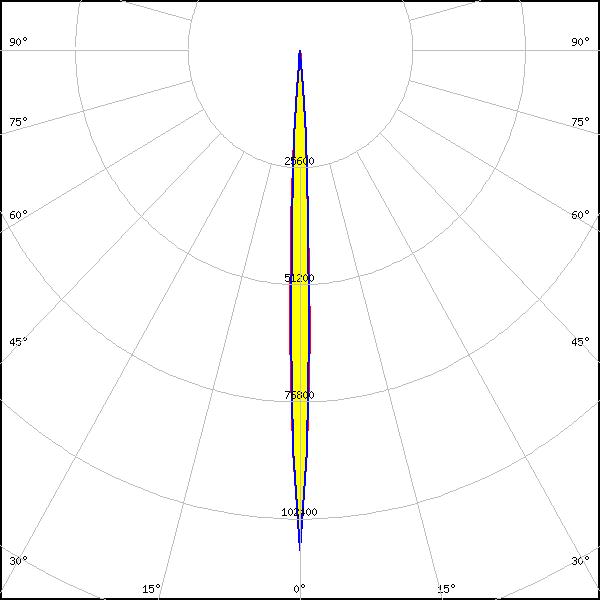

    LED: XP-LR
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 109.260 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

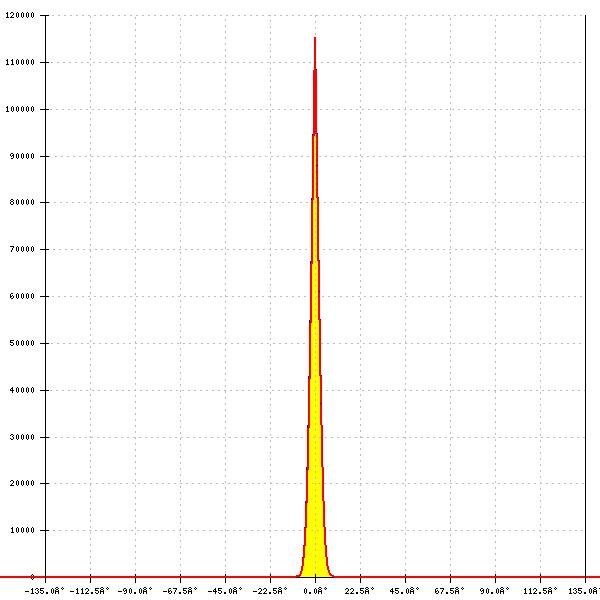

    LED: XP-P
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 115.374 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

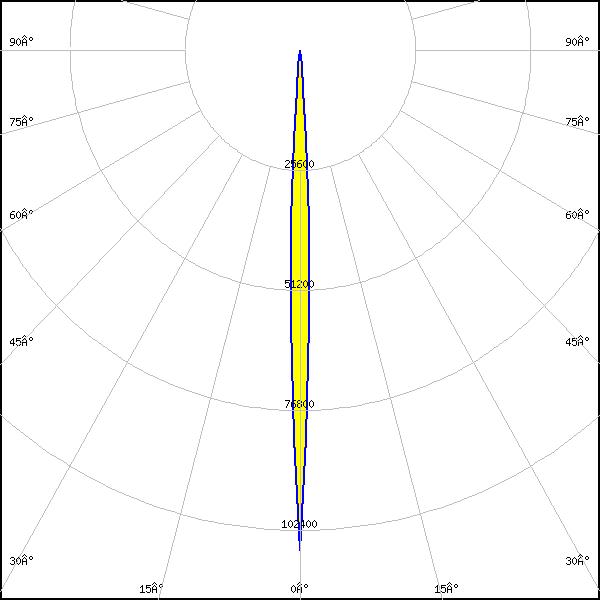

    LED: XQ-E HI
    FWHM: 5°
    FWTM: 10°
    Peak intensity: 106.664 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

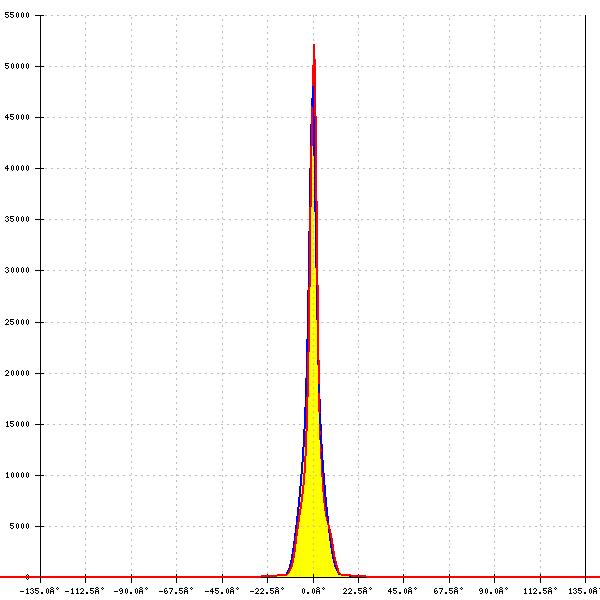

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 4°
    FWTM: 15°
    Peak intensity: 52.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

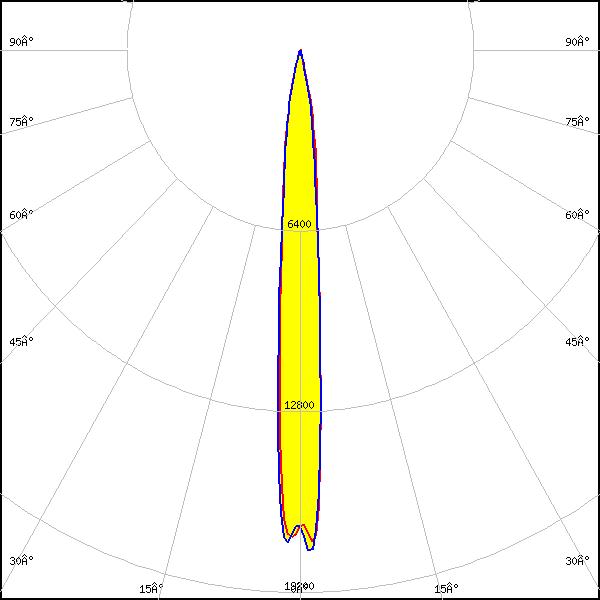

    LED: LUXEON 5050 Round LES
    FWHM: 9°
    FWTM: 24°
    Peak intensity: 17.764 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON A
    FWHM: 5°
    FWTM: 14°
    Peak intensity: 58.900 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

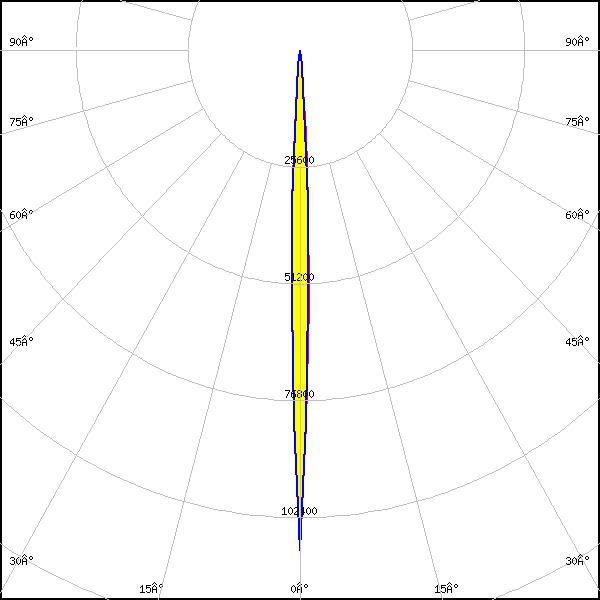

    LED: LUXEON C
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 109.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

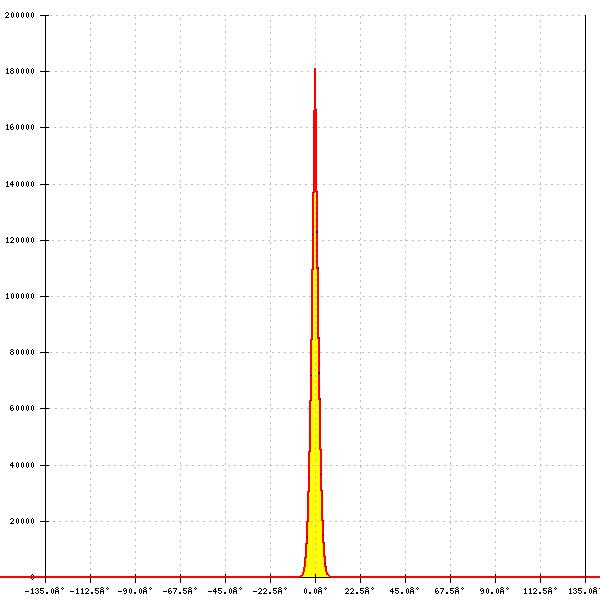

    LED: LUXEON CZ
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 180.977 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

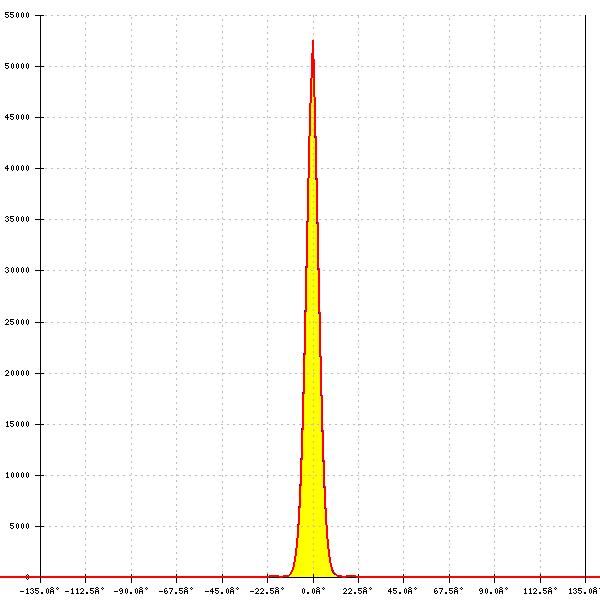

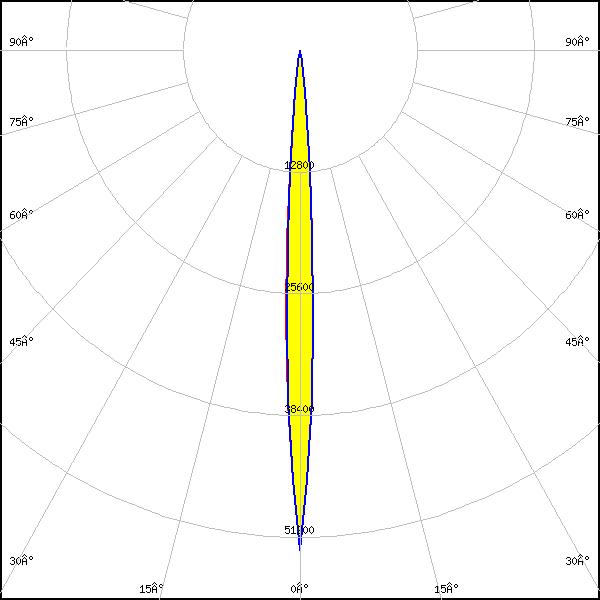

    LED: LUXEON HL2X
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 52.585 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

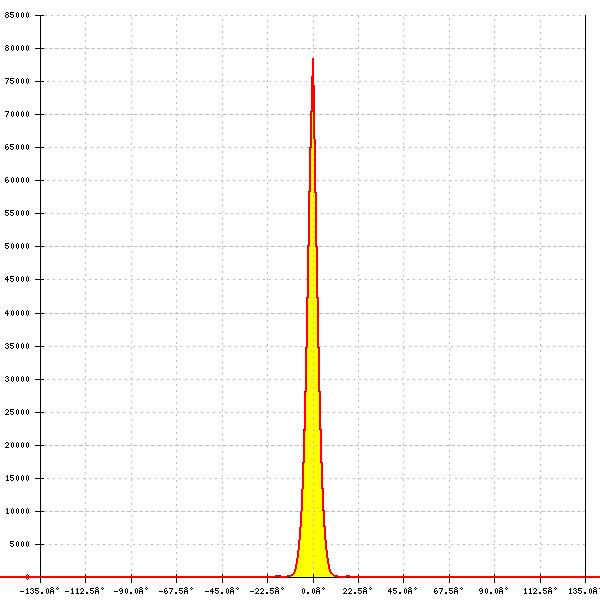

    LED: LUXEON HL2Z
    FWHM: 4°
    FWTM: 12°
    Peak intensity: 78.538 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

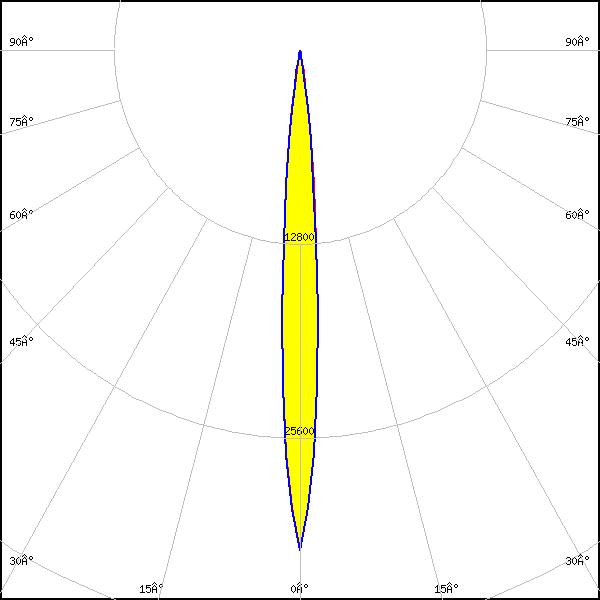

    LED: LUXEON HL4X
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 33.008 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

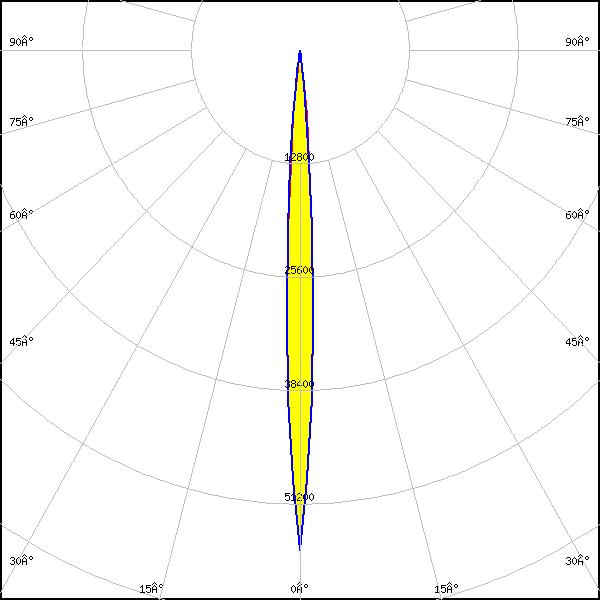

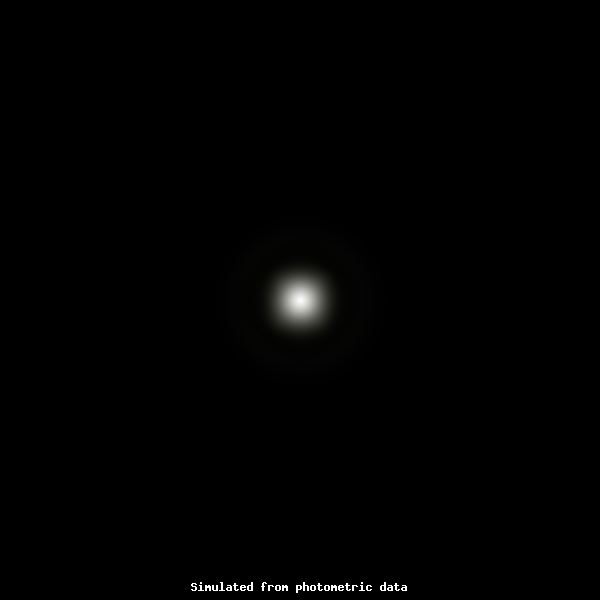

    LED: LUXEON HL4Z
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 56.426 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

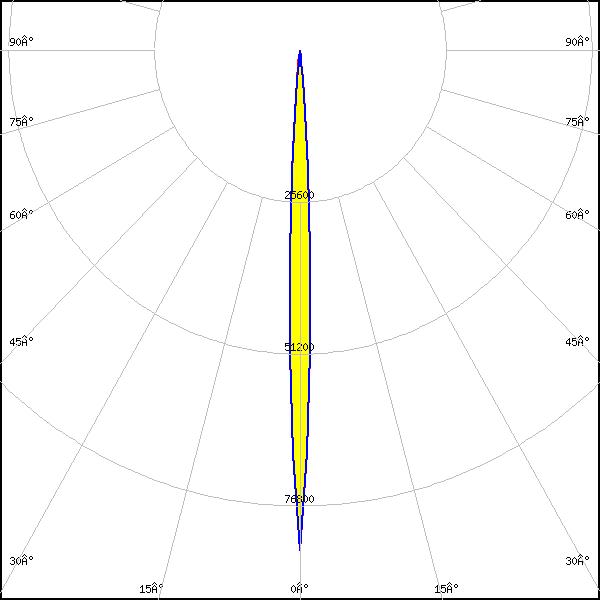

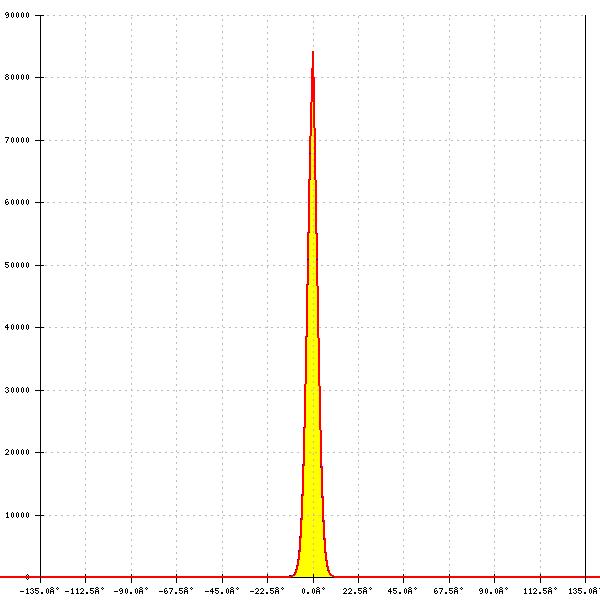

    LED: LUXEON Rebel Plus
    FWHM: 6°
    FWTM: 10°
    Peak intensity: 84.296 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

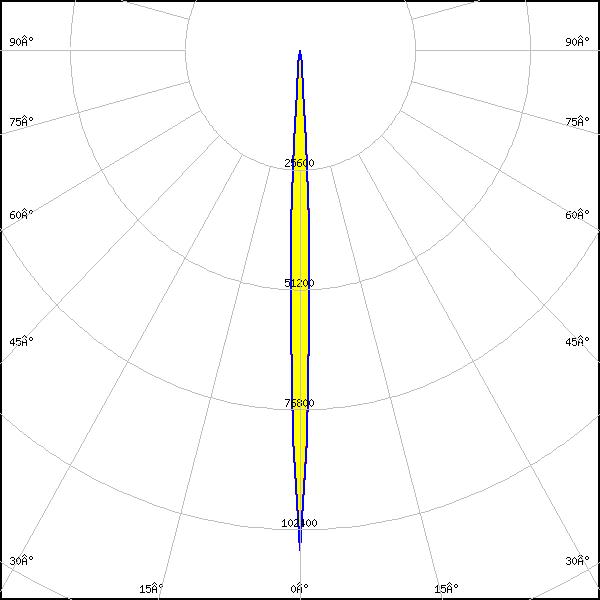

    LED: LUXEON Rubix
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 106.833 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

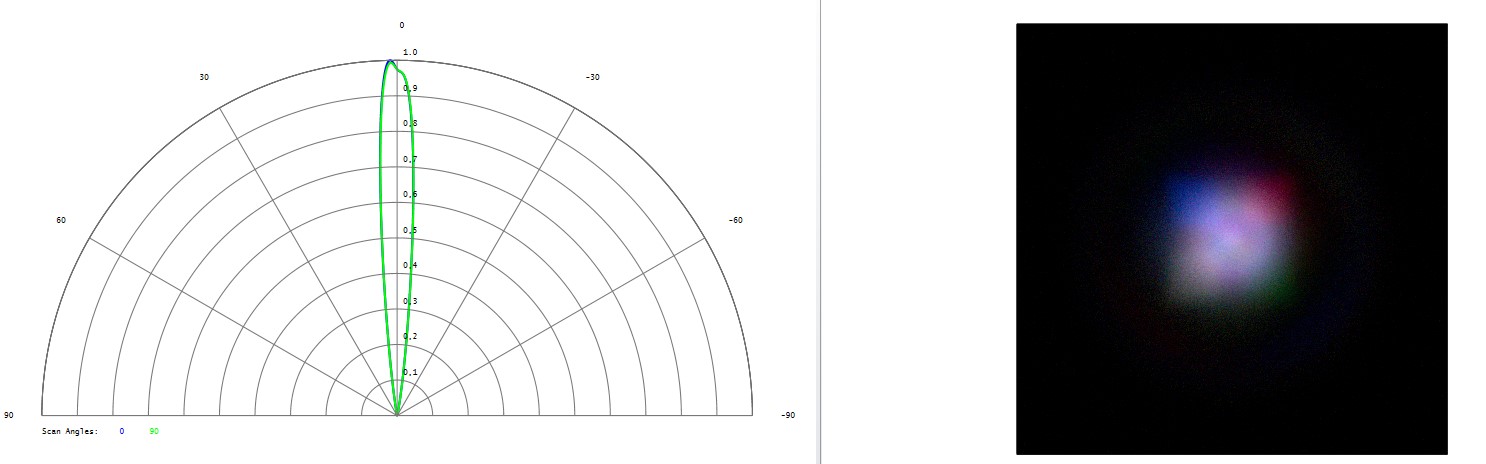

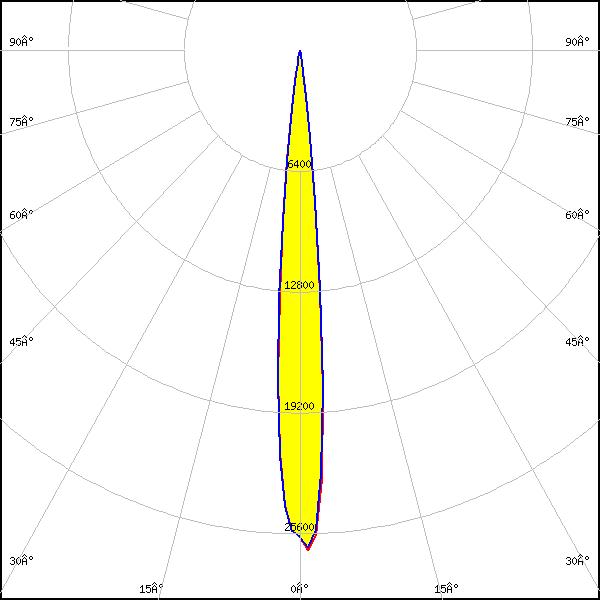

    LED: LUXEON Rubix
    FWHM: 10°
    FWTM: 17°
    Peak intensity: 26.837 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 4
    Light colour/type: RGBW

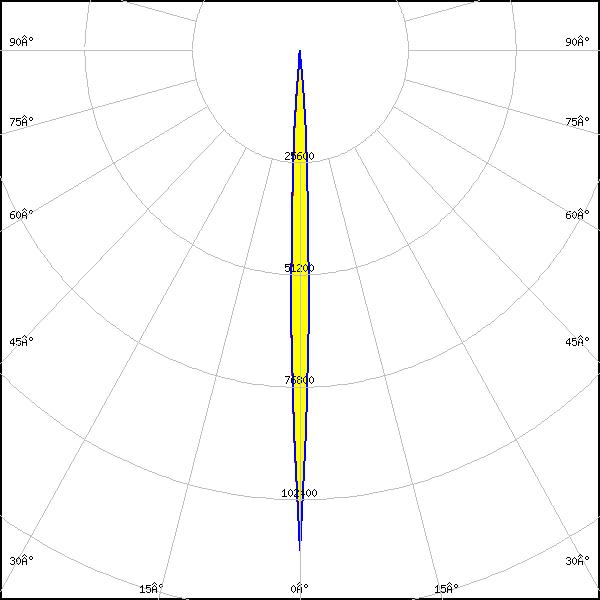

    LED: LUXEON Rubix
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 113.997 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Blue

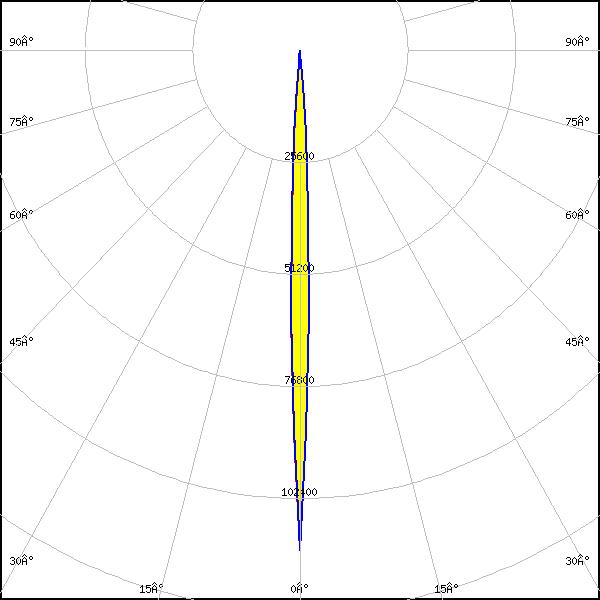

    LED: LUXEON Rubix
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 114.281 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Green

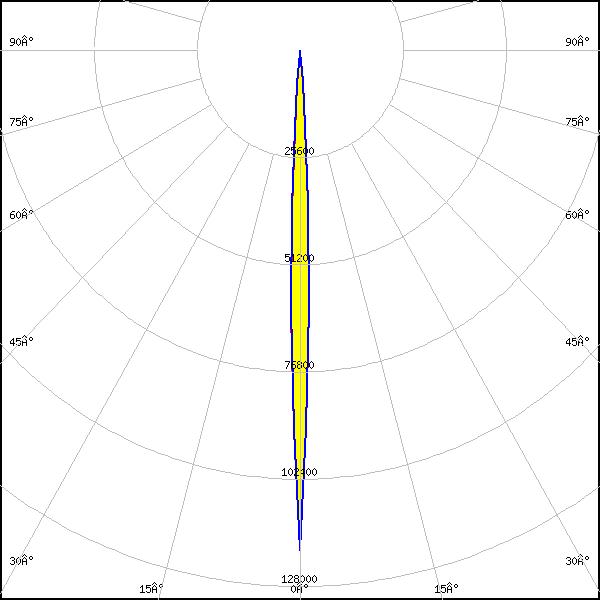

    LED: LUXEON Rubix
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 119.406 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Red

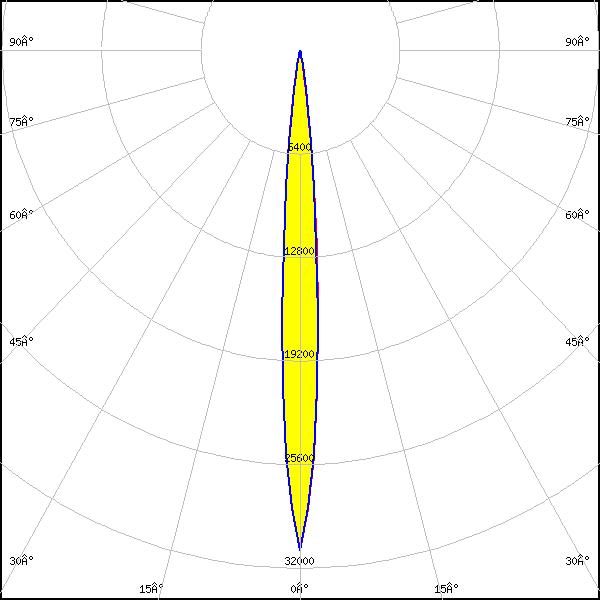

    LED: LUXEON V
    FWHM: 8°
    FWTM: 17°
    Peak intensity: 30.910 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

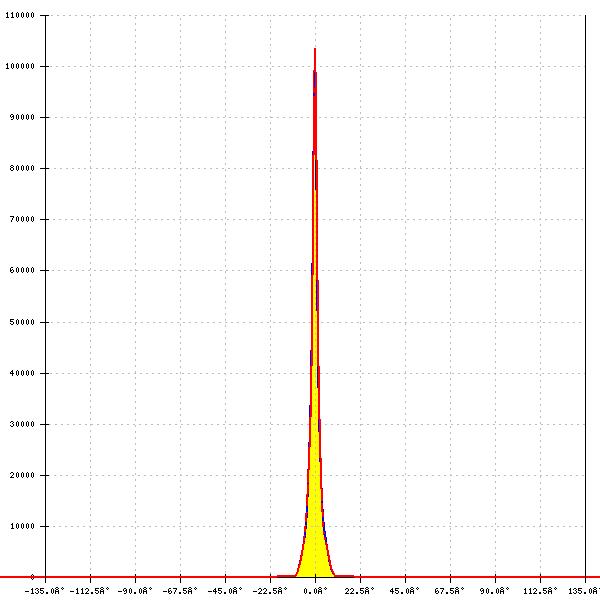

    LED: LUXEON Z ES
    FWHM: 3°
    FWTM: 9°
    Peak intensity: 103.780 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

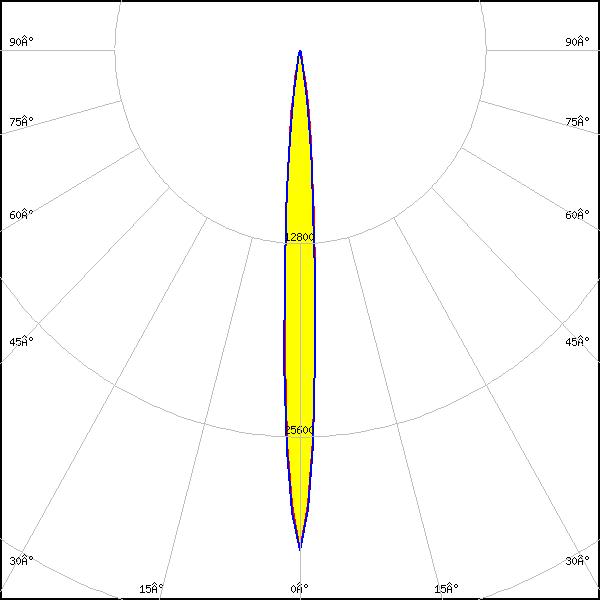

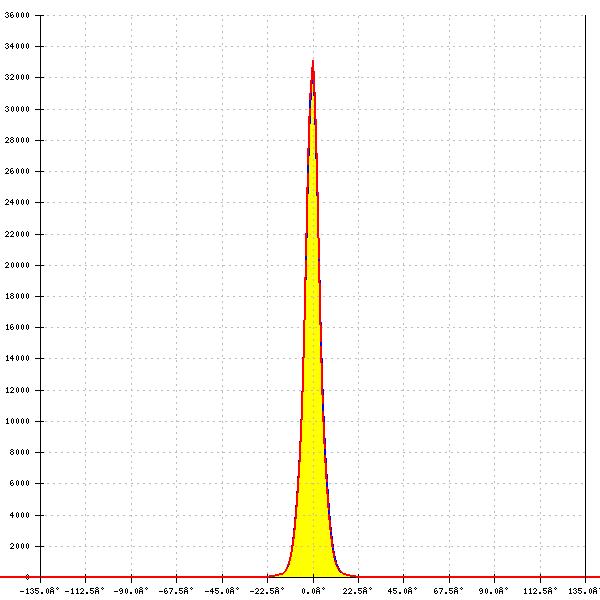

    LED: SBT-90
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 33.112 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

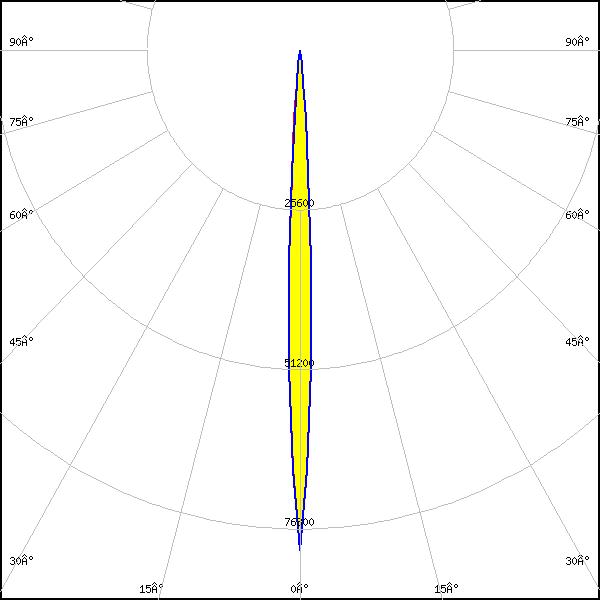

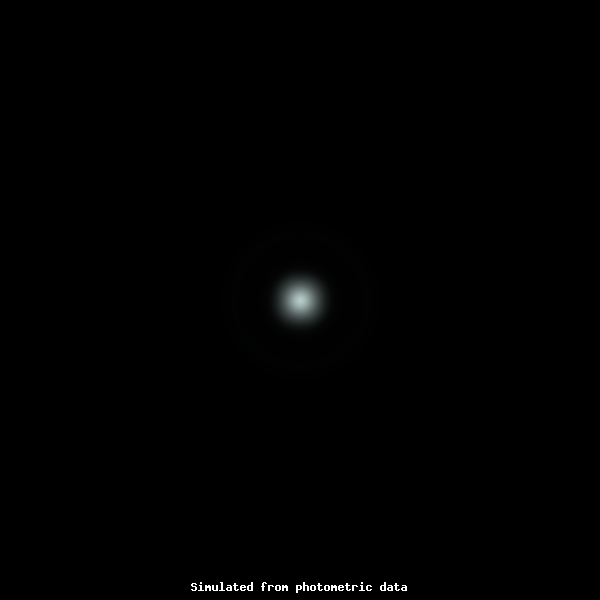

    LED: SFT-40 Gen2
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 80.227 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

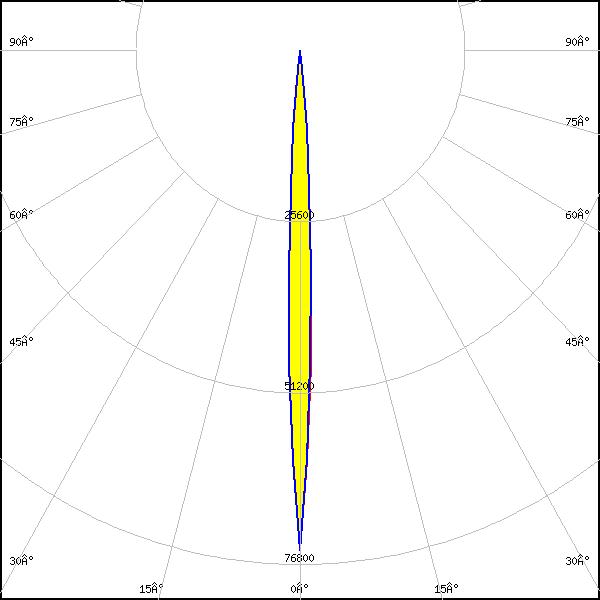

    LED: SFT-40-WCS
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 74.706 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

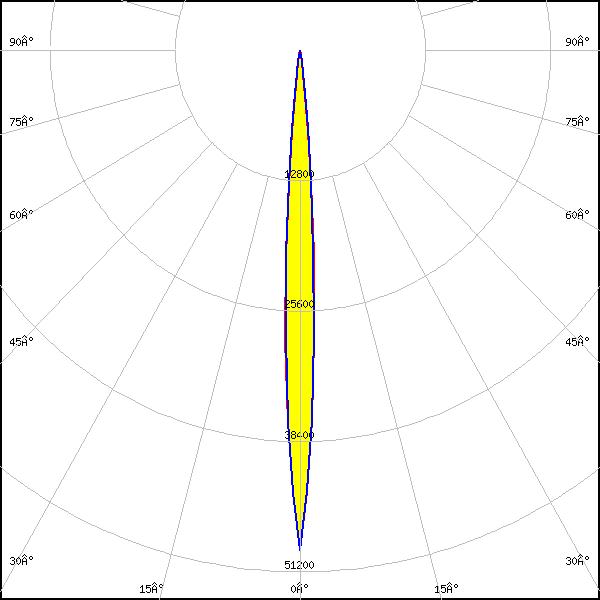

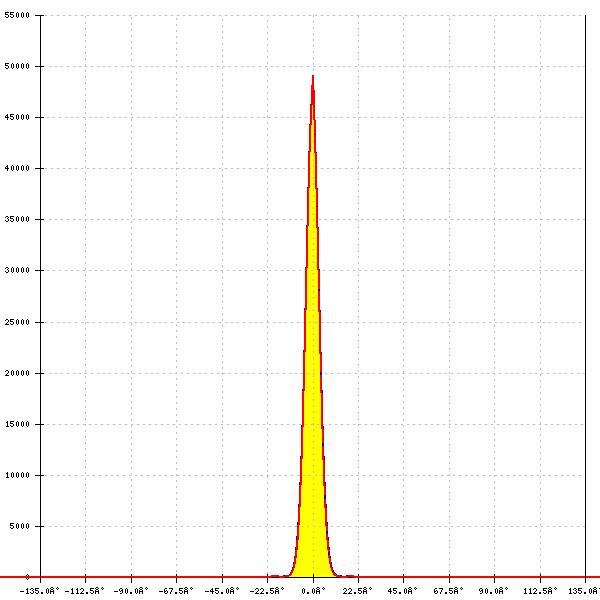

    LED: SFT-70X-WCS
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 49.100 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

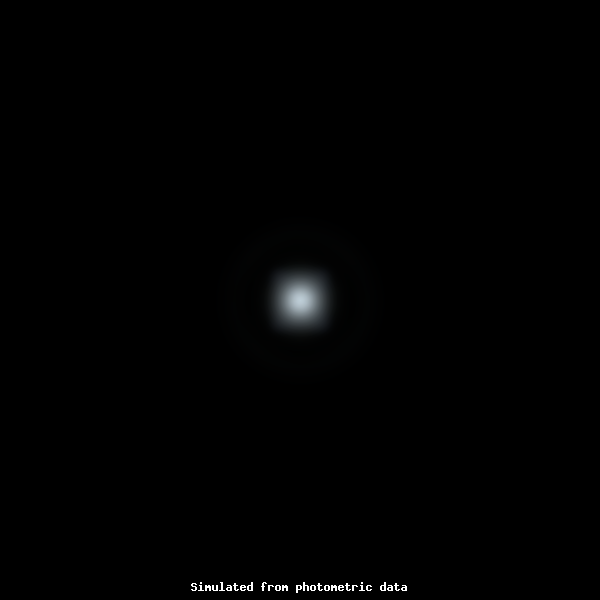

    LED: SFT-70X-WES-Gen2
    FWHM: 6° + 7°
    FWTM: 14° + 14°
    Peak intensity: 48.964 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

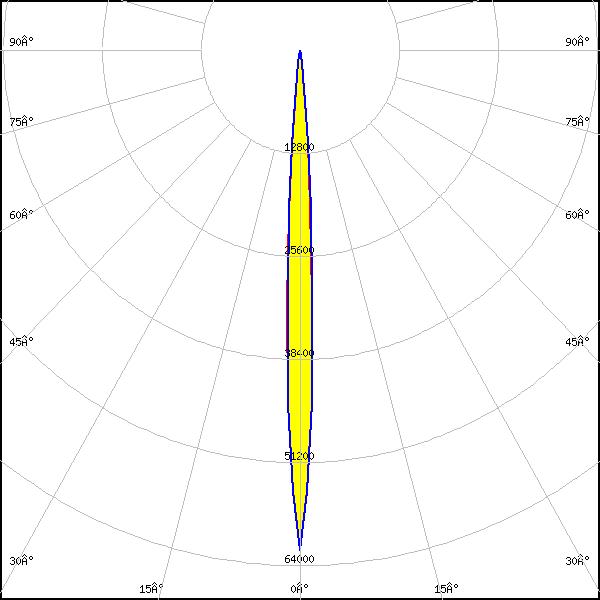

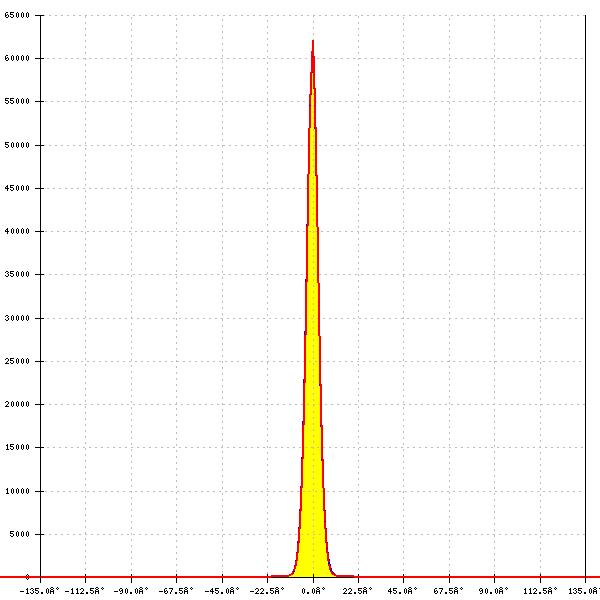

    LED: SST-25-W
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 62.096 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

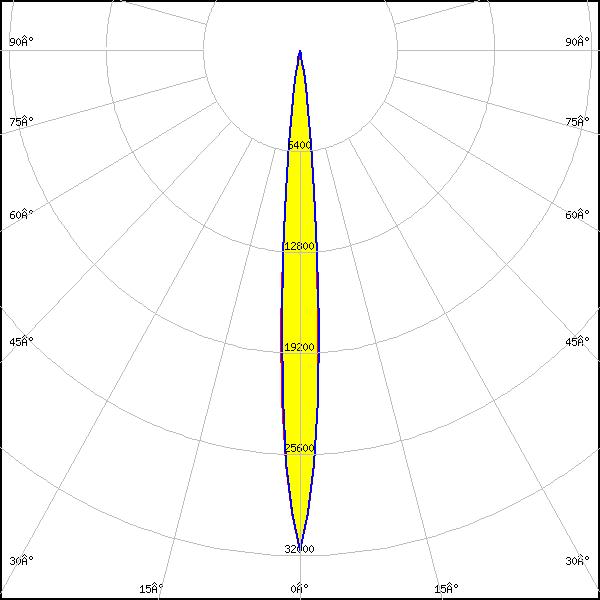

    LED: SST-40
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 31.670 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

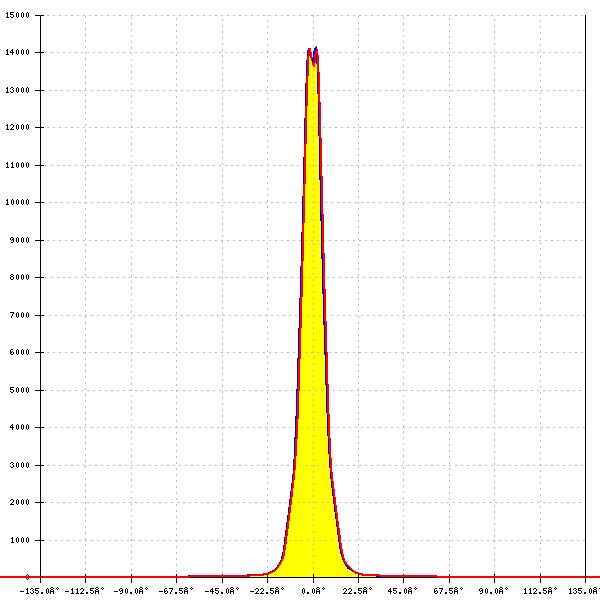

    LED: NV4x144A
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 14.200 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

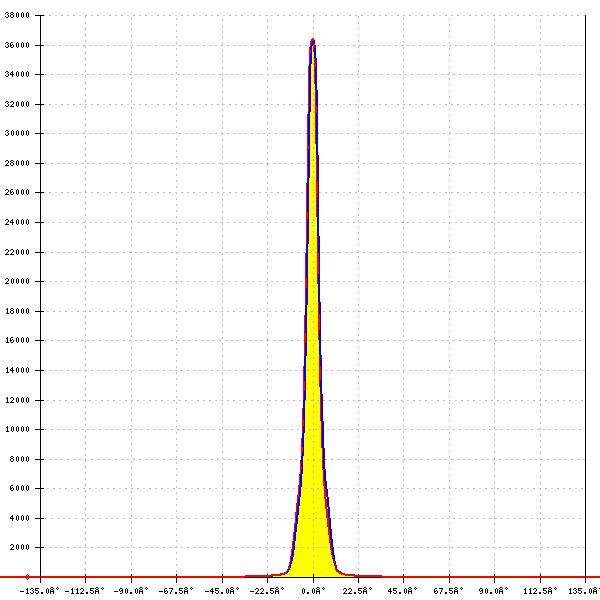

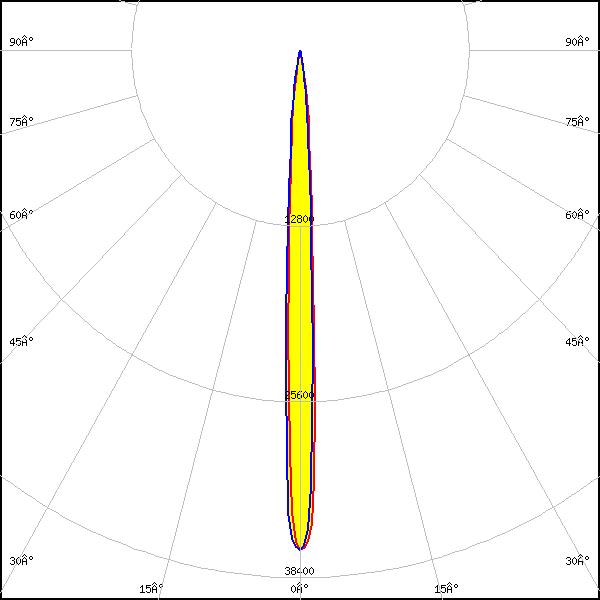

    LED: NVSW3x9A
    FWHM: 6°
    FWTM: 16°
    Peak intensity: 36.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

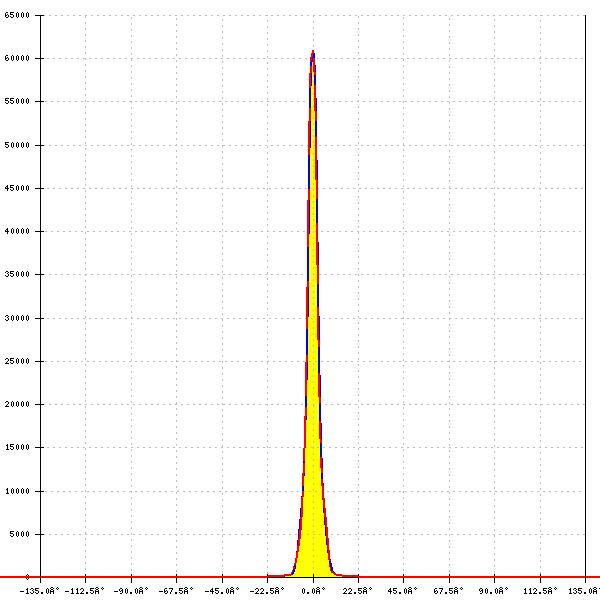

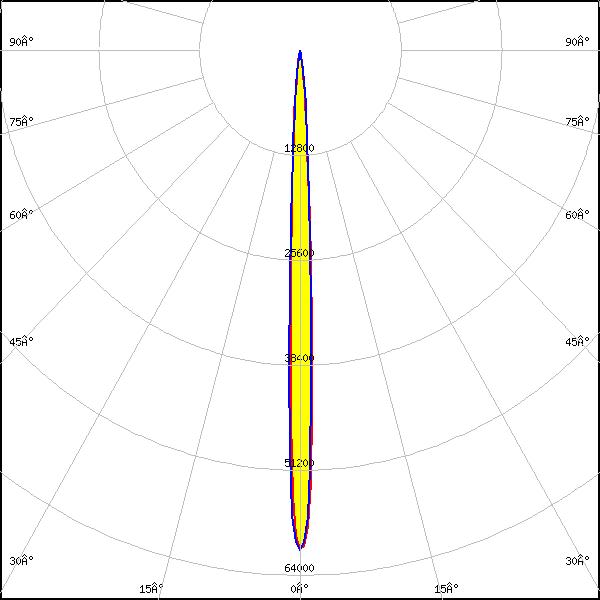

    LED: NVSW719AC
    FWHM: 5°
    FWTM: 12°
    Peak intensity: 61.016 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

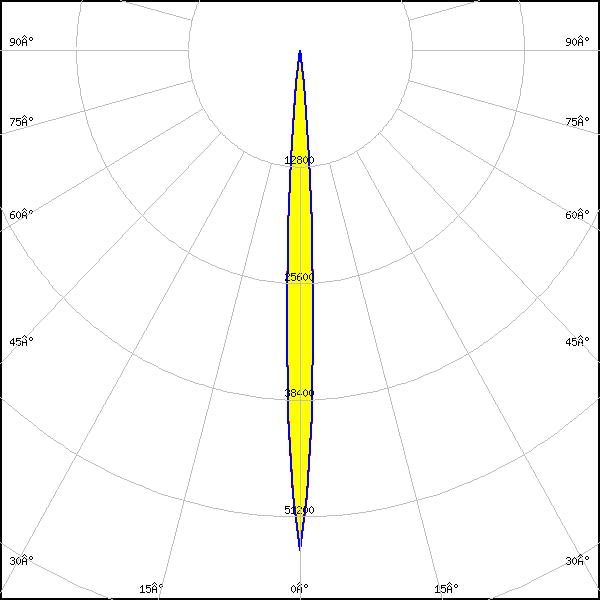

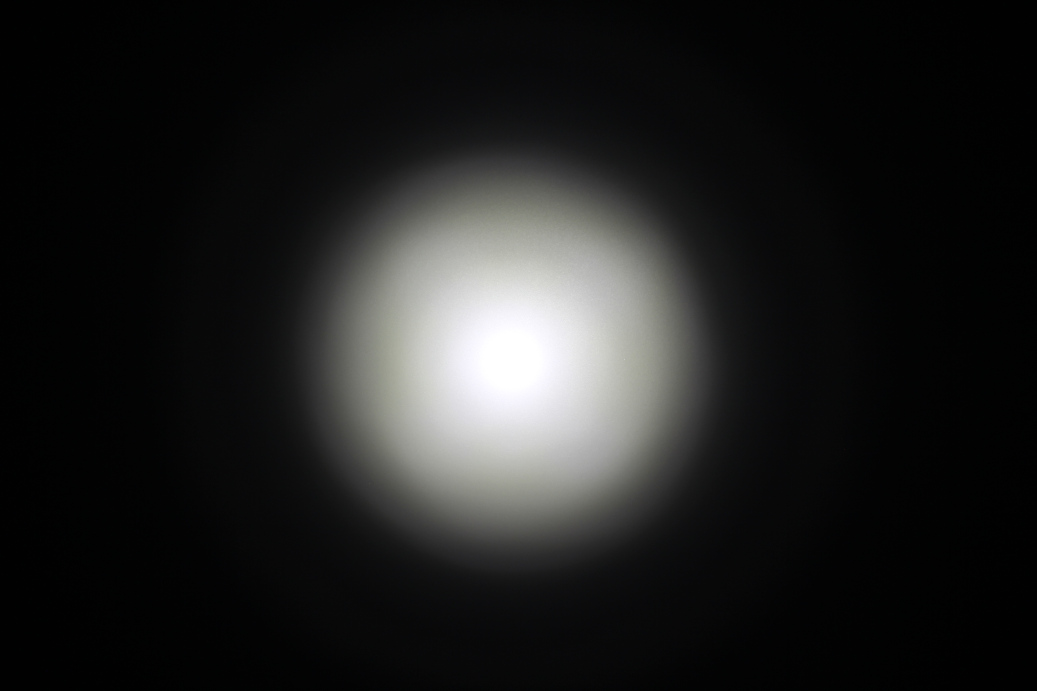

    LED: NVSxx19B/NVSxx19C
    FWHM: 5°
    FWTM: 17°
    Peak intensity: 42.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

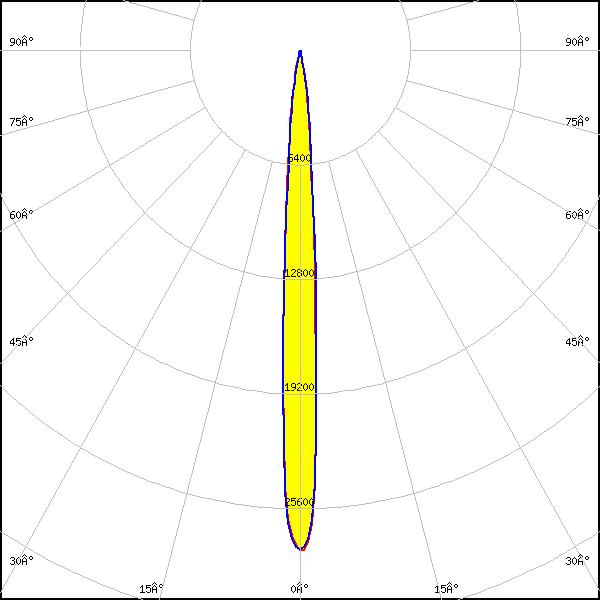

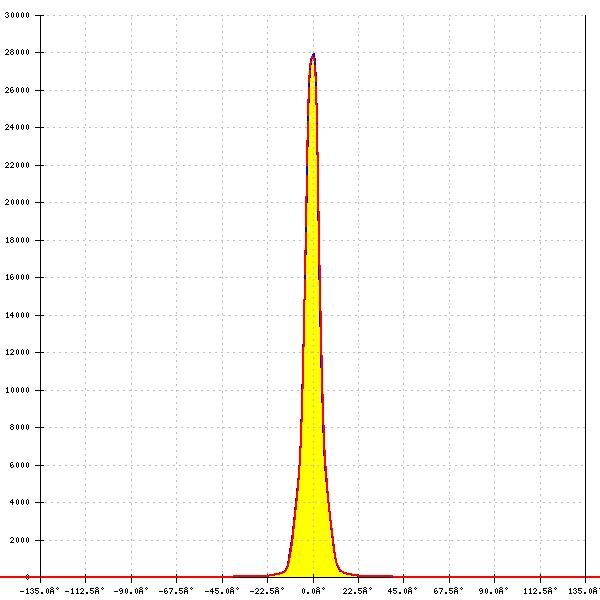

    LED: NWSx229A
    FWHM: 8°
    FWTM: 18°
    Peak intensity: 27.900 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

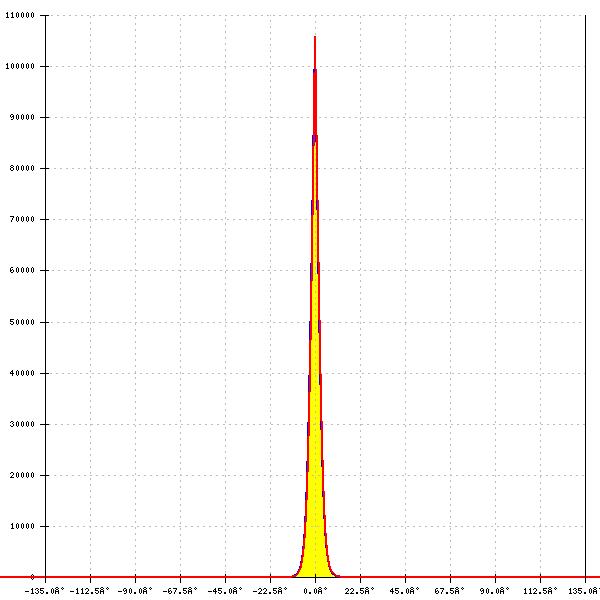

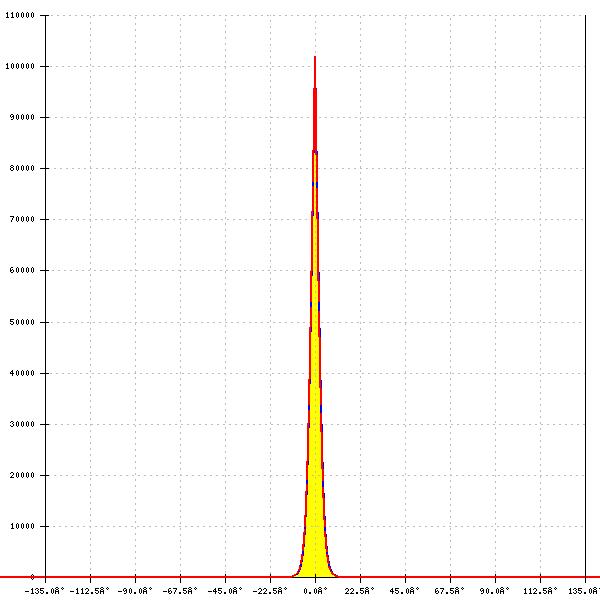

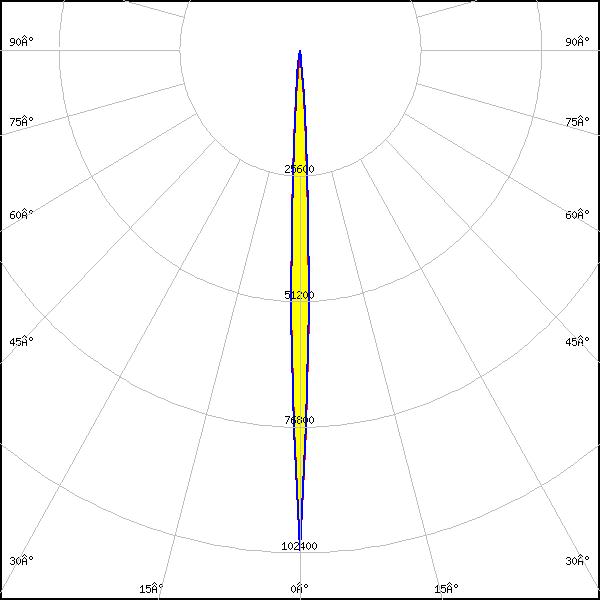

    LED: DURIS S5 (Single chip)
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 105.981 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Red

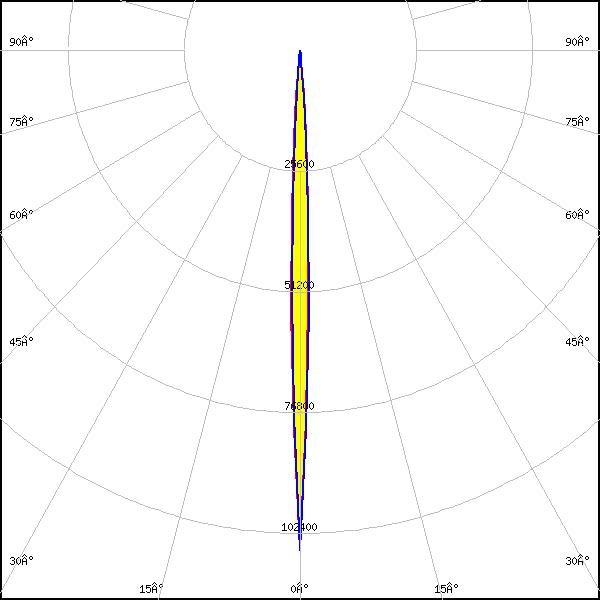

    LED: DURIS S5 (Single chip)
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 101.929 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Green

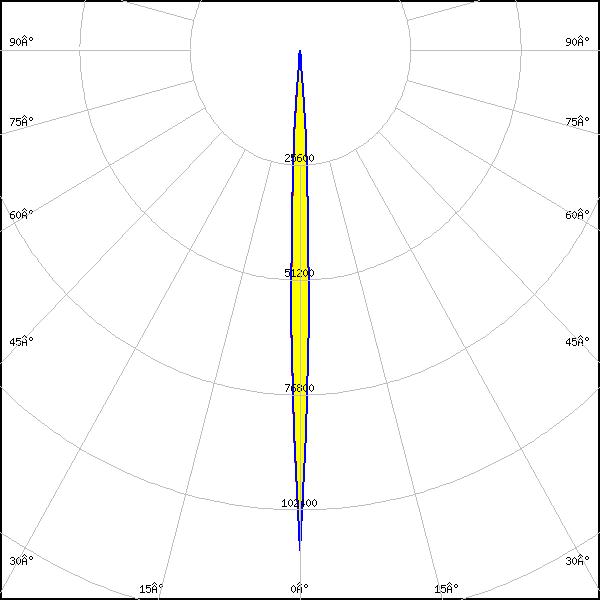

    LED: OSLON Pure 1414
    FWHM: 4°
    FWTM: 10°
    Peak intensity: 111.432 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

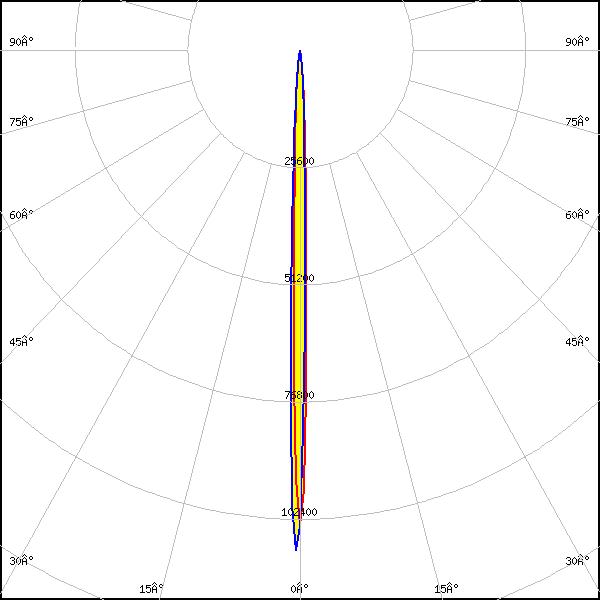

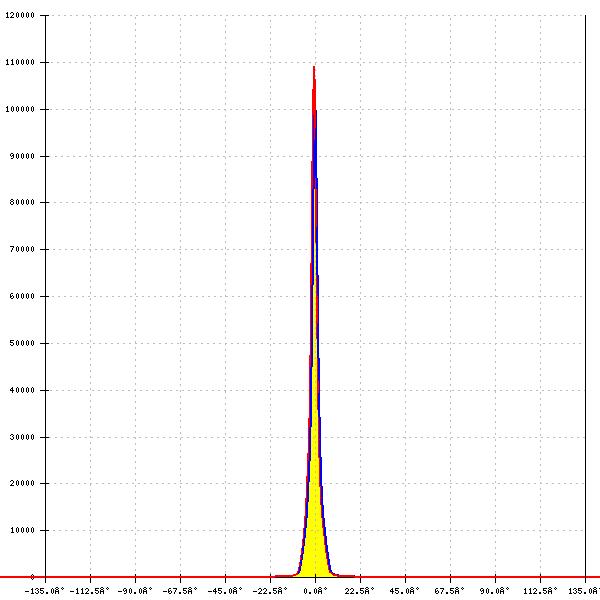

    LED: OSLON SSL 150
    FWHM: 3°
    FWTM: 9°
    Peak intensity: 108.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

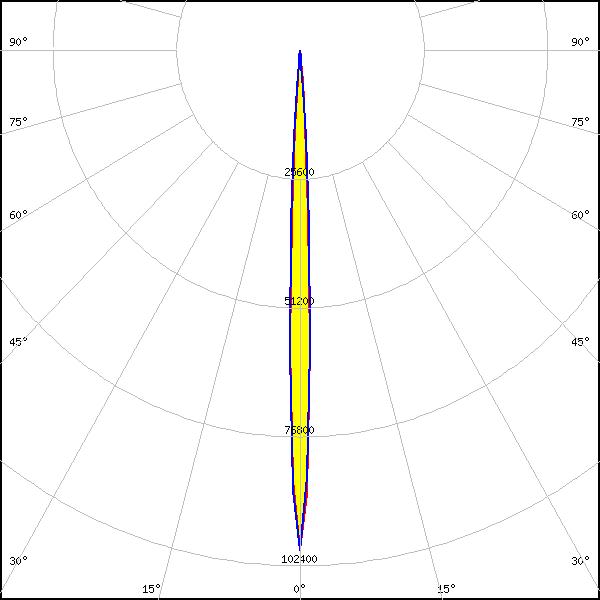

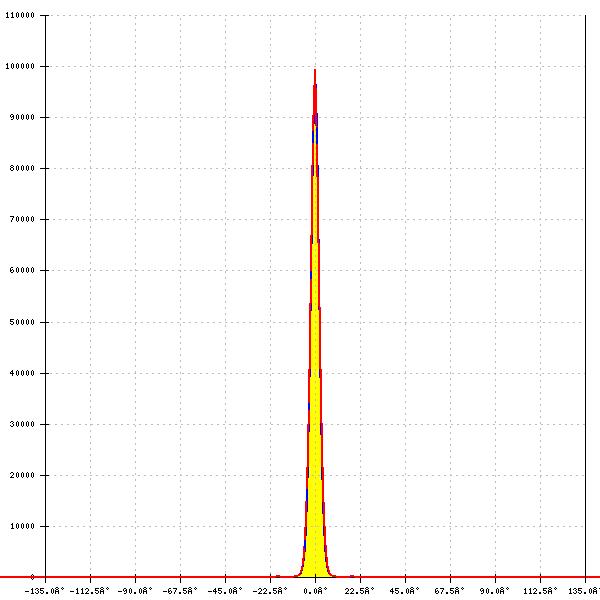

    LED: OSRAM OSTAR Projection Compact (KW CSLPM1.TG)
    FWHM: 5°
    FWTM: 9°
    Peak intensity: 99.346 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

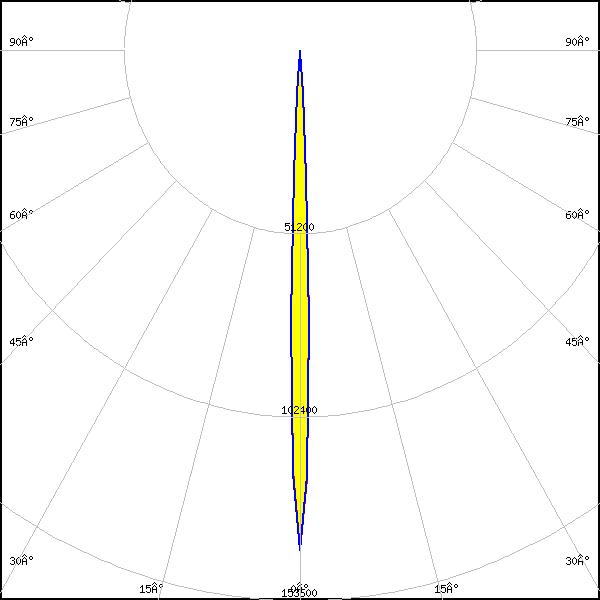

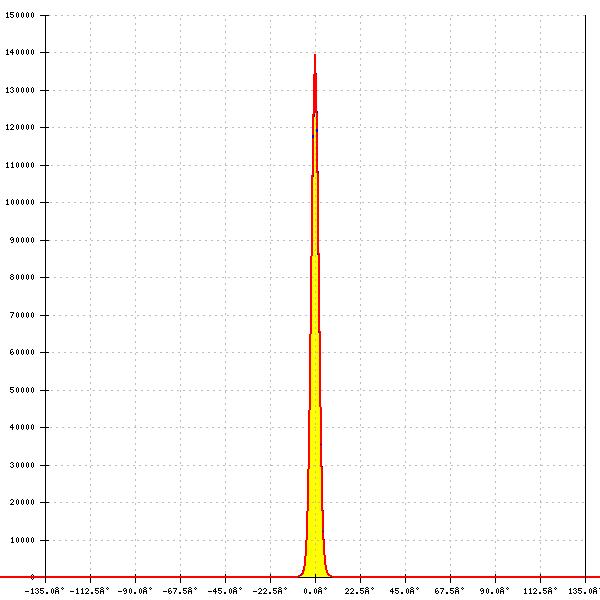

    LED: OSTAR Projection Compact (KW.CSLNM1.TG)
    FWHM: 4°
    FWTM: 8°
    Peak intensity: 139.652 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

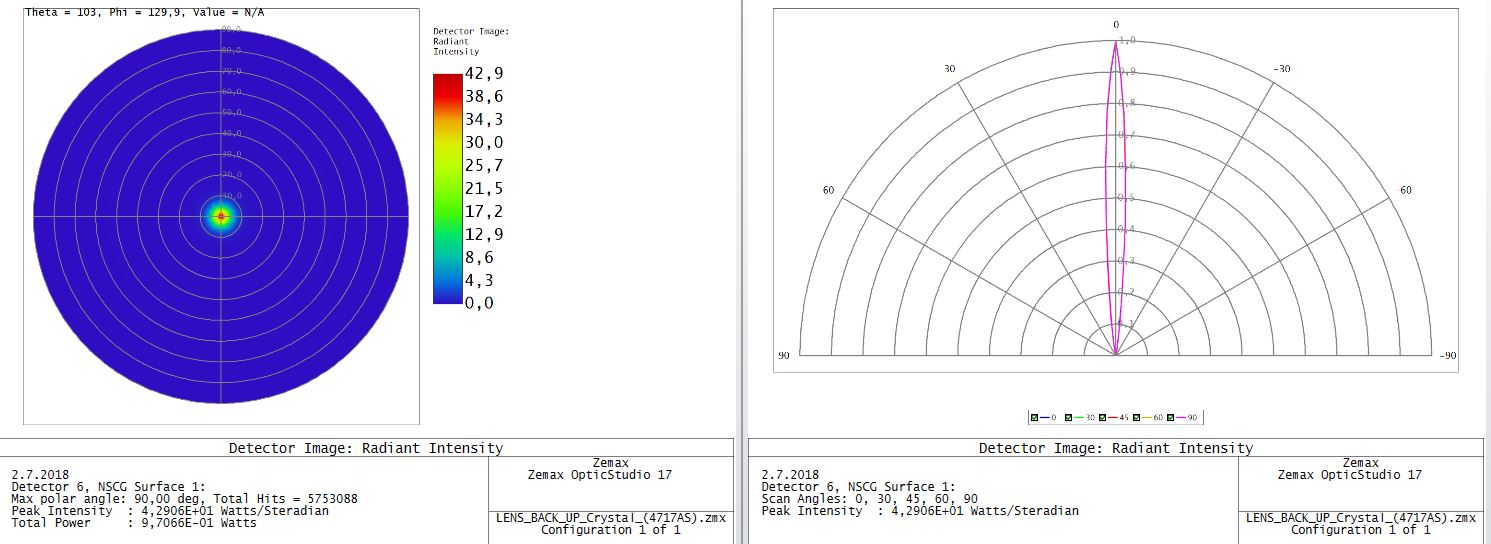

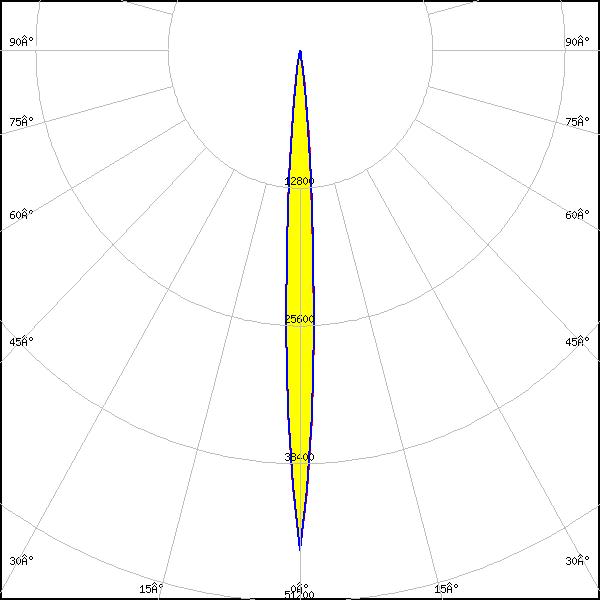

    LED: SFH 4717AS
    FWHM: 7°
    FWTM: 15°
    Peak intensity: 46.450 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

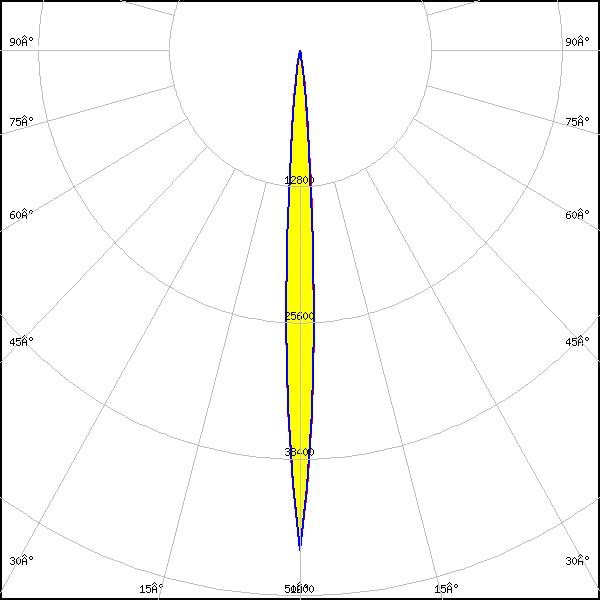

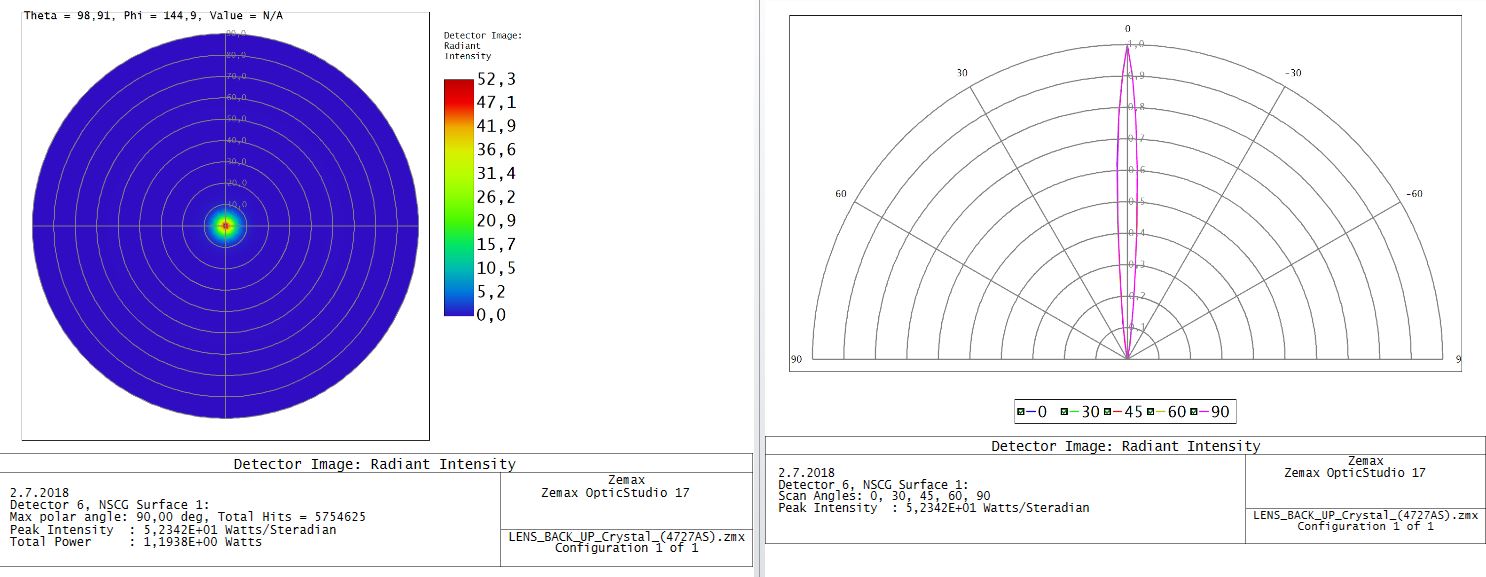

    LED: SFH 4727AS
    FWHM: 7°
    FWTM: 15°
    Peak intensity: 47.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

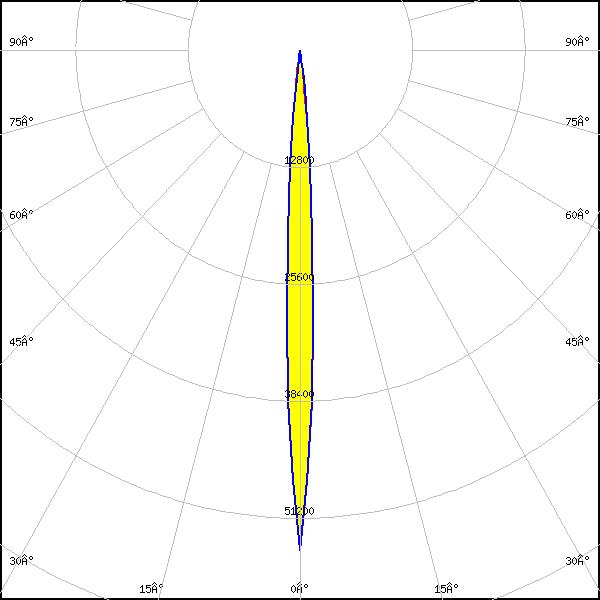

    LED: LH351B
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 54.723 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

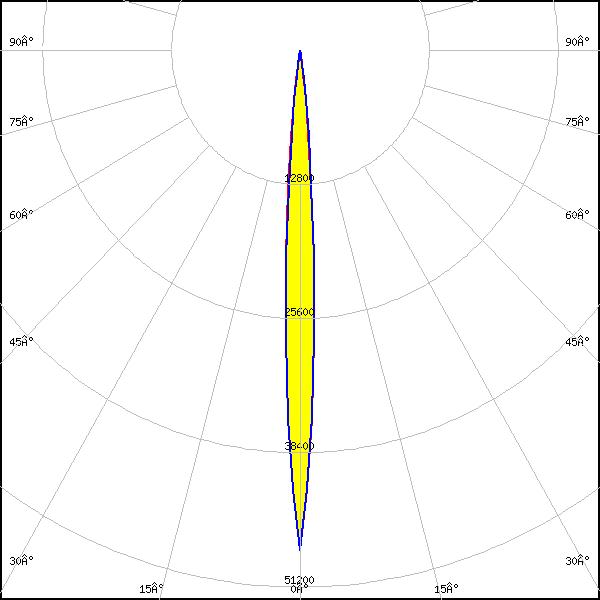

    LED: LH351C
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 47.711 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351Z
    FWHM: 4°
    FWTM: 12°
    Peak intensity: 77.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

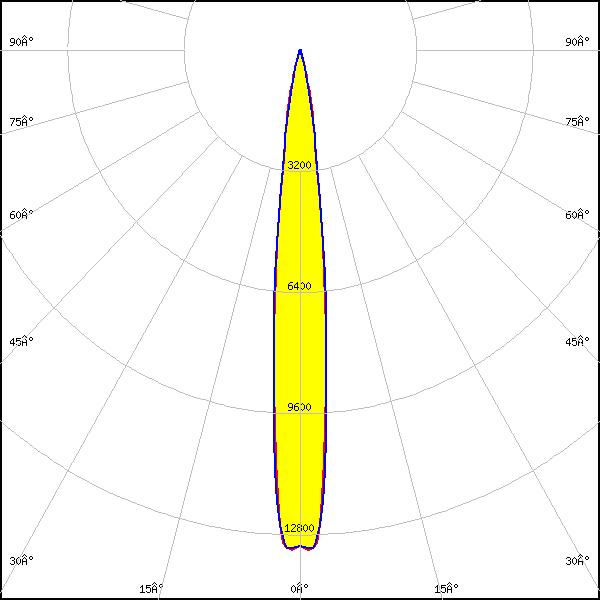

    LED: WICOP 5050
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 13.343 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

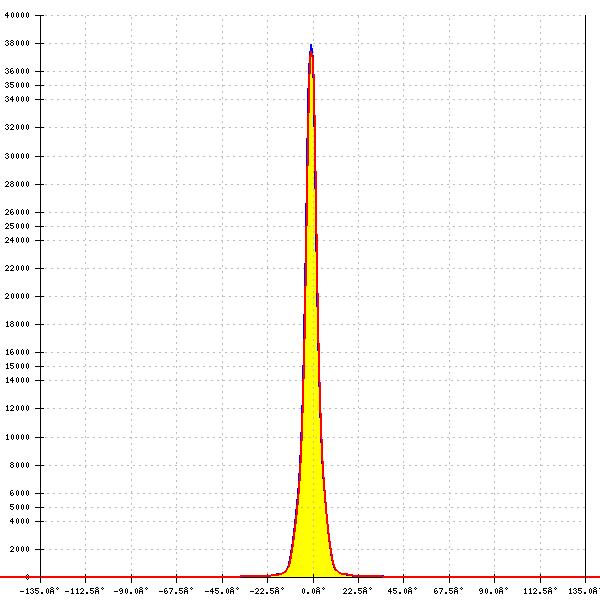

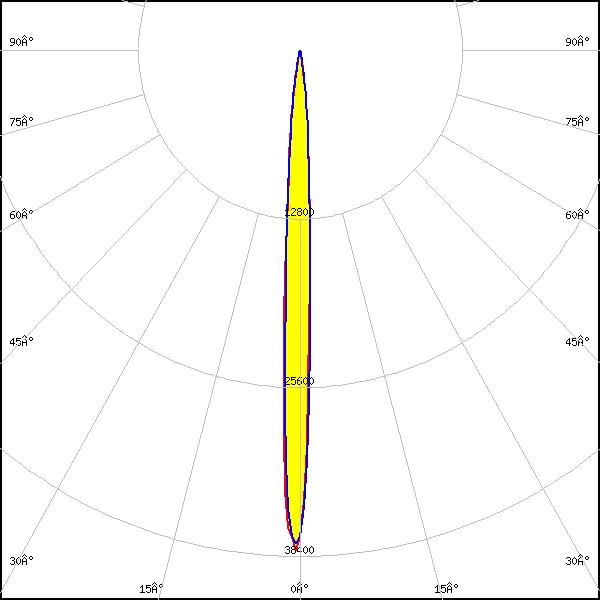

    LED: Z5M3
    FWHM: 6°
    FWTM: 16°
    Peak intensity: 3.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

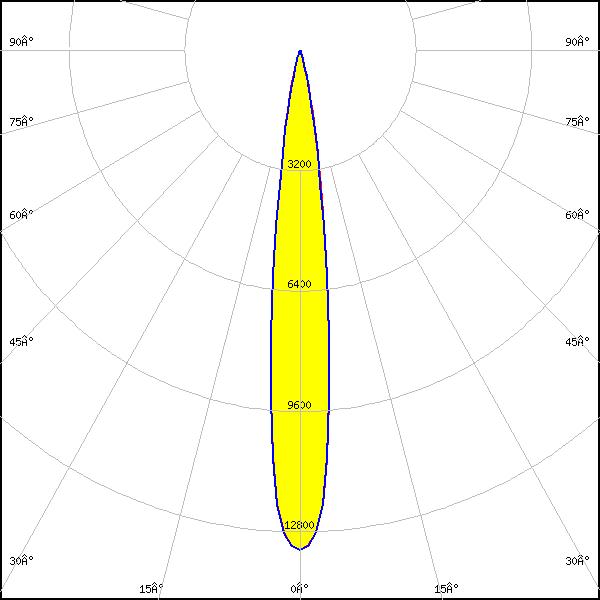

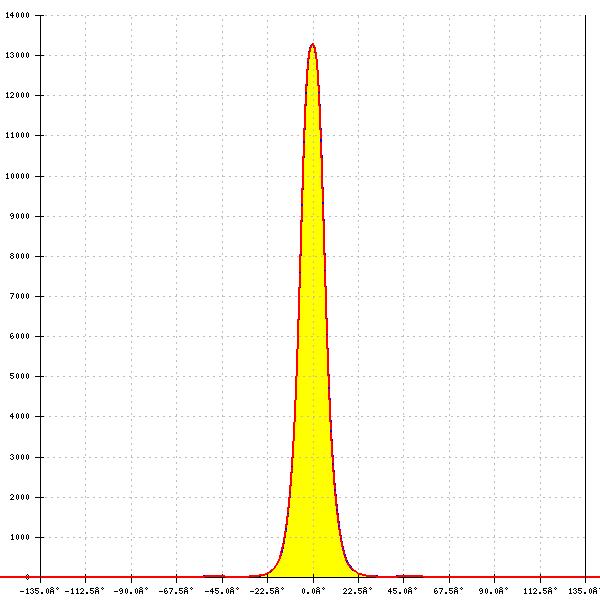

    LED: Z8Y50P
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 13.295 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
