CRYSTAL-MINE
Print

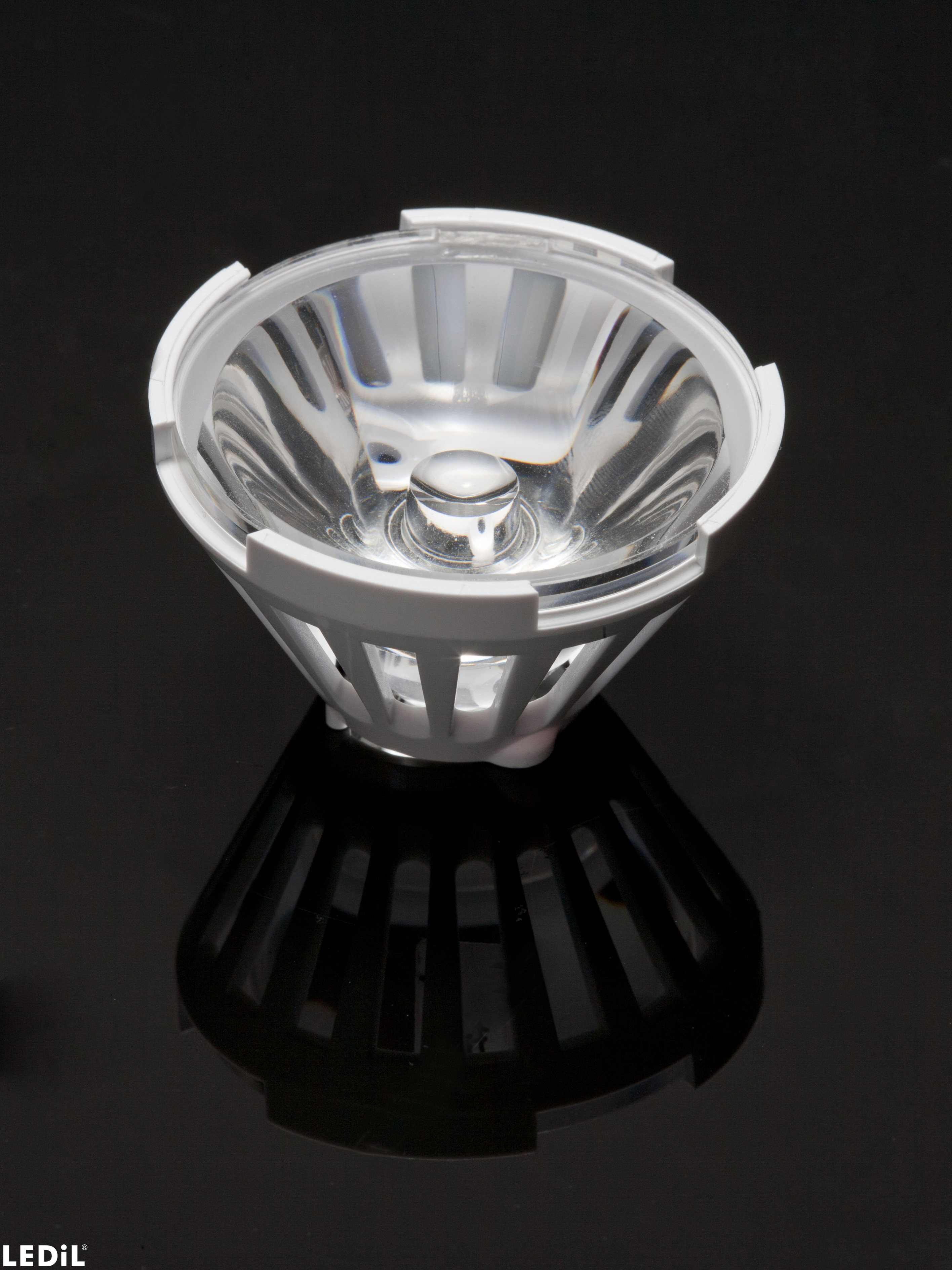

~4.9° spot beam especially designed for mining headlamps. Assembly with holder.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:50 mm
-
Height:28.70 mm
-
Fastening:pin, screw
-
RoHS and REACH compliant:Yes
Component Materials
- CRYSTAL-MINESingle lensPMMA
- CRYSTAL-HLDHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Single lens1 pcs
- Holder1 pcs
- Single lens
- F12985_CRYSTAL-MINEclear
- Quantity in box:288 pcs
- Box size:480 x 280 x 300 mm
- Box weight:7.10 kg
- MPQ:32 pcs
- MOQ:64 pcs
- MOQ Size:480 x 280 x 80 mm
- MOQ Weight:2.20 kg
- Holder
- C13478_CRYSTAL-HLDwhite
- Quantity in box:1152 pcs
- Box size:480 x 280 x 300 mm
- Box weight:6.10 kg
- MPQ:32 pcs
- MOQ:64 pcs
- MOQ Size:300 x 250 x 70 mm
- MOQ Weight:0.50 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

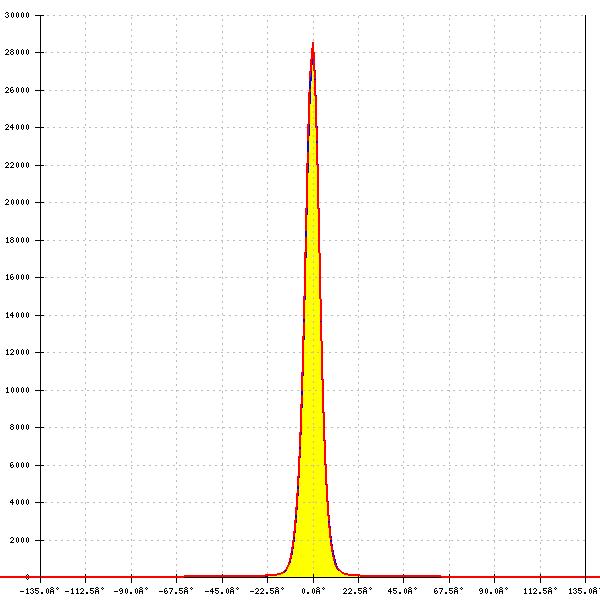

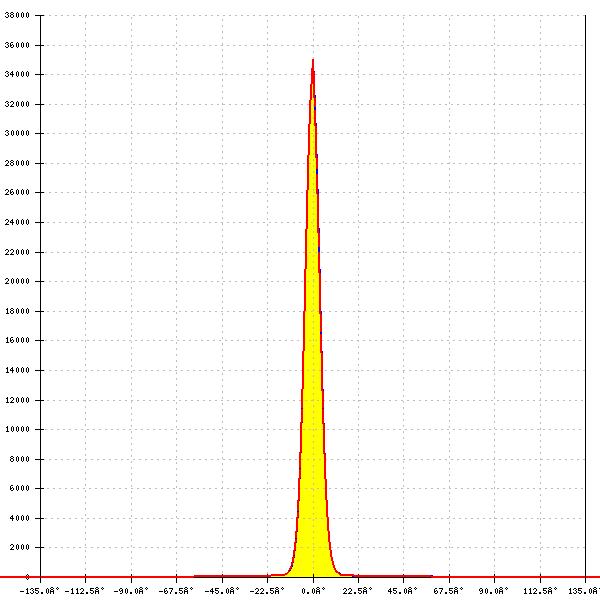

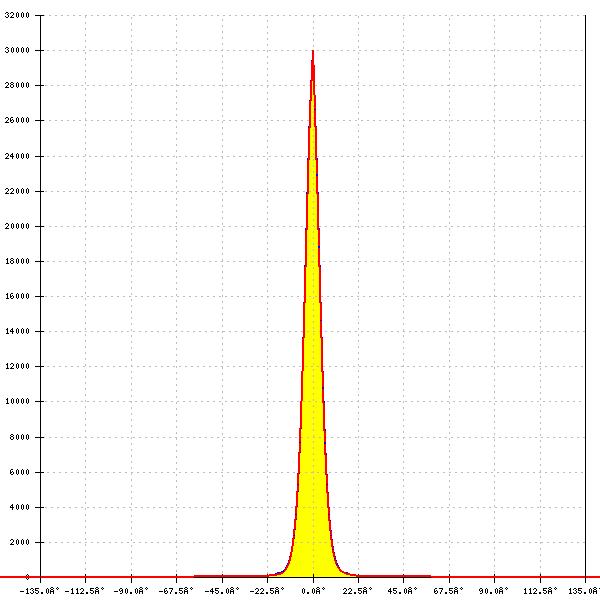

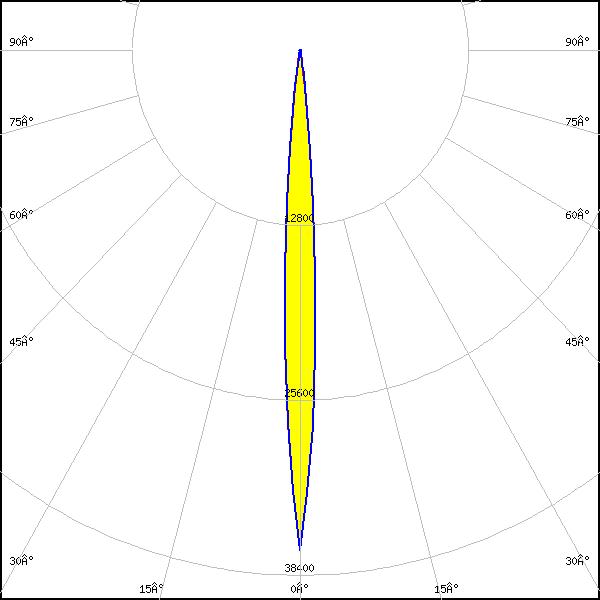

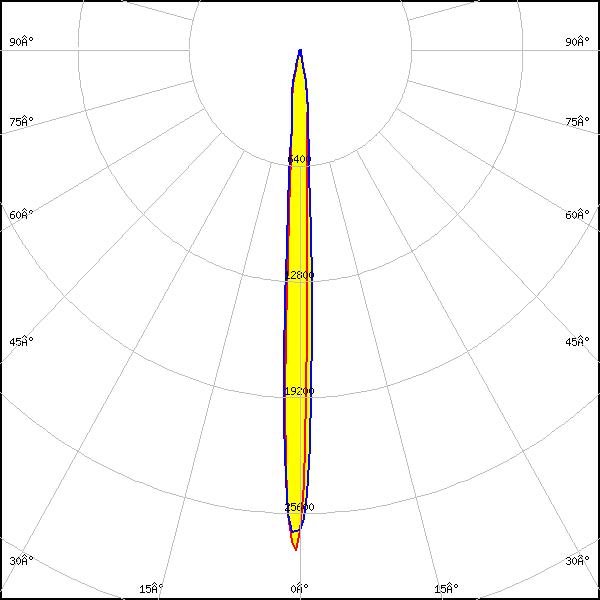

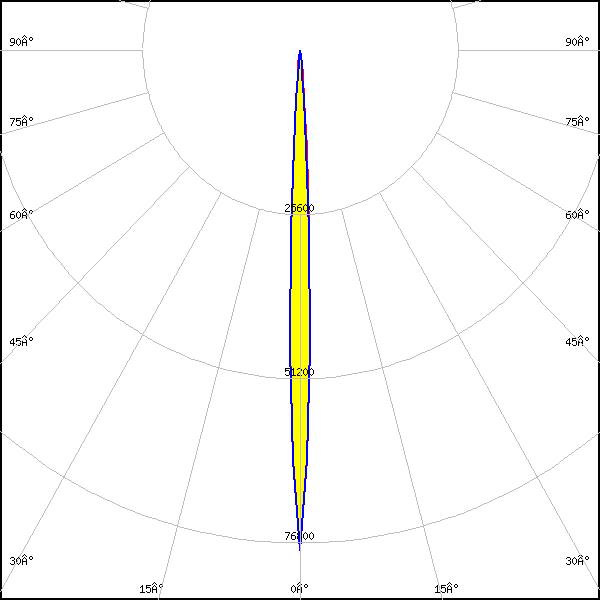

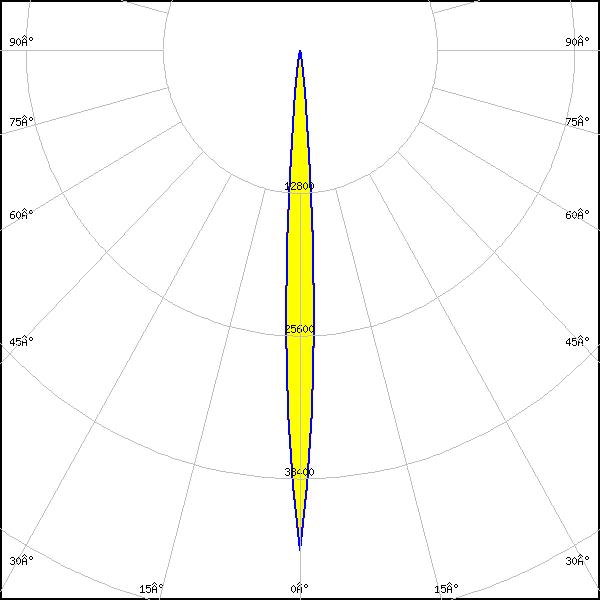

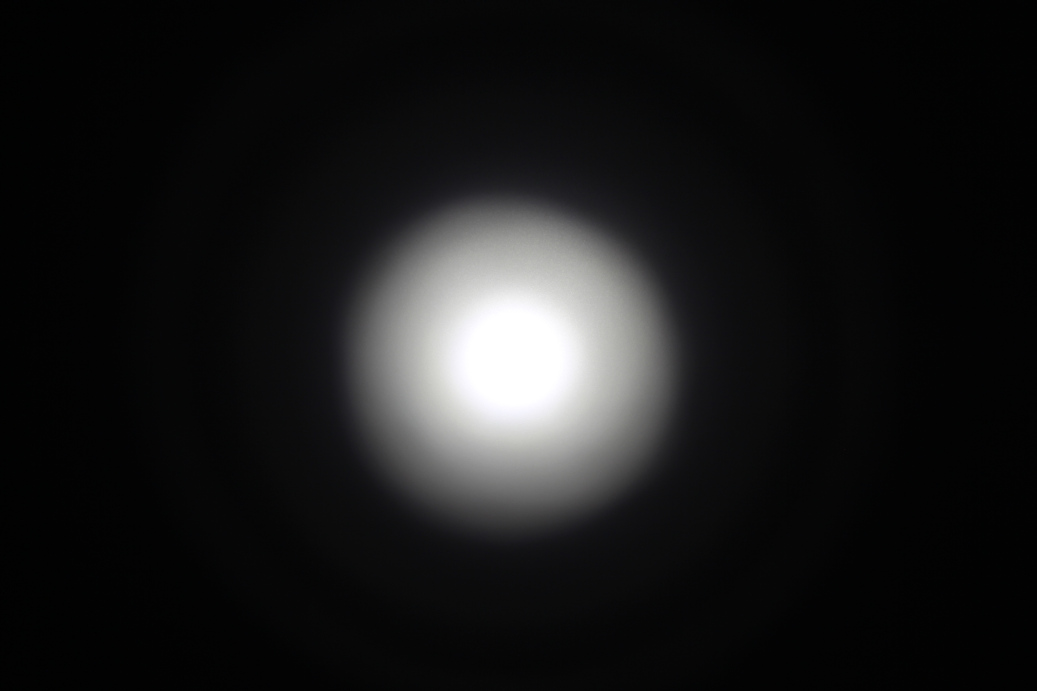

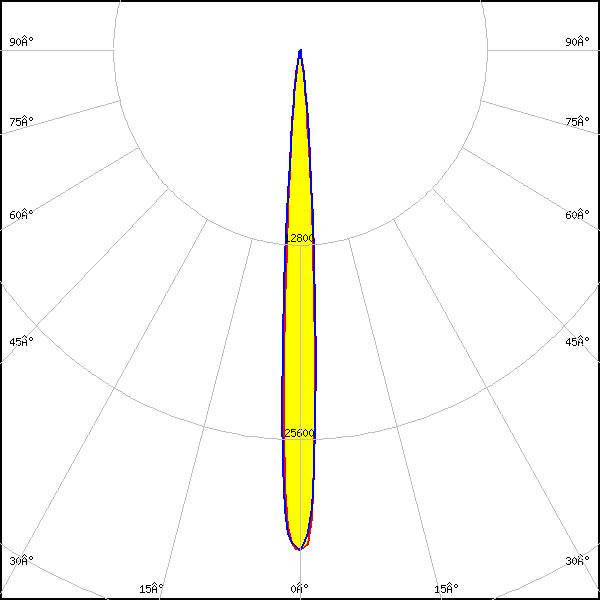

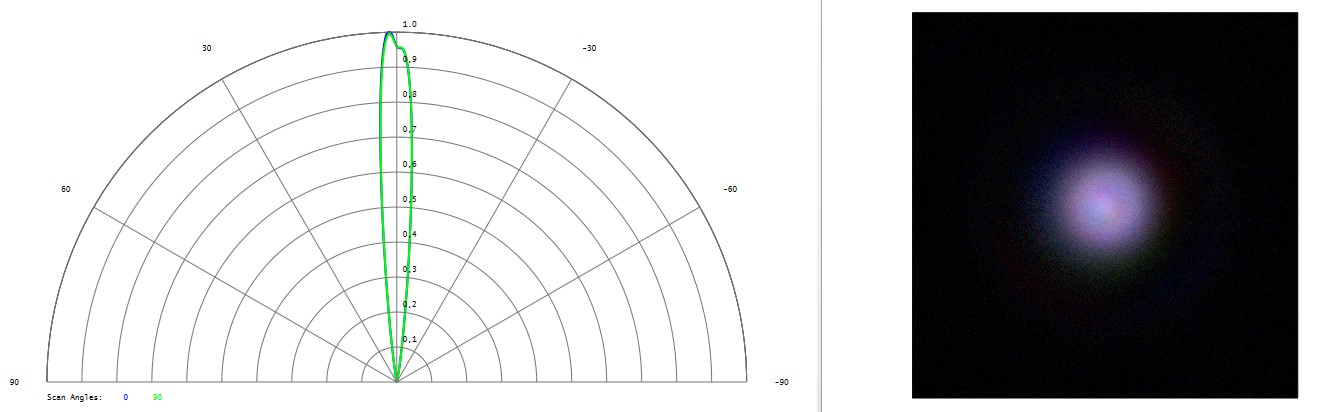

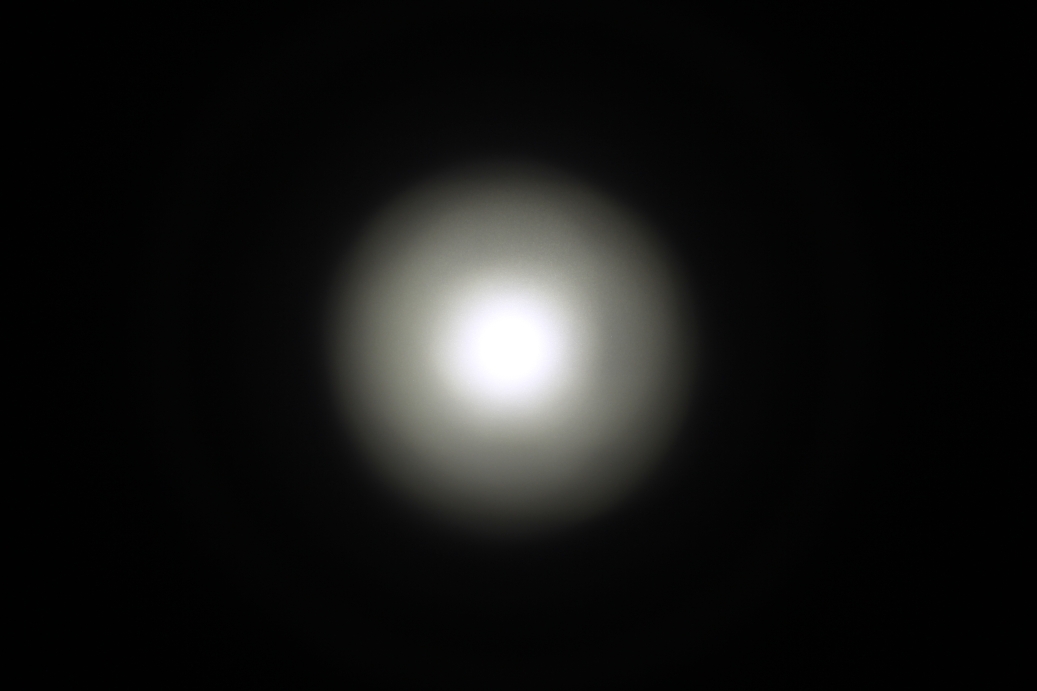

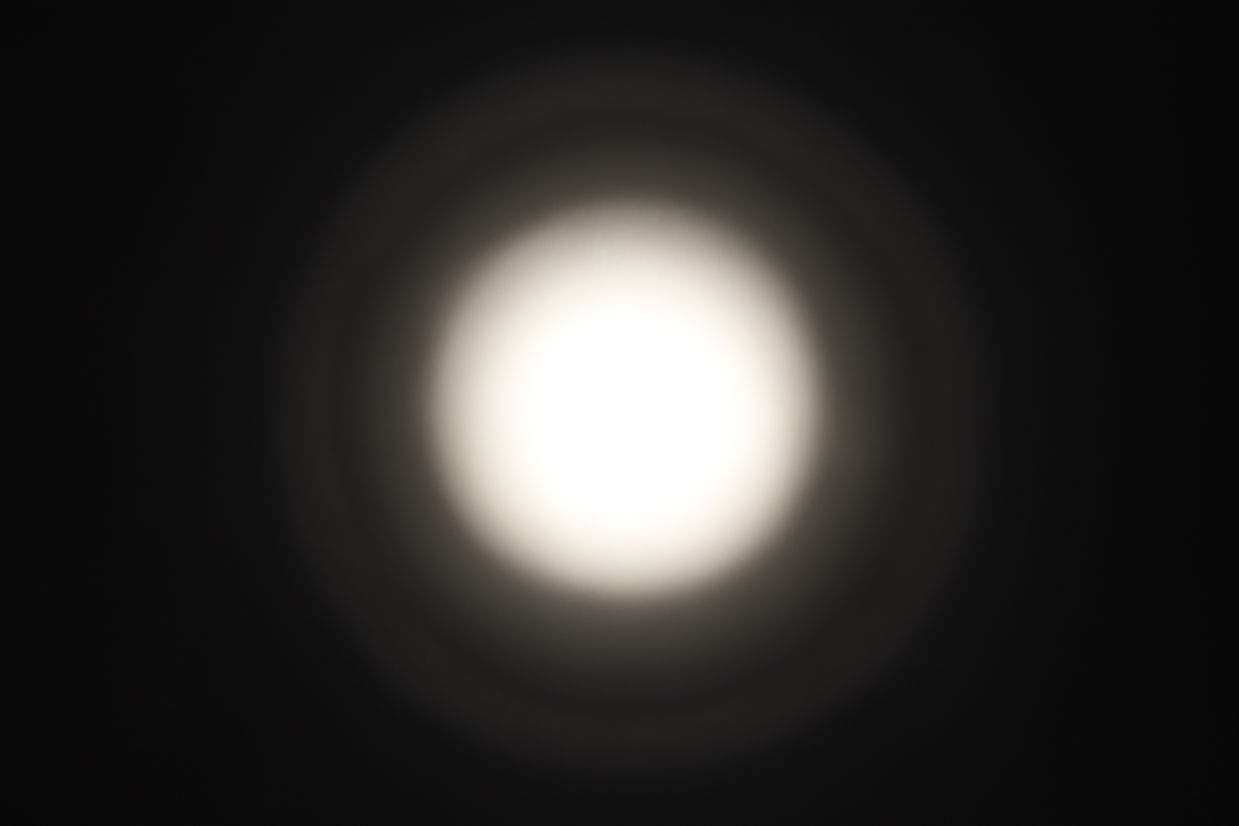

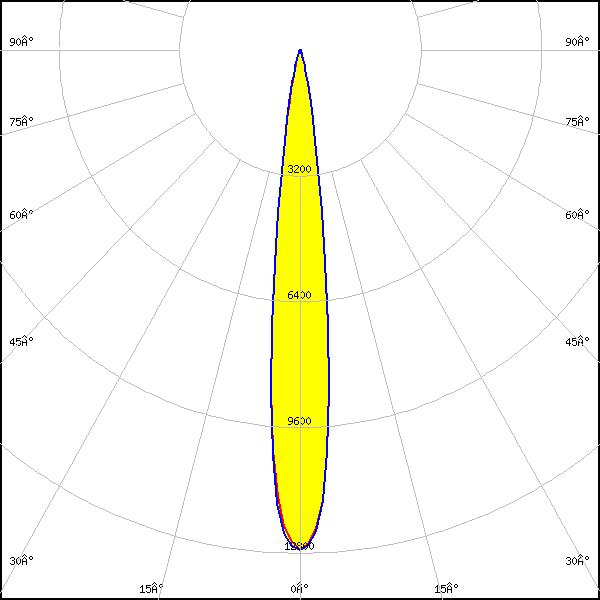

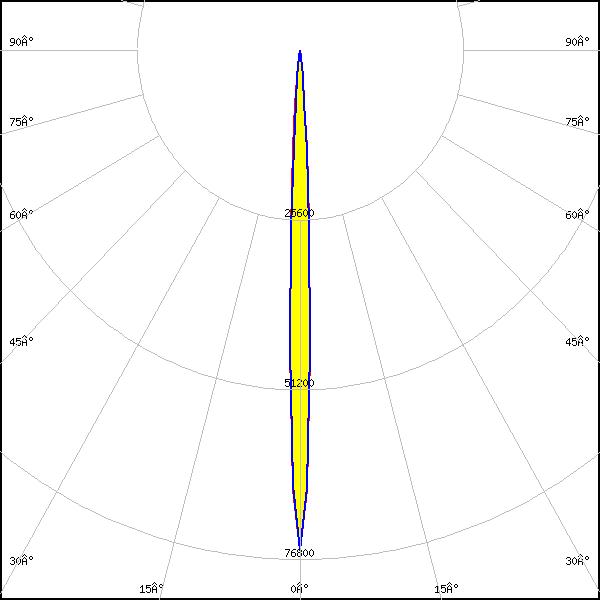

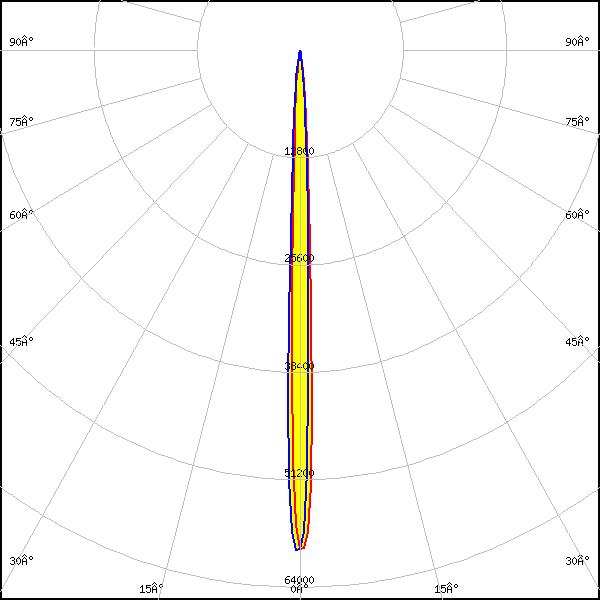

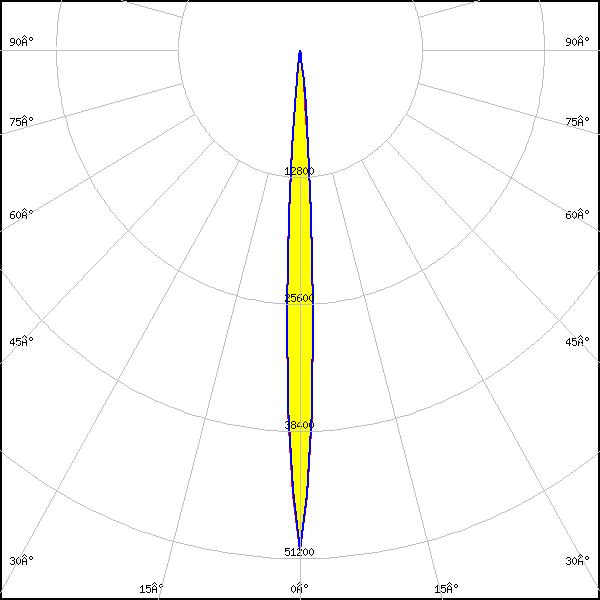

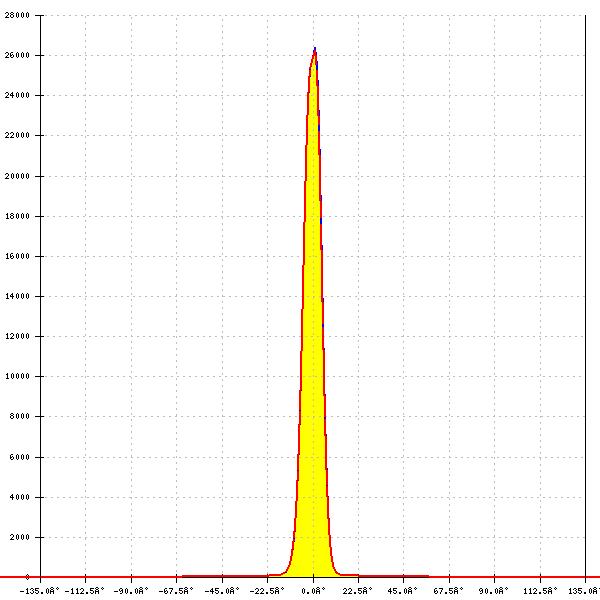

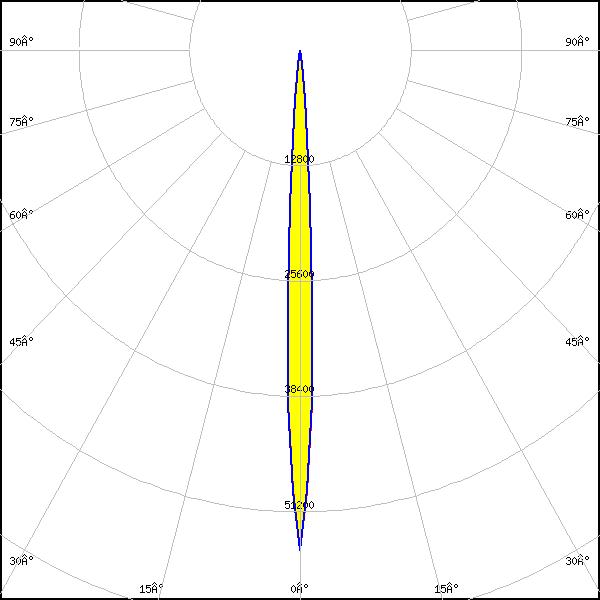

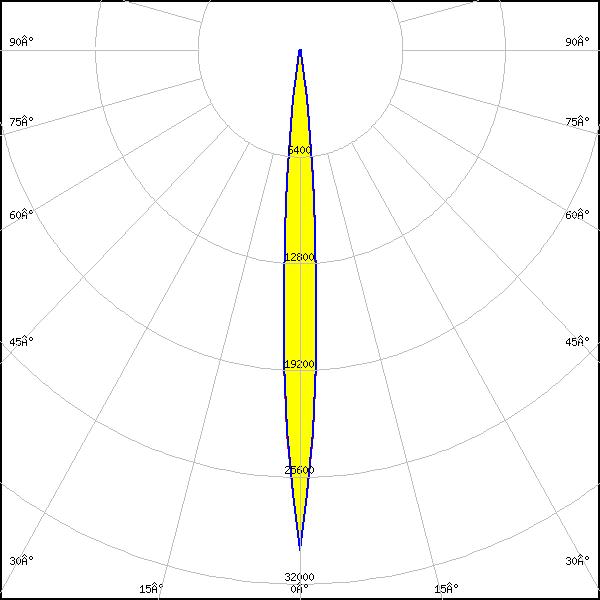

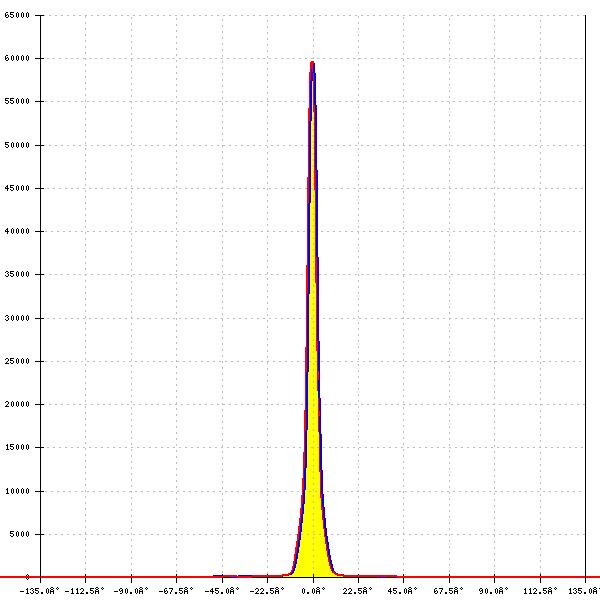

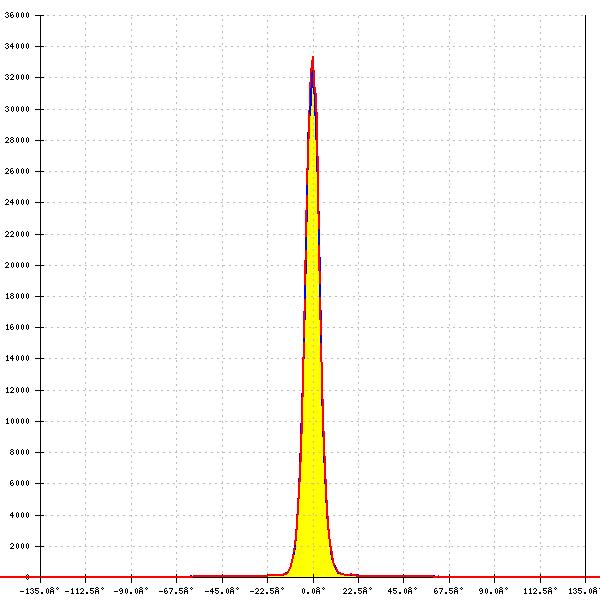

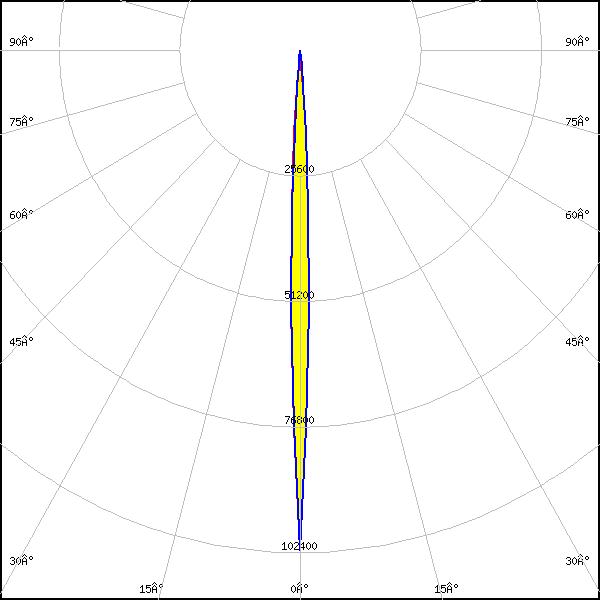

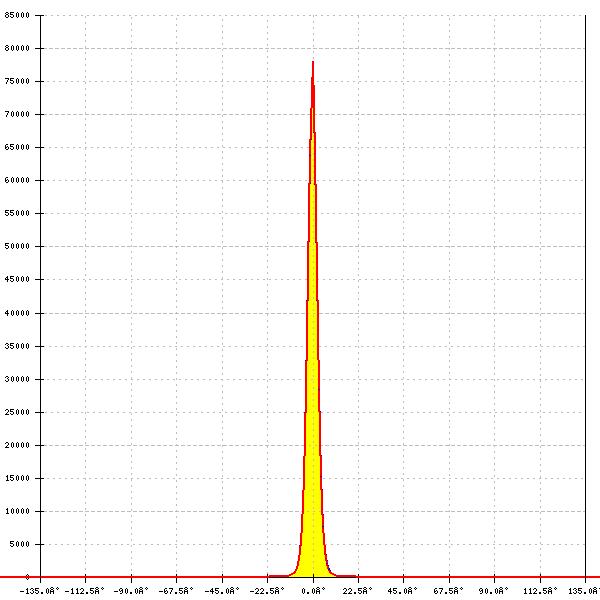

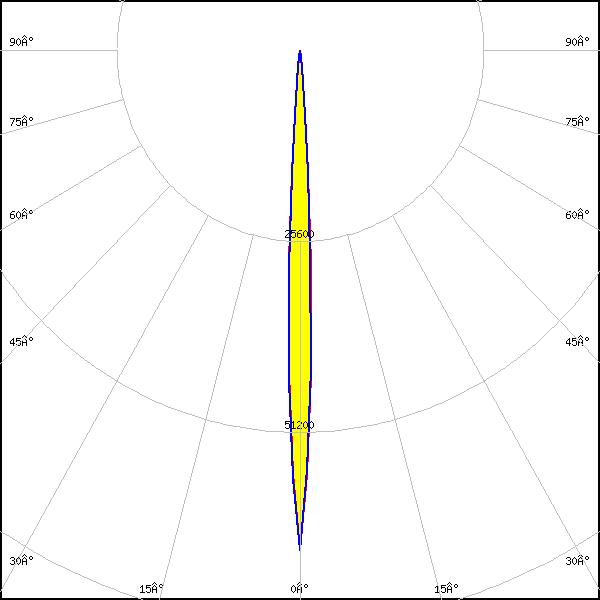

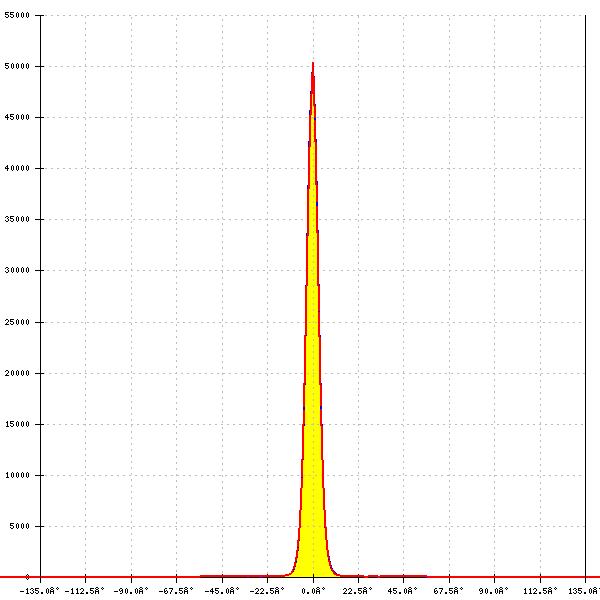

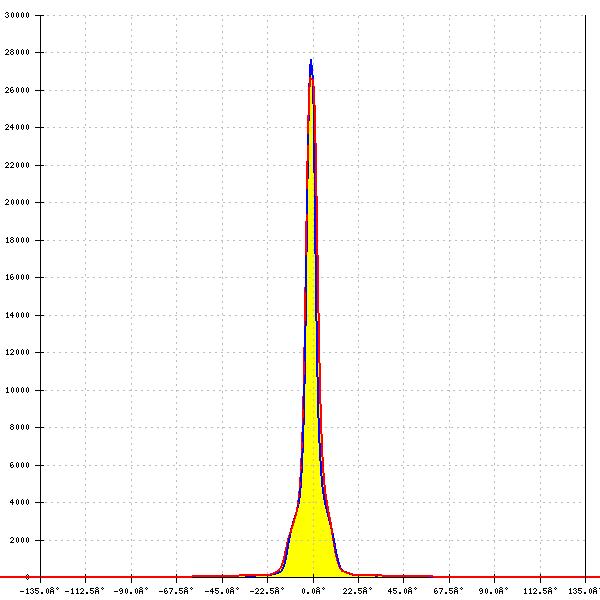

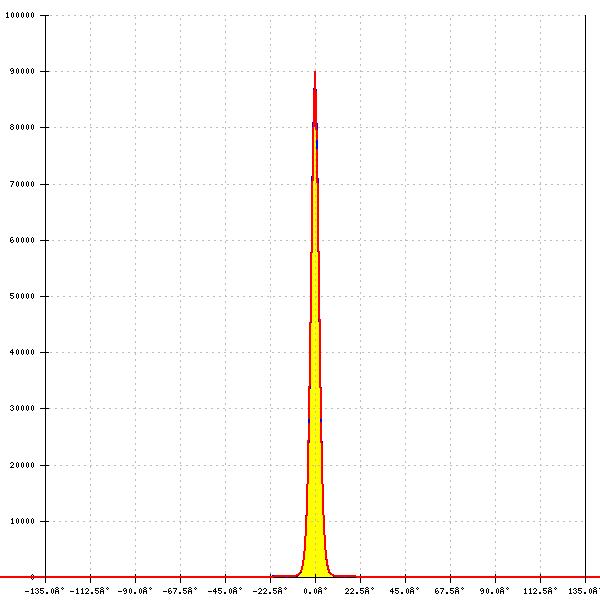

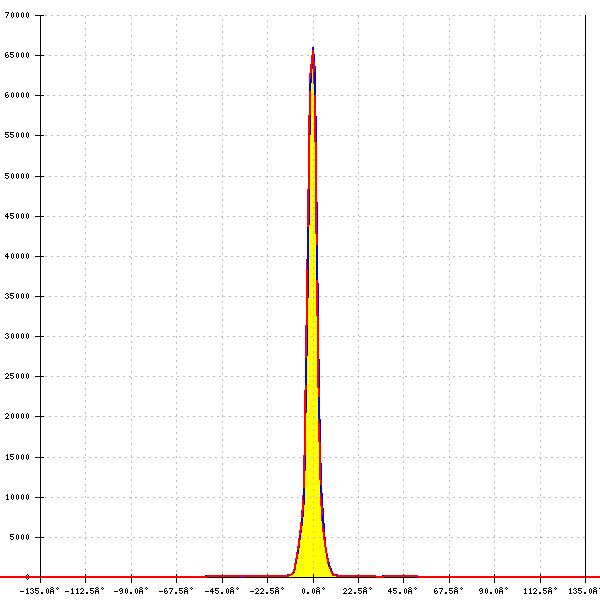

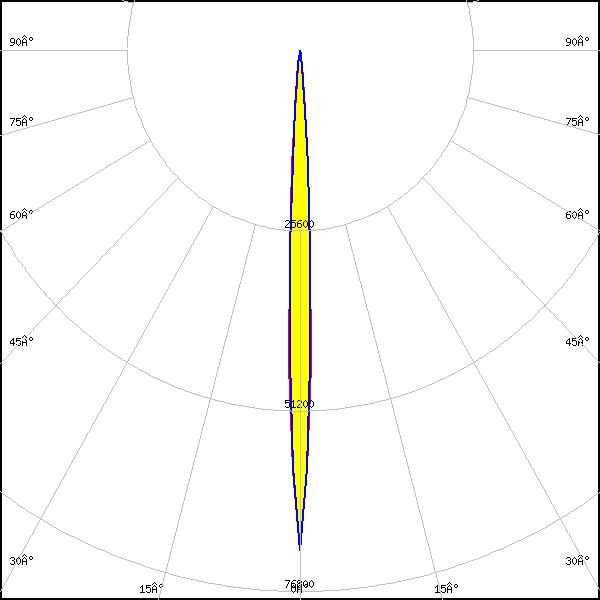

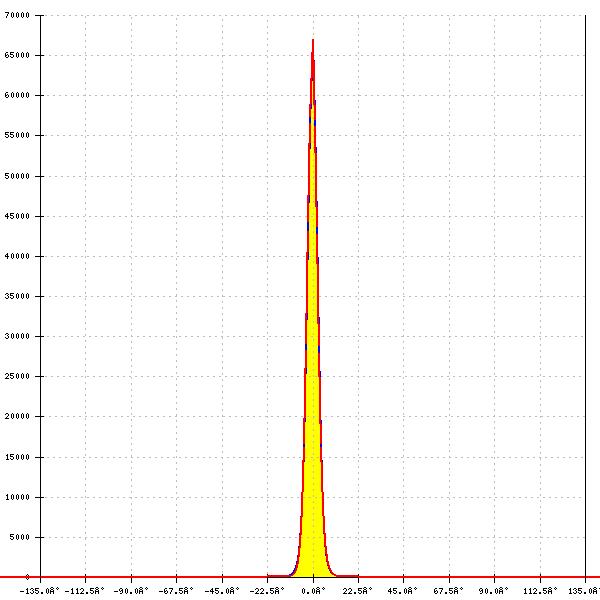

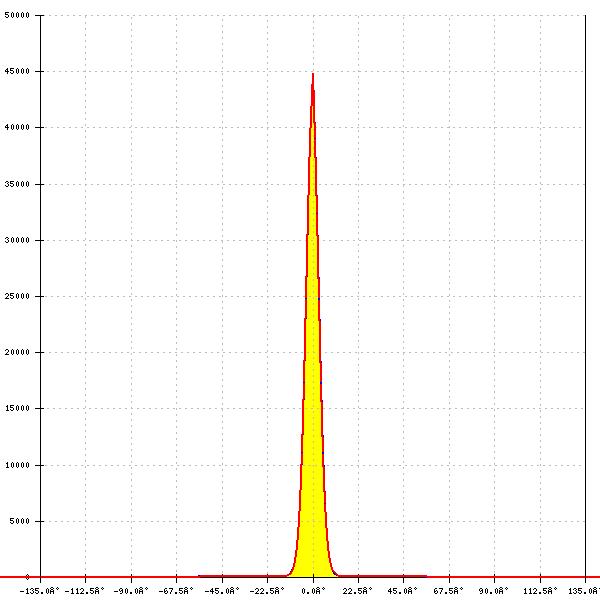

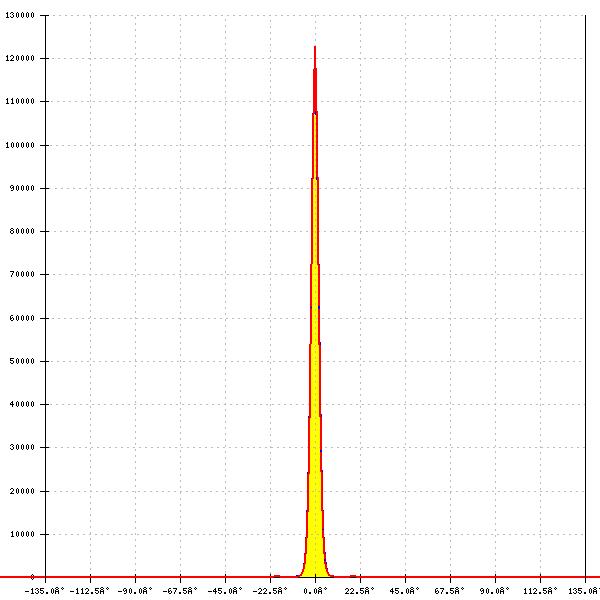

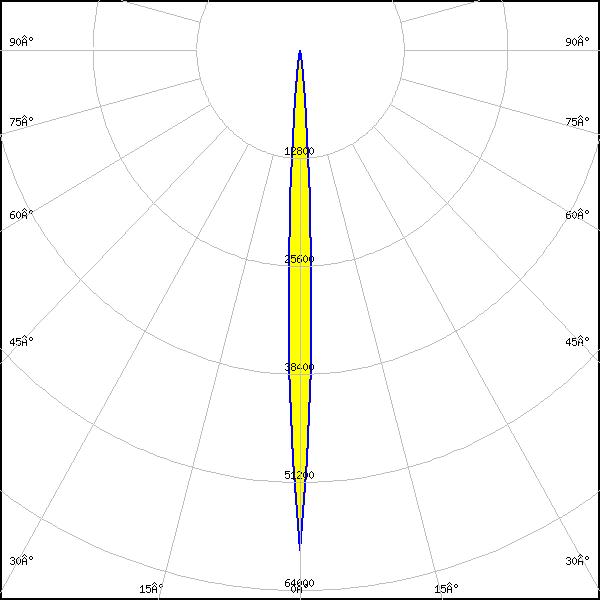

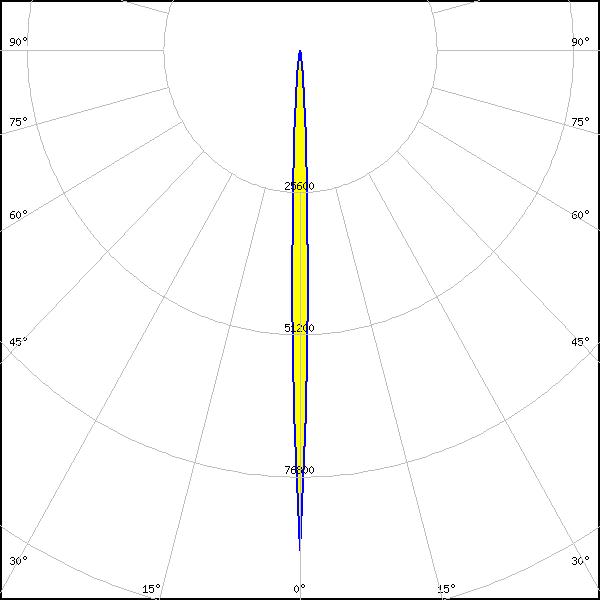

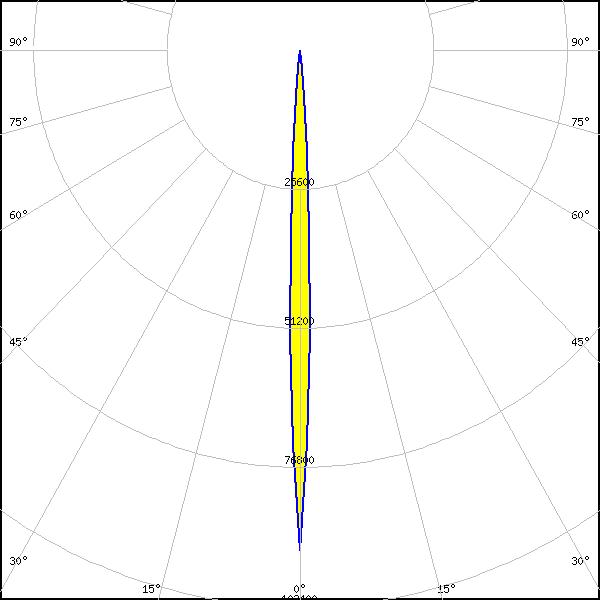

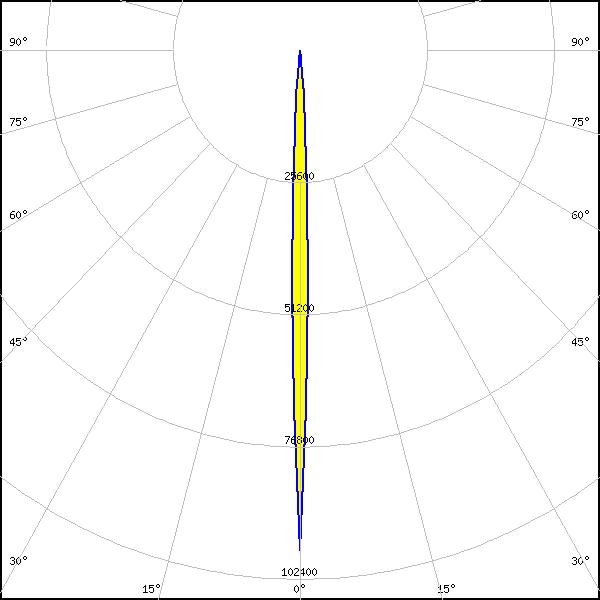

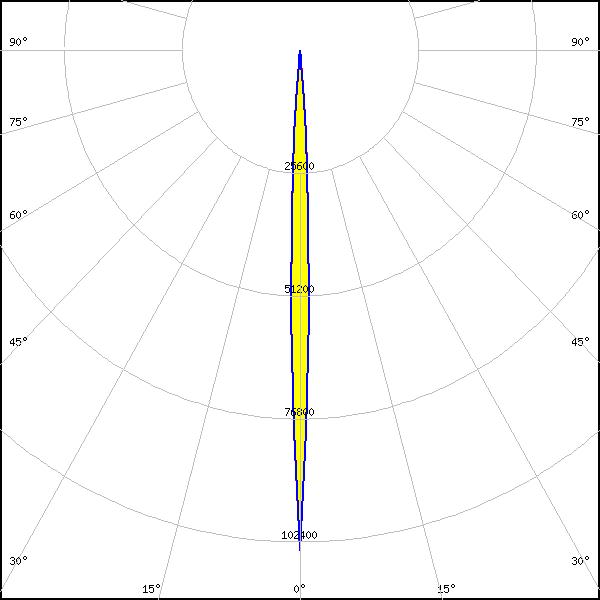

Optical results

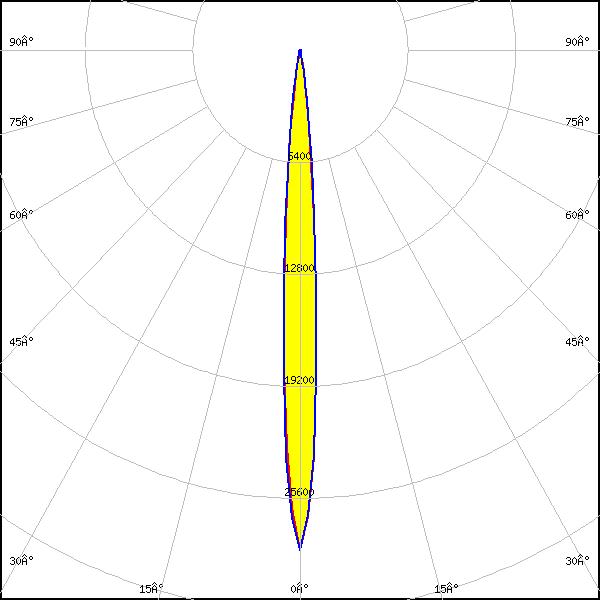

LED:
XHP35 HD
FWHM:
8°
FWTM:
17°
Peak intensity:
28.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
XHP35 HI
FWHM:
6°
FWTM:
13°
Peak intensity:
50.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

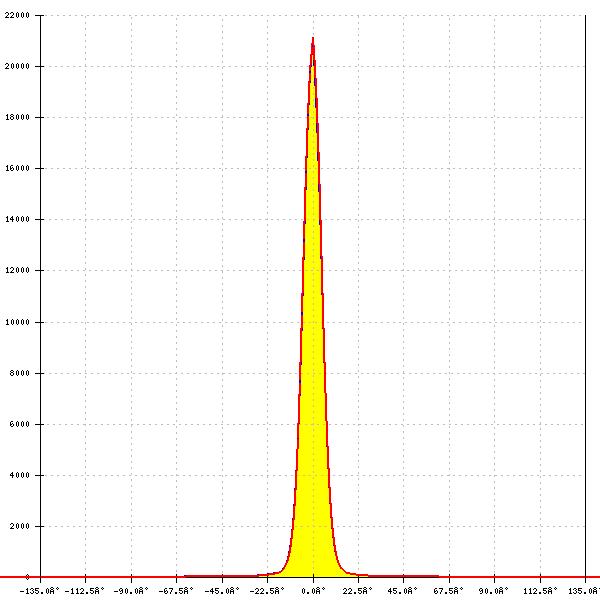

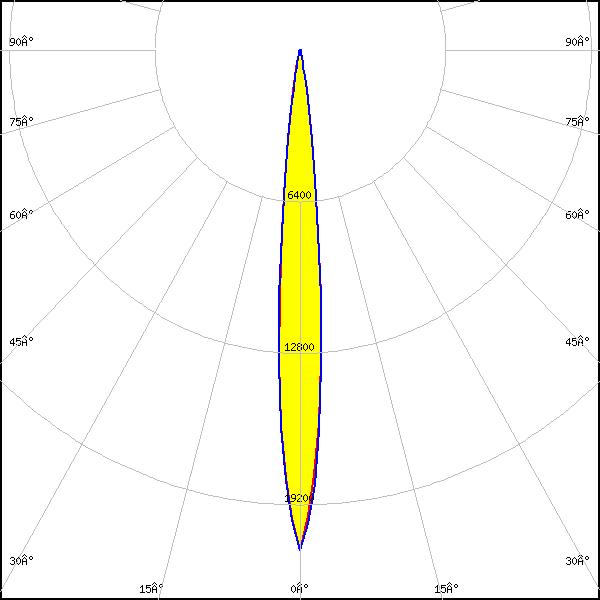

LED:
XHP35.2 HD
FWHM:
10°
FWTM:
19°
Peak intensity:
21.121 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

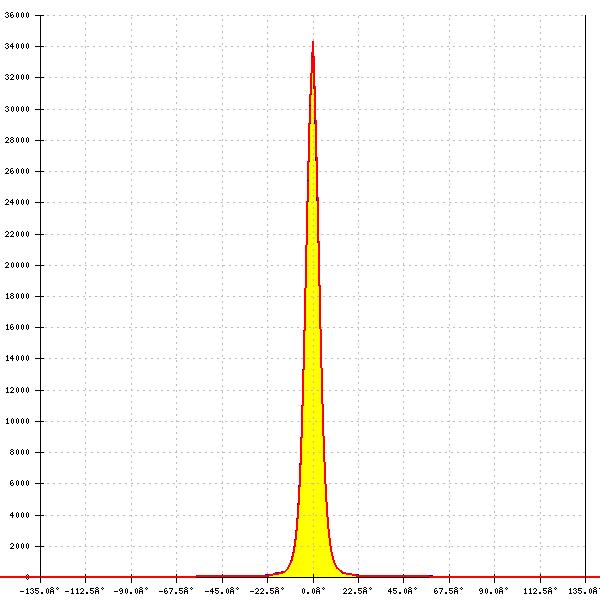

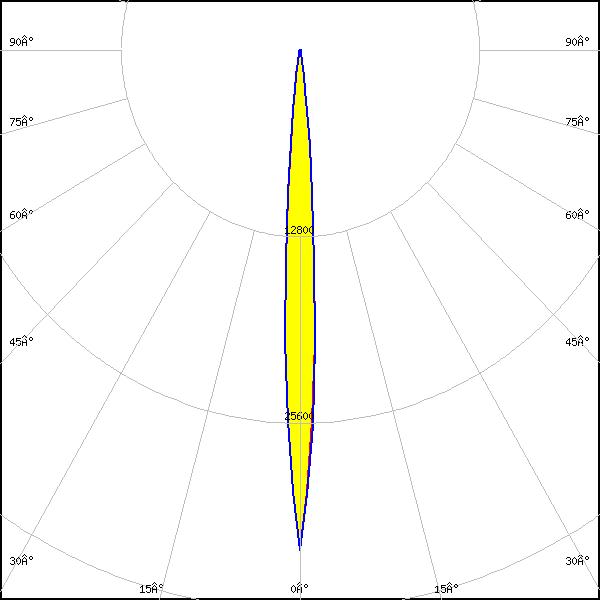

LED:
XHP35.2 HD
FWHM:
8°
FWTM:
16°
Peak intensity:
34.320 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

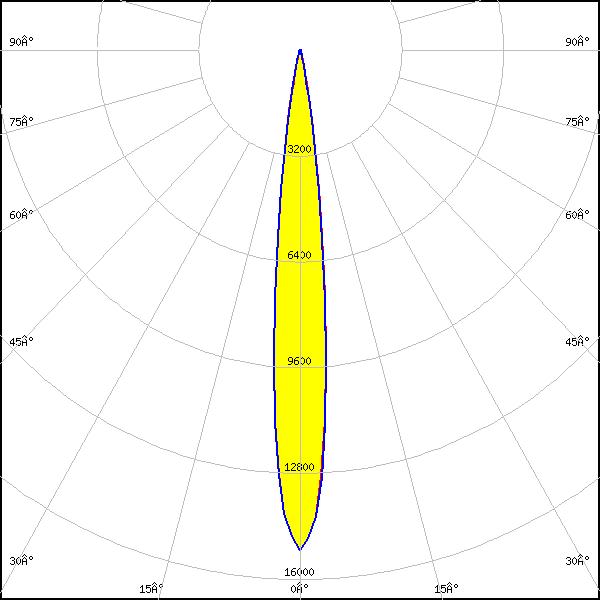

LED:
XHP50.2
FWHM:
12°
FWTM:
22°
Peak intensity:
15.127 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

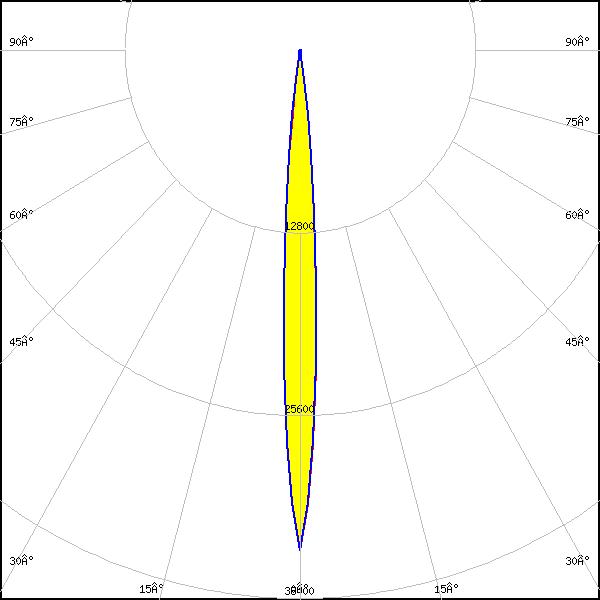

LED:
XM-L2
FWHM:
8°
FWTM:
16°
Peak intensity:
35.040 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

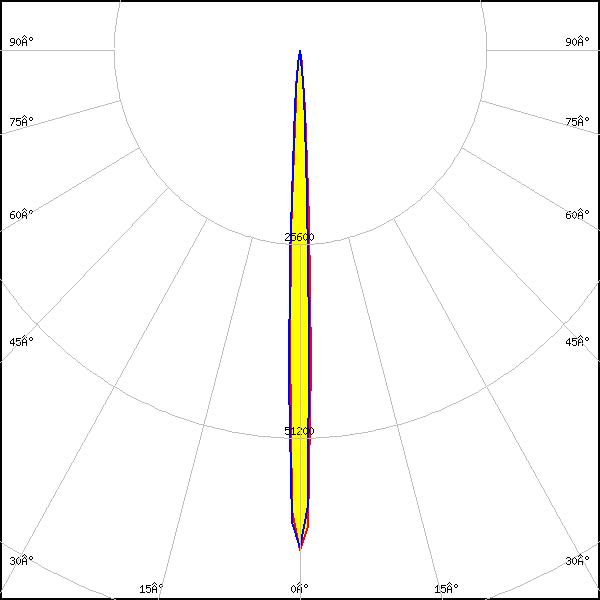

LED:
XP-G
FWHM:
5°
FWTM:
11°
Peak intensity:
66.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
XP-G2
FWHM:
5°
FWTM:
12°
Peak intensity:
65.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
XP-L HD
FWHM:
7°
FWTM:
14°
Peak intensity:
33.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
XP-L HI
FWHM:
5°
FWTM:
12°
Peak intensity:
60.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

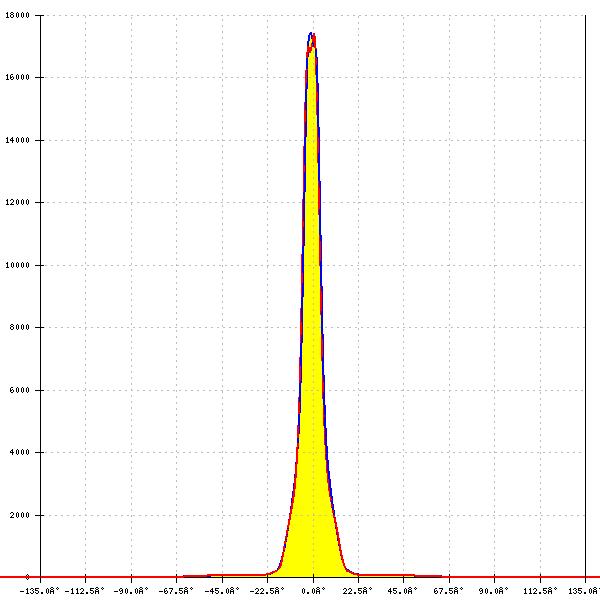

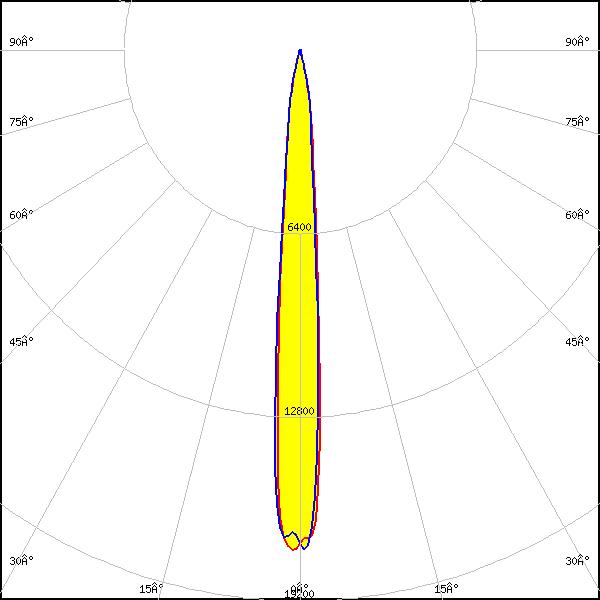

LED:
LUXEON 5050 Round LES
FWHM:
9°
FWTM:
23°
Peak intensity:
17.457 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LUXEON A
FWHM:
5°
FWTM:
13°
Peak intensity:
58.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

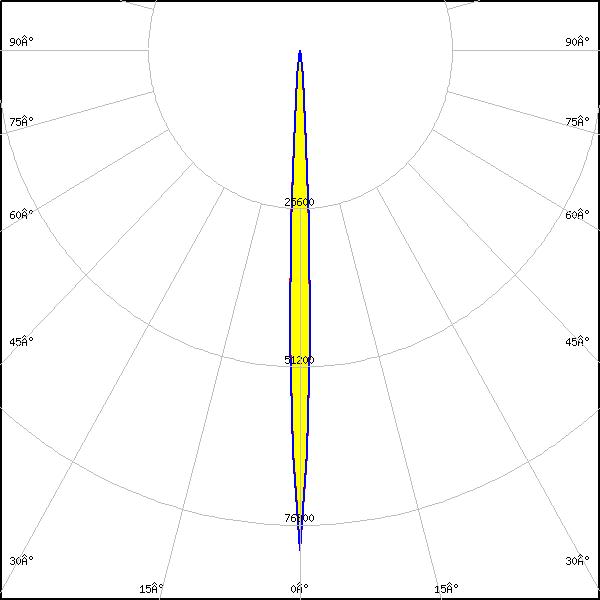

LED:
LUXEON C
FWHM:
4°
FWTM:
10°
Peak intensity:
80.861 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

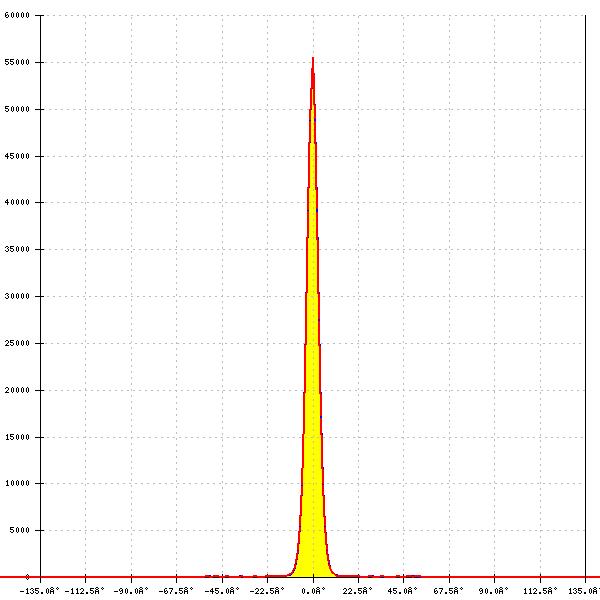

LED:
LUXEON HL4Z
FWHM:
6°
FWTM:
12°
Peak intensity:
55.494 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

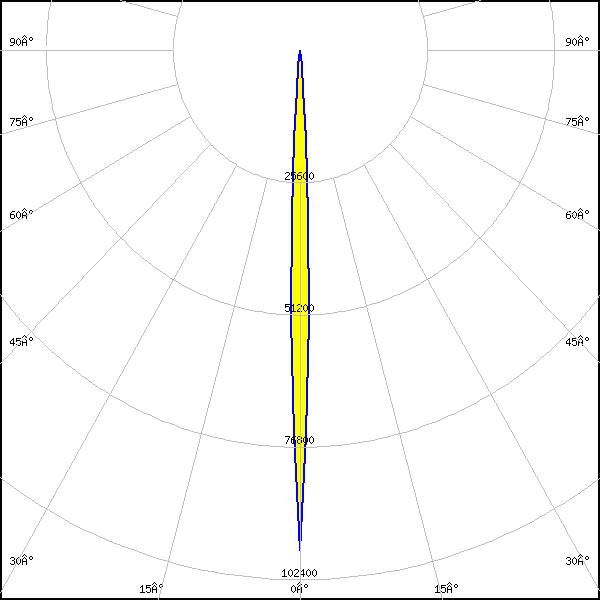

LED:
LUXEON Rubix
FWHM:
4°
FWTM:
10°
Peak intensity:
96.742 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

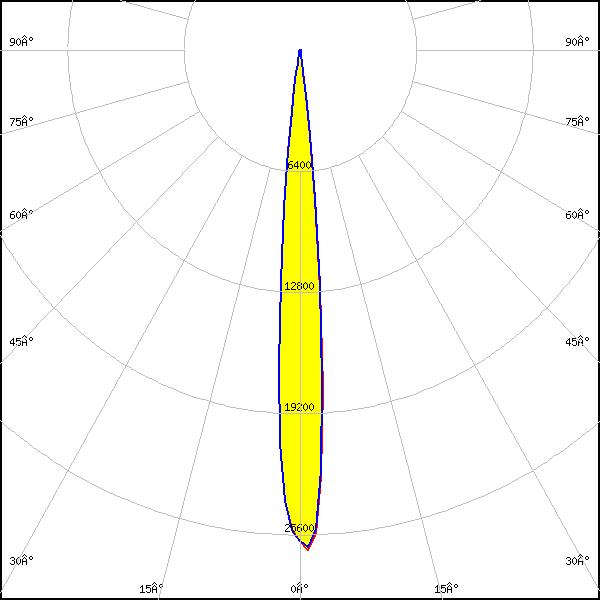

LED:
LUXEON Rubix
FWHM:
10°
FWTM:
17°
Peak intensity:
26.592 cd/lm
Efficiency:
97 %
LEDs/each optic:
4
Light colour/type:
RGBW

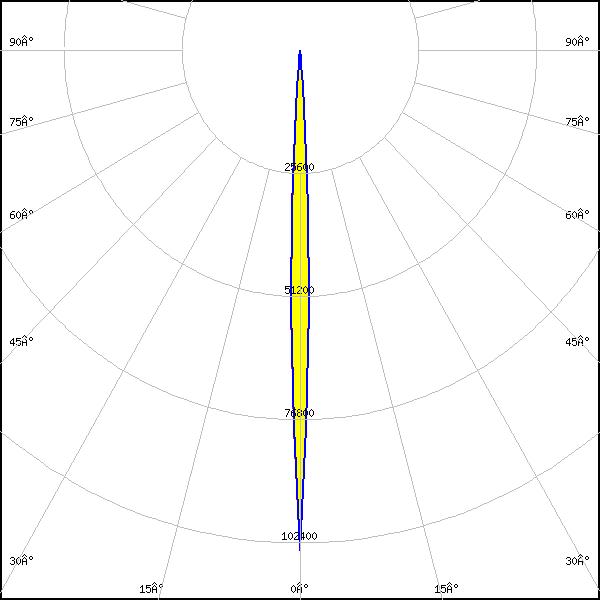

LED:
LUXEON Rubix
FWHM:
4°
FWTM:
10°
Peak intensity:
103.970 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Blue

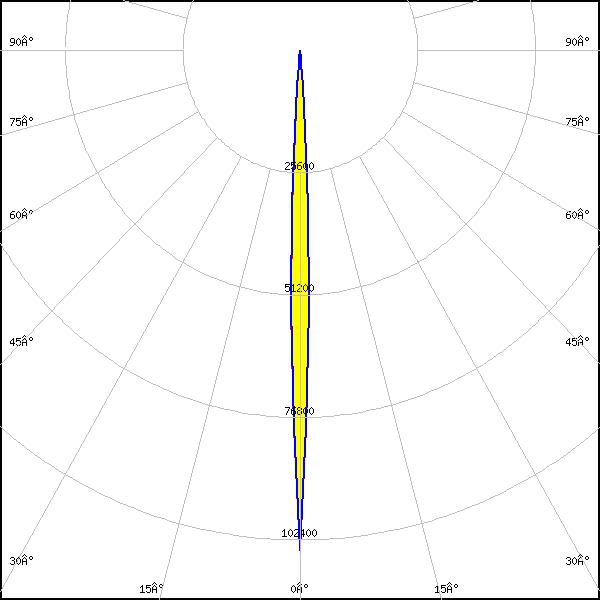

LED:
LUXEON Rubix
FWHM:
4°
FWTM:
10°
Peak intensity:
104.600 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Green

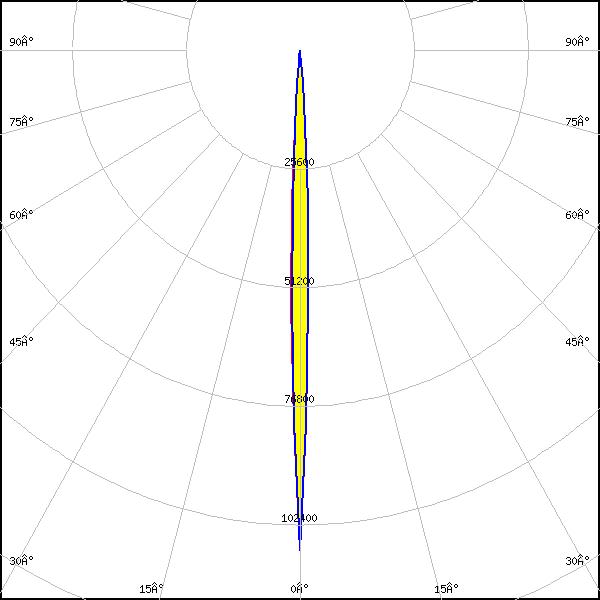

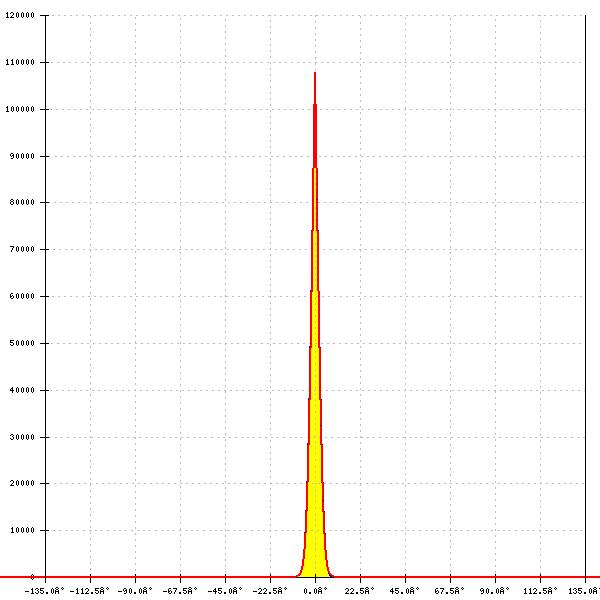

LED:
LUXEON Rubix
FWHM:
4°
FWTM:
10°
Peak intensity:
107.899 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red

LED:
LUXEON T
FWHM:
5°
FWTM:
13°
Peak intensity:
55.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

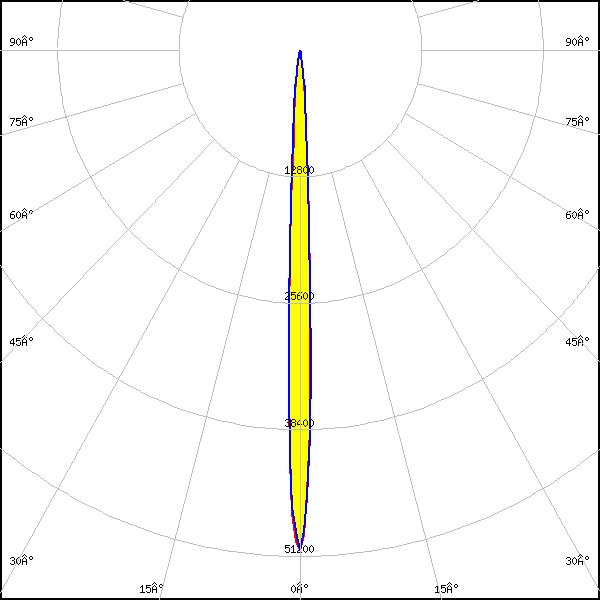

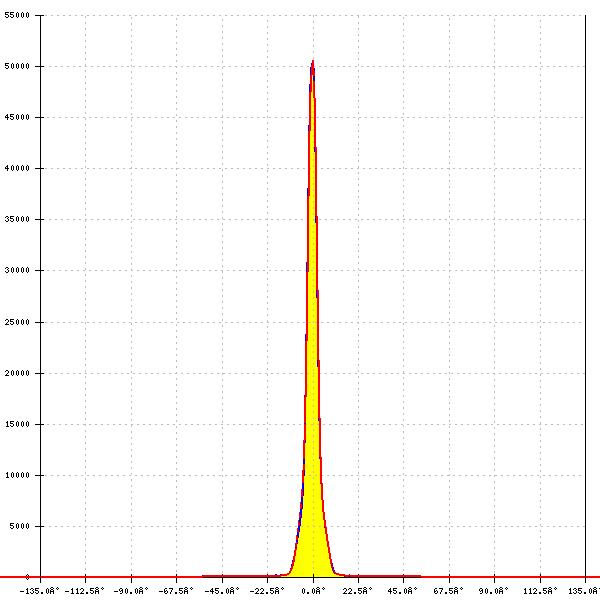

LED:
LUXEON TX
FWHM:
5°
FWTM:
13°
Peak intensity:
50.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

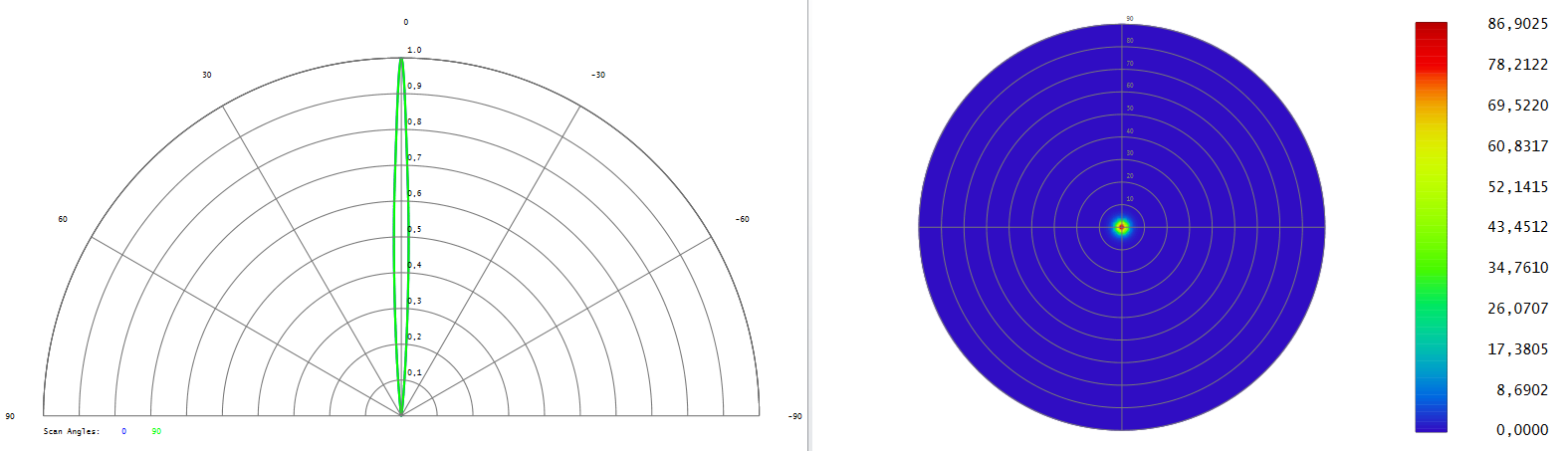

LED:
SST-10-B130
FWHM:
5°
FWTM:
10°
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
IR

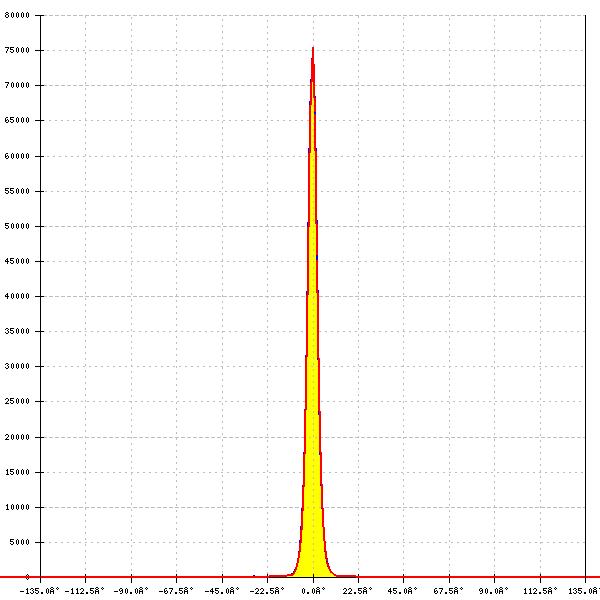

LED:
NCSxx19B
FWHM:
4°
FWTM:
12°
Peak intensity:
73.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

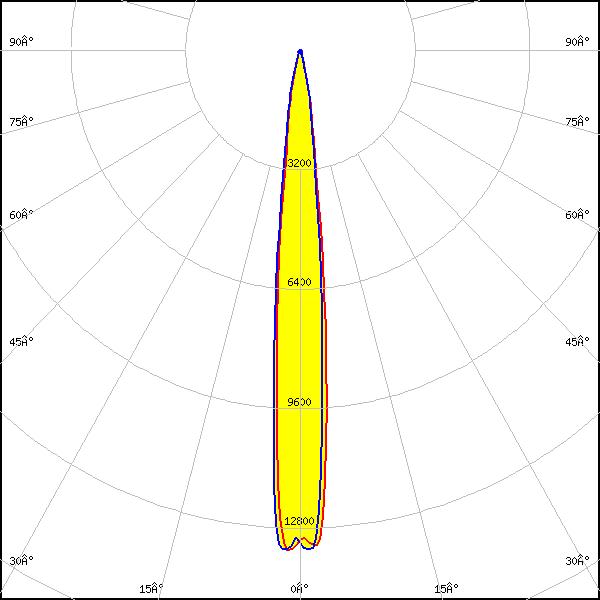

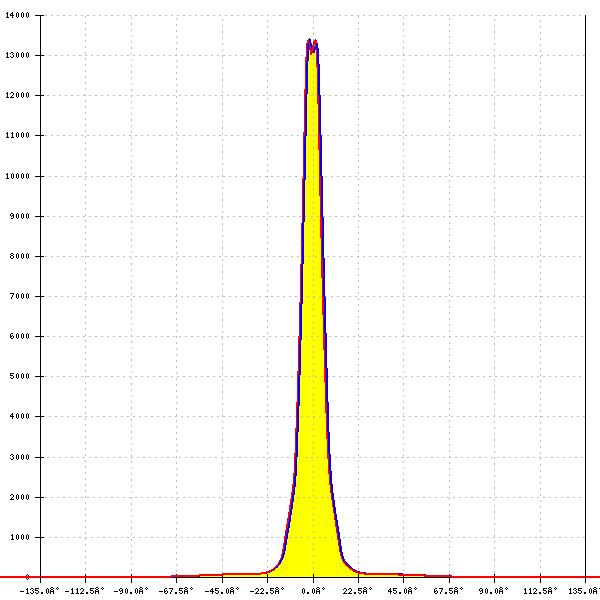

LED:
NV4x144A
FWHM:
11°
FWTM:
24°
Peak intensity:
13.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

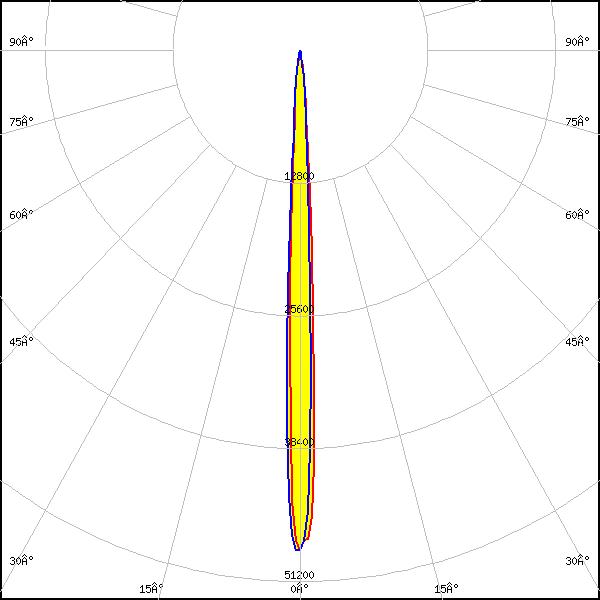

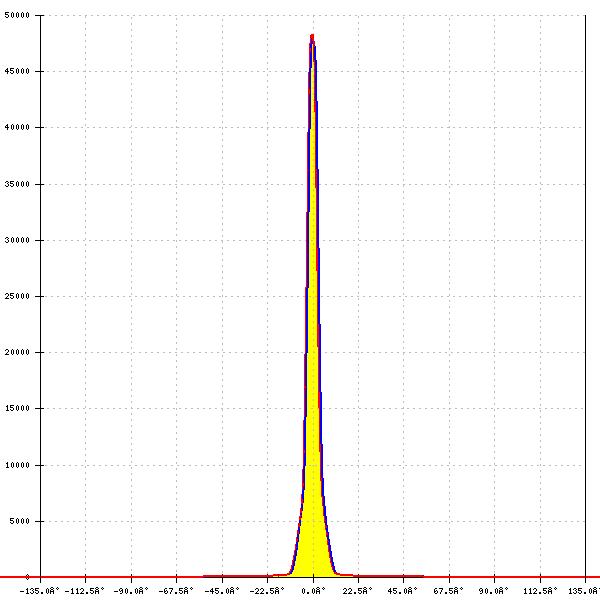

LED:
NVSxx19B/NVSxx19C
FWHM:
6°
FWTM:
13°
Peak intensity:
48.000 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

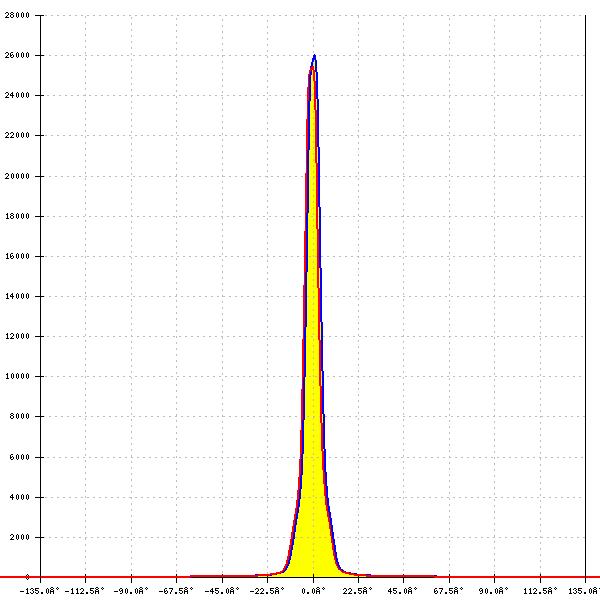

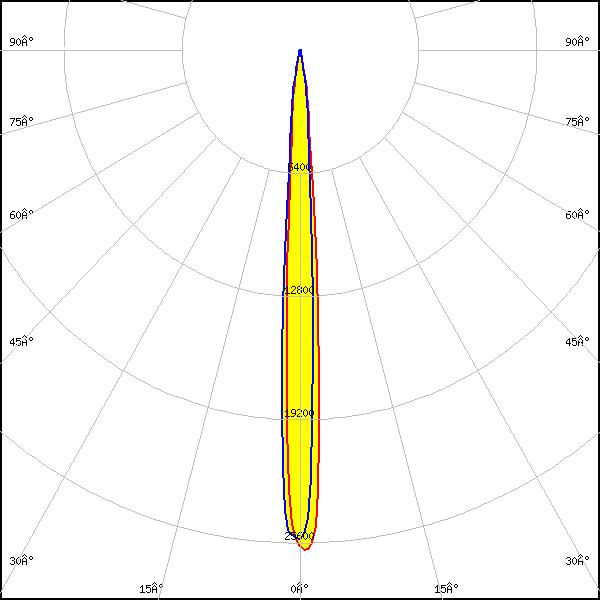

LED:
NWSx229A
FWHM:
7°
FWTM:
18°
Peak intensity:
26.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:
OSCONIQ P 3737 (2W version)
FWHM:
6°
FWTM:
13°
Peak intensity:
59.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

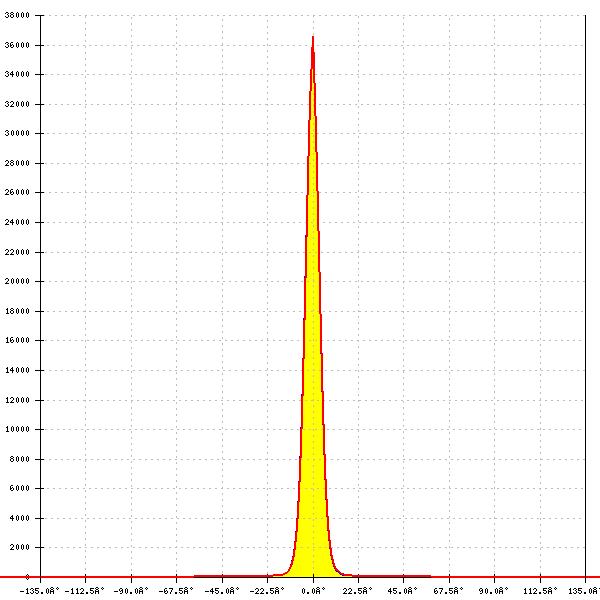

LED:
OSCONIQ P 3737 (3W version)
FWHM:
6°
FWTM:
13°
Peak intensity:
59.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

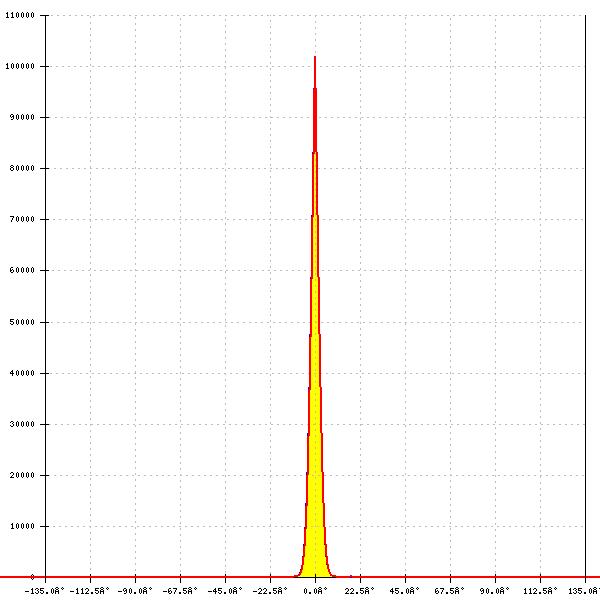

LED:
OSLON Pure 1414
FWHM:
4°
FWTM:
10°
Peak intensity:
101.950 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
5°
FWTM:
11°
Peak intensity:
67.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
OSLON Square Flat
FWHM:
5°
FWTM:
10°
Peak intensity:
78.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

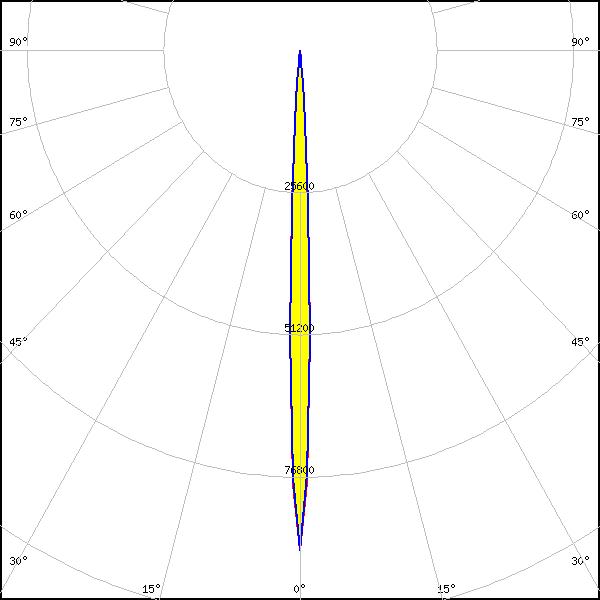

LED:
OSRAM OSTAR Projection Compact (KW CSLPM1.TG)
FWHM:
4°
FWTM:
9°
Peak intensity:
89.977 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

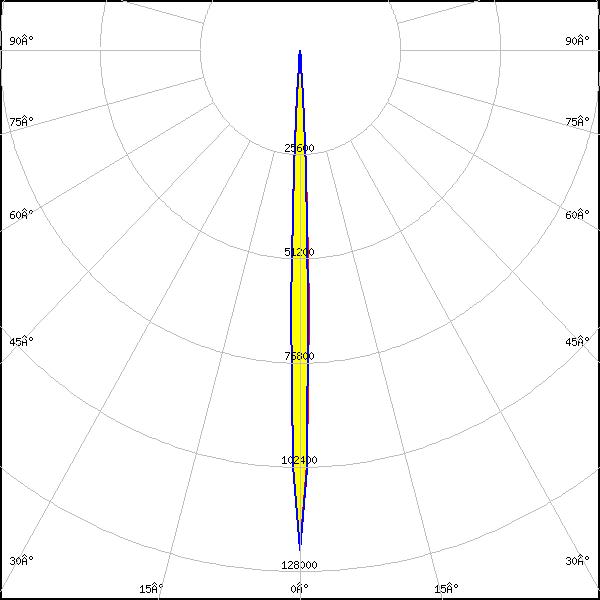

LED:
OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM:
4°
FWTM:
8°
Peak intensity:
122.794 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

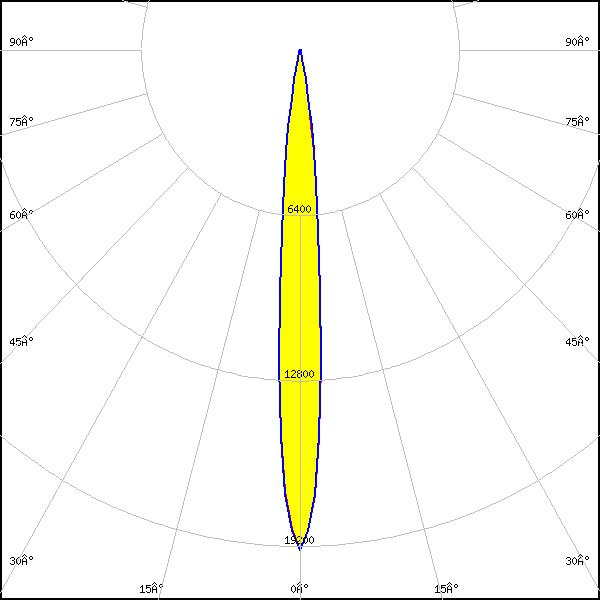

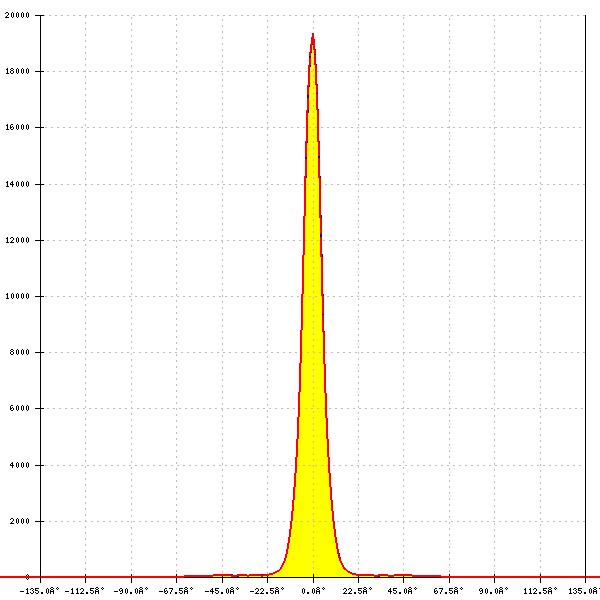

LED:
LH151B
FWHM:
10°
FWTM:
20°
Peak intensity:
19.354 cd/lm
Efficiency:
97 %
LEDs/each optic:
4
Light colour/type:
White

LED:
LH351B
FWHM:
6°
FWTM:
13°
Peak intensity:
48.028 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LH351B
FWHM:
5°
FWTM:
13°
Peak intensity:
51.770 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LH351C
FWHM:
6°
FWTM:
14°
Peak intensity:
44.807 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

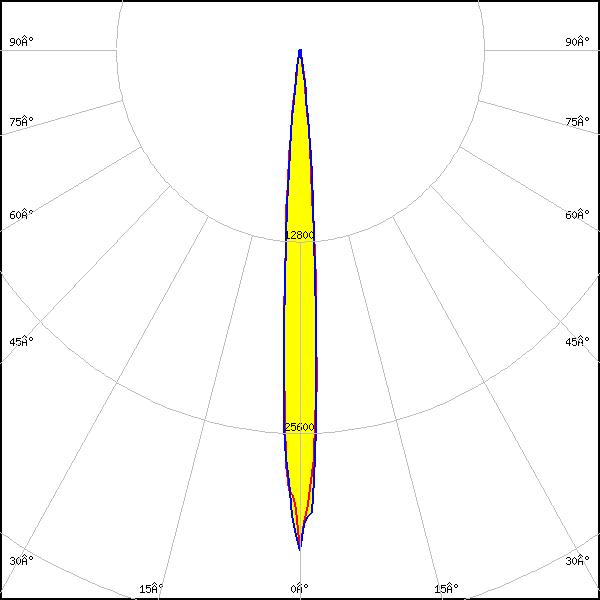

LED:
LH351D
FWHM:
8°
FWTM:
15°
Peak intensity:
34.164 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

LED:
LH351Z
FWHM:
4°
FWTM:
10°
Peak intensity:
71.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

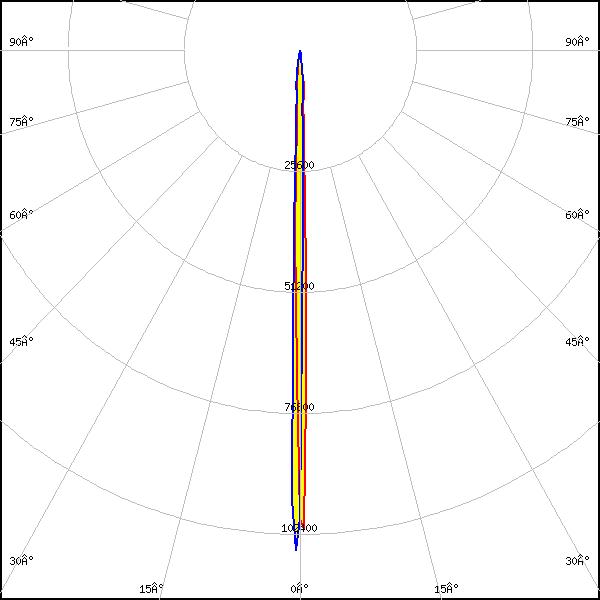

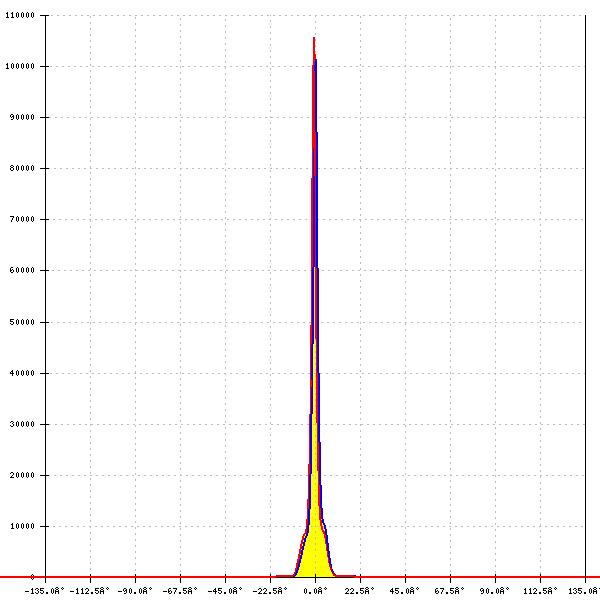

LED:
nPola
FWHM:
2°
FWTM:
7°
Peak intensity:
114.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

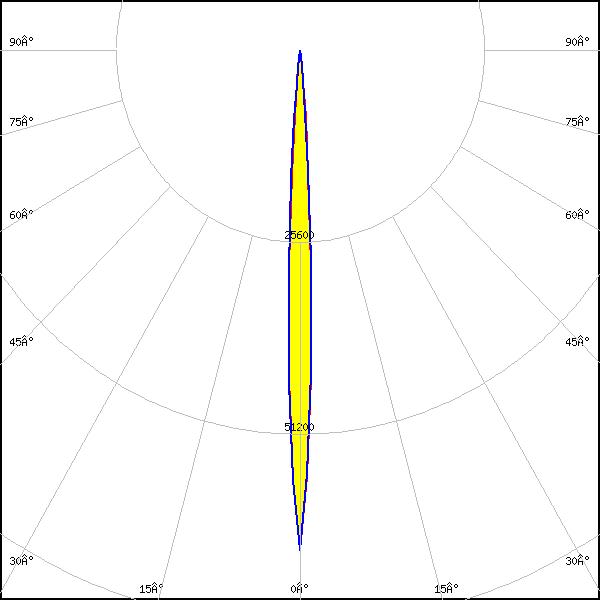

LED:
Z5M1/Z5M2
FWHM:
5°
FWTM:
11°
Peak intensity:
66.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Z5M3
FWHM:
6°
FWTM:
19°
Peak intensity:
28.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Z8Y22P
FWHM:
8°
FWTM:
-
Peak intensity:
29.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:
Z8Y50P
FWHM:
12°
FWTM:
24°
Peak intensity:
12.729 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
