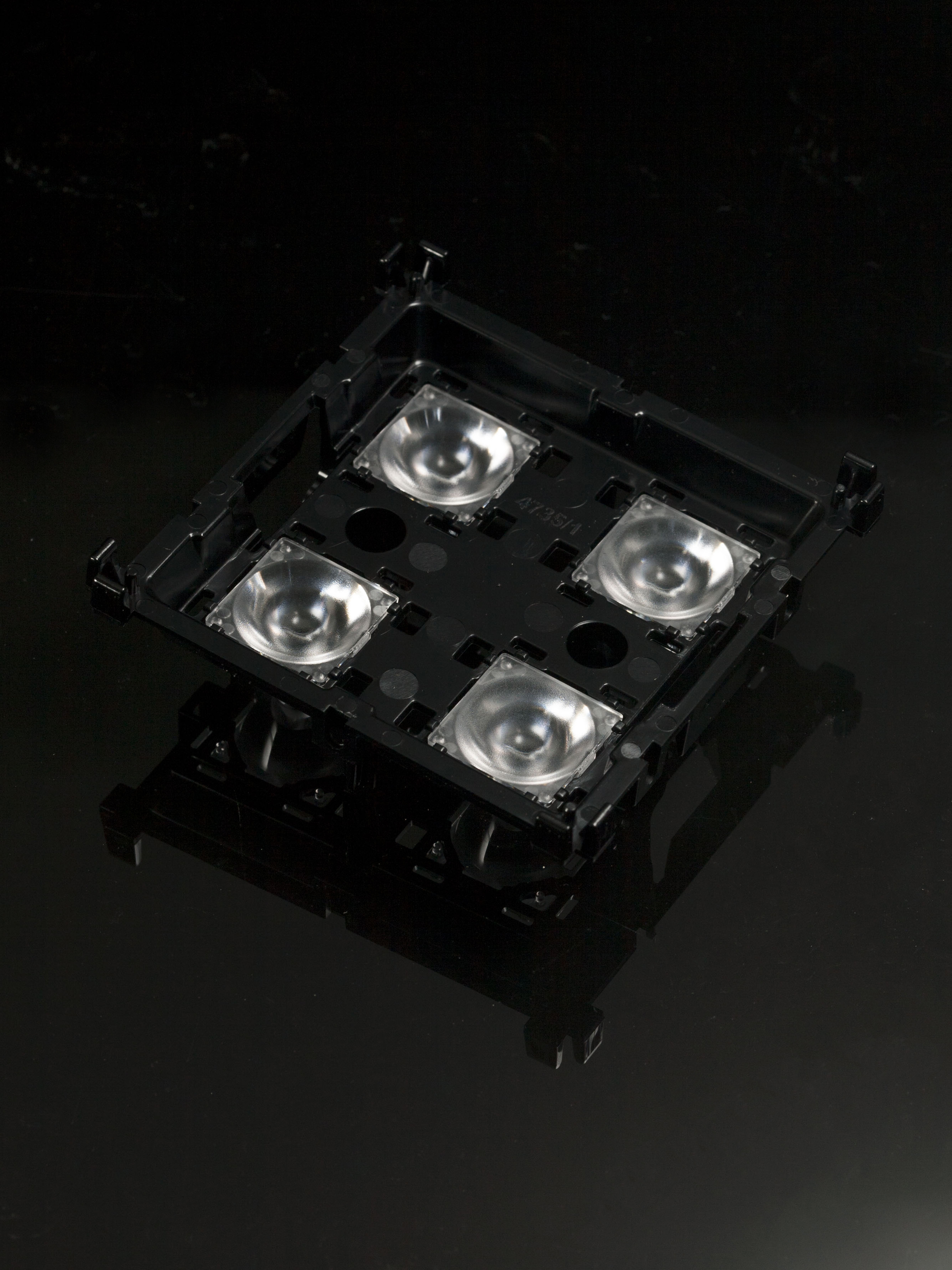

FCP14966_FLORENTINA-2X2-D

Print

~18° diffused spot beam

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    22.20 mm
  • Fastening:
    pin, screw
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    88 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    4.3 kg
  • MPQ:
    8 pcs
  • MOQ:
    24 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FCP14966_FLORENTINA-2X2-D

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

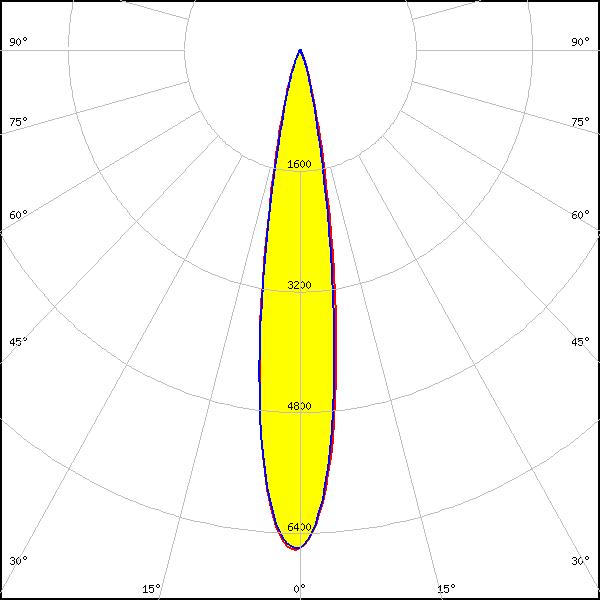

LED: EASY-T FLUX 2x2 FLR XG xxx G7
FWHM: 18°
FWTM: 34°
Peak intensity: 6.600 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

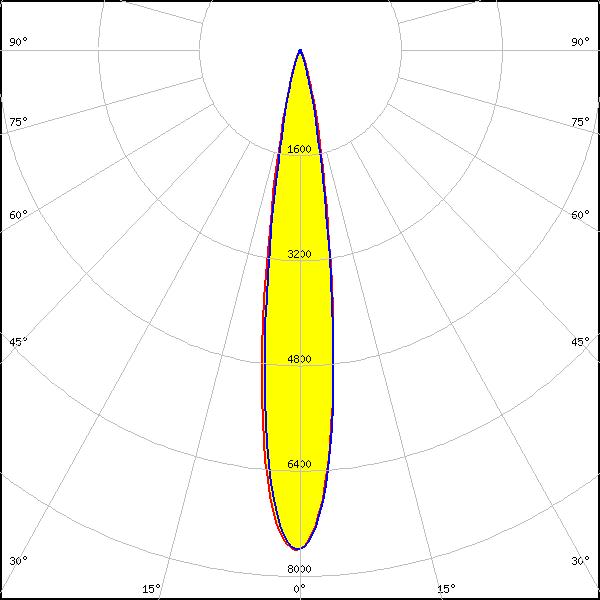

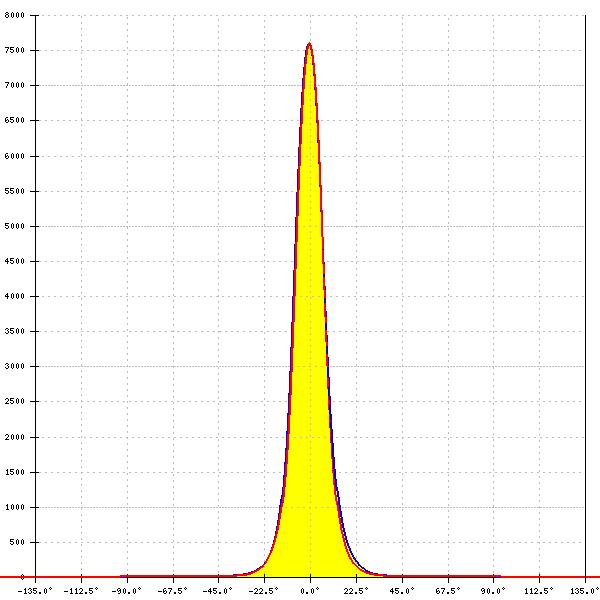

LED: EASY-T FLUX 2x2 FLR XT xxx G5
FWHM: 16°
FWTM: 31°
Peak intensity: 7.600 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

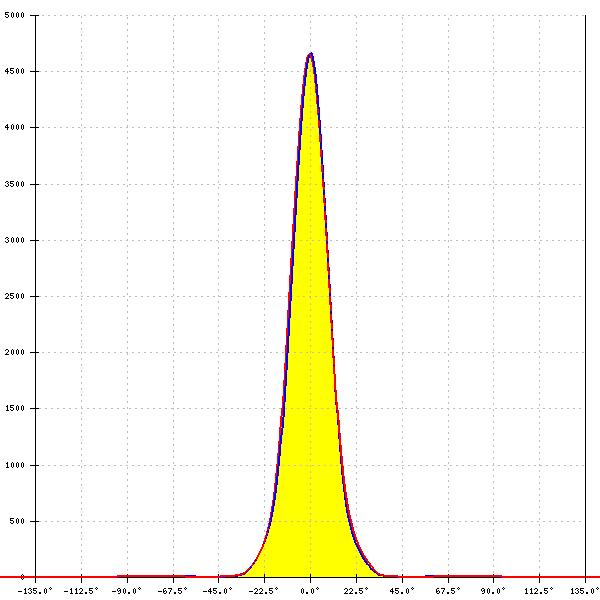

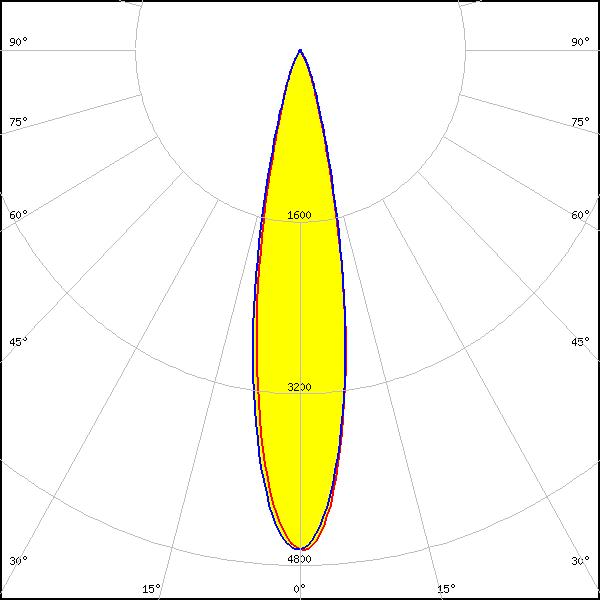

LED: XHP35 HD
Required components:
FWHM: 21°
FWTM: 40°
Peak intensity: 4.700 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35 HD
Required components:
FWHM: 21°
FWTM: 40°
Peak intensity: 4.700 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

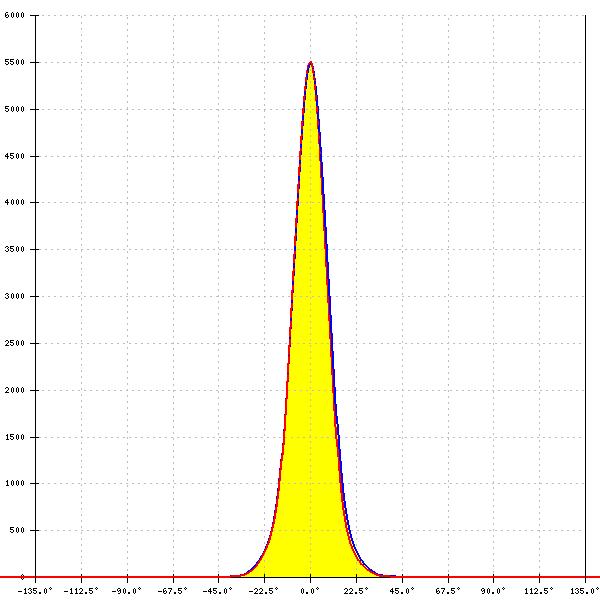

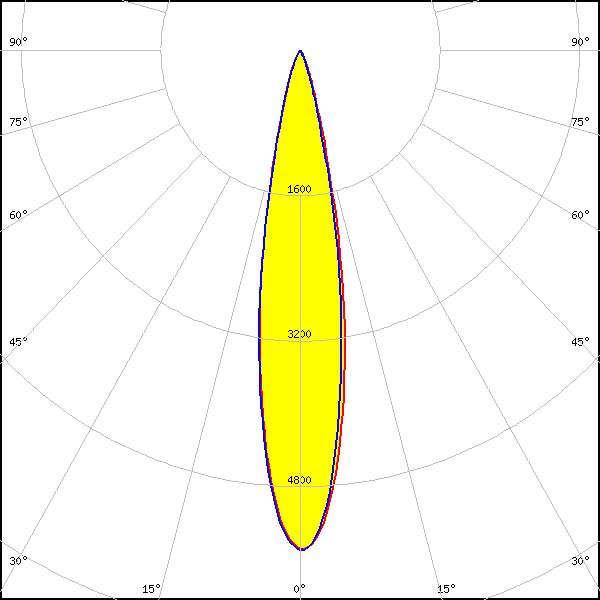

LED: XP-L HD
Required components:
FWHM: 19°
FWTM: 36°
Peak intensity: 5.500 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
Required components:
FWHM: 19°
FWTM: 36°
Peak intensity: 5.500 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
Required components:
FWHM: 19°
FWTM: 36°
Peak intensity: 5.500 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

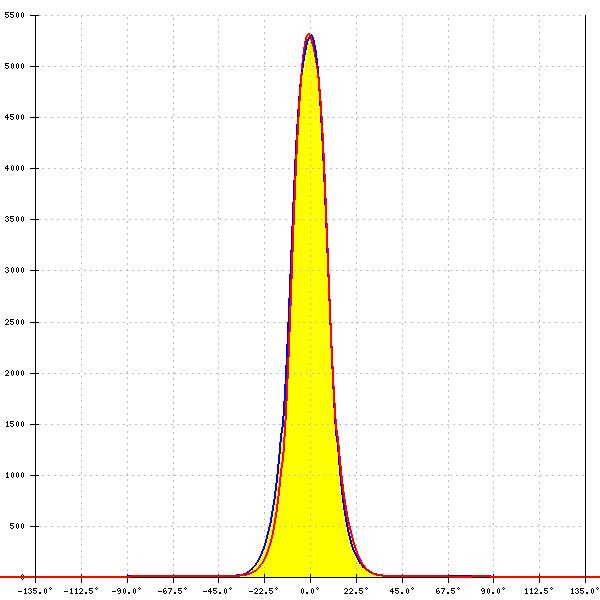

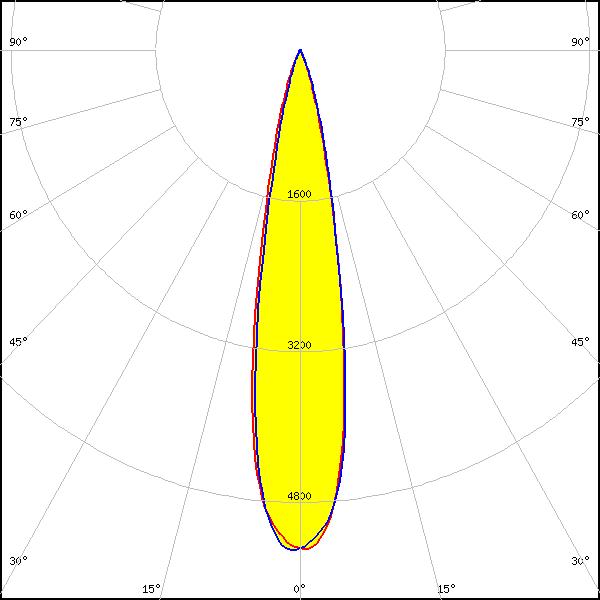

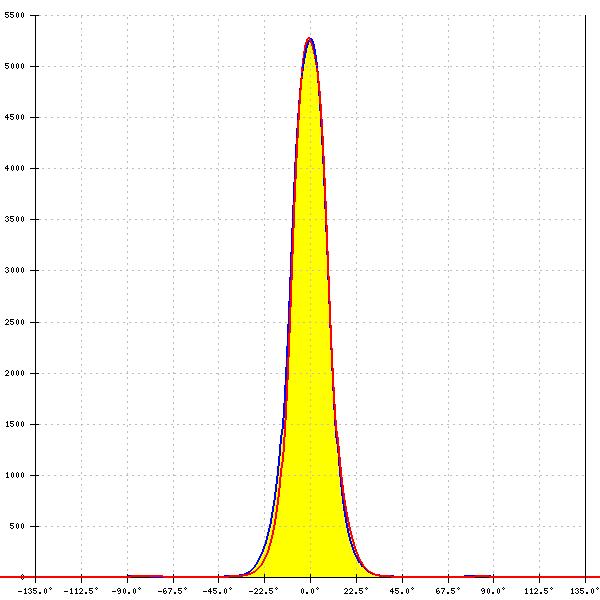

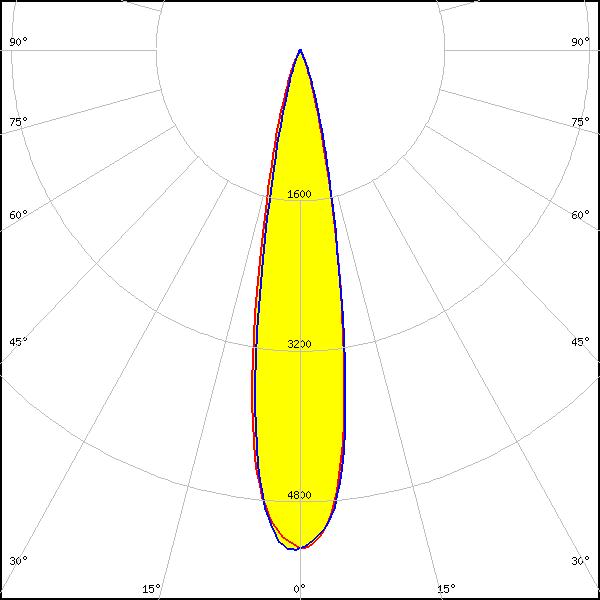

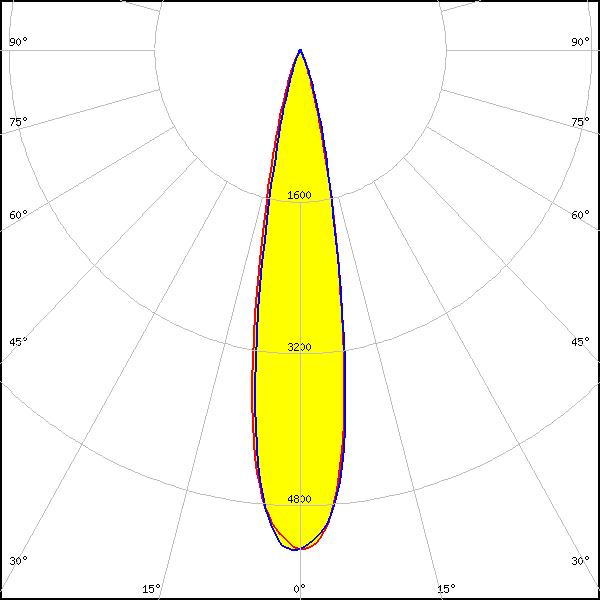

LED: LUXEON MZ
Required components:
FWHM: 20°
FWTM: 37°
Peak intensity: 5.300 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON MZ
Required components:
FWHM: 20°
FWTM: 37°
Peak intensity: 5.300 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON MZ
Required components:
FWHM: 20°
FWTM: 37°
Peak intensity: 5.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

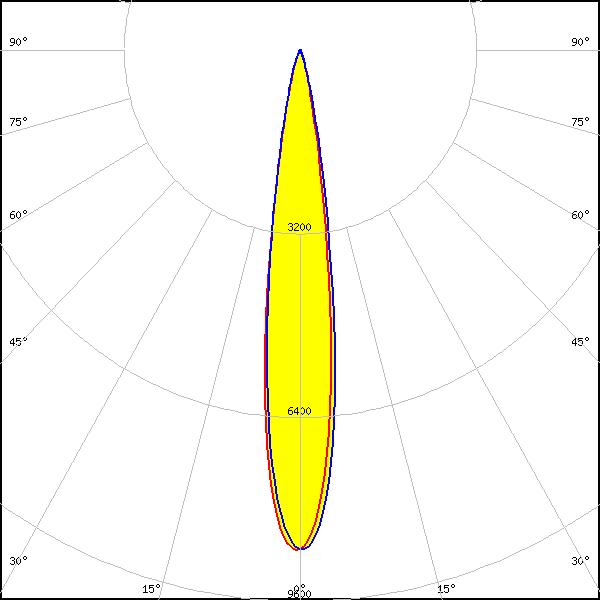

LED: LUXEON TX
Required components:
FWHM: 15°
FWTM: 29°
Peak intensity: 8.700 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON TX
Required components:
FWHM: 15°
FWTM: 29°
Peak intensity: 8.700 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

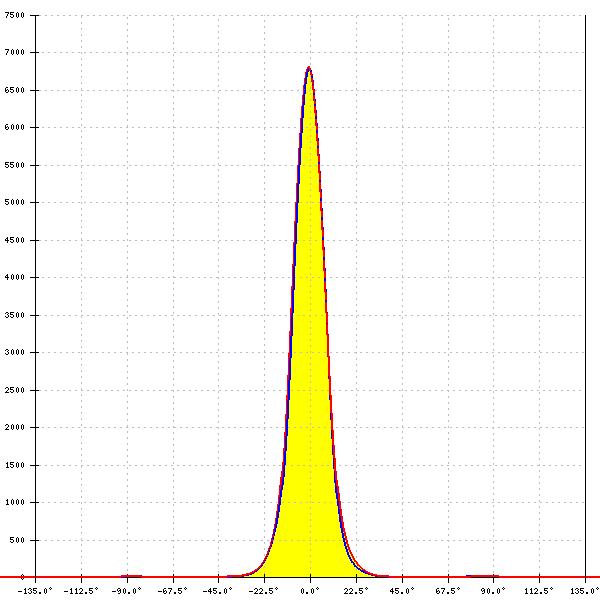

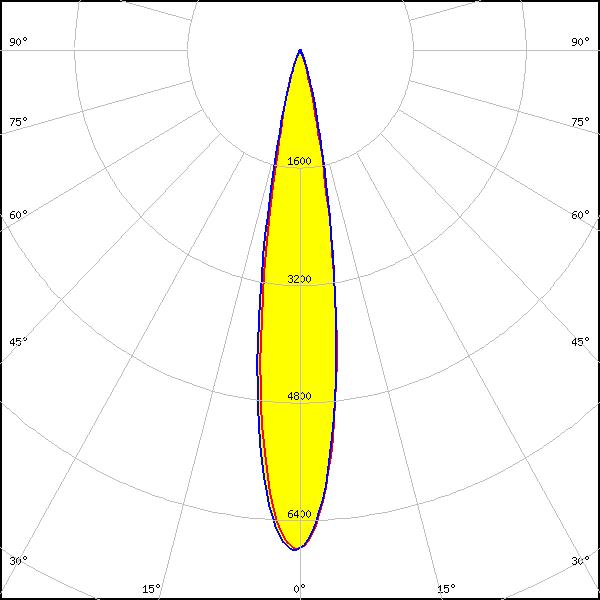

LED: NVSxx19B/NVSxx19C
Required components:
FWHM: 18°
FWTM: 32°
Peak intensity: 6.800 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
Required components:
FWHM: 18°
FWTM: 32°
Peak intensity: 6.800 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

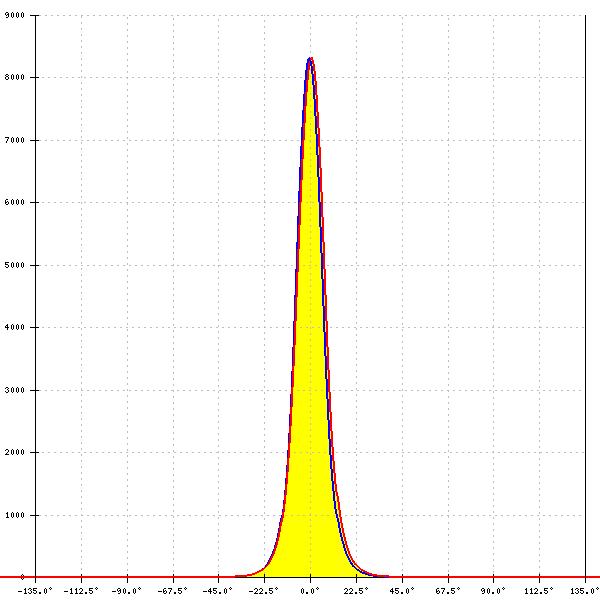

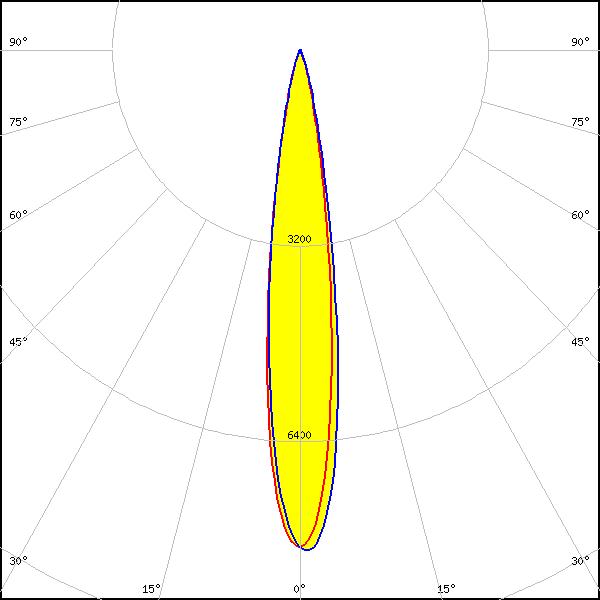

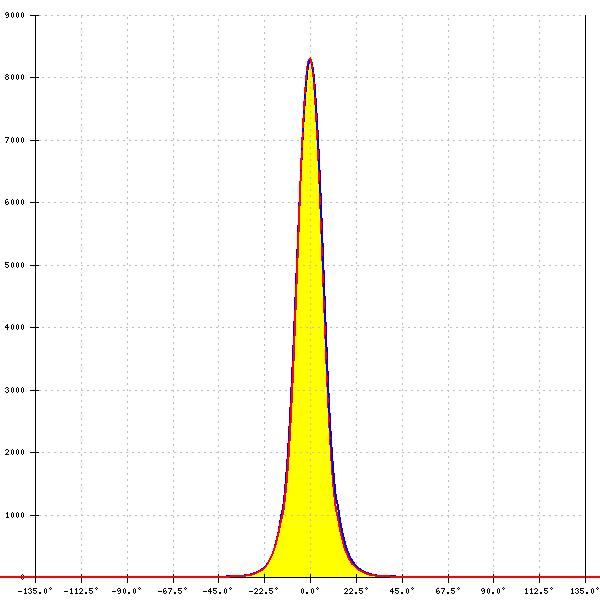

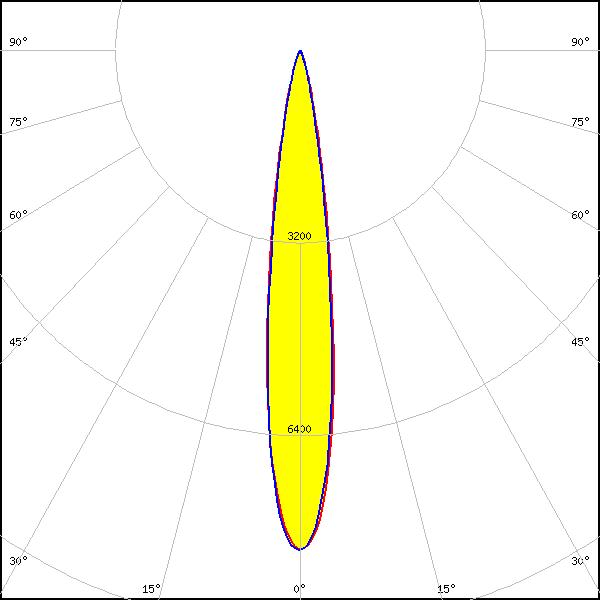

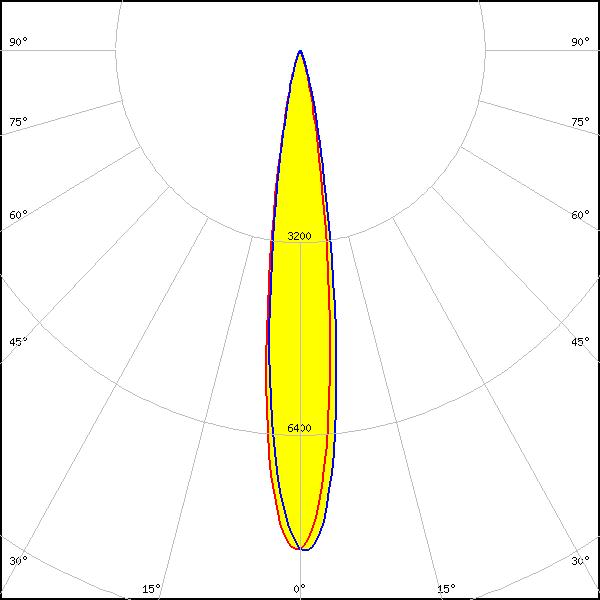

LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: 15°
FWTM: 29°
Peak intensity: 8.300 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: 15°
FWTM: 29°
Peak intensity: 8.300 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

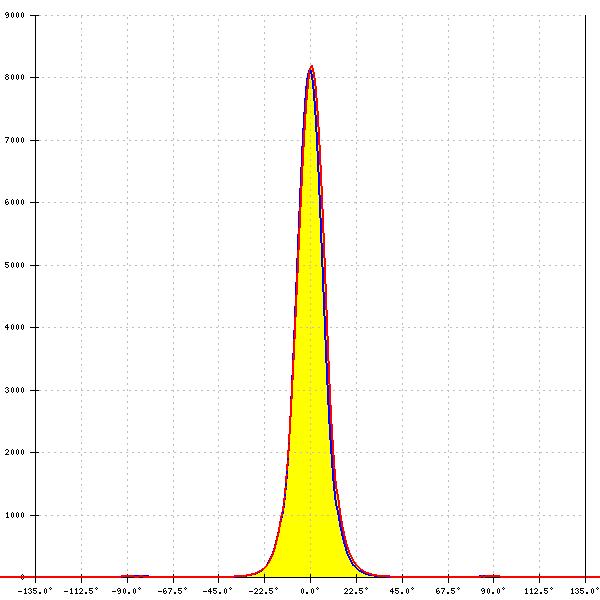

LED: OSLON Square EC
Required components:
FWHM: 15°
FWTM: 30°
Peak intensity: 8.200 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square EC
Required components:
FWHM: 15°
FWTM: 30°
Peak intensity: 8.200 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

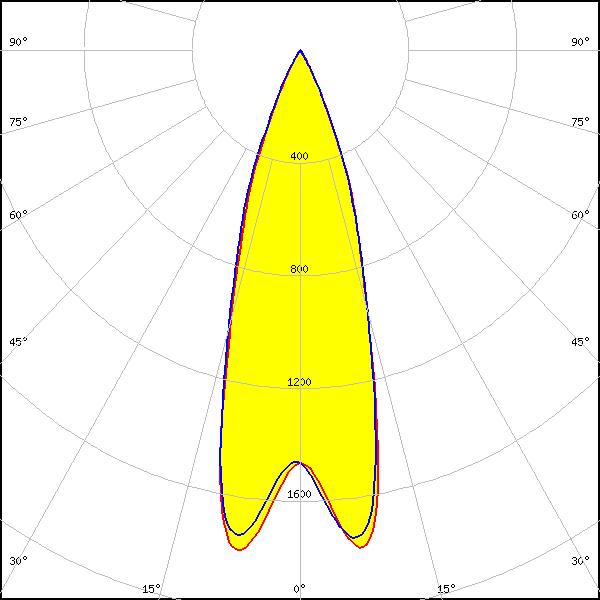

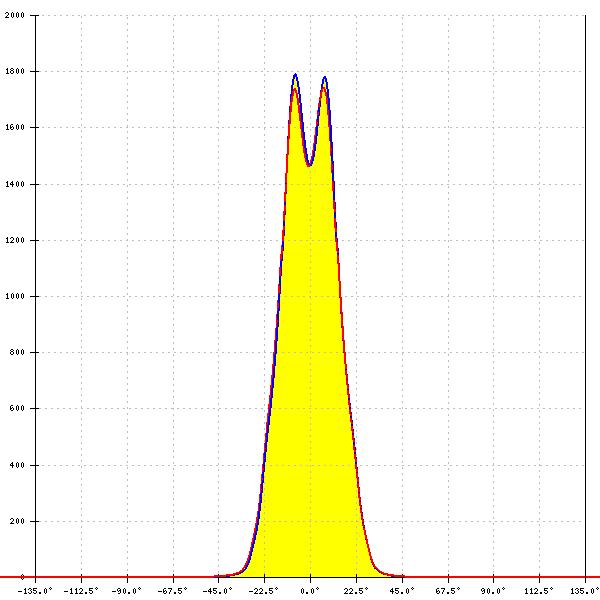

LED: HiLOM SC16 (LH181B)
Required components:
FWHM: 32°
FWTM: 54°
Peak intensity: 1.789 cd/lm
Efficiency: 65 %
LEDs/each optic: 1
Light colour/type: White
