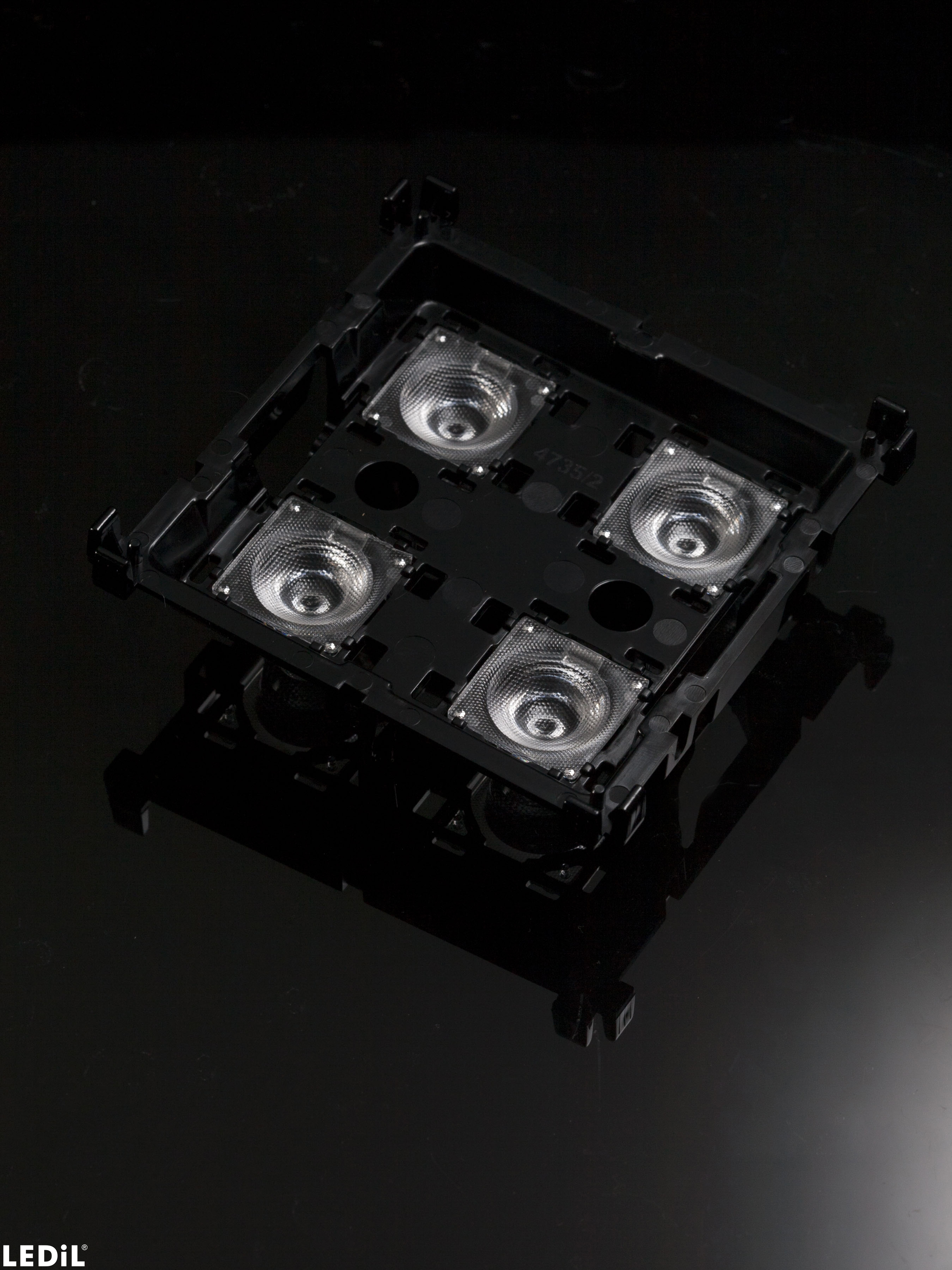

FCP14969_FLORENTINA-2X2-W
Print~40° wide beam
Specification
-
Dimensions:90 x 90 mm
-
Height:22.20 mm
-
Fastening:pin, screw
-
Colour:black
-
RoHS and REACH compliant:Yes
Materials
- ROSE-C-C-W-V4, Single lens, PC
- FLORENTINA-2X2-HLD, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:88 pcs
-
Box size:476 x 273 x 292 mm
-
Box weight:4.0 kg
-
MPQ:8 pcs
-
MOQ:24 pcs
-
MOQ size:480 x 280 x 100 mm
-
MOQ weight:0.0 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

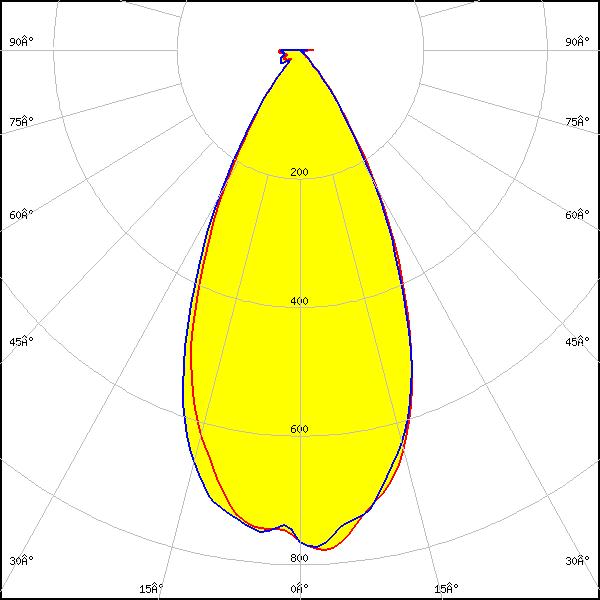

Optical results

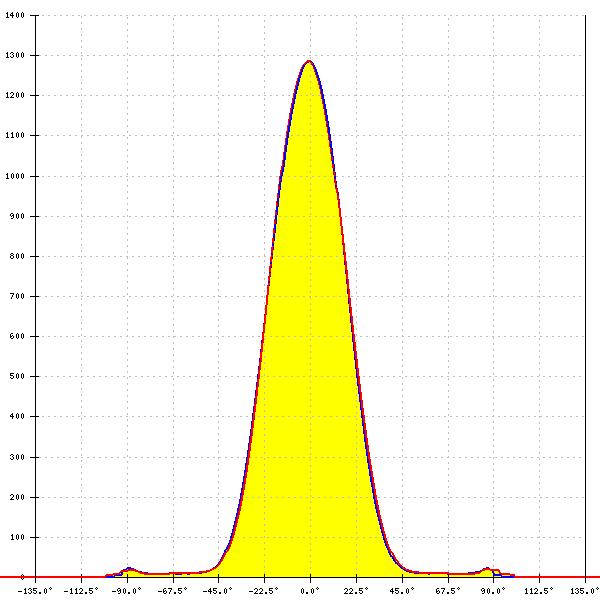

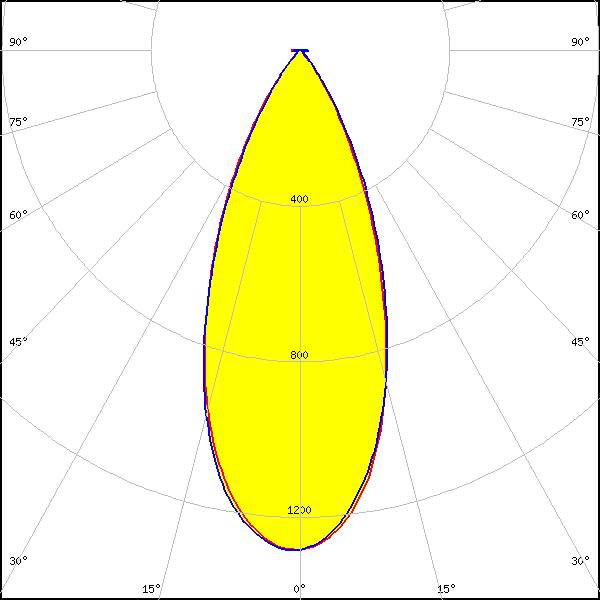

LED:
EASY-T FLUX 2x2 FLR XG xxx G7
FWHM:
42°
FWTM:
72°
Peak intensity:
1.300 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

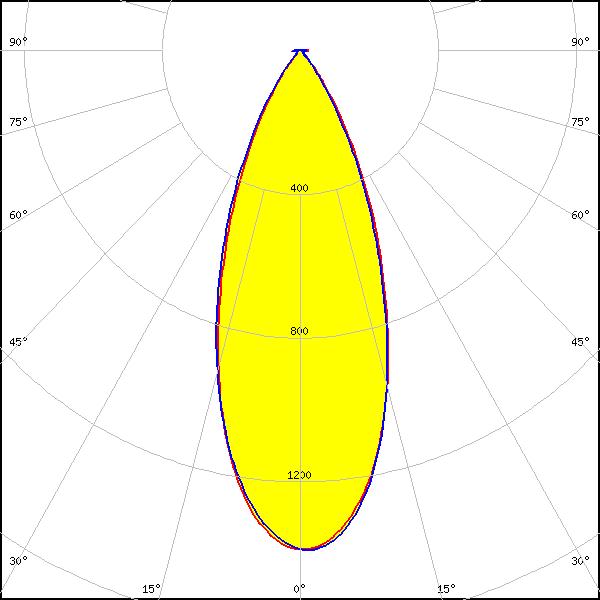

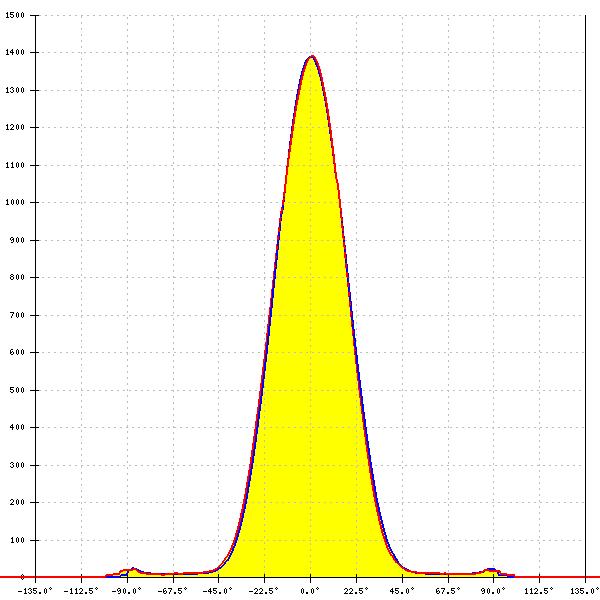

LED:
EASY-T FLUX 2x2 FLR XT xxx G5
FWHM:
40°
FWTM:
70°
Peak intensity:
1.400 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

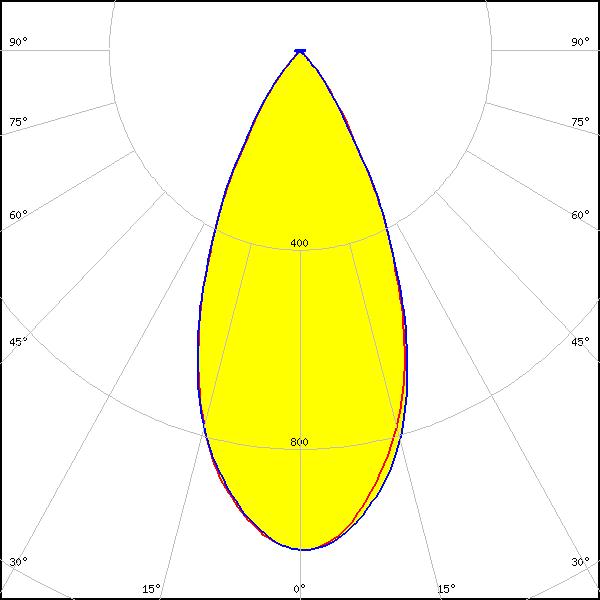

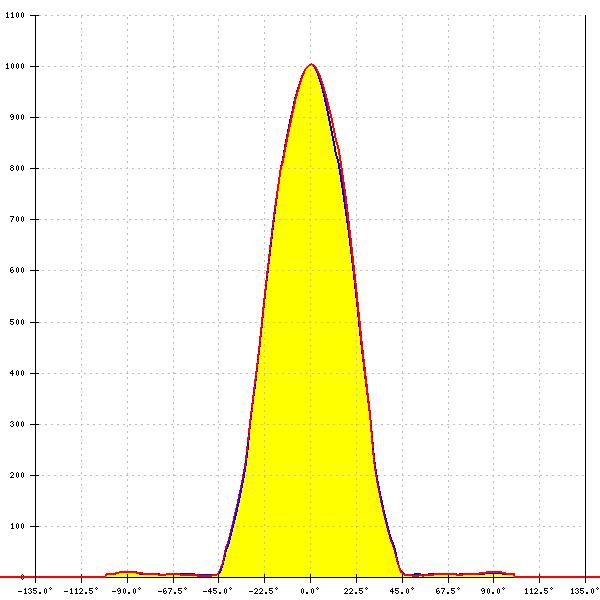

LED:
XHP35 HD
Required components:
FWHM:
49°
FWTM:
77°
Peak intensity:
1.000 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HD
Required components:
FWHM:
49°
FWTM:
77°
Peak intensity:
1.000 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

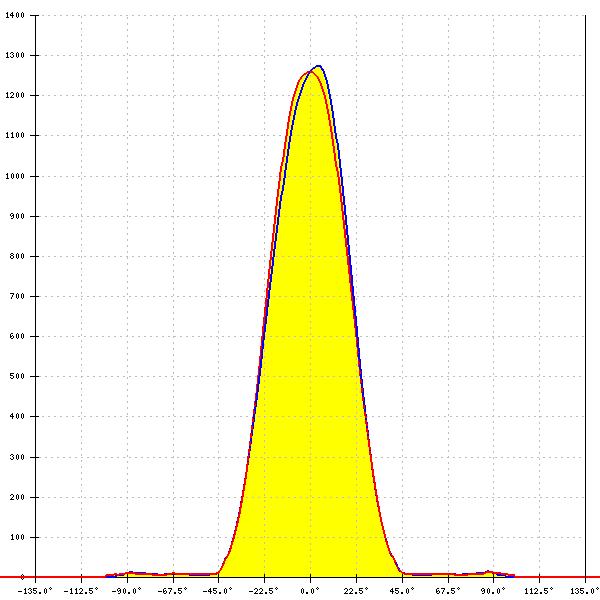

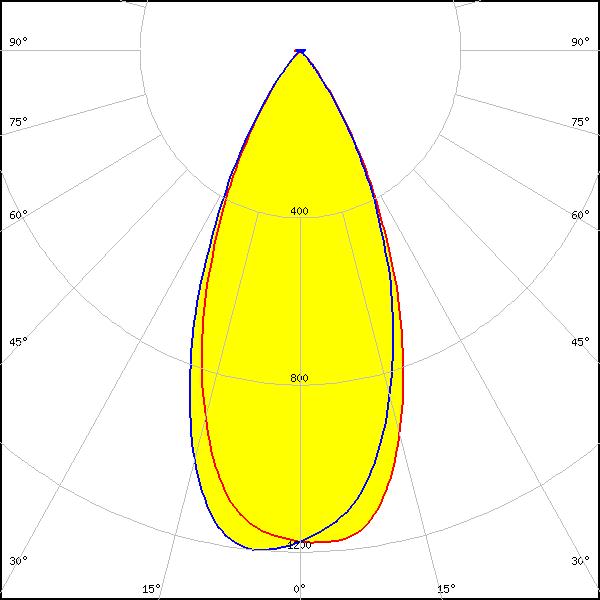

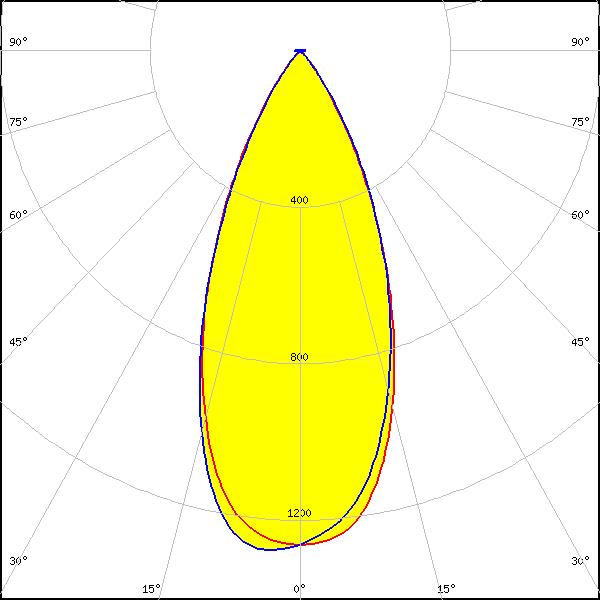

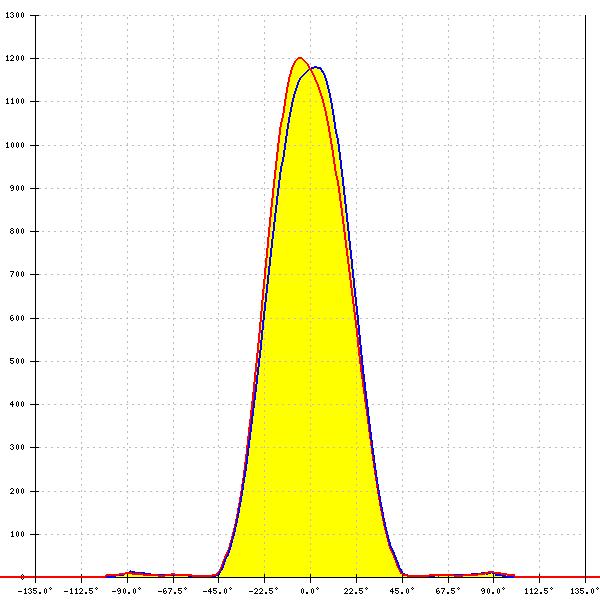

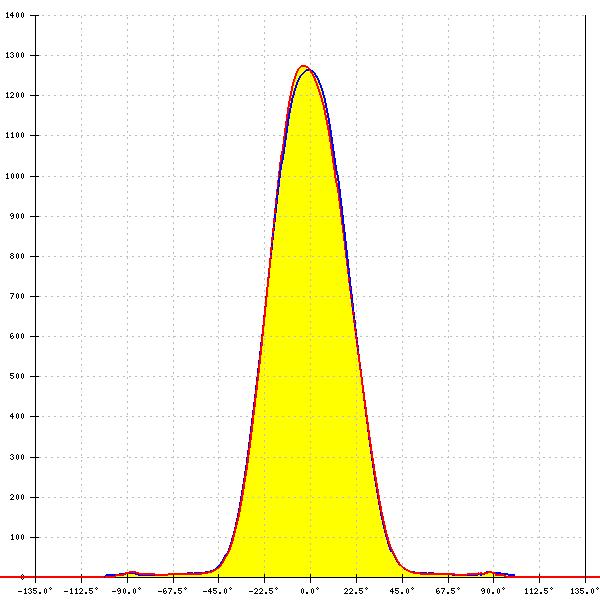

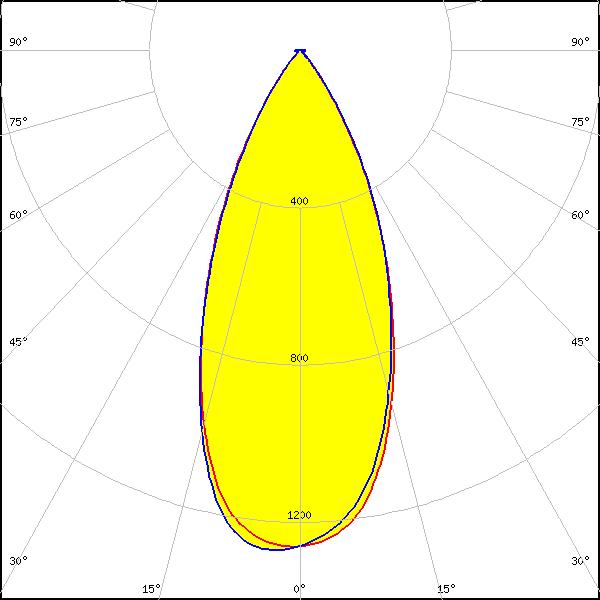

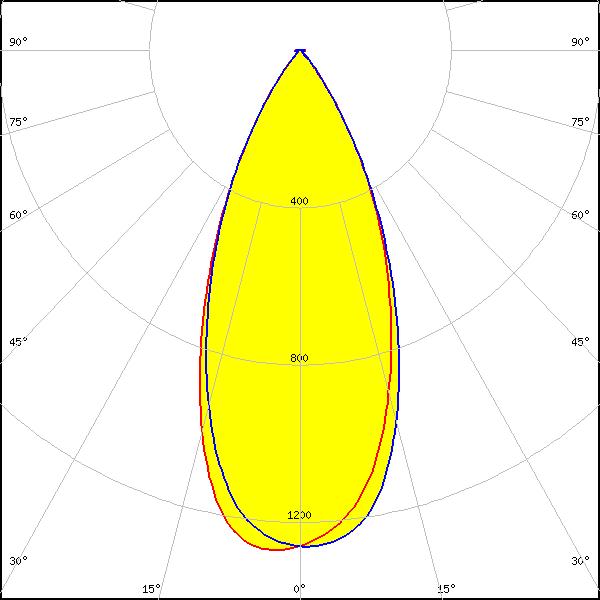

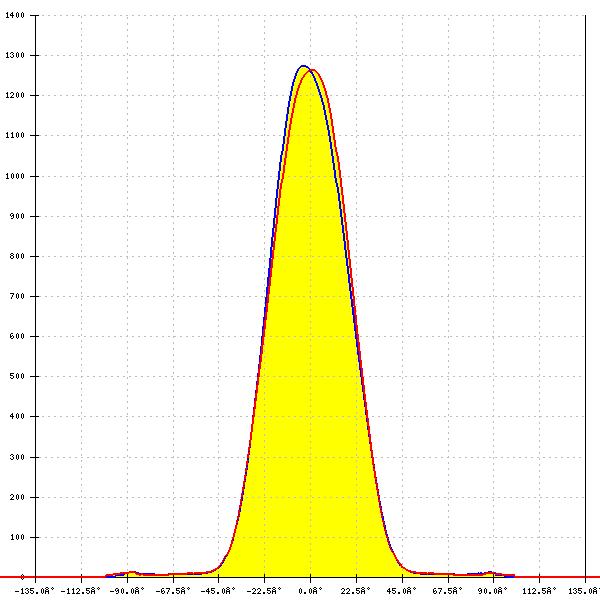

LED:
XP-G2
FWHM:
44°
FWTM:
73°
Peak intensity:
1.274 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

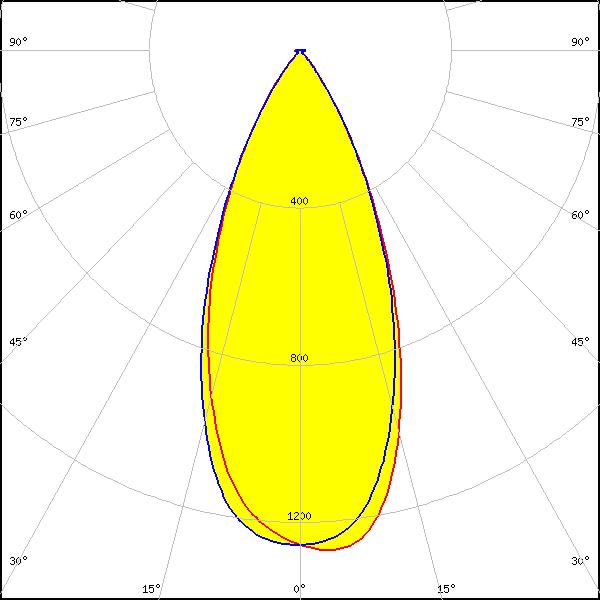

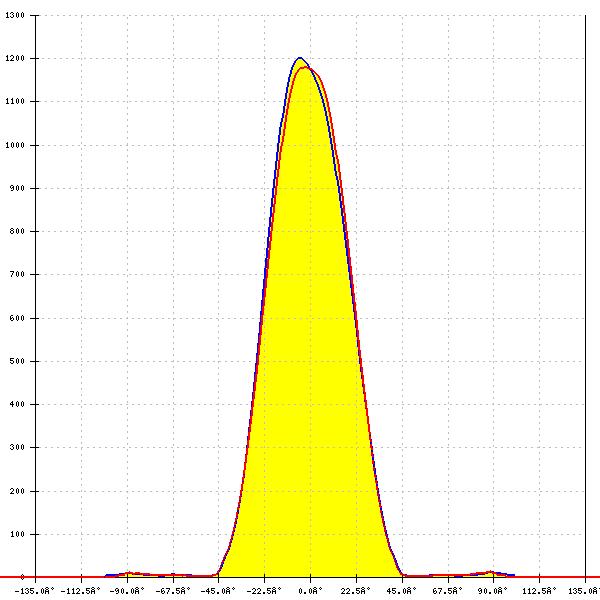

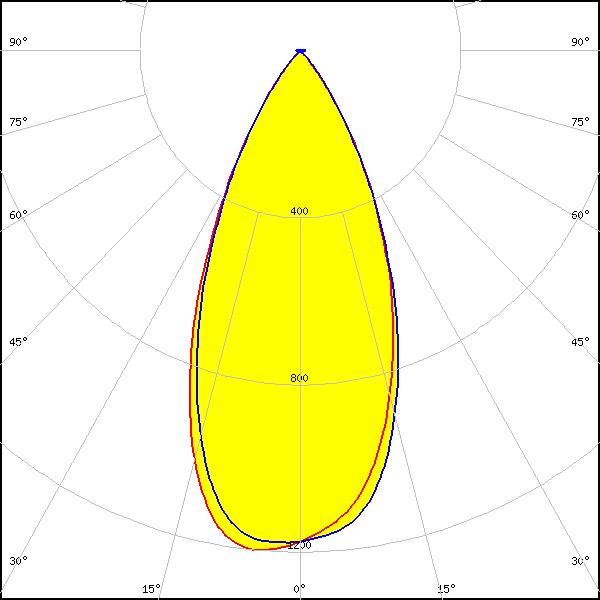

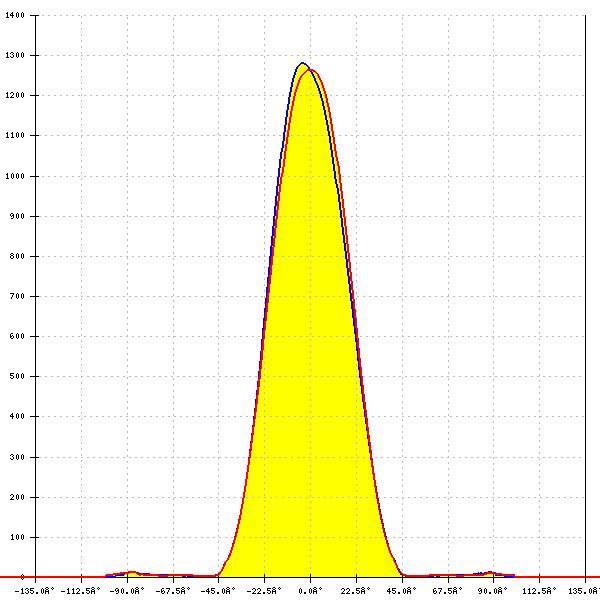

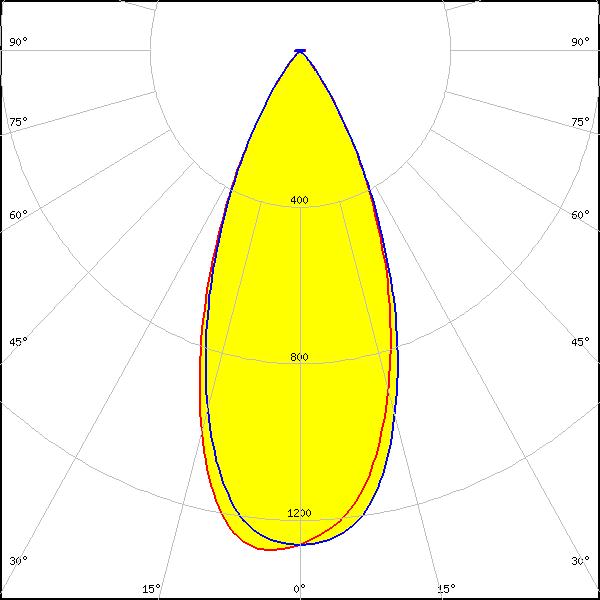

LED:
XP-G2
Required components:
FWHM:
44°
FWTM:
72°
Peak intensity:
1.280 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

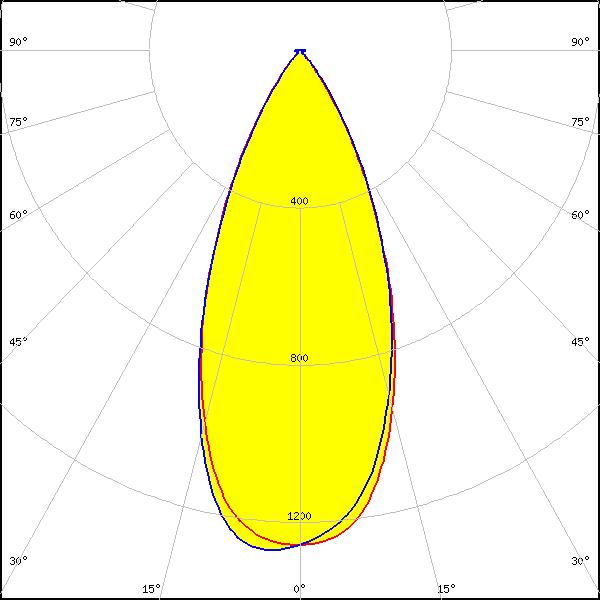

LED:
XP-G2
Required components:
FWHM:
44°
FWTM:
72°
Peak intensity:
1.274 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
Required components:
FWHM:
46°
FWTM:
74°
Peak intensity:
1.202 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

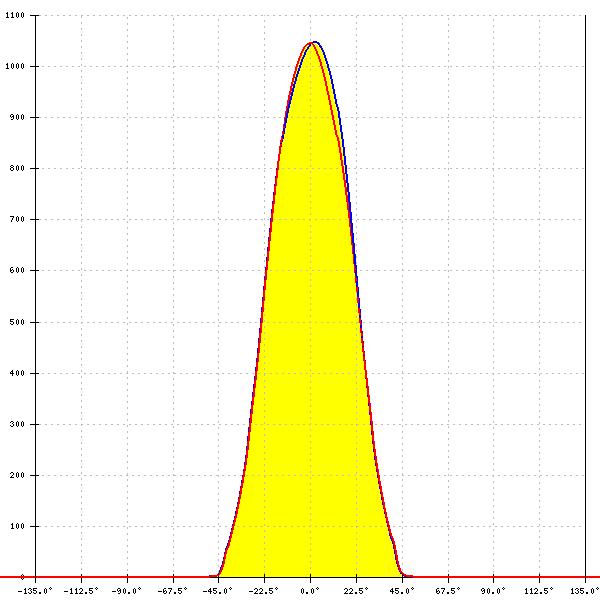

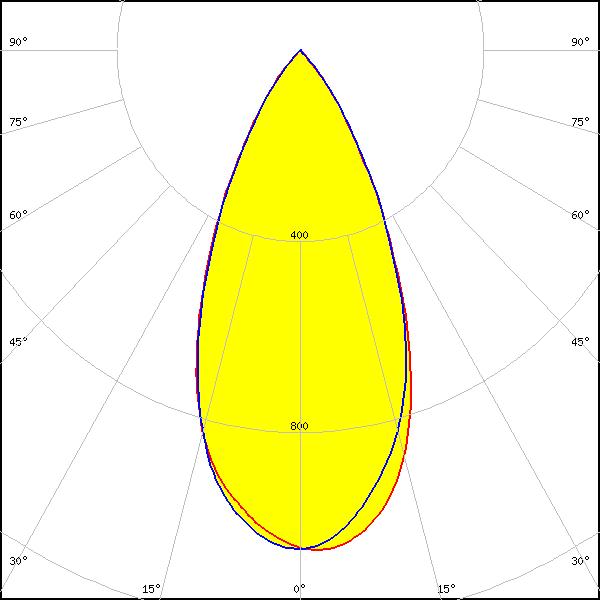

LED:
XP-L HD
Required components:
FWHM:
49°
FWTM:
77°
Peak intensity:
1.000 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HD
Required components:
FWHM:
49°
FWTM:
77°
Peak intensity:
1.000 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HD
Required components:
FWHM:
49°
FWTM:
77°
Peak intensity:
1.000 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

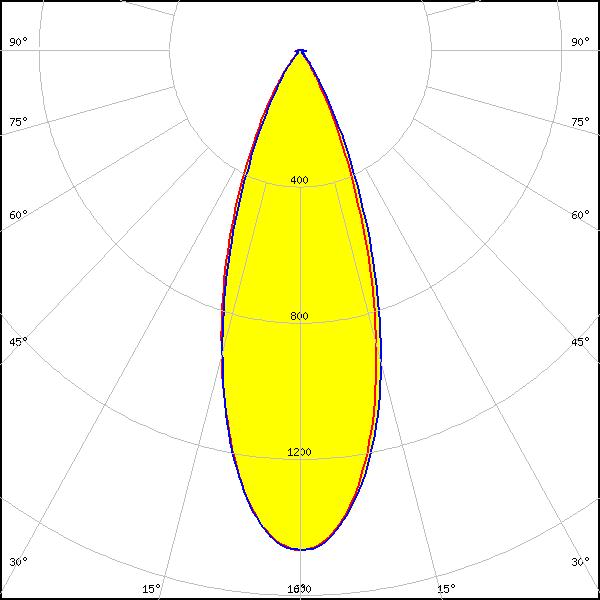

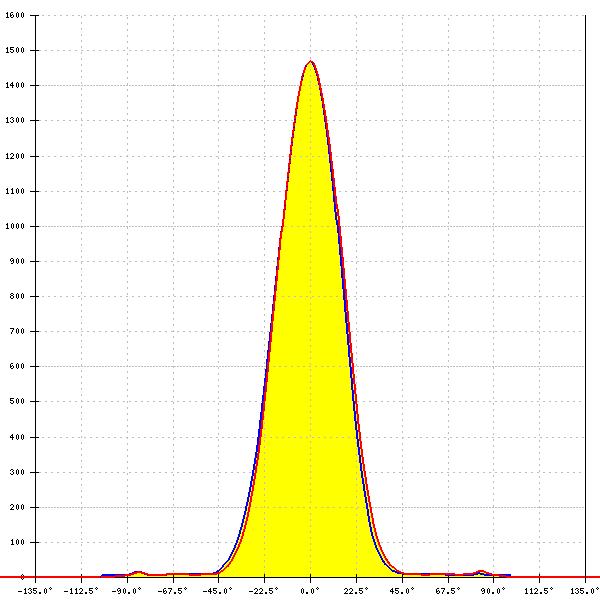

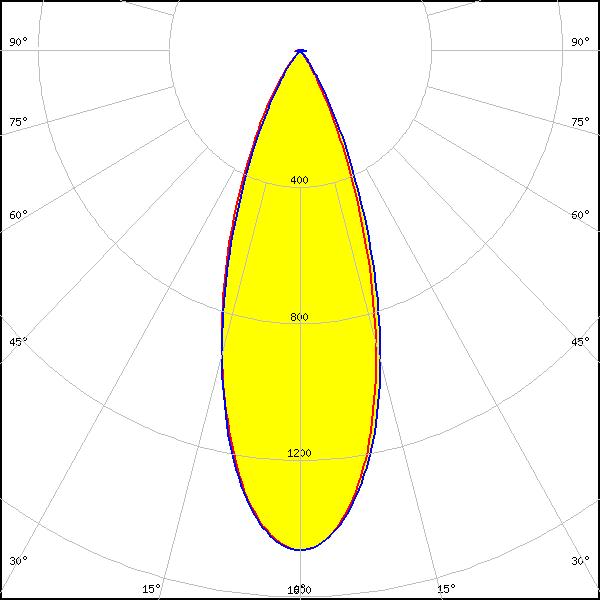

LED:

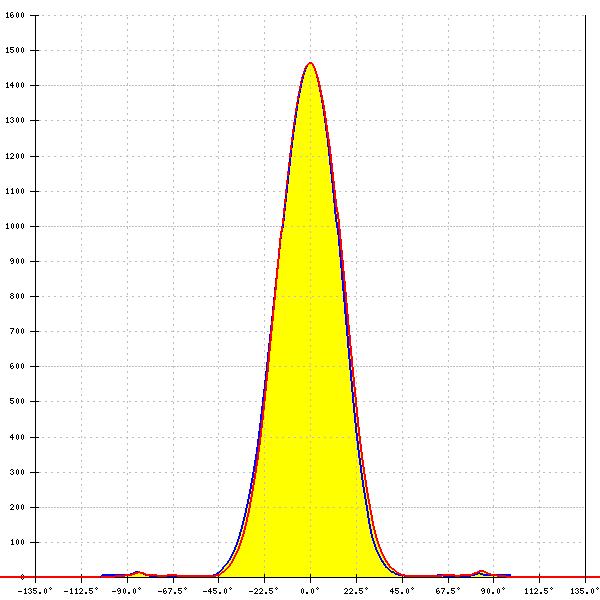

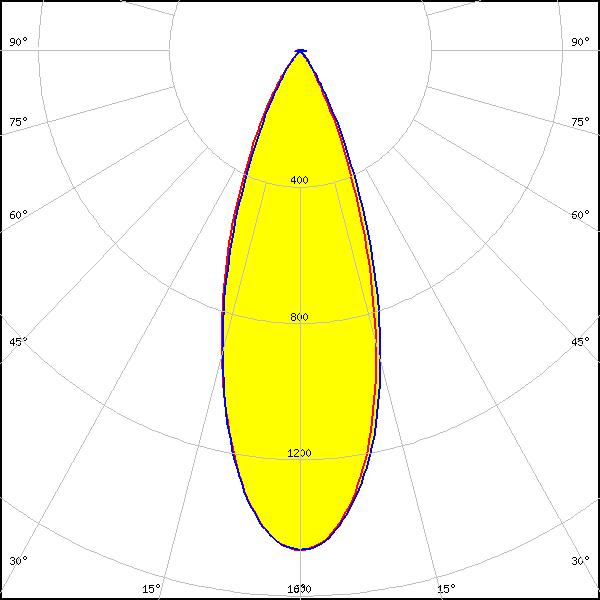

LUXEON MZ
Required components:
FWHM:
36°
FWTM:
63°
Peak intensity:
1.500 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
Required components:
FWHM:
36°
FWTM:
63°
Peak intensity:
1.500 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
Required components:
FWHM:
37°
FWTM:
63°
Peak intensity:
1.500 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White

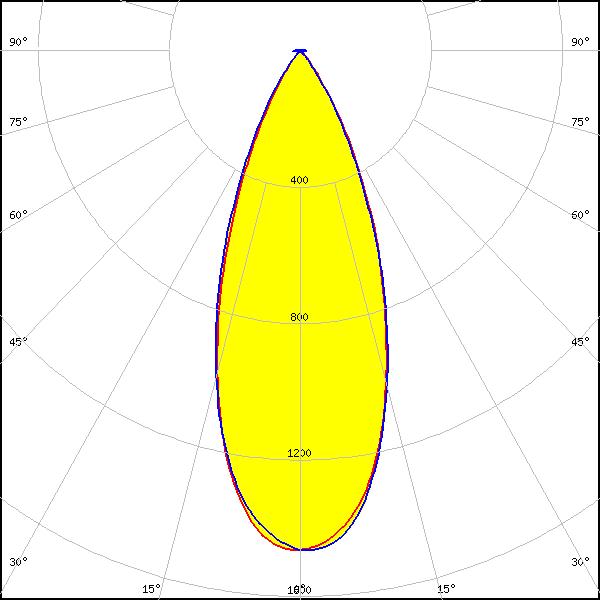

LED:

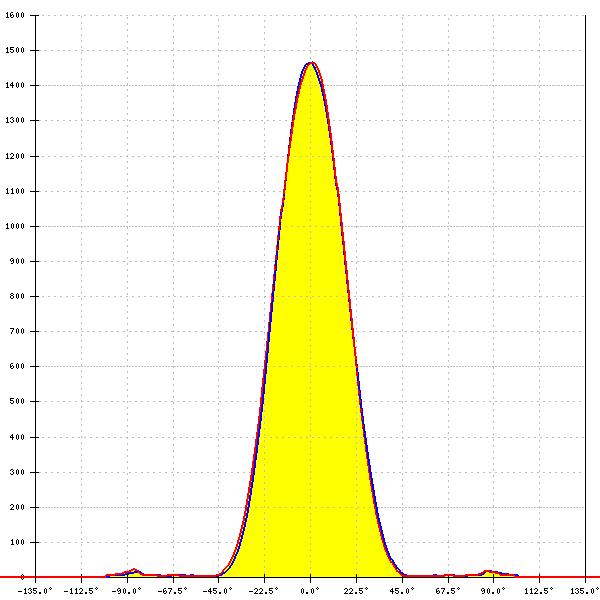

LUXEON TX
Required components:
FWHM:
41°
FWTM:
67°
Peak intensity:
1.500 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
Required components:
FWHM:
41°
FWTM:
67°
Peak intensity:
1.500 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

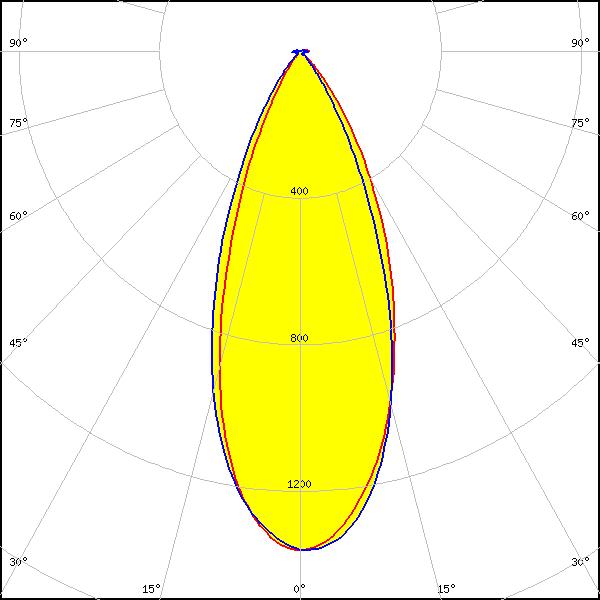

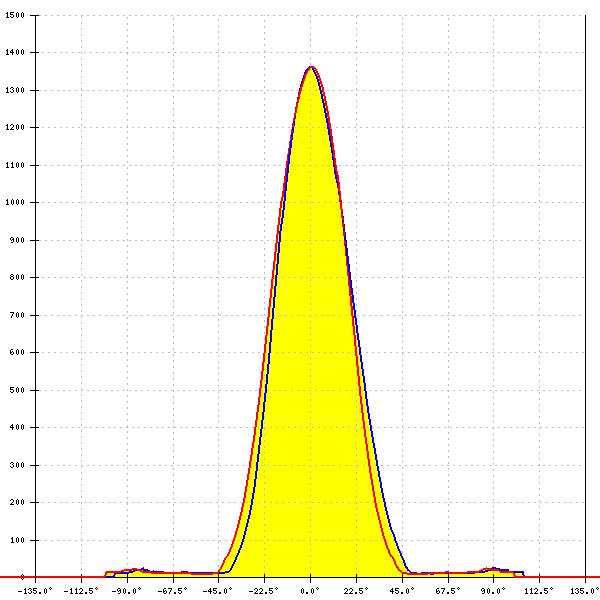

LED:
NVSxx19B/NVSxx19C
Required components:
FWHM:
42°
FWTM:
71°
Peak intensity:
1.400 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
Required components:
FWHM:
42°
FWTM:
71°
Peak intensity:
1.400 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

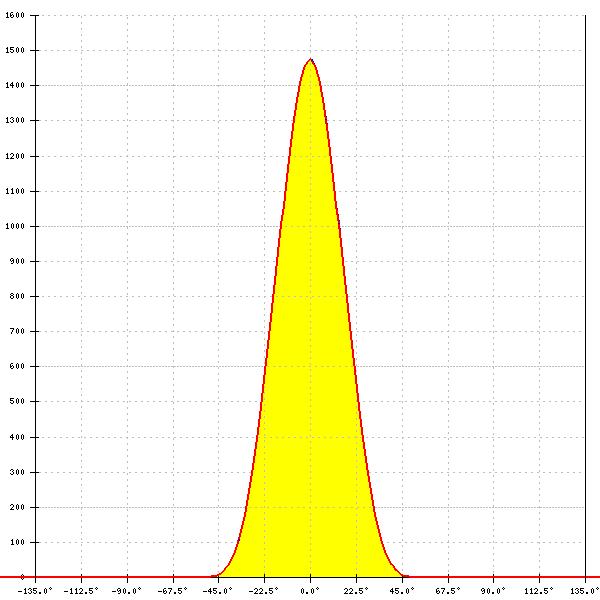

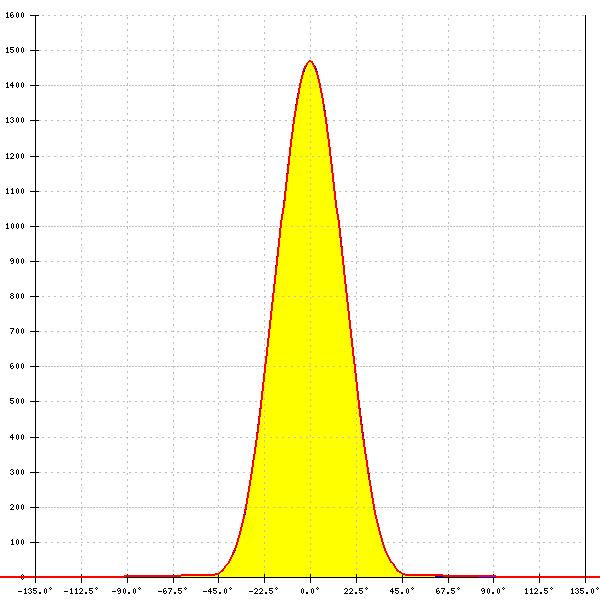

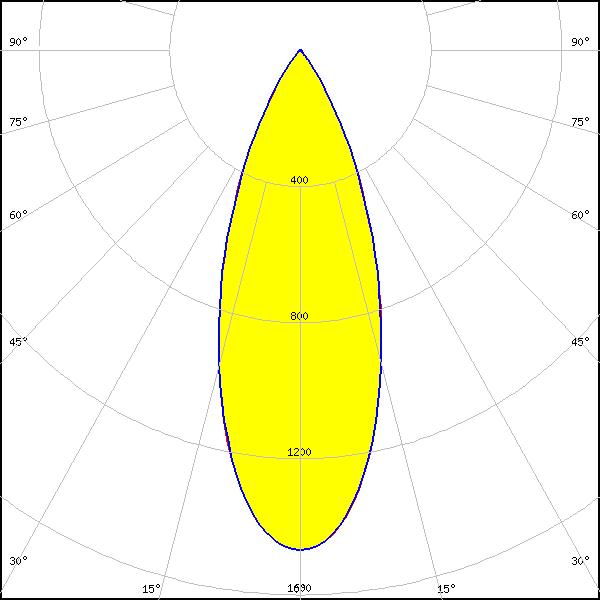

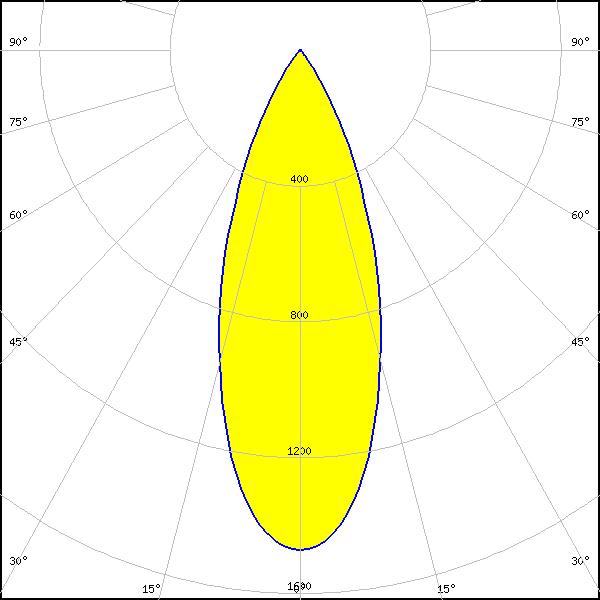

LED:
OSLON Square CSSRM2/CSSRM3
Required components:
FWHM:
35°
FWTM:
65°
Peak intensity:
1.600 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
Required components:
FWHM:
35°
FWTM:
66°
Peak intensity:
1.600 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

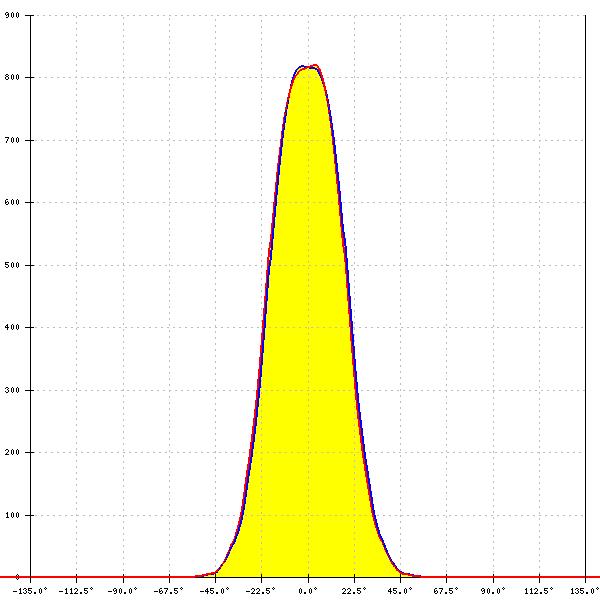

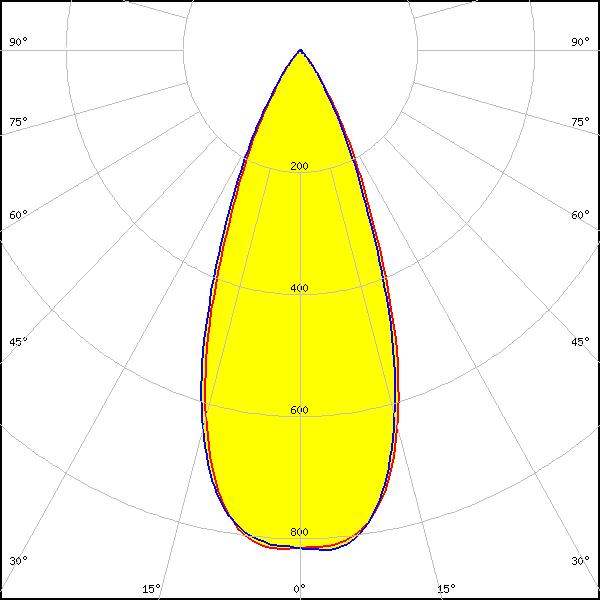

LED:
HiLOM SC16 (LH181B)
Required components:
FWHM:
42°
FWTM:
68°
Peak intensity:
0.821 cd/lm
Efficiency:
49 %
LEDs/each optic:
1
Light colour/type:
White
