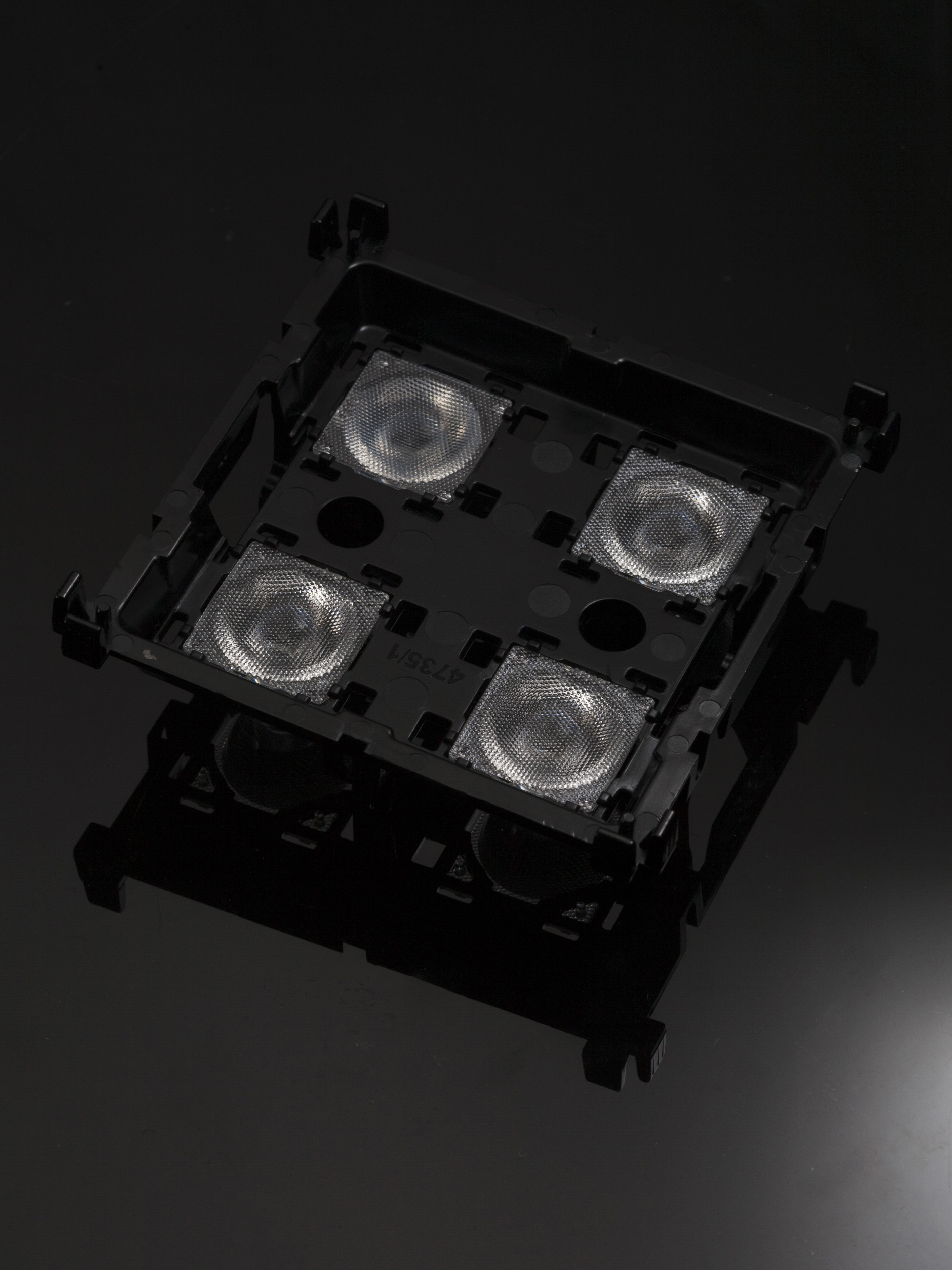

FCP15705_FLORENTINA-2X2-MRK-M
Print
~40° medium beam. Compatible with ultra high power LEDs.
Materials
- ROSE-MRK-M, Single lens, PC
- FLORENTINA-2X2-HLD, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

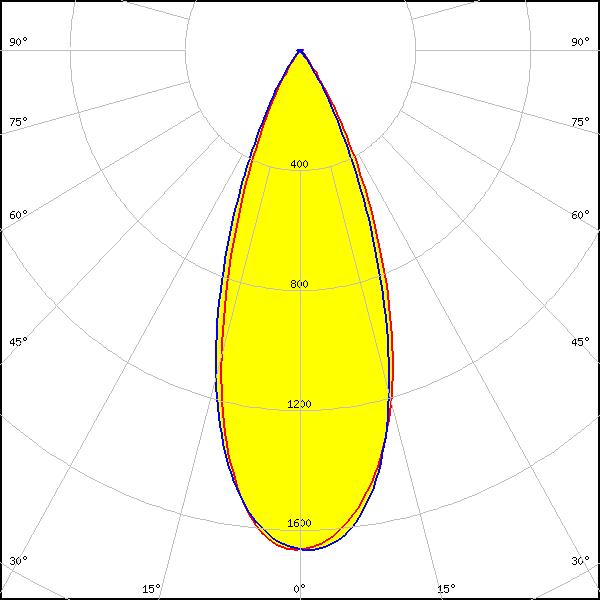

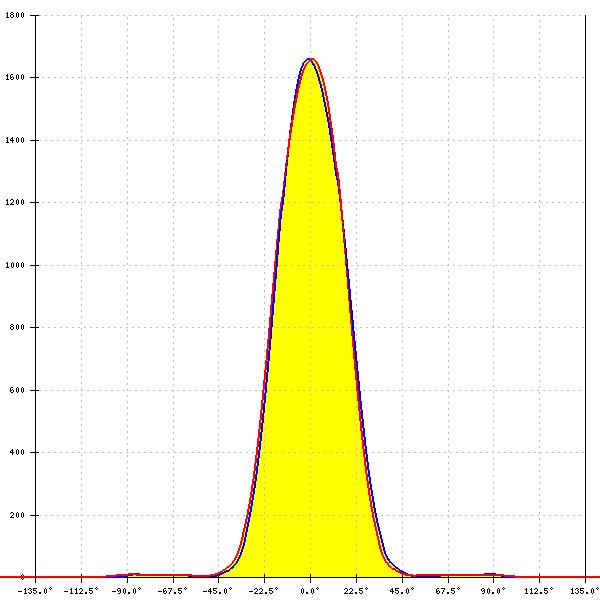

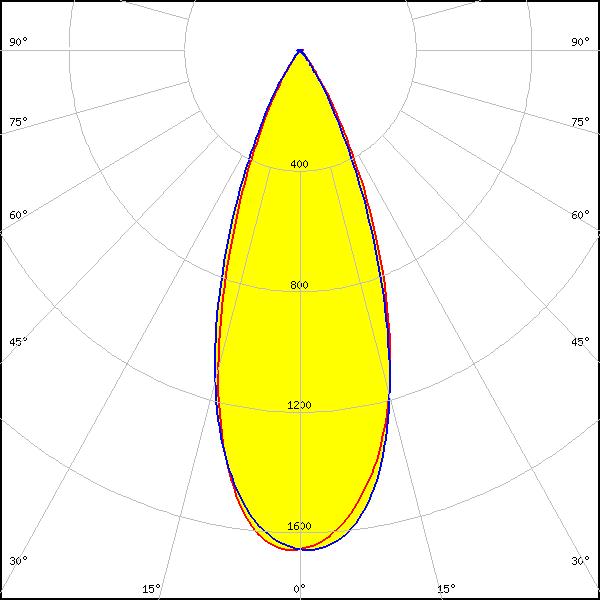

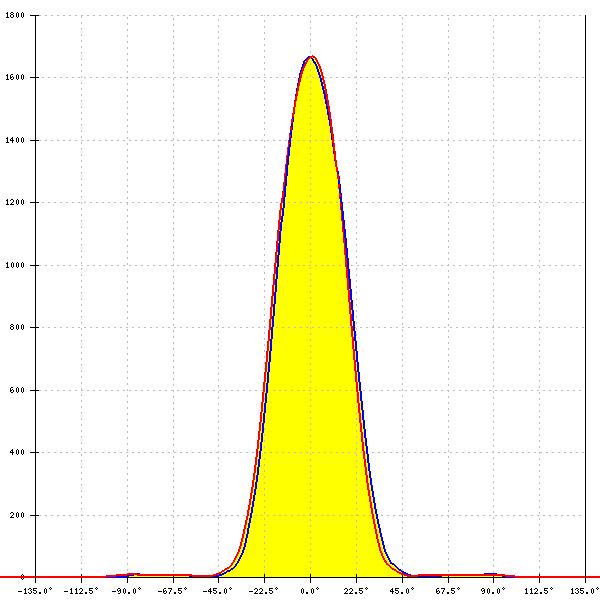

LED:
XHP35 HD
Required components:
FWHM:
39°
FWTM:
64°
Peak intensity:
1.700 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HD
Required components:
FWHM:
39°
FWTM:
65°
Peak intensity:
1.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HD
Required components:
FWHM:
39°
FWTM:
64°
Peak intensity:
1.700 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

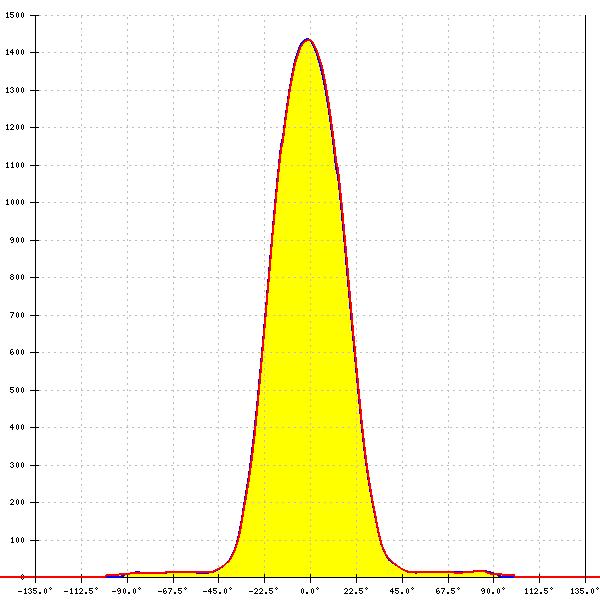

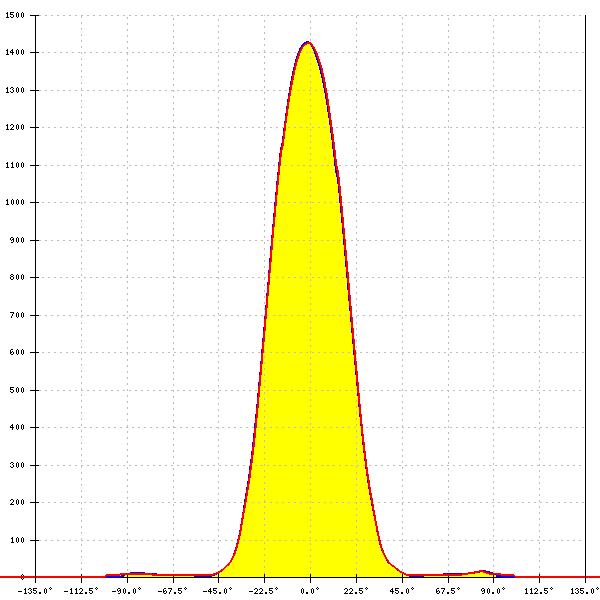

LED:

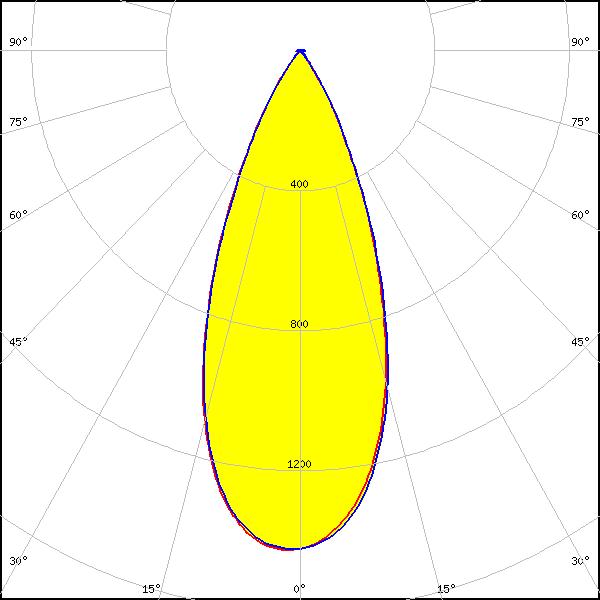

XHP50
Required components:
FWHM:
41°
FWTM:
66°
Peak intensity:
1.400 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
Required components:
FWHM:
41°
FWTM:
67°
Peak intensity:
1.400 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
Required components:
FWHM:
41°
FWTM:
66°
Peak intensity:
1.400 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

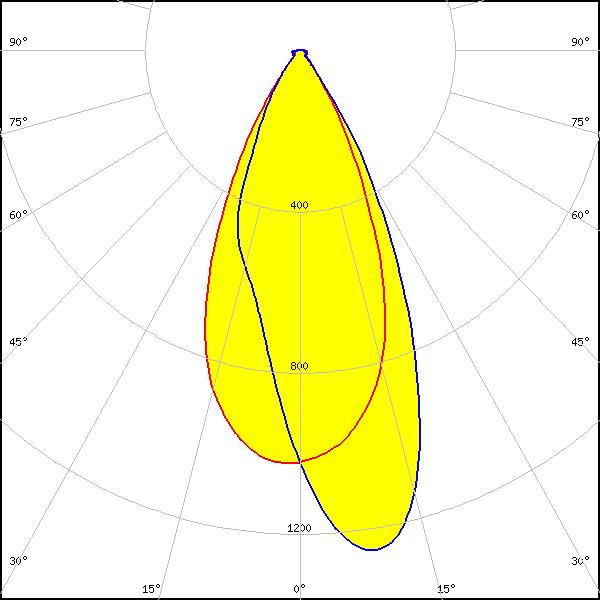

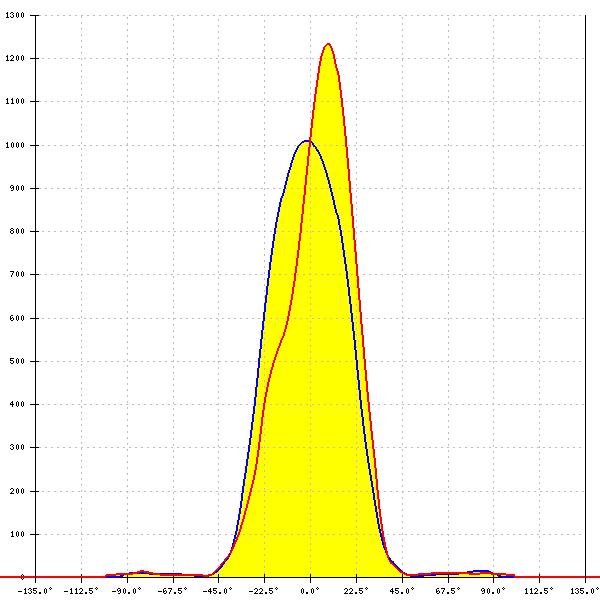

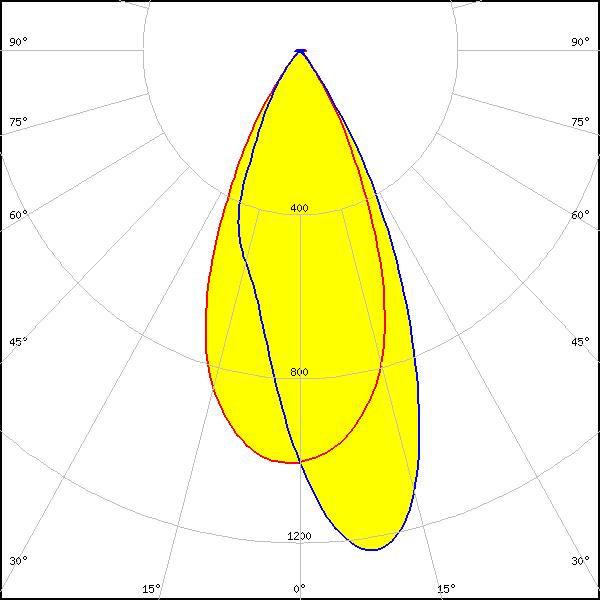

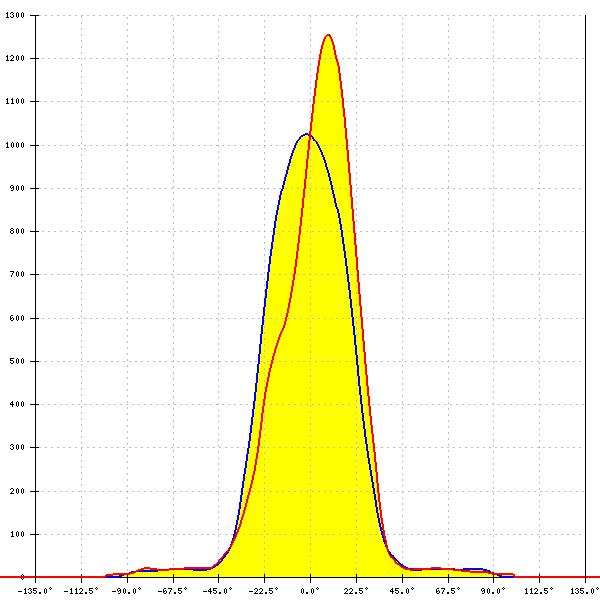

LED:
XHP70
Required components:
FWHM:
48°
FWTM:
71°
Peak intensity:
1.200 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
Required components:
FWHM:
48°
FWTM:
73°
Peak intensity:
1.300 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
Required components:
FWHM:
48°
FWTM:
71°
Peak intensity:
1.200 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:

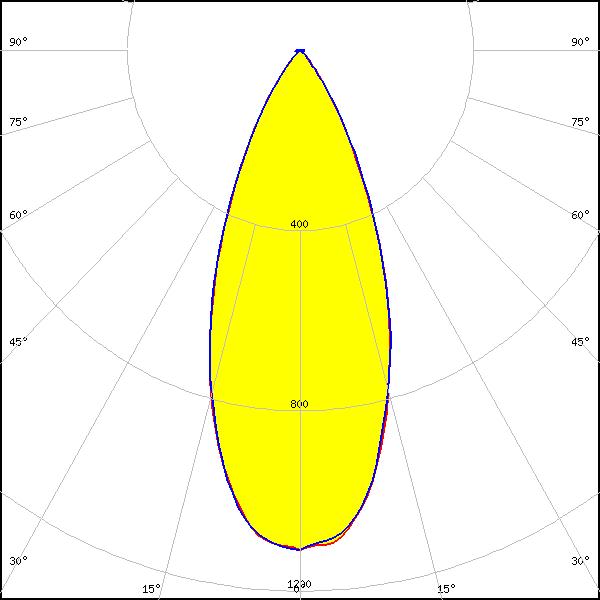

LUXEON 7070
Required components:
FWHM:
42°
FWTM:
71°
Peak intensity:
1.120 cd/lm
Efficiency:
64 %
LEDs/each optic:
1
Light colour/type:
White

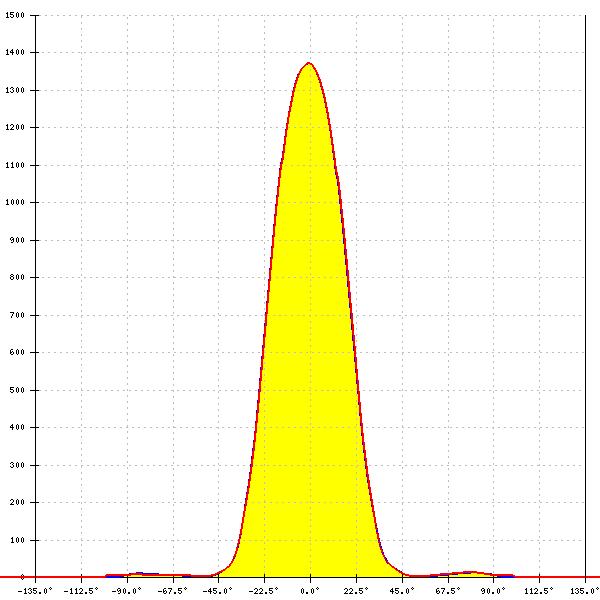

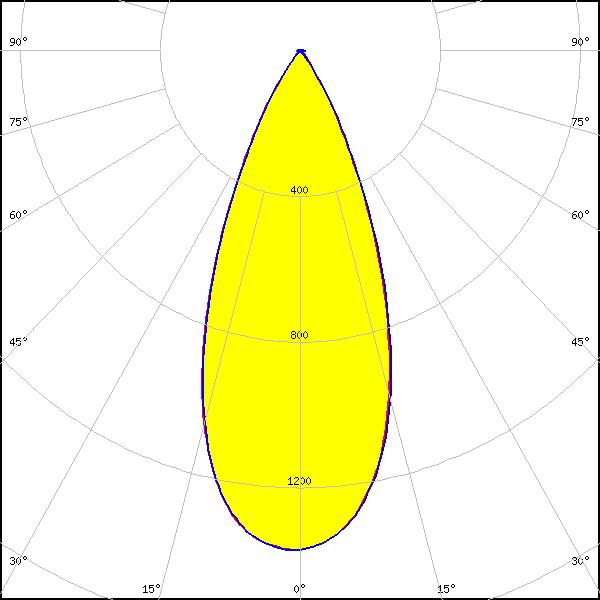

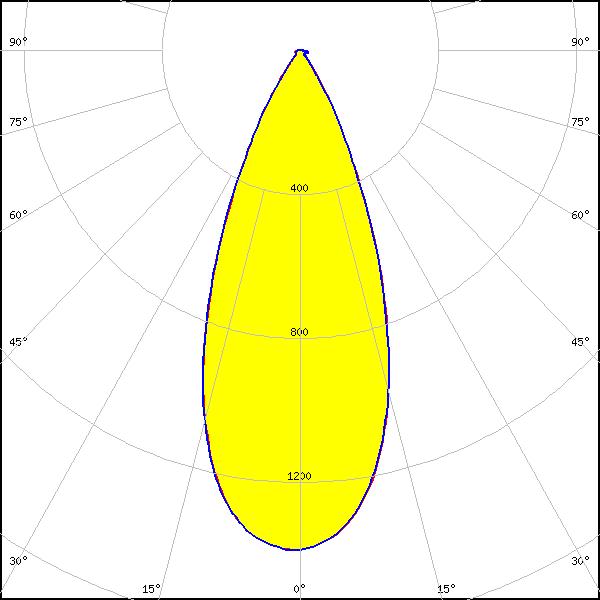

LED:

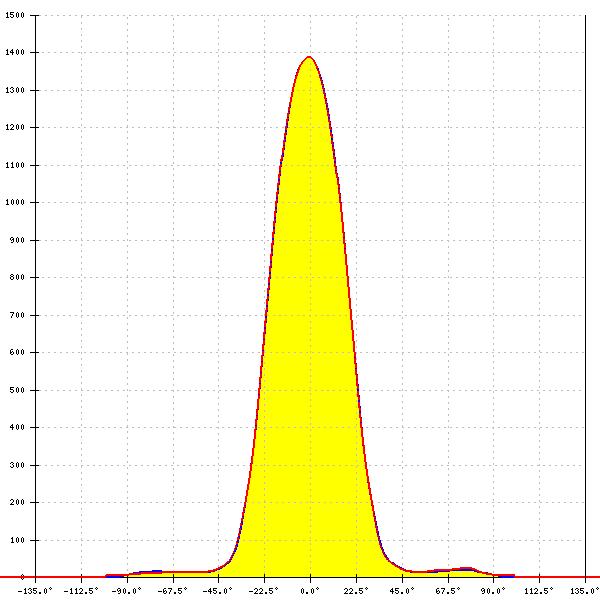

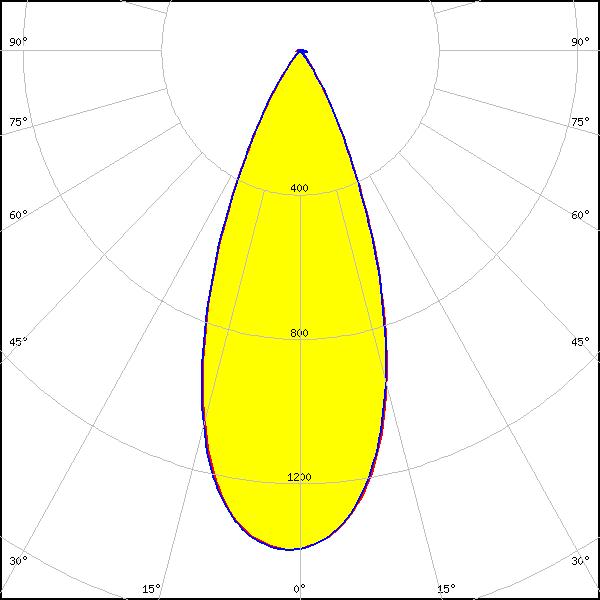

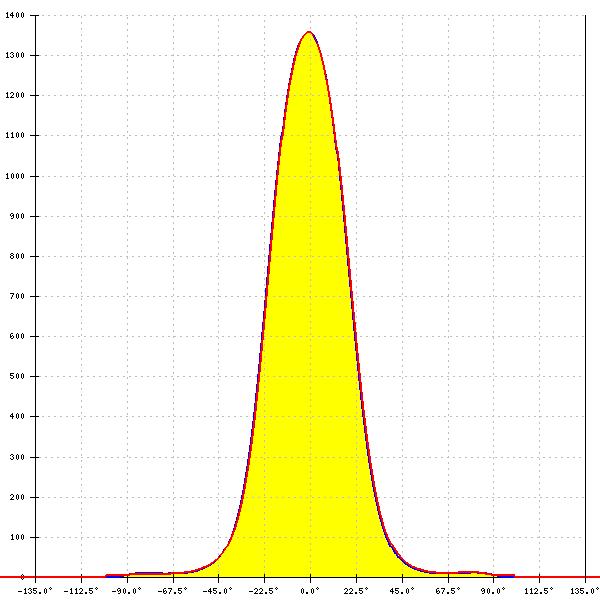

LUXEON M/MX
FWHM:
43°
FWTM:
72°
Peak intensity:
1.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
Required components:
FWHM:
42°
FWTM:
66°
Peak intensity:
1.400 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
Required components:
FWHM:
42°
FWTM:
66°
Peak intensity:
1.400 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
Required components:
FWHM:
41°
FWTM:
66°
Peak intensity:
1.400 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

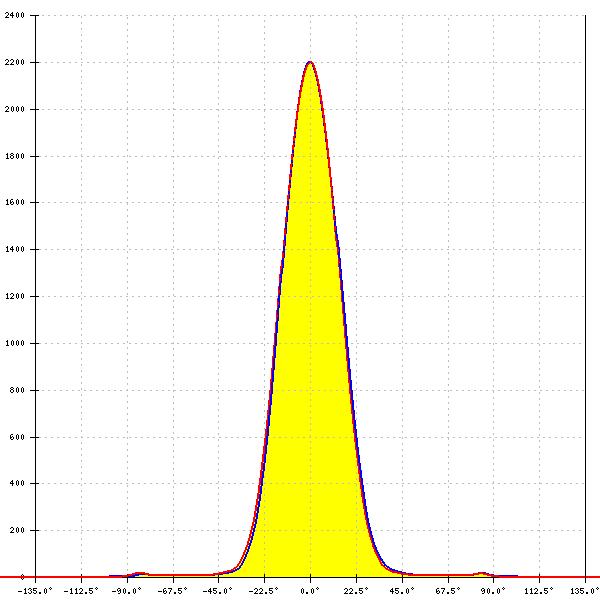

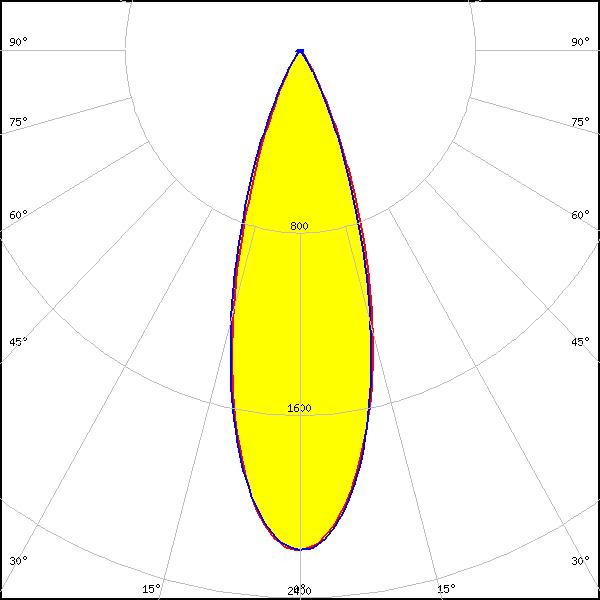

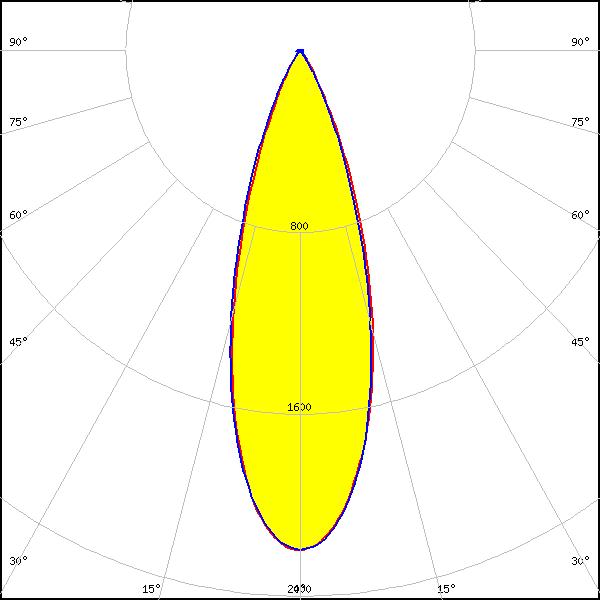

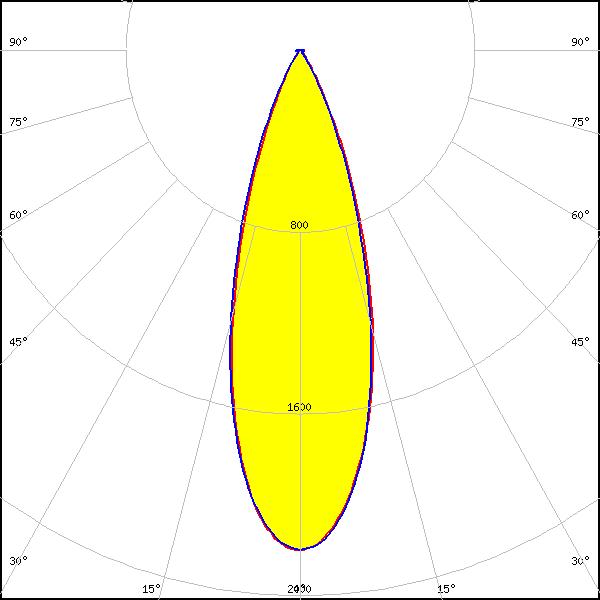

LUXEON MZ
Required components:
FWHM:
33°
FWTM:
56°
Peak intensity:
2.200 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
Required components:
FWHM:
33°
FWTM:
56°
Peak intensity:
2.200 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
Required components:
FWHM:
33°
FWTM:
56°
Peak intensity:
2.200 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

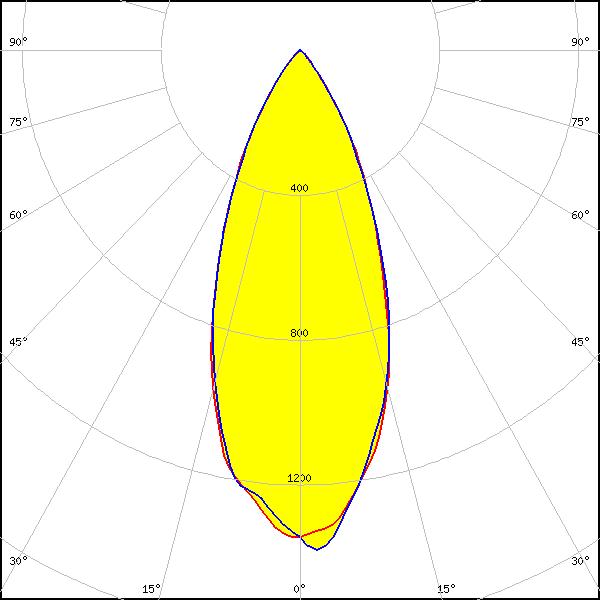

LED:

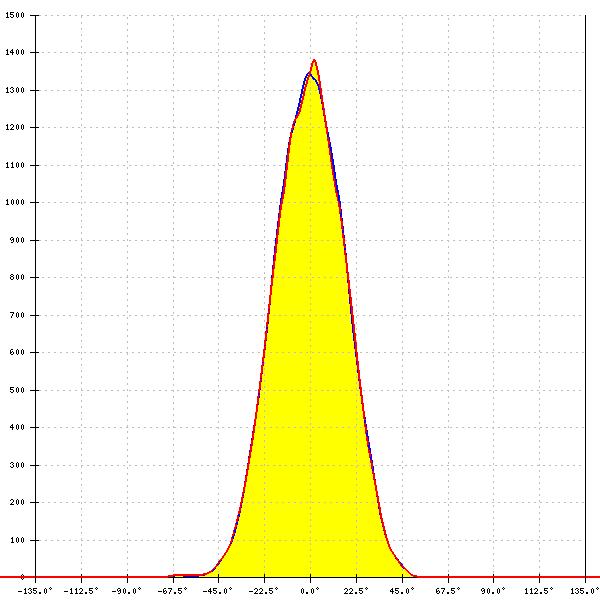

NV4x144A
Required components:
FWHM:
42°
FWTM:
72°
Peak intensity:
1.390 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

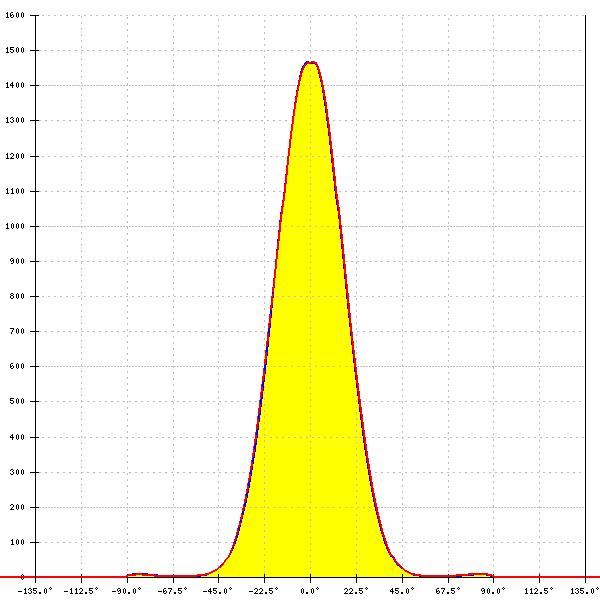

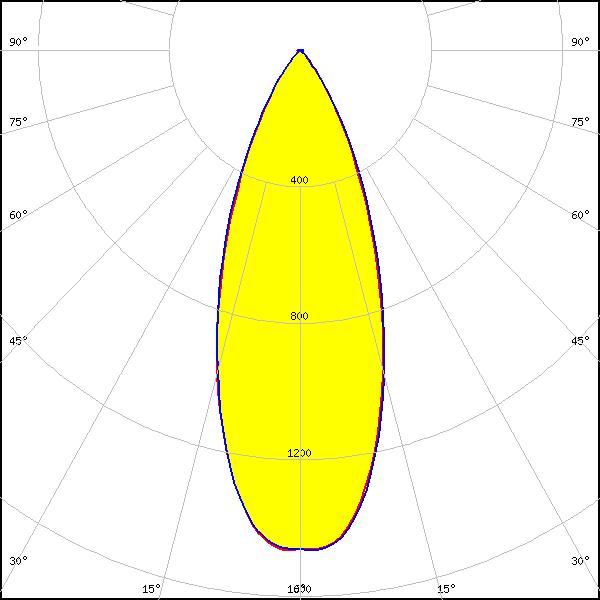

LED:
Duris S8
Required components:
FWHM:
39°
FWTM:
70°
Peak intensity:
1.480 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
40°
FWTM:
65°
Peak intensity:
1.500 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
40°
FWTM:
65°
Peak intensity:
1.500 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
40°
FWTM:
65°
Peak intensity:
1.500 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
