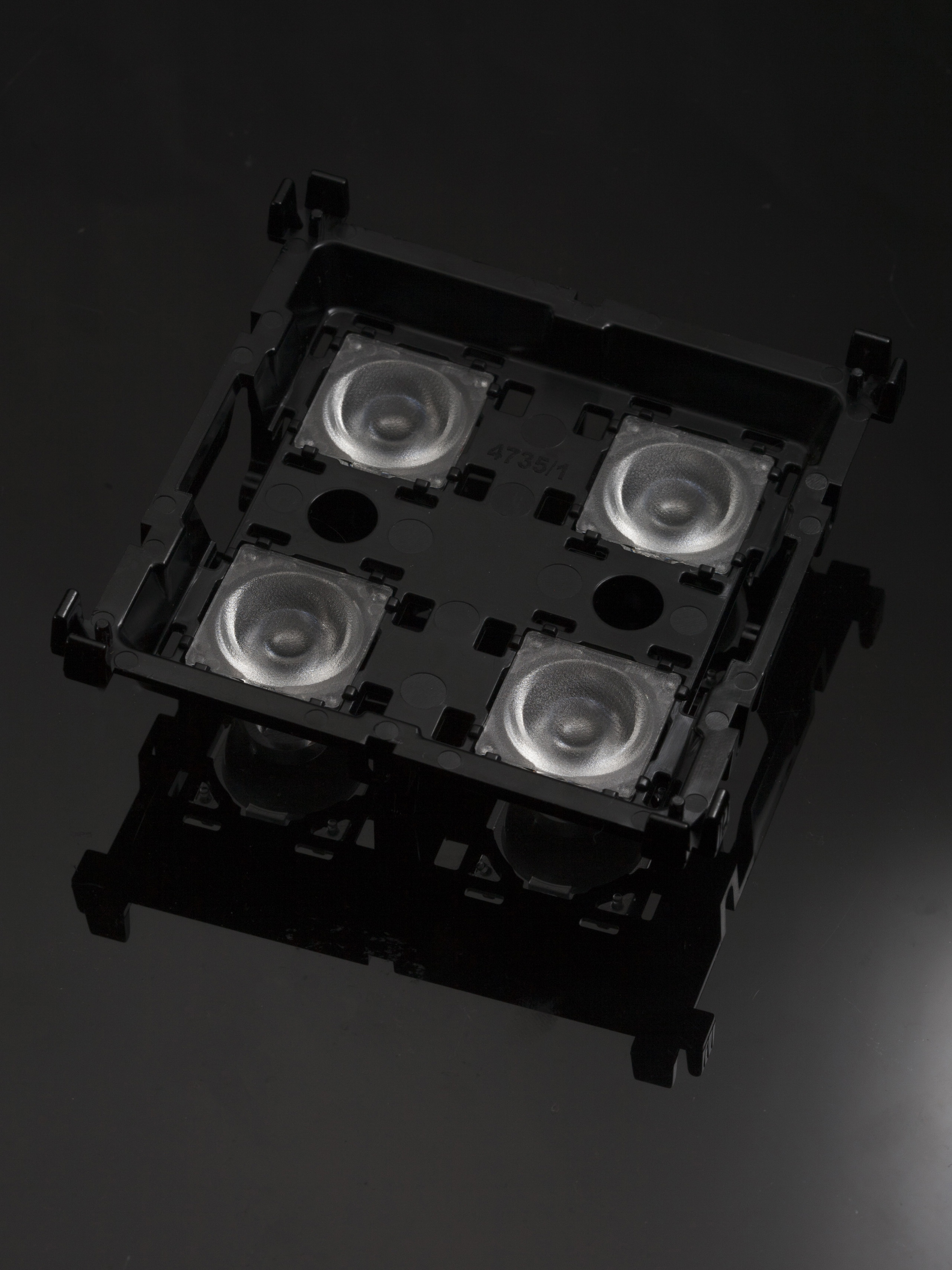

FCP15706_FLORENTINA-2X2-MRK-W

Print

~50° wide beam. Compatible with ultra high power LEDs.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    17.72 mm
  • Fastening:
    pin, screw
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    88 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    4.3 kg
  • MPQ:
    8 pcs
  • MOQ:
    24 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FCP15706_FLORENTINA-2X2-MRK-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

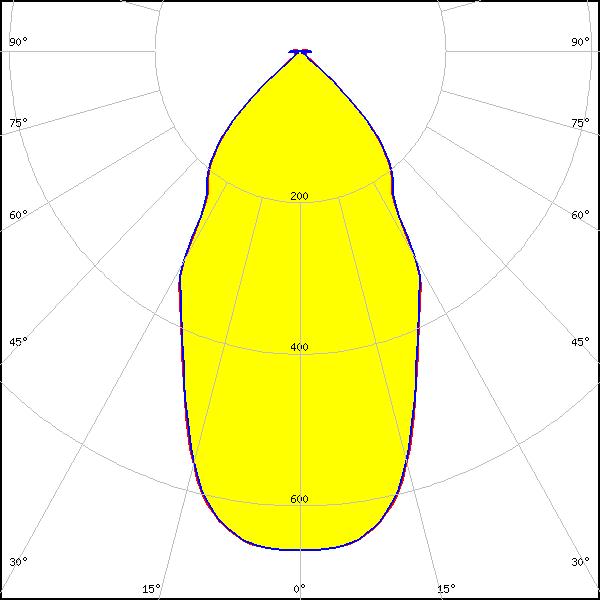

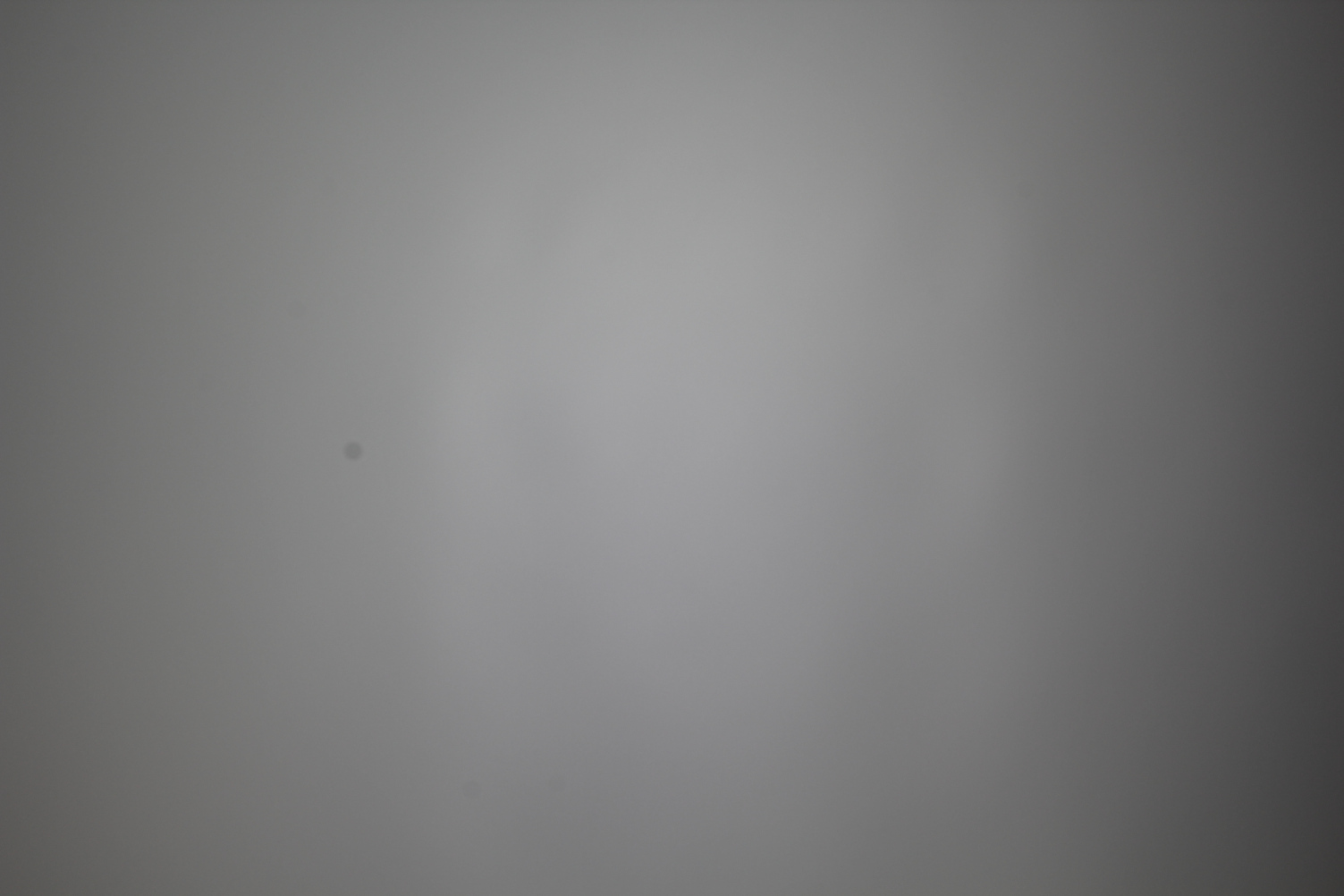

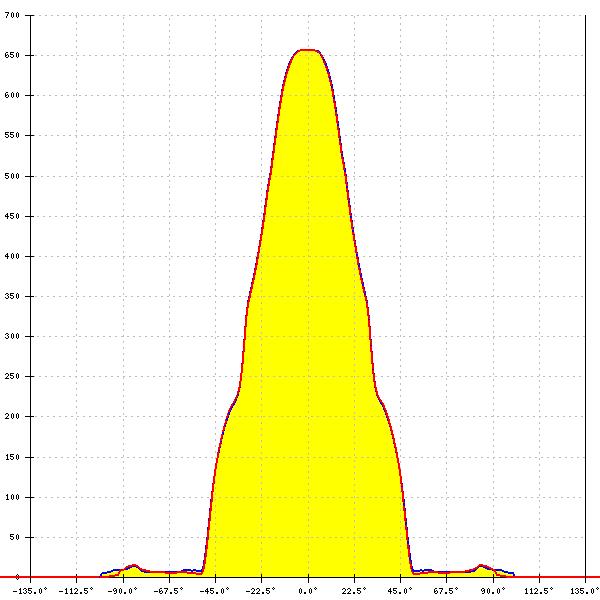

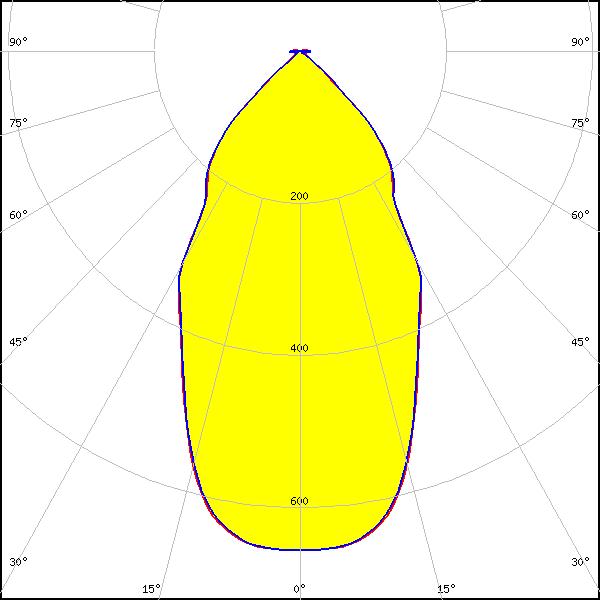

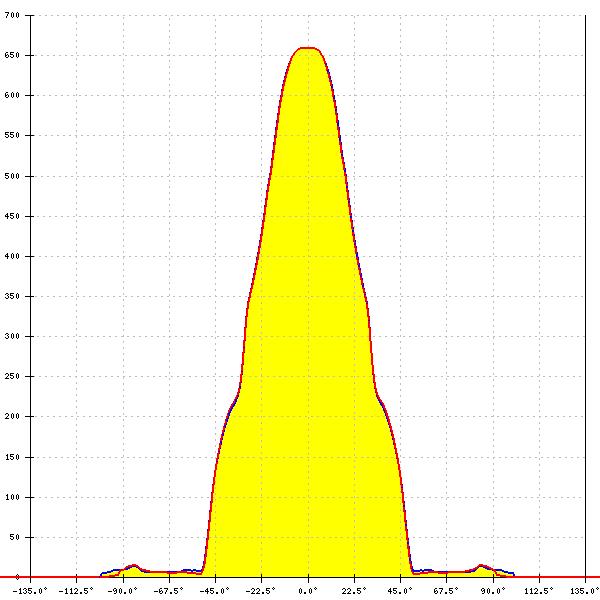

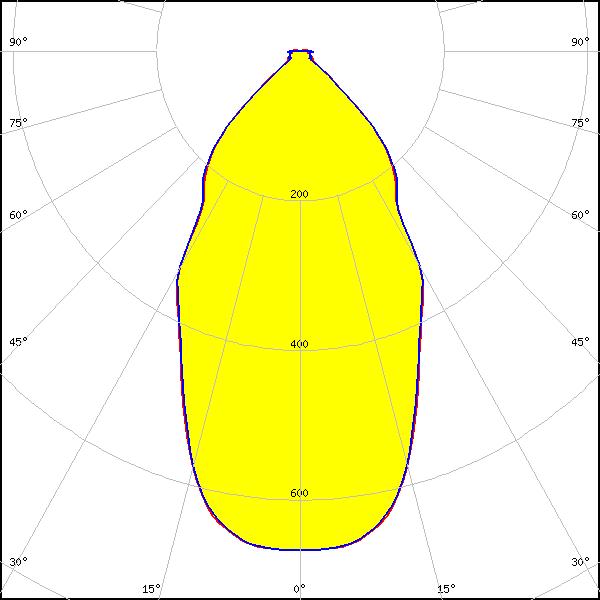

LED: XHP35 HD
Required components:
FWHM: 57°
FWTM: 96°
Peak intensity: 0.680 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35 HD
Required components:
FWHM: 58°
FWTM: 97°
Peak intensity: 0.690 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35 HD
Required components:
FWHM: 57°
FWTM: 96°
Peak intensity: 0.680 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

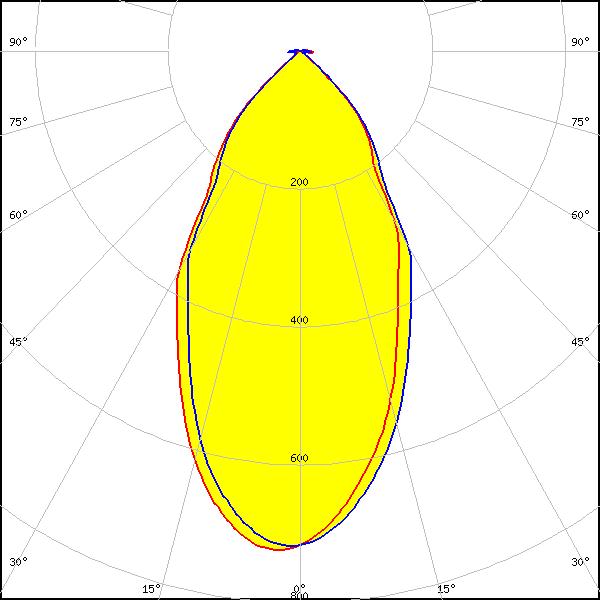

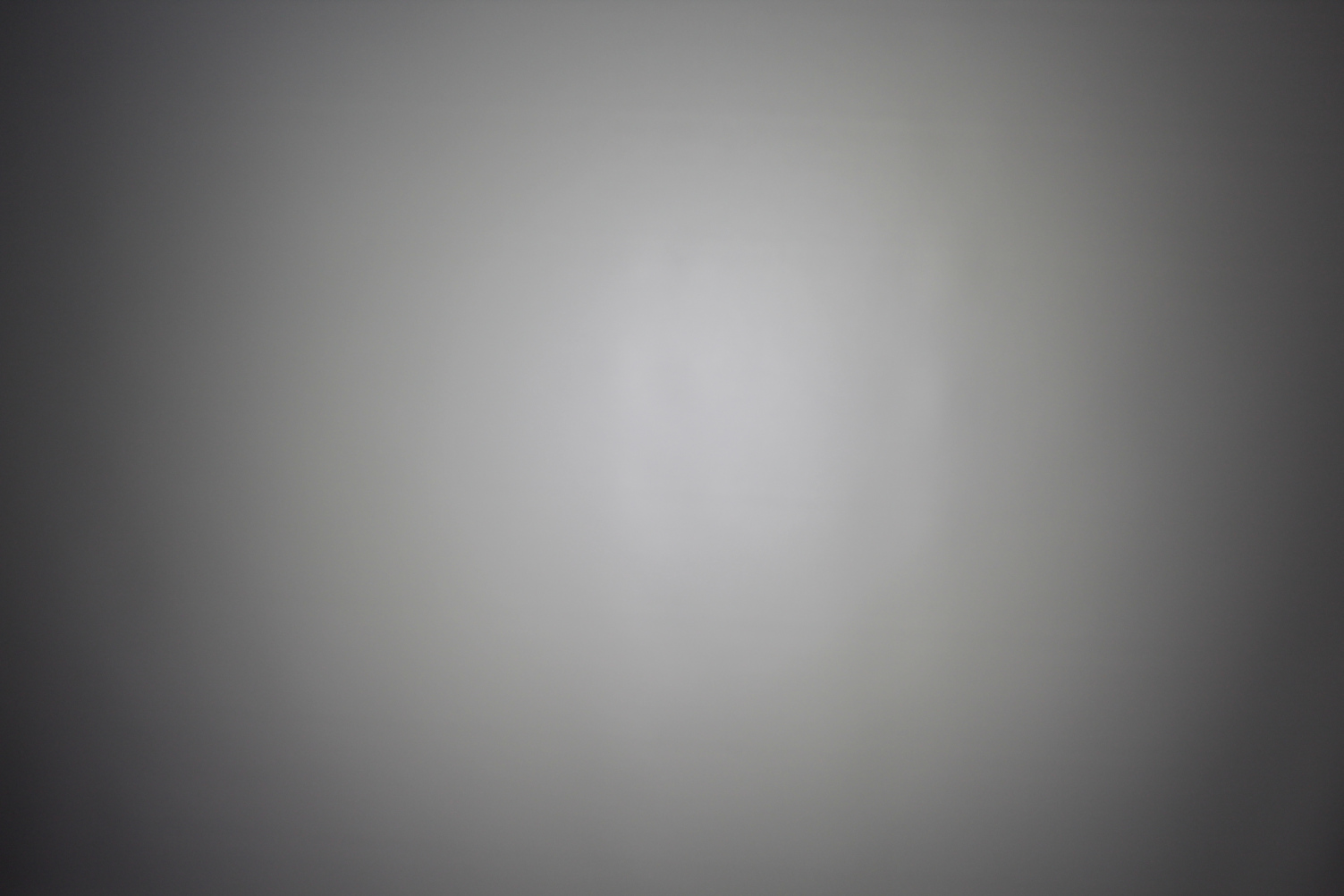

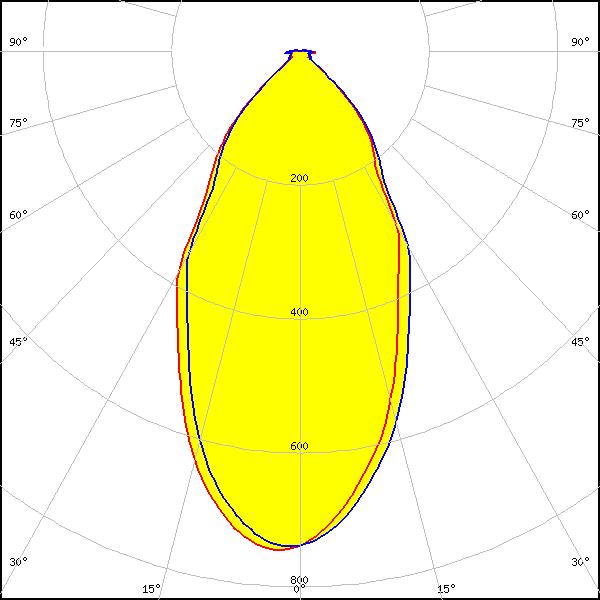

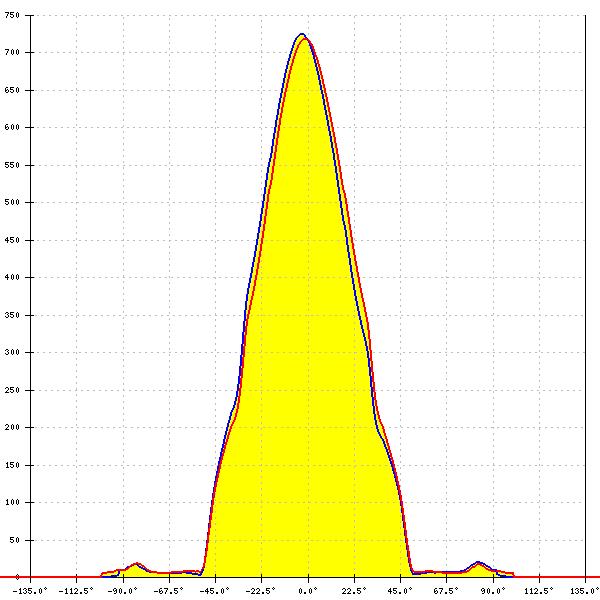

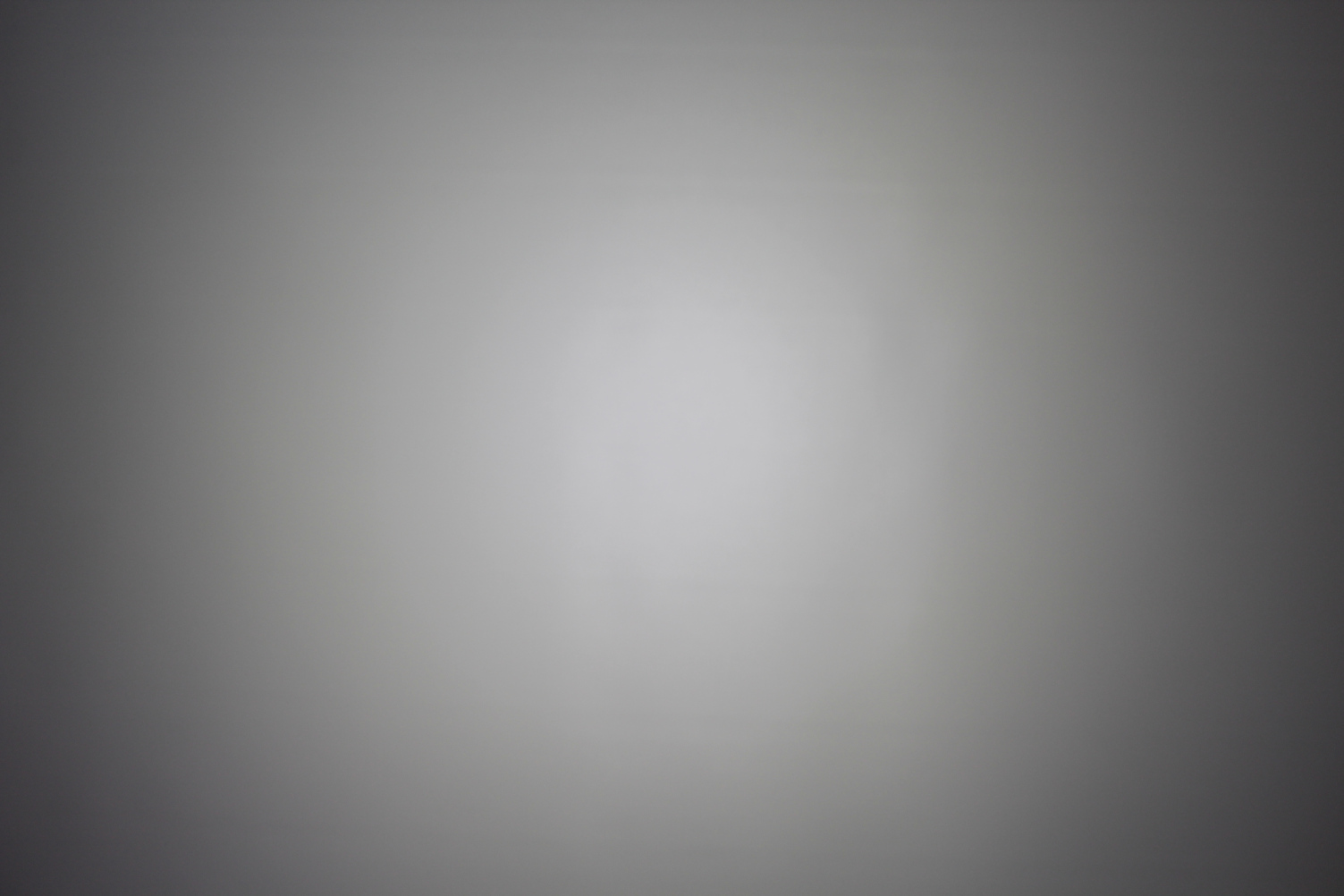

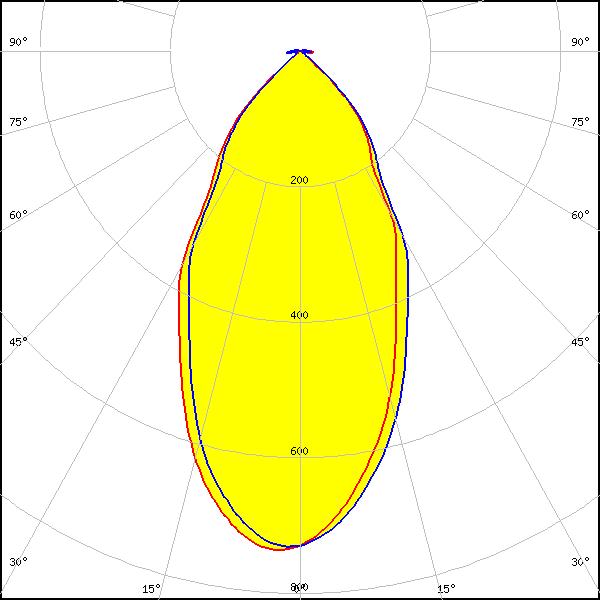

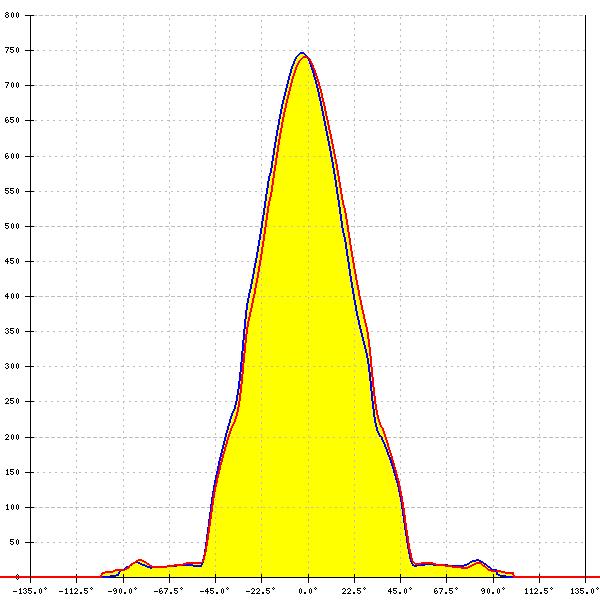

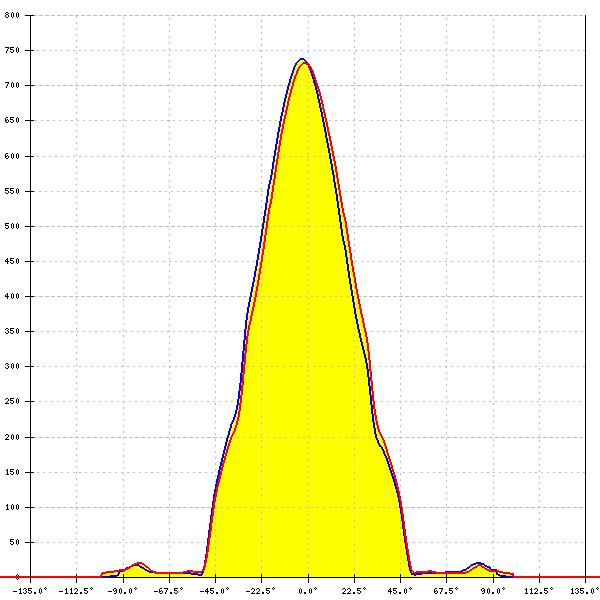

LED: XHP50
Required components:
FWHM: 53°
FWTM: 94°
Peak intensity: 0.740 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50
Required components:
FWHM: 54°
FWTM: 96°
Peak intensity: 0.750 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50
Required components:
FWHM: 54°
FWTM: 95°
Peak intensity: 0.730 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

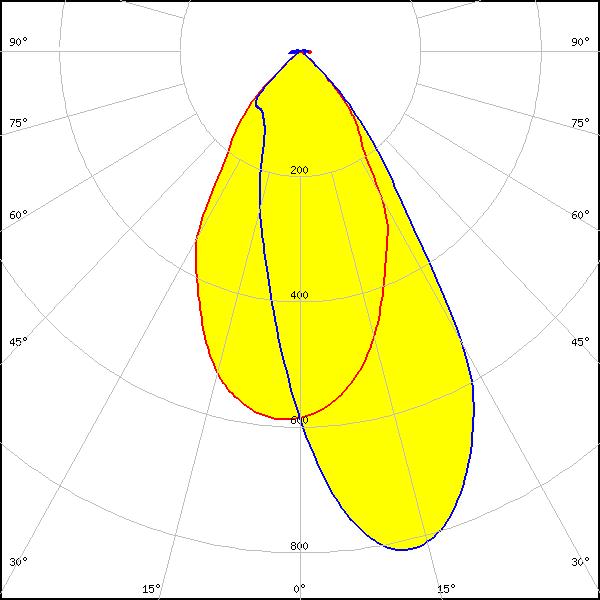

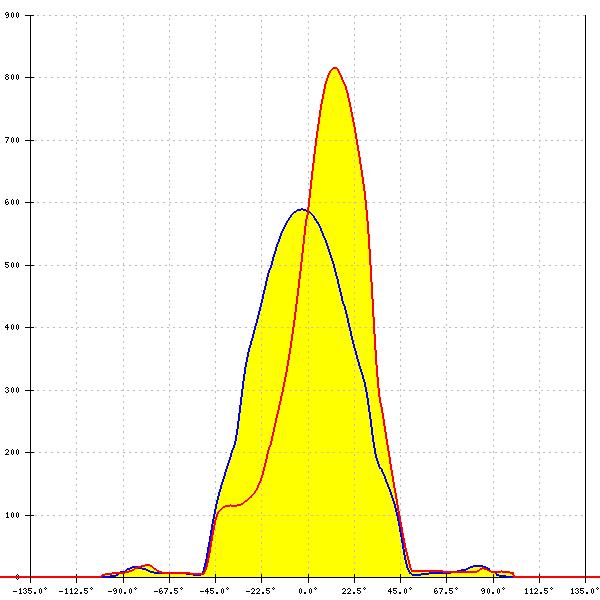

LED: XHP70
Required components:
FWHM: 61°
FWTM: 94°
Peak intensity: 0.820 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP70
Required components:
FWHM: 63°
FWTM: 96°
Peak intensity: 0.830 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP70
Required components:
FWHM: 61°
FWTM: 94°
Peak intensity: 0.820 cd/lm
Efficiency: 66 %
LEDs/each optic: 1
Light colour/type: White

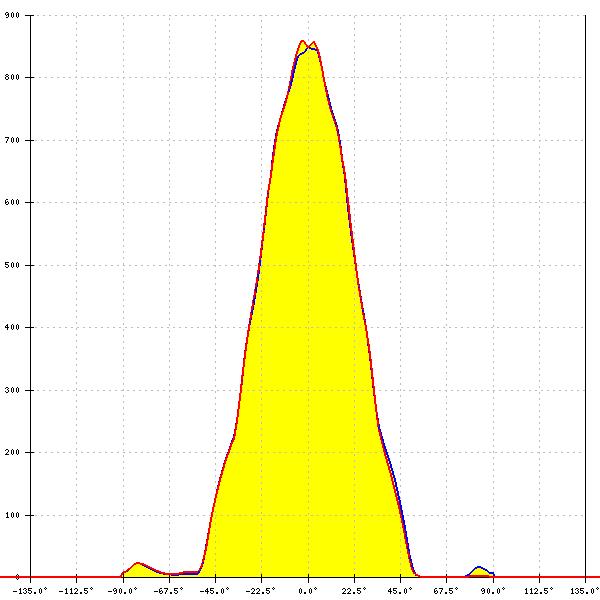

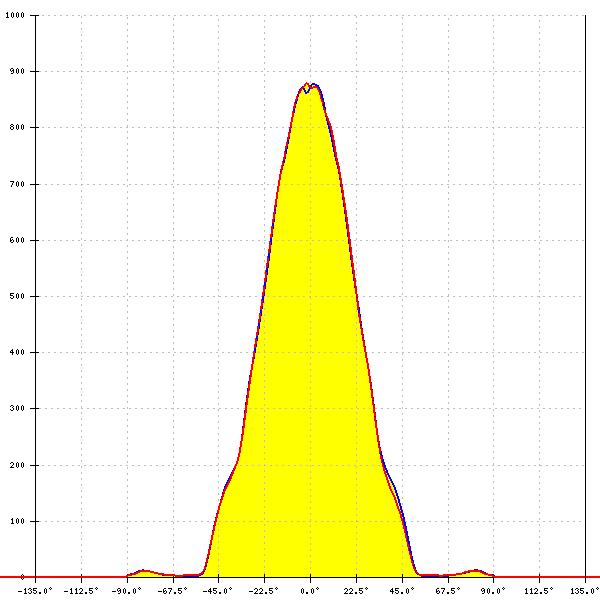

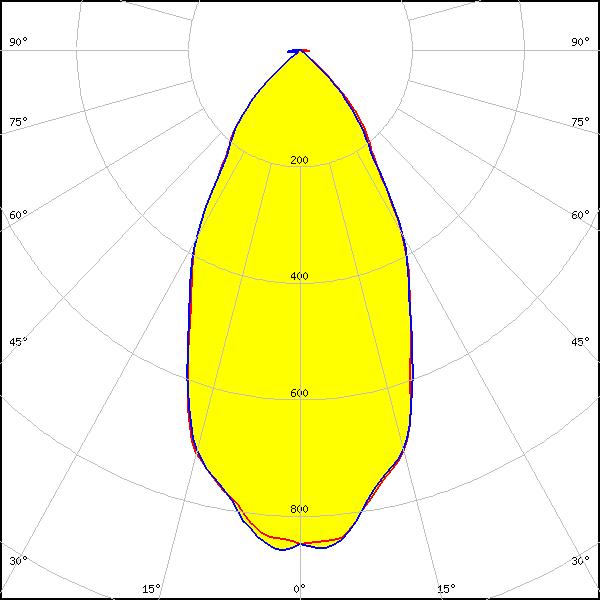

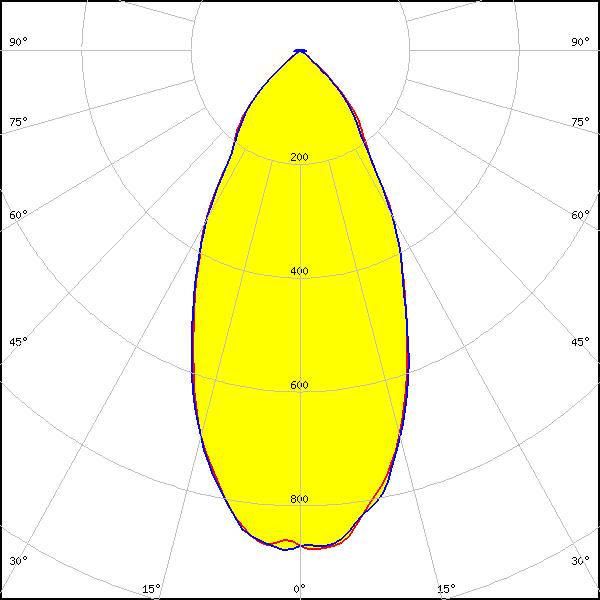

LED: LUXEON 7070
Required components:
FWHM: 51°
FWTM: 94°
Peak intensity: 0.908 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 7070
Required components:
FWHM: 54°
FWTM: 94°
Peak intensity: 0.886 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

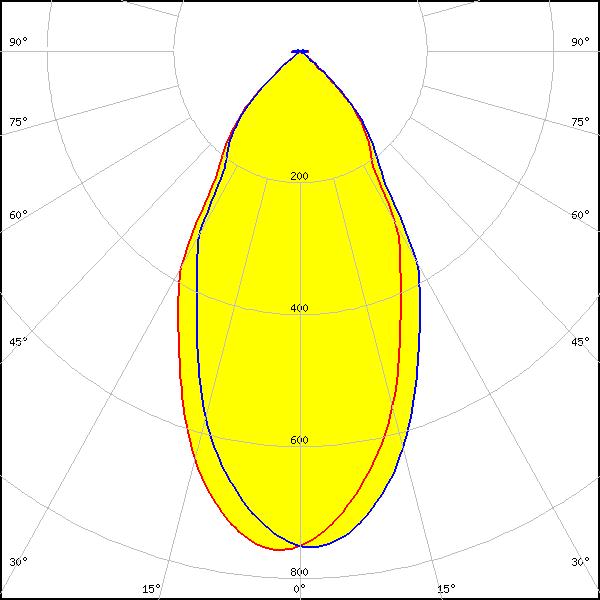

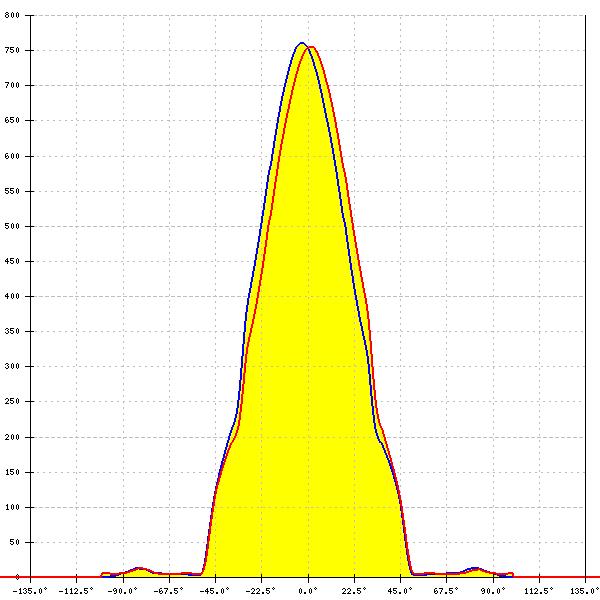

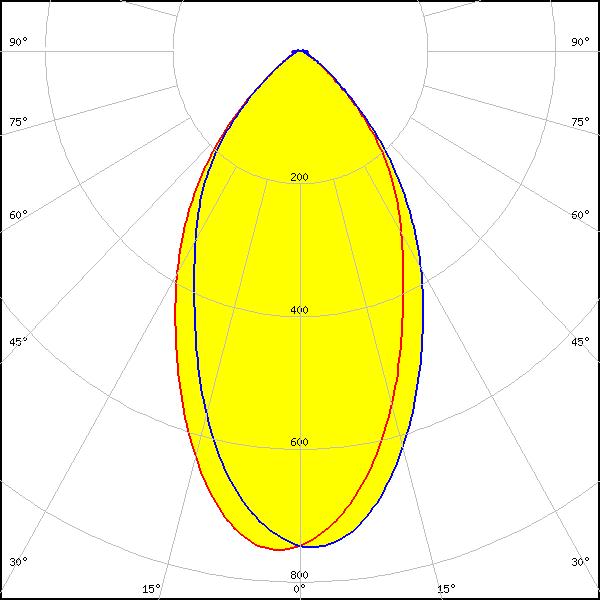

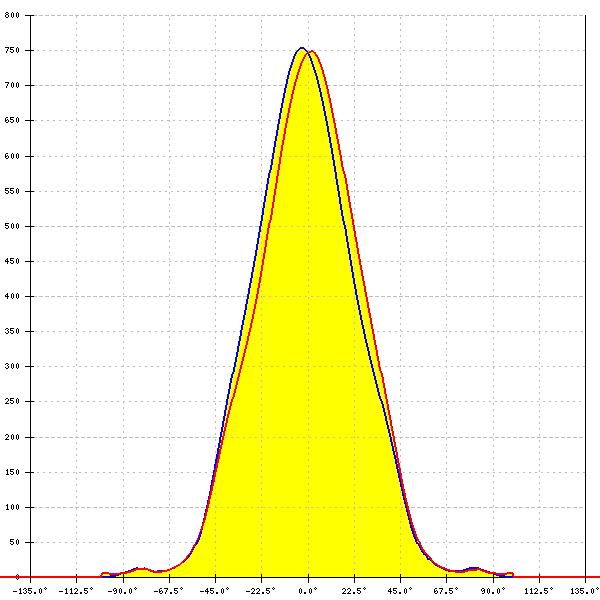

LED: LUXEON M/MX
FWHM: 56°
FWTM: 101°
Peak intensity: 0.760 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON M/MX
Required components:
FWHM: 54°
FWTM: 94°
Peak intensity: 0.760 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON M/MX
Required components:
FWHM: 55°
FWTM: 96°
Peak intensity: 0.770 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON M/MX
Required components:
FWHM: 55°
FWTM: 94°
Peak intensity: 0.760 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

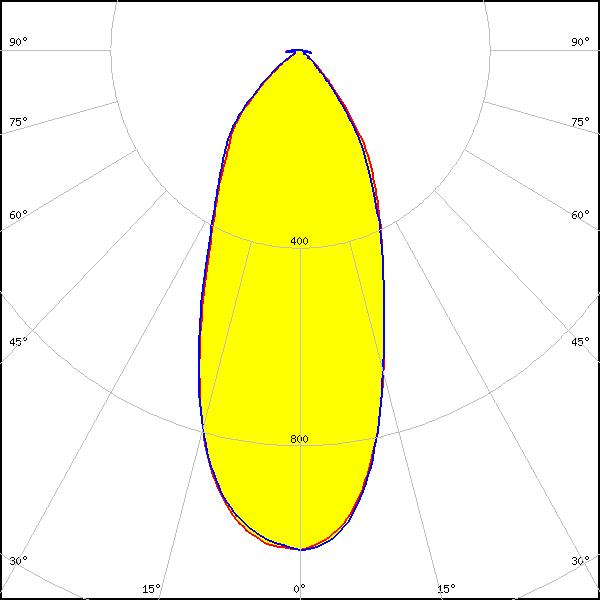

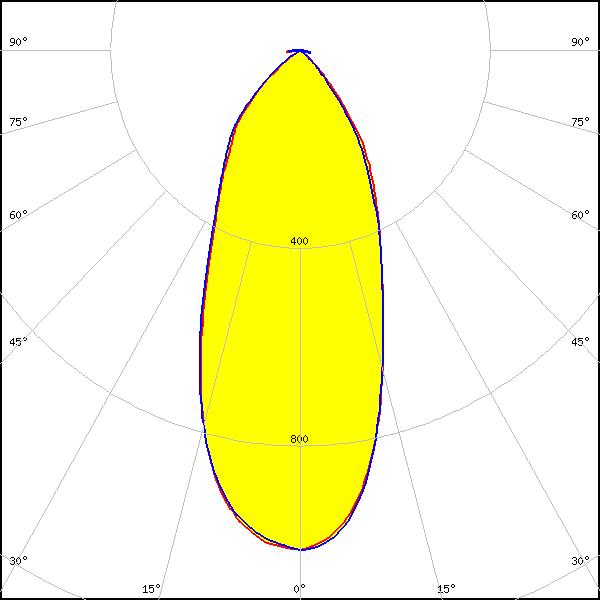

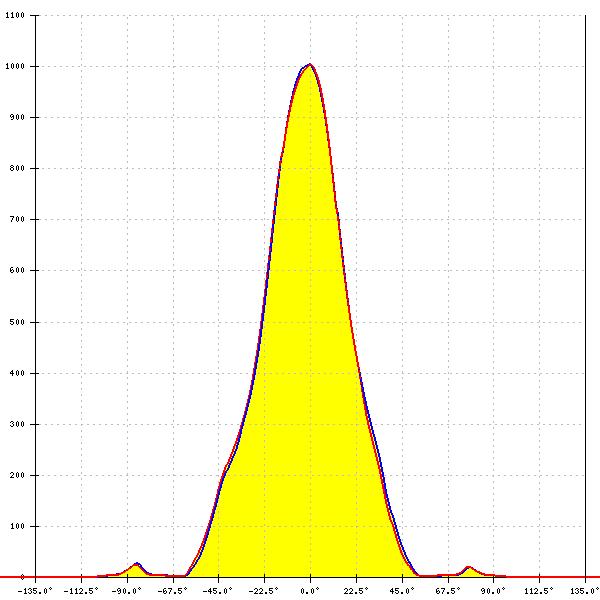

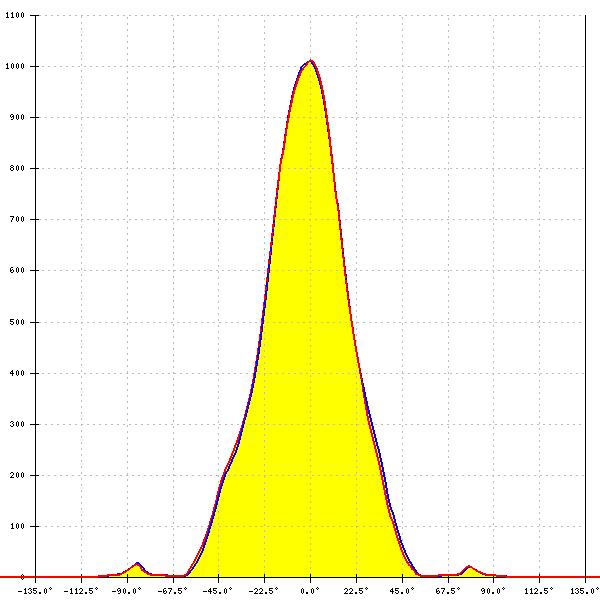

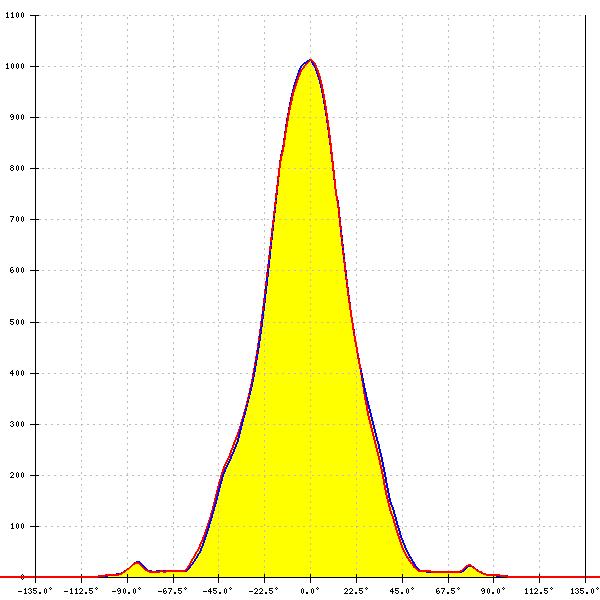

LED: LUXEON MZ
Required components:
FWHM: 43°
FWTM: 91°
Peak intensity: 1.000 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON MZ
Required components:
FWHM: 44°
FWTM: 92°
Peak intensity: 1.000 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON MZ
Required components:
FWHM: 43°
FWTM: 91°
Peak intensity: 1.000 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

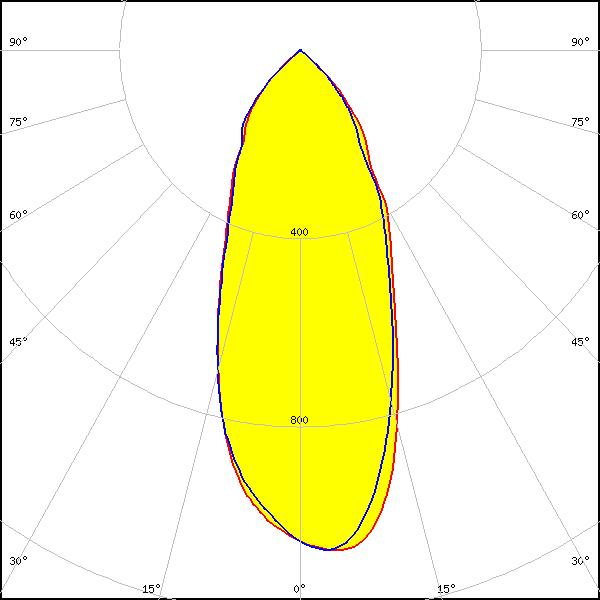

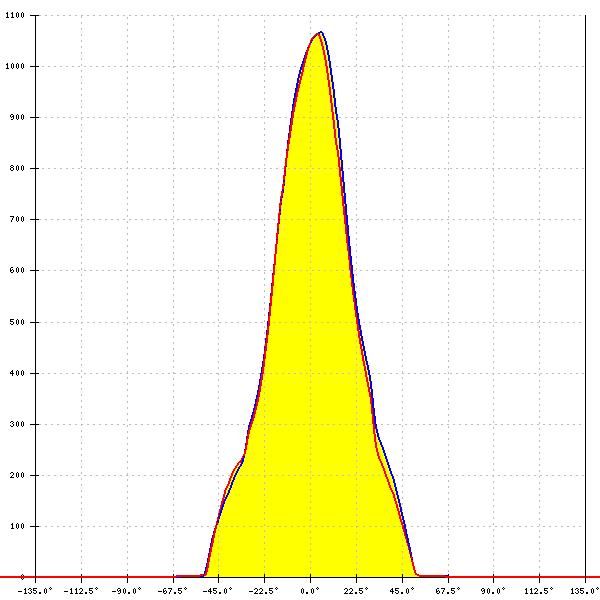

LED: NF2x757G
Required components:
FWHM: 42°
FWTM: 91°
Peak intensity: 1.100 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

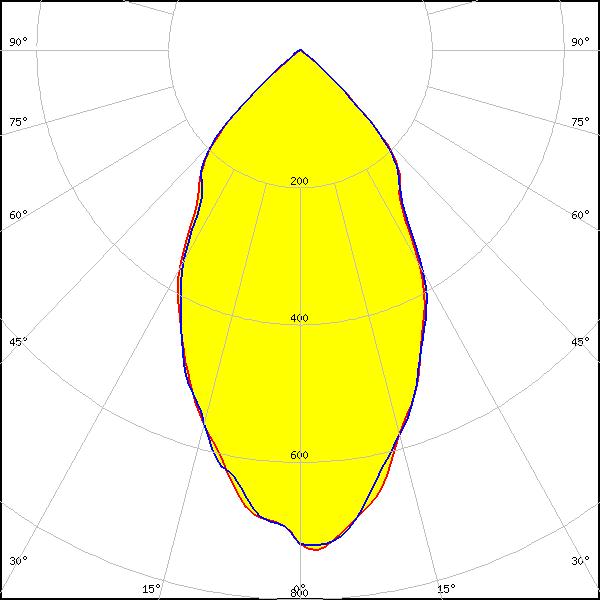

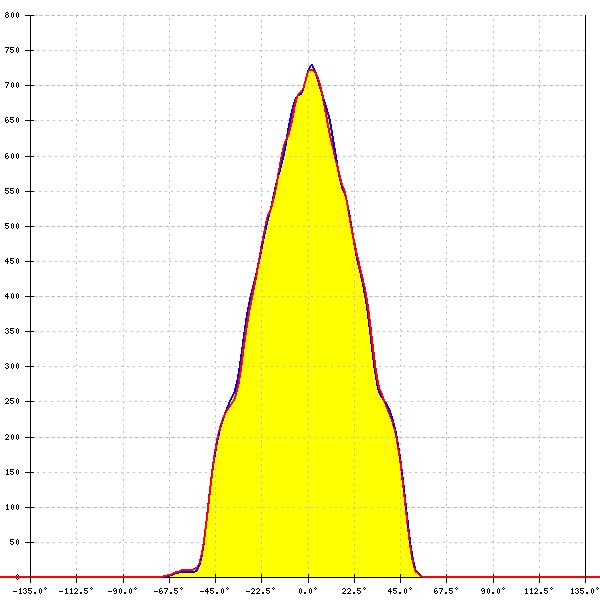

LED: NV4x144A
Required components:
FWHM: 60°
FWTM: 99°
Peak intensity: 0.760 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

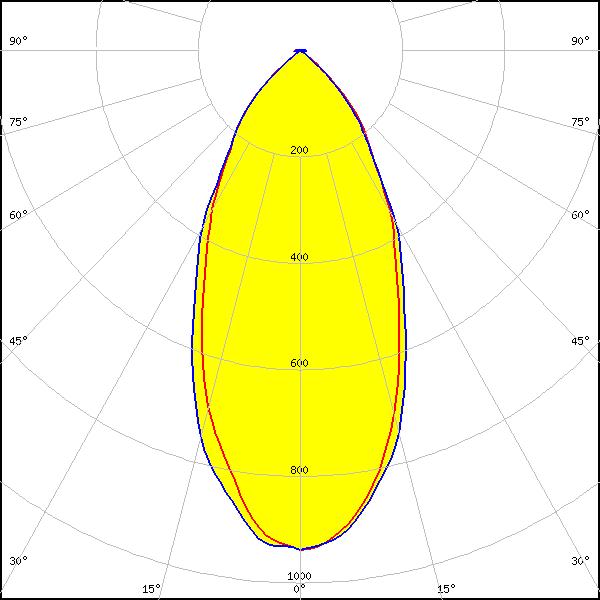

LED: Duris S8
Required components:
FWHM: 50°
FWTM: 95°
Peak intensity: 0.950 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 7070
Required components:
FWHM: 49°
FWTM: 93°
Peak intensity: 0.840 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 7070
Required components:
FWHM: 50°
FWTM: 95°
Peak intensity: 0.850 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 7070
Required components:
FWHM: 49°
FWTM: 93°
Peak intensity: 0.840 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White
