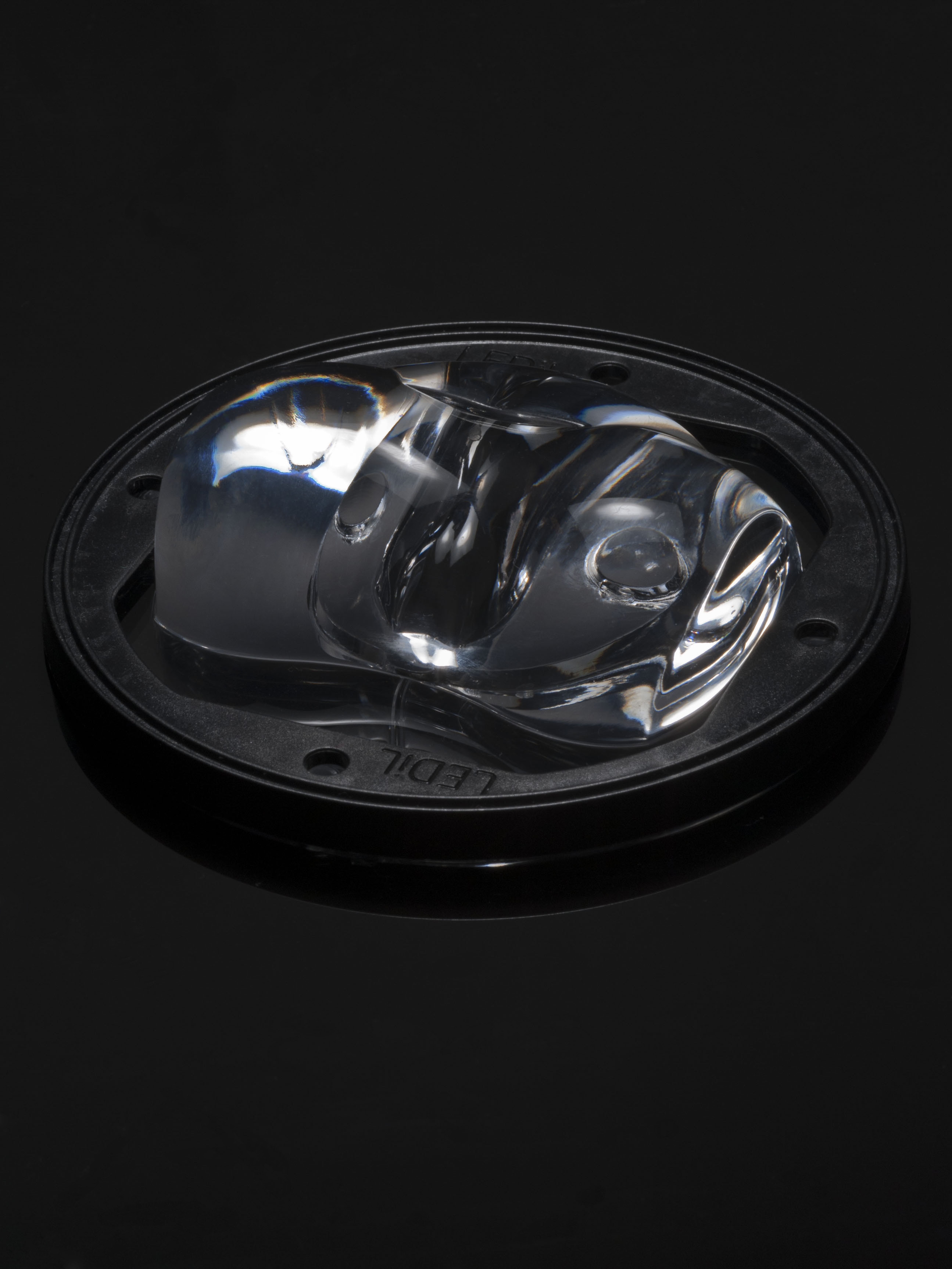

FN13323_STELLA-A

Print

Type ll and lll beam for street lighting. Compatible with up to 23 mm LES size COBs. Variant with black frame.

Specification
  • Dimensions:
    90 mm
  • Height:
    22.00 mm
  • Fastening:
    screw
  • Colour:
    black
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    100 pcs
  • Box weight:
    6.6 kg
  • MPQ:
    10 pcs
  • MOQ:
    50 pcs
  • MOQ size:
    480 x 280 x 150 mm
  • MOQ weight:
    3.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FN13323_STELLA-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: V10 Gen7
Required components:
Bender Wirth: 486 Typ L1
FWHM: asymmetric
Peak intensity: 0.560 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: V13 Gen7
Required components:
Bender Wirth: 477 Typ L1
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

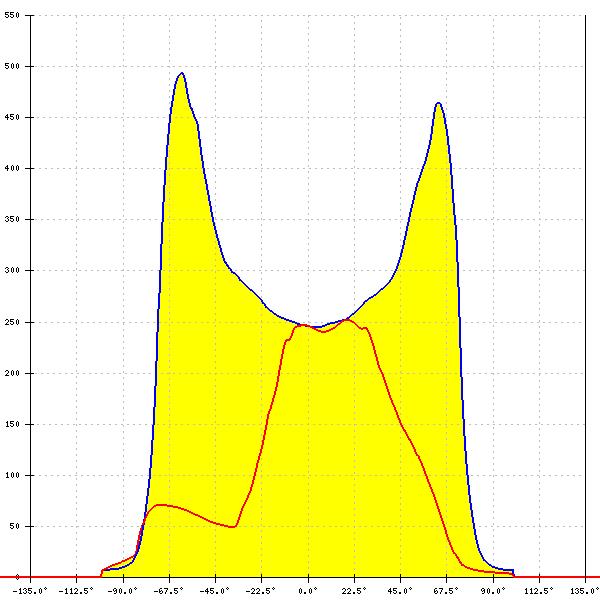

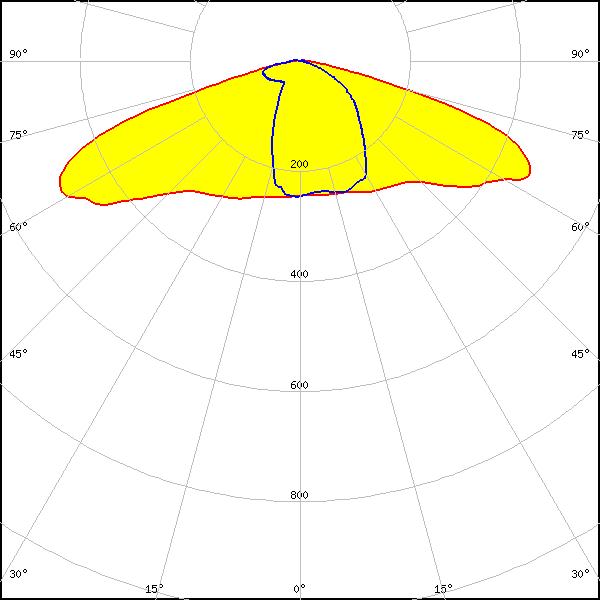

LED: V15 Gen6
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

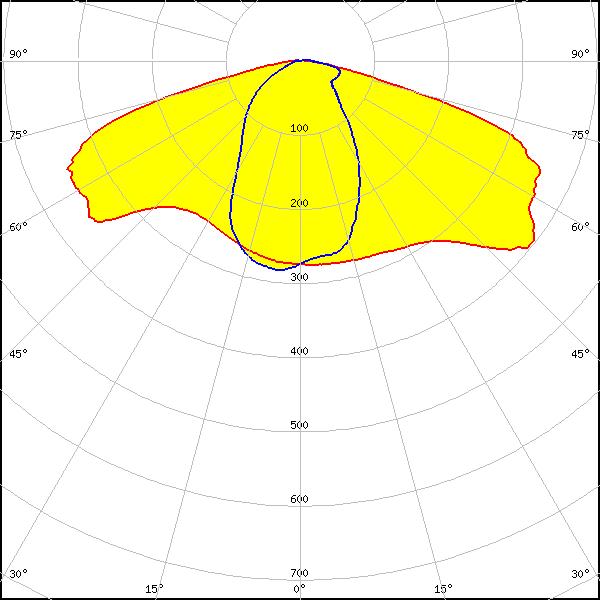

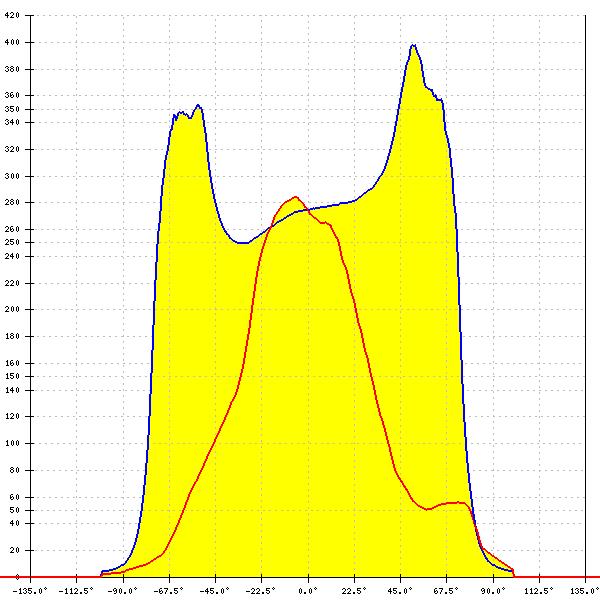

LED: V18 Gen7
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

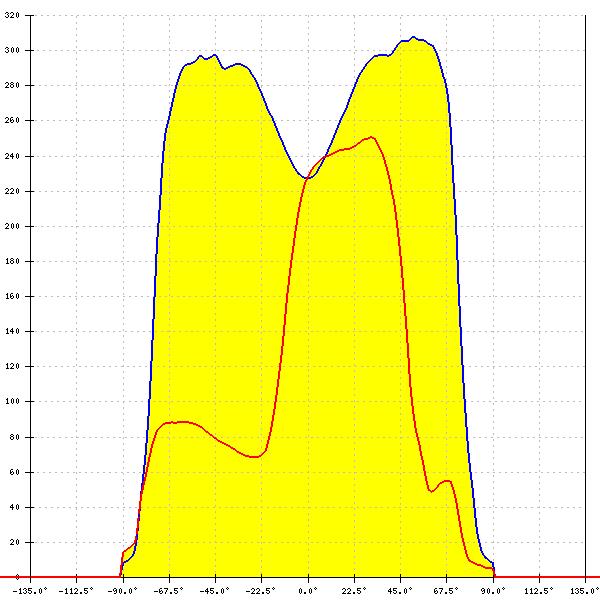

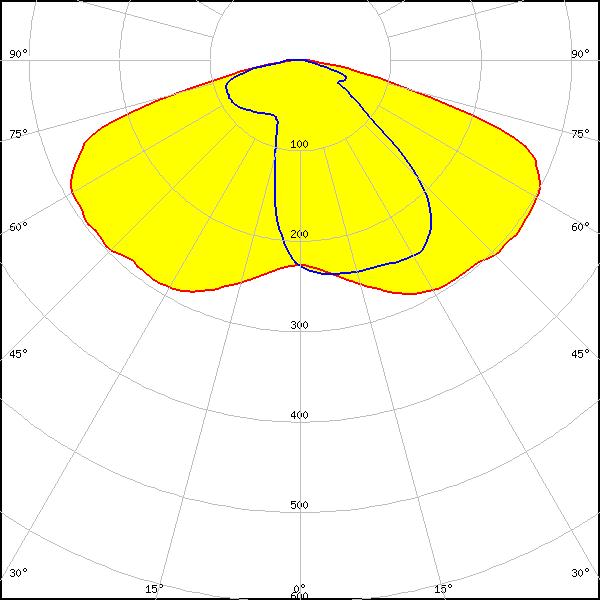

LED: VERO13
FWHM: asymmetric
Peak intensity: 0.660 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

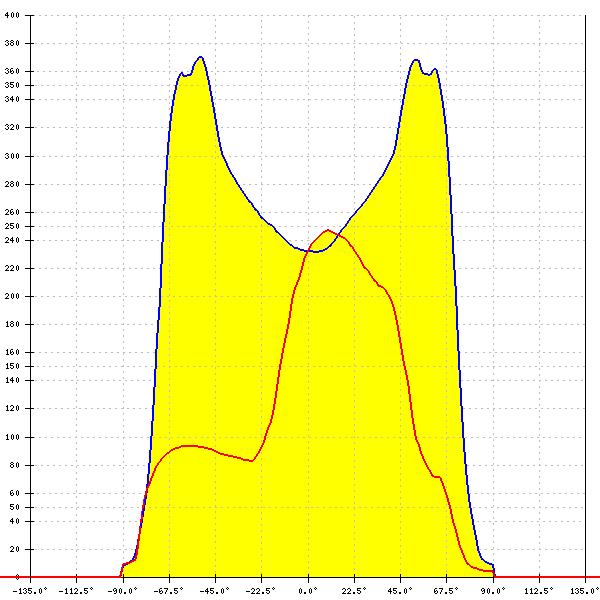

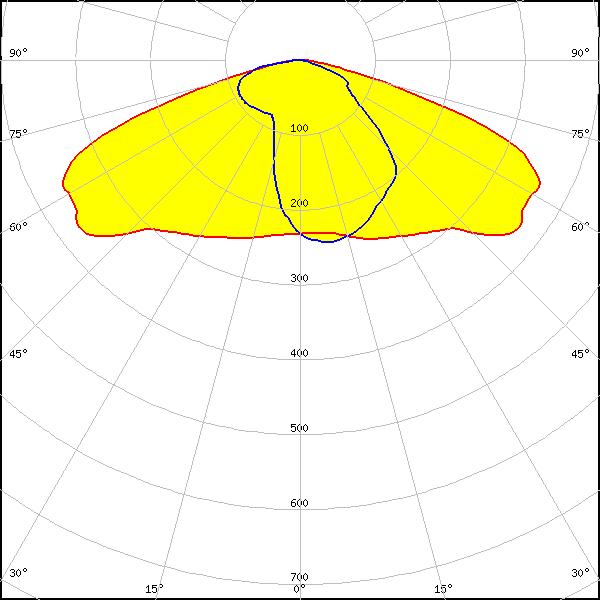

LED: VERO18
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

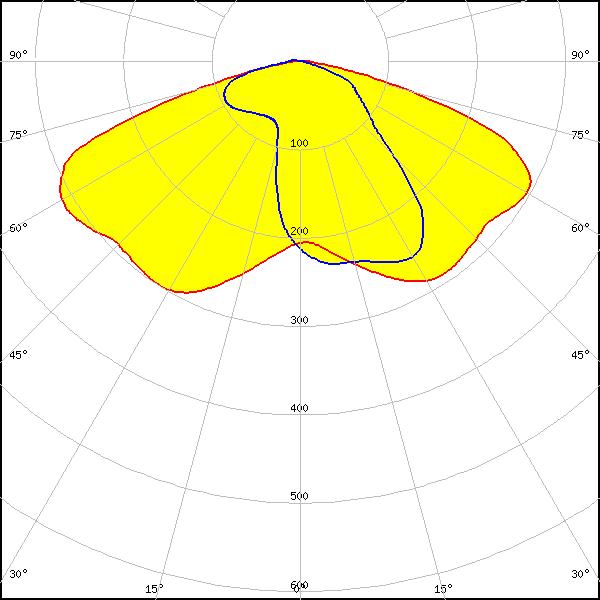

LED: CLL02x/CLU02x (LES10)
FWHM: asymmetric
Peak intensity: 0.730 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

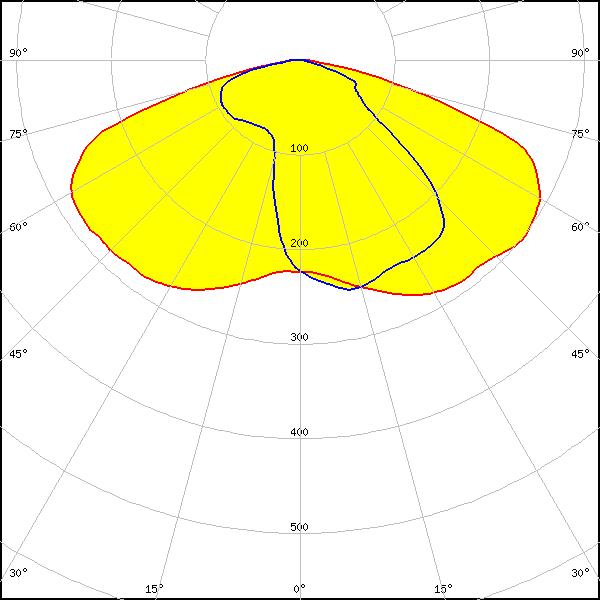

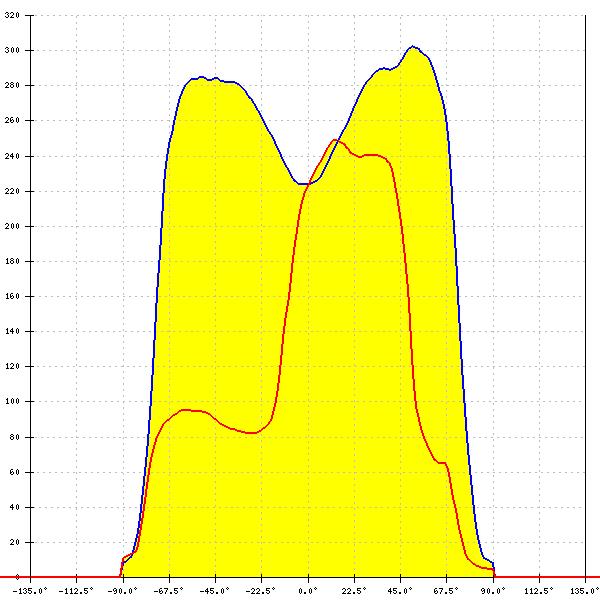

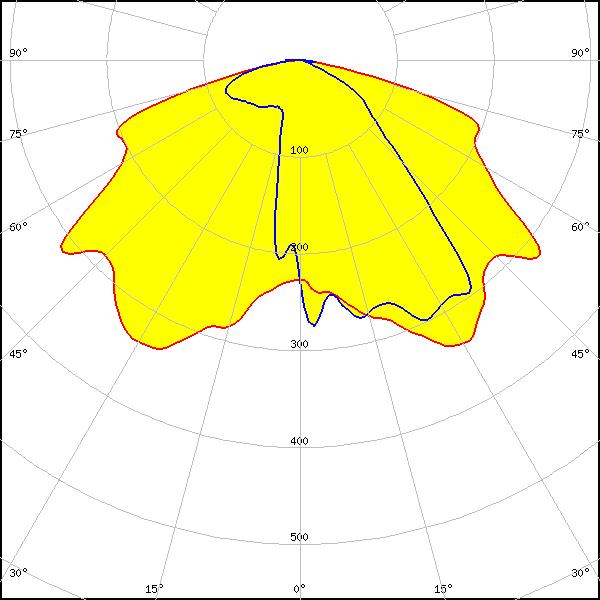

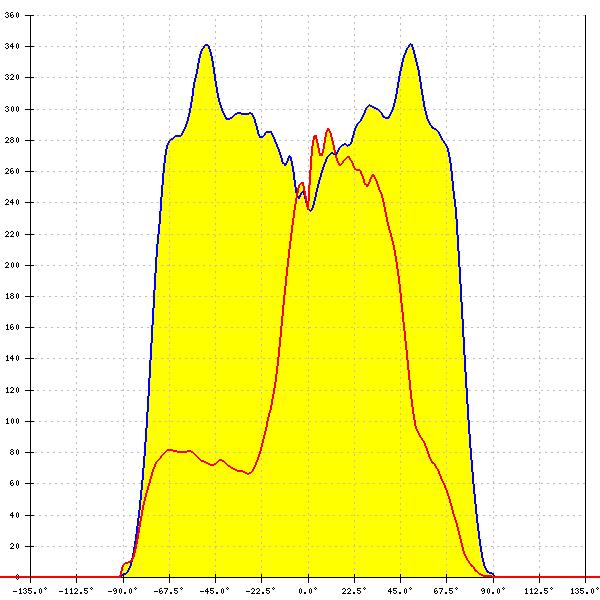

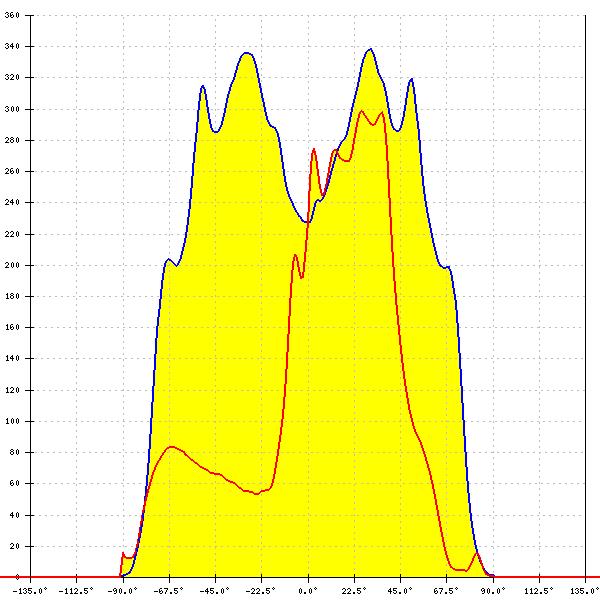

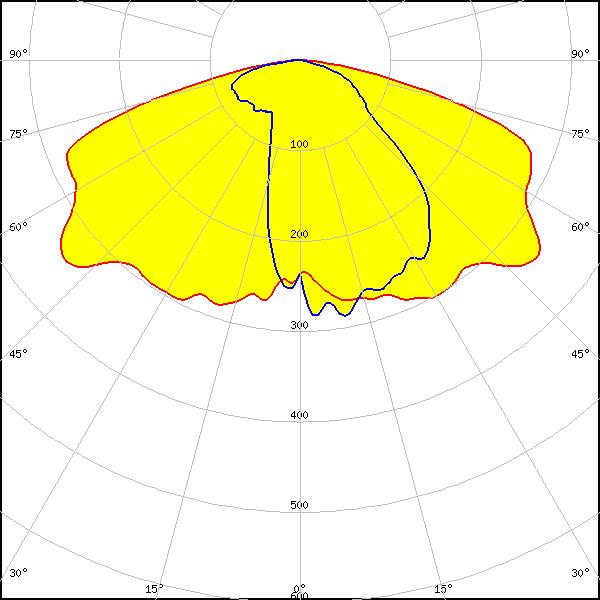

LED: CLL03x/CLU03x
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

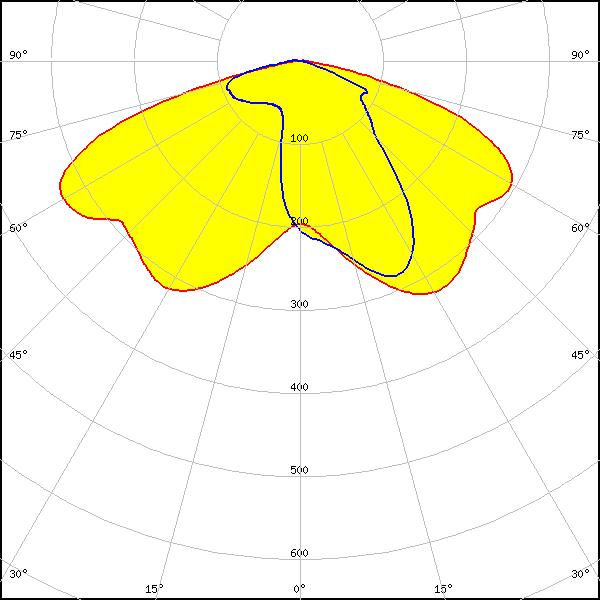

LED: CLL03x/CLU03x
Required components:
Bender Wirth: 433 Typ L1
FWHM: asymmetric
Peak intensity: 0.616 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

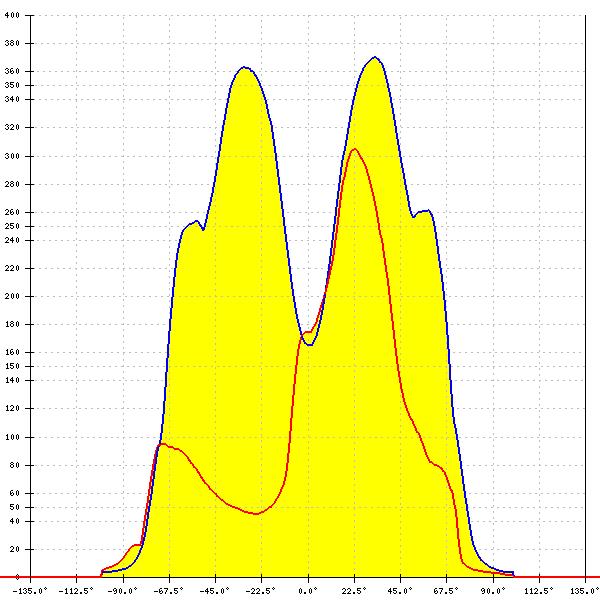

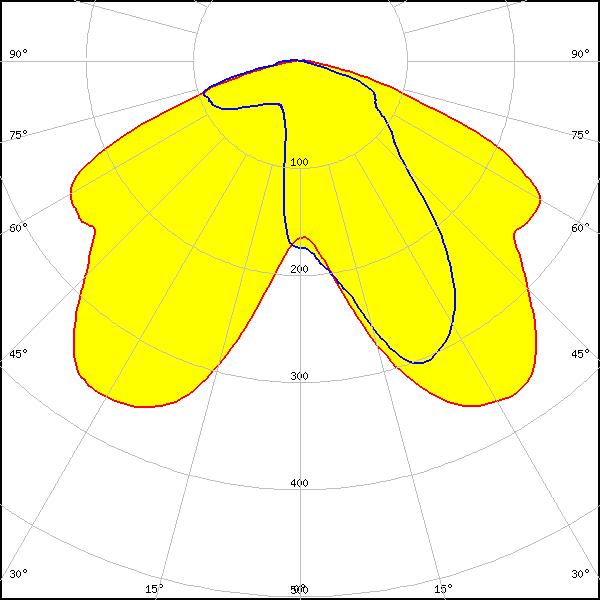

LED: CLU700/701/702
Required components:
Bender Wirth: 434 Typ L1
FWHM: asymmetric
Peak intensity: 1.400 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

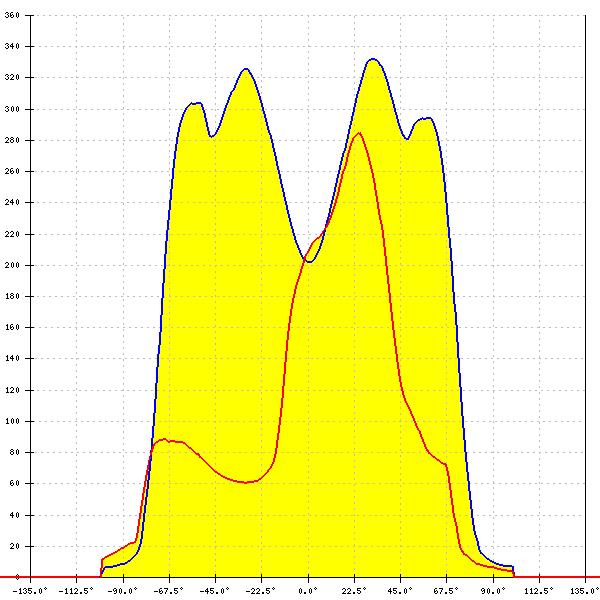

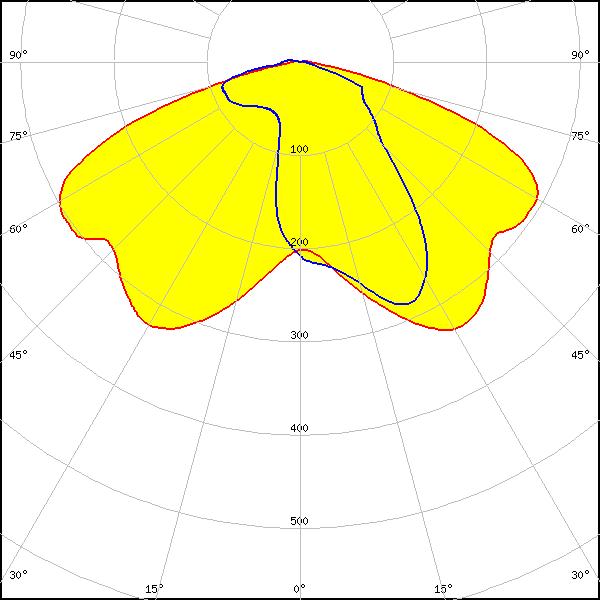

LED: CLU710/711
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

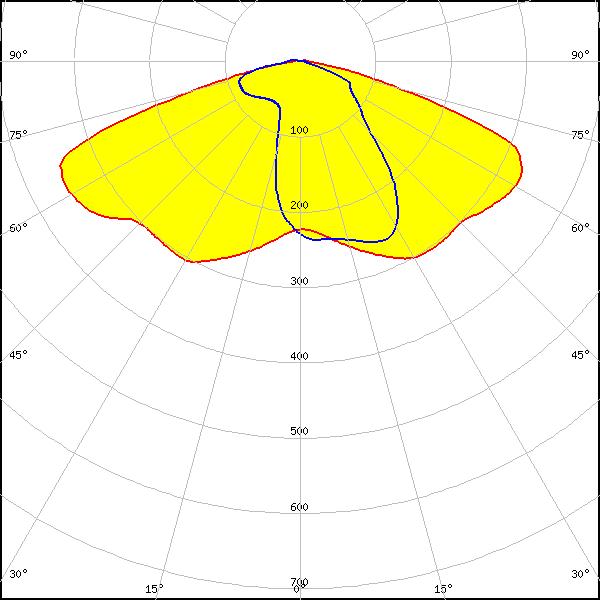

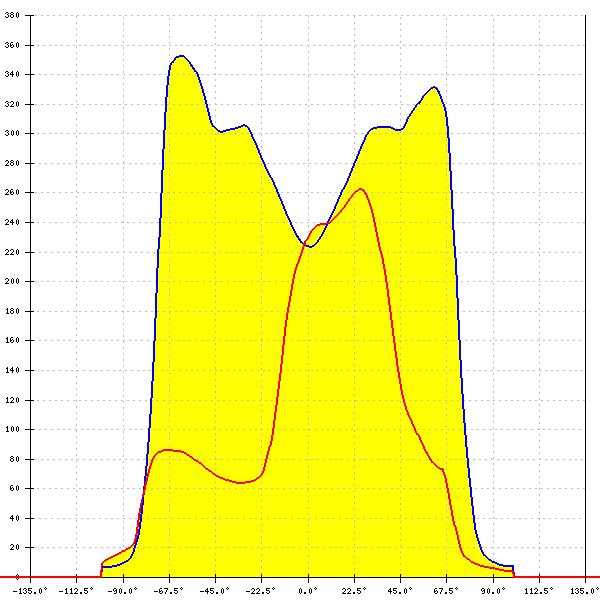

LED: CLU720/721
FWHM: asymmetric
Peak intensity: 0.730 cd/lm
LEDs/each optic: 1
Light colour: White

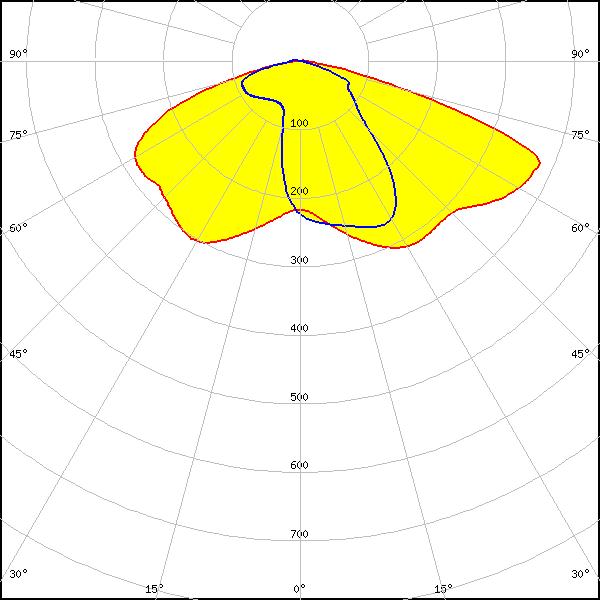

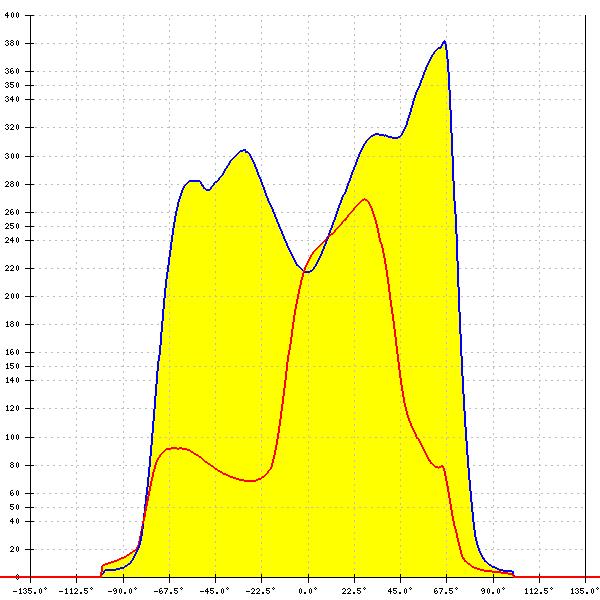

LED: CLU720/721
Required components:
Bender Wirth: 433 Typ L1
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

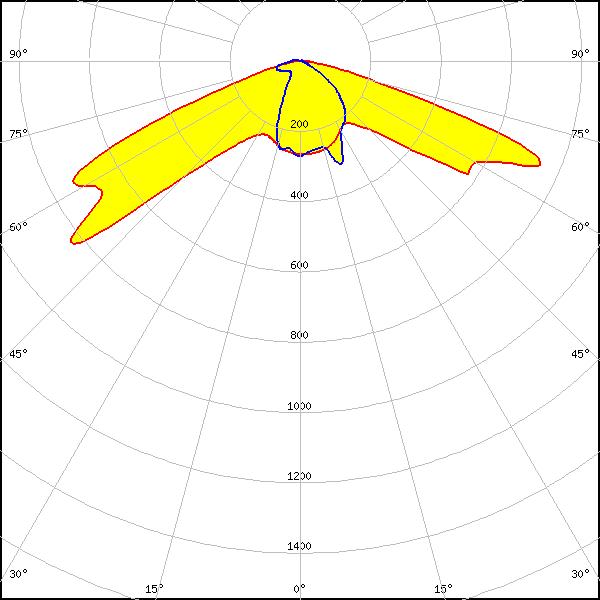

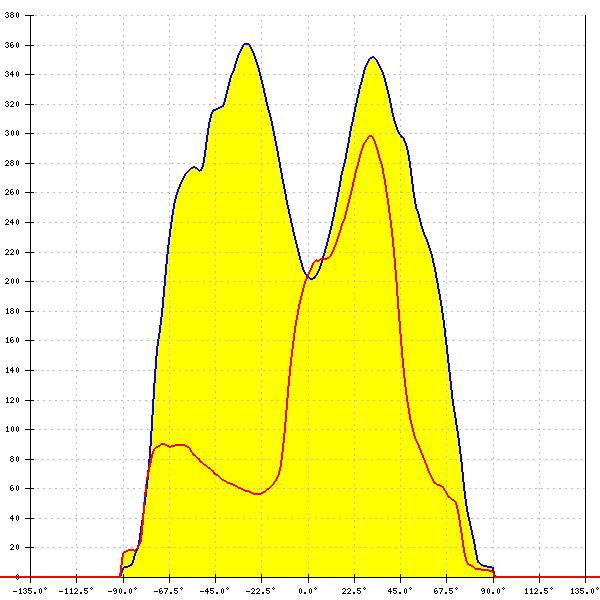

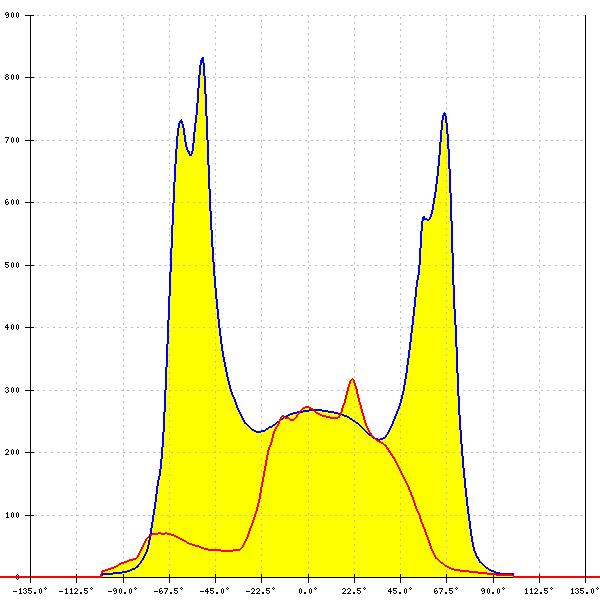

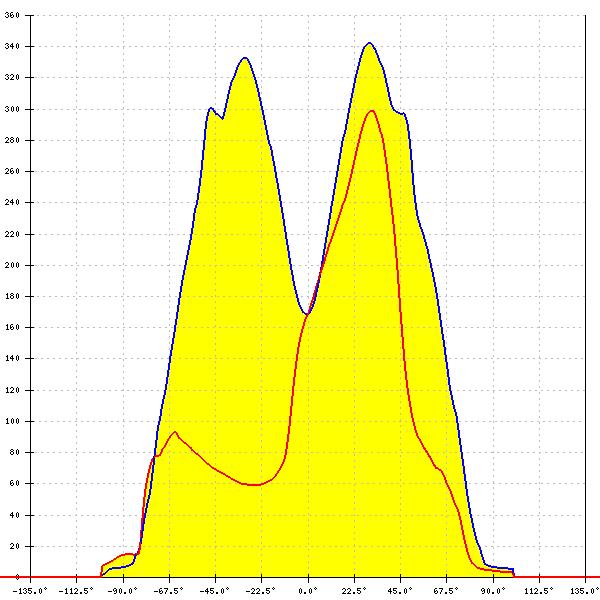

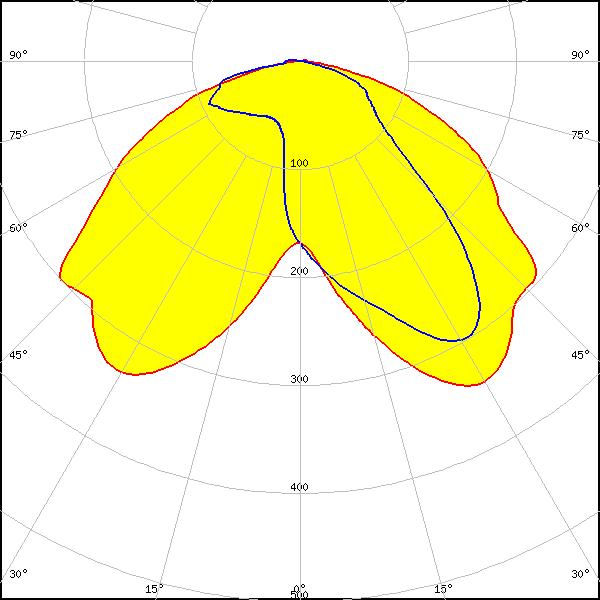

LED: CXA/B 15xx
Required components:
Bender Wirth: 441 Typ L1
FWHM: asymmetric
Peak intensity: 0.850 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

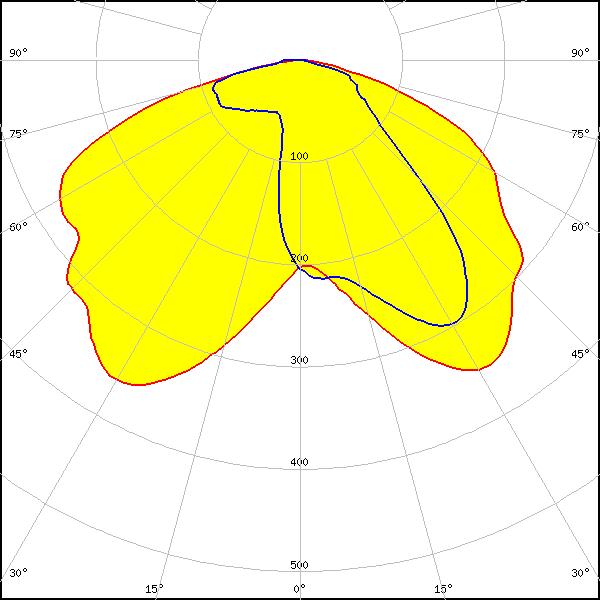

LED: CXA/B 15xx
Required components:
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 15xx
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

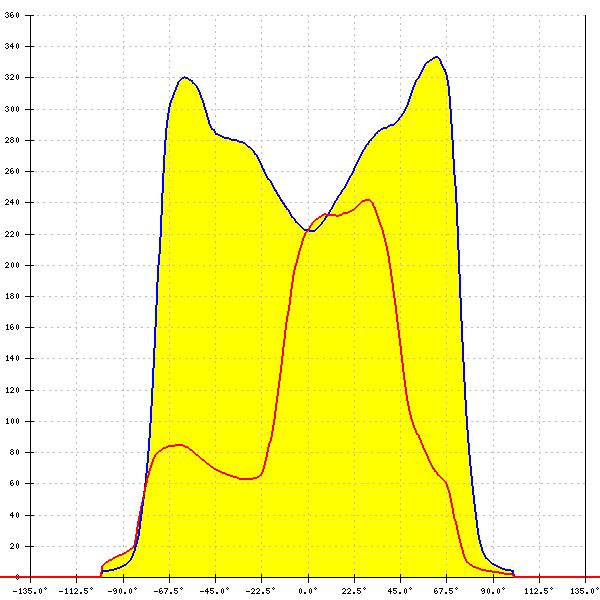

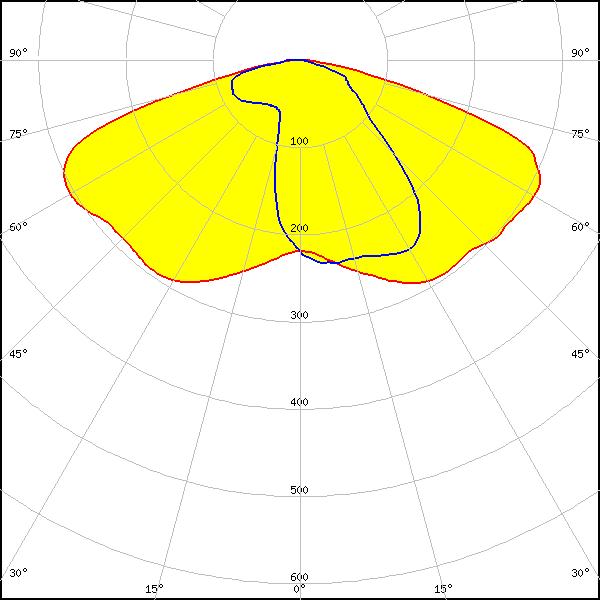

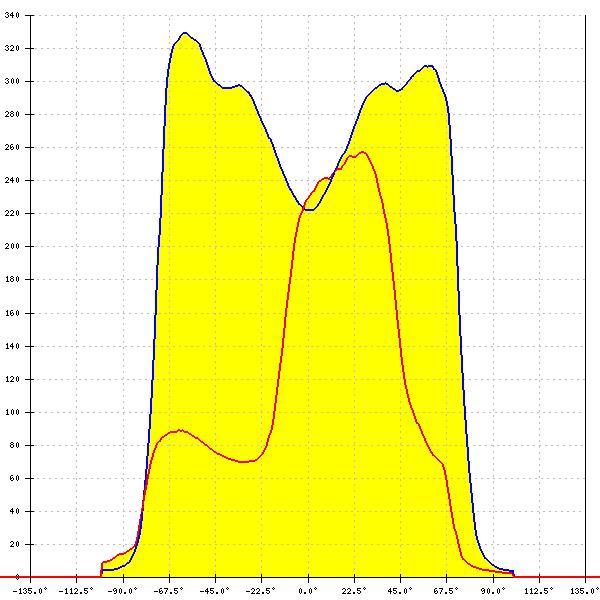

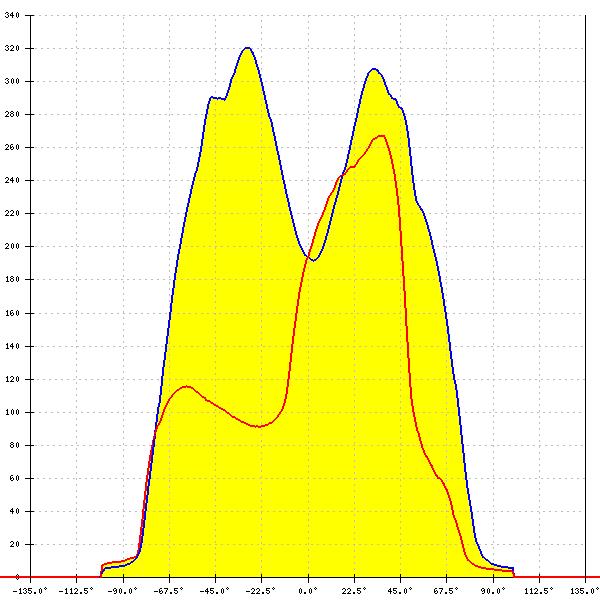

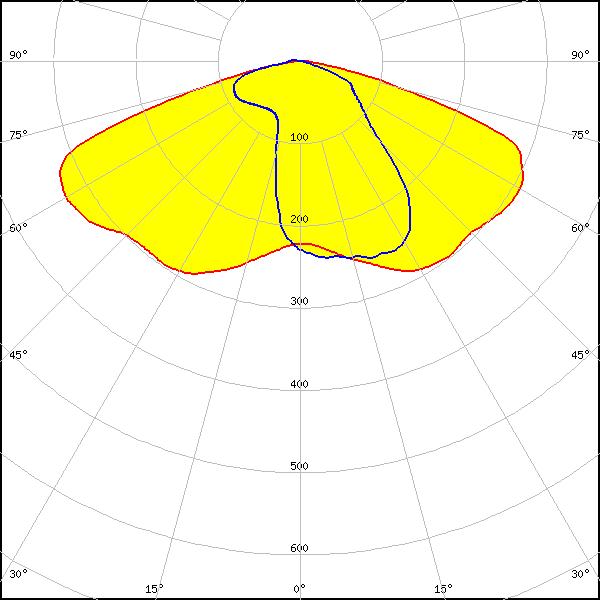

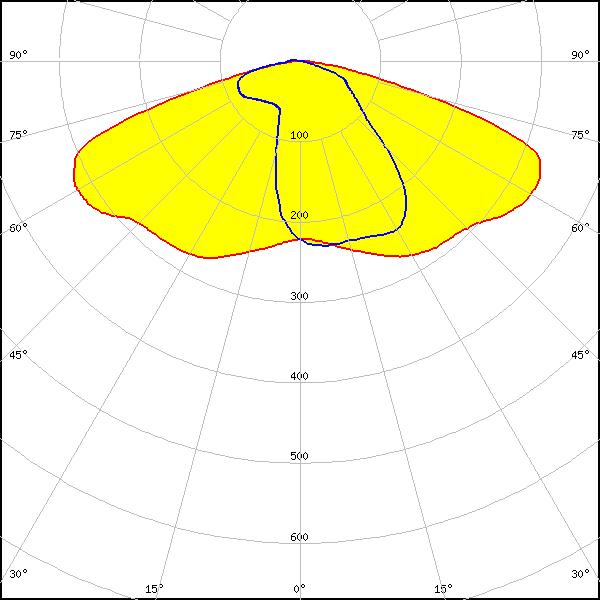

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

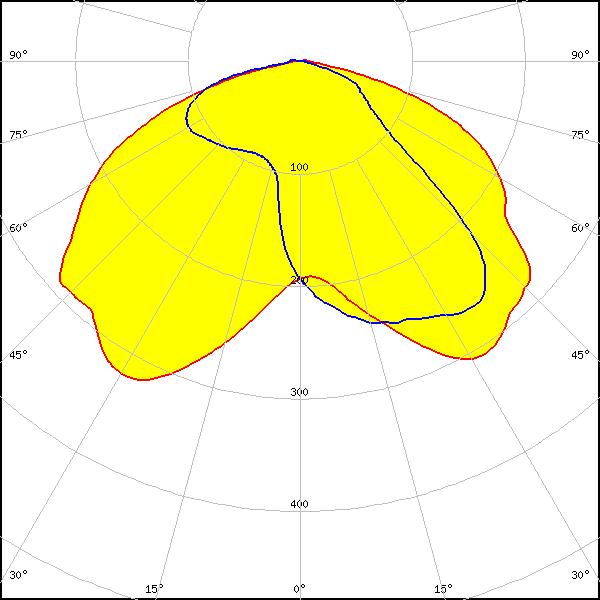

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

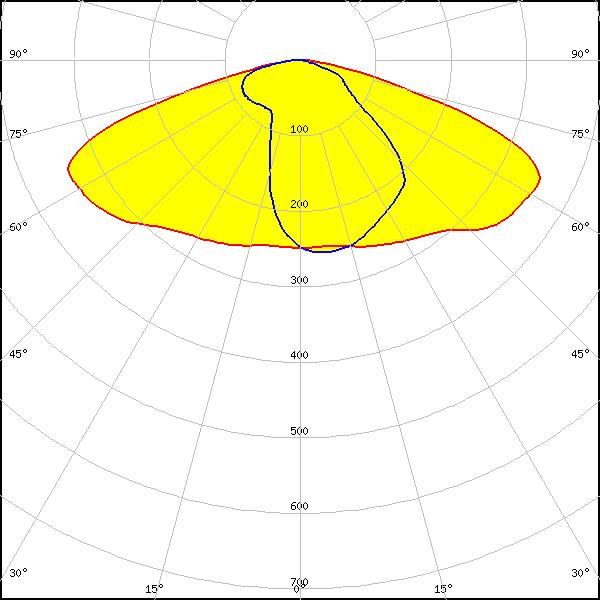

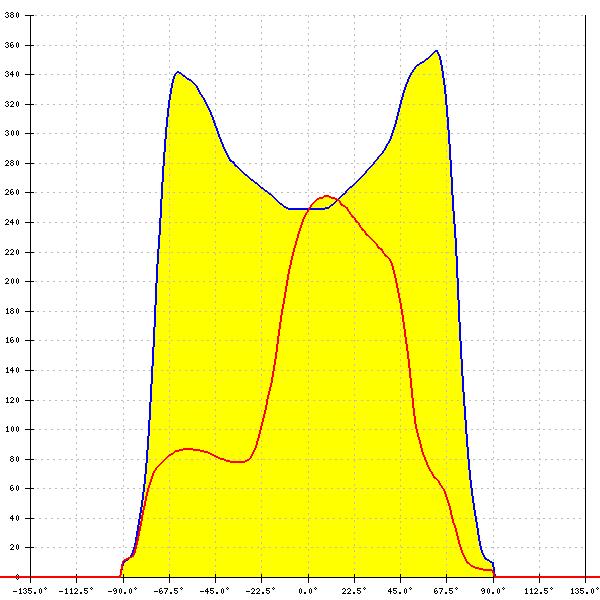

LED: CXA/B 25xx
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

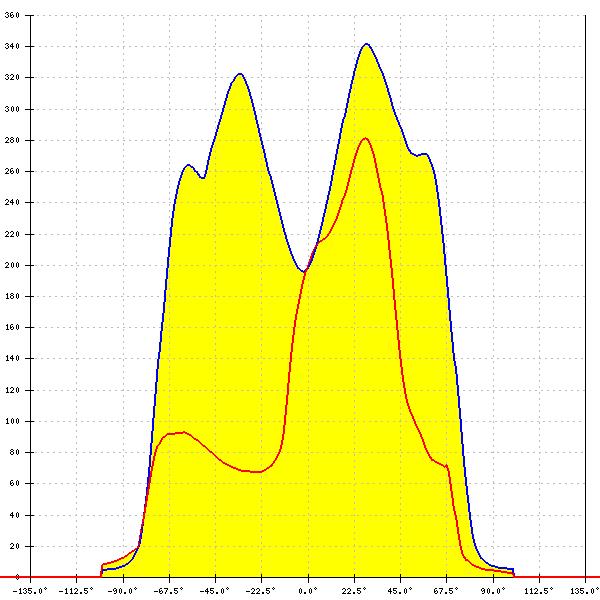

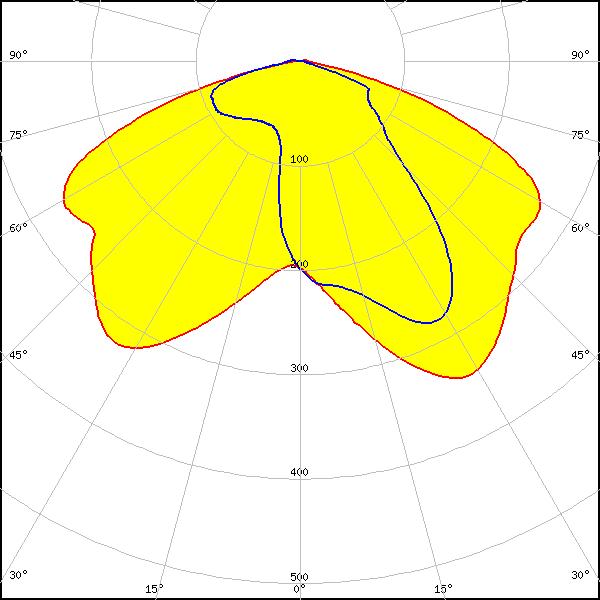

LED: LUXEON CoB 1202/1203
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity: 0.910 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

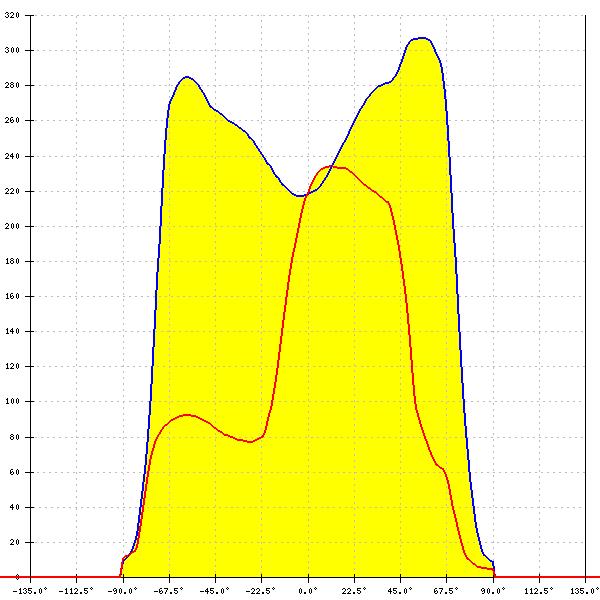

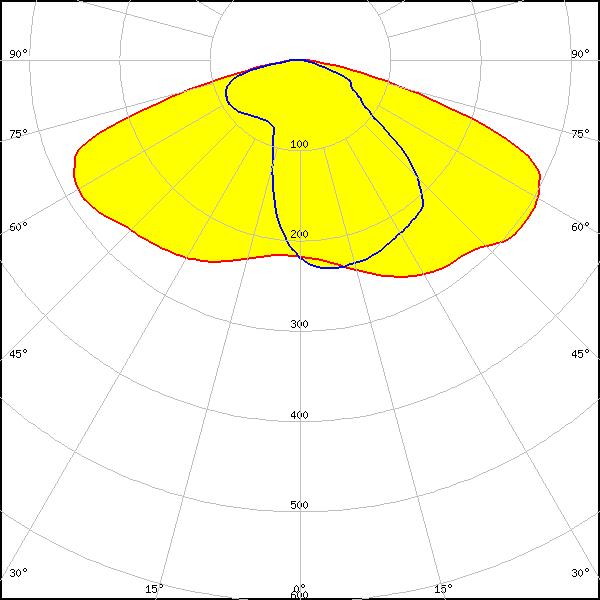

LED: LUXEON CoB 1208
FWHM: asymmetric
Peak intensity: 0.300 cd/lm
LEDs/each optic: 1
Light colour: White

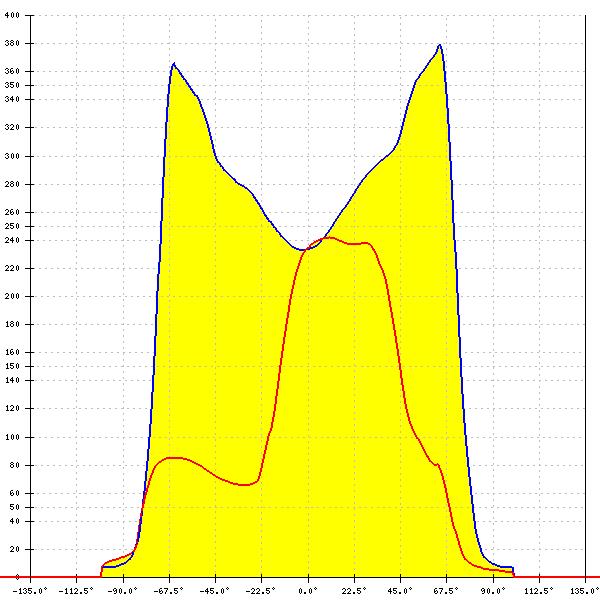

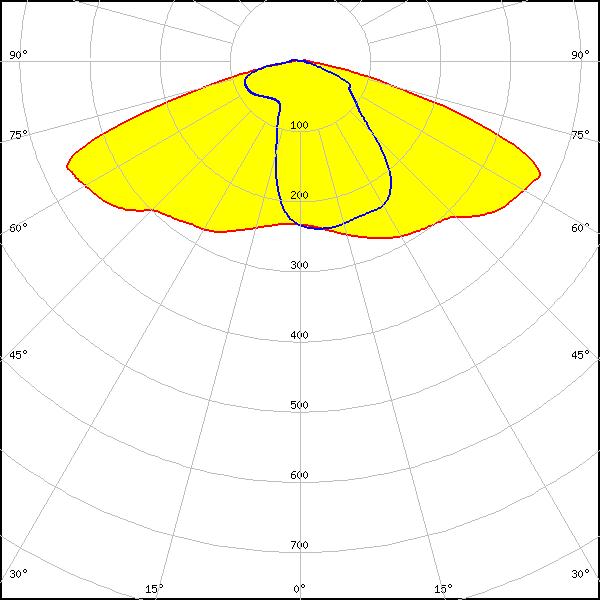

LED: CxM-14 (19x19)
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

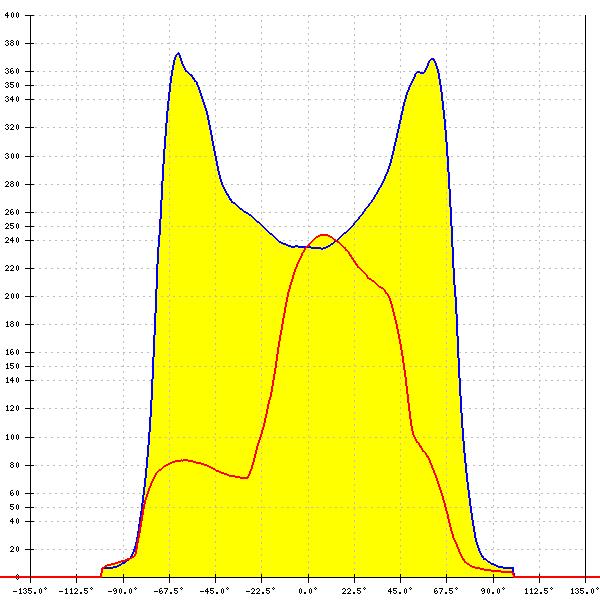

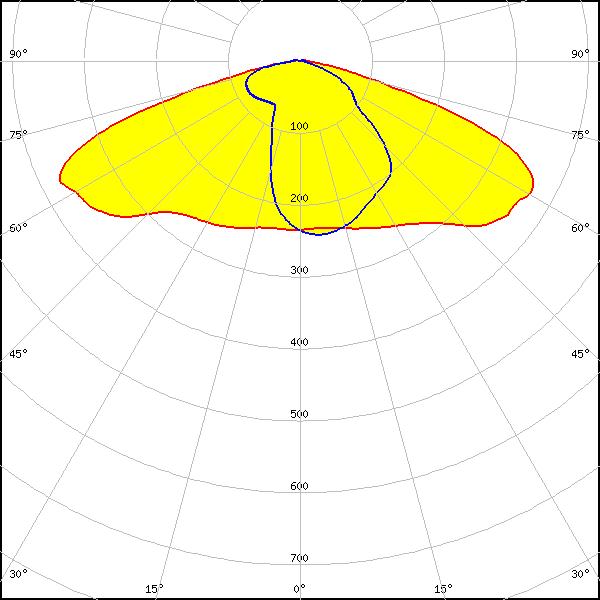

LED: CxM-18 (21.5x21.5)
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: COB J-Type
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: COB L-Type (LES 11)
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: COB L-Type (LES 9)
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity: 0.930 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

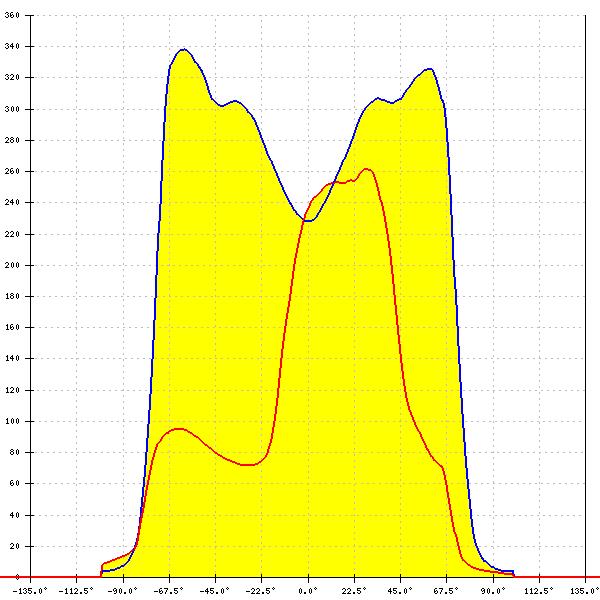

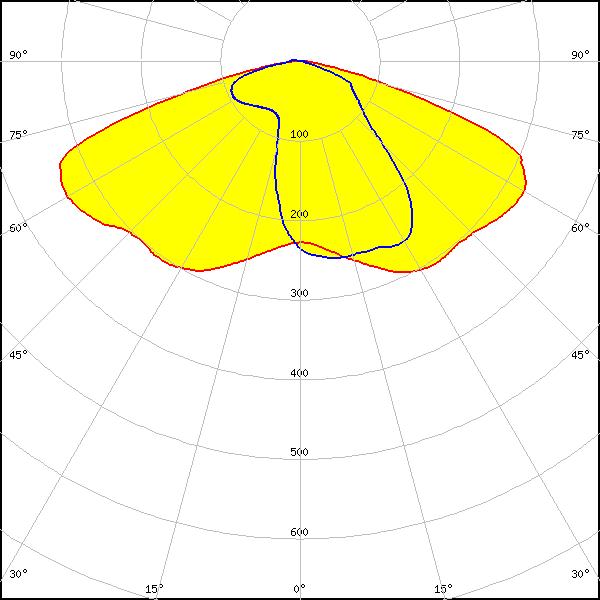

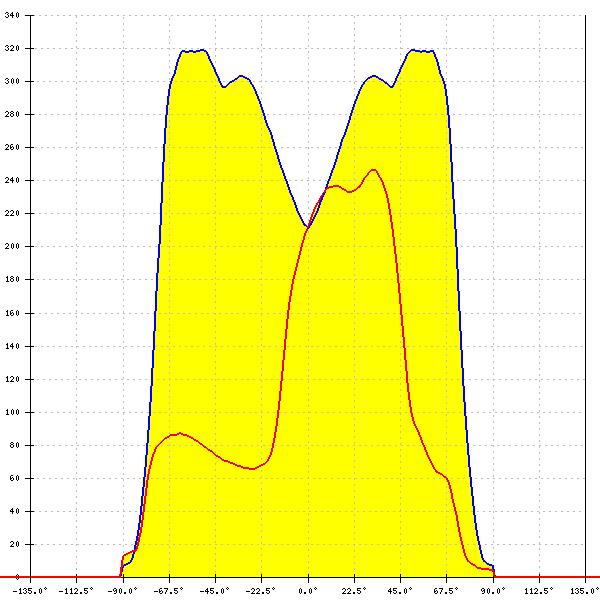

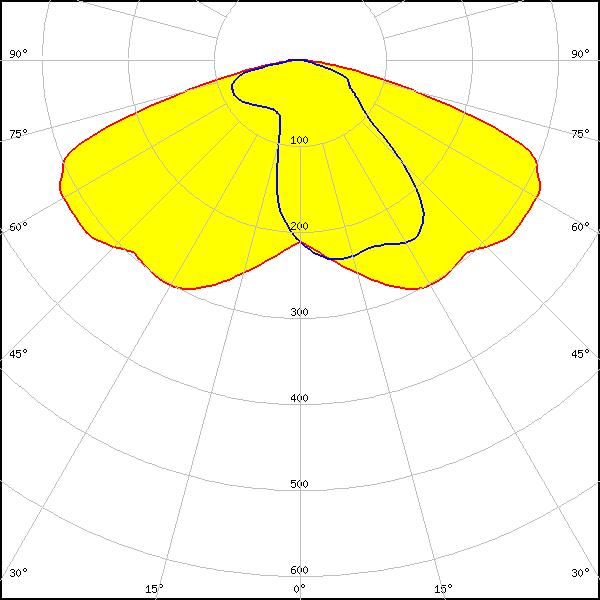

LED: Soleriq S13
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: Soleriq S13
Required components:
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity: 0.690 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

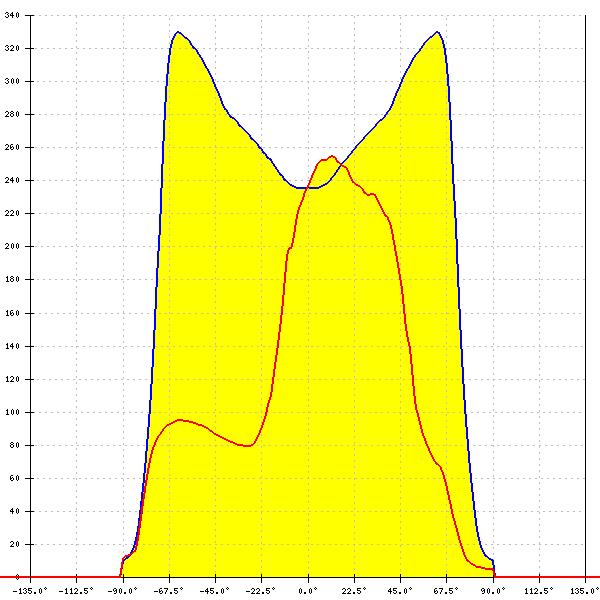

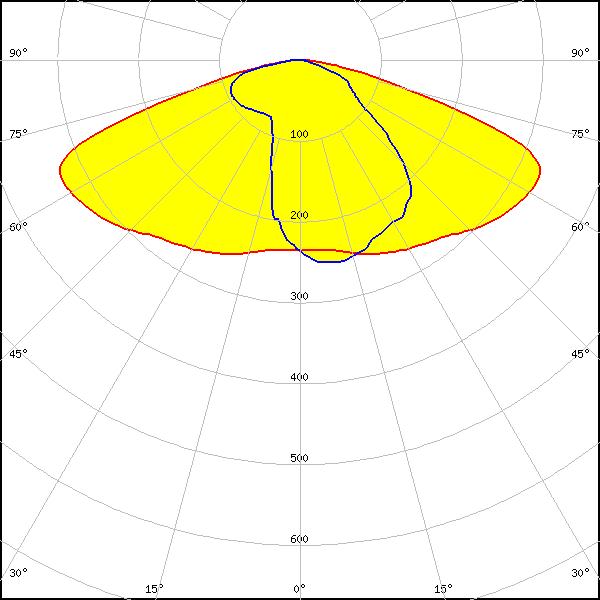

LED: Soleriq S19
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
FWHM: asymmetric
Peak intensity: 0.510 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

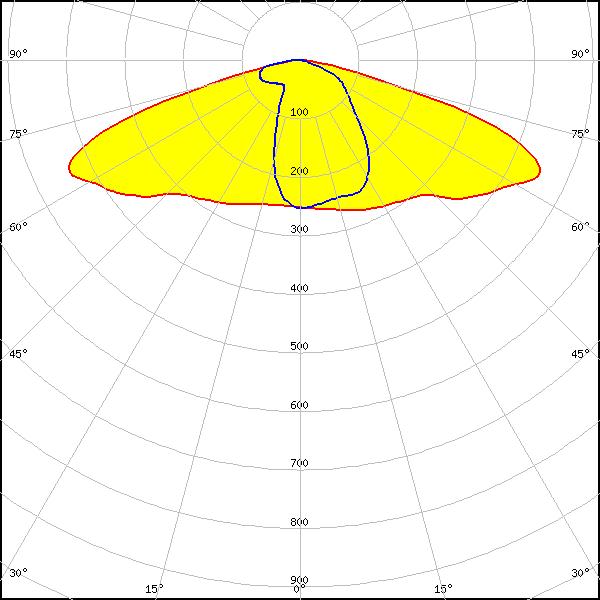

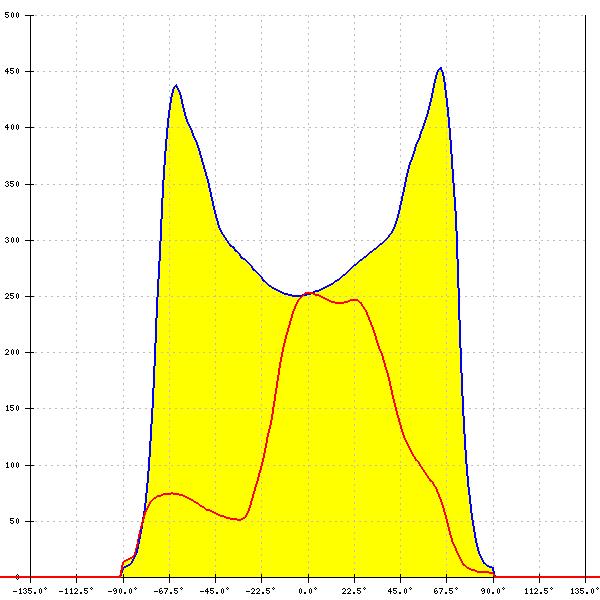

LED: Mega Zenigata (GW6DME)
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
