FN13888_BILLIE-A

Print

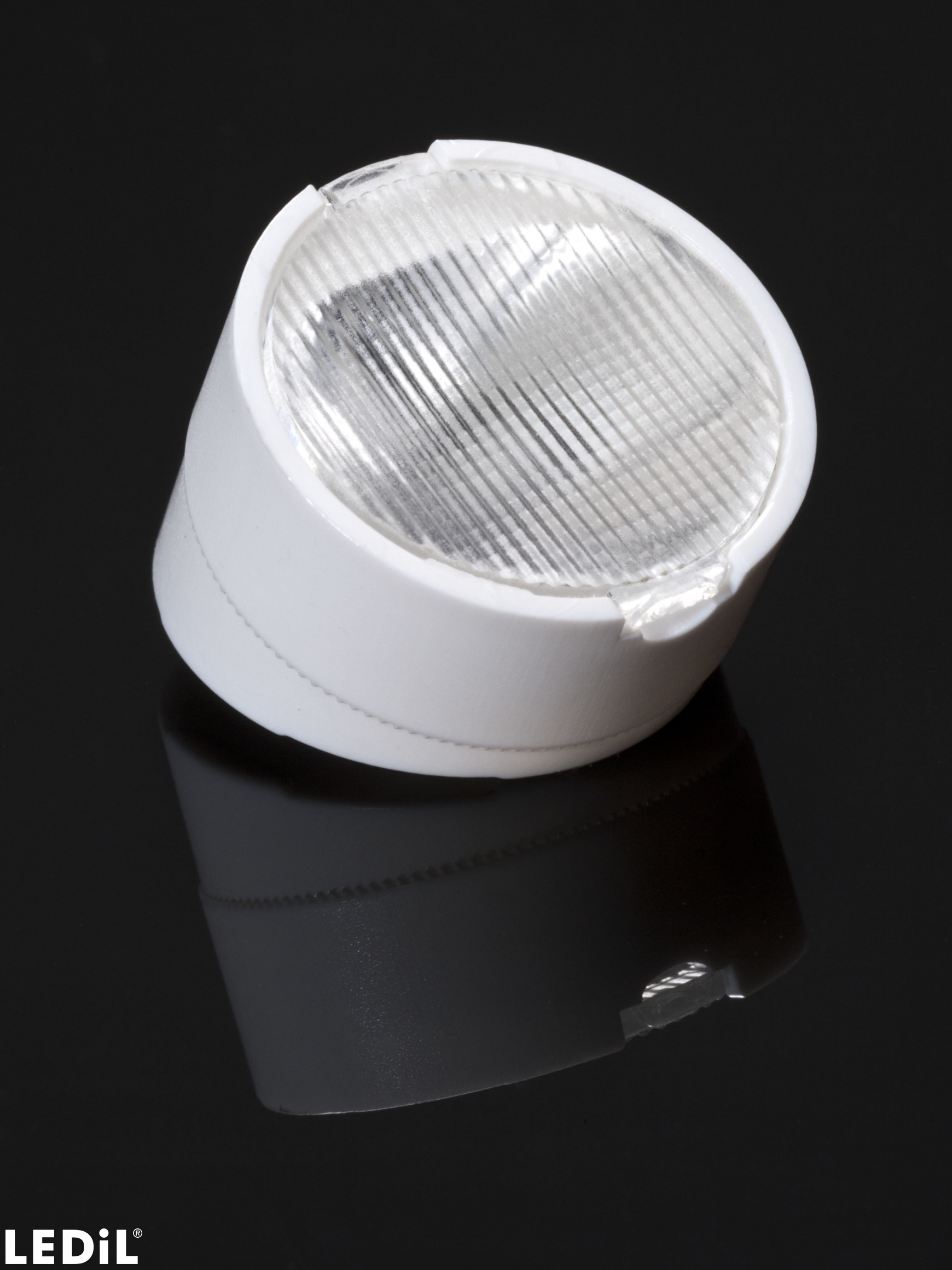

Asymmetric beam for billboards. Assembly with holder.

Specification
  • Dimensions:
    22 mm
  • Height:
    16.1 mm
  • Fastening:
    pin
  • Colour:
    white
  • RoHS and REACH compliant:
    Yes
Materials
  • BILLIE-A, Single lens, PMMA
  • BILLIE-HLD-PIN-TAPE, Holder, PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    1344 pcs
  • MPQ:
    96 pcs
  • MOQ:
    96 pcs
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

Optical results

LED: XB-D
FWHM: asymmetric
Peak intensity: 2.1 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

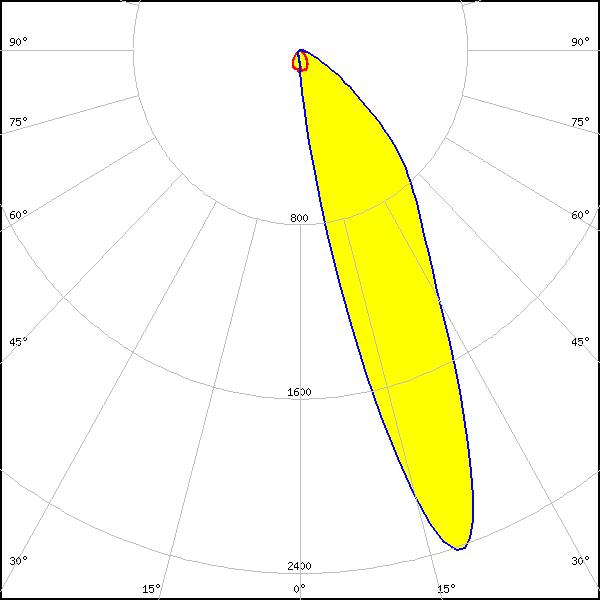

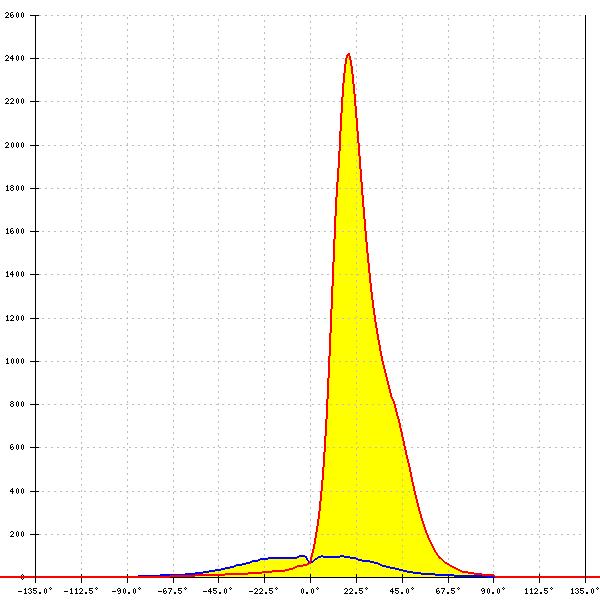

LED: XP-E
FWHM: asymmetric
Peak intensity: 2.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: XP-G
FWHM: asymmetric
Peak intensity: 2.2 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON A
FWHM: asymmetric
Peak intensity: 2.1 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON R
FWHM: asymmetric
Peak intensity: 2.0 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Rebel
FWHM: asymmetric
Peak intensity: 2.2 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Rebel ES
FWHM: asymmetric
Peak intensity: 2.0 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: NCSxx19A
FWHM: asymmetric
Peak intensity: 2.0 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: NF2x757A
FWHM: asymmetric
Peak intensity: 1.9 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: NF2x757G
FWHM: asymmetric
Peak intensity: 2.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19A
FWHM: asymmetric
Peak intensity: 1.9 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

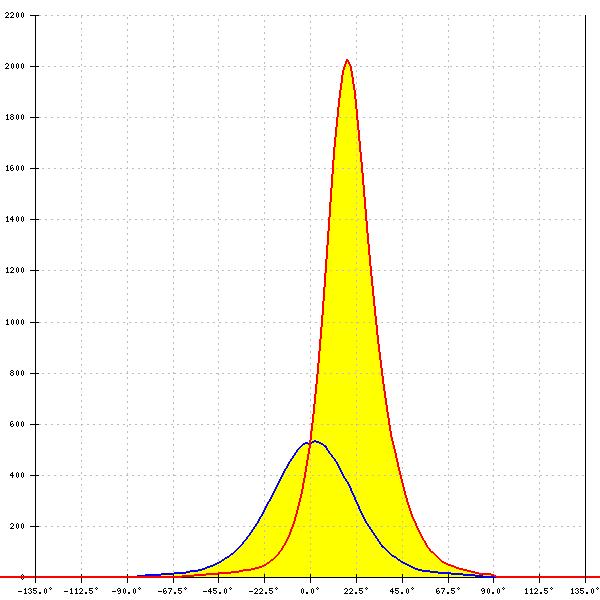

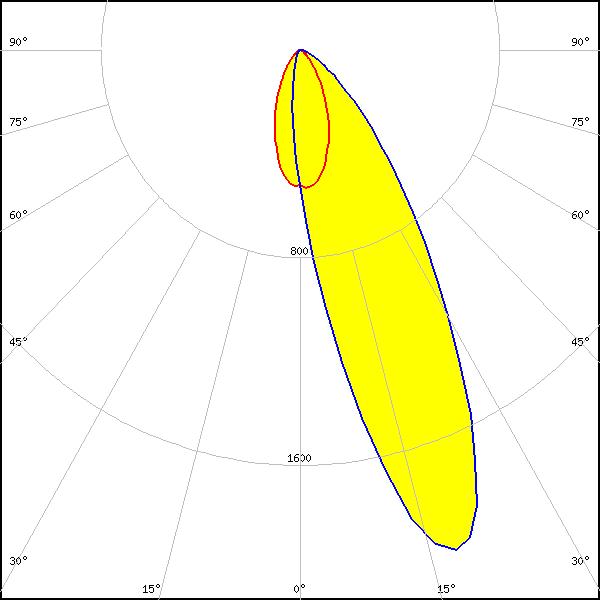

LED: Duris S5 (2 chip)
FWHM: asymmetric
Peak intensity: 2.0 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: OSLON SSL 150
FWHM: asymmetric
Peak intensity: 2.7 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

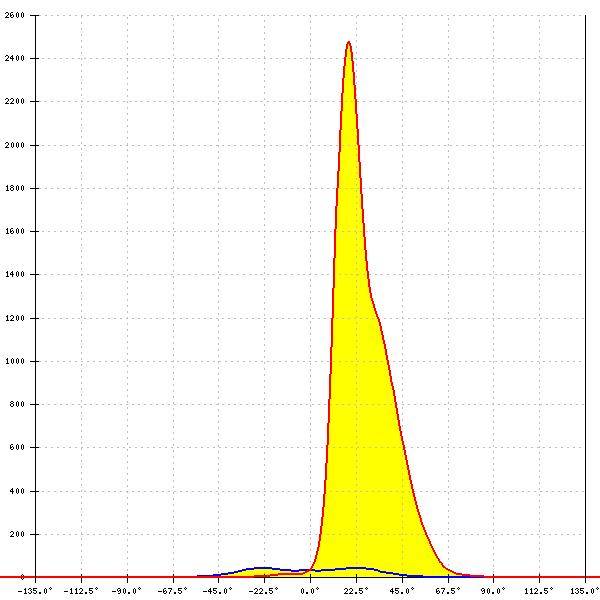

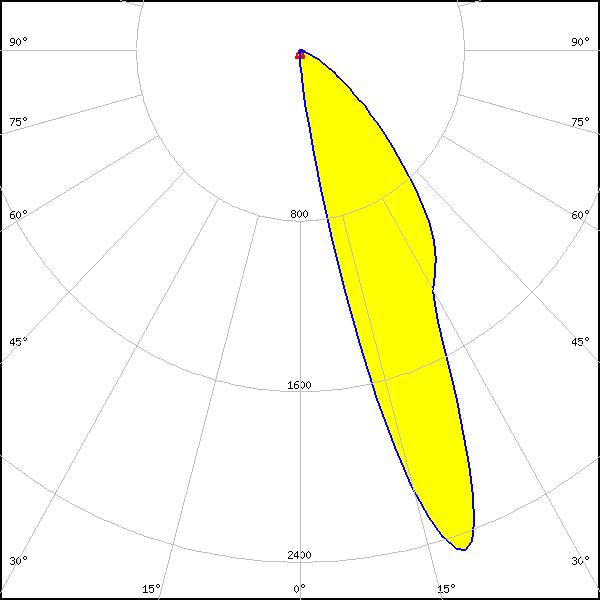

LED: OSLON SSL 80
FWHM: asymmetric
Peak intensity: 2.1 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
