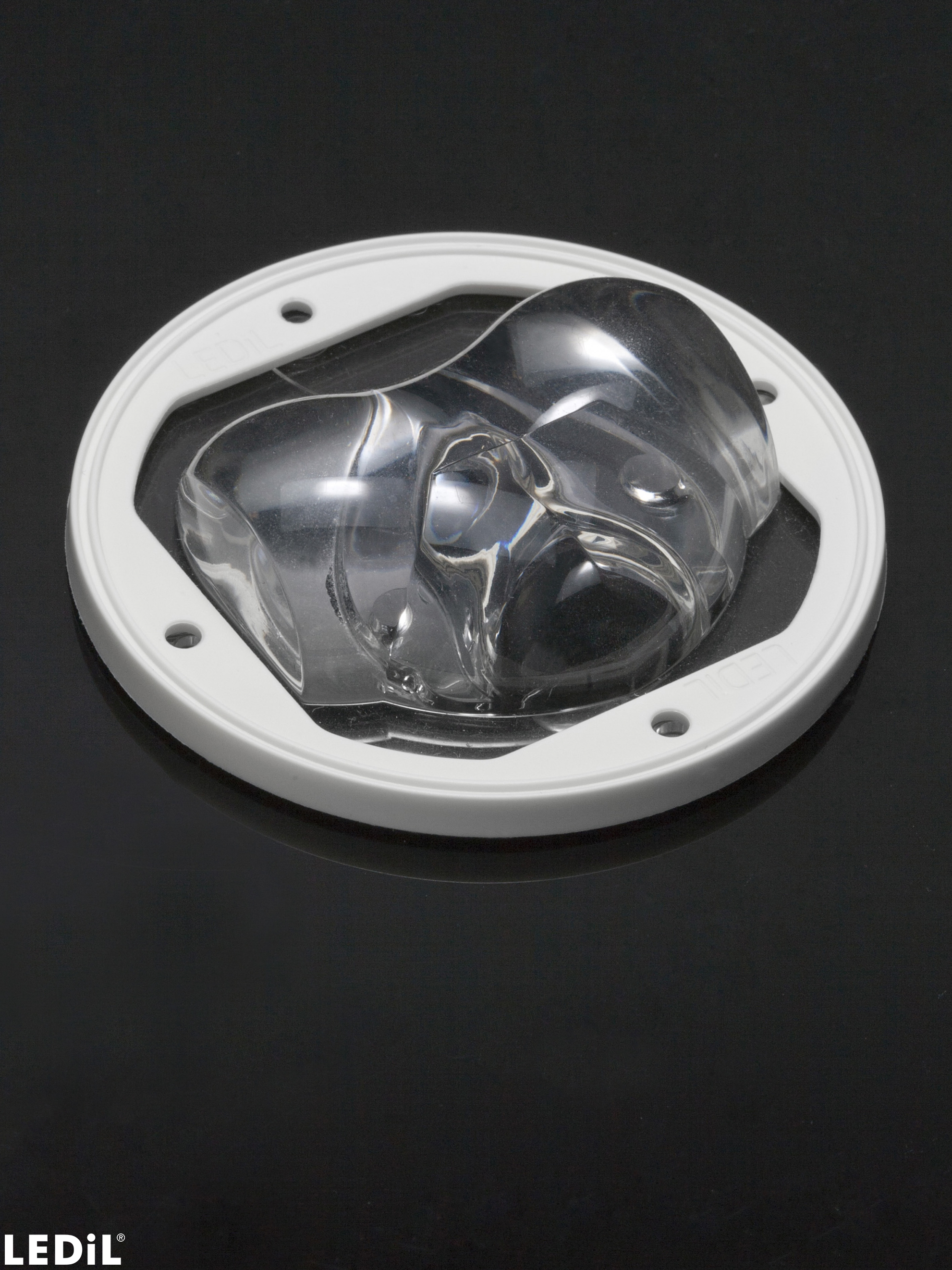

FN14253_STELLA-A

Print

Type ll and lll beam for street lighting. Compatible with up to 23 mm LES size COBs. Variant with white frame.

Specification
  • Dimensions:
    90 mm
  • Height:
    22.00 mm
  • Fastening:
    screw
  • Colour:
    white
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    100 pcs
  • Box size:
    480 x 280 x 300 mm
  • MPQ:
    10 pcs
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FN14253_STELLA-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

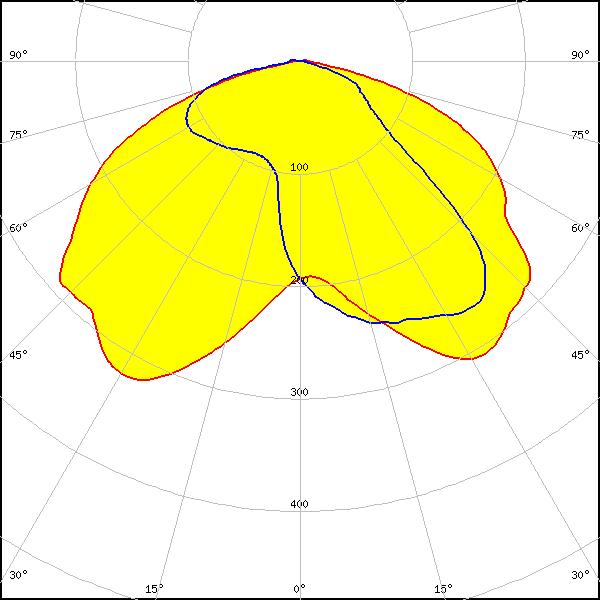

Optical results

LED: V10 Gen7
LES size: 10.2 mm
Required components:
Bender Wirth: 486 Typ L1
FWHM: asymmetric
Peak intensity: 0.560 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
Bender Wirth: 477 Typ L1
FWHM: asymmetric
Peak intensity: 0.555 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

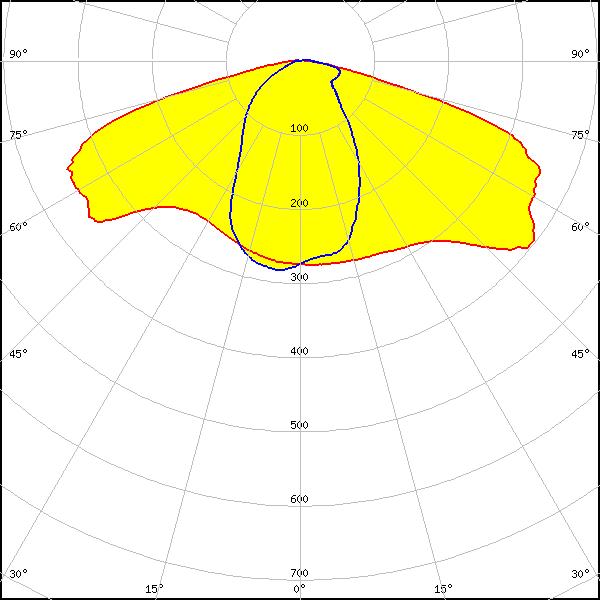

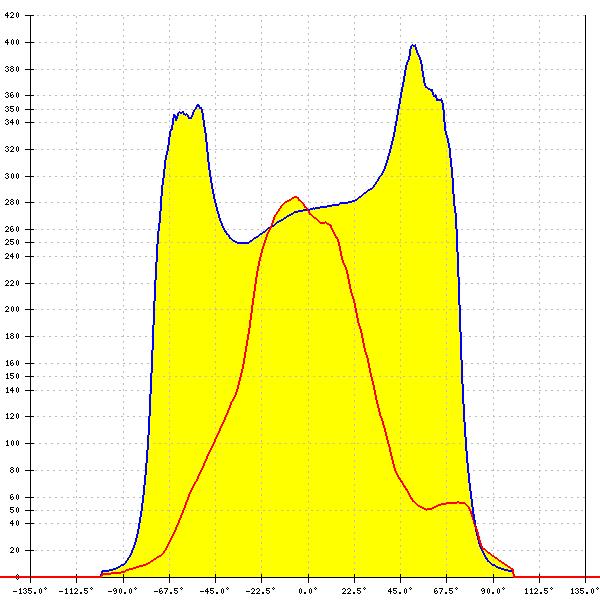

LED: V18 Gen7
LES size: 19.2 mm
FWHM: asymmetric
Peak intensity: 0.340 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
FWHM: asymmetric
Peak intensity: 0.660 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO18
LES size: 18.6 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

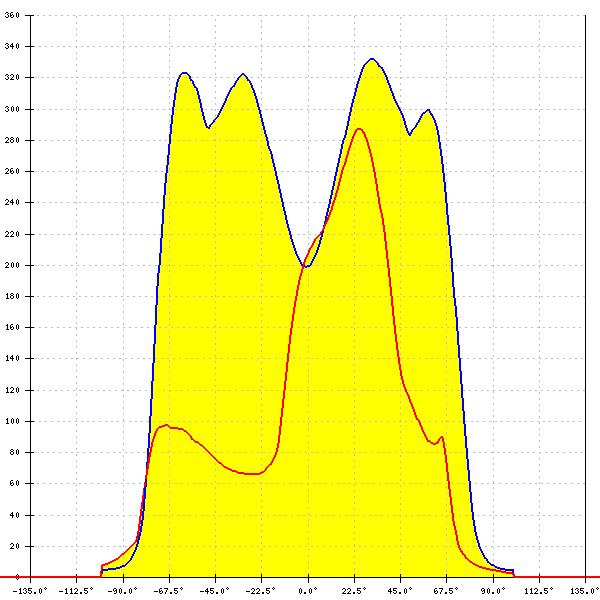

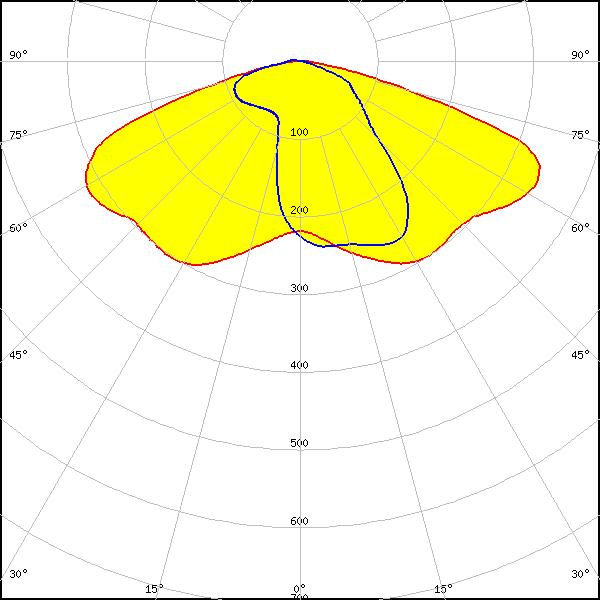

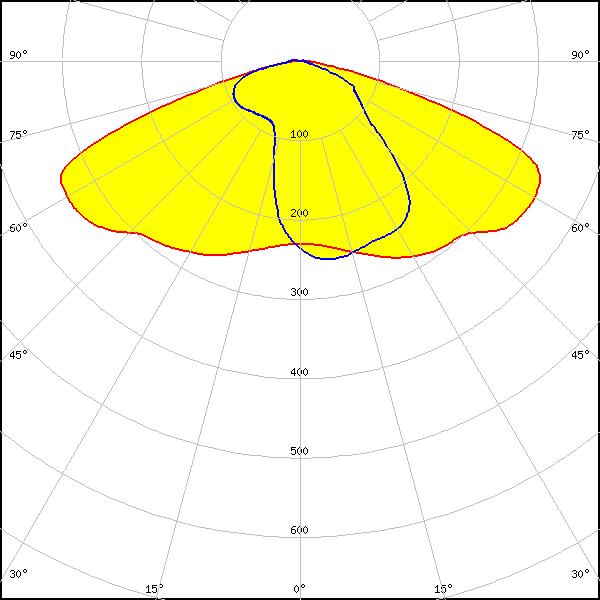

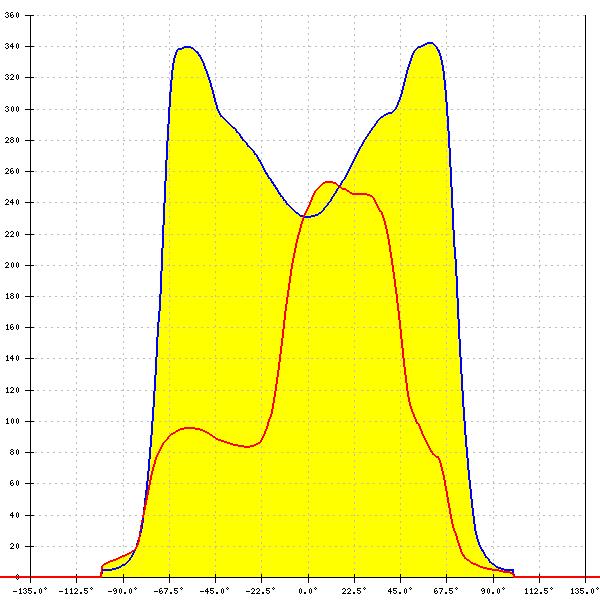

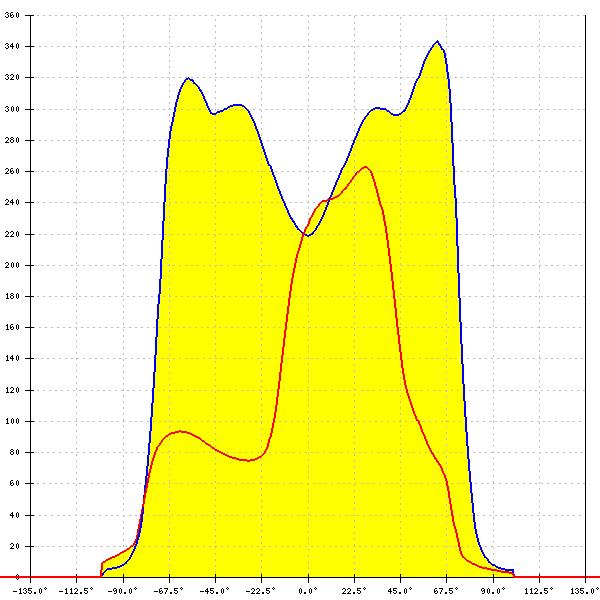

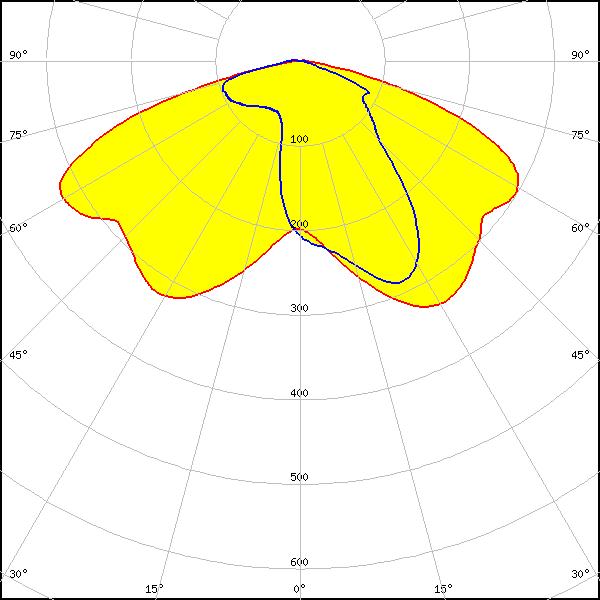

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L1
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity: 0.616 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

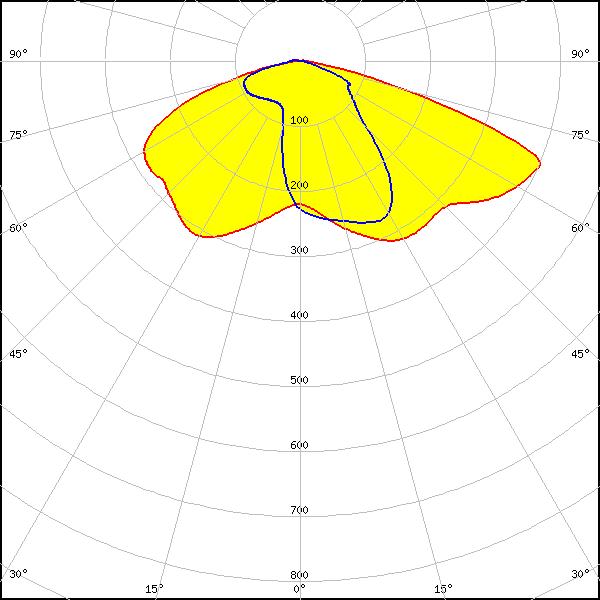

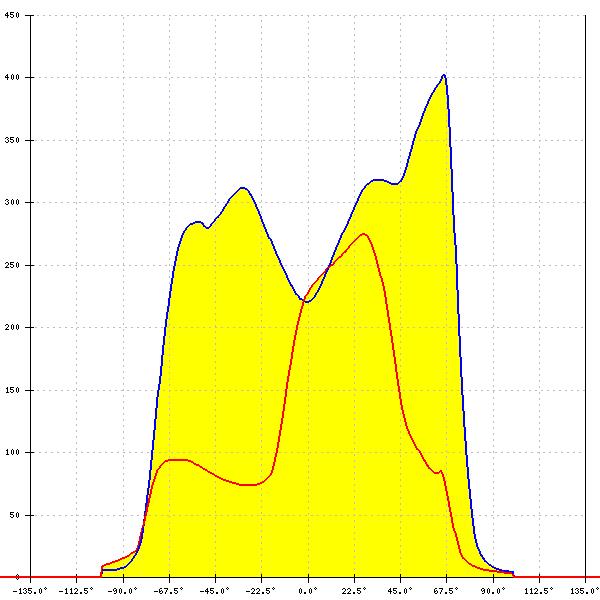

LED: CLU720/721/723
LES size: 11.0 mm
Required components:
Bender Wirth: 433 Typ L1
FWHM: asymmetric
Peak intensity: 0.770 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

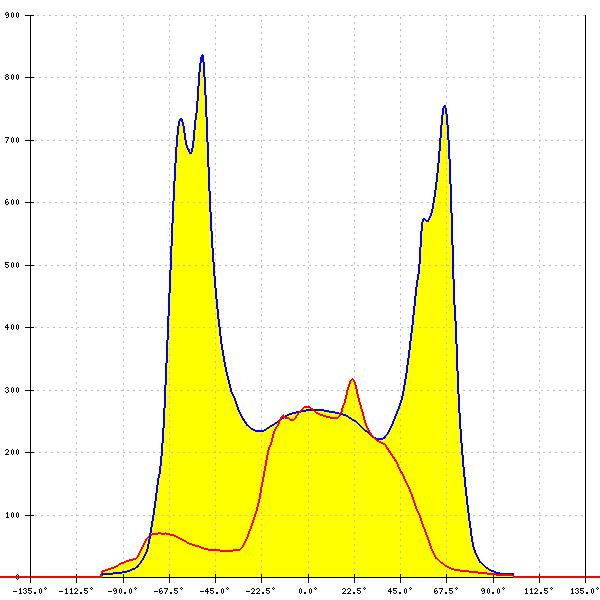

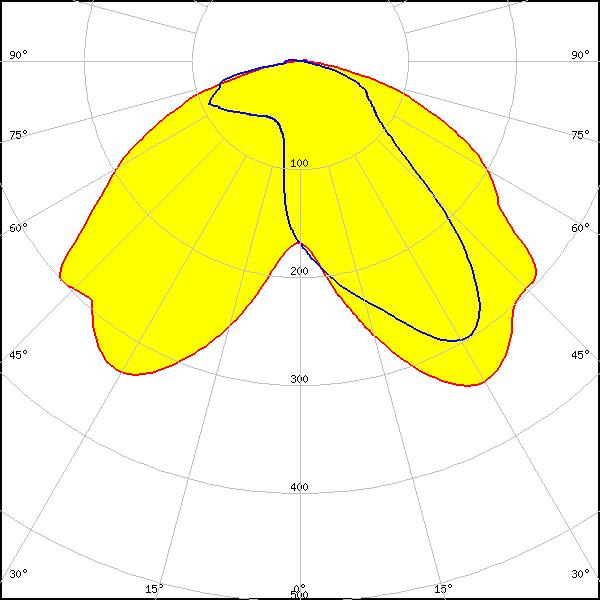

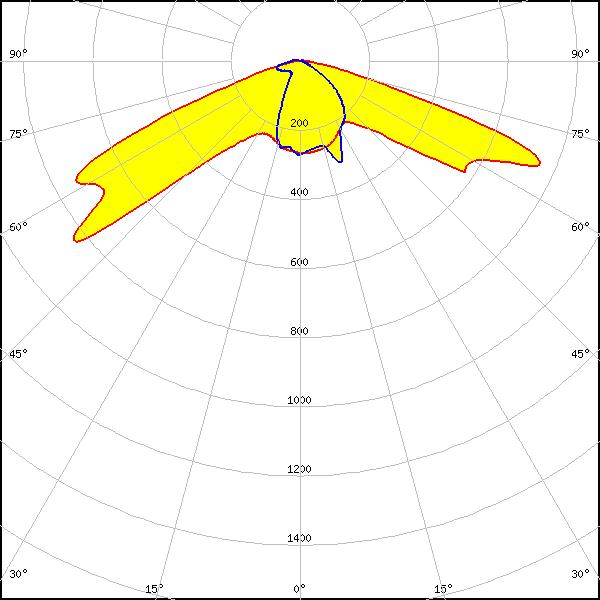

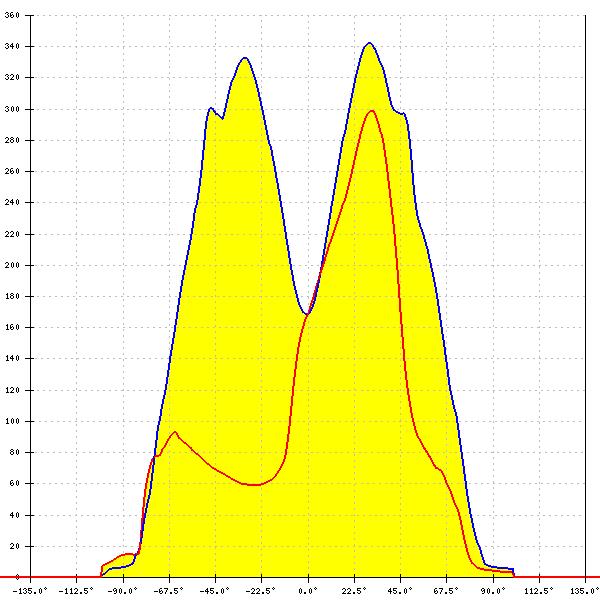

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
Bender Wirth: 441 Typ L1
FWHM: asymmetric
Peak intensity: 0.850 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

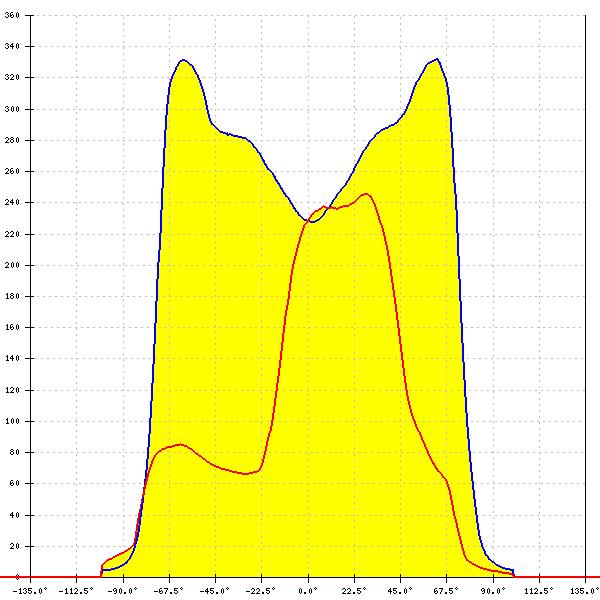

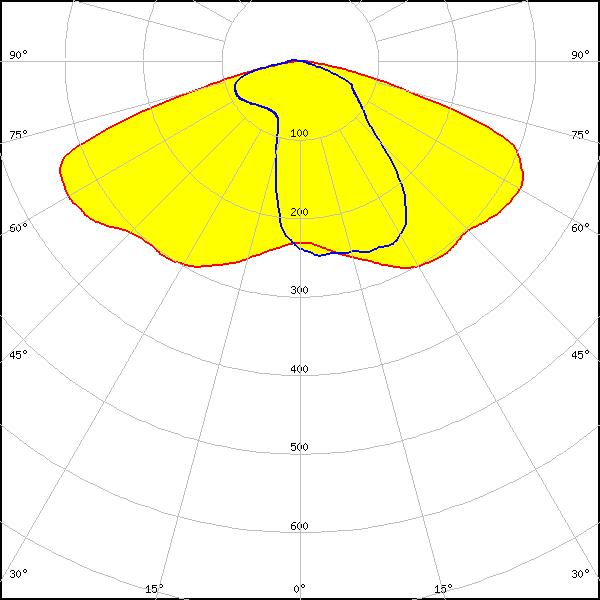

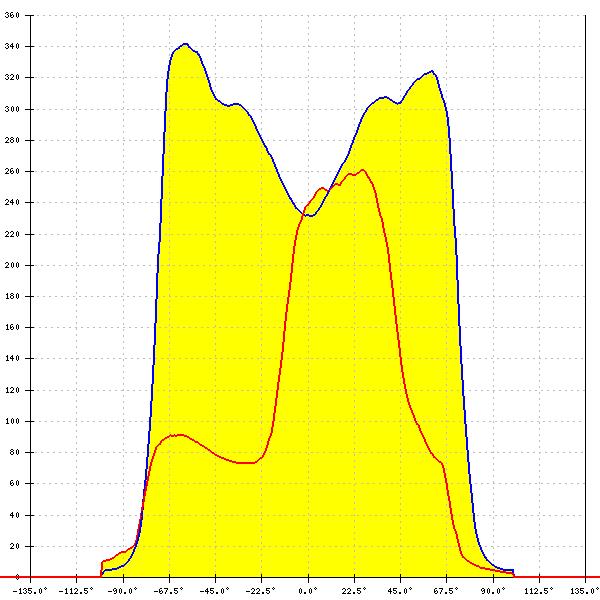

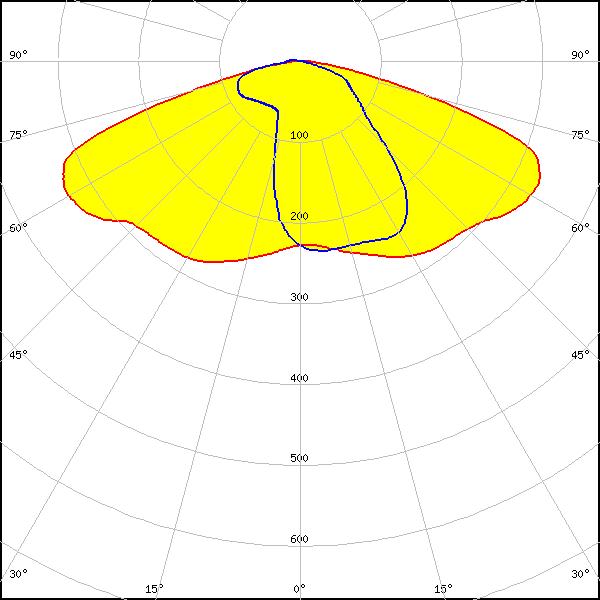

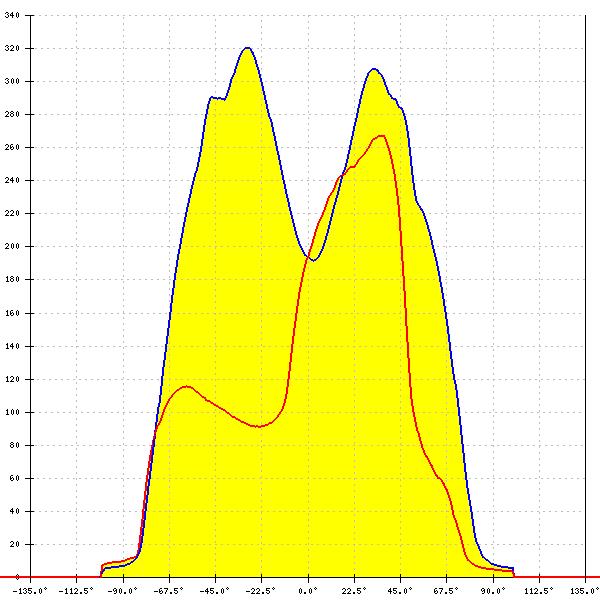

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity: 0.680 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 25xx
LES size: 19.0 mm
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

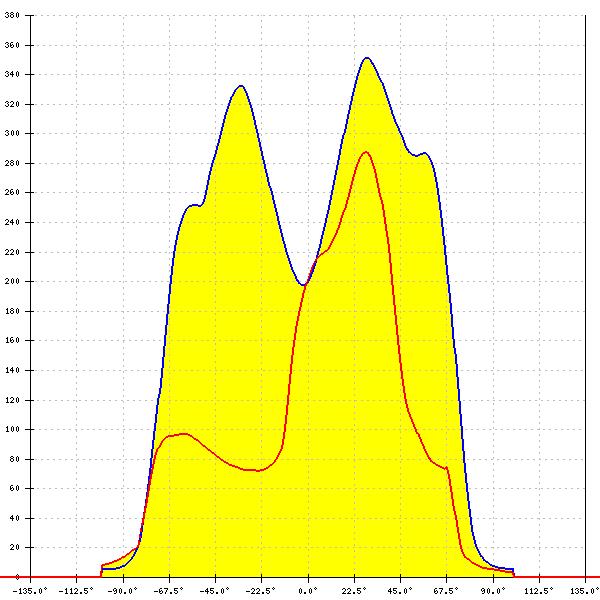

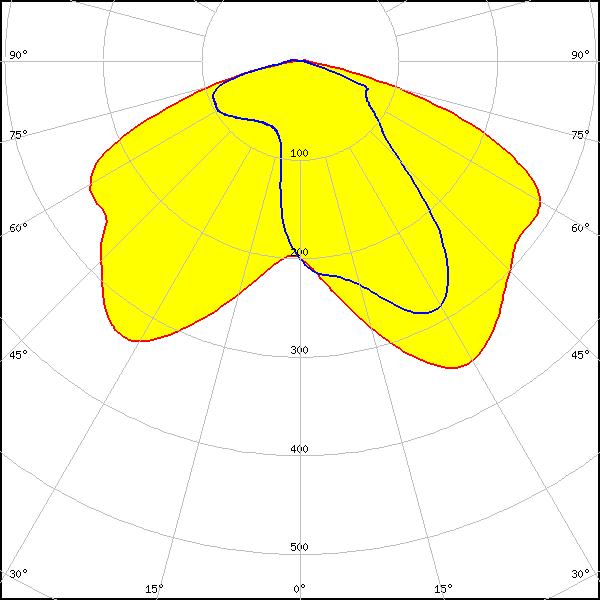

LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity: 0.920 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1208
LES size: 15.0 mm
FWHM: asymmetric
Peak intensity: 0.300 cd/lm
LEDs/each optic: 1
Light colour/type: White

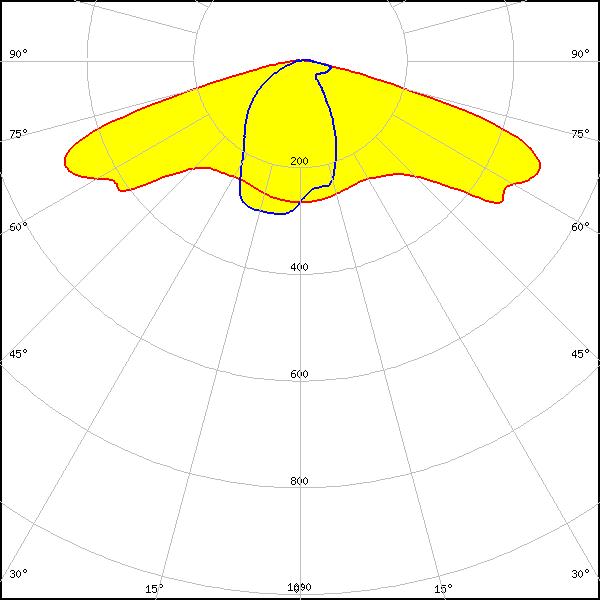

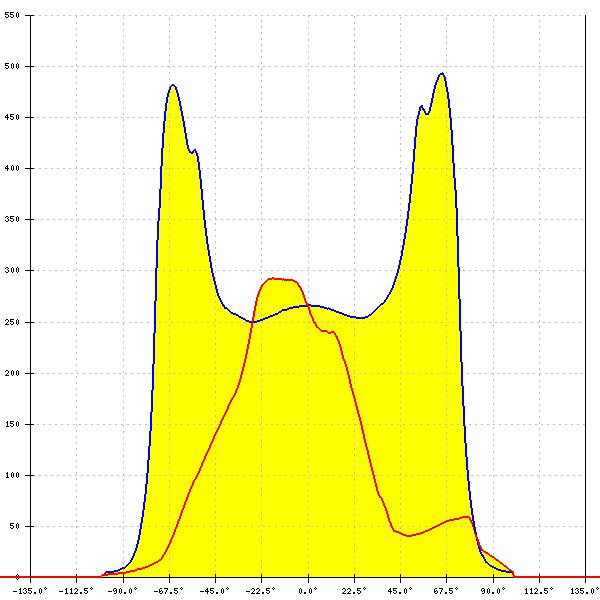

LED: COB J-Type
LES size: 14.6 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity: 0.710 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
Bender Wirth: 438 Typ L1
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

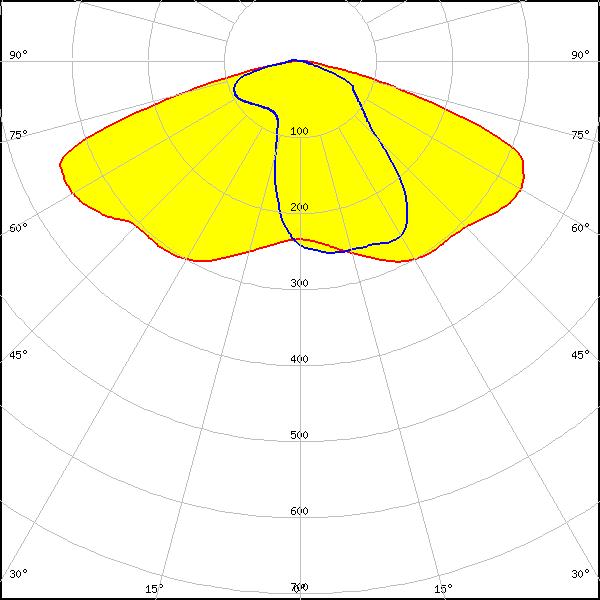

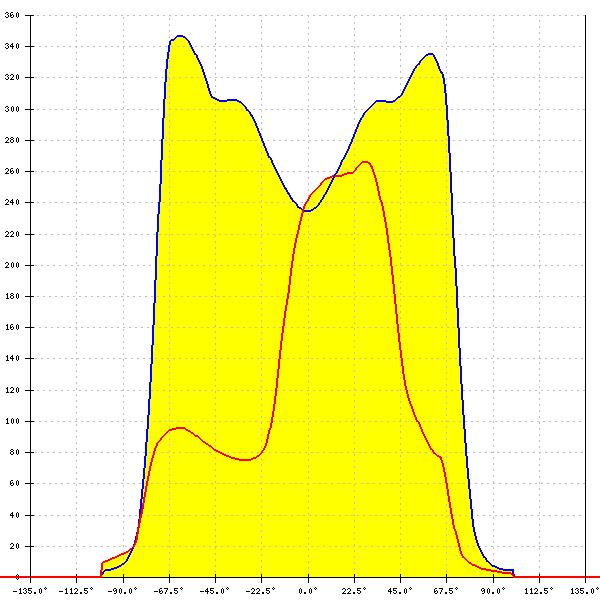

LED: Soleriq S13
LES size: 13.2 mm
Required components:
Bender Wirth: 437 Typ L1
FWHM: asymmetric
Peak intensity: 0.690 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S13
LES size: 13.2 mm
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S19
LES size: 17.9 mm
FWHM: asymmetric
LEDs/each optic: 1
Light colour/type: White

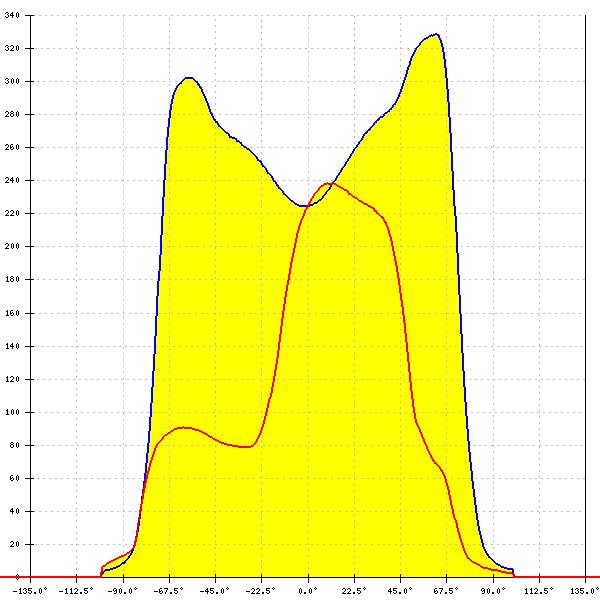

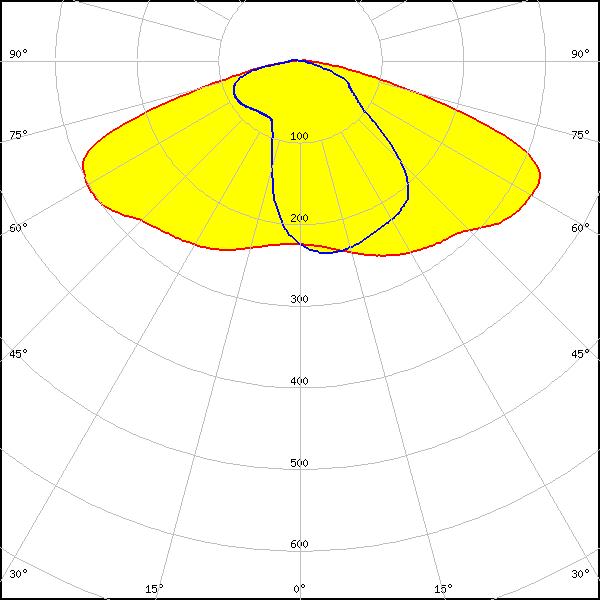

LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
