FN15188_STELLA-FRESNEL

Print

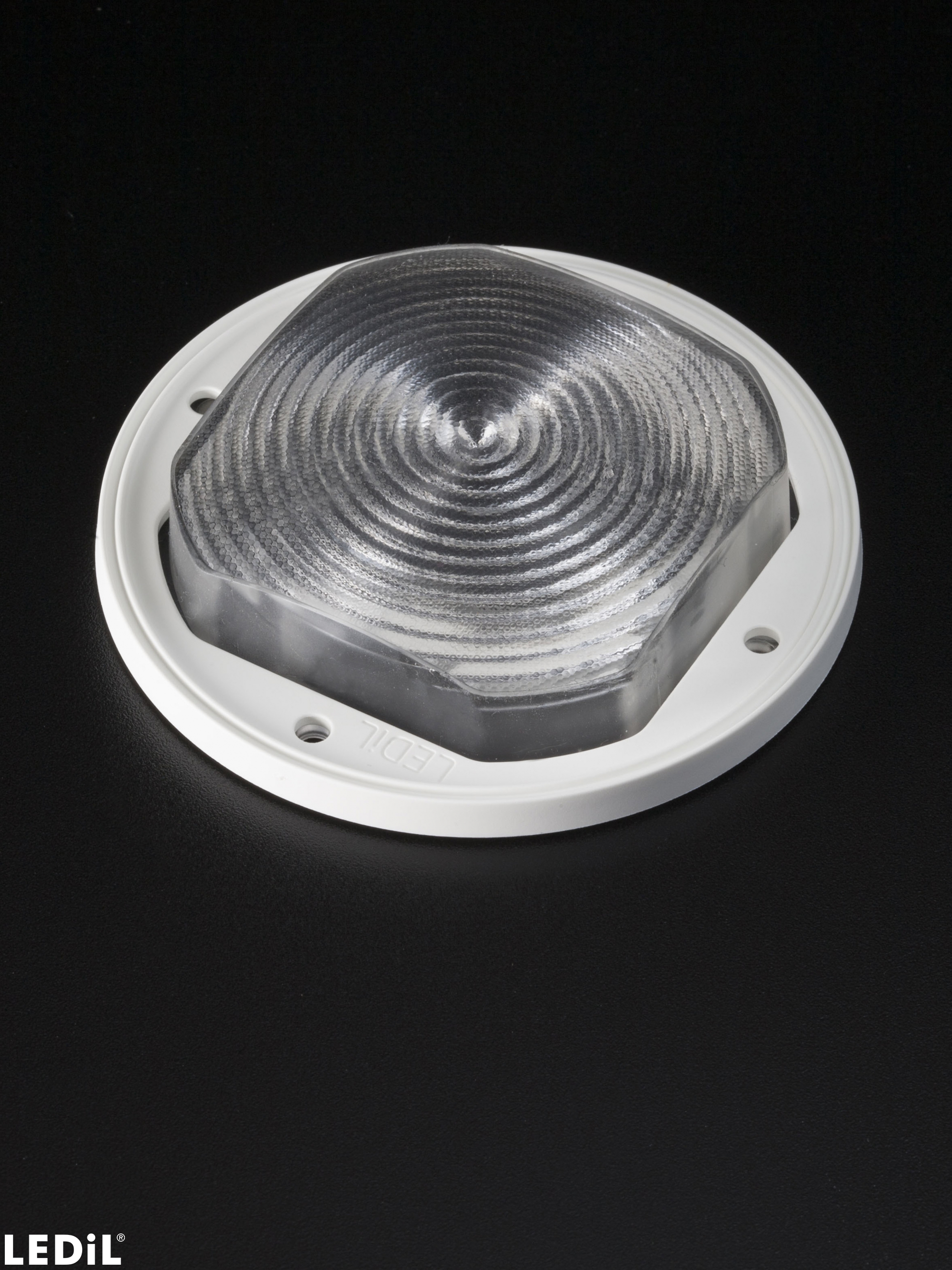

~25° street beam for warehouse and outdoor lighting. Compatible with up to 30 mm LES size COBs. Variant with white frame.

Specification
  • Dimensions:
    90 mm
  • Height:
    23.00 mm
  • Fastening:
    screw
  • Colour:
    white
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    135 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.1 kg
  • MPQ:
    15 pcs
  • MOQ:
    135 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    6.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FN15188_STELLA-FRESNEL

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: V10 Gen7
Required components:
Bender Wirth: 486 Typ L1
FWHM: 17°
FWTM: 31°
Peak intensity: 4.780 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: V18 Gen7
Required components:
BJB: 47.319.2350
FWHM: 26°
FWTM: 57°
Peak intensity: 1.970 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

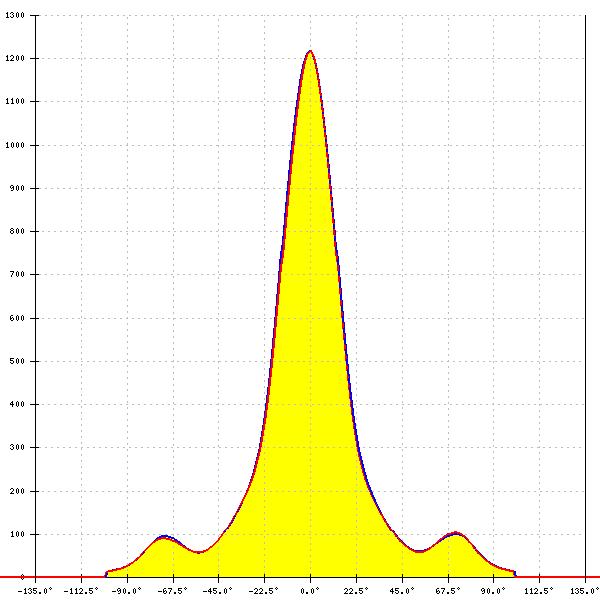

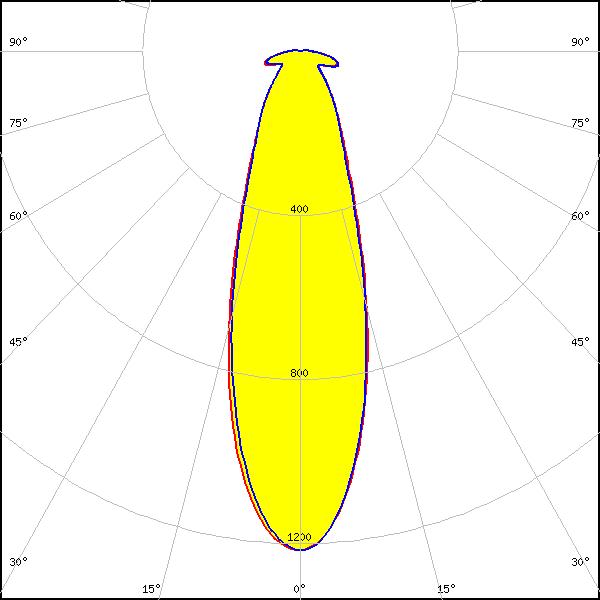

LED: V18 Gen7
Required components:
Bender Wirth: 439 Typ L3
FWHM: 32°
FWTM: 78°
Peak intensity: 1.200 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

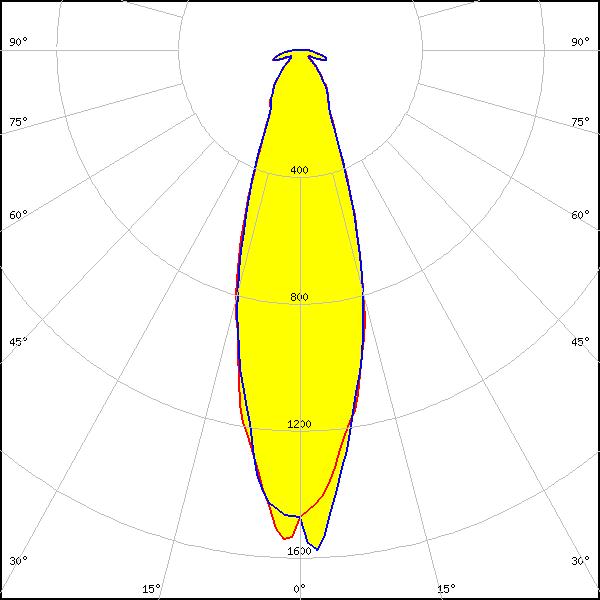

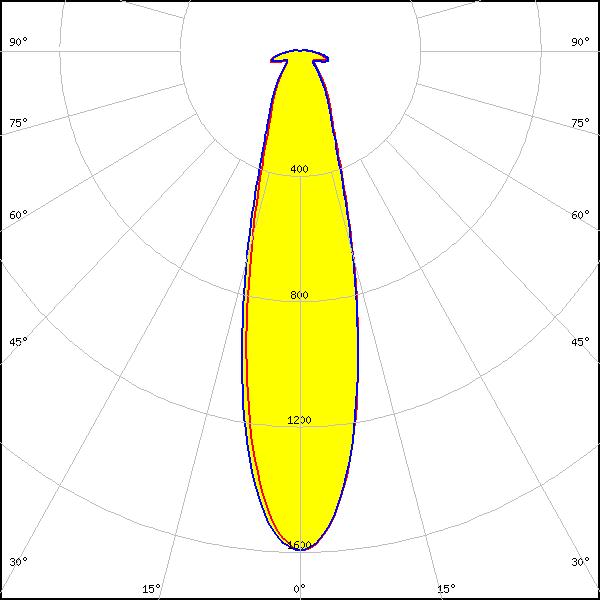

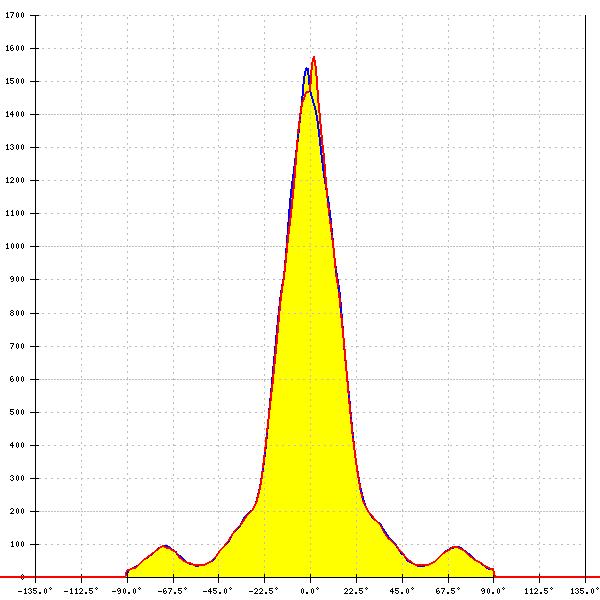

LED: V22 Gen7
Required components:
IDEAL: 50-2204CT
FWHM: 30°
FWTM: 70°
Peak intensity: 1.583 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

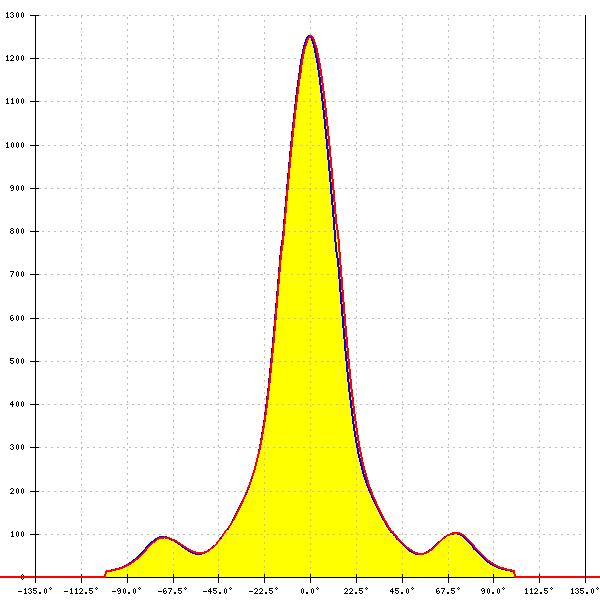

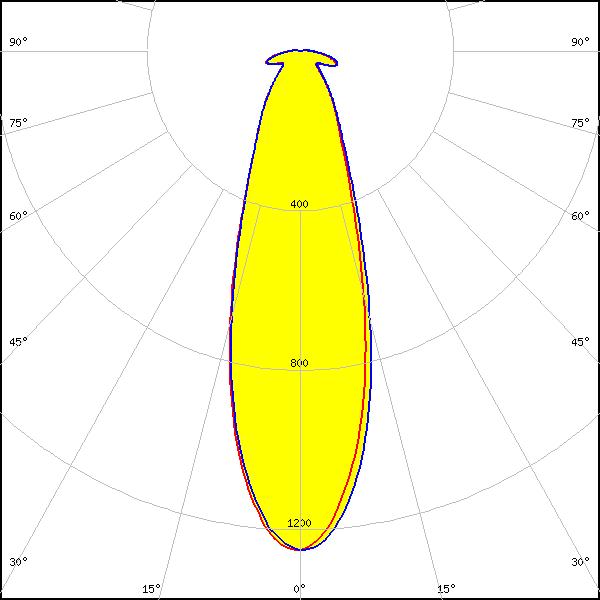

LED: Vero SE 18
FWHM: 32°
FWTM: 76°
Peak intensity: 1.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

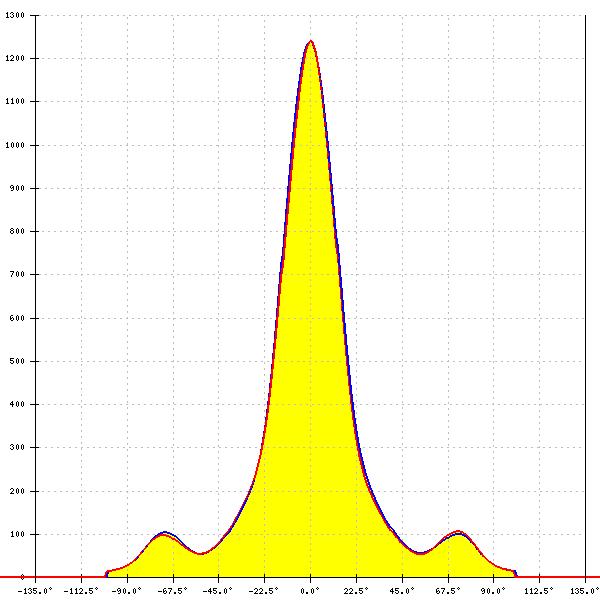

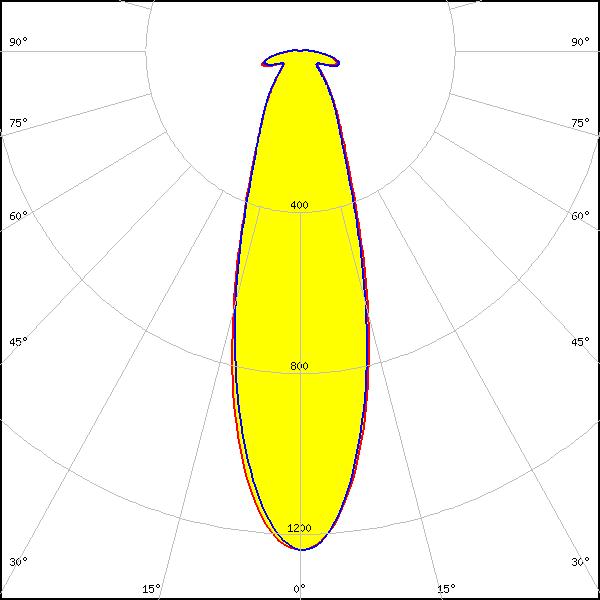

LED: VERO18
FWHM: 32°
FWTM: 76°
Peak intensity: 1.200 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
LEDs/each optic: 1
Light colour: White

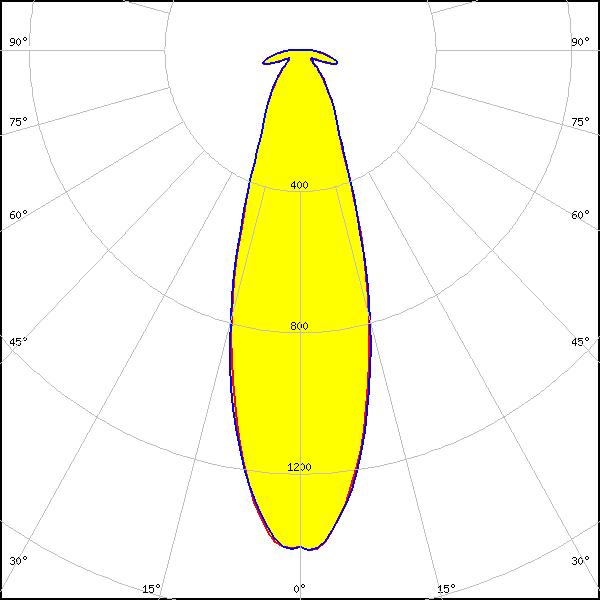

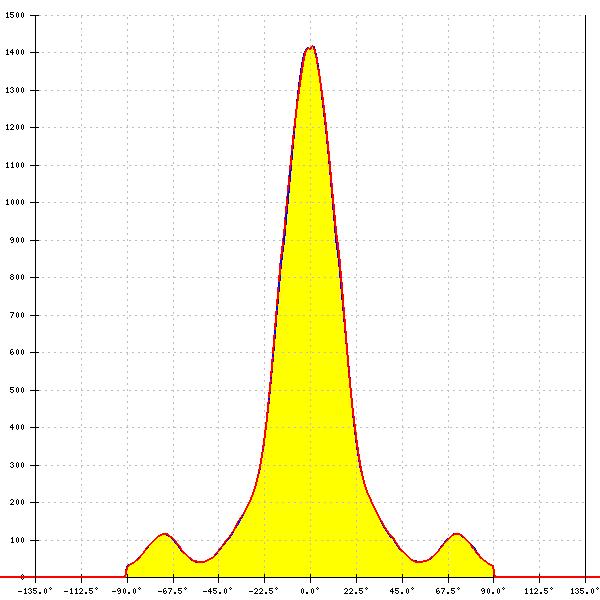

LED: CLL04x/CLU04x
FWHM: 36°
FWTM: 99°
Peak intensity: 1.100 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

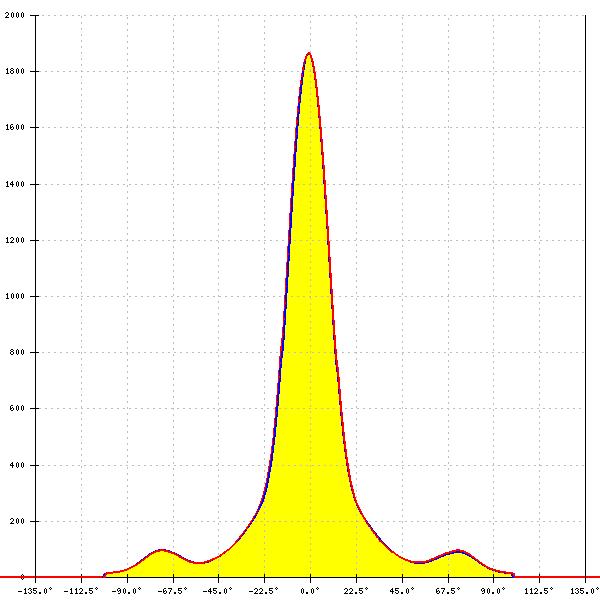

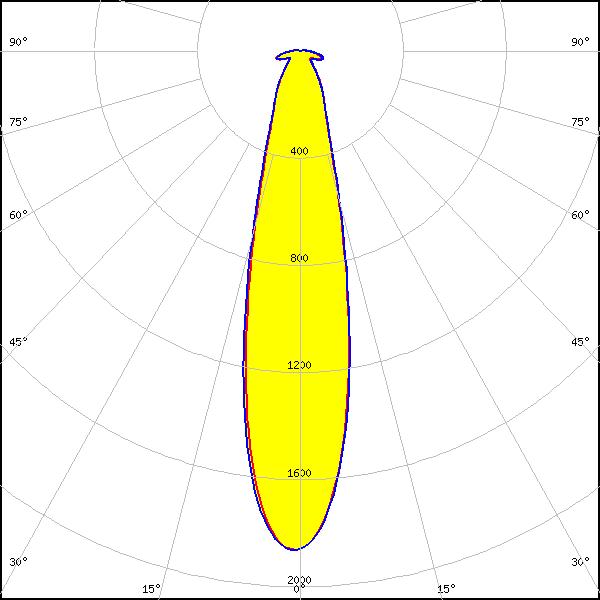

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
FWHM: 24°
FWTM: 59°
Peak intensity: 1.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

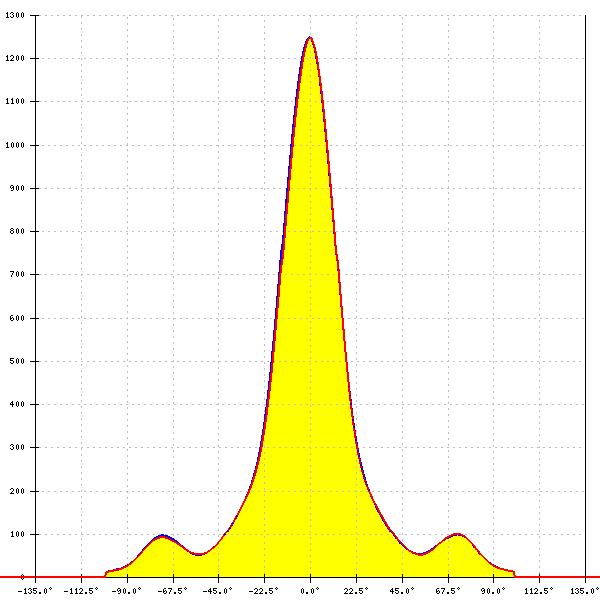

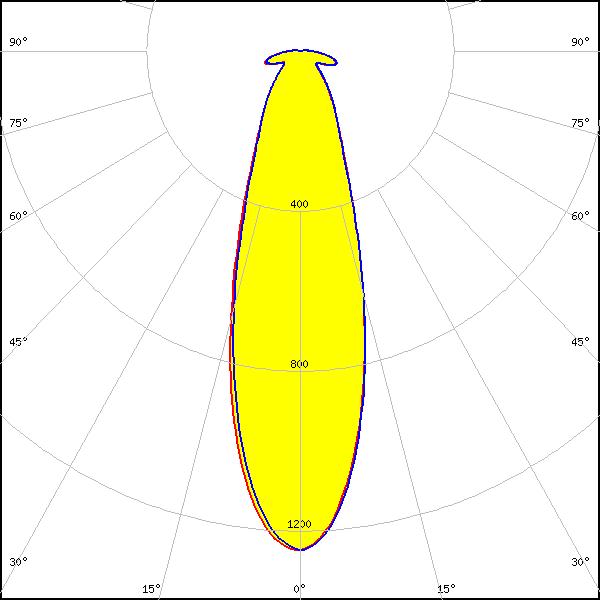

LED: CXA/B 25xx
FWHM: 31°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

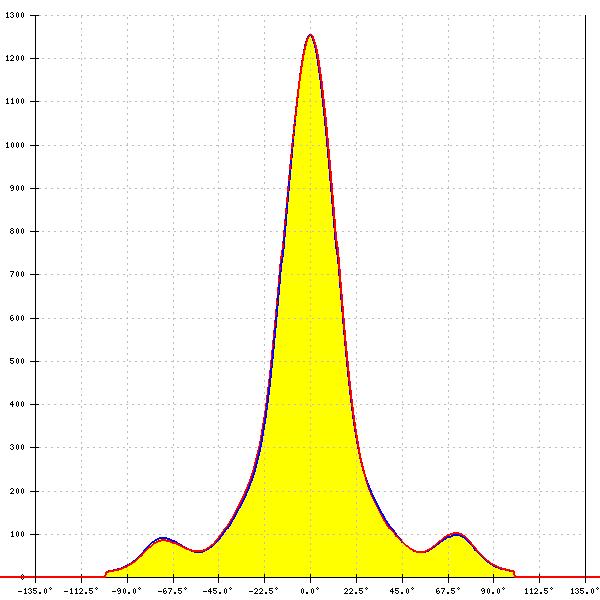

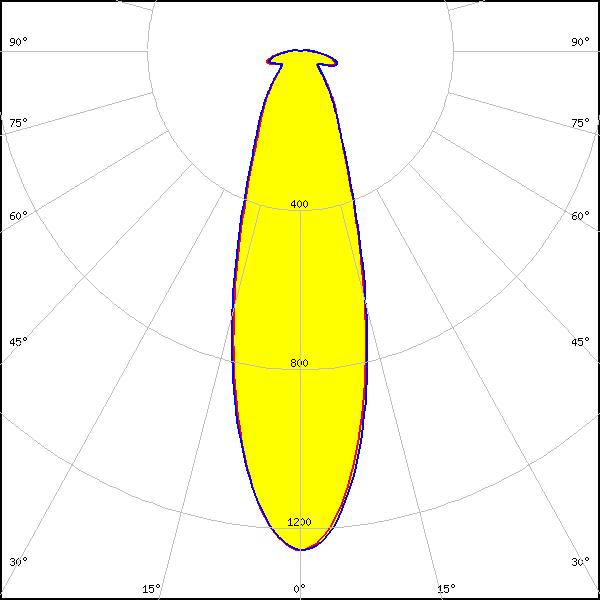

LED: CXA/B 25xx
Required components:
Bender Wirth: 439 Typ L3
FWHM: 32°
FWTM: 77°
Peak intensity: 1.300 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

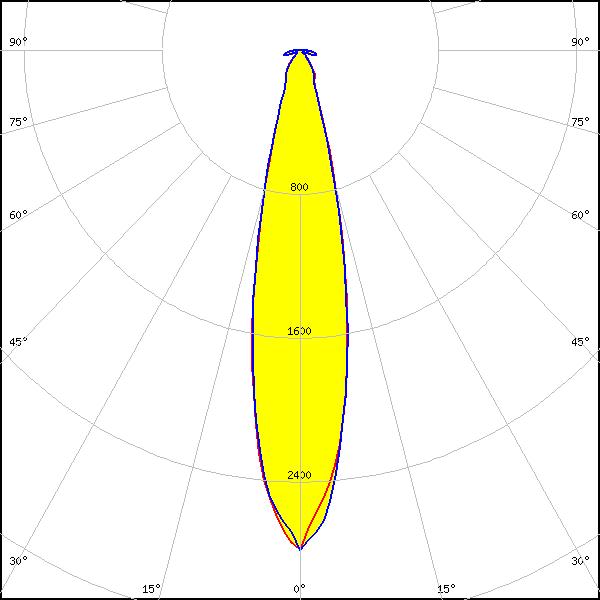

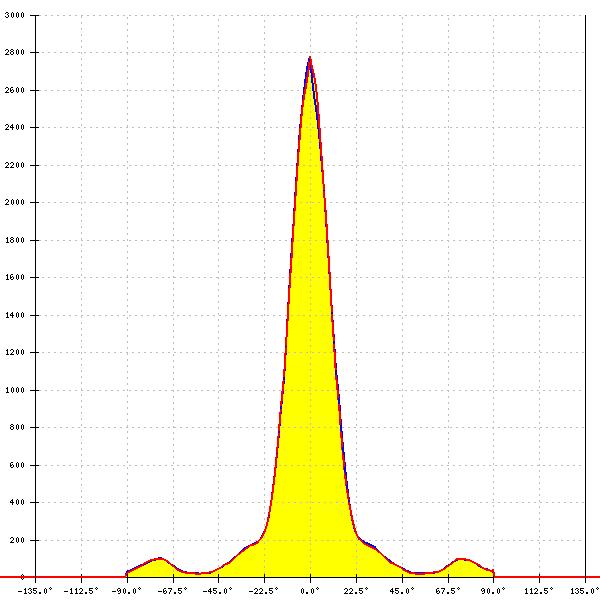

LED: LUXEON CoB 1208
FWHM: 22°
FWTM: 43°
Peak intensity: 2.800 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1216/1812
FWHM: 39°
FWTM: 86°
Peak intensity: 0.930 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

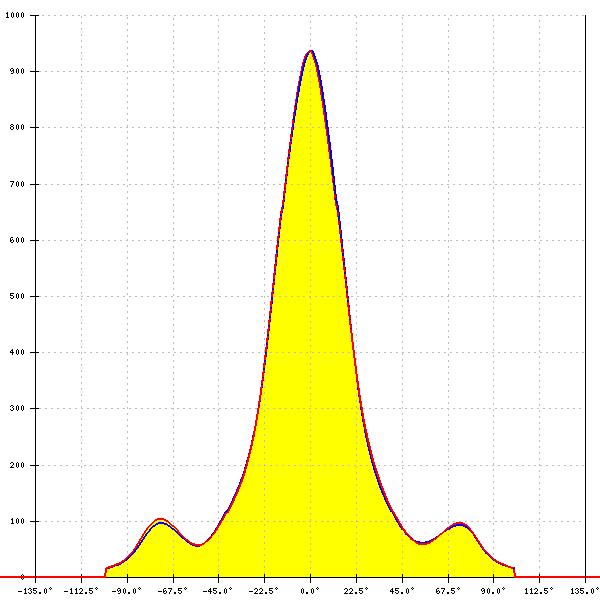

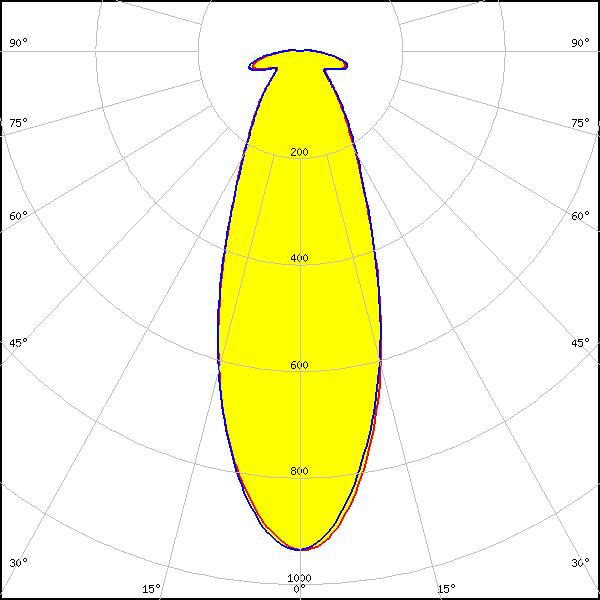

LED: CxM-22 (28x28)
Required components:
Bender Wirth: 431 Typ L3
FWHM: 39°
FWTM: 137°
Peak intensity: 0.940 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

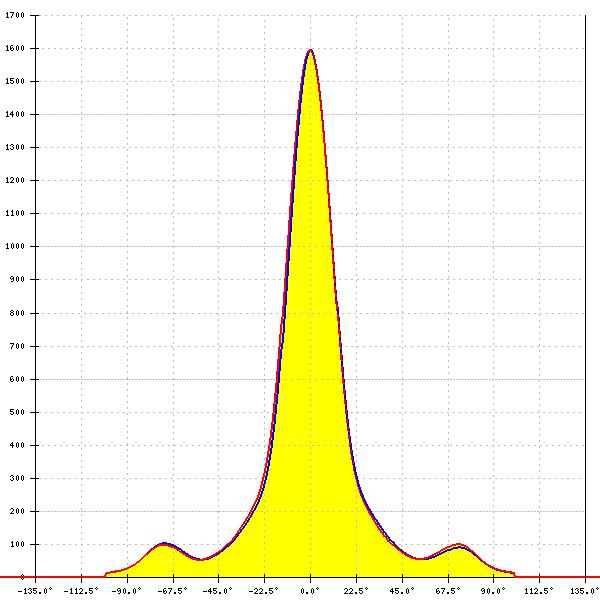

LED: COB J-Type
FWHM: 26°
FWTM: 66°
Peak intensity: 1.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

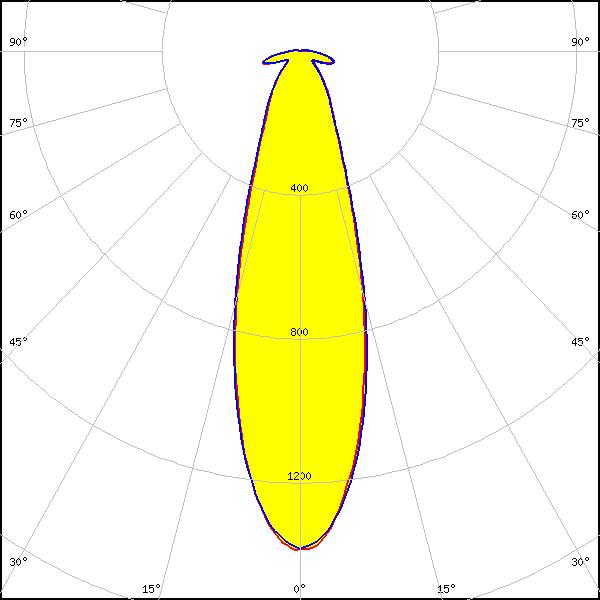

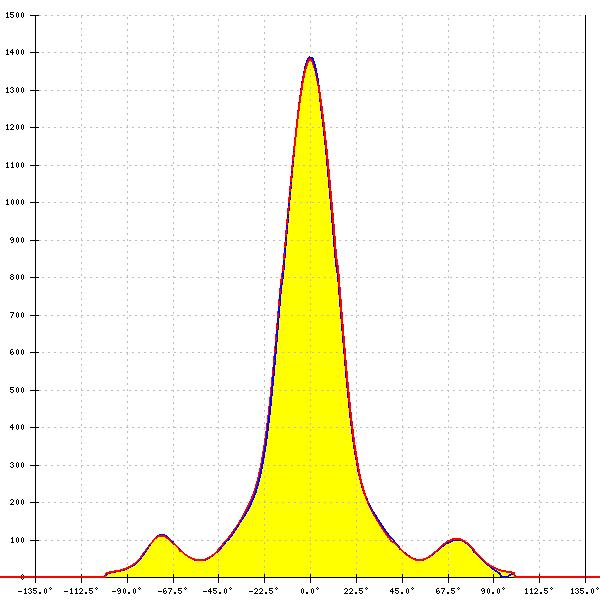

LED: Fortimo SLM L19 CoB
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 31°
FWTM: 71°
Peak intensity: 1.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

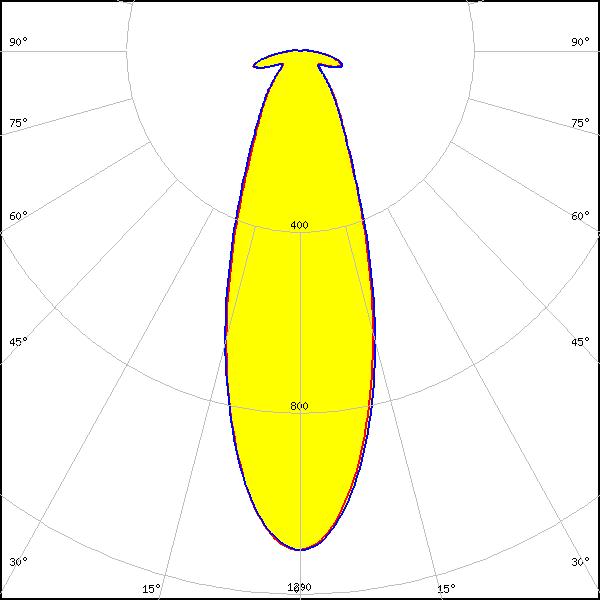

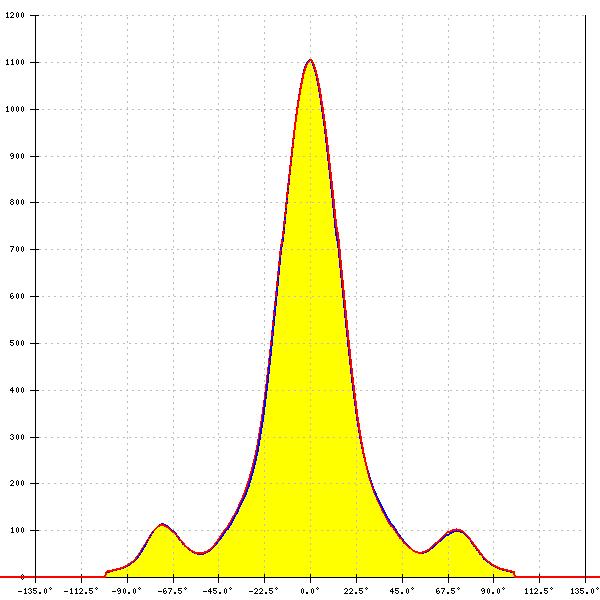

LED: Fortimo SLM L23 CoB
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 35°
FWTM: 114°
Peak intensity: 1.100 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
FWHM: 28°
FWTM: 67°
Peak intensity: 1.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

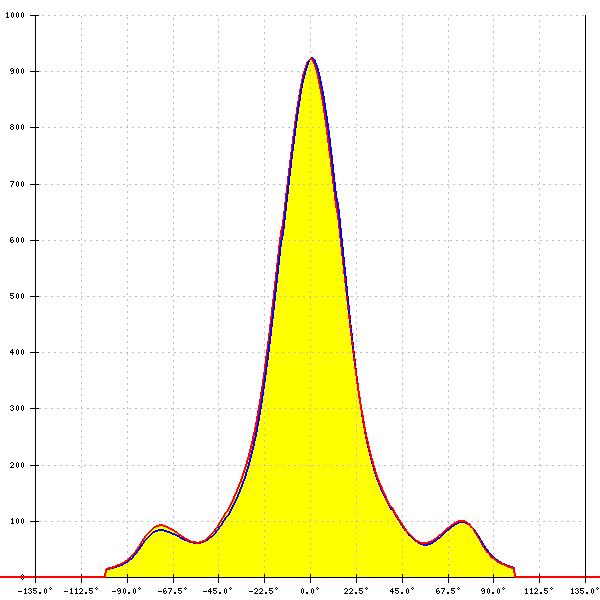

LED: LC040D / LC060D / LC080D
FWHM: 38°
FWTM: 122°
Peak intensity: 0.920 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

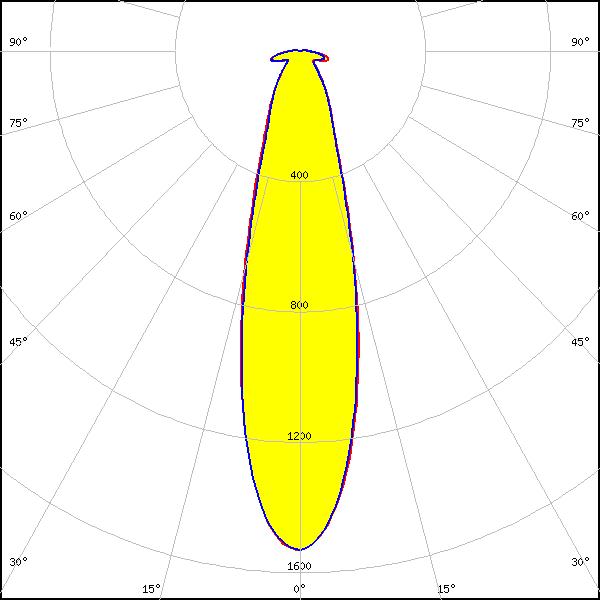

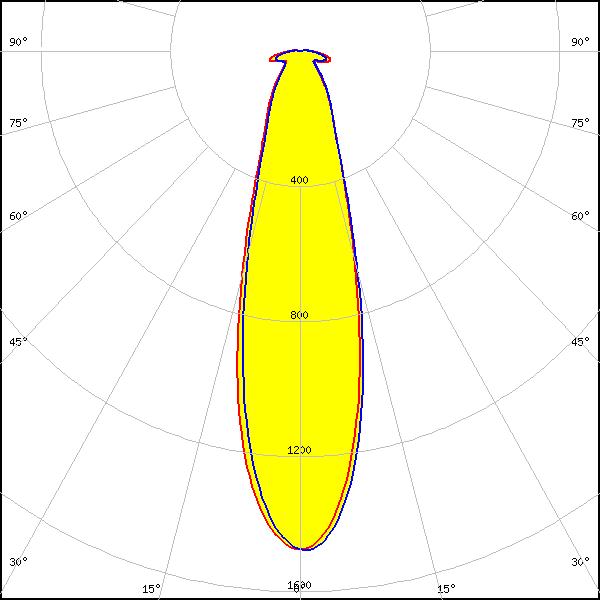

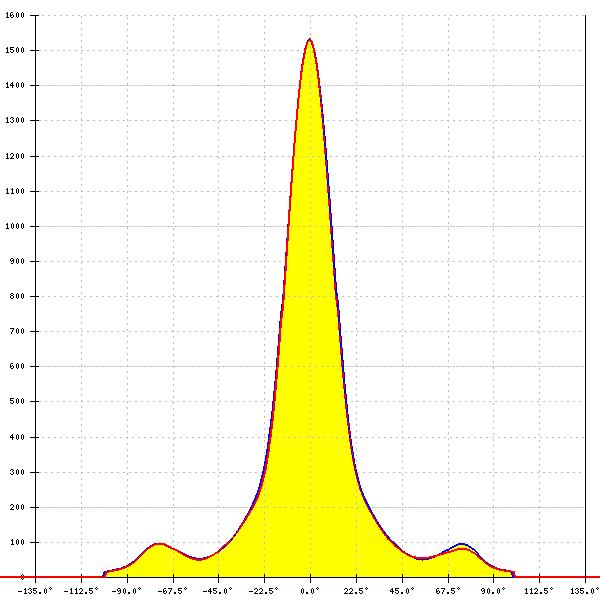

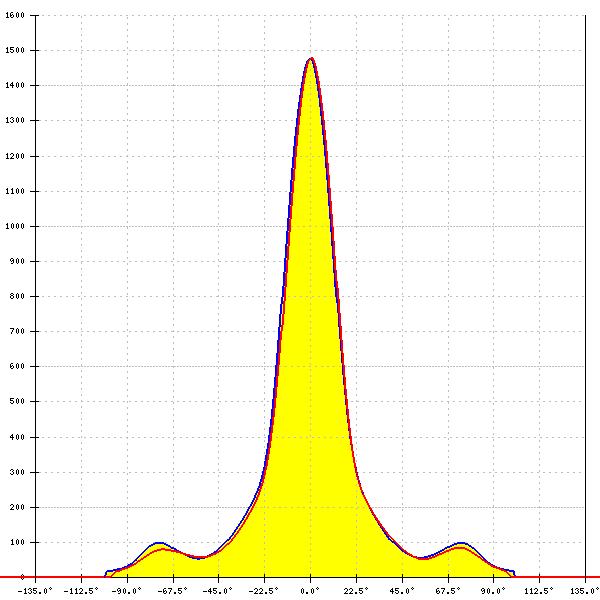

LED: MJT COB LES 14.5
Required components:
IDEAL: 50-2103CT
FWHM: 28°
FWTM: 68°
Peak intensity: 1.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

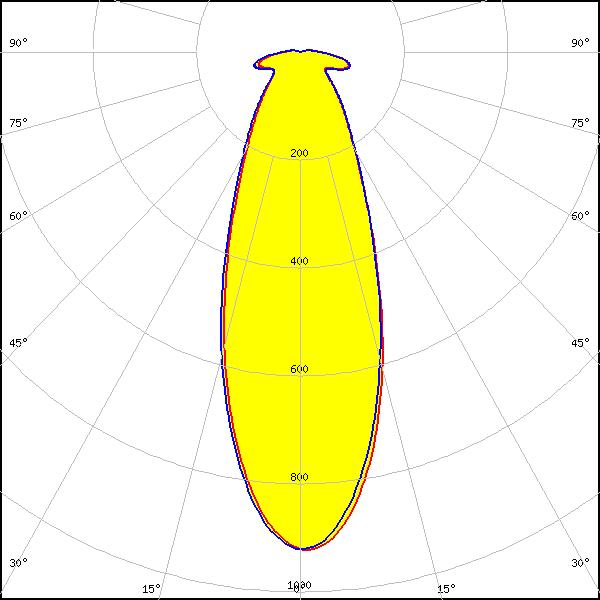

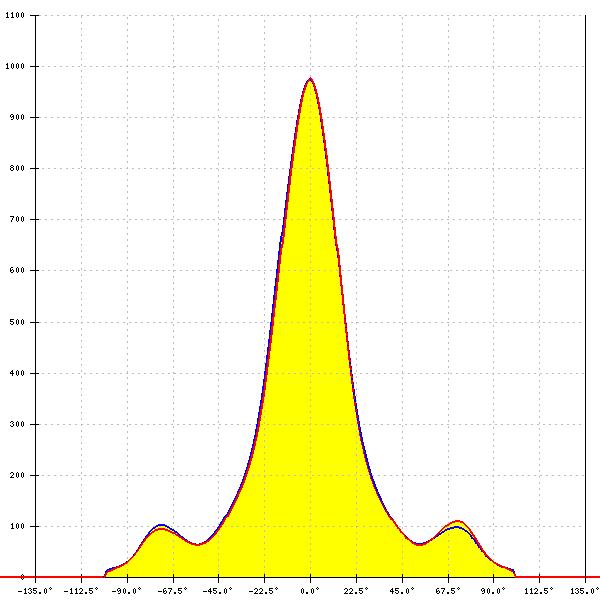

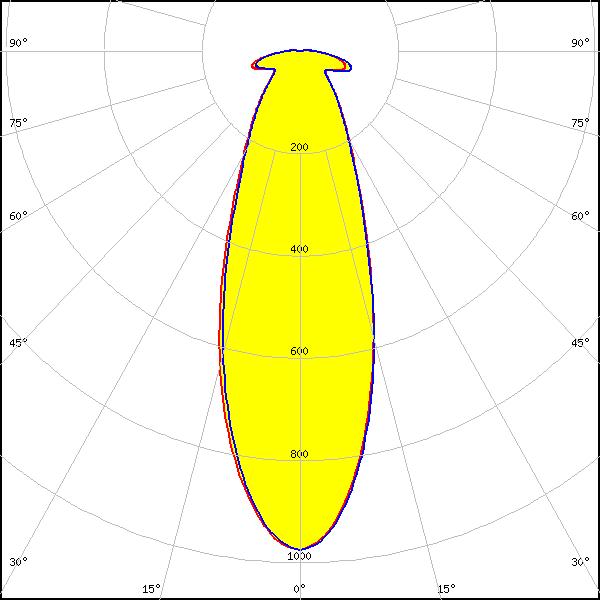

LED: MJT COB LES 22
Required components:
IDEAL: 50-2204CT
FWHM: 36°
FWTM: 120°
Peak intensity: 0.980 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
